USER MANUAL STC700 TECHNICS
Operating Instructions
Bedienungsanleitung
Mode d'emploi
Network Audio Player
Network Audio Player
Network Audio Speler
ST-C700D
Music is borderless and timeless,
touching people's hearts across cultures and generations.
Each day the discovery of a truly emotive experience
from an unencountered sound awaits.
Let us take you on your journey to rediscover music.
Rediscover Music
Technics
Thank you for purchasing this product.
Please read these instructions carefully before using this product, and save this manual for future use.
For the United Kingdom and Ireland customers
Customer Communications Centre
For customers within the UK: 0333 222 8777
For customers within Ireland: 01 447 5229
- Monday-Friday 9:00 am - 5:00 pm, (Excluding public holidays).
For further support on your product, please visit our website: www.technics.com/uk/
Features of this unit
This unit offers the following features:
Digital Noise Isolation Architecture
Since most digital content storage media are intended for use with PCs, they are not designed with consideration for low noise, which is critical to pure audio reproduction. To overcome this challenge, this unit employs a thorough measure against jitter and outstanding noise blocking technology for each of its interfaces, delivering clear sound.
Virtual Battery Operation
Virtual Battery Operation prevents power supply noise, a factor that causes "turbidity" in sound, from mixing into the audio signal.
The result is an improvement in sound localisation performance and spatial expression.
Ultra Low Distortion Oversampling Digital Filter
High-precision oversampling eliminates distortion and enhances the sound quality of music sources, thus reproducing sound rich with spatial expression.
Recommended devices
We recommend using Technics devices (optional) for superior audio quality.
| Product name Model number | |
| Speaker System SB-C700 | |
| Compact Disc Player SL-C700 | |
| Stereo Integrated Amplifier SU-C700 | |
Safety precautions
WARNING
Unit
To reduce the risk of fire, electric shock or product damage,
- Do not expose this unit to rain, moisture, dripping or splashing.
- Do not place objects filled with liquids, such as vases, on this unit.
- Use only the recommended accessories.
-Do not remove covers.
- Do not repair this unit by yourself. Refer servicing to qualified service personnel.
- Do not let metal objects fall inside this unit.
- Do not place heavy items on this unit.
AC mains lead
To reduce the risk of fire, electric shock or product damage,
- Ensure that the power supply voltage corresponds to the voltage printed on this unit.
- Insert the mains plug fully into the socket outlet.
- Do not pull, bend, or place heavy items on the lead.
-Do not handle the plug with wet hands
- Hold onto the mains plug body when disconnecting the plug.
- Do not use a damaged mains plug or socket outlet.
- The mains plug is the disconnecting device.
Install this unit so that the mains plug can be unplugged from the socket outlet immediately.
CAUTION
Unit
- Do not place sources of naked flames, such as lighted candles, on this unit.
- This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
This unit is intended for use in moderate and tropical climates.
Placement
-
Place this unit on an even surface.
To reduce the risk of fire, electric shock or product damage,
-
Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
- Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
- Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.
Do not lift or carry this unit by holding any of its levers. Doing so may cause this unit to fall, resulting in personal injury or malfunction of this unit.
Battery
- Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
-
Mishandling of batteries can cause electrolyte leakage and may cause a fire.
-
Remove the battery if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.
- Do not heat or expose to flame.
- Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
- Do not take apart or short circuit.
- Do not recharge alkaline or manganese batteries.
- Do not use batteries if the covering has been peeled off.
- Do not mix old and new batteries or different types at the same time.
- When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
Caution for AC Mains Lead
(For the AC mains plug of three pins)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for your safety and convenience.
A 10-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 10-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark 念 or the BSI mark on the body of the fuse.
If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.
- Open the fuse cover with a screwdriver.
- Replace the fuse and close or attach the fuse cover.
C
Hereby, "Panasonic Corporation" declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Customers can download a copy of the original DoC to our R&TTE products from our DoC server:
http://www.doc.panasonic.de
Contact to Authorised Representative:
Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 15, 22525 Hamburg, Germany
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
Note for the battery symbol (bottom symbol): This symbol might be used in combination with a
chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
Table of contents
Safety precautions 5
Accessories 6
Control reference guide. 7
Getting started. 9
HOME menu and basic operations. 11
Network settings 12
Playing back music files on the DLNA server 13

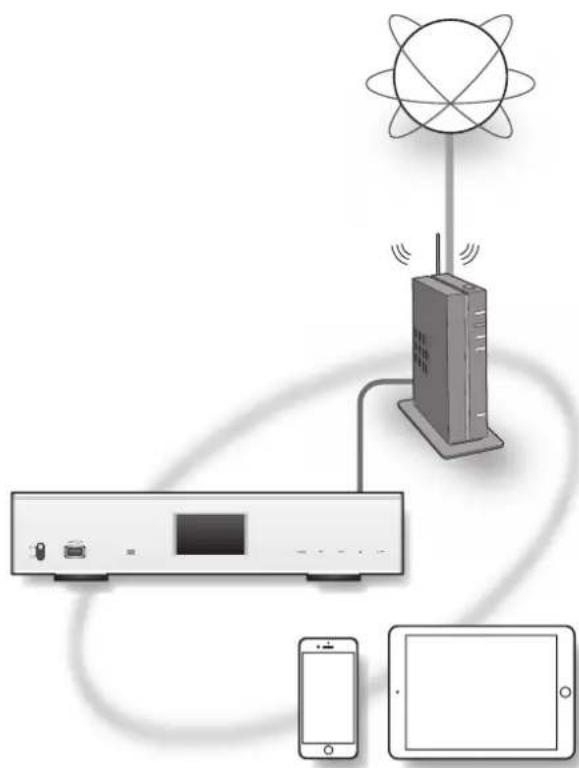

Playing back Internet Radio (vTuner) 14

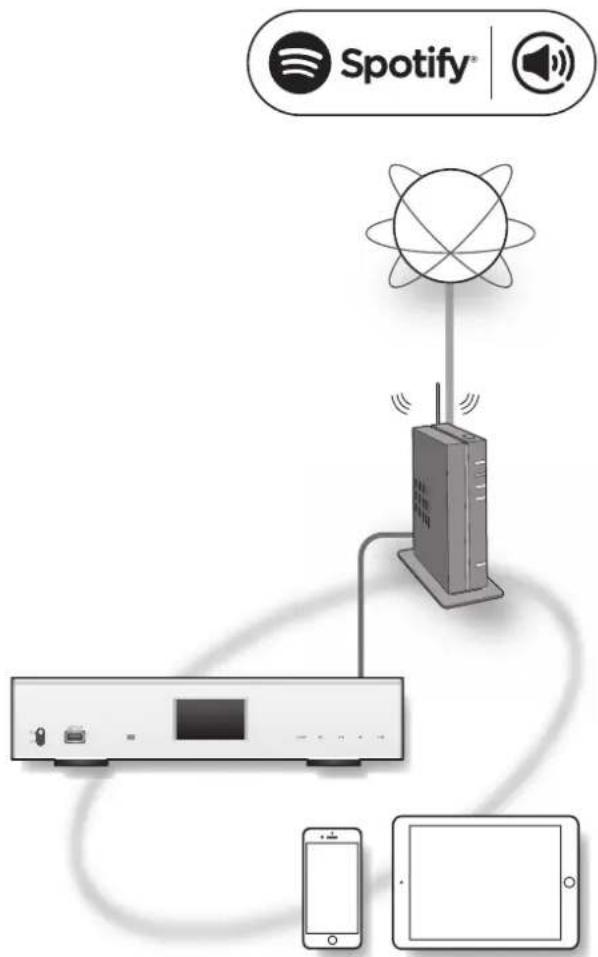

Using Spotify 16
Using iPhone/iPad/iPod 17
Using AirPlay 18
Using USB device. 18
Using PC, etc. 20
Using Bluetooth 21
Listening to FM radio 23
Listening to DAB/DAB+ 24
Sound adjustment 25
Others 26
Troubleshooting 29
Unit care 32
Specifications 33
To dispose or transfer this unit
This unit may contain private information. Before disposing of or transferring this unit, perform the following to delete the data, including personal or secret information.
-To return all settings to the factory defaults" ( 29)
About descriptions in these operating instructions
Pages to be referred to are indicated as ○○
The illustrations shown may differ from your unit.
- Unless otherwise indicated, operations are described using the remote control.
Accessories
1 AC mains lead
For the United Kingdom and Ireland
(REQ0456)
1 System connection cable (K2KYYYY00233)
1 Remote control (N2QAYA000096)
For Continental Europe
(K2CQ2YY00127)
1 Coaxial digital cable (K2KYYYYY00251)
2 Batteries for remote control
- Product numbers provided in these operating instructions are correct as of September 2016. These may be subject to change.
- Do not use AC mains lead with other equipment.

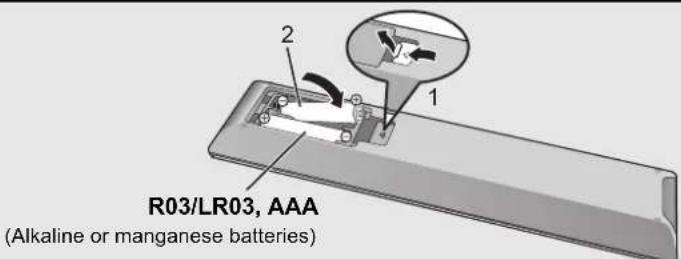

Using the remote control
Insert the battery so the terminals (+ and -) match those in the remote control.
Point it at the remote control signal sensor on this unit. ( 7)
- Keep the batteries out of reach of children to prevent swallowing.
Control reference guide
This unit

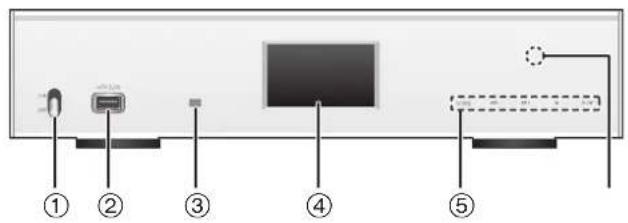

Front
① Power switch lever [O// (Standby/on)]/[OFF]
Turn on/off this unit.
- The remote control do not operate when the power switch lever is in the lowered position.
- You can switch the unit from on to standby mode or vice versa when the power switch lever is in the raised position. (⇒ 8)

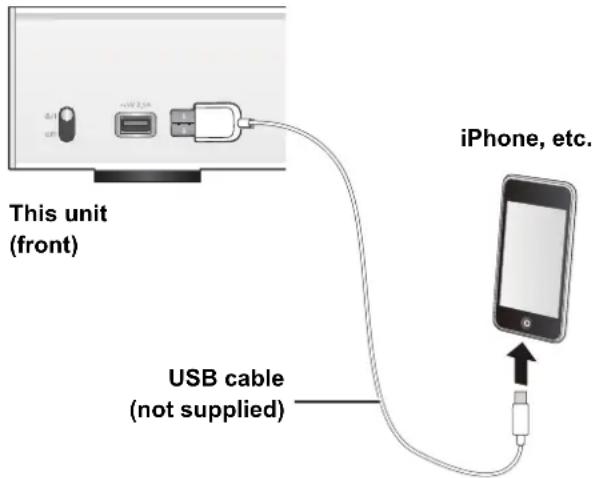

② Port for iPhone/iPad/iPod and USB devices (= DC5V2.1A) ( 17,18)
忍 Remote control signal sensor Distance: Within approx. 7m directly in front Angle: Approx. 30^ left and right
④ Display
The input source, playback status and other information are displayed. For more details, check the support site below as well as these operating instructions. www.technics.com/support/
⑤ Basic control switches
These switches work just by touching the marks. Each time you touch the switch, there will be a beep sound. ( 11)
- When playback information is not shown on the display (except in NFC registration standby mode ( 21) ), you can perform the following operations on the touch panel:
| ← | ▲ | (Up) |
| → | ▼ | (Down) |
| OK (OK) | | |
| RETURN (Return) | | |
| HOME (Touch and hold) | MENU (Enter menu) | |
⑥ NFC touch area ( 21)
The NFC touch area sheet is attached to this area at the time of purchase.

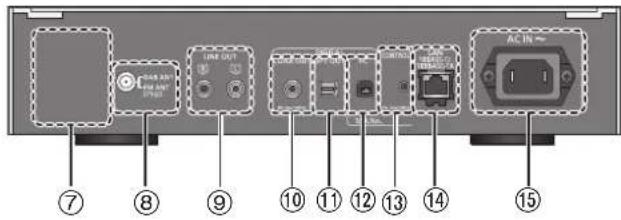

Rear
Product identification marking The model number is indicated.
⑥ DAB/FM terminal (⇒ 10)
Analogue audio output terminal [LINE OUT] ( 9)
Digital audio output terminal [COAX OUT] (⇒ 9)
① Digital audio output terminal [OPT OUT] (⇒ 9)

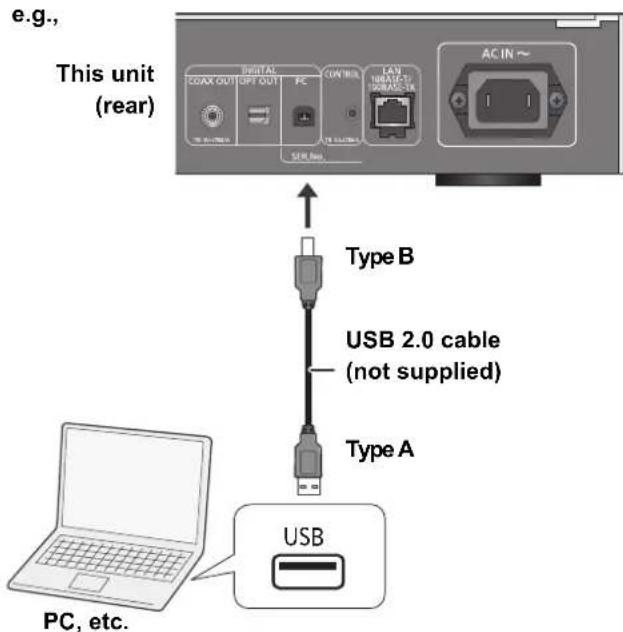

② Digital audio input terminal [PC] ( 20) For connecting to a PC, etc.
③ System terminal [CONTROL] (⇒ 9)

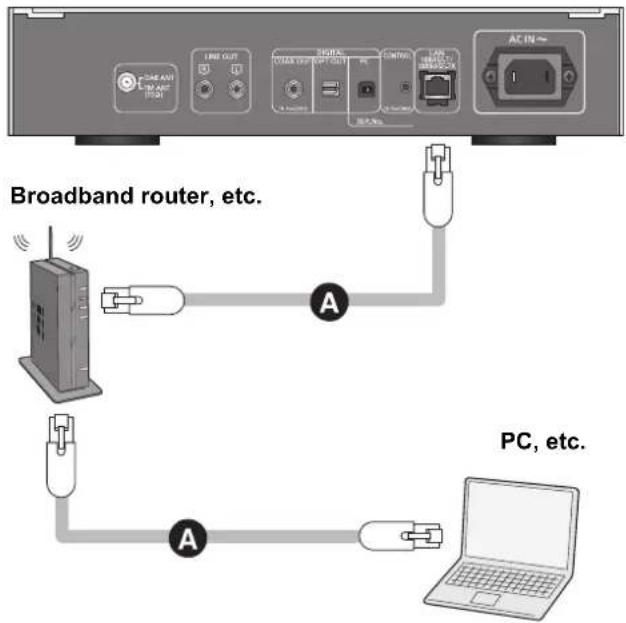

14 LAN port [LAN] ( 12)
⑤ AC IN terminal [AC IN ~] (~) (⇒ 10)
Class II equipment (The construction of the product is double-insulated.)

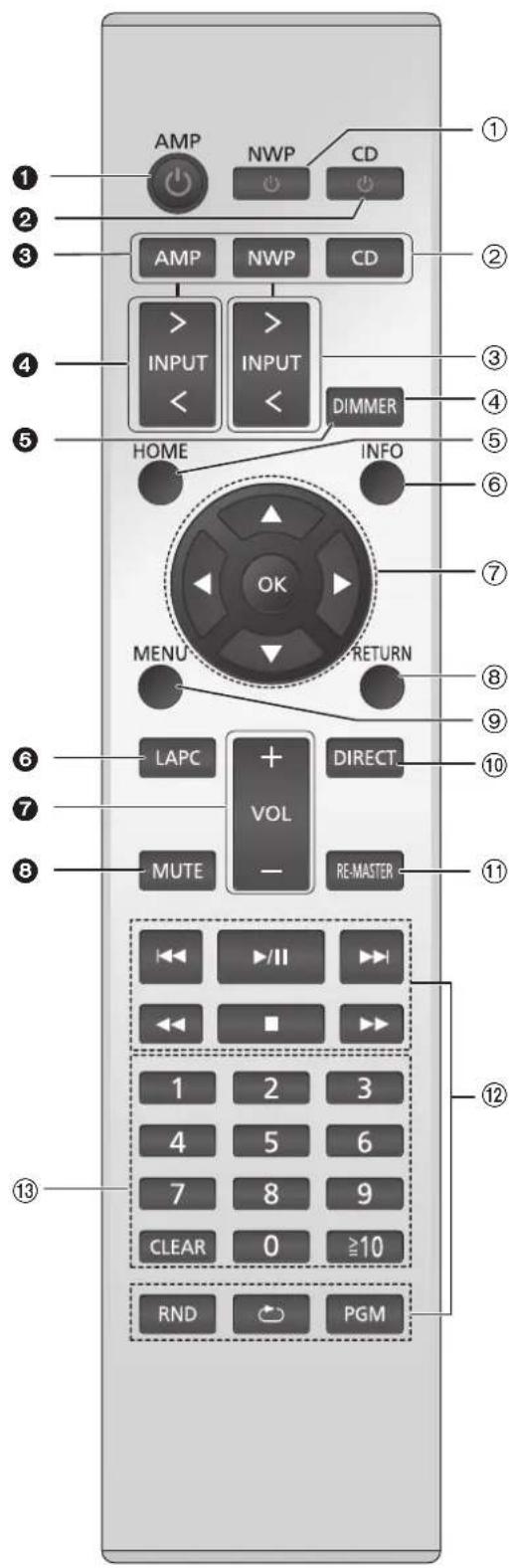

Remote control
① [NWP]: Standby/on switch
Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.
- The remote control do not operate when the power switch lever is in the lowered position.
[AMP]/[NWP]/[CD]: Select the device to be operated
③ [>INPUT <]: Select the input source
(4) [DIMMER]: Adjust the brightness of the display, etc. (⇒ 11)
[HOME]: Display HOME menu (⇒ 11)
[INFO]: View content information
Press this button to display the track, artist, and album names, file type, sampling frequency, and other information.
⑦ [▲,▼,▲,▶]/[OK]: Selection/OK
[RETURN]: Return to the previous display
[MENU]: Enter menu (→ 21, 22, 23, 24, 26)
[DIRECT]: Turn on/off Direct mode ( 25)
[RE-MASTER]: Turn on/off Re-master (⇒ 25)
Basic playback control buttons
13 Numeric buttons, etc.
To select a 2-digit number
Example:
16: [≥10] → [1] → [6]
To select a 4-digit number
Example:
1234: [≥ 10] [≥ 10] [≥ 10] [1] [2] [3] [4]
- [CLEAR]: Clear the entered value.
The remote control of this unit also works for the
SU-C700/SL-C700
For information on the operations of the SU-C700/SL-C700, please also refer to their operating instructions.
1 Standby/on switch for the SU-C700
2 Standby/on switch for theSL-C700
3 Select the device to be operated
4 Select the input source of the SU-C700
Adjust the brightness of the display, etc.
Measure the characteristics of the amplifier and correct its output
7 Adjust the volume
Mute the sound
Getting started
- Turn off all equipment before connection and read the appropriate operating instructions.
- Do not connect the AC mains lead until all other connections are complete.
- Insert the plugs of the cables to be connected all the way in.
- Do not bend cables at sharp angles.

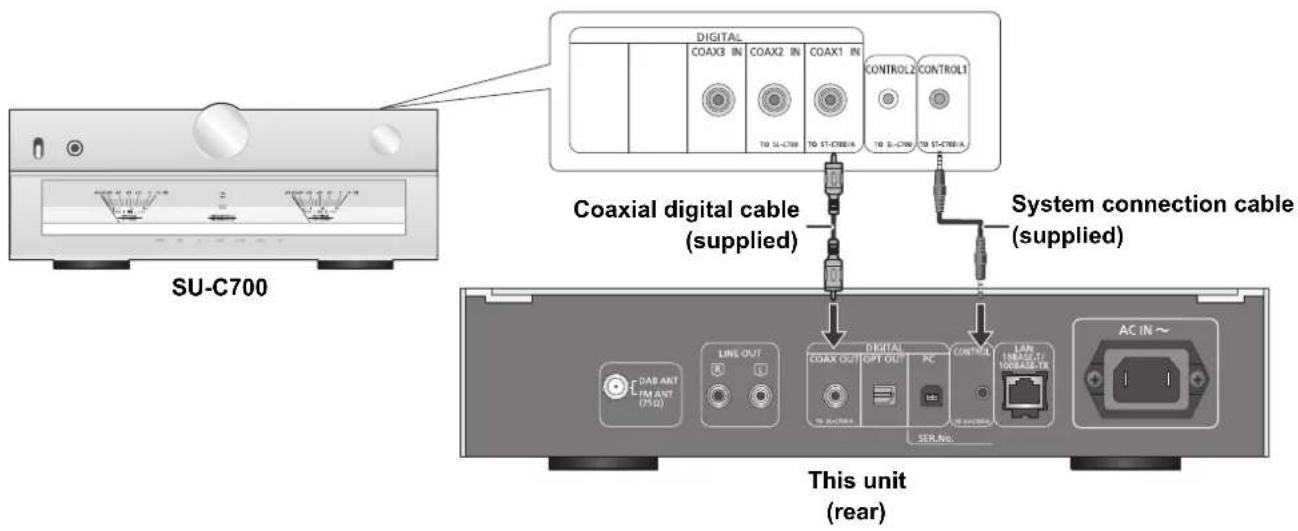

System control connection to an SU-C700
- You can output digital audio signals from this unit and play back music.
- You can automatically link this unit with the SU-C700 and operate them easily with the remote control. (⇒ 28)
#
- Do not use any other system connection cables or coaxial digital cables except the supplied one.
- Connect the system connection cable to the system terminal [CONTROL1] of the SU-C700.
- Connect the coaxial digital cable to the digital audio input terminal [COAX1 IN] of the SU-C700.

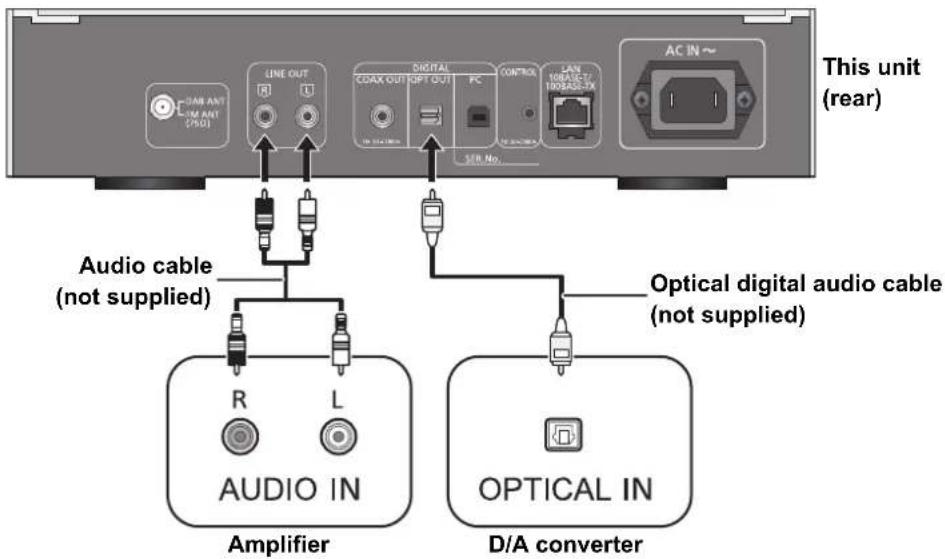

Connecting to an amplifier and a D/A converter
You can output analogue or digital audio signals from this unit and play back music files.
e.g.,

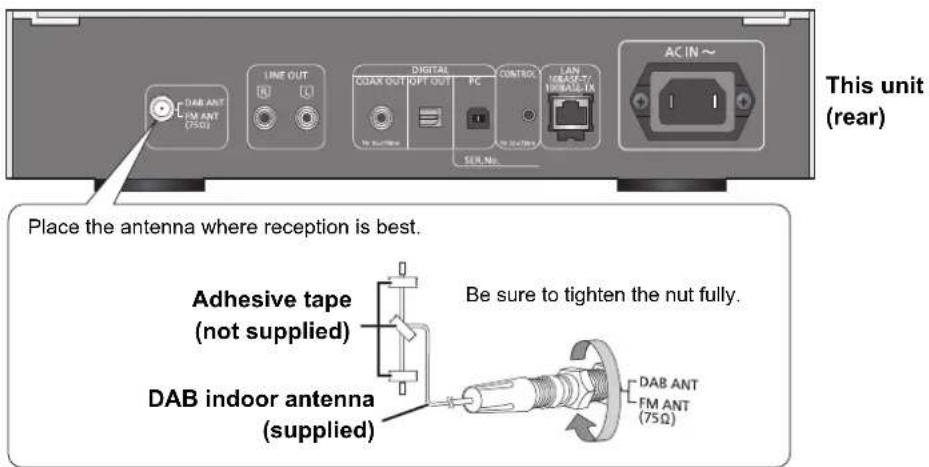

Antenna connection
If radio reception is poor, use a DAB outdoor antenna (not supplied).
- Do not use any other indoor antennas except the supplied DAB indoor antenna.

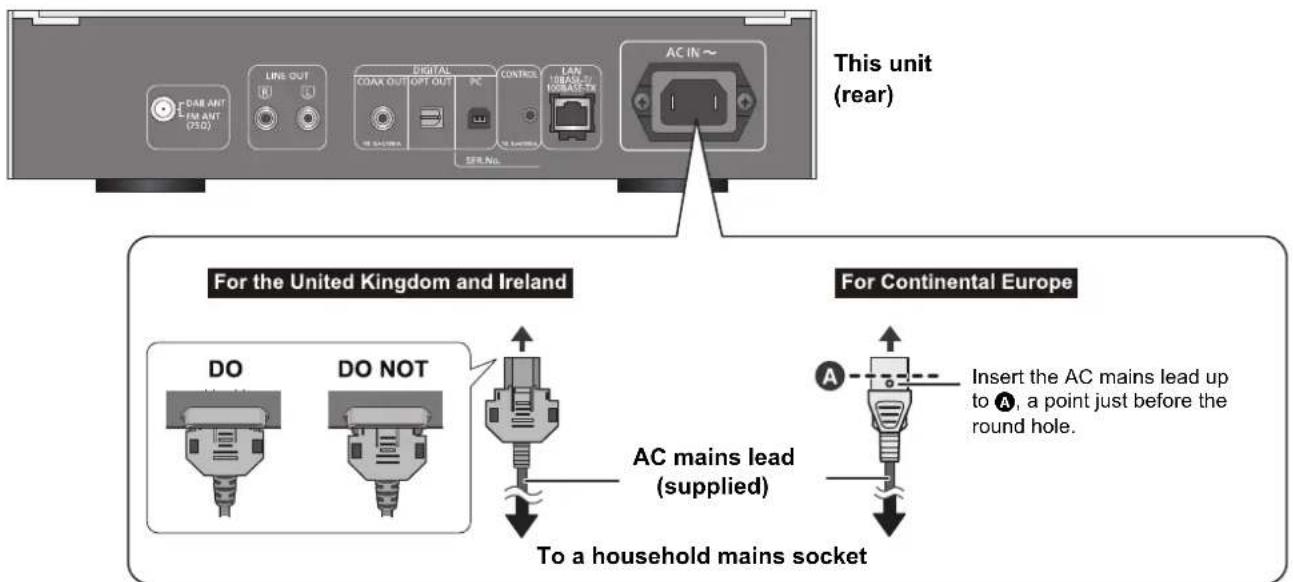

AC mains lead connection
Connect only after all other connections are completed.
This unit consumes a small amount of AC power ( 33) even the power switch lever is in the [OFF] position. Remove the plug from the main electrical outlet if you will not be using the unit for an extended period of time. Place the unit so the plug can be easily removed.
HOME menu and basic operations
Major functions of this unit can be operated from the HOME menu.
Preparation
Prepare the music that you want to play back.
- Turn on the connected device (amplifier, etc.) and lower its volume.
1 Raise the power switch lever of this unit to the [0 / 1] position.
2 Press [NWP].
3 Press [HOME].
4 Press [, ] to select an item and then press [OK].
- If there are any other items, repeat this step.
| DMP | Connects this unit to a network and plays back music over it. (⇒ 13) |
| Internet Radio | Plays back Internet Radio (vTuner). (⇒ 14) |
| USB | Plays back music stored on a USB device or an iPhone/iPad/iPod. (⇒ 17, 18, 19) |
| PC | Plays back music stored on a PC, etc. (⇒ 20) |
| Bluetooth | Connects this unit to a Bluetooth® device and plays back music stored on it. (⇒ 21, 22) |
| FM FM (⇒ 23) | |
| DAB/DAB+ DAB/DAB+ (⇒ 24) | |
| SETUP | (⇒ 11, 12, 25, 26, 27, 28) |
- New items may be added and existing items may be updated. For information on additions and updates, refer to the support site below. www.technics.com/support/
5 Start play.
To display HOME menu
Press [HOME].
Adjusting the volume
Adjust the volume of the connected device (amplifier, etc.).
Display brightness
The brightness of this unit's display and the basic control switches can be changed.
Press [DIMMER] repeatedly.
- When the display is turned off, it will light up only when you operate this unit. Before the display turns off again, "Display Off" will be displayed for a few seconds.
Operation sound setting
You can turn the beep sound on/off.
The factory default is "On".
1 Press [NWP].
2 Press [HOME].
3 Press [, ] repeatedly to select "SETUP" and then press [OK].
4 Press [, ] repeatedly to select "Beep" and then press [OK].
5 Press [, ] to select "On"/"Off" and then press [OK].
Operations using the dedicated app "Technics Music App"
If you install the dedicated app "Technics Music App" (free of charge) on your tablet/smartphone, you can control this unit and the SU-C700 using a wide variety of functions.
For details, visit:
www.technics.com/support/
Network settings
You can stream music from an iOS device (iPhone/iPad/iPod), an Android™ device or a PC (Mac/Windows) to this unit by using the AirPlay or DLNA feature. ( 13,18)
To use these features, this unit must join the same network as the AirPlay compatible device or the DLNA compatible device.
Wired LAN connection
Normally, just connecting a LAN cable will complete the setup.
This unit (rear)
A: LAN cable (not supplied)
1 Disconnect the AC mains lead.
2 Connect this unit to a broadband router, etc. using a LAN cable.
3 Connect the AC mains lead to this unit, and raise the power switch lever to the [ /1] position. ( 10)
- When the connection is established, " ^ displayed.
If "Firmware update is available" is displayed after the network connection is set up, the firmware for this unit is available.
- Refer to "Firmware update is available" ( 31) for details on update.
- For the update information, refer to the following website. www.technics.com/support/firmware/
You can change this unit's name on the network (Friendly Name), and use specific IP address, subnet mask, default gateway, primary DNS, etc.
- Do not play back music while changing these settings.
1 Press [NWP].
2 Press [HOME].
3 Press [▲,▼] repeatedly to select "SETUP" and then press [OK].
4 Press [, ] repeatedly to select "Network" and then press [OK].
5 Select and input the details.
6 Press [OK] to apply the settings.
7 Press [RETURN] repeatedly to exit the settings.
8 Press [NWP] to turn the unit to standby mode. Wait until "Please Wait" disappears.
9 Perform "Wired LAN connection". (⇒ left)
- Use category 7 or above straight LAN cables (STP) when connecting to peripheral devices.
- Inserting any cable other than a LAN cable in the LAN port can damage the unit.
- If you try to change the network settings immediately after turning on this unit, it may take some time until the network setup screen is displayed.
This unit's name on the network "Friendly Name"
1 Press [NWP].
2 Press [HOME].
3 Press [▲,▼] repeatedly to select "SETUP" and then press [OK].
4 Press [▲,▼] repeatedly to select "Network" and then press [OK].
5 Press [▲,▼] repeatedly to select "Friendly Name" and then press [OK]. The current name of this unit is displayed. Press [OK] to edit.
6 Press [▲,▼,▲] to input the friendly name.
Only ASCII characters can be used.
"A" can be added when you press the [at the time of the last letter of the Friendly Name is selected.
Press [CLEAR] to delete a letter.
Press [≥10] to insert a letter "A".
- Default name is "Technics ST-C700D "
- " stands for a digit that is unique to each set.
7 Press [OK] to apply the settings.
8 Press [RETURN] repeatedly to exit the settings.
To check the MAC address of this unit
1 Press [NWP].
2 Press [HOME].
3 Press [, ] repeatedly to select "SETUP" and then press [OK].
4 Press [, ] repeatedly to select "Network" and then press [OK].
5 Press [, ] repeatedly to select "MAC Address".
The MAC address of this unit is displayed.
Playing back music files on the DLNA server
You can share music files stored in the DLNA Certified media server (PC, smartphone, etc.) connected to your home network, and enjoy the contents with this unit.
- About supported format, refer to "File format" (⇒ 35)
Preparation
- Complete the network settings. (⇒ 12)
- Connect the device to be used to the same network as this unit.
-
Add the contents and folder to the libraries of the Windows Media player 11 or 12, or a smartphone, etc.
-
Playlist of Windows Media® player can play back only the contents that are stored in the libraries.
- To use Windows Media Player for streaming, you need to configure it in advance.
Playing back content stored on the DLNA server by controlling it from this unit
You can play back music stored on the DLNA server on this unit (DMP-Digital Media Player) by controlling the DLNA server with this unit.
1 Press [NWP].
2 Press [> INPUT < ] below [NWP] repeatedly to select "DMP".
The server selection screen will be displayed.
3 Press [, ] to select a DLNA server on the network, and then press [OK].
The folder/content selection screen will be displayed.
- Folders/content may be displayed in different order from the order on the server, depending on its specifications.
4 Press [, ] to select an item and then press [OK].
- If there are any other items, repeat this step.
Operations on the remote control
| Stop Press [■]. |
| Pause | Press [▶/■].
• Press again to restart play. |
| Skip | Press [↓←] or [▶→] to skip track. |
| Search | During play or pause, press and hold [▲←] or [▶→].
• On the unit: press and hold [▲←] or [▶→].
• This operation may not be available for some formats. |
- The connected server and its contents may not be displayed properly depending on its condition. (e.g. soon after adding the contents to the server, etc.)
Please try again later. For details, refer to the operating instructions of the device.
Random repeat playback
Press [RND].
Each time you press the button:
| On | All tracks in a folder are repeated randomly.
• “RND ➔ ” is displayed.
• During random playback, you cannot skip to the previous track. |
| Off | Turns off random repeat mode. |
Repeat playback
Press [O].
Each time you press the button:
| 1-Track | Only plays the selected track.
● “1” is displayed. |
| All | All tracks in a folder are repeated.
● “”) is displayed. |
| Off Turns off repeat mode. |
Playing back content stored on the DLNA server by controlling it from a DMC
By controlling a DMC (Digital Media Controller) compatible device, you can play back music stored on the DLNA server on this unit (DMR-Digital Media Renderer).
1 Raise the power switch lever of this unit to the [ / ] position.
2 Operate the DMC compatible device and connect to this unit.
The device name of this unit will be displayed as "Technics ST-C700D"1,2.
- For details on how to use DMC compatible devices, refer to the operating instructions of the devices or the software.
- When you operate DMC, playback of other audio sources will stop and DLNA output will have priority.
- Depending on the contents and the connected equipment, operations or playback may not be possible.
- This unit does not guarantee connection with all DMC applications. Use the dedicated app "Technics Music App".
1 " _ " stands for a digit that is unique to each set.
2 The device name can be changed from "This unit's name on the network "Friendly Name". (→ 12)
Playing back Internet Radio (vTuner)
Internet radio is an audio broadcasting service available over the Internet. With vTuner, an online directory service, you can listen to many different Internet radio stations from all over the world.
vTuner
internet radio
Preparation
1 Press [NWP].
2 Press [> INPUT < ] below [NWP] repeatedly to select "Internet Radio".
- When "Internet Radio" is selected as the source, this unit will automatically try and connect to the last selected Internet Radio station.
3 Press [, ] to select a station and then press [OK].
The buffering status is displayed as % (" stands for a number.)
-
Repeat this step to make further selections according to the genre, region, etc.
-
Press [RETURN] to return to the previous screen.
The Internet Radio stations, genre, region, etc. on this unit are edited and managed by vTuner.
The podcasts on the list of vTuner can also be played back.
The station that does not broadcast cannot be played back. (It will be skipped or return to the list.)
The Internet Radio service may be suspended or be otherwise unavailable without notice.
- Internet Radio may not be played back properly depending on the network condition.
Operations on the remote control
| Stop Press [■]. | |
| Pause | Press [▶/■].
• Press again to restart play. (While playing back the podcasts) |
| Skip | Press [▲] or [▶] to skip station. |
| Viewing available information | Press [INFO]. |
Adding a station to favourite list "Add Favourites"
1 Press [NWP].
2 Press [, ] to select a station to add and then press [OK].
3 Press [MENU].
4 Press [, ] repeatedly to select "Add Favourites" and then press [OK].
- "Added" is displayed after registering.
- You can register up to 50 stations with this unit. If a 51st station is added, "Favours Full" is displayed. Delete the stations from the favourite list. ( below)
- You cannot add the already registered station. ("AlreadyExists" is displayed.)
Calling up the favourite list "Call Favourites"
1 Press [NWP].
2 Press [MENU].
3 Press [, ] repeatedly to select "Call Favourites" and then press [OK].
4 Press [, ] to select the station you want to call up, and then press [OK].
"as displayed.
If no station is registered to the favourite list, "Empty" is displayed. Add a station to the list. ( above)
Deleting the favourite station "Delete Favourites"
1 Press [NWP].
2 Press [MENU].
3 Press [, ] repeatedly to select "Delete Favourites" and then press [OK].
4 Press [, ] to select a station to delete from the favourite list.
5 Press [, ] to select "Yes" and then press [OK].
- "Deleted" is displayed after deleting.
- "Empty" is displayed if no station is registered to the favourite list.
Operations using the dedicated app "Technics Music App"
You can control this unit and edit your favourite list with the vTuner function by installing the dedicated app "Technics Music App" (free of charge) on your tablet/smarphone. Download and install the app from the website below. www.technics.com/support/
Creating the Internet Radio station list with PC
Preparation
- Check the MAC address of this unit. (⇒ 12)
1 Press [NWP].
2 Press [> INPUT < ] below [NWP] repeatedly to select "Internet Radio".
3 Use your PC to access the vTuner website. www.technics.com/radio/ You can select the language on the website.
4 Follow the on-screen instructions and enter the necessary information for registration.
5 Search by category (genre, region, language, etc.) or edit the list.
Playback of the stations listed by your PC
You can play back the stations listed by your PC separately from the favourite list of this unit.
1 Press [NWP].
2 Press [> INPUT < ] below [NWP] repeatedly to select "Internet Radio".
3 Press [, ] repeatedly to select "technics.com/radio/" and then press [OK].
- Before disposing of or transferring this unit, delete the personal information on the website.
Using Spotify
This unit is compatible with the online music service (Spotify).
Preparation
- You will need Spotify Premium. For details, visit the following website. www.spotify.com/connect/
- Complete the network settings. (⇒ 12)
Make sure that the network is connected to the Internet.
- Connect the device to be used to the same network as this unit.
1 Start the Spotify app on your device, and select a song to play back.
2 Select the square cover art for the song on the playback screen.
3 Select the icon
4 Select this unit as the output speakers.
The device name of this unit will be displayed as "Technics STC700D
- Registration/subscription is required.
Fees may apply.
- Services, icons, and specifications are subject to change.
1 " _ " stands for a digit that is unique to each set.
2 The device name can be changed from "This unit's name on the network "Friendly Name". (☑ 12)
Using iPhone/iPad/iPod
Connect your iPhone/iPad/iPod, and you can play back music stored on iPhone/iPad/iPod or charge iPhone/iPad/iPod.
Compatible iPhone/iPad/iPod
iPhone SE / iPhone 6s Plus / iPhone 6s /
iPhone 6 Plus / iPhone 6 / iPhone 5s / iPhone 5c /
iPhone 5 / iPhone 4s
iPad Pro (9.7 inch) / iPad Pro (12.9 inch) / iPad Air 2 / iPad Air / iPad (3rd and 4th generation) / iPad 2 / iPad mini 4 / iPad mini 3 / iPad mini 2 / iPad mini
iPod touch (5th and 6th generation)
iPod nano (7th generation)
(as of August 2016)
- Compatibility depends on the software version. Update your iPhone/iPad/iPod to the latest software before using it with this unit.
- Please be aware that Panasonic accepts no responsibility for the loss of data and/or information.
- Do not connect the following models to the port: - iPod classic, iPod [4th (colour display), and 5th (video) generation], iPod nano (1st generation) Unexpected behaviour may occur.
Operation results may vary depending on the iPhone/iPad/iPod models or the iOS version.
Connecting an iPhone/iPad/iPod
When connecting an iPhone/iPad/iPod, use the dedicated USB cable (not supplied).
e.g.,
Listening to music stored on an iPhone/iPad/iPod
1 Connect iPhone/iPad/iPod to the unit.
2 Press [NWP].
3 Press [> INPUT < ] below [NWP] repeatedly to select "USB".
4 Start play.
Operations on the remote control
| Stop Press [■]. | |
| Pause | Press [▶/■].
• Press again to restart play. |
| Skip | Press [↓←] or [▶→] to skip track. |
| Search | During play or pause, press and hold [←←] or [▶→].
• On the unit: press and hold [↓←] or [▶→]. |
- It may be necessary to select the album, artist, etc. on the iPhone/iPad/iPod.
- Depending on the iPhone/iPad/iPod models, operations on the remote control may not be possible.
Charging an iPhone/iPad/iPod
During unit on, charging starts when an iPhone/iPad/iPod is connected to this unit.
- Charging is not possible when this unit is turned off.
Make sure the unit is turned on when you start charging.
- When charging an iPhone/iPad/iPod whose battery is depleted, do not turn this unit to standby mode until the iPhone/iPad/iPod becomes operational.
- Check the iPhone/iPad/iPod to see if the battery is fully charged. Once fully charged, remove the iPhone/iPad/iPod.
- Charging stops when the battery is fully charged. The battery will deplete naturally.
Using AirPlay
AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.
Listening to music with AirPlay
Preparation
- Complete the network settings. ( 12)
- Connect the iOS device or PC to the same network as this unit.
1 iOS device: Start the "Music" (or iPod) app. PC: Start iTunes.
2 Select "Technics ST-C700D" 1,2 from the AirPlay icon.
- Check the volume settings before starting the playback. (When AirPlay is used for the first time, the volume may be output at the maximum setting.)
3 Start play.
The playback will start with a slight delay.
Operations on the remote control
| Stop Press [■]. | |
| Pause | Press [▶/■].
• Press again to restart play. |
| Skip | Press [↓←] or [▶→] to skip track. |
- Playback of other audio sources will stop and AirPlay output will have priority.
- With some iOS and iTunes versions, it may not be possible to restart the AirPlay playback if the selector is changed or the unit is turned off, during the AirPlay playback.
In this case, select a different device from the AirPlay icon of the Music app or iTunes and then re-select this unit as the output speakers.
AirPlay will not work when playing back videos on iTunes.
1 " " stands for a digit that is unique to each set.
2 The device name can be changed from "This unit's name on the network "Friendly Name". (→ 12)
Using USB device
You can play back music stored on a USB device.
- This unit does not guarantee connection with all USB devices.
- FAT16 and FAT32 file systems are supported.
This unit supports USB 2.0 high speed.
- USB devices may not be recognised by this unit when connected using the following:
-a USB hub
-a USB extension cable
It is not possible to use USB card reader/writers.
- This unit cannot record music to a USB device.
- About supported format, refer to "File format" (⇒ 35)

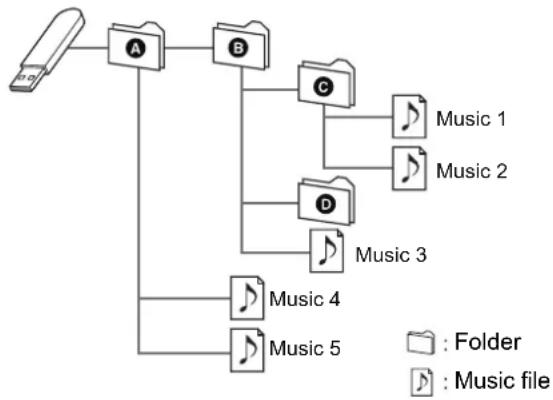

Folder and file structure
The unit plays back only the music files in the selected folder. Select the folder containing the tracks that you want to play back.
- Nothing is played back if you select a folder without music files, such as the folder D in the diagram below. ("Empty" is displayed.)
e.g.,
Listening to music stored on a USB device
1 Connect a USB device to the unit.
e.g.,
2 Press [NWP].
3 Press [> INPUT < ] below [NWP] repeatedly to select "USB".
4 Press [, ] to select an item and then press [OK].
- If there are any other items, repeat this step.
Operations on the remote control
| Stop Press [■]. | |
| Pause | Press [▶/■].
• Press again to restart play. |
| Skip | Press [↓←] or [▶→] to skip track. |
| Search | During play or pause, press and hold [▲] or [▶].
• On the unit: press and hold [▲] or [▶].
• This operation may not be available for some formats. |
Random repeat playback
Press [RND].
Each time you press the button:
| On | All tracks in a folder are repeated randomly.
• “RND ➔ ” is displayed.
• During random playback, you cannot skip to the previous track. |
| Off Turns off random repeat mode. |
Repeat playback
Press [O].
Each time you press the button:
| 1-Track | Only plays the selected track.
● “1” is displayed. |
| All | All tracks in a folder are repeated.
● “”) is displayed. |
| Off Turns off repeat mode. |
- You can use repeat playback in combination with programme playback.
Programme playback
This function allows you to programme up to 24 tracks.
Preparation
- It is not possible to programme tracks by moving folders. Move all the tracks you want to programme to a single folder in advance.
1 Select the folder containing the music file to which you want to set programme playback.
2 Press [PGM] in the stop mode.
- "Program Mode" screen will be displayed.
3 Press [OK] to display the programming screen.
4 Press [, ] to select the desired track.
5 Press [OK].
- Do steps 3 through 4 again to programme other tracks.
6 Press [ / ] to start playback.
To return to the "Program Mode" screen, press [■].
Operations on the remote control
| Stop | Press [■].
• Programmed content is maintained. |
| Check the programmed order | Press [▲, ▲] in the stop mode.
• To return to the "Program Mode" screen, press [OK]. |
| Add tracks Do steps 3 through 4 in the stop mode. |
| Clear the last track | Press [CLEAR] in the stop mode.
• It is not possible to select and clear the desired programmed track. |
| Cancel programme mode | ① Press [PGM] in the stop mode.
• "Clear Program List?" is shown.
② Press [▲, ▼] to select "Yes" and then press [OK].
• The programme memory will be cleared. |
- Programmed content is maintained as long as the input source is set to "USB".
The programme memory will be cleared:
- When the USB device is disconnected.
- When the unit is turned to standby or off mode.
- You can use programme playback in combination with repeat playback.
Using PC, etc.
You can connect the digital audio input terminal [PC] and a PC, etc. with a USB cable and play back music on the PC, etc. with this unit.
- About supported format, refer to "File format" (35)
Connecting to a PC
Before connecting to a PC, follow the steps below.
Refer to the following for the recommend OS versions for your PC:
- Windows 7, Windows 8, Windows 8.1, Windows 10
- OS X 10.7, 10.8, 10.9, 10.10, 10.11
① Download and install the dedicated driver to the PC. (Only for Windows OS) Download and install the driver from the website below. www.technics.com/support/
② Download and install the dedicated app "Technics Audio Player" (free of charge) on your PC. (Common to both Windows OS and OS X) Download and install the app from the website below. www.technics.com/support/
(as of December 2015)
Listening to audio from a PC, etc.
1 Disconnect the AC mains lead.
2 Connect this unit and a PC, etc.
3 Connect the AC mains lead to this unit, and raise the power switch lever to the [山 /山 ] position. ( 10)
4 Press [> INPUT < ] below [NWP] repeatedly to select "PC".
5 OperatethePC,etc.forplayback.
Using Bluetooth®
You can listen to the sound from the Bluetooth® audio device from this unit wirelessly.
Refer to the operating instructions of the Bluetooth device for details.
If you intend to use an NFC (Near Field Communication)-compatible Bluetooth device, proceed to "Connecting by NFC".
Preparation
- Turn on the Bluetooth® feature of the device and place the device near this unit.
1 Press [NWP].
2 Press [> INPUT < ] below [NWP] repeatedly to select "Bluetooth".
3 Press [MENU].
4 Press [, ] repeatedly to select "Pairing" and then press [OK].
5 Press [, ] to select "Yes" and then press [OK].
- "Pairing" is indicated on the display.
6 Select "ST-C700D" from the Bluetooth device's menu.
The name of the connected device is indicated on the display.
If prompted for the passkey, input "0000".
- You can register up to 8 devices with this unit. If a 9th device is paired, the device that has not been used the longest will be replaced.
Connecting by NFC
For NFC-compatible Bluetooth® devices (Android™ devices with version 4.1 or later) only
With the touch of an NFC (Near Field Communication)-compatible Bluetooth device to this unit, you can complete a series of steps from registering a Bluetooth device to connecting it to this unit.
Preparation
-
Turn on the NFC feature of the device.
1 Press [NWP].
2 Press [> INPUT < ] below [NWP] repeatedly to select "Bluetooth".
3 Press [MENU].
4 Press [, ] repeatedly to select "NFC" and then press [OK].
5 Press [▲,▼] to select "Yes" and then press [OK].
6 Touch and hold your device on the NFC touch area of this unit within 20 seconds. ( 7)
-
Do not move the Bluetooth® device until it displays a message or reacts in some way. Once the Bluetooth® device has reacted, move the device away from this unit.
-
When the connection of the Bluetooth® device is complete, the name of the connected device is indicated on the display.
- The location of the NFC touch area differs depending on the device. When a connection cannot be established even if your Bluetooth® device has touched the NFC touch area of this unit, change the position of the device.
- If you connect another NFC-compatible Bluetooth device, the previously connected device will be disconnected automatically.
- When the connection is established, playback may start automatically depending on the type of device being used.
- Connecting by NFC may not work properly depending on the type of device being used.
- Do not make an NFC connection in any other way than instructed in the Operating Instructions. Doing so may cause malfunction.
Listening to music stored on a Bluetooth® device
1 Press [NWP].
2 Press [> INPUT < ] below [NWP] repeatedly to select "Bluetooth".
"Ready" is indicated on the display.
If you press [▶/I], this unit will try and connect to the last connected Bluetooth® device.
- "Linking" is indicated on the display.
3 Select "ST-C700D" from the Bluetooth device's menu.
The name of the connected device is indicated on the display.
4 Start playback on the Bluetooth device.
Operations on the remote control
| Stop Press [■]. |
| Pause | Press [▶/■].
• Press again to restart play. |
| Skip | Press [↓←] or [▶→] to skip track. |
| Search | During play or pause, press and hold [←←] or [▶→].
• On the unit: press and hold [↓←] or [▶→]. |
This unit can only be connected to one device at a time.
- To use this unit's remote control with a Bluetooth device, the Bluetooth® device must support AVRCP (Audio Video Remote Control Profile).
Depending on the status of the device, some controls may not work.
- When enjoying video contents with this function, the video and audio output may not be synchronised.
Bluetooth® transmission mode
You can change the transmission mode to prioritise transmission quality or sound quality.
1 Press [NWP].
2 Press [> INPUT < below [NWP] repeatedly to select "Bluetooth".
If a Bluetooth device is already connected, disconnect it.
3 Press [MENU].
4 Press [, ] repeatedly to select "Link Mode" and then press [OK].
5 Press [, ] to select the mode and then press [OK].
| Mode 1 Emphasis on connectivity |
| Mode 2 Emphasis on sound quality (default) |
- Select "Mode 1" if the sound is interrupted.
Disconnecting a Bluetooth® device
1 Press [NWP].
2 Press [MENU].
3 Press [, ] repeatedly to select "Disconnect?" and then press [OK].
4 Press [A, V] to select "Yes" and then press [OK].
- The Bluetooth device will be disconnected if a different audio source is selected.
Listening to FM radio
You can preset up to 30 channels.
Preparation
- Press [NWP] and then [>INPUT <] below [NWP] repeatedly to select "FM".
Automatic presetting
1 Press [NWP].
2 Press [MENU].
3 Press [, ] repeatedly to select "Auto Preset" and then press [OK].
4 Press [, ] to select "Lowest" or "Current" and then press [OK].
Lowest:
To begin auto preset with the lowest frequency (FM 87.50).
Current:
To begin auto preset with the current frequency.
Manual tuning and presetting
1 Press [NWP].
2 Press [▲] or [▶] to tune in to the station.
To tune automatically, press and hold the button until the frequency starts changing quickly.
3 Press [PGM].
4 Press the numeric buttons to select a preset number.
- Do steps 1 through 3 again to preset more stations.
- A station previously stored is overwritten when another station is stored in the same preset number.
Selecting a preset station
1 Press [NWP].
2 Press the numeric buttons, [I] or [▶] to select the preset station.
Improving the sound quality
1 Press [NWP].
2 Press [MENU].
3 Press [, ] repeatedly to select "FM Mode" and then press [OK].
4 Press [, ] to select "Mono" and then press [OK].
-MONO" is displayed.
To memorise the setting
Continue with steps 2 and 3 of "Manual tuning and presetting".
- Select "Stereo" in step 4 to return to stereo broadcasts.
- "Mono" is cancelled if the frequency is changed.
RDS broadcasting
The unit can display the text data transmitted by the radio data system (RDS) available in some areas.
RDS is available only when stereo works in reception.
- RDS displays may not be available if reception is poor.
- RDS function does not work if "Mono" is selected in "FM Mode".
(⇒ above)
Listening to DAB/DAB+
You can preset up to 20 channels.
Preparation
Make sure that the DAB antenna is connected. ( 10)
- Press [NWP] and then [>INPUT <] below [NWP] repeatedly to select "DAB/DAB+".
- If you select "DAB/DAB+" for the first time, the system will start the "DAB auto scan" procedure.
DAB auto scan
1 Press [NWP].
2 Press [MENU].
3 Press [, ] repeatedly to select "Auto Scan" and then press [OK].
4 Press [, ] to select "Yes" and then press [OK].
"Auto Scan" is displayed.
DAB manual tuning
To find the best antenna position, use manual tuning to search selected DAB frequency block.
1 Press [NWP].
2 Press [MENU].
3 Press [, ] repeatedly to select "Manual Scan" and then press [OK].
4 Press [, ] to select a frequency block to scan and then press [OK].
Memory presetting
1 Press [NWP].
2 Press [or] to tune in to the station.
3 Press [PGM].
4 Press the numeric buttons to select a preset number.
- Do steps 1 through 3 again to preset more stations.
- A station previously stored is overwritten when another station is stored in the same preset number.
- You cannot preset a station when the station is not broadcasting or when you have selected a secondary service.
- Previous station memory is cleared during auto scan.
Selecting a preset station
1 Press [NWP].
2 Press the numeric buttons, [▲] or [▶] to select the preset station.
You can view information about the DAB broadcast, programme type, ensemble label and frequency.
1 Press [NWP].
2 Press [INFO] to view available information.
DAB Secondary
Some DAB/DAB+ stations provide a secondary service as well as the primary service. If the station you are listening to is providing secondary service, " " will be displayed.
1 Press [NWP].
2 Press [MENU].
3 Press [, ] repeatedly to select "Secondary" and then press [OK].
4 Press [, ] to select the secondary service and press [OK].
- The setting will go back to primary service when changes are made (e.g. the station is changed).

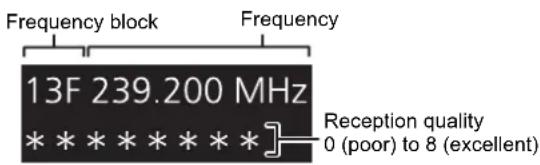

DAB signal quality
When adjusting the antenna, you can check the reception quality.
1 Press [NWP].
2 Press [MENU].
3 Press [, ] repeatedly to select "Signal Quality" and then press [OK].
4 Press [, ] to select frequency.
e.g.,
Sound adjustment
The following sound effects can be added to the audio output.
Listening to more natural-sounding audio (Re-master)
Re-mastering expands the playback band and achieves a higher bit depth to reproduce natural and expansive sound close to original music.
The factory default is "Off".
1 Press [NWP].
2 Press [RE-MASTER] to select "On"/"Off".
Direct mode
This unit can transmit input signals without performing digital signal processing (DSP). This enables faithful and high quality reproduction of original sound.
The factory default is "Off".
1 Press [NWP].
2 Press [DIRECT] to select "On"/"Off".
Setting the sampling frequency
You can set an upper limit on the output sampling frequency range. Please note that the range that can be processed differs depending on the amplifier or D/A converter. For details, refer to the operating instructions of the connected device.
The factory default is "32kHz-192kHz".
Preparation
- Set "Digital Output" to "On".
1 Press [NWP].
2 Press [HOME].
3 Press [, ] repeatedly to select "SETUP" and then press [OK].
4 Press [, ] repeatedly to select "D.Output fs" and then press [OK].
5 Press [, ] to select an item and then press [OK].
- You can select a sampling frequency of 96kHz or 192kHz .
Disabling audio output
Disabling the audio output of unused terminals minimises noise and allows playback in higher audio quality.
The factory default is "On".
1 Press [NWP].
2 Press [HOME].
3 Press [, ] repeatedly to select "SETUP" and then press [OK].
To disable the digital audio output:
Press [▲,▼] repeatedly to select "Digital Output" and then press [OK].
To disable the analogue audio output:
Press [▲,▼] repeatedly to select "Analog Output" and then press [OK].
4 Press [, ] to select "Off" and then press [OK].
To enable the output again, select "On".
- Depending on the music source that you play back, the applied setting may be less effective.
- Depending on the music source that you play back, it may not be possible to achieve the desired audio quality and sound field effect. In such cases, turn off this function.
- Both Re-master and Direct mode cannot be set to "On".
- When "Digital Output" and "Analog Output" are set to "Off", no sound will be output.
- It may take some time to output audio when you have adjusted the audio quality.
Others
Sleep timer
The sleep timer can switch the unit to standby mode after a set time.
1 Press [NWP].
2 Press [MENU].
3 Press [, ] repeatedly to select "SLEEP" and then press [OK].
4 Press [, ] to set the time (in minutes) and then press [OK].
"30 minutes" "60 minutes" "90 minutes" "120 minutes"
Auto off function
This unit is designed to conserve its power consumption and save energy. The unit will turn to standby mode automatically if there is no sound and it is not being used for approximately 20 minutes.
The factory default is "On".
To cancel this function
1 Press [NWP].
2 Press [HOME].
3 Press [, ] repeatedly to select "SETUP" and then press [OK].
4 Press [, ] repeatedly to select "AUTO OFF" and then press [OK].
5 Press [, ] to select "Off" and then press [OK].
- The auto off function works unless you turn it off, even if you turn off and on this unit.
- When "DAB/DAB+" or "FM" is the source, the function does not work.
Network standby
This unit automatically turns on from standby mode when selected as a speaker for Spotify/AirPlay/DLNA (DMR). Keep in mind that after selecting this unit, you may also need to start playback to turn it on in some cases.
The factory default is "Auto".
| Auto | Enables the network standby function when the network connection is available. |
| On | Always enables the network standby function. |
| Off Turns off the network standby function. |
To change this setting
1 Press [NWP].
2 Press [HOME].
3 Press [, ] repeatedly to select "SETUP" and then press [OK].
4 Press [, ] repeatedly to select "Network Standby" and then press [OK].
5 Press [, ] to select an item and then press [OK].
- If this function is set to "On" or "Auto", the standby power consumption will increase.
Firmware updates
Occasionally, Panasonic may release updated firmware for this unit that may add new features or improve the ways existing features operate. These updates are available free of charge.
For the update information (new or improve features), refer to the following website.
www.technics.com/support/firmware/
Downloading takes approx. 10 minutes.
Do not disconnect the AC mains lead or lower the power switch lever to the [OFF] position while one of the following messages is displayed.
"Linking" or "Updating %
- During the update process, no other operations can be performed.
- If there are no updates, "Firmware is Up To Date" is displayed. (No need to update it.)
- Updating the firmware may reset the settings.
Update via internet
Preparation
Connect this unit to the network. ( 12)
- Make sure that the network is connected to the Internet.
1 Press [NWP].
2 Press [HOME].
3 Press [, ] repeatedly to select "SETUP" and then press [OK].
4 Press [, ] repeatedly to select "F/W Update" and then press [OK].
5 Press [, ] to select "Internet" and then press [OK].
6 Press [, ] to select "Yes" and then press [OK].
- The progress is displayed as "Updating % " while updating. ( stands for a number.)
- When the update has finished successfully, "Success" is displayed.
7 After "Success" is displayed, disconnect the AC mains lead and then reconnect it after 3 minutes.
- Downloading may take longer or may not work properly depending on the connection environment.
Update via USB flash memory
Preparation
- Download the latest firmware on the USB flash memory. For details, refer to the following website. www.technics.com/support/firmware/
FAT16 and FAT32 file systems are supported.
1 Connect the USB flash memory with new firmware.
2 Press [NWP].
3 Press [HOME].
4 Press [, ] repeatedly to select "SETUP" and then press [OK].
5 Press [, ] repeatedly to select "F/W Update" and then press [OK].
6 Press [, ] to select "USB" and then press [OK].
7 Press [, ] to select "Yes" and then press [OK].
- The progress is displayed as "Updating % while updating. ( stands for a number.)
- When the update has finished successfully, "Success" is displayed.
8 After "Success" is displayed, disconnect the AC mains lead and then reconnect it after 3 minutes.
- Downloading may take longer depending on the USB flash memory.
Checking the firmware version and the model number
1 Press [NWP].
2 Press [HOME].
3 Press [, ] repeatedly to select "SETUP" and then press [OK].
4 Press [▲,▼] repeatedly to select "F/W Version" and then press [OK].
The firmware version and the model number are displayed.
- Press [OK] to exit.
Remote control code
When other equipment responds to the supplied remote control, change the remote control code.
The factory default is "Mode 1".
Point the remote control at this unit, and press and hold [OK] and the numeric button for at least 4 seconds.
- When the remote control code is changed, the new code will appear on the display for a few seconds.
[ [OK] + [1] ] Set the code to "Mode 1"
[ [OK] + [2] ] Set the code to "Mode 2"
- When the SU-C700/SL-C700 is connected via the system control function, change its remote control code as well as the remote control code for this unit.
Changing the character encoding
You can change the character encoding of track names, artist names and other information when they are not displayed as they should be.
The factory default is "Type 1(日本)".
1 Press [NWP].
2 Press [HOME].
3 Press [, ] repeatedly to select "SETUP" and then press [OK].
4 Press [, ] repeatedly to select "E Asian Character" and then press [OK].
5 Press [▲,▼] to select "Type 1(日本)"/ "Type 2(简体字)" and then press [OK].
| Type 1(日本) | Priority is given to Japanese. |
| Type 2(简体字) | Priority is given to Chinese (Simplified). |
Using the system control function
You can automatically link this unit with the SU-C700 and operate them easily with the remote control.
Preparation
① Connect this unit and the SU-C700 with a system connection cable and a coaxial digital cable. (⇒ 9)
② Set the power switch lever of this unit and the SU-C700 to the [ / I] position.
Switching this unit and the SU-C700 to on/standby simultaneously
- If you point the remote control at this unit and press [NWP] when this unit and the SU-C700 are in standby mode, this unit and the SU-C700 will be turned on simultaneously.
- When both this unit and the SU-C700 are turned on and the input source of the SU-C700 is set to "COAX1", you can set them to automatically enter standby mode using the sleep-timer. (→ 26)
When you perform an operation such as playback on this unit, the input source of the SU-C700 will be automatically switched to "COAX1".
Adjusting Bass/Middle/Treble
You can adjust the tone of the SU-C700 with this unit. Each tonal range (Bass/Middle/Treble) can be adjusted.
1 Press [NWP].
2 Press [HOME].
3 Press [, ] repeatedly to select "SETUP" and then press [OK].
4 Press [, ] repeatedly to select "Tone Control" and then press [OK].
5 Press [, ] to select "On (adjustment)" and then press [OK].
6 Press [, ] to select "BASS" (Bass), "MID" (Middle) or "TREBLE" (Treble).
7 Press [▲, ▲] to adjust the level and then press [OK]. Each level can be adjusted between “-10” and “+10”.
- For information on the operations of the SU-C700, please also refer to its operating instructions.
Troubleshooting
Before requesting service, make the following checks. If you are uncertain about some of the check points, or if the solutions indicated in the following guide does not resolve the issue, then consult your dealer for instructions.
Heat buildup of this unit.
- This unit becomes warm when used for a long time. This is not a malfunction.
Do you have the latest firmware installed?
- Panasonic is constantly improving the unit's firmware to ensure that our customers are enjoying the latest technology. (→ 27)
To return all settings to the factory defaults
When the following situations occur, reset the memory:
There is no response when buttons are pressed.
- You want to clear and reset the memory contents.
① Press[NWP].
② Press [HOME].
③ Press [▲,▼] repeatedly to select "SETUP" and then press [OK].
④ Press [▲,▼] repeatedly to select "Initialization" and then press [OK].
⑤ Press [▲,▼] to select "Yes" and then press [OK].
⑥ Press [▲,▼] to select "Yes" and then press [OK] again.
General
The unit does not work.
Operations are not done properly.
One of the unit's safety devices may have been activated.
① Lower the power switch lever of this unit to the [OFF] position.
- Alternatively, disconnect the AC mains lead, wait for at least 3 minutes, then reconnect it.
② Raise the power switch lever of this unit to the [山 ] / 山 ] position. If the unit still cannot be operated, consult the dealer.
A "humming" sound can be heard during playback.
- An AC mains lead or fluorescent light is near the cables. Keep other appliances and cords away from the cables of this unit.
No sound.
- Check the volume of the connected device (amplifier, etc.).
- Check to see if the cable connections to the input and output terminals are incorrect. If this is the case, turn off this unit and reconnect the cables correctly.
- Check to see if the correct input source is selected.
- Insert the plugs of the cables to be connected all the way in.
- When "Digital Output" and "Analog Output" are set to "Off", no sound will be output. Change the setting of the output terminal to be used to "On". ( 25)
- Playback of multi-channel content is not supported.
The sound is interrupted.
Depending on your environment, the audio may be interrupted during playback. Check the operating instructions of the connected device and the connection to the device.
Playback does not start.
Depending on your environment or connected devices, it may take some time.
The system control function is not working.
- Connect the system connection cable to the system terminal [CONTROL1] of the SU-C700.
- Connect the coaxial digital cable to the digital audio input terminal [COAX1 IN] of the SU-C700.
The unit turns off automatically.
Is the auto off function turned on? ( 26)
- If the SU-C700 is connected to this unit via the system control function, this unit may automatically enter standby mode when the SU-C700 enters standby mode. (⇒ 9, 28)
The settings are reset to the factory defaults.
- Updating the firmware may reset the settings.
AirPlay/DLNA
Cannot connect to the network.
- Confirm the network connection and settings. ( 12)
Cannot connect to the unit.
- Make sure that the multicast function on the wireless router is enabled.
Make sure that the device and the unit are connected to the same network. ( 12)
- Reconnect the compatible device to the network and then connect to this unit again.
- Turn this unit off and on, and then connect to this unit again.
Playback does not start.
The sound is interrupted.
- Simultaneous use with other 2.4 GHz devices, such as microwaves, cordless telephones, etc., may result in connection interruptions.
- Increase the distance between the wireless router and these devices.
- If several wireless devices are simultaneously using the same wireless network as this unit, try turning off the other devices or reducing their wireless network usage.
- If the playback stops, check the playback status on the device.
Cannot find music files stored on the PC.
- When you play back music files over a network, those that are not registered to its network server are not displayed. For details, refer to the operating instructions for your server.
vTuner/Spotify
Playback does not start.
The sound is interrupted.
The station that does not broadcast cannot be played back. (It will be skipped or return to the list.)
- Internet Radio may not be played back properly depending on the network condition.
Depending on the internet connection environment, the sound may be interrupted or it may take some time to play back.
- Internet Radio is an audio broadcasting service transmitted via the Internet. Depending on the broadcaster or condition of the transmitting, the sound quality may vary.
- Track names, station names, etc. which are managed by vTuner/Spotify may not be displayed properly.
iPhone/iPad/iPod
Cannot operate.
- Select "USB" as the input source.
- Check that the iPhone/iPad/iPod is connected properly.
- Connect the iPhone/iPad/iPod again or try to restart the iPhone/iPad/iPod.
- The battery of the iPhone/iPad/iPod is depleted. Charge the iPhone/iPad/iPod, and then operate again.
iPhone/iPad/iPod does not charge.
- Make sure the unit is turned on when you start charging.
- When charging an iPhone/iPad/iPod whose battery is depleted, do not turn this unit to standby mode until the iPhone/iPad/iPod becomes operational.
USB
The USB drive or its contents cannot be read.
The USB drive format or its contents is/are not compatible with the unit. ( 35)
No response when [ /II] is pressed.
- Disconnect the USB device and then reconnect it. Alternatively, turn the unit off and on again.
Slow operation of the USB flash drive.
Large file size or high memory USB flash drive takes longer time to read.
PC
The PC does not recognise this unit.
- Check your operating environment. ( 20)
- Restart the PC, turn off and on this unit, and then reconnect the USB cable.
- Use another USB port of the connected PC.
Install the dedicated USB driver if using a PC with Windows.
Cannot find music files stored on the PC.
- When you play back music files over a network, those that are not registered to its network server are not displayed. For details, refer to the operating instructions for your server. (→ 35)
Pairing cannot be completed.
- Check the Bluetooth device condition.
The device cannot be connected.
The pairing of the device was unsuccessful or the registration has been replaced. Try re-pairing the device.
This unit might be connected to a different device. Disconnect the other device and try re-pairing the device.
The device is connected, but audio cannot be heard through this unit.
- For some built-in Bluetooth® devices, you have to set the audio output to "ST-C700D" manually. Read the operating instructions for the device for details.
NFC is not working.
Make sure the NFC feature of the device are turned on.
- When you try again, change the angle at which the Bluetooth® device touches the NFC touch area.
- Turn on the NFC feature of this unit when you connect a device using NFC. (⇒ 21)
Playback does not start.
The sound is interrupted.
- Simultaneous use with other 2.4 GHz devices, such as microwaves, cordless telephones, etc., may result in connection interruptions. Bring the Bluetooth device closer to this unit and distance it from the other devices.
Reception is poor or a beat sound is heard.
- Keep the antenna away from computers, TVs, other cables and cords.
- Use an outdoor antenna.
The remote control does not work properly.
- To avoid interference, please do not put any objects in front of signal sensor. (→ 7)
- Change the remote control code if other products react to this remote control. (⇒ 28)
If the SU-C700/SL-C700 is selected for the device to be operated, press [NWP] and retry the operation. (→ 8)
Pressing [DIMMER] changes the display, the light and the indicator brightness of the SU-C700/ SL-C700.
- [DIMMER] works for the SU-C700/SL-C700 as well as this unit. Turn off the device that you want to maintain the brightness level of, and press [DIMMER].
The following messages or service numbers may appear on the unit's display.
"AUTO OFF"
- The unit has been left unused for about 20 minutes and will enter standby mode within a minute. Press any button to cancel it.
"Checking Device"
- The unit is checking the connected iPhone/iPad/iPod or a USB device.
"Connect to Network"
- Connect this unit to the network and then wait for the start of the Firmware Update via Internet. (⇒ 27)
"Connect USB Device"
- Download the latest firmware on the USB flash memory and connect it. (→ 27)
"Download Fail"
The firmware download has failed. Press any button to exit. Please try again later.
- The server cannot be found. Press any button to exit. Make sure that the network is connected to the Internet.
"Empty"
- The selected folder is empty. Move tracks into the folder and retry the operation.
The server is not found on the network. Check to see if the server is connected to the same network as this unit, and retry the connection to this unit. (→ 13)
- No Internet Radio station is registered to the favourite list. Add a station to the list. (→ 15)
"Error"
Incorrect operation is performed. Read the instructions and try again.
"Firmware update is available"
The firmware (free of charge) for this unit is available.
① Press [NWP].
② Press [OK].
③ Press [ , ] to select "Yes" and then press [OK].
- The progress is displayed as "Updating % " while updating. ( stands for a number.)
- When the update has finished successfully, "Success" is displayed.
④ After "Success" is displayed, disconnect the AC mains lead and then reconnect it after 3 minutes.
For the update information, refer to the following website. www.technics.com/support/firmware/
"F□”(“□”stands for a number.)
There is a problem with this unit.
- Is this unit placed in an extremely hot place? If so, move this unit to a cooler place and wait a few moments and then try to turn it on again.
If the problem persists, write down the displayed number, disconnect the AC mains lead and consult your dealer.
"Load Fail"
The firmware on the USB flash memory cannot be found.
- Download the latest firmware on the USB flash memory and try again. (→ 27)
"No Network Available"
This unit is not connected to the network. Check the network connection. ( 12)
"No Memory"
- There are no preset DAB/DAB+ stations to select. Preset some channels. (⇒ 24)
"No Signal"
- This station cannot be received. Check your antenna.
"Not Valid"
The function you have tried to use is not available with the current settings. Check the steps and settings.
"PGM Full"
The number of programmed tracks is more than 24.
"Please Wait"
- This is displayed, for example, when this unit is turned on/off. (For up to 1 minute and 30 seconds)
"Remote " (" " stands for a number.)
-
The remote control and this unit are using different codes. Change the code on the remote control.
-
When "Remote 1" is displayed, press and hold [OK] and [1] for at least 4 seconds.
-
When "Remote 2" is displayed, press and hold [OK] and [2] for at least 4 seconds.
"Remote Mode"
- Basic operations using any of the basic control switches on the main unit or the buttons on the remote control cannot be performed. (This happens when music stored on a DLNA server is played back on this unit (DMR), for example.)
- Use the connected device for basic playback control.
"Scan Failed"
- Stations are not receivable. Check your antenna and try Auto scanning. ( 24) If "Scan Failed" is still displayed, find the best signal reception with the "Manual Scan" tuning function. ( 24)
"Searching"
The unit is checking the DLNA server on the network.
"Unlocked"
- "PC" is selected, but a PC is not connected. Check the connection with the PC. (⇒ 20)
The sampling frequency components, etc. of the audio signals are not input correctly. -About supported format, refer to "File format" ( 35)
"USB Over Current Error"
- The iPhone/iPad/iPod or USB device is drawing too much power. Disconnect the iPhone/iPad/iPod or USB device and turn the unit off and on again.
"Hub Device Not Supported"
"Device Not Recognized"
"Not Supported"
"USB Device Not Supported"
- You have connected an iPhone/iPad/iPod or USB device that is not supported.
- If the iPhone/iPad/iPod is compatible, turn it on and connect it correctly.
The format of the file on the iPhone/iPad/iPod or USB device is not supported.
- About supported format, refer to "File format" (35)
About Network service
The services through network service are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.
Unit care
Pull out the AC mains lead from the outlet before maintenance. Clean this unit with a soft cloth.
- When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a soft cloth.
- Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior case to be deformed or the coating to come off.
Specifications
GENERAL
Power supply AC 220 V to 240 V, 50/60 Hz
Power consumption 26 W
Power consumption in standby mode*
(When "Network Standby" is off) Approx. 0.2 W
(When "Network Standby" is on) Approx. 2.0 W
Power consumption in off mode Approx. 0.2 W
Dimensions (W× H× D)
Mass Approx. 4.0kg
Operating temperature range
Operating humidity range 35% to 80% RH (no condensation)
340mm× 78mm× 305mm
TERMINALS SECTION
Analogue output
LINE OUT Pin jack
Digital output
Optical digital output
Coaxial digital output
System port
System control
USB
Front USB
Support memory capacity
Maximum number of folders (albums)
Maximum number of files (songs)
File system
USB port power
PC
Rear USB
Ethernet interface
LAN
Optical terminal
Pin jack
03.5 mm jack
Type A connector
2 TB (max)
800
8000
FAT16,FAT32
DC OUT 5 V 2.1 A (max)
Type B connector
10 Base-T/100 Base-TX
USB-A
USB Standard
USB-B
USB Standard
DSD control mode
USB 2.0 high-speed
USB Mass Storage class
USB 2.0 high-speed
USB Audio Class 2.0, Asynchronous mode
ASIO Native mode, DoP mode
ANALOGUE OUTPUT SECTION
Channel 2ch
Output level
LINE OUT 2.0 Vrms
Frequency response
THD+N 0.0012% (1 kHz, 0 dB)
S/N 112 dB (IHF-A)
Dynamic range
2 Hz to 90 kHz (-3 dB)
112 dB (IHF-A)
BluetoothNFC SECTION
Bluetooth
Bluetooth® system specification
Wireless equipment classification
Supported profiles
Supported codec
Frequency band
Operating distance
Bluetooth Ver.3.0
Class 2 (2.5 mW)
A2DP/AVRCP
Qualcomm aptX™ Low Latency, AAC, SBC
2.4 GHz band FH-SS
Approx. 10 m Line of sight*2
TUNER SECTION
Frequency modulation (FM)
Preset memory
Frequency range
Antenna terminals
30 stations
87.50 MHz to 108.00 MHz (50 kHz step)
75Ω (unbalanced)
DAB
DAB memories
20 channels
Frequency band (wavelength)
Band III (All Band III)
5A to 13F (174.928 MHz to 239.200 MHz)
Sensitivity
Min requirement
-98 dBm
DAB external antenna terminal
F-Connector (75 Ω)
- Specifications are subject to change without notice.
Mass and dimensions are approximate.
1 When the iPhone/iPad/iPod is not charging
2 Prospective communication distance
Measurement environment: Temperature 25^/ Height 1.0 m
Measure in "Mode 1"
This unit supports the following file formats.
- This unit does not support the playback of copy-protected music files.
- Playback of all files in formats supported by this unit is not guaranteed.
- Playback of a file in a format not supported by this unit may cause choppy audio or noise. In such cases, check to see if this unit supports the file format.
- This unit does not support VBR (Variable Bit Rate) playback.
- Some of the connected devices (servers) may be capable of converting files in formats not supported by this unit and output them. For details, refer to the operating instructions for your server.
- File information (sampling frequency, etc.) shown by this unit and playback software may differ from each other.
USB-A
| File format Extension Sampling frequency | Bit rate Number of quantisation bits |
| MP3 .mp3 | 32/44.1/48 kHz 16 kbps to 320 | kbps | |
| AAC | .m4a/.aac | 32/44.1/48/88.2/96 kHz | 16 kbps to 320 kbps |
| WMA | .wma | 32/44.1/48 kHz | 16 kbps to 320 kbps |
| WAV | .wav | 32/44.1/48/88.2/96/176.4/192 kHz | 16/24 bit |
| FLAC | .flac | 32/44.1/48/88.2/96/176.4/192 kHz | 16/24 bit |
| AIFF | .aiff | 32/44.1/48/88.2/96/176.4/192 kHz | 16/24 bit |
| ALAC | .m4a | 32/44.1/48/88.2/96/176.4/192 kHz | 16/24 bit |
| DSD | .dff/.dsf | 2.8/5.6 MHz | |
PC (USB-B)*1
| File format Extension Sampling frequency | Bit rate
Number of quantisation bits |
| LPCM | | 32/44.1/48/88.2/96/176.4/192 kHz | 16/24/32 bit |
| DSD | .dff/.dsf | 2.8/5.6 MHz | |
LAN (DLNA)*2
| File format Extension Sampling frequency | Bit rate
Number of quantisation bits |
| MP3 .mp3 | 32/44.1/48 kHz 16 kbps to 320 | kbps | |
| AAC | .m4a/.aac | 32/44.1/48/88.2/96 kHz | 16 kbps to 320 kbps |
| WMA | .wma | 32/44.1/48 kHz | 16 kbps to 320 kbps |
| WAV | .wav | 32/44.1/48/88.2/96/176.4/192 kHz | 16/24 bit |
| FLAC | .flac | 32/44.1/48/88.2/96/176.4/192 kHz | 16/24 bit |
| AIFF | .aiff | 32/44.1/48/88.2/96/176.4/192 kHz | 16/24 bit |
| ALAC | .m4a | 32/44.1/48/88.2/96/176.4/192 kHz | 16/24 bit |
| DSD | .dff/.dsf | 2.8/5.6 MHz | |
1 If you download and install the dedicated app, you can play back files in wide-ranging formats. (→ 20) For details, refer to the operating instructions of the app.
2 Whether or not each music file can be played back over your network is determined by the network server even if the format of the file is listed above. For example, if you are using Windows Media Player 11, not all music files on the PC are playable. You can play back only those added to the library of Windows Media Player 11.
All the information above is current as of October 2016 and subject to update without notice. For update information, refer to the website below. www.technics.com/support/firmware/
About Bluetooth
Panasonic bears no responsibility for data and/or information that is compromised during a wireless transmission.
Frequency band used
- This system uses the 2.4 GHz frequency band.
Certification of this device
-
This system conforms to frequency restrictions and has received certification based on frequency laws. Thus, a wireless permit is not necessary.
The actions below are punishable by law in some countries:
-
Taking apart or modifying the system.
- Removing specification indications.
Restrictions of use
Wireless transmission and/or usage with all Bluetooth® equipped devices is not guaranteed.
All devices must conform to standards set by Bluetooth SIG, Inc.
Depending on the specifications and settings of a device, it can fail to connect or some operations can be different.
- This system supports Bluetooth® security features. But depending on the operating environment and/or settings, this security is possibly not sufficient. Transmit data wirelessly to this system with caution.
- This system cannot transmit data to a Bluetooth® device.
Range of use
- Use this device at a maximum range of 10m . The range can decrease depending on the environment, obstacles or interference.
Interference from other devices
- This system may not function properly and troubles such as noise and sound jumps may arise due to radio wave interference if this system is located too close to other Bluetooth® devices or the devices that use the 2.4 GHz band.
- This system may not function properly if radio waves from a nearby broadcasting station, etc. is too strong.
Intended usage
- This system is for normal, general use only.
- Do not use this system near an equipment or in an environment that is sensitive to radio frequency interference (example: airports, hospitals, laboratories, etc).
Made for
iPhone
"Made for iPod", "Made for iPhone", and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.
AirPlay, iPad, iPhone, iPod, iPod nano, iPod touch and iPad Air are trademarks of Apple Inc., registered in the U.S. and other countries. iPad mini and iPad Pro are trademarks of Apple Inc.
Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.
Android is a trademark of Google Inc.
Qualcomm aptX is a product of Qualcomm Technologies International, Ltd.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission.
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary and third parties.
FLAC Decoder
Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Josh Coalson
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions a
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUsION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses
www.technics.com/support/firmware/
"Connect to Network"
"Connect USB Device"
"Firmware update is available"
"No Network Available"
"USB Over Current Error"
"Hub Device Not Supported"
"Device Not Recognized"
"Not Supported"
"USB Device Not Supported"
Qualcomm® aptXTM Low Latency, AAC, SBC
2,4 GHz Band FH-SS
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution
Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTYES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
"Connect to Network"
"Connect USB Device"
"Firmware update is available"
"No Network Available"
"USB Over Current Error"
"Hub Device Not Supported"
"Device Not Recognized"
"Not Supported"
"USB Device Not Supported"
Mode ASIO Native, Mode DoP
SECTION SORTIE ANALOGIQUE
Canal 2canaux
Niveau de sortie
LINE OUT 2,0 Vrms
Qualcomm aptX™ Low Latency, AAC, SBC
Bande FH-SS 2,4 GHz
Condition minimale requise
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution
Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUsION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
1234: [≥10] → [≥10] → [≥10] → [1] → [2] → [3] → [4]
"Connect to Network"
"Connect USB Device"
"Firmware update is available"
"No Network Available"
"USB Over Current Error"
"Hub Device Not Supported"
"Device Not Recognized"
"Not Supported"
"USB Device Not Supported"
SEZIONE USCITA ANALOGICA
Canale 2 canali
Livello di uscita
LINE OUT 2,0 Vrms
Rispostainfrequenza
THD+N 0,0012% (1 kHz, 0 dB)
Segnale/Rumore 112dB (HF-A)
Gamma dinamica
2Hz a 90 kHz (-3 dB)
112 dB (IHF-A)
Qualcomm aptX™ Low Latency, AAC, SBC
Banda da 2,4 GHz FH-SS
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
-
Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
-
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution
Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR COLNTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERPUNCTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF
ADJISSED OF THE POSSIBILITY OF SUCH DAMAGE.
① Power-schakelhendel [O/ (Stand-by/on)]/[OFF]
VerbindingmakeemeteenPC
- De fabrieksinstilling is "Off".
1 Druk op [NWP].
2 Druk op [DIRECT] om "On"/"Off" te selecteren.
- De fabrieksinstalling is "On".
"Connect to Network"
"Connect USB Device"
"Firmware update is available"
"No Network Available"
"USB Over Current Error"
"Hub Device Not Supported"
"Device Not Recognized"
"Not Supported"
"USB Device Not Supported"
Qualcomm® aptX™ Low Latency, AAC, SBC
2,4 GHz-band FH-SS
Frequentieband (golflene)
Band III (Alle Band III)
Gevoeligkeit
Min. vereiste
DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS
BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
www.spotify.com/connect/third-party-licenses
English
Hereby, "Panasonic Corporation" declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Customers can download a copy of the original DoC to our R&TTE products from our DoC server:
http://www.doc.panasonic.de
Contact to Authorised Representative:
Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsberging 15,22525 Hamburg, Germany
EAAnykα
Anwn oumuoppwos (DoC)
Me Tny Taopoua, N Panacorsicn Corporation]Noiuovei To tpoivai autov elvai oumpuo me. IIC BoKIEc ATAIIOE KAI AALEC OYEIKEC DIATAEK INC obnyik 1999/5/EC.
OI talec iupov va kateauou eva aivfapao 10u Tpuototuv DoC yia rR&TTE prpoita ma atto Tov DoC server mac;
http://www.doc.panasonic.de
Toiyeia eikovlaegouoobotou Avipooiou
Panasonic Marketing Europe GmbH, Panasonic Testing Centre,
Winsberging 15,22525 Hamburg, Fepuaia
Portugues
Headquarter Address: Panasonic Corporation Kadoma, Osaka, Japan
Importer for Europe:
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsberging 15, 22525 Hamburg, Germany
Panasonic Corporation
Web Site: http://www.panasonic.com
EnGeFrIt Du
