UR 1110 - Alarm clock radio Karcher Audio - Free user manual and instructions

Product type	Projection alarm clock radio
Brand	Karcher Audio
Model	UR 1110
Mains power supply	AC 230 V ~ 50 Hz, 5 W
Backup battery	9V (for clock)
FM frequency range	88 - 108 MHz
AM frequency range	540 - 1600 kHz
Output power	300 mW
Speaker impedance	8 ohms
Clock projection	Yes, distance 1 to 3 meters, focus adjustment
Alarms	Radio or buzzer, adjustable
Snooze function	Yes, repeats after 9 minutes
Automatic sleep mode	Yes, programmable up to 59 minutes
Display	Digital LED (time, alarm)
FM antenna	Deployable FM antenna cable
Cleaning	Dry, clean cloth, unplug before
Operating temperature	Not specified, indoor use
Dimensions	Not specified
Weight	Not specified

Frequently Asked Questions - UR 1110 Karcher Audio

How to set the time on the digital clock?

Set the ON/OFF/AUTO switch to OFF. Connect the device. The display blinks. Press and hold TIME SET while pressing HOUR SET or MINUTE SET until the correct time.

How to set the ceiling projection time?

Set the projection switch to ON. To set the hours, press HOUR and TIME simultaneously. For minutes, press MINUTE and TIME. Turn the FOCUS knob to adjust focus.

How to set the alarm to wake up to music?

Set the alarm time by holding ALARM SET/OFF while pressing HOUR SET and MINUTE SET. Select the desired radio station and volume. Turn the ON/OFF/AUTO switch to AUTO.

How to stop the alarm in the morning?

Press ALARM SET/OFF once to deactivate the alarm and reset it for the next day. To turn it off completely, turn the ON/OFF/AUTO switch to OFF.

What does the SNOOZE button do?

Pressing SNOOZE during the alarm temporarily stops it. It will sound again after 9 minutes.

How to use the automatic sleep mode?

Set the ON/OFF/AUTO switch to OFF or AUTO. Press SLEEP SET and MINUTE SET simultaneously. The sleep time is displayed and the countdown starts (max 59 minutes). The radio turns off automatically.

What type of backup battery to use?

Use a 9V battery (standard type). It maintains the clock and settings during a power failure. Insert it observing polarity.

How to improve FM reception?

Fully extend the FM antenna cable on the back of the unit. Orient it for better reception. For AM, reorient the radio itself.

The device does not turn on, what to do?

Check that the power cord is plugged in and that the mains socket works. Make sure the ON/OFF/AUTO switch is not on OFF. If nothing displays, try replacing the backup battery.

Can I leave the projection on permanently?

Yes, you can leave the projection switch on ON. However, to save energy and extend the LED lifespan, it is recommended to turn it off when not in use.

USER MANUAL UR 1110 Karcher Audio

Projection Clock Radio | User Manual

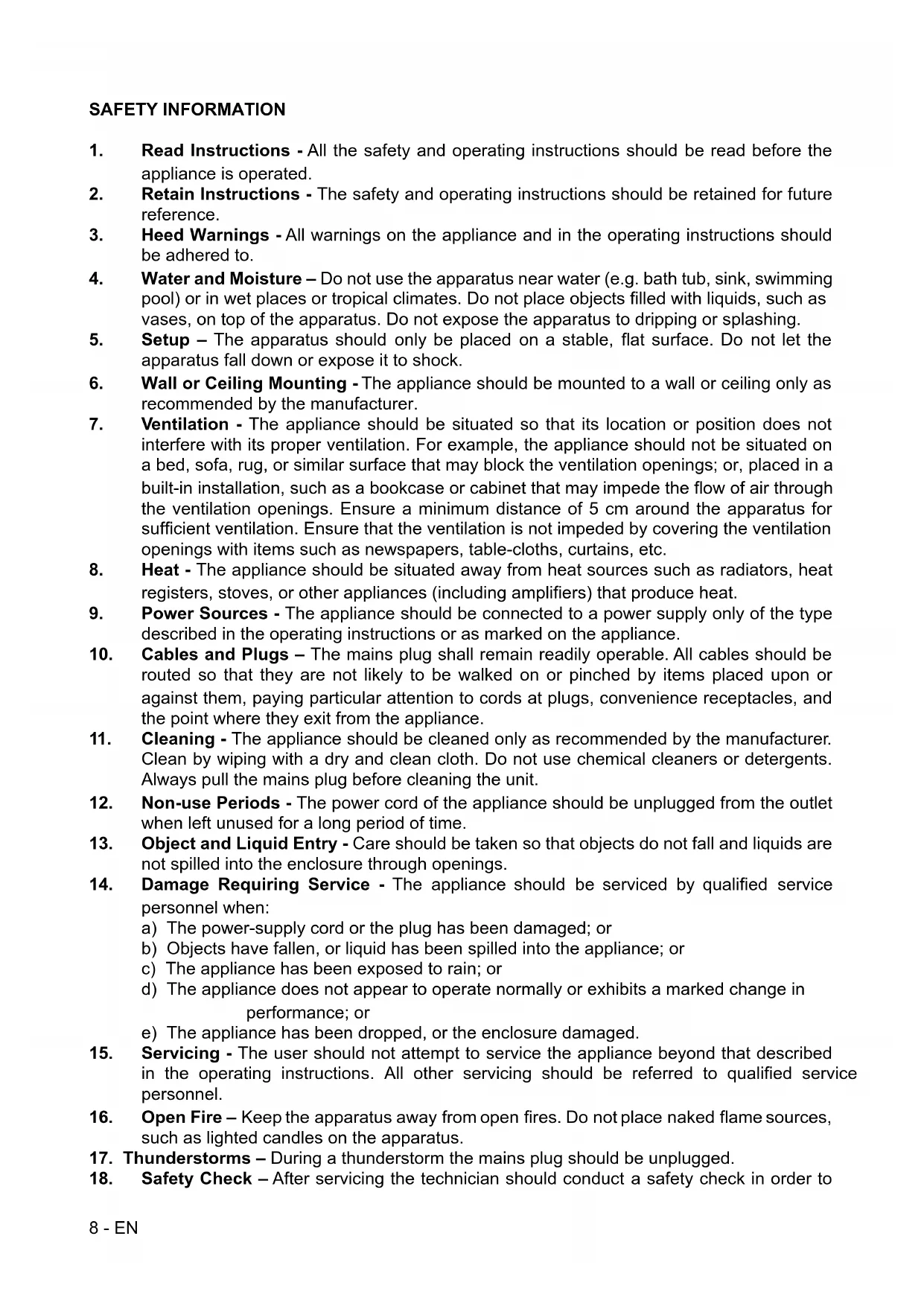

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. HeedWarnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture - Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup - The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. Ensure a minimum distance of 5cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs - The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

a) The power-supply cord or the plug has been damaged; or
b) Objects have fallen, or liquid has been spilled into the appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure damaged.

1. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
2. Open Fire - Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.
3. Thunderstorms - During a thunderstorm the mains plug should be unplugged.
4. Safety Check - After servicing the technician should conduct a safety check in order to

ensure that the apparatus is working properly and safely.

1. Batteries - Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.
2. Volume Levels - To prevent possible hearing damage, do not listen at high volume levels for long periods.
3. Headphones (if applicable) – Excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION

RISK OF ELECTRO SHOCK DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

Klasse 1 Class 1

LED Product

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1. ON/OFF/AUTO
2. LED DISPLAY
3. AUTO INDICATOR
4. SNOOZE/SLEEP OFF
5. ALARM SET/OFF
6. TIME SET
7. SLEEP SET
8. HOUR/MINUTE INDICATOR
9. HOUR SET
10. MINUTE SET
11. VOLUME CONTROL / BUZZ

12. WAVE BAND

13. TUNING CONTROL

14. BATTERY BACK-UP
15. FM ANTENNA WIRE
16. AC POWER CORD
17. POINTER
18. PROJECTION ON/OFF
    19.PROJECTION
19. TIME SET BUTTON FOR PROJECTION
20. HOUR BUTTON FOR PROJECTION
21. MINUTE BUTTON FOR PROJECTION
22. FOCUS ADJUSTMENT

AC POWER OPERATION

Before connecting to the power supply ensure that the supply corresponds to the information on the rating label on the bottom of the apparatus.

CLOCK

1. Set the ON/OFF/AUTO switch (1) to 'OFF' connect the Main Cord to the power supply. The clock display will flash on and off indicating a power interruption and that the display time is incorrect.
2. To set the correct time, press the TIME SET button (6) and MINUTE SET button (10), or HOUR SET button (9), together, until the correct time is displayed.
3. Open the Clock Battery Compartment door and fit a 9V battery. The purpose of this battery is to store the information relating to alarm time. And to keep the clock functioning in the event of disconnection from the mains supply or power interruption. Should this occur, The clock will continue to keep time, but will not display.

The led digital clock and the projection clock must be set separately.

TIME SETTING FOR PROJECTION

1. Switch the projection switch to the 'ON' position.
2. To preset the HOURS, press simultaneously the HOUR BUTTON (21) and the TIME BUTTON (20), keep them depressed until the hour digits to be preset are displayed.
3. To preset the MINUTES, press simultaneously the MINUTE BUTTON (22) and the TIME BUTTON (20). Keep them depressed until the minute digits to be preset are displayed.
4. Focus setting: To adjust the projection clock definition by turning the FOCUS (23) until the project's time is clearly shown on the ceiling or wall.

Note: PROJECTS TIME IMAGE ON THE CEILING OR WALL OF A DARKENED ROOM.

MAXIMUM PROJECTION DISTANCE IS 3-9 FEET.

TO SET OR RESET THE ALARM TIME

1. Press and hold the ALARM SET/OFF button (5).
2. While holding the ALARM SET/OFF button (5) press the HOUR SET button (9) and MINUTE SET button (10) to advance the time until the desired alarm time is shown on the display.

TO SET THE ALARM TO WAKE TO RADIO

1. Set the alarm time as previously instructed. Select a radio station and make sure the VOLUME is set as desired.
2. Slide the ON/OFF/AUTO switch (1) to the AUTO position. When the actual time on the clock matches the selected preset alarm time, the unit automatically turns on for 1 hour and 59 minutes and then shuts off. The time of the porjection does not trigger the alarm.

Notes:

• To shut off the alarm, press the ALARM SET/OFF button (5) once and alarm time will be reset for the next day. Slide the ON/OFF/AUTO switch (1) to the OFF position to turn off alarm and not set it for the next day.
  The radio can be temporarily turned off manually by pressing the SNOOZE button (4); the radio will turn back on automatically 9 minutes later.

TO SET THE ALARM TO WAKE TO BUZZER

1. Set the alarm time as previously instructed. Slide the VOLUME / BUZZER (11) knob to the BUZZER position; a click is heard and the buzzer will now be activated.
2. Slide the ON/OFF/AUTO switch (1) to the AUTO position. When the actual time matches the selected preset alarm time, the unit automatically turns on for 1 hour and 59 minutes and then shuts off.

TO SHUT ALARM OFF

To shut off the alarm, press the ALARM SET/OFF button (5) once and alarm time will be reset for the next day. Slide the ON/OFF/AUTO switch (1) to the OFF position to turn off alarm and not set it for the next day.

SNOOZE FUNCTION

The alarm can be temporarily turned off manually by pressing the SNOOZE button (4); the buzzer will turn back on automatically 9 minutes later.

SLEEP

1. Set the ON/OFF/AUTO switch (1) to 'OFF' or 'AUTO'.
2. Press the Sleep Set button (7) and Minute Set button (10) together. The sleep time will be displayed and count down from 59 minutes to zero. Release the buttons when the required sleep time is displayed.
3. The radio will now operate until the sleep time has elapsed or may be switched off by pressing the Snooze/Sleep Off button (4).

RADIO

The AM bands use an internal directional serial. Rotate the radio for best reception.

For best FM reception ensure that the FM cord antenna is completely uncoiled and extended.

1. Set the ON/OFF/AUTO switch (1) to 'ON' position.
2. Set the Wave band switch (12) to the required wave band.
3. Adjust the Tuning Control (13) to select the desired station.
4. Adjust the Volume Control (11) is required.
5. To turn off the radio, set the ON/OFF/AUTO swtich (1) to 'OFF' position. If the radio does not switch off this may be caused by inadvertent operation of the Sleep Set button (7), to cancel this press the Snooze/Sleep Off button (4) once.

SPECIFICATIONS

Frequency Range: AM 540 - 1600 kHz

FM 88-108 MHz

Output Power: 300 mW

Speaker Impedance: 8 ohm

Battery Backup: 9V battery (for clock)

Power Source: AC230V ~ 50 Hz, 5W

Technical specifications and design may change without notice.
