USER MANUAL UR 1120 Karcher Audio

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture – Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup – The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs – The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
    a) The power-supply cord or the plug has been damaged; or
    b) Objects have fallen, or liquid has been spilled into the appliance; or
    c) The appliance has been exposed to rain; or
    d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
    e) The appliance has been dropped, or the enclosure damaged.

15. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

16. Open Fire – Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.

17. Thunderstorms – During a thunderstorm the mains plug should be unplugged.

18. Safety Check – After servicing the technician should conduct a safety check in order to

ensure that the apparatus is working properly and safely.

1. Batteries – Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.
2. Volume Levels – To prevent possible hearing damage, do not listen at high volume levels for long periods.
3. Headphones (if applicable) – Excessive sound pressure from earphones and headphones can cause hearing loss.

CAUTION

RISK OF ELECTRO SHOCK

DO NOT OPEN

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

Klasse 1 Class 1

LED Product

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

1 2 3 4 5 6 7 8 9 10 11 12 13

12:43 Number 14 15

16 17 18 19 20 25 24 23 21 22

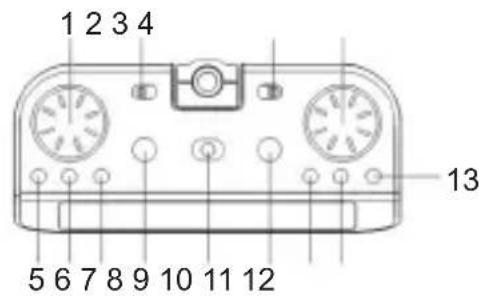

1. Volume Knob
2. Alarm Radio/Buzz Switch
3. AM/FM Band Switch
4. Tuning Knob
5. Time Set Button
6. Hour Set Button
7. Minute Set Button
8. Sleep Button
9. Auto Dimmer Sensor
10. Snooze Button
11. Alarm On/Off Button
12. Alarm Set Button
13. On/Off Button
14. LCD

15. Battery Door (Bottom of Unit)

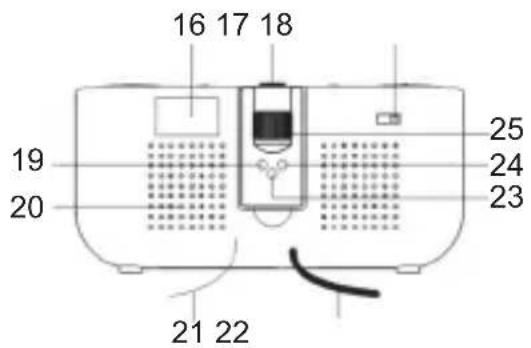

16. Rating Label (Rear of Unit)

17. Projection Unit (Rear of Unit)
18. Projection On/Off Switch
19. Hour Set Button for Projection Unit (Rear of Unit)
20. Speaker (Rear of Unit)
21. FM Antenna (Rear of Unit)
22. AC Power Cord (Rear of Unit)
23. Time Set Button for Projection Unit (Rear of Unit)
24. Minute Set Button for Projection Unit (Rear of Unit)
25. Focus Adjustment for Projection Unit (Rear of Unit)

POWER CONNECTION

Plug the AC power cord to a household outlet AC source. This unit is equipped with a battery back up system, it requires a size 1 x 3V CR2032 flat lithium battery (not included). Insert the battery in the battery compartment, making certain that the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment. If and AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.

TO SET THE TIME

1. Press and hold down the Time Set button (5).
2. Next, press the Hour Set button (6) until you reach the correct hour setting.
3. Keep holding down the Time Set button (5) and press the Minute Set button (7) until you reach the correct minute setting.

The projection clock must be set separately

TIME SETTING FOR PROJECTION UNIT

1. To preset the Hours, press simultaneously the Hour button and the Time button. Keep them pressed until the hour digits to be preset are displayed.
2. To preset the Minutes, press simultaneously the Minute button and the Time button. Keep them pressed until the minute digits to be preset are displayed.
3. Focus setting : adjust the projection clock brightness / focus by turning the brightness / focus adjustment wheel until the projected time is clearly shown on the ceiling or wall.

NOTE: PROJECTS TIME IMAGE ON THE CEILING OR WALL OF A DARKENED ROOM. MAXIMUM PROJECTION DISTANCE IS 3-9 FEET.

SETTING THE ALARM TO WAKE YOU UP WITH MUSIC

1. Select the Alarm switch (2) to radio position.
2. Press the Alarm set button (12) and Hour set button (6) to set the hour.
3. Press the Alarm set button (12) and Minute set button (7) to set the minute.
4. The radio broadcast station will automatically wake you up at the alarm time.

ALARM DURATION AND SNOOZE FUNCTION

Alarm Duration – Buzzer alarm or Radio alarm will continue output for 60 minutes if not key press, then it will stop automatically and wait for same alarm time on next day.

ACTION FOR SNOOZE

1. During alarming, press Snooze button (10) will enable snooze function, Buzzer alarm or Radio alarm will stop.
2. Snooze interval is 5 minute (not include second offset).
3. Snooze will continue unless press On/Off button (13)/ Alarm On/Off button (11) to alarm off of Buzzer alarm or Radio alarm stop automatically after 60 minutes.

SLEEP FUNCTION

Press Sleep button (8) to turn on sleep mode the sleep time will keep flashing by 3 second, within 3 second and Sleep button (8) can change the duration from 90 min – 10 min.

Press On/Off button (13) to cancel sleep function.

TO PLAY THE RADIO

1. Press the On/Off button (13) to turn radio on.
2. Select the station using the tuning knob (4).
3. Turn the volume knob (1) to adjust volume as required.
4. Press the On/Off button (13) to turn radio off.

SEPCIFICATIONS

Frequency range: FM 88 – 108 MHz

AM 540 – 1600 KHz

Power Source: AC 230V \~ 50 Hz, 5W

Battery back-up: 1 x 3V CR2032 flat lithium battery (not included)

Technical specifications and design may change without notice.
