VT 2 - Fan STEBA - Free user manual and instructions

Brand	Steba
Model	VT 2
Product type	Pedestal fan
Speeds	2 speeds (0-1-2)
Oscillation	Yes, 90°
Power consumption	55.8 W
Maximum air flow	11.3 m³/min
Noise level	66 dB(A)
Service value	0.20 (m³/min)/W
Standby consumption	0.0 W
Maximum air speed	5.2 m/s
Power supply	220-240 V ~ 50 Hz
Usage	Indoor, domestic
Safety	Do not immerse, unplug before cleaning
Cleaning	Damp cloth, vacuum for grille
Assembly	Assembly of tubes and elbows with screws
Special functions	Summer/winter mode, air circulation
Automatic shut-off	No (manual switch)
Measurement standard	IEC 60879:1986 (CORR.1992)

Frequently Asked Questions - VT 2 STEBA

How to assemble the Steba VT 2 fan?

Install the tubes onto the elbows and fix them using the 4 screws provided. Do not plug in the appliance during assembly. Ensure the appliance is placed on a stable surface.

What are the important safety instructions?

Only connect the appliance if the mains parameters match the rating plate. Do not use the appliance if it is damaged. Always unplug before cleaning. Never immerse the appliance in water. Do not blow on an open flame.

How to clean the fan?

Before cleaning, remove the plug from the outlet. Use a damp cloth for the exterior. For the dusty ventilation grille, use a vacuum cleaner.

Can I use the fan with a timer or remote control?

No, the appliance must not be operated with a timer or separate remote control system. It should only be used with its manual switch.

How to use winter mode?

Rotate the appliance towards the ceiling and set the switch to position '1'. This generates air circulation that compensates for temperature differences.

How to use summer mode?

Rotate the appliance horizontally or slightly tilted, then set the switch to position '2'. Avoid placing the intake opening near an exterior door to prevent hot air from entering.

What is the power of the fan?

The power consumption is 55.8 W. The maximum air flow is 11.3 m³/min and the maximum air speed is 5.2 m/s.

Can the fan oscillate?

Yes, the appliance can be manually pivoted by 90° to direct the airflow. There is no automatic oscillation.

What to do if the fan does not work?

Check that the power outlet is live and that the switch is in a position other than '0'. Make sure the appliance is correctly assembled. If the problem persists, contact customer service.

Where can I find spare parts?

Spare parts are not mentioned in the manual. For any repair, contact a qualified electrician or Steba customer service. Non-compliant repairs may lead to serious consequences.

USER MANUAL VT 2 STEBA

Instructions for use 8

Mode d'emploi 12

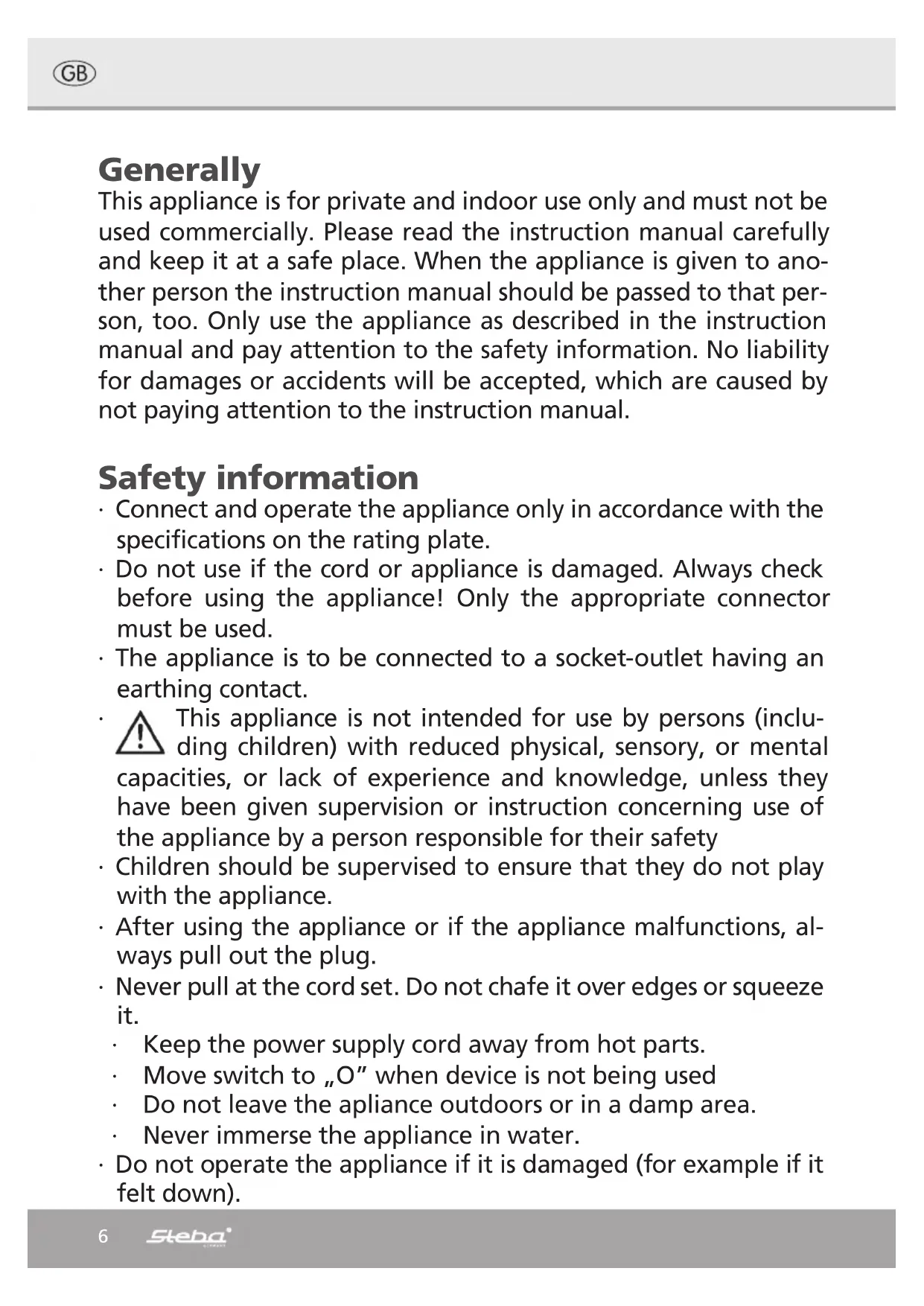

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Do not use if the cord or appliance is damaged. Always check before using the appliance! Only the appropriate connector must be used.
• The appliance is to be connected to a socket-outlet having an earthing contact.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety
• Children should be supervised to ensure that they do not play with the appliance.
• After using the appliance or if the appliance malfunctions, always pull out the plug.
• Never pull at the cord set. Do not chafe it over edges or squeeze it.
• Keep the power supply cord away from hot parts.
• Move switch to „O“ when device is not being used
• Do not leave the appliance outdoors or in a damp area.
• Never immerse the appliance in water.

• Do not operate the appliance if it is damaged (for example if it felt down).

• The manufacturer is not liable for damage occurred by using the appliance in another way than described or if a mistake in operating has been made

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by customer service.
• The appliance is not intended to be operated by means of an external timer or separate remote control system.
  Do not direct the air flow from the device at naked flames (e.g. fireplaces, candles etc.). Do not cover the intake or the outlet.

Safety instructions when using the device:

Always connect the device to a safety socket
- Do not use the device unless it is fully assembled.
- Route connecting cable in such a way as to avoid unintentional contact or pulling during operation.
Unplug device from socket before moving its location.
- Disconnect mains plug after use and before cleaning.

Cleaning and maintainance:

Unplug the device.
- Never immerse the device in water!
Use a humid cloth with a little bit of detergent to clean it.
- Clean dusty ventilation grilles with a vacuum cleaner.

Working place:

Place this device on a even and stable surface. Do not place the device near objects that may be sucked in (such as curtains)

• Do not place the device directly in front of people or animals.
• For your health's sake, please select the correct air speed.

Assembly:

Ensure that device is disconnected during assembly. Attach straight tubes to bent sections and screw in place with 4 screws.

Operation:

The device has 2 air speeds, 0 - 1 - 2 and can be swivelled by 90^ .

Winter: Swivel the exhaust opening so that it is pointing at the ceiling and move the switch to position 1^ . This will create circulation, and temperature differences in the room will be balanced out.

Summer: Swivel the device to a horizontal or slightly angled position and move the switch to position 2^ . Do not position the intake near an outside door - otherwise cold air may be blown into the room.

Information requirements

Steba VT 2
Description Symbol Value Unit
Maximum fan flow rate	F	11,3	m³/min
Fan power input P 55,8 W
Service value	SV	0,20	(m³/min)/W
Standby power consumption P	SB 0,0	W
Fan sound power level	LWA	66	dB(A)
Maximum air velocity	c	5,2	meters/sec
Measurement standard for service value	IEC 60879:1986(CORR.1992)
Contact details for obtaining more information	Steba Elektrogeräte GmbH & Co.KG Pointstr. 296129 Strullendorf

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
