USER MANUAL GZHA 2350 X Ground Zero

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

wwwground-zero-audio.com

We reserve the right to make needed change or improvement to the product without informing customer about this in advance.

Thank you for selecting a Ground Zero amplifier.

We are providing a helpful hints list which should keep you from experiencing

unnecessaryshutdown.

Have fun with this high quality Hydrogen product.

Features

• 4 Ohm / 2 Ohm stable stereo
  1 Ohm stable stereo (GZHA 2350XII / Channel 5 of GZHA 5125XII)
  P.W.M. Mosfet power supply
  SMD Technology
  Power & Protection indicator
  Variable 12dB Bass Boost (GZHA 2350XII)
  Variable high pass filter
  Variable low pass filter
  Variable subsonic filter
  Variable phase shift 0 ~ 180°
• Switchable phase shift 0^ / 180^ (GZHA 5125XII)
  Adjustable input sensitivity
  Soft delayed remote turn-on
• RCA outputs (GZHA 4150XII)
  Remote control
  Thermal / Short / Overload protection

Hydrogen amplifiers

Due to their state-of-the-art technology and high efficiency, these amplifiers help your system to provide an impressive sound experience. The modern circuit technology of the power supply and the signal processing allows achieving maximum performance levels from the provided power.

Tools and materials you need

• Screwdriver
  Electric drill. 3 mm/0.12" carbide drill bil
  Mounting screws
  Power wire min. 16 mm² / 5 AWG
  Ground wire min. 16 mm² / 5 AWG
• Speaker wire min. 2 x 1,5 mm² / 15 AWG

Please note!

• As a precaution it is advisable to disconnect the vehicle's battery before making connection to the +12 Volts supply wiring (so oxen's manual of your car for further information).
• Please use great caution drilling your trunk. Your gas tank and brake lines can be damaged by puncturing with your drill bit - this could cause damage or failure of your cars operating systems.
• Never pass wires over sharp angles. It is recommended to buffer the power supply of the amplifier with an capacitor min. 1 Farad to guarantee a stable operation voltage.

WARNING!

High powered audio systems in a vehicle are capable of generating "Live Concort" levels of sound pressure. Continued exposure to excessively high volume sound levels may cause hearing loss or damage. Also, operation of a motor vehicle while listening to audio equipment at high volume levels may impair your ability to hear external sounds such as; horns, warning signals, or emergency vehicles, thus constituting a potential traffic hazard. In the interest of safety, Consumer Electronics recommends listening at lower volume levels while driving.

Planning your system

Before beginning the installation, consider the following:

a. If you plan to expand your system by adding other components sometime in the future, ensure adequate space is left, and cooling requirements are met.
b. If your radio i source is equipped with pre-amp outputs, it is possible to utilize them to drive the amplifier and connecting (amplifier) to the 2 rear speakers.

Mounting your amplifier

a. Select a suitable location that is convenient for mounting, is accessible for wiring and has ample room for air circulation and cooling.
b. Use the amplifier as a template to mark the mounting holes, removes the amplifier

Warning

Choose a mounting position where all electroic wires are protected from being damaged by sharp edges, heat or other conditions. +12Volt DC electrical connections must be based on the battery side. Make sure your radio and all other devices will be turned off while connection your system.
If you need to replace the power fuse, replace it only with a fuse identical to that supplied with the system. Using a fuse of different type or rating may result in damage to this system which isn't covered by the warranty.

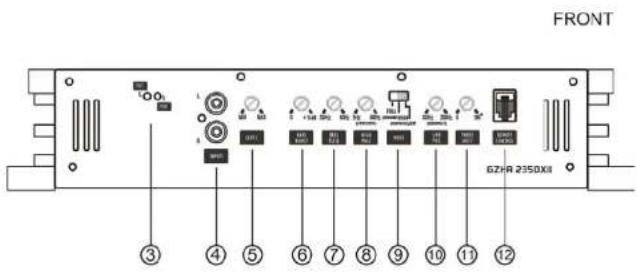

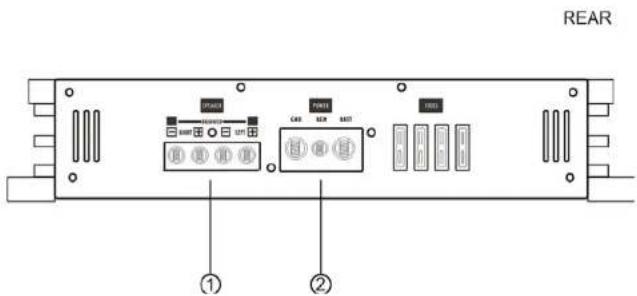

Controls and functions - GZHA 2350XII

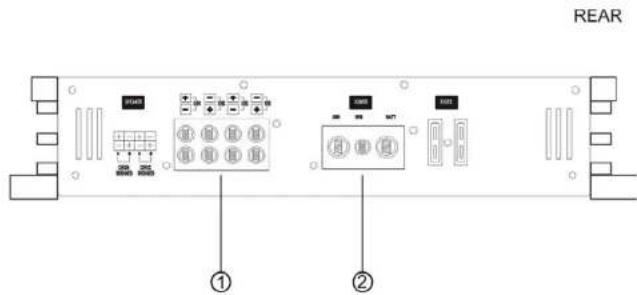

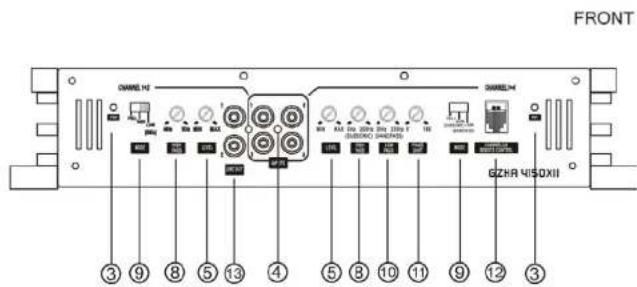

Controls and functions - GZHA 4150XII

5

6

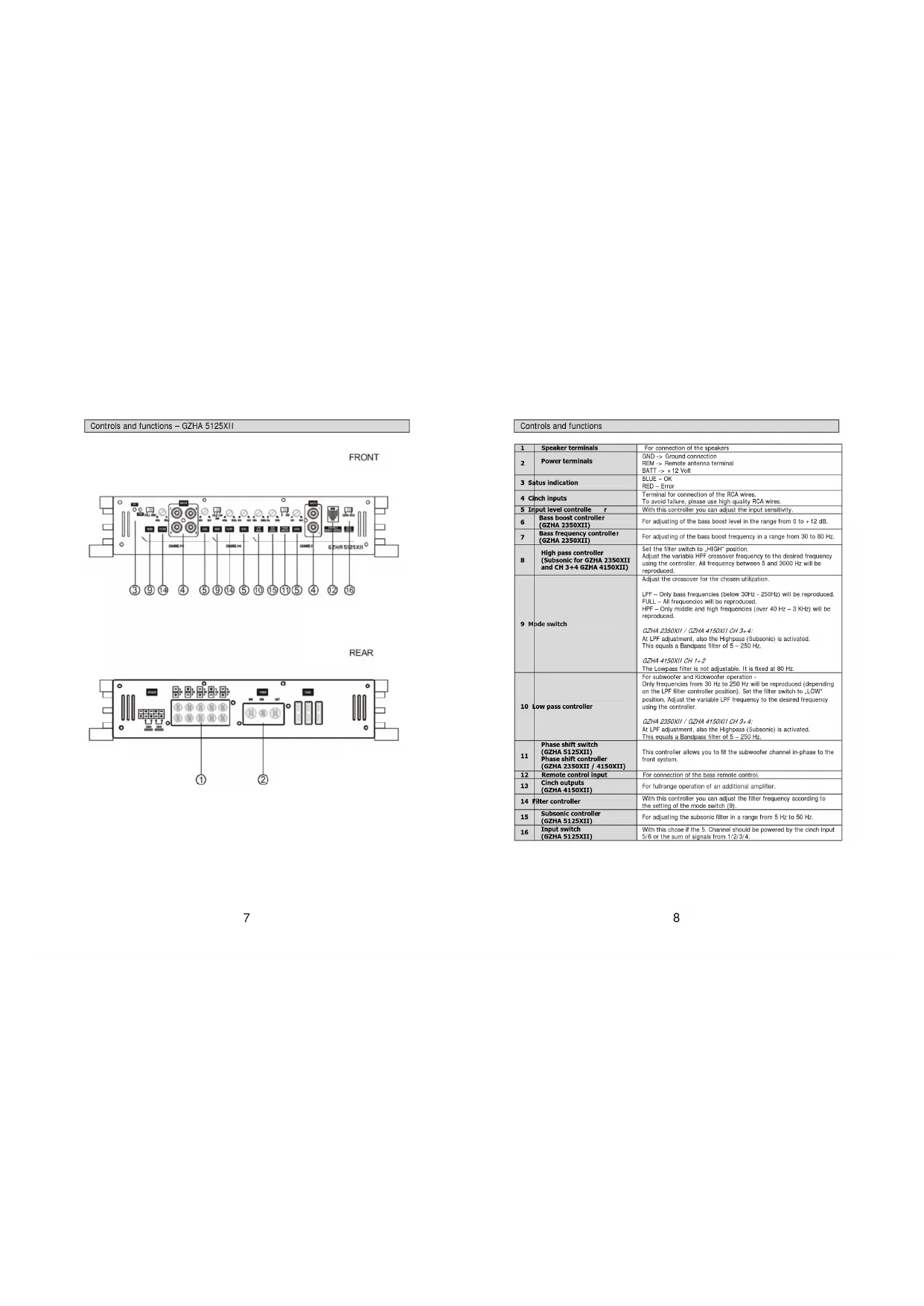

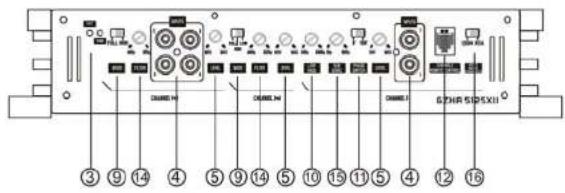

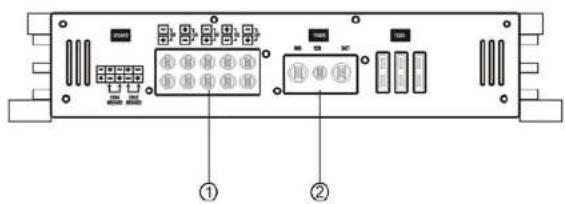

Controls and functions - GZHA 5125XII

FRONT

REAR

Controls and functions

1	Speaker terminals	For connection of the speakers
2	Power terminals	GND -> Ground connectionREM -> Remote antenna terminalBATT -> + 12 Volt
3	Status indication	BLUE = OARED = Error
4	Pinch Inputs	Terminal for connection of the PCA wiresTo avoid failure, please use high quality PCA wires.
5	Input level controller r	With this controller you can adjust the input sensitivity.
6	Base boost controller(GZHA 2350XII)	For adjusting of the base boost level in the range from 0 to -12 dB.
7	Base frequency controller(GZHA 2350XII)	For adjusting of the base boost frequency in a range from 30 to 80 Hz.
8	High pass controller(Subsonic for GZHA 2350XII and CH 3+4 GZHA 4150XII)	Set the filter switch to "HIGH" position.Adjust the variable HPF crossover frequency to the desired frequency using the controller. All frequency between 5 and 3000 Hz will be reproduced.
9	Mode switch	Adjust the crossover for the chosen utilization.LPF - Only base frequencies (below 30Hz - 250Hz) will be reproduced.FULL - All frequencies will be reproduced.HPF - Only middle and high frequencies (over 40 Hz - 3 KHz) will be reproduced.GZHA 2350XII / GZHA 4150XII CH 3+4.At LPF adjustment, also the Highpass (Subsonic) is activated.This equals a Bandpass filler of 5 - 250 Hz.GZHA 4150XII CH 1+2The Lowpass filter is not adjustable. It is fixed at 80 Hz.
10	Low pass controller	For subwoofer and Kickrooster operation -Only frequencies from 30 Hz to 250 Hz will be reproduced (depending on the LPF filler controller position). Set the filter switch to LOW"position. Adjust the variable LPF frequency to the desired frequency using the controller.GZHA 2350XII / GZHA 4150XII CH 3+4.At LPF adjustment, also the Highpass (Subsonic) is activated.This equals a Bandpass filler of 5 - 250 Hz.
11	Phase shift switch(GZHA 5125XII)Phase shift controller(GZHA 2350XII / 4150XII)	This controller allows you to fit the subwoofer channel in-phase to the front system.
12	Remote control input	For connection of the bass remote control.
13	Pinch outputs(GZHA 4150XII)	For fullrange operation of an additional amplifier.
14	Filter controller	With this controller you can adjust the filter frequency according to the setting of the mode switch.(9).
15	Subsonic controller(GZHA 5125XII)	For adjusting the subsonic filter in a range from 5 Hz to 50 Hz.
16	Input switch(GZHA 5125XII)	With this choice if the S Channel should be powered by the cinch input 5/8 or the sum of signals from 1/2/3/4.

Turning on the amplifier

The amplifier automatically turns on a few seconds after you turn on your radio.

Note: Your amplifier temporarily shuts down if it gets too hot, then restarts automatically once it cools

(A1 about 80^ / 176^ F1.

Adjusting the audio level

LEVEL(MinMax):Turn fully caunter clockwise to MIN position
2. Turn the auto sound system's volume control to about two-third of its full range.
3. Adjust LEVEL to a comfortable listening level.

Connecting the speaker for trimode operation - notes

TRI MCOE operation output allows a subwoofer to be operated in mono mode while the main speakers are playing in stereo. Leave this crossover switch on "Full" position.

Use 100 volt, non-polar capacitors for a high pass crossover to filter out low frequencies and Air-core or Fortri- orcells with a minimum diameter of 1mm / 0.030^4 for the lowpass crossover to filter out high frequencies.

The capacitor and inductor values as written in the below table. The front and rear channels of this amplifier get the capability. Only the rear left and right channels are shown on the following pictures.

Values for 6dB passive crossover

Frequency Inductor Capacitor
80 Hz 7,5 mH 470 uF
100 Hz 6,5 mH 330 uF
120 Hz 5,5 mH 370 uF
150 Hz 4 mH 220 uF

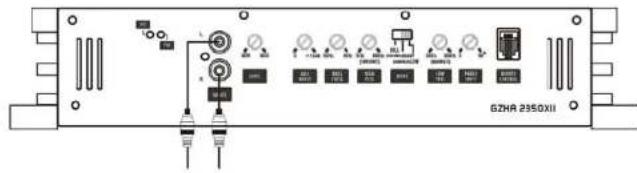

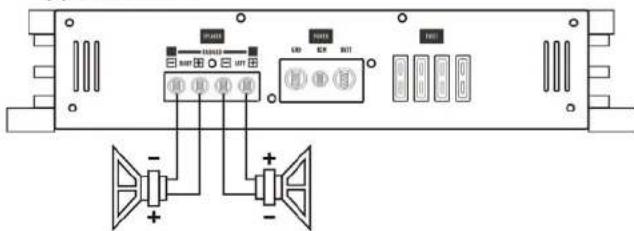

Connecting the speaker - GZHA 2350XII

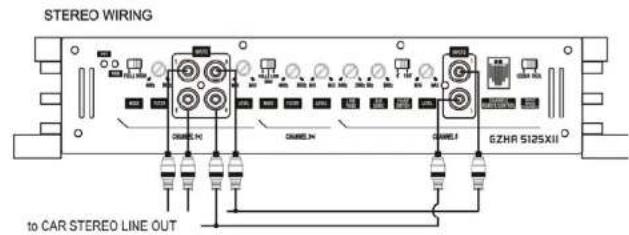

STEREO WIRING
to CARSTEREO LINE OUT

(A)STEREO MODE
RIGHT CHANNEL 1~8 Ohm
LEFT CHANNEL 1~8 Ohm

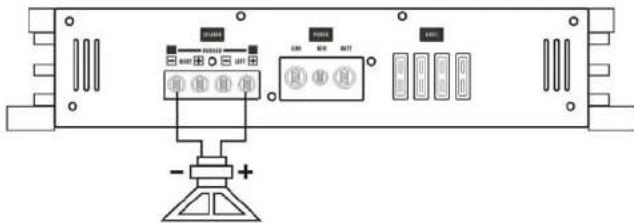

(B) MONO MODE
SUBWOOFER 2~8 Ohm

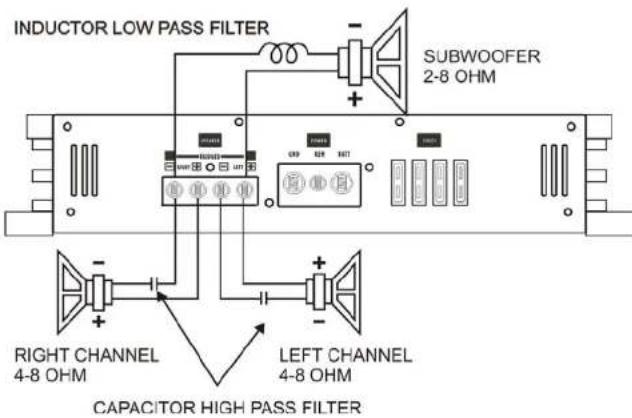

Trimode operation-GZHA 2350X11

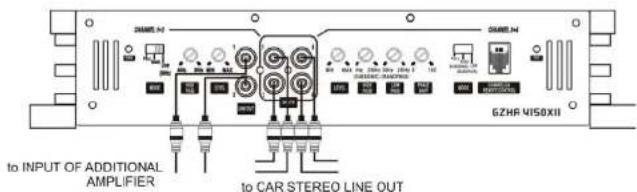

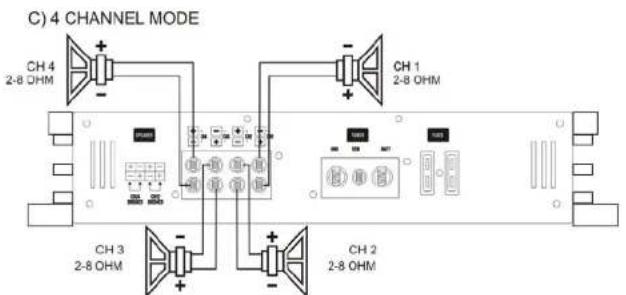

Connecting the speaker - GZHA 4150XII

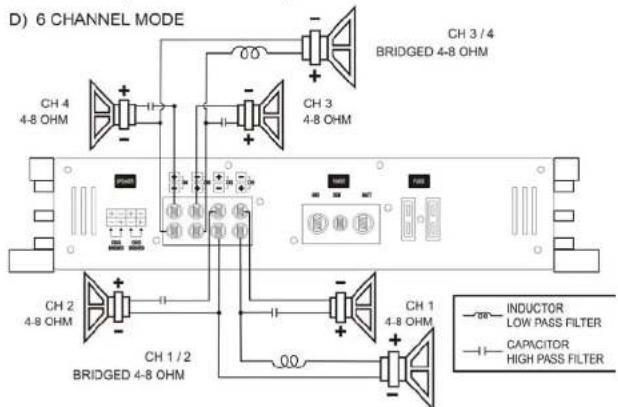

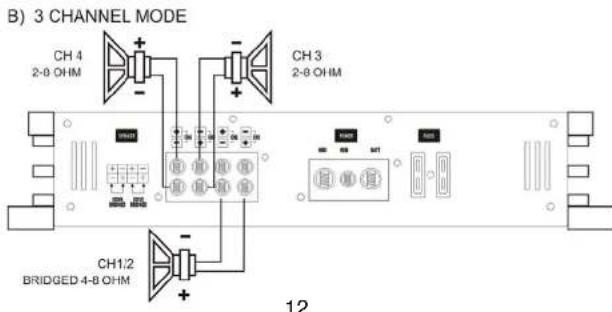

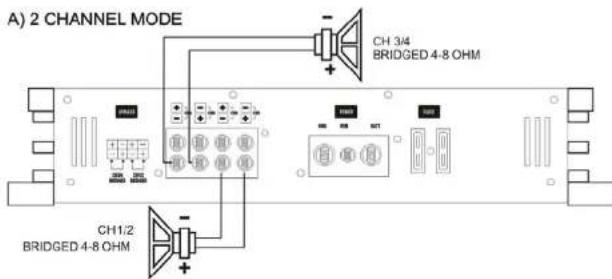

Trimode operation-GZHA 4150XII

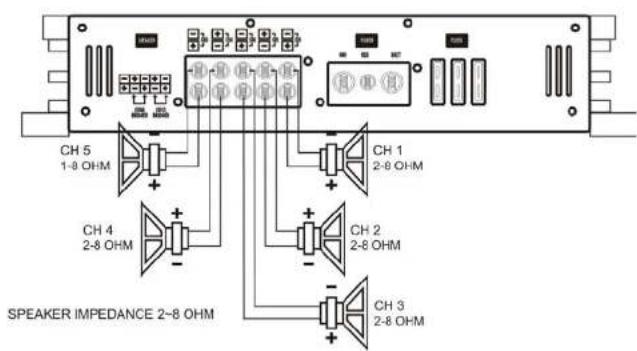

Connecting the speaker - GZHA 5125XII

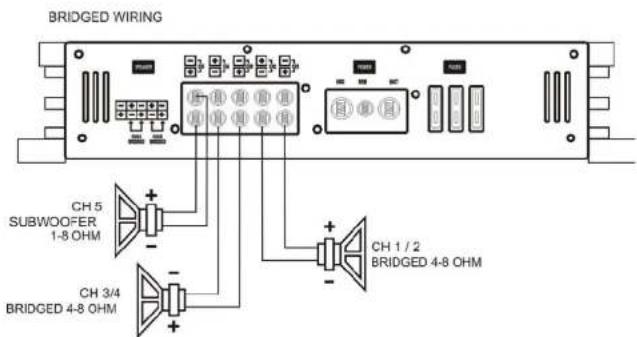

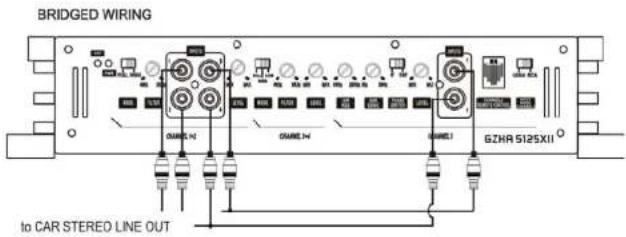

Connecting the speaker - GZHA 5125XII (Bridged)

SPEAKER IMPEDANCE 4-8 OHM

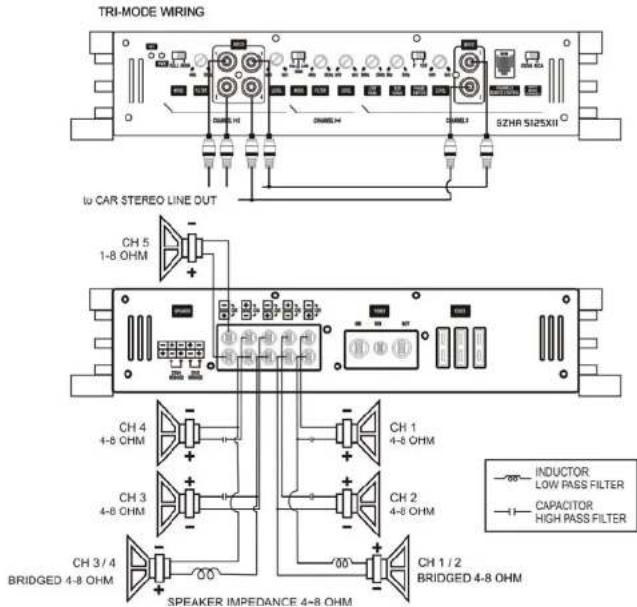

Trimode operation - GZHA 5125XII

Specifications

Model GZHA 2350XII GZHA 4150XII			GZHA S125XII
			Channel 1-4 Channel 5
RMS Power @ 4 ΩCEA Standard CEA-2006-A	2 x 250W (1% THD+);N2x 325W (10% THD+);N2	4 x 150W (1% THD+);N24 x 160W (10% THD+);N2	4 x 100W (1% THD+);N24 x 120W (10% THD+);N2	1 x 270W (1% THD+);N1x 380W (10% THD+);N2
RMS Power @ 2 ΩCEA Standard CEA-2006-A	2 x 470W (1% THD+);N2x 575W (10% THD+);N2	4 x 200W (1% THD+);N24 x 250W (10% THD+);N2	4 x 150W (1% THD+);N24 x 200W (10% THD+);N2	1 x 430W (1% THD+);N1x 620W (10% THD+);N2
RMS Power @ 1 ΩCEA Standard CEA-2006-A	2 x 740W (1% THD+);N2x 900W (10% THD+);N2	...	...	1 x 800W (1% THD+);N1x 900W (10% THD+);N2
RMS Power @ 4Ω bridgedCEA Standard CEA-2006-A	1 x 940W (1% THD+);N1x 1140W (10% THD+);N2	2 x 400W (1% THD+);N22 x 500W (10% THD+);N2	2 x 300W (1% THD+);N22 x 400W (10% THD+);N2	...
RMS Power @ 2Ω bridgedCEA Standard CEA-2006-A	1 x 1480W (1% THD+);N1x 1800W (10% THD+);N2	...	...
Damping factor	> 200 > 130 > 20 > 70
Signal to noise Ratio	> 70 dB > 70 dB > 70 dB
Lowpass	30 Hz - 250 Hz	80 Hz( Channel 1 & 2)30 Hz - 250 Hz( Channel 3 & 4 )	40 Hz - 3 KHz( Channel 3 & 4 )	30 Hz - 250 Hz
Highpass	5 Hz - 500 Hz	40 Hz - 5 KHz( Channel 1 & 2)5 Hz - 250 Hz( Channel 3 & 4 )	40 Hz - 3 KHz( Channel 1 - 4 )	...
Bandpass	5 Hz - 250 Hz	5 Hz - 250 Hz( Channel 3 & 4 )	... 5 Hz - 250 Hz	...
Subsonic filter	5 Hz - 500 Hz	5 Hz - 250 Hz( Channel 3 & 4 )	... 5 Hz - 50 Hz	...
Bass boost	0 ~ +12 dB ... ...
Bass boost frequency	30 Hz - 80 Hz ... ...
Phase shift	0 ~ 180°	0 ~ 180°( Channel 3 & 4 )	... 0 ~ 180°
Frequency response	10 Hz - 36 KHz( ± 1 dB )	10 Hz - 36 KHz( ± 1 dB )	10 Hz - 22 KHz( ± 1 dB )	10 Hz - 250 Hz( ± 1 dB )
Efficiency @ 4 Ω	- 80 % - 80 % - 80 %
Input sensitivity	200 mV - 8 V( ± 5%)	200 mV - 9 V( ± 5%)	200 mV - 9 V( ± 5%)
Channel separation	50 dB	50 dB	50 dB
THD	< 0.10 %	< 0.10 %	< 0.10 %
Bass remote	√At lowpass operation	√( Channel 3 & 4 )	...	√At lowpass operation
Fuse	4 x 40A	2 x 40A	3 x 40A
Dimensions W x H x L mm	305 x 62 x 400	305 x 62 x 400	305 x 62 x 500
Dimensions W x H x L Inch	12 x 2.44 x 15.75	12 x 2.44 x 15.75	12 x 2.44 x 19.68°

Trouble shooting guide

Symptoms	Check Points	Cure
No sound	Is the POWER LED illuminated?	Shock fuses in amplifier. Be sure remote lead is connected. Check signal leads. Check again control. Shock timer/dock volume level.
	Is the diagnostic LED illuminated?	Check for speaker short or amplifier overheating
Amp not switching on	No power to the amplifier	Check power wire or connections
	No power to remote wire with receiver on	Shock connections to radio
No sound in one channel	Shock speaker loads	Inspect for short circuit or an open connection
	Shock audio loads	Reverse left and right RCA inputs to determine if it is occurring before the amp
Amp turning off at medium / high volume	Check speaker load impedance	Bo sure proper speaker load impedance recommendations are observed (If you use an ohm meter to check speaker resistance, please remember that DC resistance and AC impedance may not be the same.)
Protection LED is on	Temperature shut down Turn radio volume down
	Speaker wires short	Separate speaker wires and insulate
