USER MANUAL LE32F600C HAIER

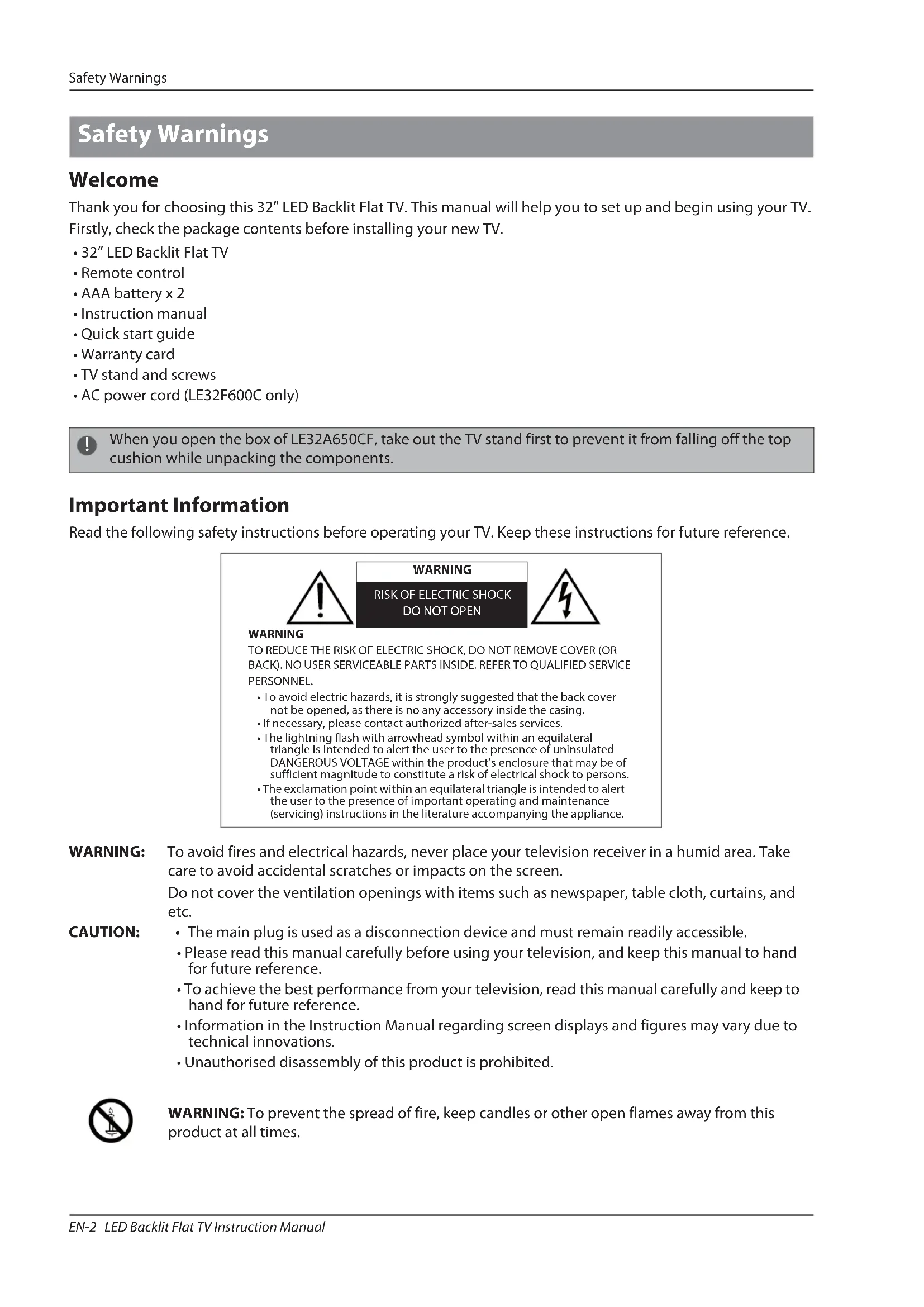

• AC power cord (LE32F600C only) Important Information Read the following safety instructions before operating your TV. Keep these instructions for future reference. Safety Warnings When you open the box of LE32A650CF, take out the TV stand first to prevent it from falling off the top cushion while unpacking the components. WARNINGRISK OF ELECTRIC SHOCKDO NOT OPENWARNINGTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.• To avoid electric hazards, it is strongly suggested that the back cover not be opened, as there is no any accessory inside the casing.• If necessary, please contact authorized after-sales services.• The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated DANGEROUS VOLTAGE within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.• The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: To avoid fires and electrical hazards, never place your television receiver in a humid area. Take

care to avoid accidental scratches or impacts on the screen. Do not cover the ventilation openings with items such as newspaper, table cloth, curtains, and etc. CAUTION: • The main plug is used as a disconnection device and must remain readily accessible.

• Please read this manual carefully before using your television, and keep this manual to hand for future reference.

• To achieve the best performance from your television, read this manual carefully and keep to hand for future reference.

• Information in the Instruction Manual regarding screen displays and figures may vary due to technical innovations.

• Unauthorised disassembly of this product is prohibited.

WARNING: To prevent the spread of fire, keep candles or other open flames away from this

product at all times.

The product should be tightly secured to table/wall in accordance with the installation instructions to prevent injury or damage caused by dropping. To avoid fire hazards, do not connect multiple sockets in parallel and do not connect multiple plugs to the same socket. Do not position the product close to water or oil (e.g. cooking oil or lubricating oil), as this may cause a fire hazard. To avoid electric shocks or fire hazards, unauthorised disassembly of the television is prohibited. Contact an authorised after-sales service provider if technical servicing is required. Do not use damaged or worn electrical plugs and keep cables away from heat sources to avoid electric shocks and fire hazards. Disconnect the product from the power supply and contact an authorised after-sales service provider if the product starts to make abnormal sounds. To avoid collapsing, the product must be placed on a solid and stable surface. To avoid explosions and fire hazards, don't use or store inflammable materials near the product. To avoid fire hazards, keep the product away from transformers or heat sources. To avoid electric shocks, the antenna of the product should be away from electrical cables. To avoid fire hazards, do not use this product in direct sunlight or close to heat sources. Always make sure that the television is firmly plugged in, as a poor electrical connection might cause a fire. Unplug the power supply and antenna of the product during a rainstorm and particularly during a thunderstorm. Before cleaning the product, unplug the television, and use soft fabric, not chemicals. Make sure that no water comes into contact with the product.Safety Warnings EN-4 LED Backlit Flat TV Instruction Manual To avoid electric shocks or fire hazards, disconnect the television from the power supply and the antenna during a rainstorm or thunderstorm. When an antenna is used, measures should be taken to prevent water from flowing down through the cable and into the television. To reduce the risk of fire or electric shock, do not place the product in a humid area or expose it to rain or moisture. The plug and electric cable must be kept clean to avoid electric shocks or fire hazards. Never touch the plug with wet hands, as this might cause electric shocks. To avoid electric shocks or fire hazards, if you are not using the television for long periods of time, disconnect it from the power supply.About Your LED LCD TVLED Backlit Flat TV Instruction Manual EN-5

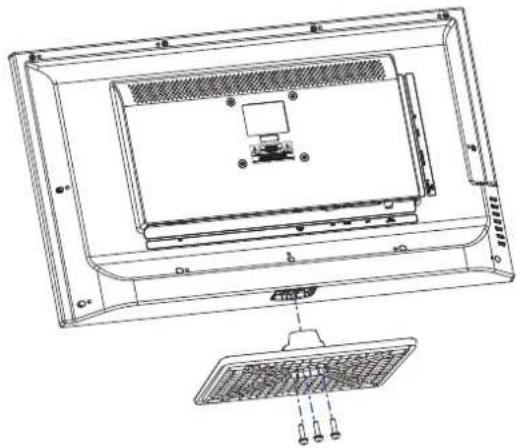

Installing the Stand

1. Carefully place your TV screen face-down on a

cushioned, clean surface to protect the screen from damages and scratches.

2. Carefully align the stand to the bottom of the TV.

3. Secure the stand to the TV with the provided

screws. (3 screws for LE32F600C, 4 screws for LE32A650CF) Installing a Wall-Mount Bracket

1. Carefully place your TV screen face-down on a

cushioned, clean surface to protect the screen from damages and scratches.

2. If the stand is attached, remove the screws that

secure the stand to the TV screen, then remove the stand.

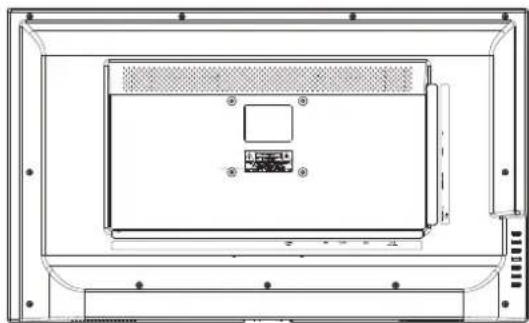

3. Attach the wall-mount bracket (sold separately) to

the mounting holes on the back of your TV using the screws supplied with the bracket. See the instructions that came with the wall-mount bracket for information about how to correctly hang your TV. NoteNote

• Contact technical assistance when installing the wall mount bracket. Haier Electronics is not responsible for any damage to the product or injury to yourself or others if you install the TV on your own. Side Control NoteNote
• For LE32A650CF, the side control panel is on the right side of the TV. About Your LED LCD TVAbout Your LED LCD TV EN-6 LED Backlit Flat TV Instruction Manual Rear Terminals

• These terminals are available for LE32A650CF only. Connector Descriptions COMPONENT IN (Y COMMON CVBS IN) Connect the video cables for a component or composite device. When connecting a composite video source, connect the yellow video wire to the Y (green) jack. YPbPr/CVBS AUDIO Connect the audio cables for a component or composite device. USB Insert a USB storage device to the USB port to view photos, listen to music or watch videos. (See “USB Media Player” on page 18 for more information.) HDMI 2 IN Connect HDMI device to this jack. COMMON INTERFACE If you subscribe to a pay per view service, insert the CI module to this slot. Headphone Output Connect headphones to this jack. When headphones are inserted, the TV speakers will be muted.

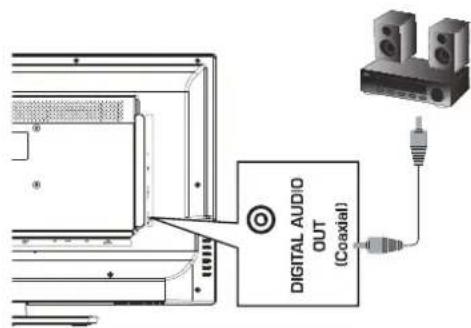

(Coaxial) Connect a coaxial digital audio system to this jack. ANT IN (AIR/CABLE) Connect an antenna or cable TV to this jack. SCART Connect a device using SCART cable to this jack. PC AUDIO IN Connect the audio cable from a computer. PC IN Connect the video cable from a computer. HDMI 3 IN Connect HDMI device to this jack. HDMI 1 IN

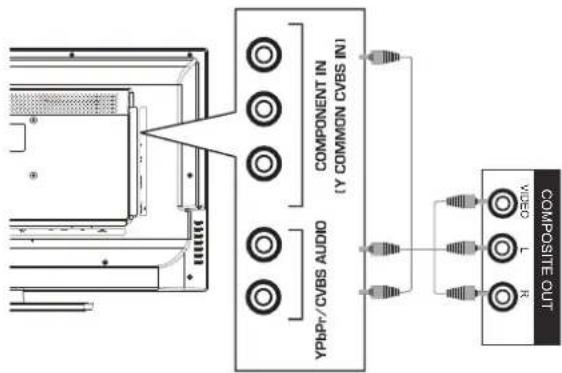

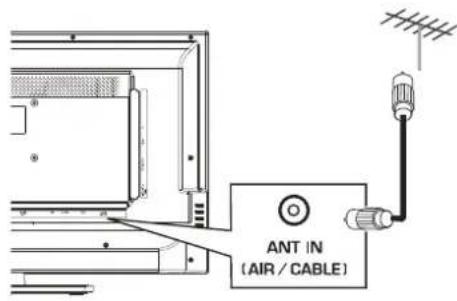

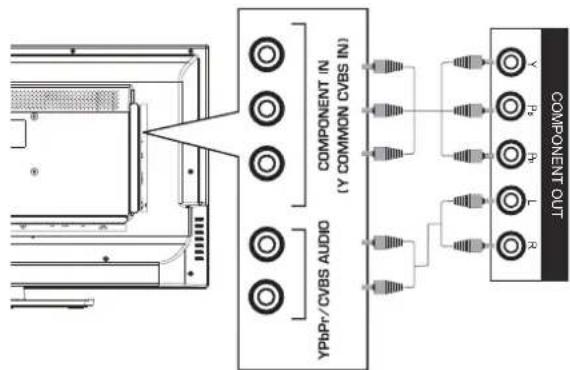

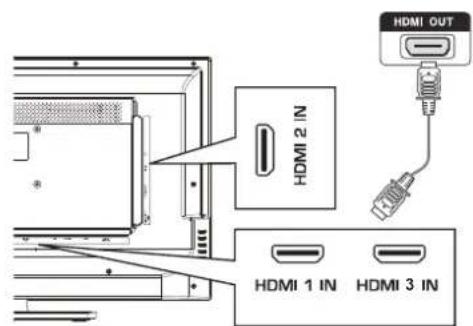

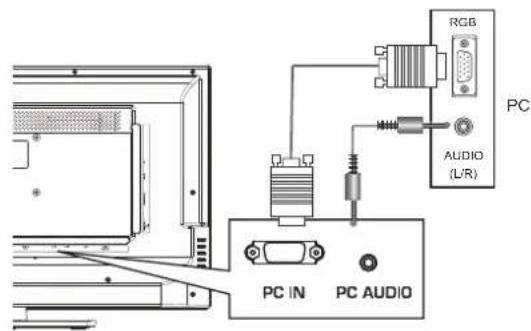

Making Connections Connecting to Antenna/Cable Connecting an External A/V Device Using HDMI cable NoteNote

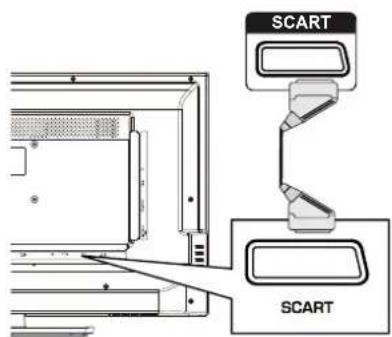

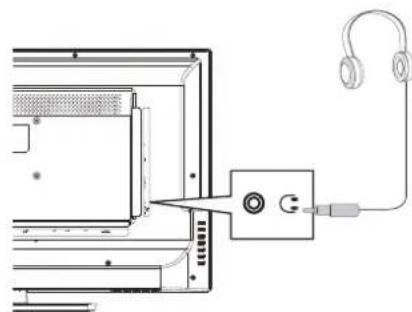

• HDMI 3 IN is available for LE32A650CF only. Using SCART cable Using Component cable (LE32A650CF only) Using Composite cable (LE32A650CF only) Connecting a PC Connecting Headphones Connecting a Digital Audio System NoteNote

• Turn off the TV and the device before making connections.

• This button does not work in these models. # Button Descriptions

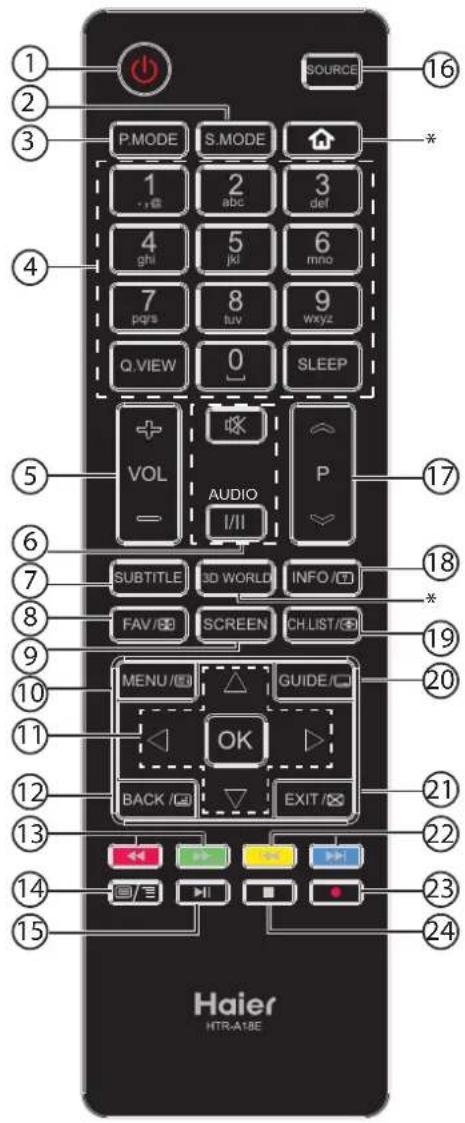

(Power) Press to turn the TV on or off. 2 S.MODE Press to select the sound mode. 3 P.MODE Press to select the picture mode.

0-9 Press to enter a channel number or password. Q.VIEW Press to switch to the last viewed channel. SLEEP Press to set the sleep timer. 5 VOL+/- Press to adjust the volume level.

STWX Press to navigate the on-screen menu. OK Press to confirm a selection.

(reverse) (forward) Press to fast forward or reverse playback in multimedia mode.

(TEXT) Press to open the teletext.

(play/ pause) Press to play/pause in multimedia and timeshift mode. 16 SOURCE Press to open the input source list.

Press to change the channel.

INFO/ Press to display the channel information. In teletext mode, press to reveal the hidden information.

CH.LIST/ Press to open the channel list. In teletext mode, press to switch the image to top, bottom or full.

GUIDE/ Press to open the programme guide (DTV only). In teletext mode, press to enter a secondary page.

(prev) (next) Press to skip to next or previous file in multimedia mode.

(REC) Press to start/pause recording.

(stop) Press to stop multimedia playback, timeshifting or recording.Getting StartedLED Backlit Flat TV Instruction Manual EN-9

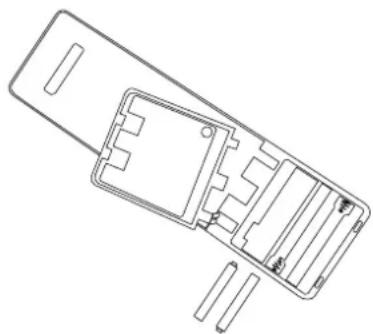

Preparing Your Remote Control Installing the Batteries

1. Open the battery cover.

2. Install two AAA batteries. Make sure that you

match the + and – symbols on the batteries with the + and – symbols in the battery compartment.

3. Replace the battery cover.

Remote Control and Battery Cautions

• Ensure that there is nothing between the remote control and the remote sensor of the TV set.

• Use the remote control carefully. Do not drop the remote control on the floor.

• Sunlight, or other strong light, will interfere with the signal from the remote control. Avoid using near fluorescent lights or neon signs.

• Do not place the remote control in direct heat or in a damp place as you may damage the remote.

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

• If your TV is not to be used for a long period of time, remove the batteries from the remote control.

• Do not dispose of the batteries with standard household waste. Do not throw them in a fire. Dispose of the battery according to local regulations. Initial Setup The first time you turn on your TV, the setup wizard guides you through setting up basic settings including the menu language, country, password, signal type and channel scan.

1. Make sure that you have:

• Installed the remote control batteries. (See page 9 for details)

• Connected an antenna or cable TV. (See page 7 for details)

• Connected the power cord to the AC IN jack on the back of the TV and to a working power outlet. For LE32A650CF, just connect the attached power cord to a working power outlet.

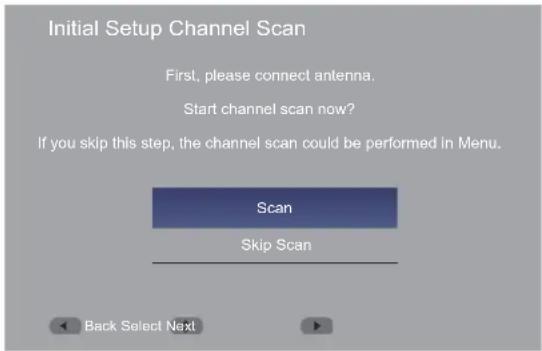

2. Press to turn on the TV. The setup wizard screen

opens. Press OK to start the wizard.

4. Press S/T to highlight your country, then press X

• During the initial setup, if the TV is powered off before a password is set, a new password must be set from the Lock menu. Enter the default password-1234 to access the Lock menu, then change the password. See “Change Password” on page 17 for more information.

6. Press S/T to highlight your tuner mode, then

press X to continue.

7. Press S/T to highlight Scan, then press X to start

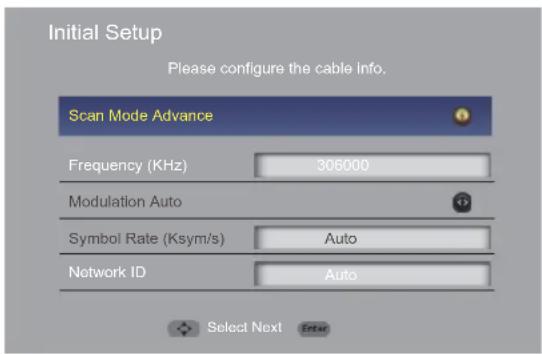

the channel scan. If the tuner mode is Cable, press S/T/W/X and number buttons to configure the cable information, then press OK to start the channel scan.

8. Wait a while for the channel scan to complete.

9. When the channel scan is completed, press OK to

exit the wizard. NoteNote

• The initial setup process may vary depending on the country you select. Follow the on-screen instructions to complete the setup. Initial Setup Tuner Mode Please select your tuner mode:Back Select NextCableAntenna Initial Setup Channel Scan First, please connect antenna.Start channel scan now?If you skip this step, the channel scan could be performed in Menu.Back Select NextSkip Scan Scan Initial Setup Please configure the cable info.Select NextSymbol Rate (Ksym/s)Frequency (KHz)Modulation AutoNetwork IDScan Mode Advance Auto Auto Initial Setup Channel Scan The channel scan may take a while to complete. 21% Status: Scanning...Analogue Channels: 0Digital Channels: 0 Initial Setup Complete Congratulations!!Completed Initial Setup.Please press [OK] to exit the wizard. BackGetting Started LED Backlit Flat TV Instruction Manual EN-11

1. Press to turn on the TV. It may take a few

seconds for an image to appear on the screen.

2. Press to turn off the TV. The TV enters standby

• When the TV is off, power still flows into it. To disconnect power, unplug the power cord. Selecting the Input Source

1. Press SOURCE. The input source list opens.

2. Press S/T to highlight the input source, then

press OK. Selecting a Channel

• Press P /P to go to the next or previous channel in the channel list.

• Press the number buttons to directly select a channel.

• Press CH.LIST/ to open the channel list, then press S/T and OK to select a channel. To use the coloured buttons:

• Page up - Press red button to highlight the first channel on the current page, then press red button repeatedly to highlight the first channel on the previous pages.

• Page down - Press green button to highlight the last channel on the current page, then press green button repeatedly to highlight the last channel on the next pages.

• Select List - Press yellow button then S/T to select the channel type that you want to display on the list (All/Digital/Radio/Analogue).

• Exit - Press blue button to close the channel list.

• Press Q.VIEW to go to the last viewed channel. Using Favourite List To add a favourite channel:

1. Tune to the channel that you want to add to the

2. Press FAV/ to open the favourite list.

3. Press S/T to highlight a desired position, then

press OK to add current channel to the favourite list. is displayed on the information banner. To watch a favourite channel:

1. Press FAV/ to open the favourite list.

2. Press S/T to highlight a favourite channel, then

press OK to tune to the channel. To remove a favourite channel:

1. Press FAV/ to open the favourite list.

2. Press S/T to highlight the favourite channel that

you want to remove, then press OK to tune to the channel.

3. Press OK again to remove the channel from the

favourite list. will disappear from the information banner. Adjusting the Volume

• Press VOL+/VOL- to increase or decrease the volume.

• Press to turn off the sound. Press again or press VOL+ to restore the sound. Displaying Channel Information

• Press INFO/ once to display basic channel information such as channel number, channel name, tuner mode, etc.

• Press INFO/ twice to display further information such as programme title, resolution, audio information, etc.

• Press INFO/ three times to display the programme descriptions.

• Press INFO/ one more time to close the information banner. Navigating the On-Screen Menu

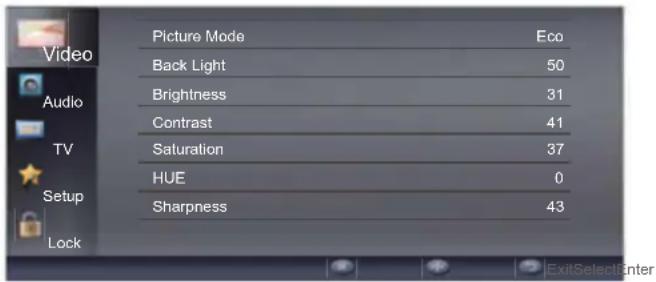

• You can also press P.MODE button to select the picture mode.

• Manually adjusting picture settings will automatically change the Picture Mode to User. Back Light To adjust the backlight brightness to affect the overall brilliance of the picture. Brightness To brighten or darken the picture. Contrast To adjust the intensity of the white level of the picture. Saturation To adjust the colour saturation of the picture. HUE To adjust the colour hue of the picture. Sharpness To sharpen or soften the picture. Gamma To select the gamma type. Colour Temperature To select the colour temperature. You can select:

• Warm – Give the white colour a reddish tint. Advanced Video To adjust advanced video settings. DNR (Digital Noise Reduction) To reduce noise on screen and produce a clearer video image. MPEG NR To reduce picture noise in MPEG-compressed videos. Adaptive Luma Control To adjust the average brightness of the picture to compensate for large areas of brightness. Flesh Tone To adjust skin colour based on skin tone preference. Dl Film Mode To optimise the picture settings for watching films. Blue Stretch To increase the blue component of white and near white pixels without affecting flesh tone colour. Game Mode To optimise the picture settings for playing games. Adaptive Back Light To dynamically change the backlight of the screen according to the amount of light and dark in the signal. VGA Mode (VGA source only) To select the VGA mode.

• Video – In this mode, images look smoother and text appears clearer.

• Graphic – In this mode, images look sharper. Select this mode for watching videos from a computer. HDMI Mode (HDMI progressive timing only) To select the HDMI mode.

• Auto – Choose Video/Graphic automatically.

• Graphic – In this mode, images look smoother and text appears clear. Select this mode when connecting a computer.

• Video – In this mode, images look sharper. Select this mode when watching videos from a computer or from video players, such as a DVD player, Blu-ray player, etc. Overscan (HDMI source only) To extend part of the display past the visible area of the screen. The resulting picture will “zoom in” on the image centre. Using Your TV Audio Setup Lock Picture ModeBack LightBrightnessContrastSaturation HUE Sharpness Eco

• When Overscan is set to Off, Screen Mode cannot be selected. VGA To adjust the computer image in VGA source. You can adjust:

• Auto Adjust – Automatically adjust the image settings.

• Phase – Adjust the focus of stable images.

• Clock – Adjust the sample frequency. Audio Only To turn off TV picture and listen to programme audio only. NoteNote

• To exit audio only mode, press any button. Reset To reset the video settings to the factory defaults. Adjusting the Audio Settings Audio Mode To select the audio mode. You can select User/ Standard/Music/Theatre to suit your personal preference. NoteNote

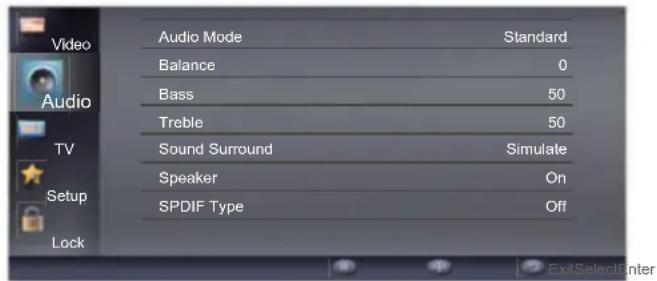

• You can also press S.MODE button to select the audio mode.

• Manually adjusting audio settings will automatically change the Audio Mode to User. Balance To adjust the balance between the left and right speakers. Bass To adjust the low frequency sound. Treble To adjust the high frequency sound. Sound Surround To simulate surround sound. Speaker To turn TV built-in speakers on or off. You can select:

• Off – To turn TV built-in speakers off.

• On – To turn TV built-in speakers on.

• Auto (CEC) – To output audio from the connected CEC device. NoteNote

• Auto (CEC) option will be disabled if CEC Function in the CEC menu is set to Off. SPDIF Type To select the SPDIF digital audio output type. SPDIF Delay To adjust the SPDIF delay time to synchronise the sound with the picture (0~250). Auto Volume Control Turn this setting on to keep the volume level consistent when switching channels or when switching from a TV show to a commercial. Type To select audio type.

• Normal – Provide normal audio.

• Hearing Impaired – Provide visual descriptions of the scenes for hearing impaired viewers.

• Visually Impaired – Provide audio narration of the scenes for visually impaired people. Visually Impaired (DTV only) To adjust the audio settings for visually impaired people. Speaker To turn speakers on or off. Headphone To turn headphones on or off. Volume To adjust the volume level of the audio narration. Pan and Fade To turn the pan and fade control on or off. Visually Impaired Audio To select the language of the audio for visually impaired people. (Options depend on broadcast audio content) NoteNote

• Visually Impaired setting is only available when Type is set to Visually Impaired. Downmix Mode To select audio downmix mode. Audio ModeBalance Bass TrebleSound SurroundSpeakerSPDIF TypeStandard

Setup Lock SSUsing Your TV EN-14 LED Backlit Flat TV Instruction Manual Reset To reset audio settings to the factory defaults. Adjusting the Channel Settings Tuner Mode To select the tuner mode: Antenna/Aerial or Cable. Audio Channel (ATV only) To select the audio mode for a multiple audio or stereo broadcast programme. Audio Language (DTV only) To select audio language for programmes that have multiple language tracks. Audio Language 2nd (DTV only) To select second preferred audio language for programmes that have multiple language tracks. Channels To perform channel scan and edit channel list. Channel Scan To perform channel scan after selecting your country and configuring your cable information (cable mode). Update Scan To perform channel scan update to add channels to the existing channel list. Analogue Manual Scan To perform analogue manual scan up or down from the specified start frequency.

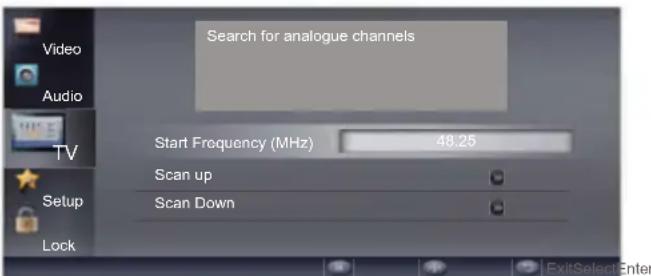

1. Press S/T to highlight Start Frequency

(MHz), then use the number buttons on the remote control to enter the start frequency.

2. Press S/T to highlight Scan up or Scan

Down, then press OK to scan for higher or lower frequency channels from the start frequency. Single RF Scan (Digital channel only) To perform single RF scan and check the signal strength and quality. Antenna Mode

1. Use the number buttons on the remote

control to enter the RF channel.

2. Press OK to start scanning.

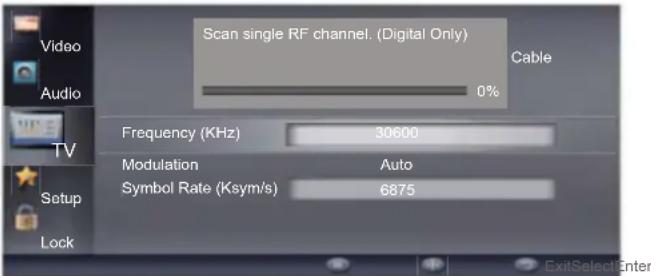

1. Press S/T to highlight Frequency (KHz),

then use the number buttons on the remote control to enter the frequency.

2. Press S/T to highlight Modulation, then

Press S/T to highlight Symbol Rate (Ksym/s), then use the number buttons on the remote control to enter the symbol rate.

4. Press OK to start scanning.

Favorite Network Select To select the network you prefer if there are more than two networks detected after running the channel scan. Channel Skip To select the channels that will be skipped when using the P /P buttons. You can still tune to the skipped channels using the number buttons on the remote control.

1. Press S/T to highlight the channel that you

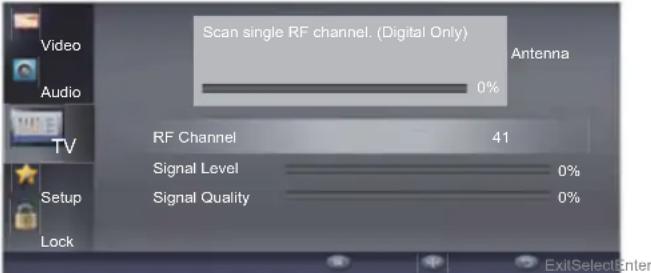

RF Channel Scan single RF channel. (Digital Only)Antenna

Frequency (KHz)ModulationSymbol Rate (Ksym/s)Scan single RF channel. (Digital Only)Cable

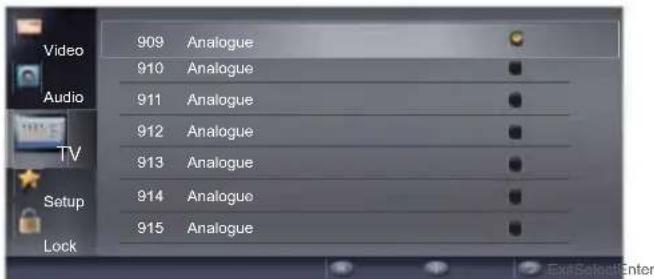

2. Repeat above step until all the skipped

channels are set. Channel Sort To change the order of the channel list.

1. Press S/T to highlight the channel that you

want to change position, then press OK. will be displayed.

2. Press S/T to highlight the desired channel

position, then press OK to swap the position of the two channels.

3. Repeat step 1 and 2 until all desired channels

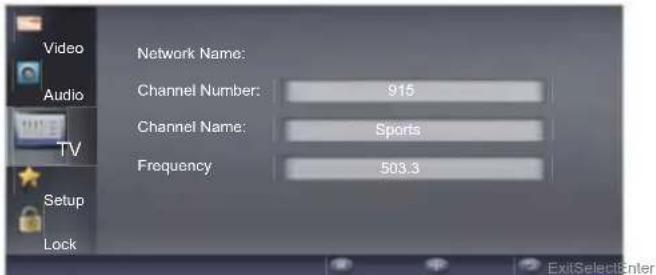

are sorted. Channel Edit To edit the channel number and channel name.

1. Press S/T to highlight the channel that you

want to edit, then press OK.

2. Press S/T to highlight Channel Number,

then press the number buttons on the remote control to enter preferred channel number.

3. Press S/T to highlight Channel Name, then

enter each character of the new name by pressing the number buttons repeatedly to select a character. NoteNote

• To delete a character, press W button.

Analogue Channel Fine Tune To fine tune the analogue channel if the reception is poor.

1. Press S/T to highlight the analogue channel

that you want to fine tune.

2. Press W/X to adjust the frequency while

checking the background image, then press OK to set. Clear Channel List To clear all the channels that are stored in the channel list. Time Shift Mode To turn time shift mode on or off. See “Time Shifting” on page 23 for more information. Device Info To check the information of the device that is connected to the USB jack on the back of the TV. Adjusting the TV Settings OSD Language To select on-screen menu language. Screen Mode To select screen display mode. NoteNote

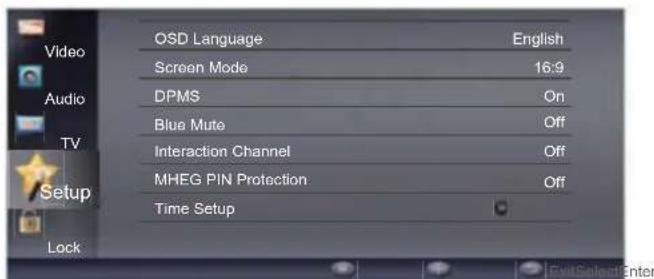

• You can also press the SCREEN button to select screen mode. DPMS (Display Power Management Signals) Turn this setting on to set the TV to automatically enter standby mode if no PC input signal is detected after 40 seconds in VGA mode. Blue Mute Turn this setting on to display a blue screen when there is no input signal or when playing audio programmes. Interaction Channel Turn this setting on to enable interaction channel function.

SetupUsing Your TV EN-16 LED Backlit Flat TV Instruction Manual MHEG PIN Protection Turn this setting on to enable MHEG PIN Protection function. Time Setup To adjust time and timer settings. Time Zone To select your time zone. Time Auto Synchronization Select On to automatically synchronise date and time with a digital signal (if available). Select Off to manually adjust the date and time. Date Press W/X and number buttons to set the date. Time Press W/X and number buttons to set the time. Timer Power On To automatically turn the TV on at a preset time. Timer When the power on timer is turned on, press W/ X and number buttons to set the power on time. Power On Channel When the power on timer is turned on, select the power on channel from the channel list. Timer Power Off To automatically turn the TV off at a preset time. Timer When the power off timer is turned on, press W/ X and number buttons to set the power off time. Sleep Timer To automatically turn the TV off after a set amount of time. Auto Sleep To automatically turn the TV off if there is not any operation after a set amount of time. Subtitle To adjust the subtitle settings. Analogue Subtitle To turn analogue subtitle on or off. Select Mute to turn analogue subtitle on when the TV is muted. Digital Subtitle Language To select digital subtitle language. Digital Subtitle 2nd Language To select second digital subtitle language. Subtitle Type To select digital subtitle type. Teletext To adjust teletext settings. Digital Teletext Language To select digital teletext language Decoding Page Language To select teletext decoding page language. Common Interface To check the information of the CAM inserted to the COMMON INTERFACE slot on the back of the TV. OAD (Over Air Download) To update TV software by air. Manual OAD Download To manually update TV software by air. Follow the on-screen instructions to complete the software update. Auto Download Select Yes to enable your TV to download new software by air automatically Auto Install Select Yes to enable your TV to install new software by air automatically Version Info To check software version information. System Information To check system information. Reset Default To reset picture, audio, channel and user settings to the factory defaults. CEC Menu To adjust CEC settings. CEC function To turn CEC function on or off. Auto turn off When this option is set to On, the CEC device will automatically power off when the TV is turned off. Device Discovery Check if your device is connected and supports CEC. Standby (When CEC device is connected) To turn the selected CEC device off.Using Your TV LED Backlit Flat TV Instruction Manual EN-17

Power On (When CEC device is connected) To turn selected CEC device on. Disable/Enable Sys. Aud. Ctrl. (When CEC device is connected) Toggle this setting to enable or disable audio output from the connected CEC audio device and its volume adjustment using the TV’s remote control. NoteNote

• Not all HDMI devices support CEC. See your device’s user manual for details.

• HDMI cables must be used to connect HDMI CEC- compatible devices to your TV.

• The connected device’s HDMI CEC feature must be turned on.

• If you connect an HDMI device that is not HDMI CEC- compatible, the CEC control option does not work.

• Depending on the connected HDMI device, the CEC HDMI control option may not work. Shop Mode To turn shop mode on or off.

• On – Settings are designed for maximum impact in retail shop display and product information banner will show on the screen.

• Off – Settings are optimised for normal home viewing and energy efficiency. Adjusting Lock Settings Enter the password that was set during the initial setup to access the Lock menu. NoteNote

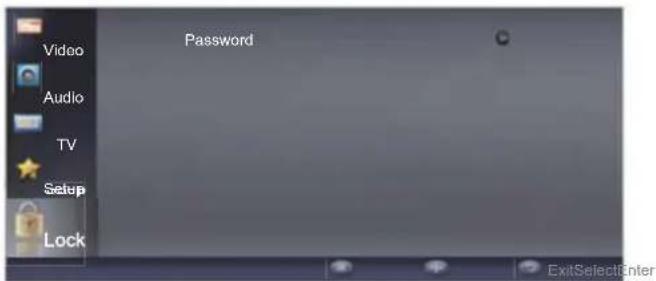

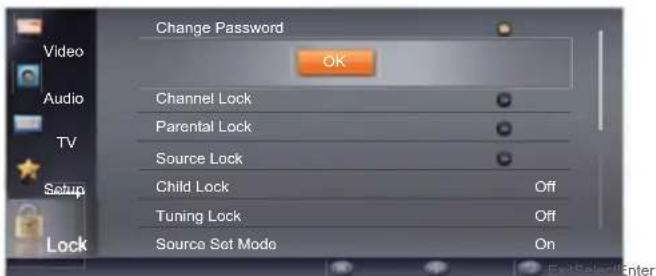

• If a password is not set during the initial setup, enter 1234 to access the Lock menu.

• If your password is lost, enter the universal password 9443 to access the Lock menu, then set a new password. Change Password To change the password. Channel Lock To lock channels that you want to prevent others from watching.

1. Press S/T to highlight the channel that you

want to lock, then press OK. will be displayed.

2. Repeat above step until all the locked

channels are set. NoteNote

• To tune to a locked channel, you must enter the 4-digit password. Time Interval Lock (Norway only) To set the time interval during which the TV channels will be locked. Password must be entered to unlock and watch the channels. Parental Lock To prevent children from watching certain TV programmes, according to the rating limit set. NoteNote

• This function only works for the programmes with Age Rating information. Source Lock To lock input source.

1. Press S/T to highlight the input source that

you want to lock, then press OK. will be displayed.

2. Repeat above step until all the locked sources

• To switch to a locked source, you must enter the 4-digit password. Child Lock To lock the control buttons on the side of the TV. Tuning Lock To disable TV tuning function. When this option is set to On, the TV main menu will not be available. Source Set Mode To set the TV to turn on with a default input source. Source Set To select the default input source, if Source Set Mode is set to On. Channel No. To select the default channel, if Source Set is set to TV. Max Volume To set the maximum volume limit. PasswordExitSelectEnterVideoAudio SetupLock SSeettuu

SSeettuu ppOther FeaturesEN-18 LED Backlit Flat TV Instruction Manual Initial Volume Mode To set the TV to turn on with a default volume level. Initial Volume To select the default volume level, if Initial Volume Mode is set to On. Clear Lock To reset the lock settings to the factory defaults. Initial Setup To reset picture, audio, channel, user and lock settings to the factory defaults. The Initial Setup screen will open. USB Media Player The USB Media Player allows you to connect a USB thumb drive to your TV and play photos, music or videos. NoteNote

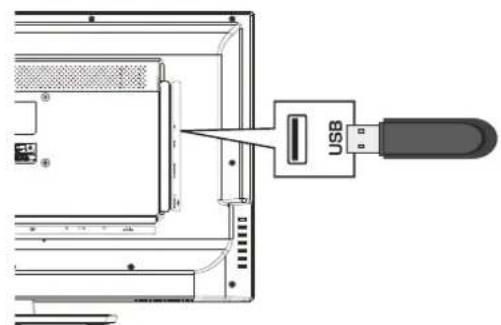

• The USB thumb drive must be formatted as FAT32.• Files on the USB thumb drive must end in a supported file extension (*.mp3, *.jpg, *.mp4, etc).• Files that are not supported will not be displayed.• Some files may be unreadable due to individual file setting.• The player is not designed to play media from external hard drives or mp3 players.• Operation using USB hubs is not guaranteed.• Due to the limited distance of USB signal transmission, it is recommended not to use a USB patch cord.• Use high-speed USB equipment that conforms to the USB 2.0 full speed interface Standard. If the USB equipment does not conform to USB full speed interface standard, playback may be unsmooth. Caution
• Do not disconnect the USB thumb drive from the TV before exiting USB media player. Formatting the USB thumb drive: You can format your USB thumb drive using the on- screen menu.

1. Switch to TV source.

8. When the formatting is completed. press EXIT.

Using USB media player:

1. Connect your USB thumb drive to the USB port on

2. Press SOURCE, then S/T to highlight USB and

4. Press S/T/W/X to highlight the file that you

want to play, then press OK.

7. Press BACK/ to return to the previous menu or

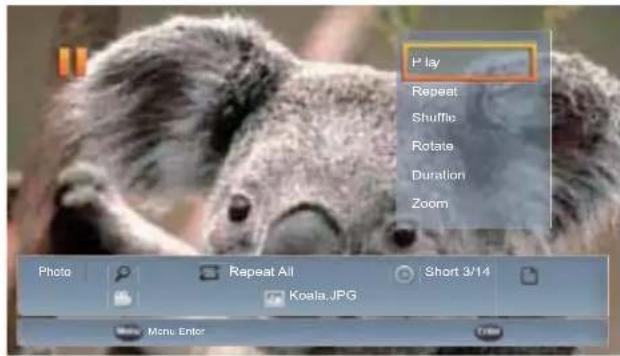

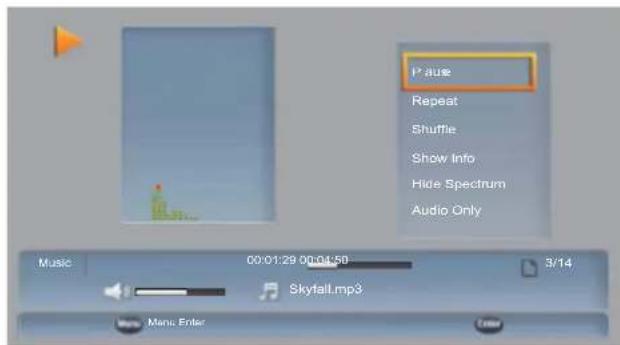

Photo Mode Press MENU/ to open the on-screen menu. Play/Pause To play or pause the slide show. Repeat To select the repeat mode of playing the files in the same folder. Shuffle To turn shuffle mode on or off. Turn shuffle mode on to play the files in a random sequence. Rotate To rotate the photo 90° clockwise at a time. Duration To select the photo display time duration. Zoom To zoom in the photo. Effect To select the photo display transition effect. Show Info To show the information of the displayed photo. Music Mode Press MENU/ to open the on-screen menu. Play/Pause To play or pause the music. Repeat To select the repeat mode of playing the files in the same folder. Shuffle To turn shuffle mode on or off. Turn shuffle mode on to play the files in a random sequence. Show Info To show the information of the played music. Hide/Show Spectrum To hide or show the spectrum. Audio Only To turn off screen display and listen to audio only. NoteNote

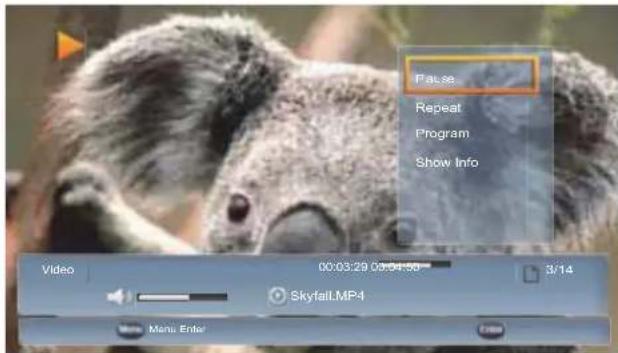

• To exit audio only mode, press any button. Video Mode Press MENU/ to open the on-screen menu. Play/Pause To play or pause the video. Repeat To select the repeat mode of playing the files in the same folder. Program To select the programmes of a *.ts file. Show Info To show the information of the played video. PhotoMenu EnterRepeat AllKoala.JPGShort 3/14 PlayRepeatShuffleRotateDuration Zoom

00:03:29 00:04:50Other Features EN-20 LED Backlit Flat TV Instruction Manual Button Function Button Function Photo Music Video Play/Pause

In photo mode, press to select photo display duration.

During video playback, pressing will suspend playback at stop point with blue screen and “Stop- Resume” message displayed. You can do either of the following to continue: - Press OK or to resume playback at stop point. - Press again to stop playback, then press OK or to start playback from the beginning of the video.Other Features LED Backlit Flat TV Instruction Manual EN-21

H.264 BP LV 4.0 H.264 MP LV 4.0 H.264 HP LV 4.0 MP3(MPEG1 Layer3) MPEG1 Layer1/2 MPEG2: AAC MPEG4: HE-AAC Audio file format File extension Container Audio Codec *.mp3 MP3 MP3 (MPEG1 Layer3) Photo file format File extension Container Codec *.jpg *.jpeg JPEG Baseline/ProgressiveOther Features EN-22 LED Backlit Flat TV Instruction Manual Common Interface The common interface (CI) slot is designed to hold the conditional access module (CAM) and smart card in order to access pay-per-view TV programmes and additional services. Contact your common interface service provider to get more information about modules and subscription. Please note that CAMs and smart cards are neither supplied by nor optional accessories from us.

1. Insert the smart card into the CAM, then insert the

CAM to the COMMON INTERFACE slot on the back of the TV.

2. The TV will display a message indicating that the

CAM has been detected. Wait for a few minutes until the card is activated.

5. Press S/T to highlight Common Interface, then

6. Press S/T to highlight the option you need, then

7. Detailed information about the CAM is displayed.

Refer to the instruction manual of the CAM for setting information. Teletext Teletext is an information system broadcast by certain channels, offering a range of text-based information, typically including national, international and sporting news, weather and TV schedules. It also provides subtitles for people with hearing difficulties or those who are unfamiliar with the language in which a particular programme is being broadcast. Teletext To turn on teletext, press button. To switch off teletext, press button again. Page up/down To display next or previous teletext page, press the P /P buttons. Page number entering To select a teletext page, enter the page number using the number buttons on the remote control. Mix mode To view the TV picture in teletext mode, press the button. This will superimpose the teletext data on top of the TV picture. Press button again to return to full text. Hold To stop updating teletext page automatically, press the button. This feature is very useful when there are several teletext pages or lots of data on the same page number. Size To switch the teletext image to Top, Bottom or Full, press the button. This feature is very useful as it magnifies the image and makes the characters easier to read. Reveal To reveal hidden information such as an answer to a quiz, press the button. Subcode To enter a secondary page, press button and enter the 4-digit number. CI slot CAM Smart card

Hide To hide the text, press the button. Fast text coloured buttons Fast text automatically displays the four most commonly used pages that the broadcaster thinks that you may want to choose next. Press the same coloured button on the remote control as the coloured link at the bottom of the teletext page to go directly to that page. Using USB Device for Recording NoteNote

• It is recommended that the minimum device size used for recording is 1 GB.

• IMPORTANT: The USB device should be formatted as FAT32 by your PC before being inserted into the USB jack. Timeshift (DTV only)

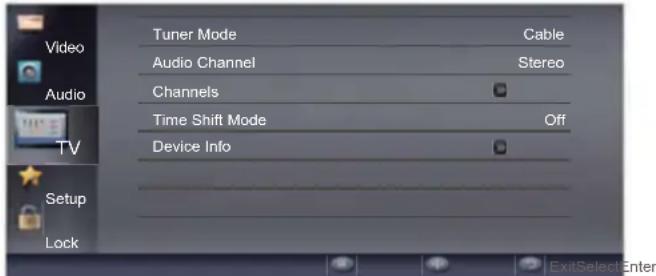

1. Make sure Time Shift Mode in TV menu is set to

2. Insert the FAT32 format USB device into the USB

jack on the back of the TV.

3. Press the button to start timeshifting.

• If the USB device is inserted for timeshifting for the first time, Disk Setup screen will open. Follow the on-screen instructions to automatically or manually set up the USB device.

4. Press to pause the programme. If you press

again, the timeshift programme will play.

5. Press to stop timeshifting.

Recording (DTV only)

1. Insert the FAT32 format USB device into the USB

jack on the back of the TV.

2. Press button to start recording the current

3. Press button to stop programme recording.

4. To play the recorded programme, switch to USB

7. Select the programme file that you want to play,

then press OK to start playing. EXIT /Reference Section EN-24 LED Backlit Flat TV Instruction Manual Troubleshooting NoteNote

• If the problem is not solved by following these troubleshooting instructions, consult your local authorised service centre.

• The TV set must only be repaired by qualified, registered service personnel. Never attempt to remove the back cover, as the TV set contains dangerous voltage that may cause injury or fire. Reference Section Symptoms Items to Check and Actions to Follow No power • Check if the TV’s AC power cord is plugged into a working power outlet.

• Unplug the TV, and wait 60 seconds. Then reinsert plug into the working power outlet and turn on the TV again. No picture • Make sure correct input source is selected.

• Check antenna connection on the back of the TV to see if it is properly connected.

• Possible broadcast station trouble. Try another channel.

• Adjust the picture contrast and brightness settings. Good picture but no sound • Increase the volume level by pressing VOL+ button on the remote control or on TV side control panel.

• Press button on the remote control to ensure mute is off. Good sound but poor colour • Adjust the contrast, colour and brightness settings. Poor picture • Poor picture quality may occur when an activated S-VHS camera or camcorder is connected to your TV and the other peripheral at the same time. Switch off one of the peripherals. Snowy picture and noise • Check the antenna connection. TV not responding to remote control

• Check whether the batteries are working. Replace if necessary.

• Make sure the remote control batteries are installed correctly.

• Clean the remote control sensor lens on the TV.

• You can still use the control buttons on the side of your TV. TV not working • Disconnect the TV from the power supply for 10 seconds, then reconnect the TV. If the problem persists, contact authorised service personnel for technical assistance. No file displayed in USB mode

• Make sure you select correct media type.

• Make sure the stored files are in supported format.Reference Section LED Backlit Flat TV Instruction Manual EN-25

Specification Specifications are subject to change without notice. HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LCC in the United States and other countries. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Model LE32A650CF LE32F600C Picture/sound system PAL/SECAM-B/G, I, D/K, L Power consumption 60W 45W Audio output 10W + 10W 10W + 10W Rear connectors Component In Composite In (Share Y input) YPbPr/CVBS Audio In USB HDMI 1/HDMI 2/HDMI 3 In Common Interface Headphone Out Digital Audio Out (Coaxial) Antenna In SCART PC In PC Audio In USB HDMI 1/HDMI 2 In Common Interface Headphone Out Digital Audio Out (Coaxial) Antenna In SCART PC In PC Audio In Temperature Working: +5°C ~ +35°C Storage: -15°C ~ +45°C Humidity Working: 20% ~ 80% Storage: 80% Accessories Remote control/AAA battery x 2/Instruction manual/Quick start guide/Warranty card/TV stand with screws/Power cord (LE32F600C only) Dimensions (with stand) (W x H x D)

728.26 x 467.86 x 180.31 mm 731.87 x 477.17 x 207.15 mm

Dimensions (w/o stand) (W x H x D)

728.26 x 434.26 x 77.07 mm 731.87 x 440.96 x 75.00 mm

Weight (with stand) 7.53 kg 5.8 kg Weight (w/o stand) 7.13 kg 5.4 kg Wall mounting (H x V) 100 x 100 mm 100 x 100 mm
