USER MANUAL DVP754 LENCO

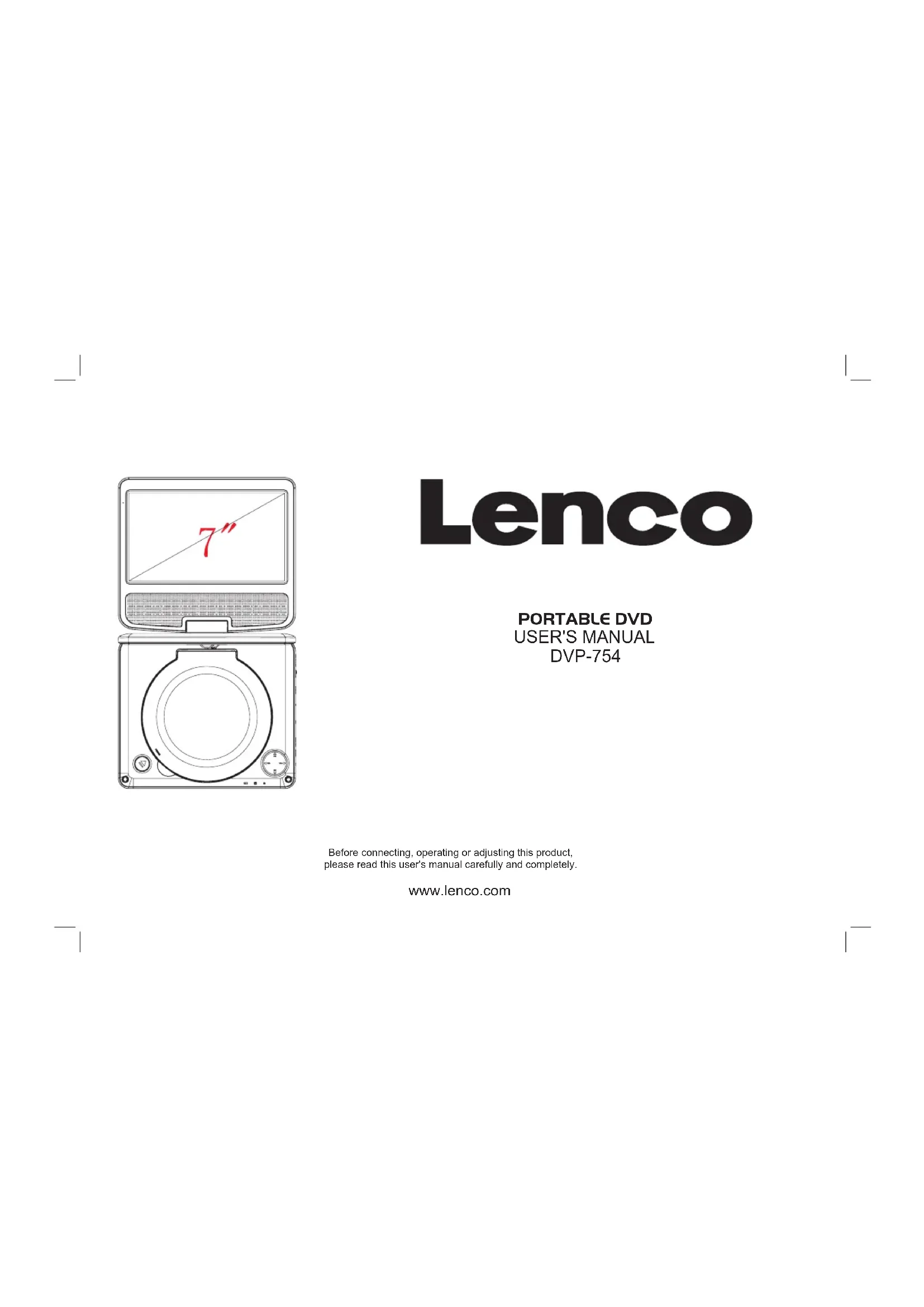

Before connecting, operating or adjusting this product, please read this user's manual carefully and completely. PORTABLE DVD USER'S MANUAL DVP-754 www.lenco.comWarning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.

Warning: To prevent fire or electric shock hazard, do not

expose the unit to rain or moisture. Do not expose the Adaptor and portable DVD to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit. Keep the portable DVD away from direct sunlight and heat source such as radiators or stoves. Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your portable DVD on a cushion, sofa or other similar surface. Do not place the portable DVD on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury. Never place heavy or sharp objects on the LCD panel or frame. Only use the AC adapter included with portable DVD. Using any other adapter will void your warranty.

e plug of AC adaptor is used as the disconnect device, the disconnect device shall remain readily operable. Unplug the power from the outlet when the unit is not in use. Attention should be drawn to the environmental aspects of battery disposal. Important Safety Instructions CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

WARNING: The battery (battery or batteries or battery

pack) shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING: Prolonged exposure to loud sounds from personal

music players may lead to temporary or permanent hearing loss.

WARNING: Only use attachments/accessories specified

provided by the manufacturer, the portable DVD is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily operable. Caution: Danger of exp losion if battery is incorrectly replaced, replaced only with the same or equivalent type (Lithium battery) This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Power supply adaptor(For EU only) Manufacturer: Shenzhen Mass Power Electronics Limited Model number: SEF0900100E1BA /PEF0900100VE Use only the power supply listed in the user instructionsN Notes on Copyrights: It is forbidden by law to copy, broadcast, show,broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision.Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear.This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by macrovision Corporation. Reverse engineering or disassembly is prohibited.SERIAL NUMBER: You can find the serial number on the back of the unit.This number is unique to this unit and not available to others.You should record requested information here and retain this guide as a permanent record of your purchase.Model No. ______________________________Serial No. ______________________________Date of Purchase_________________________ Safety Precautions Warning: when the unit using by child, parents must make sure to let the child understand all contents in Instruction book how battery using to guarantee using battery correctly all the time.Warning: when find battery overheat, swell or dour, please stop using battery and contact service centre for getting replacement.Warning: do not charging battery on the place of insufficientventilation such as: mattress, sofa, cushion , soft mat......Warning: we will not take any responsibility if user incorrectly use battery, not following our warning instruction label on the battery case.Warning: more than 250mm USB extension cord is prohibited to use for USB portWarning: This digital video disc player employs a laser system.Use of controls,adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure.Warning: To prevent direct exposure to laser beam,do not openthe enclosure.Visible laser radiation when open.Warning: Never stare directly into the laser beam.Caution: Do not install this product in a confined space suchas a book case or similar unit.RISK OF ELECTRIC SHOCKDO NOT OPEN WARNING chargeover heat 40 C strong impact

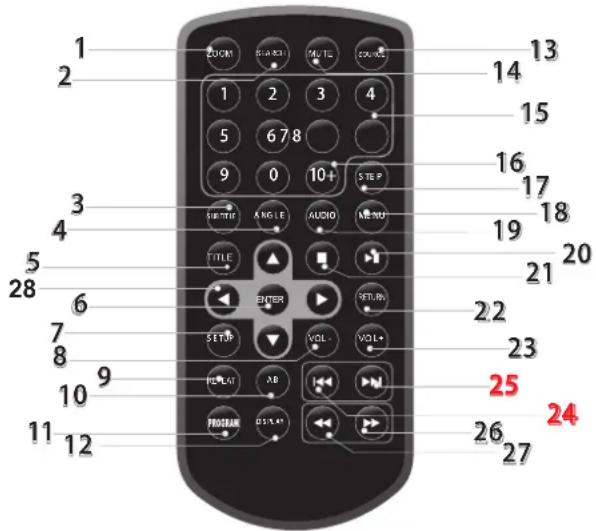

Remote control unit Identification of Controls

Goto time point , title or chapter you want in DVD Mode.

Press SUBTITLE repeatedly during playback to hear a different subtitle languages.

Press ANGLE will change the view angle, on DVDs that support this feature. Each press of the ZOOM button changes the TV screen in the following sequence:2X size 3X size 4X size 1/2 1/3 1/4.

Confirms menu selection.

Press REPEA T during playback to select a desired repeat mode. DVD: you can play a chapter/title/all on a disc. VC D C D: you can play a track/all on a disc. MP 3 WMA: you can select Repeat one/Repeat folder/ALL play mode on a disc. 10.A B To repeat a segment: press AB once to set the starting point for repeat segment, press it again to set an end point, and the player will repeat the segment from the start to the end point. 11.PROGRAM JPEG:You can press PROGRAM repeatly to select the slide show mode, the are 16 types slide show.

To display the playtime and status information.

DVD/USB. DVD VCD CD MP3: The program function enables you to store your favourite tracks from the disc. Press PROGRAM button,then PROGRAM MENU will appear on screen, now you can use the number or direction keys input the titles, chapters(DVD/VCD) or select tracks number (CD MP3) and select PLAY option to resume normal playback, press PROGRAM and select CLEAR option on the program menu.Identification of Controls Remote control unit

Selects numbered items in a menu. 16.10+ BUTTON In order to select a track 10 or greater, first press 10+, For example; select track 12, first press 10+, and then press number 2 button. 17.STEP Press STEP once to pause playback, Form this station, press STEP to advance one video frame.

Accesses menu on a DVD disc, PBC on/off switch for VCD.

DVD: Press AUDIO repeatedly during playback to hear a different audio language or audio track, if avilable. VC D: P ress AUDIO repeatedly during playback to hear a different audio channel (Stereo, Left, or Right).

Press PLAY/PAUSE once to pause playback, pressing PLAY/ PAUSE second time will resume the playback.

When this buttom is pressed once, the unit records the stopped point,from where playback will resume if ENTER is pressed after wards. But if STOP button is pressd again instead of ENTER button, there will be no resume function.

Go to previous chapter/ track to the beginn ing.

Go to next chapter/ track.

Press to navigate through the options within the menus.

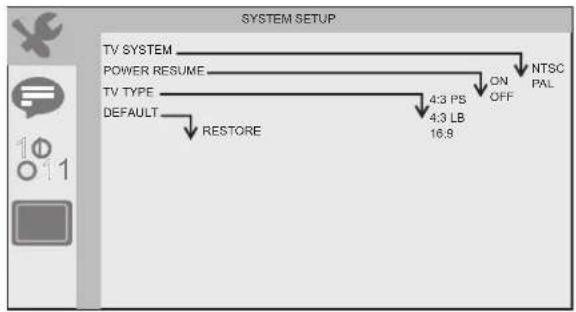

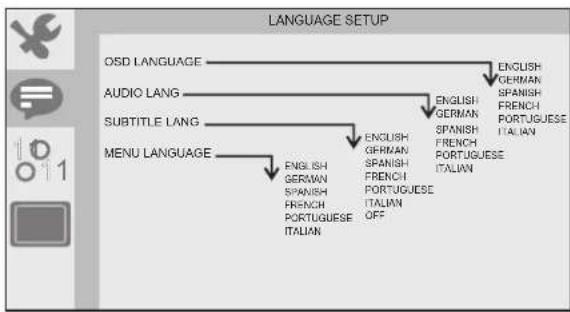

Press BUTTON allow skipping back at 5-level speed(X2-> X4->X8->X20), press ENTER button return to normal playback.SETUP Menu Setting System Setup Page Language Setup Page Language setupPress SETUP button to get the setup menu. Use direction buttons to select the preferred item. After finishing settings, press SETUP again to normal display.System Setup TV SystemSelecting the color system that corresponds to your TV when AV output. This DVD Player is compatible with both NTSC and PAL.PAL - Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format.NTSC - Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc and output in NTSC format.Power ResumeThis function is used to turn the last memory on or off.TV TypeSelects the aspect ratio of the playback picture.4:3 PS: if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.4:3 LB: if you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.16:9: wide screen display.DefaultRestore the factory setting of setup menu.You can select OSD language, and select audio/subtitle/menu language of DVD discs if available. Also you can select font type for mpeg4 subtitle.

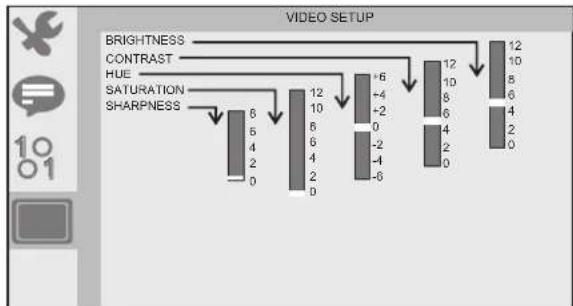

SYSTEM SETUPLANGUAGE SETUPSETUP Menu Setting Video Setup Page You can change the video setting: brightness, contrast, hue, saturation. Audio Setup Page

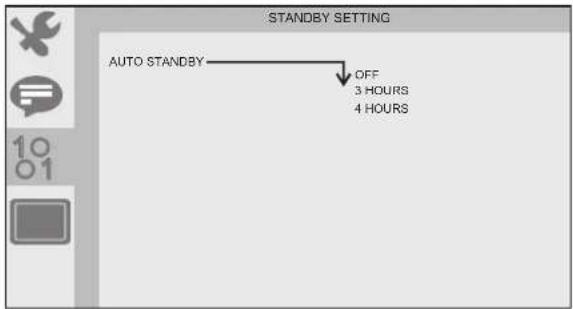

The function is use to select standby setting: OFF, 3 HOURS, 4 HOURS OFF: No standby 3 HOURS: No remote control and panelkey operation within three hours into standby 4 HOURS: No remote control and panelkey operation within four hours into standby AUTO STANDBY OFF

Battery ChargingConnect the DVD player to the supplied power adaptor, the LED indicator willbe RED when the battery is charging and will turn into green when the battery is full charged.Service and support For information: www.lenco.com Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly. Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires. This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

WARNING: Prolonged exposure to loud sounds from

personal music players may lead to temporary or permanent hearing loss. Products with the CE marking comply with the EMC Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community. The declaration of conformity may be consulted at https://lencosupport.zendesk.com/forums/22413161-CE- Documents This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive). ®All rights reserved ENGLISHLesen Sie das Benutzerhandbuch sorgfältig und vollständig durch, bevor Sie das Gerät anschließen, verwenden oder Einstellungen vornehmen. TRAGBARER DVD-SPIELER BENUTZERHANDBUCH DVP-754 www.lenco.comWichtige Sicherheitshinweise
