USER MANUAL HSD 7790 XORO

9 inch portable MPEG-4 DVD-PLayer with U5β,

DVβ-T and 3D Card Reader

H5D 7790

OPERATION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D'EMPLOI

」

L

Inhaltsverzeichnis

"This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited."

Dolby

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. 1992-1997 Dolby Laboratories, Inc. All rights reserved.

Programm (Channel)
- Installation (Installation)
- Konfiguration (Setup)
- Tools (Tools)
Media+

Safety Information	4
Accessories	8
Features	8

Battery
Install	the	battery
Battery	Storage

Main Unit

1

0

Remote Control
Insert Batteries	12
Buttons	13

Connecting
Headphones			14
To a	TV	set		14
Audio/Video	In		14

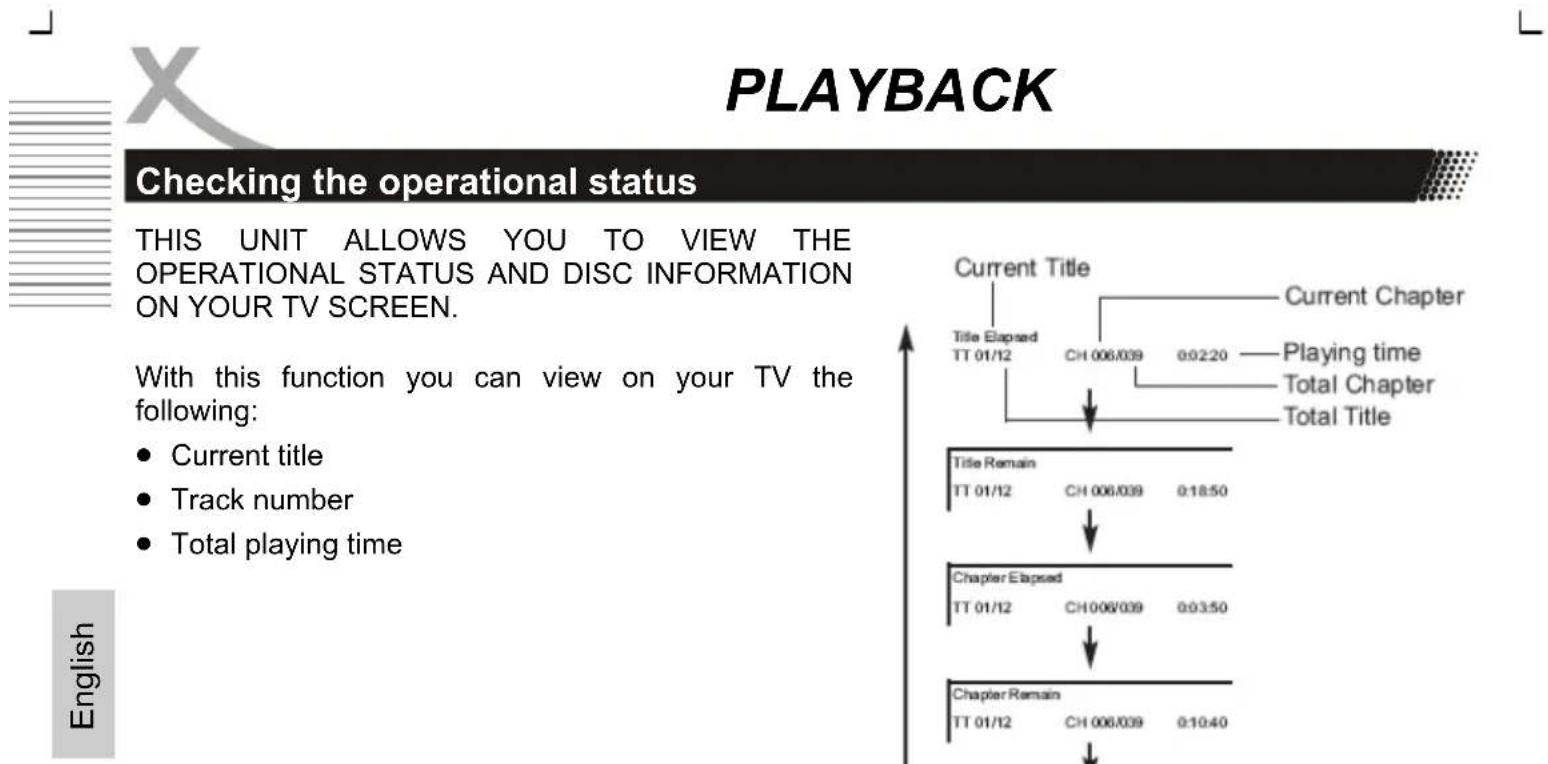

Playback
Menu / Stop / Chapter / Track / Pause / FFW / FFB 15
Subtitle / Audio / Repeat 16
Volume / Zoom / Mute / USB 17
Display Information / LCD SETUP 18
J P E G- F i le s
Music Files					20
MPEG-1 / MPEG-2 / MPEG-4 21
USB Port					22

Setup
General	Settings	23
Audio	Settings
Video		25
Preferences		25

Troubleshooting DVD

28

DVB-T
Connect	the	antenna					29
First	Time	Installation					29
Important	Functions						30

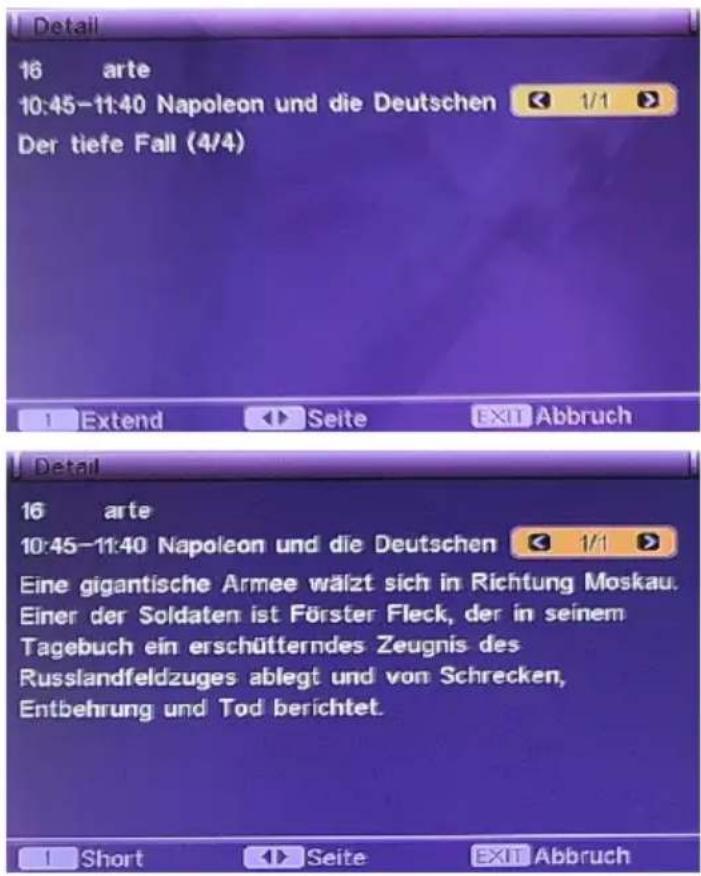

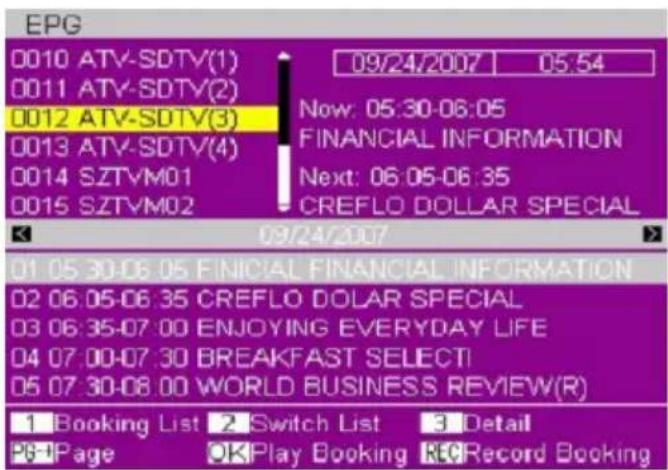

E	P	G
R	e	c	or	d	i	n	g
Time-Shift						32
DVB-T	Setup						33
Media-Player						42
Troubleshooting	DVB-T					43

Specifications	4	4
Glossary	4	5

User Manual

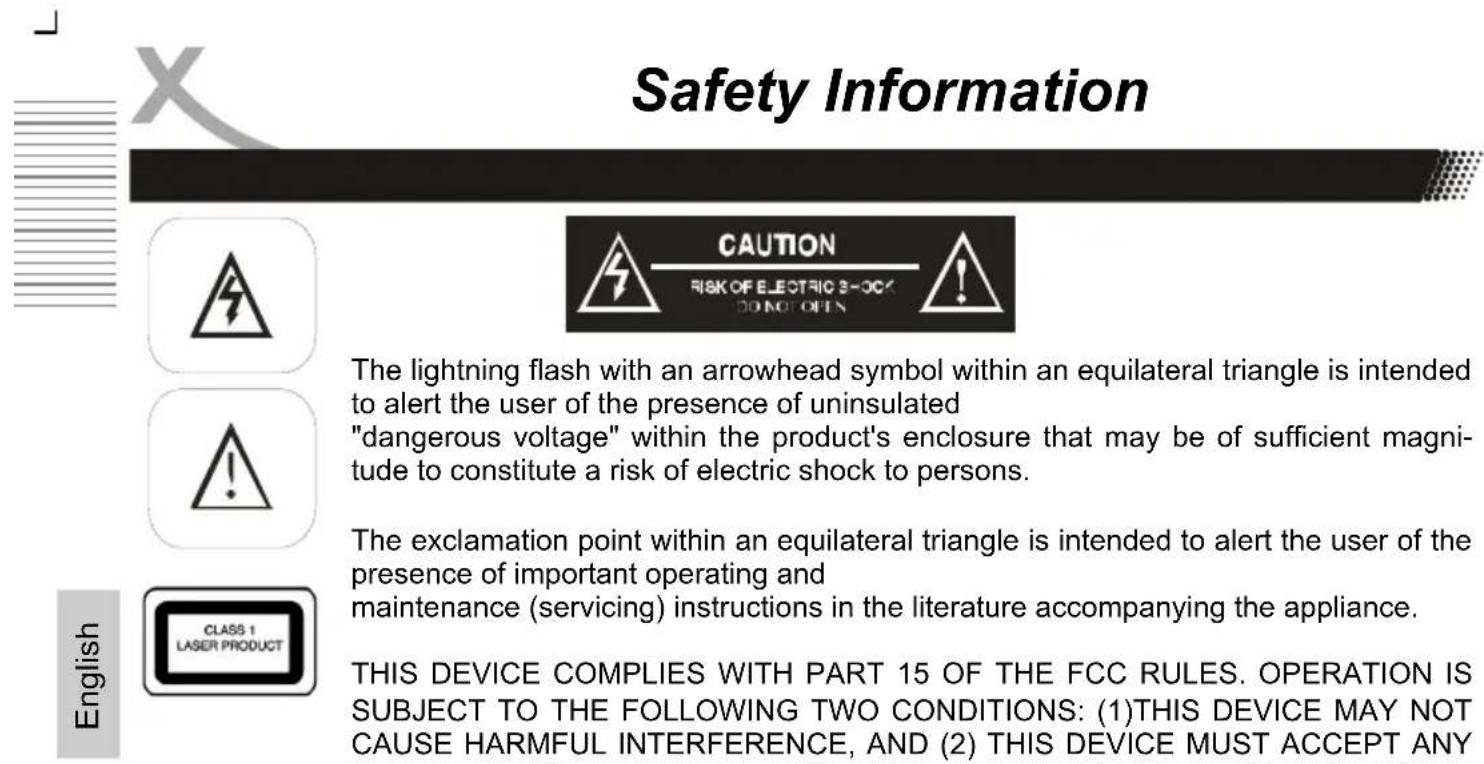

1. All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. All warnings on the product and in the operating instructions should be adhered to.
4. All operating and use instructions should be followed.

Laser

This Digital Video Disc Player employs a Laser System of the class 1.

1. Make sure the device is shut down prior to opening player lid.
2. Do not open the appliance. Do not attempt to dismantle the appliance.
3. In order to avoid any danger: Have service work only carried out by the manufacturer or an authorized service workshop.
4. Visible laser radiation when open and interlocks defeated.
5. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Operation

1. Playing of Video DVD/Video CD or Audio-CD.
2. Playback of content (video, music and pictures) from USB flash memory.
3. Attention: The USB port is related with the DVD-Player.
4. Reception of digital terrestrial channels (DVB-T).
5. Records DVB-T programs on SD cards (PVR Ready).
6. Time-Shift function on SD card.
7. Playback of content (video, music and pictures) from SD cards.
8. No other uses are allowed.

USB Port

Due to the legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port

Power Supply

1. Never touch the plug with wet hands.
2. If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.
3. Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.
4. Make sure that the power cable is not wound around the device while in operation.
5. Never place the machine on the power cable while it is being operated.
6. Only use extension cables that are designed for the power consumption level of the machine.
7. Keep the appliance away from rain and any moisture.
8. Only operate the machine if the electrical voltage stated on the type plate beneath the machine agrees with the voltage on your plug socket. The wrong voltage can destroy the machine.
9. Do not stand vases etc. on the appliance. Water could seep into the appliance.
10. Do not open the appliance.
11. Pull out the mains plug if the appliance is not to be used over a longer period of time.
12. Take care that nobody can trip over the power supply cable.

Battery

The DVD player contains a battery pack.

1. The battery is part of the device and build-in.
2. Do not open the device to access the battery.
3. There is a risk of fire and burns if the battery pack is handled improperly.
4. Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water. Do not attempt to open or service the battery pack.
5. Replace only with the battery pack designated for this product.
6. Discard used batteries according to the manufacturer's instructions.
7. The voltage shall be not higher than 9 Volt.

Macrovision

U.S. Patens Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 5,315,448 and 6,516,132

"This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited."

Dolby

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished works. 1992-1997 Dolby Laboratories, Inc. All rights reserved.

Operation and Position

1. During playback, the disc rotates very fast. Do not open or do not move the player during playback. Otherwise the disc can be damaged.
2. Do not connect accessories on the player which are not defined by the manufacture.
3. Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.
4. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
5. The player is able to show a still image on the TV screen or monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver. Or switch the player off, if the device is not in use.
6. Do not uses the player permanent in the 4:3 mode. This can cause damage to the screen.
7. Do not increase the volume when the player is just playing very quiet sections. This cold damage the speaker if very loud passages starts all of a sudden after the quiet section.
8. Place only CDs or DVDs into the tray.
9. Switch the player off by the Off/On switch if it is not going to used for a longer period of time.
10. Disconnect the main plug during thunderstorms.
11. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.
12. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.
13. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
14. Protect the device against weather influences, moistures and high temperature.
15. Never spill liquid of any kind on the product.
16. Do not expose the device and the remote control to direct sunlight.
17. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size or grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Defect

1. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
2. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e. If the product has been dropped or damaged in any way, and

1. When the product exhibits a distinct change in performance this indicates a need for service.
2. When replacement parts are required, be sure the service technician has used relacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
3. Please read in the section Troubleshooting our service address and phone number.

Recycling of electronic devices

This product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please, dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic product. Please, help us to conserve the environment we live in!

Recycling of paper and carton

The material recycling symbol on the carton and user manual denotes that they are recyclable. Dispose them not with the normal household waste.

Recycling of plastic parts

The material recycling symbol on the plastic parts denotes that they are recyclable. Dispose them not with the normal household waste.

Green Dot

First inventory the contents of your Portable DVD player package:

HSD7790
Remote Control with battery
- AC/DC power adapter
- USB adapter cable
Audio/Video adapter cable
- Headphone
- Car adapter
- User Manual
Warranty Card

Notes:

If any item should be damaged or missing, please contact your dealer without delay.
- Keep the packaging materials, you may need them to transport your player in the future.
- Always transport or send the player in its original packing.
- Do not change or modify any components of the device or accessories.

Features

• 9 inch (22.8 cm) with 16:9 display
  Digital TFT Panel
• High resolution with 800 × 480 Pixel
  Build-in Free-to-Air DVB-T Receiver
• With EPG and Video-/Videotext
• USB port for direct playback of videos, pictures and music
• Card Reader for SD, SDHC and MMC medias
• Records DVB-T on Card storages (PVR Ready)
  Time-Shift Function on SD card
• Plays Video-DVD, SVCD, VCD, MPEG-4, MPEG-2, MPEG-1, JPEG and Music
• Compatible to CD-ROM, CD-R(W), DVD-R(W), DVD+R(W), DVD-Double Layer Media, CD-DA and Picture CD
• Integrated Li-Polymer Battery
  Audio (Stereo)/Video In port
  Audio /Stereo)/Video Out port

BATTERY PACK

Battery Storage

1. The battery is part of the device and build-in.
2. To charge the battery, please switch off the device. Connect the AC/DC power adapter cable to the DC In on the left side of the player. Plug the AC/DC power adapter to the wall outlet.
3. The provided battery can be recharged for about 500 times. It takes about 4-5 hours to recharge the battery if the player is off. It takes about 6-8 hours to recharge the battery if the player is on. A fully charged battery can power the unit for about 2.5 hours. Power consumption depends on the operations of the player such as brightness of the screen, volume level, etc.
4. Under no circumstance should you short out the battery, store it in a metal container, or leave it in a humid or damp environment.
5. Storage Temperature and Humidity (Short-term) In a dry location with low humidity (Max. 85% ), no corrosive gases, at a temperature range of -20^ to 45^ . In a location where humidity is extremely high or with temperature below -20^ or above 45^ , the metallic parts of battery will rust and result in electrolyte leakage due to expansion or contraction in parts composed of organic materials.
6. As long-term storage can accelerate battery self-discharge and lead to the deactivation of reactants, locations where the temperature ranges between 10^ and 30^ are suitable for long-term storage
7. When charge for the first time after long-term storage, deactivation of reactants may have led to increased battery voltage and decreased battery capacity. Restore such batteries to original performance through repeating several cycles of charge and discharge.
8. Do not open the battery.
9. Do not put the battery into fire, do not heat the battery and do not contact the battery with water.

Use the device in the car

1. This device may only be used with the original vehicle adapter, as a different adapter can damage the device.
2. The original vehicle adapter may only be used for this device. Do not use it for other equipment.
3. While you are driving the vehicle it is forbidden to adjust the device or watch videos and CDs.
4. Please ensure that the device is firmly installed and cannot fall inside the vehicle in the case of an accident.
5. If the cigarette lighter is dirty, poor conductivity will make the connection hot. Please ensure that the adapter is only inserted into a clean cigarette lighter connection.
6. After use the 9 V adapter should be removed from the device and from the cigarette lighter socket.

Notes:

1. Do not charge the battery in the car with the car adapter.
2. Disconnect the battery before using the car adapter.

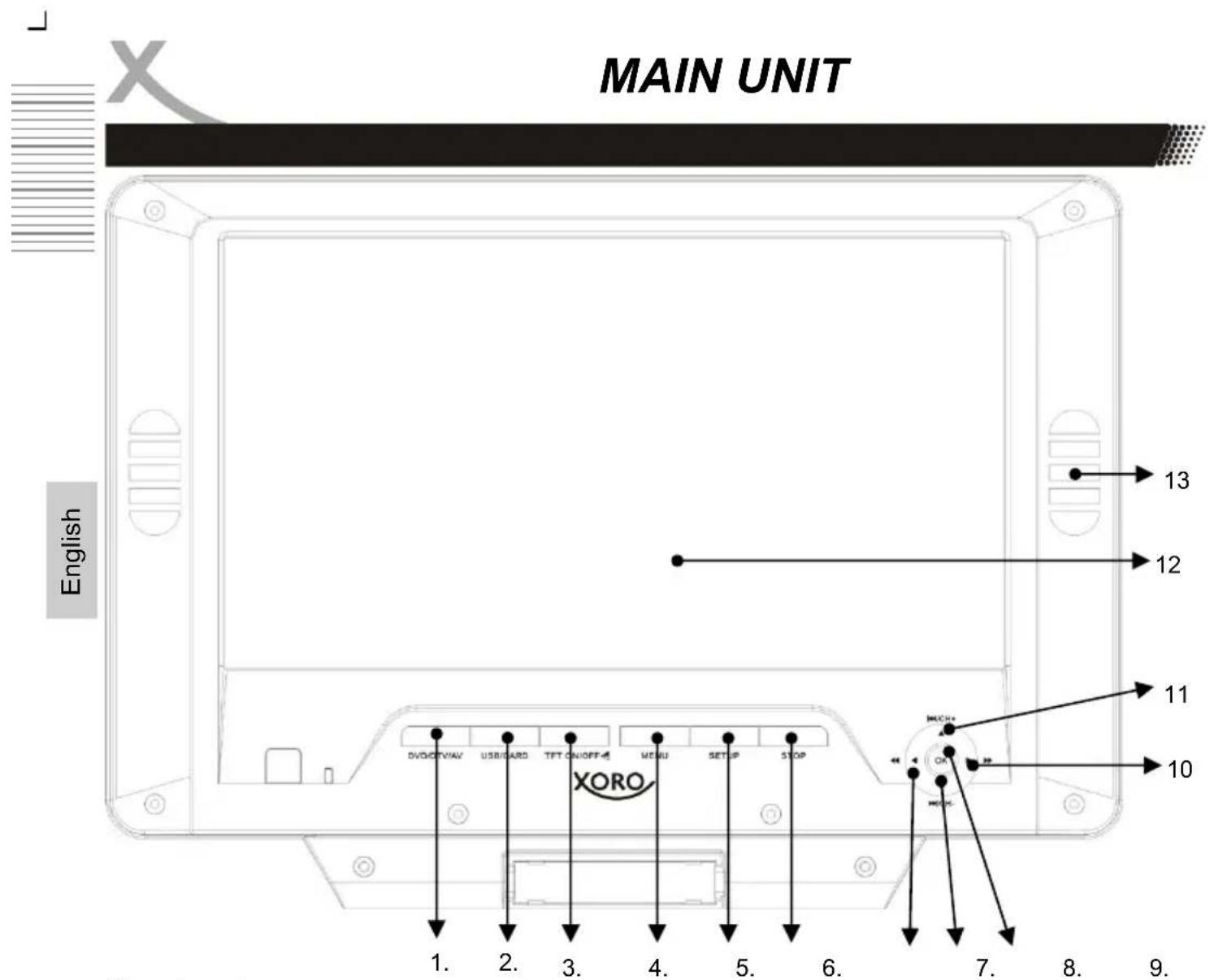

The elements are:

1. DVD/DTV/AV button
2. USB/CARD button
3. TFT ON/OFF button
   4.DVD: MENU button
4. Setup button for DVD or DVB-T
5. DVD: Stop button
6. DVD: Fast backward; LEFT navigation button
7. DVB-T: Change channel (CH-); DVD: Next chapter, track, file; Navigation button DOWN
8. OK button; DVD: Starts playback or Pause playback
9. DVD: Fast forward () button; RIGHT navigation button
10. DVB-T: Change channel (CH + ) DVD: Previous chapter, track, file; Navigation button UP
11. LCD screen
12. Speaker

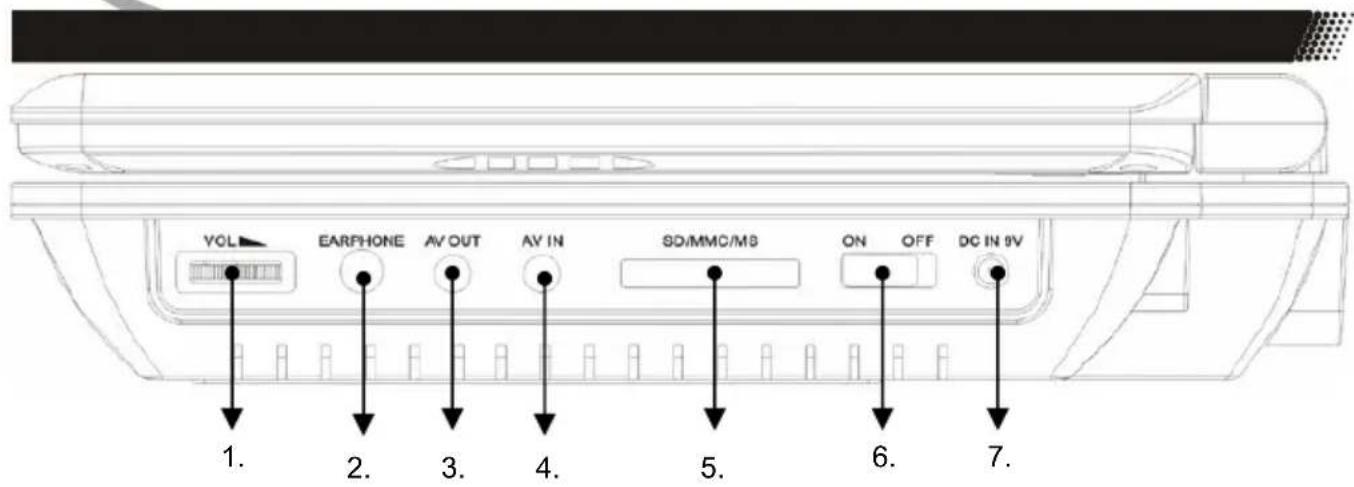

MAIN UNIT

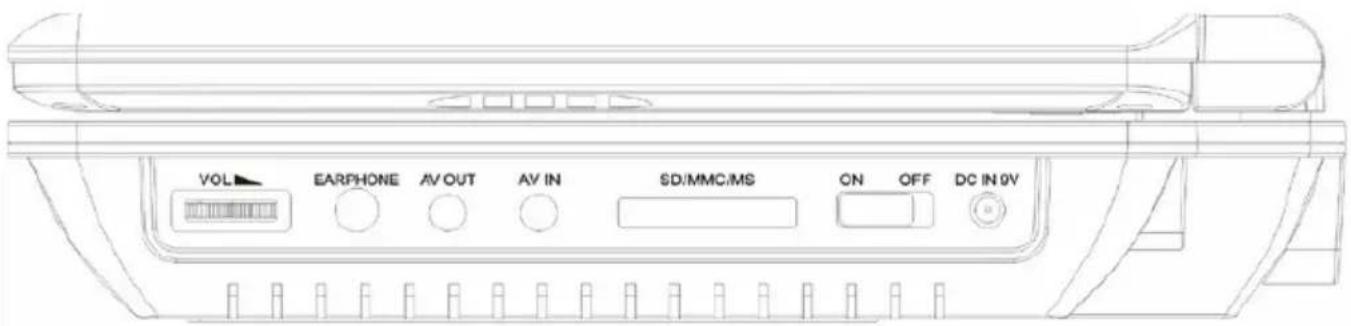

Right side

1. Volume knob
2. Earphone jack
3. Audio/Video Out
4. Audio/Video In
5. SD/MMC/MS Card Reader
6. On and Off Switch
7. DC 9 Volt input

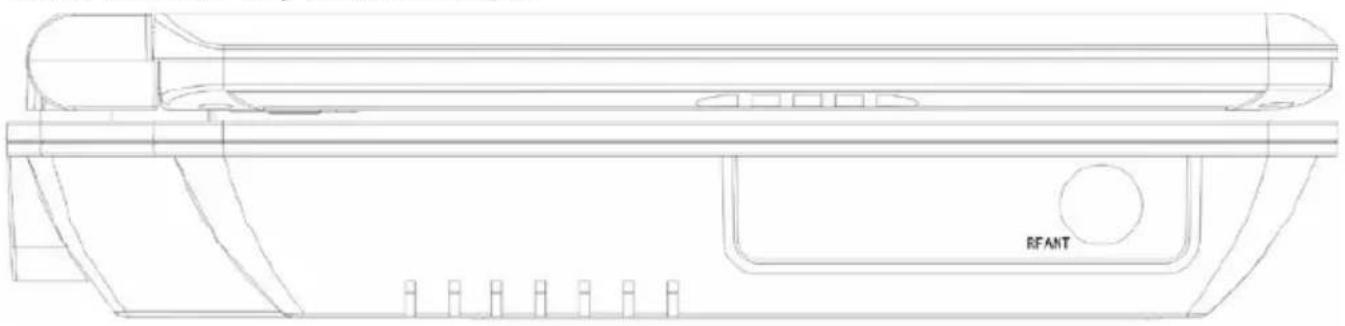

Left Side

On the left side is only the antenna input.

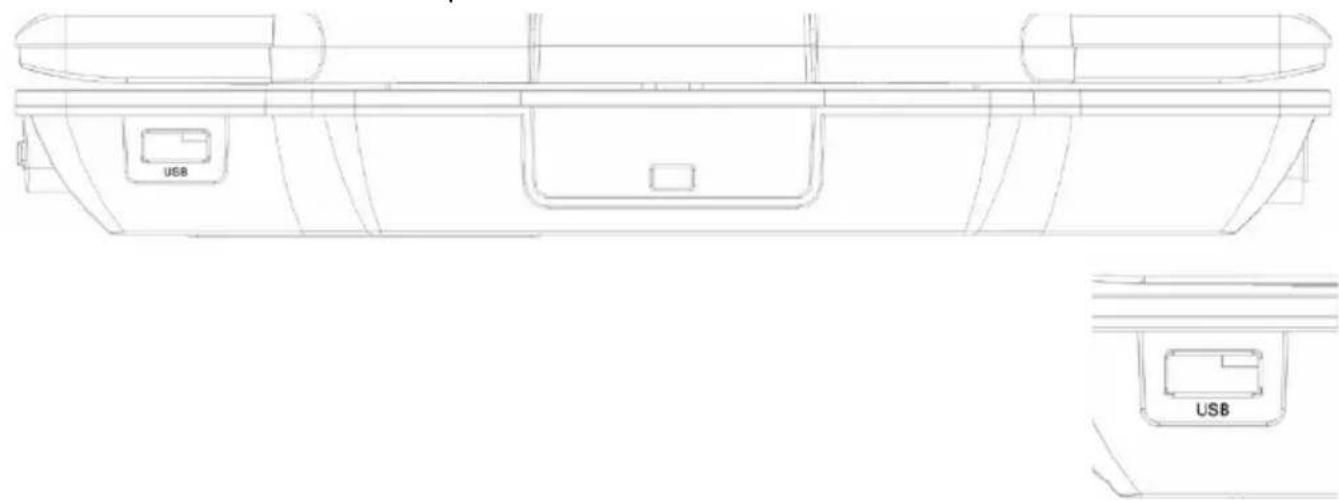

Rear Side

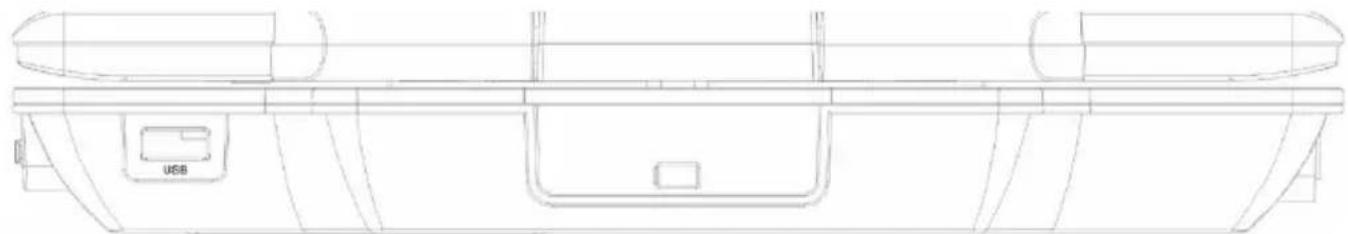

On the rear side there is the USB port.

REMOTE CONTROL

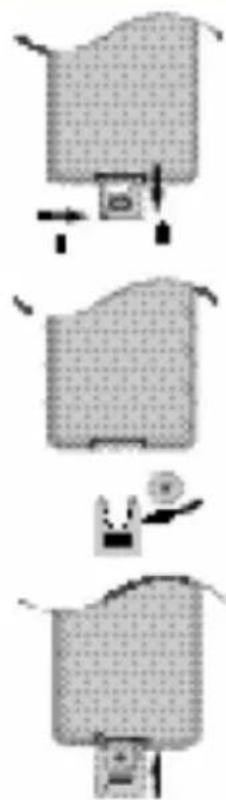

Insert battery

• Prior to shipping, a separating film was applied to the battery. Remove this film.
• Insert the battery into the receptacle and insert the receptacle into the remote.
• For the best results, aim the remote towards at the player, screweiving window. Stay within 5 metre and angles of 60 degrees or less.
• Under normal use the battery will last for one year.
• Remove battery during storage or when you are not using the DVD player for a long time.

Notes:

1. Weak batteries can leak and several damage by the remote control.
2. Leaking out battery acid can damage your health.
3. Remove the battery from the battery compartment as soon as it is exhausted or if the remote control is not going to be used for a longer period of time.
4. Wipe up leaked out battery acid with a cloth.
5. In case of skin contact immediately wash the affected area.
6. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes wash out the eyes and seek medical advice.

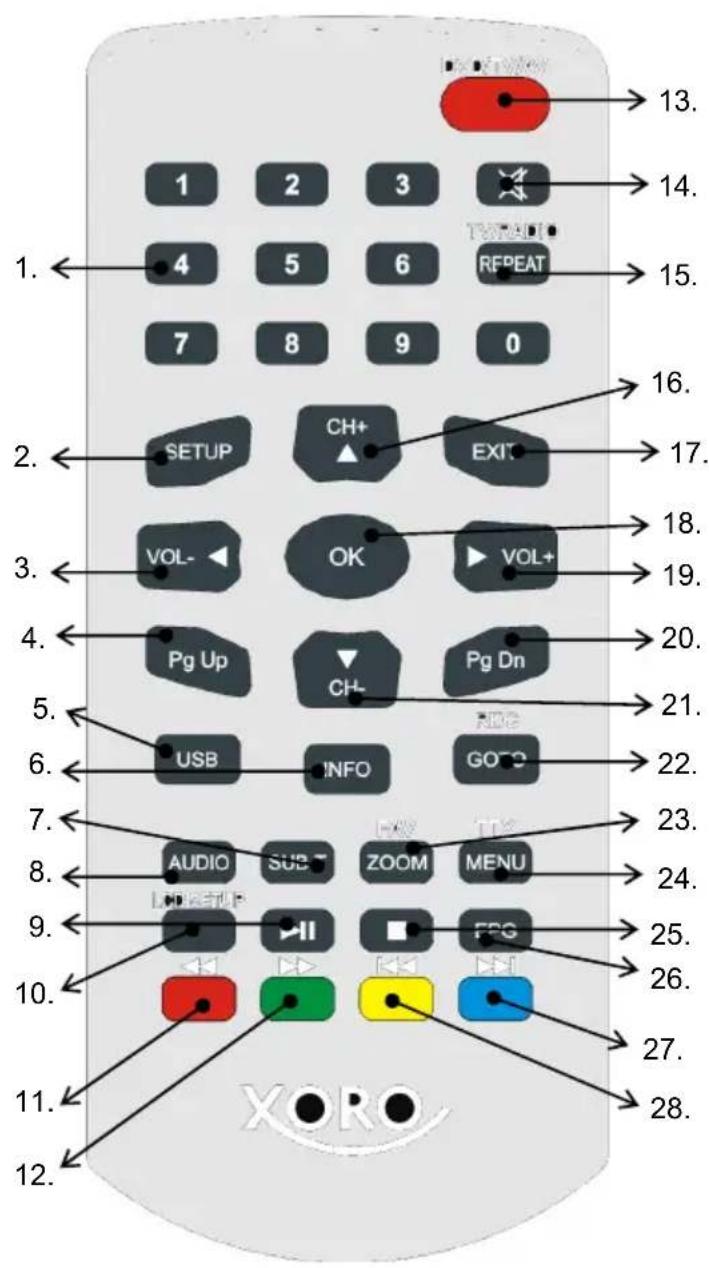

Buttons on the remote control:

1. Numeric buttons (0 ... 9)
2. SETUP button
3. Reduce Volume (VOL-) / Navigation button Left
4. Page Up button (PgUp)
5. USB button
6. Information button (OSD/INFO)
7. SUBTITLE button
8. AUDIO button
9. PLAY/PAUSE button
10. LCD SETUP button
11. Fast backward (<); DVB-T: Red button
12. Fast Forward button (>>) ; DVB-T: Green button
13. DVD/DTV/AV button
14. Mute button
15. DVD: REPEAT button; DVB-T: TV/ Radio button
16. DVB-T: Change Channel (CH+) ; Navigation button UP
17. EXIT button
18. Confirmation button (OK)
19. Increase Volume (VOL-); Navigation button Right
20. Page Down button (PgDn)
21. DVB-T: Change channel (CH-); Navigation button Down
22. DVD: GOTO button; DVB-T: Record button (REC)
23. DVD: Zoom button; DVB-T: Favourite button (FAV)
24. DVD: Video-DVD MENU button: DVB-T: Videotext button (TEXT)
    25.DVD:STOP button
25. DVB-T: EPG button
26. DVD: Previous button (|<< ; DVB-T: Blue button
27. DVD: Next button (>>|) ; DVB-T: Yellow button

CONNECTING

Connecting to a TV set

1. Turn off the power and unplug both units before setting up any connections.
2. Press the DVD/DTV/AV button until AV mode appears on the screen.
3. Connect the adapter cable (supplied by the HSD 7790) to AV OUT.
4. Connect the yellow cable (Video) to the adaptor cable and to theVIDEO-IN of the TV set.
5. Connect the red and white cable to the adaptor cable and to the AUDIO-IN of the TV set.

By using the SCART connection on the TV set, please uses the AV/SCART adapter and connect the AV cable with the AV/SCART adapter.

Connecting headphones

1. Connect the headphones. Headphones with a 3.5mm stereo plug can be connected.
2. Adjust the volume by turning the dial.
3. Avoid listening to sound at levels which may be harmful to your ears.

Note:

Do not use the earphone continuously over a prolonged period.

Audio/Video IN

You can uses the HSD 7790 as a LCD screen by using the AV Out function.

1. In order to play back the picture from another playback device (e.g. digital camera) on the LCD screen, connect the audio/video cable to the AV IN socket and the other end to the playback device.
2. Switch the device into AV mode by pressing the DVD/DTV/AV more times.

PLAYBACK

How to start playback from the MENU screen

1. Press MENU to access the menu screen.
2. Press navigation or the number buttons to select the title.
3. Press the OK or PLAY button.
4. The DVD video player will start playback from the title selected.

Note:

You also can input the assigned number of the title to select it directly.

A title is generally a distinct section of a DVD disc. For example the main feature could be title 1, a documentary describing how the film was made could be title 2, and cast interviews could be title 3. Each title is assigned a reference number enabling you to locate it easily.

Titel 1

Titel 2

Titel 3

Titel 4

How to stop playback?

Press the STOP button. The player is pre-stopped. Two times pressing STOP and the player stops completely.

Fast Forward or Fast Backward

Press << or >> during playback on the remote control and the HSD 7550 changes the speed of playback. The playback speed becomes double the normal speed. The playback speed changes, each time you press the REV or FWD button.

Normal x2 x4 x8 x16 x32 Normal

Note:

The function is invalid on some DVD discs.

Pause the playback

Press one times PAUSE/STEP button during playback, and the player goes into pause mode. Press the PLAY button again to continue the playback.

Press the STOP button. The player is pre-stopped (only by Video-DVD). Two times pressing STOP and the player stopps completely.

Chapter / Track

A chapter is a segment of a title such as a scene in a film or one interview in a series. Each chapter is assigned a chapter number, enabling you to locate the chapter you want. Depending on the disc, chapters may not be recorded.

When a title on a disc has more than one chapter < < (SKIP or PREV) or > > (SKIP or NEXT) a disc has more than one track, you can move to another chapter/track as follows:

1. Press SKIP or briefly during playback to select the next (or previous) chapter/track or to return to the beginning of the current chapter/track.
2. Press SKIP twice briefly to step back to the previous chapter/track.
3. To go directly to any chapter during DVD playback, input the chapter/track number.

Selecting Subtitles

You have the option to select a preferred subtitle from those included on the DVD video disc.

1. Press the SUBTITLE button during playback.
2. Press the SUBTITLE button during playback until the subtitles disappears

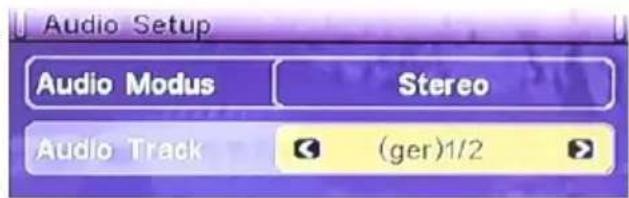

How to change the Audio languages?

Press the AUDIO button repeatedly during playback to hear a different audio channel.

By playback of a Video-DVD or a MPEG-4 file with multi-audio you can change the audio track respectively the audio languages.

By playback of a VCD you can change the different audio channel (Stereo, Left, or Right).

REPEAT

You can play a title/chapter/all/track on a disc repeatedly. Press REPEAT during playback to select a desired repeat mode. Depend on the kind of disc (Video-DVD, VCD or Data files) you have different Repeat modes.

DVD Video Discs - "Repeat Chapter / Title / All / Off"

Chapter: repeats the current chapter. Chapter

Title: repeats the current title.

All: repeats all the tracks on a disc.

Off: does not play repeatedly.

Video CDs, MPEG-4, MPEG-1, MPEG-2, JPEG discs - "Repeat Track / All / Off"

Track: repeats the current track.

All: repeats all the tracks on a disc.

Off: does not play repeatedly.

Music disc - Track / All / Off

Track: repeats the current track.

All: repeats all the tracks on a disc.

Off : does not play repeatedly.

Notes:

1. On a Video CD with PBC, you must set PBC to Off to use the repeat function.
2. If you press SKIP/NEXT (|<< or >>|) once during playback, the repeat function will be cancelled.

PLAYBACK

Search or GoTo

The on-screen menu enables comfortable access to any sections of a medium. To do this, proceed as follows:

1. Select the desired category by repeatedly pressing the button GOTO-button.
2. Now move to the point from which the replay should start. Depending on the type of medium this may be a track number, a chapter or even a point in time. The input must be made with the Numerical Buttons. Playback begins after a short time.

Volume Control

1. Change the volume by using the volume knob on the HSD 7790.
2. Change the volume by using the right and left button on the remote control.

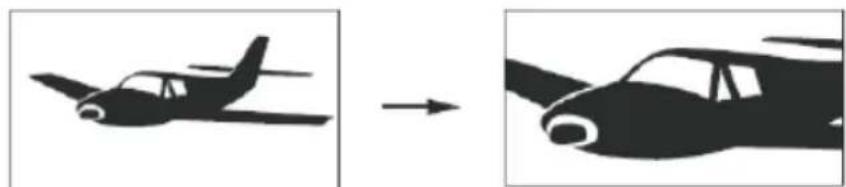

ZOOM

This DVD video player allows you to zoom into a picture as well as shift the zoom point.

Press ZOOM during normal playback. The player magnifies in the center of the picture. If you press during zoom playback, the zoom point shifts.

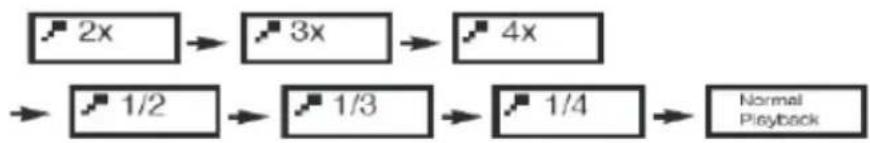

Pressing more than one time the ZOOM button the Zoom function changes in the following sequences:

Note:

Zoom may not work on some disc.

Mute

You can mute the player by pressing the MUTE button. The sound switches off. A sign will displayed on the screen. To activate the sound, press again the MUTE button.

USB

If you want to playback pictures, music or video from USB storage, please insert the USB adapter cable into the USB jack on the right side of the player. Plug the USB storage to the adapter cable. Press the USB button.

Security Note:

If you want disconnect the USB flash media, press at first the USB button and change to "DVD". When the DVD loader is active than you can disconnect the USB flash media.

LCD SETUP

By pressing LCD SETUP on the control field or the remote control you get access to the settings of the TFT panel. One time pressing the LCD SETUP button activates the TFT setting menu.

The settings for the TFT are brightness, contrast, colour and aspect ratio. With the options of brightness, contrast and colour you can adjust the displaying quality of the screen. Please adjust the values by pressing the left or right side of the navigation cross (on the HSD 7790) or the left or right button on the remote control.

The setting Aspect Ratio is specially for changing the aspect ratio from 16:9 to 4:3 and back.

1. By viewing a movie or the TV program with an aspect ratio of 4:3 you can change the preset of 16:9 to 4:3. The content is not distorted. With the 4:3 setting, the HSD 7550 add on the right and left side a black bar. This characteristic is normal.
2. By viewing a movie or a TV program with an aspect ratio of 16:9, please use only the 16:9 settings. Otherwise the picture is distorted.

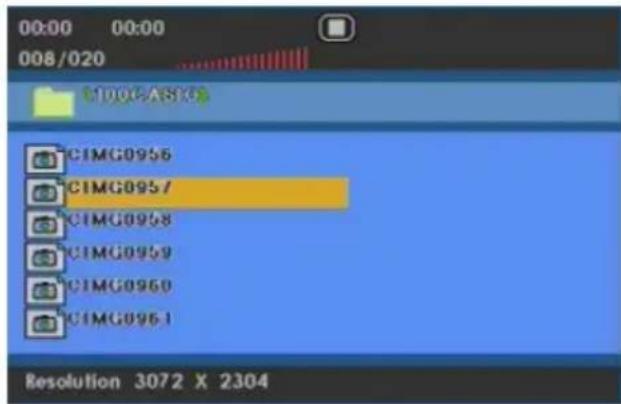

Playing back JPEG files

1. Place the CD on the disc tray.
2. Select a folder or a picture contained on the CD.

After the CD is loaded, a menu will appear on the screen. Press UP or DOWN to select a folder, and press OK to view folder contents (shown in right column as below).

JPEG disc compatibility with this player is limited as follows

1. Depending upon the size and number of JPEG files, it could take a long time for the DVD player to read the disc's contents. If you don't see an on screen display after several minutes, some of the files may be too large reduce the resolution of the JPEG files to less than 2 MPixels as 2760 × 2048 pixels and burn another disc.
2. The total number of files and folders on the disc should be less than 650. Some discs may be incompatible due to a different recording format or the condition of disc. Ensure that all the selected files have the." jpg" extensions when copying into the CD layout. If the files have. "jpg" or. "jpeg" extensions, please rename them as "jpg" file. File names without "jpg" extension will not be able to be read by this DVD player. Even though the files are shown as JPEG image files in Windows Explorer.

Playback

Choose a file and press the OK button on the remote control. The picture appears on the screen. Every pictures appear a few seconds on the screen and than the next picture started.

Pause

If you want to watch on picture a longer time, please press the PLAY/PAUSE button during the playback or slideshow. The viewing paused by the actually picture. If you want go ahead with the playback, than press the PLAY/PAUSE button again.

Stop

If you want to cancelled the playback, press the STOP button and the player returns to the file browser. If you press the MENU button during a slideshow, than the player goes also back into the file browser without pressing the STOP button.

Rotate an image

During the slide show, you can use arrow keys to rotate an image:

Press UP to invert an image.

Press DOWN to mirror an image.

Press LEFT to rotate an image to the left.

Press RIGHT to rotate an image to the right.

Zoom

With the DVD player you can view magnified images. Press the ZOOM button on the remote.

Playing back Music files

Disc

The DVD player can play CD and MP3/WMA formatted recordings on CD-R, CD-RW, DVD+R and DVD+RW discs.

Audio

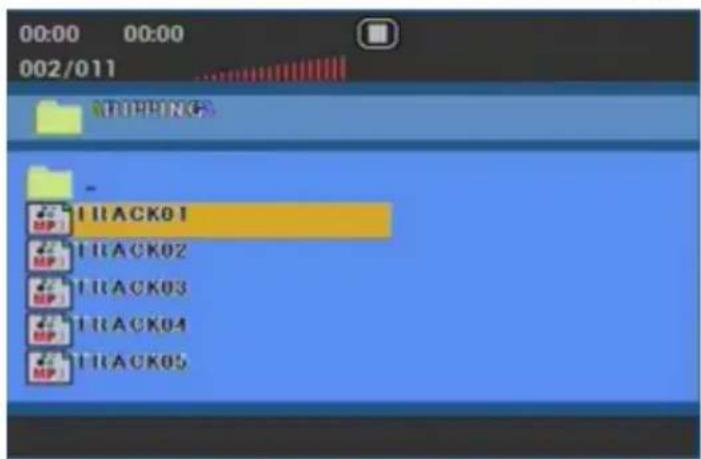

Once an Audio CD is inserted it will be played automatically. Its playback information will be show on screen, such as chapter elapse time.

Format Compatibility

Music disc compatibility with this player is limited as follows:

1. Sampling frequency: within 8 - 48 kHz (MP3),within 32 - 48kHz (WMA).
2. Bitrate: within 8 - 320kbps (MP3), 32 - 192kbps (WMA).
3. The player cannot read an / file that has a file extension other than MP3/WMA.
4. CD-R physical format should be ISO 9660.
5. File names should have a maximum of 8 letters and must incorporate an" .mp3" or " .wma" extension. They should not contain special letters such as "/? * : < > I "etc.
6. The total number of files on one disc should be less than 650.

This DVD player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 or WMA files) and these require certain pre-existing conditions (see above) to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Playback function:

• Press the navigation buttons to select a folder, and press OK to see the folder contents.

• Press the navigation buttons to select a track then press PLAY or OK. Playback starts.

• STOP for stopping the playback
  PREV (|<<)/ NEXT (>>|) for choosing the next track

• REPEAT for repeating a Track, a Folder or All Tracks
  Fast Backward () or Fast Forward ()

MPEG-1, MPEG-2 and MPEG-4 files

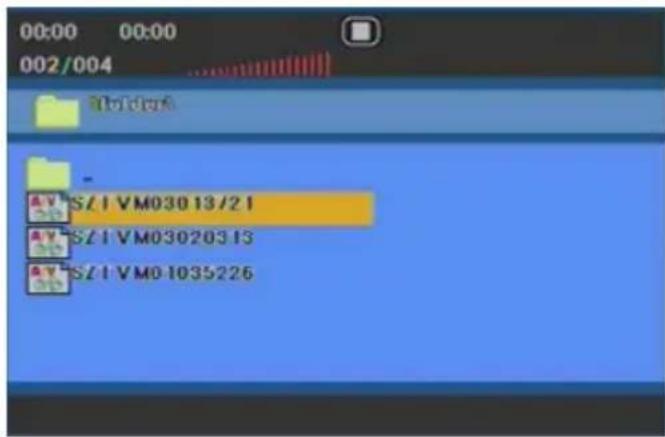

Using this DVD Player you can play MPEG-1, MPEG-2 and MPEG-4 disc.

1. Insert a disc and close the tray. The folder menu appears on the TV screen.
2. Press the navigation buttons to select a folder, and press OK. A list of files in the folder appears. If you are in a file list and want to return to the Folder list, use the left navigation button on the remote and than you changes to the previous folder. Or navigate to the "... folder field, highlight them and press OK.

1. If you want to view a particular file, press the navigation buttons to highlight a file and press OK or PLAY.
2. Press STOP to exit.
3. Press NEXT to move to the next page.

MPEG-4 disc compatibility with this player is limited as follows:

1. Available resolution size of the MPEG-4 file is under 720x576 (W x H) pixel.
2. The file name of the MPEG-4 subtitle is available by 56 characters.
3. If there is impossible code to express in the MPEG-4 file, it may be displayed as " _ "mark on the display.
4. If the number of the screen frame is over 30 per second, this unit may not operate normally.
5. If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.
6. Playable MPEG-4 file ".avi", ".mpg", ".mpeg".
7. Different MPEG-4 codices are supported. There must be encoded with are MPEG-4 part 2 (MPEG-4 SP/ASP) standard.
8. Do not use MPEG-4 codes like H.264 or container formats like MKV, MP4, MOV or others.

Playable Audio format

Supported audio formats are "AC3 ", "PCM ", "MP3 "

Sampling frequency: within 8 - 48 kHz (MP3)

Bit rate: within 8 - 320kbps (MP3)

Playback

When you choose a file and press the PLAY button on the remote control, the next music starts to playback.

Pause

If you press the PAUSE/STEP button during the playback or slideshow, the playback paused. If you want go ahead with the playback, than press the PLAY button.

Stop

If you want to cancelled the playback, press the STOP button and the player stops the playback completely and go back to the file browser. If you press the MENU button during the playback, than the player returns back directly into the file browser without pressing the STOP button.

The HSD 7790 has a USB port. The USB port is related with the DVD part.

Please connect the USB stick on the rear side of the device. Please pay attention, that the stick is connected firmly. Press the USB button and than the supported files of the USB memory are shown in the file browser.

Playback functions

The playback options are similar than the different files types from disc.

Supported formats and Bit rates from USB Flash Memory

You can playback from USB storage the same kind of contents as from disc. For example, MPEG-4 videos, MPEG-1 and MPEG-2 videos, JPEG pictures and music files (compressed music formats). Please pay attention to the bit rate of the video content. Do not use bit rate higher than 2000 kbps.

Supported Media

The DVD Player supports different types and different sizes of USB Flash Memories.

Security information

If you want disconnect the USB Flash Memory from the USB port, please press at first the USB button.

Note:

If you disconnect the USB Flash Memory when the USB is active, than the USB Flash Memory could be damage.

USB Port

Due to the legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port

General Operation

1. Press SETUP to enter the Setup Menu.
2. Press OK to the next level submenu or confirm your selection.
3. Press to enter the submenu or return to the previous menu
4. Press to highlight the desired menu.
5. To exit from the menu
6. Press SETUP again and the settings will be stored in the player's memory even if the player is switched off.

Navigate through the options:

1. Press to highlight 'TV Display'.
2. Enter its submenu by pressing .
3. Move the cursor by pressing to highlight the selected item.

The Setup is divided into four different sections: General Setup, Speaker Setup, Dolby Digital Page, Preference Page, Password settings and DVB-T settings.

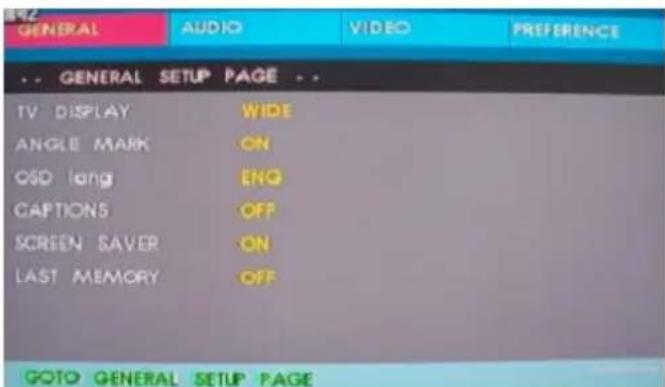

General Setup Page

The options included in General Setup page are:" TV Display", "Angle Mark", "OSD lang", "Closed Captions", "Screen Saver" and "Last Memory".

TV Display

Set the aspect ratio of the DVD Player according to the TV you have connected.

Normal/PS

If you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.

Normal/LB

If you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.

Wide

If you have a wide-screen TV.

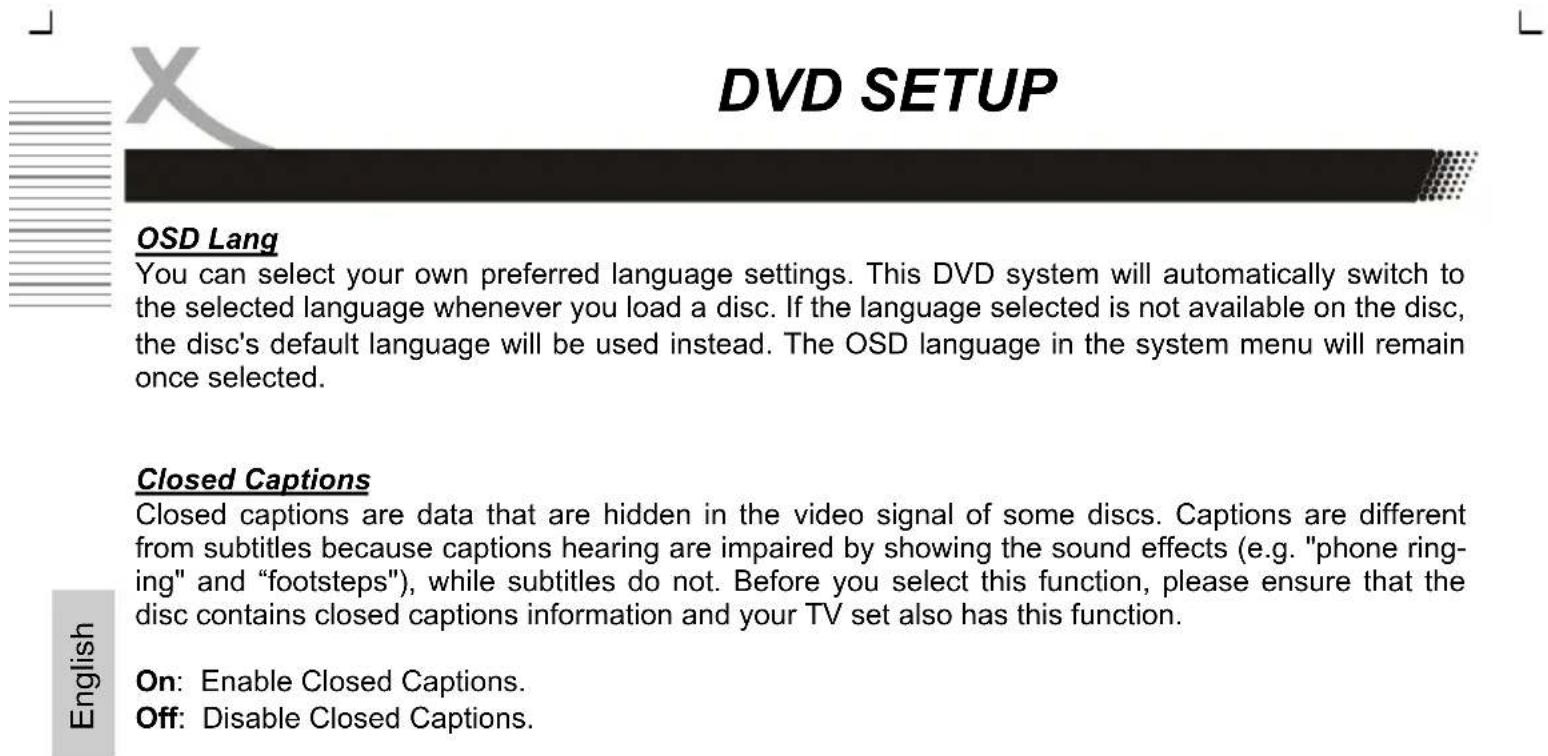

Angle Mark

Displays current angle setting information on the right hand corner of the TFT screen if available on the disc. The options are:

On: Enable Angle Mark.

Off: Disable the current angle setting display.

Screen Saver

This function is used to turn the screen saver On or Off.

On: In STOP, PAUSE or No DISC mode, if no actions are performed about 3 minutes, the Screen Saver will be activated.

Off: Screen Saver is disabled.

Last Memory

If the option "ON" is set, than the players remembers the last playback position by Video-DVD.

Audio Setup Page

The options included in Audio Setup Page is 'Downmix'.

Downmix

This options allows you to set the stereo analog output of your DVD Player.

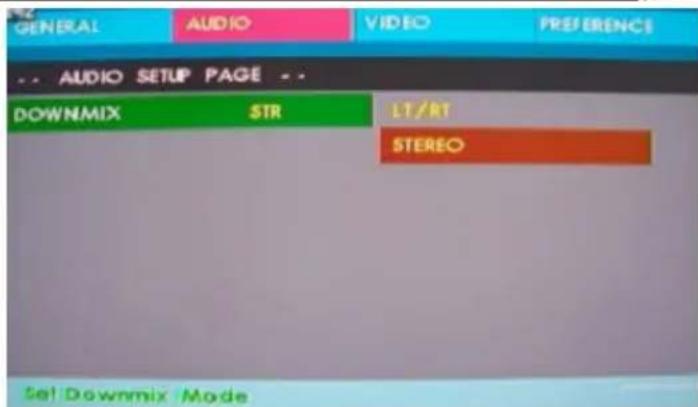

LT/RT:

Select this option if your DVD Player is connected to a Dolby Pro Logic decoder.

Stereo:

Select this option when output delivers sound from only the two front speakers.

SETUP

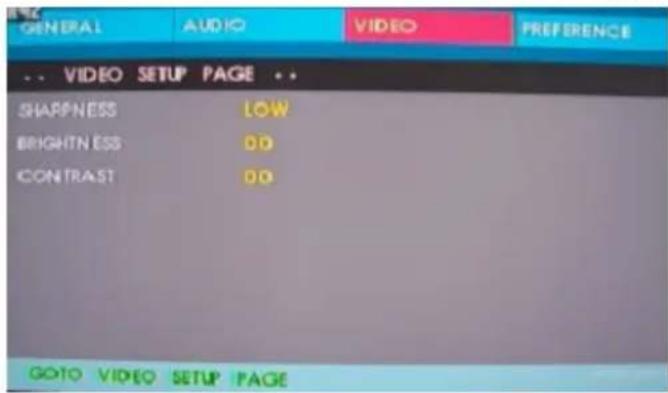

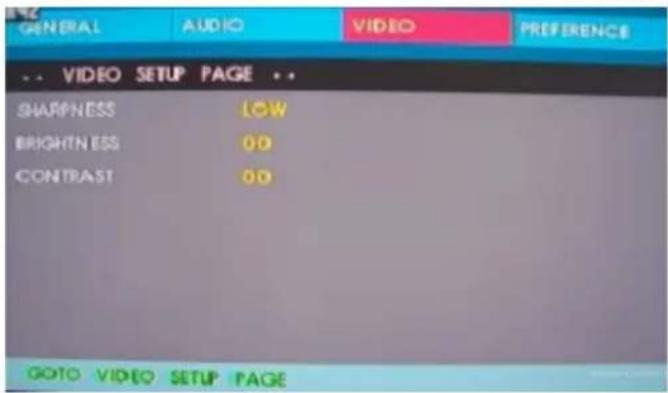

The Video Setup Page includes the settings for "Sharpness", "Brightness" and "Contrast".

Sharpness

The options are "High", "Middle" and "Low". By the setting "Low" the DVD player produces a very soften picture. By the setting "High" the picture is very sharp.

Brightness and Contrast

The settings for brightness and contrast can be changes by using LEFT (<) or RIGHT (>) button.

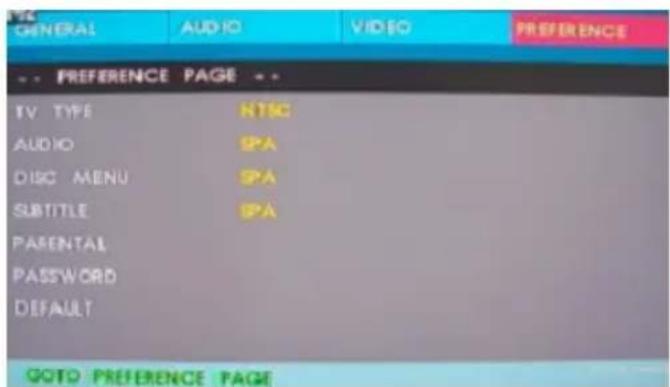

Preference Page

The options included in Preference page are : 'TV Type', 'Audio', 'Subtitle', 'Disc Menu', 'Parental' "Password" and Default'.

Note:

Some Preference features can be selected only during 'No Disc' condition or STOP mode.

TV Type

Selecting the colour system that corresponds to your TV when AV outputs. This DVD Player is compatible with both NTSC and PAL. In order for a DVD disc to play on this Player, the colour system of the Disc, the TV and the DVD Player should match.

PAL

Select this if the connected TV is PAL system. It will change the video signal of a NTSC disc and output in PAL format.

NTSC

Select this if the connected TV is NTSC system. It will change the video signal of a PAL disc and output in NTSC format.

Audio, Subtitle and Disc menu

These options set the Audio, Subtitle and Disc menu language fit for you.

Audio (disc's soundtrack / languages)
- Subtitle (disc 's subtitles / languages)
- Disc Menu (disc's menu / languages)

Preference Page

Parental

DVD video discs equipped with the parental lock function are rated according to their content. The contents allowed by a parental lock level and the way a DVD video disc can be controlled may vary from disc to disc. For example, if the disc allowed, you could edit out violent scenes unsuitable for children and replace them with more suitable scenes, or lock out playback of the disc all together.

1. Press stop twice during playback
2. Press SETUP
3. The SETUP MENU appears on the screen.
4. Select Preference Page, press ENTER.
5. Select Parental, press ENTER.
6. Select ratings, press ENTER
7. Enter your password then press ENTER. The pre-set password is 8806
8. Press SETUP to exit setup, press ENTER to start.

Ratings

KID Safe - Kids material. Recommended especially for children and viewers of all ages.
2 G - General Audience. Recommended as acceptable for viewers of all ages.
3 PG - Parental Guidance suggested.
4 PG13 - Material is unsuitable for children under age 13.
- 5 PG and 6 R - Parental Guidance-Restricted. Recommended that parents restrict children under 17 from viewing or allow to view only when supervised by a parent or adult guardian.
7 NC17 - No children under age 17. Not recommended viewing for children under age 17.
- 8 ADULT - Mature material. Should be viewed only by adults due to graphic sexual material, violence or language.
- OFF - It will play all discs.

Note:

Some DVDs are not encoded with a rating though the movie rating may be printed on the Disc cover. The rating level feature does not work for such Discs.

Default

Setting the 'Default' function will reset all options and your personal settings to the factory defaults and all your personal settings will be erased.

Caution!

When this function is activated, all settings will be reset to factory defaults.

SETUP

Preference Page

Password

This feature is used for Parental Control. Enter your four digit password when a hint is displayed on the screen. The default password is 8806.

1. Insert the old password
2. Insert the new password.
3. Confirm the new password
4. Navigate __tFeld andpress ENTER button.

TROUBLESHOOTING DVD

Check the following guide for the possible cause of a problem before contacting service.

Technical Support of Xoro/MAS:

Symptom	Correction
No power	·Check if AC adapter of power is connected securely. ·If powered with the battery, check if it is exhausted. ·Pay attention to the right fitting of the battery. ·Switch the power button to the position ON.
No sound	·Ensure that the equipment is connected properly ·Ensure that the input settings for the TV and stereo system are proper. ·Please make sure, that the audio track exists on the disc. ·Control the volume.
No key operation	·Turn the unit off and then back to on. ·Disconnect the unit from power and from battery and connect them again.
No playback	·Condensation had formed, please wait 1 or 2 hours to allow the player dry out. ·Wrong disc, please use only DVD, CD or ISO Data disc ·The disc may be dirty and require cleaning. ·Ensure that the disc is installed with the label side up. ·The disc has too many scratches. ·Remove the laser pickup protection on the disc tray. ·The DVD+/-RW should be finalized. ·Wrong region code by the Video-DVD ·Cancel the parental lock function or change the parental lock level. (The Pre-set password is 8806).
No remote control	·Check the batteries in the remote control ·Are the polarities correct? ·Batteries are depleted. Please uses new one. ·Point the remote control unit at the Infrared sensor and operate. ·Remove the obstacles between the remote control and the Infred snesor ·Operate the remote control unit at a distance of not more than 5 meters from the Infrared sensor.
No sound or picture by AV IN/OUT	·Pay attention to the cable connection. ·Press to DVD/DTV/AV button until AV is available ·Are the settings of the LCD is correct (AV OUT)? ·Please make sure, that the audio track exists on the disc.

DVB-T

The HSD 7790 has integrated a DVB-T TV tuner. To receive the terrestrial broadcast, you need to connect the player with an antenna. The best case is to use the roof antenna. If your position is nearby the transmitters, than you can a passive or an active indoor aerial.

Connect the cable from the antenna to the to RF ANT jack on the left side of the player.

Please pay attention that you can receive the DVB-T in your area.

If you want to use the DVB-T than you have to change the mode by the player. Please press the DVD/DTV/AV button on the remote control or the DVBT/DVD/AV button on the device to change the to the DVB-T mode.

First Time Installation

Fast installation operation

Connect this unit and other equipments related according to "EASY INSTALL":

1. Turn on the unit, then the Welcome window is popped:

A. Get to the setup menu with / button, and select the proper setting parameters with / button: Region (Default setting is France), and OSD Language (English is default).

B. Once the setting is over, move to OK with / button, then press OK button to enter Auto Scan menu and press it again to start auto scan.

C. Exit the Main Menu when auto scan is finished, then press OK to pop up Channel List, where you can choose a preferred channel with / button before pressing OK to start viewing it.

1. If no Welcome menu appears when the unit is turned on:

A. Press SETUP button, then enter Tools menu by pressing / button to Load Factory Default. (You have to perform this operation when the unit is used for the first time or the software has been upgraded).

B. Press EXIT to quit Tools menu and get to Installation menu with / button, then choose Auto Scan and get to Search menu with OK, and press OK again to start auto scan.

C. After scan, exit the Main Menu, and press OK to display Channel List where you can choose a channel with / button and press OK to view it.

Important Functions

Channel List

Press the OK button to access the channel list.

Change Channel

Press CH- or CH+ to get to next or previous channel.

Tele-/ Videotext

Press TEXT button to view the videotext information of the current TV program.

Subtitle

Press SUB-T button to turn on or off the subtitle on the screen. This function can be activated, if the service is provided by the TV channel and program.

TV/Radio

Press TV/RADIO button to switch between TV and Radio station.

Language or another Audio

Press AUDIO button to change the audio language or the audio track output. The options are:

Audio Mode:

Stereo,

Left,

Right

Audio Track:

Here you can

choose another lan

guage

Information

Press INFO button to view the information of the current channel.

EPG

Press EPG button to show the EPG information.

The EPG window is organized in different sections:

Top left:

TV Channel list

Top Right:

Date and Time. Additional the actual TV program title and the next TV program tilte.

Middle:

EPG overview of the TV channel (7-days EPG)

Bottom Side:

Navigation help informations

The cursor starts by the channel list. You can navigate with the / buttons to the next TV channel. If you change to the next channel, the EPG list will be updated automatically.

Important Functions

Button 2:

Here you can change between the TV channel list and the EPG overview.

Button 3:

If you marked a TV program, than you display the detailed EPG information.

REC button:

If you press the REC button on the marked TV program, than this TV program will be insert into the booking list. When you had insert a SD card into the SD Card Reader, than the booked TV program can be recorded.

/ buttons:

Changes between one TV channel to another or change from one TV program to another.

PgUp and PgDn button:

With these buttons you can scroll in the TV list or in the TV program list.

A

In the EPG overview you can scroll from the current day to the next day. Each pressing of the button the device scrolls one day more.

OK button:

The selected TV show was "booked" and transferred to the timer (Booking List). The scheduled broadcast is marked with a heart symbol.

Button 1:

This button access to the Timer programming list.

The detailed view of the EPG information (with the 3 button enabled) shows an altered appearance of the EPG window.

This displays the program title. Detailed information of the TV broadcast is displayed with the 1 button. The following figure shows the expanded view.

Note:

Sometimes it may happen that in the detailed EPG information to the message "No Information" or "No Description" will appear. Often, however, more information is available, to press the 1 button and other contents are displayed.

Press the EXIT button to close each window. Pressing this button several times finally ended and the general EPG window.

Recording of a DVB-T broadcast

If you want to record a program, it must first insert an SD card into the card reader. Make sure when you insert the SD card that the label of the SD card shows up and thus is visible. If the card is detected, for a short time a lock icon on the screen.

1. Position the MultiMediaCard or Secure Digital card on its side with the medias label on top and gold contacts on the bottom. The media should be positioned so that the gold contacts are farthest from you and inserted into the reader first.
2. Insert the card into the slot gold contacts first and the recessed notch on the right.
3. Gently push the card in all the way until the card is fixed in place

Press the REC button on the remote control. An information window displays. It contains the channel number, the TV channel name, recording time, maximum recording time, storage capacity and recording format.

The maximum recording time is set to 2 hours.

Throughout the recording, a REC icon appears on the screen.

Programming a recording via the EPG

Insert an SD card into the card reader. Press the EPG button and select the TV and the TV program, which is to be included. Press the REC button. The show will be included in the booking list.

Time Shift Function

To use the Time Shift function, it must be activated in the DVB-T settings. If necessary, check the settings (press the DVB-T mode, the SETUP button below):

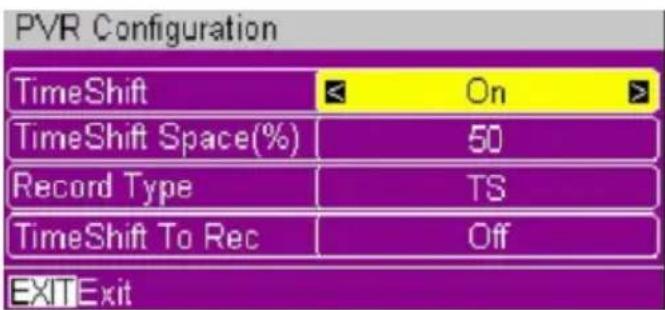

Main Menu Media+ PVR Configuration Time-Shift

The option need to be activated (ON).

Press the Pause button to start the time-shift function. The live picture freeze and an information banner will be visible on the screen. The video data are stored in the "time-shift buffer. Meanwhile, you have the possibility to use the following keys:

PLAY Starts the playback during Tine-Shift

PAUSE Pause of the Time-Shift playback

Fast forward of the Time-Shift playback

<< Fast rewind of the Time-Shift playback

STOP Ends of the Time-Shift playback and returns to the live picture

DVB-T Setup

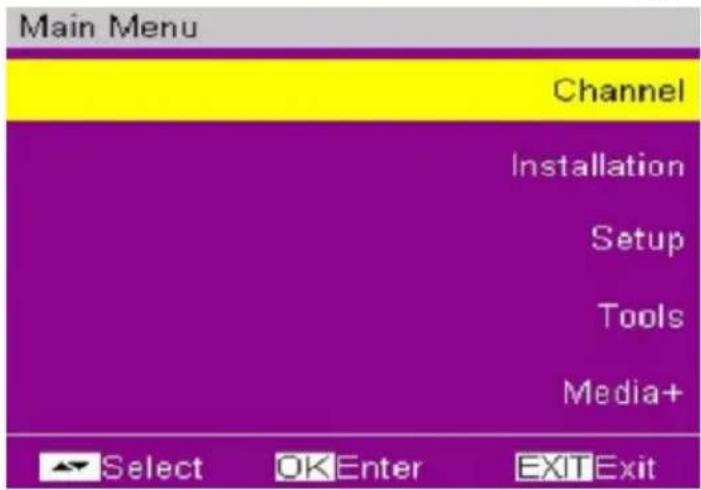

Press SETUP key to brows the Main Menu which includes 5 submenu items on the screen:

• Channel
• Installation
• Setup
  Tools
  Media+

Press / buttons to select a menu item, then OK button to confirm it, or press / button to choose a functional option, then press EXIT to return to the upper-level menu.

Note:

1. The four direction buttons ( / / / ) , OK and EXIT button usually have the same functions in menus at all levels.
2. Certain menu option should be operated according to the navigation hints displayed on the screen.
3. Color buttons refer to different function operations in different menu.

Channel

At Channel option, press OK, then the submenu containing 6 options shall be displayed on the screen:

• TV Channel List
  Radio Channel List
• Delete All Favorites
• Delete All
• Group rename

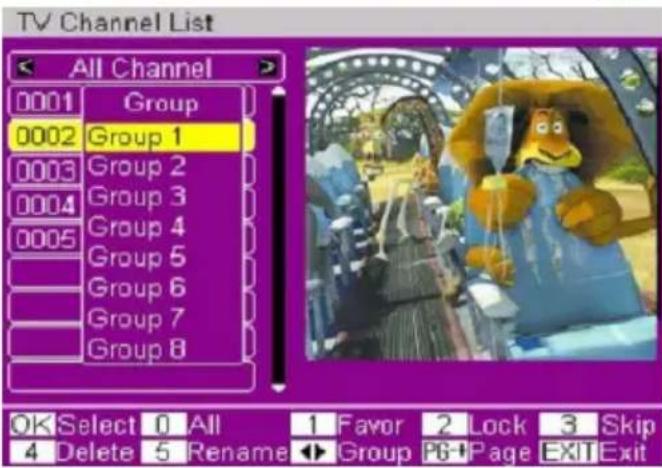

TV Channel List

Use / button to choose a channel, and press OK to confirm.
- Use button to shift favorite channels (Note: Only when favorite channels have been set).
Numeric 1 (Edit) button: Use this button to edit the channels, such as Favor, Lock and Skip etc.
Numeric 2 (Find) button: Used to search for a particular channel by inputting the channel name or number.
Numeric 3 (Sort) button : sort the channel orders in five ways: Default, Name (A-Z), Name (Z-A), FTA and Lock.
Numeric 4 (Move) button : Used to move a channel to an expected place with / button, then press OK to confirm.
- Press PgUp/ PgDn to turn over the page down or up and browse the list. There are not less than 600 channels stored.
- SETUP or EXIT button: Used to quit current interface.

DVB-T Setup

Regarding the operation of Channel Edit:

When press OK button or Numeric 1 (Edit) button after accessing one channel, the following operating interface will appear. Please follow the relevant instruction for the operation:

• OK (Select) button: use this button to choose the channels to be edited one by one.
• (All) button: Choose all the channels to be edited at one time.
• (FAV) button: Set the chosen channels as your Favorites which can be sorted into 8 groups.
• 2—(Lock) button: Lock or unlock a channel (program).

3—(Skip) button: Set one channel to be skipped over when look through the list by pressing / button.
4-(Delete) button: Delete the chosen program (Channel).
- 5—(Rename): Rename the chosen program (Channel).
- / (Group) button: These two buttons function only when Favorite channels are already set, and used to shift from one Favorite group to another.
PgUp/ PgDn button: Used to turn over the page down or up and browse the list. There are no less than 600 channels stored.
- SETUP or EXIT button: Press either button to quit current interface.

Radio Channel List

Refer to the operation of TV Channel List for more information.

Delete All Favorites

Press OK to get to this setup option, then delete all favorite TV channels and radio channels that have been edited following the navigation guidance on the screen.

Delete All

Press OK to get to this setting, where all stored TV and radio channels can be deleted following on the screen.

Move to Installation and press OK, then a submenu shall be popped up which includes three options:

• Auto Scan
• Channel Scan
• Tuner Setting

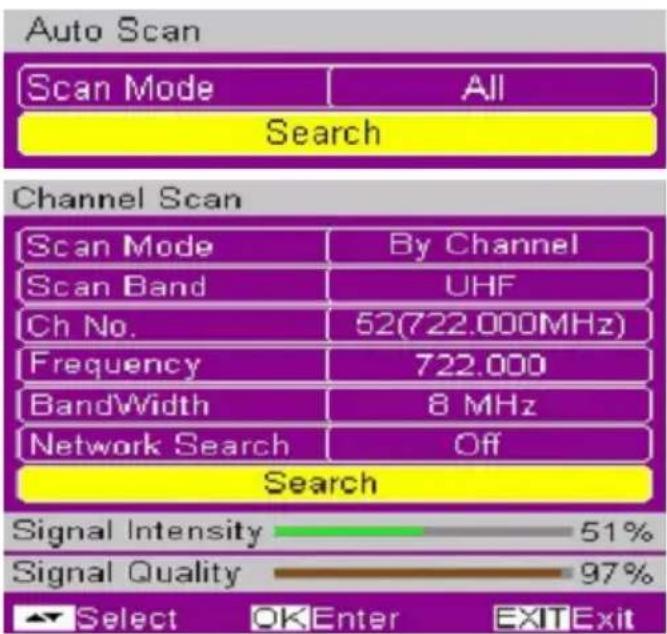

Auto Scan

Scan Mode: Free (scan all free channels), All (scan all channels including free and paid ones); Search: Press OK to display Scan box and conduct auto scan, or press SETUP or EXIT to quit. The scan box indicates the scan process by percentage of completion; On the top there is details about Scan Band, Frequency, Demodulation mode, Channel No, Transmission mode and Guard Interval etc.; Below are the scanned TV channels and radio channels displayed in two columns.

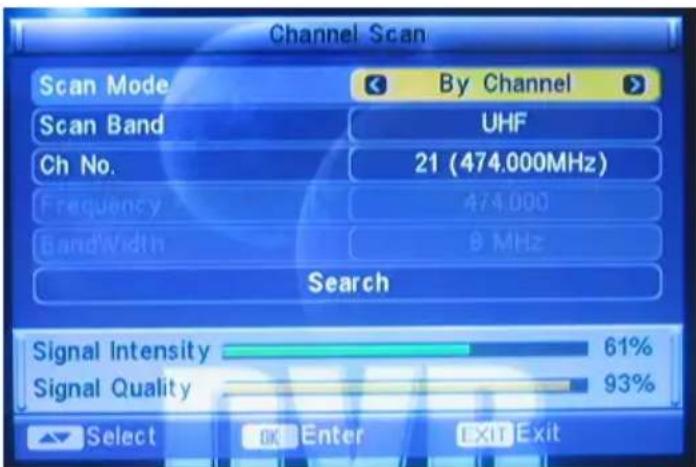

Channel Scan

• Scan Mode: By Channel and By Frequency. Either alternative shall be fine for scan.
• Scan Band: VHF/ UHF available.
• Ch No.: Channel 5~12 (VHF), and Channel 21~69 (UHF)
  Frequency: 174~230 MHz (VHF), 470~862 MHz (UHF) are available. (The frequency system can be set automatically according to different regions, and the actual frequency point should be referred to the practice).
• Band Width: There are three options: 6 MHz, 7 MHz, and 8 MHz.
• Search: Move the cursor here and press OK, then a information box shall appear indicating the scanning process. Pressing Exit allows you to cancel scan and quit current interface. The scan process box shows the progress of scan by percentage of completion; On

the top there is detail about Scan Band, Frequency, Demodulation modes, Channel No, Transmission mode and Guard Interval etc.; Below are the scanned TV channel list and radio channel list displayed in two columns.

Notes:

1. Only when Scan Mode is set to "By Channel", can Scan Band and Ch No be ready for setup.
2. Only when Scan Mode is set to "By Frequency", can Frequency and Band Width be set.

Tuner Setting

Tuner power: On / Off

Note:

Alternative "On " indicates enablement of active antenna (5V DC); and 'Off' does not.

Configuration

When the cursor is at Setup, press OK to display its submenu containing 7 options:

• OSD Language
  TV System
  Region and Time
• Timer Setting
• OSD Setting
• Parental Lock

OSD Language

Get to OSD Language and press OK to start this setup. The optional languages are English, Croatian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Polish, Portuguese, Russian, Slovenian, Spanish.

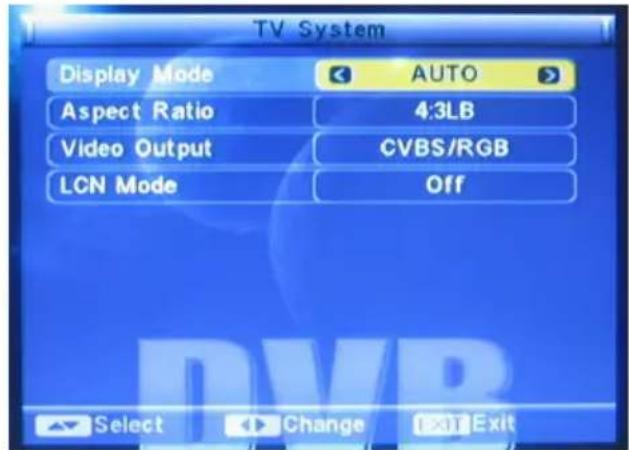

TV System

• Display Mode:

• Auto

• PAL

• NTSC

• Aspect Ratio:

• 4:3 LB (Letter Box)

• 4:3 PS (Pan Scan)
• 16:9

Video Output:

1. CVBS

2. RGB

3. LCN mode:

4. On

5. Off

If LCN mode is chosen ON, the system shall automatically list the channels in a natural order according to the program stream; if Off is the alternative, the system shall list the channels in a routine order.

DVB-T Setup

Configuration

Region and Time

• Region: France, Germany, Greek, Iran, Italy, Poland, Portugal, Russia, Spain, Sweden, United Kingdom, Vietnam, Argentina, Australia, Denmark, and Finland.

• GMT Usage:

• User

Define

1. By

Region

1. Off

2. GMT Offset: Within the range of GMT+12:00~GMT-11:30.

3. Date. Press OK to start the setup, then use / button to move the cursor and the number buttons to enter the date value.

Once the setup is done press OK to confirm, the setup gets effective.

• Time: Press OK to start the setup, then use / button to move the cursor and the number buttons to enter the time value.

Once the setup is finished, press OK to confirm.

Time Display: On/ Off.

Notes:

1. Only when the option GMT Usage is set to "User Define", can GMT Offset be available to set;
2. Only when the option GMT Usage is set to "Off", can Date and Time be set.

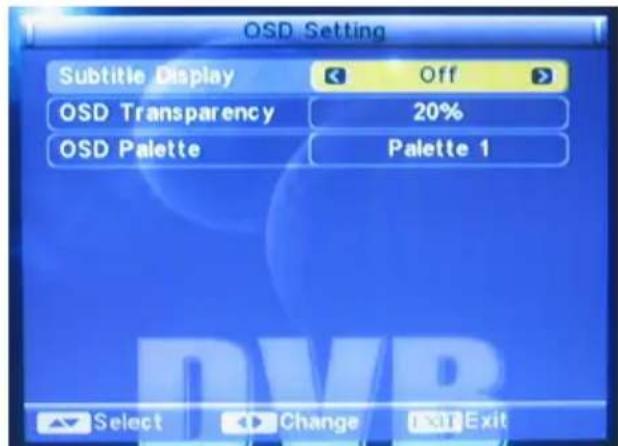

OSD Setting

• Subtitle Display: Standard/ Teletext / Off
• OSD transparency: Off, 10%, 20%, 30%, 40% and 50%
• OSD Style: Here Style 1 and Style 2 are available for setting.
• Load Factory OSD Setting: Press OK to load the default OSD settings.

Setup

Timer Setting

Program timer:

• Timer Number: There are 8 timers that can be set.
• Timer Mode: Off, Once, Daily, Weekly, Monthly.
• Timer Service: It allows you to choose either TV or Radio services.
• Wakeup Channel: you can choose a channel to set for wakeup.
• Month: Month can be set in Once mode.
• Date: It can be set in either Once or Monthly mode.
  Day: It can be set in Weekly mode.
• Time: It is used to set start time for a particular show.
• Auto Record: Activates the recording of the programmed TV broadcast
• Record Duration: Defines the duration time of the recording

Program Timer
Monday,11/03/2008,8:40
Timer Number	1
Timer Mode	Once
Timer Service	TV Service
Wakeup Channel	SZTVM01
Month	11
Date	3
Day	Mondy
Time	12:34
Auto Record	Off
Record Duration	02:00
Select OKEnter EXIT

Sleep Timer

• Sleep Timer: Off, 10 Min, 30 Min, 60 Min, 90 Min and 120 Min. Press OK to confirm the setup.
• Remains: Refers to the remains of the set time.

Parental Lock

Enter the default password preset at the factory: 3 3 3 0.

• Menu Lock: On/Off. Once it is set to On, you will have to enter the password before you conduct Auto Scan or Channel Scan.
• Channel Lock: On/Off.
  Once it is enabled, you will have to enter the right password to access the locked channels.
  New Password: Press OK and enter the new password with numeric buttons.
• Confirm Password: Use numeric buttons to enter the new password before pressing OK to confirm (following the actual guidance on the screen).

DVB-T Setup

Tools

Move here and press OK, then a submenu will be brought up including three options:

• Receiver Information
  Game
• Load Factory Default
• Software upgrade

Receiver Information

Move the cursor here and press OK to display the relevant information of current channel.

Game

Tetris: Press OK to get into Tetris game.
- Snake: Press OK to get into Snake game.
Othello: Press OK to get into Othello game.

Note:

Regarding the rules of games, refer to the hints displayed on the screen.

Load Factory Default

Press OK to load Factory Default settings following the screen guidance by choosing Yes and pressing OK again to confirm.

When this unit is used for the first time or has just been upgraded, be sure to perform this setting operation.

Note:

The initial password preset at the factory is "3 3 3 0".

The menu Media+ includes six submenu's.

Media-Player
PVR Manage
Disc Information
- PVR Configuration
- Safety Remove
- Disc Format

Media-Player

With the media player you can play back images, music and movies from SD card.

You can sort the file list of the media player with various filters. With the RIGHT and LEFT arrow keys to navigate the file list) to the filter options (bottom row of the image).

When you click the Setup option in the bottom row, then you have access to the playback function. Here you can define the duration, the slideshow and transition effects.

PVR Manage

The PVR administration allows access to the recordings you made with the HSD 7790. All recordings are listed there. The selected host is displayed in the preview window.

The playback functions are:

OK Starts the playback

EXIT Ends the playback

/<< Fast forward or rewind. The speeds change by every pressing to x2, x4, x8, x16 and x24 times

The PVR management still contains the options to lock individual files to delete, rename, and EPG information of the recording. With the keys 1 to 4 carry out the operations are:

1. Lock
2. Delete a recording
3. Rename
4. Information

Delete

Once the file is highlighted, press the OK button and confirm the security prompt. Thereafter, the recording will be deleted.

Rename

If you want to rename a recording, then press 3. After an on-screen keyboard appears. With the on-screen keyboard you can perform the operation. To navigate with the on-screen keyboard use the arrow keys and the OK button.

Information

Press the button 4 and than the recorded EPG information appears on the screen, if available.

Disc Information

Here you can gets an overview about the connected SD card.

PVR Configuration

The option includes the submenu's of:

Time-Shift Time
- Record Type
Time-Shift to Rec
Time-Shift

Time Shift

When switched on have this option, you time-shift is available. The start is then time-shift through the PAUSE button during the live image.

Time-Shift Time

Here the size of the time shifts is defined in minutes.

Record Type

Here you can switch between the transport stream (TS), or select program stream (PS). The essential difference is that is stored within the transport stream, the EPG information.

Time-Shift to Rec

If you enable this option, then you have the possibility to save the time-shift the field as a file.

Safety remove

With this option, the SD memory card can be safely removed. Run this option, and then the card is disconnected from the system. You can then remove the memory card from the SD card reader.

Disc Format

With this option, you have the ability to format the SD memory. Select the file system (use FAT file system) and navigate to the OK field and press the OK button. After you confirm the security prompt to format the SD card.

Note:

All files are deleted when formatting the memory. If necessary, before saving the memory.

Media-Player

With the media player you can playback images, music and movies from SD card.

You can sort the file list of the media player with various filters. With the RIGHT and LEFT arrow keys to navigate the file list) to the filter options (bottom row of the image.

When you click the Setup option in the bottom row, then you have access to the playback function. Here you can define the duration, the slideshow and transition effects.

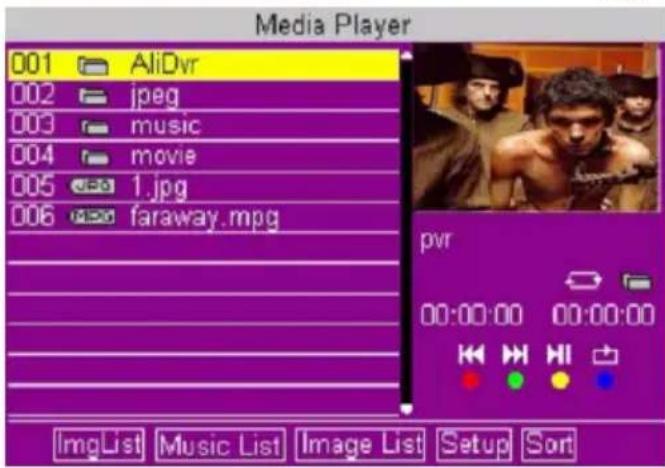

General button for playback

OK Starts the playback of the file

EXIT Ends the playback

| Next file

Previous file

PAUSE Pause of the playback

Playback of pictures

The supporting formats for playback of photos are JPEG and BMP formats. Select a picture and press the OK button. Playback starts. You will have a number of additional buttons available for operation.

RIGHT Rotation of the picture clockwise

LEFT Rotates the picture against clockwise

OK Starts the zoom mode with x2, x4, x8 and x16. By zooming you can move the picture with the arrow buttons

Playback of Videos

The media player only supports playback of MPEG files. Please note that Media Player no AC-3 (DD / DTS etc.) Assisted in the play. The video files should only MPEG-2 audio (MPA, MP2) included. Dedicated buttons for video playback are:

<< Fast rewind with x2, x4, x8, x16 and x32 times

Fast forward with x2, x4, x8, x16 and x32 times

STOP Stops the playback and returns to the time index 0:00:00 hour

RIGHT Jumps 10 seconds forward

LEFT Jumps 10 seconds backward

Playback of Music

The media player only supports playback of MP3 files. Apart from the fast coil forward or backward, there is no further specific navigation aids.

Troubleshooting DVB-T

Check the following guide for the possible cause of a problem before contacting service.

Technical Support of Xoro/MAS:

Symptom	Correction
No DVB-T reception / serious distortion by mosaics or artefacts/ freeze pictures	•Switch the player into the DVB-T mode. •No DVB-T reception in your region. •Realign the antenna. Please pay attention to the direction of the antenna tower. •Please use an active indoor aerial or a roof antenna. •Retry the Auto Scan.
No power	•Plug the power cord into the outlet tightly and turn on the power.
Can not scan programs	•Adjust the antenna •Refer settings for searching
No picture / no coloured pictures	•Control the connection to the TV set. •Control the video output mode in the setup.
Remote control does not work	•Change the batteries. •Operate within normal range (max. 5 meters, 30°) •The sensor is pointed to by bright light.
No sound	•Cancel Mute •Increase volume •Pay attention to connection to TV set or amplifier. •Cancel Sleep timer
Audio / Subtitle without function or can no choose	•Change audio track (press AUDIO button) •Change subtitle track (press SUB-T button) •Other audio track is not supported •Subtitles are not supported
No sound during playback	•Please control the sound track of the video file •AC3 sounds can not playback

Power Specification

Input Power: AC 1000—240 Volt, 50 Hz DC 9 V with 1 A

Battery: Li-Ion

Battery Capacity: 1800 mAh

Ambient condition

Temperature: 0-40° Celsius

Humidity: 90%

Others

Net Weight: 0.9 Kg including remote control

Unit size (packed): 260 × 190 × 45 ~mm

LCD Screen

Size: 9 inch

Type: Digital TFT panel

Resolution: 800× 480 Pixel

Backlight: LED

DVD-Player

Laser Semi conductor, Wave length 650 nm

Video DAC 108 MHz with 12 bit

Speaker

Speaker 2x0.8 Watts

Frequency Range: 20 Hz to 20 kHz

SNR: >80 dB

High Frequency Tuner

Input Frequency Range

VHF: 170—230 MHz (Channel 5—12)

UHF: 470—862 MHz (Channel 21—69)

Bandwidth: 6 or 7 or 8MHz

Input Signal Level: -75 -15 dBm

RF Input Connector: IEC169-2 type, F type

Input impedance: 75Ω

Demodulation Mode

Waveform: COFDM (Code Orthogonal Frequency Division Multiplexing)

Demodulation: QPSK, QAM16, QAM64

Transmission Mode: 2K, 8K

Guard interval: 1/4, 1/8, 1/16, 1/32

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

Video, Audio decoding

Video decoding: ISO/IEC13818-2 MPEG2 (MP@ML) Compatible

Video resolution: PAL 720× 576 /NTSC 720× 480

Video input code rate: 15Mbit/s Max.

Videotext: Support DVB-ETS300472

Audio decoding: ISO 11172-3

Audio Track: Stereo, Left, Right

Audio Sample rate: 32, 44.1, 48 KHz

GLOSSARY

5.1

5.1-multichannel encoding means, that 5 audio channels with full frequency response are present (left, center, right, surround left, surround right) plus a subwoofer channel (represented by the ..1 providing deep humming frequencies you are used to know from modern cinemas. Both Dolby Digital (including AC3) and DTS support 5.1-coding and -decoding.

Aspect ratio: 4:3 and 16:9

Full Frame refers to programs developed for TV display with an aspect ratio of 4:3. Widescreen refers to programs developed for screens with an aspect ratio of 16:9.

If a wide-screen program is displayed on a 4:3 screen, the picture will have black borders on top and bottom.

CD

A CD (Compact Disc) is a metal-coated plastic disc. It has a diameter of 12 cm and a thickness of about 1,2 mm. It was developed by Sony and Philips in 1985. The advantages are digital storage of music enabling very natural sound reproduction. Beyond this, the data is stored more compact, the handling is easy. The long lifetime of the media and the fact that usage does not decrease quality made the CD the ideal storage media.

In the meantime, 12 different storage media have been developed from the first CD. The mostly used are CD-DA (Compact Disc - Digital Audio), CD-ROM (Compact Disc - Read Only Memory), and the DVD (Digital Versatile Disc). One can store about 74 to 80 minutes of music on a CD (-DA). This is equal to 650 to 700 MB.

Signal transmission is performed touchless with a laser beam. The CD is being read from the middle to the outer side. The data or music is recorded in a spiral from the middle to the outer side.

A CD has pits and lands, the distance is about 1,6mm . The laser light created by a laser diode passes different mirrors and prisms and then is focused by a lens to a laser beam. This laser beam scans the data spiral of the CD. On the pits, the laser beam is reflected in another direction and is detected by a photocell. The photocell transmits the signal to a microprocessor, which converts the digital data to an audio signal. The rest is done by the sound system.

Contrast

Means the range of luminance between the brightest and the darkest pixel, which can be displayed.

DVD

The DVD (Digital Versatile Disk) was introduced in 1995 and is a storage media with a large capacity.

While a standard CD can store 650 MB of data, the DVD can store up to 9 GB. Especially when it comes to video playback, a large storage capacity is important. Beyond its high capacity, the consumer enjoys high quality video and audio. A DVD can store up to 8 different audio streams, so in best case, the movie can be watched in 8 different languages.

DVB MPEG-2

DVB is the abbreviation of Digital Video Broadcasting, which is a standardization group. DVB-T is one type of DVB mode (T=Terrestrial). MPEG is the abbreviation of Motion Picture Experts Group, a working group which defines international standards for audio and video digital compression. The MPEG-2 standards are mainly applied in digital TV signals.

FEC

FEC stands for Forward Error Correction, applied to correct signal transmission errors between antennas and the receiver.

NTSC

Widespread TV standard, especially in US and Asia. 525 (480 viewable) Lines and 60Hz refresh rate. Describes the way the video information (brightness, colour, refresh rate etc.) is transmitted. Within Europe, this video standard only appears on imported media (like US DVDs).

OSD

The OSD (On Screen Display) is all the menus and options shown on the screen.

PAL

European TV standard. PAL stands for Phase Alternation Line; refresh rate: 50Hz , vertical line resolution: 625 Lines, 576 visible lines. Describes the way the video information (brightness, colour, refresh rate etc.) is transmitted.

PID

The PID code (Packed Identification) is the identification number of audio and video signals in the digital data flow/stream of DVB MPEG-2 signals. With this code, the receiver transmits audio and video signals to a specific address.

Photo-CD (JPEG CD)

A Photo-CD is a storage system for image storage on a CD-ROM in a platform independent multi-resolution structure (support of different resolutions and file formats, e.g. JPEG, BMP, etc). As a single camera film dies not fill a complete CD, more films can be added to the CD at a later time. A CD-ROM drive must be multi-session enabled to load images from a Photo-CD.

Super Video CD (SVCD)

SVCD stands for Super Video CD. SVCD's are very similar to VCD's, one can store 35 - 60 minutes of high quality video with up to 2 Stereo audio tracks and 4 different subtitles.

Video CD (VCD)

VCD stands for "Video Compact Disc". VCD's are similar to normal CDs. They contain movies with sound. A VCD can store 74 to 80 minutes of video with stereo sound. For the storage of audio and video, MPEG-1 is used.

yS|6u

[命题规律]

---

TABLE DES MATIERES

Batterie rechargeable

The Video Setup Page includes the settings for "Sharpness", "Brightness" and "Contrast".

Sharpness

The options are "High", "Middle" and "Low". By the setting "Low" the DVD player produces a very soften picture. By the setting "High" the picture is very sharp.

Brightness and Contrast

The settings for brightness and contrast can be changes by using LEFT (<) or RIGHT (>) button.

Support technique Xoro/MAS:

Tel.: [phone]
- Internet: www.xoro.fr/Service.aspx
- Email: [e-mail]

Alimentation: On / Off

Note:

Le choix "On " permit l'utilisation d'une antennae active (5V DC); et 'Off', antennene passive.

Configuration

Support technique Xoro/MAS:

Tel.: [phone]
- Internet: www.xoro.fr/Service.aspx
- Email: [e-mail]

Français

Battery Capacity: 1800 mAh

Ambient condition

Temperature: 0—40° Celsius Humidity: 90%

Others

Net Weight: 0.9 Kg including remote control

Unit size (packed): 260 × 190 × 45 ~mm

LCD Screen

Size: 9 inch

Resolution: 800× 480 Pixel

Type: Digital Backlight: LED

DVD-Player

Laser Semi conductor, Wave length 650 nm Video DAC 108 MHz with 12 bit

Speaker

Speaker 2x0.8 Watts

Frequency Range: 20 Hz to 20 kHz

SNR: >80 dB

High Frequency Tuner

Input Frequency Range

VHF: 170—230 MHz (Channel 5—12)

UHF: 470—862 MHz (Channel 21—69)

Bandwidth: 6 or 7 or 8MHz

Input Signal Level: -75 - -15 dBm

RF Input Connector: IEC169-2 type, F type

Input impedance: 75Ω Demodulation Mode

Waveform: COFDM (Code Orthogonal Frequency Division Multiplexing)

Demodulation: QPSK, QAM16, QAM64

Transmission Mode: 2K, 8K

Guard interval: 1/4, 1/8, 1/16, 1/32

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8

Video, Audio decoding

Video decoding : ISO/IEC13818-2 MPEG2 (MP@ML) Compatible

Video resolution: PAL 720× 576 /NTSC 720× 480

Video input code rate: 15Mbit/s Max.

Videotext: Support DVB-ETS300472

Audio decoding: ISO 11172-3

Audio Track: Stereo, Left, Right

Audio Sample rate: 32, 44.1, 48 KHz

Aspect ratio: 4:3 and 16:9
