USER MANUAL PDP507XD PIONEER

PLASMA TELEVISION TÉLEVISEUR PLASMA PLASMA-FERNSEHER

PDP-507XD PDP-427XD

Discover the benefits of registering your product online at www.pioneer.co.uk (or www.pioneer-eur.com).
Décovrez les nombreux avantages offerts en enregistrant votre produit en ligne maintainant sur www.pioneer.fr (ou www.pioneer-eur.com).
Bitte nutzen Sie die Möglichkeit zur Registriierung Ihres Produktes unter www.pioneer.de (oder www.pioneer-eur.com)

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT

FOR USE IN THE UNITED KINGDOM.

The wires in this mains lead are coloured in accordance with the following code: Green and Yellow Earth

Blue : Neutral Brown :Live

If the plug provided is unsuitable for your socket outlets, the plug must be cut off and a suitable plug fitted.

The cut-off plug should be disposed of and must not be inserted into any 13 amp socket as this can result in electric shock. The plug or adaptor or the distribution panel should be provided with 13 A fuse. As the colours of the wires in the mains lead of this appliance may not correspond with coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol (2), or coloured green or green and yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

NOTE After replacing or changing a fuse, the fuse cover in the plug must be replaced with a fuse cover which corresponds to the colour of the insert in the base of the plug or the word that is embossed on the base of the plug, and the appliance must not be used without a fuse cover. If lost replacement fuse covers can be obtained from your dealer. Only 13 A fits approved by B.S.I or A.S.T.A to B.S.1362 should be used.

P3-4-2-1-2-1 En

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated 'dangerous voltage' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filed with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3 A En

This product complies with the Low Voltage Directive (73/23/EEC, amended by 93/68/EEC), EMC Directives (89/336/EEC, amended by 92/31/EEC and 93/68/EEC).

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230V or 120V) written on the rear panel.

D3-4-2-1-4 A En

WARNING

This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug. D3-4-2-1-6_A_En

The following symbols are found on labels attached to the product. They alert the operators and service personnel of this equipment to any potentially dangerous conditions.

WARNING

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

CAUTION

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A_En

VENTILATION CAUTION

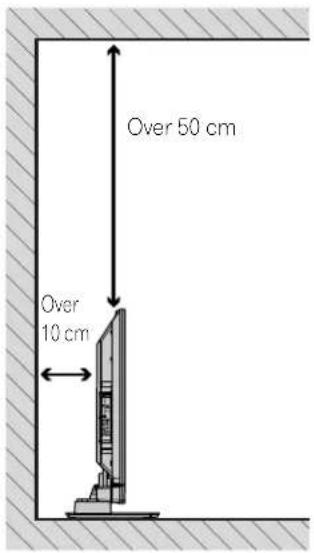

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation. For the minimum space required, see page 16.

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

CAUTION

The power switch does not completely separate the unit from the mains in off position. Therefore install the unit suitable places easy to disconnect the mains plug in case of the accident. The mains plug of unit should be unplugged from the wall socket when left unused for a long period of time.

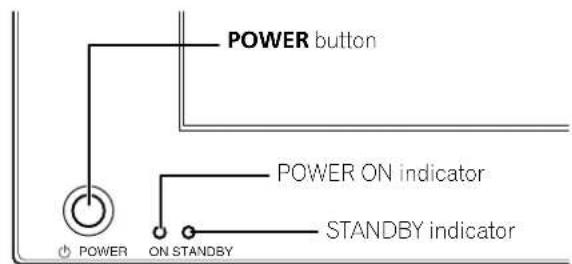

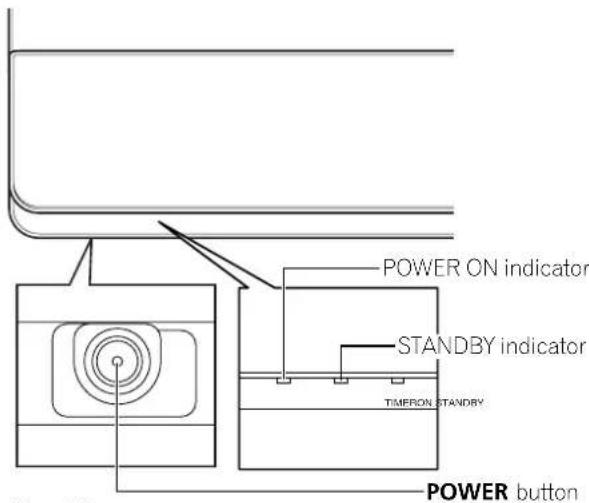

STANDBY/ON Button

STANDBY: When placed into the standby mode, the main power flow is cut and the unit is no longer fully operational.

STANDBY/ON Indicator

The indicator is lit red when the unit is in the standby mode and is lit blue when it is in the power-on mode.

Contents

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However the method of connecting and operating the unit is the same.

Illustrations shown in this manual are for the PDP-507XD unless otherwise specified.

01 Important User Guidance Information

02 Safety Precautions

03 Supplied Accessories

04 Part Names

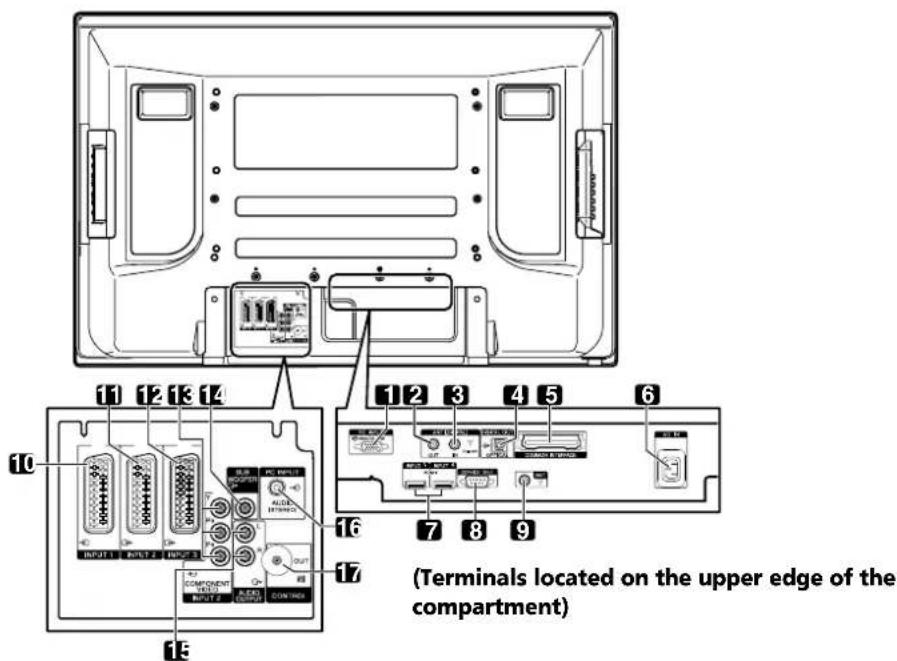

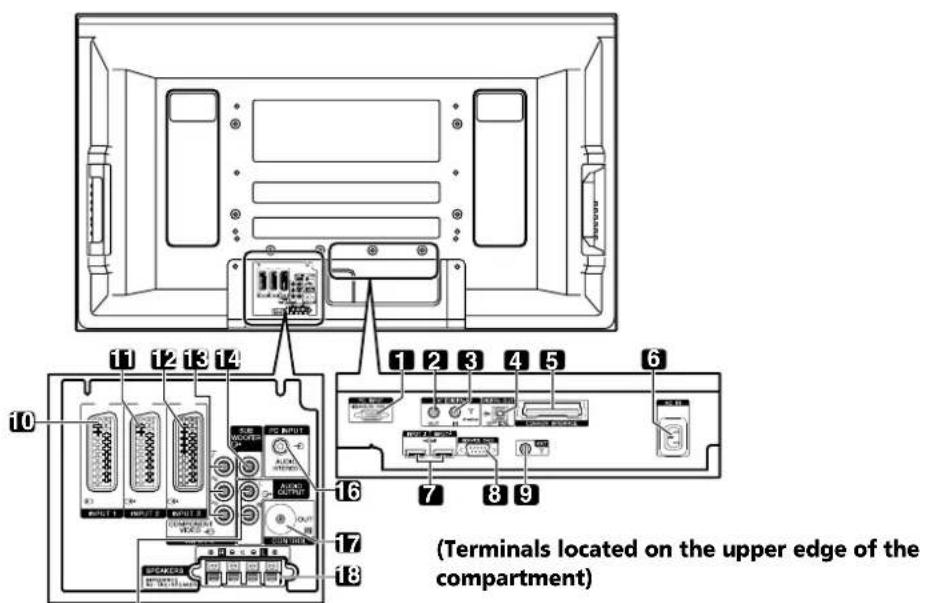

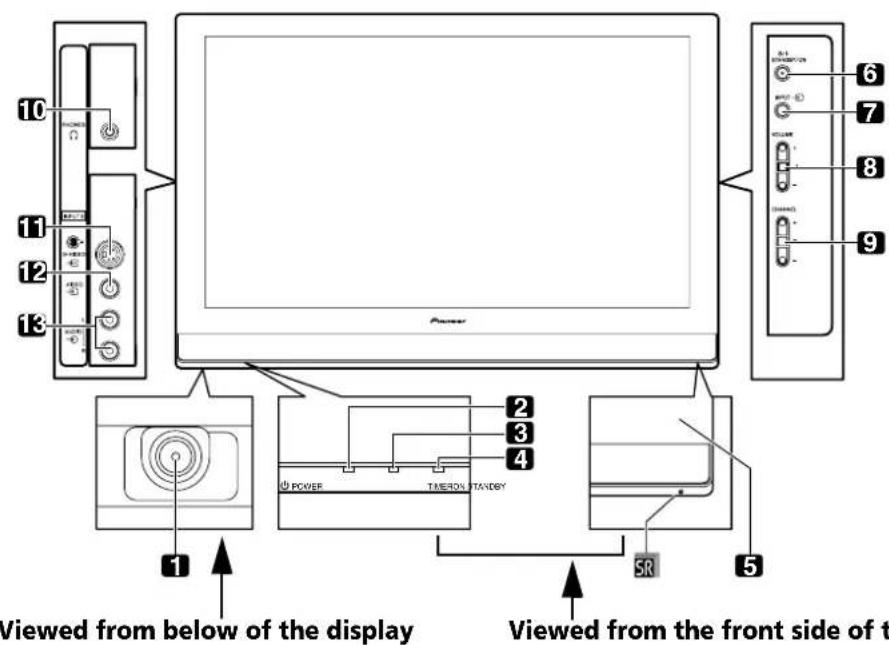

Plasma Television 13

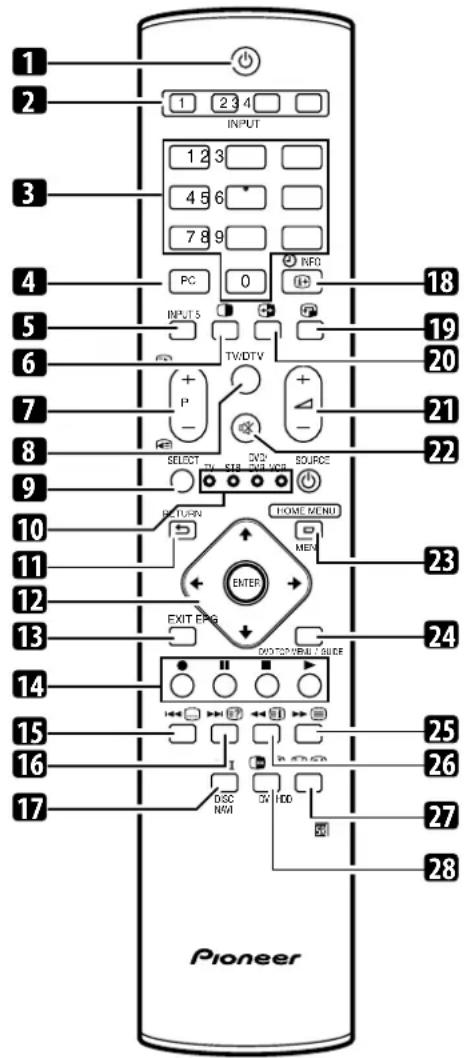

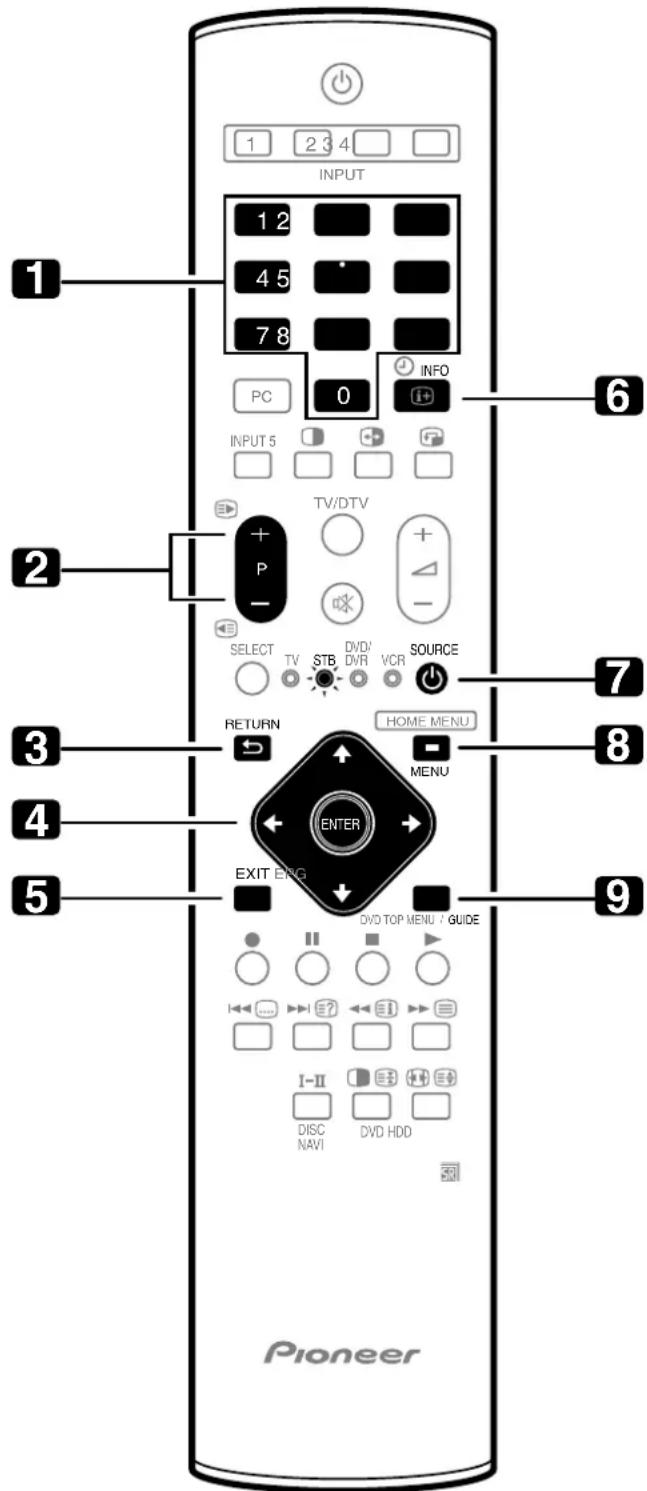

Remote control unit 15

05 Preparation

Installing the Plasma Television 16

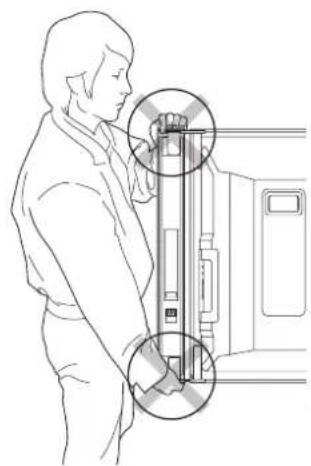

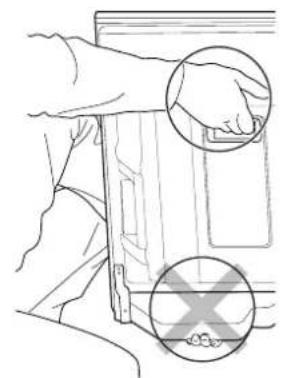

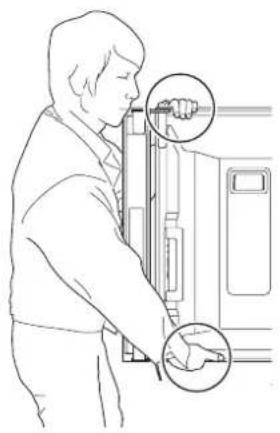

Moving the Plasma Television 16

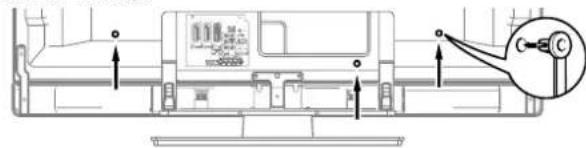

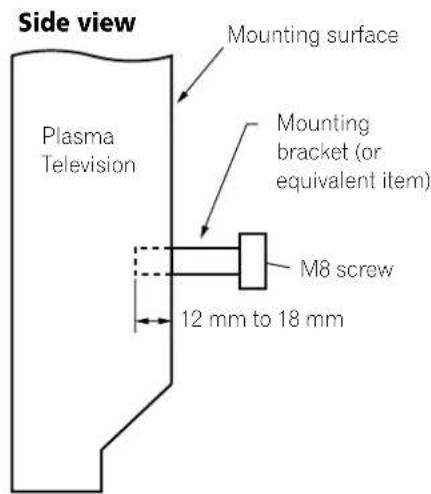

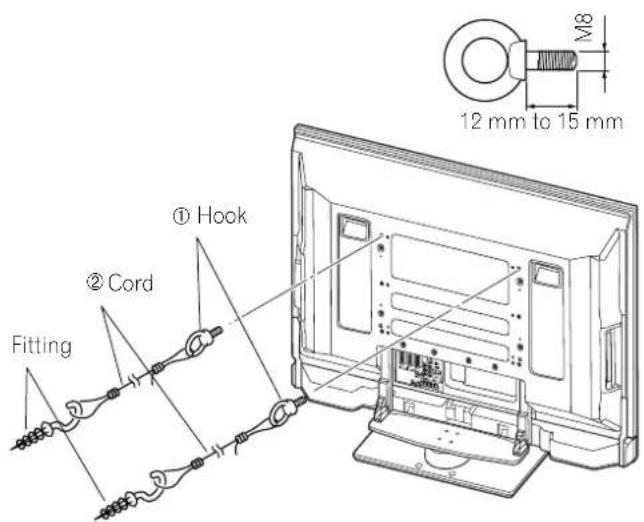

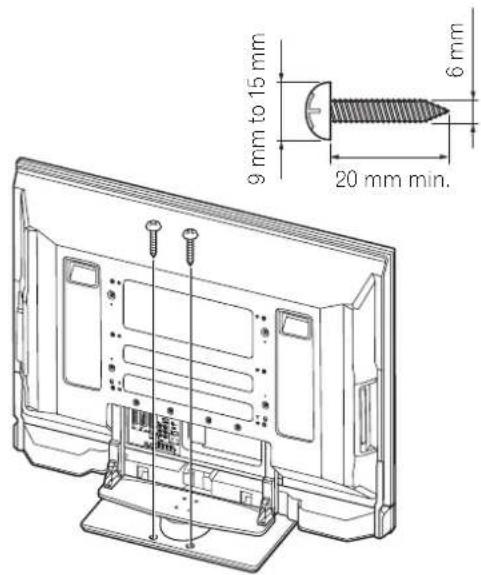

Preventing the Plasma Television from Falling Over 17

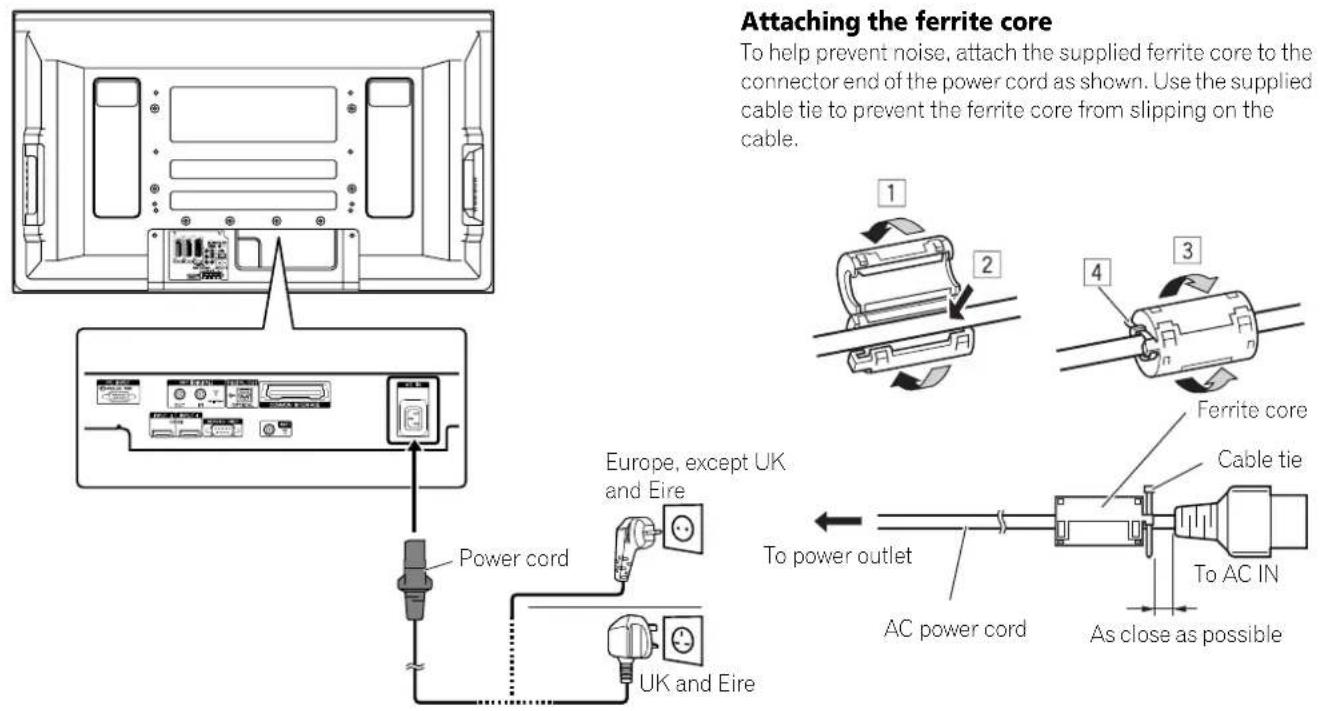

Connecting the power cord 18

Routing cables 18

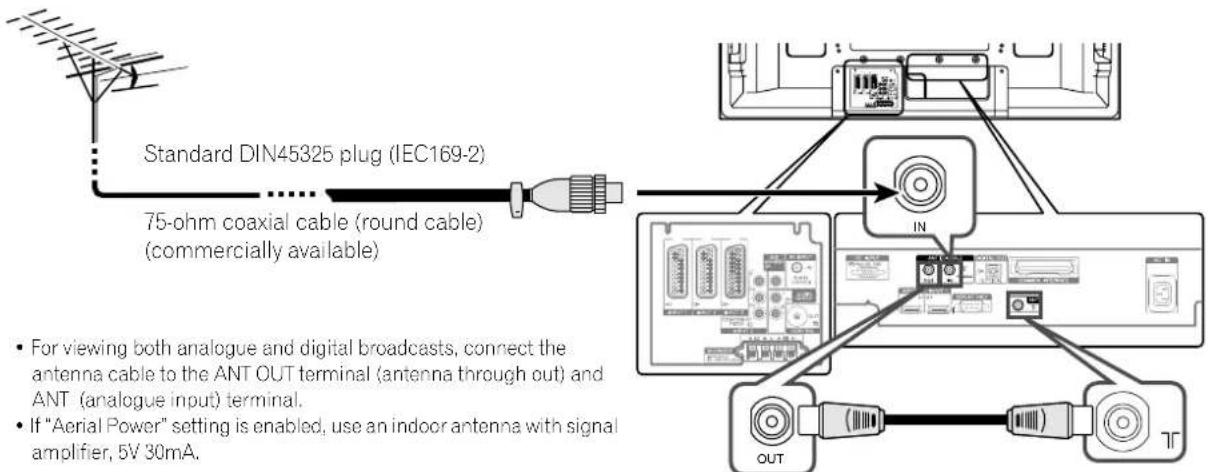

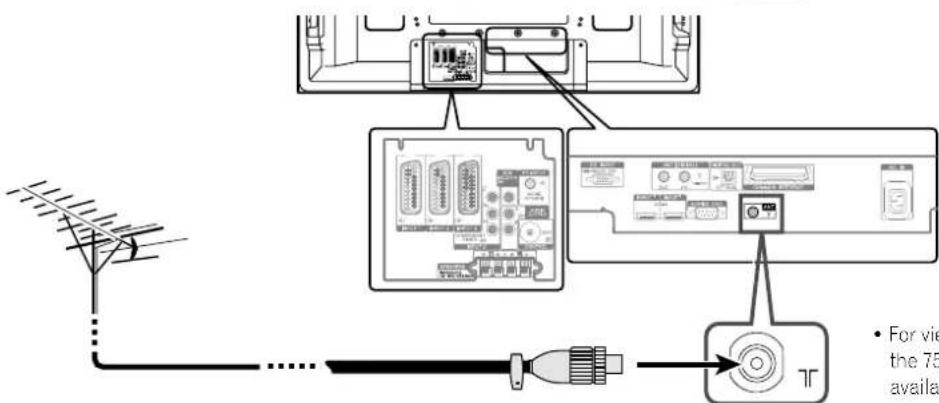

Connecting to an antenna 19

Preparing the remote control unit 20 Inserting batteries 20

Cautions regarding batteries 20

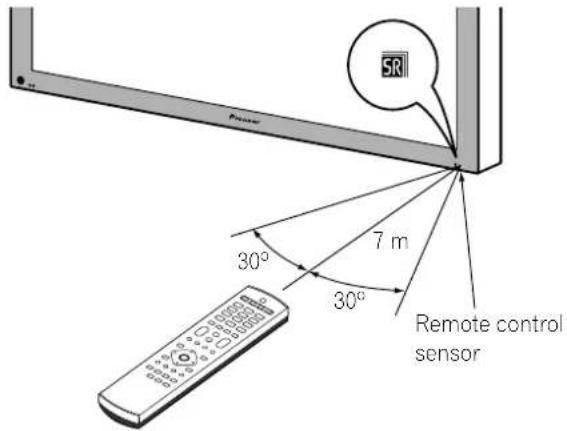

Allowed operation range of the remote control unit 20

Cautions regarding the remote control unit 20

06 Watching TV

Turning on/off the power 21

Changing channels 22

Tuning to your favourite (analogue) channels 23

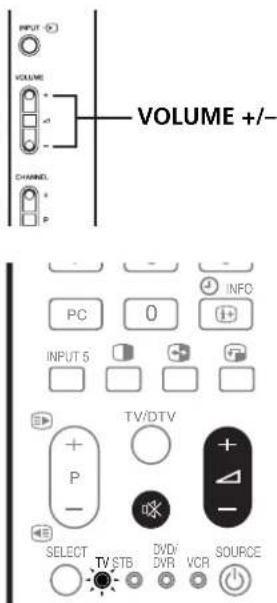

Changing the volume and sound 23

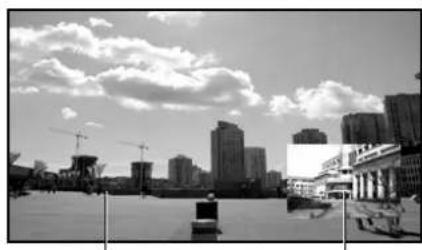

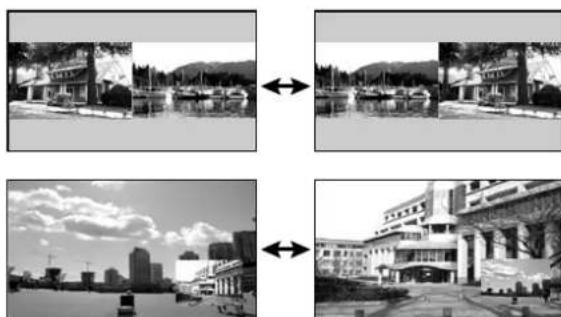

Use the multiscreen functions 25

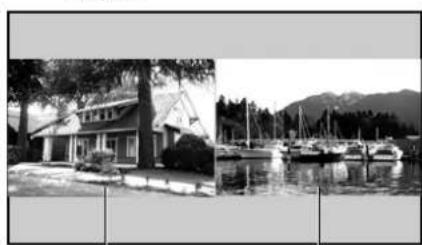

Splitting the screen 25

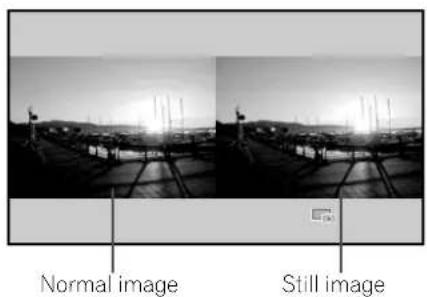

Freezing images 26

07 Menu Setup

Using the menu 27

AV mode menus 27

PC mode menus 27

Menu operations 27

08 Basic Adjustment Settings

Setting up TV channels automatically .... 28

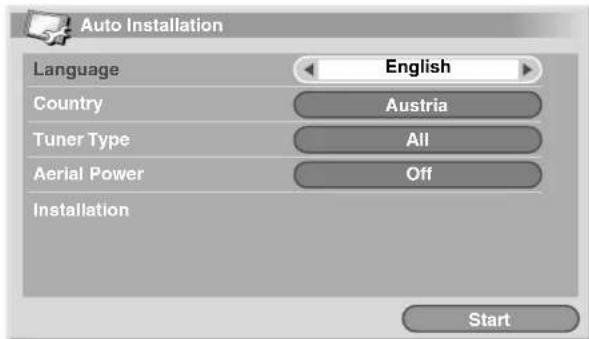

Using Auto Installation 28

Setting up analogue TV channels

manually 28

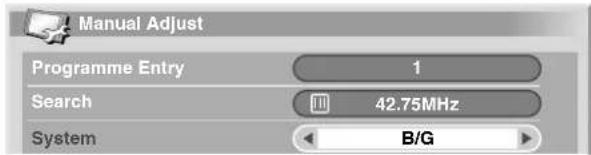

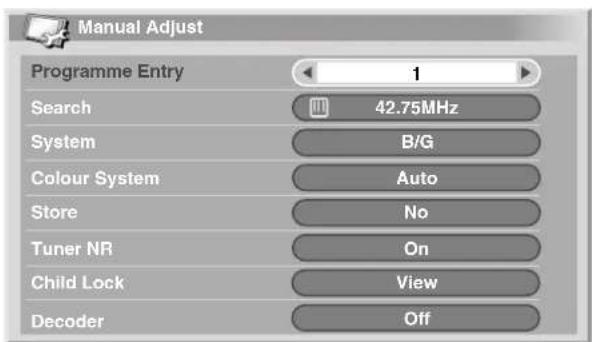

Using Manual Adjust 28

Reducing video noise 29

Setting Child Lock 29

Selecting a decoder input terminal ... 29

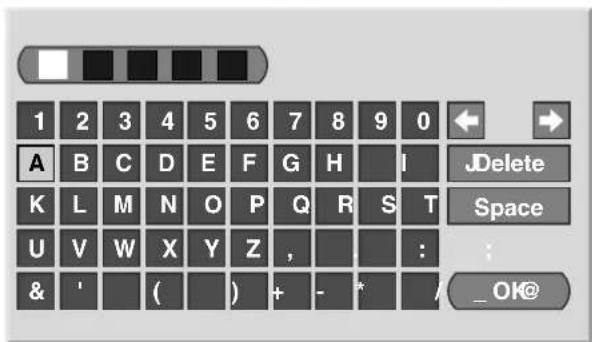

Labeling TV channels 30

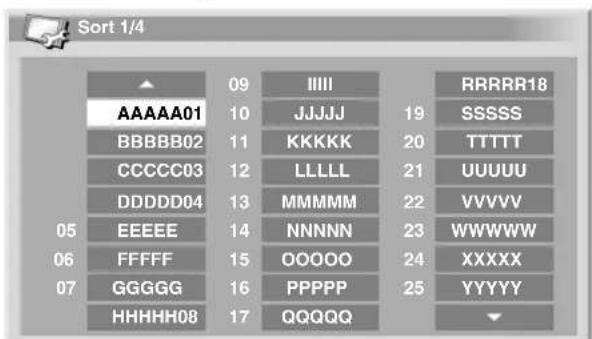

Sorting preset TV channels 30

Language setting 30

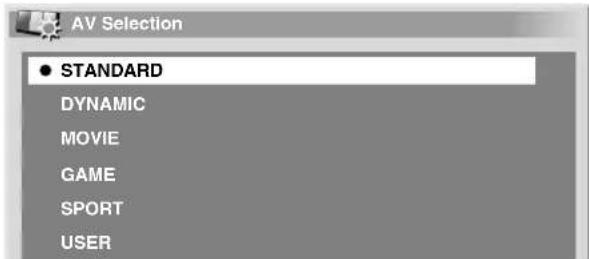

AV Selection 31

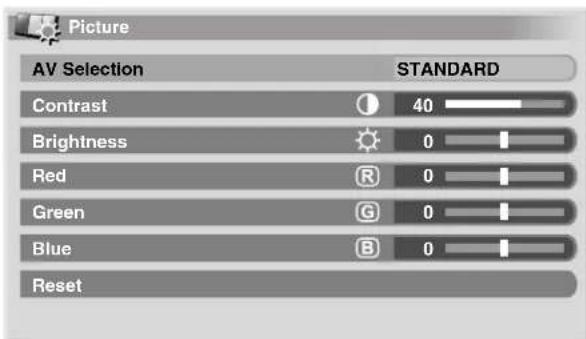

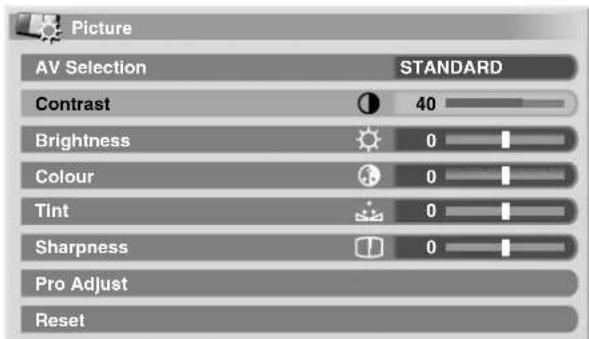

Basic picture adjustments 31

Advanced picture adjustments 32

Using PureCinema 32

Using Colour Temp 32

Using CTI 32

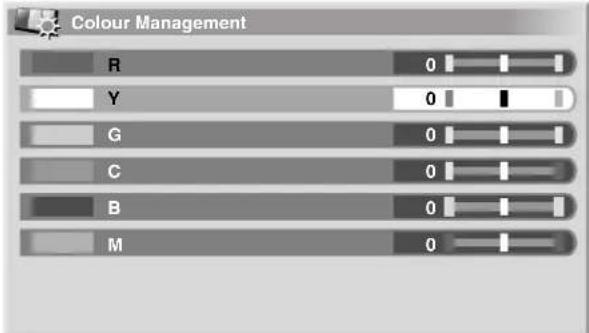

Using Colour Management 33

Using Colour Space 33

Using Intelligent Colour 33

Eliminating noise from images 33

Using the Dynamic Range Expander

(DRE) functions 34

Using the 3DYC and I-P Mode 34

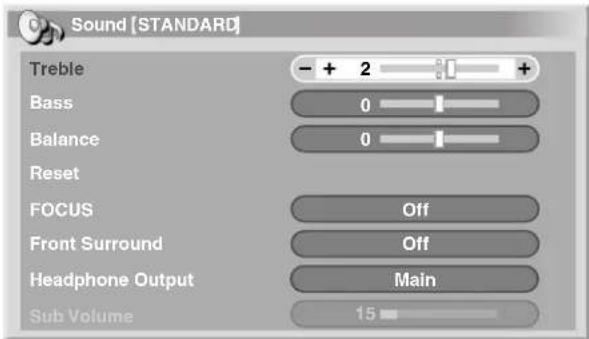

Sound adjustments 35

FOCUS 35

Front Surround 35

Listening to audio from the sub screen

usingheadphones 36

Power Control 36

09Enjoying DTV broadcasts

Watching DTV programmes 38

Changing channels 38

Viewing a channel banner 38

Viewing subtiles 38

Reconfiguring the DTV channel

settings 39

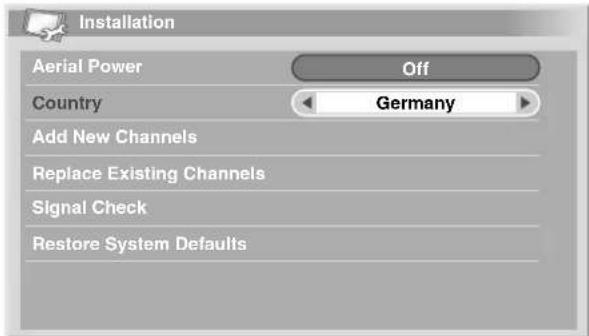

Reselecting a country 39

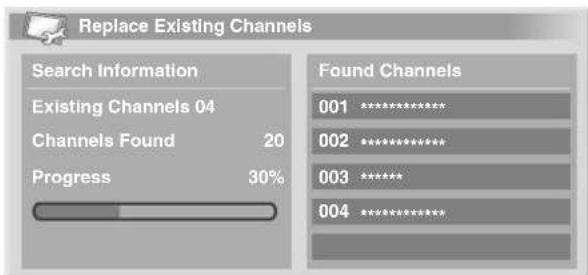

Replacing the existing channels 39

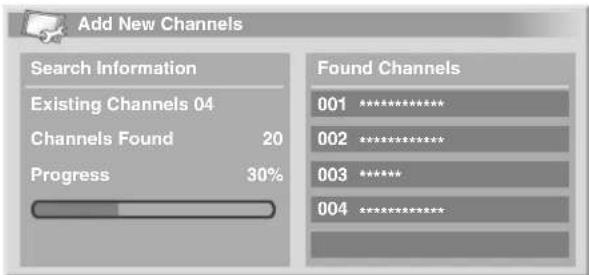

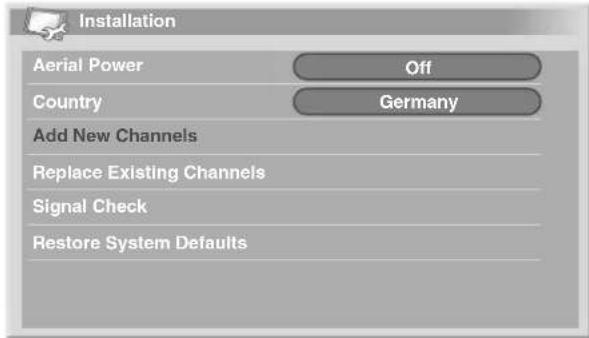

Adding new channels 39

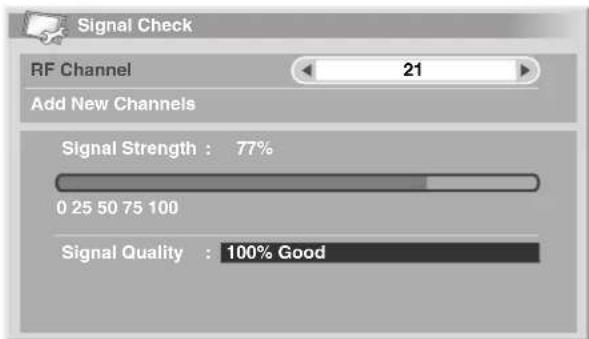

Checking signal strength 40

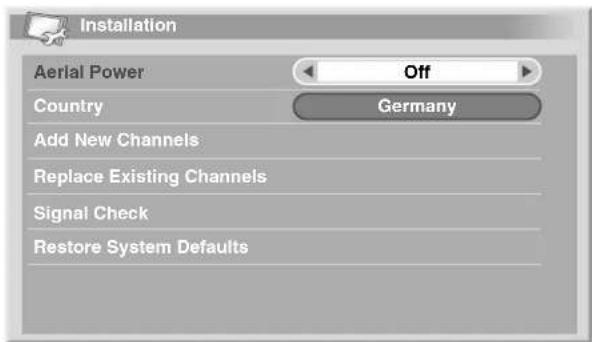

Switching on/off the power to the antenna 40

Restoring the system defaults 40

Customizing channel related settings .... 41

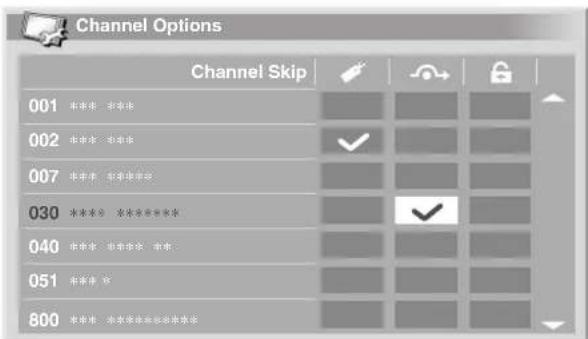

Setting Channel Options 41

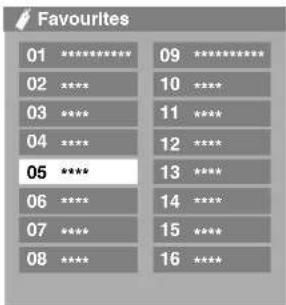

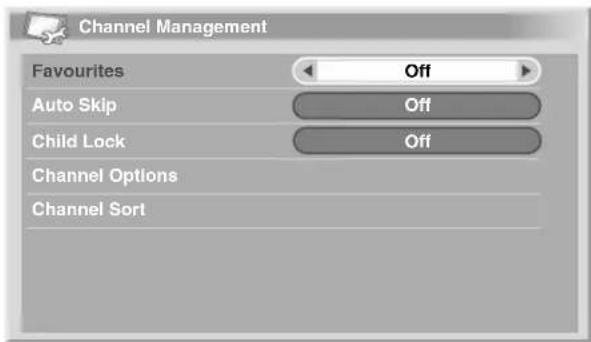

Activating the Favourites function .... 41

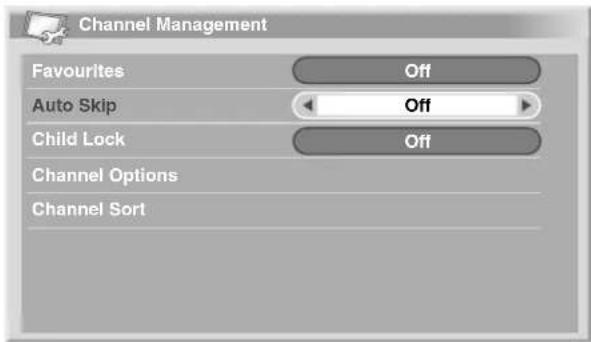

Activating the Auto Skip 41

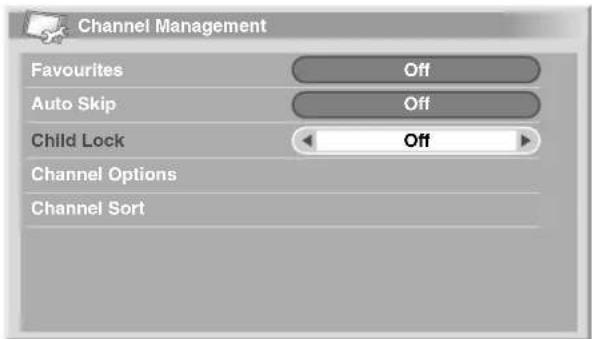

Setting the Child Lock 42

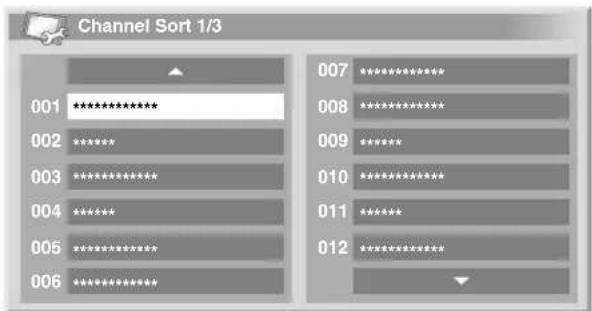

Sorting preset DTV channels 42

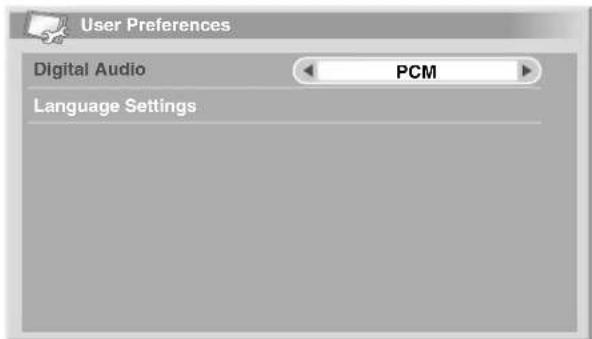

Selecting a digital audio format 42

Selecting languages for audio, subtitles, and teletext 43

Using Software Update 43

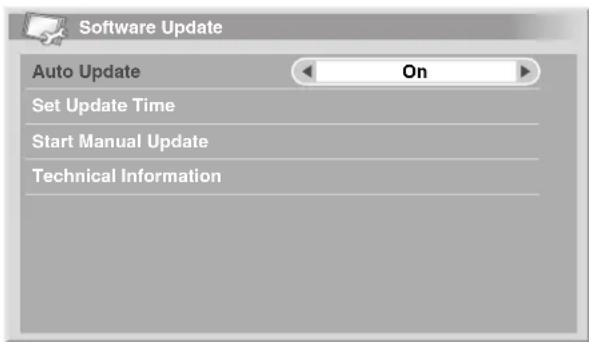

Using Auto Update 43

Setting Update Time 43

Starting Manual Update 43

Displaying technical information 44

Using MHEG application (UK only) .... 44

Screen Saver 44

Common Interface 44

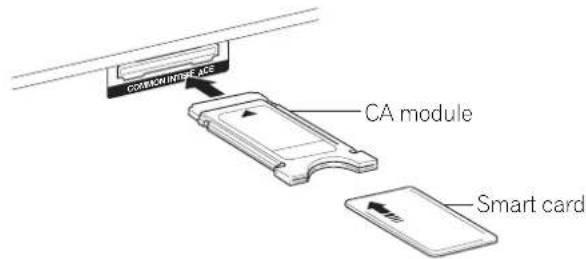

Installing a CA module and smart card 44

Displaying information about the installed CA module 44

10 Using the Electronic Programme Guide (EPG)(for DTV only)

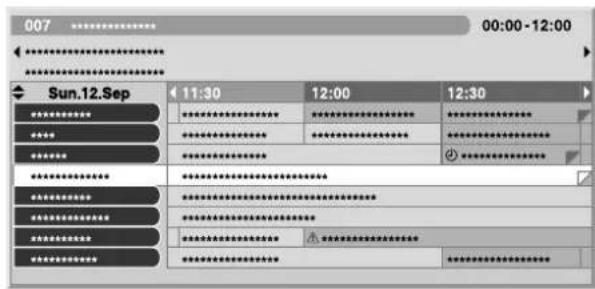

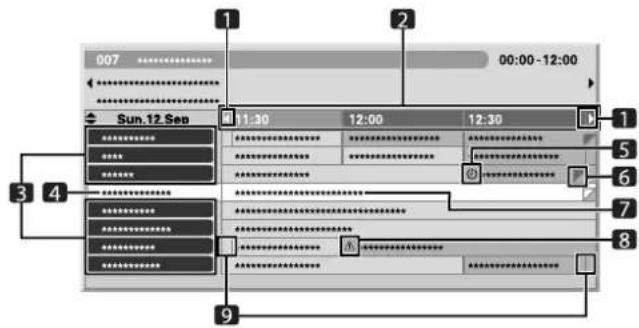

EPG display format 45

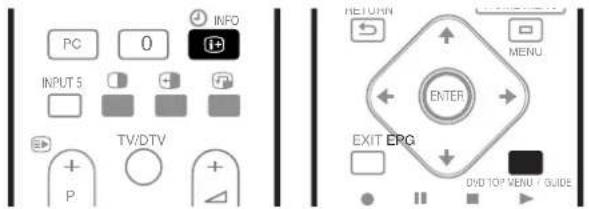

Using the EPG 46

Presetting TV programmes using the

EPG 47

Using auto channel select and standby recording 47

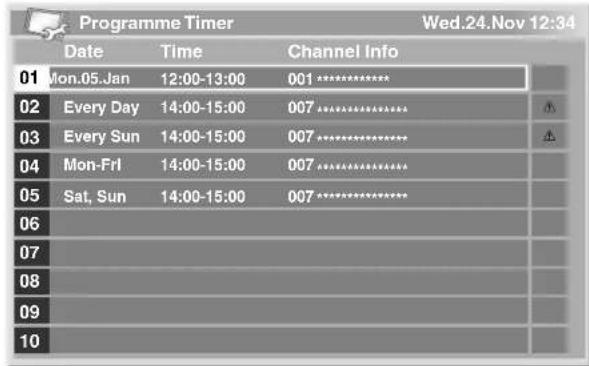

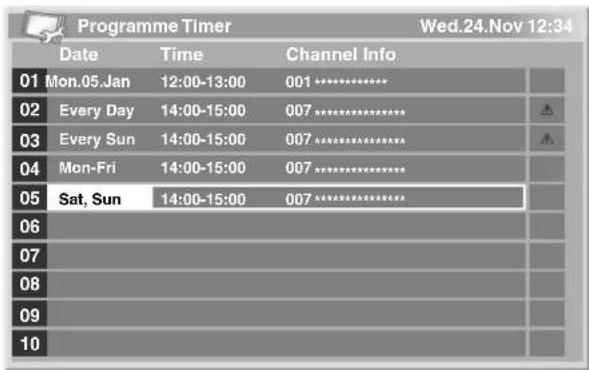

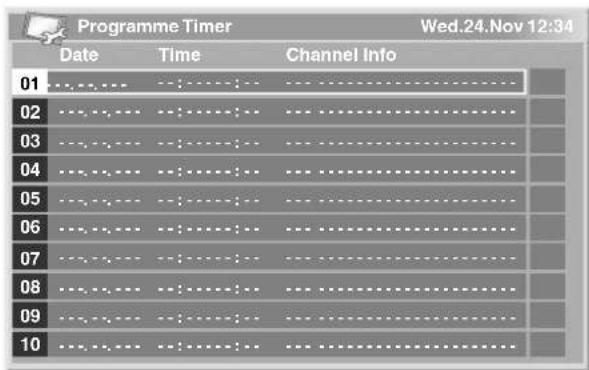

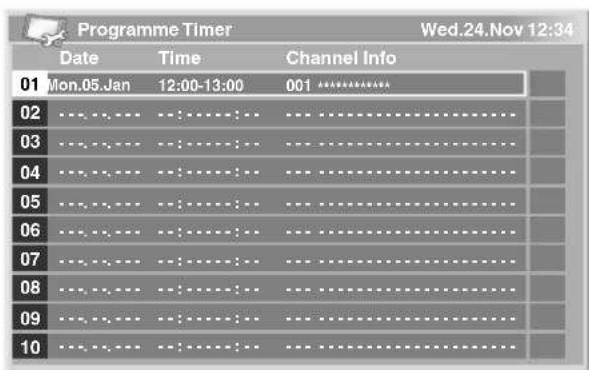

Setting the timer manually 48

Priority rules for overlapped presettings 48

Changing/cancelling TV programme presettings 49

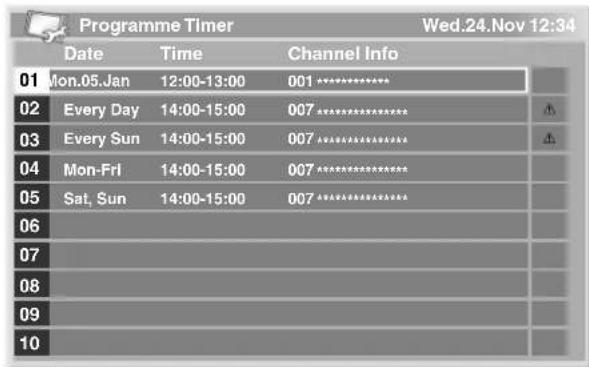

Changing priorities for overlapped presettings 49

Using other useful EPG functions 50

EPG Jump 50

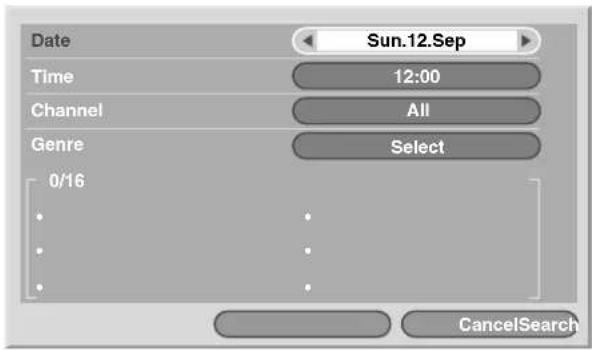

EPG Search 50

11 Useful Adjustment Settings

Switching the vertical drive frequency (AV mode only) 51

Adjusting image positions (AV mode only) 51

Adjusting image positions and clock automatically (PC mode only) 51

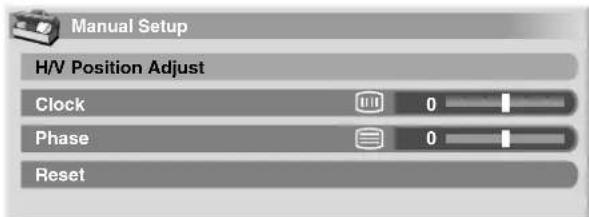

Adjusting image positions and clock manually (PC mode only) 51

Selecting an input signal type 52

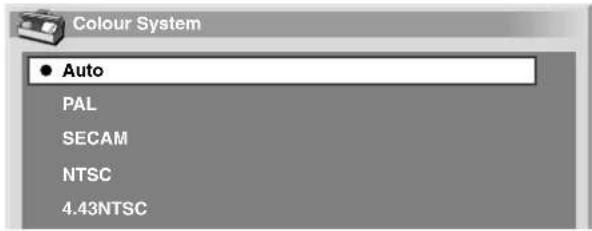

Colour system setting (AV mode only) ... 52

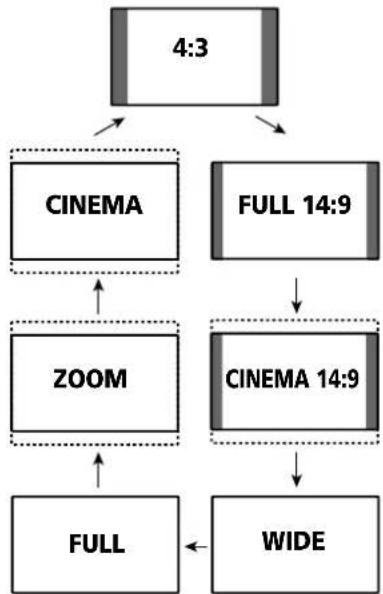

Selecting a screen size manually 53

Selecting a screen size automatically .... 54 Selecting a screen size for received 4:3 aspect ratio signals 54

Changing the brightness at both sides of the screen (Side Mask) 54

Sleep Timer 55

Using a password (AV mode only) 55
Entering a password 55

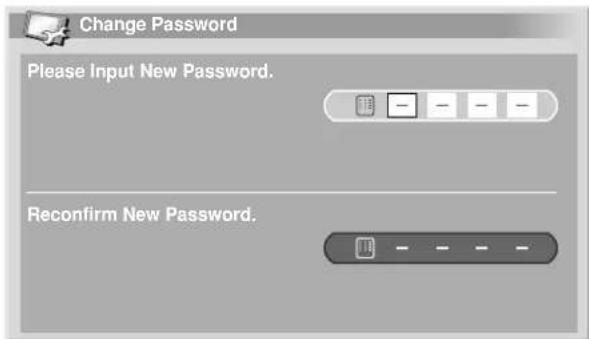

Changing the password 55

Resetting the password function 56

Disabling the password function 56

12Enjoying through External Equipment

Watching a decoder image 57

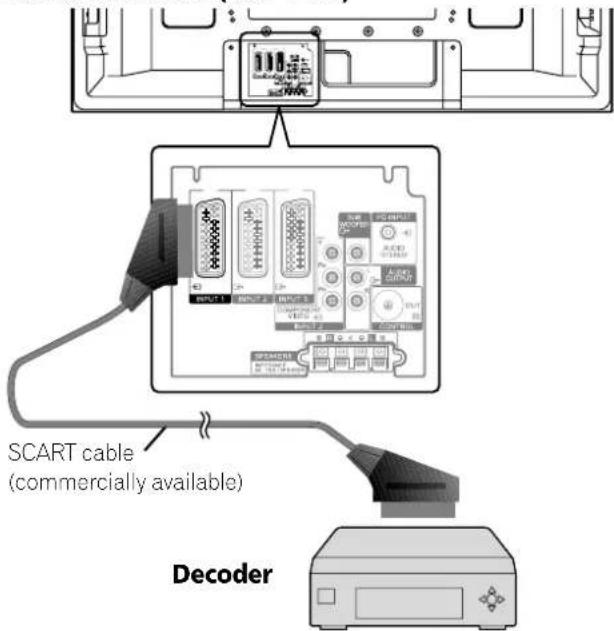

Connecting a decoder 57

Displaying a decoder image 57

Watching a VCR image 57

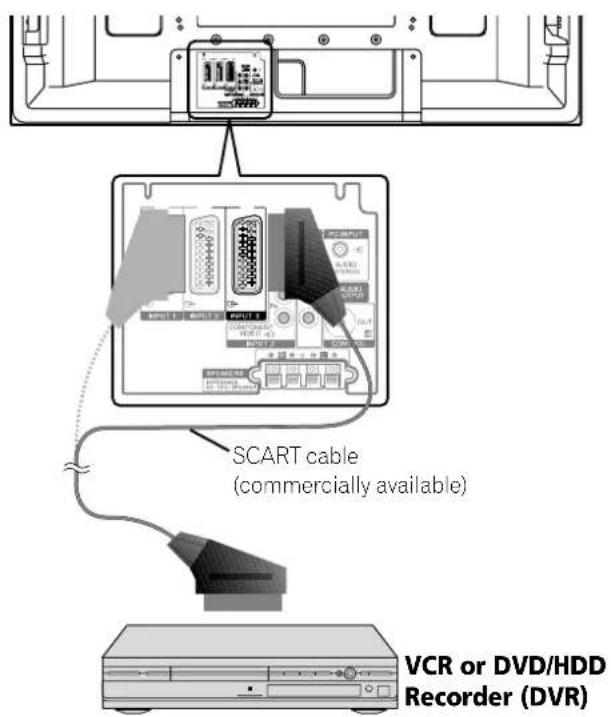

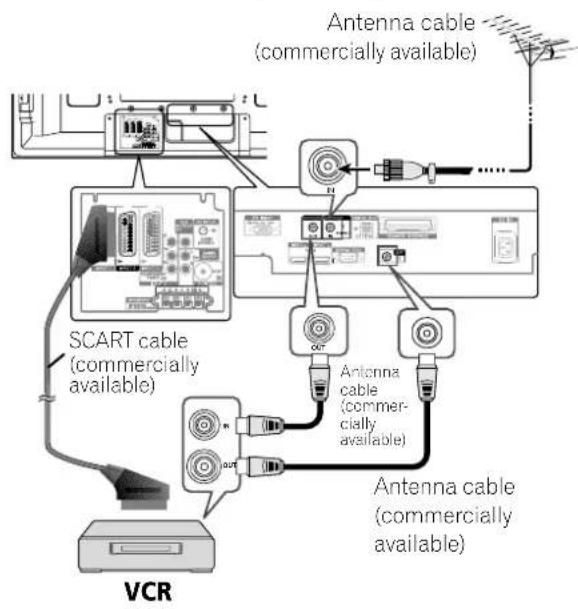

Connecting a VCR 57

Displaying a VCR image 57

UsingHDMI Input 58

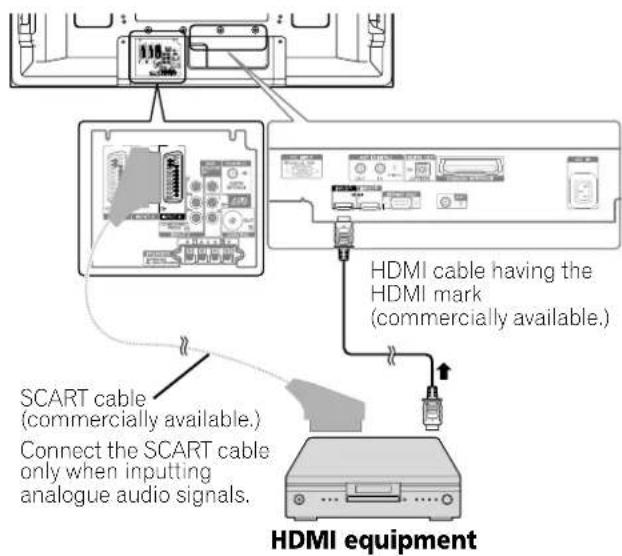

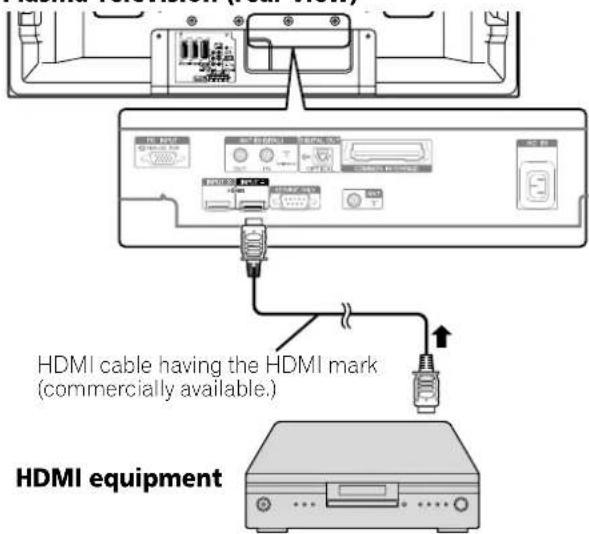

Connecting HDMI equipment 58

Using i/o link.A 59

Watching a DVD image 60

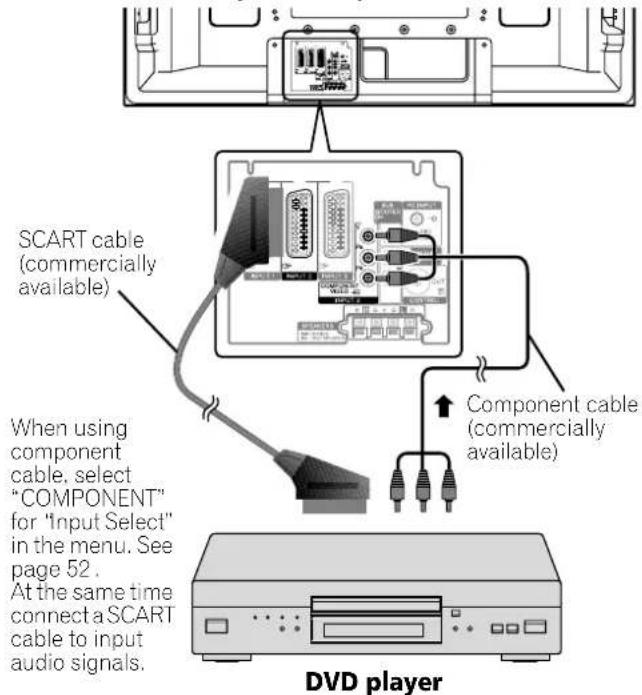

Connecting a DVD player 60

Displaying a DVD image 60

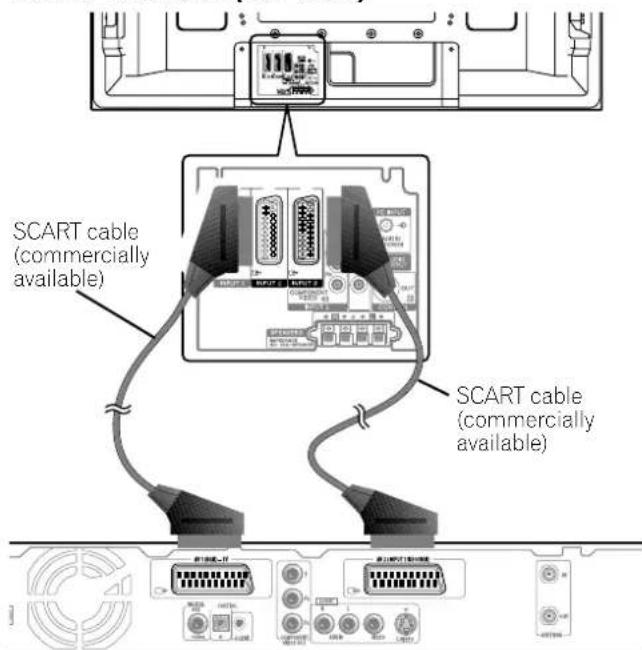

Using the SCART output function 60

Switching the SCART output 61

Enjoying a game console or watching camcorder images 61

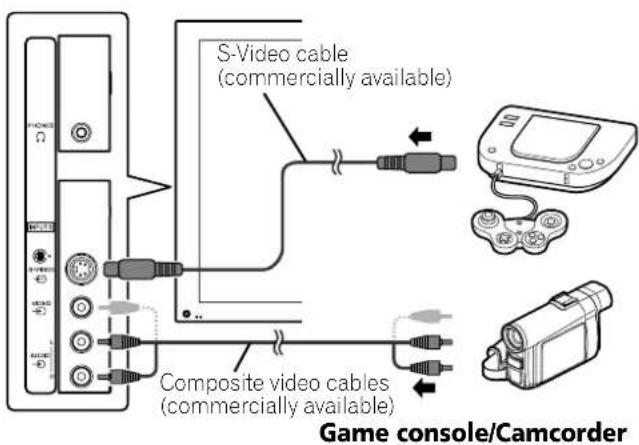

Connecting a game console or camcorder 61

Displaying an image from the game console or camcorder 61

Watching an image from a personal computer 62

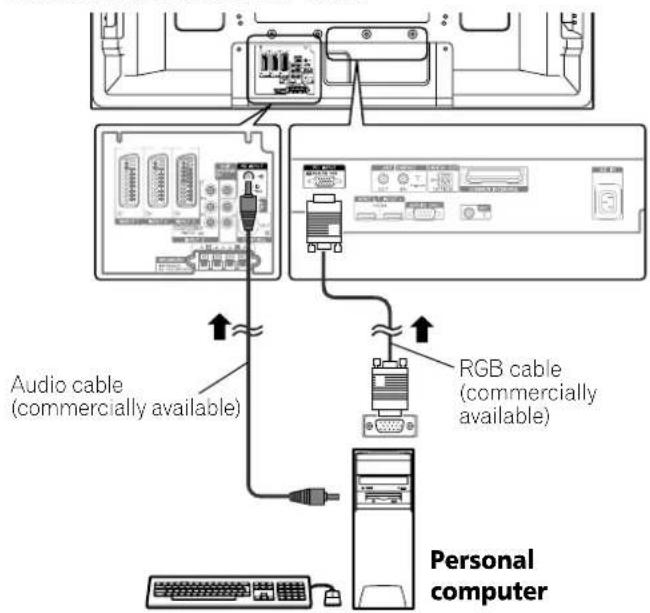

Connecting a personal computer 62

Contents

Displaying an image from a personal
computer 62
Computer compatibility chart 62

Enjoying through audio equipment in
connection 62

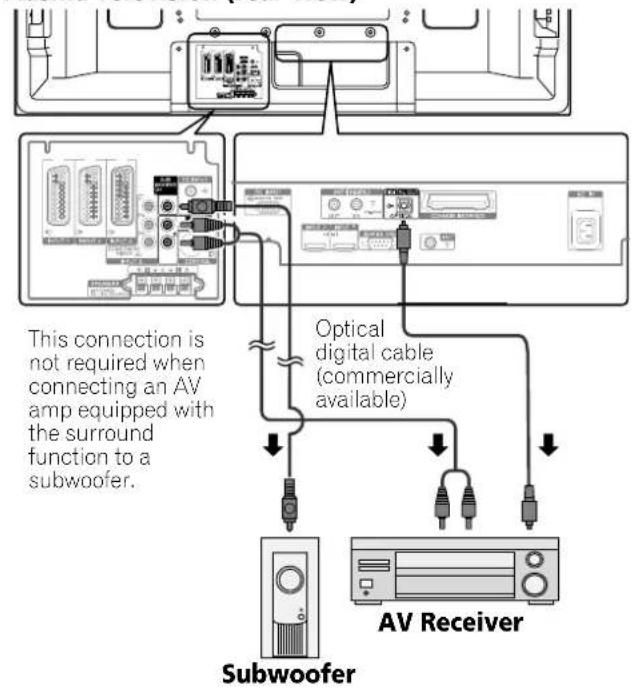

Connecting audio equipment 62

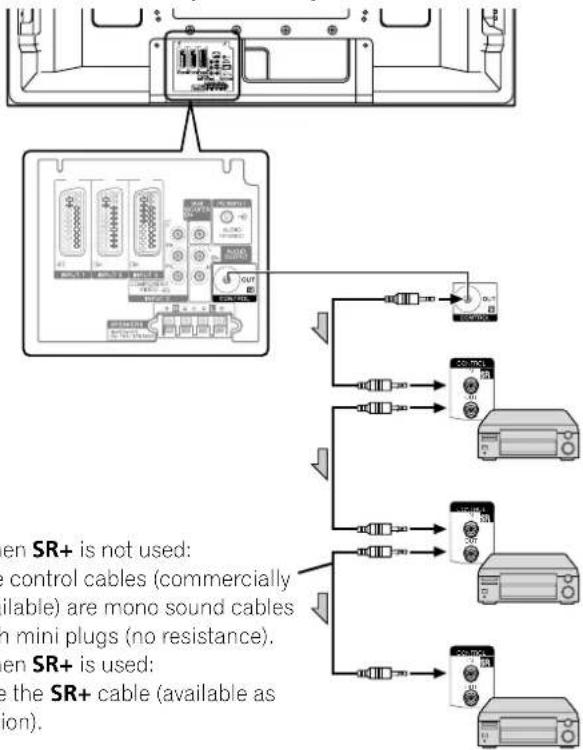

Connecting control cords 63
About SR+ 63
Controlling other equipment using the
supplied remote control unit 63
Manufacture codes 64
STB (set - top box) control buttons ....65
DVD/DVR control buttons 66
VCR control buttons 67

13 Using the Teletext Functions

What is Teletext? 68

Operating the Teletext basics 68

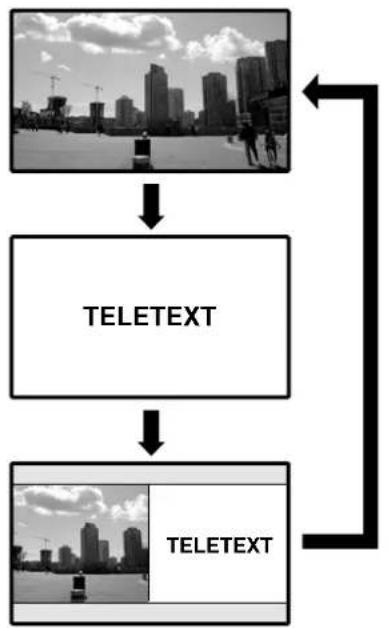

Turning on and off Teletext 68
Selecting and operating
Teletext pages 69

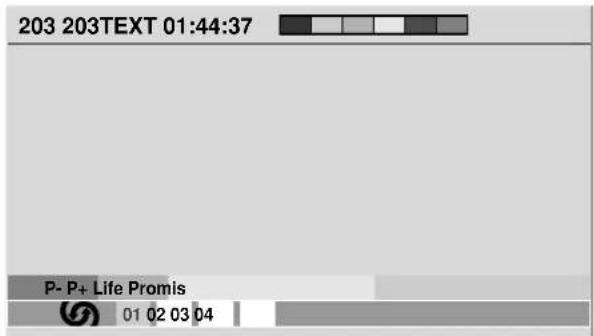

Displaying subpages 69

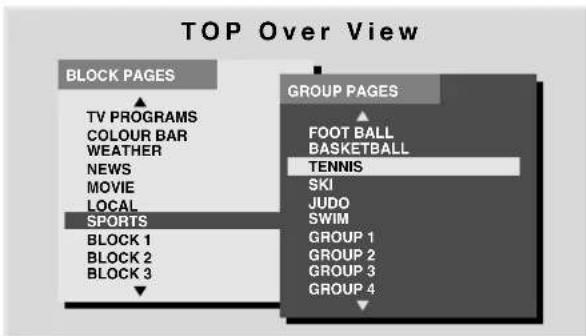

Displaying TOP Over View 69
Displaying subtitle pages 69

14 Appendix

Troubleshooting 70

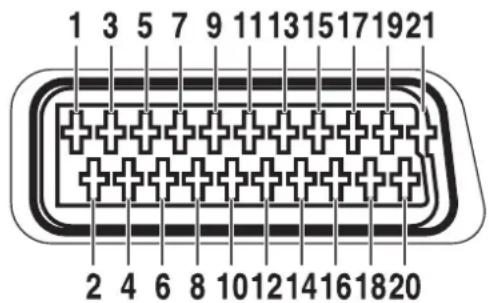

Connecting pin assignments for
SCART 71
Specifications 72

In order to obtain maximum enjoyment from this Pioneer PureVision PDP-507XD/PDP-427XD Plasma Television, please first read this information carefully.

With the Pioneer PureVision PDP-507XD/PDP-427XD, you can be assured of a high quality Plasma Television with long-life and high reliability. To achieve images of exceptional quality, this Pioneer Plasma Television incorporates state-of-the-art design and construction, as well as very precise and highly advanced technology.

The Pioneer PureVision PDP-507XD/PDP-427XD incorporates the latest in colour filter technology - Direct Colour Filter. This improves the colour/picture reproduction of these models as compared to previous models. It also eliminates the need for a physical glass panel to be placed in front of the Plasma Display, which furthers Pioneer's continued goal of reducing environmental waste in consumer electronics, now during the manufacturing process and in the future during the recycling process.

Over the course of its lifetime, the luminosity of the Pioneer PDP-507XD/PDP-427XD Plasma Television will diminish very slowly, such as with all phosphor-based screens (for example, a traditional tube-type television). To enjoy beautiful and bright images on your Pioneer Plasma Television for a long time, please carefully read and follow the usage guidances below:

Usage guidelines

All phosphor-based screens (including conventional tube-type televisions) can be affected by displaying static images for a prolonged period. Plasma Televisions are no exception to this rule. After-image and permanent effects on the screen can be avoided by taking some basic precautions. By following the recommendations listed below, you can ensure longer and satisfactory results from your Plasma Television:

• Whenever possible, avoid frequently displaying the same image or virtually still moving pictures (e.g. closed-captioned images or video game images which have static portions).
• Do not display Teletext for a prolonged period of time.
• Avoid viewing the On Screen Display for extended periods, from a decoder, DVD player, VCR and all other components.
• Do not leave the same picture freeze-framed or paused continuously over a long period of time, when using the still picture mode from a TV, VCR, DVD player or any other component.
  Images which have both very bright areas and very dark areas side by side should not be displayed for a prolonged period of time.
• When playing a video game, the "GAME" mode setting within "AV Selection" is strongly recommended. However, please do not use this mode for long periods of time.
  After playing a game, or displaying a PC image or any still image, it is best to view a normal moving picture in the "WIDE" or "FULL" screen setting for more than 3 times the length of the previous still moving image.
  After using the Plasma Television, always switch the display to "STANDBY" mode.

Installation guidelines

The Pioneer PureVision PDP-507XD/PDP-427XD Plasma Television incorporates a very thin design. To ensure safety, please take the proper measures to mount or install the Plasma Television, in order to prevent the unit from tipping over in the event of vibration or accidental movement.

This product should be installed by using only parts and accessories designed by PIONEER. Use of accessories other than the PIONEER stand or installation bracket may result in instability, and could cause injury. For custom installation, please consult the dealer where the unit was purchased. To ensure correct installation, experienced and qualified experts must install the unit. PIONEER will not be held responsible for accident or damage caused by the use of parts and accessories manufactured by other companies.

To avoid malfunction and overheating, make sure that the vents on the main unit are not blocked when installing to ensure proper heat emission:

• Distance the unit slightly from other equipment, walls, etc. For the minimum space required around the unit, see page 16.
• Do not fit the unit inside narrow spaces where ventilation is poor.
• Do not cover with a cloth, etc.
• Clean the vents on the sides and rear of the unit to remove dust build-up, by using a vacuum cleaner set to its lowest suction setting.
• Do not place the product on a carpet or blanket.
• Do not leave the product tilted over.
• Do not reverse the product.

Using the unit without proper ventilation may cause the internal temperature to rise, and could result in possible malfunction. When the surrounding or internal temperature exceeds a certain degree, the display will automatically power off in order to cool the internal electronics and prevent hazardous occurrences.

Any malfunction may occur due to: an inappropriate installation site, improper assembly, installation, mounting, or operation of this product, modifications made to the product. However, PIONEER cannot be held responsible for such accidents or malfunction.

NOTE

The following are typical effects and characteristics of a phosphor-based matrix display and as such, are not covered by the manufacturer's limited warranties:

• Permanent residual images upon the phosphors of the panel.
  The existence of a minute number of inactive light cells.
• Panel generated sounds, examples: Fan motor noise, and electrical circuit humming/glass panel buzzing

CAUTION

PIONEER bears no responsibility for any damage arising from incorrect use of the product by you or other people, malfunctions when in use, other product related problems, and use of the product except in cases where the company must be liable.

Plasma Television protection function

When still images (such as photos and computer images) stay on the screen for an extended period of time, the screen will be slightly dimmed. This is because the protection function of the Plasma Television automatically adjusts the brightness to protect the screen when detecting still images; so this does not designate malfunction. The screen is dimmed when a still image is detected for about three minutes.

Information of pixel defect

Plasma screens display information using pixels. Pioneer plasma display panels contain a very large number of pixels. (Depending on the panel size; over 2.3 million cells in case of a 42 inch display, over 3.1 million pixels in case of a 50 inch display.) All Pioneer display panels are manufactured using a very high level of ultra-precision technology and undergo individual quality control.

In rare cases, some pixels can be permanently switched off, or on, resulting in either a black or coloured pixel permanently fixed on the screen.

This effect is common to all plasma displays because it is a consequence of the technology.

If the defective pixels are visible at a normal viewing distance of between 2.5 meters and 3.5 meters whilst viewing a normal broadcast (i.e. not a test card, still image or single colour display) please contact the supplying dealer.

If, however, they can only be seen close up or during single colour displays then this is considered normal for this technology.

Infrared rays

The Plasma Television releases infrared rays because of its characteristics. Depending on how the Plasma Television is in use, the remote controls of nearby equipment may be adversely affected or wireless headphones using infrared rays are interfered by noise. If this is the case, place that equipment at a location where its remote control sensor is not affected.

Radio interference

While this product meets the required specifications, it emits a small amount of noise. If you place such equipment as an AM radio, personal computer, and VCR close to this product, that equipment may be interfered. If this happens, place that equipment far enough from this product.

Plasma Television driving sound

The screen of the Plasma Television is composed of extremely fine pixels and these pixels emit light according to received video signals. This principle may make you hear buzz sound or electrical circuit hamming from the Plasma Television.

Fan motor noise

The rotation speed of the cooling fan motor increases when the ambient temperature of the Plasma Television becomes high. You may hear the sound of the fan motor at that time.

Do not attach such items as labels and tape to the product.

• This may result in the discolouration or scratch of the cabinet.

When not using the product for a long period of time

• If you do not use the product for a long period of time, the functions of the product may be adversely affected. Switch on and run the product occasionally.

Condensation

• Condensation may take place on the surface or inside of the product when the product is rapidly moved from a cold place to a warm place or just after a heater is switched on in winter morning, for example. When condensation takes place, do not switch on the product and wait until condensation disappears. Using the product with condensation may result in malfunction.

Cleaning the surface of the screen and the glossy surface of the front cabinet

• When cleaning the surface of the screen or the glossy surface of the front cabinet, gently wipe it with a dry soft cloth; the supplied cleaning cloth or other similar cloths (e.g., cotton and flannel). If you use a dusty or hard cloth or if you rub the screen hard, the surface of the product will be scratched.
• If you clean the surface of the screen with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

Cleaning the cabinet

• When cleaning the cabinet of this product, gently wipe it with a clean soft cloth (e.g., cotton and flannel). If you use a dusty or hard cloth or if you rub the cabinet hard, the surface of the cabinet will be scratched.
  The cabinet of this product is mostly composed of plastic. Do not use chemicals such as benzene or thinner to clean the cabinet. Using these chemicals may result in quality deterioration or coating removal.
• Do not expose the product to volatile gas or fluid such as pesticide. Do not make the product contact with rubber or vinyl products for a long period of time. The effect of plasticizer in the plastic may result in quality deterioration or coating removal.
• If you clean the surface of the cabinet with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

Handles at the rear of the Plasma Television

• Do not remove the handles from the rear of the Plasma Television.
• When moving the Plasma Television, ask another person for help and use the handles attached to the rear of the Plasma Television. Do not move the Plasma Television by holding only a single handle. Use the handles as shown.
• Do not use the handles to hang the product when installing or carrying the product, for example. Do not use the handles for the purpose of preventing the product from tilting over.

CAUTION

Panel sticking and after-image lag

• Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two cases.

1 After-image lagging due to remaining electrical load

When image patterns with very high peak luminance are displayed for more than 1 minute, after-image lagging may occur due to the remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the after-images to disappear depends on the luminance of the still images and the time they had been displayed.

2 After-image (lag image) due to burning

Avoid displaying the same image on the Plasma Display continuously over a long period of time. If the same image is displayed continuously for a long period, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not disappear completely.

NOTE

• When a still image, such as a programme menu, is displayed for 5 minutes to 10 minutes, the system automatically turns the image off to prevent damage from screen burning.

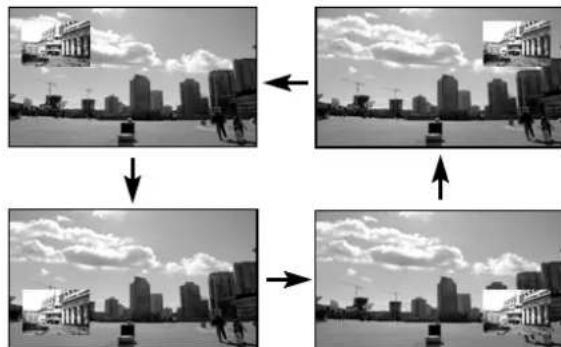

• To prevent screen burning, the display position is automatically changed slightly when the power is switched on or the input changed. Depending on the broadcast content, some parts of the picture may not be visible.

Preventing damage from screen burning

It is recommended that you enjoy watching images displayed in full screen, except when doing so may result in copyright infringement. See page 53.
- The Energy save function can be set to help prevent damage from screen burning. See page 36.

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your product, please read the following precautions carefully before using the product.
1. Read instructions - All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place - These safety and operating instructions must be kept in a safe place for future reference.
3. Observe warnings - All warnings on the product and in the instructions must be observed closely.
4. Follow instructions - All operating instructions must be followed.
5. Cleaning - Unplug the power cord from the AC outlet before cleaning the product. To clean the product, use the supplied cleaning cloth or other soft clothes (e.g., cotton, flannel). Do not use liquid cleaners or aerosol cleaners.
6. Attachments - Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.
7. Water and moisture — Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.
8. Stand - Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.
9. When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

1. Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.
2. Power source This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.
3. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or

objects from resting on them. Check the cords at the plugs and product.

1. The Plasma Display used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the Plasma Display breaks.
2. Overloading — Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
3. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.
4. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
5. Repair — If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.
e. When the product has been dropped or damaged.

f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.

1. Replacement parts - In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
2. Safety checks—Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.
3. Wall or ceiling mounting — When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.
4. Heat sources - Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).
5. Unplug the power cord from the AC outlet before installing the speakers.
6. Never expose the screen of the Plasma Television to a strong impact, for example, by hitting it. The screen may be broken, resulting in fire or personal injury.
7. Do not expose the Plasma Television to direct sunlight for a long period of time. The optical characteristics of the front protection panel changes, resulting in discolouration or warp.
8. The Plasma Television weighs about 34.7kg (76.5 lbs.) for the PDP-507XD and about 29.6kg (65.3 lbs.) for the PDP-427XD. Because it has small depth and is unstable, unpack, carry, and install the product with one more person at least and use the handles.

Installation Precautions

Observe the following precautions when installing with any items such as the optional stand.

When using the optional stand, brackets, or equivalent items

• Ask your dealer to perform the installation.
• Be sure to use the supplied bolts.
  For details, see the instruction manual that comes with the optional stand (or equivalent items).

When using other items

• Consult your dealer.

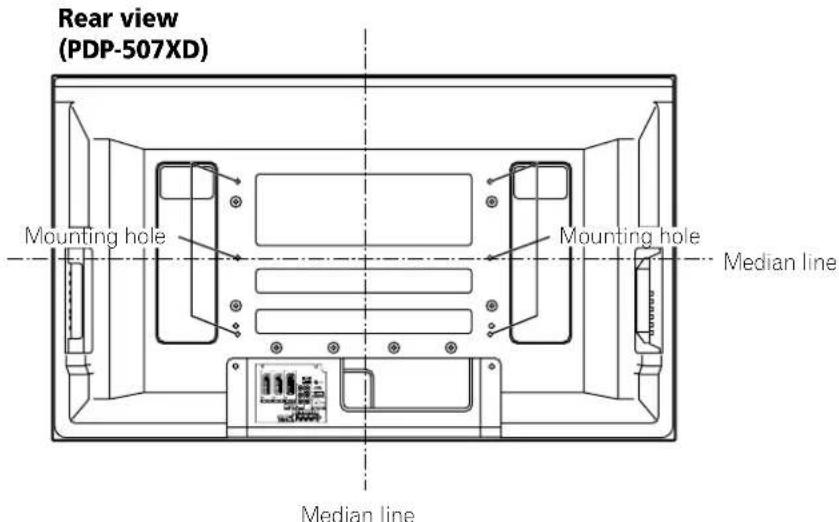

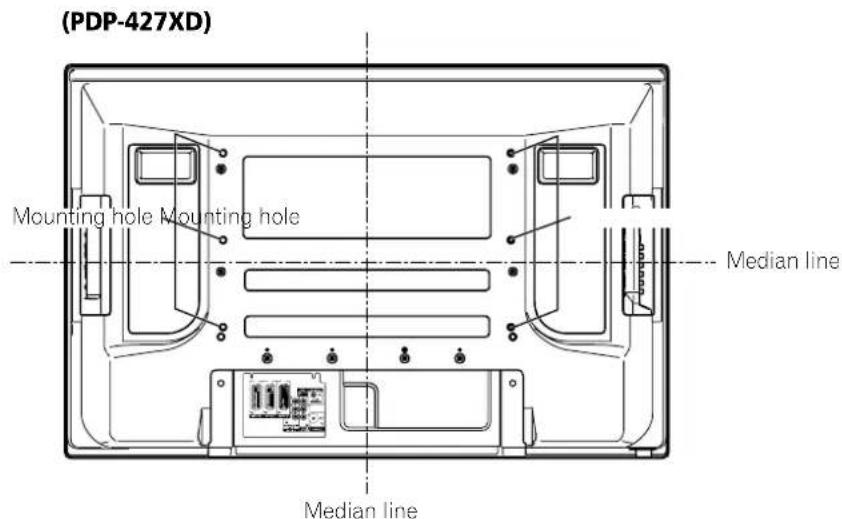

  The following six mounting holes can be used for the installation:

CAUTION

• Be sure to use four or more mounting holes symmetrical to the vertical and horizontal median lines.
• Use M8 screws, which go 12 mm to 18 mm in depth from the mounting surface of the Plasma Television. See the side view above.
• Be careful not to block the ventilation opening at the rear of the Plasma Television.
• Be sure to install the Plasma Television on a flat surface because it contains glass.
  The screw holes other than the above are to be used only for the specified products. Never use them for mounting non-specified products.
• Do not mount or remove the Plasma Television to or from the stand, with speakers attached.

NOTE

• It is strongly recommended to use the optional PIONEER mounting products.
  PIONEER shall not be liable for any personal injury or product damage that results from the use of mounting items other than the optional PIONEER products.

Power cord (2 m)		Cleaning cloth
(For Europe, except UK and Eire)	(For UK and Eire)
Only the power cord that is appropriate in your country or region is supplied.
Speed clamp x 3 Bead band x 3 Warranty card	Cable tie	Ferrite core
Remote control unit	AA size battery x 2	Two operating instructions

Plasma Television

Front view (PDP-507XD)

1 PO WttoE R
2 POWER ON indicator
3 STANDBY indicator
4 TIMER indicator
5 Remote control sensor

(Side view)
6 STANDBY/ON button
7 INPUT button
8 V O L U bumonsE + / - 13 INPUT 5 terminals (AUDIO)
9 CHANNEL +/- buttons

Rear view (PDP-507XD)

15

1 PC INPUT terminal (ANALOG RGB)
2 ANT OUT terminal (Antenna through out)
3 ANT IN terminal (Antenna in for DTV)

• Power can be supplied through this terminal

4 DIGITAL OUT terminal (OPTICAL)
5 COMMON INTERFACE slot

• For a CA Module with a smart card

6 AC IN terminal
7 INPUT 3/INPUT 4 terminals (HDMI)
8 RS-232C terminal (used for factory setup)
9 ANT (Antenna) input terminal

10 INPUT 1 terminal (SCART)
11 INPUT 2 terminal (SCART)
12 INPUT 3 terminal (SCART)
13 INPUT 2 terminal (COMPONENTVIDEO:Y,PB,PR)
14 SUB WOOFER OUTPUT terminal
15 AUDIO OUTPUT terminals
16 PC INPUT terminal (AUDIO)
17 CONTROL OUT terminal
18 SPEAKER(right/left) terminals

Front view (PDP-427XD)

1 PO WtttoR
2 POWER ON indicator
3 STANDBY indicator
4 TIMER indicator
5 Remote control sensor

(Side view)

6 STANDBY/ON button
7 INPUT button
8 V O L UbuMnsE + / - 13 INPUT 5 terminals (AUDIO)
9 CHANNEL +/- buttons

Rear view (PDP-427XD)

1 PC INPUT terminal (ANALOG RGB)
2 ANT OUT terminal (Antenna through out)
3 ANT IN terminal (Antenna in for DTV)
Power can be supplied through this terminal
4 DIGITAL OUT terminal (OPTICAL)
5 COMMON INTERFACE slot
For a CA Module with a smart card
6 AC IN terminal
7 INPUT 3/INPUT 4 terminals (HDMI)

8 RS-232C terminal (used for factory setup)
9 ANT (Antenna) input terminal
10 INPUT 1 terminal (SCART)
11 INPUT 2 terminal (SCART)
12 INPUT 3 terminal (SCART)
13 INPUT 2 terminal (COMPONENTVIDEO:Y, PB, PR)
14 SUB WOOFER OUTPUT terminal
15 AUDIO OUTPUT terminals
16 PC INPUT terminal (AUDIO)
17 CONTROL OUT terminal

Remote control unit

This section describes the functions of the buttons available when the TV mode has been selected using the SELECT button. For the buttons for controlling other equipment, see "Controlling other equipment using the supplied remote control unit" starting from page 63.

1

Turns on the power to the Plasma Television or places it into the standby mode.

2 INPUT

Selects an input source of the Plasma Television. (INPUT 1, INPUT 2, INPUT 3, INPUT 4)

30-9

TV/External input mode: Selects a channel.

TELETEXT mode: Selects a page.

4

Selects the PC terminal as an input source.

5 INPUT 5

Selects INPUT 5 as the input source of the Plasma Television.

6

Switches the screen mode among 2-screen, picture-in-picture, and single-screen.

7 P + / P -

TV/External input mode: Selects a channel.

TELETEXT mode: Selects a page.

8 TV /DTV

Switches between the TV and DTV input modes.

9 SELECT

Switches the selection among TV, STB, DVD/DVR, and VCR, so that you can control other equipment in connection, using the supplied remote control unit.

10 TV, STB, DVD/DVR, VCR

These indicators show the current selection and status when you control other equipment in connection using the supplied remote control unit.

11 RETURN

Restores the previous menu screen.

12/4↓/←

Selects a desired item on the setting screen.

ENTER

Executes a command.

13 EXIT

Returns to the normal screen in one step.

14 Colour (RED/GREEN/YELLOW/BLUE)

TELETEXT mode: Selects a page.

15

TV/External input mode: Jumps to the Teletext subtitle page.

DTV input mode: Turns subtitle on and off.

16?

TELETEXT mode: Displays hidden characters.

17 I-II

Sets the sound multiplex mode.

18 i+

TV/External input mode: Displays the channel information.

DTV input mode: Displays the banner information.

19

Moves the location of the small screen when in the picture-in-picture mode.

20

Switches between the two screens when in the 2-screen or picture-in-picture mode.

21

Sets the volume.

22

Mutes the sound.

23 HOME MENU

TV/External Input mode: Displays the Menu screen.

24 EPG

Display the Electronic Programme Guide.

25

Selects the TELETEXT mode.

(all TV image, all TEXT image, TV/TEXT image)

26 电

TELETEXT mode: Displays an Index page for the CEEFAX/FLOF

format. Displays a TOP Over View page for the TOP format.

27

TV/External input mode: Selects the screen size.

TELETEXT mode: Switches Teletext images, (full/upper

half/lover half)

28

TV/External input mode: Freezes a frame from a moving

image. Press again to cancel the function.

TELETEXT mode: Stops updating Teletext pages. Press

again to release the hold mode.

NOTE

• When using the remote control unit, point it at the Plasma Television.

Installing the Plasma Television

Location

• Avoid direct sunlight. Maintain adequate ventilation.
• Because the Plasma Television is heavy, be sure to have someone help you when moving it.

CAUTION

If you do not leave sufficient space above the Plasma Television, it will not receive enough ventilation and will not operate properly.

NOTE

• Allow enough space around the upper and back parts when installing to ensure adequate ventilation of the rear of the unit.

Using the optional PIONEER stand

• For details on installation, refer to the instruction manual supplied with the stand.

Using the optional PIONEER speakers (for PDP-507XD only)

• For details on installation, refer to the instruction manual supplied with the speaker.

CAUTION

Operating Environment

Operating environment temperature and humidity: +0^ to +40^ (+32^ to +104^) ; less than 85% RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light).

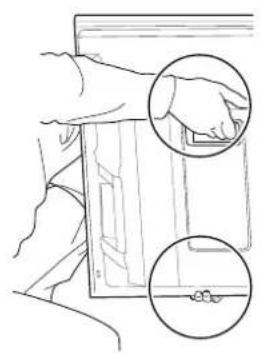

Moving the Plasma Television (for PDP-507XD only)

Under speaker

NOTE

• Do not use the speaker to support the weight of the Plasma Television.
  Always remove the speakers before moving the Plasma Television. Do not hold the Plasma Television by the speaker mounting fittings.

Side speaker

NOTE

• Do not hold by the side speaker.

Preventing the Plasma Television from Falling Over

After installing the stand, be sure to take special care to ensure that the Plasma Television will not fall over.

Stabilizing on a table or floor

Stabilize the Plasma Television as shown in the diagram using screws that are available on the market.

NOTE

To stabilize the Plasma Television on a table or on the floor, use screws that have a nominal diameter of 6mm and that are at least 20mm long.

CAUTION

A table or an area of the floor with adequate strength should always be used to support the Plasma Television. Failure to do so could result in personal injury and physical damage. When installing the Plasma Television, please take the necessary safety measures to prevent it from falling or overturning in case of emergencies, such as earthquakes, or of accidents.

If you do not take these precautions, the Plasma Television could fall down and cause injury.

The screws, hooks, chains and other fittings that you use to secure the Plasma Television to prevent it from overturning will vary according to the composition and thickness of the surface to which it will be attached.

Select the appropriate screws, hooks, chains, and other fittings after first inspecting the surface carefully to determine its thickness and composition and after consulting a professional installer if necessary.

Using a wall for stabilization

1. Attach falling prevention bolts (hooks) to the Plasma Television.

2. Use strong cords to stabilize it appropriately and firmly to a wall, pillar, or other sturdy element.

3. Perform this work in the same way on the left and right sides.

NOTE

Use hooks, cords, and fittings that are available on the market.
Recommended hook: Nominal diameter 8 mm
Length 12 mm to 15 mm

Connecting the power cord

Plasma Television (rear view)

NOTE

• Disconnect the power cord from the power outlet and Plasma Television when the system is not going to be used for a long period of time.

Routing cables

When the speaker is installed under the Plasma Television panel (for PDP-507XD only)

NOTE

• Use the supplied bead bands as necessary.
• When tidying up your speaker cables, make sure to bundle them so that they are not subjected to any pressure.

Preparation

Attaching speed clamps to the main unit

Attach the speed clamps using the 3 holes (42 inches: 2 holes) marked with below, depending on your routing system.

for PDP-507XD

for PDP-427XD

Attaching and removing speed clamps

Insert [1] into an appropriate hole on the rear of the Plasma Television and snap [2] into the back of [1] to lock the clamp. Speed clamps are designed to be difficult to undo once in place. Please attach them carefully.
Use pliers to twist the clamp 90^ , pulling outward. The clamp may deteriorate over time and become damaged if removed. Be careful not to subject any connecting cables to strain.

NOTE

• Use the supplied speed clamps as necessary.

Connecting to an antenna

To enj a cier picture, u an dor antenna. The fowing is a brief explanation of the types of conions that are used for a coaxial cable.

• For viewing analogue broadcasts only, connect the 75-ohm coaxial cable (commercially available) to ANT (analogue input) terminal.

Antenna cable (commercially available)

If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325 plug (IEC169-2), plug it into the antenna terminal at the rear of the Plasma Television.

Preparing the remote control unit

Inserting batteries

1 Open the battery cover.

2 Load the supplied two AA size batteries while inserting their respective negative polarity (-) ends first.

• Place batteries with their terminals corresponding to the (+) and (-) indicators in the battery compartment.

3 Close the battery cover.

Cautions regarding batteries

Improper use of batteries can result in chemical leakage or an explosion. Be sure to follow the instructions below.

• When you replace the batteries, use manganese or alkaline ones.
• Place the batteries with their terminals corresponding to the (+) and (-) indicators.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not use the remote control unit for an extended period of time, remove the batteries from it.

CAUTION

• WHEN DISPOSING OF USED BATTERIES, PLEASE COMPLY WITH GOVERNMENTAL REGULATIONS OR ENVIRONMENTAL PUBLIC INSTITUTION'S RULES THAT APPLY IN YOUR COUNTRY/AREA.

Allowed operation range of the remote control unit

Operate the remote control unit while pointing it toward the remote control sensor (SR) located at the bottom right of the front panel of the Plasma Television. The distance from the remote control sensor must be within 7 m and the angle relative to the sensor must be within 30 degrees in the right, left, upward, or downward direction.

NOTE

• With the PDP-427XD, the SR logo is located at the lower right on the speaker but the location of the remote control sensor is the same as with the PDP-507XD.

Cautions regarding the remote control unit

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.
• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.
• The remote control unit may not work properly if the remote control sensor of the Plasma Television is under direct sunlight or strong lighting. In such case, change the angle of the lighting or Plasma Television, or operate the remote control unit closer to the remote control sensor.
• When any obstacle exists between the remote control unit and the remote control sensor, the remote control unit may not function.
• As the batteries become empty, the remote control unit can function within a shorter distance from the remote control sensor. Replace the batteries with new ones early enough.
• The Plasma Television emits very weak infrared rays from its screen. If you place such equipment operated through infrared remote control as a VCR nearby, that equipment may not receive commands from its remote control unit properly or entirely. If this is the case, place that equipment at a location far enough from the Plasma Television.
• Depending on the installation environment, infrared rays from the Plasma Television may not allow this system to properly receive commands from the remote control unit or may shorten allowable distances between the remote control unit and the remote control sensor. The strength of infrared rays emitted from the screen differs, depending on images displayed on the screen.

Unless you set up TV channels that you can watch under the current conditions, you cannot tune in those channels. For the procedure, see "Setting up TV channels automatically" on page 28.

Turning on/off the power

NOTE

• When the Plasma Television is plugged into a power outlet, it is placed into the standby mode; the STANDBY indicator on its front panel should flash red. The Plasma Television stays in the standby mode unless it is unplugged from the power outlet.
  To turn on the system, press POWER on the Plasma Television.
  The POWER ON indicator on the Plasma Television lights up in blue.

To turn off the system, press on the remote control unit or STANDBY/ON on the Plasma Television.

The Plasma Television is placed into the standby mode; the STANDBY indicator lights up in red.
- You can then turn on the system again by pressing ① or ① to 9 on the remote control unit or STANDBY/ON on the Plasma Television. If you press ① on the remote control unit, images come from the INPUT1 source. If you press ① to 9, TV images display.

You can also press POWER on the Plasma Television to turn off the system. However, you cannot then turn on the system again by pressing the buttons on the remote control unit and Plasma Television.

NOTE

• Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See "Controlling other equipment using the supplied remote control unit" on page 63.
• It is recommended not to unplug the Plasma Television from a power outlet when it is not in use. When in the standby mode, the Plasma Television automatically receives Electronic Programme Guide and DTV Auto Update signals.
• When the system is placed into the standby mode, the main power flow is cut and the system is no longer fully operational. A minute flow of power feeds the system to maintain operation readiness.
  If you are not going to use the Plasma Television for several days, be sure to remove the power cord from the power outlet.

Plasma Television (PDP-507XD)

(PDP-427XD)

Viewed from below of the display (left)

Plasma Television status indicators

The table below shows the operational status of the Plasma Television. You can check the current status of the system with the indicators on the Plasma Television.

Indicator Status System Status
Plasma Television
POWER ON	STANDBY
●	●	The power cord of the Plasma Television has been disconnected. Or the power cord of the Plasma Television has been connected but the POWER button of the Plasma Television is off.
●	●	Power to the system is on.
●	●	The system is in the standby mode.

For other than the above, see "Troubleshooting" on page 70.

Plasma Television (right side view)

Channel display

Changing channels

NOTE

• Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See "Controlling other equipment using the supplied remote control unit" on page 63.

Switching between the TV and DTV modes

• Press INPUT on the Plasma Television or TV/DTV on the remote control unit to select the DTV or TV input mode.

Using + / on the remote control unit

• Press P + to increase the channel number.
• Press P - to decrease the channel number.

When viewing Teletext information:

• Press P + to increase the page number.
• Press P - to decrease the page number.
• For Teletext, see "Using the Teletext Functions" on pages 68 and 69.

NOTE

• CHANNEL +/- on the Plasma Television operates the same as P+/P-
• P + / P - cannot pick up analogue channels that are set to skip. For Channel Skip for analogue channels, see steps 13 and 14 under "Using Manual Adjust" (page 28).
• When in the DTV mode, P + / P - also cannot pick up digital channels that are set to skip. For Channel Skip for digital channels, see "Setting Channel Options" (page 41).
• P + / P - cannot pick up analogue channels that are not registered as favourites. For analogue favourite channel registration, see steps 13 and 14 under "Using Manual Adjust" (page 28).
• When in the DTV mode, P + / P - also cannot pick up digital channels that are not registered as favourites. For digital favourite channel registration, see "Setting Channel Options" (page 41).

Using 0 to 9 on the remote control unit

Select channels directly by pressing buttons 0 to 9.

EXAMPLE

To select channel 2 (1-digit channel), press 2.
To select channel 12 (2-digit channel), press 1 then 2
While in DTV mode, to select channel 123 (3-digit channel), press 1, 2 then 3.

When viewing Teletext information:

View a page directly which is 3-digit page number from 100 to 899 by pressing buttons 0 to 9. See page 69.

NOTE

• In the standby mode, when you press 0, the power turns on and images come from the INPUT 1 source. Or, when you press any button from 1 to 9, TV images display.

Tuning to your favourite (analogue) channels

If you have registered your favourite (analogue) channels, selecting from the registered list may be the easiest way to tune to those channels.

NOTE

• You can register up to 16 analogue channels as your favourite channels. For the registration, see steps 13 and 14 under "Using Manual Adjust" (page 28).
  1 While watching analogue broadcasts, press ENTER to call up the Favourite Channel List.

2 Select a favourite channel to tune in ( / / ) ENTER).

• Press RETURN to exit the Favourite Channel List.

Changing the volume and sound

NOTE

• Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See "Controlling other equipment using the supplied remote control unit" on page 63.

Using + - on the remote control unit

To increase the volume, press +
To decrease the volume, press

NOTE

VOLUME + / - on the Plasma Television operates the same as + / -

Using on the remote control unit

mutes the current sound output.

1 Press 品
- "咪" appears on the screen.
2 Press again to cancel the mute mode.
- Pressing + also cancels the mute mode.

Plasma Television (right side view)

Volume adjustment

Muting

Using I-II on the remote control unit

Each time you press I-MTS toggles as shown below.

		Setting
				MONOIII
NICAM Broadcasts	Stereo	1 AAA NICAM STEREO 10:00	1 AAA NICAM STEREO 10:00	1 AAA MONO 10:00
	Bilingual	2 BBB NICAM I 10:00	2 BBB NICAM II 10:00	2 BBB MONO 10:00
	Monaural	3 CCC NICAM MONO 10:00	3 CCC NICAM MONO 10:00	3 CCC MONO 10:00
A2 Broadcasts	Stereo	4 DDD STEREO 10:00	4 DDD STEREO 10:00	4 DDD MONO 10:00
	Bilingual	5 EEE DUAL I 10:00	5 EEE DUAL II 10:00	5 EEE MONO 10:00
	Monaural	6 FFF MONO 10:00	6 FFF MONO 10:00	6 FFF MONO 10:00
Digital Broadcasts		7 GGG STEREO 10:00	7 GGG STEREO 10:00	7 GGG MONO 10:00

NOTE

In each of the sound multiplex mode selected using the I- I button, the display changes depending on broadcasting signals being received.
- Once the MONO mode is selected, the Plasma Television sound remains mono even if the system receives a stereo broadcast. You must switch the mode back to I or II mode if you want to hear stereo sound again.
- Selecting a sound multiplex mode while the input source is INPUT 1 to 5 does not change the type of sound. In this case, sound is determined by the video source.

Use the multiscreen functions

Splitting the screen

Use the following procedure to select 2-screen or picture-in-picture mode.

NOTE

• Displaying a split screen for a long period of time, or for shorter periods of time everyday, may result in image retention.

2-screen
Main screen Sub screen

Picture-in-picture
Main screen Sub screen

1 Press to select the display mode.

Each time you press , the display mode is switched among 2-screen, picture-in-picture, and single-screen.
- In 2-screen or picture-in-picture mode, press switch the position of the 2 screens shown. The left screen (in the 2-screen mode) or the larger screen (in the picture-in-picture mode) is the active screen which will be indicated by "▶". The user is allowed to operate picture and sound.

• In 2-screen mode, press to change the size of the left screen.
• In picture-in-picture mode, press move the position of the small screen anti-clockwise.

2 To select the desired input source, press the appropriate input source button.

• If watching TV programmes, press P+/P-to change the channel.

NOTE

• The multiscreen function cannot display images from the same input source at the same time. If you make such an attempt, a warning message appears.

• The multiscreen function cannot display images from combinations of two external input sources (Input 1 to 5, PC). It can display images from the following combinations of input sources.

• Analogue TV and digital TV

• Analogue TV (or digital TV) and external source (Input 1 to 5, PC)

• When you press HOME MENU the single-screen mode is restored and the corresponding menu is displayed.

• When in the 2-screen mode, images displayed on the right screen may look less fine, depending on the images.
• While in the 2-screen or picture-in-picture mode, the analogue favourite channel list is not available. While in the 2-screen or picture-in-picture mode, the digital channel list is not available.
• If you select 1920*1080p@24 Hz for the main screen in the 2-screen or picture-in-picture mode, video images may not be displayed properly because of the system's capability.
• With headphones connected, you can listen to audio coming from the sub screen when in the 2-screen or picture-in-picture mode. For more information, see page 36.
  PAL 60 signals are not suited for image display on the Sub screen.

Freezing images

Use the following procedure to capture and freeze one frame from a moving image that you are watching.

NOTE

• Displaying a static image for a long period of time, or for shorter periods of time everyday, may result in image retention.

1 Press

• A still image appears on the right screen while a moving image is shown on the left screen.

2 Press again to cancel the function.

NOTE

• You cannot freeze the picture when using the 2-screen or picture-in-picture mode.
• When this function is not available, a warning message appears.
• Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See "Controlling other equipment using the supplied remote control unit" on page 63.

Using the menu

AV mode menus

Home Menu Item Page
Picture AV Selection 31
	Contrast 31
	Brightness 31
	Colour 31
	Tint 31
	Sharpness 31
	Pro Adjust 32-34
	Reset 32
Sound	Treble	35
	Bass	35
	Balance	35
	Reset 35
	FOCUS 35
	Front Surround	35
	Headphone Output	36
	Sub Volume	36
Power Control	Energy Save	36
	No Signal off	36
	No Operation off	37
Sleep Timer	—	55
Option	Position	51
	Auto Size	54
	4:3 Mode	54
	Side Mask	54
	HDMI Input	58
	Drive Mode	51
	Colour System	52
	Input Select	52
Setup	Auto Installation	28
	Analogue TV Setup	28-30
	DTV Setup 39-44, 48,	49
	SCART Output	61
	I/o link.A	59
	Password	55, 56
	Language	30

PC mode menus

Home Menu Item Page
Picture AV Selection 31
	Contrast 31
	Brightness 31
	Red	31
	Green	31
	Blue	31
	Reset 32
Sound	Treble	35
	Bass	35
	Balance	35
	Reset 35
	FOCUS 35
	Front Surround	35
	Headphone Output	36
	Sub Volume	36
Power Control	Energy Save	36
	Power Management	37
Sleep Timer	——	55
Option	Auto Setup	51
	Manual Setup	51

Menu operations

The following describes the typical procedure for setting up the menus. For the actual procedures, see the appropriate pages that describe individual functions.

1 Press HOME MENU.

2 Press / to select a menu item, and then press ENTER.

3 Repeat step 2 until you access the desired submenu item. The number of menu layers differs depending on the menu items.

4 Press / select an option (or parameter), and then press ENTER.

For some menu items, press instead of /.

5 Press HOME MENU to exit the menu.

NOTE

• You can return to the upper menu levels by pressing RETURN.
• Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See "Controlling other equipment using the supplied remote control unit" on page 63.

Setting up TV channels automatically

This section describes how to automatically search for and set up TV channels.

Using Auto Installation

When the Plasma Television is switched on for the first time after purchase, the initial auto installation is initiated. You can automatically set language, country and channels in successive operations.

1 Select "Language"(/)
2 Select a language ()

• You can select from among 16 languages; English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian, Turkish, Norwegian, Danish, Czech, and Polish.

3 Select "Country"(/)
4 Select the country ()
5 Select "Tuner Type"(/)
6 Select a tuner type (/)

• You can select among 3 options; "All", "Digital", and "Analogue".

7 Select "Aerial Power" (/)
- Only selectable when "Digital" or "All" is selected for "Tuner Type" in step 5. If not go to step 9.
8 Select "On" or "Off" (/)
9 Select "Start" (▲/▼ then ENTER).
- Auto Installation automatically starts.
- To quit Auto Installation in progress, press RETURN.

NOTE

• You can start Auto Installation from the Home menu after moving to another country, for example. Perform the following steps 1 to 3 before starting Auto Installation.
  ①Press HOME MENU.

② Select "Setup" (▲/▼ then ENTER).
③ Select "Auto Installation" (▲/▼ then ENTER).

• The password entry screen appears. Enter your 4-digit password using buttons 0 to 9.

If no channel is found, check the antenna connections, and then retry Auto Installation.

Setting up analogue TV channels manually

This section describes how to set up analogue TV channels manually.

Using Manual Adjust

Use Manual Adjust to set up analogue TV channels manually.

1 Press HOME MENU.

2 Select "Setup" (↑/↓ then ENTER).
3 Select "Analogue TV Setup" (▲/▼ then ENTER).

• The password entry screen appears. Enter your 4-digit password using buttons 0 to 9. For the password, see "Using a password" on page 55.

4 Select "Manual Adjust" (▲/▼ then ENTER).

5 Select "Programme Entry"(/)

6 Select a programme number(/)

• You can select 1 through 99.

7 Select "Search"(/)

8 Enter a frequency using buttons 0 to 9 and ENTER.

• You can also press enter a frequency.

9 Select "System"(/)

10 Select a sound system (A).

• You can select from among "B/G", "D/K", "I", "L", and "L".

11 Select "Colour System" (A).
12 Select a colour system (A).

• You can select from among "Auto", "PAL", "SECAM", and "4.43NTSC".

13 Select "Store" (A)
14 Select "Yes", "Yes (Listed)", or "No" (▲).

Item Description

Yes	You can select the channel using P+/P-
Yes (Listed)	Select this option to register the channel as your favourite channel. You can select the channel using the Favourite Channel list and P+/P-
No	You cannot select the channel using P+/P-

• To set up for another channel, repeat steps 6 to 14.

15 Press HOME MENU to exit the menu.

NOTE

The above procedure transfers and sets the selected channel information to the connected recording equipment such as a VCR or DVD/HDD recorder (DVR).
- Manual Adjust also allows you to make selections for "Tuner NR", "Child Lock", and "Decoder". See "Reducing video noise", "Setting Child Lock", and "Selecting a decoder input terminal".

Reducing video noise

For the individual channels, you can specify whether the Plasma Television should reduce video noise depending on the levels of broadcasting signals.

1 Repeat steps 1 to 6 provided for "Using Manual Adjust".

After selecting a channel (using Programme Entry), perform the following steps.

2 Select "Tuner NR"(/)

3 Select "On" or "Off"(/)

4 Press HOME MENU to exit the menu.

NOTE

• This function may not achieve a satisfactory result, depending on the conditions of broadcasting signals.
• When using a decoder with a decoder terminal selected, this function may fail to achieve a good result.

Setting Child Lock

Child Lock inhibits selected TV channels from being tuned and watched.

1 Repeat steps 1 to 6 provided for "Using Manual Adjust". After selecting a channel (using Programme Entry), perform the following steps.
2 Select "Child Lock"(/)
3 Select "Block"(/)

The selection is switched between "View" and "Block".

4 Press HOME MENU to exit the menu.

Selecting a decoder input terminal

If you have connected a decoder, select a decoder input terminal (INPUT1).

1 Repeat steps 1 to 6 provided for "Using Manual Adjust". After selecting a channel (using Programme Entry), do the following steps.
2 Select "Decoder" (/)
3 Select "INPUT1"(/)

4 Press HOME MENU to exit the menu.

NOTE

• With "Off" (factory default) selected, you cannot watch any images from the decoder.

Labeling TV channels

You can name TV channels that you have set up, using up to five characters. This may help you easily identify the channels during selections.

1 Press HOME MENU.

2 Select "Setup" (▲/▼ then ENTER).
3 Select "Analogue TV Setup" (+/− then ENTER).

• The password entry screen appears. Enter your 4-digit password using buttons 0 to 9.

4 Select "Label" (▲/▼ then ENTER).
5 Select "Programme Entry" (/)
6 Select a programme number (/)

• You can select 1 through 99.

7 Select "Label" (+/ then ENTER).

The name entry screen appears.

8 Select the first character ( / , / then ENTER).

The cursor moves to the second character.

9 Repeat step 8 to enter up to five characters.
- To correct entered characters, select [] or [] on the screen, and then press ENTER. The cursor moves to the preceding or subsequent character.
- To delete the current character, select [Delete] on the screen, and then press ENTER.
- To put a space for the current character, select [Space] on the screen, and then press ENTER.
10 To complete the name entry, press OK on the screen, and then press ENTER.
11 Press HOME MENU to exit the menu.

NOTE

The above procedure transfers and sets the selected channel information to the connected recording equipment such as a VCR or DVD/HDD recorder (DVR).

Sorting preset TV channels

Use the following procedure to change the sequence of the preset TV programmes.

1 Press HOME MENU.
2 Select "Setup" (▲/▼ then ENTER).
3 Select "Analogue TV Setup" (▲/▼ then ENTER).

The password entry screen appears. Enter your 4-digit password using buttons 0 to 9.

4 Select "Sort" ( 一 & 一 一 & 一 ) then ENTER).
The sort screen appears.

5 Select a channel to be shifted ( / , / then ENTER).
6 Select a new location ( / , / then ENTER).

• Sorting is executed.

7 Press HOME MENU to exit the menu.

NOTE

• To change a page on the Sort screen in step 6, select / on the screen with to select a page, and then press ENTER.
  The above procedure transfers and sets only the shifted channel information to recording equipment such as a VCR or DVD/HDD recorder (DVR).

Language setting

You can select the language to be used for on-screen display such as menus and instructions, from among 16 languages; English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian, Turkish, Norwegian, Danish, Czech, and Polish.

For the language to be used in the TELETEXT mode, you can select from among West Europe, East Europe, Greece/Turkey, Cyrillic, and Arabia.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Language" (▲/▼ then ENTER).
4 Select "Menu"(/)
5 Select a language (一 +

6 Select "Teletext"(/)
7 Select a language ()
8 Press HOME MENU to exit the menu.

AV Selection

Select from the six viewing options, depending on the current environment (e.g., room brightness), the type of the current TV programme, or the type of images input from external equipment.

1 Press HOME MENU
2 Select "Picture" (▲/▼ then ENTER).
3 Select "AV Selection" (▲/▲ then ENTER).
4 Select the desired option ( / then ENTER).

For AV source

Item Description

STANDARD For a highly defined image in a normally bright room This selection is shared by an external input and TV input sources.

DYNAMIC For a very sharp image with the maximum contrast This mode does not allow manual image quality adjustment. This selection is shared by an external input and TV input sources.

MOVIE For a movie This selection is shared by an external input and TV input sources.

GAME Lowers image brightness for easier viewing This selection is shared by an external input and TV input sources.

SPORT For a sport programme This selection is shared by an external input and TV input sources.

USER Allows the user to customize settings as desired. You can set the mode for each input source.

For PC source

Item Description

STANDARD (factory default)	For a highly defined image in a normally bright room
USER Allows the user to customize settings as desired. You can set the mode for each input source.

5 Press HOME MENU to exit the menu.

NOTE

• If you have selected "DYNAMIC", you cannot select "Contrast", "Brightness", "Colour", "Tint", "Sharpness", "Pro Adjust", and "Reset"; these menu items are dimmed.

Basic picture adjustments

Adjust the picture to your preference for the chosen AV Selection option (except DYNAMIC).

1 Press HOME MENU.
2 Select "Picture" (▲/▼ then ENTER).
3 Select an item to be adjusted ( / then ENTER).

For PC source, the following screen appears.

4 Select the desired level (/)

• When an adjustment screen is in display, you can also change the item to be adjusted, by pressing .

5 Press HOME MENU to exit the menu.

For AV source

Item	← button button	→
Contrast For less contrast For more contrast
Brightness	For less brightness	For more brightness
Colour	For less colour intensity	For more colour intensity
Tint	Skin tones become purplish	Skin tones become greenish
Sharpness	For less sharpness	For more sharpness

For PC source

Item	← button button →
Contrast For less contrast For more contrast
Brightness For less brightness For more brightness
Red For weaker red For stronger red
Green For weaker green For stronger green
Blue For weaker blue For stronger blue

NOTE

To perform advanced picture adjustments, select "Pro Adjust" in step 3 and then press ENTER. For the subsequent procedures, see "Advanced picture adjustments".
To restore the factory defaults for all items, press select "Reset" in step 3, and then press ENTER. A confirmation screen appears. Press to select "Yes", and then press ENTER.

Advanced picture adjustments

The Plasma Television provides various advanced functions for optimizing the picture quality. For details on these functions, see the tables.

Using PureCinema

1 Press HOME MENU.
2 Select "Picture" (▲▼ then ENTER).
3 Select "Pro Adjust" (▲/▼ then ENTER).
4 Select "PureCinema" (▲/▼ then ENTER).
5 Select the desired parameter (/ then ENTER).

• For the selectable parameters, see the table.

Automatically detects a film-based source (originally encoded at 24 frames/second), analyzes it, then recreates each still film frame for high-definition picture quality.

PureCinema

Selections Off Deactivates the PureCinema.
Standard	Produces smooth and vivid moving images (film specific) by automatically detecting recorded image information when displaying DVD or high-definition images (e.g., movies) having 24 frames per second.
ADV	Produces smooth and quality moving images (as shown on theatre screens) by converting to 72 Hz when displaying DVD images (e.g., movies) having 24 frames per second.

NOTE

"Standard" is not selectable when 480p or 720p@60 Hz signals are input.
- "ADV" is not selectable when PAL, SECAM, 576i, or 1080i@50 Hz signals are input.
- Neither "Standard" nor "ADV" is selectable when 576p, 720p@50 Hz, or 1080p@24 Hz signals are input.

Using Colour Temp

1 Press HOME MENU.

2 Select "Picture" (/ then ENTER).
3 Select "Pro Adjust" (▲/▼ then ENTER).
4 Select "Colour Detail" (▲/▼ then ENTER).
5 Select "Colour Temp" (▲▼ then ENTER).
6 Select the desired parameter (/ then ENTER).

• If you have selected a desired parameter in this step, skip steps 7 and 8.
• You may rather want to perform fine adjustment. To do this, select "Manual" first and then press and hold ENTER for more than three seconds. The manual adjustment screen appears. Then go to step 7.

Adjusts the colour temperature, resulting in a better white balance.

Colour Temp

Selections High	White with bluish tone
Mid-High	Intermediate tone between High and Mid
Mid	Natural tone
Mid-Low	Intermediate tone between Mid and Low
Low	White with reddish tone
Manual	Colour temperature adjusted to your preference

7 Select an item to be adjusted ( / ) then ENTER).
8 Select the desired level ()

Item		← button	→ button
R High	Fine adjustment for bright portions	For weaker red	For stronger red
G High		For weaker green	For stronger green
B High		For weaker blue	For stronger blue
R Low	Fine adjustment for dark portions	For weaker red	For stronger red
G Low		For weaker green	For stronger green
B Low		For weaker blue	For stronger blue

To perform adjustment for another item, press RETURN and then repeat steps 7 and 8.
- You may press immediately change an item to be adjusted.

9 Press HOME MENU to exit the menu.

Using CTI

1 Press HOME MENU.
2 Select "Picture" (▲/▼ then ENTER).
3 Select "Pro Adjust" (▲/▼ then ENTER).
4 Select "Colour Detail" (▲/▼ then ENTER).
5 Select "CTI" (/thENTER).

6 Select the desired parameter ( / ) then ENTER).

CTI

Provides images with clearer colour contours. The CTI stands for Colour Transient Improvement.

Selections Off Deactivates CTI.

On Activates CTI.

7 Press HOME MENU to exit the menu.

Using Colour Management

1 Press HOME MENU

2 Select "Picture" ( / then ENTER).
3 Select "Pro Adjust" (▲/▼ then ENTER).
4 Select "Colour Detail" (▲/▼ then ENTER).
5 Select "Colour Management" (▲/▼ then ENTER).
6 Select an item to be adjusted ( / then ENTER).

7 Select the desired level (一)

Item

按钮 button

R Closer to magenta Closer to yellow

Y Closer to red Closer to green

6 Closer to yellow Closer to cyan

C Closer to green Closer to blue

B Closer to cyan Closer to magenta

M Closer to blue

Closer to red

To perform adjustment for another item, press RETURN and then repeat steps 6 and 7.
- You may press immediately change an item to be adjusted.

8 Press HOME MENU to exit the menu.

Using Colour Space

1 Press HOME MENU.
2 Select "Picture" (▲▼ then ENTER).
3 Select "Pro Adjust" (▲/▼ then ENTER).
4 Select "Colour Detail" (▲/▼ then ENTER).
5 Select "Colour Space" (▲/▼ then ENTER).
6 Select the desired parameter (/ then ENTER).

Colour Space

Changes the colour reproduction space.

Selections 1 Optimized for vivid, vibrant colour reproduction

2 Standard colour reproduction

7 Press HOME MENU to exit the menu.

Using Intelligent Colour

1 Press HOME MENU.
2 Select "Picture" (▲▼ then ENTER).
3 Select "Pro Adjust" (▲/▼ then ENTER).
4 Select "Colour Detail" (▲/▼ then ENTER).
5 Select "Intelligent Colour" (+/− then ENTER).
6 Select the desired parameter ( / ) then ENTER).

Intelligent Colour

Performs such compensation that results in the optimum colour tones for images.

Selections Off Deactivates Intelligent Colour

On Activates Intelligent Colour.

7 Press HOME MENU to exit the menu.

Eliminating noise from images

1 Press HOME MENU.
2 Select "Picture" (▲/▼ then ENTER).
3 Select "Pro Adjust" (▲/▼ then ENTER).
4 Select "NR" (▲/▼ then ENTER).
5 Select an item to be adjusted ( / then ENTER). You can select "DNR", "MPEG NR" or "BNR".
6 Select the desired parameter (/ then ENTER).

DNR

Eliminates video noise for clean crisp images. The DNR stands for Digital Noise Reduction.

Selections Off Deactivates DNR.

High

Enhanced DNR

Mid

Standard DNR

Low

Moderate DNR

MPEG NR

Eliminates mosquito noise from video images when a digital TV channel is watched or a DVD is played, resulting in noise-free images.

Selections Off Deactivates MPEG NR.

High Enhanced MPEG NR

Mid Standard MPEG NR

Low Moderate MPEG NR

BNR

Helps reduce noise appearing in high-definition images. The BNR stands for Block Noise Reduction.

Selections Off Deactivates BNR.

On Activates BNR.

7 Press HOME MENU to exit the menu.

Using the Dynamic Range Expander (DRE) functions

1 Press HOME MENU.
2 Select "Picture" (/ then ENTER).
3 Select "Pro Adjust" (▲/▼ then ENTER).
4 Select "DRE" (+/▼ then ENTER).
5 Select an item to be adjusted ( / then ENTER).

• You can select "Dynamic Contrast", "Black Level", "ACL", "Gamma" or "Intelligent DRE".

6 Select the desired parameter (/ then ENTER).

Dynamic Contrast

Emphasizes the contrast on images so that the difference between brightness and darkness becomes more distinct.

Selections Off Deactivates Dynamic Contrast.

High Enhanced Dynamic Contrast

Mid Standard Dynamic Contrast

Low Moderate Dynamic Contrast

Black Level

Emphasizes dark portion on images so that the difference between brightness and darkness becomes more distinct.

Selections Off Deactivates Black Level

On Activates Black Level.

ACL

Performs such compensation that results in the optimum contrast characteristics for images.

Selections Off Deactivates ACL

On Activates ACL.

Gamma

Adjusts the gamma characteristics (image gradation characteristics).

Selections 1 Selects gamma characteristics 1.

2 Selects gamma characteristics 2.

3 Selects gamma characteristics 3.

Intelligent DRE

Optimizes image quality.

Selections Off Deactivates Intelligent DRE.

On Activates Intelligent DRE.

7 Press HOME MENU to exit the menu.

Using the 3DYC and I-P Mode

1 Press HOME MENU.
2 Select "Picture" ( / then ENTER).
3 Select "Pro Adjust" (▲/▼ then ENTER).
4 Select "Others" (▲/▼ then ENTER).
5 Select an item to be adjusted ( / then ENTER).

• You can select "3DYC" or "I-P Mode".

6 Select the desired parameter ( / then ENTER).

3DYC

Optimizes characteristics for separating brightness signals and colour signals. This works for both video and still images.

Selections Off Deactivates 3DYC.

High Enhanced 3DYC

Mid Standard 3DYC

Low Moderate 3DYC

I-P Mode

Performs optimum conversion from interlace signals to progressive signals. This works for both video and still images.

Selections 1 Optimum for video images

2 Standard setting

3 Optimum for still images

7 Press HOME MENU to exit the menu.

NOTE

• For the 3DYC, the individual parameters are selectable only when:
  You have selected INPUT 1, 2, or 3 as the input source and "Video" as the input signal type (page 52); or
  You have selected INPUT 5 as the input source without a S-Video cable in connection; or
  You have selected the analogue tuner.
• The 3DYC setting is ineffective when SECAM, PAL60, or 4.43NTSC signals are input.
  For the I-P Mode, the individual parameters are not selectable for the following input signals: 480p, 720p@60 Hz, 576p, 720p@50 Hz, 1080p@24 Hz

Sound adjustments

You can adjust the sound quality to your preference with the following settings.

Adjust the sound to your preference for the chosen AV Selection option. See page 31.

1 Press HOME MENU.
2 Select "Sound" ( / then ENTER).
3 Select an item to be adjusted (广)广
4 Select the desired level ()

Item

按钮 button

Treble For weaker treble For stronger Ireble

Bass For weaker bass For stronger bass

Balance Decreases audio from the right speaker.

Decreases audio from the left speaker.

5 Press HOME MENU to exit the menu.

NOTE

To restore the factory defaults for all items, press t select "Reset" in step 3, and then press ENTER. A confirmation screen appears. Press to select "Yes", and then press ENTER.
- You cannot adjust the sound quality for listening with phones.
- If you perform sound adjustments with phones connected, the new settings will become effective for sound from the speakers after the phones are disconnected.

FOCUS

This shifts the sound coming direction (sound images) upward and produces clear sound contours.

1 Press HOME MENU.
2 Select "Sound" (▲/▼ then ENTER).
3 Select "FOCUS"(/)

4 Select the desired parameter (/)

Item Description

Off Deactivates the FOCUS.

On Activates the FOCUS.

5 Press HOME MENU to exit the menu.

NOTE

The effect of this function differs depending on signals.
- You cannot set up the sound field for listening with phones.
- If you set up the sound field with phones connected, the new setting will become effective for sound from the speakers after the phones are disconnected.

Front Surround

This provides three-dimensional sound effects and/or deep, rich bass.

1 Press HOME MENU.
2 Select "Sound" (▲▼ then ENTER).
3 Select "Front Surround" (/)
4 Select the desired parameter (/)

Item Description

Off	Deactivates both the SRS and TruBass.
SRS	Reproduces highly effective three-dimensional sound.
TruBass (factory default)	Provides deep, rich bass using a new technology.
TruBass + SRS	Provides both TruBass and SRS effects.

5 Press HOME MENU to exit the menu.

NOTE

• SRSCN) designates a status where the FOCUS is on and TruBass + SRS has been selected for Front Surround.
  SRS (endemark of SRS Labs, Inc.
• WOW technology is incorporated under license from SRS Labs, Inc.
  The effect of this function differs depending on signals.
• You cannot set up the sound field for listening with phones.
• If you set up the sound field with phones connected, the new setting will become effective for sound from the speakers after the phones are disconnected.

Listening to audio from the sub screen using headphones

With headphones connected, you can listen to audio coming from the sub screen when in the 2-screen or picture-in-picture mode; audio coming from the main screen is output from the speakers. To use this function, follow the procedure below.

1 Press HOME MENU.

2 Select "Sound" ( / then ENTER).
3 Select "Headphone Output" (/)
4 Select the desired parameter (/)

Item Description
Main (factory default)	Audio coming from the main screen is output from the PHONES output terminal.
Sub	When in the 2-screen or picture-in-picture mode, audio coming from the sub screen is output from the PHONES output terminal.

5 Select "Sub Volume"(/)
6 Select the desired volume level ()

7 Press HOME MENU to exit the menu.

NOTE

• To adjust the volume for headphones after selecting "Sub", always use the menu item (shown in the procedure) no matter whether the screen is in the single, 2-screen, or picture-in-picture mode. When the screen is in the single mode with "Sub" selected, audio coming from the screen is output from speakers even with headphones connected.
  Audio from a connected subwoofer is muted when you have selected "Sub" for "Headphone Output" and connected headphones.

Power Control

Power Control provides convenient functions for power saving.

Energy Save

You may use one of the three Energy Save modes to save power consumption.

1 Press HOME MENU.
2 Select "Power Control" (+/− then ENTER).
3 Select "Energy Save" (▲/▼ then ENTER).
4 Select "Save 1","Save 2", or "Picture Off" (/ ENTER).

Item Description

Standard Does not decrease the picture brightness.

Save1 Slightly lowers power consumption while slightly suppressing the brightness drop level.

Save2 Decreases the picture brightness and lowers power consumption.

Picture Off Deactivates the screen to save power. To restore
The screen display, press any button other than +/− and OK.
This setting is not memorized by the system.

5 Press HOME MENU to exit the menu.

NOTE

• You can also select this function using the Home menu when the input source is a PC.
• When you change the Energy Save mode, you may notice a change in the panel sound. This is normal.

No Signal off (AV mode only)

The system will be automatically placed into the standby mode if no signal is received for 15 minutes.

1 Press HOME MENU.
2 Select "Power Control" (▲/▼ then ENTER).
3 Select "No Signal off" (↑/↓ then ENTER).
4 Select "Enable" (▲▼ then ENTER).

Item Description

Disable Does not place the system into the standby (factory default) mode.

Enable Places the system into the standby mode if no signal is received for 15 minutes.

5 Press HOME MENU to exit the menu.

NOTE

• Five minutes before the system is placed into the standby mode, a message appears every minute.
  The system may not be placed into the standby mode when noise signals are present at the Plasma Television after a TV programme finishes.

No Operation off (AV mode only)

The system will be automatically placed into the standby mode when no operation is performed for three hours.

1 Press HOME MENU

2 Select "Power Control" (▲/▼ then ENTER).
3 Select "No Operation off" (▲/▼ then ENTER).
4 Select "Enable" (▲/▼ then ENTER).

Item Description

Disable (factory default)

Does not place the system into the standby mode.

Enable Places the system into the standby mode if no operation is performed for three hours.

5 Press HOME MENU to exit the menu.

NOTE

• Five minutes before the system is placed into the standby mode, a message appears every minute.

Power Management (PC mode only)

The system will be automatically placed into the standby mode when no signal is received from the personal computer.

1 Press HOME MENU.

2 Select "Power Control" (▲/▼ then ENTER).
3 Select "Power Management" (▲▼ then ENTER).
4 Select "Mode 1" or "Mode 2" (▲/▼ then ENTER).

Item Description

Off	No power management
(factory default)

Mode1 • Places the system into the standby mode when no signal is received from the personal computer for eight minutes.

Even when you start using the computer and a signal is received again, the system stays off.
- The system is switched on again by pressing STANDBY/ON on the Plasma Television or TV (O) on the remote control unit.

Mode2 · Places the system into the standby mode when no signal is received from the personal computer for eight seconds.

• When you start using the computer and a signal is input again, the system is switched on.
• The system is switched on again by pressing STANDBY/ON on the Plasma Television or TV (d) on the remote control unit.

5 Press HOME MENU to exit the menu.

Watching DTV programmes

Digital TV (DTV) not only replaces the conventional analogue TV channels, but also provides more channels, clearer picture quality, and various types of useful information. It also provides various features, including subtitling and multiple audio tracks.

CAUTION

• The compatibility of this product with digital terrestrial services has been fixed - details described in the product specifications - at the time of its introduction.

NOTE

• When executing Auto Installation (page 28), make sure to select "Digital" or "All" as the tuner type.
• Selecting the DTV mode when no channels yet searched will only display "DTV Setup" screen with only the item "Installation" selectable.
  While in the DTV mode, press to display the Teletext screen (except in UK).

Changing channels

1 Press TV/DTV to select the DTV mode.
2 Press ENTER to call up the Channel List screen.

3 Select a channel ( / then ENTER).

• You can also select channels by pressing buttons 0 to 9 or P + / P - on the remote control unit.

NOTE

While in DTV mode, press 001 to access channel 1 (1-digit channel) quickly. You can, however, select the channel 1 by pressing 01 or 1 but have to wait for 2 seconds since the last digit input. The same applies for 2-digit channels.
- P + / P - cannot pick up channels that are set to skip or not registered as favourites (with the Favourite function set to "On". For favourite channels, see page 41.).
If the channel is locked, you must enter the correct password each time (see page 55).
- While receiving DTV radio channels, the screen saver automatically starts when no operation is done for 3 minutes.

Viewing a channel banner

A channel banner shows programme names, start/end time of programmes and other channel information.

1 Press TV/DTV to select the DTV mode.
2 Press 1 +

A channel banner appears.

To display information about other channels, press /
To tune into the channel selected on the banner, press ENTER.
- The channel banner also displays icons for Favourites (↓), Subtitles (○) and Teletext (◎) if they apply to the selected channel.
- To quit banner display, press EXIT.

3 To view more detailed programme information, press + again.

To switch between Now and Next programme information, press
To display detailed information about other channels, press /
To tune into the channel selected on the banner, press ENTER.
To quit display of detailed information, press RETURN.
To quit display of all the banners, press EXIT.
- If the banner contains further information, "More" is displayed. Press the BLUE button to view the entire information.

NOTE

• Banner information is updated every minute.
• Some programmes may not provide detailed programme information.
• Due to inaccurate information provided by the broadcaster, some icons may appear or be absent in error.

Viewing subtitles

When in the DTV mode, press to turn subtitles on and off.

Subtitles On

NOTE

• When a programme is recorded with this function on, subtitles are also recorded.

Reconfiguring the DTV channel settings

This section describes how to reconfigure the DTV channel settings after setting up DTV channels using Auto Installation (page 28). You can select "DTV Setup" only when watching DTV channels.

Reselecting a country

1 Press HOME MENU

2 Select "Setup" (+/ then ENTER).
3 Select "DTV Setup" (▲/▼ then ENTER).
4 Select "Installation" (▲/▼ then ENTER).

The password entry screen appears. Enter your 4-digit password using buttons 0 to 9.

5 Select "Country"(/)
6 Select a country (一)

NOTE

• The password entry screen does not appear if you have disabled the password function. For details, see "Using a password (AV mode only)" on page 55.
• You can select "DTV Setup" only when watching DTV channels.

Replacing the existing channels

The following procedure discards the current DTV channel setups and searches for receivable channels to redo the channel setups.

1 Press HOME MENU
2 Select "Setup" ( / then ENTER).
3 Select "DTV Setup" (▲/▼ then ENTER).
4 Select "Installation" ( / then ENTER).

The password entry screen appears. Enter your 4-digit password using buttons 0 to 9.

5 Select "Replace Existing Channels" (▲/▼ then ENTER).

The system first erases all channel information and then starts channel search.

• To quit a channel search in progress, press HOME MENU.

NOTE

To complete "Replace Existing Channels", there must be more than 1 hour at least left to the next preset recording on preset Auto Update time.
- The password entry screen does not appear if you have disabled the password function. For details, see "Using a password (AV mode only)" on page 55.
- You can select "DTV Setup" only when watching DTV channels.

Adding new channels

Use the following procedure to search and register new channels with the current DTV channel setups saved.

1 Press HOME MENU.

2 Select "Setup" (+/ then ENTER).
3 Select "DTV Setup" (▲/▼ then ENTER).
4 Select "Installation" (+/ then ENTER).

The password entry screen appears. Enter your 4-digit password using buttons 0 to 9.

5 Select "Add New Channels" (▲/▼ then ENTER).

• Channel search automatically starts. If any new channel is found, it is automatically registered on the Plasma Television.

- To quit a channel search in progress, press HOME MENU.

NOTE

• The password entry screen does not appear if you have disabled the password function. For details, see "Using a password (AV mode only)" on page 55.
• You can select "DTV Setup" only when watching DTV channels.

Checking signal strength

You can check the signal strength and signal quality of each TV channel.

1 Repeat steps 1 to 4 provided for "Adding New Channels".
2 Select "Signal Check" (▲/▼ then ENTER).
3 Select "RF Channel" (▲/▼ then ENTER).
4 Select the channel to be checked (/

- Use "Add New Channels" function here to add channels within the selected RF channel (receiving frequency).

NOTE

• You can select "DTV Setup" only when watching DTV channels.

Switching on/off the power to the antenna

Use the following procedure to switch on or off the power to the antenna connected with the DTV antenna terminal.

1 Repeat steps 1 to 4 provided for "Adding New Channels".
2 Select "Aerial Power"(/)

3 Select "On" or "Off" (/)

NOTE

• You can select "DTV Setup" only when watching DTV channels.

Restoring the system defaults

Use this function only when you wish to reset all the DTV settings to the factory defaults.

1 Press HOME MENU.
2 Select "Setup" (▲/▼ then ENTER).
3 Select "DTV Setup" (▲/▼ then ENTER).
4 Select "Installation" ( / then ENTER).
- The password entry screen appears. Enter your 4-digit password using buttons 0 to 9.
5 Select "Restore System Defaults" (▲/▼ then ENTER).
- A confirmation screen appears.
6 With "OK" pressed, the system restores the factory defaults. Then Auto Installation is initiated automatically.

NOTE

• The password entry screen does not appear if you have disabled the password function. For details, see "Using a password (AV mode only)" on page 55.
• You can select "DTV Setup" only when watching DTV channels.

Customizing channel related settings

This section describes how to customize various channel related settings. These settings include favourite channel registration, Channel Skip, and Channel Lock.

Setting Channel Options

Use the following procedure to select individual channels and switch on the Favourite, Channel Skip, or Channel Lock for the channels.

1 Press HOME MENU

2 Select "Setup" (↑/↓ then ENTER).
3 Select "DTV Setup" (▲/▼ then ENTER).
4 Select "Channel Management" (▲/▼ then ENTER).

The password entry screen appears. Enter your 4-digit password using buttons 0 to 9.

5 Select "Channel Options" (/ then ENTER).
- The Channel options screen with a list of registered channels appears.

6 Select an individual channel ( / / ) then ENTER to select on/off).

• Select "On" for Favourites if you want the channel to be registered as your favourite (digital) channels. Selecting from the registered list may be the easiest way to tune to those channels.
• Select "On" for Channel Skip if you want the channel to be skipped when operating P + / P - on the remote control unit or CHANNEL +/- on the Plasma Television.
• Select "On" for Channel Lock if you want the channel not to be tuned without password entry.

7 After the setting is complete, make sure to complete the following steps.

• If you have registered any channel as your favourite one, see "Activating the Favourites function" and activate the Favourites function.
• If you have selected any channel for Channel Lock, set "Using a password (AV mode only)" on page 55 and set an appropriate 4-digit password.

NOTE

• The password entry screen does not appear if you have disabled the password function. For details, see "Using a password (AV mode only)" on page 55.
• You can select "DTV Setup" only when watching DTV channels.

Activating the Favourites function

Make sure to activate this function after favourite channels are registered.

1 Repeat steps 1 to 4 provided for "Setting Channel Options".

2 Select "Favours" (/)

3 Select "On"(/)

• With favourite channels registered, you can select them using P + / P on the remote control unit or CHANNEL + on the Plasma Television.

NOTE

• You can select "DTV Setup" only when watching DTV channels.

Activating the Auto Skip

This function lets you skip group of services, such as radio and text data services.

1 Repeat steps 1 to 4 provided for "Setting Channel Options".
2 Select "Auto Skip"(/)

3 Select a channel to skip ()

• You can select from among "Off", "Radio", "Data" or "Both".

NOTE

"Auto Skip" function lets you skip "group" of services such as radio and text data. On the other hand, individual channel settings set to skip in "Channel Options" screen will not be affected by this setting.
- You can select "DTV Setup" only when watching DTV channels.

Setting the Child Lock

With this function, parents can prevent their children from watching age-restricted TV programmes. This function becomes effective depending on the country selected for channel setup. You can specify an age limit in the range from 4 and 18, so that the password has to be entered to watch TV programmes that match the specified age limit.

1 Repeat steps 1 to 4 provided for "Setting Channel Options".
2 Select "Child Lock"(/)

3 Select an age limit (/)

• You can select 4 to 18, and "Off".
• With "Off" selected, password entry is not required no matter which age-restricted TV programme is selected.

Sorting preset DTV channels

Use the following procedure to change the sequence of the preset DTV channels.

1 Repeat steps 1 to 4 provided for "Setting Channel Options".
2 Select "Channel Sort" (▲/▼ then ENTER).

The Sort screen appears.

3 Select a channel to be shifted ( / / / ) then ENTER).

4 Select a new location ( / / / ) then ENTER).
- Sorting is executed.
5 Press HOME MENU to exit the menu.

NOTE

To change a page on the Sort screen in step 4, select / on the screen with / to select a page, and then press ENTER.
- You can select "DTV Setup" only when watching DTV channels.

Selecting a digital audio format

Use the following procedure to switch between the PCM and Dolby digital audio format.

1 Press HOME MENU.
2 Select "Setup" ( / then ENTER).
3 Select "DTV Setup" (▲/▼ then ENTER).
4 Select "User Preferences" (▲/▼ then ENTER).
5 Select "Digital Audio"(/)
6 Select "PCM" or "Dolby"(/)

NOTE

• You can select "DTV Setup" only when watching DTV channels.

Selecting languages for audio, subtitles, and teletext

You may manually configure language settings for audio, subtitles, and teletext.

1 Repeat steps 1 to 4 provided for "Selecting a digital audio format".
2 Select "Language Settings" (▲/▼ then ENTER).
3 Select "Primary Audio", "Secondary Audio", "Primary Subtitle", "Secondary Subtitle" or "Teletext" (4)
4 Select a language (一)

NOTE

• The Plasma Television automatically selects the language based on the "Country" setting (page 28) when the selected language for audio, subtitle, or teletext is not available.
• You can select "DTV Setup" only when watching DTV channels.

Using Software Update

This function downloads and updates the system's software at the specified timing.

Using Auto Update

With this function on, the Plasma Television checks if updated software is available and then downloads it (as necessary). After this, the system executes Add New Channels operation (page 39). This series of operations are automatically executed at the specified time.

1 Press HOME MENU
2 Select "Setup" (↑/↓ then ENTER).
3 Select "DTV Setup" (▲/▼ then ENTER).
4 Select "Software Update" (▲/▼ then ENTER).
5 Select "Auto Update"(/)
6 Select "On"(/)

NOTE

• We recommend that you normally select "On".
• For Auto Update to start, there must be more than 1 hour left to the start of the next preset recording/watching.
• 60 seconds before the scheduled update, a message prompt appears asking if you want to carry out Auto Update or not. Auto Update automatically starts if "OK" is selected or no selection is made after 50 seconds.
• To quit an update in progress, press HOME MENU.
• You can select "DTV Setup" only when watching DTV channels.

Setting Update Time

You can set the time your Plasma Television performs Auto Update each day. To use this function, set "Auto Update" to "On" first.

1 Repeat steps 1 to 4 provided for "Using Auto Update".
2 Select "Set Update Time" (▲/▼ then ENTER).
3 Set a time for Auto Update ( / / / or 0 to 9).

Starting Manual Update

This function allows you to manually execute Software Update. If less than 1 hour is left to the next scheduled Auto Update or programmed recording/watching, Manual Update cannot be executed.

1 Repeat steps 1 to 4 provided for "Using Auto Update".
2 Select "Start Manual Update" (▲/▼ then ENTER).

NOTE

• For Manual Update to start, there must be more than 1 hour left to the start of the next preset recording/watching.
• For Manual Update to start, there must be more than 1 hour left to the start of Auto Update.
• You can select "DTV Setup" only when watching DTV channels.

Displaying technical information

Use this function to check the hardware/software version number.

1 Repeat steps 1 to 4 provided for "Using Auto Update".
2 Select "Technical Information" (▲/▼ then ENTER).

NOTE

• You can select "DTV Setup" only when watching DTV channels.

Using MHEG application (UK only)

Some stations bring you programmes with the MHEG (Multimedia and Hypermedia Expert Group) application encoded, letting you experience DTV interactively.

When provided, the MHEG application will start when you press any of the colour buttons or

NOTE

• This function is not available when subtitle is activated (see page 38).

Screen Saver

The screen saver automatically starts when no operation is performed for 3 minutes while receiving DTV radio channels.

NOTE

While the screen saver is active, you can perform the following operations:
- Press TV/DTV to switch to analogue TV.
- Press any other button to switch to the normal radio channel screen.
- Programme Timer is active while the screen saver is displayed.

Common Interface

To receive scrambled DTV signals you will need a CA module and a smart card provided by the service provider.

Although CA module types may vary depending on the manufacturer, each one of the CA modules supports a certain kind of encryption system. Your Plasma Television supports CA modules which are made to work with the DVB standard.

Contact a service provider for the right type of CA module.

Please note that a smart card may only be valid for a single service provider and due to this, a specific range of channels.

NOTE

• CA modules and smart cards are neither supplied nor optional accessories from PIONEER.

After inserting a card, leave it in the slot permanently. Do not remove it from the terminal unless asked to do so. For instance, your card has to be in the slot when your service provider wants to download new information to the smart card.

Installing a CA module and smart card

Common Interface slot is located at the rear of the Plasma Television.

1 Hold and push the tab of the slot cover on the rear of the Plasma Television leftward (a), and remove the cover while pulling the tab's latch downward (b).

2 Insert the specified CA module containing a smart card into the Common Interface slot as far as it will go.

Displaying information about the installed CA module

If you have installed a CA module in the Common Interface slot, you can display information about the CA module.

1 Press HOME MENU.
2 Press "Setup" (▲/▼ then ENTER).
3 Select "DTV Setup" (▲/▼ then ENTER).
4 Select "DVB-Cl Information" (▲/▼ then ENTER). (If there is no CA module installed, the "DVB-Cl Information" option is greyed out.)

EPG display format

The Electronic Programme Guide (EPG) shows the table of scheduled digital TV programmes and detailed information about individual programmes. It also allows you to easily select and tune to a desired programme.

The EPG Screen consists of the Programme Information, Channel List, and General Programme List. This section describes information to be displayed on the schedule and information windows.

NOTE

For digital TV programmes that do not provide EPG information, you cannot view the corresponding EPG information.
- If the current time has not been correctly set, there may be TV programmes whose EPG information is not displayed.

General programme list

1 Appears when the schedule table can be scrolled forward or backward.
2 Time schedule
3 Channel list
4 Highlights the currently selected channel.
5 Indicates the programme set for recording/watching.
6 Appears when other programmes (often short ones) have been scheduled for the same period.
7Programme title
8 Indicates the programme set for recording/watching (but another programme is set for recording in the same period).
9 Time dividers

Programme information

1 Channel number
2 Station name
3 Programme title
4 Appear when other programmes have been scheduled for the same period.
5 Programme schedule
6 Programme genre

NOTE

The general programme list may show sections whose bottom right corners have been folded. This indicates that other programmes have been scheduled for that period. To view the title of such a programme and related information, highlight a folded section, and then press .

Using the EPG

Use the following procedure to check the schedule of digital TV programmes, view information about desired programmes, and/or select programmes.

1 Press EPG.

The EPG screen appears.
The EPG screen updates automatically if the EPG data is acquired successfully. If not, the EPG screen shows a blank image.

2 Select a desired TV programme ( / 4/ 4

• Press P + / P - to skip to the next or previous channel list page.
  Information about the selected programme appears in the information window.
• To watch a programme currently on air, select the programme (then ENTER).
• You can check information about programmes scheduled up to 1 week ahead, depending on conditions.
  Depending on conditions, it may take some time to acquire EPG data.

3 To view more information (not currently displayed) about the selected programme, press 1 + .

• Detailed information appears in the schedule window.
• If the screen contains further information, "More" is displayed. Press the BLUE button to view the entire information.
  To quit the display of detailed information, press i+ again (or RETURN).

4 To quit the Programme Guide, press EPG again.

NOTE

The general programme list does not show finished programmes.
- Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See "Controlling other equipment using the supplied remote control unit" on page 63.

Presetting TV programmes using the EPG

Using the EPG, you can easily preset digital TV programmes for watching (auto channel select) and recording later.

You must also adjust your recording equipment settings to record the programme. Refer to the operation manual provided with your recording equipment.

Using auto channel select and standby recording

With the power to the system left on, this function automatically selects a preset TV programme when its on-air time comes. That way you will not miss the start of an important TV programme because you were enjoying another TV programme.

Even if the system is in the standby mode when the preset TV programme's on-air time comes, the Plasma Television wakes up and outputs AV signals for recording.

1 Press EPG.

The EPG screen appears.

2 Select a programme to be preset ( / , / then ENTER).

• Select a programme not yet started.
• A setup menu appears.
• Select a programme currently on-air (then ENTER): The EPG screen closes and a channel is tuned in.
• Select a programme currently on-air (then GREEN): The programme can be set for recording/watching the next time (or week) it is shown.
• Select a programme not yet started (then ENTER or GREEN): The programme can be set for recording/ watching.

3 Select "Yes" in a confirmation dialogue box (/<hen ENTER).

The Programme Timer screen with a list of other preset programmes information appears.

• You can modify the presettings here (▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲,▲ ENTERT).
• You can register the presettings here ( 口 ENTER).

4 Press RETURN to return to the EPG screen.

The EPG screen updates with the new presettings.
- A red clock icon appears for the preset programme.
- A yellow triangle icon appears for overlapped presettings.

5 Press EPG to exit the EPG screen.

With the system switched on, a channel switch alarm message appears approximately 60 seconds before execution and the channel is switched a short time before the start of the programme.

NOTE

• Auto channel select is not executed when the system is in the standby mode.
• Even in the standby mode, preset programmes can be recorded as only the Plasma Television alone wakes up and outputs AV signals when the preset time comes.
• Finish presetting operations three minutes before the start of the programme.
• For priorities about overlapped presettings, see "Priority rules for overlapped presettings" on page 48.
• The TIMER indicator on the front of the Plasma Television lights up in orange when a programme is preset for recording/watching.
• Recording may fail because of watching restrictions imposed by the CA module.

Using the Electronic Programme Guide (EPG)(for DTV only)

Setting the timer manually

Using the menu, you can also preset digital TV programmes by specifying their scheduled date and time.

1 Press HOME MENU.
2 Select "Setup" (+/ then ENTER).
3 Select "DTV Setup" (▲/▼ then ENTER).
4 Select "Programme Timer" (▲▼ then ENTER).

The schedule table appears.

5 Select a programme number (/ne).
- You can select any desired programme number.
6 Specify a date (一 /一 or 0 to 9, then
7 Specify the start hour/minute and end hour/minute

(▲/▼ or 0 to 9, then ▷).

8 Specify a channel number ( / or 0 to 9, then ).

9 Register the preset settings after all items are set (ENTER).

If a preset time is in the past or the channel is locked, an alert message appears.
- A yellow triangle icon indicates that the recording/ watching may fail due to overlapped presettings.
- If presetting another programme, repeat steps 5 to 9.
- You can preset up to 10 programmes.

10 Press HOME MENU to exit the menu.

NOTE

• Preset recording/watching begins immediately when presetting operations are performed within three minutes of the start of the programme.
• Presettings made using the EPG are automatically shown in the scheduled table.
• Recording may fail because of watching restrictions imposed by the CA module.

Priority rules for overlapped presettings

When preset TV programmes are overlapped, the following two rules are used to determine higher priority. If more than one of the two rules are met, the rules are applied in the order 1 then 2.

Rule 1: If two presettings are overlapped, the presetting with the earlier start time is given a higher priority. If two presettings are sequential, the last portion of the first programme or the first portion of the second may not be recorded.
Rule 2: If presettings with the same start time are overlapped, the presetting with the bigger list number is given a higher priority.

Changing/cancelling TV programme presettings

Using the EPG

Use the following procedure to change or cancel programme presettings using the EPG.

1 Press EPG.

• The EPG screen appears.

2 Select the desired preset programme (/A/then ENTER or GREEN).

A dialogue box appears.
If you select "Yes", go to step 3.
To quit the operation, select "No".

3 Select the preset programme (or ENTER).
4 Select a programme number to edit (/)
- You can delete the preset programme by pressing the RED button.
5 Edit the selected preset programme and update the setting (ENTER).
- The screen alerts you if the preset programme being edited has already started or finished.
6 When the setting is complete, press EPG to exit the EPG screen.

NOTE

• When you want to stop recording/watching in progress that was started by a programme presetting, for example, to change the channel, an alert message appears indicating that the presetting will be cancelled. In this case, you cannot cancel the programme presetting using the EPG.

Using the menu

Use the following procedure to change or cancel programme presettings using the menu.

1 Press HOME MENU.
2 Select "Setup" (+/ then ENTER).
3 Select "DTV Setup" (▲/▼ then ENTER).
4 Select "Programme Timer" (▲/▼ then ENTER).

5 Select a programme number to be edited (/)

• Delete the programme presetting (RED).
• Start editing (ENTER).

6 Adjust the desired item (一 + 一)
7 Press ENTER to complete the setting.
The screen alerts you if the preset programme being edited has already started or finished.
8 Press HOME MENU to exit the menu.

Changing priorities for overlapped presettings

You can change the priority order for overlapped preset programmes to suit your preference.

1 Press HOME MENU.
2 Select "Setup" (▲/▼ then ENTER).
3 Select "DTV Setup" (▲/▼ then ENTER).
4 Select "Programme Timer" (▲/▼ then ENTER).

5 Select a programme to edit (/ then BLUE).
6 Select the position to move the selected programme (↑/↓).
7 Now move the programme to the selected position by pressing BLUE or ENTER.

Using other useful EPG functions

Below are some useful functions that guide you through the EPG screen and save your time.

EPG Jump

1 Press RED when the EPG screen (Programme List, Detailed information and Search Result) is displayed.
2 Select "Date"(/)

3 Select the day (within one week) to jump to ()+
4 Select "Time" (/)
5 Select the time of the day (0:00 a.m. to 23:00 p.m.) to jump to (喜)
6 Select "Jump" (+/↓, ←/→ then ENTER).

The Programme List of the specified day and time displays.

EPG Search

1 Press YELLOW when the EPG screen (Programme List, Detailed information and Search Result) is displayed.
2 Select "Date"(/)

3 Select the day (within one week) to search (/)
4 Select "Time"(/)
5 Select the time of the day (0:00 a.m. to 23:00 p.m.) to search (一)
6 Select "Channel"(/)
7 Select whether to search "All" or "Favourites"(/)
8 Select "Genre" (/ then ENTER).
9 Select the genre(s) to search ( / , / then ENTER). Pressing ENTER again will delete the selected genre from the search list.
10 Select "OK" (▲/↓, ←/→ then ENTER).
11 Select "Search" (▲/▼, ◆/◆ then ENTER).

• An EPG search with your customized settings starts.

Switching the vertical drive frequency (AV mode only)

You can switch the vertical drive frequency for screen display between 75 Hz and 100 Hz. Choose the drive frequency that better suits your broadcasting signals.

1 Press HOME MENU

2 Select "Option" ( / then ENTER).
3 Select "Drive Mode" (↑/↓ then ENTER).
4 Select "75 Hz" or "100 Hz" (▲/▼ then ENTER).

5 Press HOME MENU to exit the menu.

NOTE

• This setting can be made for each input source separately.
• This setting cannot be made when 480i, 480p, 1080i@60 Hz, 720p@60 Hz, or 1080p@24 Hz signals are input.
• If you select "Auto" for "Side Mask" (page 54), the selection for "Drive Mode" becomes ineffective.

Adjusting image positions (AV mode only)

Adjust the horizontal and vertical positions of images on the Plasma Television.

1 Press HOME MENU.
2 Select "Option" ( / then ENTER).
3 Select "Position" (↑/↓ then ENTER).
4 Select "H/V Position Adjust" (+/− then ENTER).

5 Adjust the vertical position ( // ) on the horizontal position ( ).

6 Press HOME MENU to exit the menu.

NOTE

To restore the factory defaults for all items, press t select "Reset" in step 4, and then press ENTER. A confirmation screen appears. Press to select "Yes", and then press ENTER.
Adjustments are stored separately according to input source.
Depending on the displayed video, the image position may not change even after adjustment.

Adjusting image positions and clock automatically (PC mode only)

Use Auto Setup to automatically adjust the positions and clock of images coming from a personal computer.

1 Press HOME MENU.

2 Select "Option" ( / then ENTER).
3 Select "Auto Setup" (▲/▼ then ENTER).

• Auto Setup starts.

4 Press HOME MENU to exit the menu.

NOTE

• When Auto Setup is finished, "Auto Setup completed." appears.
• Even when "Auto Setup completed" appears, Auto Setup may have failed, depending on conditions.
• Auto Setup may fail with a PC image composed of similar patterns or monochrome. If not successful, change the PC image and try again.
• Be sure to connect the computer to the Plasma Television and switch it on before starting Auto Setup.

Adjusting image positions and clock manually (PC mode only)

Usually you can easily adjust the positions and clock of images using Auto Setup. Use Manual Setup to optimize the positions and clock of images when necessary.

1 Press HOME MENU.
2 Select "Option" ( / then ENTER).
3 Select "Manual Setup" (▲/▼ then ENTER).
4 Select the item to be adjusted (/ then ENTER).

5 Perform adjustment (/+).

With "Clock" or "Phase" selected, you can perform adjustment in the parameter using .

6 Press HOME MENU to exit the menu.

NOTE

To restore the factory defaults for all the items, press to select "Reset" in step 4, and then press ENTER. A confirmation screen appears. Press to select "Yes", and then press ENTER.

Selecting an input signal type

After connecting to the INPUT 1, INPUT 2, or INPUT 3 terminal, specify the type of video signals to be received from the connected equipment. For the type of the signals, see the operation manual that came with the connected equipment.

Before starting the menu, press INPUT 1, INPUT 2, or INPUT 3 on the remote control unit or press INPUT on the Plasma Television to select an input source.

1 Press HOME MENU.

2 Select "Option" ( / then ENTER).
3 Select "Input Select" (▲▼ then ENTER).
4 Select a signal type ( / then ENTER).

• For INPUT1, you can select "Video" or "RGB".
• For INPUT2, you can select "Video", "S-Video" or "COMPONENT".
• For INPUT3, you can select "Video", "S-Video", or "RGB".

5 Press HOME MENU to exit the menu.

NOTE

• If no image appears or images appear in inappropriate colours, specify another video signal type.
• For the signal types to be specified, check the operation manual that came with the connected equipment.

Colour system setting (AV mode only)

If an image does not appear clearly, select another colour system (e.g., PAL, NTSC).

1 Press HOME MENU.
2 Select "Option" (▲/▼ then ENTER).
3 Select "Colour System" (▲/▼ then ENTER).
4 Select a video signal system ( / ) then ENTER).

• You can select "Auto", "PAL", "SECAM", "NTSC", or "4.43NTSC".
• With "Auto" selected, input signals are automatically identified.

5 Press HOME MENU to exit the menu.

NOTE

The factory default is "Auto".
- You need to perform colour system setting for each of INPUT 1, 2, 3, and 5.
- For the colour system setting, see steps 11 and 12 under "Using Manual Adjust" (page 28).

Selecting a screen size manually

Press to switch among the screen size options selectable for the type of video signals currently received.

Each time you press + , the selection is switched.
The selectable screen sizes differ depending on the types of input signals.

NOTE

• If images with black bands on both sides or top and bottom of the screen - when using the "4:3", "FULL 14:9", "CINEMA 14:9" or "Dot by Dot" modes, for example - are displayed continuously for long periods or for shorter periods of time over several days, image retention may result. It is recommended that you enjoy watching images displayed in full screen, except when doing so may result in copyright infringement.

AV mode

Item Description

4:3 For 4:3 standard pictures. A side mask appears on each side.
FULL 14:9	For 14:9 squeeze pictures. A thin side mask appears on each side.
CINEMA 14:9	For 14:9 letterbox pictures. A thin side mask appears on each side, and you may also see bars on the top and bottom with some programmes.
WIDE	In this mode the picture is progressively stretched toward each side of the screen.
FULL For 16:9 squeeze pictures.
ZOOM	For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.
CINEMA	For 14:9 letterbox pictures. Bars may appear on the top and bottom on some programmes.

PC mode except for XGA signals

Item Description

4:3 Fills the screen without altering the input signal aspect ratio.

FULL Full 16:9 screen display

Dot by Dot Matches input signal with same number of screen pixels.

PC mode for XGA signals

(Ex. 1024 × 768 input at PDP-507XD)

Item Description

4:3 Matches input signal with the same number of screen pixels. Optimized for 1024 x 768 display

FULL1 Full 16:9 screen display Optimized for 1024 x 768 display

FULL2 For wide signal display Use when displaying 1360 x 768 signal resolution.

NOTE

The specifications given for the PC mode is for the PDP-507XD. For the PDP-427XD, the number of panel pixels is different, and thus signal processing and actual viewing conditions will vary slightly.
While watching High Definition TV broadcasting, pressing switches among FULL, WIDE, 4:3, and ZOOM.
Some HD broadcasts may display 4:3 content with side masks, which may cause uneven wear. After viewing, it is recommended to view full screen motion video.

AV mode

PC mode except for XGA signals

PC mode for XGA signals

Selecting a screen size automatically

The Plasma Television automatically selects an appropriate screen size when the received video signals contain WSS (wide screen signaling) information or when video signals are received from a connected HDMI equipment (see page 58). To activate this function, use the following procedure.

1 Press HOME MENU.
2 Select "Option" ( / then ENTER).
3 Select "Auto Size" (▲/▼ then ENTER).
4 Select "On" (▲/▼ then ENTER).

Item Description

Off Deactivates the Auto Size function. (factory default)

On Activates the Auto Size function.

5 Press HOME MENU to exit the menu.

NOTE

• Manually select an appropriate screen size if an image does not automatically switch to a correct screen format.
• When the video signal contains no aspect ratio information, the function will not work even with "On" selected.

Selecting a screen size for received 4:3 aspect ratio signals

Specify whether the Plasma Television should choose the 4:3 mode or WIDE mode when 4:3 aspect ratio signals are received with the Auto Size function activated.

1 Press HOME MENU.
2 Select "Option" ( / then ENTER).
3 Select "4:3 Mode" (↑/↓ then ENTER).
4 Select "WIDE" or "4:3" ( / then ENTER).

Item Description

WIDE Wide image without side masks. (factory default)

4:3

Keeps the 4:3 aspect ratio and presents side masks.

WIDE 4:3

5 Press HOME MENU to exit the menu.

Changing the brightness at both sides of the screen (Side Mask)

With the 4:3, FULL 14:9, or CINEMA 14:9 screen size selected for the AV mode, you can change the brightness of the grey side masks that appear at both sides of the screen.

NOTE

• The "Auto" setting adjusts the brightness of the side masks according to the brightness of the screen and can reduce the possibility of image retention.

1 Press HOME MENU.
2 Select "Option" ( / then ENTER).
3 Select "Side Mask" (▲/▼ then ENTER).
4 Select the desired parameter ( / ) then ENTER).

Item Description

Fixed

Always sets the same brightness for the grey side masks.

Auto Adjusts the brightness of the grey side masks according to the brightness of images.

5 Press HOME MENU to exit the menu.

NOTE

• If you select "AUTO", the selection for "Drive Mode" (page 51) becomes ineffective.

Sleep Timer

When the selected time elapses, the Sleep Timer automatically places the system into the standby mode.

1 Press HOME MENU.
2 Select "Sleep Timer" (▲/▼ then ENTER).
3 Select the desired time (± / ±) then ENTER).

• You can select from among "Off" (cancel), "30 min", "60 min", "90 min", and "120 min".

4 Press HOME MENU to exit the menu.

NOTE

• Five minutes before the selected time elapses, the remaining time appears every minute.
• To check the remaining time, perform steps 1 and 2. After checking the time, press HOME MENU to restore the previous display.

Using a password (AV mode only)

The Plasma Television provides the Child Lock and Channel Lock functions for preventing children from watching inappropriate programmes. You need to enter a password when watching programmes with "Block" specified. Before the system is shipped, "1234" is preset as the factory-default password. You can however, change the password as you want.

When using the Home menu you select "Auto Installation", "Analogue TV Setup", "DTV Setup", or "Password", a screen prompting password entry appears to prevent others from changing the programme settings at their choices.

Entering a password

If you select a channel blocked with Child Lock or Channel Lock or if password entry is requested when attempting to open the menu, enter a password correctly.

1 Enter a correct 4-digit password using buttons 0 to 9.

Please Input Your Password.

NOTE

• If you fail password entry three times, "Invalid password." appears, and the menu is closed. In order to display the password entry screen again to unlock the password, select the blocked channel or open the menu again.
• If the password entry screen disappears before entry, you may recall it by pressing ENTER.

Changing the password

Use the following procedure to change the password.

1 Press HOME MENU.
2 Select "Setup" (+/− then ENTER).
3 Select "Password" (▲/▼ then ENTER).

The password entry screen appears. Enter the current 4-digit password using buttons 0 to 9.

4 Select "Change Password" (▲/▼ then ENTER).

5 Enter a 4-digit password to be newly set, using buttons 0 to 9.
6 Enter the same password that you have entered in step 5.

If an unmatched password is entered, the operation goes back to step 5 for reentry from the beginning.
- If you fail password change three times by entering unmatched passwords, the menu is closed.

7 Press HOME MENU to exit the menu.

NOTE

Take a note of the newly set password and keep it handy.

Resetting the password function

1 Press HOME MENU.
2 Select "Setup" (+/− then ENTER).
3 Select "Password" (▲▼ then ENTER).

• The password entry screen appears. Enter your 4-digit password using buttons 0 to 9.

4 Select "Reset" (+/− then ENTER).
5 Select "Yes" (←/→ then ENTER).
6 Press HOME MENU to exit the menu.

NOTE

The above procedure will reset the password to the factory default (1234).

Disabling the password function

Use the following procedure if you want to deactivate the protection function that prompts password entry.

1 Press HOME MENU.
2 Select "Setup" (+/− then ENTER).
3 Select "Password" (▲▼ then ENTER).

• The password entry screen appears. Enter your 4-digit password using buttons 0 to 9.

4 Select "Password Setting" (▲/▼ then ENTER).
5 Select "Disable" (▲/▼ then ENTER).
6 Press HOME MENU to exit the menu.

NOTE

The above procedure will reset the password to the factory default (1234).
- After disabling the password function, you cannot change the Child Lock settings. For the Child Lock, see page 29.
After disabling the password function, you cannot change or reset the password.
- When you enable the password function again after disabling it, the factory default password (1234) is restored.

We suggest you write down your password so you don't forget it.

PDP-507XD/PDP-427XD Your password No.:

If you forget the password

When the message "Please Input Your Password" is displayed in step 3 under "Changing the password" (page 55), "Resetting the password function" (page 56), or "Disabling the password function" (page 56), press the

ENTER button on the remote control unit and hold it down for 3 seconds or longer.

The password reverts to "1234".

Enjoying through External Equipment

You can connect many types of external equipment to your Plasma Television, like a decoder, VCR, DVD player, personal computer, game console, and camcorder.

To view images coming from external equipment, select the input source using the INPUT buttons on the remote control (page 15) or the INPUT button on the Plasma Television.

CAUTION

• To protect all equipment, always unplug the Plasma Television from the power outlet before connecting to a decoder, VCR, DVD player, personal computer, game console, camcorder, or other external equipment.

NOTE

Refer to the relevant operation manual (DVD player, personal computer, etc.) carefully before making connections.

Watching a decoder image

Connecting a decoder

Use the INPUT 1 terminal when connecting a decoder and other audiovisual equipment.

Plasma Television (rear view)

Displaying a decoder image

1 Press buttons 0 to 9 or P + / P -to select a programme specified for decoder setting (page 29).

2 Press INPUT 1 on the remote control unit or press INPUT on the Plasma Television to select INPUT1.

NOTE

• Be sure to use INPUT1 to connect a decoder.
• If decoder images do not come in clearly, you may need to change the input signal type setting using the menu. See page 52.
  Refer to your decoder operation manual for the signal type.

Watching a VCR image

Connecting a VCR

Use the INPUT 2 terminals when connecting a VCR and other audiovisual equipment.

If your VCR supports TV-VCR advanced "AV link" systems (page 59), you can connect the VCR to the INPUT 2 or 3 terminal on the Plasma Television using the fully-wired 21-pin SCART cable.

AV link advanced system

• Download tuning information directly from TV to VCR (Preset download).
  While watching TV, you can record a programme with a one-touch press of the VCR recording button. (WYSIWYR)
  Refer to your VCR operation manual as some VCRs have an exclusive key for WYSIWYR.
• When you press the play button on the VCR, the system automatically turns on from standby and displays a VCR image.

NOTE

• TV-VCR advanced "AV link" systems may not be compatible with some external sources.

Plasma Television (rear view)

Displaying a VCR image

To watch a VCR image, press INPUT 2 on the remote control unit or press INPUT on the Plasma Television to select INPUT2.

NOTE

• If VCR images do not come in clearly, you may need to change the input signal type setting using the menu. See page 52.
  Refer to your VCR operation manual for the signal type.
• Connect external equipment to only terminals that are to be actually used.

Using HDMI Input

This Plasma Television is equipped with two HDMI terminals (INPUT 3 and 4) which accept digital video and audio signals. To use the HDMI terminal, activate the terminal and specify the types of video and audio signals to be received from the connected equipment. For the types of these signals, see the operation manual that came with the connected equipment.

Before starting the menu, press INPUT 3 or INPUT 4 on the remote control unit or press INPUT on the Plasma Television to select INPUT 3 or INPUT 4.

Input signal table

1920*1080i@50 Hz

720*576p@50 Hz

1280*720p@50 Hz

720(1440)*576i@50 Hz

1920*1080i@59.94 Hz/60 Hz

720*480p@59.94 Hz/60 Hz

1280*720p@59.94 Hz/60 Hz

720(1440)*480i@59.94 Hz/60 Hz

1920*1080p@24 Hz

For audio, the system supports the following:

• Linear PCM (STEREO 2ch)
• Sampling frequency: 32kHz,44.1kHz,48kHz

NOTE

PC signals are out of correspondence.
- It may take time until an image is displayed depending on the equipment connected.

Connecting HDMI equipment

When using the INPUT 3 HDMI terminal:

Plasma Television (rear view)

When using the INPUT 4 HDMI terminal:

Plasma Television (rear view)

To activate the HDMI terminal:

When you use the INPUT 3 HDMI terminal, use the following procedure to activate the terminal.

1 Press HOME MENU.

2 Select "Option" (▲/▼ then ENTER).
3 Select "HDMI Input" (+/− then ENTER).
4 Select "Setting" (/ then ENTER).
5 Select "Enable" (▲/▼ then ENTER).

Item Description

Disable Deactivates the HDMI terminal. (factory default)

Enable Activates the HDMI terminal.

6 Press HOME MENU to exit the menu.

NOTE

• You need not activate the INPUT 4 HDMI terminal; you cannot manually deactivate this terminal.

To specify the type of digital video signals:

1 Repeat steps 1 to 3 provided for "To activate the HDMI terminal."
2 Select "Video" (▲/▼ then ENTER).
3 Select the type of digital video signals (▲/▼ then ENTER).

If you select "Auto", an attempt will be made to identify the type of digital video signals when digital video signals are received.

Item Description

Auto Automatically identifies input digital video signals. (factory default)

Colour-1 Digital Component Video signals (4:2:2) locked

Colour-2 Digital Component Video signals (4:4:4) locked

Colour-3 Digital RGB signals locked

4 Press HOME MENU to exit the menu.

NOTE

• If you select a parameter other than "Auto", make such a setting that results in natural colour.
• If no image appears, specify another digital video signal type.
• For the digital video signal types to be specified, check the operation manual that came with the connected equipment.

To specify the type of audio signals:

When you use the INPUT 3 HDMI terminal, use the following procedure to specify the type of audio signals.

1 Repeat steps 1 to 3 provided for "To activate the HDMI terminal."
2 Select "Audio" (▲/▼ then ENTER).
3 Select the type of audio signals (/ then ENTER).

• If you select "Auto", an attempt will be made to identify the type of audio signals when audio signals are received.

Item Description

Auto Automatically identifies input audio signals. (factory default)

Digital Accepts digital audio signals.

Analogue Accepts analogue audio signals.

4 Press HOME MENU to exit the menu.

NOTE

• The INPUT 4 HDMI terminal accepts only digital audio signals.
• If no sound is output, specify another audio signal type.
• For the audio signal types to be specified, check the operation manual that came with the connected equipment.
• Depending on the equipment to be connected, you also need to connect analogue audio cables.

Using i/o link.A

The Plasma Television incorporates three typical i/o link.A functions for smooth connections between Plasma Television and other audiovisual equipment.

One Touch Play

While the Plasma Television is in standby mode, it automatically turns on and plays back images from the audiovisual source (e.g. VCR, DVD).

WYSIWYR (What You See Is What You Record)

When the remote control unit of the connected VCR has the WYSIWYR button, you can automatically start recording by pressing the WYSIWYR button.

Preset Download

Automatically transfers channel preset information from the tuner on the Plasma Television to the one on the connected audiovisual equipment (e.g. VCR) via the INPUT 2 or 3 terminal.

To select the SCART terminal which is available for i/o link.A:

Select the INPUT terminal to which the recording equipment (e.g. VCR) you use has been connected.

1 Press HOME MENU.

2 Select "Setup" (▲/▼ then ENTER).
3 Select "i/o link.A" (▲▼ then ENTER).
4 Select the desired parameter ( / then ENTER).

Item Description

INPUT 2 INPUT 2 is available for i/o link.A. (factory default)

INPUT 3 INPUT 3 is available for /o link.A.

5 Press HOME MENU to exit the menu.

NOTE

The i/o link.A functions work only when the audiovisual equipment is connected to the INPUT 2 or 3 terminal on the Plasma Television with i/o link.A via a fully wired 21-pin SCART.
Refer to operation manuals of each external equipment for the details.
- If a SCART cable has been connected to the INPUT 3 terminal with the i/o link.A activated, input signals (other than Component) are automatically identified and displayed. If the i/o link.A has been deactivated, Video is always selected for signals other than RGB because the system cannot identify among RGB, Y/C (S-Video), and CVBS (Video) signals; for example, receiving Y/C (S-Video) signals results in monochrome display.

Plasma Television (rear view)

Watching a DVD image

Connecting a DVD player

Use the INPUT 2 terminal when connecting to a DVD player and other audiovisual equipment.

Plasma Television (rear view)

Displaying a DVD image

To watch a DVD image, press INPUT 2 on the remote control unit or press INPUT on the Plasma Television to select INPUT2.

NOTE

• If DVD images do not come in clearly, you may need to change the input signal type setting using the menu. See page 52.
  Refer to your DVD player operation manual for the signal type.

Using the SCART output function

This function allows you to record DTV programmes with a connected VCR or other recording equipment while enjoying watching the Plasma Television as usual. With this function, you can also easily enjoy timeshift playback when a DVD/HDD recorder (DVR) is in connection.

The following diagram assumes that you connect a Pioneer DVR-540H to the Plasma Television so that you can enjoy timeshift playback with the recorder.

Plasma Television (rear view)

DVR-540H

In addition to the above connections, you need to perform the following:

See "Switching the SCART output" (page 61) and select "Fixed on DTV" for "SCART Output" in the Setup menu.
- On the DVD/HDD recorder (DVR), select the video/audio input source matching the external input terminal to which the Plasma Television has been connected. For this method, see the operation manual that came with the recorder.
- Select the input source on the Plasma Television depending on the terminal to which the output of the DVD/HDD recorder (DVR) has been connected; for the above connection example, select INPUT 2.

When you complete the above connections and setups, you can then enjoy timeshift playback with the DVD/HDD recorder (DVR). You can also select the 2-screen or picture-in-picture mode to watch images coming from the DTV input source and an external input source (INPUT 2 for the above connection example) to which the output of the recorder has been connected.

NOTE

• Some DVD/HDD recorders (DVRs) may not allow timeshift playback. Check the operation manual that came with your recorder.
• For details about connection and setting procedures, see the operation manual that came with your DVD/HDD recorder (DVR).

Switching the SCART output

Video and audio signals output from INPUT 2 and INPUT 3 sources are the same as those used for the current image display. You can however change the setting so that DTV signals are always output regardless of the current image display.

1 Press HOME MENU.
2 Select "Setup" ( / then ENTER).
3 Select "SCART Output" (▲/▼ then ENTER).
4 Select a desired parameter (/ then ENTER).

Item Description

Auto

(factory default)

Outputs video and audio signals coming from the selected input source.

Fixed on DTV Always output DTV signals.

5 Press HOME MENU to exit the menu.

Enjoying a game console or watching camcorder images

Connecting a game console or camcorder

Use the INPUT 5 terminals to connect a game console, camcorder and other audiovisual equipment.

Plasma Television (left side view)

NOTE

The following operations are given higher priority over the above setting:

• Presetting a DTV programme for recording
  Execution of WYSIWYR (page 59)

Displaying an image from the game console or camcorder

To watch an image coming from the game console or camcorder, press INPUT 5 on the remote control unit or press INPUT on the Plasma Television to select INPUT 5.

NOTE

The INPUT 5 terminals are checked for cable connections in the order where: 1) S-Video, 2) Video.
- Connect external equipment to only terminals that are to be actually used.

Watching an image from a personal computer

Connecting a personal computer

Use the PC terminals to connect a personal computer.

NOTE

The PC input terminals are DDC2B-compatible.

Plasma Television (rear view)

Displaying an image from a personal computer

To watch an image coming from the personal computer, press PC on the remote control unit or press INPUT on the Plasma Television to select "PC".

When connecting to a personal computer, the correct input signal type is automatically detected. If the personal computer image does not come in clearly, you may need to use Auto Setup menu. See page 51.

NOTE

The PC terminals cannot be used for audiovisual equipment.

Computer compatibility chart

Resolution Frequency

720 x 400 70 Hz

640 x 480 60 Hz

72 Hz

75 Hz

800 x 600 56 Hz

60 Hz

72 Hz

75 Hz

1024 x 768 60 Hz

70 Hz

75 Hz

1360 x 768 60 Hz

Enjoying through audio equipment in connection

Connecting audio equipment

You can enjoy more powerful sound by connecting such audio equipment as an AV receiver or subwoofer.

Plasma Television (rear view)

NOTE

• For details, refer to the operation manual for the audio equipment to be connected.
• Audio signals synchronizing with currently displayed images are always output to the AUDIO OUTPUT terminals.
  The audio accompanying images shown on the display is always output to the SUBWOOFER OUTPUT terminal.
  While in DTV mode, no signals are output if they are copy guarded.
  Audio from a connected subwoofer is muted when you have selected "Sub" for "Headphone Output" (page 36) and connected headphones.

Connecting control cords

Connect control cords between the Plasma Television and other PIONEER equipment having the SR logo. You can then operate the connected equipment by sending commands from its remote control unit to the remote control sensor on the Plasma Television.

After the CONTROL IN terminals have been connected, the remote control sensors on the connected equipment do not accept commands from the remote control units. Face the remote control units to the remote control sensor on the Plasma Television when operating the connected equipment.

NOTE

Make sure that the power is turned off when making connections.
- Complete all component connections before making control cord connections.

About SR+

The CONTROL OUT terminal on the rear of the Plasma Television supports SR + that allows linked operations with a PIONEER AV receiver. SR + presents functions such as the input switch linkage operation function and the DSP surround mode display function. For more information, see the instruction manual that came with the PIONEER AV receiver supporting SR + .

NOTE

• While in connection through SR+, the volume on this system is temporarily minimized.
• When making control cord connections, use the SR+ cable.
• When making control cord connections with one or more pieces of Pioneer equipment, directly connect the Plasma Television and the Pioneer amplifier that supports SR+. Do not connect other equipment between them.

Plasma Television (rear view)

Controlling other equipment using the supplied remote control unit

Using the supplied remote control unit, you can control other equipment in connection: a set-top box (STB), DVD player, DVD/HDD recorder (DVR), or VCR.

Before using this function, you need to preset the supplied remote control unit with the manufacture code of the equipment to be controlled. When you then want to control the equipment, press SELECT on the remote control unit to select an appropriate mode depending on the equipment; the selection is switched among TV, STB, DVD/DVR, and VCR. The corresponding mode indicators on the remote control unit show the currently selected mode.

Presetting manufacture codes

1 Press SELECT on the remote control unit to select the STB, DVD/DVR, or VCR mode depending on the equipment.
2 After confirming that the indicator of the previously selected mode goes off, press and hold SELECT, and then press 1 on the remote control unit.

The corresponding mode indicator flashes.

3 Press 0 to 9 to enter a 3-digit manufacture code.

See the manufacture code list on page 64 to identify an appropriate code.
The mode indicator lights up for approximately one second and then goes off; presetting the manufacture code is completed.

NOTE

If you perform no operation for approximately one minute while a mode indicator is flashing, the code presetting procedure is quitted.

If you enter a code not listed in the table, a mode indicator flashes quickly for approximately one second and then flashes as before.
- To quit the code presetting procedure halfway while a mode indicator is flashing, you may press SELECT on the remote control unit.
The factory default manufacture codes for the STB, DVD/DVR, and VCR modes are "000", "100", and "500" respectively.

Manufacture codes

NOTE

• Some equipment listed in the table may not allow you to control with the supplied remote control unit partially or entirely.

STB

000 PIONEER 1 (factory default)
001 PIONEER 2
002 CANAL SATELLITE
003 HUMAX
004PACE1
005PACE2
006 QUALI-TV
007 SKY DIGITAL

DVD

100 PIONEER 1 (factory default)
101 PIONEER 2
102AKAI
103 DENON
104 HITACHI
105 JVC
106 KENWOOD 1
107 KENWOOD 2
108 PANASONIC 1
109 PANASONIC 2
110PHILIPS1
111PHILIPS2
112 SAMSUNG
113 SHARP
114 SONY 1
115 SONY 2
116SONY3
117 THOMSON
118 TOSHIBA
119YAMAHA

DVR

200 PIONEER 1

201 PIONEER 2

202 PIONEER 3

DVR

203 PANASONIC

204PHILIPS1
206PHILIPS2
206 SHARP
207 SONY
208 TOSHIBA

VCR

500 PIONEER 1 (factory default)

501 PIONEER 2

502AIWA1

503 AIWA 2

504AKAI1

506AKAI2

506AKAI3

507DAEWOO

508 GRUNDIG

509 GRUNDIG 2

510 GRUNDIG 3

511 GRUNDIG 4

512 HITACHI 1

513 HITACHI 2

514 HITACHI 3

515 JVC 1

516JVC2

517JVC3

518JVC4

519JVC5

520LOEWE1

521 LOEWE 2

522 MATSUI

523 ORION

524 PANASONIC 1

525 PANASONIC 2

526PHILIPS1

527PHILIPS2

528PHILIPS3

529 SANYO

530 SAMSUNG 1

531 SAMSUNG 2

532 SAMSUNG 3

533 SAMSUNG 4

634 SHARP

535 SONY1

536 SONY 2

537 SONY 3

538 SONY 4

539 SONY 5

540 SONY 6

541 SONY7

542 THOMSON

543 TOSHIBA

Enjoying through External Equipment

STB (set - top box) control buttons

When in the STB mode, the buttons on the remote control unit function as below.

10-9

Function as the numeric buttons.

Press to tune in a higher or lower channel.

3 RETURN

When the broadcasting menu screen is in display, press to restore the immediately previous screen.

4 ENTER

Press to activate the selected function.

Press to select items on the broadcasting menu screen or the broadcasting guide screen.

5 EXIT

Press to exit the broadcasting menu screen or the broadcasting guide screen.

6 INFO

Press to display information on the current broadcasting.

7 SOURCE

Turns the set-top box on and off.

8 MENU

Press to display the broadcasting menu screen.

9 GUIDE

Press to display the broadcasting guide screen.

DVD/DVR control buttons

When in the DVD/DVR mode, the buttons on the remote control unit function as below.

10-9

Function as the numeric buttons.

2 P + / P -DVD/HDD recorder (DVR) only

Press to change the channel of the tuner built in the DVD/ HDD recorder (DVR).

3 RETURN

When the DVD menu is in display, press to restore the immediately previous screen.

4 ENTER

Press to activate the selected function.

Press to select items on the DVD MENU screen.

5 PAUSE/STILL

Sets pauses and still pictures.

6 (REC) (DVD/HDD recorder (DVR) only)

Starts recording.

7

CHAPTER SEARCH

Each time you press, you move back to the start of the previous chapter.

8

(CHAPTER SEARCH)

Each time you press, you move ahead to the start of the next chapter.

9 DISC NAVI (DVD/HDD recorder (DVR) only)

Press to display the Disc Navigator screen for browsing the contents of a disc.

10 SOURCE

Turns on and off the power of the DVD player or DVD/HDD recorder (DVR).

11 MENU

Press to display the DVD menu.

12 DVD TOP MENU

When this button is pressed, the DVD top menu will appear.

13 (STOP)

Press to stop playback or recording. With some DVD players or DVD/HDD recorders (DVRs), pressing the button twice may open the disc tray.

14 (PLAY)

Starts playback.

15 (SCAN)

Press for fast forward.

16 (SCAN)

Press to go backward.

17 HDD (DVD/HDD recorder (DVR) only)

Press to select the hard disk (HDD) for playback or recording.

18 DVD (DVD/HDD recorder (DVR) only)

Press to select the DVD for playback or recording.

6, 13 REC STOP (DVD/HDD recorder (DVR) only)

Press and hold and then press to stop recording. This operation is true of only Pioneer and Sony DVD/HDD recorders (DVRs).

NOTE

• The DVD player or DVD/HDD recorder (DVR) cannot be selected at the same time.

Enjoying through External Equipment

VCR control buttons

When in the VCR mode, the buttons on the remote control unit function as below.

10-9 Function as the numeric buttons.
2 P+/P- Press to select channels of the TV tuner on the VCR.
3 (PAUSE/STILL) Sets pauses and still pictures.
4 (REC) Starts recording.
5 SOURCE Turns the power of the VCR on and off.
6 (STOP) Stops tape transport.
7 (PLAY) Starts playback.
8 (FF) Rapidly advances the tape and allows picture search.
9 (REW) Rewinds the tape and allows picture search.

What is Teletext?

Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your Plasma Television receives Teletext signals broadcast by TV networks, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among many services available.

NOTE

• Displaying Teletext pages for a long period of time, or for shorter periods of time everyday, may result in image retention.

Operating the Teletext basics

NOTE

• Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See "Controlling other equipment using the supplied remote control unit" on page 63.

Turning on and off Teletext

1 Select a TV channel or external input source providing a Teletext programme.

2 Press to display the Teletext (full screen).

3 Press again to display the Teletext on the right screen and normal image on the left screen.

Each time you press, the screen switches as shown to the left.
If you select a programme with no Teletext signal, "Cannot display Teletext." appears.

Selecting and operating Teletext pages

Use the following remote control buttons to select and operate Teletext pages.

Colour (RED/GREEN/YELLOW/BLUE):

You can select a group or block of pages displayed in the coloured brackets at the bottom of the screen by pressing the corresponding colour (RED/GREEN/YELLOW/BLUE) on the remote control unit.

0-9;

Directly select any page from 100 to 899 by using 0 to 9.

//图：

Selects the next or previous page.

图：

Each time you press the Teletext image switches as shown below.

图：

To display hidden information such as an answer to a quiz, press

• Press [E] again to hide the information.

图：

To stop updating Teletext pages, press

Press to release the hold mode.

图：

Displays an Index page for the CEEFAX/FLOF format. Displays a TOP Over View page for the TOP format.

NOTE

Before displaying the Teletext, return the screen to the single-screen mode.

Displaying subpages

You can display several subpages as they are transmitted.

Subpage screen

1 Press to display Teletext.

• If you open a page containing subpages, the subpages are automatically displayed in sequence.

2 To quit automatic subpage change, press /←→

• You can then manually change subpages by pressing

NOTE

• Pressing 1 causes the page to be changed and the subpage screen to disappear.
• Pressing stops automatic subpage change and performs its respective button function.

Displaying TOP Over View

When receiving TOP Teletext, you can read a TOP text overview.

TOP Over View screen

1 Press to display Teletext.
2 While receiving TOP Teletext, press to display TOP Over View.
3 Press / and / to select the desired block or group pages, and then press ENTER.

Displaying subtitle pages

You can display several subtitles as they are transmitted.

1 Press to display the subtitle.
- Subtitle is updated by the information sent by the broadcasting station.
2 Press again to access next available subtitle screen.

Troubleshooting

Problem Possible Solution
• No power. • The system cannot be switched on.	• Is the power cord disconnected? (See page 18.) • Has POWER been turned on? (See page 21.) • Check if you pressed buttons 0 to 9 on the remote control unit. (See page 21.) • If the indicator on the system lights up red, press 0 to 9.
• The system cannot be operated.	• External influences such as lightning, static electricity, etc., may cause improper operation. • In this case, operate the system after first turning off the power of the Plasma Television, or unplugging the power cord and re-plugging it in after 1 or 2 minutes.
• Remote control unit does not operate.	• Is the TV indicator on the remote control unit lighted? Press SELECT on the remote control unit to select the TV mode. • Are batteries inserted with polarity (+,-) aligned? (See page 20.) • Are batteries worn out? Replace with new batteries. (See page 20.) • Operate the remote control unit while pointing it toward the remote control sensor on the Plasma Television. (See page 20.) • Are you using it under strong or fluorescent lighting? • Is a fluorescent light illuminated to remote control sensor?
• No image and audio is presented.	• Check if the input source for video or PC has been unintentionally selected although you want to watch a TV channel. (See page 22.) • Check if you have selected a channel blocked with Child Lock. (See page 29.) • Enter a password to temporarily cancel Child Lock. (See page 55.) • Check the cable connection with the antenna. (See page 19.) • Check the cable connection with the other equipment. (See pages 57 to 63.)
• No picture.	• Is connection to other components correct? (See pages 57 to 63.) • Is a non-compatible PC signal being input? (See page 62.) • Is the Input Select setting correct? (See page 52.)
• Audio is output but no image is presented.	• Check if you have selected "Picture Off" for Energy Save. With this option selected, the screen is deactivated: only sound is output. To restore the screen display, press any button other than +/− or -. (See page 36.)
• Images are presented but no audio is output.	• Check if you have selected the minimum volume. (See page 23.) • Check if you have muted sound. (See page 23.) • Check if phones are still in connection with the PHONES output terminal. (See pages 13 and 14.) • When using PC as the input source, check that the audio terminal is also in connection. (See page 62.)
• Sound is reversed between the right and left. • Sound is output from only a single speaker.	• Check if the speaker cable connections have been reversed between the right and left or if the speaker cable from either speaker has been disconnected (for PDP-507XD only). (See page 13.) • Has the balance been correctly adjusted? (See page 35.)
• Picture is cut off.	• Is the image position correct? (See page 51.) • Has the correct screen size been selected? (See pages 53 and 54.)
• Strange colour, light colour, dark or colour misalignment.	• Adjust the picture tone. (See pages 31 to 34.) • Is the room too bright? The picture may look dark in a room that is too bright. • Check the colour system setting. (See pages 29 and 52.)
• Power is suddenly turned off.	• The system's internal temperature has increased. Remove any objects blocking vent or clean. (See page 16.) • Check the power control setting. (See page 36.) • Check the sleep timer setting. (See page 55.)
• After-image lag	• After displaying a still image or a very bright image for a certain period of time, if the screen is then switched to a darker scene, the previous image may appear as an after-image. • This can be rectified by playing a rather bright moving image for several minutes. However, displaying a still image for excessively long periods of time may cause permanent display deterioration.
• Brightness and colour tone on both sides differ from those in the centre in 4:3 mode.	• If images in 4:3 mode or letterbox images are displayed for long periods or for shorter periods over several days, an after-image may remain due to burning. This is a characteristic of Plasma Displays. • It is recommended that you enjoy watching images in wide screen as much as possible. (See page 53.) • When watching images in 4:3 mode, it is recommended that you select "Auto" in the Side Mask setting that adjusts the brightness of the grey side masks according to the brightness of images. (See page 54.)
• Panel sounds/noises	• Panel generated sounds, examples: fan motor noise. Electrical Circuit Humming/Glass Panel buzzing are normal operation of a phosphor-based matrix display. • When you change the Energy Save mode, you may notice a change in the panel sound. This is normal.
• POWER ON indicator or STANDBY indicator is quickly flashing.	• Internal protective circuits may have been activated. First turn the main power off by pressing POWER on the Plasma Television, and then turn the power on again in after one minute or more. If the problem is not solved with this, contact a Pioneer Service Center. These are listed on your warranty card for each country. Alternatively, check the Pioneer Web site (see cover) for contact details.

If the following error codes appear on the screen, check the corresponding items in the table.

Code Message Check
SD04 and SD11	Powering off. Internal temperature too high. Check temperature around PDP.	Check if the ambient temperature of the Plasma Television is high.
SD05	(PDP-507XD) Internal protection circuit turns power off. Is there a short in speaker cable? (PDP-427XD)	Check the speaker cable connections between the Plasma Television and the speakers.
	Internal protection circuit turns power off.	Contact a Pioneer Service Center. These are listed on your warranty card for each country. Alternatively, check the Pioneer Web site (see cover) for contact details.

Signal names for 15-pin mini D-sub connecter

(Front view)

Pin No.	Signal name	Pin No.	Signal name
1	R	9	+5V
2	G	10	GND (ground)
3	B	11	Not connected
4	Not connected	12	SDA
5	Not connected	13	HD
6	GND (ground)	14	VD
7	GND (ground)	15	SCL
8	GND (ground)

Connecting pin assignments for SCART

Various audio and video devices may be connected via the SCART terminals.

SCART (INPUT 1)

1. Audio right output 8. Audio-video control 15. Red input
2. Audio right input 9. Earth for Green 16. Red/Green/Blue control
3. Audio left output 10. Not used 17. Earth for Video output
4. Common earth for audio 11. Green input 18. Earth for Video input
5. Earth for Blue 12. Not used 19. Video output
6. Audio left input 13. Earth for Red 20. Video input
7. Blue input 14. Earth for Red/Green/Blue control 21. Plug shield

SCART (INPUT 2)

1. Audio right output 8. Audio-video control 15. Chroma S-Video input
2. Audio right input 9. Earth 16. Not used
3. Audio left output 10. AV link control 17. Earth for Video output
4. Common earth for audio 11. Not used 18. Earth for Video input/S-Video input
5. Earth 12. Not used 19. Video output
6. Audio left input 13. Earth 20. Video input/S-Video input
7. Not used
8. Earth
9. Video input/S-Video input
10. Plug shield

SCART (INPUT 3)

1. Audio right output 8. Audio-video control 15. Red input/Chroma S-Video input
2. Audio right input 9. Earth for Green 16. Red/Green/Blue control
3. Audio left output 10. AV link control 17. Earth for Video output
4. Common earth for audio 11. Green input 18. Earth for Video input/S-Video input
5. Earth for Blue 12. Not used 19. Video output
6. Audio left input 13. Earth for Red 20. Video input/S-Video input
7. Blue input 14. Earth for Red/Green/Blue control 21. Plug shield

Specifications

Item		50" Plasma Television, Model: PDP-507XD	42" Plasma Television, Model: PDP-427XD
Number of Pixels 1365 x 768 pixels 1024 x 768 pixels
Audio Amplifier		13 W + 13 W (1 kHz, 10 %, 8 Ω)	13 W + 13 W (1 kHz, 10 %, 8 Ω)
Speakers		-	Woofer: 4.8 cm x 13 cm cone type Tweeter: 2.5 cm semidome type
Surround System SRS/FOCUS/TruBass SRS/FOCUS/TruBass
Power Requirement 220 V to 240 V AC, 50 Hz/60		Hz, 348 W (0.7 W Standby)	220 V to 240 V AC, 50 Hz/60 Hz, 291 W (0.7 W Standby)
Dimensions		1224 mm (W) x 717 mm (H) x 115 mm (D)	1040 mm (W) x 679 mm (H) x 115 mm (D)
Weight 34.7 kg (76.5 lbs.) 29.6 kg (65.3 lbs.)
Colour System	Analogue	PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
	Digital	PAL/SECAM
TV Function (Analogue)	Receiving System	B/G, D/K, I, L/L'
	Tuner	VHF/UHF	E2-E69ch, F2-F10ch, I21-I69ch, IR A-IR Jch
		CATV	Hyper-band, S1-S41ch
	Auto Channel Preset	99 ch, Auto Preset, Auto Label, Auto Sort
	STEREO	NICAM/A2
TV Function (Digital)	Receiving System	DVB-T (2K/8K COFDM)
	Tuner	VHF/UHF	VHF Band III (170 MHz to 230 MHz) and UHF Band IV, V (470 MHz to 862 MHz)
	Auto Channel Preset	999 ch, Auto Preset, Auto Label, Auto Sort
	STEREO	MPEG layer /II, Dolby Digital
Terminals	Rear	INPUT 1	SCART (AV in, RGB in, TV out)
		INPUT 2	SCART (AV in/out, S-VIDEO in, AV link*) Component Video
		INPUT 3	SCART (AV in/out, S-VIDEO in, RGB in, AV link*) HDMI in*2
		INPUT 4	HDMI in*2
		CONTROL OUT	1
		SPEAKER	8 Ω to 16 Ω
		Antenna	75 Ω Din Type for VHF/UHF in (Analogue)
			75 Ω Din Type for VHF/UHF in (Digital)
			75 Ω Din Type for VHF/UHF out (Digital)
		PC	Analogue RGB in PC INPUT (AUDIO)
	Side	INPUT 5	S-VIDEO, AV in
AUDIO OUTPUT Terminal		(Rear)	AUDIO out (Fixed)
SUB WOOFER OUTPUT Terminal		(Rear)	Variable
PHONES OUTPUT Terminal		(Side)	16 Ω to 32 Ω recommended
DIGITAL OUT Terminal		(Rear)	Digital audio output (Optical)
COMMON INTERFACE		(Rear)	CA Module

*1 Selectable from the menu
*2 This conforms to HDMI1.1 and HDCP1.1. HDMI (High Definition Multimedia Interface) is a digital interface that handles both video and audio using a single cable. HDCP (High-bandwidth Digital Content Protection) is a technology used to protect copyrighted digital contents that use the Digital Visual Interface (DVI).
- Design and specifications are subject to change without notice.

Trademarks

FOCUS, WOW, SRS and () symbol are trademarks of SRS Labs, Inc.
FOCUS and SRS technologies are incorporated under license from SRS Labs, Inc.
- This product includes FontAvenue® fonts licensed by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.
- DDC is a registered trademark of Video Electronics Standards Association.
HMI, the HMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
The names of companies or institutions are trademarks or registered trademarks of the respective companies or institutions.

IMPORTANT

Précautions relatives aux piles 20

television analogiques 28

10 TV, STB, DVD/DVR, VCR

Précautions relatives aux piles

Marche Active DRE Intelligent,

Videorecorderbilds 57

Wasist Videotext? 68

10 TV,STB,DVD/DVR,VCR

Y Naher an Rot Naher an Grun

G Naher an Gelb Naher an Cyan

C Naher an Grun Naber an Blau

B Naher an Cyan Naher an Magenta

Published by Pioneer Corporation.

Copyright © 2006 Pioneer Corporation.

All rights reserved.

PIONEER CORPORATION

4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90810-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: [phone]
