USER MANUAL BSS 4810 AEG

D Bluetooth Sound System

NL Bluetooth Geluidsysteem

Black oval-shaped electronic device with a labeled 'AEG' button and control knob (no additional text or symbols visible)

AEG

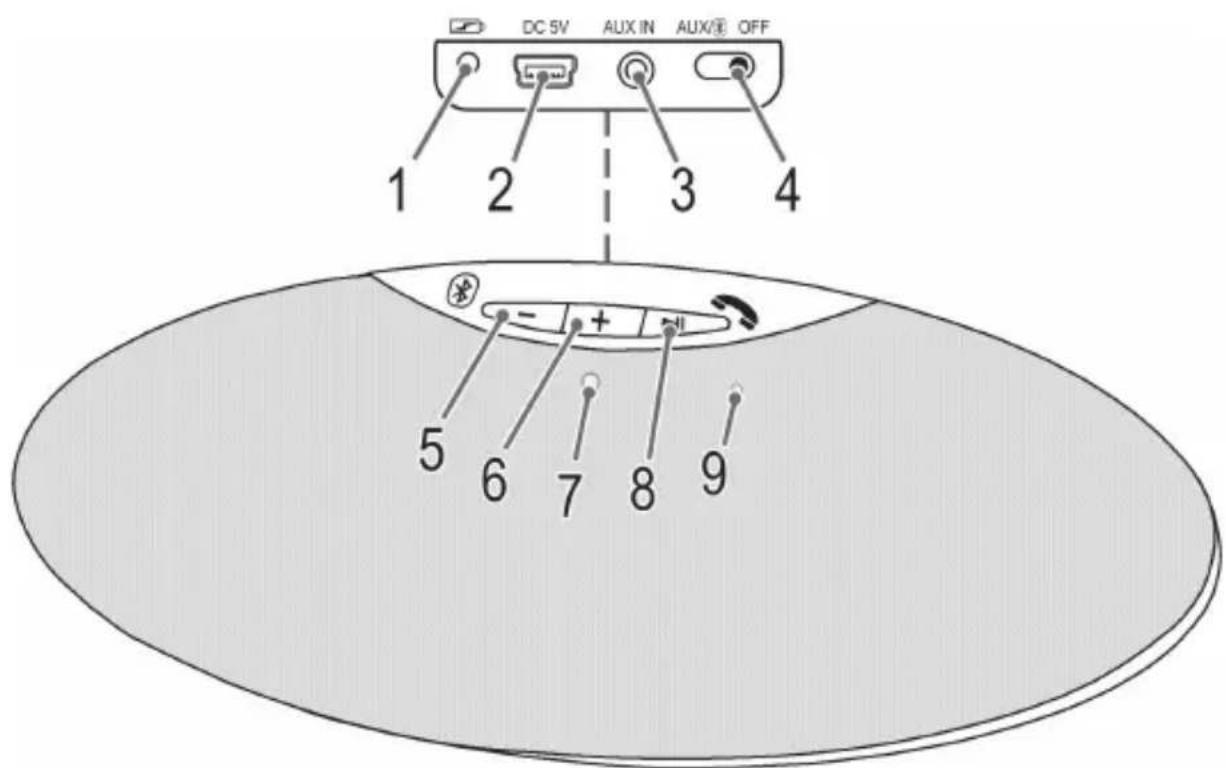

Overview of the Components

DC 5V AUX IN AUX/OFF 1 2 3 4 5 6 7 8 9

Cordless via Bluetooth

NOTA:

52 English Instruction Manual

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE:

This highlights tips and information.

Safety instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and or the envisaged purpose. This appliance is not fit for commercial use.
• Do not use the device with wet hands.
• To minimize the risk of fire or electrical shock, subject the device neither to rain nor to humidity. Do not operate the device in the direct proximity of water (e.g. bathroom swimming pool.).
• Keep the device away from heat, direct sunlight and sharp edges.
• Keep the device away from naked flames.
• Do not subject the battery to a hard impact or pressure.
• Do not insert any metal objects into the device. Risk of short circuit!
• Do not use the device in an extremely humid or muggy environment.
  • To avoid a static charge, do not utilize the device in an extremely dry climate.
• The device needs to be examined regularly for signs of damage or material fatigue. If damage is noticed, the device may no longer be used.
• Do not repair the unit yourself but contact an authorised specialist.

• Do not use the device in locations that are extremely hot, cold, dusty or moist.

• Select a suitable location for the radio recorder, such as a dry, flat, non-slip surface on which it is easy to operate the machine.

• Ensure that the radio recorder is sufficiently ventilated!
• Do not cover any ventilation slits with objects such as magazines, tablecloths, curtains etc.

Children and Frail Individuals

In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

Special safety instructions for this system

WARNING:

Avoid damage to your ears by turning the volume up too high.

CAUTION:

• Do not touch the loudspeaker membranes with your hands or with other objects as this will damage them.
• Do not overload the unit.

Overview of the operating elements

1 Charging indicator light
2 Mini USB charger socket (DC5 V)
3 3.5 mm socket (AUX IN)
4 On/off switch (AUX/ Ⓞ / OFF)
5 Previous track / Reduce volume (−)
6 Next track / Increase volume (+)
7 Bluetooth indicator light
8 Play/Pause ( /▶)
9 Microphone

Back (not shown)

Battery compartment

54

English

Supplied parts (not shown)

1 Charger cable (Type A USB to Mini-B USB)
1 Audio cable (2x 3.5 mm stereo cinch connector)

Inserting the battery

1. Open the battery compartment on the back.
2. Insert the enclosed battery. Mind the correct polarity (indicated on the bottom of the battery case)!
3. Close the battery case.
4. If the device is not used for a longer period of time, remove the battery from the device to prevent a "leaking out" of battery acid.

CAUTION:

• Batteries must not be disposed of in the garbage. Please bring used batteries to competent collection centers or back to the dealer.
• Only replace the battery with a different battery of the same type.

WARNING:

Never expose batteries to high temperatures or direct sunlight or throw batteries into fire for danger of explosion!

Charging the battery

The device is operated through the supplied lithium-ion battery. Charge the battery as follows:

1. Insert the battery. ( see “Inserting the battery”)
2. Insert the Mini USB plug from the charger cable into the socket (2) of the unit. Connect the USB plug to a powered-on computer. The indicator lamp lights up red and the battery charges.
3. If the battery is completely charged, the indicator light (1) will light up green.
4. Remove the charger cable from the speaker and PC.

CAUTION:

Never leave the unit unattended when it is charging.

i NOTE:

• The battery is only charged while the PC is switched on.
- Do not connect the player for a long period of time to a laptop computer disconnected from mains power. Otherwise the laptop computer's battery may be discharged.
• The charging time varies according to battery use.
- Should you not use the device for longer than half a year, charge the battery at least every 6 to 12 months. The battery will also constantly discharge when switched off.
- To charge the battery, you may also use a standard power adapter with a mini USB connector. The power adapter may however not have an output of more than 5.5 V and not less than 1 A.

Location

Select a suitable location for the unit. A dry, even, non-slip surface on which you can easily operate the unit is suitable.

Use

You have two ways to use the device: By cable or cordless via Bluetooth.

By cable

1. Connect the 3.5 mm stereo RCA cable to an external audio source. If required, use a suitable adapter (not included).
2. Insert the other end of the cable into the AUX IN jack (3) on the unit.
3. Switch the speaker on by setting the AUX/OFF switch (4) to "AUX/".
4. Adjust the volume on the audio source. The function buttons on the speaker are not operational.

Cordless via Bluetooth

i NOTE:

If an audio cable is connected to the AUX IN jack (3), a connection via Bluetooth is not possible.

Bluetooth involves a technology for wireless radio connection of devices over a short distance. Devices with Bluetooth standard are transmitting between 2.402 and 2.480 GHz in the ISM band (Industrial, Scientific and Medical). Interferences can however be caused by WLANs, networks, wireless telephones, or microwave ovens, for example, which operate in the same frequency band.

English

This device offers you the possibility to use a Bluetooth-enabled device. The functional radius is limited to approx. 15 metres depending on the surroundings and the unit used.

If your playing device supports the A2DP profile (Advanced Audio Distribution Profile) and has a music-player function, then you can also wirelessly transfer music to the device. The A2DP profile involves a multivendor Bluetooth profile. By streaming, stereo-audio signals are wirelessly transferred between the playing device (source) and the receiving device. To be able to operate the source by remote control, the player needs to support the AVRCP profile (Audio Video Remote Control Profile).

Due to the different device manufacturers, models, and software versions, a full functionality cannot be guaranteed.

- Logging on devices (Pairing)

Before you listen to music via the unit, you must pair the devices.

1. Ensure, that the Bluetooth function is activated in your player (e.g. mobile phone). For this, refer to the operation manual of your player.
2. Turn the device on by moving the AUX/ OFF switch (4) to the AUX/ position. The indicator light (7) will start to flash rapidly after a short time. The device is now set to the pairing mode.
3. Chose the Bluetooth menu in your player and register the device in your player. For this, refer to the operation manual of your player. The device "BSS 4810" will show in your player as a selection.
4. Now enter the password "0000" in your player, depending on the device manufacturers, model, and software version.

If the pairing was performed successfully, a beep will be heard from the speaker. The indicator light (7) will be lit.

NOTE:

• Depending on the device manufacturer, you need to perform the registration (PAIRING) again to connect the devices.
• In the case of problems with the pairing of a playback device, deactivate the WiFi-/ and mobile data function in your playback device.
• The Bluetooth compatibility cannot be ensured for devices (e.g. mobile phones) getting released in the future.
• To ensure an optimal connection, make sure that the battery of your player is completely charged.

i NOTE:

• Some of the mobile phone brands have an energy-saving mode. Deactivate the energy-saving mode as it can otherwise result in problems during the data transfer through Bluetooth.
• To be able to transfer audio data, Bluetooth needs to stay activated in your player. Observe the operation manual of your player.
• If a mobile phone on which you are playing music receives a call, the music will be interrupted. Press the ▶ button (8), to accept the call. The sound is replayed by the loudspeakers. Speak into the microphone on the device or transfer the conversation to your mobile phone. To do this, observe the overlay in the display of the mobile phone. After you have ended the call, the devices are connected to each other again and playback continues.

Operation

The device is equipped with multi functional buttons. For different functions press the respective button briefly or press and hold.

On/Off (4)

- To switch the unit on, slide the AUX/OFF switch to "AUX/".

NOTE: Automatic connection

If supported by your player (e.g. mobile phone), the devices will be connected automatically. The prerequisite for this is:

• The devices were already connected with each other.
- Bluetooth is activated in your player.

- To switch the unit off, set the AUX/ OFF switch to "OFF". The units are disconnected.

NOTE:

• To save the battery, switch off the speaker when not in use.
- If no suitable playback device is recognized in Bluetooth mode within 5 minutes, the device will automatically switch to standby. To use the device again, keep the
▶ II / button (8) pressed down.

58

English

▶ II/ Pause (8)

• Briefly press the button to pause playback.
• Press the button again to continue playback.

NOTE:

Depending on the device manufacturers, models, and software versions you need to start the music playback in your player.

Adjust Volume (5/6)

Keep the + (6) - (5) buttons pressed down to set the desired volume.

NOTE:

• The device always starts at the maximum volume.
• If the maximum volume has been reached on the speaker, a beep will sound.
- Increase the volume on your player.
- The volume on the playback unit must not be set too low, otherwise static may occur.
- Music can still be heard on the lowest possible volume setting on the unit. This is not a fault on the unit.

Select Music (5/6)

• If you press the + (6) button, the next track will be played back.
• If you press the – (5) button, the current track will be played from the beginning or the previous track will be replayed depending on the playback device.

NOTE:

Your player must support this function.

Accepting / Ending call

• Press the ▶Ⅱ/ ⑧, to accept an incoming call.
  • To end the call, press the button again.

NOTE:

During an incoming phone call, the music playback will stop. After ending the phone call, the track will continue to play.

Maintenance and Cleaning

CAUTION:

Never immerse the unit in water!

• There are no parts inside the device which can be maintained by the user.
- Clean the speaker with a slightly damp cloth without cleaning agent.

Troubleshooting

Symptoms Possible cause Solution
Cannot switch the speaker on	Battery empty Charge the battery ( →Page 54)
	Audio cable is connected D	Disconnect the cable.
No audio signal during Bluetooth connection	Speaker is switched off Switch	the speaker on.
	Speaker is not paired to the audio source.	Check whether the connection exists. If necessary, pair the speaker to the audio source again.
	Audio cable is connected. T	The Bluetooth connection is automatically separated when a cable is connected to the 3.5 mm plug. Remove the cable.
	Volume too low Increase the v	volume on the speaker
		Increase the volume on the audio source.
Cannot connect speaker	Pairing does not work Check,	whether the audio source supports the A2DP protocol.
	Audio source is turned off T	Turn the audio source on
	Bluetooth is turned off on the audio source.	Turn the Bluetooth function on in the audio source.
	Bluetooth version is not supported.	Use another playback unit.

English

Technical Specifications

Model: BSS 4810

Audio connection: 3.5 mm stereo jack plug

Net weight: approx. 0.357 kg

Power supply:......DC 5 V

Battery: 3.7 V 1000 mAh lithium-lons

Charging time:....approx. 9 hours.

Operating time:......approx. 12 hours.

Bluetooth

Bluetooth support:......V2.0 + EDR

Range: approx. 15 meters

Transmitting frequency: 2.4 GHz

Protocols:....A2DP, AVRCP

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Battery disposal

The device has a rechargeable battery. Used batteries and accumulators do not belong in the household waste.

The batteries / accumulators must be removed before the product goes into the waste disposal.

Environmental protection

Do not dispose of the device at the end of its service life with normal household waste. Bring it to the official collection point for recycling. By doing this, you help protect the environment.
