USER MANUAL KX1200.1 KICKER

INSTALLATION Mounting: Choose a structurally sound location to mount your KICKER amplifi er. Make sure there are no items behind the area where the screws will be driven. Choose a location that allows at least 4” (10cm) of open ventilation for the amplifi er. If possible, mount the amplifi er in the climate-controlled passenger compartment. Drill four holes using a 7/64” (3mm) bit and use the supplied #8 screws to mount the amplifi er. PERFORMANCE Authorized KICKER Dealer: Purchase Date: Model Number: Serial Number: Model: KX400.1 KX800.1 KX1200.1 KX1600.1 KX2400.1 RMS Power @ 14.4V, 4Ω mono, 1% THD+N @ 14.4V, 2Ω mono, 1% THD+N 200W x 1 400W x 1 400W x 1 800W x 1 600W x 1 1200W x 1 800W x 1 1600W x 1 1200W x 1 2400W x 1 Length | in [cm] 8 [20.4] 9 9/16 [24.4] 9 9/16 [24.4] 11 3/16 [28.4] 15 1/2 [39.4] Specifi cations common to all models: Height | in [cm] 2 1/8 [5.5] Width | in [cm] 8 5/16 [21] Frequency Response ± 1dB 10Hz–160Hz Signal-to-noise Ratio >95dB, A-weighted, re: rated power Input Sensitivity Low Level: 125mV–5V High Level: 250mV–10V Electronic Crossover Variable Lo-pass 40Hz–160Hz, 24dB/octave Bass Boost Parametric 20-80Hz; Variable Q: 1 to 5; Variable Boost, 0-18dB Subsonic Filter Variable 10–80Hz, 24dB/octave Remote Bass Yes [included] Pro Tip: To get the best performance from your new KICKER Amplifi er and extend the warranty by 1 year, use genuine KICKER accessories and wiring.

MODEL: KX400.1 / KX800.1 / KX1200.1 / KX1600.1 / KX2400.1

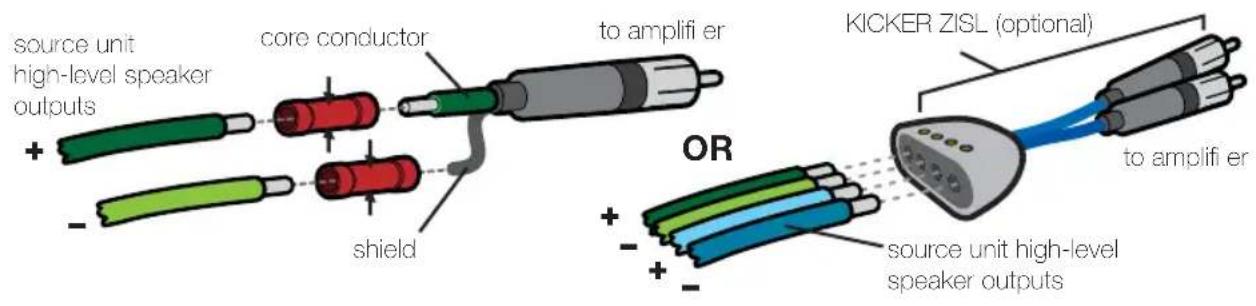

2013 KX Mono Amps Rev G.indd 22013 KX Mono Amps Rev G.indd 2 11/13/2012 2:17:11 PM11/13/2012 2:17:11 PM3 Wiring: Disconnect the vehicle’s battery to avoid an electrical short. Then, connect the ground wire to the amplifi er. Make the ground wire short, 24” (60cm) or less, and connect it to a paint-and-corrosion-free, solid, metal area of the vehicle’s chassis. Adding an additional ground wire of this same gauge (or larger) between the battery’s negative post and the vehicle chassis is recommended. The KX amplifi er has dual input sensitivity differential RCA inputs which will receive either high or low level signals from your car stereo’s source unit. A high-level signal can be run from the source unit’s speaker outputs to the stereo RCA input on the end panel of the amplifi er using the KICKER ZISL as shown (make sure you set the KX amplifi er’s input level switch to “HI”). Alternatively, the signal can be delivered to the amplifi er using the low-level RCA outputs on the source unit. Set the input level switch on the end panel of the amplifi er to “LO”. Either input method will provide a low-level output signal at the RCA output, which effectively passes the audio signal to another amplifi er or component. Keep the audio signal cable away from factory wiring harnesses and other power wiring. If you need to cross this wiring, cross it at a 90 degree angle. source unit high-level speaker outputs to amplifi er shield

core conductor KICKER ZISL (optional) source unit high-level speaker outputs

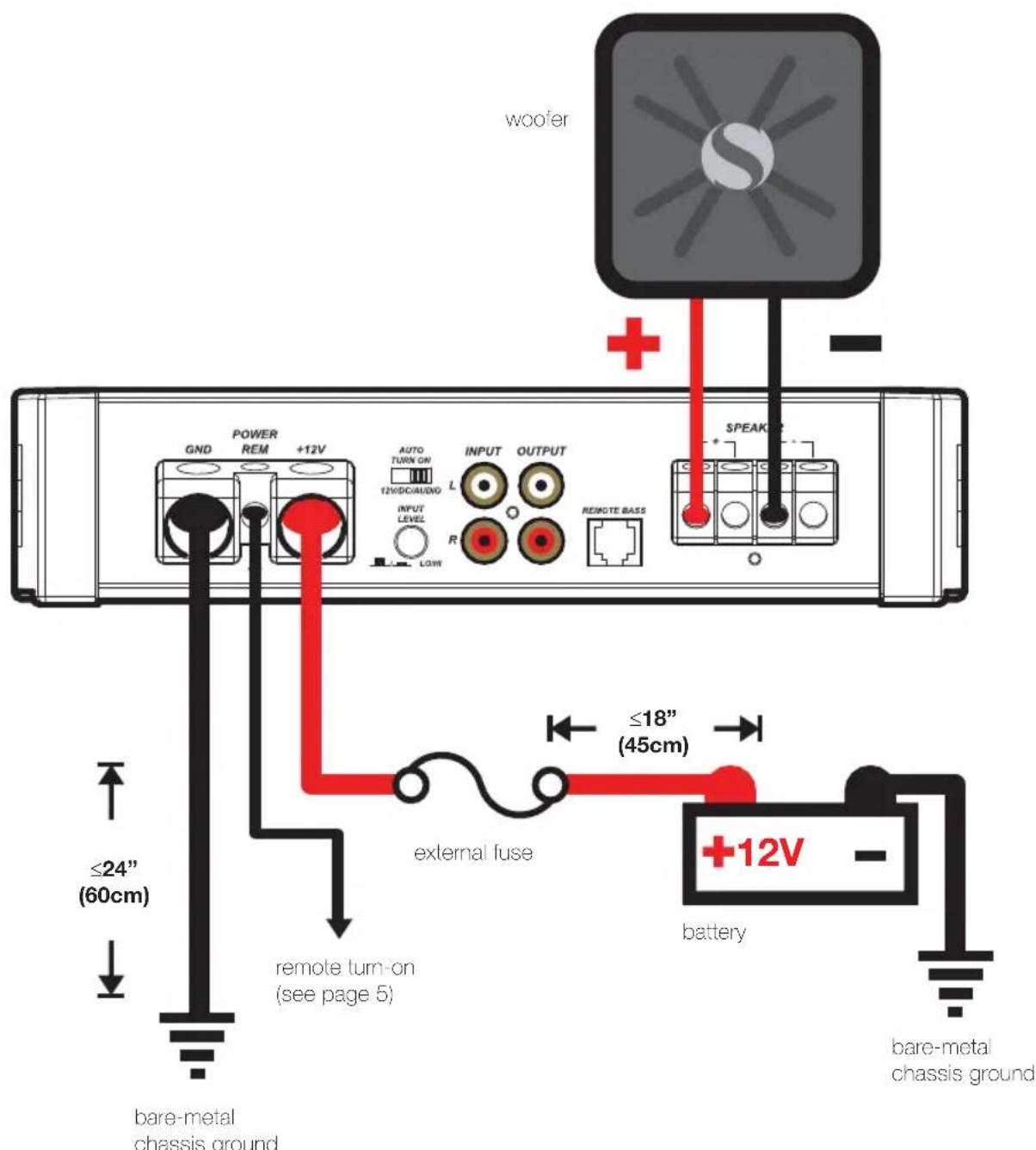

to amplifi er Model External Fuse (sold separately) Power/Ground Wire KICKER Wiring Kit KX400.1 1 x 60 Ampere 4 Gauge PK4, CK44, ZCK44 KX800.1 1 x 100 Ampere 4 Gauge PK4, CK44, ZCK44 KX1200.1 1 x 150 Ampere 1/0 Gauge PKD1, PWB050 KX1600.1 1 x 150 Ampere 1/0 Gauge PKD1, PWB050 KX2400.1 1 x 200 Ampere 1/0 Gauge PKD1, PWB050 Install a fuse within 18” (45cm) of the battery and in-line with the power cable connected to your amplifi er. If you ever need to remove the amplifi er from the vehicle after it has been installed, the ground wire should be the last wire disconnected from the amplifi er--just the opposite as when you installed it. 2013 KX Mono Amps Rev G.indd 32013 KX Mono Amps Rev G.indd 3 11/13/2012 2:17:12 PM11/13/2012 2:17:12 PM4 12V battery external fuse remote turn-on (see page 5) bare-metal chassis ground bare-metal chassis ground 18” (45cm) 24” (60cm) woofer MONO OPERATION minimum impedance of 2 ohms 2013 KX Mono Amps Rev G.indd 42013 KX Mono Amps Rev G.indd 4 11/13/2012 2:17:12 PM11/13/2012 2:17:12 PM5 OPERATION Automatic Turn-On Selection: The KX series offers three different automatic turn-on modes that can be selected on the end panel; +12V, DC Offset, and Audio. Using either the DC Offset or Audio mode causes the REM terminal to have +12V out for turning on additional amplifi ers.

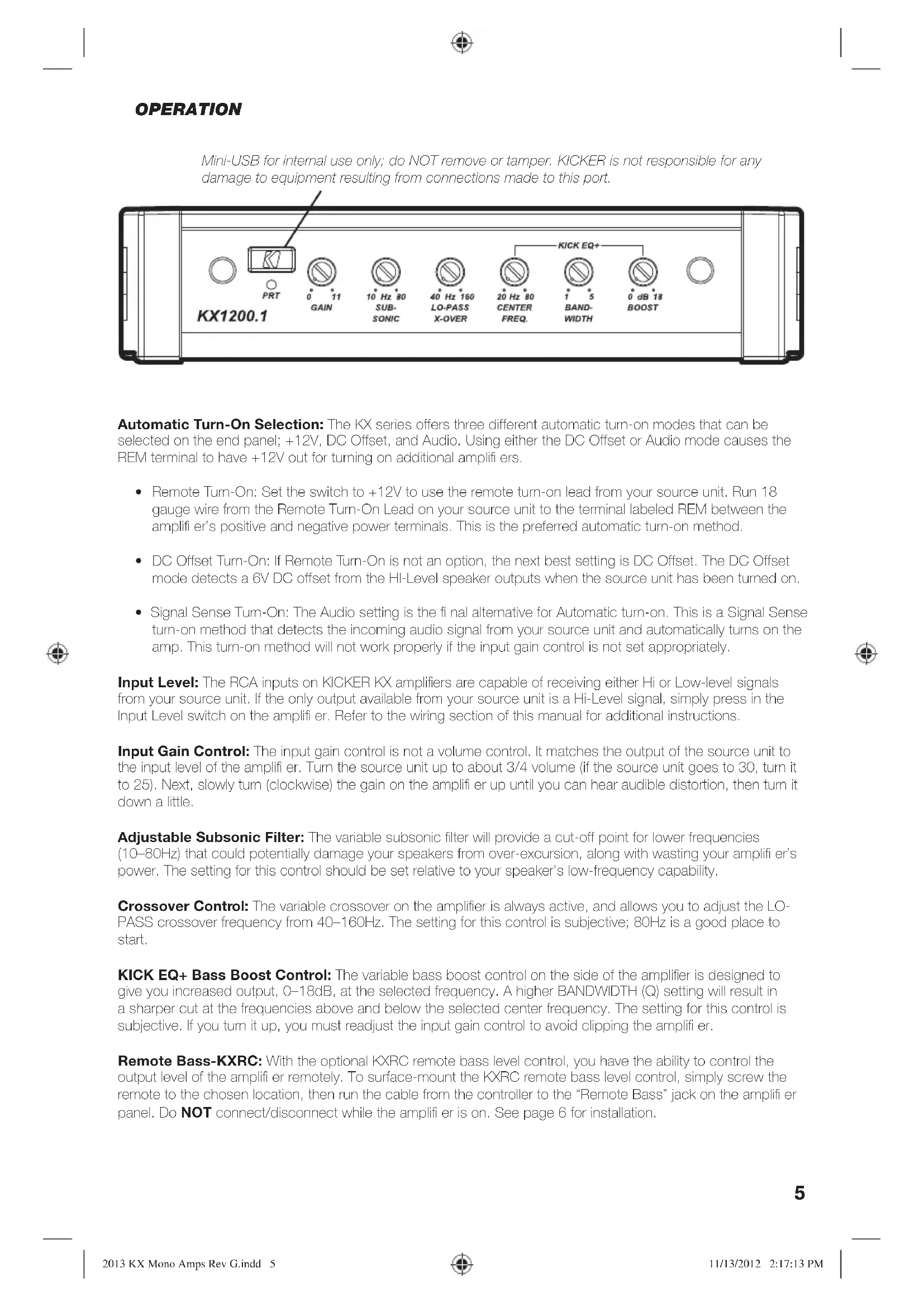

• Remote Turn-On: Set the switch to +12V to use the remote turn-on lead from your source unit. Run 18 gauge wire from the Remote Turn-On Lead on your source unit to the terminal labeled REM between the amplifi er’s positive and negative power terminals. This is the preferred automatic turn-on method.

• DC Offset Turn-On: If Remote Turn-On is not an option, the next best setting is DC Offset. The DC Offset mode detects a 6V DC offset from the HI-Level speaker outputs when the source unit has been turned on.

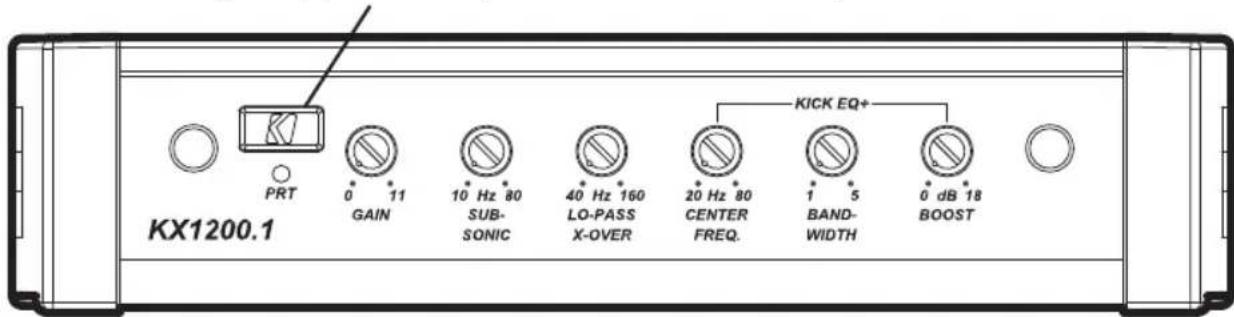

• Signal Sense Turn-On: The Audio setting is the fi nal alternative for Automatic turn-on. This is a Signal Sense turn-on method that detects the incoming audio signal from your source unit and automatically turns on the amp. This turn-on method will not work properly if the input gain control is not set appropriately. Input Level: The RCA inputs on KICKER KX amplifi ers are capable of receiving either Hi or Low-level signals from your source unit. If the only output available from your source unit is a Hi-Level signal, simply press in the Input Level switch on the amplifi er. Refer to the wiring section of this manual for additional instructions. Input Gain Control: The input gain control is not a volume control. It matches the output of the source unit to the input level of the amplifi er. Turn the source unit up to about 3/4 volume (if the source unit goes to 30, turn it to 25). Next, slowly turn (clockwise) the gain on the amplifi er up until you can hear audible distortion, then turn it down a little. Adjustable Subsonic Filter: The variable subsonic fi lter will provide a cut-off point for lower frequencies (10–80Hz) that could potentially damage your speakers from over-excursion, along with wasting your amplifi er’s power. The setting for this control should be set relative to your speaker’s low-frequency capability. Crossover Control: The variable crossover on the amplifi er is always active, and allows you to adjust the LO- PASS crossover frequency from 40–160Hz. The setting for this control is subjective; 80Hz is a good place to start. KICK EQ+ Bass Boost Control: The variable bass boost control on the side of the amplifi er is designed to give you increased output, 0–18dB, at the selected frequency. A higher BANDWIDTH (Q) setting will result in a sharper cut at the frequencies above and below the selected center frequency. The setting for this control is subjective. If you turn it up, you must readjust the input gain control to avoid clipping the amplifi er. Remote Bass-KXRC: With the optional KXRC remote bass level control, you have the ability to control the output level of the amplifi er remotely. To surface-mount the KXRC remote bass level control, simply screw the remote to the chosen location, then run the cable from the controller to the “Remote Bass” jack on the amplifi er panel. Do NOT connect/disconnect while the amplifi er is on. See page 6 for installation. Mini-USB for internal use only; do NOT remove or tamper. KICKER is not responsible for any damage to equipment resulting from connections made to this port. 2013 KX Mono Amps Rev G.indd 52013 KX Mono Amps Rev G.indd 5 11/13/2012 2:17:13 PM11/13/2012 2:17:13 PM6

KXRC REMOTE BASS INSTALLATION

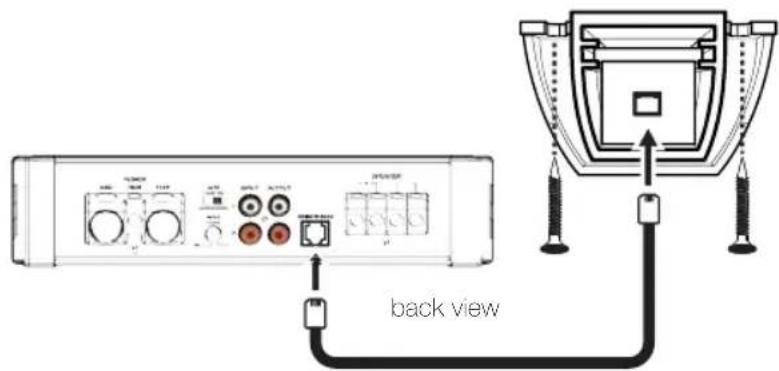

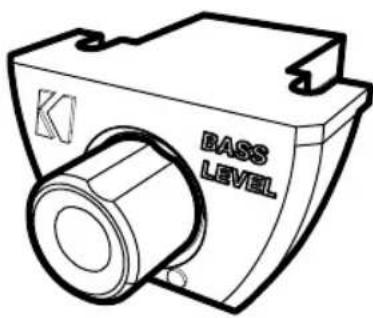

Surface-mount the KXRC remote using the supplied screws. Connect the supplied cable to the KXRC remote and the Remote Bass jack on the amplifi er back view TROUBLESHOOTING If your amplifi er does not appear to be working, check the obvious things fi rst such as blown fuses, poor or incorrect wiring connections, incorrect setting of crossover switch and gain controls, etc. There is a Protection (PRT) LED on the side panel of your Kicker KX series amplifi er. Depending on the state of the amplifi er and the vehicle’s charging system, the LED will either glow red or be off. Red (PRT) LED fl ickering with loud music? The red (PRT) LED indicates low battery voltage. Check all the connections in your vehicle’s charging system. It may be necessary to replace or charge your vehicle’s battery or replace your vehicle’s alternator. Red (PRT) LED on, no output?

Amplifi er is very hot = thermal protection is engaged. Test for proper impedance at the speaker terminals with a VOM meter (see the diagrams in this manual for minimum recommended impedance and multiple speaker wiring suggestions). Also check for adequate airfl ow around the amplifi er.

Amplifi er shuts down only while vehicle is running = voltage protection circuitry is engaged. Voltage to the amplifi er is not within the 10–16 volt operating range. Have the vehicle’s charging and electrical system inspected.

Amplifi er will only play at low volume levels = short circuit protection is engaged. Check for speaker wires shorted to each other or to the vehicle chassis. Check for damaged speakers or speaker(s) operating below the minimum recommended impedance. No or low output?

Check the balance control on source unit

Check the RCA (or speaker input) and speaker output connections. Alternator noise-whining sound with engine’s RPM?

Check for damaged RCA (or speaker input) cable

Check the routing of RCA (or speaker input) cable

Check the source unit for proper grounding

Check the gain settings and turn them down if they are set too high. Ground Noise? KICKER amplifi ers are engineered to be fully compatible with all manufacturers’ head units. Some head units may require additional grounding to prevent noise from entering the audio signal. If you are experiencing this problem with your head unit, in most cases running a ground wire from the RCA outputs on the head unit to the chassis will remedy this issue. CAUTION: When jump starting the vehicle, be sure that connections made with jumper cables are correct. Improper connections can result in blown amplifi er fuses as well as the failure of other critical systems in the vehicle. 2013 KX Mono Amps Rev G.indd 62013 KX Mono Amps Rev G.indd 6 11/13/2012 2:17:14 PM11/13/2012 2:17:14 PM7 KICKER will now provide a three- year warranty with all KX-Series Amplifi er purchases paired with a qualifying KICKER Installation Kit* . This extends the standard warranty by an additional year. Amplifi er and Kit must be purchased from an Authorized KICKER Dealer. KICKER KX amplifi er success is currently at an unheard-of rate, making the extended warranty program even more benefi cial to you. Using poor-quality, under-spec wiring kits will impede KX amplifi er performance. A superior-quality KICKER installation Kit is guaranteed to extend the life of KX amplifi ers. The new extended warranty applies only to KICKER amplifi ers and accessories sold to consumers by Authorized KICKER Dealers in the United States of America or its possessions. It also only applies to the original purchaser of KICKER amplifi ers and accessories. One warranty extension per amplifi er is allowed regardless of the number of amplifi er installation kits purchased. This program does not apply to “B”-stock product or factory-refurbished product. This offer is for a limited time, so see your local Authorized KICKER Dealer soon for details. *U.S.A. Only | EE.UU. solamente | Nur USA | Les USA Seulement KX400.1 200 x 1 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts) Signal to Noise Ratio -75dB CEA-2006B (ref: 1W, A-weighted) KX800.1 400 x 1 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts) Signal to Noise Ratio -75dB CEA-2006B (ref: 1W, A-weighted) KX1200.1 600 x 1 @ 4 ohm, 14.4VDC, 1% THD, CEA-2006B (Watts) Signal to Noise Ratio -75dB CEA-2006B (ref: 1W, A-weighted) KX1600.1 800 x 1 @ 4 ohms, 14.4VDC, 1% THD, CEA-2006B (Watts) Signal to Noise Ratio -75dB CEA-2006B (ref: 1W, A-weighted) KX2400.1 1200 x 1 @ 4 ohm, 14.4VDC, 1% THD, CEA-2006B (Watts) Signal to Noise Ratio -75dB CEA-2006B (ref: 1W, A-weighted) If you have more questions about the installation or operation of your new KICKER product, see the Authorized KICKER Dealer where you made your purchase. For more advice on installation, click on the SUPPORT tab on the KICKER homepage, www.kicker.com. Choose the TECHNICAL SUPPORT tab, choose the subject you are interested in, and then download or view the corresponding information. Please E-mail [e-mail] or call Technical Services [phone] for unanswered or specifi c questions. 2013 KX Mono Amps Rev G.indd 72013 KX Mono Amps Rev G.indd 7 11/13/2012 2:17:17 PM11/13/2012 2:17:17 PM8 Modelo: KX400.1 KX800.1 KX1200.1 KX1600.1 KX2400.1 Alimentación RMS @ 14.4V, 4 mono, 1% THD+N @ 14.4V, 2 mono, 1% THD+N 200W x 1 400W x 1 400W x 1 800W x 1 600W x 1 1200W x 1 800W x 1 1600W x 1 1200W x 1 2400W x 1 Longitud | pulg. [cm] 8 [20.4] 9 9/16 [24.4] 9 9/16 [24.4] 11 3/16 [28.4] 15 1/2 [39.4] Especifi caciones comunes para todos los modelos: Altura | in [cm] 2 1/8 [5.5] Ancho | pulg. [cm] 8 5/16 [21] Respuesta de frecuencia ± 1dB 10Hz–160Hz Relación señal a ruido >95dB, ponderado-A, re: potencial nominal Sensibilidad de entrada Bajo nivel: 125mV–5V Alto nivel: 250mV–10V Separador de frecuencias electrónico Paso-bajo variable 40Hz–160Hz, 24dB/octava Potenciador de graves Parametric 20-80Hz; Variable Q: 1 to 5; Variable Boost, 0-18dB Filtro subsónico Variable 10–80Hz, 24dB/octava Grave remoto Sí
