Product Type	Mono Class D subwoofer amplifier
Brand	Ground Zero
Model	GZPA 1.10000SPLHC
Category	Car Audio
Max power (1 Ω, 10% THD)	1 x 11000 W
Max power (2 Ω, 1% THD)	1 x 4500 W
Max power (4 Ω, 1% THD)	1 x 2200 W
Stable impedance	1 Ω (single mode), 2 Ω (link mode)
Frequency response	10 Hz – 250 Hz (±1 dB)
Low-pass filter	35 Hz – 250 Hz, adjustable
Subsonic filter	10 Hz – 70 Hz, adjustable
Bass boost	0 – +9 dB, frequency 30 Hz – 90 Hz
Phase shift	0° – 180°, adjustable
Damping factor	> 200 @4 Ω
Signal-to-noise ratio	> 65 dB
Input sensitivity	200 mV – 10 V
Efficiency	> 89 % @4 Ω
Power supply	10 V – 16 V DC
Protection	Protection LED, thermal and electronic, external fuses
Inputs	2 x RCA (L/R), remote input, power terminal (2 x 50 mm²)
Outputs	Speaker terminal 2 – 8 Ω, RCA output for link
Dimensions (L x H x D)	625 x 75 x 300 mm
Weight	Approximately 15 kg (estimate)
Maintenance	Clean with a soft dry cloth. Do not use chemicals.
Repairability	User-replaceable fuses. For any other repairs, contact Ground Zero after-sales service.

Frequently Asked Questions - GZPA 1.10000SPLHC Ground Zero

What is the maximum power of the GZPA 1.10000SPLHC amplifier?

The maximum power is 11000 W at 1 Ω with 10% THD.

The amplifier does not turn on, what should I do?

Check that the 12 V power cable is properly connected, that the Remote signal is present (12 V), and that the ground is correct. If the protection LED is off, the problem may be from the external fuse.

The protection LED lights up when the amplifier is powered on, what does that mean?

A protection LED on indicates a short circuit or too low impedance on the speakers. Disconnect the speaker wires; if the LED goes off, the fault is from the speakers or wiring.

A fuse blows regularly, how to solve this?

Check that the speaker impedance is correct (≥ 2 Ω in link mode, ≥ 1 Ω in single mode) and that there is no short circuit on the power or speaker cables.

The amplifier heats up abnormally, is this normal?

Overheating can be due to too low impedance, a short circuit, or lack of ventilation. Make sure the amplifier is installed in a well-ventilated area and that the speakers are properly connected.

The sound is too weak or distorted, what to check?

Check the input level (Input Level), the car radio volume, and the filter settings. Make sure the speakers are not short-circuited and that the frequencies are correctly adjusted.

How to adjust the input sensitivity (Input Level)?

Turn the Input Level potentiometer fully to the left (MIN). Set the car radio volume to 2/3 of maximum, then increase the input level until you get a pleasant sound without distortion.

I hear engine noise or hissing in the speakers, what to do?

Disconnect the RCA cables from the amplifier; if the noise disappears, the problem is from the cables or the car radio. Also check the ground of the amplifier and sources.

Can I use two GZPA 1.10000SPLHC amplifiers together?

Yes, thanks to Link Mode, you can connect two amplifiers (master/slave) to double the power. The total impedance must be at least 2 Ω.

What cables are recommended for installation?

Use a power cable of 50 mm² (minimum 2 x 50 mm² for this model), a ground cable of 50 mm², and a speaker cable of 6 mm². External fuses must be placed less than 20 cm from the battery.

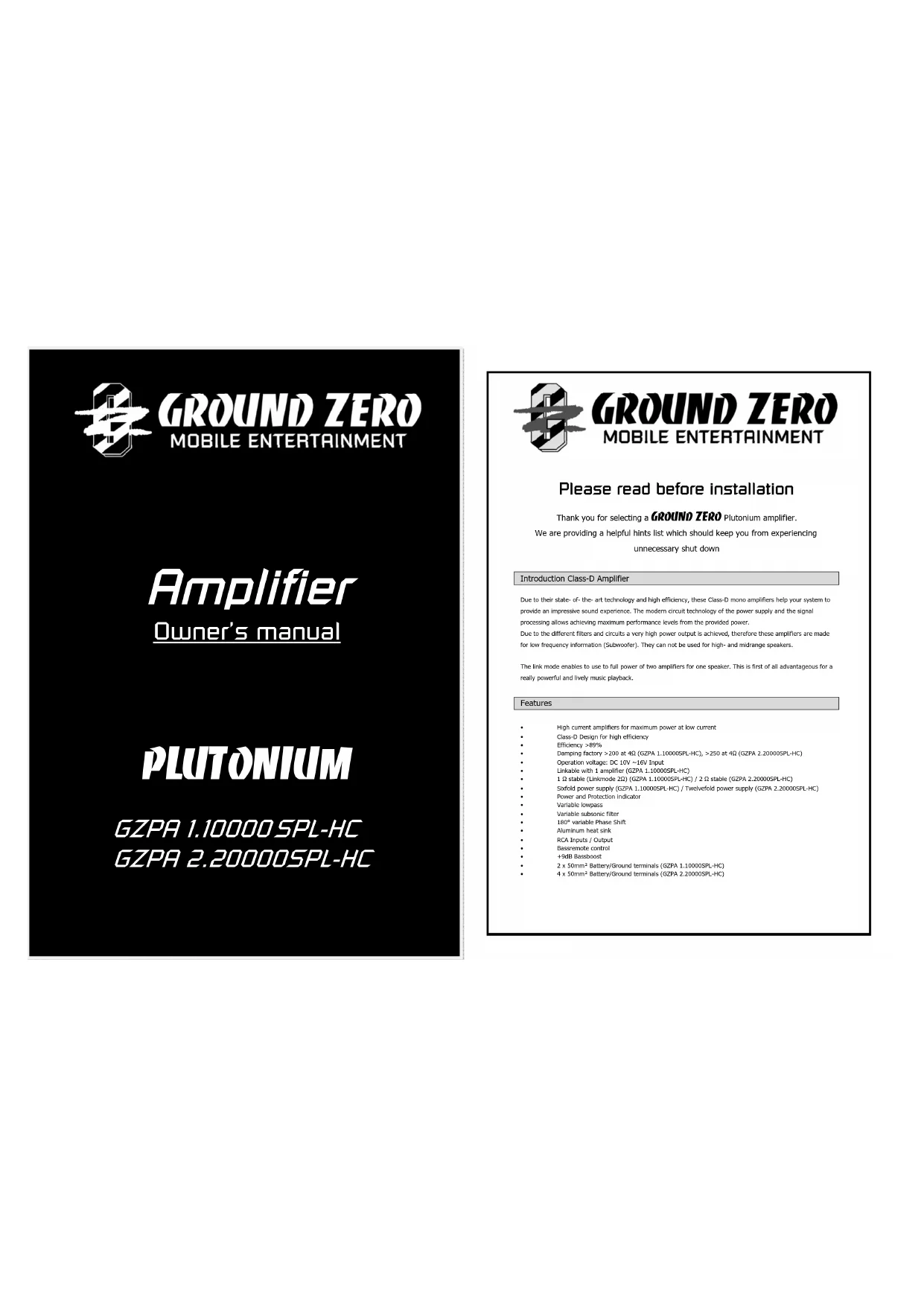

USER MANUAL GZPA 1.10000SPLHC Ground Zero

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

wwwground-zero-audio.com

We reserve the right to make needed change or improvement to the product without informing customer about this in advance.

Please read before installation

Thank you for selecting a GROUND ZERO Plutonium amplifier.

We are providing a helpful hints list which should keep you from experiencing

unnecessary shut down

Introduction Class-D Amplifier

Due to their state-of-the-art technology and high efficiency, these Class-D mono amplifiers help your system to

provide an impressive sound experience. The modern circuit technology of the power supply and the signal

processing allows achieving maximum performance levels from the provided power.

Due to the different filters and circuits a very high power output is achieved, therefore these amplifiers are made

for low frequency Information (Subwoofer). They can not be used for high- and midrange speakers.

The link mode enables to use to full power of two amplifiers for one speaker. This is first of all advantageous for a really powerful and lively music playback.

Features

High current amplifiers for maximum power at low current
Class-D Design for high efficiency
Effciency >89%
Damping factory >200 at 4Ω (GZPA 1.10000SPL-HC), >250 at 4Ω (GZPA 2.20000SPL-HC)
Operation voltage: DC 10V~16V Input
Unkable with 1 amplifier (GZPA 1.10000SP-LC)
1Ω stable (Unkmode 2Ω) (GZPA 1.100005PL-HC) / 2Ω stable (GZPA 2.200005PL-HC)
Sixfold power supply (GZPA 1.10000SPL-HC) /Twelvefold power supply (GZPA 2.20000SPL-HC)
Power and Protection Indicator
Variable lowpass
Variable subsonic filter
180° variable Phase Shift
Aluminum 1
RCA Inputs/Output
Bessromote cont
+98B Bassboost
2x50mm² Battery/Ground terminals (GZPA 1.1000GPL-HC)
4x50mm² Battery/Ground terminals (GZPA 2.2000SPL-HC)

Tools and materials you need

• Screwdriver
  Electric drill 1/8 carbide drill bit
  Mounting screws
  Usc min 50 mm² power wire (GZPA 1.10000SPL-HC) / 4 x 50mm² (GZPA 2.20000SPL-HC)
  Use min 50 mm² ground wire (GZPA 1.10000SP-LC) f 4 x 50mm² (GZPA 2.20000SP-LC)
  Use min 6 mm speaker wire (GZPA 1.10000SPL-HC) / 4 x 10 mm² (GZPA 2.20000SPL-HC)

Caution!

• As a precaution it is advisable to disconnect the vehicle's battery before making connection to the +12 volts supply wiring (see owner's manual of your car for further information).
• Please use great caution drilling your trunk, your gas tank and brake lines can be damaged by puncturing with your drill bit - this could cause damage or failure of your cars operating systems.
  Take care of square edges, the cable could be rub through.

WARNING

High powered audio systems in a vehicle are capable of generating "Live Concert" high level of sound pressure. Continued exposure to excessively high volume sound levels may cause hearing loss or damage. Also, operation of a motor vehicle while listening to audio equipment at high volume levels may impair your ability to hear external sound such as; horns, warning signals, or emergency vehicles, thus constituting to a potential traffic hazard. For safety reasons we recommends listening at lower volume levels while driving.

Planning your system

Before installation, consider the following notes:

a) Select a suitable location that is convenient for mounting, is accessible for writing and has enough room for air circulation and cooling.
b) If your radio is equipped with presamplifier outputs (RCA), it is advisable to use them.
c) Please consider the enormous power consumption (up to 1500A) of this amp when designing the setup. We strongly recommend to install an additional battery. Too little power from the battery / alternator may cause defects on your amplifier and your car.

Mounting your amplifier

• Select a suitable location that is convenient for mounting, is accessible for wiring and has ample room for air circulation and cooling.
• Use the amplifier as a template to mark the mounting holes, remote the amplifier and drill 6 holes (use extreme caution, inspect underneath surface before drilling!). Secure the amplifier with the mounting screws.

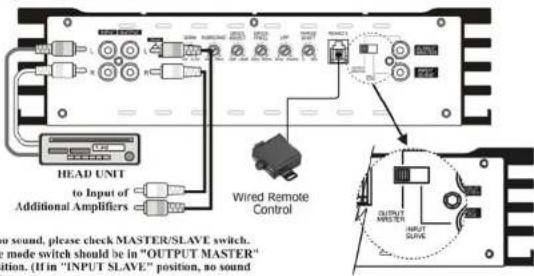

RCA Connections - Single mode

GZPA 1.10000SPL-HC

Single Amp Input Connection

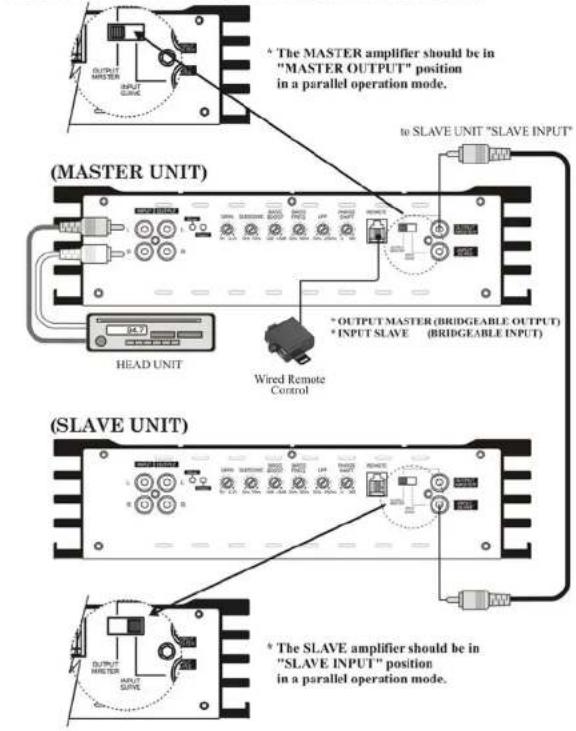

RCA Connections - Link mode

GZPA 1.10000SPL-HC
■ Dual Amp Input Connection (MASTER & SLAVE RCR Connection)

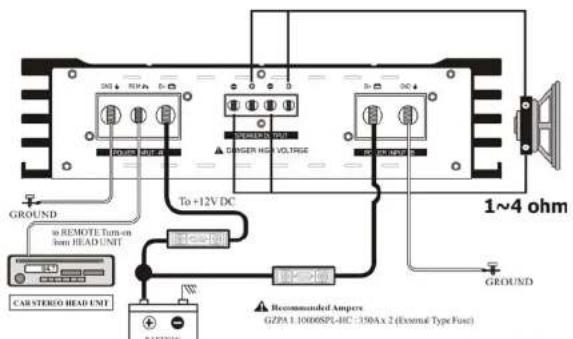

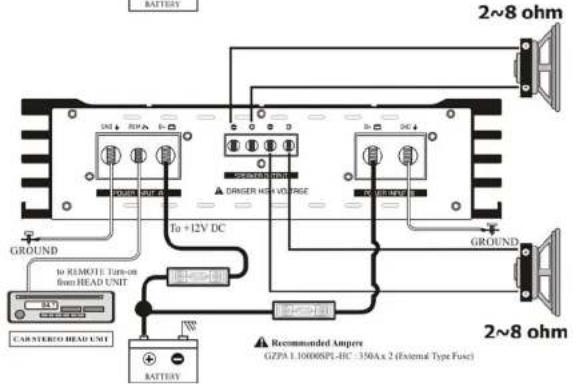

Connection in single mode

GZPA 1.10000SPL-HC

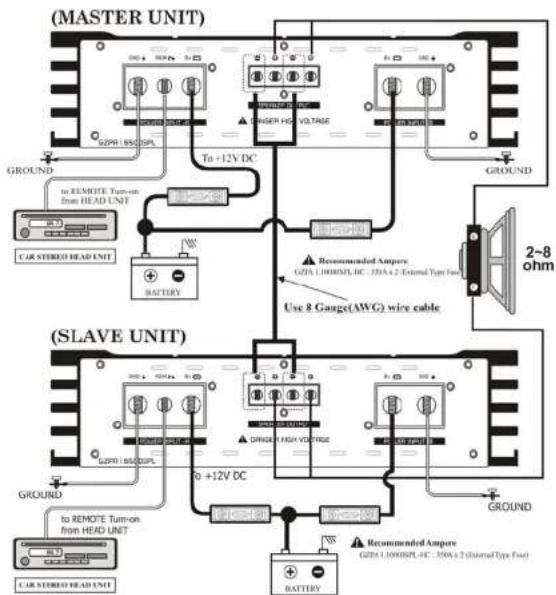

Connection in link mode

GZPA 1.10000SPL-HC

Using a dual amplifier configuration, the MASTER amplifier has total control over the SLAVE amplifier. When using dual amplifier to operate subwoofer, the positive terminal of the subwoofer's voice coil must be connected to the master amplifier and the negative terminal of the subwoofer's voice coil must be connected to positive terminal of the SLAVE Amplifier. He advised that the dual amplifier configuration has tremendous output potential, so ensure that your subwoofer can handle such a large amount of power.

Caution

When utilizing the dual amplifier configuration it is important to note that the connected speaker load can be no lower than 2 ohms. Connecting a lower impedance load can damage the amplifier and void your warranty.

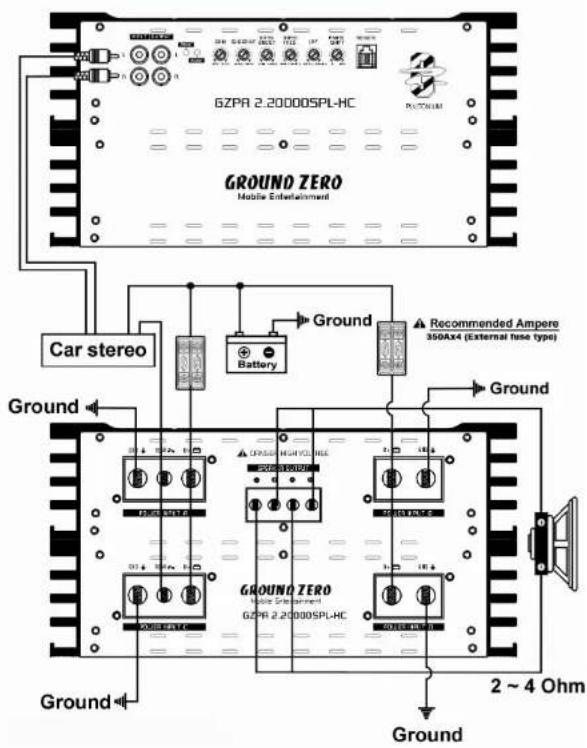

Amplifier connections GZPA 2.2000SPL-HC

Connections

Please read owner's manual of your car before you disconnect the battery.

+12 Volt (Fused) Constant power: To Battery (+)

Use a strong power cable (50mm^2) for connection the +12V terminals of the amplifier to the + terminal of your battery.

It is necessary to install 2 (GZPA 1.10000SL-HC) or 4 (GZPA 2.20000SL-HC) In-line fuse holders with a maximum distance of 20cm to your battery to ensure a safe operation of the amplifier. Make sure the fuses are not connected when connecting the + cable to the battery - this could cause defects on the device or injuries.

Ground

• Disconnect the battery and connect the ground terminals to the vehicle chassis. Is absolute necessary, that the same wire-cross section is used for the ground and +12V connection. Use a ground wire that is as short as possible (about 25cm / 10^ ). To avoid ignition noise caused by ground loops, it is necessary that the amplifier be grounded to a clean, bare metal surface of the vehicles chassis.

Remote

Connect the Remote terminal with the remote output of your head unit or another 12 V source like your antenna terminal.

Turning on your amplifier

The amplifier automatically turns on a few seconds after you turn your vehicle's ignitions switch to ACC ON or turn on your auto sound system, depending on how you wired the system.

Note: Your amplifier temporarily shuts down if it gets too hot, then restarts automatically once it colds down. The input level must be adjusted correctly to provide a good performance of the amplifier (20Drw - 10V).

Adjusting the audio level / Input sensitivity

Step 1 Turn the input level controller fully to MIN in counterclockwise direction.

Step 2 Turn the auto sound system's volume control to about two-thirds of its full range.

Step 3 Adjust the auto sound system's volume control to a comfortable listening level.

Please note - The gage on a CD that reproduces music with a higher dynamic is essential higher as on Radio reception.

Trouble shooting

This power amplifier has protection features to prevent any damages from misuse or faulty conditions. If the unit senses excessive heat, short circuited speakers or overload, the protection indicators will light, and the system will be turned off. In order to check the occurred problem, you should turn all levels down and all power off and carefully check the installation for wiring mistakes or short. If the amplifier shuts down due to excessive heat, the protection indicators will not light: simply allow time for the unit to cool. Before removing your amplifier, refer to the list below and follow the suggested procedures. Always test the speakers and their wires first.

Problem Check points
Amplifier is not powered up	·Check that there is battery power on the +12V terminal.·Check that remote terminal has at least +12V DC remote connection.·Check a good ground connection. Check all fuses.·Check the protection LED is not lit.
Protection LED illuminates when amplifier is powered up	·Check shorts on speaker wires.·Remove speaker wires and reset the amplifier. If the protection LED still comes on, then the amplifier is faulty.
Fuse blowing	·Check that the minimum speaker impedance is correct.·Check short on power cable and vehicle chassis.
Overheating	·Check that the minimum speaker impedance is correct.·Check speaker shorts.·Check that there is a good airflow around the amplifier.
Sound too low / Distorted sound	·Check that the input level control is set to match the output level of the unit.·Check the head unit volume.·Check speaker shorts.·Check that crossover frequencies have been properly set.
High hiss / engine noise in speakers	·Check a good ground and for speaker shorts.·Disconnect all RCA inputs from the amplifier. If hiss/noise disappears, check it with a good RCA interconnect. Then check the component driving the amplifier.

Specifications

Model GZPA 1.10000SPL-HC	GZPA 2.20000SPL-HC
RMS power @ 1Ω, 10% THDCEA Standard CEA-2006-A	1 x 11000W --
RMS power @ 1Ω, 1% THDCEA Standard CEA-2006-A	1 x 8800W --
RMS power @ 2Ω, 1% THDCEA Standard CEA-2006-A	1 x 4500W 1 x 17600W
RMS power @ 4Ω, 1% THDCEA Standard CEA-2006-A	1 x 2200W 1 x 9000W
RMS power @ 2Ω Linkmode1% THD	1 x 17600W --
Damping factor	>170 (100Hz @ 4 Ω)	>250 (100Hz @ 4 Ω)
Signal to noise ratio >65 dB >65 dB
Lowpass 35Hz ~ 250Hz 35Hz ~ 250Hz
Subsonic filter 10Hz ~ 70Hz 10Hz ~ 70Hz
Bass boost 0 ~ +9dB	0 ~ +9dB
Bass boost frequency	30Hz ~ 90Hz 30Hz ~ 90Hz
Phase shift 0 ~ 180°	0 ~ 180°
Frequency response	10 Hz ~ 250 Hz(+/-1dB)	10 Hz ~ 250 Hz(+/-1dB)
Efficiency @ 4 Ω	89%	89%
Input sensitivity	200mV bis 10V (+/- 5%)	200mV bis 10V (+/- 5%)
DimensionsW x H x L mm	625 x 75 x 300 mm	870 x 75 x 300 mm
DimensionsW x H x L inch	24.61" x 2.95" x 11.81"	34.25" x 2.95" x 11.81"
