Product type	5-channel car audio amplifier
Brand	Jensen
Model	Power 1500.5D
Power supply	12 V DC, negative ground
RMS output power (4 ohms)	58 W x 4 + 215 W x 1 (subwoofer)
RMS output power (2 ohms)	87 W x 4 + 340 W x 1 (subwoofer)
Bridged power (4 ohms)	180 W x 2
Minimum load impedance	2 ohms (stereo), 4 ohms (bridged)
Frequency response	10 Hz – 30 kHz (subwoofer: 16 – 160 Hz)
Total harmonic distortion (THD+N)	≤ 0.02% (1 kHz, 5 W, 4 ohms)
Signal-to-noise ratio	> 100 dB
Input sensitivity	400 mV – 5 V
Input impedance	20 kOhms
Fuses	2 x 30 A (ATO type)
Dimensions (W x H x D)	32.5 x 5.1 x 20.6 cm
Weight	3.18 kg
Built-in filters	High-pass, low-pass, subsonic, bass boost (0-12 dB at 45 Hz)
Remote controls	Subwoofer input level (5 m cable)
Protections	Short circuit, DC offset, thermal overload
LED indicators	Green (power), Red (fault/protection)

Frequently Asked Questions - Power 1500.50 JENSEN

What is the RMS output power of the Jensen Power 1500.5D amplifier?

The amplifier delivers 58 W x 4 at 4 ohms for front/rear channels and 215 W x 1 for the subwoofer. At 2 ohms, values increase to 87 W x 4 and 340 W x 1.

What is the minimum load impedance for bridged channels?

In bridged configuration, the minimum impedance is 4 ohms. For non-bridged channels, it is 2 ohms.

How to connect the amplifier power supply?

Connect the +12V wire to the battery via a fuse (close to the battery), the REM wire to the antenna output or radio remote turn-on, and the GND wire to a bare metal chassis ground. Use minimum AWG 4 gauge wire.

What types of filters are built-in?

The device features a variable high-pass filter (16-160 Hz), a low-pass filter for the subwoofer (30-160 Hz), a subsonic filter (16-60 Hz), and an adjustable bass boost from 0 to +12 dB at 45 Hz.

How to set the amplifier input level?

Start with the LEVEL control fully counterclockwise. Turn up the radio volume until you hear distortion, then lower slightly. Slowly increase LEVEL until distortion returns, then back off a little. Levels are then matched.

What to do if the amplifier does not turn on?

Check the fuses (2 x 30A), the +12V and REM wires (must receive 12V). Ensure proper ground connection to bare metal. If the LED stays red, a fault is detected.

How to configure the input mode (4CH/5CH)?

Use the MODE switch: in 5CH position, the subwoofer uses the SUB RCA inputs; in 4CH position, the subwoofer sums the front/rear inputs. Choose depending on whether your radio has a dedicated subwoofer output.

What is the function of the included remote control?

The remote control allows adjusting the subwoofer input level from the dashboard. It connects via a 3.5 mm jack cable and serves as a remote bass control.

How to maintain the amplifier?

Keep the cooling fins clean and unobstructed. Avoid moisture and extreme temperatures. Clean with a dry cloth. Do not cover the device.

What is the warranty period?

The warranty is 12 months from the date of purchase for the original buyer. It covers material and manufacturing defects, but not damage due to improper installation or use.

USER MANUAL Power 1500.50 JENSEN

JENSEN POWER

Installation & Operation Manual

Black industrial power amplifier with 'CLASS D' branding and 'POWER LABB, SD' label (no additional text or symbols visible)

Contents

Introduction.... 1

Features and Specifications 2

Installation....3

Power Wiring....4

Speaker Wiring 5

Input Wiring 6

Indicators and Controls 8

Testing 10

Remote Input Level Control.... 10

Troubleshooting 11

Power Output 12

Contenido

Introducción 13

The Jensen Power 1500.5D 5-channel amplifier was designed to meet or exceed the CEA-2006 test standards. These new standards give all participating manufacturers (and many don't participate) a baseline when comparing amplifiers of similar power output. The CEA Power rating protects you, the customer. "Power is power – it doesn't matter who makes it," is not always true. What does matter is whether the power can be produced in the first place. The RMS rating is the true power you are getting. At Jensen, to be fair to you and to the competition, we rate our amps in the two most popular ratings, including the CEA RMS rating. So feel confident that your Jensen purchase decision was a sound one, and remember "If it's Too Loud, You're Too Old."

Before You Begin

We need to get the legal stuff out of the way, so please keep reading. Afterwards, you'll be armed with the knowledge to install your new hard-hitting, speaker-pumping Jensen amplifier.

Exposure to loud sounds or music can permanently damage your hearing. Unfortunately, in many cases, the damage is not noticeable until years later. In addition, loud music may hinder your ability to hear traffic, police, and fire or emergency vehicles. Please be responsible and have respect for other people by listening at moderate volumes!

Warranty Service

If your Jensen amplifier should ever require service, you will need the original dated receipt. If you must return the unit for any reason, always include the receipt with the product.

POWER 1500.5D 5-Channel Amplifier

Features and Specifications

Your new Jensen Power mobile stereo power amplifier is the amplifier of choice for the high demands of auto sound reproduction. With its deep-bass reproduction and plenty of reserve power, low harmonic distortion and neutral reproduction, the Power series of amplifiers takes Mobile Hi-Fi to new heights. Like all Jensen products, when it comes to accurate sound reproduction the Power series takes a back seat to no one. Jensen will bring your Hi-Fi experience to new heights with the following features:

• High Current MOSFET Power Supply and Output Transistors
- Optimized Class Ddesign Minimizes Distortion and Reduces Idle Current.
- Easily Drives 2-Ohm Loads
• Full range Highpass Filter: Continuously Variable 16Hz \~160Hz
- Subwoofer Infra -Sonic Filter: Continuously Variable 16Hz \~60Hz
- Subwoofer Low Pass Filter: Continuously Variable 30Hz\~160Hz
- Subwoofer Bass EQ Filter: Continuously Variable 0\~12dB @ 45Hz
- Short Circuit, DC-Offset and Thermal Over load Protection Circuitry
- Diagnostic LED's: Green- Power, Red- Standby / Fault
- Remote Input Level Control (For subwoofer channel) w/5 Meter Cable

Specifications

• Load Impedance - 2/4 Ohm
• Frequency Response - 10\~30 kHz (Subwoofer - 16\~160 Hz), -3dB
  • THD+N @ 1kHz, 5 Watts -0.02%, 4-Ohm, 14.4VDC
  • Stereo Separation @ 1kHz ->60dB
  • Signal to Noise Ratio ->100dB (Rated Power)
  • Input Sensitivity - 400mV\~5V
• Input Impedance - 20k Ohm nominal
• Fuse - 2 x 30 Amp ATO Fuses
• Size - L12.8" x H 2.0" x W8.1"
• Weight - 7.0 lbs

Power Output

RMS Power Output @ 2% THD+N, 1KHz, 14.4vdc

• 60 x 4 Watts, 4-Ohms
  • 90 x 4 Watts, 2-Ohms
  • 190 x 2 Watts, 4-Ohms Bridged Stereo
  • 230 x 1 Watts, 4-Ohms Subwoofer
  • 400 x 1 Watts, 2-Ohms Subwoofer

POWER 1500.5D 5-Channel Amplifier

Installation

Before you begin the installation of your Power 1500.5D amp remember, there are two ways to do things – right and twice! Use the proper installation techniques, tools and accessories to ensure that your Jensen Power series amp will put out all the power it was designed to. If necessary, seek a professional installer to have the amplifier installed correctly. Most mobile amp installations do not have the proper gauge wire for power and ground – do not let your amp be a victim of this common installation oversight!

NOTE: This device is a high-power audio amplifier intended for installation in vehicles with a 12-Volt negative ground electrical system. Attempting to connect or operate the amplifier with another type of electrical system may cause damage to the amplifier or the electrical system.

Installation Assistance

For installation assistance, call 1-800-323-4815 during normal business hours, or visit www.jensen.com at any time.

Supplies and Tools Needed

To install the amplifier, you will need tools, supplies and adapters. It is best to make sure you have everything you need before you start.

Supplies

• Black electrical tape
  • Amplifier Installation Kit
  • Cordless drill with assortment of bits
  • Flat-head and Phillips screwdrivers
• Wire cutters/strippers
• Crimping tool
  • 12-volt test light or digital multimeter
• Wire brush, sandpaper or scraping tool (ground connection to vehicle should be a clean, unpainted metal surface)

Tools

Disconnect Battery

Disconnect the negative (-) battery cable before starting the installation. Check the battery ground (there should be two (2) ground wires coming from the battery – one going to the starter mounting bolt or engine block and another going to the vehicle chassis) and make sure the battery is grounded to the chassis with at least a #6 gauge wire. Also check the alternator connections, making sure they are tight and free from corrosion, rust or dirt.

Location and Mounting

The amplifier's compact design allows great flexibility in mounting. Common mounting locations include under the front passenger seat or in the trunk area.

When selecting a location, remember that amplifiers generate heat. Select a location on a flat surface away from heat and moisture where air can circulate around the amplifier.

Place the amplifier in the mounting location and mark the positions of the holes with a marker, pen or pencil. Carefully drill the mounting holes in the marked positions, then use the supplied mounting screws to securely fasten the amplifier to the mounting surface.

WARNING: Do not cover the amplifier with carpets or enclose it behind interior trim panels, and do not mount the amplifier in an inverted or upside down configuration. Be sure the mounting location and the drilling of pilot holes will not damage any wires, control cables, fuel lines, fuel tanks, hydraulic lines or other vehicle systems or components.

Routing Wires

Proper wiring connections are illustrated on the following pages. If wiring connections are made incorrectly, the unit will not operate properly and could become permanently damaged. Follow the installation instructions carefully, or have the amplifier installed by an experienced technician.

Power Wiring

Charging System

In some cases, the installation of just one (1) amplifier could be enough to overload your factory electrical system (i.e., alternator). Depending on the state of your electrical system and overall condition of your vehicle, you may need to upgrade your alternator and battery. After the vehicle is started, the alternator provides the power to your electrical system, not the battery. When the engine is running, the alternator is your main source of power. Upgrading the alternator should be your first consideration if you should experience a voltage drop in the system when operating your audi o system. Adding capacitors and/or batteries without upgrading the alternator will only make the problem worse because these devices put an extra load on the alternator. After upgrading the alternator, capacitors and/or batteries can be installed if desired.

NOTE: Use #6 gauge wire with a 60A Max current draw when installing your amplifier.

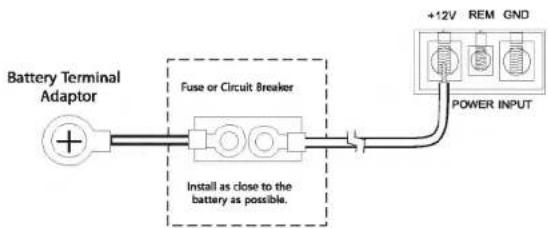

Power Terminal (+12V/B+)

Connect the main power wire to the battery, within 18 inches from the positive (+) battery post, using an adequate size fuse or circuit breaker capable of handling the current of the selected power wire. A fuse or circuit breaker must be installed to prevent a possible electrical fire should the main power wire short to ground.

Remote Terminal (REM)

Connect the power antenna or amplifier turn-on lead from the receiver to the amplifier remote terminal.

Ground Terminal (GND)

Make the ground lead as short as possible, leaving enough length to complete the installation and to allow for any service that may be needed at a later date. To ensure a good ground, scrape away any paint or undercoating to expose bare metal. Use a "ring" terminal of the proper gauge and an "outside star washer" (between the chassis and ring terminal) when making your ground connection. Although you've scraped away the paint to expose bare metal, the outside star washer will help to "bite into" the chassis for a tight, secure ground.

+12V REM GND POWER INPUT

Drill hole in chassis sheet metal.

Replacement Fuse Requirements (FUSE)

The Power 1500.5D requires two 30 amp ATO type fuses, located on the side panel.

POWER 1500.5D 5-Channel Amplifier

Speaker Wiring

The Speaker Wiring diagrams illustrate options for connecting four speakers and one subwoofer or two speakers and two subwoofers, or two speakers and one subwoofer. Observe the proper speaker polarity.

NOTE: Power amplifiers can drive speakers with a nominal impedance range of 2\~4-ohms. For maximum power, configure your speakers for a nominal 2-ohm load. Bridged amplifier channels can only drive 4 ohm minimum impedance speakers.

NOTE: Do not overlook the use of the proper gauge speaker wire. The Power series of amplifiers require a minimum of 12-gauge wire.

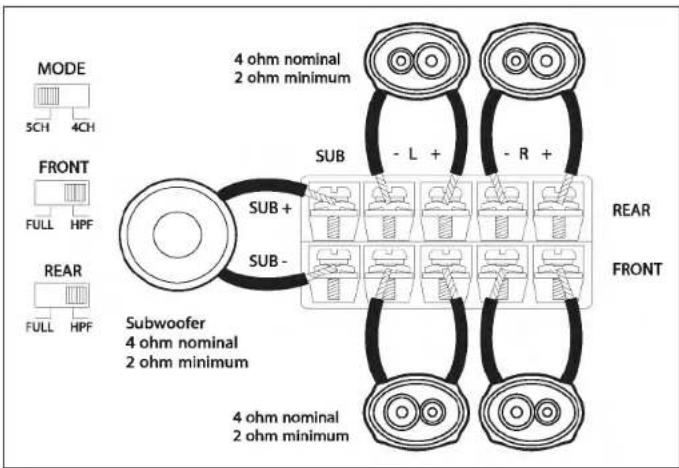

Four Speakers and Subwoofer

MODE 5CH 4CH FRONT FULL HPF REAR FULL HPF 4 ohm nominal 2 ohm minimum SUB + SUB - SUB - L + - R + REAR FRONT Subwoofer 4 ohm nominal 2 ohm minimum 4 ohm nominal 2 ohm minimum

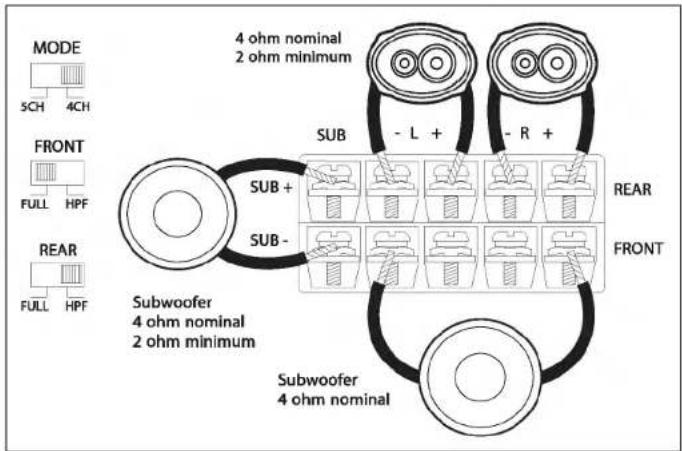

Two Speakers and Two Subwoofers

MODE 5CH 4CH FRONT FULL HPF REAR FULL HPF 4 ohm nominal 2 ohm minimum SUB + SUB - SUB - L + - R + REAR FRONT Subwoofer 4 ohm nominal 2 ohm minimum Subwoofer 4 ohm nominal

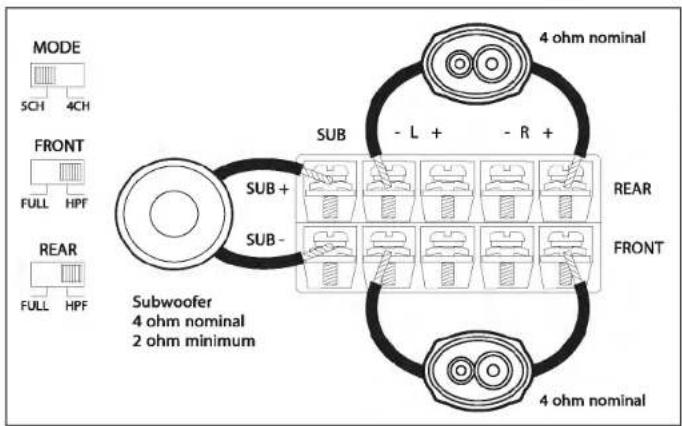

Two Speakers and Subwoofer

MODE 5CH 4CH FRONT FULL HPF REAR FULL HPF SUB+ SUB- 4 ohm nominal - L + - R + REAR FRONT 4 ohm nominal Subwoofer 4 ohm nominal 2 ohm minimum

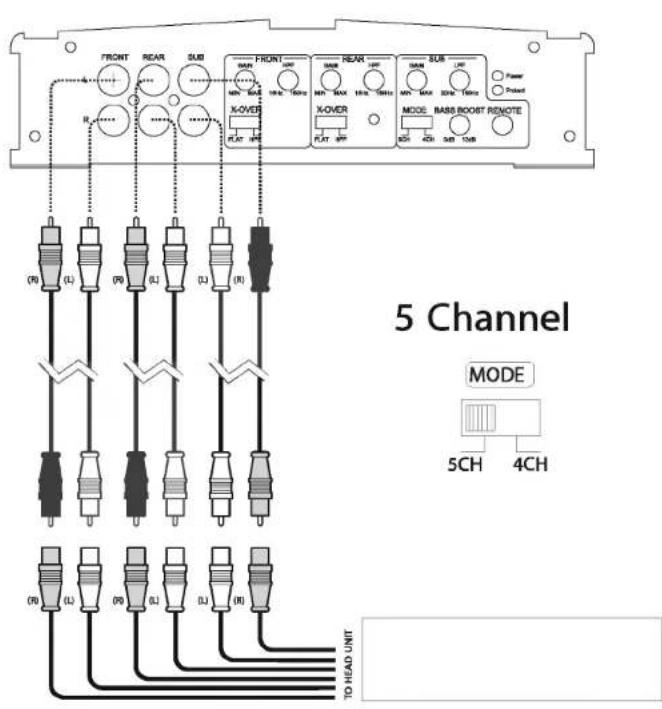

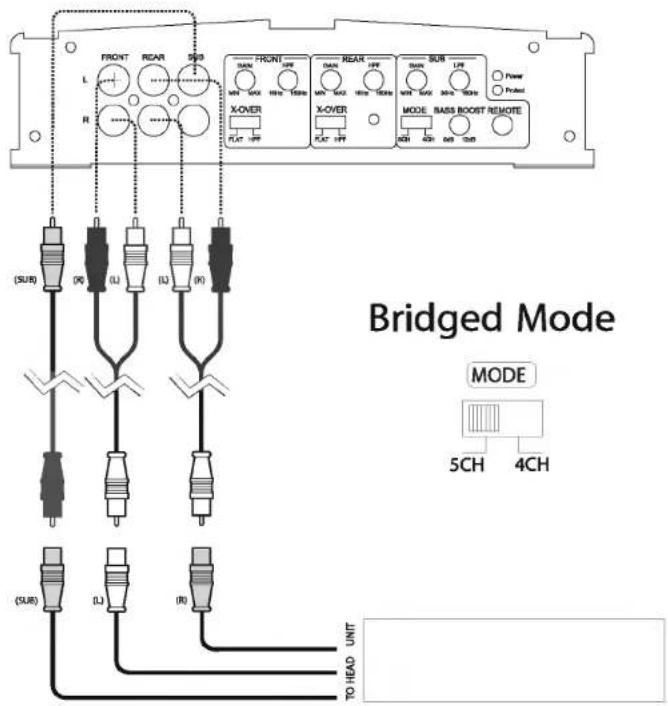

Input Wiring

Most trunk/hatchback installations will require a 15-20 foot RCA cable, while pickup trucks and under-seat mounting will require a 6-12 foot RCA cable. Connect an RCA cable from your receiver to the RCA input on your amplifier.

FRONT REAR SUB MAIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX TO HEAD UNIT 5 Channel MODE 5CH 4CH R1 R2 R3 R4 R5 R6 R7 R8 R9 R10 R11 R12 R13 R14 R15 R16 R17 R18 R19 R20 R21 R22 R23 R24 R25 R26 R27 R28 R29 R30 R31 R32 R33 R34 R35 R36 R37 R38 R39 R40 R41 R42 R43 R44 R45 R46 R47 R48 R49 R50 R51 R52 R53 R54 R55 R56 R57 R58 R59 R60 R61 R62 R63 R64 R65 R66 R67 R68 R69 R70 R71 R72 R73 R74 R75 R76 R77 R78 R79 R80 R81 R82 R83 R84 R85 R86 R87 R88 R89 R90 R91 R92 R93 R94 R95 R96 R97 R98 R99 TEOH TO HEAD UNIT

NOTE: Power amplifiers can drive speakers with a nominal impedance range of 2\~4 ohms. For maximum power, configure your speakers for a nominal 2-ohm load. Bridged amplifier channels can only drive a 4-ohm minimum impedance load.

NOTE: The use of good quality RCA cables is just as important as power and speaker wire. Choose a high quality low capacitance cable for the best results.

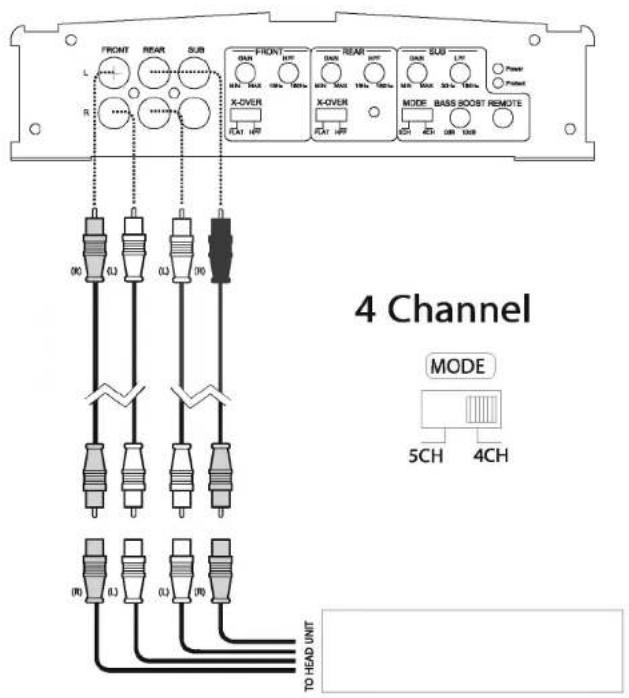

4 Channel MODE 5CH 4CH TD HEAD UNIT

Indicators and Controls

Power Indicator (POWER)

The POWER indicator provides a visual indication that the amplifier is turned on.

Protect Indicator (PROTECT)

The PROTECT indicator provides a visual indication that a problem exists and the protection circuitry has protected the amplifier by shutting it down. Turn the system off and correct the problem before turning the system on again.

• Thermal Protection: The amplifier will shut down if its temperature exceeds a safe operating level. The amplifier will remain off until it cools to a safe operating temperature. Exercise care, as the exterior of the amplifier may get uncomfortably hot to the touch before shutting down.
  • Overload and Short Circuit Protection: The amplifier will shut down if a short circuit condition

Input Level Control (LEVEL)

The input LEVEL control matches the output of your radio to the input of the amplifier. After the installation is complete, make sure the input level control on the amplifier is turned down all the way (counter-clockwise or all the way to the left). Play a tape or CD (make sure bass and treble settings or Bass EQ are flat) and turn the volume up slowly until you just start to hear distortion. Back the volume down just a bit. On the amplifier, slowly turn up the input level control (clockwise or to the right) until you just start to hear distortion, then back it down a bit. Now your radio and amplifier levels are matched.

Bass EQ

The Bass EQ is continuously adjustable from 0 to +12dB @ 45Hz. Adjusting the Bass Boost level allows different subwoofer/enclosure combinations to be equalized. Use this control to increase the level of low bass available from your subwoofer/enclosure combination. Ported and Band Pass enclosures should be limited to about +6dB to +9dB of boost. Sealed enclosures should be able to accept the full +12dB of boost, if necessary. The full +12dB of boost should be reserved for special applications since improper use of the Bass Boost could damage your subwoofers at high volumes.

SUB SONIC

The SUB SONIC filter adjusts the highpass filter for the Subwoofer Channel. This filter allows you to fine tune the amount of extreme low bass sent to your subwoofer. For large sealed box subwoofers you may wish to set this at the minimum of 16Hz. For smaller subwoofers (single 8" or 10"), setting the filter to about 30Hz will protect the speaker from excessive excursion and distortion. For ported boxes, the woofer's excursion increases dramatically at about 1/3 octave below the tuning frequency. To protect the subwoofer from damage, the SUB SONIC filter should be set slightly below the tuning frequency of the box. For example, if your box is tuned to 40Hz, then the SUB SONIC filter should be set to approximately 32Hz.

Low Pass Filter (LPF)

The Low Pass Filter for Channel 5 controls adjust the crossover point. Typical crossover is between 60Hz and 80Hz for ported and sealed enclosures. Bandpass boxes will typically use a higher crossover setting between 125Hz and 150Hz. Since musical tastes vary, you should play music that you would normally listen to in your vehicle, with the above settings as a starting point. If necessary, set the crossover by ear.

High Pass Filter (HPF)

The high pass filter will limit the low frequencies being transmitted to your speakers. This can be useful in number of situations. For example, if you selected the high pass filter and set the crossover to 40Hz, then you would have an infra-sonic (sub -sonic) filter at 40Hz, which would be useful with certain enclosure/subwoofer combinations that were tuned between 45Hz and 50Hz. Other uses might include limiting the low frequencies to smaller speakers (6 1/2", 6 X 9", etc.) by adjusting the crossover to a higher setting (80–100Hz).

Crossover (FULL/HPF)

The Jensen Power series of amplifiers have built-in low-pass and high-pass crossover filters for bi-amplifying the system. Adjust the crossover to accommodate your chosen installation method. Choose FULL when crossover mode is not active and the amplifier is in "full range" mode. Select HPF (high pass filter) when the amplifier will be driving full-range or separate speakers, and you want to limit the "bass" being transferred to these speakers. LPF can be adjusted for channel 5.

POWER 1500.5D 5-Channel Amplifier

MODE

The Power 1500.5D comes equipped with a 4CH/5CH MODE switch and can be configured for two different input modes: 4 channel or 5 channel. In 5 channel mode, the subwoofer channel is a sum of both SUB RCA inputs. For head units with a mono SUBWOOFER output, you should select 5 channel mode and use either of the SUB RCA connectors as the input. In 4 channel mode the subwoofer channel is a sum of Front L, Front R, Rear L and Rear R. This mode should be used for head units without a separate SUBWOOFER output.

POWER 1500.5D 5-Channel Amplifier

Testing

Before finishing the installation, perform the following tests to make sure the wiring is correct and everything is operating properly.

Reconnect Battery

When wiring is complete, reconnect the battery negative terminal.

Test Power Wiring

Turn on the receiver, but do not turn up the volume. The amplifier power light should come on. If not, check the REM and +12V (B+) wires. Turn up the receiver volume slightly. All speakers should operate. If not, check wiring connections at amplifier and speakers.

Test Speaker Connections

These tests make sure the speakers are connected properly. If speakers don't play at all, one (or both) speaker wires may be disconnected.

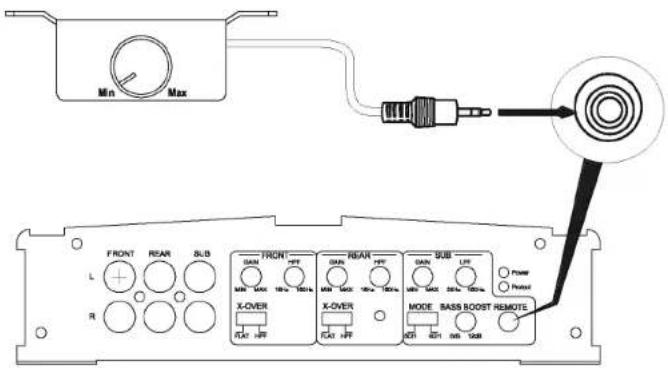

Remote Input Level Control

The Power 1500.5D comes equipped with a Remote Input Level Control. The Remote Input Level Control allows the input level to be adjusted from an alternate location. It can be mounted under-dash or in-dash. When the amplifier is used to drive subwoofers and the low pass crossover is activated, the Remote Input Level Control can be used as a "remote bass level control". This enables you to control the bass level independent from the rest of the system. This is convenient for system tuning and/or when playing many different types of music.

The Remote Input Level Control uses a 3.5mm cable for connectivity. Simply plug the 3.5mm cable into the amplifier and then into the Remote Input Level Control to activate the circuit.

Min Max FRONT REAR SLB L R X-OVER PLAT -OFF FRONT OFF MAX 100% MAX 100% REAR OFF MAX MAX 100% 100% SUB LIF Power Power X-OVER PLAT -OFF MODE BASS BOOST REMOTE ADT ADT1 ADT2 ADT3

POWER 1500.5D 5-Channel Amplifier

Troubleshooting

Problem	Possible Cause	Corrective Action
Amplifier does not turn on	No power to +12V terminal	Check fuse(s)
	No power to REM terminal	Check head unit fuse(s) and wiring
	Blown main fuse at battery	Replace fuse and identify cause of failure
	Blown fuse at amplifier	Replace fuse and identify cause of failure
	Faulty ground	Re-ground main power ground to bare metal chassis
Volume control too sensitive	Input level control adjusted too high	Re-adjust the input level (refer to page 8)
Distorted sound	Input level control adjusted too high	Re-adjust the input level (refer to page 8)
Blows fuse(s) at amp	Power wires connected backwards	Reconnect power wires properly
	Internal problem with amp	Take unit for service
Engine noise / Alternator whine	Ground loop(s)	Use good quality shielded RCA cables
	Faulty ground at amp	Re-ground amp to clean bare metal chassis
	Faulty ground at head unit	Re-ground head unit to clean bare metal chassis
	Inductive coupling	Re-route RCA and/or speaker wires away from factory harnesses
	Input level on amp set too high	Re-adjust input level (refer to page 8)
Thermal protection activated	Amplifier driving 2 ohm load (4 ohms bridged) for long durations	If the amplifier " thermals" frequently while driving subwoofers, install fan to keep amp cool.

Short circuit protection activated	Blown speakers	Check all speakers
	Speaker wire(s) shorting to ground	Check for faulty wiring
	Defective crossover	Faulty passive crossover
Low impedance protection activated	Amp connected to improper load	Check speaker connections
	Amp will not drive a 2 ohm bridged load, 4 ohm minimum in bridged configuration	Verify that speakers are connected properly
	Speakers defective/ blown	Check speakers
	Faulty passive crossovers	Check crossovers
Poor bass response	Speakers out of phase	Check speaker polarity; reverse the connection to one speaker only if two subwoofers are connected to the amplifier.

NOTE: If the protection light is activated with no speakers connected to the amplifier, and all the power connections are correct, this would indicate an internal problem with the amplifier.

POWER 1500.5D 5-Channel Amplifier

Power Output

Power Output: 58 watts RMS X 4 channels into 4-ohms @ < 1% THD+N,

215 watts RMS X 1 channel into 4-ohms @ < 1% THD+N

Signal to Noise Ratio: 100dBA below reference (Reference: 1 watt, 4-ohms)

Additional Power Output: 87 watts RMS X 4 channels into 2-ohms @ < 1% THD+N

180 watts RMS X 2 channels (Bridged Stereo) into 4-ohms @ < 1% THD+N

340 watts RMS X 1 channel into 2-ohms @ < 1% THD+N

Frequency Response: 10Hz to 30 kHz (10Hz to 160Hz subwoofer), -3dB (Reference: 1 watt)

Dimensions: L 12.8" x H 2.0" x W 8.1"

Weight: 7.0 lbs

Audiovox Electronics Corporation ("the Company") is committed to quality and customer service, and are pleased to offer you this Warranty. Please read it thoroughly and contact the Company at 1-800-323-4815 with any questions.

Who is covered?

The Company extends this warranty to the original retail purchaser of products purchased through an authorized Audiovox retailer in the U.S.A., Puerto Rico or Canada. This warranty is not transferable or assignable. Proof of purchase is required in the form of an original sales receipt.

What is covered?

The Company warrants that should this product or any part thereof, under normal use, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with a new or reconditioned product (at the Company's option) without charge for parts and repair labor.

What is not covered?

This Warranty does not cover the following:

• Damage incurred during shipping or transporting the product to the Company or a service center
  • Elimination of car static or motor noise
  • Defects in cosmetic, decorative or non-operative structural parts
  • Correction of antenna problems
  • Costs incurred for installation, removal or reinstallation of the product
• Consequential damage to compact discs, USB devices, digital media cards, accessories or vehicle electrical systems
• Damage caused by improper installation, mishandling, misuse, neglect, accident, blown fuse, battery leakage, theft or improper storage
• Products whose factory serial number/bar code label(s) or markings have been removed or defaced
• Damage resulting from moisture, humidity, excessive temperature, extreme environmental conditions or external natural causes

Please review the "Care and Maintenance" section of your Installation and Operation Manual for additional information regarding the proper use of your product.

Limitations

THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.

This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Obtaining Warranty Service

• To obtain repair or replacement within the terms of this Warranty, call 1-800-323-4815 for the location of a warranty station serving your area.
• You must prepay the initial shipping charges to the Company. The Company will pay the return shipping charges for all warranted products returned to an address within the U.S.A., Puerto Rico or Canada.
• Please package the product securely to avoid shipping damage. We recommend using a carrier that provides tracking service to prevent lost packages. Lost or damaged packages are not covered by this warranty.
• Provide a detailed description of the problem(s) for which you require service.

FRONT REAR SSB L R X-COVER CAT -HP FRONT SAB REAR UPF CAR SUB LTF Power Protected MODE BASS BOOST REMETTE 4CH 10H MB 10dB (SUB) (R) (L) (L) (R) (SUB) (L) (R) TO HEAD UNIT Bridged Mode MODE 5CH 4CH

4 Channel MODE 5CH 4CH TO HEAD UNIT

Controles e Indicadores

5 Channel MODE 5CH 4CH TO HEAD UNIT

Bridged Mode MODE 5CH 4CH (SUB) (R) (L) GJ (R) (FAT -FF) (FAT -HP) (R) (FSUB) (L) (K) TD HEAD UNT

Amplificateur 5 canaux POWER 1500.5D

4 Channel MODE 5CH 4CH TO HEAD UNIT

if it's too LOUD you're too OLD!

Audiovox Electronics Corporation

Hauppauge, NY 11788

1-800-323-4815

www.jensen.com

© 2010 Audiovox

v. 111811
