USER MANUAL SAVE702 SONY

MicroSatellite System

Operating Instructions GB
Mode d'emploi FR

SA-VE705

SA-VE702

SS-V703

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Tolbko Дли морел� SA-VE705/SA-VE702

AR46

Table of Contents

Hooking up the system 4

Positioning the speakers. 7

Listening to the sound (SA-VE705 and SA-VE702 only) .... 9

Adjusting the sound 10

Precautions 11

Troubleshooting 12

Specifications 12

About this manual

The instructions in this manual are for SA-VE705, SA-VE702, and SS-V703 Sony Micro Satellite Systems.

Differences between the systems

SA-VE705

The SA-VE705 is 5.1 channel speaker system consisting of two front speakers,

two rear speakers, one center speaker, and one subwoofer. It supports Sony Digital

Cinema Sound, Dolby* Pro Logic, and Dolby Digital, and is thus geared

towards the enjoyment of movies.

SA-VE702

Consisting of two front speakers and one subwoofer, the SA-VE702 is suited for the enjoyment of music.

- SS-V703

This system consists of two rear speakers and one center speaker. It can be combined with the SA-VE702 to produce a system that is equal to the SA-VE705.

• Manufactured under license from Dolby Laboratories Licensing Corporation. DOLBY, the double-D symbol [D], "PRO LOGIC" and "Dolby Digital (AC-3)" are trademarks of Dolby Laboratories Licensing Corporation.

Number of speakers in each system

Speaker Front Rear Center Subwoofer Model name

SA-VE705 2 2 1 1

SA-VE702 2 — — 1

SS-V703 — 2 1 —

Note to customers who own only the SS-V703 (and not the SA-VE702)

To enjoy Dolby Digital, five speakers and one subwoofer must be provided.

We recommend that the SS-V703 be used in combination with the SA-VE702 (sold separately). If you use another speaker system instead of the SA-VE702, that system should be as similar as possible in specifications and identical in size to the SS-V703.

Any difference in operation is clearly indicated in the text, for example, "SA-VE705 only."

Hooking up the system

Connect the speaker system to the speaker output terminals of an amplifier.

Make sure power to all components (included the subwoofer) is turned off before starting the hook-up.

This manual explains three connection configurations (A, B, and C). See the configuration for your particular speaker system.

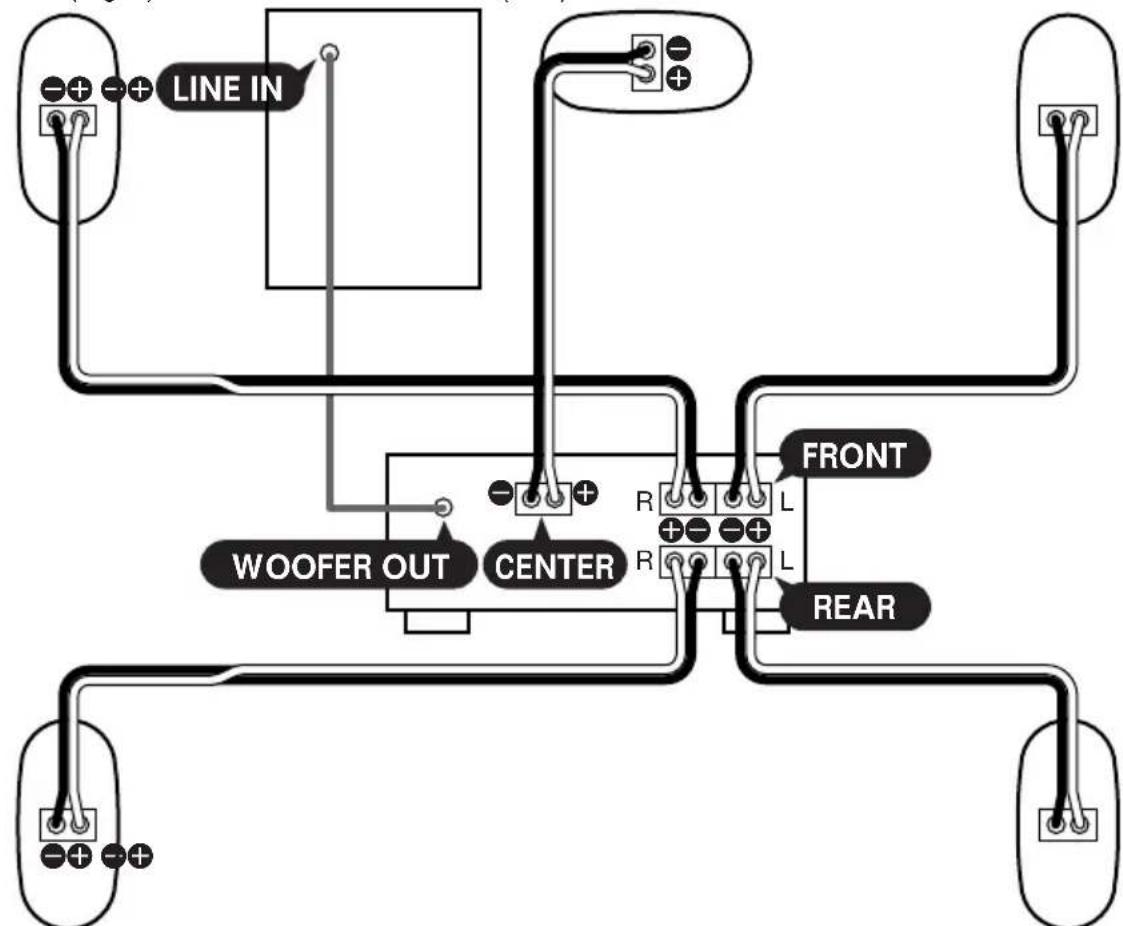

Hookup A (For the 5.1 channel)

This configuration is used when the amplifier is connected to a DVD player, LD player, VCR or other video devices.

Front (Right) Subwoofer Center* Front (Left)

Rear (Left)*Rear (Right)

• SS-V703 (when used in combination with the SA-VE702)

Attach the satellite speakers (front, rear, and center speakers) to the supplied speaker stands for positioning. For details, see "Positioning the front (and rear) speakers" on page 7 and "Positioning the center speaker (SA-VE705 and SS-V703 only)" on page 8.

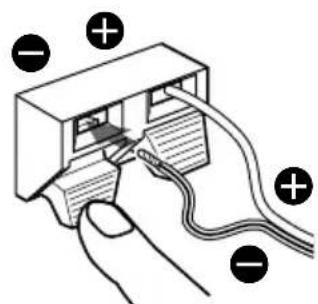

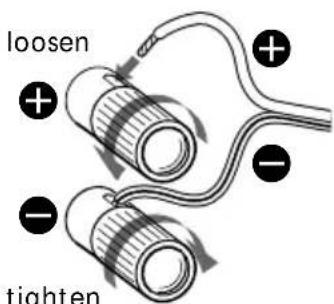

Terminal (jack) connections

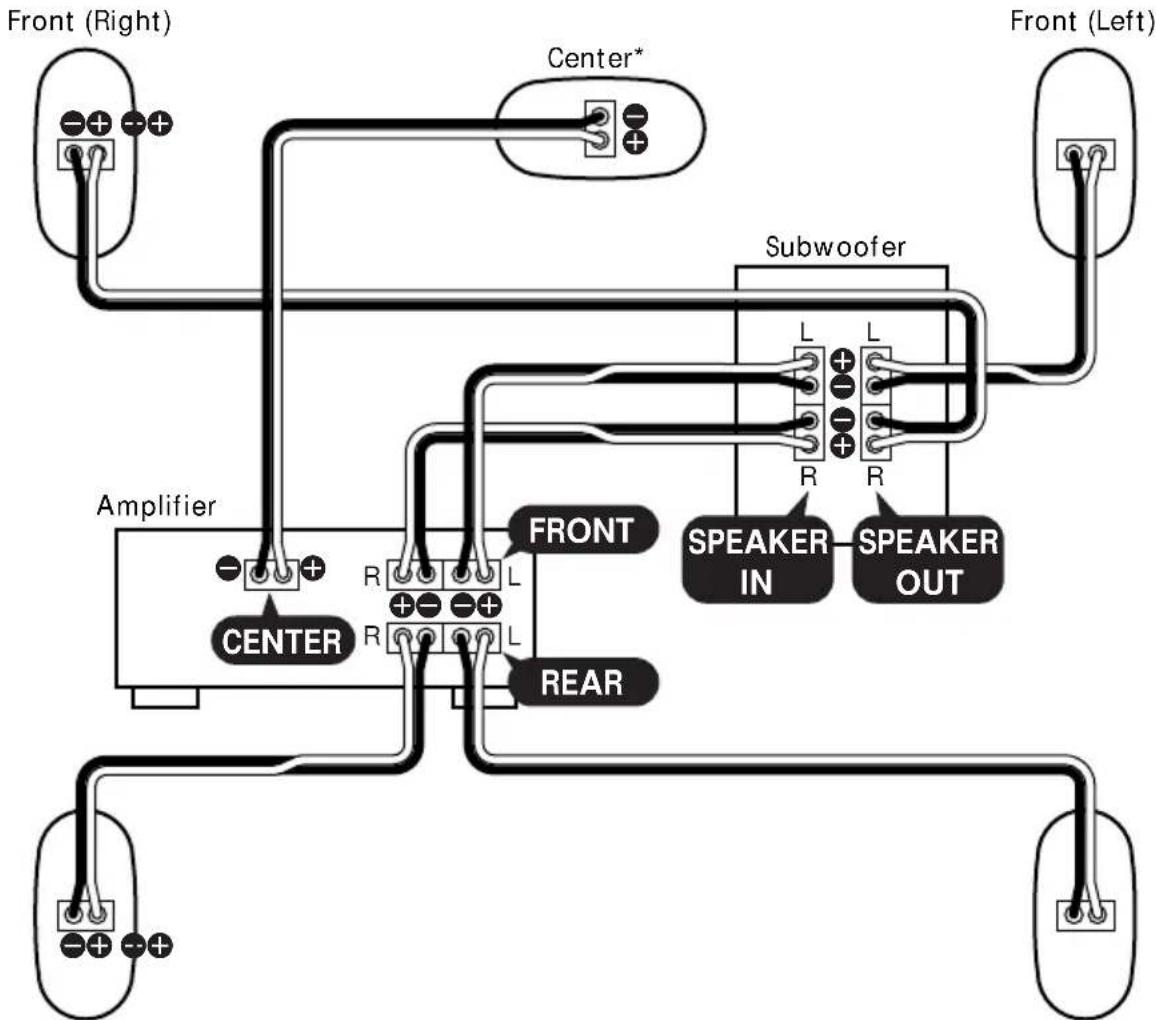

Hookup B (For the 5.1 channel)

Try this configuration instead of "Hookup A" in the following situations:

• When there are no jacks on the amplifier for a subwoofer.
• When you want stronger bass sound from the subwoofer.

Rear (Left) Rear (Right)
* SS-V703 (when used in combination with the SA-VE702)
Attach the satellite speakers (front, rear, and center speakers) to the supplied speaker stands for positioning. For details, see "Positioning the front (and rear) speakers" on page 7 and "Positioning the center speaker (SA-VE705 and SS-V703 only)" on page 8.

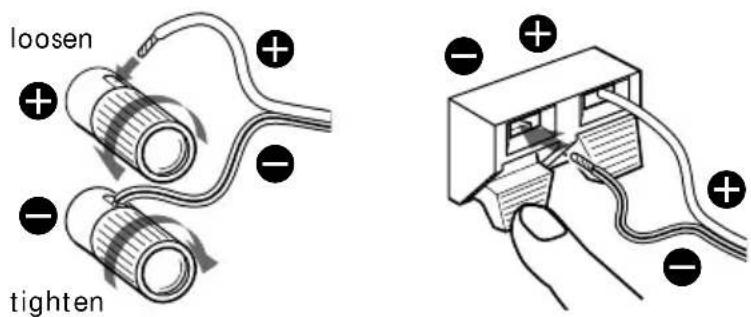

Terminal connections

Hooking up the system (continued)

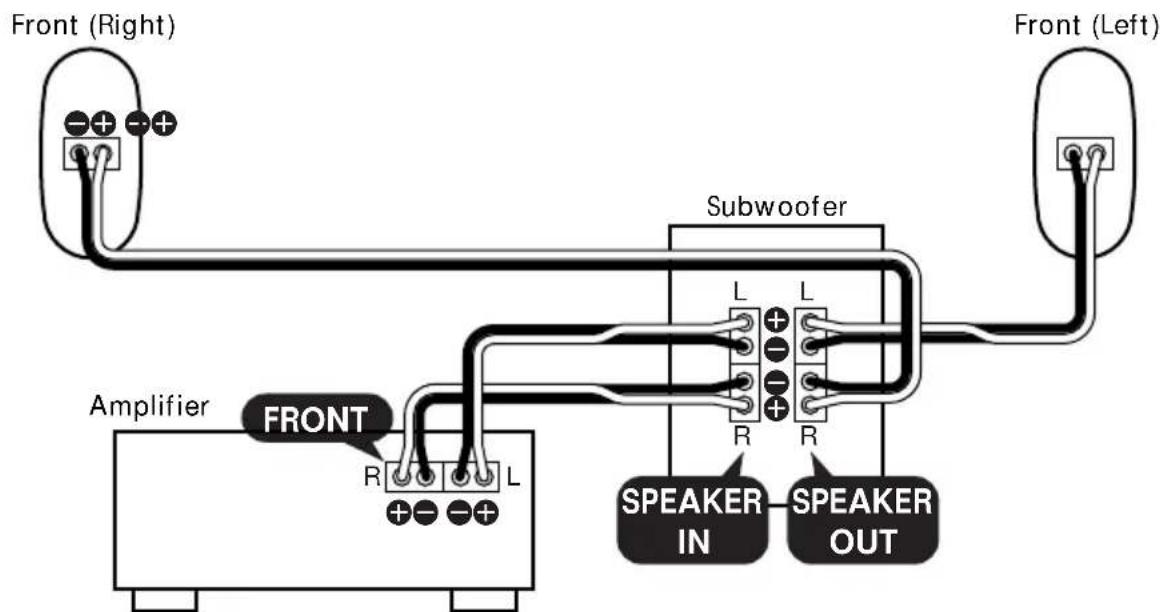

Hookup C (For the 2.1 channel — SA-VE702 only)

This configuration is used when the amplifier is connected to a CD player, MD deck, cassette deck, or other audio devices.

For customers who have purchased the optional SS-V703, see "Hookup A" or "Hookup B."

Attach the front speakers to the supplied speaker stands for positioning. For details, see "Positioning the front (and rear) speakers" on page 7.

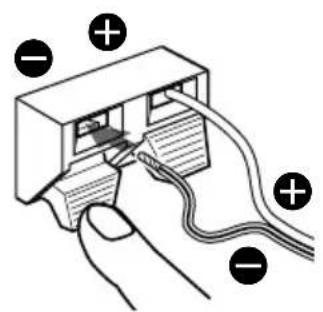

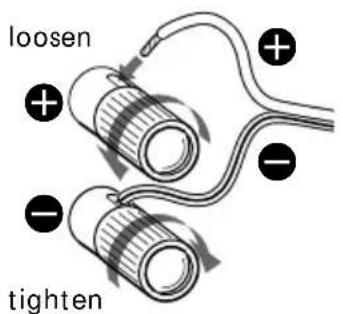

Terminal connections

Notes

• Make sure the plus (+) and the minus (-) terminals on the speakers are matched to the corresponding the plus (+) and the minus (-) terminals on the amplifier.
• Be sure to tighten the screws of the speaker terminals securely since loose screws may become a source of noise.
• Make sure all connections are firm. Contact between bare speaker wires at the speaker terminals may cause a short-circuit.
• Do not connect the subwoofer to the amplifier's CENTER output terminal (which is for Dolby Pro Logic or Dolby Digital). No bass will output from the subwoofer if you do.
• For details regarding the connections on the amplifier side, refer to the manual that was provided with your amplifier.

Tip

It is convenient to remember that all striped wires are minus (-) in polarity and should be connected to the minus (-) speaker terminals.

Positioning the speakers

Location of each speaker

* SS-V703 (when used in combination with the SA-VE702)

Each speaker should face the listening position. Better surround effect will result if all speakers are set at the same distance from the listening position.

Place the front speakers at a suitable distance to the left and right of the television.

Place the subwoofer on either side of the television.

Place the center speaker on the top-center of the TV set.

The placement of rear speakers greatly depends on the configuration of the room. The rear speakers may be placed on both sides of the listening position A or behind the listening position B.

Tips

Movies are best enjoyed in a room that produces no echoes (as in one with surrounding curtains).

• Music (especially classical music) is best enjoyed in a room that produces some echo.

• Adjust the height of the front speakers so that it corresponds with the center of the TV screen, as illustrated below.

Positioning the front (and rear) speakers

Attach the front (and rear) speakers to supplied speaker stands and place them at their optimum locations.

For details on the location of the front (and rear) speakers, see "Location of each speaker" on this page.

1 Detach the plate from the stand.

2 Pass the speaker cord into the hole on the back of the stand and out from the hole at the center of the stand.

Positioning the speakers (continued)

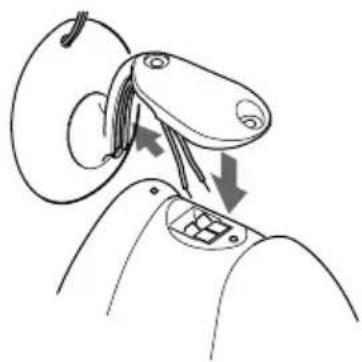

3 Separate the speaker cord, then secure the cord to the speaker stand with the plate.

4 Connect the speaker cord to the speaker terminal. The cord should be pressed into the groove in the stand.

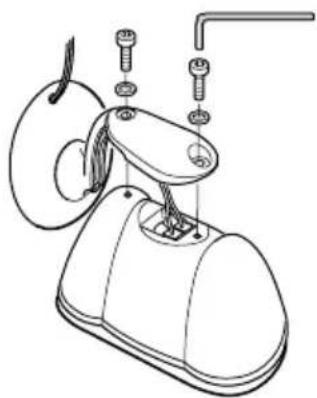

5 Using the supplied hex wrench, two screws, and washers, secure the speaker to the stand.

Notes

• Do not remove the supplied speaker grille from the speaker while attaching the speaker to the speaker stand.
• Do not touch or press tweeter's cover on the center of the speaker.

Positioning the center speaker

(SA-VE705 and SS-V703 only)

Attach the center speaker to the supplied speaker stand and place it on a top of the TV set.

For optimum listening enjoyment, the speaker should face directly towards the listener. Adjust the angle of the speaker stand for that purpose.

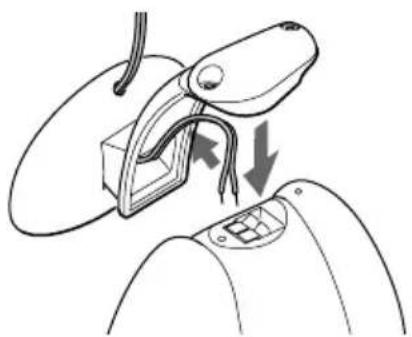

1 Pass the speaker cord into the hole on the back of the stand and out from the hole at the center of the stand.

2 Connect the speaker cord to the speaker terminal.

3 Using the supplied hex wrench, two screws, and washers, secure the speaker to the stand.

Notes

• Do not remove the supplied speaker grille from the speaker while attaching the speaker to the speaker stand.
• Do not touch or press tweeter's cover on the center of the speaker.

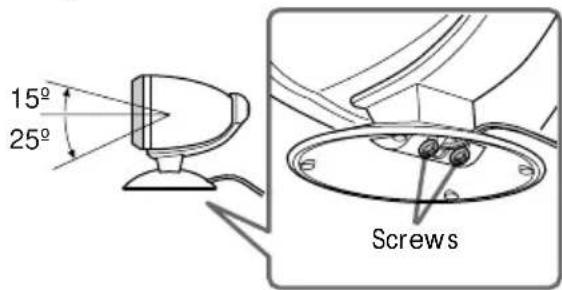

4 Adjust the angle of the speaker stand.

Loosen the two screws under the base to adjust the angle. Then tighten them again afterwards.

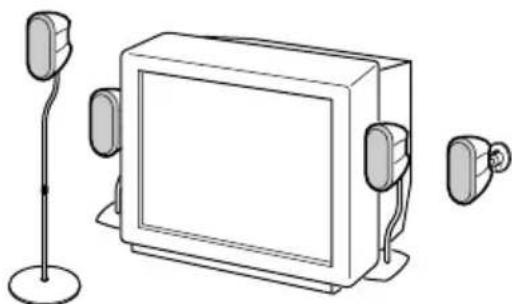

The optional speaker stands

For greater flexibility in the positioning of the speakers, use the optional WS-FV10 (floor stand), WS-TV10 (TV stand), or WS-WV10 (wall mount bracket) speaker stand (available only in certain countries).

WS-FV10 WS-TV10 WS-WV10

Listening to the sound (SA-VE705 and SA-VE702 only)

Operation panel on the subwoofer

ON/STANDBY indicator

First, turn down the volume on the amplifier. The volume should be set to minimum before you begin playing the program source.

1 Turn on the amplifier and select the program source.
2 Press ① on the subwoofer. The ON/STANDBY indicator on the subwoofer lights up green.
3 Play the program source.

Power turns on and off automatically - Auto power on/off function

When the subwoofer is on (i.e., the ON/STANDBY indicator lights up green) and there is no signal input for a few minutes, the ON/STANDBY indicator changes to red and the subwoofer enters power saving mode. While in this mode a signal is input to the subwoofer, the subwoofer automatically turns on (auto power on/off function).

To turn this feature off, slide the POWER SAVE switch on the rear panel to OFF.

Note

If you turn down the volume level of the subwoofer too low, the auto power on/off function may activate, causing the subwoofer to enter power saving mode.

Adjusting the sound

Slight adjustments to the system can enhance your sound enjoyment.

Adjusting the subwoofer

(SA-VE705 and SA-VE702 only)

Operation panel on the subwoofer

1 Set MODE according to the program source as follows:

Source MODE

DVD, LD, video cassette MOVIE or other video source

MD, CD, cassette tape MUSIC or other audio source

2 Rotate LEVEL to adjust the volume. Set the volume level to suit the program source.

Notes

• Some amplifier functions for enhancing the sound may cause distortion in the subwoofer. If such distortion occurs, turn off those functions.
• To enjoy high-quality sound, do not turn the subwoofer volume too high.
  To increase the bass sound from the subwoofer, connect the system using "Hookup B" (see page 5).

Setting your amplifier for Dolby Digital*

If your amplifier is connected internally or externally with a Dolby Digital processor, you should use the some setup menus in the amplifier to specify the parameters of your speaker system.

See the table below for the proper settings. For details on the setting procedure, refer to the manual that was provided with your amplifier.

• To enjoy Dolby Digital, five speakers and one subwoofer must be provided.

When "Hookup A" is used (Speaker setup menu)

For Set to

Front speakers SMALL

Center speaker SMALL

Rear speakers SMALL

Subwoofer ON (or YES)

(Other setup menu)

Menu Set to

LFE^*MIX - 10dB

BASS BOOST** ON

• Low Frequency Effect
  **A function that reinforces the bass sound

When "Hookup B" is used (Speaker setup menu)

For Set to

Front speakers LARGE

Center speaker SMALL

Rear speakers SMALL

Subwoofer OFF (or NO)

(Other setup menu)

Menu Set to

LFE MIX-10 dB

BASS BOOST ON

Precautions

On safety

• Before operating the system, be sure that the operating voltage of the system is identical with that of your local power supply.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. (SA-VE705 and SA-VE702 only)
• Unplug the system from the wall outlet if it is not to be used for an extended period of time. To disconnect the cord, pull the cord by grasping the plug. Never pull the cord itself. (SA-VE705 and SA-VE702 only)
• Should any liquid or solid object fall into the system, unplug the system's power cord and have the system checked by qualified personnel before operating it any further.
• AC power cord must be changed only at the qualified service shop. (SA-VE705 and SA-VE702 only)

On operation

• Do not drive the speaker system with a continuous wattage exceeding the maximum input power of the system.
• If the polarity of the speaker connections are not correct, the bass tones will be weak and the position of the various instruments obscure.
• Contact between bare speaker wires at the speaker terminals may result in a short-circuit.
• Before connecting, turn off the amplifier to avoid damaging the speaker system.

If you encounter color irregularity on a near by TV screen

This speaker system is magnetically shielded to allow it to be installed near a TV set. However, color irregularities may still be observed on certain types of TV sets.

If color irregularity is observed...

Turn off the TV set once, then turn it on again after 15 to 30 minutes.

If color irregularity is observed again...

Place the speakers further away from the TV set.
Keep magnets and other sources of magnetic fields away from the speaker system since they may cause color irregularities on your TV screen.

If howling occurs

Reposition the speakers or turn down the volume on the amplifier.

On placement

• Do not place the speakers in an inclined position.
• Do not place the speakers in locations that are: - Extremely hot or cold

Dusty or dirty
— Very humid
Subject to vibrations
Subject to direct sunlight

On cleaning

Clean the speaker cabinets with a soft cloth lightly moistened with a mild detergent solution or water. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any questions or problems concerning your speaker system, please consult your nearest Sony dealer.

Troubleshooting

Should you encounter a problem with your speaker system, check the following list and take the indicated measures. If the problem persist, consult your nearest Sony dealer.

There is no sound from the speaker system.

Make sure all the connections have been correctly made.
Make sure the volume on the amplifier has been turned up properly.
- Make sure the program source selector on the amplifier is set to the proper source.
- Check if headphones are connected. If they are, disconnect them.

There is distortion in the subwoofer sound output. (SA-VE705 and SA-VE702 only)

• Check if any sound-enhancing functions have been activated on the amplifier. If they have, turn them off.

There is hum or noise in the speaker output.

Make sure all the connections have been correctly made.
- Make sure none of the audio components are positioned too close to the TV set.

The sound has suddenly stopped.

• Make sure all the connections have been correctly made. Contact between bare speaker wires at the speaker terminals may cause a short-circuit.

Specifications

SS-MS7 (front, center, and rear speakers)

Speaker system 2 way, magnetically shielded

Speaker units

Tweeter: 1.9cm

3/4 in.), dome

type

Woofer: 5cm (2 in.) · 2, balanced drive type

Enclosure type Bass reflex

Rated impedance 8 ohms

Power handling capacity

Maximum input power: 140 W

Sensitivity level 87dB (1W,1m)

Frequency range 120Hz - 40,000Hz

Dimensions (w/h/d)

When attached speaker grilles:

Approx. 86·169

130mm (3^1 / 2· 6^3 / 4

5^1 / 8 in.) each

When attached to supplied speaker stand:

Approx. 96 · 207 ·

141mm (3^7 / 8· 8^1 / 4

5^5 / 8 in.) each, (Front (and rear) speakers)

Approx. 169·131·

144mm (6^3 / 4· 5^1 / 4

5^3 / 4 in.), (Center speaker: pointed upwards)

Approx. 169·118·

141mm (6^3 / 4· 4^3 / 4

5^5 / 8 in.), (Center speaker:

pointed downwards)

Mass

When attached speaker grilles:

Approx. 1.3kg (2 lb

14 oz) each

When attached to supplied speaker stand:

Approx. 1.4kg (3 lb 1 oz)

each, (Front (and rear) speakers)

Approx. 1.4kg 3 lb 1 oz),

(Center speaker)

SA-WMS7 (subwoofer)

(SA-VE705 and SA-VE702 only)

System

Speaker system Active subwoofer, magnetically shielded

Speaker unit Woofer: 20cm (8 in.), cone type

Enclosure type Advanced SAW type

Practical maximum output 120 W

Reproduction frequency range 24 Hz - 150 Hz

Inputs

LINE IN (input pin jack)

SPEAKER IN (input terminals)

Outputs

LINE OUT (output pin jack)

SPEAKER OUT (output terminals)

General

Power requirements

USA and Canada: 120V AC, 60Hz

Europe: 220 - 230 V AC, 50/60 Hz

Others: 220 - 240 V AC, 50/60 Hz

Power consumptions 80 W

Dimensions (w/h/d) Approx. 230·380·

470mm(9^1 / 8· 15

18^5 / 8 in.), including front

grille

Mass Approx. 17kg

(37 lb 8 oz)

Supplied accessories

SA-VE705

Speaker stands (for the front and rear speakers) (4)

Speaker stand (for the center speaker) (1)

Screws (for the speaker stands) (10)

Washers (for the speaker stands) (10)

Plates (for the front and rear speaker stands) (4)

Speaker grilles (5)

Hex wrench (1)

Audio connecting cord (1)

Speaker connecting cords, 2.5m (8 ft 2^1 / 2 in.) (5)

Speaker connecting cords, 10m (32 ft 9^3 / 4 in.) (2)

SA-VE702

Speaker stands (for the front speakers) (2)

Screws (for the speaker stands) (4)

Washers (for the speaker stands) (4)

Plates (for the front speaker stands) (2)

Speaker grilles (2)

Hex wrench (1)

Audio connecting cord (1)

Speaker connecting cords, 2.5m (8 ft 2^1 / 2 in.) (4)

SS-V703

Speaker stands (for the rear speakers) (2)

Speaker stand (for the center speaker) (1)

Screws (for the speaker stands) (6)

Washers (for the speaker stands) (6)

Plates (for the rear speaker stands) (2)

Speaker grilles (3)

Hex wrench (1)

Speaker connecting cords, 2.5m (8 ft 2^1 / 2 in.) (1)

Speaker connecting cords, 10m (32 ft 9^3 / 4 in.) (2)

Design and specifications are subject to change without notice.

AVERTISSEMENT

Laboratories Licensing Corporation.

SPEAKER OUT (bornes de sortie)

Généralités

Alimentation
