USER MANUAL SAVE312 SONY

MicroSatellite System

Operating Instructions GB
Mode d'emploi FR

SA-VE315

SA-VE312

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

NOTICE FOR THE CUSTOMERS IN CANADA

CAUTION

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

Table of Contents

Hooking up the system 4

Positioning the speakers. 7

Listening to the sound 8

Adjusting the sound 8

Precautions 10

Troubleshooting 11

Specifications 11

About this manual

The instructions in this manual are for SA-VE315 and SA-VE312, Sony Micro Satellite Systems.

Differences between the systems

SA-VE315

The SA-VE315 is a 5.1 channel speaker system consisting of two front speakers, two rear speakers, one center speaker, and one subwoofer. It supports Sony Digital Cinema Sound, Dolby* Pro Logic, and Dolby Digital (AC-3), and is thus geared towards the enjoyment of movies.

SA-VE312

Consisting of two front speakers and one subwoofer, the SA-VE312 is suited for the enjoyment of music.

• Manufactured under license from Dolby Laboratories. DOLBY, the double-D symbol ☑, "PRO LOGIC" and "Dolby Digital (AC-3)" are trademarks of Dolby Laboratories.

Any difference in operation is clearly indicated in the text, for example, "SA-VE315 only."

Hooking up the system

Connect the speaker system to the speaker output terminals of an amplifier.

Make sure power to all components (included the subwoofer) is turned off before starting the hook-up.

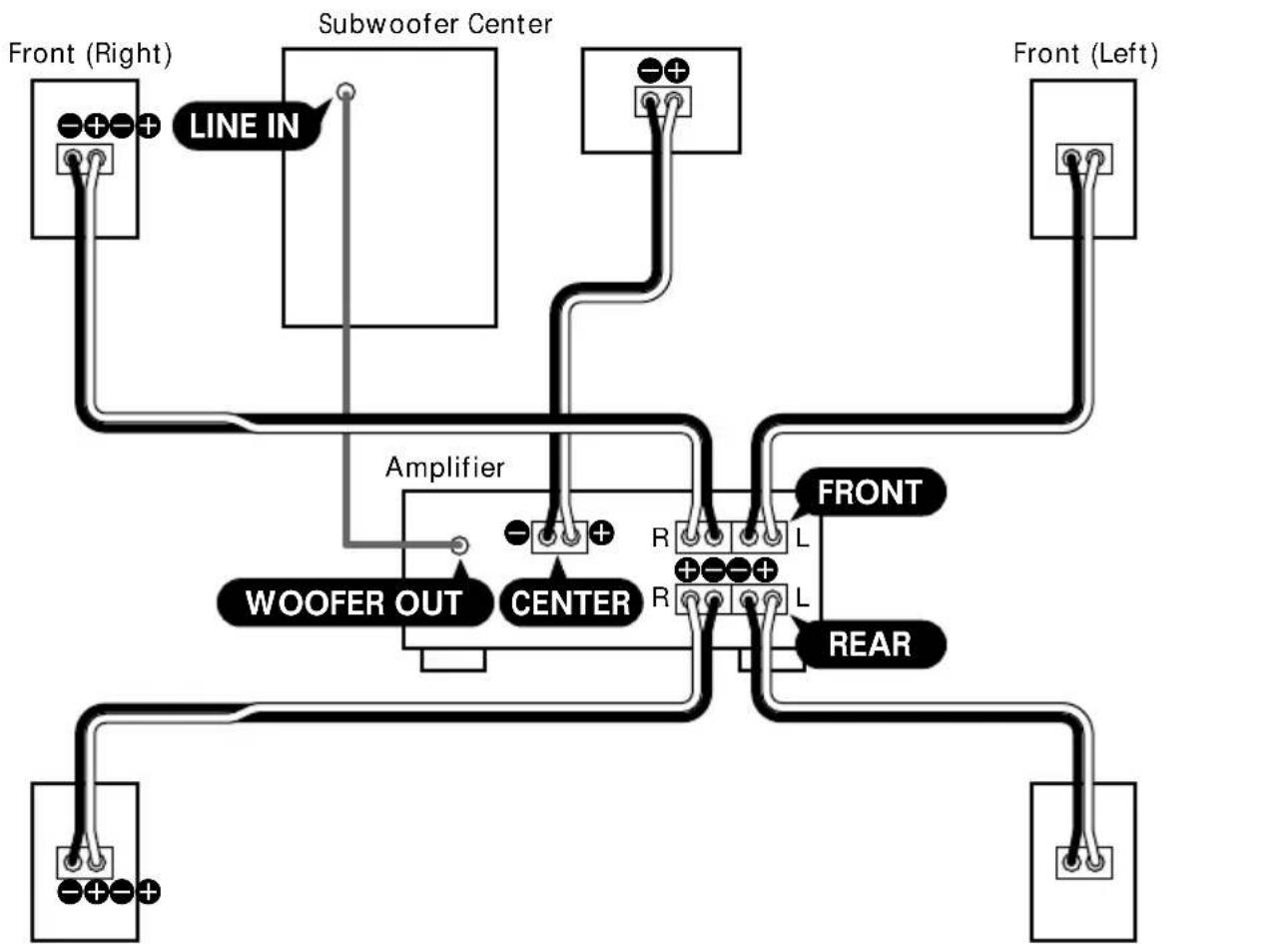

Hookup A (for SA-VE315)

This configuration is used when the amplifier is connected to a DVD player, LD player, VCR or other video devices.

Rear (Left)Rear (Right)

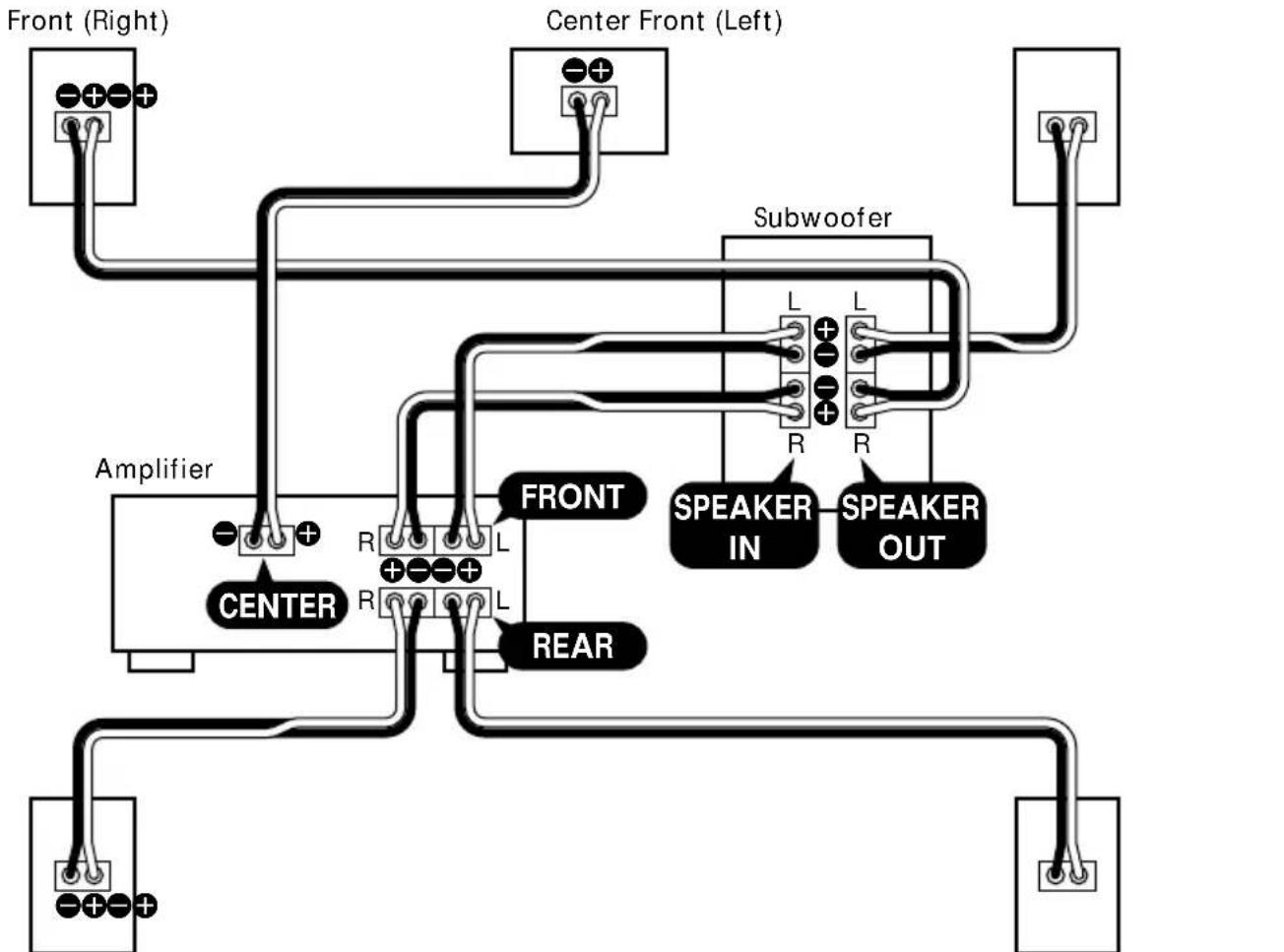

Hookup B (for SA-VE315)

Try this configuration instead of "Hookup A" in the following situations:

• When there are no jacks on the amplifier for a subwoofer.
• When you want a stronger bass sound from the subwoofer.

Rear (Left)Rear (Right)

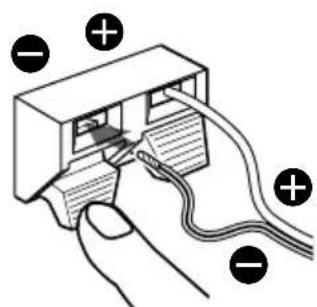

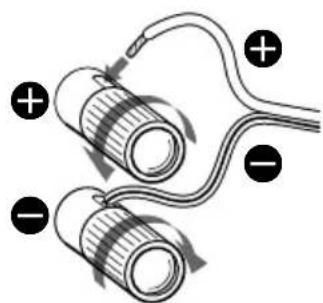

Terminal (jack) connections

Hooking up the system (continued)

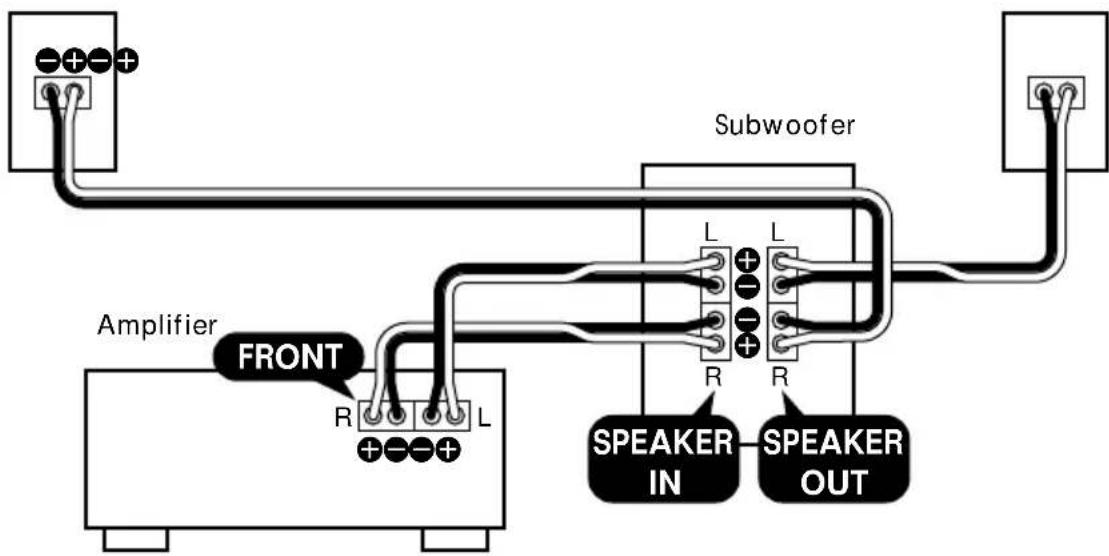

Hookup C (for SA-VE312)

This configuration is used when the amplifier is connected to a CD player, MD deck, cassette deck, or other audio devices.

Front (Right)
Front (Left)

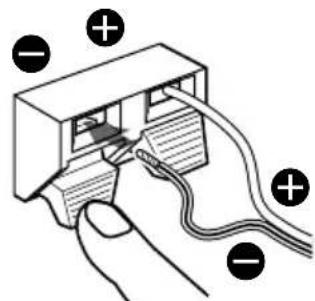

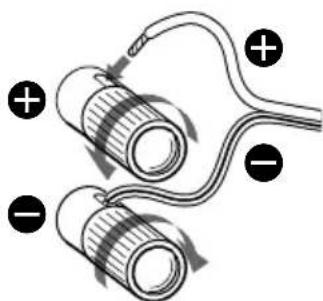

Terminal connections

Notes

• Make sure the plus (+) and the minus (-) terminals on the speakers are matched to the corresponding plus (+) and minus (-) terminals on the amplifier.
• Be sure to tighten the screws of the speaker terminals securely as loose screws may become a source of noise.
• Make sure all connections are firm. Contact between bare speaker wires at the speaker terminals may cause a short-circuit.
• Do not connect the subwoofer to the amplifier's CENTER output terminal (which is for Dolby Pro Logic or Dolby Digital (AC-3)). No bass sound will output from the subwoofer if you do.
• For details regarding the connections on the amplifier side, refer to the manual that was provided with your amplifier.

Tip

All striped wires are minus (-) in polarity, and should be connected to the minus (-) speaker terminals.

Positioning the speakers

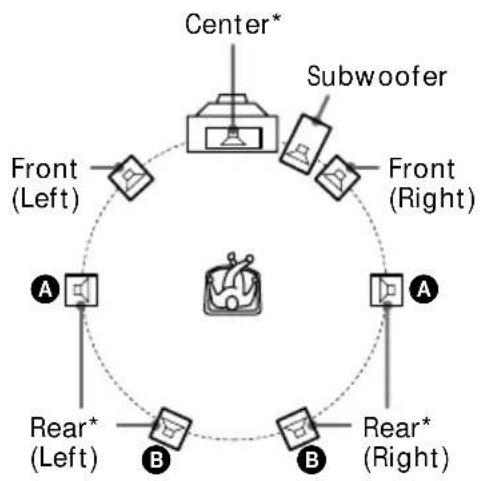

Location of each speaker

*SA-VE315 only

Each speaker should face the listening position. Better surround effect will result if all speakers are set at the same distance from the listening position.

Place the front speakers at a suitable distance to the left and right of the television.

Place the subwoofer on either side of the television.

Place the center speaker on the top-center of the TV set.

The placement of rear speakers greatly depends on the configuration of the room.

The rear speakers may be placed on both sides of the listening position A or behind the listening position B.

Tips

Movies are best enjoyed in a room that produces no echoes (as in one with surrounding curtains).
- Music (especially classical music) is best enjoyed in a room that produces some echo.

Setting the speakers

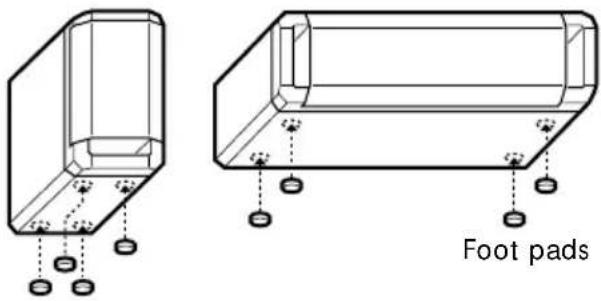

To prevent speaker vibration or movement while listening, attach the supplied foot pads to the bottom four corners of the center speaker, front speakers, and rear speakers.

*SA-VE315 only

Setting the center speaker

(SA-VE315 only)

Set the center speaker firmly on top of the TV set, making sure it is completely level.

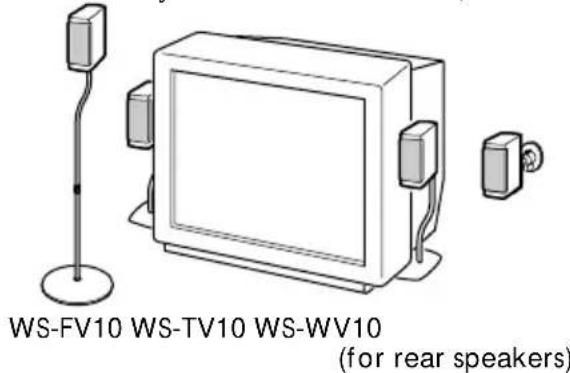

Setting other speakers

For greater flexibility in the positioning of the speakers, use the optional WS-FV10, WS-TV10, or WS-WV10 speaker stand (available only in certain countries).

Tip

The height of the front speakers should be adjusted to about the center of the TV screen.

Listening to the sound

POWER POWER indicator

First, turn down the volume on the amplifier. The volume should be set to minimum before you begin playing the program source.

1 Turn on the amplifier and select the program source.
2 Press POWER on the subwoofer. The POWER indicator on the subwoofer lights up green.
3 Play the program source.

Adjusting the sound

Slight adjustments to the system can enhance your sound enjoyment.

Adjusting the subwoofer

LEVEL MODE

1 Set MODE according to the program source as follows:

Source MODE

DVD, LD, video cassette MOVIE or other video source

MD, CD, cassette tape MUSIC or other audio source

2 Rotate LEVEL to adjust the volume. Set the volume level to best suit your preference according to the program source.

Notes

• Some amplifier functions for enhancing the sound may cause distortion in the subwoofer. If such distortion occurs, turn off those functions.
• To enjoy high-quality sound, do not turn the subwoofer volume too high.
  To increase the bass sound from the subwoofer, connect the system using "Hookup B" (see page 5).
• The bass sound is enhanced in MOVIE mode rather than in MUSIC mode. Therefore, if you change the mode to MOVIE while listening to some sources that do not include the bass sound, you may not be able to get the effect.

Setting your amplifier to enjoy movies (SA-VE315 only)

For the Dolby Digital (AC-3)

If your amplifier is connected internally or externally with a Dolby Digital (AC-3) processor, you should use the setup menus for the amplifier to specify the parameters of your speaker system.

See the table below for the proper settings. For details on the setting procedure, refer to the manual that was provided with your amplifier.

When "Hookup A" is used (Speaker setup)

For Set to

Front speakers SMALL

Center speaker SMALL

Rear speakers SMALL

Subwoofer ON (or YES)

(Other setup)

Menu Set to

LFE MIX* -10 dB

BASS BOOST** ON

* Low Frequency Effect **A function that reinforces the bass sound

When "Hookup B" is used (Speaker setup)

For Set to

Front speakers LARGE

Center speaker SMALL

Rear speakers SMALL

Subwoofer OFF (or NO)

(Other setup)

Menu Set to

LFE MIX -10 dB

BASS BOOST ON

For the Dolby Pro Logic

If your amplifier is connected internally or externally with a Dolby Pro Logic processor, you should set the surround effect mode to "NORMAL" on the amplifier for your particular speaker system.

For details on the setting procedure, refer to the manual that was provided with your amplifier.

Precautions

On safety

• Before operating the system, be sure that the operating voltage of the system is identical with that of your local power supply.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• Unplug the system from the wall outlet if it is not to be used for an extended period of time. To disconnect the cord, pull the cord by grasping the plug. Never pull the cord itself.
• Should any liquid or solid object fall into the system, unplug the system's power cord and have the system checked by qualified personnel before operating it any further.
• AC power cord must be changed only at the qualified service shop.

On operation

• Do not drive the speaker system with a continuous wattage exceeding the maximum input power of the system.
• If the polarity of the speaker connections are not correct, the bass tones will be weak and the position of the various instruments obscure.
• Contact between bare speaker wires at the speaker terminals may result in a short-circuit.
• Before connecting, turn off the amplifier to avoid damaging the speaker system.
• The speaker grille cannot be removed. Do not attempt to remove the grille on the speaker system. If you try to remove it, you may damage the speaker.

If you encounter color irregularity on a nearby TV screen

This speaker system is magnetically shielded to allow it to be installed near a TV set. However, color irregularities may still be observed on certain types of TV sets.

If color irregularity is observed...

Turn off the TV set once, then turn it on again after 15 to 30 minutes.

If color irregularity is observed again...

Place the speakers further away from the TV set.

If howling occurs

Reposition the speakers or turn down the volume on the amplifier.

On placement

• Do not set the speakers in an inclined position.
• Do not place the speakers in locations that are:

Extremely hot or cold
Dusty or dirty
— Very humid
Subject to vibrations
Subject to direct sunlight

On cleaning

Clean the speaker cabinets with a soft cloth lightly moistened with a mild detergent solution or water. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any questions or problems concerning your speaker system, please consult your nearest Sony dealer.

Troubleshooting

Should you encounter a problem with your speaker system, check the following list and take the indicated measures. If the problem persists, consult your nearest Sony dealer.

There is no sound from the speaker system.

Make sure all the connections have been correctly made.
Make sure the volume on the amplifier has been turned up properly.
- Make sure the program source selector on the amplifier is set to the proper source.
- Check if headphones are connected. If they are, disconnect them.

There is distortion in the subwoofer sound output.

• Check if any sound-enhancing functions have been activated on the amplifier. If they have, turn them off.

There is hum or noise in the speaker output.

Make sure all the connections have been correctly made.
- Make sure none of the audio components are positioned too close to the TV set.

The sound has suddenly stopped.

• Make sure all the connections have been correctly made. Contact between bare speaker wires at the speaker terminals may cause a short-circuit.

Specifications

SA-VE315/VE312

SS-V315 (front and rear speakers)

Speaker system Full range, magnetically shielded

Speaker units 5· 10cm (2·4 in.), cone type

Enclosure type Bass reflex

Rated impedance 8 ohms

Power handling capacity

Maximum input power: 100 watts

Sensitivity level 87 dB (1 W, 1 m)

Frequency range 90Hz - 20,000Hz

Dimensions (w / h / d) Approx. 68·150

125mm (2^3 / 4· 6· 5 in.),

including front grille

Mass

European model: Approx. 640g (1 lb 7 oz) each

Other models: Approx. 740g (1 lb 10 oz) each

SS-CN315 (center speaker)

Speaker system Full range · 2

magnetically shielded

Speaker units

5·10 cm (2·4 in.), cone type

Enclosure type Bass reflex

Rated impedance 8 ohms

Power handling capacity

Maximum input power: 120 watts

Sensitivity level 89 dB (1 W, 1 m)

Frequency range 90Hz - 20,000Hz

Dimensions (w / h / d) Approx. 301 · 68

125mm (11^7 / 8· 2^3 / 4

5 in.), including front grille

Mass

European model: Approx. 1.4kg 3 lb 1 oz)

Other models: Approx. 1.5kg 3 lb 5 oz

Speaker system Active subwoofer, magnetically shielded
Speaker unit Woofer: 16 cm (6 3/8 in.), cone type
Enclosure type Advanced SAW type
Continuous RMS power output (8 ohms, 20 - 150Hz 0.8% THD)
European model: 50 W
Other models: 75W
Reproduction frequency range 28Hz - 200Hz High frequency cut-off frequency 200Hz

Inputs

LINE IN (input pin jack)
SPEAKER IN (input terminals)

Outputs

LINE OUT (output pin jack)
SPEAKER OUT (output terminals)

General

Power requirements
North American model: 120 V AC, 60 Hz
European model: 220 - 230 V AC, 50/60 Hz
Other models: 220 - 240 V AC, 50/60 Hz
Power consumptions
European model: 50 W
Other models: 70 W
Dimensions (w/h/d) Approx. 205 · 385 · 385 mm (8 1/8 · 15 1/4 · 15 1/4 in.), including front grille
Mass Approx. 10.5 kg (23 lb 2 oz)

Supplied accessories

SA-VE315

Foot pads (20)

Audio connecting cord (1)

Speaker connecting cords, 10m (32 ft 9^3 / 4 in.) (2)

Speaker connecting cords, 2.5m (8 ft 2^1 / 2 in.) (5)

SA-VE312

Foot pads (8)

Audio connecting cord (1)

Speaker connecting cords, 2.5m (8 ft 2^1 / 2 in.) (4)

Design and specifications are subject to change without notice.
