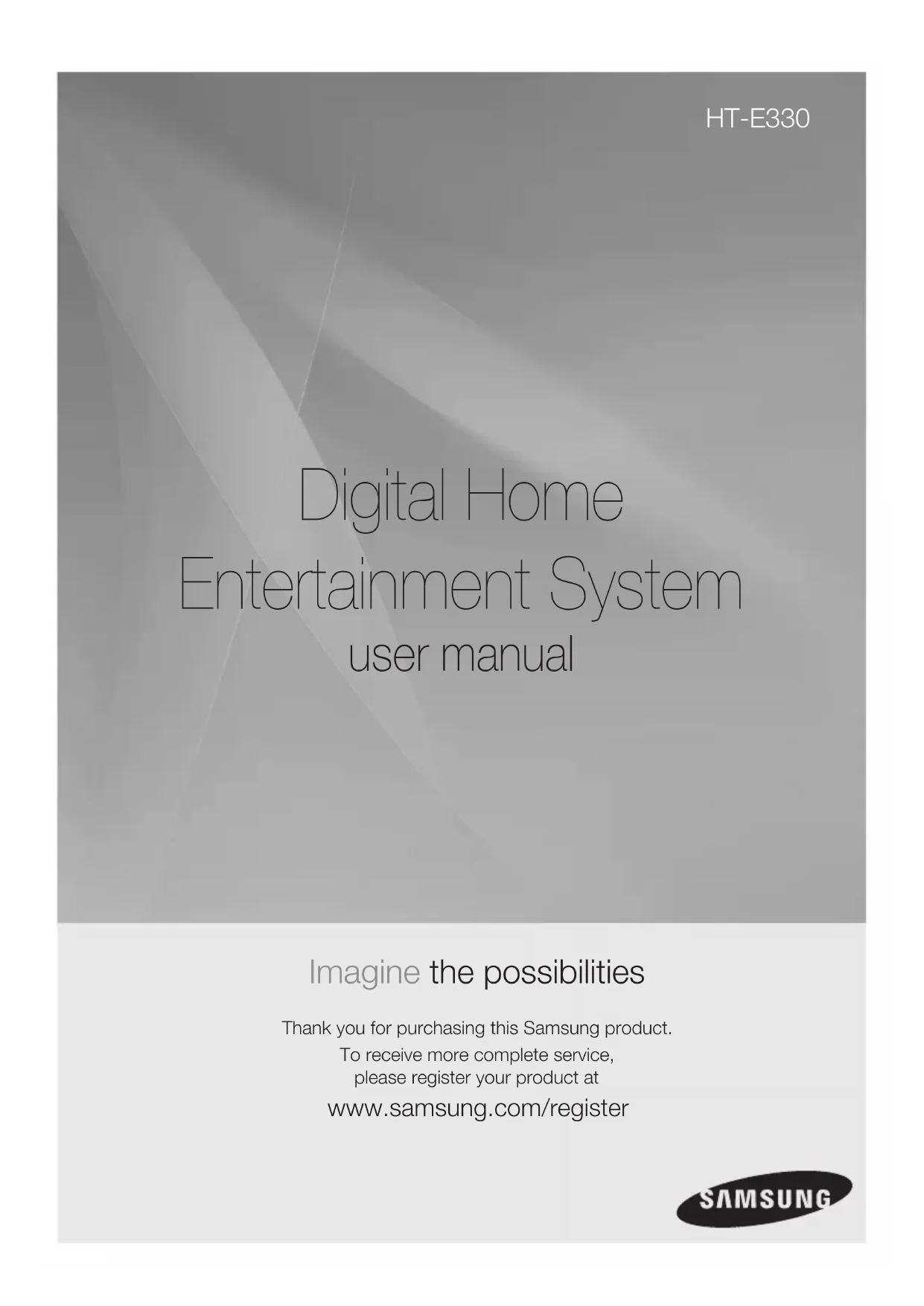

USER MANUAL HTE330 SAMSUNG
Entertainment System user manual
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/register
Safety Warnings
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
![]() | ![]() | ![]() |
| This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. | CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. | This symbol indicates important instructions accompanying the product. |
WARNING
- To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION
- Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
- The Mains plug is used as a disconnect device and shall stay readily operable at any time.
- This apparatus shall always be connected to an AC outlet with a protective grounding connection.
- To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LÁSER CLASE 1
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1 LASER product.
Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
CAUTION
• INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.
Precautions
- Ensure that the AC power supply in your house complies with the identification sticker located on the back of your product.
• Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5\~10cm). - Do not place the product on amplifiers or other equipment which may become hot. Make sure the ventilation slots are not covered.
• Do not stack anything on top of the product.
• Before moving the product, ensure the Disc Insert Hole is empty. - In order to disconnect the product completely from the power supply, remove the AC plug from the wall outlet, especially when left unused for a long period of time.
- During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the product.
- Do not expose the product to direct sunlight or other heat sources. This could lead to overheating and malfunction of the product.
- Protect the product from moisture, and excess heat or equipment creating strong magnetic or electric fields (i.e. speakers.).
- Disconnect the power cable from the AC supply if the product malfunctions.
- Your product is not intended for industrial use. Use of this product is for personal use only.
- Condensation may occur if your product or disc has been stored in cold temperatures. If transporting the product during the winter, wait approximately 2 hours until the product has reached room temperature before using.
- The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

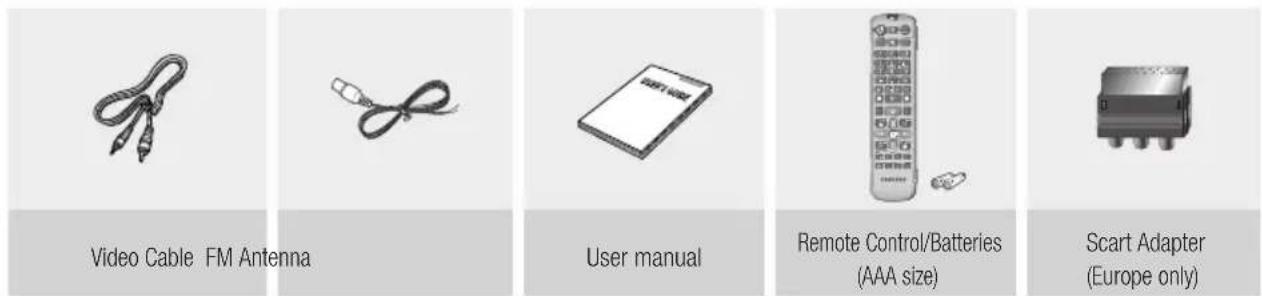

Accessories
Check for the supplied accessories below.
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
Holding discs
• Do not touch the playback side of the disc.
- Hold the disc by the edges so that fingerprints will not get on the surface.
• Do not stick paper or tape on the disc.

Disc Storage
• Do not keep in direct sunlight
- Keep in a cool ventilated area
- Keep in a clean Protection jacket.
Store vertically.

NOTE
■Do not allow the discs to become contaminated with dirt.
■ Do not load cracked or scratched discs.
Handling and Storing Discs
If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.
- When cleaning, wipe gently from the inside to the outside of the disc

NOTE
- Condensation may form if warm air comes into contact with cold parts inside the product. When condensation forms inside the product, it may not operate correctly. If this occurs, remove the disc and let the product stand for 1 or 2 hours with the power on.
Licence
DOLBY.
DIGITAL
- Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

- ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,LLC,a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.
- ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.
• DivX Certified® to play DivX® video. - DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.
- Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274.
- This product uses some software programs which are distributed under the Independent JPEG Group.
- This product uses some software programs which are distributed under the OpenSSL Project.
Copyright
© 2012 Samsung Electronics Co., Ltd. All rights reserved.
Copy Protection
- Many DVD discs are encoded with copy protection. Because of this, you should only connect your product directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
Contents
SAFETY INFORMATION
2
2 Safety Warnings
3 Precautions
3 Accessories
4 Cautions on Handling and Storing Discs
4 Licence
4 Copyright
4 Copy Protection
GETTING STARTED
7
7 Icons that will be used in manual
7 Disc Types and Characteristics
10 Description
10 Front Panel
11 Rear Panel
12 Remote control
CONNECTIONS
13

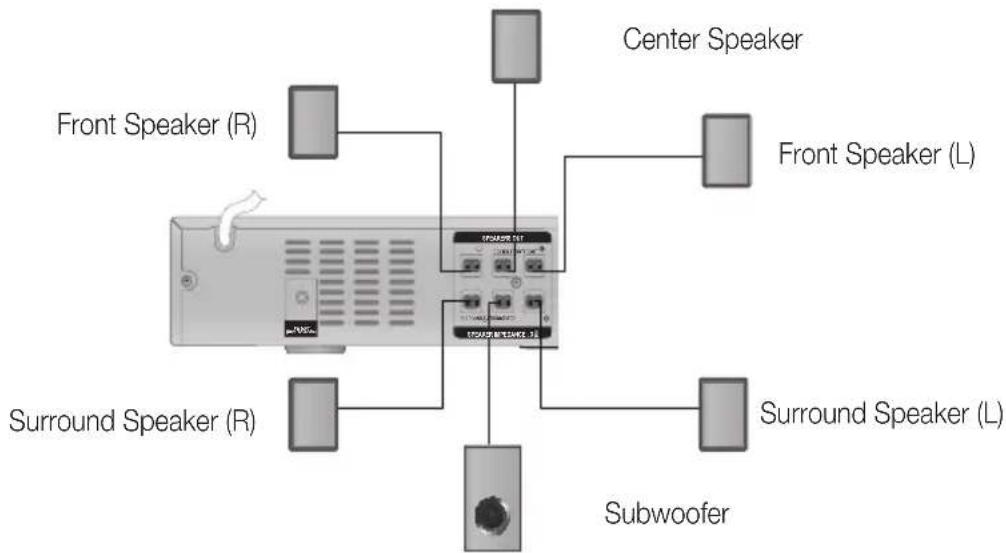

13 Connecting the Speakers
15 Connecting the Video Out to your TV

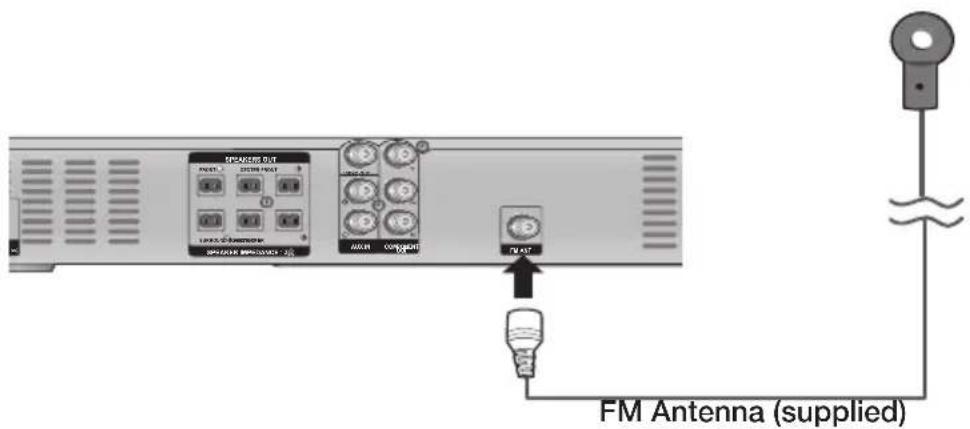

16 Connecting the FM Antenna

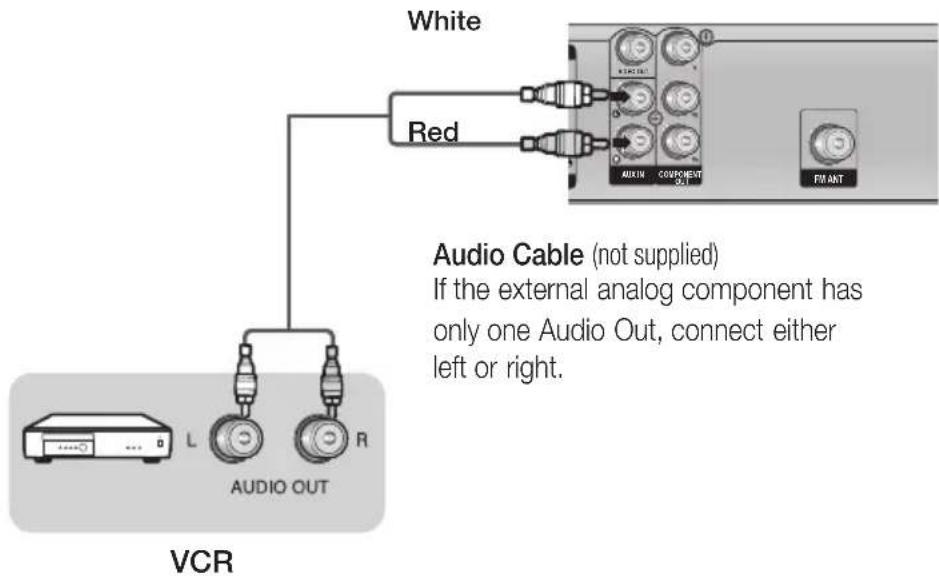

17 Connecting Audio from External Components
SETUP
18

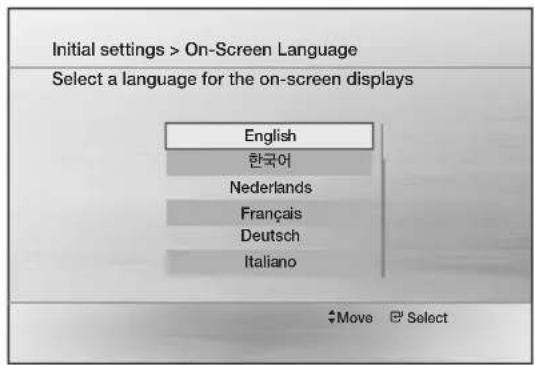

18 Before Starting (Initial Settings)
18 Setting the Setup menu
19 Display
19 TV Aspect
19 Video Out Signal
19 Audio

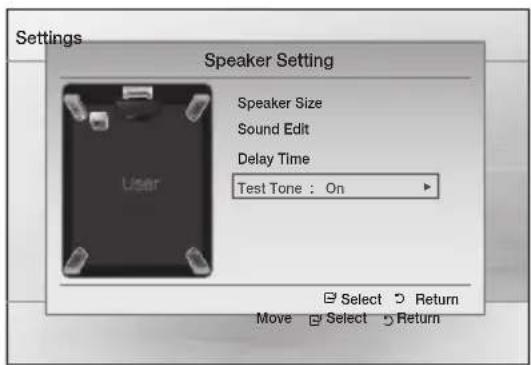

19 Speaker Setting
20 DRC (Dynamic Range Compression)
20 AUDIO SYNC

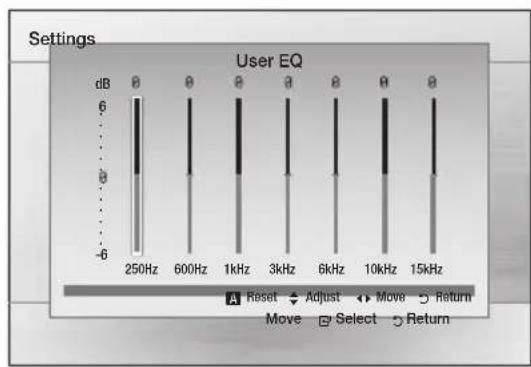

20 User EQ
20 System
20 Initial Settings
20 DivX(R) Registration
21 Language
21 Security
21 Parental Rating
21 Change Password
21 Support
21 Product Information
Contents
BASIC FUNCTIONS
21
21 Disc Playback
22 Audio CD(CD-DA)/MP3/WMA Playback
22 JPEG File Playback
23 Using the Playback Function
26 Sound Mode
28 Listening to Radio
ADVANCED FUNCTIONS
29
29 USB Function
29 USB Recording
OTHER INFORMATION
30
30 Troubleshooting
31 Language code list
32 Specifications
33 OpenSSL License
- Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
• An administration fee may be charged if either
a. an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual)
b. you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user manual).
• The amount of such administration charge will be advised to you before any work or home visit is carried out.
Getting Started
Icons that will be used in manual
Make sure to check the following terms before reading the user manual.
| Icon Term Definition | ||
| [cwtx] | DVD | This involves a function available with DVD-Video or DVD±R/±RW discs that have been recorded and finalised in Video Mode. |
![]() | CD | This involves a function available with a data CD (CD DA, CD-R/-RW). |
| [dy80] | MP3 | This involves a function available with CD-R/-RW discs. |
![]() | JPEG | This involves a function available with CD-R/-RW discs. |
![]() | DivX | This involves a function available with MPEG4 discs. (DVD±R/±RW, CD-R/-RW) |
| [1206] | CAUTION | This involves a case where a function does not operate or settings may be cancelled. |
| [5277] | NOTE | This involves tips or instructions on the page that help each function operate. |
![]() | Shortcut Key | This function provides direct and easy access pressing the button on the remote control. |
Disc Types and Characteristics
Region Code
The product and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.
| Disc Type | Region Code | Area |
| DVD-VIDEO | ![]() | The U.S., U.S. territories and Canada |
![]() | Europe, Japan, the Middle East, Egypt, South Africa, Greenland | |
![]() | Taiwan, Korea, the Philippines, Indonesia, Hong Kong | |
![]() | Mexico, South America, Central America, Australia, New Zealand Pacific Islands, Caribbean | |
![]() | Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia | |
![]() | China |
Disc Types and Characteristics
Disc types that can be played
| Disc Types & Mark (Logo) | Recorded Signals | Characteristics |
DVD-VIDEO | VIDEO | DVD video |
| DVD-R/DVD-RW IN DVD video FORMAT | ||
| DVD+R/DVD+RW IN DVD video FORMAT | ||
AUDIO-CD | AUDIO AUDIO CD | |
DivX | AUDIO + VIDEO | AUDIO CD |
| CD-R/CD-RW in AUDIO CD FORMAT | ||
| DATA CD | CD-R/CD-RW in DATA CD FORMAT that contains the following kinds of files and conforms to ISO 9660 LEVEL 1/LEVEL 2, OR JOLIET (EXTENDED FORMAT)-MP3 files-JPEG Image files-MPEG 4 VIDEO files | |
| DATA DVD | DVD-ROM/DVD-R/DVD-RW DVD+R/DVD+RW IN DATA DV FORMAT that contains the following kinds of files and conforms to UDF(*Universal Disk Format)-MP3 files-JPEG Image files-MPEG 4 VIDEO files | |
| USB Device | USB Device that contains the following kinds of files.-MP3 FILE OR WMA/WMV files-JPEG Image files-MPEG 4 Video files | |
Do not use the following type of discs!
- LD, CD-G, CD-I, CD-ROM, DVD-ROM and DVD-RAM discs cannot be played on this product. If such discs are played, a
- DVD discs purchased abroad may not play on this product.
If such discs are played, a
Disc Types And Disc Format
This product does not support Secure (DRM) Media files.
CD-R Discs
- Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc.
- Use a 650MB/74 minute CD-R disc. Do not use CD-R discs over 700MB/80 minutes as they may not be played back.
- Some CD-RW (Rewritable) media, may not be playable.
- Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.
CD-R MP3 Discs
- MP3 file names should contain no blank spaces or special characters (./=+).
- Use discs recorded with a compression/decompression data rate greater than 128Kbps.
- If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
- For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps \~ 320Kbps), the sound may skip during playback.
• A maximum of 500 tracks can be played per CD. - A maximum of 300 folders can be played per CD.
CD-R JPEG Discs
- A maximum of 999 images can be stored on a folder.
- When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
DVD±R/±RW, CD-R/RW Discs
- Software updates for incompatible formats are not supported.
(Example : QPEL, GMC, resolutions higher than 800 x 600 pixels, etc.) - If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.
Supported Formats (DivX)
This product only supports the following media formats. If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.
Supported Video Formats
| Format Supported Versions | |
| AVI | DivX3.11~DivX5.1 |
| WMV | V1/V2/V3/V7 |
Supported Audio Formats
| Format Bit | Rate | Sampling Frequency |
| MP3 | 80~320kbps | 44.1khz |
| WMA | 56~128kbps | |
| AC3 | 128~384kbps 44.1/48khz | |
- Aspect Ratio: This product supports up to 720x576 pixels. TV screen resolutions higher than 800 will not be supported.
- When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.
- Sections with a high frame rate might not be played while playing a DivX file.
- Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might not play.
Notes on USB connection
Supported devices: USB storage media, MP3 player, digital camera
1) If a folder or file name is longer than 10 characters, it may not properly display or operate.
2) A subtitle file bigger than 300KB may not be properly displayed.
3) A certain USB/digital camera device, USB card reader is not supported.
4) FAT16 and FAT32 file systems are supported.
5) Photo (JPEG), music (MP3, WMA) and video file should have their names in Korean or English. Otherwise, the file may not played.
6) Connect directly to the product's USB port. Connecting through another cable may raise problems with USB compatibility.
7) Inserting more than one memory device to a multi-card reader may not operate properly.
8) PTP protocol for digital camera is not supported.
9) Do not disconnect USB device during a "Reading" process.
10) Bigger the image resolution, the longer the delay to displaying.
11) DRM applied MP3/WMA or video files downloaded from a commercial site are not played back.
12) External HDD device is not supported.
13) The maximum current supported by the USB port for an external device is 500 mA (at 5V DC).
14) Supported file formats
| Format | Still Picture | Music Movie | |||
| File name | JPG MP3 | WMA W | MV DivX | ||
| File extension | JPG .JPEG | .MP3 . | WMA .WMV | .AVI | |
| Bit rate | - | 80~320 kbps | 56~128 kbps | 4Mbps 4Mbps | |
| Version | - | - | V8 | V1,V2, V3,V7 | DivX3.11~ DivX5.1 |
| Pixel | 640x480 | - | - | 720x576 | |
| Sampling Frequency | - | 44.1kHz | 44.1kHz | 44.1KHz~ 48KHz | |
Description

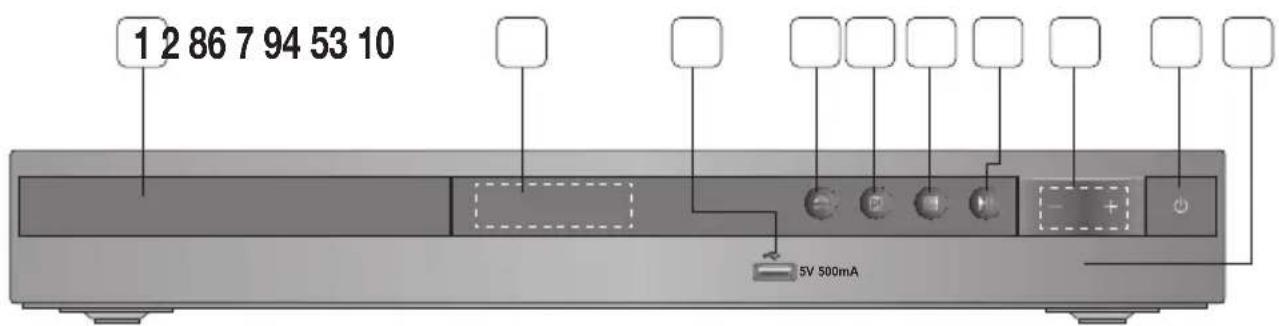

Front Panel
| 2 | DISPLAY | Displays the playing status, time, etc. |

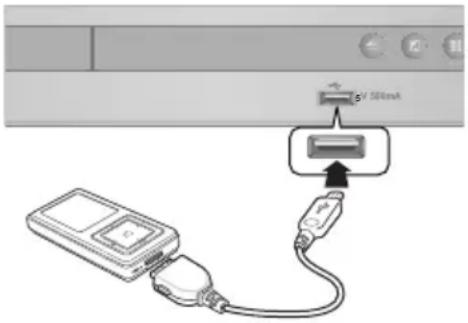

| 3 | USB PORT | Connect here and play files from external USB storage devices such as MP3 players, USB flash memory, etc.The USB memory that requires high power (more than 500mA at 5V) may not be supported. |
| 4 | OPEN/CLOSE BUTTON( ) | Opens and closes the disc tray. |
| 5 | FUNCTION BUTTON( ) | The mode switches as follows :DVD/CD → AUX → USB → FM |
| 6 | STOP BUTTON( ) | Stops disc playback. |
| 7 | PLAY / PAUSE BUTTON( ) | Plays a disc or pauses playback. |
| 8 | VOLUME CONTROL BUTTON ( , ) | Volume adjustment. |
| 9 | POWER BUTTON ( ) | Turns the product on and off. |
| 10 | REMOTE CONTROL SENSOR | Detects signals from the remote control. |

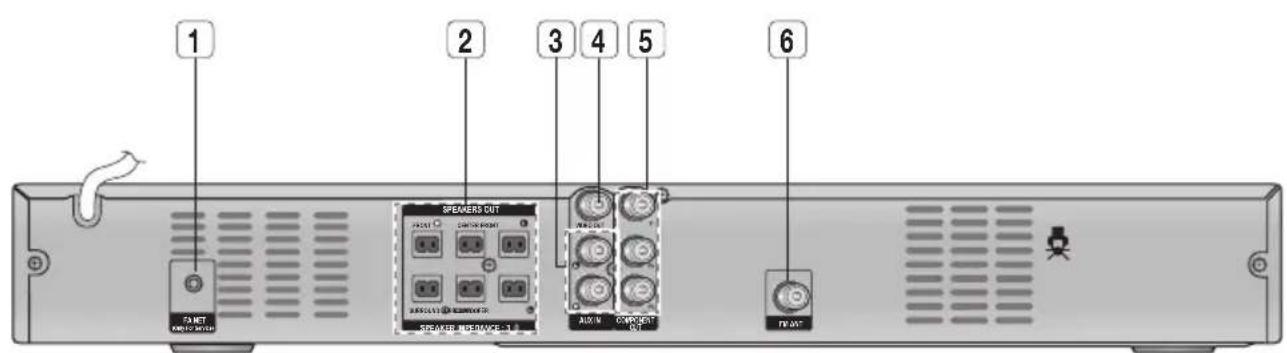

Rear Panel
| 2 | SPEAKERS OUTPUT CONNECTORS | Connect the front, center,surround speakers and subwoofer. |
| 3 | AUX IN JACKS | Connect to the 2CH Analog output of an external device (such as a VCR). |
| 4 | VIDEO OUT JACK | Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack. |
| 5 | COMPONENT OUTPUT JACKS | Connect a TV with Component video inputs to these jacks. |
| 6 | FM ANTENNA JACK | Connect the FM antenna. |
Remote control

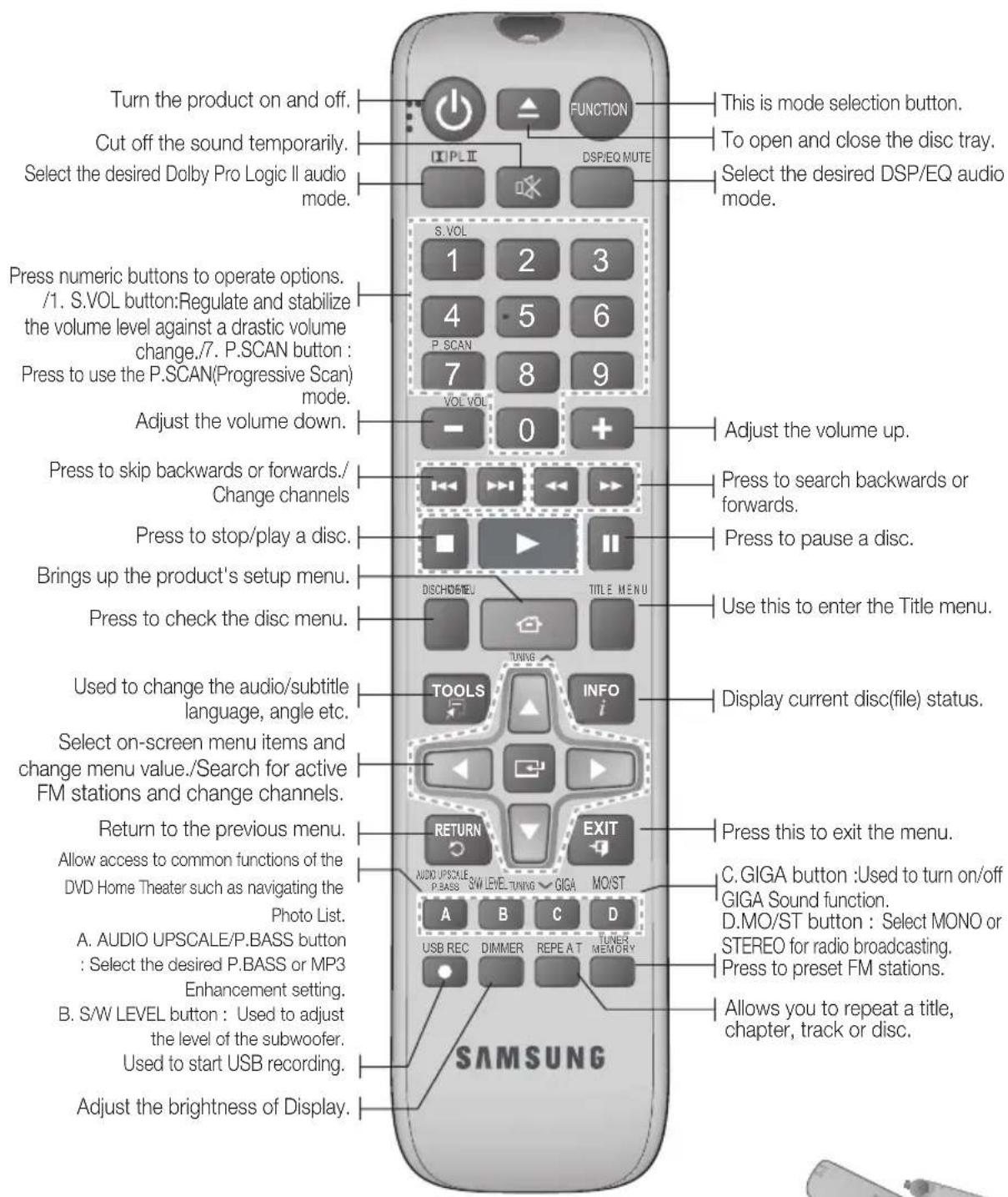

Tour of the Remote Control

NOTE
Place batteries in the remote control so they match the polarity: (+) to (+) and (−) to (−).
■Always replace both batteries at the same time.
■ Do not expose the batteries to heat or flame.
The remote control can be used up to approximately 23 feet (7 meters) in a straight line.
Connections
This section involves various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Connecting the Speakers


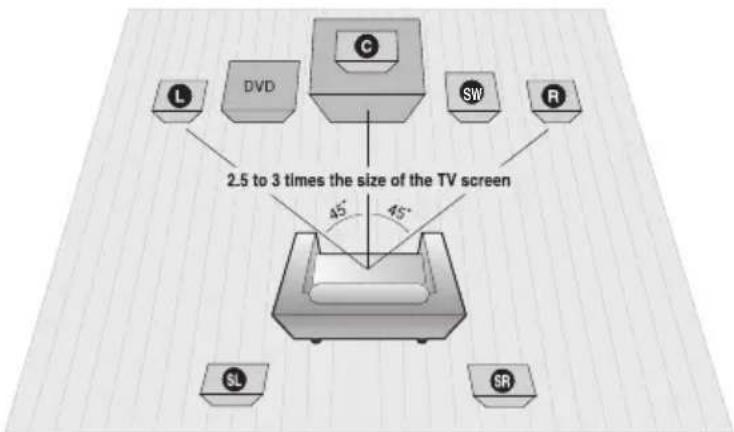

2.5 to 3 times the size of the TV screen 45° 45°Position of the product
Place it on a stand or cabinet shelf, or under the TV stand.
Selecting the Listening Position
The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.
Example: For 32" TV's 2\~2.4m
For 55" TV's 3.5\~4m
| Front Speakers L R | Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the speakers so that their tweeters will be at the same height as your ear. Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers. |
| Center Speaker C | It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV. |
| Surround Speakers SL SR | Place these speakers to the side of your listening position. If there isn't enough room, place these speakers so they face each other. Place them about 60 to 90cm above your ear, facing slightly downward.★ Unlike the front and center speakers, the surround speakers are used to handle mainly sound effects and sound will not come from them all the time. |
| Subwoofer SW | The position of the subwoofer is not so critical. Place it anywhere you like. |
! CAUTION
- Do not let children play with or near the speakers. They could get hurt if the speaker falls.
- Keep the subwoofer out of the reach of children so as to prevent them from inserting their hands or alien substances into the duct (hole) of the subwoofer.
- Do not hang the subwoofer on the wall through the duct (hole).
NOTE
If you place a speaker near your TV set, screen colour may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set.
Connections
Speaker Components

FRONT
(L) (R)(L) (R)

SURROUND

CENTER

SUBWOOFER
Connecting the wall mount
- Prepare screws (not supplied) that are suitable for the hole on the back of each speaker. See the illustrations below.
- Fasten the screws to the wall, then hang the speaker on the wall.

4 mm

Hold on the back of the speaker

Depth of fastened screw
- Connect the connecting plugs to the back of the product by matching the colours of the speaker plugs to the speaker jacks.


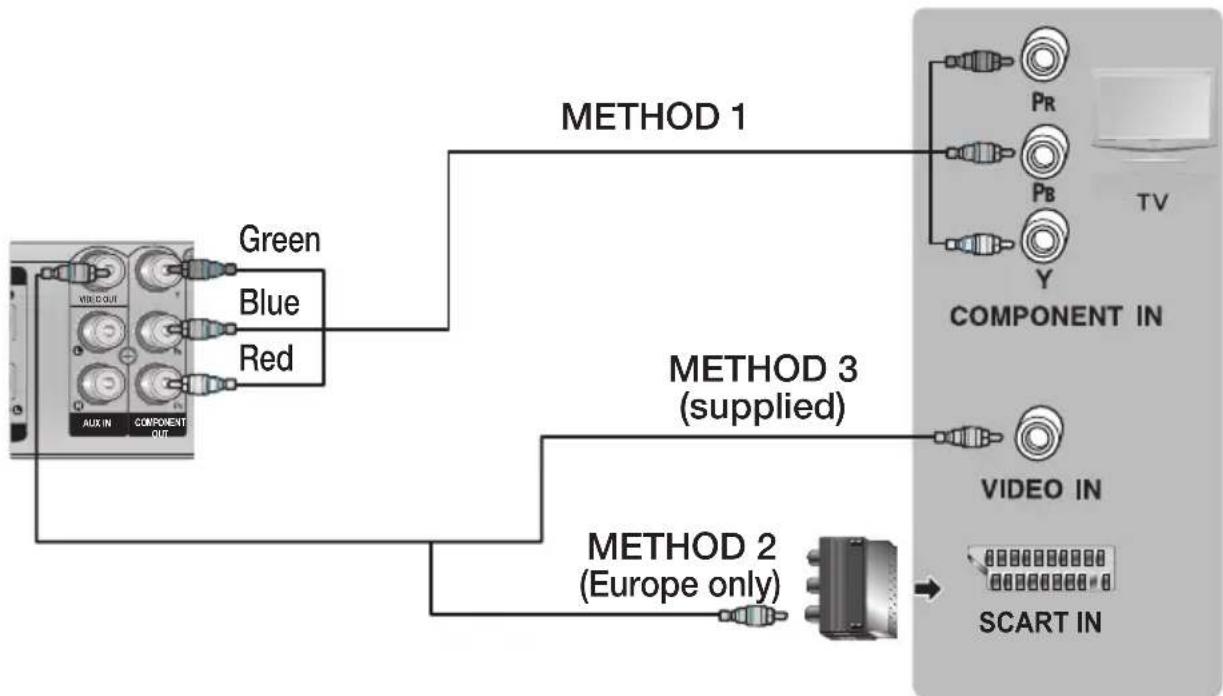

Choose one of the three methods for connecting to a TV.
METHOD 1 : Component (Progressive Scan) Video
If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from the COMPONENT OUT (PR, PB and Y) jacks on the back of the product to the Component Video Input jacks on your TV.
METHOD 2 : Scart (Europe only)
If your television is equipped with a SCART input, connect the supplied video cable from the VIDEO OUT jack on the back of the product to the VIDEO jack on the Scart adapter (Europe only), then connect the SCART adapter's jack to the SCART IN jack on your television.
METHOD 3 : Composite Video
Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack on your TV.

NOTE
- When the Progressive scan mode is selected, the VIDEO output does not feed any signals.
This product operates in Interlace scan mode 480i(576i) for component/composite output.
■ After making the video connection, set the Video input source on your TV to match the corresponding Video output mode on your product.
Turn this product on first before you set the video input source on your TV. See your TV owner's manual for more information on how to select the TV's Video Input source.

CAUTION
Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television.
Connections
P.SCAN(PROGRESSIVE SCAN) FUNCTION
Unlike regular Interlace Scan, in which two fields of picture information alternate to create the entire picture (odd scan lines, then even scan lines), Progressive Scan uses one field of information (all lines displayed in one pass) to create a clear and detailed picture without visible scan lines.
- Press STOP button.
- If playing a disc, press the STOP button twice so that "STOP", appears on the display.
- Press and hold P.SCAN button on the remote control for over 5 seconds.
- Pressing and holding the button for over 5 seconds will select "P.SCAN" and "I.SCAN" alternately.
- When you select P.SCAN, "P.SCAN" will appear on the display.
- To set P.Scan mode for DivX discs, press the P.SCAN button on the remote control for more than 5 seconds with no disc in the unit ("NO DISC" on the display), then load the DivX disc and play.

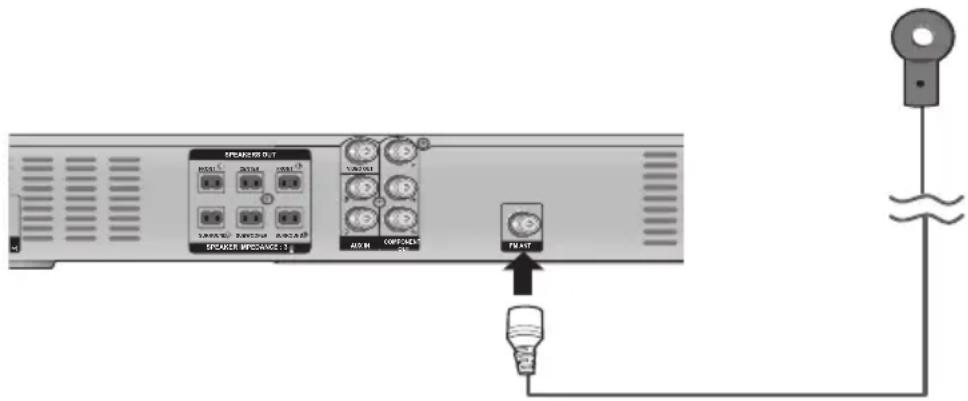

Connecting the FM Antenna
Connect the FM antenna supplied to the FM Antenna jack.
-
Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.

NOTE
■ This product does not receive AM broadcasts.
Connecting Audio from External Components
Analog signal components such as a VCR.
- Connect AUX IN (Audio) on the back of the product to the Audio Out of the external Analog component.
- Be sure to match the colors of the connecting jacks.
- Press the FUNCTION button to select AUX input.
• The mode switches as follows :
$$ \mathrm{DVD/CD} \rightarrow \mathrm{AUX} \rightarrow \mathrm{USB} \rightarrow \mathrm{FM} $$

NOTE
- You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this product.
Before Starting (Initial Settings)
- Press the POWER button when it is plugged in TV for the first time. Initial Settings screen will be displayed.
- Press the ▲▼ buttons to select desired TV Aspect, then press the ENTER button.

NOTE
If you have not selected a preferred language in the initial settings, you will see a language selection window next time you turn on the product.
- Your language selection will apply to all menus: On-Screen Menu, Disc Menu, Audio, Subtitle.
If you want to move to the previous screen, press the A(PREVIOUS) or RETURN button.
■Once you select a menu language, you can change it by pressing the STOP (■) button on the remote control or the main set for more than 5 seconds in no disc state.
■When the Initial Settings screen does not appear, refer to the Initial Settings. (see page 20)
Setting the Setup menu
The access step may differ depending on the selected menu. The GUI (Graphical User Interface) in this manual may differ, depending on the firmware version.


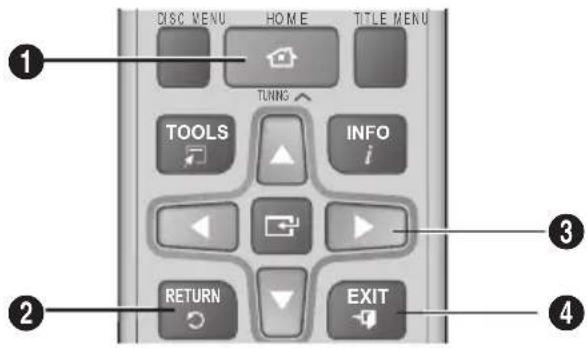

CISC MENU HOME TITLE MENU TUNING TOOLS INFO i RETURN EXIT 1 2 3 41 HOME BUTTON : Display the home menu.
2 RETURN BUTTON : Return to the previous setup menu.
ENTER / DIRECTION BUTTON
3 Move the cursor and select an item. Select the currently selected item. Confirm the setting.
4 EXIT BUTTON : Exit the setup menu.


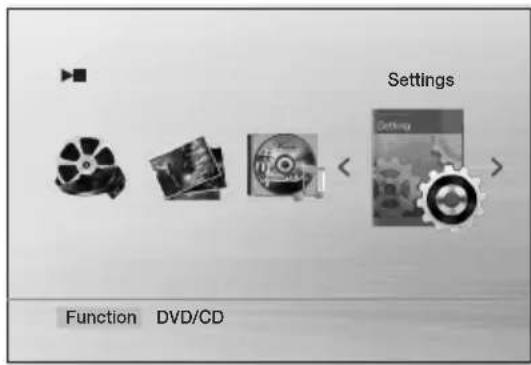

Settings Function DVD/CD- Press the POWER button.
- Press the ◀▶ buttons to select Settings, then press the ENTER button.
- Press the ▲▼ buttons to select the desired menu, then press the ENTER button.
- Press the ▲▼ buttons to select the desired sub-menu, then press the ENTER button.
- Press the ▲▼ buttons to select the desired item, then press the ENTER button.
- Press the EXIT button to exit the setup menu.
Display
You can configure various display options such as the TV Aspect, Resolution, etc.
TV Aspect
Depending on the type of television you have, you may want to adjust the screen setting.
• 4:3 Pan-Scan

Select when you want to see the 16:9 video supplied by the DVD without the black bars on top and bottom, even though you have a TV with a 4:3 ratio screen(extreme left and right portion of the movie picture will be cut off).
• 4:3 Letter Box

Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.
• 16:9 Wide

You can view the full 16:9 picture on your widescreen TV.

NOTE
If a DVD is in the 4:3 ratio, you cannot view it in the wide screen.
■ Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting.
Video Out Signal
Different countries apply different TV standard.
You can select from NTSC or PAL.
• NTSC You can select the NTSC video format
• PALYou can select the PAL video format
Audio
Speaker Setting

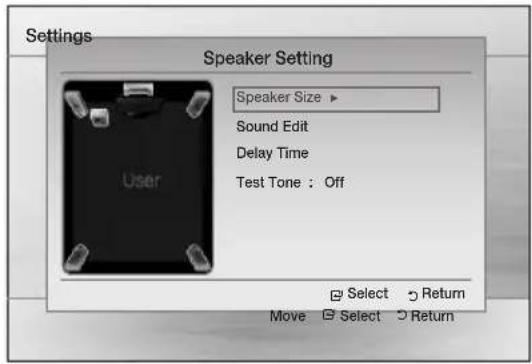

Speaker Size
You can set the Speaker Size of the Center and Surround Speakers, as well as Test Tone in this mode.
• For the Subwoofer, the mode is set to Present.
- For the Center and Surround, you can switch the mode to Small or None.
- Small : Select this when using the speakers.
- None : Select this when no speaker is connected.

NOTE
■The speaker mode may vary depending on the Dolby Pro Logic and Stereo settings.
Sound Edit
You can adjust the balance and level for each speaker.


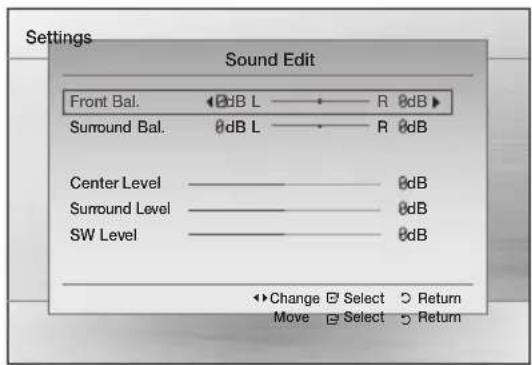

Settings Sound Edit Front Bal. 0dB L —— R 0dB ▶ Surround Bal. 0dB L —— R 0dB Center Level ———————— 0dB Surround Level ———————— 0dB SW Level ———————— 0dB Change Select Return Move Select ReturnPress the ▲▼ buttons to select and adjust the desired speaker.
Press the ◀▶ buttons to adjust the settings.
Adjusting Front/Surround Bal.
■You can select between 0 and -6.
The volume decreases as you move closer to -6.
Adjusting Center/Surround/Subwoofer Level
■The volume level can be adjusted in steps from +6dB to -6dB.
■The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.
Setup
Delay Time
If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the Center and Surround speakers. You can also set the Test Tone in this mode.

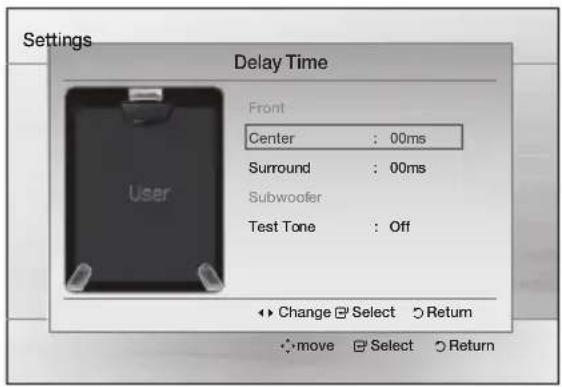

Setting up the Speaker Delay Time
When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same.
Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the Center and Surround Speakers.
- Press the▶ buttons to select On.
- The test tone will be sent to Front Left → Center → Front Right → Surround Right → Surround Left → Subwoofer in order.
To stop the test tone, press the ENTER button.
DRC (Dynamic Range Compression)
This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.
• You can select either Full, 6/8, 4/8, 2/8, off.
AUDIO SYNC
Video and audio sync may not match with digital TV. If this occurs, adjust the audio delay time to match the video
- You can set the audio delay time between 0 mSec and 300 mSec. Set it to the optimal status.
User EQ
You can configure the equalizer settings manually to your preference.

bar
Settings | Frequency | Reset | Adjust | Move | Return | | :--- | :--- | :--- | :--- | :--- | | 250Hz | -6 dB | 0 dB | 0 dB | 0 dB | | 600Hz | 0 dB | 0 dB | 0 dB | 0 dB | | 1kHz | 0 dB | 0 dB | 0 dB | 0 dB | | 3kHz | 0 dB | 0 dB | 0 dB | 0 dB | | 6kHz | 0 dB | 0 dB | 0 dB | 0 dB | | 10kHz | 0 dB | 0 dB | 0 dB | 0 dB | | 15kHz | 0 dB | 0 dB | 0 dB | 0 dB |System
Initial Settings
By using the Initial Settings, you can set the language and TV aspect.
DivX(R) Registration
View DivX(R) VOD Registration Code to purchase and play DivX(R) VOD content.
Language
You can select the language you prefer for on-screen menu, disc menu, etc.
| OSD Language | Select the language for the on-screen displays. |
| Disc Menu | Select the language for the disc menu displays. |
| Audio | Select the language for disc audio. |
| Subtitle | Select the language for disc subtitles. |
※ To select a language that does not appear in the menu, select OTHERS in the Disc Menu, Audio and Subtitle, and enter the language code of your country (see page 31).
※ You cannot select OTHERS in the OSD Language menu.

NOTE
■The selected language will only appear if it is supported on the disc.
Security
The Parental Lock function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.
Parental Rating
Select the rating level you want to set.
A larger number indicates that the program is intended for adult use only. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play.
Enter the password and then press the ENTER button.
- The password is set to "0000" by default.
- Once the setup is complete, you will be taken to the previous screen.
Change Password
Select Change and enter the 4-digit password to set the parental lock using the number buttons on the remote control.
If you forgot your password
- Remove the disc.
- Press and hold the STOP (■) button on the remote control for 5 seconds or more. All settings will revert to the factory settings.
Support
Product Information
Provide the product information such as Model code, Software Version, etc.
Basic Functions
Disc Playback
- Press the OPEN/CLOSE (▲) button.
- Place a disc gently into the tray with the disc's label facing up.
- Press the OPEN/CLOSE (▲) button to close the disc tray.

NOTE
■Resume function: When you stop disc play, the product remembers where you stopped, so when you press PLAY button again, it will pick up where you left off. (This function works only with DVDs.)
Press the STOP button twice during playback to disable the Resume function.
If no buttons are pressed on the product or remote control for more than 3 minutes when the product is in Pause mode, it will change to STOP mode.
■The initial screen may appear different, depending on the content of the disc.
■Pirated discs will not play in this product because they violate the CSS(Content Scrambling System: a copy protection system) recommendations.
※ ∅ will appear when an invalid button is pressed.
TV Screen Saver/Power Saving Function
- If no button input is made for more than 5 minutes in Stop or Play (music) mode, the screen saver will get activated.
- If the product is left in the screen saver mode for more than 20 minutes, the power will automatically turn off. (Except during play a music)
Audio CD(CD-DA)/MP3/WMA Playback


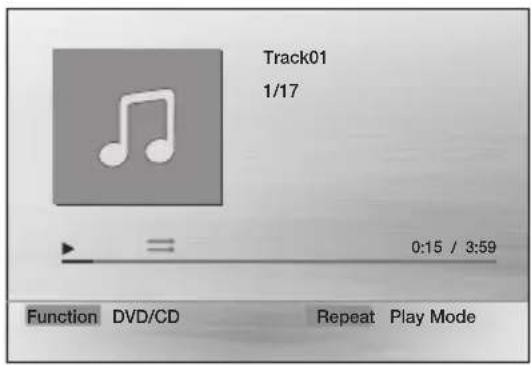

Track01 1/17 0:15 / 3:59 Function DVD/CD Repeat Play Mode- Insert an Audio CD(CD-DA) or an MP3 Disc into the disc tray.
- For an Audio CD, the first track will be played automatically.
- Press the ◀◀◀▶▶ buttons to move to the previous/next track.
- For the MP3/WMA disc, press the ◀▶ buttons to select Music, then press the ENTER button.
- Press the ▲▼◀▶ buttons to select a desired file and press the ENTER button.
- Press the ◀◀▶ buttons to move to the previous/next pages.
- Press the STOP (■) button to stop playback.

NOTE
■ Some MP3/WMA-CDs may not play, depending on the recording mode.
Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.
■The WMA-DRM files cannot be played.
■When MP3/WMA/CD playing, number key doesn't work.
JPEG File Playback
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this product.
- Insert a JPEG disc on the disc tray.
-
Press the ◀▶ buttons to select Photo, and then press the ENTER button.
-
Press the ▲▼ buttons to select the folder you want to play, and then press the ENTER button.
-
Press the ▲▼ buttons to select the photo you want to play, and then press the ENTER button.
-
The selected file will play and slide show will start.
- To stop slide show, press the PAUSE (II) button.
- You can view the previous/next file by pressing the ◀,▶ buttons during the slideshow mode.


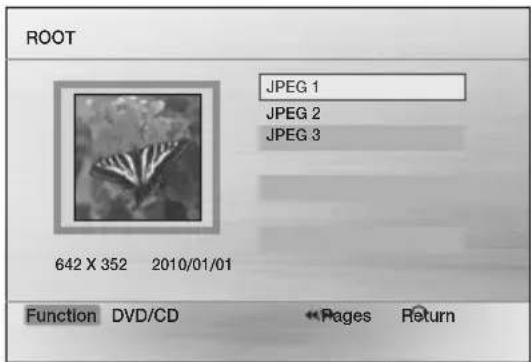

ROOT JPEG 1 JPEG 2 JPEG 3 642 X 352 2010/01/01 Function DVD/CD Pages ReturnRotate Function

Press the GREEN(B) or YELLOW(C) button during the PAUSE mode.
- GREEN(B) Button: Rotate 90^ counterclockwise.
• YELLOW(C) Button Rotate 90° clockwise.

NOTE
The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for progressive image files.
Using the Playback Function
Forward/Reverse Search




Press the ◀◀▶▶ buttons for Search Function.

$$ \blacktriangleleft 1 \rightarrow \blacktriangleleft 2 \rightarrow \blacktriangleleft 3 \rightarrow \blacktriangleleft 4 $$

$$ \blacktriangleright 1 \rightarrow \blacktriangleright 2 \rightarrow \blacktriangleright 3 \rightarrow \blacktriangleright 4 $$

NOTE
■No sound is played in search mode.
The playback search produces sound only when searching at ▶▶ 1 and ▶▶ 2 speed. This function is available only for the CD-DA.
Skipping Scenes/Songs




Press the ◀◀▶▶▶ buttons.
- Each time the button is pressed during playback, the previous or next chapter, track or directory (file) will be played.
• You cannot skip chapters consecutively.
Slow Motion Play


Press the PAUSE (II) button and then ▶ button for Slow Motion play.

$$ \blacktriangleright 1 \rightarrow \blacktriangleright 2 \rightarrow \blacktriangleright 3 $$

$$ \blacktriangleright 1 \rightarrow \blacktriangleright 2 \rightarrow \blacktriangleright 3 $$

NOTE
■No sound is heard during slow playback.
■Reverse slow playback does not work.
Step Motion Play


Press the PAUSE button repeatedly.
- The picture moves forward one frame each time the button is pressed during playback.

NOTE
■No sound is heard during step motion playback.
5 Minute Skip function

During playback, press the◀,▶ button.
- Playback skips 5 minutes forward whenever you press the ▶ button.
- Playback skips 5 minutes backward whenever you press the ◀ button.

NOTE
This function is available only for the DivX that contains time information.
Using the Disc Menu

You can view the menus for the audio language, subtitle language, profile, etc.
- During playback, press the DISC MENU button on the remote control.

- Press the ▲▼◀▶ buttons to make the desired selection, then press the ENTER button.

NOTE
■Depending on the disc, menu setup items may vary and this menu may not be available.
Basic Functions
Using the Title Menu

For DVDs containing multiple titles, you can view the title of each movie.

-
During playback, press the TITLE MENU button on the remote control.
-
Press the ▲▼◀▶ buttons to make the desired selection, then press the ENTER button.

NOTE
■Depending on the disc, menu setup items may vary and this menu may not be available.
Repeat Playback

DVD/DivX Repeat
You can repeat the title, chapter or the section(A-B Repeat) of the DVD/DivX.


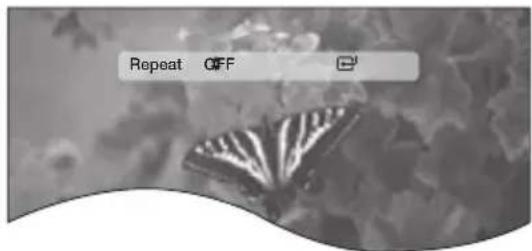

Repeat OFF- During DVD/DivX playback, press the REPEAT button on the remote control.

- Press the ▲▼ buttons to select a desired repeat mode, then press the ENTER button.
- Press the ▲▼ buttons to select OFF to return to normal play, then press the ENTER button.
| Title → Chapter → A - → Off | |
| Title → Folder → All → Off |
CD/MP3 Repeat
- During the CD/MP3 playback, press the REPEAT button repeatedly to select the repeat mode you want.
![]() | |
| (Repeat Off → Repeat Track → Repeat All → Random → Repeat Section A-B) | |
![]() | (Repeat Off → Repeat Track→ Repeat Dir (Directory) → Repeat All → Random) |
A-B Repeat Playback

You can repeatedly play back a designated section of a DVD or CD.
- During the DVD disc or CD playback, press the REPEAT button on the remote control.
- For DVD, press the ▲▼ buttons to select A-. For CD press the REPEAT button repeatedly until appears.
- Press the ENTER button at the point where you want repeat play to start (A).
- Press the ENTER button at the point where you want repeat play to stop (B).
- To return to normal playback, For DVD, press the REPEAT button, then press the ▲▼ buttons to select to OFF. For CD, press the REPEAT button to select to

NOTE
■The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.
Displaying Disc Information


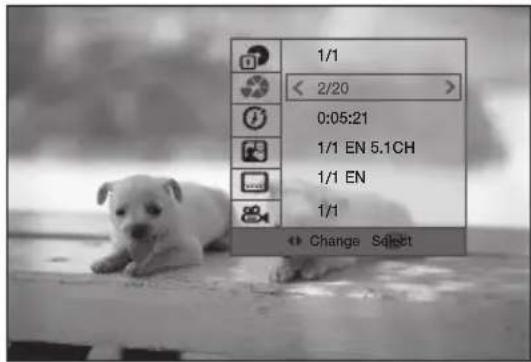

1/1 << 2/20 > 0:05:21 1/1 EN 5.1CH 1/1 EN 1/1 Change Select


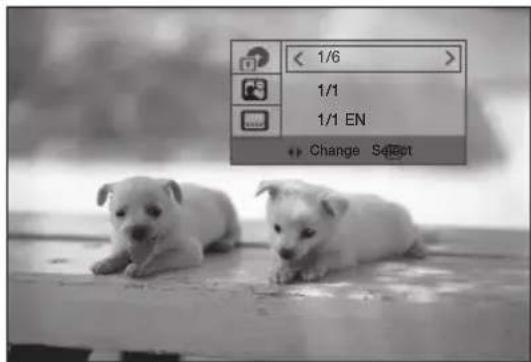

< 1/6 > 1/1 1/1 EN Change Select-
During playback, press the TOOLS button on the remote control.
-
Press the ▲▼ buttons to select the desired item.
-
Press the ◀▶ buttons to make the desired setup change and then press the ENTER button.
- You may use the number buttons of the remote control to control some items.
- To make Disc information disappear, press the TOOLS button again.


NOTE
If you are playing contents from the tools menu, some functions may not be enabled depending on the disc.
■You can also select Dolby Digital or Pro Logic, depending on the disc.
■Some tools menus may differ depending on discs and files.
TOOLS menu
■ Title( ) : To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified as a Title.
■Chapter(✗): Most DVD discs are recorded in chapters so that you can quickly find a specific chapter.
- Playing time(①): Allows playback of the film from a desired time. You must enter the starting time as a reference. The time search function does not operate on some discs.
■Audio(F): Refers to the film's soundtrack language. A DVD Disc can contain up to 8 audio languages.
- Subtitle(☐): Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD Disc can contain up to 32 subtitle languages.
- Angle(💡): When a DVD contains multiple angles of a particular scene, you can use the Angle function.
Selecting the Audio Language


-
Press the TOOLS button.
-
Press the ▲▼ buttons to select AUDIO (☐) display.
-
Press the ◀▶ buttons to select the desired audio language.
- Depending on the of languages on a DVD disc, a different audio language is selected each time the button is pressed.
Selecting the Subtitle Language


-
Press the TOOLS button.
-
Press the ▲▼ buttons to select SUBTITLE (☐) display.
Basic Functions
- Press the ◀▶ buttons to select the desired subtitle language.
- Depending on the languages on a DVD disc, a different subtitle language is selected each time the button is pressed.

NOTE
■Depending on the disc, the Subtitle and Audio Language functions may not be available.
Caption Function

- You must have some experience with video extraction and editing in order to use this feature properly.
- To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX media file (*.avi) within the same folder. Example. Root Samsung_007CD1.avi Samsung_007CD1.smi
- Up to 100 alphanumeric characters or 50 East Asian characters (2 byte characters such as Korean and Chinese) for the file name.
- The subtitle of DivX files are *.smi, *.sub, *.srt over 148 kbyte is not supported.
Angle Function

This function allows you to view the same scene in different angles.
- Press the TOOLS button.
- Press the ▲▼ buttons to select ANGLE ( 🔊 ) display.
- Press the ◀▶ buttons to select the desired angle.

NOTE
■The Angle function works only with discs on which multiple angles have been recorded.
DIMMER
You can adjust the brightness of the display on the main unit.
Press the DIMMER button.

Sound Mode
P.BASS
The P.BASS function provides a bass boost to reinforce the low frequencies.
The MP3 ENHANCE function provides better sound quality by upscaling the sampling frequency.

Press the P.BASS button.
| 2 ChannelLPCM source | POWER BASS ON → POWER BASS OFF |
| MP3 file | MP3 ENHANCE ON → POWER BASS ON → POWER BASS OFF |

NOTE
■The P.BASS function is only available with 2 channel LPCM sources such as MP3, DivX, CD and WMA.
■The MP3 Enhancement function is only available MP3 file.
S.VOL (SMART VOLUME)
This will regulate and stabilize the volume level against a drastic volume change when changing channels or during a scene transition. S.VOL
Press the S.VOL button.
• Each time the button is pressed, the selection changes as follows :

SMART VOLUME ON → SMART VOLUME OFF
GIGA
The GIGA Sound Function amplifies bass and improves bass twice as much for you to appreciate powerful real sound. The GIGA Sound feature will be applied only to the subwoofer.
Press the GIGA button.


NOTE
■The GIGA Sound works when in 2-channel LPCM mode only.
S/W LEVEL
You can also press the S/W LEVEL button on the remote control and use the ◀ or ▶ buttons to adjust the level of subwoofer.
Press the S/W LEVEL button.

DSP (Digital Signal Processor)/EQ
- DSP (Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments.
- EQYou can select POPS, JAZZ, ROCK, or USER to optimize the sound for the genre of music you are playing Press the DSP/EQ button.

| POPS, JAZZ, ROCK | Select POPS, JAZZ, or ROCK, depending on the genre of music you're listening to. |
| USER | You can enjoy music as you set in "EQ:USER".If you press ENTER in the "EQ:USER" menu, you will see a window where you can change the EQ settings to your preference. |
| STUDIO | Provides a sense of presence as if in a studio. |
| CLUB | Simulates the sound of a dance club with a throbbing bass beat. |
| HALL | Provides a clear vocal as if listening in a concert hall. |
| MOVIE | Provides the feeling of a movie cinema. |
| CHURCH | Provides the feeling of being in a grand church. |
| OFF | Select this for normal listening. |

NOTE
■The DSP/EQ function is only available in Stereo mode.
■The DSP/EQ function is not available while playing AC3 signal in 2.1 channel mode.
Dolby Pro Logic II Mode
You can select the desired Dolby Pro Logic II audio mode.
Press the

II button.

| MUSIC | When listening to music, you can experience sound effects as if you are listening to the actual performance. |
| MOVIE | Adds realism to the movie soundtrack. |
| PROLOG | You can listen to a 2CH sound source in 5.1CH surround sound with all speakers active.- A specific speaker(s) may not be output depending on the input signal. |
| MATRIX | You will hear multi-channel surround sound. |
| STEREO | Select this to listen to sound from the front left and right speakers and the subwoofer only. |

NOTE
- When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the product. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.
■The Pro Logic II function is only available in Stereo mode.
Listening to Radio
Using buttons on the Remote Control
- Press the FUNCTION button to select FM.
-
Tune in to the desired station.
-
Preset Tuning 1 : You must first add a desired frequency as a preset. Press the STOP (■) button to select PRESET and then press the TUNING/CH (↑) button to select the preset station.
- Manual Tuning : Press the STOP (■) button to select MANUAL and then press the TUNING/CH ( ) button to tune in to a lower or higher frequency.
- Automatic Tuning : Press the STOP (■) button to select MANUAL and then press and hold the TUNING/CH (↑) button to automatically search the band.
Setting Mono/Stereo
Press the MO/ST button.
• Each time the button is pressed, the sound switches between STEREO and MONO.
- In a poor reception area, select MONO for a clear, interference-free broadcast.

Presetting Stations
Example : Presetting FM 89.10 in the memory
- Press the FUNCTION button to select FM.
- Press the TUNING/CH ( ) button to select <89.10>.
- Press the TUNER MEMORY button. • Number flashes on the display.
- Press the TUNING/CH (↑) buttons to select preset number.
• You can select between 1 and 15 presets.
-
Press the TUNER MEMORY button again.
-
Press the TUNER MEMORY button before number disappears from the display.
-
Number disappears from the display and the station is stored in memory.
-
To preset another station, repeat steps 2 to 5.
USB Function
Playing Media Files using the USB Host Feature
You can enjoy media files such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video with 5.1 channel sound by connecting the storage device to the USB port of the product.
- Press the FUNCTION button to select USB.
- USB appears on the display screen and then disappears.
- Press the ◀▶ buttons to select Videos, Photos or Music.
- Select a file to play.
Safe USB Removal
To prevent damage to the memory stored in the USB device, perform safe removal before disconnecting the USB cable.
- Press the YELLOW(C) button.
- REMOVE will appear on the display.
- Remove the USB cable.

NOTE
■To listen to your music files with 5.1 channel sound, you must set the Dolby Pro Logic II mode to Matrix. (See page 27)
■Remove the USB cable from the USB port slowly. Otherwise, it may cause damage to the USB port.
USB Recording
While playing CD-DA (Compact Disc Digital Audio) using the USB Recording function or listening to the FM radio or receiving audio source from an external device, you can record the audio source in the USB memory.
Ex) USB recording of CD-DA audio contents
- Connect the USB device to your product.
- Insert the CD-DA disc into the CD tray.
- Press the USB REC button on the remote control.
- To start recording the current track, press the USB REC button on the remote control while the system is playing a track or stopped temporarily

- To record the entire CD, press and hold the USB REC button on the remote control. - "FULL RECORDING" appears on the display and recording starts.
-
Press the STOP (■) button to stop recording.
-
When USB recording of a CD is completed, you will find a new folder named "RECORDING" in the USB drive. The contents will be saved in the folder in the MP3 format.
- When USB recording of FM radio or AUX source is completed, you will find a new folder named "TUNER RECORDING or AUX RECORDING" in the USB drive. The contents will be saved in the folder in the MP3 format.

NOTE
- Do not disconnect the USB connection or the power cable during the USB Recording. Otherwise, it may cause damage to the data.
To stop USB Recording, press the STOP button and disconnect the USB device after the system stops playing the CD completely.
If you disconnect the USB connection during the USB Recording, the system will turn off and you will not be able to delete the recorded file.
If you connect the USB device to the system while it is playing a CD, the system stops temporarily and will play again.
If the recording duration is less than 5 seconds, a recording file may not be created.
■USB Recording works only if the USB device is formatted in the FAT file system. (The NTFS file system is not supported.)
The audio signal will not be output during USB recording of the CD.
■When Speaker selection is set to TV Speaker, the USB Recording function is not supported.
Troubleshooting
Refer to the chart below when this product does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the product, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Centre.
| Symptom Check/Remedy | |
| I cannot eject the disc. | Is the power cord plugged securely into the outlet?Turn off the power and then turn it back on. |
| Playback does not start. | Check the region number of the DVD.DVD discs purchased from abroad may not be playable.CD-ROMs and DVD-ROMs cannot be played on this product.Make sure that the rating level is correct. |
| Playback does not start immediately when the Play/Pause button is pressed. | Are you using a deformed disc or a disc with scratches on the surface?Wipe the disc clean. |
| Sound is not produced. | No sound is heard during fast playback, slow playback, and step motion playback.Are the speakers connected properly? Is the speaker setup correctly customized?Is the disc severely damaged? |
| Sound can be heard only from a few speakers and not all 6. | On certain DVD discs, sound is output from the front speakers only.Check if the speakers are connected properly.Adjust the volume.When listening to a CD, radio or TV, sound is output to the front speakers only.Select "PROLOG" by pressing ☐ II (Dolby Pro Logic II) on the remote control to use all six speakers. |
| Dolby Digital 5.1 CH Surround Sound is not produced. | Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound.Is the audio language correctly set to Dolby Digital 5.1-CH in the information display? |
| The remote control does not work. | Is the remote control being operated within its operation range of angle and distance?Are the batteries drained?Have you selected the correct mode (RECEIVER DVD/TV)? |
| Disc is rotating but no picture is produced.Picture quality is poor and picture is shaking. | Is the TV power on?Are the video cables connected properly?Is the disc dirty or damaged?A poorly manufactured disc may not be playable. |
| Audio language and subtitles do not work. | Audio language and subtitles will not work if the disc does not contain them. |
| The Disc/Title menu screen does not appear even when the Disc/Title function is selected. | Are you using a disc that does not contain menus? |
| Aspect ratio cannot be changed. | You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function. |
| The product is not working.(Example: The power goes out or the front panel key doesn't work or a strange noise is heard.)The product is not working normally. | Press and hold the STOP (■) button on the remote control for longer than 5 seconds with no disc (reset function).Using the RESET function will erase all stored settings.Do not use this unless necessary. |
| The rating level password has been forgotten. | While “NO DISC” message appears on the display of the product, press and hold the remote control's STOP (■) button for longer than 5 seconds. “INIT” appears on the display and all settings will return to the default values.And then press the POWER button.Using the RESET function will erase all stored settings.Do not use this unless necessary. |
| Can't receive radio broadcast. | Is the antenna connected properly?If the antenna's input signal is weak, install an external FM antenna in an area with good reception. |
Language code list
Enter the appropriate code number for OTHERS in the Disc Menu, Audio and Subtitle. (See page 21).
| Code Language Code | Language Code Language Code Language Code Language Code Language | ||||||||||
| 1027 | Afar | 1142 | Greek | 1239 | Interlingue | 1345 | Malagasy | 1482 | Kirundi | 1527 | Tajik |
| 1028 | Abkhazian | 1144 | English | 1245 | Inupiak | 1347 | Maori | 1483 | Romanian | 1528 | Thai |
| 1032 | Afrikaans | 1145 | Esperanto | 1248 | Indonesian | 1349 | Macedonian | 1489 | Russian | 1529 | Tigrinya |
| 1039 | Amharic | 1149 | Spanish | 1253 | Icelandic | 1350 | Malayalam | 1491 | Kinyarwanda | 1531 | Turkmen |
| 1044 | Arabic | 1150 | Estonian | 1254 | Italian | 1352 | Mongolian | 1495 | Sanskrit | 1532 | Tagalog |
| 1045 | Assamese | 1151 | Basque | 1257 | Hebrew | 1353 | Moldavian | 1498 | Sindhi | 1534 | Setswana |
| 1051 | Aymara | 1157 | Persian | 1261 | Japanese | 1356 | Marathi | 1501 | Sangro | 1535 | Tonga |
| 1052 | Azerbaijani | 1165 | Finnish | 1269 | Yiddish | 1357 | Malay | 1502 | Serbo-Croatian | 1538 | Turkish |
| 1053 | Bashkir | 1166 | Fiji | 1283 | Javanese | 1358 | Maltese | 1503 | Singhalese | 1539 | Tsonga |
| 1057 | Byelorussian | 1171 | Faeroese | 1287 | Georgian | 1363 | Burmese | 1505 | Slovak | 1540 | Tatar |
| 1059 | Bulgarian | 1174 | French | 1297 | Kazakh | 1365 | Nauru | 1506 | Slovenian | 1543 | Twi |
| 1060 | Bihari | 1181 | Frisian | 1298 | Greenlandic | 1369 | Nepali | 1507 | Samcan | 1557 | Ukrainian |
| 1069 | Bislama | 1183 | Irish | 1299 | Cambodian | 1376 | Dutch | 1508 | Shona | 1564 | Urdu |
| 1066 | Bengali; Bangla | 1186 | Scots Gaelic | 1300 | Canada | 1379 | Norwegian | 1509 | Somai | 1572 | Uzbek |
| 1067 | Tibetan | 1194 | Galician | 1301 | Korean | 1393 | Occitan | 1511 | Albanian | 1581 | Vietnamese |
| 1070 | Breton | 1196 | Guarani | 1305 | Kashmiri | 1403 | (Afan) Oromo | 1512 | Serbian | 1587 | Volapuk |
| 1079 | Catalan | 1203 | Gujarati | 1307 | Kurdish | 1408 | Oriya | 1513 | Siswati | 1613 | Wolof |
| 1093 | Corsican | 1209 | Hausa | 1311 | Kirghiz | 1417 | Punjabi | 1514 | Sesotho | 1632 | Xhosa |
| 1097 | Czech | 1217 | Hindi | 1313 | Latin | 1428 | Polish | 1515 | Sundanese | 1665 | Yoruba |
| 1103 | Welsh | 1226 | Croatian | 1326 | Lingala | 1435 | Pashto, Pushto | 1516 | Swedish | 1684 | Chinese |
| 1105 | Danish | 1229 | Hungarian | 1327 | Laothian | 1436 | Portuguese | 1517 | Swahili | 1697 | Zulu |
| 1109 | German | 1233 | Armenian | 1332 | Lithuanian | 1463 | Quechua | 1521 | Tamil | ||
| 1130 | Bhutani | 1235 | Interingua | 1334 | Latvian, Lettish | 1481 | Rhaeto-Romance | 1525 Tegulu | |||
Specifications
| General | Weight 2.04 Kg | ||||
| Dimensions 430 (W) x 61 (H) x 230 (D) mm | |||||
| Operating Temperature Range +5°C~+35°C | |||||
| Operating Humidity Range 10 % to 75 % | |||||
| FM Tuner | Signal/noise ratio 60 dB | ||||
| Usable sensitivity 10 dB | |||||
| Total harmonic distortion 1% | |||||
| Disc | DVD (Digital Versatile Disc) | Reading Speed: 3.49 ~ 4.06 m/sec. | |||
| Approx. Play Time (Single Sided, Single Layer Disc): 135 min. | |||||
| CD: 12 cm (COMPACT DISC) | Reading Speed: 4.8 ~ 5.6 m/sec. | ||||
| Maximum Play Time: 74 min. | |||||
| CD: 8cm (COMPACT DISC) | Reading Speed: 4.8 ~ 5.6 m/sec. | ||||
| Maximum Play Time: 20 min. | |||||
| Video Output | Composite Video | 480i(576i) | |||
| 1 channel: 1.0 Vp-p (75 Ω load) | |||||
| Component Video | 480i(576i) | ||||
| Y: 1.0 Vp-p (75 Ω load) | |||||
| Pr: 0.70 Vp-p (75 Ω load) | |||||
| Pb: 0.70 Vp-p (75 Ω load) | |||||
| Amplifier | Front speaker output | 35W x 2(3Ω) | |||
| Center speaker output | 95W(3Ω) | ||||
| Surround speaker output | 35W x 2(3Ω) | ||||
| Subwoofer output | 95W(3Ω) | ||||
| Frequency range | 20Hz~20KHz | ||||
| S/N Ratio | 65dB | ||||
| Channel separation | 60dB | ||||
| Input sensitivity | (AUX)800mV | ||||
| Speaker | Speaker system | 5.1ch speaker system | |||
| Front | Surround | Center | Subwoofer | ||
| Impedance | 3 Ω | 3 Ω | 3 Ω | 3 Ω | |
| Frequency range | 140Hz~20KHz | 140Hz~20KHz | 140Hz~20KHz | 20Hz~160Hz | |
| Output sound pressure level | 86dB/W/M | 86dB/W/M | 86dB/W/M | 88dB/W/M | |
| Rated input | 35W | 35W | 95W | 95W | |
| Maximum input | 70W | 70W | 190W | 190W | |
| Dimensions (W x H x D) | Front/ Surround/ Center: 77 x 107 x 68 mmSubwoofer: 154 x 299 x 285 mm | ||||
| Weights | Front: 0.3 Kg, Center: 0.34 KgSurround: 0.32 Kg, Subwoofer: 2.89 Kg | ||||
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
- Design and specifications are subject to change without prior notice.
- For the power supply and Power Consumption, refer to the label attached to the product.
OpenSSL License
The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact openssl-core@openssl.org.
OpenSSL License
Copyright (c) 1998-2007 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)"
- The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org.
- Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.
- Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)"
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written by Tim Hudson (tjh@cryptsoft.com).
Original SSLeay License
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved.
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com).
The implementation was written so as to conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, Ihash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com).
OpenSSL License
Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:
- Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- All advertising materials mentioning features or use of this software must display the following acknowledgement:
"This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)"
The word 'cryptographic' can be left out if the rouines from the library being used are not cryptographic related :-).
- If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tim Hudson (tjh@cryptsoft.com)"
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.
| Area Contact Centre | Web Site | |
| ▪ North America | ||
| Canada 1-800-SAMSUNG (726-7864) www.samsung.com | ||
| Mexico 01-800-SAMSUNG (726-7864) www.samsung.com | ||
| U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com | ||
| ▪ Latin America | ||
| Argentine 0800-333-3733 www.samsung.com | ||
| Brazil 0800-124-421 / 4004-0000 www.samsung.com | ||
| Chile 800-SAMSUNG (726-7864) www.samsung.com | ||
| Colombia 01-800-0112112 www.samsung.com | ||
| Costa Rica 0-800-507-7267 www.samsung.com | ||
| Dominica 1-800-751-2676 www.samsung.com | ||
| Ecuador 1-800-10-7267 www.samsung.com | ||
| El Salvador | 800-6225 | www.samsung.com |
| Guatemala 1-800-299-0013 www.samsung.com | ||
| Honduras 800-7919267 www.samsung.com | ||
| Jamaica | 1-800-234-7267 www.samsung.com | |
| Nicaragua | 00-1800-5077267 | www.samsung.com |
| Panama 800-7267 www.samsung.com | ||
| Peru | 0-800-777-08 | www.samsung.com |
| Puerto Rico | 1-800-682-3180 www.samsung.com | |
| Trinidad & Tobago | 1-800-SAMSUNG (726-7864) www.samsung.com | |
| Venezuela | 0-800-100-5303 www.samsung.com | |
| ▪ Europe | ||
| Albania | 42 27 5755 | - |
| Austria | 0810 - SAMSUNG (7267864, € 0.07/min) | www.samsung.com |
| Belgium 02-201-24-18 | www.samsung.com/be (Dutch)www.samsung.com/be_fr (French) | |
| Bosnia | 05 133 1999 | - |
| Bulgaria 07001 33 11 www.samsung.com | ||
| Croatia 062 SAMSUNG (062 726 7864) www.samsung.com | ||
| Czech | 800-SAMSUNG (800-726786) | www.samsung.com |
| Samsung Zrt., česká organizační složka, Oasls Florenc, Soko-lovská394/17, 180 00, Praha 8 | ||
| Denmark | 70 70 19 70 | www.samsung.com |
| Finland | 030 - 6227 515 | www.samsung.com |
| France | 01 48 63 00 00 | www.samsung.com |
| Germany | 01805 - SAMSUNG (726-7864 € 0,14/Min) | www.samsung.com |
| Hungary | 06-80-SAMSUNG (726-7864) www.samsung.com | |
| Italia | 800-SAMSUNG (726-7864) www.samsung.com | |
| Kosovo | +381 0113216899 | - |
| Luxemburg | 261 03 710 | www.samsung.com |
| Macedonia | 023 207 777 | - |
| Montenegro | 020 405 888 | - |
| Netherlands | 0900-SAMSUNG (0900-7267864) (€ 0,10/Min) | www.samsung.com |
| Norway | 815-56 480 | www.samsung.com |
| Poland | 0 801 1SAMSUNG (172678) / 022-607-93-33 | www.samsung.com |
| Portugal | 80820-SAMSUNG (726-7864) | www.samsung.com |
| Rumania | 1. 08010 SAMSUNG (72678) - doar din rețeaua Romtelecom, tarif local2. 021.206.01.10 - din orice rețea, tarif normal | www.samsung.com |
| Area Contact Centre | Web Site | |
| Serbia | 0700 Samsung (0700 726 7864) | www.samsung.com |
| Slovakia 0800-SAMSUNG (726-7864) www.samsung.com | ||
| Spain 902-1-SAMSUNG (902 172 678) www.samsung.com | ||
| Sweden | 0771 726 7864 (SAMSUNG) | www.samsung.com |
| Switzerland | 0848-SAMSUNG (7267864, CHF 0.08/min) | www.samsung.com/chwww.samsung.com/ch_fr/(French) |
| U.K | 0330 SAMSUNG (7267864) | www.samsung.com |
| Eire | 0818 717100 | www.samsung.com |
| Lithuania | 8-800-77777 | www.samsung.com |
| Latvia | 8000-7267 | www.samsung.com |
| Estonia | 800-7267 | www.samsung.com |
| ■CIS | ||
| Russia | 8-800-555-55-55 | www.samsung.com |
| Georgia 8-800-555-555 | - | |
| Armenia | 0-800-05-555 | - |
| Azerbaijan | 088-55-55-555 | - |
| Kazakhstan | 8-10-800-500-55-500(GSM: 7799) | www.samsung.com |
| Uzbekistan | 8-10-800-500-55-500 www.samsung.com | |
| Kyrgyzstan | 00-800-500-55-500 | www.samsung.com |
| Tadjikistan | 8-10-800-500-55-500 | www.samsung.com |
| Ukraine 0-800-502-000 | www.samsung.uawww.samsung.com/ua_ru | |
| Belarus 810-800-500-55-500 | - | |
| Moldova | 00-800-500-55-500 - | |
| ■Asia Pacific | ||
| Australia | 1300 362 603 | www.samsung.com |
| New Zealand | 0800 SAMSUNG (0800 726 786) | www.samsung.com |
| China | 400-810-5858 / 010-6475 1880 | www.samsung.com |
| Hong Kong | (852) 3698 4698 | www.samsung.com/hkwww.samsung.com/hk_en/ |
| India | 3030 8282 / 1800 110011 /1800 3000 8282 / 1800 266 8282 | www.samsung.com |
| Indonesia | 0800-112-8888 /021-5699-7777 | www.samsung.com |
| Japan | 0120-327-527 | www.samsung.com |
| Malaysia | 1800-88-9999 | www.samsung.com |
| Philippines | 1-800-10-SAMSUNG(726-7864) /1-800-3-SAMSUNG(726-7864) /1-800-8-SAMSUNG(726-7864) /02-5805777 | www.samsung.com |
| Singapore | 1800-SAMSUNG (726-7864) www.samsung.com | |
| Thailand | 1800-29-3232 / 02-689-3232 | www.samsung.com |
| Taiwan | 0800-329-999 | www.samsung.com |
| Vietnam 1 800 588 889 www.samsung.com | ||
| ■Middle East | ||
| Bahrain | 8000-4726 | www.samsung.com |
| Egypt 08000-726786 www.samsung.com | ||
| Jordan | 800-22273 | www.samsung.com |
| Morocco | 080 100 2255 | www.samsung.com |
| Oman | 800-SAMSUNG (726-7864) www.samsung.com | |
| Saudi Arabia 9200-21230 www.samsung.com | ||
| Turkey | 444 77 11 | www.samsung.com |
| U.A.E 800-SAMSUNG (726-7864) www.samsung.com | ||
| ■Africa | ||
| Nigeria 0800-SAMSUNG (726-7864) www.samsung.com | ||
| South Africa | 0860-SAMSUNG (726-7864 ) | www.samsung.com |
SAMSUNG

Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LÁSER CLASE 1
PRODUIT LASER DE CLASSE 1
Illustration of a hand holding a rectangular device with a dashed line and a key inserted, no text or symbols present.text_image
< 1/6 > 1/1 1/1 EN Changer Select.SMART VOLUME ON → SMART VOLUME OFF
GIGA
LASERPRODUKT DER KLASSE 1
Anschlüsse
SMART VOLUME ON → SMART VOLUME OFF
GIGA
DSP (Digital Signal Processor)/EQ
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)
Collegamenti
SMART VOLUME ON → SMART VOLUME OFF
GIGA
DSP (Digital Signal Processor)/EQ
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)
Code No. AH68-02459F (00)













DVD-VIDEO
AUDIO-CD
DivX
