USER MANUAL HTZBD51 PIONEER

ProtectyournewinvestmentThe details of your purchase will be on le for reference in the event of an insurance claim such as loss or theft. Receivefreetips,updatesandservicebulletinsonyournewproduct ImproveproductdevelopmentYour input helps us continue to design products that meet your needs. ReceiveafreePioneernewsletterRegistered customers can opt in to receive a monthly newsletter. Registeryourproductat: http://www.pioneerelectronics.com(US) http://www.pioneerelectronics.ca(Canada)

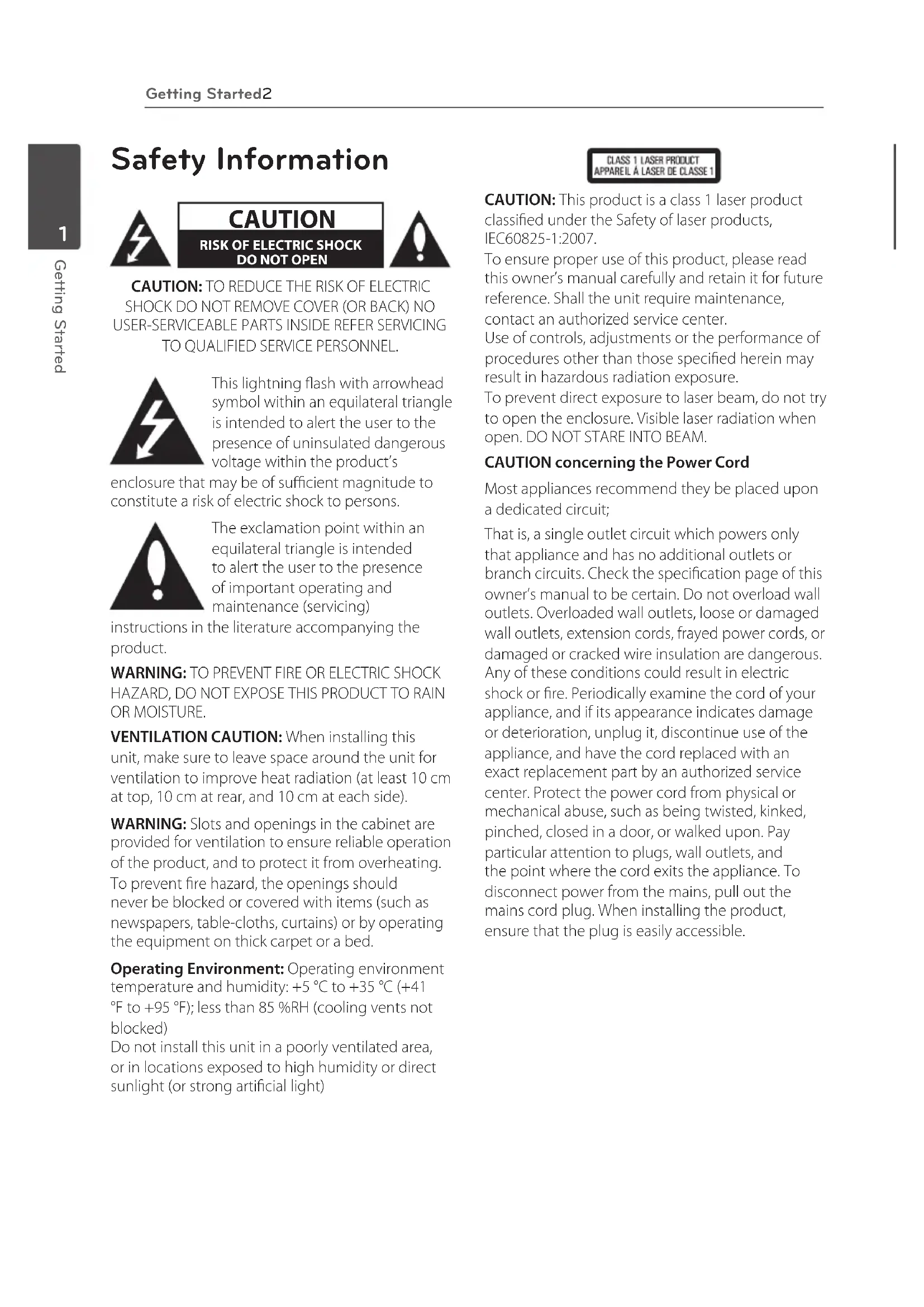

TO QUALIFIED SERVICE PERSONNEL. This lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. VENTILATION CAUTION: When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10 cm at top, 10 cm at rear, and 10 cm at each side).

WARNING: Slots and openings in the cabinet are

provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent re hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed. Operating Environment: Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong articial light) CAUTION: This product is a class 1 laser product classied under the Safety of laser products, IEC60825-1:2007. To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service center. Use of controls, adjustments or the performance of procedures other than those specied herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM. CAUTION concerning the Power Cord Most appliances recommend they be placed upon a dedicated circuit; That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specication page of this owner’s manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or re. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible. HB916-MD0_BUSAPPK_ENG.indd 2 2011-09-23 9:02:38Getting Started 3 Getting Started

This device is equipped with a portable battery or accumulator. Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery shall not be exposed to excessive heat such as sunshine, re or the like. CAUTION:

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch re. It can also reduce the life or performance of batteries.

When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area. CAUTION: The apparatus shall not be exposed to water (dripping or splashing) and no objects lled with liquids, such as vases, shall be placed on the apparatus.

WARNING: To prevent a re hazard, do not place

any naked ame sources (such as a lighted candle) on the equipment.

WARNING: Before plugging in for the rst time, read

the following section carefully. The voltage of the available power supply diers according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the rear panel. CAUTION: The

STANDBY/ON switch on this unit will not completely shut o all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid re hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). CAUTION: This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. HB916-MD0_BUSAPPK_ENG.indd 3 2011-09-23 9:02:38Getting Started4 Getting Started

FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm (7.9 inch) between the radiator and your body. End users must follow the specic operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CAUTION: Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments. FCC Radio Frequency Interference Requirements : This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems.

WARNING: Handling the cord on this product or

cords associated with accessories sold with the product may expose you to chemicals listed on proposition 65 known to the State of California and other govermmental entities to cause cancer and birth defects or other reproductive harm. Wash hands after handling ! This Class B digital apparatus complies with Canadian ICES-003 “To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.” Operation is subject to the following two conditions : (1) This device may not cause Interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Notes on Copyrights

Because AACS (Advanced Access Content System) is approved as content protection system for Blu-ray Disc format, similar to use of CSS (Content Scramble System) for DVD format, certain restrictions are imposed on playback, analog signal output, etc., of AACS protected contents. The operation of this product and restrictions on this product may vary depending on your time of purchase as those restrictions may be adopted and/or changed by AACS after the production of this product.

Furthermore, BD-ROM Mark and BD+ are additionally used as content protection systems for Blu-ray Disc format, which imposes certain restrictions including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain additional information on AACS, BD- ROM Mark, BD+, or this product, please contact an authorized Customer Service Center.

Many BD-ROM/DVD discs are encoded with copy protection. Because of this, you should only connect your player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected discs.

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized recording, use, display, distribution, or revision of television programs, videotapes, BD-ROM discs, DVDs, CDs and other materials may subject you to civil and/ or criminal liability. HB916-MD0_BUSAPPK_ENG.indd 4 2011-09-23 9:02:38Getting Started 5 Getting Started

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on

or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by

12. Use only with the cart, stand, tripod, bracket, or

table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms

or when unused for long periods of time.

14. Refer all servicing to qualied service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. The Safety of Your Ears is in Your Hands Get the most out of your equipment by playing it at a safe level—a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without aecting your sensitive hearing. Sound can be deceiving. Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. ESTABLISH A SAFE LEVEL:

Set your volume control at a low setting.

Slowly increase the sound until you can hear it comfortably and clearly, without distortion.

Once you have established a comfortable sound level, set the dial and leave it there.

Do not turn up the volume so high that you can’t hear what’s around you.

Use caution or temporarily discontinue use in potentially hazardous situations.

Do not use headphones while operating a motorized vehicle; the use of headphones may create a trac hazard and is illegal in many areas. HB916-MD0_BUSAPPK_ENG.indd 5 2011-09-23 9:02:38Table of Contents6 Table of Contents 1 Getting Started 2 Safety Information 8 Introduction 8 – Playable Discs and symbols used in this manual 9 – About the “7” Symbol Display 10 – Supplied Accessories 10 – Accessories of speaker box (S-BD50T) 10 – Accessories of speaker box (S-BD50SW) 11 – File compatibility 12 – AVCHD (Advanced Video Codec High Definition) 12 – About DLNA 13 – Certain System Requirements 13 – Regional Code 13 – Compatibility Notes 14 Remote control 15 Front panel 15 Rear panel 2 Connecting 16 Assemble the speakers 16 – Speaker Setup 18 Wall mounting the center speaker 18 – Before mounting 18 Additional notes on speaker 19 Positioning the system 20 Connecting to Your TV 20 – HDMI Connection 22 – Component Video Connection 22 – Video Connection 23 – Resolution Setting 23 Antenna connection 24 Connections with external device 24 – AUX Connection 24 – PORTABLE IN connection 25 – OPTICAL IN connection 25 – HDMI IN 1/2 connection 26 Connecting to your Home Network 26 – Wired network connection 27 – Wired Network Setup 28 – Wireless Network Connection 28 – Wireless Network Setup 31 USB device connection 31 – Playback content in the USB device 3 System Setting 32 Settings 32 – Adjust the Setup Settings 32 – [DISPLAY] Menu 34 – [LANGUAGE] Menu 34 – [AUDIO] Menu 35 – [LOCK] Menu 36 – [NETWORK] Menu 37 – [OTHERS] Menu 38 Sound Effect 4 Operating 39 General Playback 39 – Using [HOME] menu 39 – Playing a Disc 39 – Playing a file on a disc/USB device 40 – Playing Blu-ray 3D disc 40 – Enjoying BD-Live™ 41 – Playing a file on a network server 42 – Basic operations for video and audio content 42 – Basic operations for photo content 42 – Using the disc menu 43 – Resume playback 44 Advanced Playback 44 – Repeat Playback 44 – Repeating a specific portion 44 – Enlarge the playback image 45 – Marker Search 45 – Using the search menu 46 – Selecting a subtitle file 46 – Last Scene Memory 47 – Options while viewing a photo 47 – Listening to music while slide show 48 On-Screen display 48 – Displaying content information on- screen HB916-MD0_BUSAPPK_ENG.indd 6 2011-09-23 9:02:38Table of Contents 7

49 – Playing from selected time 49 – Hearing a different audio 49 – Selecting a subtitle language 49 – Watching from a different angle 50 – Changing the TV Aspect Ratio 50 – Changing subtitle code page 50 – Changing the Picture Mode 51 Audio CD Recording 52 Playing the iPod 52 – Enjoying iPod on the screen 53 – Enjoying the iPod IN mode 54 Radio Operations 54 – Presetting the Radio Stations 54 – Deleting a saved station 54 – Deleting all the saved stations 54 – Improving poor FM reception 55 Using the Online 5 Troubleshooting 56 Troubleshooting 56 – General 57 – Network 58 – Picture 58 – Sound 58 – Updates 6 Appendix 59 Controlling a TV with the Supplied Remote Control 59 – Setting up the remote to control your

Discs such as movies that can be purchased or rented.

BD-R/RE discs that are recorded in BDAV format.

BD-R/RE discs that contain Movie, Music or Photo les.

Discs such as movies that can be purchased or rented.

Video mode and nalized only

Supports the dual layer disc also

Finalized AVCHD format

VR mode and nalized only Audio CD (8 cm / 12 cm)

Indicates special notes and operating features. Caution –

Indicates cautions for preventing possible damages from abuse. HB916-MD0_BUSAPPK_ENG.indd 8 2011-09-23 9:02:39Getting Started 9 Getting Started

Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/RW) disc itself, some CD-R/RW (or DVD±R/RW) discs cannot be played on the unit.

Depending on the recording software & the nalization, some recorded discs (CD-R/RW, DVD±R/RW, BD-R/RE) may not be playable.

BD-R/RE, DVD±R/RW and CD-R/RW discs recorded using a personal computer or a DVD or CD Recorder may not play if the disc is damaged or dirty, or if there is dirt or condensation on the player’s lens.

If you record a disc using a personal computer, even if it is recorded in a compatible format, there are cases in which it may not play because of the settings of the application software used to create the disc. (Check with the software publisher for more detailed information.)

This player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality.

Pre-recorded DVDs are automatically set to these standards. There are many dierent types of recordable disc formats (including CD-R containing MP3 or WMA les) and these require certain pre-existing conditions to ensure compatible playback.

Customers should note that permission is required in order to download MP3 / WMA les and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

You have to set the disc format option to [Mastered] in order to make the discs compatible with the players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on the player. (Mastered/Live File System : Disc format system for Windows Vista® and Windows 7®)

BDXL cannot be supported.

” may appear on your TV display during operation and indicates that the function explained in this owner’s manual is not available on that specic media. HB916-MD0_BUSAPPK_ENG.indd 9 2011-09-23 9:02:39Getting Started10 Getting Started

Supplied Accessories Video cable (1) Remote control (1) Battery (1) FM antenna (1) iPod cradle (1) Accessories of speaker box (S-BD50T) Color-coded Speaker cables (5) Screws (12) Speaker stand bases (4) Small non-skid pads (1) Middle non-skid pads (1) Accessories of speaker box (S-BD50SW) Speaker cable (1) Large non-skid pads (1) HB916-MD0_BUSAPPK_ENG.indd 10 2011-09-23 9:02:40Getting Started 11 Getting Started

txt), TMPlayer (.txt), DVD Subtitle System (.txt) Music files File Location File Extension Sampling Frequency Bitrate Note Disc, USB, DLNA, PC “mp3”, “.wma”, “.wav”, “.m4a” (DRM free) within 32 - 48 kHz (WMA), within 16 - 48 kHz (MP3) within 20 - 320 kbps (WMA), within

Some wav les are not supported on this player. Photo files File Location File Extension Recommanded Size Note Disc, USB, DLNA, PC “.jpg”, “.jpeg”, “.png” Less than 4,000 x 3,000 x 24 bit/pixel Less than 3,000 x 3,000 x 32 bit/pixel Progressive and lossless compression photo image les are not supported. HB916-MD0_BUSAPPK_ENG.indd 11 2011-09-23 9:02:41Getting Started12Getting Started

The le name is limited to 180 characters.

Maximum les/folder: Less than 2 000 (total number of les and folders)

Depending on the size and number of the les, it may take several minutes to read the contents on the media.

File compatibility may dier depending on the server.

The le requirements on page 11 are not always compatible. There may have some restrictions by le features and media server’s ability.

Playing a movie subtitle les are not supported on this player.

The les from removable media such as USB drive, DVD-drive etc. on your media server may not be shared properly.

This unit cannot support the ID3 Tag embedded MP3 le.

The total playback time of audio le indicated on the screen may not correct for VBR les.

HD movie les contained on the CD or USB 1.0/1.1 may not played properly. Blu-ray Disc, DVD or USB 2.0 are recommended to play back HD movie les.

This player supports H.264/MPEG-4 AVC prole Main, High at Level 4.1. For a le with higher level, the warning message will appear on the screen.

This player does not support les that are recorded with GMC

This player can playback AVCHD format discs. These discs are normally recorded and used in camcorders.

The AVCHD format is a high denition digital video camera format.

The MPEG-4 AVC/H.264 format is capable of compressing images at higher eciency than that of the conventional image compressing format.

This player can playback AVCHD discs using “x.v.Color” format.

Some AVCHD format discs may not play depending on the recording condition.

AVCHD format discs need to be nalized.

“x.v.Color” oers a wider color range than normal DVD camcorder discs. About DLNA This Player is a DLNA Certied digital media player that can display and play movie, photo and music content from your DLNA-compatible digital media server (PC and Consumer Electronics).The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through your home network.The DLNA certication logo makes it easy to nd products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5.When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information. HB916-MD0_BUSAPPK_ENG.indd 12 2011-09-23 9:02:41Getting Started 13 Getting Started

High denition display that has COMPONENT or HDMI input jacks.

BD-ROM disc with high denition content.

HDMI or HDCP capable DVI input on your display device is required for some content (as specied by disc authors). For playing les on your PC’s share folder via your home network, the PC requires below.

Windows® XP (Service Pack 2 or higher), Windows Vista® (no Service Pack required) Windows 7® (no Service Pack required)

Network environment: 100 Mb Ethernet, WLAN (IEEE 802.11a/b/g/n)

More than 1 folder on your PC has to be shared. Visit support link of your operating system for more information on le share settings. Regional Code This unit has a regional code printed on the rear of the unit. This unit can play only BD-ROM or DVD discs labeled same as the rear of the unit or “ALL”. Compatibility Notes

Because BD-ROM is a new format, certain disc, digital connection and other compatibility issues are possible. If you experience compatibility problems, please contact an authorized Customer Service Center.

This unit allows you to enjoy functions such as picture-in-picture, secondary audio and Virtual packages, etc., with BD-ROM supporting BONUSVIEW (BD-ROM version 2 Prole 1 version 1.1/ Final Standard Prole). Secondary video and audio can be played from a disc compatible with the picture-in-picture function. For the playback method, refer to the instructions in the disc.

Some BD-ROM and DVD discs may restrict the use of some operation commands or features.

Dolby TrueHD, Dolby Digital Plus and DTS-HD are supported with maximum 5.1 channels if you use HDMI connection for the audio output of the unit.

You can use a USB device to store some disc related information, including downloaded on- line content. The disc you are using will control how long this information is retained. HB916-MD0_BUSAPPK_ENG.indd 13 2011-09-23 9:02:41Getting Started14Getting Started

Battery Installation Remove the battery cover on the rear of the Remote Control, and insert an R03 (size AAA) battery with and matched correctly.• • • • • • • • •

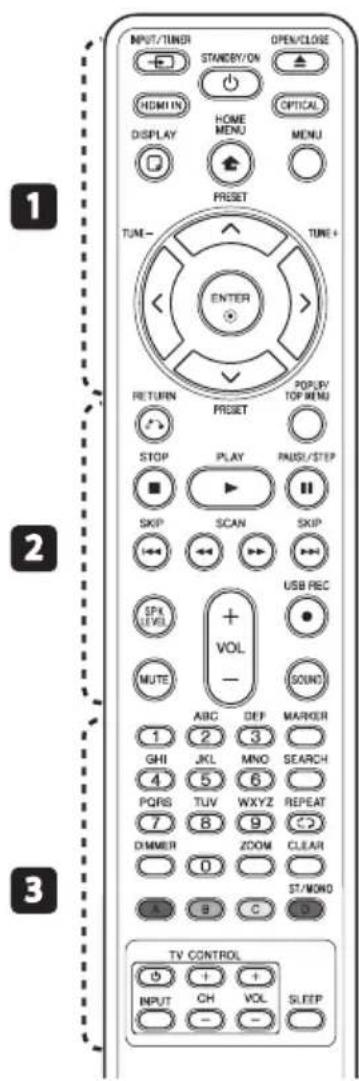

REPEAT: Repeats a desired section or sequence. DIMMER: Dims the light on the unit.ZOOM: Accesses the zoom menu.CLEAR: Removes a mark on the search menu or a number when setting the password.Colored (A, B, C, D) buttons: Use to navigate on menus.- D button: Selects MONO or STEREO in FM mode.TV Control Buttons: See page SLEEP: Sets a certain period of time after which the unit will switch to o. HB916-MD0_BUSAPPK_ENG.indd 14 2011-09-23 9:02:41Getting Started 15 Getting Started

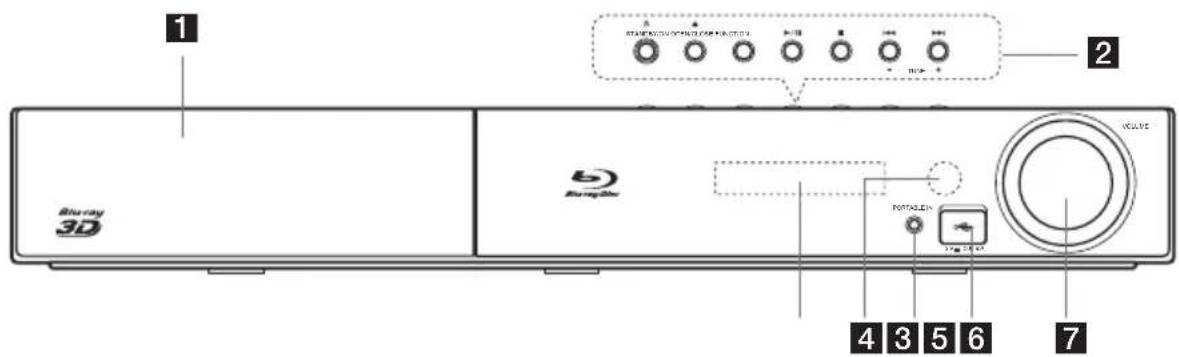

STANDBY/ON OPEN/CLOSE FUNCTION

(STANDBY/ON) Button Switches the player ON or OFF.

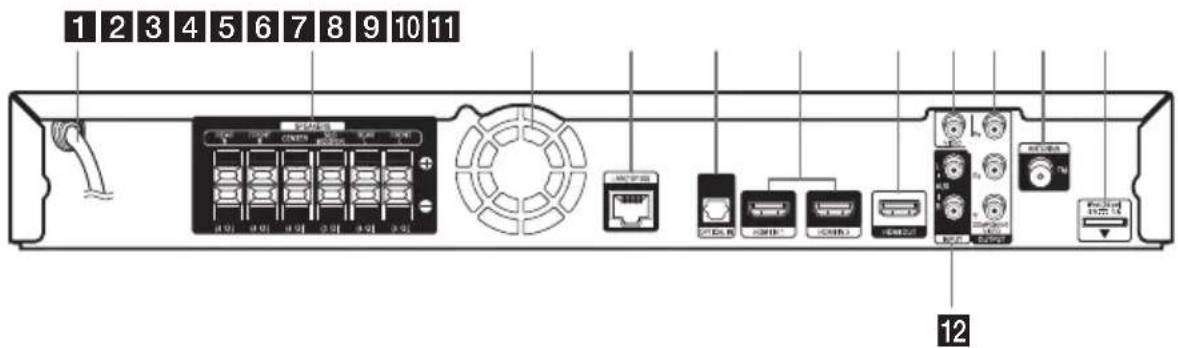

Volume Control Rear panel

STANDBY/ON OPEN/CLOSE FUNCTION

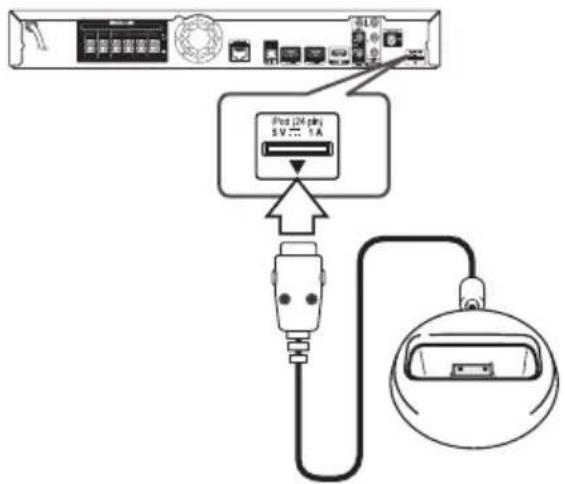

iPod (24 pin) Connect to the furnished iPod cradle.

HB916-MD0_BUSAPPK_ENG.indd 15 2011-09-23 9:02:412 Connecting Connecting16 Connecting

Assemble the speakers Speaker Setup Preparing the speakers

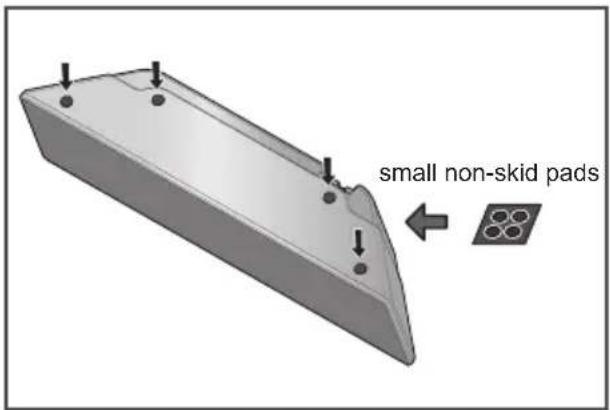

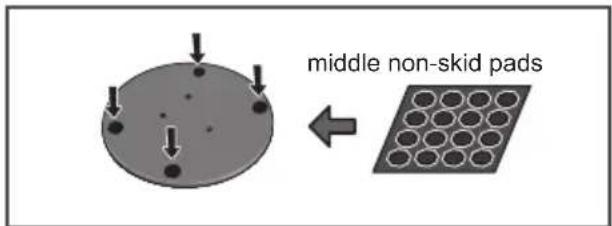

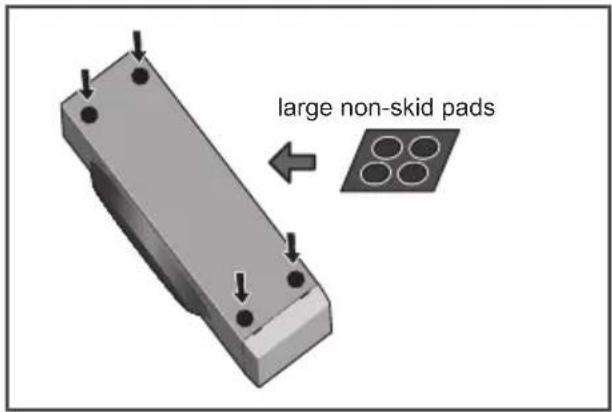

1. Attach the non-skid pads to the base of each

speaker stand bases, the subwoofer and the center speaker. For speaker stand bases: Use the supplied adhesive to attach four middle pads to the base (bottom) of each speaker stand base. middle non-skid pads large non-skid pads RearFrontsmall non-skid padsthick cordPlastic catch5 mm10 mm 5 mm to 7 mm Mounting screw(not supplied) For subwoofer: Use the supplied adhesive to attach four large pads to the base of subwoofer. middle non-skid pads large non-skid pads RearFrontsmall non-skid padsthick cordPlastic catch5 mm10 mm 5 mm to 7 mm Mounting screw(not supplied) For center speaker: Use the supplied adhesive to attach four small pads to the base of center speaker. middle non-skid pads large non-skid pads RearFront small non-skid pads thick cordPlastic catch5 mm10 mm 5 mm to 7 mm Mounting screw(not supplied)

2. Attach the speaker stand bases to the stems

using the screws provided. Once you have aligned the stem and base, secure with the small screws at the points shown below. Note that the speaker should face in the direction of the base of the isosceles triangle. middle non-skid pads large non-skid pads Rear Front small non-skid padsthick cordPlastic catch5 mm10 mm 5 mm to 7 mm Mounting screw(not supplied) HB916-MD0_BUSAPPK_ENG.indd 16 2011-09-23 9:02:42Connecting 17 Connecting

3. Connect the wires to the player.

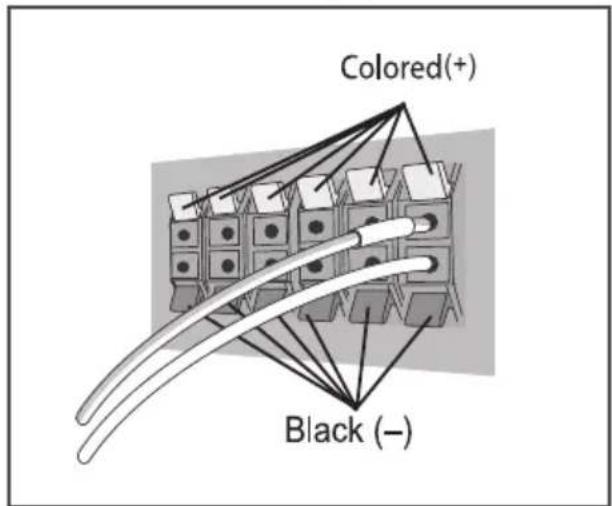

Connect the white wire with gray line into (+) side and the other wire into (–) side. To connect the cable to the player, press each plastic nger pad to open the connection terminal. Insert the wire and release the nger pad. middle non-skid pads large non-skid pads Rear Front small non-skid pads thick cord Plastic catch 5 mm 10 mm 5 mm to 7 mm Mounting screw (not supplied)

Do not connect any speakers other than those supplied to this system.

Do not connect the supplied speakers to any amplier other than the one supplied with this system. Connection to any other amplier may result in malfunction or re.

Please connect the speaker cable of subwoofer (purple) to orange of the player.

These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.

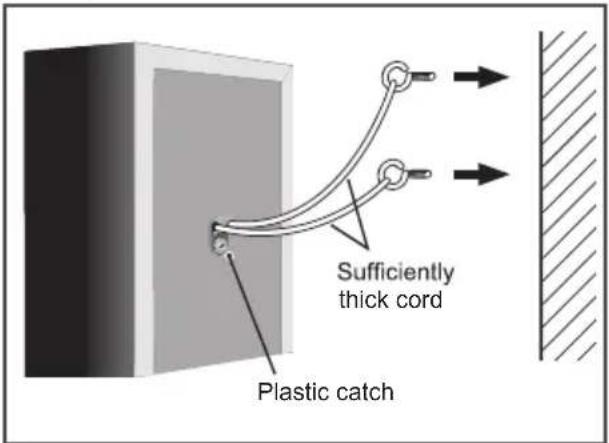

Caution Securing your front and surround speakers Secure each of the front and surround speakers using the plastic catch provided. Screw two supporting hooks into the wall behind the speaker. Pass a thick cord around the hooks and through the plastic catch so that the speaker is stabilized (make sure to test that it supports the weight of the speaker). After installing, make sure the speaker is securely xed. middle non-skid pads large non-skid pads RearFrontsmall non-skid pads thick cordPlastic catch 5 mm10 mm 5 mm to 7 mm Mounting screw(not supplied)

The plastic catch is not a mounting xture, and the speaker should not be hung directly from the wall using this catch. Always use a cord when stabilizing the speaker.

Pioneer disclaims all responsibility for any losses or damage resulting from improper assembly, installation, insucient strength of the installation materials, misuse, or natural disasters.

When placing this unit, ensure that it is rmly secured and avoid areas where it may be likely to fall and cause injury in the event of a natural disaster (such as an earthquake).

Do not stand on the speaker stand base of the tall speaker to push or swing the speaker. The speaker may fall and break, or someone may be injured. Pay special attention to children.

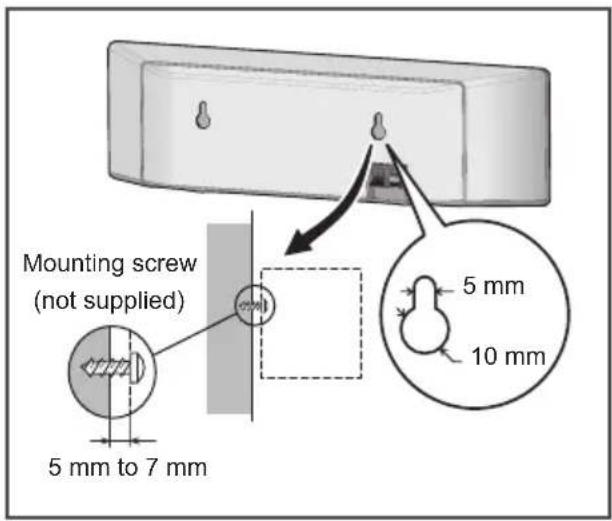

Wall mounting the center speaker The center speaker have a mounting hole which can be used to mount the speaker on the wall. Before mounting Remember that the speaker system is heavy and that its weight could cause the screws to work loose, or the wall material to fail to support it, resulting in the speaker falling. Make sure that the wall you intend to mount the speakers on is strong enough to support them. Do not mount on plywood or soft surface walls.Mounting screws are not supplied. Use screws suitable for the wall material and support the weight of the speaker.

If you are unsure of the qualities and strength of the wall, consult a professional for advice.

Pioneer is not responsible for any accidents or damage that result from improper installation.

Caution middle non-skid pads large non-skid pads RearFrontsmall non-skid padsthick cordPlastic catch 5 mm 10 mm5 mm to 7 mmMounting screw(not supplied) Additional notes on speaker Install the main front left and right speakers at an equal distance from the TV. Precautions: Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the bare speaker wire touches the back panel it may cause the power to cut o as a safety measure.The front, center and surround speakers supplied with this system are magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker is installed extremely close to the screen of a television set. If this case happens, turn the power switch of the television set OFF, and turn it ON after 15 min. to 30 min. If the problem persists, place the speaker system away from the television set.The subwoofer is not magnetically shielded and so should not be placed near a TV or monitor. Magnetic storage media (such as oppy discs and tape or video cassettes) should also not be kept close to the subwoofer.Do not attach the front/surround speakers and subwoofer to a wall or ceiling. They may fall o and cause injury. HB916-MD0_BUSAPPK_ENG.indd 18 2011-09-23 9:02:42Connecting 19 Connecting

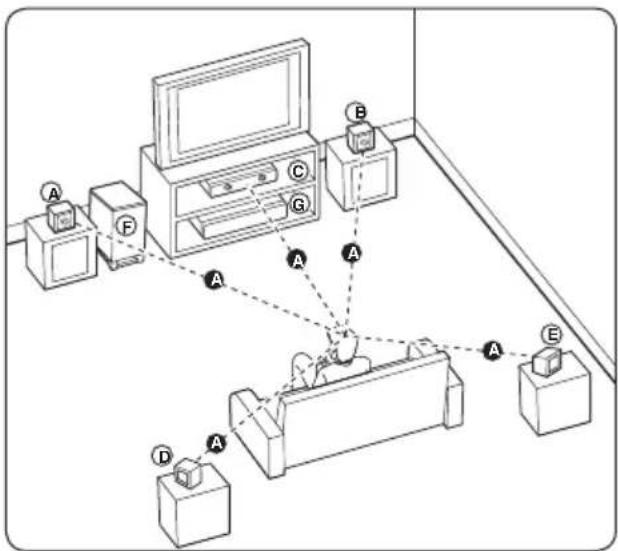

Positioning the system The following illustration shows an example of positioning the system. Note that the illustrations in these instructions dier from the actual unit for explanation purposes. For the best possible surround sound, all the speakers other than the subwoofer should be placed at the same distance from the listening position (

AAAAAA ABBCCDDEEFFGG Front left speaker (L)/ AAAAAAAA BCCDDEEFFGG Front right speaker (R): Place the front speakers to the sides of the monitor or screen and as ush with the screen surface as possible. AAAAAAAABB CDDEEFFGG Center speaker: Place the center speaker above or below the monitor or screen. AAAAAAAABBCC DEEFFGG Surround left speaker (L)/ AAAAAAAABBCCDD EFFGG Surround right speaker (R): Place these speakers behind your listening position, facing slightly inwards. AAAAAAAABBCCDDEE FGG Subwoofer: The position of the subwoofer is not so critical, because low bass sounds are not highly directional. But it is better to place the subwoofer near the front speakers. Turn it slightly toward the center of the room to reduce the wall reections. AAAAAAAABBCCDDEEFF

Be careful to make sure children do not put their hands or any objects into the *subwoofer duct. *subwoofer duct: A hole for plentiful bass sound on subwoofer cabinet (enclosure).

Place the center speaker at a safe distance from the child’s reach. Otherwise it may result in the speaker falling down and causing personal injury and/or property damage.

The speakers contain magnetic parts, so colour irregularity may occur on the TV screen or PC monitor screen. Please use the speakers away from the TV screen or PC monitor screen.

Connecting to Your TV Make one of the following connections, depending on the capabilities of your existing equipment.

Depending on your TV and other equipment you wish to connect, there are various ways you could connect the player. Use only one of the connections described in this manual.

Please refer to the manuals of your TV, stereo system or other devices as necessary to make the best connections.

Make sure the player is connected directly to the TV. Tune the TV to the correct video input channel.

Do not connect your player via your VCR. The image could be distorted by the copy protection system.

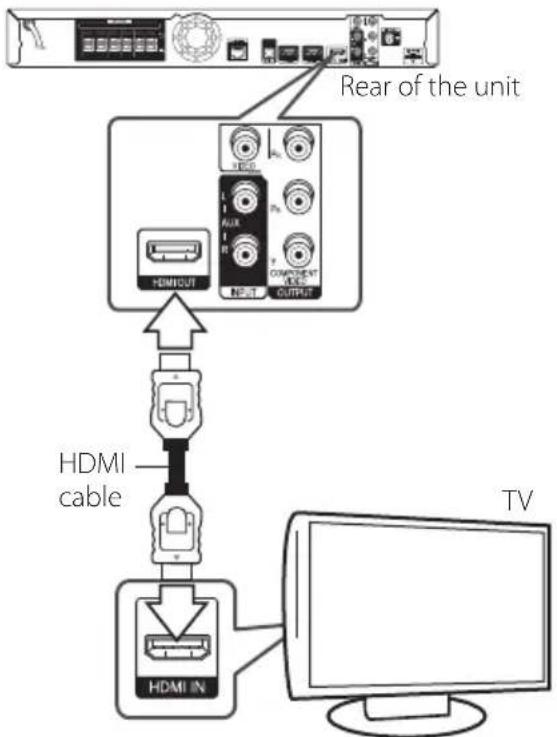

Note HDMI Connection If you have a HDMI TV or monitor, you can connect it to this player using a HDMI cable (Type A, High Speed HDMI™ Cable with Ethernet). Connect the HDMI jack on the player to the HDMI jack on a HDMI compatible TV or monitor.Rear of the unit HDMI cableSet the TV’s source to HDMI (refer to TV’s Owner’s manual). Additional Information for HDMI

When you connect a HDMI or DVI compatible device make sure of the following:

Try switching o the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.

The connected device’s video input is set correctly for this unit.

The connected device is compatible with 720x480p, 1280x720p, 1920x1080i or 1920x1080p video input.

Not all HDCP-compatible HDMI or DVI devices will work with this player.

The picture will not be displayed properly with non-HDCP device. HB916-MD0_BUSAPPK_ENG.indd 20 2011-09-23 9:02:43Connecting 21 Connecting

If a connected HDMI device does not accept the audio output of the player, the HDMI device’s audio sound may be distorted or may not output.

When you use HDMI connection, you can change the resolution for the HDMI output. (Refer to “Resolution Setting” on page 23.)

Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn o the player and then turn it on again.

When the HDMI connection with HDCP is not veried, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.

If there are noises or lines on the screen, please check the HDMI cable (length is generally limited to 4.5 m(15 ft.)).

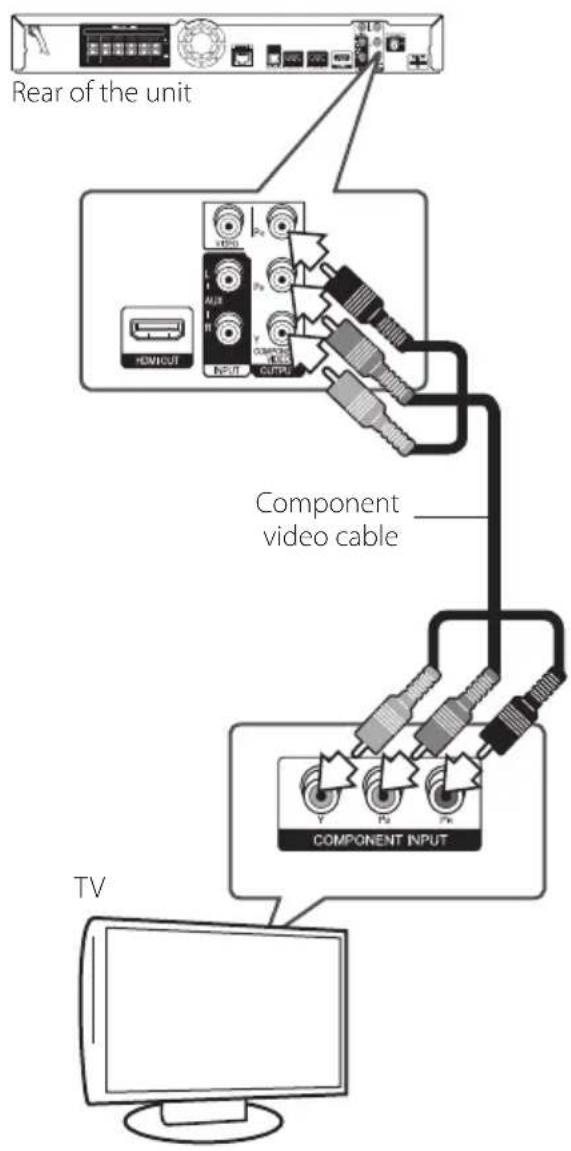

Connecting Component Video Connection Connect the COMPONENT VIDEO OUT jacks on the player to the corresponding input jacks on the TV using component video cable. You can hear the sound the through the system’s speaker. Component video cable Rear of the unit

When you use COMPONENT VIDEO OUT connection, you can change the resolution for the output. (Refer to “Resolution setting” on page 23.)

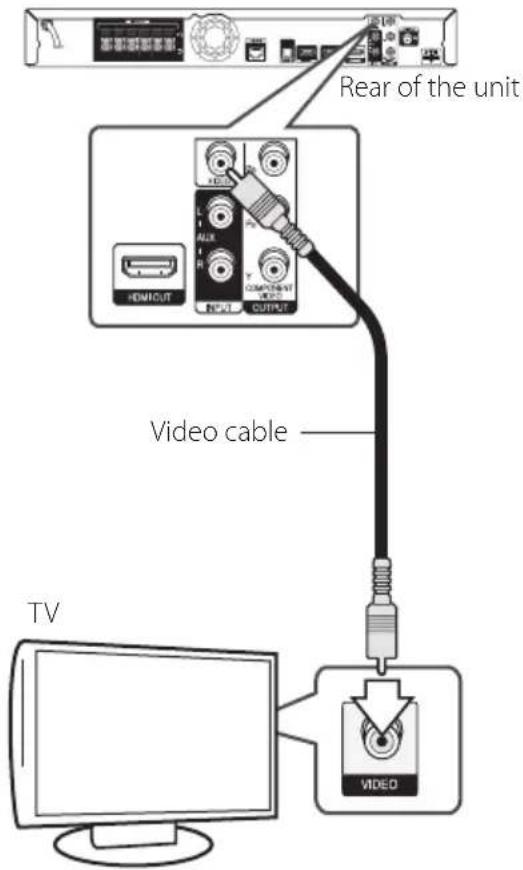

Note Video Connection Connect the VIDEO OUT jack on the player to the video in jack on the TV using a video cable. You can hear the sound through the system’s speakers. Rear of the unit

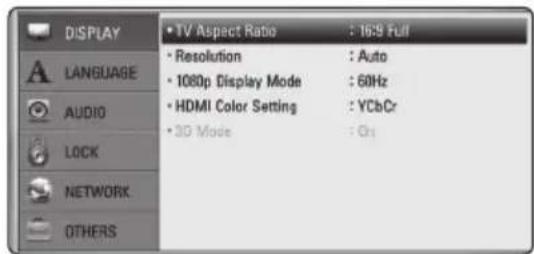

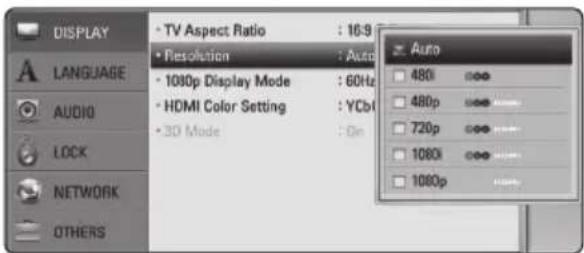

Resolution Setting The player provides several output resolutions for HDMI OUT and COMPONENT VIDEO OUTPUT jacks. You can change the resolution using [Setup] menu.1. Press HOME MENU (

). The [Setup] menu appears.3. Use W/S to select [DISPLAY] option then press to move to the second level. 4. Use W/S to select the [Resolution] option then press ENTER ( ) to move to the third level.5. Use W/S to select the desired resolution then press ENTER ( ) to conrm your selection.

If your TV does not accept the resolution you have set on the player, you can set resolution to 480p as follows:1. Press to open the disc tray.2. Press (STOP) for more than 5 seconds.

Since several factors aect the resolution of video output, see “Video Output Resolution” on page 64.

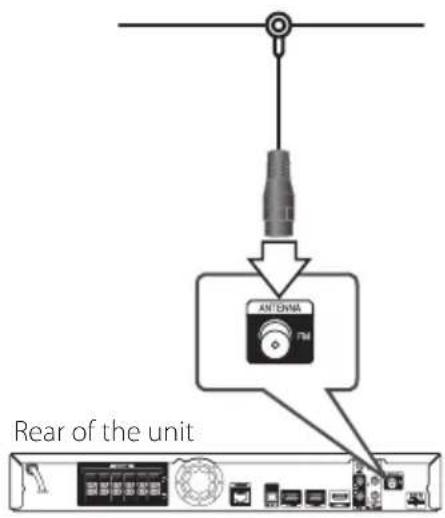

Note Antenna connection Connect the supplied antenna for listening to the radio.Rear of the unitAfter connecting the FM wire antenna, keep it as horizontal as possible. Be sure to fully extend the FM wire antenna.

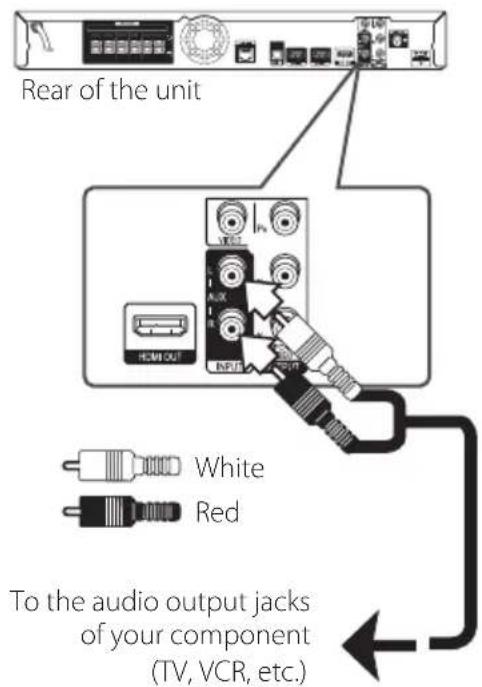

Connections with external device AUX Connection You can enjoy the sound from an external component through the speakers of this system. Connect the analog audio output jacks of your component into the AUX L/R (INPUT) on this unit. And then select the [AUX] option by pressing INPUT/TUNER and ENTER (

You can also use the FUNCTION button on the front panel to select the input mode. To the audio output jacks of your component (TV, VCR, etc.) Rear of the unit White Red PORTABLE IN connection You can enjoy the sound from your portable audio player through the speakers of this system. Connect the headphones (or line out ) jack of the portable audio player into the PORTABLE IN socket of this unit. And then select the [PORTABLE] option by pressing INPUT/TUNER and ENTER (

You can also use the FUNCTION button on the front panel to select the input mode. VOLUMEPORTABLE IN5 V 500 mA MP3 Player, etc... HB916-MD0_BUSAPPK_ENG.indd 24 2011-09-23 9:02:44Connecting 25 Connecting

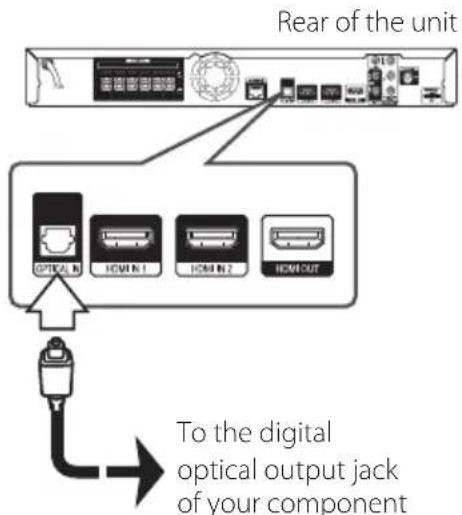

OPTICAL IN connection You can enjoy the sound from your component with a digital optical connection through the speakers of this system. Connect the optical output jack of your component into the OPTICAL IN jack on the unit. And then select the [OPTICAL] option by pressing INPUT/ TUNER and ENTER (

). Or press OPTICAL to select directly. You can also use the FUNCTION button on the front panel to select the input mode. To the digital optical output jack of your component Rear of the unit HDMI IN 1/2 connection You can enjoy the pictures and sound from your component through this connection. Connect the HDMI OUT jack of your component into the HDMI IN 1 or 2 jack on this unit. And then select the [HDMI IN 1/2] option by pressing INPUT/ TUNER and ENTER (

You can also use the FUNCTION button on the front panel to select the input mode. To the HDMI OUT jack of your component (set-top box, digital satellite receiver, video game machine, etc.) Rear of the unit

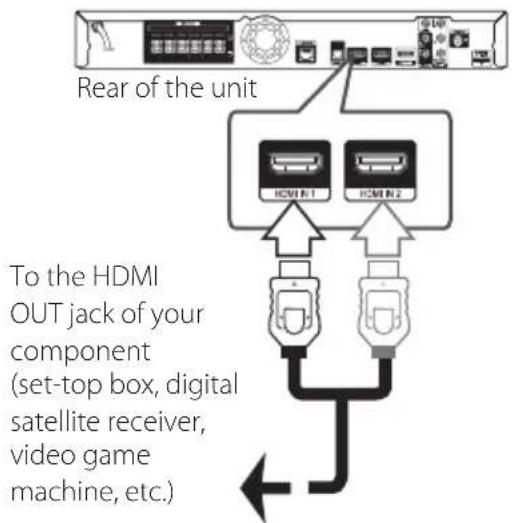

You cannot change the video resolution in the HDMI IN 1/2 mode. Change the video resolution of the connected component.

If the video output signal is abnormal when your personal computer is connected to HDMI IN 1/2 jack, change the resolution of your personal computer to 480p, 720p, 1080i or 1080p.

The video signal from the HDMI input cannot be output from the component or composite video outputs.

The player sends audio from the HDMI inputs to both the HDMI output and to the unit’s speakers.

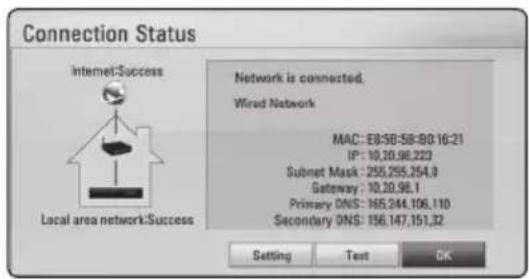

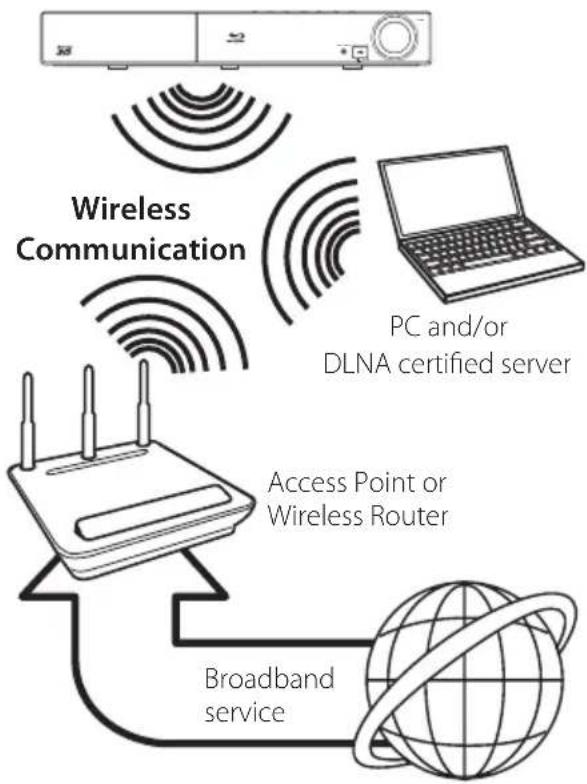

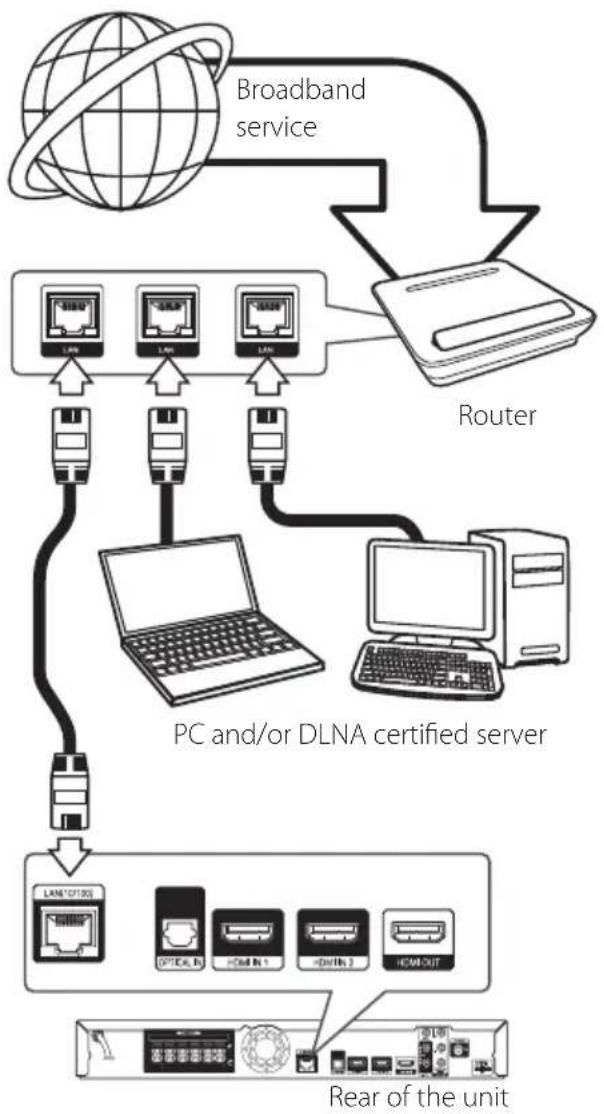

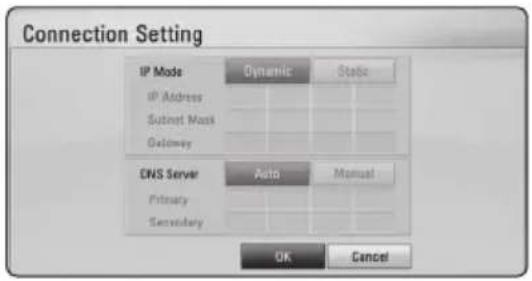

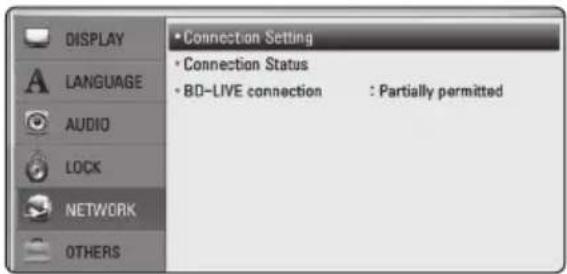

Connecting to your Home Network This player can be connected to a local area network (LAN) via the LAN port on the rear panel or the internal wireless module. By connecting the unit to a broadband home network, you have access to services such as BD-LIVE interactivity and Online content services. Wired network connection Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference.Please refer to the documentation for your network device for further instructions.Connect the player’s LAN port to the corresponding port on your Modem or Router using a commercially available LAN or Ethernet cable.

When plugging or unplugging the LAN cable, hold the plug portion of the cable. When unplugging, do not pull on the LAN cable but unplug while pressing down on the lock.

Do not connect a modular phone cable to the LAN port.

Since there are various connection congurations, please follow the specications of your telecommunication carrier or internet service provider.

If you want to access content from PCs or DLNA servers, this player must be connected to the same local area network with them via a router.

Wired Network Setup If there is a DHCP server on the local area network (LAN) via wired connection, this player will automatically be allocated an IP address. After making the physical connection, a small number of home networks may require the player’s network setting to be adjusted. Adjust the [NETWORK] setting as follow. Preparation Before setting the wired network, you need to connect the broadband internet to your home network.

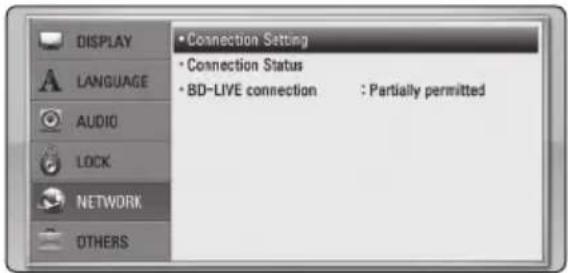

1. Select [Connection Setting] option in the

2. The [Connection Setting] menu appear on the

screen. Use W/S to select the [Wired] and press ENTER (

W/S/A/D to select the IP mode between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically. If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using W/S/ A/D and numerical buttons. If you make a mistake while entering a number, press CLEAR to clear the highlighted part.

) to apply network settings.

5. The player will ask you to test the network

connection. Select [OK] and press ENTER (

) to complete the network connection.

) at step 5 above, the network connection status is displayed on the screen. You can also test it on the [Connection Status] in the [Setup] menu. HB916-MD0_BUSAPPK_ENG.indd 27 2011-09-23 9:02:46Connecting28Connecting

Wireless Network Connection Another connection option is to use an Access Point or a wireless router. The network conguration and connection method may vary depending on the equipment in use and the network environment.This player is equipped with an IEEE 802.11n (Dual-band, 5 GHz and 2.4 GHz band) wireless module, which also supports the 802.11a/b/g standards. For the best wireless performance, we recommend using a IEEE 802.11n certied Wi-Fi network (access point or wireless router). VOLUMEPORTABLE IN5 V 500 mA Wireless Communication PC and/or DLNA certied serverAccess Point or Wireless RouterBroadband serviceRefer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings.For best performance, a direct wired connection from this player to your home network’s router or cable/DSL modem is always the best option. If you do chose to use the wireless option, note that performance can sometimes be aected by other electronic devices in the home.Available frequency range and channels for 5 GHz band are listed as below. But, there may have the dierences and restrictions depending on the country. Try setting your access point with other channel if you have diculties in wireless network connection.Area Frequency RangeNorth America5.15-5.25 GHz (ch. 36-48), 5.725-5.825 GHz (ch. 149-161), 5.825- 5.850 (ch.165)Europe, UAE 5.15-5.25 GHz (ch. 36-48)Others 5.15-5.25 GHz (ch. 36-48), 5.725-5.825 GHz (ch. 149-161), 5.825- 5.850 (ch.165)

Note Wireless Network Setup For the wireless network connection, the player needs to be set up for network communication. This adjustment can be done from the [Setup] menu. Adjust the [NETWORK] setting as follow. Setting up the access point or the wireless router is required before connecting the player to the network. Preparation Before setting the wireless network, you need to:

connect the broadband internet to the wireless home network.

set the access point or wireless router.

note the SSID and security code of the network.1. Select [Connection Setting] option in the [Setup] menu then press ENTER (

HB916-MD0_BUSAPPK_ENG.indd 28 2011-09-23 9:02:46Connecting 29 Connecting

2. The [Connection Setting] menu appear on the

screen. Use W/S to select [Wireless] and press ENTER (

3. Select [Yes] and press ENTER (

) to continue. The new connection settings reset the current network settings.

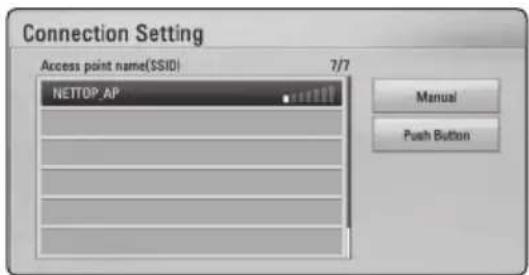

4. The player scans the all available access points

or wireless routers within range and display them as a list. Use W/S to select an access point or wireless router on the list, and then press ENTER (

If you have security on your access point or wireless router, verify that the WEP or WPA key that was entered into the player matches the router’s information exactly. You need to input the security code as necessary.

WEP security mode generally have 4 keys available on an access point or wireless router’s setting. If your access point or wireless router use WEP security, enter the security code of the key “No.1” to connect on your home network.

An Access Point is a device that allows you to connect to your home network wirelessly.

If your access point or wireless router supports the PIN Code conguration method based on WPS(Wi-Fi Protected Setup), press yellow (C) colored button and note the code number on the screen. And then, enter the PIN number on a setting menu of your access point or wireless router to connect. Refer to the documentation for your network device.

Note [Manual] – Your access point may not be broadcasting its access point name (SSID). Check your router settings through your computer and either set your router to broadcast SSID, or manually enter the access point name (SSID) in [Manual]. [Push Button] – If your access point or wireless router that supports the Push Button Conguration method, select this option and press the Push Button on your access point or wireless router within 120 counts. You do not need to know the access point name (SSID) and security code of your access point or wireless router.

W/S/A/D to select the IP mode between [Dynamic] and [Static]. Normally, select [Dynamic] to allocate an IP address automatically. If there is no DHCP server on the network and you want to set the IP address manually, select [Static] then set [IP Address], [Subnet Mask], [Gateway] and [DNS Server] using W/S/ A/D and numerical buttons. If you make a mistake while entering a number, press CLEAR to clear the highlighted part.

6. Select [OK] and press ENTER (

) to apply network settings.

7. The player will ask you to test the network

connection. Select [OK] and press ENTER (

) to complete the network connection.

) at step 7 above, the network connection status is displayed on the screen. You can also test it on the [Connection Status] in the [Setup] menu. HB916-MD0_BUSAPPK_ENG.indd 29 2011-09-23 9:02:46Connecting30 Connecting

Notes on Network Connection:

Many network connection problems during set up can often be xed by re-setting the router or modem. After connecting the player to the home network, quickly power o and/ or disconnect the power cable of the home network router or cable modem. Then power on and/or connect the power cable again.

Depending on the internet service provider (ISP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.

Our company is not responsible for any malfunction of the player and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.

The features of BD-ROM discs made available through the Internet Connection feature are not created or provided by our company, and our company is not responsible for their functionality or continued availability. Some disc related material available by the Internet Connection may not be compatible with this player. If you have questions about such content, please contact the producer of the disc.

Some internet contents may require a higher bandwidth connection.

Even if the player is properly connected and congured, some internet contents may not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider of the content.

Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (ISP) supplying your broadband Internet connection.

Any fees charged by an ISP including, without limitation, connection charges are your responsibility.

A 10 Base-T or 100 Base-TX LAN port is required for wired connection to this player. If your internet service does not allow for such a connection, you will not be able to connect the player.

You must use a Router to use xDSL service.

A DSL modem is required to use DSL service and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP, you may not be able to use the internet connection feature contained in this player or you may be limited to the number of devices you can connect at the same time. (If your ISP limits subscription to one device, this player may not be allowed to connect when a PC is already connected.)

The use of a “Router” may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP. For details, contact your ISP directly.

The wireless network operate at 2.4 GHz radio frequencies that are also used by other household devices such as cordless telephone, Bluetooth® devices, microwave oven, and can be aected by interference from them.

Turn o all unused network equipment in your local home network. Some devices may generate network trac.

For the purpose of the better transmission, placing the player from the access point as close as possible.

In some instances, placing the access point or wireless router at least 0.45 m (1.5 ft.) above the oor may improve the reception.

Move closer to the access point if possible or re- orient the player so there is nothing between it and the access point.

The reception quality over wireless depends on many factors such as type of the access point, distance between the player and access point, and the location of the player.

Set your access point or wireless router to Infrastructure mode. Ad-hoc mode is not supported. HB916-MD0_BUSAPPK_ENG.indd 30 2011-09-23 9:02:46Connecting 31Connecting

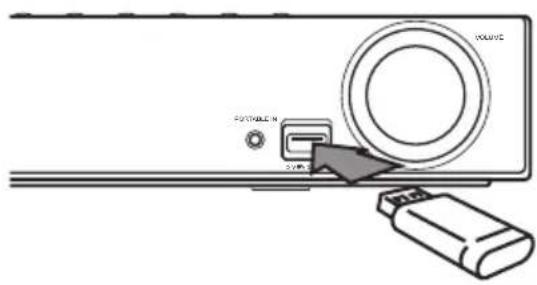

USB device connection This player can play movie, music and photo les contained in the USB device. Playback content in the USB device

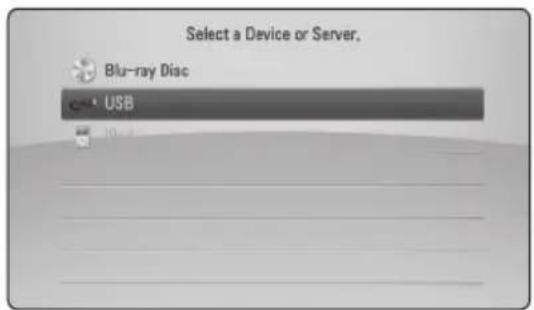

1. Insert a USB device to the USB port until it ts into place.VOLUMEPORTABLE IN

) to play the le.6. Withdraw the USB device carefully.

This player supports USB ash drive/external HDD formatted in FAT16, FAT32 and NTFS when accessing les (music, photo, movie). However, for BD-LIVE and Audio CD recording, only FAT16 and FAT32 formats are supported. Use the USB ash drive/external HDD formatted in either FAT16 or FAT32 when using BD-LIVE and Audio CD recording.

The USB device can be used for the local storage for enjoying BD-LIVE discs with Internet.

This unit can support up to 8 partitions of the USB device.

Do not extract the USB device during operation (play, etc.).

A USB device which requires additional program installation when you have connected it to a computer, is not supported.

USB device: USB device that supports USB1.1 and USB2.0.

Movie, music and photo les can be played. For details of operations on each le, refer to relevant pages.

Regular back up is recommended to prevent data loss.

If you use a USB extension cable, USB HUB or USB Multi-reader, the USB device may not be recognized.

Some USB device may not work with this unit.

Digital camera and mobile phone are not supported.

USB Port of the unit cannot be connected to PC. The unit cannot be used as a storage device.

Note HB916-MD0_BUSAPPK_ENG.indd 31 2011-09-23 9:02:473 System Setting System Setting32System Setting

Settings Adjust the Setup Settings You can change the settings of the player in the [Setup] menu.1. Press HOME MENU (

). The [Setup] menu appears.3. Use W/S to select the rst setup option, and press to move to the second level.4. Use W/S to select a second setup option, and press ENTER ( ) to move to the third level.5. Use W/S to select a desired setting, and press ENTER ( ) to conrm your selection. [DISPLAY] Menu TV Aspect Ratio Select a TV aspect ratio option according to your TV type.[4:3 Letter Box]Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and below the picture.[4:3 Pan Scan]Select when a standard 4:3 TV is connected. Displays pictures cropped to ll your TV screen. Both sides of the picture are cut o.[16:9 Original]Select when a 16:9 wide TV is connected. The 4:3 picture is displayed with an original 4:3 aspect ratio, with black bars appearing at the left and right sides.[16:9 Full]Select when a 16:9 wide TV is connected. The 4:3 picture is adjusted horizontally (in a linear proportion) to ll the entire screen.You cannot select [4:3 Letter Box] and [4:3 Pan Scan] option when the resolution is set to higher than 720p.

Resolution Sets the output resolution of the Component and HDMI video signal. Refer to page 23 and 64 for details about the resolution setting. [Auto] If the HDMI OUT jack is connected to TVs providing display information (EDID), automatically selects the resolution best suited to the connected TV. [1080p] Outputs 1080 lines of progressive video. [1080i] Outputs 1080 lines of interlaced video. [720p] Outputs 720 lines of progressive video. [480p] Outputs 480 lines of progressive video. [480i] Outputs 480 lines of interlaced video. 1080p Display Mode When the resolution is set to 1080p, select [24 Hz] for smooth presentation of lm material (1080p/24 Hz) with a HDMI-equipped display compatible with 1080p/24 Hz input.

When you select [24 Hz], you may experience some picture disturbance when the video switches video and lm material. In this case, select [60 Hz].

Even when [1080p Display Mode] is set to [24 Hz], if your TV is not compatible with 1080p/24 Hz, the actual frame frequency of the video output will be 60 Hz to match the video source format.

Since several factors aect the resolution of video output, see "Video Output Resolution" on page 64.

Note HDMI Color Setting Select the type of output from the HDMI OUT jack. For this setting, please refer to the manuals of your display device. [YCbCr] Select when connecting to a HDMI display device. [RGB] Select when connecting to a DVI display device. 3D Mode Select the type of output mode for Blu-ray 3D disc playback. [O] Blu-ray 3D disc playback will output as 2D mode like a normal BD-ROM disc playback. [On] Blu-ray 3D disc playback will output as 3D mode. HB916-MD0_BUSAPPK_ENG.indd 33 2011-09-23 9:02:47System Setting34 System Setting

[LANGUAGE] Menu Display Menu Select a language for the [Setup] menu and on- screen display. Disc Menu/Disc Audio/ Disc Subtitle Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu. [Original] Refers to the original language in which the disc was recorded. [Other] Press ENTER (

to enter the corresponding 4-digit number according to the language code list on page

[O] (Disc Subtitle only) Turn o Subtitle. Depending on the disc, your language setting may not work.

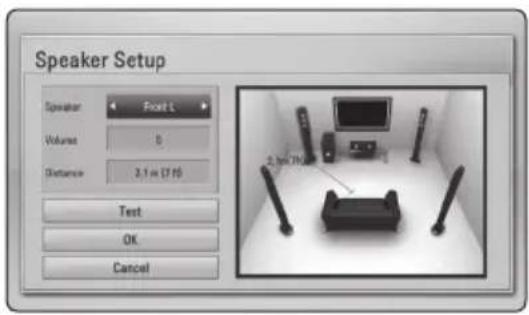

Note [AUDIO] Menu Speaker Setup To obtain the best possible sound, use the speaker setup display to specify the volume of the speakers you have connected and their distance from your listening position. Use the test to adjust the volume of the speakers to the same level. [Speaker] Select a speaker that you want to adjust. [Volume] Adjust the output level of each speaker. [Distance] Adjust the distance between each speaker and the listening position. [Test/ Stop test tone] The speakers will emit a test tone. [OK] Conrms the setting. [Cancel] Cancels the setting. HB916-MD0_BUSAPPK_ENG.indd 34 2011-09-23 9:02:47System Setting 35 System Setting

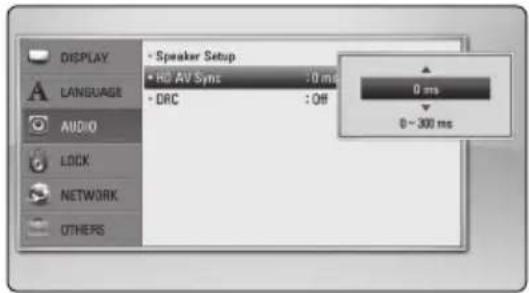

HD AV Sync Sometimes Digital TV encounters a delay between picture and sound. If this happens you can compensate by setting a delay on the sound so that it eectively ‘waits’ for the picture to arrive: this is called HD AV Sync. Use W/S to scroll up and down through the delay amount, which you can set at anything between 0 and 300 ms. DRC (Dynamic Range Control) This function allows you to listen to a movie at a lower volume without losing clarity of sound. [O] Turns o this function. [On] Compress the dynamic range of the Dolby Digital, Dolby Digital Plus or Dolby TrueHD audio output. [Auto] The dynamic range of the Dolby TrueHD audio output is specied by itself. And the dynamic range of the Dolby Digital and Dolby Digital Plus are operated as same as the [On] mode. The DRC setting can be changed only when a disc is not inserted or the unit is in complete stop mode.

Note [LOCK] Menu The [LOCK] settings aect only Blu-ray Disc and DVD playback. To access the any features in [LOCK] settings, you must enter the 4-digit security code you have created. If you have not entered a password yet, you are prompted to do so. Enter a 4-digit password twice, and press ENTER (

) to create a new password. Password You can create or change the password. [None] Enter a 4-digit password twice, and press ENTER (

) to create a new password. [Change] Enter the current password and press ENTER

) to create a new password. If you forget your password If you forget your password, you can clear it using the following steps:

1. Remove any disc that might be in the player.

password is cleared. If you make a mistake before pressing ENTER

DVD Rating Blocks playback of rated DVD based on their content. (Not all discs are rated.) [Rating 1-8] Rating one (1) has the most restrictions and rating eight (8) is the least restrictive. [Unlock] If you select [Unlock], parental control is not active and the disc plays in full. Blu-ray Disc Rating Set an age limit of BD-ROM play. Use number buttons to input an age limit for BD-ROM viewing. [255] All BD-ROM can be played. [0-254] Prohibits play of BD-ROM with corresponding ratings recorded on them. The [Blu-ray Disc Rating] will be applied only for the Blu-ray disc that containing the Advanced Rating Control.

Note Area Code Enter the code of the area whose standards were used to rate the DVD video disc, based on the list on page 60. [NETWORK] Menu The [NETWORK] settings are needed to use the BD- Live and Online content services. Connection Setting If your home network environment is ready to connect the player, the player needs to be set the wired or wireless network connection for network communication. (See “Connecting to your Home Network” on pages 26-30.) Connection Status If you want to check the network status on this player, select the [Connection Status] options and press ENTER (

) to check whether a connection to the network and the internet have been established. BD-LIVE connection You can restrict Internet access when BD-LIVE functions are used. [Permitted] Internet access is permitted for all BD-LIVE contents. [Partially permitted] Internet access is permitted only for BD- LIVE contents which have content owner certicates. Internet access and AACS Online functions are prohibited for all BD-LIVE contents without a certicate. [Prohibited] Internet access is prohibited for all BD-LIVE contents. HB916-MD0_BUSAPPK_ENG.indd 36 2011-09-23 9:02:4837 System Setting

[OTHERS] Menu DivX® VOD ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an ocial DivX Certied® device that plays DivX video. Visit divx.com for more information and software tools to convert your les into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration. [Register] Displays the registration code of your player. [Deregister] Deactivate your player and display the deactivation code. All the downloaded videos from DivX VOD with this player’s registration code can only be played back on this unit.

Note Auto Power Off The screen saver appears when you leave the player in Stop mode for about ve minutes. If you set this option to [On], the unit automatically turns o within 25 minutes since the Screen Saver is displayed. Set this option to [O] to leave the screen saver until the unit is operated by the user. Initialize [Factory Set] You can reset the player to its original factory settings. [BD-LIVE Storage Clear] Initializes the BD-LIVE contents from the connected USB storage. If you reset the player to its original factory settings using [Factory Set] option, you have to set all the activation for the Online services and network settings again.

Sound Effect You can select a suitable sound mode. Press SOUND repeatedly until the desired mode appears on the front panel display or the TV screen. The displayed items for the equalizer maybe dierent depending on sound sources and eects. [Mode 1]: You can enjoy comfortable and natural sound. [Mode 2]: Gives you suitable sound setting with connecting tall type of speakers (S-BD50T). [Bypass]: Software with multichannel surround audio signals is played according to the way it was recorded. [Bass Blast]: Reinforce the bass sound eect from front left and right speaker and subwoofer. [PL ll Movie]: Performs Pro Logic ll movie mode decoding to the input signal and produces ve full-bandwidth output channels from 2 channel sources. This setting is ideal for watching videos of overdubbed or old movies. This mode is available only to 2 channel sources. [PL ll Music]: Performs Pro Logic ll music mode decoding to the input signal and produces ve full-bandwidth output channels from 2 channel sources. This setting is ideal for normal stereo sources such as CD. This mode is available only to 2 channel sources. [Clear Voice]: This mode makes voice sound clear, improving the quality of voice sound. [Game]: You can enjoy more virtual sound while playing video games. [Night]: This may be useful when you want to watch movies at low volumes late at night. [Mus. ReTouch]: When listening to MP3 les or other compressed music, you can enhance the sound. This mode is available only to 2 channel sources. [Loudness]: Improves bass and treble sound. HB916-MD0_BUSAPPK_ENG.indd 38 2011-09-23 9:02:484 Operating Operating 39Operating

[Movie] - Plays video contents. [Music] - Plays audio contents. [Photo] - Plays photo contents. [Online] - Displays the Online Home screen. [Input] - Changes input mode. [Setup] - Adjusts the system settings. Playing a Disc ert

(OPEN/CLOSE), and place a disc on the disc tray.2. Press (OPEN/CLOSE) to close the disc tray.For the most Audio CD, BD-ROM and DVD-ROM discs, playback starts automatically.3. Press HOME MENU (

Playback functions described in this manual are not always available in every les and media. Some functions can be restricted depending on many factors.

Depending on the BD-ROM titles, a USB device connection may be needed for the proper playback.

Unnalized DVD VR format discs may not be played in this player.

Some DVD-VR discs are made with CPRM data by DVD RECORDER. This unit cannot support these kinds of discs.

Note Playing a file on a disc/USB device yui This player can play movie, music and photo les contained in the disc or USB device.1. Insert a data disc on the tray or connect a USB device.2. Press HOME MENU (

This player can play the Blu-ray 3D discs which contains separate views for the left and right eyes. Preparation In order to playback Blu-ray 3D title in stereoscopic 3D mode, you need to:

Check your TV is 3D capable and has HDMI (3D) input(s).

Wear 3D glasses to enjoy the 3D experience if it is necessary.

(OPEN/CLOSE), and place a disc on the disc tray.

(OPEN/CLOSE) to close the disc tray. The playback starts automatically.

4. Refer to the owner’s manual of your 3D-ready

TV for the further instruction. You may need to adjust the display settings and focus on your TV’s setting for the improved 3D eect.

Watching a 3D content for a long period time may cause dizziness or tiredness.

It is not recommended to watch a movie in 3D mode for inrm, child (particularly under

6) and pregnant woman.

If you are experiencing headache, tiredness or dizziness while viewing contents in 3D, it is strongly recommended to stop the playback and rest until you feel normal.

Caution Enjoying BD-Live™

BD-ROM supporting BD-Live (BD-ROM version 2 Prole 2) that has a network extension function allows you to enjoy more functions such as downloading new movie trailers by connecting this unit to the internet.

1. Check the network connection and settings

2. Insert a USB storage device to the USB port on

the front panel. A USB storage device is needed to download bonus content.

), and set the [BD-LIVE connection] option on the [Setup] menu (page 36). Depending on a disc, the BD-Live function may not be operated if [BD-LIVE connection] option is set to [Partially Permitted].

4. Insert a BD-ROM with BD-Live.

The operations are dier depending on the disc. Refer to the manual supplied with the disc. Do not extract the connected USB device while content is being downloaded or a Blu- ray disc is still in the disc tray. Doing so may damage the connected USB device and BD- Live features may not operate properly with the damaged USB device anymore. If the connected USB device seems damaged from such an action, you can format the connected USB device from the PC and reuse it with this player.

Some BD-Live contents may be restrictively accessed in some territories by contents provider’s own decision.

It may take up to several minutes to load and start enjoying BD-Live contents.

Playing a file on a network server yui This player can play movie, music and photo les located in a PC or a DLNA server through your home network.

1. Check the network connection and settings

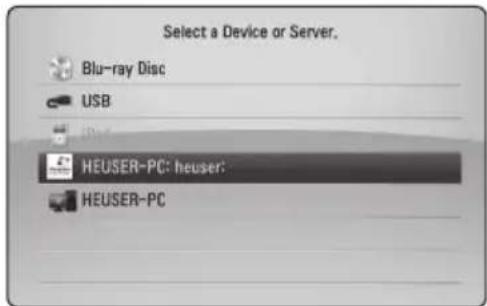

4. Select a DLNA media server or a share folder

on your PC on the list using W/S , and press ENTER (

If you want to rescan available media server, press the green (B) colored button.

The le requirements are described on page

The thumbnail of the unplayable les can be displayed, but those cannot be played on this player.

The subtitle le name and movie le name have to be the same and located at the same folder.

The playback and operating quality may be aected by your home network condition.

You may experience connection problems depending on your server’s environment.

DTCP-IP cannot be supported.

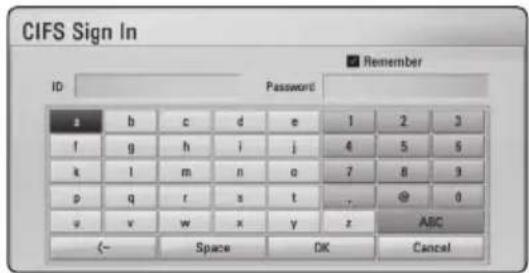

Note Entering a network user ID and the password Depending on your PC’s environment, you may need to enter a network user ID and the password for accessing a shared folder.

1. The keyboard menu appears automatically if the

network user ID and the password are required.

W/S/A/D to select a character then press ENTER (

) to conrm your selection on the virtual keyboard. To enter a letter with an accent mark, press DISPLAY (

) to display the extended character set. [Cancel] – Returns to the previous screen. [Space] – Inserts a space at the cursor position. [<–] – Deletes the previous character at the cursor position. [ABC / abc / #+-=&] – Change the keyboard menu settings to capital letters, small letters or symbols.

3. When you nish entering the network user ID

and password, select [OK] using W/S/A/D and press ENTER (

) to access the folder. The network user ID and password will be remembered after accessing the folder for your convenience. If you do not want the network user ID and password to be remembered, press red (A) colored button to un-tick the [Remember] check box before accessing the folder. HB916-MD0_BUSAPPK_ENG.indd 41 2011-09-23 9:02:48Operating42 Operating

Basic operations for video and audio content To stop playback Press

(STOP) while playback. To pause playback Press

(PAUSE/STEP) while playback. Press

(PLAY) to resume playback. To play frame-by-frame (Video) Press

(PAUSE/STEP) while movie playback. Press

(PAUSE/STEP) repeatedly to play Frame-by- Frame playback. To scan forward or backward Press

to play fast forward or fast reverse during playback. You can change the various playback speeds by pressing

repeatedly. To slow down the playing speed While the playback is paused, press

repeatedly to play various speeds of slow motion. To skip to the next/previous chapter/track/file During playback, press

to go to the next chapter/track/le or to return to the beginning of the current chapter/track/le. Press

twice briey to step back to the previous chapter/track/le. In the le list menu of a server, there may have many types of contents in a folder together. In this case, press

to go to the previous or next content with same type. Basic operations for photo content To play a slide show Press

(PLAY) to start slide show. To stop a slide show Press

(PAUSE/STEP) while slide show. Press

(PLAY) to re-start the slide show. To skip to the next/previous photo While viewing a photo in full screen, press

to go to the previous or next photo. Using the disc menu ero To display the disc menu The menu screen may be displayed rst after loading a disc which contains a menu. If you want to display the disc menu while playback, press MENU. Use W/S/A/D buttons to navigate through menu items. To display the Pop-up menu Some BD-ROM discs contain Pop-up menu that appears while playback. Press POPUP/TOP MENU while playback, and use W/S/A/D buttons to navigate through menu items. HB916-MD0_BUSAPPK_ENG.indd 42 2011-09-23 9:02:48Operating 43 Operating

Resume playback eroyt

The unit records the point where you pressed the

(Resume Stop)” appears on the screen briey, press

(PLAY) to resume playback (from the scene point). If you press

(Complete Stop)” appears on the screen. The unit will clear the stopped point.

The resume point may be cleared when a button is pressed (for example;

On BD-ROM discs with BD-J, the resume playback function does not work.

(STOP) once during BD-ROM interactive title playback, the unit will be in Complete Stop mode .

Advanced Playback Repeat Playback erotu During playback, press REPEAT ( ) repeatedly to select a desired repeat mode. Blu-ray Disc/DVDs A- – Selected portion will be repeated continually. Chapter – The current chapter will be played back repeatedly. Title – The current title will be played back repeatedly.To return to normal playback, press REPEAT (

repeatedly to select [O].Audio CDs/Music les Track– The current track or le will be played back repeatedly. All – All the tracks or les will be played back repeatedly. – The tracks or les will be played back in random order. All – All the tracks or les will be played back repeatedly in random order. A-B – Selected portion will be repeated continually. (Audio CD only)To return to normal playback, press CLEAR.

If you press once during Repeat Chapter/Track playback, the repeat playback cancels.

This function may not work on some disc or title.

Note Repeating a specific portion erot This player can repeat a portion you have selected.1. While playback, press REPEAT ( ) to select [A-] at the beginning of the portion you wish to repeat.2. Press ENTER ( ) at the end of the portion. Your selected portion will be repeated continually. 3. To return to normal playback, press REPEAT

) repeatedly to select [O].

You cannot select a portion less than 3 seconds.

This function may not work on some disc or title.

Note Enlarge the playback image eroyi 1. During playback or pause mode, press ZOOM to display the [Zoom] menu.2. Use red (A) or green (B) colored button to zoom out or in the picture. You can move through the zoomed picture using W/S/A/D buttons.3. To return to the normal picture size, press yellow (C) colored button.4. Press RETURN ( ) to exit the [Zoom] menu. HB916-MD0_BUSAPPK_ENG.indd 44 2011-09-23 9:02:48Operating 45 Operating

Marker Search eroy You can start playback from up to nine memorized points. To enter a marker

1. While playback, press MARKER at the desired

point. The Marker icon appears on the TV screen briey.

2. Repeat step 1 to add up to nine markers.

To recall a marked scene

1. Press SEARCH and the search menu appears on

number that you want to recall. Playback starts from the marked scene. To delete a Marker

1. Press SEARCH and the search menu appears on

to highlight a marker number. Use A/D to select a marked scene that you want to delete.

3. Press CLEAR and the marked scene is erased

This function may not work depending on discs, titles, server ability.

All marked points are cleared if the title is in complete stop (

) mode, the title is changed or if you unload the disc.

If the total length of the title is less than 10 seconds, this function is not available.

Note Using the search menu eroy Using search menu, you can easily to nd the point where you want to start playback. To search a point

1. During playback, press SEARCH to display the

A/D to skip the playback 15 seconds forward or backward. You can select a point that you want to skip by pressing and holding A/D button. To start playback from a marked scene

1. Press SEARCH and the search menu appears on

to highlight a marker number. Use A/D to select a marked scene that you want to start playback.

) to start playback from the marked scene.

This function may not work depending on discs, titles, server ability.

This function may not work depending on the le type and ability of the media server.

Operating Selecting a subtitle file

If the subtitle le name is dierent from the movie le name, you need to select the subtitle le on the [Movie] menu before playing the movie.

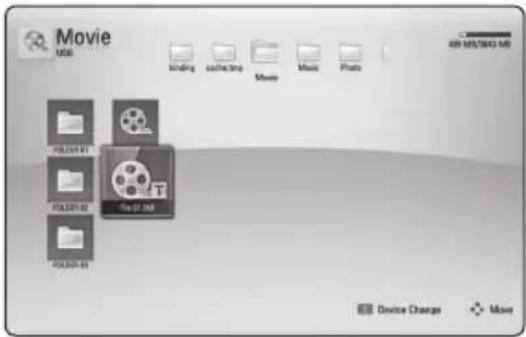

W/S/A/D to select the subtitle le you wish to play in the [Movie] menu.

) again to deselect the subtitle le. Selected subtitle le will be displayed when you play the movie le.

(STOP) while playback, the subtitle selection is cancelled.

This function is not available for playing le on a server via home network.

This unit memorizes the last scene from the last disc that is viewed. The last scene remains in memory even if you remove the disc from the unit or switch o the unit. If you load a disc that has the scene memorized, the scene is automatically recalled.

Last Scene Memory function for a previous disc is erased once a dierent disc is played.

This function may not work depending on the disc.

On BD-ROM discs with BD-J, the last scene memory function does not work.

This unit does not memorize settings of a disc if you switch o the unit before commencing to play it.

Options while viewing a photo

You can use various options during viewing a photo in full screen.

1. While viewing a photo in full screen, press

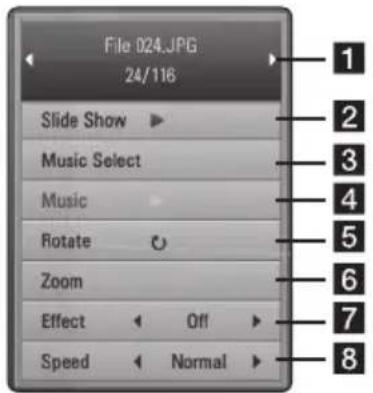

a Current photo/Total number of photos – Use A/D to view previous/next photo. b Slide Show – Press ENTER (

) to start or pause slide show. c Music Select – Select the background music for the slide show (page 47). d Music –Press ENTER (

) to start or pause background music. e Rotate – Press ENTER (

) to rotate the photo clockwise. f Zoom – Press ENTER (

) to display the [Zoom] menu. g Eect – Use A/D to select a transition eect between photos in a slide show. h Speed – Use A/D to select a delaying speed between photos in a slide show.

1. While viewing a photo in full screen, press

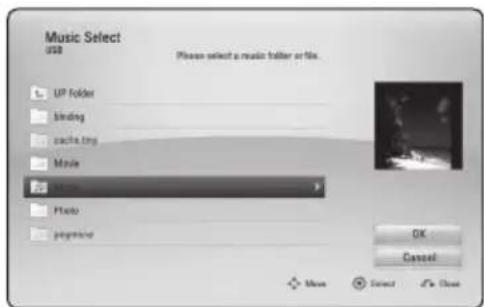

Device that you can select are dier depending on the location of the photo le you are displaying in full screen. Photo location Available Device Disc, USB Disc, USB Share Folder (PC) Share Folder (PC) DLNA server DLNA server

W/S to select a le or a folder you wish to play. Select

) to display the upper directory. When selecting music le from a server, folder selection is not available. Only le selection is available.

to select [OK], and press ENTER (

) to complete music selection. HB916-MD0_BUSAPPK_ENG.indd 47 2011-09-23 9:02:49Operating48Operating

On-Screen display You can display and adjust various information and settings about the content. Displaying content information on-screen eroy

1. While playback, press DISPLAY (

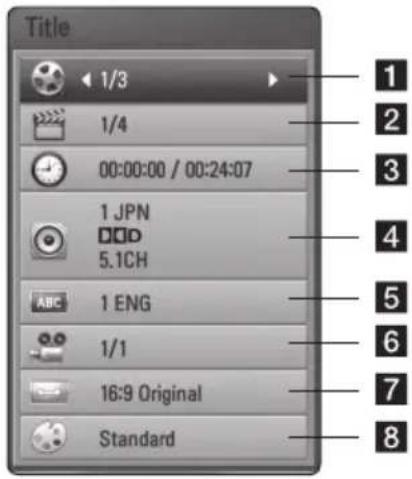

) to show various playback information.a Title – current title number/total number of titlesb Chapter – current chapter number/total number of chaptersc Time – elapsed playing time/total playback time d Audio – selected audio language or channele Subtitle – selected subtitle.f Angle – selected angle/total number of anglesg TV Aspect Ratio – selected TV aspect Ratioh Picture Mode – selected picture mode2. Select an option using W/S

A/D to adjust the selected option value.4. Press RETURN ( ) to exit the On-Screen display.

If no button is pressed for a few seconds, the on-screen display disappears.

A title number cannot be selected on some discs.

Available items may dier depending on discs or titles.

If an interactive Blu-ray Disc is playing back, some setting information is displayed on the screen but prohibited to be changed.

Playing from selected time eroy

) during playback. The time search box shows the elapsed playing time.

2. Select the [Time] option and then input the

required start time in hours, minutes, and seconds from left to right. For example, to nd a scene at 2 hours, 10 minutes, and 20 seconds, enter “21020”. Press A/D to skip the playback 60 seconds forward or backward.

) to start playback from selected time.

This function may not work on some disc or titles.

This function may not work depending on the le type and ability of the DLNA server.

1. During playback, press DISPLAY (

W/S to select the [Audio] option.

A/D to select desired audio language, audio track or audio channel.

Some discs allow you to change audio selections only via the disc menu. In this case, press POPUP/TOP MENU or MENU button and choose the appropriate audio from the selections on the disc menu.

Immediately after you have switched sound, there may be a temporary discrepancy between the display and actual sound.

On BD-ROM disc, the multi audio format (5.1CH or 7.1CH) is displayed with [MultiCH] in the on-screen display.

Note Selecting a subtitle language eroy

1. During playback, press DISPLAY (

W/S to select the [Subtitle] option.

A/D to select desired subtitle language.

) to exit the On-Screen display. Some discs allow you to change subtitle selections only via the disc menu. If this is the case, press POPUP/TOP MENU or MENU button and choose the appropriate subtitle from the selections on the disc menu.

Note Watching from a different angle

If the disc contains scenes recorded at dierent camera angles, you can change to a dierent camera angle during playback.

1. During playback, press DISPLAY (

W/S to select the [Angle] option.

A/D to select desired angle.

Changing the TV Aspect Ratio eroy You can change the TV aspect ratio setting while playback.

1. During playback, press DISPLAY (

W/S to select the [TV Aspect Ratio] option.

A/D to select desired option.

) to exit the On-Screen display. Even if you change the value of the [TV Aspect Ratio] option in On-Screen display, the [TV Aspect Ratio] option in the [Setup] menu is not changed.

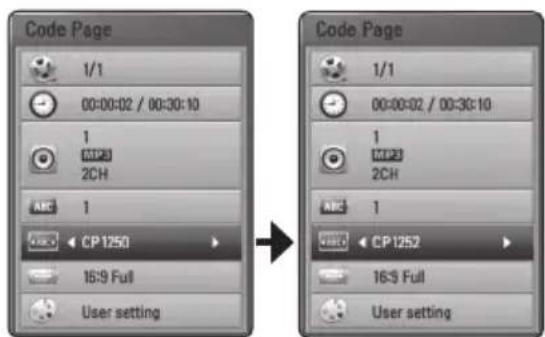

If the subtitle is displayed in broken letter, you can change the subtitle code page to view the subtitle le properly.

1. During playback, press DISPLAY (

W/S to select the [Code Page] option.

A/D to select desired code option.

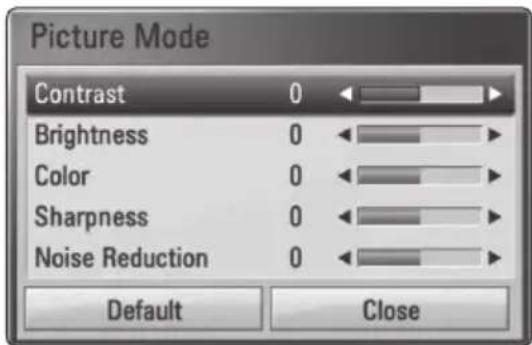

) to exit the On-Screen display. Changing the Picture Mode eroy You can change the [Picture mode] option while playback.

1. During playback, press DISPLAY (

W/S to select the [Picture Mode] option.

A/D to select desired option.

) to exit the On-Screen display. Setting the [User] option

1. During playback, press DISPLAY (

W/S to select the [Picture Mode] option.

A/D to select the [User setting] option, and press ENTER (

) to reset the all video adjustments.

W/S/A/D to select the [Close] option, and press ENTER (

) to nish setting. HB916-MD0_BUSAPPK_ENG.indd 50 2011-09-23 9:02:49Operating 51 Operating

Audio CD Recording You can record one desired track or all of the tracks in Audio CD to a USB storage device.

1. Insert a USB storage device to the USB port on

(OPEN/CLOSE), and place an Audio CD on the disc tray. Press

(OPEN/CLOSE) to close the disc tray. The playback starts automatically.

USB REC button on the remote control. You can record all musics in the audio CD.

W/S to select [CD Recording] option, and press ENTER (

W/S to select a track you wish to copy on the menu, and press ENTER (

Repeat this step to select tracks as many as you can. Selects all the tracks on an Audio CD. Selects an encoding option from the pop-up menu (128 kbps, 192 kbps, 320 kbps or Lossless). Cancels the recording and returns to the previous screen.

W/S/A/D to select a destination folder to be copied. If you want to create a new folder, use W/S/A/D to select [New Folder] and press ENTER (

) while [OK] is selected.

W/S/A/D to select [OK], and press ENTER (

) to start Audio CD recording. If you want to stop in progressing Audio CD recording, press ENTER (

) while [Cancel] is highlighted.

9. A message appears when Audio CD recording is

completed. Press ENTER (

) to check the audio le created in the destination folder.

The table below shows the average recording time from an music track with 4 minutes of playback time to a audio le with 192 kbps as an example. stop mode while playback

Recording times in the table above are approximate.

Actual recording time for USB storage device varies depending on the USB storage device’s ability.

Make sure that there is minimum of 50 MB free space is needed when recording into the USB storage device.

The length of the audio should be longer than 20 seconds for the proper recording.

Do not turn o this player or extract the connected USB storage device during Audio CD recording.

Note The making of unauthorized copies of copy-protected material, including computer programmes, les, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal oense. This equipment should not be used for such purposes. Be responsible Respect copyrights

Playing the iPod You can enjoy the sound with your iPod. For details about iPod, refer to the iPod’s User Guide. Preparation

To view iPod’s Videos and Photos on the TV screen.

Be sure to use the video connection through the VIDEO OUT jack on the rear panel of this unit. Select the appropriate video input mode on the TV.

Depending on the iPod, make sure that select Videos > Video settings, and then set TV Out to Ask or On from your iPod. For details about Video Settings, refer to the iPod User Guide.

The viewing photos is available only if this unit is in iPod IN mode and you can view photos only as a slide show. You have to start a slide show on your iPod to view a photo on a TV. For details about a slide show, refer to the iPod User Guide.

Before connecting the iPod, turn this unit o and reduce the volume of this unit to its minimum.

1. Connect the cradle so that the mark

downwards. Put your iPod on it. Connect the iPod rmly. If you turn this unit on, your iPod is automatically turned on and recharging starts.

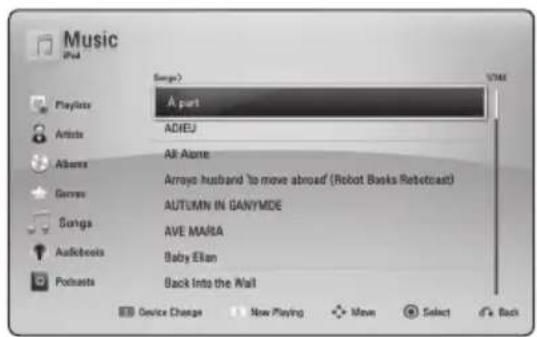

) to play the le. Enjoying iPod on the screen

1. Connect the iPod rmly.

) to play. HB916-MD0_BUSAPPK_ENG.indd 52 2011-09-23 9:02:50Operating 53 Operating

Enjoying the iPod IN mode You can operate your iPod by using the supplied remote control and controls on your iPod.

1. Connect the cradle so that the mark

downwards. Put your iPod on it. Connect the iPod rmly. If you turn this unit on, your iPod is automatically turned on and recharging starts.

To pause while it is playing. To resume playing, press

Fast-forward or rewind a song or video

Skip the playback forward or backward . REPEAT To select a desired repeat mode: Track (

), O (No display). This system is compatible with the audio and video of the iPod (4th generation), iPod nano, iPod classic, iPod mini, iPod touch and iPhone (iPod shue is not supported.).

An error message “CHECK IPOD” or “Connected iPod model is not supported.” appears when:

your iPod is not available for the function to be operated.

the communication between this unit and your iPod is failed.

Undock & re-dock your iPod in this unit.

your iPod is not connected rmly.

this unit recognises your iPod as unknown device.

your iPod is exceptionally low on power.

The battery needs to be charged.

If you charge the battery while iPod is extremely low in power, it may take longer to charge.

Compatibility with your iPod may vary depending on the type of your iPod.

iPod touch and iPhone have any dierence in operation other than iPod. You may need any additional control to use them with this unit. (e.g. “slide to unlock”)

If you use an application, make a call, or send and receive SMS text message, etc. on iPod touch or iPhone, disconnect it from iPod dock of this unit and then use it.

This unit has been developed and tested for the software version of iPod/iPhone indicated on the website of Pioneer.

Installing software versions other than indicated on the website of Pioneer to your iPod/iPhone may result in incompatibility with this unit.

The video quality depends on the video sources on your iPod.

If you have a problem with your iPod, please visit www.apple.com/support/iPod.

Radio Operations Be sure that the antennas are connected. (Refer to the page 23) Listening to the radio

1. Press INPUT/TUNER until TUNER (FM) appears in

the display window. The last received station is tuned in.

2. Press and hold TUNE (-/+) for about two

seconds until the frequency indication starts to change. Scanning stops when the unit tunes in a station. Or Press TUNE (-/+) repeatedly.

3. Adjust the volume by rotating VOLUME on

the front panel or by pressing VOL (+/-) on the remote control. Presetting the Radio Stations You can preset 50 stations for FM. Before tuning, make sure that you have turned down the volume.

1. Press INPUT/TUNER until the TUNER (FM)

appears in the display window.

2. Select the desired frequency by using TUNE

) a preset number will ash in the display window.

W/S ) to select the preset number you want.

). The station is stored.

6. Repeat the steps 2 to 5 to store other stations.

Deleting a saved station

W/S ) to select a preset number you want to delete.

2. Press CLEAR, the preset number will blink in the

3. Press CLEAR again, to delete the selected preset

number. Deleting all the saved stations Press and hold CLEAR for two seconds. “ERASE ALL” will ash up. Press CLEAR again. Then all the saved stations are deleted. Improving poor FM reception Press blue (D) (ST/MONO) colored button on the remote control. This will change the tuner from stereo to mono and usually improve the reception. HB916-MD0_BUSAPPK_ENG.indd 54 2011-09-23 9:02:50Operating 55 Operating

Using the Online You can use various content services via Internet with the Online feature.

1. Check the network connection and settings

Detailed information of each service, contact to the content provider or visit support link of the service.

The content of Online services and service related information, including user interface, is subject to changes. Please refer to the web site of each service for most up-to-date information.

Using Online features with wireless network connection may result in improper streaming speed by interference from household devices that are using radio frequencies.

Please note that the related privacy policy will be applied to your privacy and legal rights of you when you provide the online services with user names, passwords, or other login information or personal information and when Pioneer stores them. Please refer to Pioneer Privacy Policy on the WEB site.

Troubleshooting General Symptom Cause & Solution The Power does not turned on.

Plug the power cord into the wall outlet securely. The unit does not start playback.

Place the disc with the playback side down.

Place the disc on the disc tray correctly inside the guide.

Cancel the Rating function or change the rating level. The angle cannot be changed.

Multi-angles are not recorded on the DVD Video being played. Cannot play movie, photo or music les.

The les are not recorded in a format that the unit can play.

The unit does not support the codec of the movie le. The remote control does not work properly.

The remote control is not pointed at the remote sensor of the unit.

The remote control is too far from the unit.

There is an obstacle in the path of the remote control and the unit.

The batteries in the remote control are exhausted. The unit is plugged in, but the power will not turn on or o. You can reset the unit as follows.

1. Press and hold the STANDBY/ON button for at least ve seconds. This

will force the unit to power o then turn the unit back on.

2. Unplug the power cord, wait at least ve seconds, and then plug it in

again. The unit is not operating normally. HB916-MD0_BUSAPPK_ENG.indd 56 2011-09-23 9:02:50Troubleshooting 57 Troubleshooting

Network Symptom Cause & Solution BD-LIVE feature does not work.

The connected USB storage may not have enough space. Connect the USB storage with at least 1GB free space.

Ensure that the unit is correctly connected to the local area network and can access the internet (see page 26-30).

Your broadband speed may not fast enough to use the BD-LIVE features. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended.

The [BD-LIVE connection] option in the [Setup] menu is set to [Prohibited]. Set the option to [Permitted]. Streaming video services (such as YouTube™, etc.) are often stopped or “buer” during playback.

Your broadband service speed may not be fast enough to stream video services. Contact your Internet Service Provider (ISP) and increase the broadband speed is recommended. Shared folder or les from your PC or a media server are not displayed on the device list.

The rewall or anti-virus software on your media server is running. Turn o the rewall or anti-virus software running on your PC or media server.

The player is not connected to the local area network that your PC or the media server are connected. Cannot connect the player to the access point or wireless LAN router.

The wireless communication may be interrupted from household devices that are using radio frequencies. Move the player away from them. Access point is not displayed on the “Access point name” list.

The access point or wireless LAN router may not broadcast its SSID. Set your access point to broadcast its SSID through your computer.

Your network device such as access point may not set with available frequency range and channel that this player can support. Try setting the frequency range and channel on the network device setting. HB916-MD0_BUSAPPK_ENG.indd 57 2011-09-23 9:02:50Troubleshooting58 Troubleshooting

Picture Symptom Cause & Solution There is no picture.

Select the appropriate video input mode on the TV so the picture from the unit appears on the TV screen.

Connect the video connection securely.

Check the [HDMI Color Setting] in the [Setup] menu is set to the appropriate item that conforms to your video connection.

Your TV may not support the resolution you have set on the player. Change the resolution that your TV accepts.

The player’s HDMI OUT jack is connected to a DVI device that does not support copyright protection. Picture noise appears

You are playing a disc recorded in a color system that is dierent from your TV.

Set the resolution which your TV accepts. Blu-ray 3D disc playback does not output 3D views.

Connect the player to your TV with HDMI cable (Type A, High Speed HDMI™ Cable with Ethernet).

Your TV may not support “HDMI 3D mandatory format”.

The [3D Mode] option in the [Setup] menu is set to [O ]. Set the option to [On]. Sound Symptom Cause & Solution There is no sound or the sound is distorted.

The unit is in scan, slow motion, or pause mode.

The sound volume is low.

Check the speaker cable connection. (page 16) Updates Note that information on this product is available on the Pioneer website. Please check the website for information on updating or servicing this player. HB916-MD0_BUSAPPK_ENG.indd 58 2011-09-23 9:02:516 Appendix Appendix 59Appendix

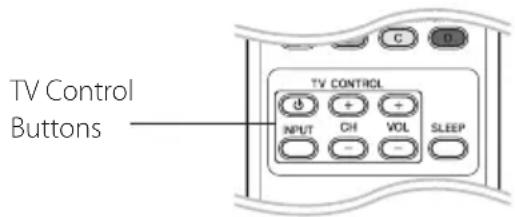

Controlling a TV with the Supplied Remote Control You can control your TV using the buttons below.TV Control ButtonsBy pressing You can (TV POWER) Turn the TV on or o.INPUTSwitch the TV’s input source between the TV and other input sources.CH +/–Scan up or down through memorized channels.VOL +/–Adjust the volume of the TV. Depending on the unit being connected, you may not be able to control your TV using some of the buttons.

Note Setting up the remote to control your TV You can operate your TV with the supplied remote control. If your TV is listed in the table below, set the appropriate manufacturer code.1. While holding down (TV POWER) button, and press the manufacturer code for your TV with the numerical buttons (see the table below). Manufacturer Code NumberPioneer 1 (Default)Sony 2, 3Panasonic 4, 5Samsung 6, 7LG 8, 92. Release the (TV POWER) button to complete setting.Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code. When you replace the batteries of the remote, the code number yo have set may be reset to the default setting. Set the appropriate code number again. HB916-MD0_BUSAPPK_ENG.indd 59 2011-09-23 9:02:51Appendix60 Appendix

Trademarks and Licenses Blu-ray Disc™, Blu-ray™, Blu-ray 3D™, BD-Live™, BONUSVIEW™ and the logos are trademarks of the Blu-ray Disc Association. is a trademark of DVD Format/Logo Licensing Corporation. Oracle and Java are registered trademarks of Oracle and/or its aliates. Other names may be trademarks of their respective owners. HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. DivX®, DivX Certied® and associated logos are trademark of DivX, Inc., and are used under license. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks,& DTS-HD, DTS-HD Master Audio | Essential and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved. DLNA™, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certication marks of the Digital Living Network Alliance. The Wi-Fi CERTIFIED Logo is a certication mark of the Wi-Fi Alliance. The Wi-Fi Protected Setup Mark is a trademark of the Wi-Fi Alliance. “x.v.Color”, and are trademarks of Sony Corporation. “AVCHD” and the “AVCHD” logo are trademarks of Panasonic Corporation and Sony Corporation. HB916-MD0_BUSAPPK_ENG.indd 62 2011-09-23 9:02:52Appendix 63 Appendix

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specically to iPod, or iPhone, respectively, and has been certied by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may aect wireless performance. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. YouTube™ is a trademark of Google Inc. Picasa™ Web Albums is a trademark of Google Inc. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc. HB916-MD0_BUSAPPK_ENG.indd 63 2011-09-23 9:02:53Appendix64 Appendix

Video Output Resolution When the non-copy protected media is playing back Video Out Resolution HDMI OUT

If you select a resolution manually and then connect the HDMI jack to TV and your TV does not accept it, the resolution setting is set to [Auto].

If you select a resolution that your TV does not accept, the warning message will appear. After resolution change, if you cannot see the screen, please wait 20 seconds and the resolution will automatically revert back to the previous resolution.

The 1080p video output frame rate may be automatically set to either 24 Hz or 60 Hz depending both on the capability and preference of the connected TV and based on the native video frame rate of the content on the BD-ROM disc.

Connection Blu-ray Disc, DVD video stream could prevent up- scaling on analog output. VIDEO OUT connection The resolution of the VIDEO OUT jack is always outputted at 480i resolution. HB916-MD0_BUSAPPK_ENG.indd 64 2011-09-23 9:02:53Appendix 65 Appendix

Specifications General Power requirements AC 120 V, 60 Hz Power consumption 150 W (In Standby mode: Less than 0.3 W) Dimensions (W x H x D) Approx. 430 x 64 x 304 mm (17 x 2.5 x 12 inches) Net Weight (Approx.) 3.4 kg (7.5 lbs) Operating temperature 5 °C to 35 °C (41 °F to 95 °F) Operating humidity 5 % to 85 % Inputs/Outputs VIDEO OUT 1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1

System Laser Semiconductor laser Wavelength 405 nm / 650 nm Signal system Standard NTSC color TV system Frequency response 20 Hz to 18 kHz (48 kHz, 96 kHz, 192 kHz sampling) Harmonic distortion Less than 0.05 % Dynamic range More than 80 dB LAN port Ethernet jack x 1, 10BASE-T / 100BASE-TX Wireless LAN (internal antenna) Integrated IEEE 802.11n (5 GHz and 2.4 GHz bands) wireless networking access, compatible with 802.11a/b/g Wi-Fi networks. Bus Power Supply (USB) DC 5 V

Front/Surround speaker (Left/ Right) Type 2 Way Net Dimensions (W x H x D) 260 x 1097 x 260 mm (10.2 x 43.2 x 10.2 inches) Impedance Rated 4 Ω Net Weight 3.8 kg (8.4 lbs)

Center speaker Type 1 Way Net Dimensions (W x H x D) 300 x 87 x 65 mm (11.8 x 3.4 x 2.6 inches) Impedance Rated 4 Ω Net Weight 0.6 kg (1.3 lbs) S-BD50SW

(5.1 x 16.5 x 14.8 inches) Impedance Rated 3 Ω Net Weight 4.4 kg (9.7 lbs)

Design and specications are subject to change without notice. HB916-MD0_BUSAPPK_ENG.indd 66 2011-09-23 9:02:53Appendix 67 Appendix

Maintenance Handling the Unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean

Do not use volatile liquids such as insecticide spray near the unit.

Wiping with strong pressure may damage the surface.

Do not leave rubber or plastic products in contact with the unit for a long period of time. Cleaning the unit To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit. Maintaining the Unit The unit is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty or worn, the picture quality could be diminished. For details, please contact your nearest authorized service center. Notes on Discs Handling Discs Do not touch the playback side of the disc. Hold the disc by the edges so that ngerprints do not get on the surface. Never stick paper or tape on the disc. Storing Discs After playing, store the disc in its case. Do not expose the disc to direct sunlight or sources of heat and never leave it in a parked car exposed to direct sunlight. Cleaning Discs Fingerprints and dust on the disc can cause poor picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from the center to out. Do not use strong solvents such as alcohol, benzine, thinner, commercially available cleaners, or anti-static spray intended for older vinyl records. HB916-MD0_BUSAPPK_ENG.indd 67 2011-09-23 9:02:53Appendix68 Appendix

Important Information Relating to Network Services All information, data, documents, communications, downloads, les, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content (“Content”) and all services and oerings (“Services”) provided or made available by or through any third party (each a “Service Provider”) is the sole responsibility of the Service Provider from whom it originated. The availability of and access to Content and Services furnished by the Service Provider through the PIONEER Device are subject to change at any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part of the Content or Services. Should you have any inquiry or problem related to the Content or Services, you may refer to the Service Provider’s website for the most up-to-date information. PIONEER is neither responsible nor liable for customer service related to the Content and Services. Any question or request for service relating to the Content or Services should be made directly to the respective Content and Service Providers. Please note that PIONEER is not responsible for any Content or Services provided by the Service Provider or any changes to, removal of, or cessation of such Content or Services and does not warrant or guaranty the availability of or access to such Content or Services. Software License Notice The licenses for the open source software used on this player can be found at the end of this document. HB916-MD0_BUSAPPK_ENG.indd 68 2011-09-23 9:02:53HB916-MD0_BUSAPPK_ENG.indd 69 2011-09-23 9:02:531 Pour vous aider à démarrer Pour vous aider à démarrer2 Pour vous aider à démarrer

STANDBY/ON OPEN/CLOSE FUNCTION

STANDBY/ON OPEN/CLOSE FUNCTION

OUTPUT (PROGRESSIVE SCAN)

LOI APPLICABLE OU UNE CONVENTION

DOMMAGES, INCLUANT LES DOMMAGES

DOMMAGES, INCLUANT LES DOMMAGES

expat : Copyright © 2006 Expat maintainers

Copyright © 2000 Keith Packard

Copyright © 2005 Keith Packard

Copyright 1987, 1988, 1989 Digital Equipment Corporation

Copyright 2000 SuSE, Inc.

portmap : Copyright © 1990 The Regents of the University of California.

SANS AUCUNE GARANTIE (EXPRESSE OU

Nota AVCHD (Advanced Video Codec High Definition)

STANDBY/ON OPEN/CLOSE FUNCTION

STANDBY/ON OPEN/CLOSE FUNCTION

OUTPUT (PROGRESSIVE SCAN)

(Resume Stop)”, pulse

The following GPL executables and LGPL libraries used in this product are subject to the GPL2.0/LGPL2.1 License Agreements: GPL EXECUTABLES:

Linux kernel 2.6 Copyright © 1991 Linux Torvalds. Licensed under GPLv2

BusyBox 1.2.1 Copyright 1998-2007 Erik Andersen,Rob Landley,Denis Vlasenko and others. Licensed under GPLv2

bash Copyright 2000 Free Software Foundation, Inc. Licensed under GPLv2

dhcpcd Copyright © 2006-2009 Roy Marples. Licensed under GPLv2

e2fsprogs Copyright 1995-2001 by Theodore Ts'o. Licensed under GPLv2

dsk Copyright © 1992 A. V. Le Blanc. Licensed under GPLv2

msdl-1.1 Copyright © 2007-2008 metro Licensed under GPLv2

mtd-utils Licensed under GPLv2

net-tools Copyright 1993 MicroWalt Corporation. Licensed under GPLv2

procps Licensed under GPLv2

tftpd Copyright © 1983 Regents of the University of California. Licensed under GPLv2

FFmpeg Copyright © 2000-2007 Fabrice Bellard, et al. Licensed under GPLv2

TinyLogin Copyright © 1999 by Lineo, inc. Licensed under GPLv2 LGPL LIBRARIES:

avahi Copyright © 2004-2009 by the Avahi developers. Licensed under LGPLv2.1

ATK Copyright © The GNOME Project. Licensed under LGPLv2.1

uClibc Copyright © Erik Andersen. Licensed under LGPLv2.1

DirectFB Copyright © 2001-2007 The DirectFB Organization Copyright © 2000-2004 Convergence (integrated media) GmbH. Licensed under LGPLv2.1

cairo Licensed under LGPLv2.1 and MPL1.1

gail Copyright 2001-2004 Sun Microsystems Inc. Licensed under LGPLv2.1

glib Copyright © 2005-2011 The GNOME Project Licensed under LGPLv2.1

gnuTLS Copyright © Free Software Foundation, Inc. Licensed under LGPLv2.1

GTK+ Copyright 2007-2011 The GTK+ Team. Licensed under LGPLv2.1

iconv Copyright © Free Software Foundation, Inc. Licensed under LGPLv2.1

libgcrypt Copyright © 2000-2011 Free Software Foundation, Inc. Licensed under LGPLv2.1

libdaemon Copyright 2003-2009 Lennart Poettering. Licensed under LGPLv2.1

libsoup Copyright © 2005-2011 The GNOME Project Licensed under LGPLv2.1

libintl Copyright © Erik Andersen and Manuel Novoa III. Licensed under LGPLv2.1

mpg123 Copyright © Michael Hipp. Licensed under LGPLv2.1

pango Copyright © 1999 Red Hat Software. Licensed under LGPLv2.1

libenchat(PyEnchant) Copyright © Dom Lachowicz. Licensed under LGPLv2.1

WebCore Copyright © 2003 Apple Computer, Inc. Licensed under LGPLv2.1

JavaScriptCore Copyright © 1999-2000 Harri Porten,Copyright © 2006, 2007 Apple Inc. Copyright © 2009 Google Inc. Licensed under LGPLv2.1 You can get corresponding open source code from the following URL. http://www.oss-pioneer.com/homeav/hts/ We are unable to answer any question about the source code for the open source software. GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright © 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things. To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it. For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights. We protect your rights with two steps: (1) copyright the software, and (2) oer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is Software License Notice Les licences du logiciel ouvert utilisé pour le lecteur utilisé dans ce lecteur sont les suivantes. Les textes originaux (en anglais) sont inclus ici pour des raisons de précision. Las licencias para el software de fuente abierta usado en este reproductor se muestran más abajo. Con la nalidad de ofrecer mayor exactitud, aquí ofrecemos el texto original (en ingles). HB916-MD0_BUSAPPK_SPA.indd 69 2011-09-23 9:05:45Apéndice70 Apéndice

modied by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reect on the original authors' reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in eect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all. The precise terms and conditions for copying, distribution and modication follow.

TERMS AND CONDITIONS FOR

0. This License applies to any program

or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modication".) Each licensee is addressed as "you". Activities other than copying, distribution and modication are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim

copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option oer warranty protection in exchange for a fee.

2. You may modify your copy or copies

of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modied les to carry prominent notices stating that you changed the les and the date of any change. b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License. c) If the modied program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modied work as a whole. If identiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the

Program (or a work based on it, under

Section 2) in object code or executable

form under the terms of Sections 1 and 2 above provided that you also do one of the following: a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, b) Accompany it with a written oer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, c) Accompany it with the information you received as to the oer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an oer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface denition les, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by oering access to copy from a designated place, then oering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense,

or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this

License, since you have not signed HB916-MD0_BUSAPPK_SPA.indd 70 2011-09-23 9:05:45Apéndice 71 Apéndice

it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program

(or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court

judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of

the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may

publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may dier in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Program species a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of

the Program into other free programs whose distribution conditions are dierent, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

APPLICABLE LAW. EXCEPT WHEN

IS" WITHOUT WARRANTY OF ANY

KIND, EITHER EXPRESSED OR IMPLIED,

INCLUDING, BUT NOT LIMITED

APPLICABLE LAW OR AGREED TO

IN WRITING WILL ANY COPYRIGHT

HOLDER, OR ANY OTHER PARTY WHO

(INCLUDING BUT NOT LIMITED TO LOSS

YOU OR THIRD PARTIES OR A FAILURE

CONDITIONS How to Apply These Terms to Your New Programs If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms. To do so, attach the following notices to the program. It is safest to attach them to the start of each source le to most eectively convey the exclusion of warranty; and each le should have at least the "copyright" line and a pointer to where the full notice is found. <one line to give the program's name and an idea of what it does.> Copyright © <year> <name of author> This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA. Also add information on how to contact you by electronic and paper mail. If the program is interactive, make it output a short notice like this when it starts in an interactive mode: HB916-MD0_BUSAPPK_SPA.indd 71 2011-09-23 9:05:45Apéndice72 Apéndice

Gnomovision version 69, Copyright © year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w'. This is free software, and you are welcome to redistribute it under certain conditions; type `show c' for details. The hypothetical commands `show w' and `show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than `show w' and `show c'; they could even be mouse-clicks or menu items--whatever suits your program. You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the program `Gnomovision' (which makes passes at compilers) written by James Hacker. <signature of Ty Coon>, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License. GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999 Copyright © 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the rst released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.] Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This license, the Lesser General Public License, applies to some specially designated software packages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you rst think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below. When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things. To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it. For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object les to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights. We protect your rights with a two-step method: (1) we copyright the library, and (2) we oer you this license, which gives you legal permission to copy, distribute and/or modify the library. To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modied by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be aected by problems that might be introduced by others. Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot eectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specied in this license. Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite dierent from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs. When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination ts its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library. We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non- free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances. For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License. In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU/Linux operating system. Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modied version of the Library. The precise terms and conditions for copying, distribution and modication follow. Pay close attention to the dierence between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

TERMS AND CONDITIONS FOR

0. This License Agreement applies to

any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you". A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables. The "Library", below, refers to any such HB916-MD0_BUSAPPK_SPA.indd 72 2011-09-23 9:05:45Apéndice 73 Apéndice

software library or work which has been distributed under these terms. A "work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modication".) "Source code" for a work means the preferred form of the work for making modications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface denition les, plus the scripts used to control compilation and installation of the library. Activities other than copying, distribution and modication are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim

copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library. You may charge a fee for the physical act of transferring a copy, and you may at your option oer warranty protection in exchange for a fee.

2. You may modify your copy or copies

of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) The modied work must itself be a software library. b) You must cause the les modied to carry prominent notices stating that you changed the les and the date of any change. c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License. d) If a facility in the modied Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith eort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-dened independent of the application. Therefore, Subsection 2d requires that any application- supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.) These requirements apply to the modied work as a whole. If identiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library. In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may opt to apply the terms of the

ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices. Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy. This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

4. You may copy and distribute the

Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine- readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange. If distribution of object code is made by oering access to copy from a designated place, then oering equivalent access to copy the source code from the same place satises the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

5. A program that contains no derivative

of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License. However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License.

Section 6 states terms for distribution

of such executables. When a "work that uses the Library" uses material from a header le that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially signicant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely dened by law. If such an object le uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object le is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.) Otherwise, if the work is a derivative of the Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under

Section 6, whether or not they are

6. As an exception to the Sections above,

you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modication of the work for the customer's own use and reverse engineering for debugging such modications. You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things: a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modied executable containing the modied Library. (It is understood that the user who changes the contents of denitions les in the Library will not necessarily be able to recompile the application to use the modied denitions.) b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modied version of the library, if the user installs one, as long as the modied version is interface- compatible with the version that the work was made with. c) Accompany the work with a written oer, valid for at least three years, to give the same user the materials specied in Subsection 6a, above, for a charge no more than the cost of performing this distribution. d) If distribution of the work is made by oering access to copy from a designated place, oer equivalent access to copy the above specied materials from the same place. e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy. For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

7. You may place library facilities that are

a work based on the Library side-by- side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things: a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above. b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to nd the accompanying uncombined form of the same work.

8. You may not copy, modify, sublicense,

link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

9. You are not required to accept this

License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

10. Each time you redistribute the Library

(or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

11. If, as a consequence of a court

judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances. It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

13. The Free Software Foundation may

publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may dier in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Library species a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.

14. If you wish to incorporate parts of

the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY

LAW. EXCEPT WHEN OTHERWISE

STATED IN WRITING THE COPYRIGHT

HOLDERS AND/OR OTHER PARTIES

EXPRESSED OR IMPLIED, INCLUDING,

SERVICING, REPAIR OR CORRECTION.

16. IN NO EVENT UNLESS REQUIRED BY

APPLICABLE LAW OR AGREED TO

IN WRITING WILL ANY COPYRIGHT

HOLDER, OR ANY OTHER PARTY WHO

(INCLUDING BUT NOT LIMITED TO LOSS

BY YOU OR THIRD PARTIES OR A

FAILURE OF THE LIBRARY TO OPERATE

WITH ANY OTHER SOFTWARE), EVEN IF

CONDITIONS How to Apply These Terms to Your New Libraries If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License). To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source le to most eectively convey the exclusion of warranty; and each le should have at least the "copyright" line and a pointer to where the full notice is found. <one line to give the library's name and an idea of what it does.> Copyright © <year> <name of author> This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version. This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details. You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Also add information on how to contact you by electronic and paper mail. You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob' (a library for tweaking knobs) written by James Random Hacker. signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice That's all there is to it! gSOAP Public License 1.3 LIBRARY: gsoap This product includes

expat: copyright © 2006 expat maintainers

Copyright © 2000 Keith Packard

Copyright © 2005 Patrick Lam

International Components for Unicode: copyright © 1995-2010 International Business Machines Corporation and others

jpeg : This software is based in part on the work of the Independent JPEG Group copyright © 1991 – 1998, Thomas G. Lane.

cryptographic software written by Eric Young (eay@cryptsoft.com).

software written by Tim Hudson (tjh@cryptsoft.com).

software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org)

Copyright 1987, 1988, 1989 Digital Equipment Corporation

Copyright 2000 SuSE, Inc.

Copyright 2000 Keith Packard, member of The XFree86 Project, Inc.

portmap : copyright © 1990 The Regents of the University of California

Copyright © 1991-1997 Silicon Graphics, Inc.

UnitTest++ : copyright © 2006 Noel Llopis and Charles Nicholson

Copyright © 2001-2002 Thomas Broyer, Charlie Bozeman and Daniel Veillard.

zlib: copyright © 1995-2002 Jean-loup Gailly and Mark Adler. All rights reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation les (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,

EXPRESS OR IMPLIED, INCLUDING BUT

OTHERWISE, ARISING FROM, OUT OF OR

IN CONNECTION WITH THE SOFTWARE

OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. HB916-MD0_BUSAPPK_SPA.indd 76 2011-09-23 9:05:46HB916-MD0_BUSAPPK_SPA.indd 77 2011-09-23 9:05:46LIMITED WARRANTY WARRANTY VALID ONLY IN COUNTRY OF PRODUCT PURCHASE WARRANTY Pioneer Electronics (USA) Inc. (PUSA), and Pioneer Electronics Of Canada, Inc. (POC), warrant that products distributed by PUSA in the U.S.A., and by POC in Canada that fail to function properly under normal use due to a manufacturing defect when installed and operated according to the owner’s manual enclosed with the unit will be repaired or replaced with a unit of comparable value, at the option of PUSA or POC, without charge to you for parts or actual repair work. Parts supplied under this warranty may be new or rebuilt at the option of PUSA or POC. THIS LIMITED WARRANTY APPLIES TO THE ORIGINAL OR ANY SUBSEQUENT OWNER OF THIS PIONEER PRODUCT DURING THE WARRANTY PERIOD PROVIDED THE PRODUCT WAS PURCHASED FROM AN AUTHORIZED PIONEER DISTRIBUTOR/DEALER IN THE U.S.A. OR CANADA. YOU WILL BE REQUIRED TO PROVIDE A SALES RECEIPT OR OTHER VALID PROOF OF PURCHASE SHOWING THE DATE OF ORIGINAL PURCHASE OR, IF RENTED, YOUR RENTAL CONTRACT SHOWING THE PLACE AND DATE OF FIRST RENTAL. IN THE EVENT SERVICE IS REQUIRED, THE PRODUCT MUST BE DELIVERED WITHIN THE WARRANTY PERIOD, TRANSPORTATION PREPAID, ONLY FROM WITHIN THE COUNTRY OF PURCHASE AS EXPLAINED IN THIS DOCUMENT. YOU WILL BE RESPONSIBLE FOR REMOVAL AND INSTALLATION OF THE PRODUCT. PUSA OR POC, AS APPROPRIATE, WILL PAY TO RETURN THE REPAIRED OR REPLACEMENT PRODUCT TO YOU WITHIN THE COUNTRY OF PURCHASE.

PRODUCT WARRANTY PERIOD

Home Audio and Video ......................................................................................................................................................... Microphones, Headphones, Phono Cartridges and Styluses ................................................................................................ Shorter limited warranty periods apply to some models. Please refer to the limited warranty document enclosed with the product for a definitive statement of the warranty period. The warranty period for retail customers who rent the product commences upon the date product is first put into use (a) during the rental period or (b) retail sale, whichever occurs first.

N CANADA - EXCEPT AS EXPRESSLY PROVIDED HEREIN, THERE ARE NO REPRESENTATIONS, WARRANTIES, OBLIGATIONS OR CONDITIONS, IMPLIED, STATUTORY OR OTHERWISE, APPLICABLE TO THIS PRODUCT.

PUSA and POC have appointed a number of Authorized Service Companies throughout the U.S.A. and Canada should your product require service. To receive warranty service you need to present your sales receipt or, if rented, your rental contract showing place and date of original owner’s transaction. If shipping the unit you will need to package it carefully and send it, transportation prepaid by a traceable, insured method, to an Authorized Service Company. Package the product using adequate padding material to prevent damage in transit. The original container is ideal for this purpose. Include your name, address and telephone number where you can be reached during business hours. On all complaints and concerns in the U.S.A. call Customer Support at 1-800-421-1404, or, in Canada, call Customer Satisfaction at 1-877-283-5901. DISPUTE RESOLUTION IN THE U.S.A. - Following our response to any initial request to Customer Support, should a dispute arise between you and Pioneer, Pioneer makes available its Complaint Resolution Program to resolve the dispute. The Complaint Resolution Program is available to you without charge. You are required to use the Complaint Resolution Program before you exercise any rights under, or seek any remedies, created by Title I of the Magnuson-Moss Warranty-Federal Trade Commission Improvement Act, 15 U.S.C. 2301 et seq. To use the Complaint Resolution Program call 1-800-421-1404 and explain to the customer service representative the problem you are experiencing, steps you have taken to have the product repaired during the warranty period and the name of the authorized Distributor/Dealer from whom the Pioneer product was purchased. After the complaint has been explained to the representative, a resolution number will be issued. Within 40 days of receiving your complaint, Pioneer will investigate the dispute and will either: (1) respond to your complaint in writing informing you what action Pioneer will take, and in what time period, to resolve the dispute; or (2) respond to your complaint in writing informing yo u why it will not take any action. IN CANADA - Call the Customer Satisfaction Manager at (905) 946-7446 to discuss your complaint and to obtain a prompt resolution. PIONEER ELECTRONICS (USA) INC. PIONEER ELECTRONICS OF CANADA, INC. IN THE U.S.A. For hook-up and operation of your unit or to locate an Authorized Service Company, please call or write: PIONEER ELECTRONICS SERVICE, INC.

1-800-421-1404 http://www.pioneerelectronics.com IN CANADA For additional information on this warranty, please call or write:
