Product Type	Amplified portable speaker (PA system)
Brand	ION
Model	World Rocker
Power Supply	Mains (via IEC adapter) and rechargeable lead-acid battery
Battery	Rechargeable lead-acid, full charge recommended before first use
Battery Life	Varies by usage, full recharge after each use recommended
Wireless Connectivity	Bluetooth (max range with Bluetooth 4.0)
Audio Inputs	1 mic/instrument input (1/4 in), 1 auxiliary input (1/8 in stereo)
Radio	AM/FM with telescopic antenna
Docking Station	For iPad/iPod touch/iPhone/Android and other devices
USB Charging Port	Yes, for charging a device (speaker on)
Controls	Main volume, mic/instrument volume, radio band selector, tuner, Bluetooth Disconnect button
LED Indicators	Power, Bluetooth pairing, battery charge level (4 LEDs)
Box Contents	Speaker, microphone with cable, 1/8 in - 1/8 in cable, power cable, quick start guide, safety booklet
Care and Cleaning	Avoid moisture and high temperatures; discharge battery to 80% once a month to prolong battery life
Safety	Read safety instructions booklet before use; do not expose to water; use appropriate voltage
Repairability	Contact ION Audio technical service for repairs; battery replaceable by a professional
Warranty	See included warranty booklet

Frequently Asked Questions - World Rocker ION

How do I pair my Bluetooth smartphone with the World Rocker?

Turn on the speaker, it automatically enters pairing mode (white LED). On your smartphone, enable Bluetooth and search for 'ION Audio Speaker'. If a code is requested, enter '0000'. The LED stays on when pairing is successful.

What to do if Bluetooth pairing fails?

Press the Disconnect button on the speaker to reset the Bluetooth module. Make sure your device is Bluetooth 4.0 compatible and its operating system is up to date.

How to recharge the World Rocker battery?

Plug the supplied power cable into the IEC jack on the back and into a mains outlet. The charge indicator lights up during charging. The battery can be charged even if the device is off.

What is the battery life?

Battery life depends on volume and usage. To maximize lifespan, fully recharge the battery after each use and avoid discharging to 0%.

How to use a microphone with the World Rocker?

Plug the microphone into the 1/4 in (mic/instrument) input using the supplied cable. Adjust the mic volume using the dedicated control on the top panel.

What to do if the sound distorts?

Lower the volume of the audio source (MP3 player, instrument) or reduce the speaker's main volume. Also check that bass frequencies are not too high.

How to improve AM/FM radio reception?

For FM, extend the telescopic antenna horizontally. For AM, disable Bluetooth on your paired device and move the speaker to find a better position.

Can I use the World Rocker while it is charging?

Yes, you can use the system while charging it with the power adapter. This does not harm the battery.

How to clean and maintain my speaker?

Clean the exterior with a dry cloth. Avoid moisture and high temperatures. For the battery, discharge to 80% once a month to prolong its life.

Where to get spare parts or repair the device?

For any repairs or spare parts, contact ION Audio technical service via www.ionaudio.com/supporthome. The internal battery must be replaced by a professional.

USER MANUAL World Rocker ION

1. Make sure all items listed on the front of this guide are included in the box.

2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT.

3. MAKE SURE THAT YOU HAVE COMPLETELY CHARGED THE BATTERY PRIOR TO FIRST USE FOR MAXIMUM BATTERY LIFE.

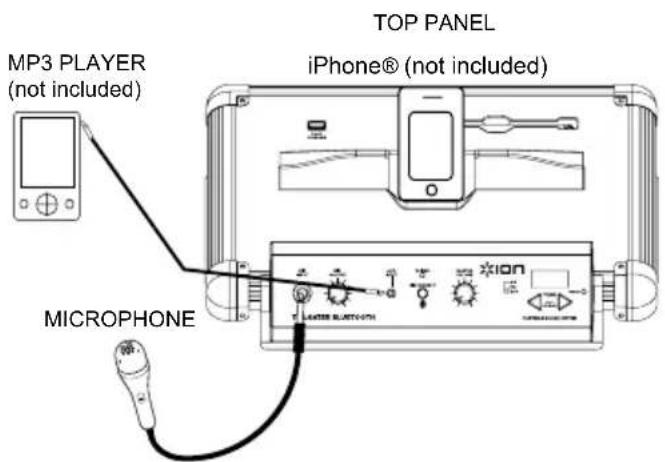

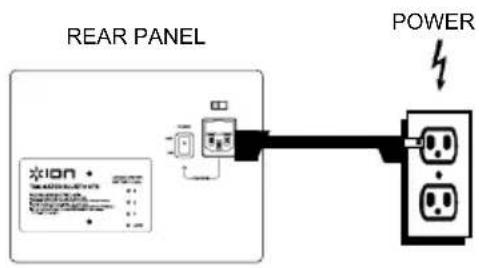

4. Study this setup diagram.

5. Make sure all input devices such as microphones, CD players, or mp3 players are turned off and volume settings are set at "zero."

6. Connect all devices as shown.

7. Switch everything on in the following order:

• audio input sources (i.e. microphones, instruments, CD/MP3 Players)

• TAILGATER BLUETOOTH®

1. When turning off, always reverse this operation:

• TAILGATER BLUETOOTH

- last, any input devices

BOX CONTENTS

- TAILGATER BLUETOOTH

- Microphone with mic cable

- 1/8" to 1/8" cable

■ Power Cable (standard IEC)

- Quickstart Guide

■ Safety Instructions & Warranty Information Booklet

Go to http://www.ionaudio.com for product registration.

RECHARGEABLE BATTERIES

Rechargeable lead-acid batteries are the same type used in automobiles. As with your car battery, how you use this battery has a significant impact on its lifespan. With proper use and treatment, a lead-acid battery can last for years. Here are some recommendations for getting the longest life from the internal battery.

GENERAL USAGE

• FULLY CHARGE THE BATTERY BEFORE USING IT.
- CHARGE THE BATTERY COMPLETELY AFTER EACH USE.
• AVOID COMPLETELY DRAINING THE BATTERY.
- You may leave the unit plugged in for up to two weeks.
- For maximum life, drain the battery 80% once a month.

STORAGE

• Avoid storing in high temperatures and moist places.
• For long-term storage, periodically recharge the battery.
  • If you do not charge the battery for six months, it may not charge.

REPAIR

- As the battery nears the end of its life, it may lose its ability to recharge. If this occurs, contact ION Audio technical support at www.ionaudio.com/supporthome.

DISPOSAL

- Bring the unit to a recycling center or dispose of in accordance with local ordinances.

iPad is a trademark of Apple Inc., registered in the U.S. and other countries.

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ION Audio is under license. Other trademarks and trade names are those of their respective owners.

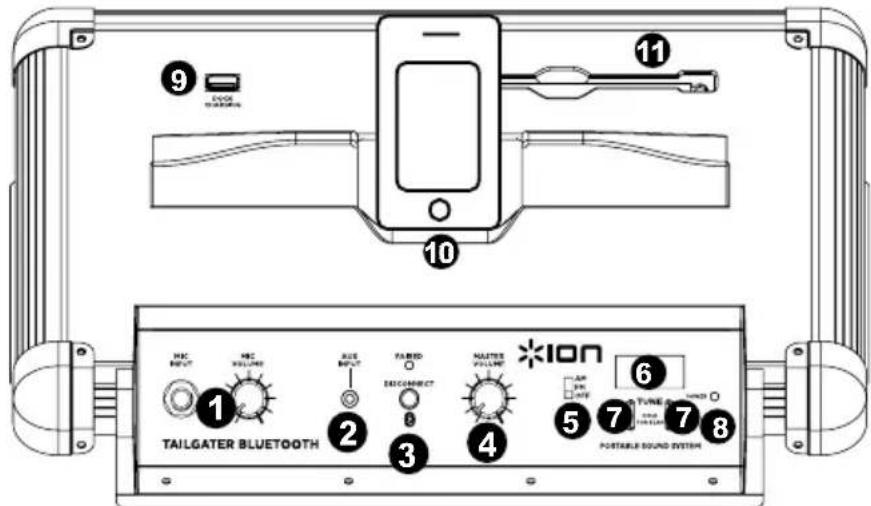

DIAGRAM AND PARTS DESCRIPTION

1. Instrument / Microphone Input with Volume Control (1/4"): This mono input accepts a 1/4" input such as a microphone, guitar, or other musical instrument.

2. Auxiliary input: This stereo 1/8" input can be used to connect a CD player, MP3 player, or other audio source.

3. Bluetooth: The Paired LED will be lit when a device is paired to TAILGATER BLUETOOTH. This LED will not be lit when TAILGATER BLUETOOTH is first powered on (unless it was previously paired with a device). Press the Disconnect button to disconnect a paired Bluetooth

4. Master Volume Control: This adjusts the speaker's main mix volume, which includes Instrument/Microphone Input, Auxiliary Input, Tuner, and the audio of a paired Bluetooth device.

5. Radio Selector: This switch sets the tuner to AM or FM or turns the tuner off. (Note: This switch does not turn the unit's power off – just the tuner.)

6. LCD: Displays the current radio station.

7. Tuner: Use these buttons to search for a radio station. To "scan" (jump to the next available station), hold this down for a few seconds until it starts to seek a station. Unit will remember the last station you were on and start at that station when you power off and power on again.

8. Power LED: Indicates whether TAILGATER BLUETOOTH is on or off.

9. Dock Charge: Connect your device's charge cable here to charge it. USB charging only functions when the unit's power is turned on. Note: Users with iPad (3 ^rd )

generation) may experience slower charging. We recommend charging with the screen locked when using iPad (3 ^rd generation).

1. Device Cradle: Place your iPad/iPod touch®/iPhone®, Android® or other device here to be held. These can be connected via Bluetooth or to aux input using the included 1/8" to 1/8" cable. Note: It is recommended to remove your iPad or other device from the cradle before transporting or traveling with TAILGATER.

2. Antenna: Adjust this telescoping FM antenna to get the best radio reception. Note: To prevent accidental damage, we recommend rotating the antenna only when it is extended horizontally. Also, retract the antenna when the Tuner is not in use. Note: When using AM radio if you have a Bluetooth device that is paired, this will cause poor AM reception. Unpair your Bluetooth device in order to listen to AM radio.

3. Power Cable Input (IEC): Insert the included power cable here to charge the unit. Note that the TAILGATER BLUETOOTH can run off the power adapter while it simultaneously charges the battery. The charge indicator illuminates when the battery is charging.

4. Voltage Selector*: If your unit has a voltage selector switch, change its setting only when necessary (e.g., when traveling to a country or region with a different voltage). Selecting an improper voltage setting can damage the unit. To change its setting, only remove *one* screw of the cover and slide it aside to expose the selector.

5. Power ON/OFF Switch: Tums TAILGATER BLUETOOTH on or off. Please note that while TAILGATER BLUETOOTH is connected to a power source, it does not need to be powered on to charge the battery.

6. Battery Level Indicator: While the unit is powered ON and unit is not plugged in, these four lights indicate the power left in the battery. Battery life varies based on volume and usage.

*WARNING: If your unit has a voltage selector switch, change its setting only when necessary (e.g., when traveling to a country or region with a different voltage). Selecting an improper voltage setting can damage the unit. To change its setting, only remove *one* screw of the cover and slide it aside to expose the selector.

TROUBLESHOOTING

If the sound is distorted: Try lowering the volume control of your sound source or musical instrument. Also, try to reduce the overall volume of TAILGATER BLUETOOTH.

If there is too much bass: Try adjusting the tone or EQ control on your sound source to lower the bass level. This will allow you to play the music louder before clipping (distortion) occurs.

If there is a high-pitched whistling noise when using microphones: This is probably feedback. Point the microphones away from the speaker.

If there is poor AM reception: When you have a Bluetooth device that is paired, unpair your Bluetooth device in order to listen to AM radio. To adjust AM reception, move entire unit.

If you can't hear the microphone over the music volume: Turn down the music volume from your source.

PAIRING A BLUETOOTH DEVICE

1. Turn on your Bluetooth device.
2. Power on TAILGATER BLUETOOTH and it will automatically go into pairing mode to search for Bluetooth devices. You will know you are in pairing mode when the LED is blank.
3. If your Bluetooth device is not able to pair to the amp, press the disconnect button on the amp to break previous Bluetooth connections and reset the Bluetooth module.
4. Navigate to your Bluetooth device's setup screen, find "ION Speaker" and connect.
   Note: If your Bluetooth device prompts for a pairing code, enter '0000'.
5. TAILGATER BLUETOOTH LED will light up solid when it is 'paired'.
   Note: Users should consider updating their OS if experiencing trouble with pairing or playing music.
6. To disconnect pairing, press the 'Disconnect' button on TAILGATER BLUETOOTH.
7. To connect to another Bluetooth device, repeat steps 3-4.

Note: Maximum range will be achieved when using devices with Bluetooth 4.0.

\* ADVERTENCIA:

Output Power: 50W Peak

Frequency Response (±3dB): 77 Hz – 20 kHz (Aux)

Microphone type: Dynamic microphone

Time required to fully charge TAILGATER BLUETOOTH: Approximately 6 hours

Battery life: Up to 50 hours* when fully charged

Supported Bluetooth Profile: A2DP

Bluetooth Range: Up to 50 feet

* Battery life may vary based on temperature, age, and volume usage of product.

Radio Frequency Range:

US:

AM 520 - 1710 kHz

FM 87.5 - 108 MHz

EUROPE:

AM 522 - 1629 kHz

FM 87.5 - 108 MHz

JAPAN:

AM 520 - 1710 kHz

FM 75.5 – 90.5 MHz

For the electrostatic discharge (ESD) test of EN301 489-1/17, it was found that manual operation is needed to resume normal operation as intended after the test.
