USER MANUAL KDLX110R JVC

For installation and connections, refer to the separate manual.

Enter below the password you have entered for your security lock.

Retain this password for future reference.

password:

Position And Reproduction Of Labels

Bottom panel of the main unit

Name/Rating plate

CAUTION: Invisible laser radiation when open and stralng ved abing, nar interlock failed or defeated sikkerhedsafbryder e ude AVOID DIRECTEXPOSURE f at function. Undgaunsat TO BEAM. (e) tse for straling. (d)

VARNING: Osynlig laser VARO: Avattaessa ja straling n der ann de la sujalukitus ohittaessa opnpad och sparen ar olet altiina nakymattourkoplad. Betrakta emalle lasersateilylle, stralen. (s) Ala katso sateseen. (f)

CLASS

1

LASER

PRODUCT

Caution:

This product contains a laser component of higher laser class than Class 1.

IMPORTANT FOR LASER PRODUCTS

Precautions:

1.CLASS 1 LASER PRODUCT

1. CAUTION: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

2. CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.

3. CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.

4. CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

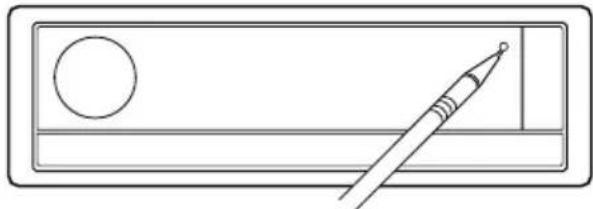

How to reset your unit

Press the reset button on the front panel using a ball-point pen or a similar tool. This will reset the built-in microcomputer.

Note:

Your preset adjustments - such as preset channels or sound adjustments - will also be erased.

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit's chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

CAUTION on Volume Setting

CDs produce very little noise compared with other sources. If the volume level is adjusted for the tune, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a disc and adjust it as required during playback.

CONTENTS

LOCATION OF THE BUTTONS 4

Control panel 4

Remote controller (With an optionally purchased remote controller) 5

Preparing the remote controller 6

BASIC OPERATIONS 7

RADIO BASIC OPERATIONS 8

Listening to the radio 8

Storing stations in memory 9

Tuning into a preset station. 10

RDS OPERATIONS 11

What you can do with RDS EON. 11

Other convenient RDS functions and adjustments 14

CD OPERATIONS 16

Playing a CD 16

Locating a track or a particular portion on a CD 17

Selecting CD playback modes. 17

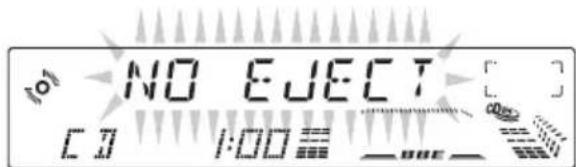

Prohibiting CD ejection 18

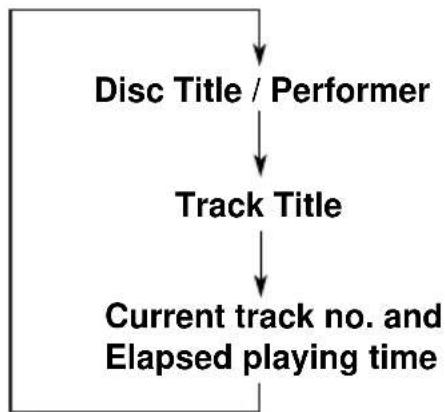

Playing a CD Text 18

SOUND ADJUSTMENTS 19

Adjusting the sound 19

Using the sound control memory 20

Storing your own sound adjustments 21

OTHER MAIN FUNCTIONS 22

Setting the clock 22

Changing the general settings (PSM) 22

Assigning names to CDs 26

Using the security lock. 27

CD CHANGER OPERATIONS 29

Playing CDs 29

Selecting CD playback modes.. 30

EXTERNAL COMPONENT OPERATIONS ... 32

Playing an external component 32

DAB TUNER OPERATIONS 33

Tuning into an ensemble and one of the services 33

Storing DAB services in memory 34

Tuning into a preset DAB service 35

What you can do more with DAB. 36

ADDITIONAL INFORMATION 36

TROUBLESHOOTING 37

MAINTENANCE 38

Handling CDs 38

SPECIFICATIONS 39

About the demonstration mode (DEMO MODE)...

When shipped from the factory, "DEMO MODE" is set to "DEMO ON" in this unit. The demonstration will start automatically if no sound comes in for 3 minutes. (See page 25.)

To activate the display demonstration manually

While holding DISP, press until "DEMO" appears on the display. Various functions and display illumination modes equipped with this unit will be demonstrated repeatedly in sequence. During the display demonstration, "DEMO" flashes on the display. To turn off the display demonstration, press again for a few seconds while holding DISP.

• The display demonstration will turn off automatically after about 1 hour.

BEFORE USE

*For safety....

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
• Stop the car before performing any complicated operations.

*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

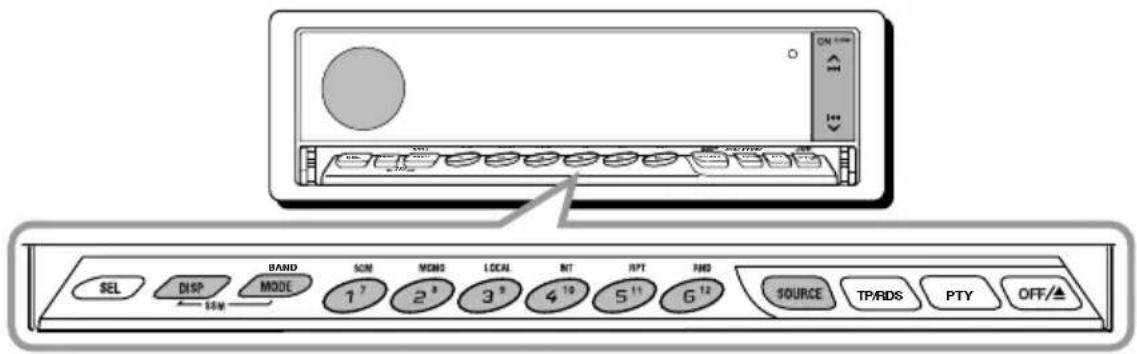

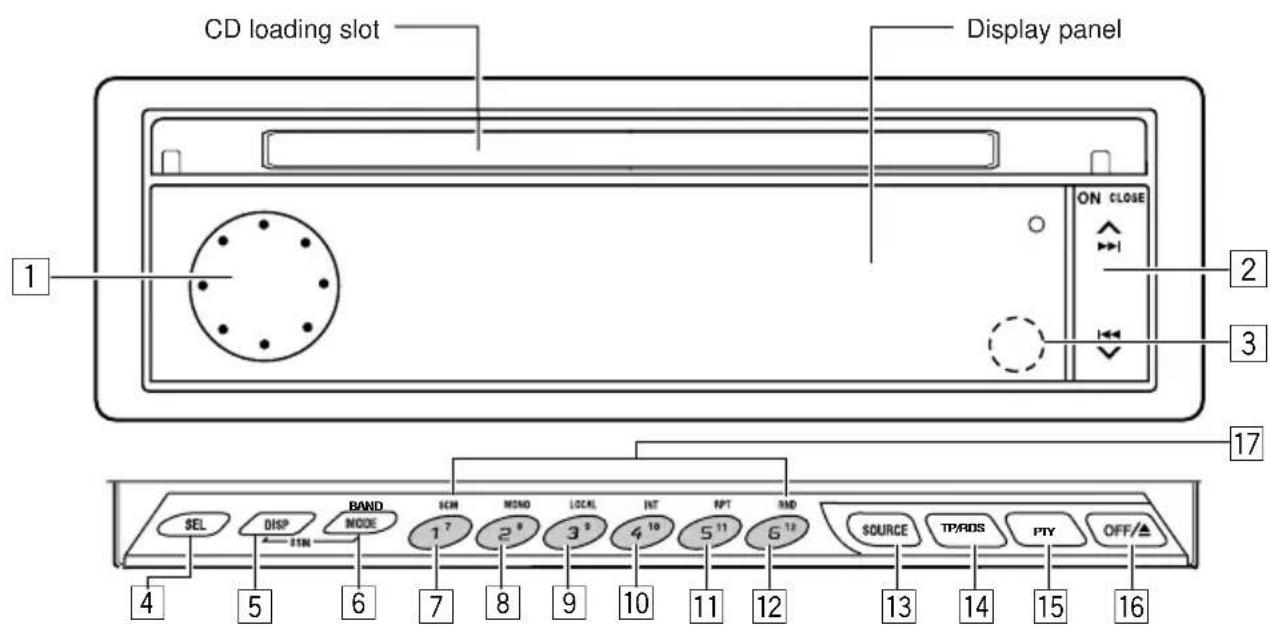

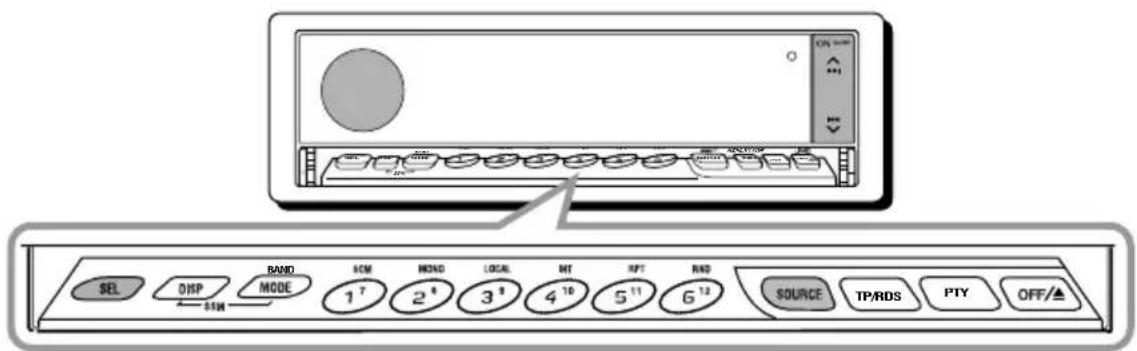

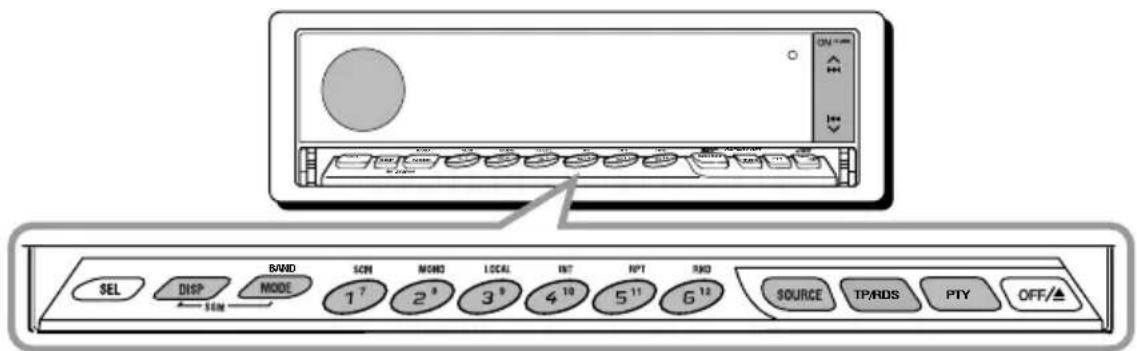

Control panel

*The control panel slides out when you press ON/CLOSE.

*When you press OFF/▲ button, the display panel moves down and the CD loading slot appears.

1Control dial
2 1/按钮

• also functions as ON or CLOSE button.

3Remote sensor
4SEL (select) button
DISP (display) button

• Also functions as SSM buttons when pressed together with the MODE BAND button.

MODE BAND button
- Also functions as SSM buttons when pressed together with the DISP button.

SCM (sound control memory) button
8MONO button
9LOCAL button
INT (intro) button

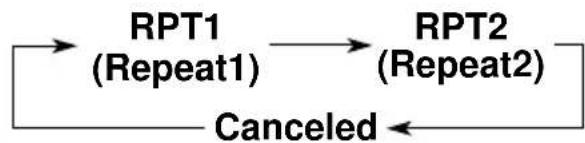

11RPT (repeat) button

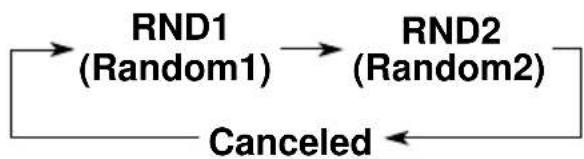

12RND (random) button
SOURCE button
14TP (traffic programme)/ RDS (radio data system) button
15PTY (programme type) button
16OFF/（eject）button
Number buttons

How to use the number buttons:

After pressing MODE BAND, the number buttons work as different function buttons (while "MODE" remains on the display).

To use these buttons as number buttons after pressing MODE BAND, wait for 5 seconds without

pressing any number button so that "MODE" disappears from the display.

• Pressing MODE BAND again also erases "MODE" from the display.

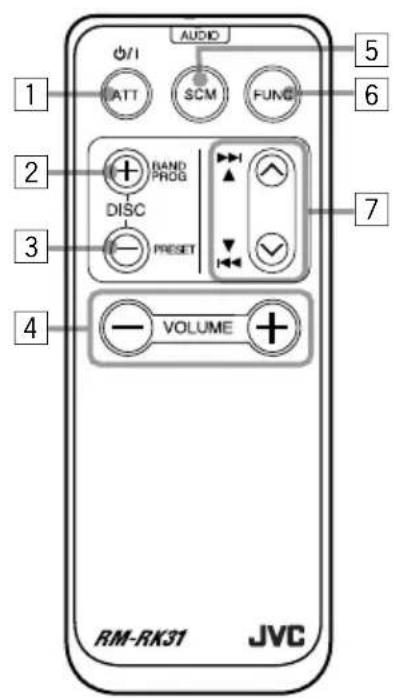

Remote controller

(With an optionally purchased remote controller)

We recommend that you use remote controller RM-RK31 with your unit.

The following are the instructions for using RM-RK31.

Turns on the unit if pressed when the unit is turned off.

Turns off the unit if pressed and held until "SEE YOU" appears on the display.

• Drops the volume level for a moment if pressed briefly.

Press again to resume the volume.

1. Functions as the BAND button while listening to the radio (or the DAB tuner).

Each time you press the button, the band changes.

• Functions as the DISC + button while listening to the CD changer.

Each time you press the button, the disc number increases, and the selected disc starts playing.

• Does not function as the PROG button.

• Functions as the PRESET button while listening to the radio (or the DAB tuner).

Each time you press the button, the preset station number increases, and the selected station is tuned in.

• Functions as the DISC - button while listening to the CD changer.

Each time you press the button, the disc number decreases, and the selected disc starts playing.

4 Functions the same as the control dial on the main unit.

NOTE: This button does not function for the preferred setting mode adjustment.

5 Selects the sound mode.

Each time you press SCM (Sound Control Memory), the mode changes.

6 Selects the source.

Each time you press FUNC (function), the source changes.

1. Searches stations while listening to the radio.

2. Selects services while listening to the DAB tuner if pressed briefly.

3. Searches ensembles while listening to the DAB tuner if pressed for more than 1 second.
4. Fast-forwards or reverses the track if pressed and held while listening to a CD.
5. Skips to the beginning of the next track or goes back to the beginning of the current (or previous) track if pressed briefly while listening to a CD.

Preparing the remote controller

Before using the remote controller:

• Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between.

• Do not expose the remote sensor to strong light (direct sunlight or artificial lighting).

Installing the battery

When the controllable range or effectiveness of the remote controller decreases, replace the battery.

1. Remove the battery holder.

1) Push out the battery holder in the direction indicated by the arrow using a ball-point pen or a similar tool.
2) Remove the battery holder.

1. Place the battery.

Slide the battery into the holder with the + side facing upwards so that the battery is fixed in the holder.

Lithium coin battery (product number: CR2025)

1. Return the battery holder.

Insert again the battery holder pushing it until you hear a clicking sound.

WARNING:

• Store the batteries in a place which children cannot reach.

If a child accidentally swallows the batteries, immediately consult a doctor.

• Do not recharge, short, disassemble or heat the batteries or dispose of in a fire.

Doing any of these things may cause the batteries to give off heat, crack or start a fire.

• Do not leave the batteries with other metallic materials.

Doing this may cause the batteries to give off heat, crack or start a fire.

• When throwing away or saving batteries, wrap in tape and insulate; otherwise, it may cause the batteries to give off heat, crack or start a fire.
• Do not poke the batteries with tweezers or similar tools.

Doing this may cause the batteries to give off heat, crack or start a fire.

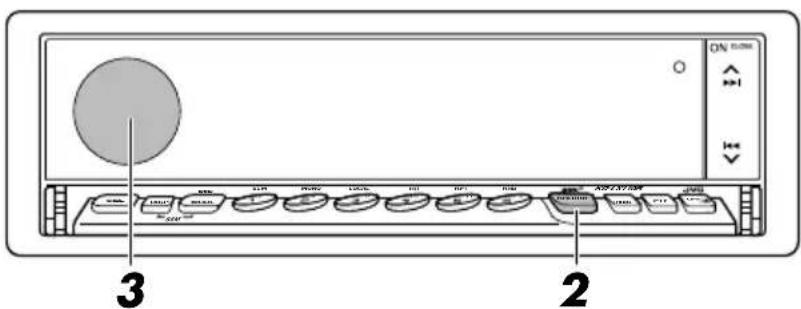

1 Turn on the power.

The display illuminates and the control panel and control dial come out.

2 Select the source.

Each time you press the button, the source changes as follows:

FM DABtuner** CD*
CD changer or external component**
AM (back to the beginning)

• If a CD is not in the loading slot, you cannot select CD as the source to play.
  ** Without connecting the equipment and setting "EXT INPUT" correctly (see page 25), you cannot select it as the source to play.

To operate the tuner (FM or AM), see pages 8-15.
To operate the CD player, see pages 16-18.
To operate the CD changer, see pages 29-31.
To operate the external component, see page 32.
To operate the DAB tuner, see pages 33-36.

Note on display illustrations:

Illustrations will differ from what appears if "CLOCK DISP" is set to "CLOCK OFF." See page 24.

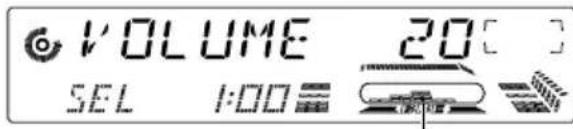

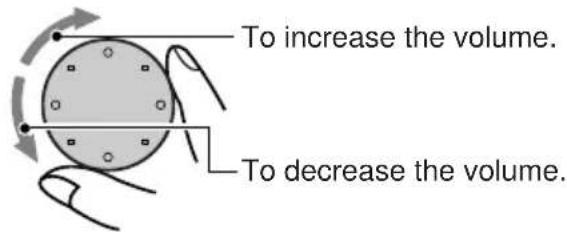

3 Adjust the volume.

Volume level meter

4 Adjust the sound as you want (see page 19).

To drop the volume in a moment

Press SOURCE for more than 1 second while listening to any source. "ATT" starts flashing on the display, and the volume level will drop in a moment. To resume the previous volume level, press the button for more than 1 second again.

To turn off the power

Press and hold OFF/△ until "SEE YOU" appears on the display.

Note:

When you use this unit for the first time, set the built-in clock correctly, see page 22.

Listening to the radio

You can use either automatic searching or manual searching to tune into a particular station.

Searching a station automatically: Auto search

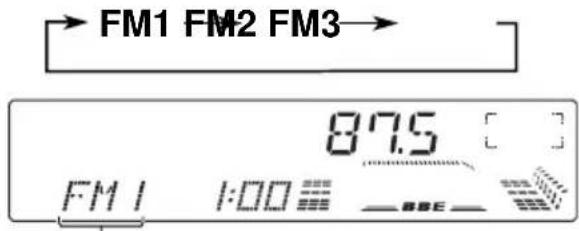

1 Select the band.

1Press SOURCE to select FM or AM as the source.
2If necessary, press and hold MODE BAND to select the FM band number (FM1, FM2 or FM3).

Each time you press and hold the button, the FM band changes as follows:

Selected band appears.

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

2 Start searching a station.

Press to search stations of higher frequencies.

Press search stations of lower frequencies.

When a station is received, searching stops.

To stop searching before a station is received, press the same button you have pressed for searching.

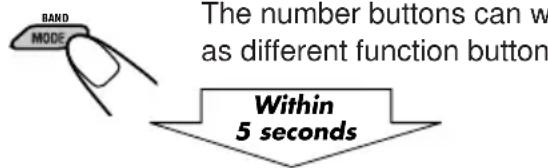

To tune in FM stations only with strong signals 1 Press MODE BAND.

"MODE" appears on the lower part of the display, and the number buttons can work as different function buttons.

2 Press LOCAL, while "MODE" is still on the display, so that the LOCAL indicator lights up on the display.

This function works only while searching FM stations, including SSM preset (see page 9). Each time you press the button, the LOCAL indicator lights up and goes off alternately.

Searching a station manually: Manual search

1 Select the band.

Press SOURCE to select FM or AM as the source.
2If necessary, press and hold MODE BAND to select the FM band number (FM1, FM2 or FM3).

Each time you press and hold the button, the FM band changes as follows:

Note:

This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast.

2 Press and hold or until "M" (manual) starts flashing on the display.

3 Tune into a station you want while "M" is flashing.

Press to tune into stations of higher frequencies.

Press to tune into stations of lower frequencies.

If you release your finger from the button, the manual mode will automatically turn off after 5 seconds.
- If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9 kHz intervals for AM — MW/LW) until you release the button.

When an FM stereo broadcast is hard to receive:

1 Press MODE BAND while listening to an FM stereo broadcast (the ST indicator lights up while receiving an FM stereo broadcast). "MODE" appears on the lower part of the display, and the number buttons can work as different function buttons.
2 Press MONO, while "MODE" is still on the display, so that the MO indicator lights up on the display. The sound you hear becomes monaural but the reception will be improved (the ST indicator goes off).

Each time you press the button, the MO indicator lights up and goes off alternately.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

Automatic preset of FM stations: SSM (Strongstation Sequential Memory)
- Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2 and FM3).

1 Select the FM band (FM1-3) you want to store FM stations into.

1Press SOURCE to select FM as the source.
2If necessary, press and hold MODE BAND to select the FM band number (FM1, FM2 or FM3).

Each time you press and hold the button, the FM band changes as follows:

2 Press and hold both buttons for more than 2 seconds.

"SSM" appears, then disappears when automatic preset is over.

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2 or FM3). These stations are preset in the number buttons — No.1 (lowest frequency) to No.6 (highest frequency).

When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually.

Ex.: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band

1 Select the band (FM1).

Press SOURCE to select FM as the source.
2Press and hold MODE BAND repeatedly to select the FM1 band.

2 Tune into a station of 88.3 MHz.

Press to tune into stations of higher frequencies.

Press tune intostations of lower frequencies.

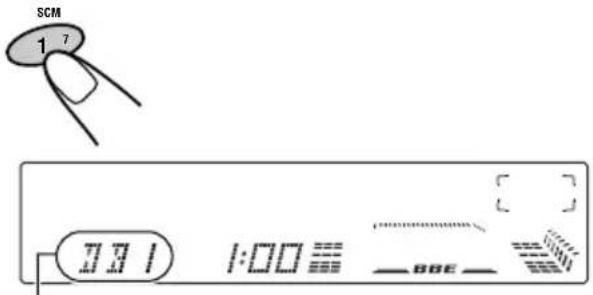

3 Press and hold the number button (in this example, 1) for more than 2 seconds.

Band number and "MEMO" appear alternately for a while.

4 Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.
• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning into a preset station

You can easily tune into a preset station. Remember that you must store stations first. If you have not stored them yet, see "Storing stations in memory" on pages 9 and 10.

1 Select the band.

1Press SOURCE to select FM or AM as the source.
2If necessary, press and hold MODE BAND to select the FM band number (FM1, FM2 or FM3).

Each time you press and hold the button, the FM band changes as follows:

2 Select the number (1-6) for the preset station you want.

If the sound quality decreases and the stereo effect is lost while listening to an FM station

In some areas, adjacent stations may interfere with each other. If this interference occurs, this unit can automatically reduce this interference noise (the initial setting when shipped from the factory). However, in this case, the sound quality will be degraded and the stereo effect will be also lost.

If you do not want to degrade the sound quality and to lose the stereo effect, rather than to eliminate the interference noise, see "To change the FM tuner selectivity — IF FILTER" on page 25.

What you can do with RDS EON

RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc.

Another advantage of RDS function is called "EON (Enhanced Other Networks)." The EON indicator lights up while receiving an FM station with the EON data. By using the EON data sent from a station, you can tune into a different station of a different network broadcasting your favourite programme or traffic announcement while listening to another programme or to another source such as CD.

By receiving the RDS data, this unit can do the following:

• Tracing the same programme automatically (Network-Tracking Reception)
• Standby Reception of TA (Traffic Announcement) or your favourite programme
• PTY (Programme Type) search
  Programme search
• And some other functions

Tracing the same programme automatically (Network-Tracking Reception)

When driving in an area where FM reception is not good, the tuner built in this unit automatically tunes into another RDS station, broadcasting the same programme with stronger signals. So, you can continue to listen to the same programme in its finest reception, no matter where you drive. (See the illustration on the next page.)

Two types of the RDS data are used to make Network-Tracking Reception work correctly - PI (Programme Identification) and AF (Alternative Frequency).

Without receiving these data correctly from the RDS station you are listening to, Network-Tracking Reception will not operate.

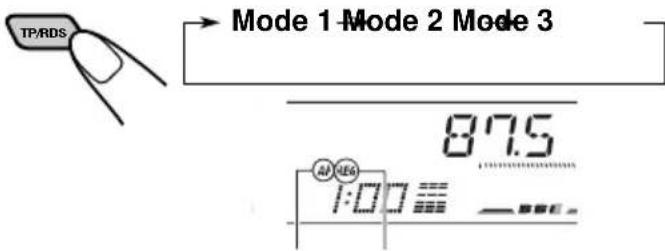

To use Network-Tracking Reception, press and hold TP/RDS (traffic programme/radio data system) for more than 1 second. Each time you press and hold the button, Network-Tracking Reception modes change as follows:

AF indicator REG indicator

Mode 1

The AF indicator lights up but the REG indicator does not.

Network-Tracking Reception is activated with Regionalization set to "off."

Switches to another station within the same network when the receiving signals from the current station become weak.

• In this mode, the programme may differ from the one currently received.

Mode 2

Both the AF indicator and the REG indicator light up.

Network-Tracking Reception is activated with Regionalization set to "on."

Switches to another station, within the same network, broadcasting the same programme when the receiving signals from the current station become weak.

Mode 3

Neither the AF indicator nor the REG indicator lights up.

Network-Tracking Reception is deactivated.

Note:

If a DAB tuner is connected and Alternative Reception (for DAB services) is activated, Network-Tracking Reception is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception. (See page 36.)

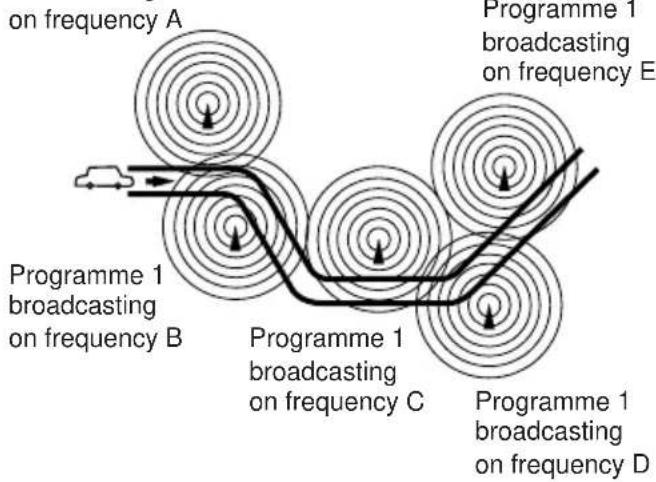

The same programme can be received on different frequencies.

Programme 1 broadcasting on frequency A

Programme 1 broadcasting on frequency E

Using Standby Reception

Standby Reception allows the unit to switch temporarily to your favourite programme (PTY: Programme Type) and Traffic Announcement (TA) from the current source (another FM station, CD and other connected components).

• Standby Reception will not work if you are listening to an AM station.

TA Standby Reception

When you press TP/RDS while listening to an FM station, the TP indicator is lit during reception of a TP (Traffic Programme) station and the TA standby mode is engaged.

• When the station being received is not a TP station, the TP indicator flashes. Press or to engage the TA standby mode. "SEARCH" appears on the display, and TP station search starts. When a TP station is tuned in, the TP indicator is lit.

If you are listening to a CD or other connected components and wish to listen to a TP station, press TP/RDS to enter the TA standby mode. (The TP indicator lights up.)

If a traffic programme starts broadcasting while the TA standby mode is active, "TRAFFIC" appears and the playback source changes to the FM band. The volume increases to the preset TA volume level (see page 15) and the traffic programme can be heard.

To deactivate the TA standby mode, press TP/RDS again.

PTY Standby Reception

When you press PTY while listening to an FM station, the PTY indicator is lit during reception of a PTY station and the PTY standby mode is engaged. The selected PTY name stored on page 13 flashes for 5 seconds.

• When the station being received is not a PTY station, the PTY indicator flashes. Press▶or▶ to engage the PTY standby mode. "SEARCH" appears on the display, and PTY station search starts. When a PTY station is tuned in, the PTY indicator is lit.

If you are listening to a CD or other connected components and wish to listen to a selected PTY broadcast, press PTY to enter the PTY standby mode. (The PTY indicator lights up.)

If the selected PTY programme starts broadcasting while the PTY standby mode is active, the selected PTY name appears and the playback source changes to the FM band. The selected PTY programme can then be heard.

To deactivate the PTY standby mode, press PTY again.

Selecting your favourite programme for PTY Standby Reception

You can select your favourite programme for PTY Standby Reception to store in memory. When shipped from the factory, "NEWS" is stored as the programme type for PTY Standby Reception.

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 23.)

2 Select "PTY STBY" (standby) if not shown on the display.

3 Select one of twenty-nine PTY codes.

Selected code name appears on the display and is stored into memory.

As you turn the control dial, the PTY codes change as follows:

PTY codes

NEWS AFFAIRS INFO SPORT EDUCATE DRAMA CULTURE SCIENCE VARIOED POP M ROCK M EASY M LIGHT M CLASSICS OTHER M WEATHER FINANCE CHILDREN SOCIAL RELIGION PHONE IN TRAVEL LEISURE JAZZ COUNTRY NATION M OLDIES FOLK M DOCUMENT (back to the beginning)

For details, see page 36.

4 Press SEL (select) to finish the setting.

Searching your favourite programme

You can search one of your 6 favourite programme types stored in memory.

When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

To store your favourite programme types, see below.

To search your favourite programme type, see page 14.

1	2	3
POP M	ROCK M EASY M
4	5	6
CLASSICS	AFFAIRS	VARIED

To store your favourite programme types

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 23.)

2 Select "PTY SEARCH" if not shown on the display.

3 Select one of twenty-nine PTY codes. (See left column.)

Selected code name appears on the display.

• If the code already stored in memory is selected, it will flash on the display.

CONTINUED ON THE NEXT PAGE

4 Press and hold the number button for more than 2 seconds to store the PTY code selected into the preset number you want.

PTY preset number appears, and selected code name and "MEMORY" alternate on the display.

5 Press SEL (select) to finish the setting.

To search your favourite programme type

Press and hold PTY (programme type) for more than 1 second while listening to an FM station.

The last selected PTY code and preset number appear.

2 Select one of the PTY codes stored in preset number buttons (1 to 6).

PTY search for your favourite programme starts after 5 seconds.

• If there is a station broadcasting a programme of the same PTY code you selected, that station is tuned in.
• If there is no station broadcasting a programme of the same PTY code you selected, the station will not change.

Note:

In some areas, the PTY search will not work correctly.

Other convenient RDS functions and adjustments

Automatic selection of the station when using the number buttons

Usually when you press the number button, the preset station is tuned in.

However, when the preset station is an RDS station, something different will happen. If the signals from that preset station are not sufficient for good reception, this unit, using the AF data, tunes in another frequency broadcasting the same programme as the original preset station is broadcasting.

In case no other station is tuned in, you can also search all receivable frequencies for the same programme (Programme search).

To activate programme search, follow the procedure below.

Programme search takes a while.
See also "Changing the general settings (PSM)" on page 22.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press or to select "P(Programme)-SEARCH."
3 Turn the control dial to select "SEARCH ON." Now programme search is activated.
4 Press SEL (select) to finish the setting.

To cancel programme search, repeat the same procedure and select "SEARCH OFF" in step 3 by turning the control dial counterclockwise.

Changing the display mode while listening to an FM station

You can change the initial indication on the display to either station name (PS NAME) or to station frequency (FREQUENCY), while listening to an FM RDS station.

See also "Changing the general settings (PSM)" on page 22.
1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press or to select "TUNER DISP" (tuner display).
3 Turn the control dial to set to the desired indication ("PS NAME" or "FREQUENCY").
4 Press SEL (select) to finish the setting.

Note:

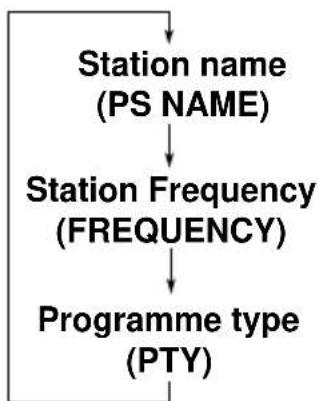

By pressing DISP, you can also change the display while listening to an FM RDS station.

Each time you press the button, the following information appears on the display:

• Then, the display goes back to the original indication in several seconds.

Setting the TA volume level

You can preset the volume level for TA Standby Reception. When a traffic programme is received, the volume level automatically changes to the preset level.

See also "Changing the general settings (PSM)" on page 22.
1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press or to select "TA VOL" (TA volume).
3 Turn the control dial to set to the desired volume. You can set it from "VOL 00" to "VOL 50."
4 Press SEL (select) to finish the setting.

Automatic clock adjustment

When shipped from the factory, the clock built in this unit is set to be readjusted automatically using the CT (Clock Time) data in the RDS signal. If you do not want to use automatic clock adjustment, follow the procedure below.

See also "Changing the general settings (PSM)" on page 22.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press or to select "AUTO ADJ."
3 Turn the control dial to select "ADJ OFF." Now automatic clock adjustment is canceled.
4 Press SEL (select) to finish the setting.

To reactivate clock adjustment, repeat the same procedure and select "ADJ ON" in step 3.

Note:

You must stay tuned to the same station for more than 2 minutes after setting "AUTO ADJ" to "ADJ ON." Otherwise, the clock time will not be adjusted. (This is because the unit takes up to 2 minutes to capture the CT data in the RDS signal.)

CD OPERATIONS

Playing a CD

1 Open the loading slot.

The display panel moves down, and the loading slot appears.

2 Insert a disc into the loading slot.

The unit draws in a CD, the display panel moves up, and CD play starts automatically.

The CD indicator lights up.

Total track number of the inserted disc

Total playing time of the inserted disc

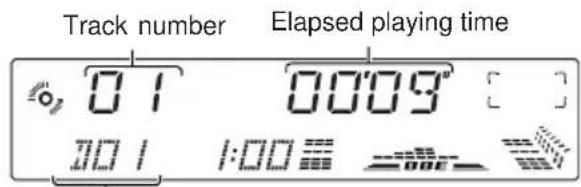

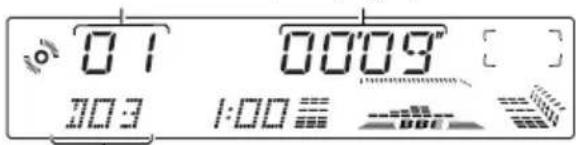

Current track

Elapsed playing time

TP/RDS PTY

Notes:

• When a CD is in the loading slot, selecting "CD" as the source by pressing SOURCE starts CD play.
• When a CD is inserted upside down, the CD automatically ejects. ("CD EJECT" appears on the display.)
• When you play a CD Text, the disc title and performer appear on the display. Then the current track title appears on the display, followed by the track number and elapsed playing time. See also "Playing a CD Text" (page 18) and "To select the scroll mode — SCROLL" (page 24). If a CD Text includes much text information, some may not appear on the display.
• If you change the source, CD play also stops (without ejecting the CD).

To stop play and eject the CD

Press OFF/▲ briefly.

CD play stops, the display panel moves down, then the CD automatically ejects from the loading slot.

To move up the display panel, press or . If no button is pressed, the display panel will move up in about 5 minutes.

CAUTION: NEVER insert your finger between the display panel and the unit, as it may get caught in the unit.

Note:

If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (CD play will not start this time.)

Locating a track or a particular portion on a CD

To fast-forward or reverse the track

Press and hold while playing a CD, to fast-forward the track.

Press and hold while playing a CD, to reverse the track.

To go to the next tracks or the previous tracks

Press briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

Press the number button corresponding to the track number to start its playback.

To select a track number from 1-6: Press 1 (7)-6 (12) briefly.
To select a track number from 7-12: Press and hold 1 (7)-6 (12) for more than 1 second.

Selecting CD playback modes

To play back tracks at random (Random Play)

You can play back all tracks on the CD at random.

1 Press MODE BAND while playing a CD. "MODE" appears on the lower part of the display, and the number buttons can work as different function buttons.
2 Press RND (random), while "MODE" is still on the display, so that the RND indicator lights up on the display. Each time you press the button, CD random play mode turns on and off alternately.

The RND indicator

When the random mode is turned on, the RND indicator lights up on the display and a track randomly selected starts playing.

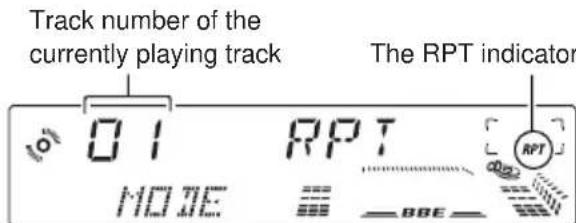

To play back tracks repeatedly (Repeat Play)

You can play back the current track repeatedly.

1 Press MODE BAND while playing a CD. "MODE" appears on the lower part of the display, and the number buttons can work as different function buttons.
2 Press RPT (repeat), while "MODE" is still on the display, so that the RPT indicator lights up on the display. Each time you press the button, CD repeat play mode turns on and off alternately.

When the repeat mode is turned on, the RPT indicator lights up on the display.

To play back only intros (Intro Scan)

You can play back the first 15 seconds of each track sequentially.

1 Press MODE BAND while playing a CD. "MODE" appears on the lower part of the display, and the number buttons can work as different function buttons.
2 Press INT (intro), while "MODE" is still on the display.

Each time you press the button, CD intro scan mode turns on and off alternately.

Track number of the currently playing track

When the intro scan mode is turned on, "INT" appears on the display for 5 seconds and the track number flashes.

Prohibiting CD ejection

You can prohibit CD ejection and can lock a CD in the loading slot.

While pressing SOURCE, press and hold OFF/▲ for more than 2 seconds.

"NO EJECT" flashes on the display for about 5 seconds, and the CD is locked and cannot be ejected.

Note:

If you press OFF/while CD ejection is prohibited, the control panel moves down, but the CD cannot be ejected. ("NO EJECT" appears on the display.)

To move up the display panel, press or

To cancel the prohibition and unlock the CD, press and hold OFF/ for more than 2 seconds again, while pressing SOURCE.

"EJECT OK" flashes on the display for about 5 seconds, and the CD is unlocked.

Playing a CD Text

In a CD Text, some information about the disc (its disc title, performer and track title) is recorded. You can show these disc information on the display.

Select text display mode while playing a CD Text.

Each time you press the button, the display changes as follows:

Notes:

• The display shows up to 10 characters at one time and scrolls if there are more than 10 characters. See also "To select the scroll mode — SCROLL" on page 24.

• When you press DISP while playing a conventional CD, "NO NAME" appears for the disc title/ performer and the track title.

Adjusting the sound

You can adjust the sound characteristics to your preference.

1 Select the item you want to adjust.

Each time you press the button, the adjustable items change as follows:

Indication	To do: Range
BASS Adjust	the bass. -06 (min.)
		+06 (max.)
TREBLE Adjust	the treble. -06	(min.)
		+06 (max.)
FADER* Adjust	the front R06 (Rear only)
	and rear speaker
	balance. F06 (Front only)
BAL Adjust	the left L06 (Left only)
(balance) and right speaker
	balance. R06 (Right only)
BBE See "What is BBE" on the next page.		OFF, 1, 2, 3
VOLUME Adjust the volume.		00 (min.)
		50 (max.)

• If you are using a two-speaker system, set the fader level to "00."

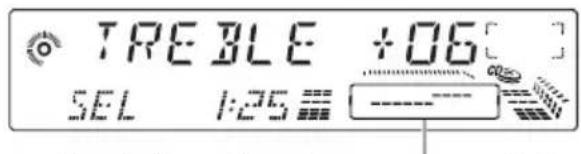

2 Adjust the level.

To increase the level.
To decrease the level.

Equalization pattern changes as you adjust the bass or treble.

Note:

Normally the control dial works for volume adjustment. So you do not have to select "VOLUME" to adjust the volume level.

What is BBE?

The BBE ^11 * function restores the brilliance and clarity of the original live sound in recording, broadcasts, etc.

When a speaker reproduces sound, it introduces frequency-dependent phase shifting, causing high-frequency sounds to take longer to reach the ear than low frequency sounds. The BBE function adjusts the phase relationship between the low, mid and high frequencies by adding a progressively longer delay time to the low and mid frequencies, so that all frequencies reach the listener's ears at the proper time.

In addition, the BBE function boosts low and high frequencies, which loudspeakers tend to be less efficient in reproducing, through dynamic, program-driven augmentation. When combined with the phase compensation feature, the resulting sound has a clearer, more finely detailed "live" presence.

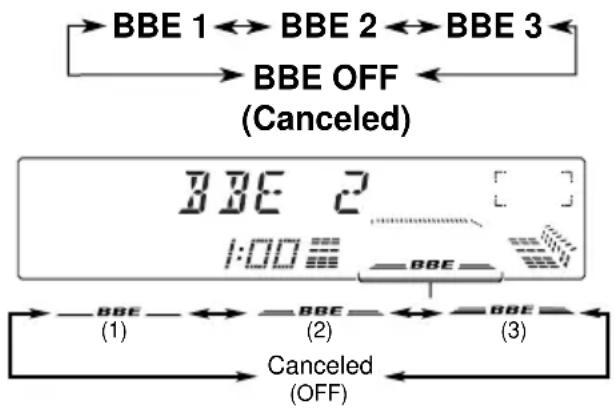

As you turn the control dial, the BBE function changes as follows:

As the number gets higher, the BBE ^II function becomes stronger.

When shipped from the factory, the BBE function is set to "BBE 2."

To cancel the BBE' function, select "BBE OFF."

• Under license from BBE Sound, Inc.
  BUE is a trademark of BBE Sound, Inc.

Using the sound control memory

You can select and store a preset sound adjustment suitable for each playback source. (Advanced SCM)

Selecting and storing the sound modes

Once you select a sound mode, it is stored in memory. It will be recalled every time you select the same source and will be shown on the display.

A sound mode can be stored for each of the following sources — FM1, FM2, FM3, AM, CD and external components.

• If you do not want to store the sound mode separately for each playback source, but want to use the same sound mode for all the sources, see "To cancel Advanced SCM - SCM LINK" on page 24.

1 Press MODE BAND.

2 Select the sound mode you want.

• When "SCM LINK" is set to "LINK ON," the selected sound mode can be stored in memory for the current source and the effect applies only to the current source. Each time you change the playback source, the SCM indicator flashes on the display.
• When "SCM LINK" is set to "LINK OFF," the selected sound mode effect applies to any source.

Indication	For: Preset values
		Bass	Treble	BBE
SCM BEAT	Rock or disco music	+02 00	2
SCM SOFT	Quiet +01 -03 background music	OFF
SCM POP Light music +04		+01 OFF
SCM OFF (Flat sound) 00		00 2

Recalling the sound modes

When "SCM LINK" is set to "LINK ON," select the source.

The sound mode stored in memory for the selected source is recalled.

Notes:

• You can adjust each sound mode to your preference, and store it in memory.

If you want to adjust and store your original sound mode, see "Storing your own sound adjustments" on the right column.

• To adjust the bass and treble reinforcement levels or the BBE function temporarily, see pages 19 and 20. (Your adjustments will be canceled if another source is selected.)

Storing your own sound adjustments

You can adjust the sound modes (SCM BEAT, SCM SOFT, SCM POP) to your preference and store your own adjustments in memory.

• There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again.

1 Press MODE BAND.

The number buttons can work as different function buttons.

2 Select the sound mode you want.

For details, see page 20.

3 1 Select the item you want to adjust (BASS, TREBLE or BBE").

Adjust the selected item.

1

2

Repeat step 3 to adjust the other items.

4 Press MODE BAND.

Press and hold SCM until the sound mode you have selected flashes on the display.

Your adjustment made for the selected sound mode is stored in memory.

6 Repeat the same procedure to adjust other sound modes.

To reset to the factory settings

Repeat the same procedure and reassign the preset values listed in the table on the left column.

Setting the clock

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See page 23.)

2 Set the hour.

1Select "CLOCK HOUR" if not shown on the display.
2 Adjust the hour.

1

2

3 Set the minute.

1 Select "CLOCK MIN."
2Adjust the minute.

1

2

4 Set the clock system.

1Select "24H/12H."
2Adjust "24HOUR" or "12HOUR."

1

2

5 Press SEL (select) to finish the setting.

Changing the general settings (PSM)

You can change the items listed on the next page by using the PSM (Preferred Setting Mode) control.

Basic Procedure

Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (See page 23.)

2 Select a PSM item you want to adjust. (See page 23.)

3 Adjust the PSM item selected above.

4 Repeat steps 2 and 3 to adjust the other PSM items if necessary.
5 Press SEL (select) to finish the setting.

Preferred Setting Mode (PSM) items

Hold. 2 Select.	3 Set. Counter-clockwise Clockwise		Factory-preset settings	See page
CLOCK HOUR Hour adjustment	Back	Advance	0:00	22
CLOCK MIN Minute adjustment	Back	Advance
SCM LINK Sound control memory linkage	LINK OFF	LINK ON	LINK ON	20, 24
24H/12H 24/12-hour time display	12HOUR	24HOUR	24HOUR	22
AUTO ADJ Automatic clock setting	ADJ OFF ADJ ON ADJ ON 15
CLOCK DISP Clock display	CLOCK OFF	CLOCK ON	CLOCK ON	24
TUNER DISP Tuner display	FREQUENCY	PS NAME PS	NAME 15
PTY STBY PTY standby	29 programme types (See pages 13 and 37.)		NEWS	13
PTY SEARCH PTY search			NEWS	13
TA VOL Traffic announcement volume	VOL 00 - VOL 50		VOL 20	15
P-SEARCH Programme search	SEARCH OFF	SEARCH ON	SEARCH OFF	14
DAB AF* Alternative frequency search	AF OFF	AF ON AF ON		36
LEVEL Level display	4 types (See page 24.)		NORMAL 24
DIMMER Dimmer mode	AUTO ← OFF ON ←		AUTO	24
TELEPHONE Telephone muting	MUTING 1 ← MUTING 2 ↑ MUTING OFF ←		MUTING OFF	24
BEEP SW Key-touch tone	BEEP OFF BEEP ON BEEP ON 24
SCROLL Scroll mode	ONCE ← AUTO ↑ OFF ←		ONCE	24
EXT INPUT** External component	CHANGER LINE INPUT		CHANGER	25
FLAT PANEL Flat panel	FLAT OFF	FLAT ON	FLAT OFF	25
IF FILTER Intermediate frequency filter		AUTOWIDE	AUTO	25
DEMO MODE Demo mode	DEMO OFF	DEMO ON DEMO ON 25

• Displayed only when the DAB tuner is connected.
  ** Displayed only when one of the following sources is selected — FM, AM and CD.

4 Press SEL (select) to finish the setting.

To cancel Advanced SCM — SCM LINK

You can cancel the Advanced SCM (Sound Control Memory), and unlink the sound modes and the playback sources.

When shipped from the factory, a different sound mode can be stored in memory for each source so that you can change the sound modes simply by changing the sources.

LINK ON: Advanced SCM (different sound modes for different sources)
LINK OFF: Conventional SCM (one sound mode for all sources)

To set the clock display — CLOCK DISP

You can set the clock to be shown on the lower part of the display when the unit is turned on.

When shipped from the factory, the clock is set to be shown on the display.

CLOCK ON: Clock display is turned on.
CLOCK OFF: Clock display is turned off.

When "CLOCK OFF" is selected, the current sound mode setting (see page 20) is shown on the upper part of the display*.

• If an external source is selected, the current sound mode setting is shown on the lower part of the display.

To select the level meter - LEVEL

You can select the level meter display according to your preference. When shipped from the factory, "NORMAL" is selected.

NORMAL: Normal audio level meter (illuminates from bottom to top)
- MIRROR: Volume level meter illuminates as if it were reflected on a mirror.
LEVEL OFF: Level meter stays lit and does not change its illumination.
- ALL OFF: Level meter turns off.

To select the dimmer mode — DIMMER

When you turn on the car headlights, the display automatically dims (Auto Dimmer).
When shipped from the factory, Auto Dimmer is activated.

• AUTO: Activates Auto Dimmer.
  OFF: Cancels Auto Dimmer.
• ON: Always dims the display.

Note on Auto Dimmer:

Auto Dimmer equipped with this unit may not work correctly on some vehicles, particularly on those having a control dial for dimming.

In this case, set the dimmer mode to "ON" or "OFF."

To select the telephone muting - TELEPHONE

This mode is used when a cellular phone system is connected. Depending on the phone system used, select either "MUTING 1" or "MUTING 2," whichever mutes the sounds from this unit. When shipped from the factory, this mode is deactivated.

• MUTING 1: Select this if this setting can mute the sounds.
• MUTING 2: Select this if this setting can mute the sounds.
• MUTING OFF: Cancel the telephone muting.

To turn on/off the key-touch tone — BEEP SW

You can deactivate the key-touch tone if you do not want it to beep each time you press a button. When shipped from the factory, the key-touch tone is activated.

BEEP ON: Activates the key-touch tone.
- BEEP OFF: Deactivates the key-touch tone.

To select the scroll mode — SCROLL

You can select the scroll mode for the disc information if it consists of more than 10 characters. When shipped from the factory, Auto Scroll mode is set to "ONCE."

• ONCE: Scrolls only once.
• AUTO: Repeats the scroll (in 5-second intervals).
  OFF: Cancels Auto Scroll.

Note:

Even if the scroll mode is set to "OFF," you can scroll the display by pressing DISP for more than 1 second.

To select the external component to use -EXT INPUT

You can connect the external component to the CD changer jack on the rear using the Line Input Adaptor KS-U57 (not supplied).

To use the external component as the playback source through this unit, you need to select which component — CD changer or external component — to use. When shipped from the factory, "CHANGER" is selected as the external component.

• CHANGER: To use the CD changer
  LINE INPUT: To use the external component other than the CD changer

To make the front panel look flat (hiding the control panel) — FLAT PANEL

When operating the receiver using the remote control, you can hide the control panel to make the front panel look flat. When shipped from the factory, "FLAT OFF" is selected.

• FLAT ON: The control panel will not

come out when you turn on the unit.

To use the control panel, press go that the control panel comes out. If no operation is done for about 10 seconds, it automatically goes back into the receiver.

• FLAT OFF: You can use the control panel normally.

Note:

When "FLAT ON" is selected, you can eject a CD by holding

To change the FM tuner selectivity IF FILTER

In some areas, adjacent stations may interfere with each other. If this interference occurs, noise may be heard. This unit has been preset to automatically reduce this interference noise ("AUTO") when shipped from the factory.

• AUTO: When this type of interference occurs, this unit automatically increases the tuner selectivity so that interference noise will be reduced. (But the stereo effect will also be lost)
  WIDE: Subject to the interference from adjacent stations, but sound quality will not be degraded and the stereo effect will not be lost.

To turn the demo mode on or off DEMO MODE

You can turn the demo mode on or off. When shipped from the factory, "DEMO ON" is selected.

• DEMO ON: Turns the demo mode on. The demonstration will start automatically if no sound comes in for 3 minutes.
• DEMO OFF: Turns the demo mode off.

Note:

If the unit has been reset (and the power is on), demonstration will start if no sound comes in for about 10 seconds.

Assigning names to CDs

You can assign names to CDs. After assigning a name, it will appear on the display when you select the CD player or CD changer.

Maximum number of the characters:

Up to 32 characters (up to 40 discs)

Note:

You cannot assign a name to a CD Text.

1 Select a source you want to assign a name to.

2 Press and hold SEL (select) for more than 2 seconds while pressing DISP.

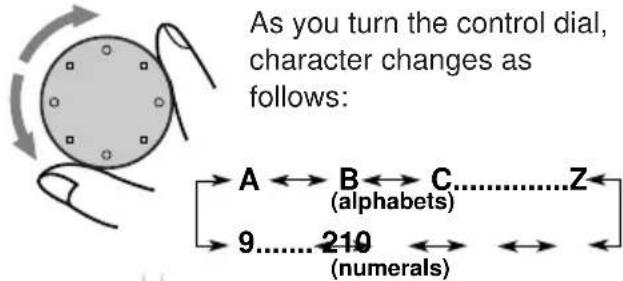

3 Select a character.

About the available characters, see the right column.

4 Move the cursor to the next (or previous) character position.

5 Repeat steps 3 and 4 until you finish inputting the name.
6 Press the button while the last selected character is flashing.

The input name is stored in memory.

To erase the input characters

Insert spaces using the same procedure described above.

Available characters

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

-

/

<

>

space

Notes:

• When you try to assign a name to the 41st disc, "NAME FULL" appears on the display. (In this case, delete unwanted names before assignment.)
• When the CD changer is connected, you can assign names to CDs in the CD changer. These names can also be shown on the display if you insert the CDs in this unit.

Using the security lock

You can prohibit the unauthorized use of this unit by the others.

To use the security lock, you need to set the password first. Once you set the password, the unit will ask you to enter the password when you turn on the unit for the first time after re-installation (or after recovering the car battery exhaustion).

CAUTION: Be careful not to forget the password you have entered; otherwise, you cannot use this unit. Keep the password in your mind and more importantly on paper or some other materials. You can write down your password in the spaces provided on the cover page.

Registering the password

You have to use 4 characters for your password. You can use the following characters: Capital letters (A-Z) and numerals (0-9).

1 Press and hold both buttons for more than 2 seconds.

The unit enters password entry mode.

2 Select a character.

3 Move the character entry position to the next.

4 Repeat steps 2 and 3 until you enter all 4 characters.

5 Press SEL (select) to finish the setting.

The password flashes on the display for a while, then the unit returns to the normal operation mode.

How to Use the Provided CODE Sticker

Attach the provided CODE sticker in a conspicuous position on your car to notify would-be unauthorized users that the security lock function is provided for this unit and, therefore, will foil their efforts.

When Security Lock works?

Once you register the password, "..." appears on the display, and the unit will ask you to enter the password in the following cases:

• When you turn on the unit for the first time after re-installing the unit.
• When you turn on the unit for the first time after replacing the car battery.

To use this unit, you must enter the correct password by following the procedure below.

1 Turn the control dial to enter a character.
2 Press or to move the character entry position.
3 Repeat steps 1 and 2 to enter the entire password (4 letters) correctly, then press SEL (select).

• If you enter the correct password, the security lock is canceled and you can use the unit normally.

• In the following cases, the security lock is not canceled ("NOT ACCEPT" appears on the display) then the unit turns off. (The unit will never turn on unless you press the reset button on the front panel. See page 2.)

• If you enter an incorrect password then press SEL (select).

• If you cannot finish entering the correct password within 30 seconds.

If you enter an incorrect character while entering the password

Press to move back the character entry position over the incorrect character, then turn the control dial to select the correct character.

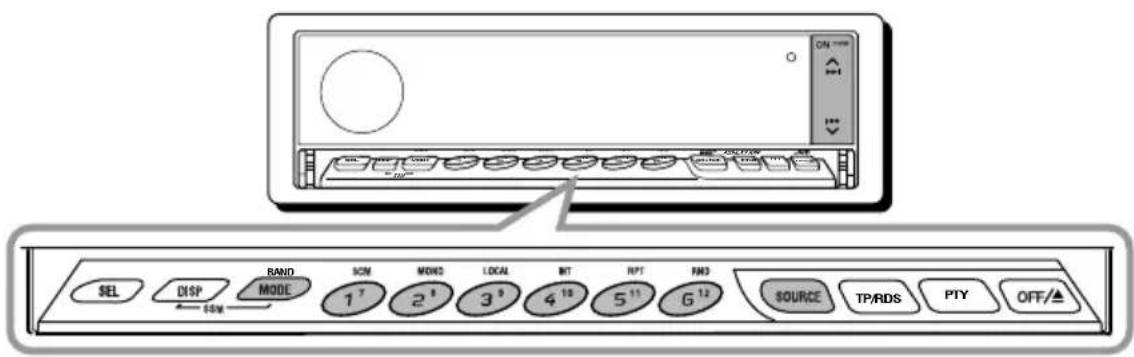

To change the password

If you want to change the password after you have registered it, follow the procedure below.

1 Press SEL (select) and at the same time for more than 2 seconds.
2 Enter the current password correctly, then press SEL (select).

The unit enters password entry mode.

3 Enter a new password as you want, then press SEL (select).

The password flashes on the display for a while, then the unit returns to the normal operation mode.

See page 27 for details on how to enter the password.

We recommend that you use one of the CH-X series with your unit.

If you have another CD automatic changer, consult your JVC IN-CAR ENTERTAINMENT dealer for connections.

• For example, if your CD automatic changer is one of the KD-MK series, you need a cord (KS-U15K) for connecting it to this unit.

Before operating your CD automatic changer:

Refer also to the Instructions supplied with your CD changer.
- If no discs are in the magazine of the CD changer or the discs are inserted upside down, "NO DISC" will appear on the display. If this happens, remove the magazine and set the discs correctly.
- If "RESET 1" - "RESET 8" appears on the display, something is wrong with the connection between this unit and the CD changer. If this happens, check the connection, connect the connecting cord(s) firmly if necessary, then press the reset button of the CD changer.

Playing CDs

Select the CD automatic changer.

Each time you press the button, the source changes as described on page 7.

Playback starts from the first track of the first disc.

All tracks of all discs are played back.

Disc number appears.

To fast-forward or reverse the track

Press and hold, while playing a CD, to fast-forward the track.

Press and hold while playing a CD, to reverse the track.

To go to the next track or the previous tracks

Press briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next track is located and played back.

Press Briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular disc directly

Press the number button corresponding to the disc number to start its playback (while the CD changer is playing).

To select a disc number from 1-6: Press 1 (7)-6 (12) briefly.
To select a disc number from 7-12: Press and hold 1 (7)-6 (12) for more than 1 second.

Track number Elapsed playing time

Disc number

Ex.: When disc number 3 is selected

To show the CD Text information

This is possible only when connecting a JVC CD automatic changer equipped with CD Text reading capability.

See "Playing a CD Text" on page 18.

Selecting CD playback modes

• There is a time limit in doing the following procedure. If the setting is cancelled before you finish, start from step 1 again.

To play back tracks at random (Random Play)

1 Press MODE BAND while playing a CD. "MODE" appears on the display.

2 Press RND (random), while "MODE" is still on the display, so that the RND indicator lights up on the display.

Each time you press the button, CD random play mode changes as follows:

Mode	RND Indicator	Plays at random
RND1 Lights	All tracks	of the current disc, then the tracks of the next disc, and so on.
RND2 Flashes	All tracks	of all discs inserted in the magazine.

To play back tracks repeatedly (Repeat Play)

1 Press MODE BAND while playing a CD. "MODE" appears on the display.

2 Press RPT (repeat), while "MODE" is still on the display, so that the RPT indicator lights up on the display.

Each time you press the button, CD repeat play mode changes as follows:

Mode	RPT Indicator	Plays repeatedly
RPT1 Lights	The current	track (or specified track).
RPT2 Flashes All tracks	of the current disc (or specified disc).

To play back only intros (Intro Scan)

1 Press MODE BAND while playing a CD. "MODE" appears on the display.

2 Press INT (intro), while "MODE" is still on the display.

Each time you press the button, CD intro scan mode changes as follows:

Mode	Indication	Plays the beginnings (15 seconds)
INT1	Track number flashes	Of all tracks on all inserted discs.
INT2	Disc number flashes (when it is shown on the display)	Of the first track on each inserted disc.

Playing an external component

You can connect the external component to the CD changer jack on the rear using the Line Input Adaptor KS-U57 (not supplied).

Preparations:

• For connecting the Line Input Adaptor KS-U57 and the external component, refer to the Installation/Connection Manual (separate volume).
  Before operating the external component using the following procedure, select the external input correctly. (See "To select the external component to use -EXT INPUT" on page 25.)

1 Select the external component.

Each time you press the button, the source changes as described on page 7.

2 Operatetheexternalcomponent.

3 Adjust the volume.

We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer.

Refer also to the Instructions supplied with your DAB tuner.

What is DAB system?

DAB is one of the digital radio broadcasting systems available today. It can deliver CD quality sound without any annoying interference and signal distortion. Furthermore, it can carry text, pictures and data.

In contrast to FM broadcast, where each programme is transmitted on its own frequency, DAB combines several programmes (called "services") to form one "ensemble."

With the DAB tuner connected with this unit, you can enjoy these DAB services.

Tuning into an ensemble and one of the services

A typical ensemble has 6 or more programmes (services) broadcast at the same time. After tuning into an ensemble, you can select a service you want to listen to.

1 Select the DAB tuner (DAB1-3).

2 Select the DAB band (DAB1, DAB2, or DAB3).

Each time you press and hold the button, the DAB band changes as follows:

Note:

This receiver has three DAB bands (DAB1, DAB2, DAB3). You can use any of them to tune into an ensemble.

3 Start searching an ensemble.

Press to search ensembles of higher frequencies.

Press search ensembles of lower frequencies.

When an ensemble is received, searching stops.

To stop searching before an ensemble is received, press the same button you have pressed for searching.

4 Select a service you want to listen to.

1Press MODE BAND. "MODE" appears on display.
2 Press▶or▶ to select a service you want, while "MODE" is still on the display.

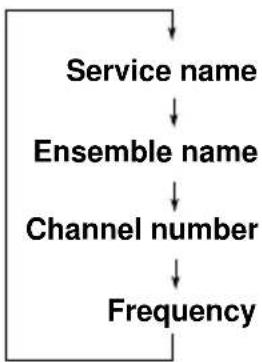

To change the display information while tuning into an ensemble

Normally service name is shown on the display. If you want to check the ensemble name or its frequency, press DISP (display).

Each time you press the button, the following information appears for a while on the display.

To tune in a particular ensemble without searching:

1 Press SOURCE to select DAB tuner as the source.
2 Press MODE BAND repeatedly to select the DAB band (DAB1, DAB2, or DAB3).
3 Press and hold or for more than 1 second.
4 Press or repeatedly until the ensemble you want is reached.

• If you hold down the button, the ensemble keeps changing until you release the button.

Storing DAB services in memory

You can preset up to 6 DAB services in each DAB band (DAB1, DAB2 and DAB3) manually.

1 Select the DAB tuner (DAB1-3).

Press SOURCE to select DAB tuner as the source.
2If necessary, press and hold MODE BAND repeatedly to select the DAB band number (DAB1, DAB2 or DAB3).

Each time you press and hold the button, the DAB band changes as follows:

2 Tune into an ensemble you want.

3 Select a service of the ensemble you want.

1Press MODE BAND. "MODE" appears on the display.

2 PressNor to select a service you want, while "MODE" is still on the display.

4 Press and hold the number button (in this example, 1) you want to store the selected service into for more than 2 seconds.

Band number and "MEMO" appear alternately for a while.

5 Repeat the above procedure to store other DAB services into other preset numbers.

Notes:

• A previously preset DAB service is erased when a new DAB service is stored in the same preset number.
• Preset DAB services are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the DAB services again.

Tuning into a preset DAB service

You can easily tune into a preset DAB service. Remember that you must store services first. If you have not stored them yet, see pages 34 and 35.

1 Select the DAB tuner (DAB1-3).

1Press SOURCE to select DABtuner as the source.
2If necessary, press and hold MODE BAND repeatedly to select the DAB band number (DAB1, DAB2 or DAB3).

Each time you press and hold the button, the DAB band changes as follows:

2 Select the number (1 - 6) for the preset DAB service you want.

What you can do more with DAB

Tracing the same program automatically (Alternative Reception)

You can keep listening to the same program.

• While receiving a DAB service:

When driving in an area where a service cannot be received, this unit automatically tunes in another ensemble or FM RDS station, broadcasting the same program.

• While receiving an FM RDS station:

When driving in an area where a DAB service is broadcasting the same program as the FM RDS station is broadcasting, this unit automatically tunes into the DAB service.

Note:

When reception switches between DAB and FM, the listening volume level may increase or decrease inconveniently. This change in the volume level results from unequal audio injection levels at broadcaster site, but not from the malfunction of this unit.

To use Alternative Reception

When shipped from the factory, Alternative Reception is activated.

1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
2 Press or to select "DAB AF" (alternative frequency).
3 Turn the control dial to select the desired mode.

• AF ON: Traces the program among DAB services and FM RDS stations — Alternative Reception. The AF indicator lights up on the display (see page 11).
  AF OFF:Deactivates Alternative Reception

Note:

When Alternative Reception (for DAB services) is activated, Network-Tracking Reception (for RDS stations: see page 11) is also activated automatically. On the other hand, Network-Tracking Reception cannot be deactivated without deactivating Alternative Reception.

4 Press SEL (select) to finish the setting.

ADDITIONAL INFORMATION

PTY codes

NEWS: News

AFFAIRS: Topical programmes expanding on current news or affairs

INFO: Programmes which impart advice on a wide variety of topics

SPORT: Sport events

EDUCATE: Educational programmes

DRAMA: Radio plays

CULTURE: Programmes on national or regional culture

SCIENCE: Programmes on natural science and technology

VARIED: Other programmes like comedies or ceremonies

POP M: Pop music

ROCK M: Rock music

EASY M: Easy-listening music

LIGHT M: Light music

CLASSICS: Classical music

OTHER M: Other music

WEATHER: Weather information

FINANCE: Reports on commerce, trading, the Stock Market, etc.

CHILDREN: Entertainment programmes for children

SOCIAL:Programmes on social activities

RELIGION: Programmes dealing with any aspect of belief or faith, or the nature of existence or ethics

PHONE IN: Programmes where people can express their views either by phone or in a public forum

TRAVEL: Programmes about travel destinations, package tours, and travel ideas and opportunities

LEISURE: Programmes concerned with recreational activities such as gardening, cooking, fishing, etc.
JAZZ: Jazz music

COUNTRY: Country music

NATION M: Current popular music from another nation or region, in that country's language

OLDIES: Classic pop music

FOLK M: Folk music

DOCUMENT: Programmes dealing with factual matters, presented in an investigative style

What appears to be trouble is not always serious. Check the following points before calling a service centre.

Symptoms	Causes	Remedies
• CD cannot be played back.	CD is inserted upside down.	Insert the CD correctly.
• CD sound is sometimes interrupted.	You are driving on rough roads.	Stop CD play while driving on rough roads.
	CD is scratched.	Change the CD.
	Connections are incorrect.	Check the cords and connections.
• Sound cannot be heard from the speakers.	The volume level is set to the minimum level.	Adjust it to the optimum level.
	Connections are incorrect.	Check the cords and connections.
• SSM (Strong-station Sequential Memory) automatic preset does not work.	Signals are too weak.	Store stations manually.
• Static noise while listening to the radio.	The antenna is not connected firmly.	Connect the antenna firmly.
• “NO DISC” appears on the display.	No CD is in the magazine.	Insert CD.
• “RESET 8” appears on the display.	This unit is not connected to a CD changer correctly.	Connect this unit and the CD changer correctly and press the reset button of the CD changer.
• “RESET 1” – “RESET 7” appears on the display.		Press the reset button of the CD changer.
• “EJECT ERR” appears on the display and CD cannot be ejected.	The CD player may function incorrectly.	Press and hold I or more than 5 seconds.
• No message appears on the display but CD cannot be ejected.		While holding I, press the reset button. Release the reset button, then release I. (Be careful not to drop the CD when ejecting.)
• “Access” appears on the display.	Security lock is in use.	Enter the password. (See page 28.)
• This unit does not work at all. • The CD changer does not work at all.	The built-in microcomputer may function incorrectly due to noise, etc.	Press the reset button on the front panel. (See page 2.)

Handling CDs

This unit has been designed to reproduce the CDs bearing the following marks.

You can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) on this receiver.

This unit is not compatible with MP3.

How to handle CDs

When removing a CD from

its case, press down the center holder of the case and lift the CD out, holding it by the edges.

• Always hold the CD by the edges. Do not touch its recording surface.

When storing a CD into its case, gently insert the CD around the center holder (with the printed surface facing up).

Make sure to store CDs into the cases after use.

To keep CDs clean

A dirty CD may not play correctly. If a CD does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new CDs

New CDs may have some rough spots around the inner and outer edges. If such a CD is used, this unit may reject the CD.

To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the CD, but will be annoying.

We recommend that you stop CD play while driving on such rough roads.

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

After starting the heater in the car
- If it becomes very humid inside the car

Should this occur, the CD player may malfunction. In this case, eject the CD and leave the unit turned on for a few hours until the moisture evaporates.

When playing a CD-R or CD-RW

User-edited CD-Rs (Recordable) and CD-RWs (Rewritable) can be played back only if they are already "finalized."

• You can play back your original CD-Rs or CD-RWs recorded in music CD format. (However, they may not be played back depending on their characteristics or recording conditions.)
• Before playing back CD-Rs or CD-RWs, read their instructions or cautions carefully.
• Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, damage or stain on them, or if the player's lens is dirty.
• CD-Rs or CD-RWs are susceptible to high temperatures or high humidity; so do not leave them inside your car.
• CD-RWs may require a longer readout time. (This is caused by the fact that the reflectance of CD-RWs is lower than for regular CDs.)

CAUTIONS:

• Do not insert 8 cm CDs (single CDs) into the loading slot. (Such CDs cannot be ejected.)
• Do not insert any CD of unusual shape - like a heart or flower; otherwise, it will cause a malfunction.
• Do not expose CDs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.
• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean CDs.

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 50 W per channel

Rear: 50 W per channel

Continuous Power Output (RMS):

Front: 19 W per channel into 4 40Hz to 20000Hz at no more than 0.8% total harmonic distortion.

Rear: 19 W per channel into 4 40Hz to 20000Hz at no more than 0.8% total harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Tone Control Range:

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Frequency Response: 40 Hz to 20 000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance:

2.0 V/20 kΩ load (full scale)

Output Impedance: 1k

TUNER SECTION

Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1620 kHz

(LW) 144 kHz to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 V/75 Ω)

50 dB Quieting Sensitivity:

16.3 dBf (1.8 V/75 Ω)

Alternate Channel Selectivity (400 kHz):

65dB

Frequency Response: 40 Hz to 15 000 Hz

Stereo Separation: 30 dB

Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 V

Selectivity: 35 dB

[LWTuner]

Sensitivity: 50 V

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup (semiconductor laser)

Number of channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

GENERAL

Power Requirement:

Operating Voltage: DC 14.4 V

(11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature:

0^ C to +40^ C

Dimensions (W·H·D):

Installation Size:

182 mm·52 mm·160 mm

Panel Size:

188 mm·58 mm·8 mm

Mass: 1.7kg (excluding accessories)

Design and specifications subject to change without notice.

EMPLACEMENT DES TOUCHES 4

FONCTIONNEMENT RDS 11

Searching a station manually: Manual search

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

-

/

<

>

espace

Remarques:

EDUCATE: Programmes educatifs

DRAMA: Pièces radio

Tailled installation:

182 mm·52 mm·160 mm

Taille du panneau:

188 mm·58 mm·8 mm

Automatic clock adjustment

1 Open de laadopening.

A B	C D	E F	G H	I J
K L	M N	O P	Q R	S T
U V	W X	Y Z				0 1	2 3
4 5	6 7	8 9				-	/	<	>
spatie

Opmerkingen:

EDUCATE: Educatieve programma's

Stereo-scheiding: 30 dB

Vangbereik: 1,5 dB

[MG-zenders]

Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit
