USER MANUAL SMW 700 A1 SILVERCREST

Exterior view of a silver Silvercrest microwave oven with dual rotary knobs (no visible text or symbols)

MICROWAVE SMW 700 A1

GB IE

MICROWAVE

Operating instructions

NL BE

MAGNETRON

Gebruiksaanwijzing

FR BE

FOUR À MICRO-ONDES

Mode d'emploi

DE AT CH

MIKROWELLE

Bedienungsanleitung

GB IE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating instructions Page 1

Package contents....2

Appliance description 2

Technical data 2

Safety guidelines....3

Earthing information/correct installation....8

Interference with other appliances....8

Before starting....8

Basic principles of microwave cookery....8

Suitable cookware 8

First use 9

Installation of the appliance 9

Preparing the appliance 9

Operation....10

Cleaning and care ....11

Storage....11

Troubleshooting....11

Warranty and service....12

Disposal 12

Importer....12

GB IE

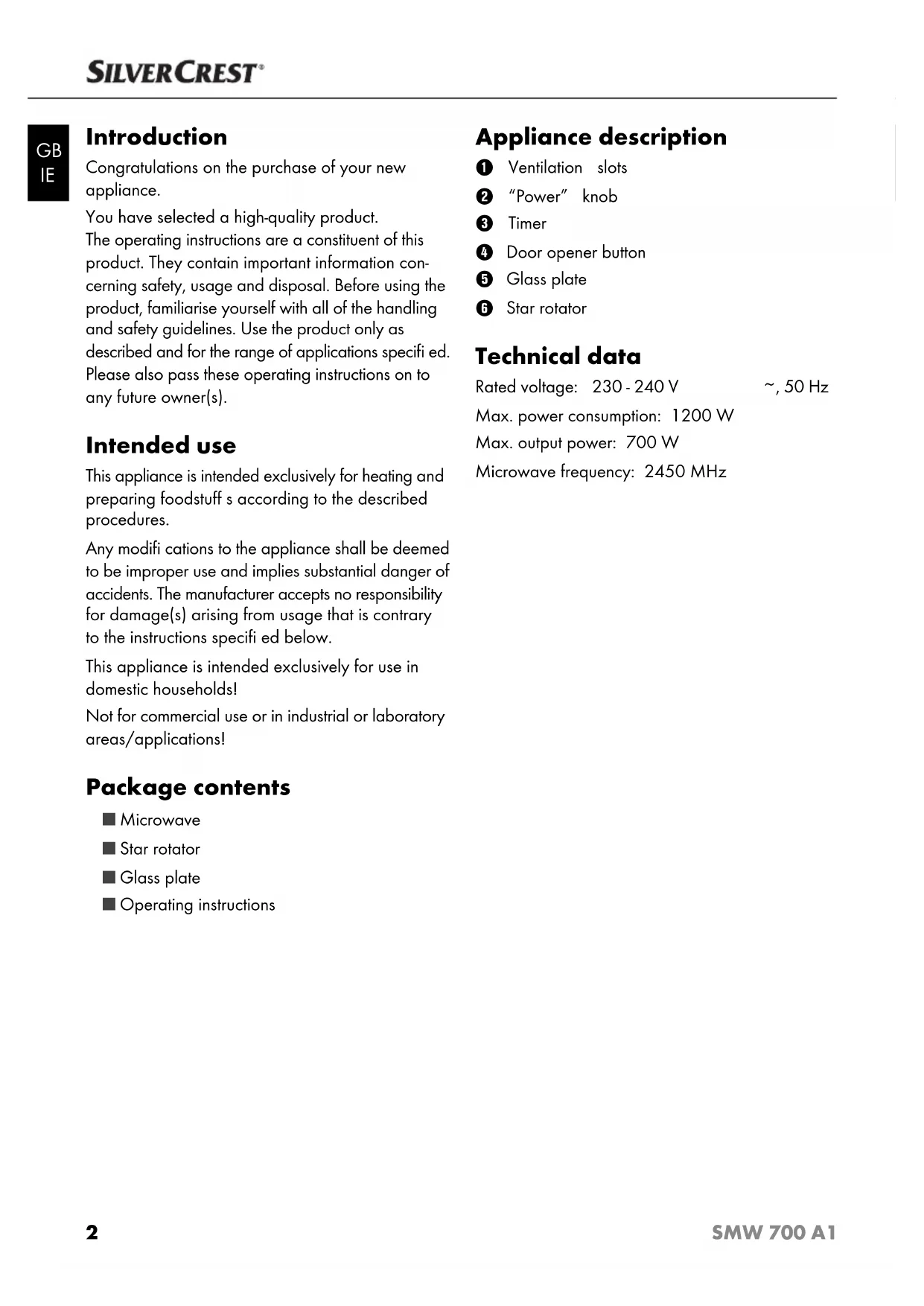

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product.

The operating instructions are a constituent of this product. They contain important information concerning safety, usage and disposal. Before using the product, familiarise yourself with all of the handling and safety guidelines. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner(s).

Intended use

This appliance is intended exclusively for heating and preparing foodstuff s according to the described procedures.

Any modifications to the appliance shall be deemed to be improper use and implies substantial danger of accidents. The manufacturer accepts no responsibility for damage(s) arising from usage that is contrary to the instructions specified below.

This appliance is intended exclusively for use in domestic households!

Not for commercial use or in industrial or laboratory areas/applications!

Package contents

Microwave
Star rotator
Glass plate
■ Operating instructions

Appliance description

① Ventilation slots
② "Power" knob
3 Timer
4 Door opener button
5 Glass plate
6 Star rotator

Technical data

Rated voltage: 230 - 240 V \~, 50 Hz

Max. power consumption: 1200 W

Max. output power: 700 W

Microwave frequency: 2450 MHz

Safety guidelines

DANGER – ELECTRIC SHOCK!

The appliance must only be connected to a correctly installed and earthed mains power socket. Ensure that the rating for your local power supply corresponds with the details on the rating plate of the appliance.
▶ Ensure that the power cable does not become wet or moist during use. Route the cable in such a way that it cannot be crushed or damaged.
- Keep the power cable well away from sources of heat. Do not lead it in front of the microwave oven door. The heat could damage the cable.
Remove the plug from the mains power socket when the appliance is being cleaned or in the event of a fault. It is not sufficient to switch off the appliance, since mains voltage is present for as long as the plug is connected to the mains power socket.
▶ Always remove the plug from the mains power socket when the appliance is not in use.
To prevent accidents, have defective plugs and/or power cables replaced immediately by a qualified specialist technician or our Customer Service Department.
The appliance and its connecting cable must be kept away from children.
▶ Never submerge the appliance, the power cable or the plug in water or other liquids.
▶ Never pour liquids into the ventilation openings or the safety door locking mechanisms. If liquids enter these cavities, immediately switch the microwave oven off and remove the plug from the mains power socket. Arrange for the appliance to be checked by qualified specialists.

Never submerge the appliance in water or other liquids.

⚠ WARNING! RISK OF INJURY!

▶ If the door or the door seal is damaged, under no circumstances may you continue to use the appliance. Arrange for it to be repaired as soon as possible by qualified specialists.

▶ Never attempt to repair the appliance yourself. Removal of the appliance housing could cause the release of microwave energy. All repairs must be carried out by qualified specialists.

This appliance may be used by children aged 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised, or have been instructed in the safe use of the appliance and have understood the potential risks.

▶ Children must not use the appliance as a plaything.

- Cleaning and user maintenance must not be carried out by children, unless they are aged 8 or over and are supervised.

▶ Children younger than 8 years of age must be kept away from the appliance and the power cable.

This appliance may only be used for its intended purpose, as described in this manual. Do not use any caustic chemicals or vapours in this appliance. This microwave oven is designed especially for heating, cooking, grilling, or drying foods. It is not designed for use in industrial or laboratory areas.

- Keep children well away from the microwave oven when it is in use. Risk of burns!

▶ Under no circumstances should you remove the microwave oven housing.

▶ Have the lamp in the interior of the microwave oven replaced by a qualified specialist only.

▶ Individuals with heart pacemakers should consult their physician regarding possible risks before using a microwave oven.

▶ Never heat up liquids or other foods in closed containers; this can result in an explosion!

Caution! Hot surface!

⚠ WARNING! RISK OF INJURY!

It is dangerous for anyone other than specially trained personnel to perform any type of maintenance or repair work requiring removal of the cover, which provides protection against the radiation emitted by microwave ovens.
- Do not perform any repairs on the appliance. All repairs must be performed by our Customer Service Unit or by a qualified specialist technician.
▶ Never touch the microwave oven door, housing, ventilation openings, accessories or the dinnerware immediately after cooking. The parts will be extremely hot. Allow them to cool down before cleaning them.
- Ensure that the plug is always easily accessible, so that it can be disconnected quickly in an emergency.
- Do not allow the power cable to hang from the table or the worktop. Children could pull on it.
▶ After warming up containers, popcorn bags etc. always open them with the opening pointing away from your body. Escaping steam could lead to scalds.
▶ Never stand directly in front of the microwave oven when opening the door. Escaping steam could lead to scalds.
- Do not deep fry in the microwave. Hot oil can damage parts of the appliance and utensils and even cause skin burns.
▶ Always shake or stir jars of baby food or bottles after warming! The contents could have heated up unevenly and the baby could be burned/scalded by them. Always check the temperature thereof before feeding the baby!
▶ Do not modify the microwave oven.
Before consumption, check the temperature in order to avoid potentially life-threatening burns to babies. Cooking utensils may become hot from the heat emitted by the food - you may therefore need oven gloves to touch them. In this case, a check should also be made to ensure that the cooking utensils are suitable for use with the microwave oven.

⚠ WARNING! RISK OF INJURY!

- When heating drinks in the microwave, bubbling may be delayed when the drink boils. You should therefore take care when handling the container. To avoid sudden boiling and the risk of injury:

• If possible, place a glass rod in the liquid for as long as it is being heated.
• After heating a liquid allow it to stand in the microwave oven for approx. 20 seconds to prevent it from boiling over unexpectedly.

▶ Proceed with caution when warming up liquids. Use only open containers, so that any air bubbles produced can escape.
▶ Eggs in their shells and hard-boiled eggs should not be heated in the micro wave oven, because they can explode, even after the heating process is completed.

Always prick food with thick skins, such as potatoes, sausages, whole pumpkins, apples and chestnuts before cooking.

⚠ WARNING! RISK OF FIRE!

• When heating foods in plastic or paper containers, ensure that they are checked frequently to prevent possible combustion.
  ▶ Never place fl ammable materials close to the microwave oven or the ventilation openings.
  Remove all metallic closures from the packaging of the foodstuff you intend to warm up. Risk of fire!
  ▶ Always use popcorn bags that are suitable for microwave ovens when making popcorn.
• Do not use the microwave oven to warm up cushions filled with kernels, cherry stones or gels. Risk of fire!
  ▶ Do not use the microwave oven for storing foodstuffs or other objects.

⚠ WARNING! RISK OF FIRE!

▶ Do not exceed the cooking times specified by the manufacturer.
▶ Do not place any objects on the microwave oven when it is in use. The ventilation openings would be blocked!
- Do not place the microwave oven next to other appliances discharging heat, for example, an oven.
- Clean the microwave oven thoroughly after warming up greasy foods, particularly if they were not covered. Any residue could possibly overheat and ignite. Allow the appliance to cool down completely before cleaning it.
- Do not thaw frozen fat or oil in the microwave oven. The fat or oil could ignite.
- Do not use an external timer switch or a separate remote control system to operate the appliance.
▶ If the appliance starts to give off smoke it should be switched off immediately or the plug removed from the mains and the door should be kept closed to smother any flames that might otherwise escape.

ATTENTION! PROPERTY DAMAGE!

▶ Do not operate the microwave oven when it is empty.
▶ Never insert foreign objects into the ventilation openings or the door safety locks.
- Do not use metallic utensils which reflect microwaves and lead to sparking. Do not place tins in the microwave oven.
▶ Never place this microwave oven in areas with high humidity or where moisture could collect.
▶ Do not lean on the microwave oven door.
- Insufficient cleanliness of the appliance could lead to the destruction of the upper surfaces, which themselves influence its useful lifespan and could possibly lead to dangerous situations.
▶ Do not transport the microwave oven when it is in operation.

Earthing information/ correct installation

This appliance must be earthed. This appliance must only be connected to a correctly earthed power socket. A separate circuit that is devoted to connecting the microwave is recommended.

DANGER - ELECTRIC SHOCK!

▶ Improper use of the earthing connector could increase the risk of electric shock.

NOTE

▶ If you have any questions about earthing or the instructions concerning the use of this electrical appliance, please consult an electrician or a maintenance technician.

■ Neither the manufacturer nor the dealer can accept liability for damage to the microwave oven or injury to persons resulting from failure to comply with the instructions for electrical connection.

Interference with other appliances

The operation of the microwave may cause interference on your radio, television or similar appliances.

If such interference should occur, it may be reduced or corrected by taking the following remedial measures:

■ Clean the door and the sealing surfaces of the microwave oven.

■ Realign the radio or television antenna.

- Put the microwave in a different location than the receiver.

■ Move the microwave away from the receiver.

- Plug the microwave into another wall socket. The microwave and the receiver should be connected to different power circuits.

Before starting

Basic principles of microwave cookery

■ Think carefully about how to arrange the food

■ The thickest parts should be at the edges.

■ Pay attention to the cooking time. Select the shortest possible specified cooking time and increase as required. Food that is cooked for too long can begin to smoke or catch fire.

■ Cover the food with a lid that is suitable for microwave cookery during cooking. The lid prevents splashing and helps to cook the food evenly.

■ While cooking, turn the food in the microwave once so that items such as chicken or hamburgers cook more quickly.

■ Turn large food items such as joints of meat at least once.

■ Completely re-arrange foods such as meatballs after half of the cooking time. Turn them and move the meatballs from the middle of the cookware to the edge.

Suitable cookware

■ The ideal material for a microwave oven is microwave-permeable, allowing the energy to pass through the container to heat the food. Microwaves cannot pass through metal. For this reason metal containers and cookware should not be used.

- Do not use products made from recycled paper when using the microwave for heating. These may contain minute fragments of metal, which can generate sparks and/or fi res.

■ We recommend the use of round/oval cookware rather than square or oblong containers, since food in corner areas tends to overcook.

■ The following list can be used as a general aid in helping you to select the proper cookware.

Cookware	Suitable for microwave
Heat-resistant glass Yes
Non-heat-resistant glass No
Heat-resistant ceramics Yes
Microwave-compatible plastic cookware	Yes
Kitchen roll Yes
Metal trays/plates No
Aluminium foil No
Foil containers No

WARNING! RISK OF FIRE!

▶ Never use metallic objects in the microwave oven. Metals reflect the microwave radiation and it leads to the generation of sparks. This could cause a fire and irreparably damage the appliance!

First use

Installation of the appliance

WARNING! RISK OF FIRE!

This microwave oven is not suitable for installation in a kitchen cabinet. Sufficient ventilation for the appliance cannot be assured in closed cabinets. The appliance could be damaged and there would be the additional risk of fire!

■ Select a level surface that provides sufficient room for ventilating the appliance:

- Maintain minimum clearance of 10 cm from adjacent walls/surfaces. Ensure that the door of the microwave oven can be opened easily.

- Keep a gap of at least 20 cm free above the microwave.

■ Make sure that the power plug is easily accessible and can be reached and disconnected in emergencies or dangerous situations.

■ Do not remove the pads beneath the microwave oven.

Do not block the ventilation openings ①. If you do, it could cause damage to the appliance.

■ Install the appliance as far away as possible from radios and televisions. Operation of the microwave oven can cause interference with radio and television reception.

ATTENTION! MATERIAL DAMAGE!

▶ Do not install the microwave above a cooker or any other appliance that generates heat. Installation in such a location could cause damage to the appliance and lead to a subsequent cancellation of the warranty provisions.

Preparing the appliance

1) Remove all packaging materials and any stickers from the appliance.

NOTE

Do not remove the light grey mica cover plate that is fitted in the cooking area to protect the magnetron.

2) Position the star rotator ⑥ on the drive shaft in the cooking chamber so that it is seated firmly on the drive shaft.

3) Centre the glass plate ⑤ on the star rotator ⑥.

4) Insert the plug into a mains power socket. Use a 230 - 240 V \~, 50 Hz, mains socket with 16 A fuse. We recommend connecting the microwave oven to a separate mains circuit. If you are unsure about how to connect the microwave oven, consult a specialist.

GB IE

Operation

1) Press the door opener button ④ to open the door.
2) Place the food in the microwave oven in or on microwave-compatible cookware. Follow the instructions in the Chapter "Before starting"
3) Close the door.
4) Set the desired power using the power knob ②. The table below provides a guide:

Power in Watts	Application
120 W -Thawing	sensitive food such as butter, cheese, fish and small portions-Keeping food warm.
>120 - 335 W	-Quick thawing-Gentle cooking-Heating sensitive food such as fish or baby food
>335 - 700 W	Heating and cooking-Warming up left-overs
700 W -Maximum power	-Quick warm-up

NOTE

This table is intended as an orientation aid only. The power setting may vary depending on the food. In the event of uncertainty regarding the power setting, always start with a low setting. If necessary increase the power or cooking time.

The table below provides a guide for thawing foods:

Weight Time
200 g -approx	3 minutes
400 g -approx	6 minutes
600 g -approx	9 minutes
800 g -approx	12.5 minutes
1 kg -appr	ox. 15 minutes

NOTE

▶ Please note that the times specified are only intended as a guideline; the times specified may vary considerably depending on the characteristics or shape of the item that is being thawed!

5) Set the timer ③ to the required cooking time. Cooking starts immediately.

NOTE

▶ To set a cooking time of less then 2 minutes, first turn the timer ③ to 5 minutes and then back to 2 minutes. This allows the time to be set more precisely.

6) When the set time has expired, an acoustic signal is heard and the microwave oven shuts off.

7) Open the door and remove the food.

WARNING! RISK OF INJURY!

▶ Both the cookware and the food may be extremely hot. Always use a oven gloves or the like to remove dishes from the microwave oven!

NOTE

▶ To interrupt cooking operation, press the door opener button ④. The microwave oven and the timer ③ stop immediately. When the door is closed again, the selected cooking operation is resumed.

▶ Always turn the timer ③ back to 0 after interrupting cooking operation if you do not want to continue!

Cleaning and care

DANGER – ELECTRIC SHOCK!

▶ Before cleaning the appliance, disconnect the plug from the mains power socket! Risk of electric shock!

NEVER immerse the appliance in water or any other liquid!

ATTENTION! MATERIAL DAMAGE!

▶ Do not use abrasive or aggressive cleaning materials. These may damage the surfaces of your appliance!

■ Always keep the interior of the microwave oven clean.

If splashes of food or spilt liquids stick to the walls of the microwave, wipe them off with a damp cloth.

■ Use a mild detergent if the microwave is heavily soiled.

■ Avoid using cleaning sprays and other aggressive cleaning agents, as they can cause stains, stripes or cloudiness on the door surface.

■ Clean the external walls with a moist cloth.

■ To avoid damage to the functional components in the interior of the microwave, do not let liquids to seep in through the ventilation slits ①.

■ Regularly remove splashes or contamination. Clean the door, both sides of the viewing window, door seals and adjacent components with a damp cloth. Do not use abrasive cleaning agents.

If a haze collects on or around the outside of the appliance door 4, wipe it off with a soft towel. This can happen if the microwave is operated in extremely humid conditions.

- Clean the glass plate ⑤ regularly. The glass plate ⑤ can be cleaned in the dishwasher or in hot water with a little detergent.

■ Wipe over the star rotator ⑥ with a damp cloth.

■ Regularly eliminate odours. Put a deep microwave bowl with a cup of water, juice and peel of a lemon into the microwave. Heat for 5 minutes. Wipe off thoroughly and rub dry with a cloth.

If it is necessary to replace the bulb in the microwave, have it replaced by a dealer or consult our Service Department.

Storage

■ Store the cleaned appliance in a clean, dust-free and dry place.

Troubleshooting

Appliance does not start cooking/warming process.

■ Door not properly closed. Close door properly.

- Plug not inserted into mains power socket. Connect plug to power supply.

Glass plate ⑤ generates loud noise when revolving.

■ Glass plate ⑤ not correctly positioned on star rotator ⑥. Centre glass plate ⑤ on star rotator ⑥.
Star rotator ⑥ and/or floor of the cooking chamber not clean. Clean the star rotator ⑥ and the floor of the cooking area.

Warranty and service

You are provided a 3-year warranty on this device, valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service centre by telephone. This is the only way to guarantee free return of your goods.

The warranty only covers claims for material and manufacturing defects, not for damage sustained during carriage, components subject to wear and tear or damage to fragile components such as switches or batteries. This appliance is intended solely for private use and not for commercial purposes.

The warranty shall be deemed void in the case of misuse or improper handling, use of force and repairs or modifications which have not been carried out by one of our authorised Service centres.

Your statutory rights are not restricted by this warranty.

The warranty period is not prolonged by repairs eff ected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs eff ected after expiry of the warranty period shall be subject to charge.

GB Service Great Britain Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail] IAN 59414

IE Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 59414

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Disposal

Under no circumstances should the appliance be disposed of in standard household waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispose of the device via an approved waste disposal company or your municipal waste disposal facility. Please observe all currently applicable regulations. Please contact your waste disposal centre if you are in any doubt.

The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table des matières

Introduction 14

Usage conforme ....14

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhoud

⚠ WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! BRANDGEVAAR!

⚠ WAARSCHUWING! BRANDGEVAAR!

WAARSCHUWING! BRANDGEVAAR!

WAARSCHUWING! BRANDGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung ....38

⚠️ WARNUNG! BRANDGEFAHR!

⚠️ WARNUNG! BRANDGEFAHR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND / GERMANY

www.kompernass.com

Last Information Update · Version des informations

Stand van de informatie · Stand der Informationen:

08 / 2014 · Ident.-No.: SMW700A1-042014-2
