USER MANUAL M20 Ecostyle CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your microwave will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

12.2 Information on this manual

These Operating Instructions are a component of the microwave (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning, • Operation, • Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

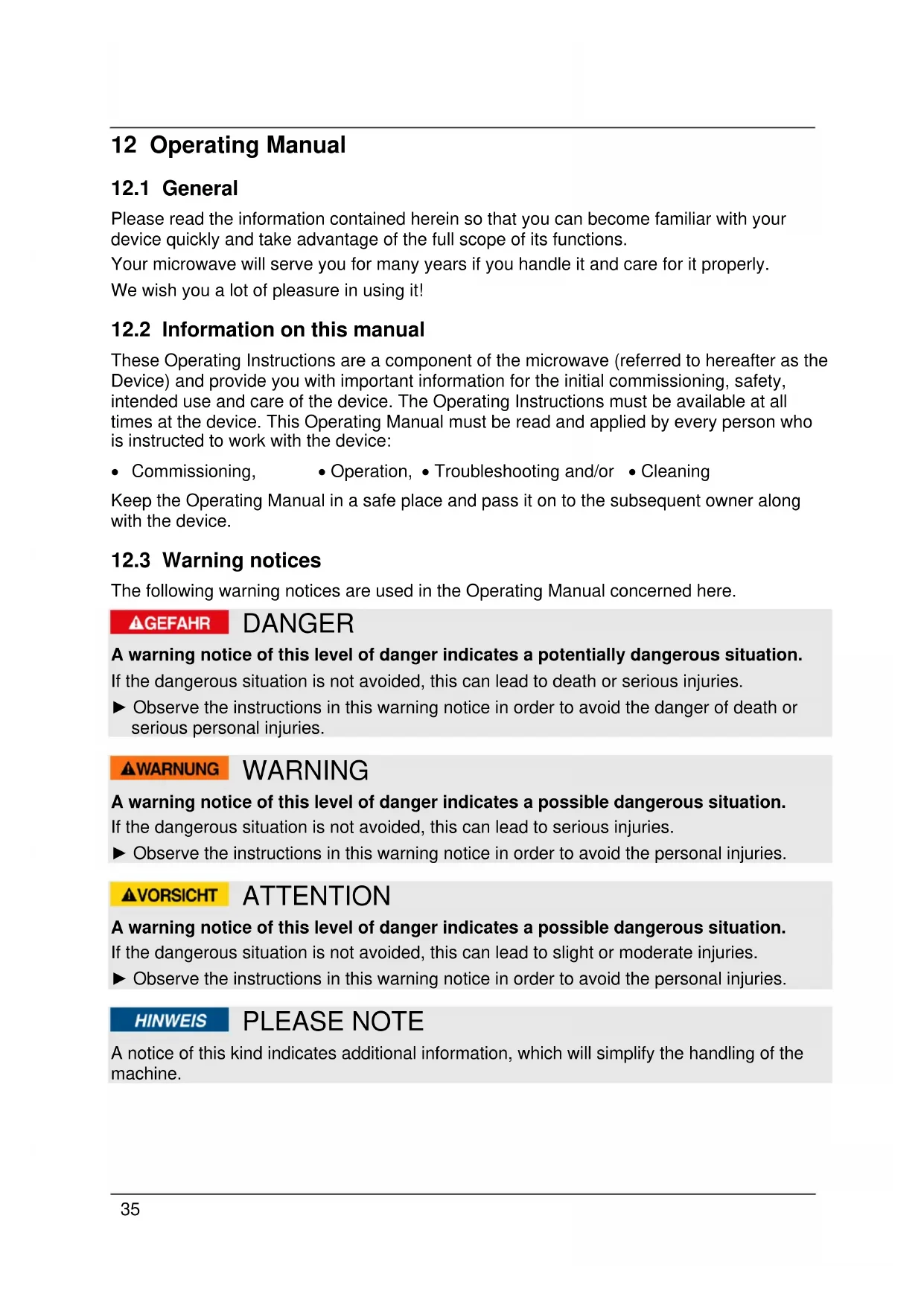

12.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.36

12.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: Non-observance of the manual • Uses for non-intended purposes

• Improper repairs • Technical alterations, modifications of the device

• Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

12.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 13 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for

• Defrosting, • warming up • cooking foods and beverages. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; in B&Bs,

• in agricultural estates;

• by customers in hotels, motels and other residential establishments. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. WARNING Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.37

13.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. Read all these instructions before using the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► The device is not intended for drying, warming up or heating up living animals. ► This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device. ► The device and its connecting cable must be kept away from children who are less than 8 years old. ► The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. Please note38 Please note ► Only use utensils that are suitable for use in microwave ovens. ► Use this device only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this device. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. ► Do not operate this device if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. ► Food thermometers are unsuitable to be used when the microwave is in operation. ► This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose. ► The microwave oven is only used when it is freestanding. ► The microwave oven must not be placed in a cabinet. ► The device shall be placed against a wall. ► The device is not intended to be operated by means of an external timer or separate remote-control system.39 Please note ► Warning: Do not install the oven over a range cooktop or other heat-producing device. If it is installed it could be damaged and the warranty would be void. ► The microwave oven is for household use only and not for commercial use. ► Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation. ► Please secure the turn table before you move the device to avoid damages. ► The microwave oven is intended for defrosting, cooking and steaming of food only. ► The device must not be cleaned with a steam cleaner.

13.3 Sources of danger

13.3.1 Danger due to microwaves

Warning Exposure to microwaves on the human body can result in injuries. Please observe the following safety notices in order not to expose yourself or others to microwaves. ► Never operate the device when the door is open. Having a faulty or manipulated safety switch results in the danger of exposing oneself directly to the microwaves. ► If the door or door seals are damaged, the device must not be operated until it has been repaired by an authorized person. ► WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. This applies to changing the power cord or the lighting as well. Send the device in these cases to our service centre.40

13.3.2 Danger of burns

Warning The culinary items being heated up in this device as well as the cookware that being used and the surface of the device can become very hot. Please observe the following safety notices in order not to burn or scald yourself or others. ► Microwave heating of beverages can result in delayed eruptive boiling (boiling retardation), therefore care must be taken when handling the container. ► Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns. ► In particular, the contents of baby bottles and baby food jars must be stirred or shaken, and the temperature must be checked before consumption to prevent scolding. ► Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil. ► The door or the outer surface may get hot when the device is operating. ► The accessible surface may be hot during operation. ► The temperature of accessible surfaces may be high when the device is operating. ► Use gloves if you remove any heated food. ► Caution! Steam will escape, when opening lids or wrapping foil.41

13.3.3 Danger of fire

Warning There is a danger of fire due to the ignition of the content in the event the device is not used properly. Observe the following safety notices to avoid dangers of fire: ► Never use the device to store or dry flammable materials. ► Do not warm up any alcohol in an undiluted state. ► Do not operate the oven when empty. ► To reduce the risk of fire in the oven cavity: a) When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition. b) Remove wire twist-ties from paper or plastic bags before placing bag in oven. c) If smoke is emitted turn off the device or unplug the device and keep the door closed to extinguish any flames. d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use. ► Never the leave the device unsupervised if you are warming up or cooking foods in disposable containers made of plastic, paper or other flammable materials. ► Disposable containers made of plastic must have the properties shown under the heading “Notices on microwave cookware”. ► The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.42

13.3.4 Danger of explosion

Warning There is a danger of explosion due to excess pressure that is created in the event the device is not used properly. Observe the following safety notices to avoid dangers of an explosion: ► Liquids and other food must not be heated in closed vessels as these may explode. ► Do not cook eggs in the shell or extremely hard boiled eggs in the device as they can still explode, even after the microwave operation has been completed. ► Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

13.3.5 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Do not operate this device if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.43 Danger ► Caution: It is dangerous to repair or maintain the device by anyone other than a specialist because under these circumstances the cover would have to be removed which ensures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the device in these cases to our service center.

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.5 Safety information

WARNING ► Packaging materials may not be used for playing. There is a danger of suffocation. ► Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

13.6 Delivery scope and transport inspection

As a rule, the Microwave M20 Ecostyle is delivered with the following components:

• Microwave M20 Ecostyle • Rolling ring •Glass turntable • Operating Instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.

• Remove the accessories located in the cooking chamber and remove the packaging material.

• Remove the red coloured safety adhesive strip on the floor of the cooking chamber.

• Remove the blue protective film on the device itself. Please note ► Only remove the blue protective film shortly before setting up the device in the location where it will be used, to prevent scratches and dirt accumulations. ► Please don’t remove the protective film from the inside of the door (if equipped), since this makes the cleaning of the device easier.44

13.8 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.9.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal and heat-resistant surface with sufficient load-bearing capacity for the oven and the maximum weight of the expected food that is to be prepared in the oven.

• Choose the setup location in such a way that children cannot reach any hot surfaces on the device.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 20 cm above the oven, 10 cm around the back and 5 cm on both sides.

• Do not cover up any openings on the device and do not block these off.

• Do not remove the device’s adjustable feet.

• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.9.2 Avoiding radio interference

The device can cause the occurrence of interference in radios, televisions or similar devices. Such faults can be rectified or reduced as a result of employing the following measures:

• Clean the door and the sealing surfaces of the device.

• Set the radio, the television, etc as far as possible away from the device.45

• Connect the device to a different electrical outlet, so that various power circuits are used for the device and the receiver with the interference.

• Use a properly installed antenna for the receiver, to ensure good reception.

13.10 Assembling the accessories

13.10.1 Glass turntable

Assemble the glass turntable as follows:

• Insert the rolling ring

• Insert the glass turntable so the groove on the underneath side of the glass turntable catch in the drive shaft.

13.11 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.

• The electrical outlet must be protected by a 16A safety cut-out switch.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor. 14 Design and Function This chapter provides you with important safety notices on the design and function of the device.46

Please note ► Do not operate the device without places glass turntable and rolling ring.47

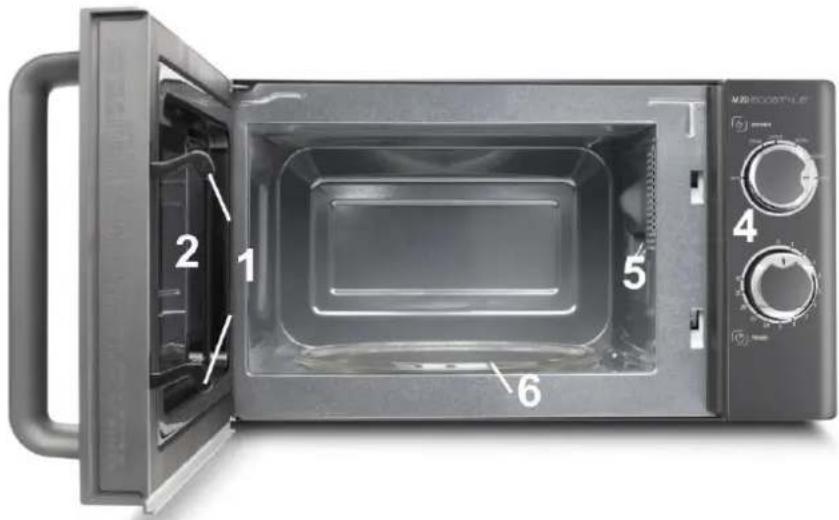

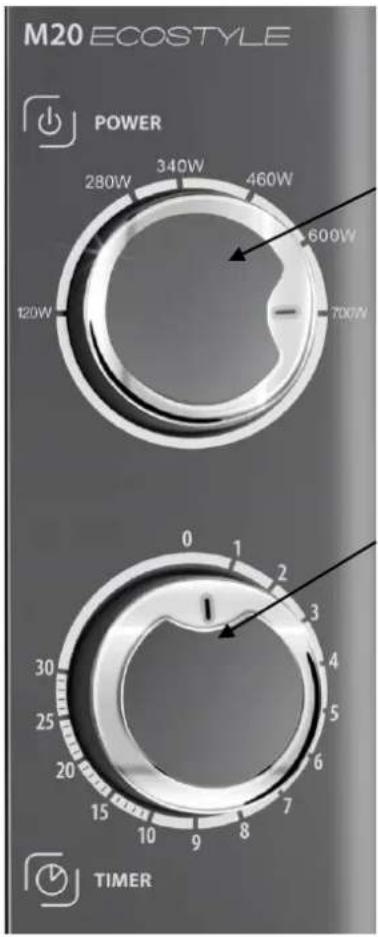

Power: To adjust microwave power level

Timer: To adjust the cooking time Please note ► Turn the timer back to 0 after taking of the food or when you do not use the device.

14.3 Safety equipment

14.3.1 Warning notices on device

ATTENTION Danger due to hot surface! There is a warning notice referring to dangers due to hot surfaces located on the back upper side of the housing. The surfaces of the device can become extremely hot. ► Do not touch the hot surfaces of the device. Danger of burns! ► Do not set or lay any items on the device.48

A safety switch is installed in the door latch of the device, which prevents the device from being operated when the door is open. ATTENTION Danger due to microwaves! If this safety device is defective or if this safety device is bypassed, you can directly expose yourself and others to microwave radiation. ► Do not operate the device if the safety switch is defective. ► Do not disable this safety device.

The rating plate with the connection and performance data can be founded on the back of the device. 15 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: WARNING ► Do not leave the device unsupervised when it is in operation, so that you can intervene quickly in the event of dangers.

15.1 Principles of microwave cooking

• The power levels and time required for cooking / warming up food items depends on the starting time, the quantity and the type and consistency of the food, etc. Use the shortest indicated cooking time and extend the cooking procedure as necessary.

• Arrange the food carefully. Position the thickest areas on the external edge of the bowl.

• Cover the food while it is cooking. Lids protect against spatters and also contribute towards cooking/warming up the food evenly.

• During warming, the food should be turned, rearranged or stirred repeatedly, in order for the temperature to be distributed evenly.

• Any existing germs in the food are only killed off if the temperature is sufficiently high enough (> 70°C) and if the time used is sufficiently long enough (> 10 m in).

• Foods with a firm skin or shell, such as tomatoes, sausages, potatoes in the skin, eggplants must be pierced or punctured repeatedly so that any developing steam can escape and so that the food does not burst.49

• Eggs without their shell may only be cooked in the microwave if the skin of the egg yoke has been pierced repeatedly first. Otherwise, the egg yoke can squirt out with excessive pressure after cooking.

• Rearrange layers of foods such as meat balls from top to the bottom and from the middle to the outside edge.

15.2 Operating modes:

The unit is to be operated in various operating modes. The following list shows the operating modes that are possible with the device: ◆ “Microwave” mode This operating mode is suitable for the normal reheating of food. ◆ Defrost This operating mode is suitable for defrosting frozen food.

15.3 Information on microwave cookware

The ideal material for microwave cookware is permeable for microwaves and allows the energy to penetrate the container and warm up the food. Please observe the following tips when selecting the correct cookware: ► Microwaves cannot penetrate metal. Therefore, you should not use utensils made of metal or cookware with metal trim. ► For microwave cooking, do not use any products made from recycled paper, as they could contain tiny metal fragments, which could cause sparks and/or result in fire. ► Use round or oval instead of square or rectangular cookware, as otherwise the food could tend to overheat in the corners. ► No aluminium foil must be used during operation of the microwave The following table is intended as a basis for selecting the correct cookware: Cookware Microwave Heat-resistant glass dishes

Heat-resistant ceramic dishes

Microwave-resistant plastic container

Aluminium foil and container

◆ Open door Pull the door handle with a slight tug to open the door of the device. If the device is switched on, the current cooking programme will be interrupted. Please note ► Leave the door open for a moment before reaching into the cooking chamber, to allow the accumulated heat to escape. ◆ Close doors Close the door until the door latch audibly locks in place. If a current cooking programme was interrupted as a result of opening the door, the current cooking programme will be continued automatically. 16 “Microwave” mode

1. Set the desired power by turning control knob power accordingly.

2. Set the desired time by turning control knob Timer accordingly.

3. The device starts cooking automatically, once power and time are chosen.

4. One signal tone sounds when cooking time is over.

Please note ► Always turn the control knob Time to 0, when you do not use the device. ► Do not use the device, when it is empty. It could be damaged. Power

700 Watt High High / cooking and broiling 600 Watt Medium-High Gentle cooking and heating 460 Watt Medium Warming of small quantities and delicate foods 340 Watt Medium-low Simmering 280 Watt Defrost Gentle defrosting of delicate foods 120 Watt Low Keep warm

17 Defrost Turn the control knob Power to 280 W. This level is for gently defrosting of your food. Turn the control know Timer to your desired time. Stir your food after half of time is over.51 18 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

18.1 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► The device must be cleaned regularly and any food residues must be removed. Insufficient cleanliness of the device can lead to the destruction of the surface, which for its part can have a negative impact upon the service life of the device and can lead to a dangerous condition of the device as well as fungal and bacterial contamination. ► Switch the oven off prior to cleaning it and unplug the plug from the wall power outlet. ► The cooking chamber is hot after it is used. There is a danger of burns! Wait until the device has cooled down. ► Clean the cooking chamber after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances. ► If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items.

◆ Cooking chamber and inside of door

• Keep the cooking chamber of the oven clean. Wipe off any spattered or spilt food from the walls of the cooking chamber with a damp cloth. If the oven is excessively dirty, you can use a mild cleaning agent.

• Wipe the door, window and the door gaskets with a damp cloth, to remove any spatters and spilt food. Residues on the door gasket can mean that the door does not close properly any more, which will cause the microwaves to escape.

• Wipe off any steam, which has settled on the oven door, with a soft cloth. This may be the case if the device is used in an extremely damp environment and is normal.

• Smells can be removed from the oven by mixing a cup of water with the juice and the skin of a lemon, pouring this into a deep microwave-proof bowl and allowing it to cook in Microwave mode for five minutes. Then, dry off the oven thoroughly with a soft cloth.

• After cleaning the interior space, leave the oven door open until the interior of the device is completely dry.52 ◆ Front of device and operating panel

• Clean the front of the device and the operating panel with a soft, slightly damp cloth.

• Please bear in mind that the operating panel does not get wet. Use a soft, damp cloth for cleaning. Please note ► Leave the oven door open to prevent the device from being re-started accidentally. ◆ Exterior housing

• Clean the exterior surfaces of the device with a damp cloth.

• The stainless steel surfaces can be cleaned with commonly available stainless steel cleaners. ◆ Turntable, rolling ring

• The glass turntable must be removed and cleaned occasionally. Wash the plate in a warm soapy solution or in the dishwasher.

• The rolling ring should be cleaned regularly to prevent excessive noise development or a rotation malfunction. The rolling ring can be washed in a mild soapy solution or in the dishwasher. Please remember to put the rolling ring back again properly after cleaning it.

• Wipe the bottom of the oven with a mild cleaning agent. If the floor of the oven is excessively dirty, you can use a mild cleaning agent. 19 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

Attention ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment. ► Improperly performed repairs can cause considerable dangers for the user and damages to the device.

19.2 Causes and rectification of faults

The following table assists in localizing and rectifying minor faults. Error Possible cause Action The selected program will not start. Device door is not closed Close device door Power plug is not plugged in Plug in mains plug! Fuse is not activated Activate fuse53 The turntable turns jerkily. Dirt between the turntable and the base of cooking camber Remove dirt Dirt on rolling ring Cooking vessel too large Use different cooking vessel Food is not sufficiently defrosted, warmed up or cooked after preset time has elapsed. Incorrectly selected time or power level Re-set time and power level Repeat process The device functions but the cooking chamber lighting does not work. Defective cooking chamber light. Have Service dept repair cooking chamber light. Abnormal noises can be heard during operation of microwave. Food is covered with aluminium foil Remove aluminium foil The cookware contains metal and sparks are being created within the cooking chamber Observe information on cookware! The time in the display field is not correct. Power failure Re-set time

Please note ► If you are unable to solve the problem with the steps shown above, please contact Customer Service. 20 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away.54 21 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 22 Technical Data Device Microwave Name M20 Ecostyle Item No.:
