Thank you for purchasing a SHARP air conditioner. Please read this manual carefully before operating the product.

CONTENTS

• PRECAUTIONS ......E-1
  • ADDITIONAL NOTES ON OPERATION .....E-3
  • TIPS ON SAVING ENERGY .....E-3
  • PART NAMES.....E-4
  • USING THE REMOTE CONTROL .....E-6
  • TIPS ABOUT PLASMACLUSTER OPERATION. E-7
  • BASIC OPERATION .....E-8
  • ADJUSTING THE AIR FLOW DIRECTION .E-10

• PLASMACLUSTER OPERATION ..... E-11
- ONE-HOUR OFF TIMER ...... E-11
• TIMER OPERATION..... E-12
- AUXILIARY MODE ...... E-14
- MAINTENANCE ...... E-14
• OPTION KIT..... E-15
• BEFORE CALLING FOR SERVICE ... E-16

PRECAUTIONS

WARNINGS FOR USE

1 Do not pull or deform the power supply cord. Pulling and misuse of the power supply cord can result in damage to the unit and cause electrical shock.
2 Be careful not to expose your body directly to the outlet air for a long time. It may affect your physical conditions.
3 When using the air conditioner for infants, children, elderly, bedridden, or disabled people make sure the room temperature is suitable for those in the room.
4 Never insert objects into the unit. Inserting objects can result in injury due to the high speed rotation of internal fans.
5 Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe, water pipe, lightning rod or telephone grounding wire. Incomplete grounding may cause electric shock.
6 If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation immediately and turn the circuit breaker OFF.
7 Follow local rules and regulations for power supply cord cabling. Improper cable connection can cause the power supply cord, plug and the electrical outlet to overheat and cause fire.
8 Use only the manufacture-specified power cord for replacement. Replacement should be performed by a qualified technician or a service person.

WARNINGS FOR INSTALLATION / REMOVAL / REPAIR

- Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electric shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the installation/removal/repair of the unit.

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

CAUTIONS FOR USE

1 Open a window or door periodically to ventilate the room, especially when using gas appliances. Insufficient ventilation may cause oxygen shortage.
2 Do not operate the buttons with wet hand. It may cause electric shock.
3 For safety, turn the circuit breaker off when not using the unit for an extended period of time.
4 Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly in place.
5 Do not put anything on the outdoor unit nor step on it. The object or the person may fall down or drop, causing injury.
6 This unit is designed for residential use. Do not use for other applications such as in a kennel or greenhouse to raise animals or grow plants.
7 Do not place a vessel with water on the unit. If water penetrates into the unit, electrical insulations may deteriorate and cause electric shock.
8 Do not block the air inlets nor outlets of the unit. It may cause insufficient performance or troubles.
9 Be sure to stop the operation and turn the circuit breaker off before performing any maintenance or cleaning. A fan is rotating inside the unit and you may get injured.
10 Do not splash or pour water directly on the unit. Water can cause electrical shock or equipment damage.
11 This appliance is not intended for use by young children or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with the appliance.

CAUTIONS FOR LOCATION / INSTALLATION

• Make sure to connect the air conditioner to power supply of the rated voltage and frequency.
  Use of a power supply with improper voltage and frequency can result in equipment damage and possible fire.
• Do not install the unit in a place where inflammable gas may leak. It may cause fire. Install the unit in a place with minimal dust, fumes and moisture in the air.
• Arrange the drain hose to ensure smooth drainage. Insufficient drainage may cause wetting of the room, furniture etc.
• Make sure a leak breaker or a circuit breaker is installed, depending on the installation location, to avoid electrical shock.

ADDITIONAL NOTES ON OPERATION

D.B. = Dry-bulb W.B. = Wet-bulb

• The built-in protective device may prevent the unit from operating when used out of this range.

- Condensation may form on the air outlet if the unit operates continuously in the COOL or DRY mode when humidity is over 80 percent.

WHEN POWER FAILURE OCCURS

This air conditioner has a memory function to store settings when a power failure occurs.

After power recovery, the unit will automatically re-start in the same settings which were active before the power failure, except for timer settings.

If the timers were set before a power failure, they will need to be re-set after power recovery.

NOTES FOR MODELS AY-AP18DR/AY-AP24DR

PREHEATING FUNCTION

In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to prevent cold air from blowing out of the unit.

DE-ICING FUNCTION

• When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icer provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stop operating.
• After de-icing is completed, the unit automatically resumes operation in the HEAT mode.

HEATING EFFICIENCY

• The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside air temperature therefore greatly affects the heating efficiency.
• If the heating efficiency is reduced due to low outside temperatures, use an additional heater.
• It takes time to warm up and heat the entire room because of the forced air circulation system.

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air conditioner.

SET THE CORRECT TEMPERATURE

• Setting the thermostat 1°C higher than the desired temperature in the COOL mode (and 2°C lower in the HEAT mode with models AY-AP18DR/AY-AP24DR) will save approximately 10 percent in power consumption.
• Setting the temperature lower than necessary during cooling operation will result in increased power consumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

• Blocking direct sunlight during cooling operation will reduce power consumption.
• Close the windows and doors during cooling operation (and heating operation with models AY-AP18DR/AY-AP24DR).

SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR CIRCULATION

KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION MAKE MOST OF THE TIMER OFF FUNCTION

DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN EXTENDED PERIOD OF TIME

- The indoor unit still consumes a small amount of power when it is not operating.

INDOOR UNIT

Diagram of an air conditioner with numbered parts and a handheld device, showing internal structure and labeling.


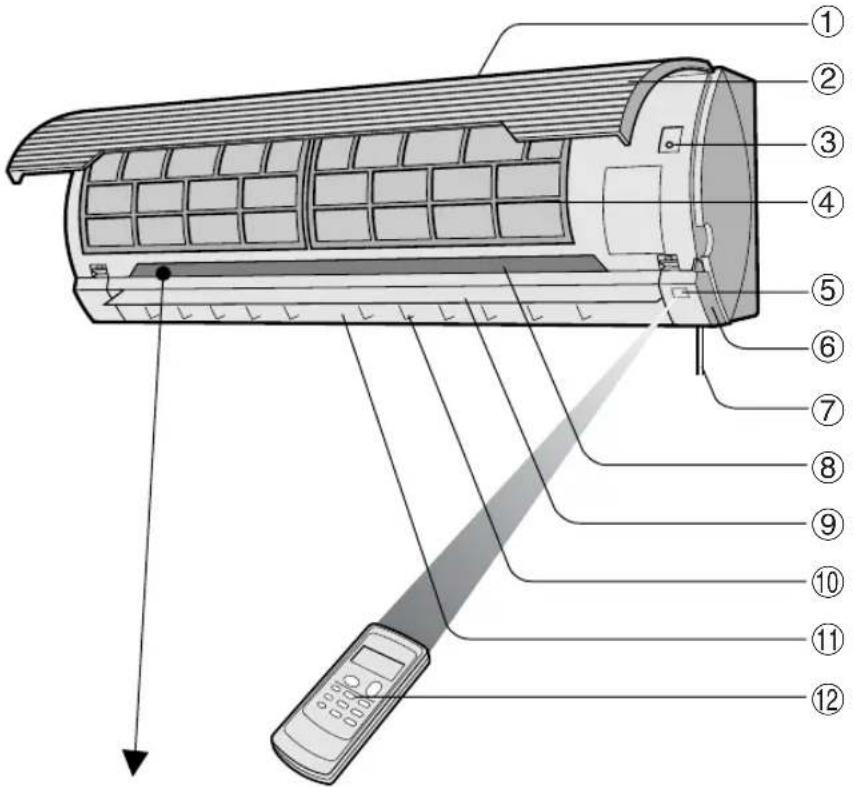

①Inlet (Air)
②Open Panel
③ AUX. Button
④ Air Filters
⑤Receiver Window
⑥ Louvre Unit Open to clean the inside of the air conditioner.
⑦Power Supply Cord (AY-AP18DR/AH-AP18DR only)
⑧Indicator Panel
⑨Vertical Adjustment Louvres
⑩Horizontal Adjustment Louvres
⑪ Outlet (Air)
⑫ Remote Control

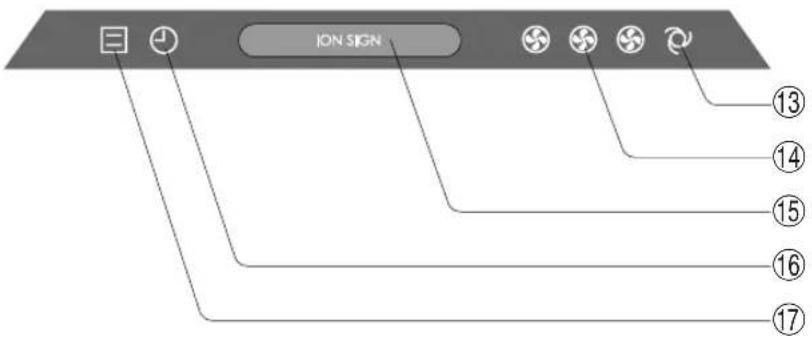

⑬ AUTO FAN SPEED Lamp (green 📋)
⑭FAN SPEED Lamp (green
⑮PLASMACLUSTER Lamp (blue, green)
⑯TIMER Lamp (orange Ⓥ)
⑰ OPERATION Lamp (red ☒)

OUTDOOR UNIT

Technical diagram of an air conditioning unit with numbered components and labeled parts

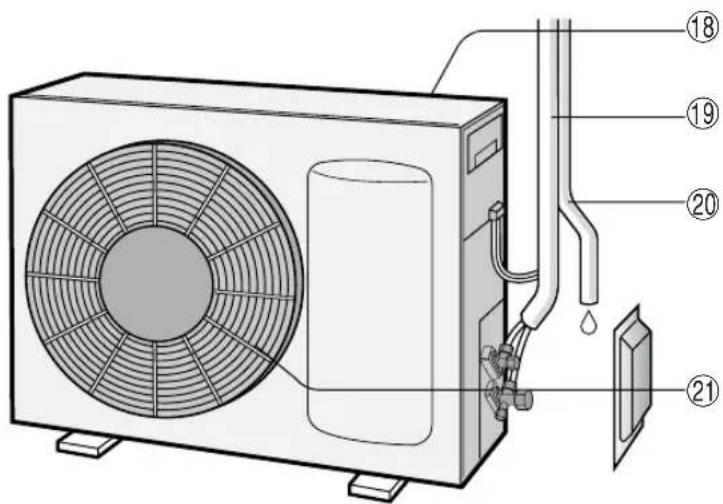

⑱Inlet (Air)

⑲Refrigerant Tube and Interconnecting Cord

⑳Drainage Hose

②1 Outlet (Air)

NOTE: Actual units might vary slightly from those shown above.

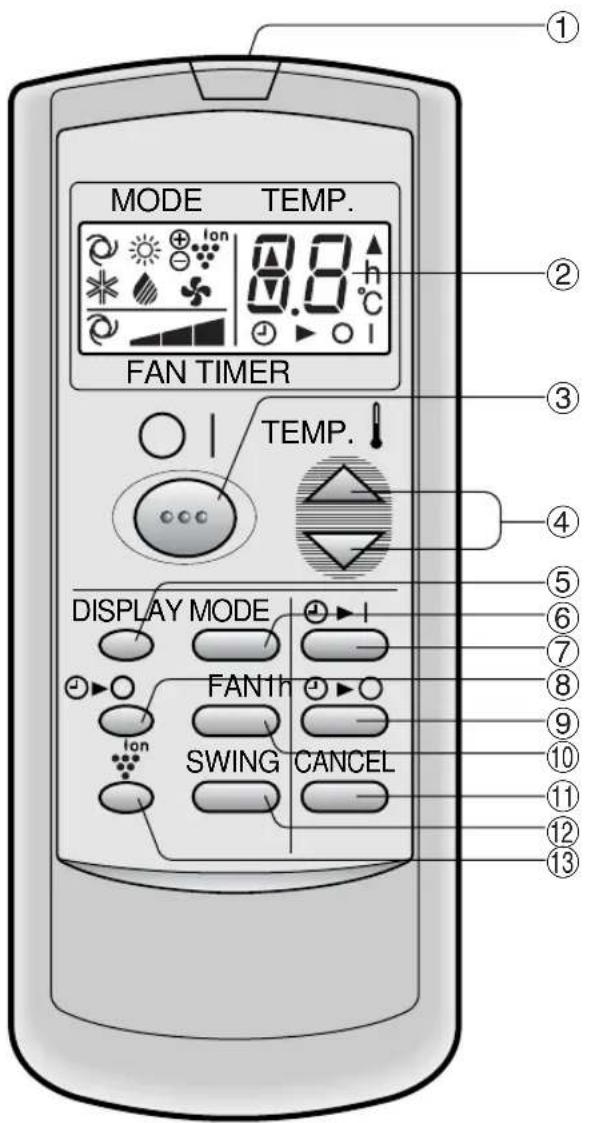

REMOTE CONTROL

MODE TEMP. FAN TIMER 3.8°C TEMP. DISPLAY MODE FANTh SWING CANCEL ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮

①TRANSMITTER
②DISPLAY (Liquid Crystal Display)
③ON/OFF Button
④THERMO. (Thermostat) Button
⑤DISPLAY Button
⑥MODE Button
⑦ TIMER ON Button (for setting the timer)
⑧ONE-HOUR OFF TIMER Button
⑨ TIMER OFF Button (for setting the timer)
⑩FAN Button
⑪ TIMER CANCEL Button
⑫ SWING Button

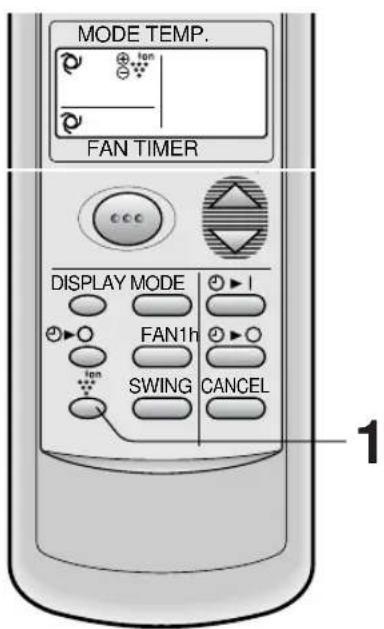

⑬ PLASMACLUSTER Button

(The heat mode symbol 🌿 is provided only on models AY-AP18DR/AY-AP24DR)

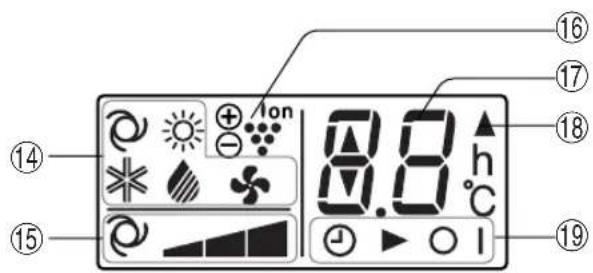

L.C.D. REMOTE CONTROL DISPLAY

⑭ MODE SYMBOLS

: AUTO : HE

(only for AY-AP18DR/AY-AP24DR)

:COOL:DF

FAN ONLY

⑮FAN SPEED SYMBOLS

: AUTO : Ma

al setting

⑯PLASMACLUSTER SYMBOL
⑰ TEMPERATURE AND TIMER COUNT DOWN INDICATOR
⑱TRANSMITTING SYMBOL
⑲TIMER ON/TIMER OFF INDICATOR

Indicates when timer on or timer off is set.

⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑧ ⑨ 8.8 h°C

(The heat mode symbol is provided only on models AY-AP18DR/AY-AP24DR)

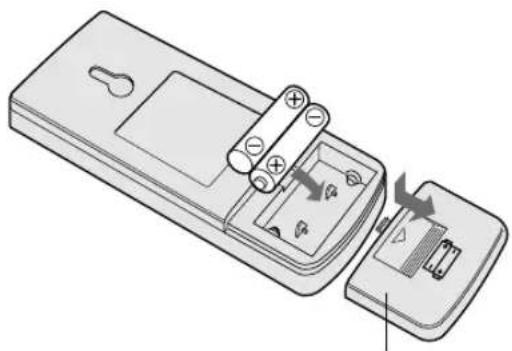

LOADING BATTERIES Use two size-AAA (R03) batteries.

1 Remove the battery cover at the back of the remote control.

2 Insert batteries in the compartment, making sure the ⊕ and ⊖ polarities are correctly aligned.

• Lines will be indicated on the display when batteries are properly installed.

3 Reinstall the battery cover.

Diagram of a device's internal components showing battery, switch, and housing (no text or labels)

Battery cover

NOTES:

• The battery life is approximately one year in normal use.
- When you replace the batteries, always change both batteries, and make sure they are the same type.
- If the remote control does not operate properly after replacing the batteries, take out the batteries and reinstall them again after 30 seconds.
- If you will not be using the unit for a long time, remove the batteries from the remote control.

HOW TO USE THE REMOTE CONTROL

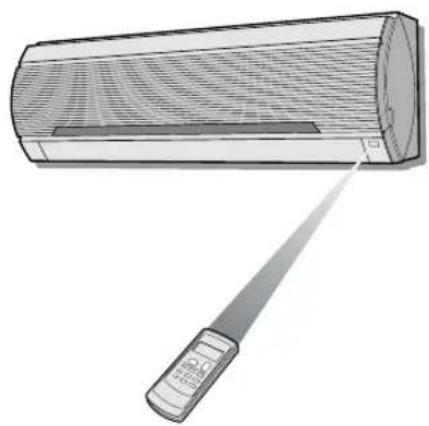

Point the remote control towards the unit's signal receiver window and press the desired button. The unit generates a beep when it receives the signal.

- Make sure there is no curtain or other object between the remote control and the unit.

- The remote control can send signals from up to 7 metres away.

Illustration of a wall-mounted air conditioner with a handheld probe emitting a light beam (no text or symbols)

CAUTION

• Do not allow the signal receiver window to receive strong direct sunlight, since it can adversely affect its operation. If the signal receiver window is exposed to direct sunlight, close a curtain to block the light.
• Using a fluorescent lamp with a quick starter in the same room may interfere with transmission of the signal.
• The unit can be affected by signals transmitted from the remote control of a television, VCR or other equipment used in the same room.
• Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit and remote control from moisture and shock which can discolour or damage them.

TIPS ABOUT PLASMACLUSTER OPERATION

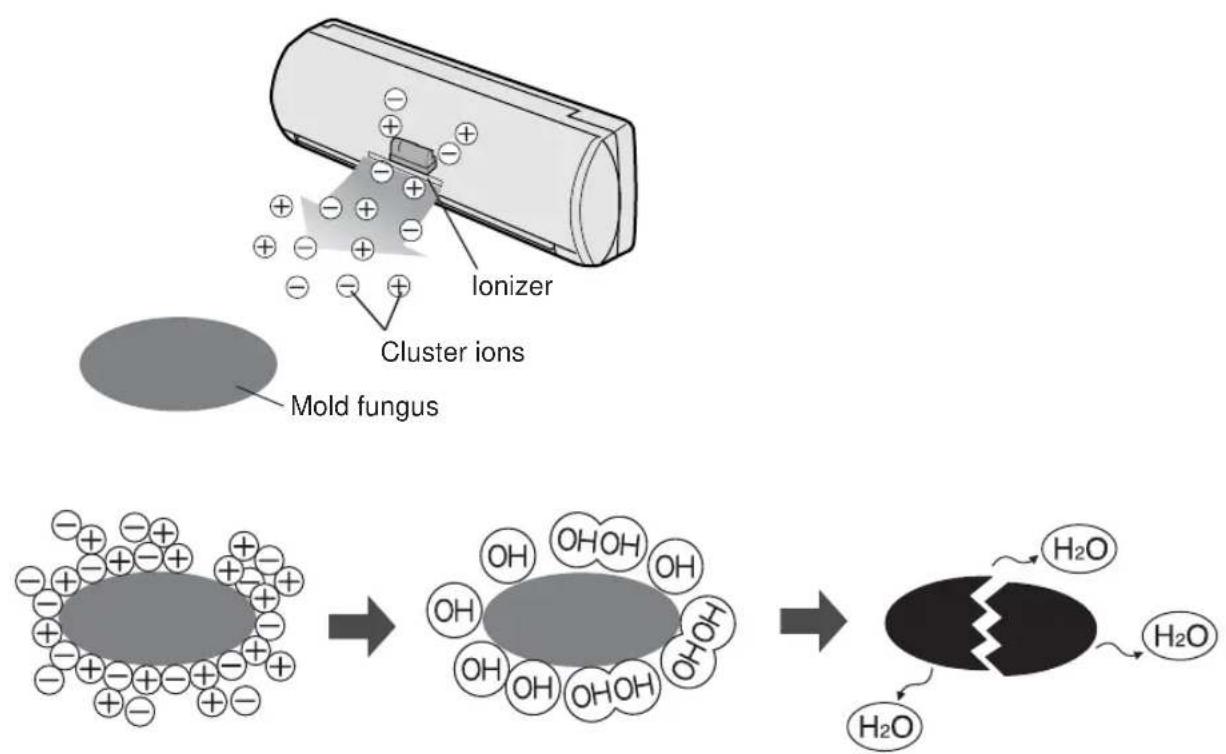

The ionizer inside the air conditioner will release cluster ions, which are collective mass of positive and negative ions, into the room. The cluster ions reduce airborne mold fungus.

AIR CLEAN OPERATION

Cluster ions released into the air will reduce airborne mold fungus.

It is said that plenty of negative ions exist in places such as waterfalls or waterside in natural environment. In this operation mode, negative ions will be released in an increased rate, in order to bring the room air close to this condition.

Please refer to page 11 for operation.

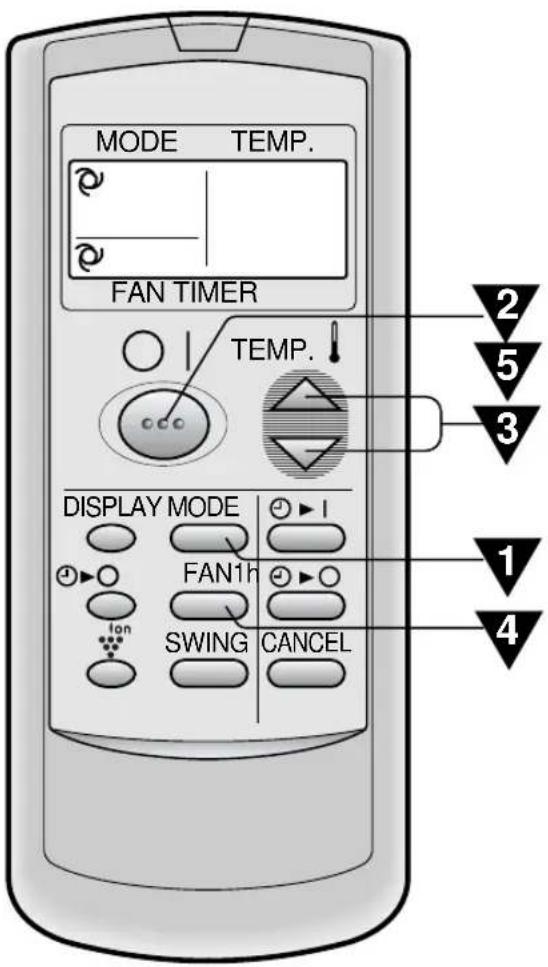

MODE TEMP. FAN TIMER TEMP. DISPLAY MODE FAN1h SWING CANCEL 2 5 3 1 4

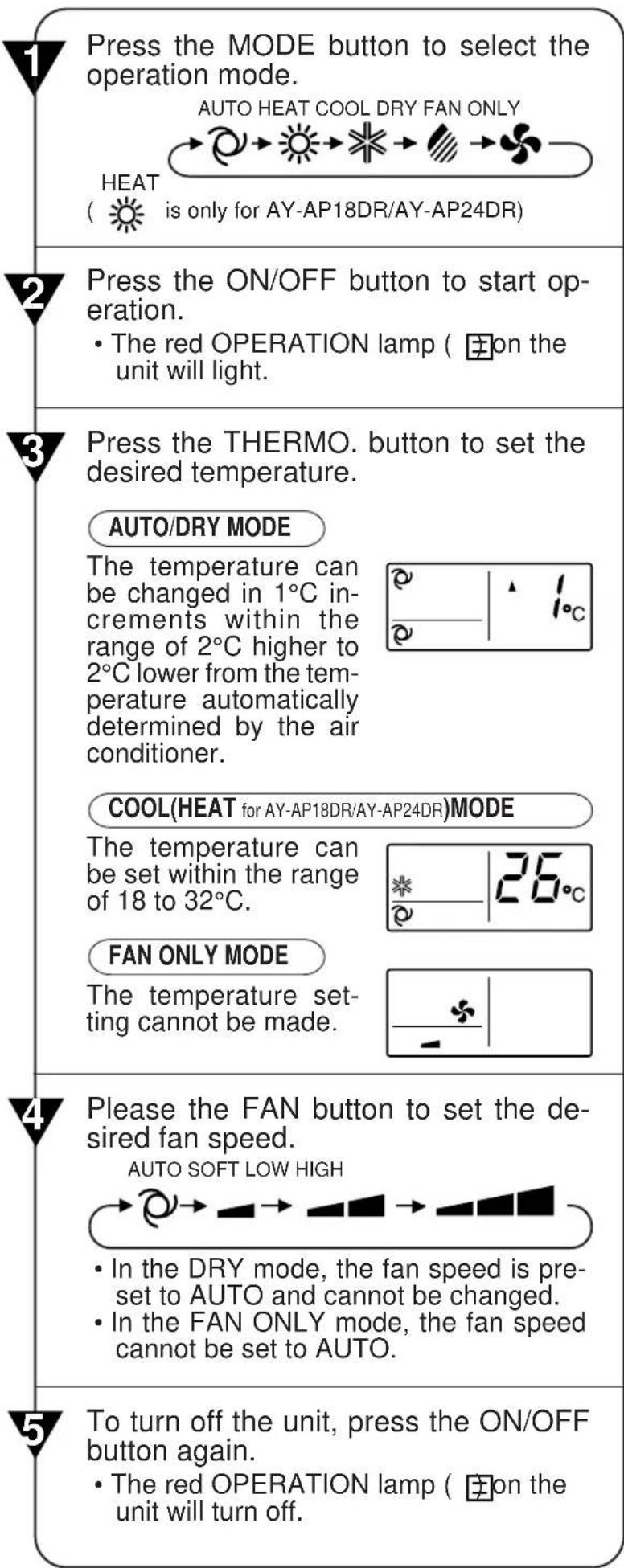

1 Press the MODE button to select the operation mode. AUTO HEAT COOL DRY FAN ONLY HEAT ( is only for AY-AP18DR/AY-AP24DR) 2 Press the ON/OFF button to start operation. • The red OPERATION lamp ( ☑on the unit will light. 3 Press the THERMO. button to set the desired temperature. AUTO/DRY MODE The temperature can be changed in 1°C increments within the range of 2°C higher to 2°C lower from the temperature automatically determined by the air conditioner. COOL(HEAT for AY-AP18DR/AY-AP24DR)MODE The temperature can be set within the range of 18 to 32°C. FAN ONLY MODE The temperature setting cannot be made. 4 Please the FAN button to set the desired fan speed. AUTO SOFT LOW HIGH • In the DRY mode, the fan speed is pre-set to AUTO and cannot be changed. • In the FAN ONLY mode, the fan speed cannot be set to AUTO. 5 To turn off the unit, press the ON/OFF button again. • The red OPERATION lamp ( ☑on the unit will turn off.

TIPS ABOUT AUTO MODE

In the AUTO mode, the temperature setting and mode are automatically selected according to the room temperature when the unit is turned on.

Modes and Temperature Settings for Models AH-AP18DR/AH-AP24DR

Room temp. at operation start-up	Automatic Operation
	Mode Thermostat Setting
Below 24°C DRY Room Temp. at start-up
24°C-26°C COOL	24°C
26°C-28°C COOL	25°C
Above 28°C COOL	26°C

Modes and Temperature Settings for Models AY-AP18DR/AY-AP24DR

Room temp. at operation start-up	Automatic Operation
	Mode Thermostat Setting
Below 21°C HEAT	23°C
21°C-24°C DRY Room Temp. at start-up
24°C-26°C COOL	24°C
26°C-28°C COOL	25°C
Above 28°C COOL	26°C

TIPS ABOUT FAN SPEED LAMP

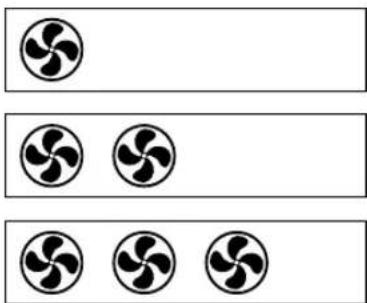

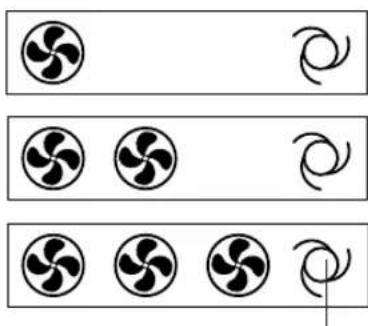

During operation, the FAN SPEED Lamp will light up in 3 levels (2 levels for DRY mode) on the indicator panel of the unit to indicate the fan speed.

When fan speed is set to AUTO When fan speed is set to manual

Three rows of circular icons with curved lines, no text or symbols present

Soft speed

Low speed

High speed

The AUTO FAN SPEED Lamp will light up.

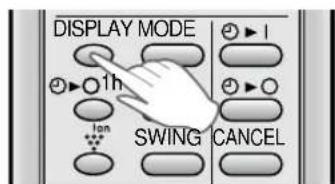

To turn off the FAN SPEED Lamp, press the DISPLAY button. The PLASMACLUSTER Lamp will also go off.

DISPLAY MODE 1h Ion SWING CANCEL

VERTICAL AIR FLOW DIRECTION

The air flow direction is automatically preset in each mode as follows for optimum comfort:

COOL and DRY mode Horizontal air flow
FAN ONLY mode (and HEAT for AY-AP18DR/AY-AP24DR)	Diagonal air flow

HOW TO ADJUST THE AIR FLOW DIRECTION

Press the SWING button on the remote control once.

- The vertical adjustment louvre will change its angle continuously.

Press the SWING button again when the vertical adjustment louvre is at the desired position.

• The louvre will stop moving within the range shown in the diagram.
• The adjusted position will be memorized and will be automatically set to the same position when operated the next time.

Adjustment range

COOL and DRY mode

FAN ONLY (and HEAT for AY-AP18DR/AY-AP24DR) mode

The adjustment range is narrower the SWING range in order to prevent condensation from dripping.

The range is wide so the air flow can be directed toward the floor.

HORIZONTAL AIR FLOW DIRECTION

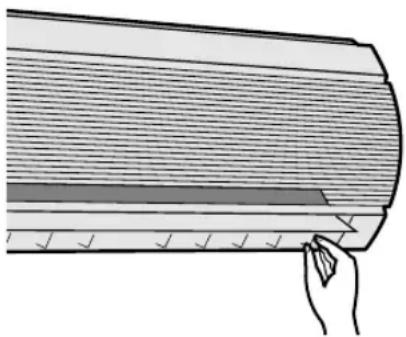

Hold the horizontal adjustment louvre as shown in the diagram and adjust the air flow direction.

Illustration of a hand holding a wooden tab with checkmark marks (no text or symbols)

CAUTION

Never attempt to adjust the vertical adjustment louvres manually.

• Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction when the remote control is used for the adjustment.
• When the vertical adjustment louvre is positioned at the lowest position in the COOL or DRY mode for an extended period of time, condensation may result.

Do not adjust the horizontal adjustment louvre extremely to the right or left when operating the air conditioner with fan speed "SOFT" for an extended period of time.

Condensation may form on the louvres.

PLASMACLUSTER OPERATION

AIR CLEAN OPERATION : Cluster ions released into air will reduce airborne mold fungus.

ION BALANCE OPERATION : Negative ions will be released in an increased rate.

MODE TEMP. FAN TIMER DISPLAY MODE | ▶▶1 FAN1h SWING CANCEL 1

1 During operation, press the PLASMACLUSTER button to select the mode.

AIR CLEAN ION BALANCE CANCEL

• In the AIR CLEAN operation, the blue PLASMACLUSTER lamp on the unit will light up.
• In the ION BALANCE operation, the green PLASMACLUSTER lamp on the unit will light up.

TO CANCEL

Press the PLASMACLUSTER button until PLASMACLUSTER symbol on the remote control display goes off.

- The PLASMACLUSTER lamp on the unit will turn off.

NOTE:

• Setting of the PLASMACLUSTER operation will be memorized and will operate in the same mode, the next time you turn on the air conditioner.
• To turn off the PLASMACLUSTER Lamp, press the DISPLAY button.

ONE-HOUR OFF TIMER

When the ONE-HOUR OFF TIMER is set, the unit will stop operating after one hour.

MODE TEMP. FAN TIMER 1 DISPLAY MODE ▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▲ 1h FAN ▶▶▶○ Fan SWING CANCEL

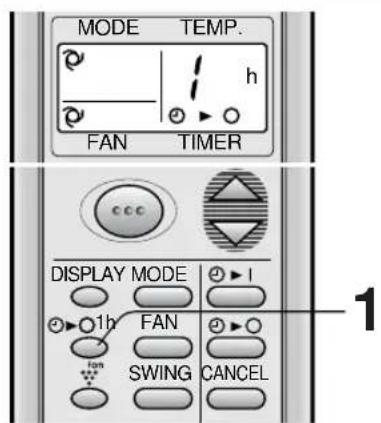

1 Press the ONE-HOUR OFF TIMER button.

• The remote control displays " /n ◎▶ O
• The orange TIMER lamp ( ) on the unit will light up.
• The unit will stop operating after one hour.

TO CANCEL

Press the CANCEL button.

• The orange TIMER lamp ( ⏻ on the unit will turn off.
  Or, turn the unit off by pressing the ON/OFF button.
• The red OPERATION lamp ( ☐ and the orange TIMER lamp ( ☑ on the unit will turn off.

NOTES:

• The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF operations.
• When the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will operate for an hour with the formerly set condition.
• If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER activates, press the ONE-HOUR OFF TIMER button again during operation.

TIMER OFF

The unit will turn off automatically according to your setting.

Timer duration can be set from minimum 0.5 hours (30 minutes) to maximum 12 hours.

Up to 9.5 hours, you can set by 0.5 hours (30 minutes) increments and from 10 to 12 hours, by 1 hour increment.

MODE TEMP. 25 h FAN TIMER TEMP.! DISPLAY MODE ▶▶▶1 ▶▶▶▶ 1h FAN ion SWING CANCEL 1

Point the remote control at the signal receiver window on the unit.

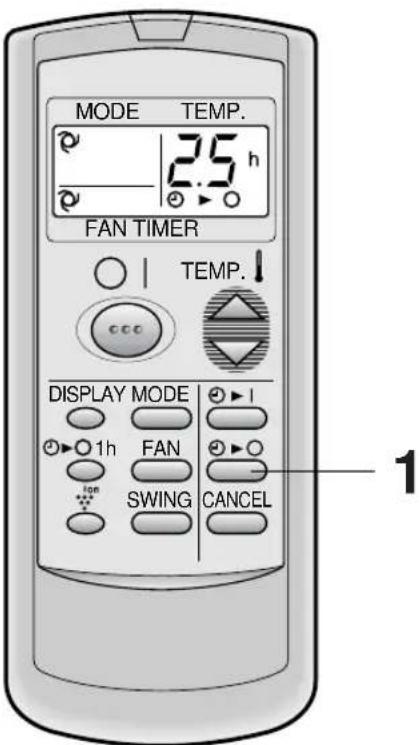

1 Press the TIMER OFF ( 🔍) button and set time as desired.

• The time setting will change as you to press the button as follows.

Hold the button pressed down for fast setting.

- The orange TIMER lamp ( ⏻ on the unit will light.

- The unit will generate a beep when it receives the signal.

- The time setting will count down to show remaining time.

Example : When you wish to stop the operation 2.5 hours later.

When the TIMER OFF is set, the temperature setting is automatically adjusted to prevent the room from becoming excessively hot or too cold while you sleep. (Auto Sleep function)

COOL/DRY MODE:

- One hour after the timer operation begins, the temperature setting rises 1°C higher than the original thermostat setting.

HEAT MODE:

(only for models AY-AP18DR/AY-AP24DR)

- One hour after the timer operation begins, the temperature setting drops 3°C lower than the original thermostat setting.

NOTE:

- The Auto Sleep function will not activate during the FAN ONLY mode.

TO CANCEL TIMER

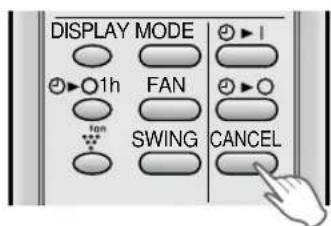

Press the CANCEL button.

• The orange TIMER lamp (⊕) on the unit will turn off.

DISPLAY MODE 1h FAN SWING CANCEL

TO CHANGE TIMER SETTING

Press the TIMER button which you wish to change, (TIMER OFF or TIMER ON) and change the time setting.

TIMER ON

The unit will turn on automatically according to your setting.

Timer duration can be set from minimum 0.5 hours (30 minutes) to maximum 12 hours.

Up to 9.5 hours, you can set by 0.5 hours (30 minutes) increments and from 10 to 12 hours, by 1 hour increment.

MODE TEMP. 6.5 h FAN TIMER TEMP. DISPLAY MODE FAN1h SWING CANCEL 1

Example : When you wish the room temperature to be as desired 6.5 hours later.

Point the remote control at the signal receiver window on the unit.

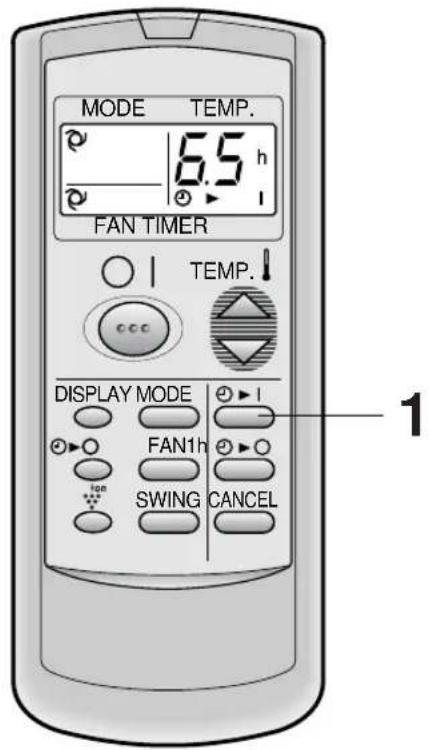

1 Press the TIMER ON ( ⏻ button.

- The time setting will change as you press the button as follows.

Hold the button pressed down for fast setting.

• The orange TIMER lamp ( ☑ on the unit will light.
- The unit will generate a beep when it receives the signal.
- The time setting will count down to show remaining time.

Select the mode, temperature, fan speed setting and PLASMACLUSTER operation as desired.

• When the temperature is set with the TIMER ON, the temperature will show in the display for 5 seconds and then return to the time display.
• If you do not change the setting, the unit will operate with the latest setting.
• The unit will turn on prior to the set time to allow the room to reach the desired temperature by the programmed time. (Awaking function)

NOTES FOR TIMER SETTING AND OPERATION

• The latest time setting will be memorized and will appear on the remote control display the next time you set the TIMER OFF or TIMER ON.
• TIMER OFF and TIMER ON can not be set together.
  The latest set TIMER will be active.
• When ONE-HOUR OFF TIMER is set, TIMER OFF and TIMER ON will not be available.
• When ONE-HOUR OFF TIMER is set during TIMER OFF or TIMER ON duration, the TIMER ON or TIMER OFF will be cancelled.

AUXILIARY MODE

Use this mode when the remote control is not available.

TO TURN ON

Lift the front panel of the indoor unit and press the AUX. button on the operation panel.

• The red OPERATION lamp ( ☐ on the unit will light and the unit will start operating in the AUTO mode.
• The fan speed and temperature setting are set to AUTO.

TO TURN OFF

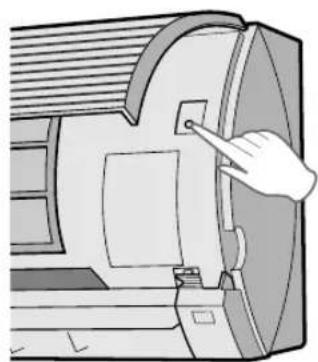

Press the AUX. button on the operation panel again.

- The red OPERATION lamp ( ☐ on the unit will turn off.

Illustration of a hand pressing a button on a computer monitor (no text or symbols visible)

NOTE:

If the AUX. button is pressed during normal operation, the unit will turn off.

MAINTENANCE

CLEANING THE INTERIOR OF AIR CONDITIONER UNIT

1 Be sure to disconnect the power cord from the wall outlet or turn off the circuit breaker.

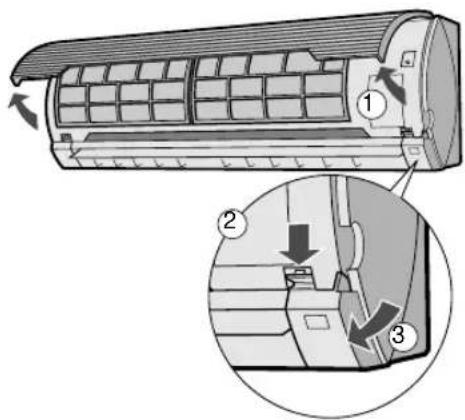

2 OPEN THE LOUVRE UNIT

①Lift the open panel.

②Push down both hooks at the left and right, and release the lock.

③Pull out the louvre unit forward.

④Let it open downward gently.

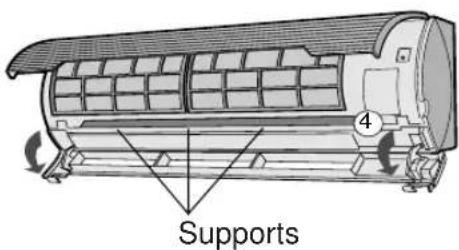

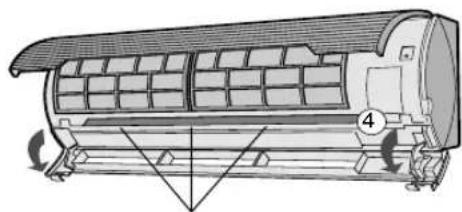

3 CLEAN THE INTERIOR OF THE AIR CONDITIONER UNIT

Make sure the fan inside is not rotating. Remove the dust using a vacuum cleaner or wipe with dry cloth.

4 CLOSE THE LOUVRE UNIT

1 Lift up the louvre unit and slide it back into its position.
2 Make sure both hooks at the left and right are locked in place and the three supports are firmly fit.
3 Close the open panel.

Diagram of an air conditioner showing airflow direction and component insertion steps

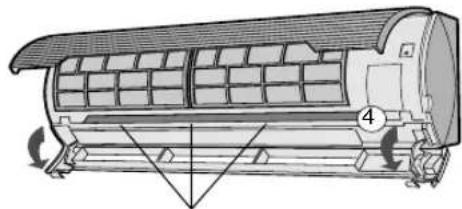

Supports

5 Connect the power cord to the wall outlet or turn on the circuit breaker.
6 Make sure the all lamps on the indicator panel are not blinking. If the louvre unit is not reinstalled properly, the safety equipment will work and the lamps will blink, preventing the unit from operating. In such case, reinstall the louvre unit properly. Push the ON/OFF button of the remote control and check if the unit operates properly.

MAINTENANCE

Be sure to disconnect the power cord from the wall outlet or turn off the circuit breaker before performing any maintenance.

CLEANING THE FILTERS

The air filters should be cleaned every two weeks.

Technical diagram of a airflow system with numbered components and directional arrows indicating flow direction.

③

Technical diagram of an air conditioner unit with labeled parts and airflow indicators

1 TURN OFF THE UNIT

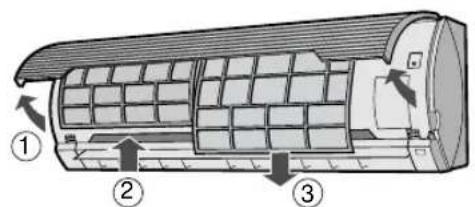

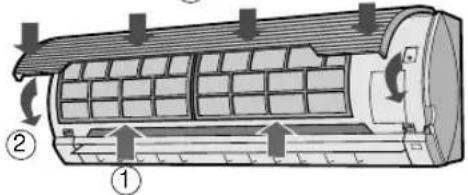

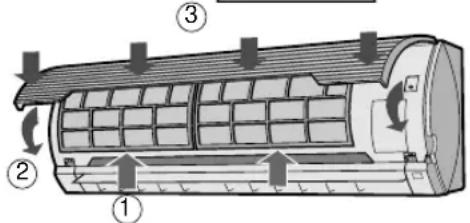

2 REMOVE THE FILTERS

①Lift the open panel.
②Push the air filters up slightly to unlock them.
③Pull the air filters down to remove them.

3 CLEAN THE FILTERS

Use a vacuum cleaner to remove dust. If the filters are dirty, wash them with warm water and a mild detergent. Dry filters in the shade before reinstalling.

4 REINSTALL THE FILTERS

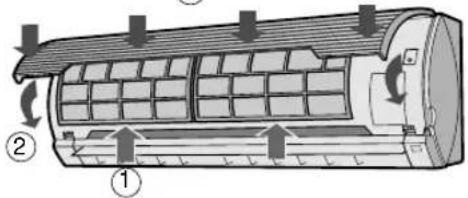

①Reinstall the filters in the original positions.
②Close the open panel.
③Push the arrow-marked of the panel firmly to lock it in place.

CLEANING THE UNIT AND THE REMOTE CONTROL

• Wipe them with a soft cloth.
• Do not directly splash or pour water on them. We can cause electrical shock or equipment damage.
• Do not use hot water, thinner, abrasive powders or strong solvents.

MAINTENANCE AFTER AIR CONDITIONER SEASON

1 Operate the unit in the FAN ONLY mode for about half a day to allow the mechanism to thoroughly dry.
2 Stop the operation and unplug the unit. Turn off the circuit breaker, if you have one exclusively for the air conditioner.
3 Clean the filters, then reinstall them.

MAINTENANCE BEFORE AIR CONDITIONER SEASON

1 Make sure that the air filters are not dirty.
2 Make sure that nothing obstructs the air inlet or outlet.
3 Check the outdoor mounting rack periodically for wear and to make sure it is firmly in place.

OPTION KIT

Air Purifying Filter

During operation of the air conditioner, the air purifying filter removes dust and tobacco smoke from the air and discharges clean air.
The apatite antibacterial material used in the air purifying filter suppresses activities of adsorbed viruses and other germs.
The replacement period for the disposable type is approximately 3\~6 months. Contact your dealer for the purchase of this option.

Stacked rectangular sheets with parallel grooves, no text or symbols visible

Type AZ-F1800C

BEFORE CALLING FOR SERVICE

The following conditions do not denote equipment malfunctions

UNIT DOES NOT OPERATEThe unit will not operate if it is turned on immediately after it is turned off. The unit will not operate immediately after the mode is changed. This is to protect the internal mechanisms. Wait 3 minutes before operating the unit.	SWISHING NOISEThe soft, swishing noise is the sound of the refrigerant flowing inside the unit.
	WATER VAPOURIn the COOL and DRY operation, water vapour can sometimes be seen at the air outlet due to the difference between the room air temperature and the air discharged by the unit.In the HEAT operation, water vapour may flow out of the outdoor unit during de-icing. (Only in models AY-AP18DR/AY-AP24DR)
UNIT DOES NOT SEND OUT WARM AIR (Models AY-AP18DR/AY-AP24DR)The unit is preheating or de-icing.
ODORSCarpet and furniture odors that entered into the unit and the air conditioner's inner component odors at the early stage of installation may be sent out from the unit.	ODOR EMITTED FROM THE PLASMACLASTER AIR OUTLETThis is the smell of ozone generated from the ionizer. Density of the ozone is very little, having no adverse effect over your health. The ozone released into the air will decompose soon, and its density in the room will not increase.
CRACKING NOISEThe unit may produce a cracking noise. This sound is generated by the friction of the front panel and other components expanding or connecting due to a temperature change.
A LOW BUZZ NOISE EMITTEDThis is a sound emitted when the unit is generating ion clusters.

If the unit appears to be malfunctioning, check the following points before calling for service.

IF THE UNIT FAILS TO OPERATE

Check to see if the circuit breaker has tripped or the fuse has blown.Check if the louvre unit is properly installed. All lamps on the indicator panel will blink when the louvre unit is not properly installed.

IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY
Check the filters. If dirty, clean them.	Check the outdoor unit to make sure nothing is blocking the air inlet or outlet.	Check the thermostat is proper setting.
Make sure windows and doors are closed tightly.	A large number of people in the room can prevent the unit from achieving the desired temperature.	Check whether any heat-generating appliances are operating in the room.

IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL
Check whether the remote control batteries have become old and weak.	Try to send the signal again with the remote control pointed properly towards the unit's signal receiver window.	Check whether the remote control batteries are installed with the polarities properly aligned.

Please call for service when OPERATION Lamp and TIMER Lamp on the indicator panel blink.

Diagram of an air conditioner with numbered parts and a handheld remote control, showing internal structure and airflow direction.

ION SIGN ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳

Technical diagram of an air conditioning unit with numbered components and labeled parts

⑯PLASMACLUSTER-SYMBOL

Diagram of a remote control device showing internal components and battery structure (no text or symbols)

Batterieabdeckung

HINWEISE:

Illustration of a car air conditioner with a flash emitting a light (no text or symbols)

VORSICHT

Illustration of a hand holding a curved object with checkmarks, no text or symbols present

VORSICHT

PLASMACLUSTER-BETRIEB

Illustration of a hand inserting a component into a device (no text or symbols visible)

HINWEIS:

Diagram of an air conditioner unit with labeled parts and airflow indicators

Technical line drawing of a cylindrical air conditioner unit with internal panel structure (no text or symbols)

Stützen

Technical diagram of an air conditioner unit with numbered components and airflow indicators

1 SCHALTEN SIE DAS GERÄT AUS.
2 ENTNEHMEN SIE DIE FILTER.

Diagram illustrating the installation of a solar panel with labeled components and directional arrows indicating airflow or movement.

4 SETZEN SIE DIE FILTER WIEDER EIN.

Stacked rectangular sheets with parallel grooves, no text or symbols visible

Typ AZ-F1800C

BEVOR SIE DEN KUNDENDIENST RUFEN

Diagram of an air conditioner with numbered parts and a handheld device, showing internal structure and component labels.

ION SIGN ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳

Technical diagram of an air conditioning unit with numbered components and labeled parts

⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ 8.0 h°C

Diagram of a device with battery and switch components, showing internal wiring and mounting points (no text or symbols)

Couvercle des piles

REMARQUES :

Illustration of a car air conditioner with a flash emitting light (no text or symbols)

ATTENTION

FONCTIONNEMENT DU PURIFICATEUR D'AIR

Illustration of a hand holding a rolled-up document or scroll with a checkmark (no text or symbols present)

ATTENTION

MODE TEMP. 25 h FAN TIMER TEMP.! CCC DISPLAY MODE ▶▶▶1 ▶▶▶1h FAN ion SWING CANCEL 1

Illustration of a hand inserting a component into a device (no text or symbols visible)

REMARQUE :

Diagram of an air conditioner showing airflow direction and component insertion steps

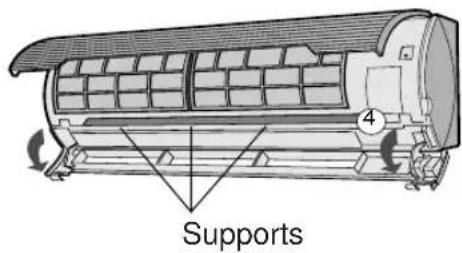

Supports

Diagram of a car air conditioner unit with labeled parts and airflow indicators

③

Diagram of a car air conditioner unit with labeled parts and airflow indicators

1 ETEINDRE L'APPAREIL 2 ENLEVER LES FILTRES

Stacked rectangular sheets with parallel grooves, no text or symbols visible

Type AZ-F1800C

AVANT D'APPELER LE SERVICE APRES-VENTE

Diagram of an air conditioner with numbered parts and a handheld device, showing internal structure and component labels.

ION SIGN ⑬ ⑭ ⑭ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳

Technical diagram of an air conditioning unit with numbered components labeled 18, 19, 20, and 21.

⑱Entrada de aire

Diagram of a remote control device showing internal components and battery structure (no text or symbols)

Illustration of a wall-mounted air conditioner with a flash emitting light (no text or symbols)

PRECAUCIÓN

DISPLAY MODE 1h lan SWING CANCEL

Illustration of a hand holding a rolled-up document or scroll with visible page number 3 (no text or symbols)

PRECAUCIÓN

DISPLAY MODE FAN1h SWING CANCEL

Illustration of a hand pressing a button on a computer monitor (no text or symbols visible)

NOTA:

Diagram of an air conditioner unit with labeled parts and airflow indicators

Soportes

Diagram of a building interior with numbered components and directional arrows indicating flow or movement.

Diagram of an air conditioner unit with numbered parts and airflow indicators

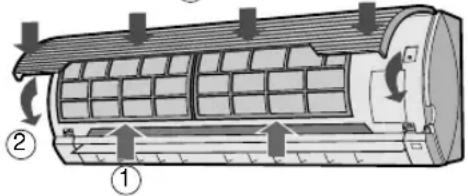

1 DESCONECTE LA UNIDAD

2 SAQUE LOS FILTROS

Stacked rectangular sheets with parallel grooves, no text or symbols visible

Tipo AZ-F1800C

ANTES DE LLAMAR AL DEPARTAMENTO DE SERVICIO TÉCNICO

Diagram of an air conditioner with numbered parts and a handheld remote control, showing internal structure and wiring.

ION SIGN ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳

UNITÀ ESTERNA

Technical diagram of an air conditioning unit with numbered components labeled 18, 19, 20, and 21.

Illustration of a car air conditioner with a pointer emitting vapor (no text or symbols)

PRECAUZIONI

Illustration of a hand holding a rolled-up document or scroll with a checkmark, no text or symbols present

PRECAUZIONI

Illustration of a hand inserting a component into a device (no text or symbols visible)

PER SPEGNERE

Diagram of an air conditioner unit with labeled parts and airflow indicators

Technical line drawing of a car air conditioner unit with cooling fins and fan blades (no text or symbols)

Supporti

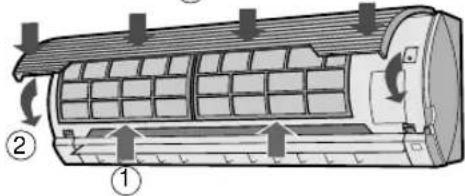

MANUTENZIONE

Diagram of a airflow system inside a duct, labeled with components ①, ②, and ③ indicating airflow direction.

③

Technical diagram of an air conditioner unit with labeled parts and airflow indicators

1 SPEGNETE L'UNITÀ

2 RIMUOVETE I FILTRI

Two stacked rectangular sheets with vertical lines, resembling corrugated metal or composite material (no text or symbols)

Tipo AZ-F1800C

PRIMA DI RICHIEDERE ASSISTENZA

Diagram of an air conditioner with numbered parts and a handheld device, showing internal structure and component labels.

ION SIGN ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷

UNIDADE EXTERIOR

Technical diagram of an air conditioning unit with numbered components labeled 18, 19, 20, and 21.

⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑧ ⑨ 8.8 h°C

Diagram of a remote control panel with battery and switch components (no text or labels)

Tampa das pilhas

NOTAS:

Illustration of a car air conditioner with a flash emitting from its tip (no text or symbols)

ATENÇÃO

Three rows of circular icons with curved lines, no text or symbols present

For regulada para manual

Three identical panels showing a fan icon, each with six circular patterns (no text or symbols)

Velocidade suave

Velocidade baixa

Velocidade alta

Illustration of a hand holding a checkmark on a wooden surface (no text or symbols)

ATENÇÃO

MODE TEMP. 2.5 h FAN TIMER TEMP. CCC DISPLAY MODE ▶▶▶1 1h FAN ▶▶▶○ SWING CANCEL 1 Exe

Illustration of a hand pressing a button on a mechanical device (no text or symbols visible)

NOTA:

Diagram of an air conditioner unit with labeled parts and airflow indicators

4 FECHE A UNIDADE DE PERSIANA

Technical line drawing of a large air conditioner unit with cooling fins and fan array (no text or symbols)

Suportes

Technical diagram of a cylindrical air duct with numbered components and directional arrows indicating flow or movement.

1 DESLIGAR A UNIDADE 2 REMOVA OS FILTROS

Diagram illustrating the installation of a solar panel with labeled components and directional arrows indicating assembly steps.

3 LIMPE OS FILTROS

Stacked rectangular sheets with parallel grooves, no text or symbols visible

Tipo AZ-F1800C

ANTES DE CHAMAR O SERVIÇO DE ASSISTÊNCIA TÉCNICA

Diagram of an air conditioner with numbered parts and a handheld device, showing internal structure and wiring.

ION SIGN ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳

Technical diagram of an air conditioning unit with numbered components labeled 18, 19, 20, and 21.

⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑧ ⑨ 8.8 h°C

Diagram of a device's internal components showing battery, switch, and socket assembly (no text or labels)

Κάλυμμα μπαταριών

ΣΗΜΕΙΩΣΕΙΣ:

Illustration of a car air conditioner with a flash emitting light (no text or symbols)

ΠΡΟΣΟΧΗ

Illustration of a hand holding a rolled-up sheet of paper with a checkmark mark (no text or symbols)

ΠΡΟΣΟΧΗ

DISPLAY MODE FAN1h SWING CANCEL

Illustration of a hand pressing a button on a mechanical device (no text or symbols visible)

ΣΗΜΕΙΩΣΗ:

Diagram of an air conditioner unit with labeled parts and airflow indicators

Technical line drawing of a car air conditioner unit with cooling fins and fan blades (no text or symbols)

Υποστηρίγματα

Diagram of an air conditioner unit with labeled parts and directional arrows indicating airflow or movement.

③

Technical diagram of an air conditioner unit with labeled components and airflow indicators

Stacked rectangular sheets with parallel grooves, no text or symbols visible

Τγπος AZ-F1800C

WAARSCHUWINGEN BIJ DE PLAATSING / INSTALLATIE

Diagram of an air conditioner with numbered parts and a handheld device, showing internal structure and component labels.

ION SIGN ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷

BUITEN-UNIT

Technical diagram of an air conditioning unit with numbered components labeled 18, 19, 20, and 21.

①Inlaat (Lucht)

②Opklapbaar paneel

③HELP-toets (AUX.)

④Luchtfilters

⑤Ontvangst-venster

⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ⑵ ⑶ ⑷ ⑧ ⑨ 8.8°C

Diagram of a device showing internal components with battery and switch connections (no text or symbols)

Batterijendeksel

OPMERKINGEN:

Illustration of a car air conditioner with a handheld probe emitting a light beam (no text or symbols)

LET OP

LUCHTREINIGEN

MODE TEMP. FAN TIMER TEMP. DISPLAY MODE ▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶▶> ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ● ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▶ ▸ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

Three rows of circular icons with curved lines, no text or symbols present

Three rows of fan icons, each containing a three-blade fan symbol, likely representing fan counts or unit markings.

Illustration of a hand holding a checkmark on a curved surface with horizontal lines (no text or symbols)

LET OP

PLASMACLUSTER BEDIENING

KOELEN/DROGEN-FUNCTIE:

Illustration of a hand inserting a component into a device (no text or symbols visible)

OPMERKING:

Diagram of an air conditioner unit with labeled parts and airflow indicators

Technical line drawing of a cylindrical air duct or compressor unit with internal compartments and directional arrows (no text or symbols)

Steunen

ONDERHOUD

Technical diagram of a roof structure with numbered components and directional arrows indicating airflow or movement.

③

Diagram of a car air conditioner unit with labeled parts and airflow indicators

1 SCHAKEL HET TOESTEL UIT

Stacked rectangular sheets with parallel grooves, no text or symbols visible

AZ-F1800C type

VOORDAT U DE STORINGSDIENST BELT
