USER MANUAL SRK63ZKS MITSUBISHI

Line drawing of a single air conditioner unit (no text or symbols)

SRK63ZK-S

SRK71ZK-S

SRK80ZK-S

MANUEL DE L'UTILISATEUR

CLIMATISEUR

FRANÇAIS

ANWENDERHANDBUCH

KLIMAGERÄT

DEUTSCH

ISTRUZIONI PER L'USO

This air conditioner complies with EMC Directive 2004/108/EC, LV Directive 2006/95/EC.

Thank you for purchasing a MITSUBISHI HEAVY INDUSTRIES, LTD. Air-Conditioner. To get the best long-lasting performance, please read and follow this User's Manual carefully before using your air-conditioner. After reading, please store the Manual in a safe place and refer to it for operational questions or in the event of any irregularities.

This air-conditioner is intended for domestic use.

Do not vent R410A into the atmosphere: R410A is a fluorinated greenhouse gas, covered by the Kyoto Protocol with a Global Warming Potential (GWP) = 1975.

Your Air Conditioning product may be marked with this symbol. It means that waste electrical and electronic equipment (WEEE as in directive 2002/96/EC) should not be mixed with general household waste. Air conditioners should be treated at an authorized treatment facility for re-use, recycling and recovery and not be disposed of in the municipal waste stream. Please contact the installer or local authority for more information.

This symbol printed in the batteries attached to your Air Conditioning product is information for end-users according to the EU directive 2006/66/EC article 20 annex II. Batteries, at their end-of-life, should be disposed of separately from general household waste. If a chemical symbol is printed beneath the symbol shown above, this chemical symbol means that the batteries contain a heavy metal at a certain concentration. This will be indicated as follows: Hg:mercury(0.0005%), Cd:cadmium(0.002%), Pb:lead(0.004%) Please, dispose of batteries correctly at your local community waste collection or the recycling center.

The emission sound pressure level from each Indoor and Outdoor unit is under 70 dB(A).

contents

Safety precautions 2

Name of each part and its function .... 4

Remote control handling 6

Operation failure with the remote control ..... 6

Temporary run operation 6

Operation and display section for

remote control 7

Current time setting.... 7

AUTO mode operation 8

Temperature adjustment during AUTO...... 8

FAN SPEED....8

COOL/HEAT/DRY/FAN mode operation ..... 9

Air-conditioner operable

temperature setting 9

Characteristics of HEAT mode operation ..... 9

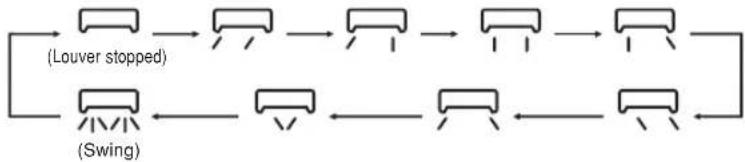

Airflow direction adjustment 10

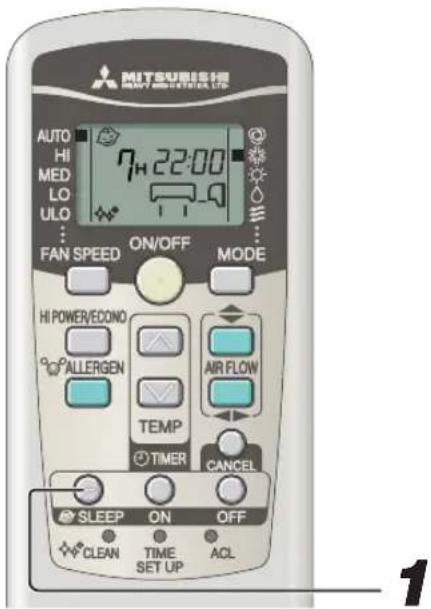

SLEEP TIMER operation 11

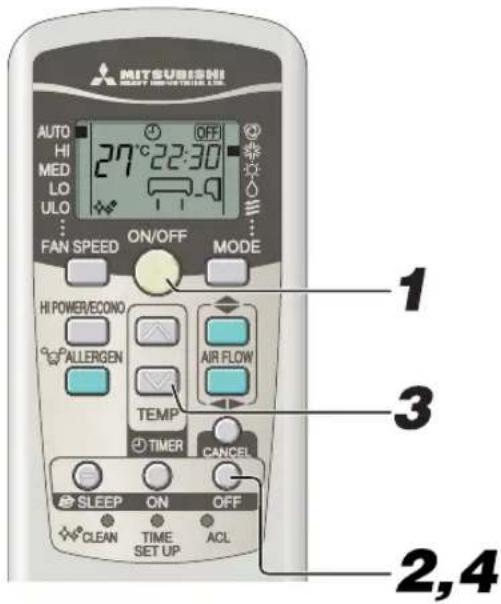

OFF-TIMER operation 11

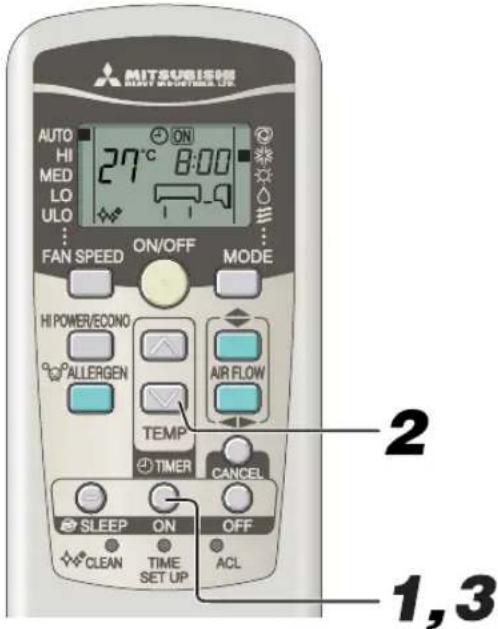

ON-TIMER operation 12

SLEEP TIMER + ON-TIMER operation ..... 12

PROGRAM TIMER operation 13

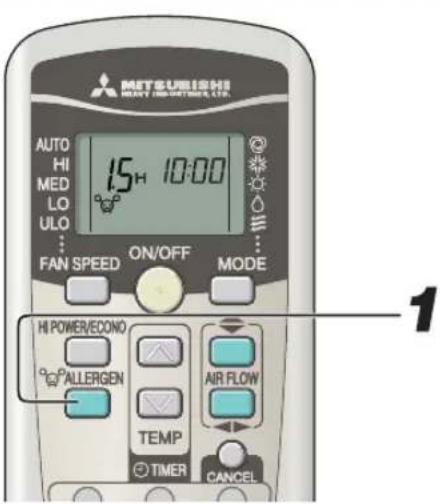

ALLERGEN CLEAR operation 13

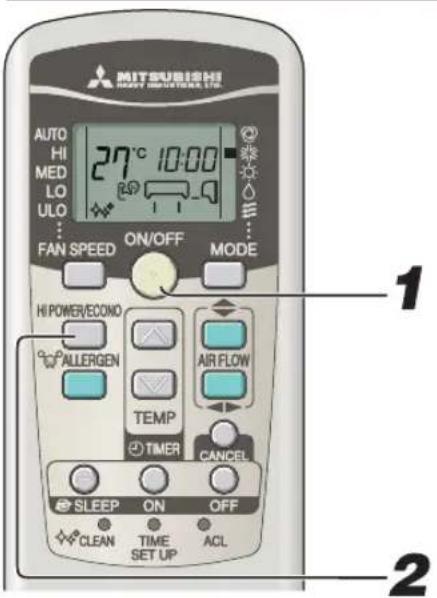

HIGH POWER/ECONOMY operation...... 14

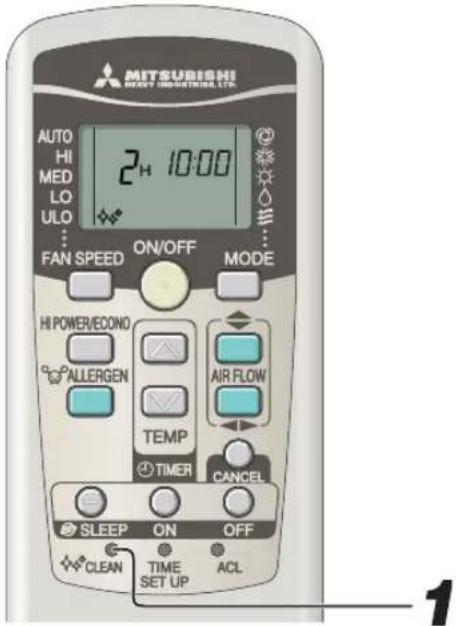

SELF CLEAN operation 15

Auto restart function 15

Tips for effective operation 15

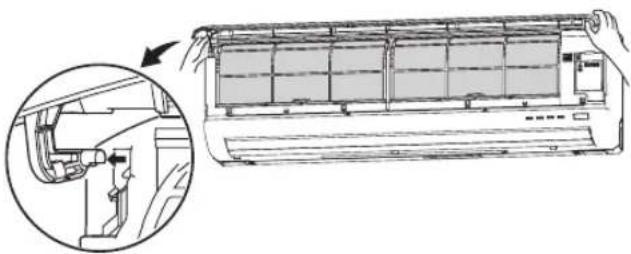

Maintenance 16

Proper installation 18

Troubleshooting 18

Notice 19

Contact your dealer.... 20

About the Multiple Air-conditioner 20

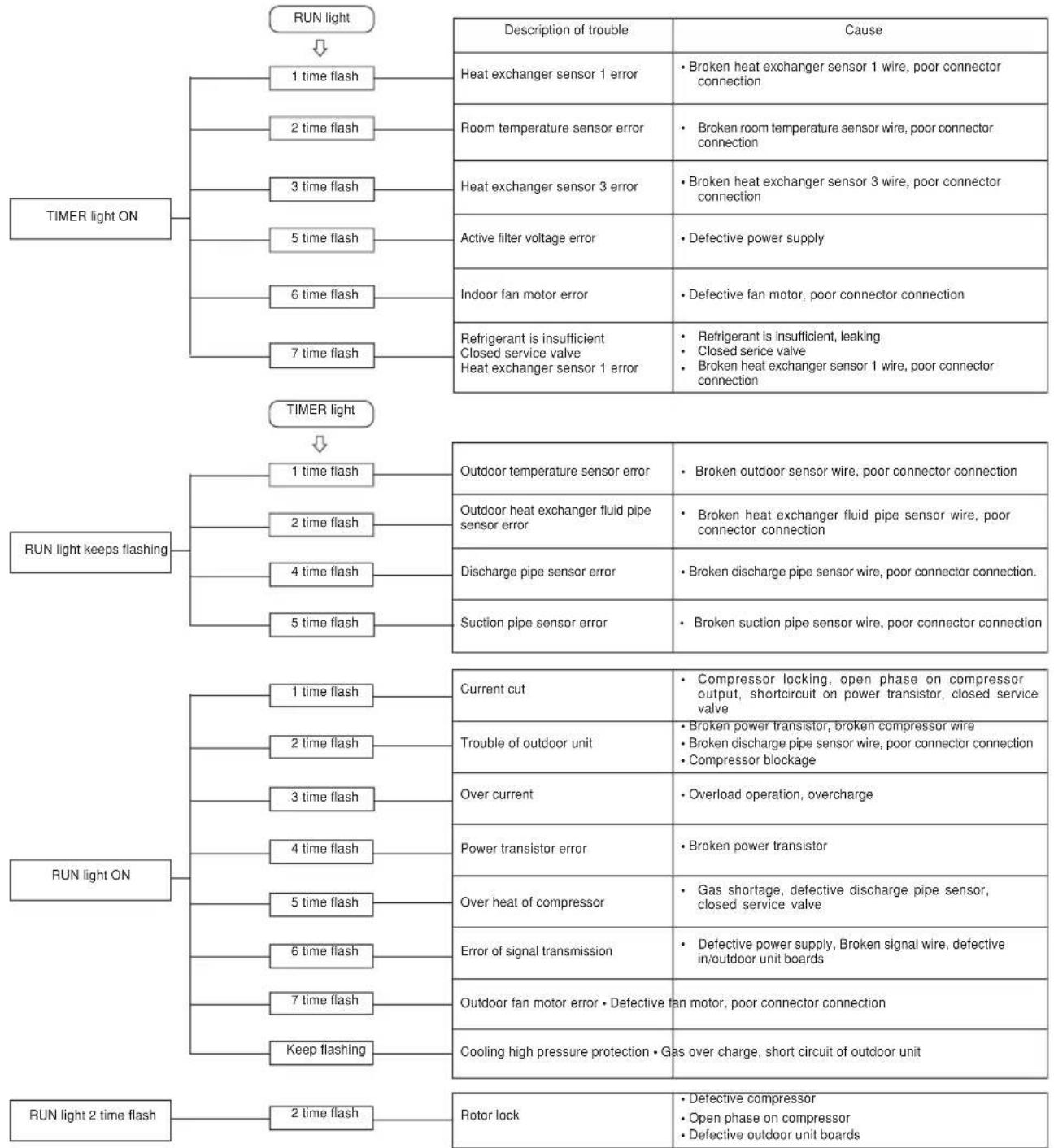

Self diagnosis function 21

Safety precautions

• Before starting to use the system, please read these “Safety precautions” carefully to ensure proper operation of the system.
• When you have read this instruction manual, please keep it without missing. If someone else takes over as operator, make certain that the manual is also passed on to the new operator.

△ DANGER	Improper handling could lead to drastic result like death, serious injury, etc.
△ CAUTION	Might pose a serious problem, depending on the circumstances.

Please observe these precautions with great care, since they are essential to your safety.

- Symbols which appear frequently in the text have the following meaning:

Strictly prohibited Provide pro

●

Observe instructions with great care

INSTALLATION PRECAUTIONS

⚠ DANGER
	The system is for domestic, residential etc. use.If used in severer environments, such as an engineering workplace, the equipment may function poorly.
	The system must be installed by your dealer or a qualified professional.It is not advisable to install the system by yourself, as faulty handling may cause leakage of water, electric shock or fire.

CAUTION
	Do not install it where flammable gas may leak.Gas leaks may cause fire.
	Depending on the place of installation, an earth leakage breaker may be necessary.If you do not install an earth leakage breaker, you may get an electric shock.Make sure to install the drain hose properly so that all the water is drained out.Improper installation may lead to water drop in the room resulting in wet furniture.
	Make sure that the system has been properly earthed.Earth cables should never be connected to a gas pipe, water pipe, lightning conductor or telephone earth cable. Incorrect installation of the earth cable may produce an electric shock.

■ OPERATION PRECAUTIONS

⚠ DANGER
	Do not expose yourself to the cooling air for a long period.This could affect your physical condition and cause health problems.
	Store the remote control out of reach of infants.Failure to observe this may result in the batteries being swallowed or other accidents.

CAUTION

• Only use approved fuses. Use of steel or copper wire instead of an approved fuse is strictly prohibited, as it may cause a breakdown or fire.
• Do not handle the switches with wet hands. This may cause an electric shock.

• Do not swing from the indoor unit. If the indoor unit falls down, you may get injured.

• Do not place a flammable insecticide or paint spray near the blower, nor spray it directly on the system.
  This may result in a fire.

• You should not expose any combustion appliance directly to the air stream of the air-conditioner.
  The appliance may then work inadequately.

CAUTION
	Do not wash the air-conditioner with water.This could cause an electric shock.The system should only be used for its original purpose and not for anything else like, for instance, preservation of food, plants or animals, precision devices or works of art.The system is only intended for use in ordinary domestic rooms. Any other use of the system may damage the quality of food, etc.Do not place anything containing water, like vases, on top of the unit.Water entering the unit could damage the insulation and therefore cause an electric shock.Do not install the system where the airflow direction is aimed directly at plants or animals.This will damage their health.Do not sit on the outdoor unit nor put anything on it.If the unit falls down or things drop off it, people could get hurt.After a long period of use, check the unit's support structure from time to time.If you do not repair any damage right away, the unit may fall down and cause personal injury.	Do not touch the aluminum fins on the air heat exchanger.It may result in injury.Do not place household electrical appliances or household items under neath the indoor or outdoor units.Condensation falling from the unit may stain objects and cause accidents or electrical shock.Do not operate the system without the air filter.It can cause malfunction of the system due to clogging of the heat exchanger.Do not shut off the power supply immediately after stopping the operation.Wait at least 5 minutes, otherwise there is a risk of water leakage or breakdown.Do not control the system with main power switch.It can cause fire or water leakage. In addition, the fan can start unexpectedly, which can cause personal injury.
	If you operate the system together with a combustion appliance, you must regularly ventilate the indoor air.Insufficient ventilation may cause accidents due to oxygen deficiency.Stand firmly on a stepladder or other stable object when removing the inlet panel and filters.Failure to observe this may result in injury through insecure objects toppling over.When you clean the system, stop the unit and turn off the power supply.Never open the panel while the internal fan is rotating.	Do not place objects near the outdoor unit or allow leaves to gather around the unit.If there are objects or leaves around the outdoor unit, small animals may enter unit and contact electrical parts and may cause a break-down, smoke or fire.Contact your dealer to clean inside the indoor unit, do not attempt to do by yourself.The use of a non-approved detergent or improper washing method may damage the unit's plastic components and cause leaks. Damage, smoke, or fire may also happen if the detergent comes in contact with electrical parts or the unit's motor.Stop the unit and turn off the power if you hear thunder or there is a danger of lightning.It may damage the unit.

■ PRECAUTIONS FOR RELOCATION OR REPAIRS

⚠ DANGER
	Do not perform any repairs or modifications by yourself. Consult the dealer if the unit requires repair.If you repair or modify the unit, it can cause water leaks, electric shocks or fire.
	Consult your dealer for repairs.Wrong repairs could cause an electric shock, fire, etc.In case the air-conditioner is relocated elsewhere, contact your dealer or a professional fitter.Faulty installation may cause water leakage, electric shock, fire, etc.If you notice anything abnormal (smell of burning, etc.), stop the system, turn off the power supply and consult your dealer.Continued use of the system in abnormal circumstances may result in malfunctioning, electric shock, fire, etc.	If the air-conditioner fails to cool or warm the room, it may have a refrigerant leakage.Contact your dealer.If refrigerant needs to be added, check with your dealer for proper instructions.If the refrigerant comes in contact with the bare skin, it may cause cold injury.If the refrigerant gas is inhaled excessively, it may cause deterioration of nerve function like dizziness and headache, or deterioration of heart function like irregular heartbeat and heart palpitation temporarily. If refrigerant unexpectedly leaks from the unit onto a fan heater, stove, hotplate or other heat source, harmful gases could be generated.

Name of each part and its function

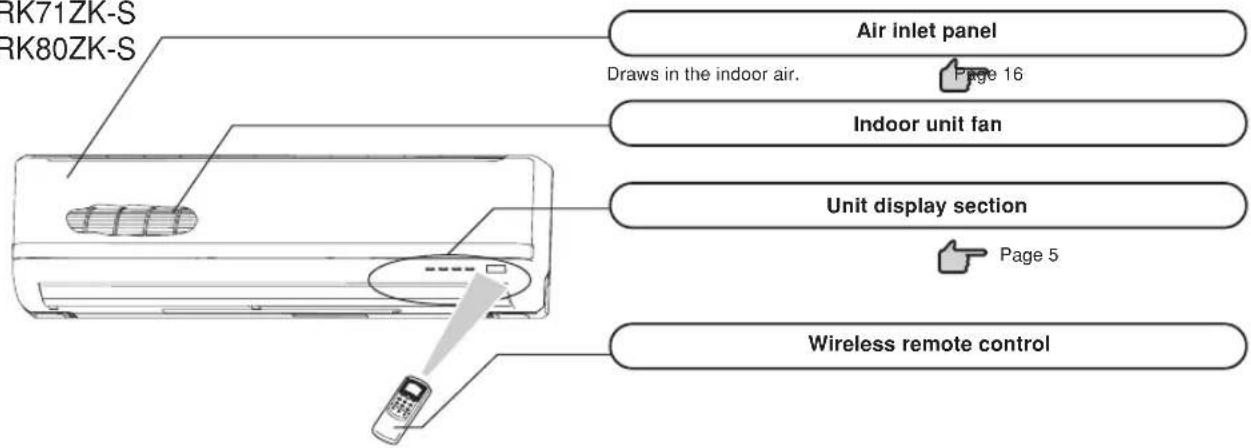

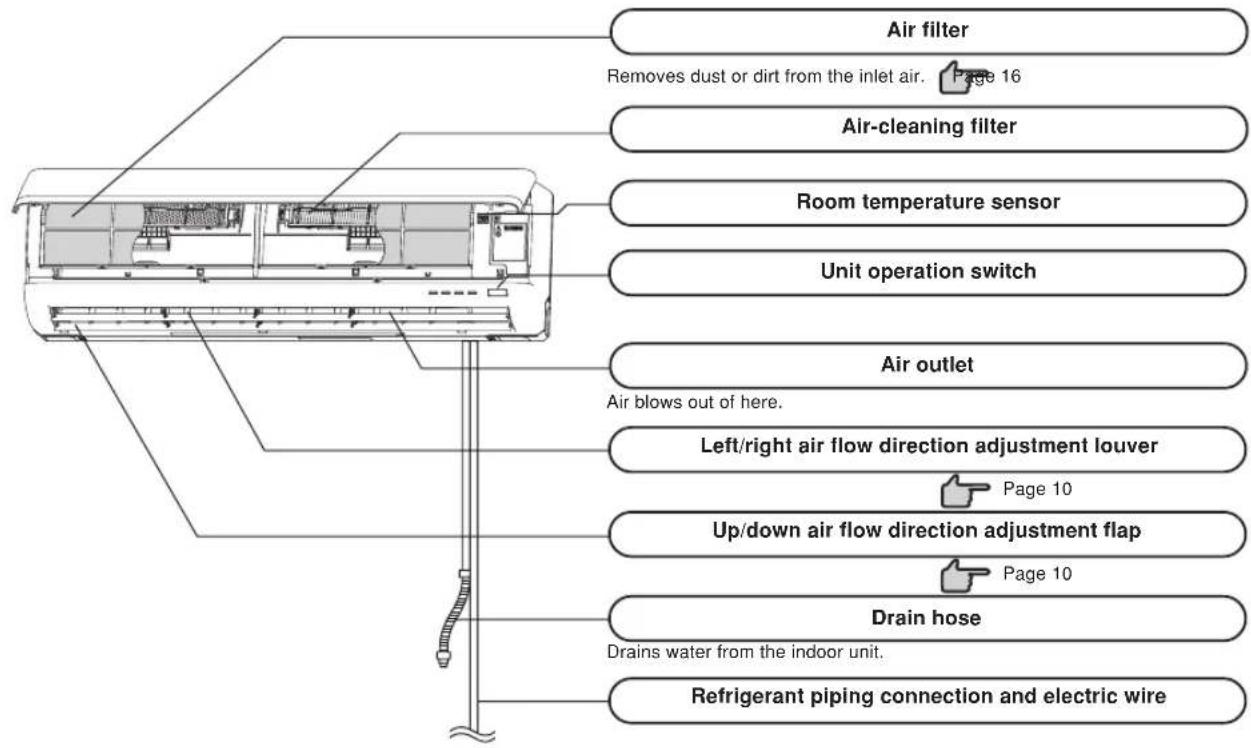

INDOOR UNIT

SRK63ZK-S

SRK71ZK-S

SRK80ZK-S

RK71ZK-S RK80ZK-S Air inlet panel Draws in the indoor air. Page 16 Indoor unit fan Unit display section Page 5 Wireless remote control

Air filter Removes dust or dirt from the inlet air. Page 16 Air-cleaning filter Room temperature sensor Unit operation switch Air outlet Air blows out of here. Left/right air flow direction adjustment louver Page 10 Up/down air flow direction adjustment flap Page 10 Drain hose Drains water from the indoor unit. Refrigerant piping connection and electric wire

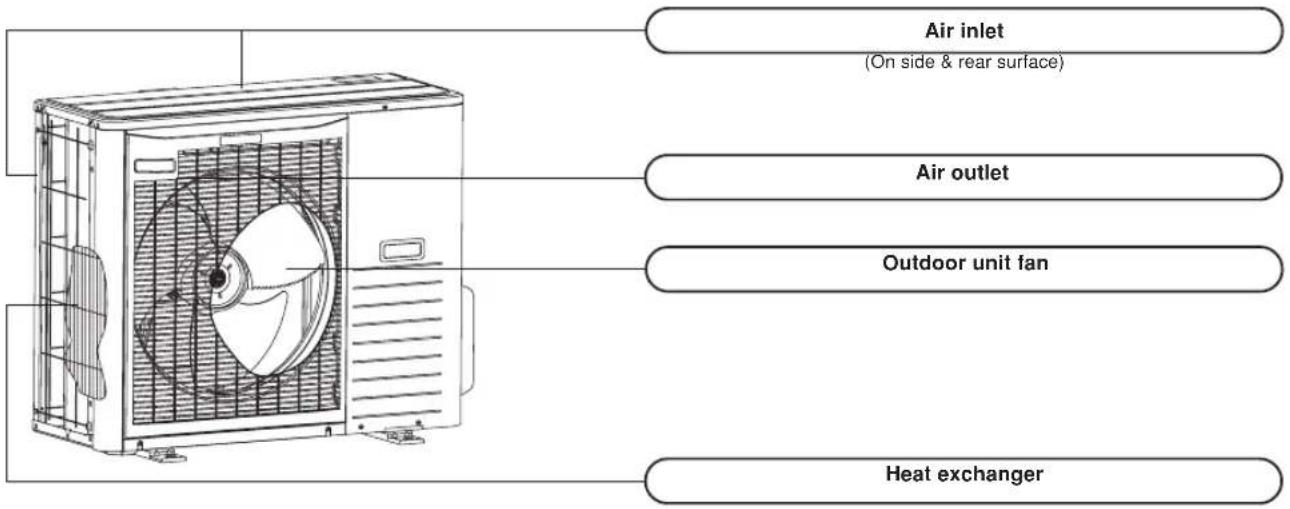

OUTDOOR UNIT

Air inlet (On side & rear surface) Air outlet Outdoor unit fan Heat exchanger

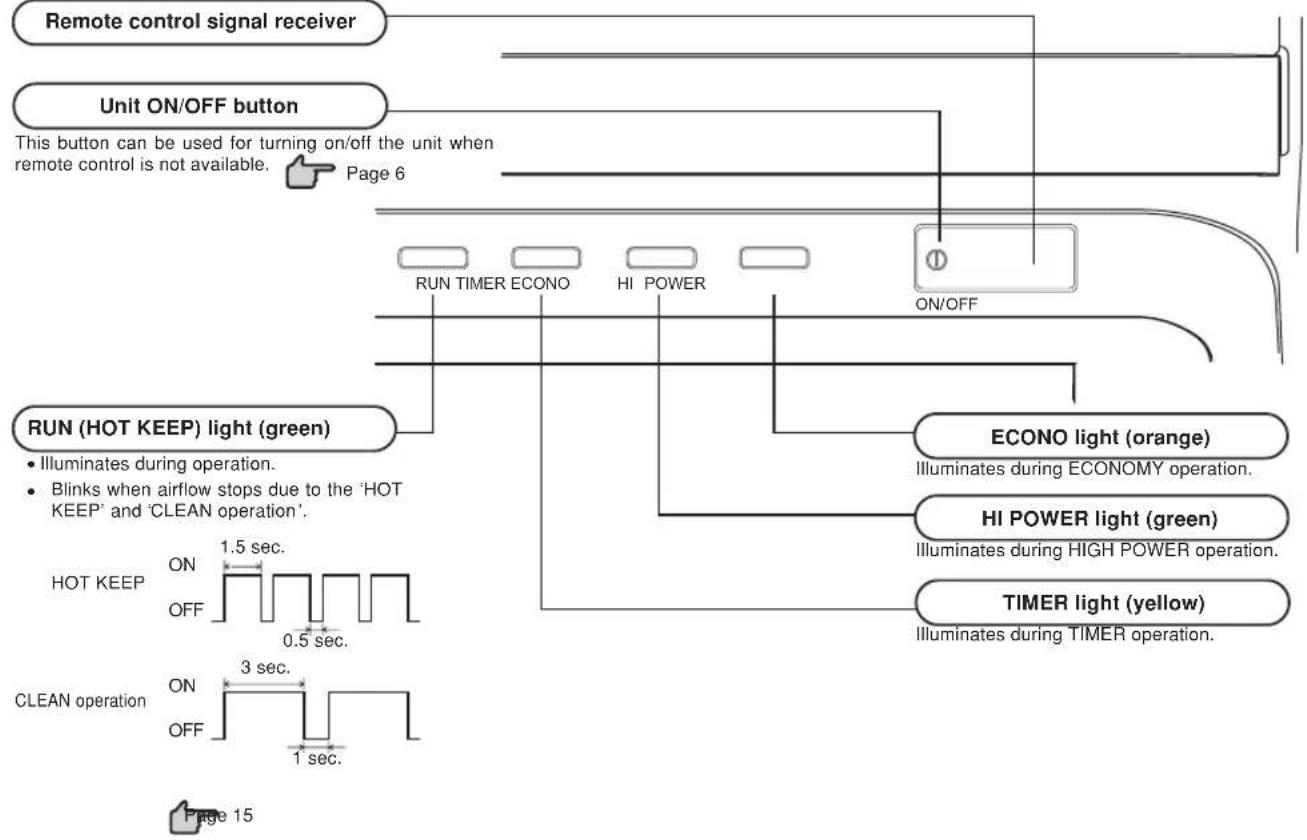

Name of each part and its function

Unit display section

Accessories

Wireless remote control

Wireless remote control holder

Allergen clear filter (Light orange)

Photocatalytic washable deodorizing filter (Orange)

Battery (R03 (AAA, Micro) ×2)

Wood screw (Quantity:2) (for remote control holder mounting)

NOTE

- Buzzer sound for remote control

When preset temperature 24^ C, automatic operation and automatic airflow are selected, the buzzer sound (PiPi) is produced. When turning off the air conditioner by pressing ON/OFF button (except CLEAN mode), the buzzer sound (Pi) is produced. This function is useful for operating the air conditioner in the darkness.

Air flow setting

Preset temperature

22 ⇌ 23 ⇌ 24 ⇌ 25 ⇌ 26 PI PI PI PI PI PI

Remote control handling

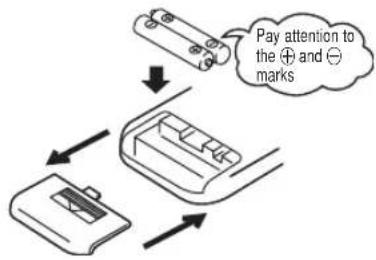

Replacing the batteries

The following cases signify exhausted batteries. Replace old batteries with new ones.

• Receiving beep is not emitted when a signal is transmitted.
• Display fades away.

1 Pull out the cover and take out old batteries.

2 Insert new batteries. R03 (AAA, Micro) x2

3 Close the cover.
4 Press the ACL switch with the tip of a ballpoint pen.

NOTE

• Do not use old and new batteries together.
• Remove the batteries when the remote control is not used for a long period.
• The recommended effective period of a battery conforming to JIS or IEC should be 6 to 12 months with normal use. If used longer, or when an unspecified battery is used, liquid may leak from the battery, causing the remote control to malfunction.
• The recommendable effective period is printed on the battery. This may be shorter due to manufacturing time to the unit. However, the battery may still be in working order after expiry of its nominal life.

■ When the display shows any abnormal condition, Press the ACL switch with the tip of a ballpoint pen.

Using the remote control holder

The remote control can be attached to a wall or pillar by using a remote control holder. Before installing the remote control, check that the air-conditioner receives the signals properly.

For installing or removing the remote control, move it up or down in the holder.

Warning note for remote control handling

☒ Strictly prohibited
• Do not go near high temperature places, such as an electric carpet or stove.	• Do not leave the remote control exposed to direct sunlight or other strong lighting.	• Do not drop the remote control. Handle with care.
• Do not put any obstructing obstacles between the remote control and the unit.	• Do not spill any liquid on the remote control.	• Do not place heavy objects on the remote control, or step on it.

Operation failure with the remote control

- Are the batteries running down?

"Replacing the batteries" above. Replace the batteries with new ones and retry the operation.

- If the operation fails, operate the unit with temporary operation function. Contact your dealer to have the remote control checked.

Below

Temporary run operation

- The unit ON/OFF button on the unit operates ON/OFF temporarily when the remote control is not used.

Operation program

• OPERATION MODE : AUTO
• FAN SPEED : AUTO
• AIR FLOW : AUTO

- Operation starts by pressing the unit ON/OFF button; it stops if you press the button again.

Line drawing of a rectangular air conditioner unit with a flat top and side panel (no text or symbols)

Unit ON/OFF button

NOTE

- Do not hold the Unit ON/OFF button down for more than 5 seconds.

(Holding it down longer than 5 seconds sets the automatic cooling used during servicing or when relocating the air-conditioner.)

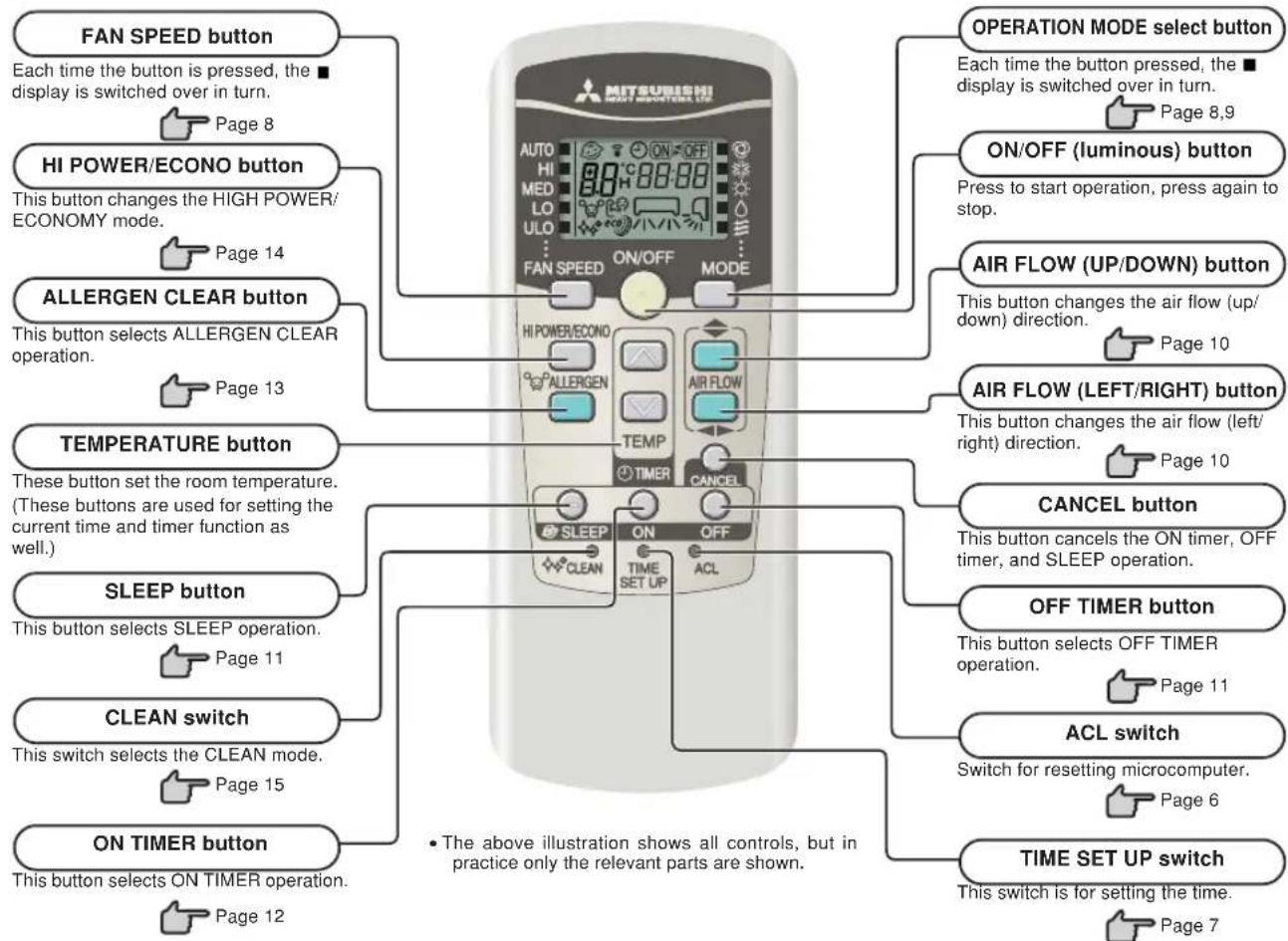

Operation and display section for remote control

Operation section

    U["OPERATION MODE select button"] --> V["Each time the button pressed, the display is switched over in turn."]
    V --> W["Page 8,9"]
    X["ON/OFF (luminous) button"] --> Y["Press to start operation, press again to stop."]
    Y --> Z["AIR FLOW (UP/DOWN) button"]
    Z --> AA["This button changes the air flow (up/down) direction."]
    AA --> AB["Page 10"]
    AC["AIR FLOW (LEFT/RIGHT) button"] --> AD["This button changes the air flow (left/right) direction."]
    AD --> AE["Page 10"]
    AF["CANCEL button"] --> AG["This button cancels the ON timer, OFF timer, and SLEEP operation."]
    AG --> AH["OFF TIMER button"]
    AH --> AI["This button selects OFF TIMER operation."]
    AI --> AJ["Page 11"]
    AK["ACL switch"] --> AL["Switch for resetting microcomputer."]
    AL --> AM["Page 6"]
    AN["TIME SET UP switch"] --> AO["This switch is for setting the time."]
    AO --> AP["Page 7"]

Transmission procedure

When each button on the remote control is pressed – with the remote control pointing towards the air-conditioner unit a signal is transmitted. When the air-conditioner receives the signal correctly, it will beep.

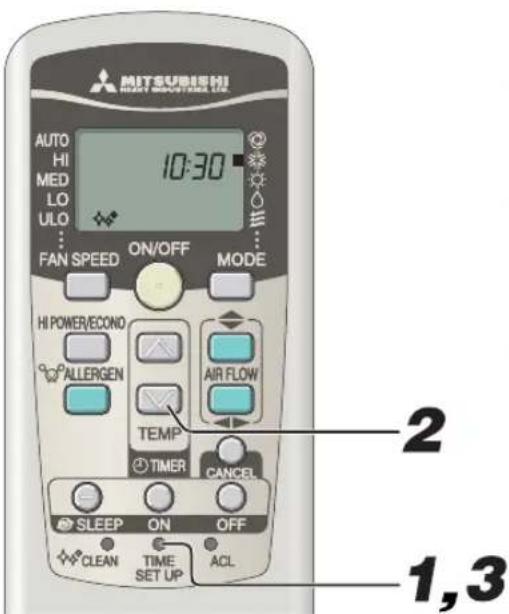

Current time setting

■ When inserting the batteries, the current time is automatically set to time setting mode. 13:00 is displayed as the current time. Set the clock to the right time.

MITSUBISHI HAPPY MOUNTAGES LAB AUTO HI MED LO ULO FAN SPEED ON/OFF MODE HI POWER/ECONO ALLERGEN AIR FLOW TEMP TIMER CANCEL SLEEP ON OFF CLEAN TIME SET UP ACL 1,3 2

Example: Set to 10:30.

Press the TIME SET UP switch.

Press with the tip of a ballpoint pen, etc. The time display blinks and can be set to the current time.

Press the "or" button.

(Set to 10:30)

Press the TIME SET UP switch.

The display changes from blinking to steady lighting and the setting is complete. Make sure to press the button within 60 seconds from the last operation in step 2, otherwise the time is not set.

NOTE

• The timer operation works based on the time clock, so please set it correctly.
• The remote control data is reset when the present time is set.

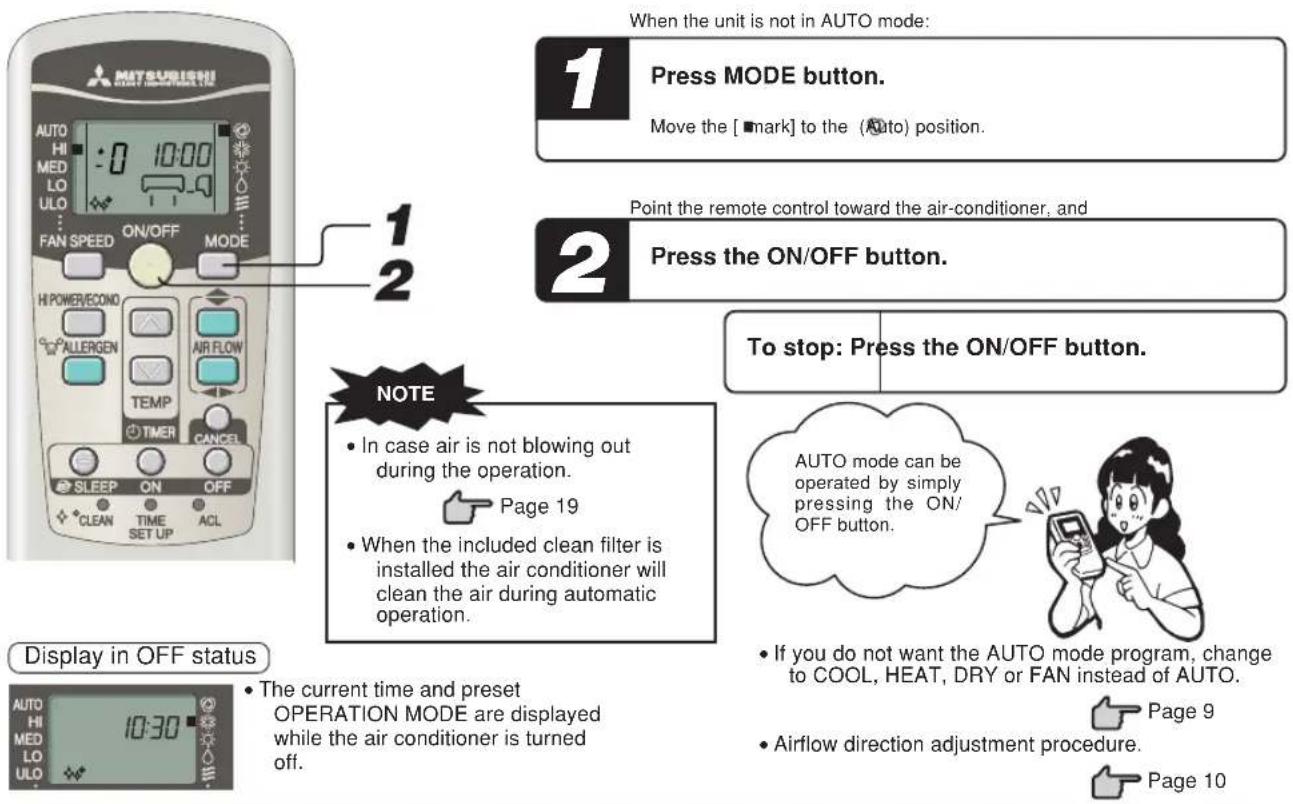

AUTO mode operation

■ Automatically selects the operation mode (COOL, HEAT, DRY) depending on the room temperature when switched on.

MITSUBISHI AUTO MODE AUTO HI MED LO ULO FAN SPEED ON/OFF MODE HI POWER/ECONO ALLERGEN AIR FLOW TEMP TIMER CANCEL SLEEP ON OFF CLEAN TIME ACL 1 2 When the unit is not in AUTO mode: 1 Press MODE button. Move the [■mark] to the (Auto) position. Point the remote control toward the air-conditioner, and 2 Press the ON/OFF button. NOTE • In case air is not blowing out during the operation. Page 19 • When the included clean filter is installed the air conditioner will clean the air during automatic operation. To stop: Press the ON/OFF button. AUTO mode can be operated by simply pressing the ON/OFF button. Display in OFF status • The current time and preset OPERATION MODE are displayed while the air conditioner is turned off. • If you do not want the AUTO mode program, change to COOL, HEAT, DRY or FAN instead of AUTO. • Airflow direction adjustment procedure. Page 9 Page 10

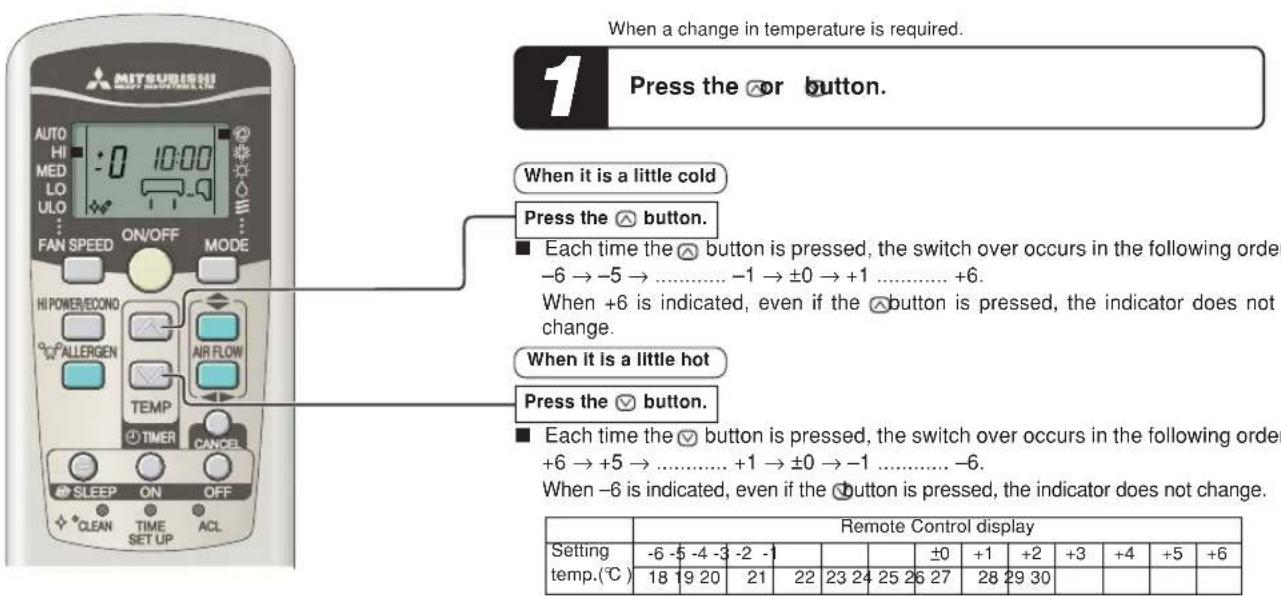

Temperature adjustment during AUTO

Air temperature adjustment is possible even during automatic operation. There are 6 levels of adjustment possible with the button or the button. During automatic operation, 24^ is preset both for heating and cooling.

When a change in temperature is required. 1 Press the 📄 or button. When it is a little cold Press the 🔒 button. ■ Each time the ⚗ button is pressed, the switch over occurs in the following order -6 → -5 → ...... -1 → ±0 → +1 ...... +6. When +6 is indicated, even if the ⚗ button is pressed, the indicator does not change. When it is a little hot Press the ⚗ button. ■ Each time the ⚗ button is pressed, the switch over occurs in the following order +6 → +5 → ...... +1 → ±0 → -1 ...... -6. When -6 is indicated, even if the ⚗ button is pressed, the indicator does not change. Remote Control display Setting temp.(°C) -6 -5 -4 -3 -2 -1 18 19 20 21 22 23 24 25 26 27 28 29 30 +1 +2 +3 +4 +5 +6

FAN SPEED

■ You can choose the capacity of your air-conditioner when heating mode, cooling mode or fan mode.

Operation capacity by your choice	FAN SPEED
Set automatically by microcomputer	AUTO
Powerful operation with high capacity	HI
Standard operation	MED
Energy-saving operation	LO
Silent operation	ULO

Press the FAN SPEED button.

Move the [■ mark] to the preferred fan speed position.

AUTO HLMED LOULO

→

→

→

NOTE

- When changing FAN SPEED from HI to LO, the sound of refrigerant flowing may be heard.

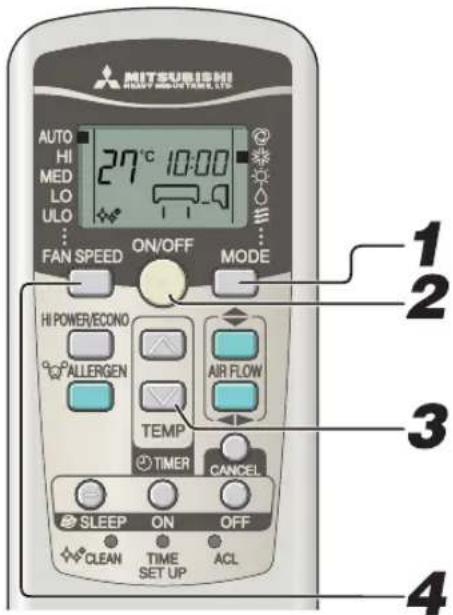

COOL/HEAT/DRY/FAN mode operation

Point the remote control toward the air-conditioner, and

AUTO HI MED LO ULO FAN SPEED ON/OFF MODE HI POWER/ECONO ALLERGEN AIR FLOW TEMP TIMER CANCEL SLEEP ON OFF CLEAN TIME SET UP ACL

Airflow direction adjustment procedure. Page 10

Press the MODE select button.

Move the [■mark] to the required operation position.

(Cool), (Heat), (Dry), (F)—

Press the ON/OFF button.

Press the TEMP button.

Press ☑ button for the preferred temperature.

Standard

COOL

26°C~28°C

HEAT

22°C~24°C

DRY

24°C~26°C

FAN

—

Press the FAN SPEED button

Set the fan speed as preferred.

NOTE

- In case air is not blown out, when starting the heating operation.

Page19

- The operation program can also be set or changed when the air-conditioner is not in operation.

To stop: Press the ON/OFF button.

Air-conditioner operable temperature setting

■ Use within the following operational range. Operating outside of this range may result in the protection devices being activated, preventing the unit from working.

	Cooling operation Heating operation
Outside temperature	Approximately -15 to 46 °C Approximately -15 to 21 °C
Inside temperature	Approximately 18 to 32 °C Approximately 15 to 30 °C
Inside humidity	Below approximately 80%The long-term use of the unit with a humidity level exceeding 80% may result in condensation forming on the surface of the indoor unit, leading to water drips.

Characteristics of HEAT mode operation

Mechanism and capacity of HEAT mode operation

■ Mechanism

• The unit draws heat from the cold outside air, transfers it to indoors and heats the room. As a characteristic of heat pump system, the heating capacity reduces when the outside air temperature gets colder.
• It may take some time to supply hot air after turning on the air-conditioner.
• If the outside temperature becomes extremely low, it would be better to use an additional source of heating.

Defrosting

If the outside temperature becomes low and humidity is high, the heat exchanger in the outdoor unit may frost over, which prevents efficient heating.

If this happens, the automatic defrost function is activated and during defrosting the heating operation stops for 5 to 15 minutes during defrosting.

• Both indoor and outdoor fans stop and the RUN light blinks slowly (1.5 sec. ON, 0.5 sec. OFF) during defrosting.
  • The outdoor unit may give off some steam during defrosting. This is to help the defrosting process and is not a defect.
• The HEAT operation resumes as soon as defrosting has been completed.

Airflow direction adjustment

Adjusting airflow direction

■ Up/down direction can be adjusted with the AIRFLOW ◆ (UP/DOWN) button on the remote control. Every time you press this button the mode changes as follows:

Change on AIRFLOW (UP/DOWN) mode.

(Flap stopped) (Swing)

■ Left/right direction can be adjusted with the AIRFLOW ← (LEFT/RIGHT) button on the remote control. Every time you press this button the mode changes as follows:

Change on AIRFLOW (LEFT/RIGHT) mode.

NOTE

- The actual position of the flap and louver may differ from the display shown.

• When operation starts, the flap and louver direction is fixed at the horizontal / center position in order to avoid cold draft, and return to the set the position that was set after the warm air supply is starting.
• The flap and louver direction will be controlled to the horizontal/center position when the room temperature reaches the set temperature and compressor stops or when defrosting is in operation.
• The airflow direction cannot be set during the period mentioned above. Change the airflow direction settings after the warm air is supplied and the flap/louver goes to the set position.

MEMORY FLAP (FLAP OR LOUVER STOPPED)

When you press the AIRFLOW (UP/DOWN or LEFT/RIGHT) button once while the flap or louver is operating, it stops swinging at the position. Since this angle is memorized in the microcomputer, the flap or louver will automatically be set at this angle when the next operation is started.

DANGER

- Do not expose directory to airflow from the air-conditioner for a long time.

CAUTION

• When in COOL or DRY operation, do not operate for a long period with the airflow blowing straight down. Otherwise, condensation may appear on the outlet grill and drip down.
• Do not try to adjust the flaps and louvers by hand, as the control angle may change or the flap or louver may not be closed completely.

- Recommended angle of the flap when stopping

HEAT

(Slant forward blowing)

COOL, DRY

(Horizontal blowing)

Multi-directional Air Flow (up/down air scroll and left/right air scroll)

■ Activating both up/down air swing and left/right air swing at the same time results in a multi-directional air flow.

Up/down air scroll Left/right air scroll

In COOL, DRY and FAN operation

In HEAT operation

In COOL, DRY and FAN operation

In HEAT operation

Stops at this position for 5 seconds.

Thick line : moves quickly

Thin line ____: moves slowly

Stops at this position for 5 seconds.

pos at this position 5 seconds.

Diagram of a fan or antenna array with multiple blades radiating from a central hub (no text or symbols)

Left louver Right louver

Diagram of airflow or particle dispersion around a rectangular object (no text or symbols)

SLEEP TIMER operation

■ The unit stops automatically after the set time lapses.

The set temperature is automatically adjusted according to the elapsed time in order to avoid too much cooling or heating.

Page 13

MITSVERISER AUTO HI MED LO ULO 7h 22:00 FAN SPEED ON/OFF MODE HI POWER/EDONO ALLERGEN TEMP AIR FLOW TIMER CANCEL SLEEP ON OFF CLEAN TIME SET UP ACL 1

Press the SLEEP button.

■ If it is pressed while the unit is off

SLEEP TIMER operation starts with the previous operation settings, and the air conditioning is turned off after the set time elapses.

■ If it is pressed while the unit is running

The air conditioner is turned off after the set time elapses.

Every time the button is pressed, the display changes as follows:

Example: You prefer it to stop after 7 hours.

The timer light (yellow) is on.

• The unit stops after the set time lapses.

Changing of set time

Set a new time by pressing SLEEP button.

How to cancel

Press the CANCEL button to turn off the SLEEP indicator.

NOTE

• SLEEP operation will not function during ALLERGEN CLEAR operation.
- Cannot be set at the same time with OFF-TIMER.

OFF-TIMER operation

■ The unit stops automatically when the set time comes.

With the air conditioner turned off, start the operation from Step 1. With the air conditioner running, start from Step 2.

Example: You prefer it to stop 22:30.

MITSUBISHI AUTO HI MED LO ULO FAN SPEED ON/OFF MODE HI POWER/ECONO ALLERGEN TEMP TIMER CANCEL SLEEP ON OFF CLEAN TIME SET UP ACL 1 3 2,4

Press the ON/OFF button.

Press the OFF-TIMER button.

OFF TIMER display OFS blinking.

Press the "or" button.

Every time the button is pressed, the display is switched in the order of:

Every time the button is pressed, the display is switched in the order of:

Press the OFF-TIMER button.

The display changes from blinking to steady lighting and the setting is complete.

The timer light (yellow) is on.

Changing of set time

Set a new time by using the OFF-TIMER button.

How to cancel

Press the CANCEL button to turn off the timer display.

• The unit stops at the end of the set period of time.
- Make sure to press the button within 60 seconds from the last operation in step 3, otherwise the setting is not completed.
- The current time is not displayed during OFF-TIMER operation.
• OFF-TIMER operation will not function during ALLERGEN CLEAR operation.
- Different from SLEEP TIMER operation, automatic set temperature adjustment is not done during OFF-TIMER operation.

ON-TIMER operation

Operation starts 5 to 60 minutes before the set time so that the room temperature reaches the optimum temperature at the set time. ON-TIMER operation can be set regardless of whether the air-conditioner is running or not.

MITSUBERBER AUTO ON HI 27°C 8:00 MED LO ULO FAN SPEED ON/OFF MODE HI POWER/ECONO ALLERGEN AIR FLOW TEMP TIMER CANCEL SLEEP ON OFF CLEAN TIME SET UP ACL 2 1,3

Example: In the case the preferred room temperature is required at 8:00.

Press the ON-TIMER button.

ON-TIMER display 📄is blinking.

Press the "or" button.

Every time the Ⓐ button is pressed, the display is switched in the order of:

Every time the button is pressed, the display is switched in the order of:

Press the ON-TIMER button.

The display changes from blinking to steady lighting and the setting is complete.

The timer light (yellow) is on.

The operation stops if it is set during operation.

Changing of set time

Set a new time by using the ON-TIMER button.

How to cancel

Press the CANCEL button to turn off the timer indicator.

NOTE

• Operation starts 5 to 60 minutes before the set time.
• The timer light (yellow) goes out at the set time.
- Make sure to press the button within 60 seconds from the last operation in step 2, otherwise the setting is not completed.
- The current time is not displayed during ON-TIMER operation.
- ON-TIMER operation will not function during ALLERGEN CLEAR operation.

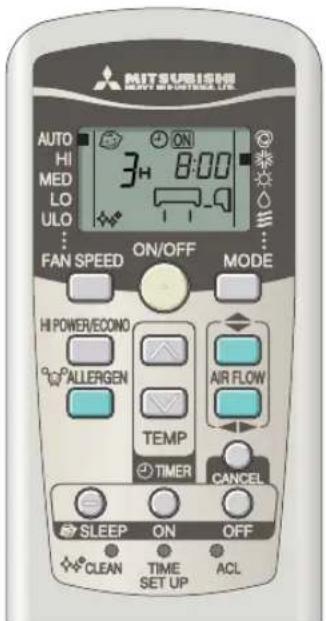

SLEEP TIMER + ON-TIMER operation

■ Combined timer operation of SLEEP TIMER and ON-TIMER.

MITSUBI 1599 AUTO ON HI 3H 8:00 MED LO ULO FAN SPEED ON/OFF MODE HI POWER/ECONO ALLERGEN AIR FLOW TEMP TIMER CANCEL SLEEP ON OFF CLEAN TIME SET UP ACL

Example: When it is required to stop after 3 hours and then start operation at 8:00, near the set temperature.

■ SLEEP TIMER setting

Set by the procedures on page 11.

■ ON TIMER operation setting

Set by the above procedure mentioned in ON-TIMER.

The setting of the lighting of the timer light (yellow) of this unit is complete.

• After the SLEEP TIMER set time has elapsed, the operation stops, and it starts from 5 to 60 minutes before the ON-TIMER's set time.
• The timer light is turned off when ON-TIMER set time comes.

Changing of set time

Set a new time by using the SLEEP or ON-TIMER button.

How to cancel

Press the CANCEL button to turn off the timer display.

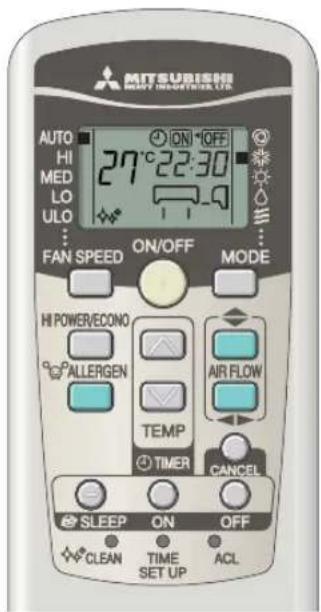

PROGRAM TIMER operation

The timer operations of the combination of ON and OFF TIMER. Once this has been set the timer operations will be repeated at the same time every day unless the ON/OFF button is pressed.

MITSUBISHI MAY INDUSTRIEL LTR AUTO ON OFF HI 27°C 22:30 MED LO ULO FAN SPEED ON/OFF MODE HI POWER/ECONO PALLERGEN AIR FLOW TEMP TIMER CANCEL SLEEP ON OFF CLEAN TIME SET UP ACL

Example: When it is preferred to stop at 22:30, and then start operation at 8:00, near the set temperature.

■ OFF-TIMER operation setting

Set by the procedures on page 11.

Set to 22:30

■ ON-TIMER operation setting

Set by the procedures on page 12.

Set to ON 8:00

Timer light (yellow) on the unit will light when the setting is completed.

The set time will be displayed on the remote control unit. The display will change depending on the operational status.

With ON-TIMER, the air conditioner starts running. Then, with OFF-TIMER, the air conditioner stops running.

With OFF-TIMER, the air conditioner stops running. Then, with ON-TIMER, the air conditioner starts running.

Changing of set time

Set a new time by using the OFF-TIMER or ON-TIMER button.

How to cancel

Press the CANCEL button to turn off the timer display.

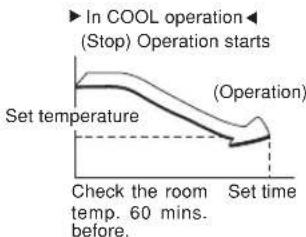

Comfort Start-up

In ON-TIMER operation, the unit starts the operation a little earlier, so that the room can approach optimum temperature at ON time. This is so called "Comfort start-up".

- Mechanism

The room temperature is checked 60 minutes before the ON time. Depending on the temperature at that time, the operation starts 5 to 60 minutes before the timer is at ON.

- The function is available for both COOL and HEAT operation mode (including AUTO). It does not work for DRY mode.

SLEEP TIMER

When SLEEP TIMER is selected, the set temperature is automatically adjusted after a while, ensuring that the room is not too cold during cooling or too warm during heating.

- During cooling: the preset temperature is lowered by 1^ at the start of SLEEP operation (when the timer is set). After that, the temperature goes up by 1^ every an hour to become 1^ higher than the present temperature.

- During heating: Preset temperature is lowered by 1^ at the start of SLEEP operation (when the timer is set). After that the temperature to becomes 3^ lower in an hour and 6^ lower in two hours than the present temperature.

ALLERGEN CLEAR operation

MITSUBISHI HAIY INDUSTRIES LTD. AUTO HI MED LO ULO : FAN SPEED ON/OFF MODE HI POWER/ECONO ALLERGEN AIR FLOW TEMP TIMER CANCEL 1

■ The power of enzymes is used to eliminate allergy-causing allergens that accumulate on the allergen clear filter.

Aim the remote control at the air-conditioner.

1 Press the ALLERGEN CLEAR button.

To stop:

Press the ON/OFF or ALLERGEN CLEAR button.

NOTE

• Since the room temperature may change quite a bit, it is recommended that this be used when no one is in the room. (It completes automatically in approximately 90 min.)
• During ALLERGEN CLEAR operation temperature, fan speed, airflow direction and timer operations settings cannot be made.

HIGH POWER/ECONOMY operation

MITSUBISHI AUTO HI MED LO ULO FAN SPEED ON/OFF MODE HI POWER/ECONO ALLERGEN TEMP TIMER AIR FLOW CANCEL SLEEP ON OFF CLEAN TIME ACL SET UP

If the air-conditioner is not operating, point the remote control toward the air conditioner, and

1

Press the ON/OFF button.

2

Press the HI POWER/ECONO button.

- When the operating mode is AUTO, COOL or HEAT Every time the HI POWER/ECONO button is pressed, the display is switched in the order of:

- When the operating mode is DRY or PROGRAM TIMER Every time the HI POWER/ECONO button is pressed, the display is switched in the order of:

. Concerning HIGH POWER operation

Pressing the HI POWER/ECONO button intensifies the operating power and initiates powerful cooling or heating operation for 15 minutes continuously. The remote control EQ displays and the FAN SPEED display disappears.

NOTE

• During the HIGH POWER operation, the room temperature is not controlled. When it causes an excessive cooling or heating, press the HI POWER/ECONO button again to cancel the HIGH POWER operation.
• HIGH POWER operation is not available during the DRY and the program timer operations.

• When HIGH POWER operation is set after ON TIMER operation, HIGH POWER operation will start from the set time.

• When the following operations are set, HIGH POWER operation will be canceled.
  ① When the HI POWER/ECONO button is pressed again.
  ② When the operation mode is changed.
  ③ When it has been 15 min. since HIGH POWER operation has started.

• Not operable while the air conditioner is OFF.
• After HI POWER operation, the sound of refrigerant flowing may be heard.

. Concerning ECONOMY operation

Pressing the HI POWER/ECONO button initiates a soft operation with the power suppressed in order to avoid an excessive cooling or heating. The unit operates 1.5°C higher than the setting temperature during cooling or 2.5°C lower than that during heating. The remote control eCO displays and the FAN SPEED display disappears.

NOTE

- It will go into ECONOMY operation at the next time the air-conditioner runs in the following case.

① When the air-conditioner is stopped by ON/OFF button during ECONOMY operation.
② When the air-conditioner is stopped in SLEEP or OFF TIMER operation during ECONOMY operation.
③ When the operation is retrieved from CLEAN or ALLERGEN CLEAR operation.

• When the following operations are set, ECONOMY operation will be canceled.
  ① When the HI POWER/ECONO button is pressed again.
  ② When the operation mode is changed DRY to FAN.
• Not operable while the air conditioner is OFF.

SELF CLEAN operation

■ CLEAN operation should be run after AUTO, COOL and DRY operation to remove the moisture from inside the indoor unit and control the growth of mold and bacteria.

MITSUBISHI HKEY INDUSTRIES LTD. AUTO HI MED LO ULO 2 H 10:00 FAN SPEED ON/OFF MODE HI POWER/ECONO ALLERGEN TEMP TIMER CANCEL SLEEP ON OFF CLEAN TIME SET UP ACL 1

In order to active CLEAN operation, press the CLEAN switch with the tip of a ballpoint pen.

Every time the CLEAN switch is pressed, the display is switched in the order of:

NOTE

• Two hours later, the air conditioner stops running automatically. To stop the air conditioner immediately, press the ON/OFF button.
• CLEAN operation is not operated after HEAT and FAN, OFF-TIMER, SLEEP and ALLERGEN CLEAR operations have finished.
• The indoor unit fan runs for about two hours in CLEAN operation.
  • The RUN light illuminates during CLEAN operation.

• Pressing the SLEEP button or ALLERGEN CLEAR button during CLEAN operation cancels the CLEAN operation and then the unit is set to SLEEP or ALLERGEN CLEAR operation.
• This is not a function for removing mold, germs or grime that have already adhered to the unit.

Auto restart function

■ What is auto restart function?

• Auto restart function records the operational status of the air-conditioner immediately prior to be switched off by a power cut, and then automatically resumes operations after the power has been restored.
• The following settings will be cancelled:

① Timer settings

② HIGH POWER operations

NOTE

• Auto restart function is set at on when the air-conditioner is shipped from the factory. Consult with your dealer if this function needs to be switched off.
• When power failure occurs, the timer setting is cancelled. Once power is resumed, set the timer again.

Tips for effective operation

■ Please observe the following for the most economic and comfortable use of your unit.

Set a suitable room temperature.Excessively high or low temperatures are not good for your health and waste of electricity.	Clean the filters frequently.Clogged filters may block the airflow and cause less efficient operation.	Avoid direct sunlight and draught.Cut out direct sunlight by drawing the curtains or blinds when cooling. Keep windows and doors shut, except when ventilating.
Adjust the airflow direction properly.Adjust the up/down and left/right airflow to ensure a steady room temperature.	Operate the unit only when needed.Use the timer properly to operate the unit only when needed.	Keep heat source away when cooling.Keep heat sources out of the room as much as possible.

Maintenance

Before maintenance

Turn off the power supply.

• Do not spill any liquid.

  Wipe the unit with a soft, dry cloth.

• Do not touch the aluminum fins on the heat exchanger.
• Stand firmly on a stepladder or other stable object when removing the inlet panel and filter.

Do not use the following articles:

• Hot water (40°C or more)
It may deform or discolour the unit.
- Petrol, paint thinner, benzine or cleanser, etc. They may deform or scratch the unit.

Cleaning the air filter
1 Remove the air filter

Standard interval is once every two week

• Pull up the air inlet panel forward.
• Lightly hold the knobs both sides and lift a little to remove the panel forward.

2 Cleaning If the filter is very dirty, clean it with warm water (approx. 30°C), and dry it thoroughly.

CAUTION

• Do not clean the filters with boiling water.
• Do not dry them over an open flame.
  • Pull them out gently.

3 Reinstall the air filter

• Hold firmly the filter at both sides as shown at right and insert securely.
• Operating without putting back the air filters will make the unit dusty, and may cause damage.

Cleaning the unit

• Wipe the unit with a soft, dry cloth, or use a vacuum cleaner.
• If the unit is very dirty, wipe it with a cloth soaked in warm water.

Cleaning the air inlet panel

• Removal, installation of air inlet panel.
• The panel can be washed with water. After washing with water, wipe any moisture off the panel and dry out of direct sunlight.

How to open, close the air inlet panel

Open

Place fingers at the recesses on both sides of the panel and pull up the panel forward so that it will be open by about 60 degrees.

Illustration of a hand holding a large air conditioner cover with an upward arrow indicating airflow (no text or symbols)

Close

Push both ends evenly and press further lightly at the center.

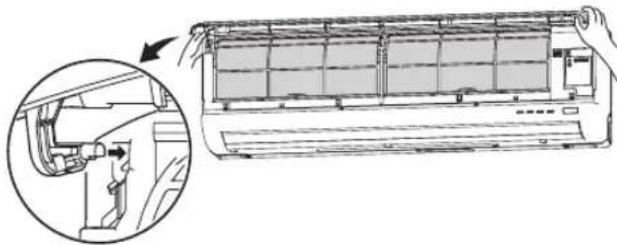

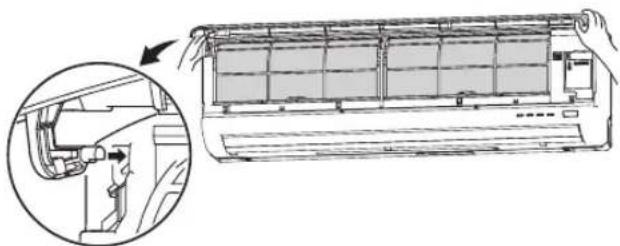

Removal, installation of air inlet panel

Removal

When removing the air inlet panel for internal cleaning or others, open the panel by 80 degrees and then pull it forward.

Installation

Secure the upper edge of the air inlet panel by lightly pushing it in, and then close the panel.

Diagram of an air conditioner unit with a close-up view showing internal components (no text or symbols)

Diagram of an air conditioner unit with a close-up view showing internal components (no text or symbols)

At the end of the season

1 Perform the fan operation for 2 to 3 hours. Dry the inside of the unit.

2 Stop the unit and turn off the power supply. The unit consumes approx. 4W even when the unit is not operating. Turning off the power supply will help saving energy consumption and cost.

3 Clean and reinstall the air filters.

4 Clean both the indoor and outdoor units.

5 Remove batteries from the remote control.

At the beginning of the season

1 Ensure that the earth wiring is not snapped nor disconnected.

2 Check if there is no corrosion or rust on the base frame of the outdoor unit.

3 Make sure that there are no obstacles blocking the airflow around the air intake and outlet openings of the indoor and outdoor units.

4 Ensure that the air filters are clean.

5 Turn on the power supply.

6 Insert batteries in the remote control.

Installing, inspecting, and replacing the air-cleaning filter

1. Open the air inlet panel and remove the air filters. Page 16
2. Remove the filter holders, with the air-cleaning filter installed in the folders, from the air-conditioner.
3. Remove the allergen clear filter (Light orange) from filter holder and inspect the filter. Use a vacuum cleaner to remove any dust or dirt from the allergen clear filter. Replace the allergen clear filter if it cannot be cleaned or if it has been for about 1 year.
   (The allergen clear filter should be replaced after about 1 year of use. However, the actual replacement period may vary depending on the conditions in which the filter is used.)

Remove the photocatalytic washable deodorizing filter (orange) from the filter holder and inspect the filter. Periodically, remove any dust or dirt from the photocatalytic washable deodorizing filter. If the photocatalytic washable deodorizing filter is particularly dirt, it may be washed with water. However, the filter is fragile so be sure to wash it installed in the filter holder to avoid damaging it. After washing the filter, place it in sunlight to dry. Placing the filter in sunlight revitalizes the deodorizing effect.

(Do not dispose of the filter holders. They are reusable.)

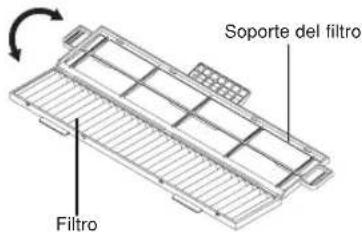

1. Install the air-cleaning filter in the filter holders, and then install the filter holders in the air-conditioner.

Diagram of a car air conditioner unit with a downward arrow indicating airflow direction (no text or symbols)

Filter holder Filter

• The allergen clear filter and the photocatalytic washable deodorizing filter may be installed on either the right or left side of the air-conditioner.
  • Install the allergen clear filter with the light orange side front.

• Install the air filters and closed the air inlet panel. Page 16

CAUTION

• The heat exchanger may injure your fingers.

For replacement the air-cleaning filter, contact your dealer.

Item Feature Color
Allergen clear filter	The power of enzyme is used to eliminate allergy-causing allergens that accumulate on the filter.	Light orange
Photocatalytic washable deodorizing filter	Sources of odors on the filter are broken up, resulting in a deodorizing effect.	Orange

Proper installation

Suitable installation position

• Do not put any obstruction in front of the indoor unit, preventing proper ventilation and functioning.
• Do not install the unit in any of the following places:
• Where there is a danger of leaking flammable gases.
• Where there is substantial splashing of oil.
• Malfunctioning due to corrosion may occur if the unit is installed in a spa where sulfide gases are generated, or in a seaside resort exposed to sea breezes. Contact your dealer.
  • The air-conditioner and remote control must be at least 1 metre away from a TV set or radio.
• Drain the dehumidified liquid from the indoor unit into a spot that drains well.

Pay attention to operating noises!

• When you install the unit, take care to choose a place that can comfortably stand the weight of the unit and does not increase the operating noise or vibration. If vibration is transmitted through the house, fix the unit with the aid of vibration-proof pads between the unit and the fittings.
• Select a place where cold or hot air, operation noises from the indoor and outdoor units do not cause any inconvenience to your neighbours.
• Do not leave any obstacles near the outlet and inlet of the outdoor unit. This may cause malfunctioning and increased operating noise.
• If you hear an irregular noise during operation, contact your dealer.

Inspection and maintenance

Depending on operating environment, the inside of the air-conditioner may become dirty after a few year operations. This will reduce performance. In addition to normal cleaning, we would recommend inspection and maintenance. (This may lead the air-conditioner to having a longer life without any trouble.)

• Contact your dealer, or any distributor, for inspection and maintenance. (There will be a charge for this service).
  • We would recommend inspection and maintenance to be carried out during the off-season.
• If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

Troubleshooting

Please carry out the following checks before making a service call.

The air-conditioner does not work at all.
Has the power switch been turned off?	Has the timer been set in the “ON” position?	Is there a power failure or a blown fuse?

Poor cooling or heating
Have you set the thermostat at a suitable temperature?suitable temperature	Is the air filter clean? (Not clogged?)	Did you leave any doors or windows open?

Poor cooling
Is there any direct sunlight entering the room?	Is there a heat source in the room?	Are there too many people in the room?

If the air-conditioner does not operate properly after you have checked the left points, or if any doubt still exists after you have consulted page 19, or if things happen as shown on page 20, switch off the power and contact your dealer.

An alternative refrigerant (R410A) is used in this air-conditioner. When asking your dealer for service or inspection and maintenance, explain the dealer about it.

Notice

The unit does not restart immediately after you have stopped it.	Restart is blocked for 3 minutes after you have stopped the operation to protect the unit.The three-minute protection timer in the microcomputer automatically starts it up again.
Airflow is not blown out when starting the HEATING operation.RUN light blinks slowly(1.5 sec ON, 0.5 sec OFF)	Airflow has stopped to prevent blowing out of cold air until the indoor heat exchanger has warmed up. (2 to 5 min.) (HOT KEEP program)
Airflow is not blown out for 5 to 10 min. or blown out not warm wind for a moment at HEATING operation.RUN light blinks slowly(1.5 sec ON, 0.5 sec OFF)	When outdoor temperature is low and humidity is high, the unit sometimes performs defrosting automatically. Please wait. During defrosting, water or steam may escape from the outdoor unit.
Airflow is not blown out when starting the DRY operation.(RUN light is on)	The indoor fan may stop to prevent re-evaporation of dehumified moisture and to save energy.
Some steam escapes during COOL operation.	This may occur if the room's temperature and humidity are very high. It disappears as soon as the temperature and humidity decrease.
There is a slight smell.	Air blown out during operation may smell. This is caused by tobacco or cosmetics adhering to the unit.
You hear a slight gurgling sound.	This is caused by refrigerating liquid moving within the unit.
You hear a slight cracking sound.	This is caused by heat expansion or contraction.
You hear a hissing or clicking sound.	This is caused by the operation of the refrigerant control valves or electric components.
After a power cut, the unit does not restart even if power has been restored.	If the auto restart function is not set, the unit will not restart automatically. Use the remote control to start the operation again.
Remote control signals are not received.	Remote control signals may not be received if the signal receiver on the air-conditioner is exposed to direct sunlight or other bright light.If so, cut out the sunlight or reduce the other light.
Moisture may form on the air outlet grills.	If the unit is operated for a long time in high humidity, moisture may form on the air outlet grills and start dripping.
Whistling noise is heard from the outdoor unit.	The noise means that the revolution speed of the compressor is increasing or decreasing.
Fan will not stop immediately after unit operation was stopped.	Indoor fan : Fan will not stop after 2 hours if set to CLEAN operation.Outdoor fan : Fan will not stop about a 1 minute period in order to protect the unit.
RUN light stays on even though operation was stopped.	The RUN light illuminates during CLEAN operation.Run light turns off when CLEAN operation ends.
Sometimes a “Shooooo” sound might come for a short time from the unit that is turned off.	This is the sound when operation of another indoor unit is stopped.

Contact your dealer

■ Turn off the power switch immediately and inform your dealer in any of the following situations:

The fuse or switch blows continuously.	The cable becomes extremely hot.The covering of the cable is cracked.△CAUTIONIf the power cord becomes damaged, ask your dealer or a qualified engineer to install the replacement to avoid accidents.
The TV, radio or other equipment starts to malfunction.	A switch does not activate properly. You hear a strange noise during operation.
When abnormalities occur, turn off the power supply immediately and turn it on after 3 minutes. Restart the operation with ON/OFF button of the remote control and the abnormalities still continue.		The RUN and TIMER lights on the unit display section blink quickly (0.5 sec. ON; 0.5 sec. OFF) and do not work.

About the Multiple Air-conditioner

Simultaneous Operation

• The air-conditioners cannot be in different operating modes at the same time, such as one unit being in the "Cool" mode and one unit being in the "Heat" mode.
• When conducting different operations, the air-conditioner that was operated first will be given priority, so the air-conditioner that is operated after that will conduct air blowing operation.
• When you want to give priority to the air-conditioner that was started later, either stop the air-conditioner that has priority or cause the operation type of the unit operated first to match that of the unit operated second.

Automatic Operation

• When the remote control operation switch is in the "Auto" mode the air-conditioner automatically selects either "Cool," "Dry," or "Heat" when operation is started depending on the room temperature.
• During simultaneous operation of air-conditioner units, operation modes may be automatically changed in response to the temperatures of the individual rooms; this will result in the operation of the outdoor unit being stopped. In such a case, COOL or HEAT mode should be used instead of AUTO. (This is only relevant when more than one air-conditioner unit is being used.)

Refrigerant (oil) recovery operation

- If the all of the indoor units are not operated at the same time for an extended period, the cooling or heating performance may temporarily decrease. This is in order to control the recovery of the refrigerant (oil) in the stopped indoor unit(s). At this time, the sound of refrigerant flowing may be heard from the stopped indoor unit(s).

Self diagnosis function

We are constantly trying to do better service to our customers by installing such judges that show abnormality of each function as follows:

Line drawing of a single air conditioner unit with no text or symbols

→ □ → □ → □ → □ → □ → □ (Stoppé) (Bascule)

MEMORY FLAP (FLAP OR LOUVER STOPPED)

Pure diagram of a mechanical or electrical component with intersecting lines and a rectangular block (no text or symbols)

Diagram of a ceiling fan with radiating blades and a triangular structure, no text or symbols present

Illustration of a hand holding a wall-mounted air conditioner with an arrow indicating airflow (no text or symbols)

Pour le fermer

Diagram of an air conditioner unit with a close-up view showing internal components (no text or symbols)

Diagram of an air conditioner unit with a close-up view showing internal components (no text or symbols)

Technical line drawing of an air conditioner unit with a downward arrow indicating airflow or cooling (no text or symbols present)

Porte-filtre Filtrer

NOTA

HOT KEEP ON OFF 1.5 sec. 0.5 sec.

CLEAN-Betrieb

Seite 59

Zubehör

Allergenfilter (Hellorange)

Line drawing of a wall-mounted air conditioner unit with no text or symbols

Cartoon illustration of a girl holding a phone with surprised expression (no text or symbols)

*(Cool), (Heat), (Dry), (Fan)

at 5 Sekunden lang eser Position.

FAN-Betrieb

Pure diagram of a vertical structure with diagonal lines radiating from a central rectangle (no text or symbols)

Diagram of airflow or heat transfer through a fan with radial lines indicating direction (no text or symbols)

Illustration of a hand holding a wall-mounted air conditioner with airflow direction indicated by an arrow (no text or symbols)

Line drawing of an air conditioner unit with a close-up inset showing the handle and side panel (no text or symbols)

Diagram of an air conditioner unit showing airflow direction and component placement (no text or symbols)

Bei Ende der Saison

Diagram of an air conditioner unit with a downward arrow indicating airflow or cooling system (no text or symbols present)

Filterhalterung Filter

ANMERKUNG

Angemessene Installation

Line drawing of a single air conditioner unit with no text or symbols

*(Cool), *Heat), (Dry), (Fa)

Diagram of a ceiling-mounted fan or antenna array with multiple blades radiating outward (no text or symbols)

Diagram of airflow or heat transfer through a fan with radial lines (no text or symbols)

Illustration of hands holding a wall-mounted air conditioner with an upward arrow indicating airflow (no text or symbols)

Line drawing of an air conditioner unit with a close-up inset showing the internal structure (no text or symbols)

Diagram of an air conditioner unit showing airflow direction and component placement (no text or symbols)

Technical line drawing of an industrial machine with a downward arrow indicating motion (no text or symbols present)

Portafiltro Filtro

NOTA

Line drawing of a single air conditioner unit (no text or symbols)

^* (Cool), ^a (Heat), ^b (Dry), ^c (Fm)

Pure diagram of a fan or antenna structure with multiple blades radiating from a central hub (no text or symbols)

Diagram of a showerhead emitting beams of light rays, no text or symbols present

Illustration of hands holding a wall-mounted air conditioner with an upward arrow indicating airflow (no text or symbols)

Diagram of an air conditioner unit showing internal components and airflow direction (no text or symbols)

Technical line drawing of an air conditioner unit with a downward arrow indicating airflow direction (no text or symbols present)

Soporte del filtro Filtro

NOTA

RUN (HOT KEEP) lampje (groen)

HOT KEEP ON OFF 1.5 sec. 0.5 sec.

CLEAN werking ON OFF 3 sec. 1 sec.

Pagina 125

Accessoires

Draadloze afstandsbediening

Line drawing of a single air conditioner unit (no text or symbols)

Knop AIRFLOW (OMHOOG/OMLAAG)

MEMORY FLAP (FLAP OF LAMEL GESTOPT)

Diagram of a spray gun emitting a fan with multiple blades radiating outward (no text or symbols)

m = 311

MITSUBISHI HAI HUAN CONTROL, INC. AUTO ON HI 3h 8:00 MED LO ULO FAN SPEED ON/OFF MODE HI POWER/ECONO ALLERGEN AIR FLOW TEMP TIMER CANCEL SLEEP ON OFF CLEAN TIME SET UP ACL

METSUBISHI METHI MATHLETICUO AUTO HI MED LO ULO ... FAN SPEED ON/OFF MODE HI POWER/ECONO ALLERGEN TEMP TIMER AIR FLOW CANCEL SLEEP ON OFF CLEAN TIME ACL SET UP

Illustration of hands holding a wall-mounted air conditioner with an upward arrow indicating airflow (no text or symbols)

Sluiten

Line drawing of an air conditioner unit with a close-up inset showing the internal components (no text or symbols)

Diagram of an air conditioner unit showing airflow direction and component placement (no text or symbols)

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

Filterhouser Filter

OPMERKING

Line drawing of an air conditioner unit with a mobile phone attached (no text or symbols)

Filtro de ar

Luz RUN (HOT KEEP) (verde)

RETENÇÃO CALOR ON OFF 1.5 sec. 0.5 sec. 3 sec. Operação LIMPEZA ON OFF 1 sec.

Página 147

Luz de ECONO (cor-de-laranja)

Acende durante o funcionamento no modo ECONOMY (económico).

Luz de HI POWER (POTÊNCIA ELEVADA) (verde)

Line drawing of a wall-mounted air conditioner unit with control panel (no text or symbols)

Botão AIR FLOW (UP/DOWN)

Interruptor TIME SET UP

^* (Cool), ^☆ (Heat), (Dry), (Fæn)

Diagram of a ceiling-mounted fan with multiple blades radiating outward (no text or symbols)

Diagram of a ceiling fan with radiating blades and a central screen (no text or symbols)

Illustration of a hand holding a scroll with an arrow indicating upward motion (no text or symbols)

Fechar

Diagram of an air conditioner unit showing internal components and airflow direction (no text or labels)

Instalação

Diagram of an air conditioner unit with a close-up view showing internal components (no text or symbols)

Technical line drawing of an air conditioner unit with a downward arrow indicating cooling or ventilation (no text or symbols present)

Suporte do filtro Filtro

ON 1.5 sec. HOT KEEP OFF 0.5 sec.

Line drawing of a single air conditioner unit (no text or symbols)

AUTO → HI → MED → LO → ULO

ΣΗΜΕΙΩΣΗ

Pure diagram of a mechanical or structural component with multiple parallel lines radiating from a central rectangle (no text or symbols)

Αριστερή γρίλια

Δεξιά γρίλια

Diagram of a spray nozzle emitting particles from a central airfoil (no text or symbols)

MITSUBISHI HAIY INFORMATION AUTO HI MED LO ULO ... FAN SPEED ON/OFF MODE HI POWER/ECONO ALLERGEN TEMP TIMER AIR FLOW CANCEL SLEEP ON OFF CLEAN TIME SET UP ACL

Illustration of hands holding a wall-mounted air conditioner with an upward arrow indicating airflow (no text or symbols)

Diagram of an air conditioner unit with a hand inserting a component into the back panel, showing internal structure and airflow direction (no text or symbols)

Diagram of an air conditioner unit showing airflow direction and component placement (no text or symbols)

Στο τέλος εποχής

Technical line drawing of an air conditioner unit with a downward arrow indicating airflow direction (no text or symbols)

Bâçn filtroup Filtroup

ΣΗΜΕΙΩΣΗ

Line drawing of a single air conditioner unit (no text or symbols)

Diagram of a ceiling-mounted fan with multiple blades radiating from the top (no text or symbols)

Diagram of airflow or heat transfer through a duct (no text or symbols)

Illustration of hands holding a rack with an arrow indicating clockwise motion (no text or symbols)

Diagram of an air conditioner unit showing internal components and airflow direction (no text or symbols)

Установка

Diagram of an air conditioner unit showing airflow direction and component placement (no text or symbols)

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

EC DECLARATION OF CONFORMITY

declare under our sole responsibility that the apparatus

Description of apparatus : Air Conditioner Model name:

Conformity model list

[Indoor Unit]

Category Model
SRK Series SRK63ZK-S

[Outdoor Unit]

Category Model
SRC Series SRC63	ZK-S
	SRC71ZK-S
	SRC80ZK-S

referred to in this declaration conforms with the following directives.

Relevant EC Directives : Machinery Directive 2006/42/EC

Notes: also satisfied directives Low Voltage Directive 2006/95/EC

Applied Standards : EN378-2:2008 (partly completed)

Notes: also satisfied standards EN60335-2-40:2003+A11:2004+A12:2005+A1:2006

Importer/Distributor in EU :

3 ^rd Floor,Thavies Inn House,3-4 Holborn Circus,London EC1N 2HA,United Kingdom

3rd Floor Thavies Inn House 3-4 Holborn Circus London EC1N 2HA, ENGLAND

Tel : [phone]

Fax: [phone]

http://www.mhie.com

MITSUBISHI HEAVY INDUSTRIES AIR-CONDITIONERS AUSTRALIA, PTY. LTD.

9C Commercial Road Kingsgrove NSW 2208 PO BOX 318 Kingsgrove NSW 1480

Tel : [phone]

Fax: [phone]

http://www.mhiaa.com.au
