USER MANUAL AOR9 BESTRON

Instruction manual oil radiator

Italiano

CONDITIONS DE GARANTIE

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully, and retain them for future reference.
• Use this appliance solely in accordance with these instructions.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

Certain parts of the appliance may get hot. Not touch these parts to prevent burning yourself.

• Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
• Make sure that you always use an earthed wall socket to connect the appliance.
• The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material.
  Always remove the plug from the socket when the appliance is not in use.
  Pick up the appliance by its handle if you wish to move it whilst it is still hot.
• Remove the plug from the wall socket by pulling the plug, not the power cord.
• Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
• When using an extension lead always make sure that the entire cable is unwound from the reel.
• Use solely approved extension leads.
• Avoid stumbling over the extension lead or power cord.
• The appliance can become very hot. To avoid being burnt, do not touch the appliance when it is turned on.
  Make sure the air vents are not covered or blocked.
• Make sure that the appliance, the power cord or the plug do not make contact with hot services, such as a hot hob or naked flame.
• Make sure that the appliance, the power cord and plug do not make contact with water.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors.
• Never use the appliance in humid rooms.
• Place the appliance on a flat, stable surface.
• Make sure that your hands are dry when you touch the appliance, the power cord or the plug.
• Make sure objects cannot penetrate the grille.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance or storing it after use.
• Remove the plug from the wall socket immediately should the appliance fall in water. Do not use the appliance any more.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• This appliance may not be used through an external timer or by means of a remote control.

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

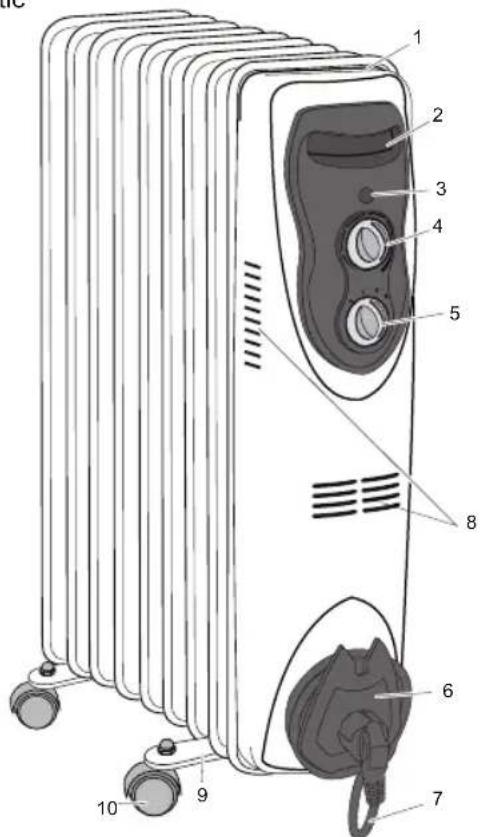

Figure 1

1. Air grille
2. Handle
3. Indicator light
4. Thermostat dial
5. Setting dial
6. Cable winding system
7. Power cord and plug
8. Air grilles
   9.Wheel bracket
   10.Wheel

OPERATION - Before first use

Remove the oil radiator from the packaging and remove all the packaging materials.

In order to avoid overheating, do not cover the heater.
The oil radiator must not be located immediately below a socket-outlet.
- Do not use this oil radiator in the immediate surroundings of a bath, a shower or a swimming pool.
- This oil radiator is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leak. When scrapping the heater, follow the regulations concerning the disposal of oil.

OPERATION - Installation

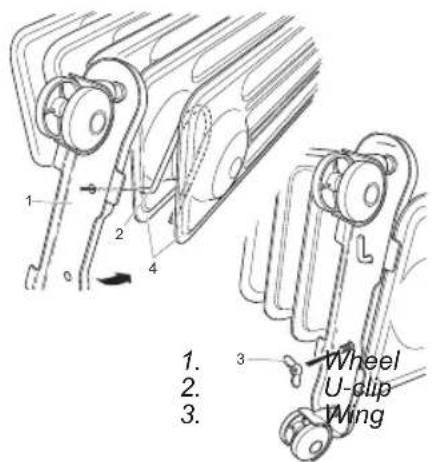

1. Place the oil radiator upside down.
2. Hook the U-clip at the bottom of the radiator around the connection between the first and second fins.
3. Insert the small hook on the U-clip into one of the holes in the wheel bracket.
4. Insert the screw thread of the U-clip through the other hole in the wheel bracket.
5. Screw the wing nut onto the screw thread of the U-clip so that the wheel bracket is firmly attached.
6. Repeat steps 3 to 6 for the second wheel bracket between the last and the one from last fins.
7. Place the radiator upright on the wheels. Figure 2

4. Fins OPERATION - Use

bracket nut

1. Place the radiator on a flat surface.
2. Set the setting dial to position '0' (Off).
3. Insert the plug into the plug socket.
   4.4. Rotate the setting dial to one of the following settings:

0 Off

Low power
II Moderate power
III High power

1. Rotate the thermostat dial towards the MAX. mark until a click is heard and the indicator light is lit. The oil radiator will now become warm.
2. Rotate the dial further towards the MAX. mark to adjust the temperature. The automatic temperature control will ensure that the room remains at the set temperature.

To find the ideal thermostat setting, rotate the thermostat dial as far as possible towards the MAX. mark. Once the room has reached a comfortable temperature, slowly rotate the dial towards the MIN. mark until a click is heard. The heater will then turn itself off. The temperature regulator will ensure that the room remains at the set temperature.
7. Turn off the oil radiator by rotating the setting dial to the '0' setting.

CLEANING AND MAINTENANCE

1. Remove the plug from the wall socket and allow the appliance to cool.

2. Clean the exterior of the housing with a damp cloth and rub it dry with a clean cloth.

3. Never immerse the appliance, plug or power cord in water.

4. Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

TECHNICAL INFORMATION

Type: AOR9

Output: 2000 W

Power supply: 220 - 240V 50Hz

THE ENVIRONMENT

• Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.

• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.

2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).

3. All claims submitted under warranty must be accompanied by the original bill of sale.

4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.

b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.

4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: [phone]

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC

R. Neyman

Quality control
