USER MANUAL DO2320 DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, such as brushes and batteries, which are subject to wear, are excluded from the warranty.

Type nr. Apparaat

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

The symbol 豆 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service o the shop where you purchased the product.

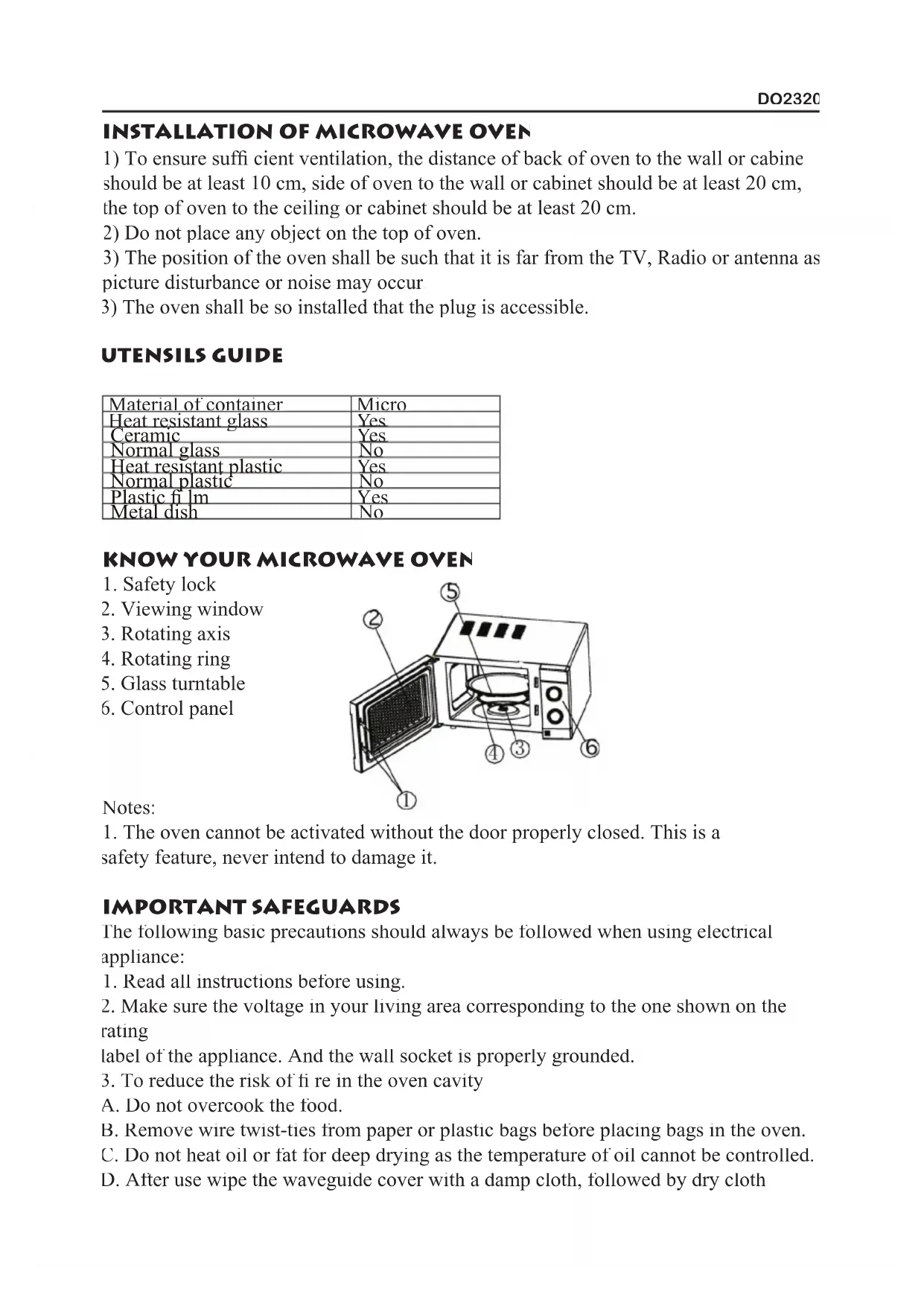

INSTALLATIE VAN DE MICROGOLFOVEN

1) To ensure sufficient ventilation, the distance of back of oven to the wall or cabinet should be at least 10cm , side of oven to the wall or cabinet should be at least 20cm , the top of oven to the ceiling or cabinet should be at least 20cm .
2) Do not place any object on the top of oven.
3) The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance or noise may occur
3) The oven shall be so installed that the plug is accessible.

UTENSILS GUIDE

Material of container	Micro
Heat resistant glass	Yes
Ceramic	Yes
Normal glass	No
Heat resistant plastic	Yes
Normal plastic	No
Plastic film	Yes
Metal dish	No

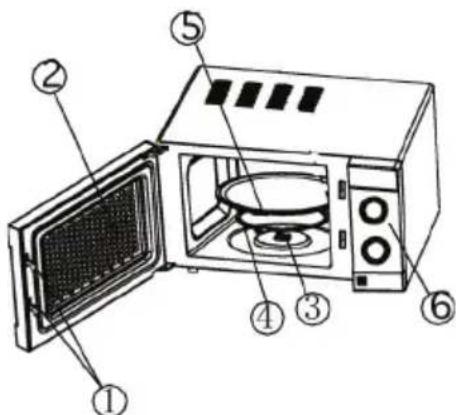

1. Safety lock
2. Viewing window
3. Rotating axis
4. Rotating ring
5. Glass turntable
6. Control panel

Notes:

1. The oven cannot be activated without the door properly closed. This is a safety feature, never intend to damage it.

IMPORTANT SAFEGUARDS

The following basic precautions should always be followed when using electrical appliance:

1. Read all instructions before using.

2. Make sure the voltage in your living area corresponding to the one shown on the rating

label of the appliance. And the wall socket is properly grounded.

1. To reduce the risk of fire in the oven cavity

A. Do not overcook the food.
B. Remove wire twist-ties from paper or plastic bags before placing bags in the oven.
C. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled.
D. After use wipe the waveguide cover with a damp cloth, followed by dry cloth

to remove any food splashes and grease. Built-up grease may overheat and begin to cause smoke or catch fire

E. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply
G. Close supervision is necessary when using disposable containers made from plastic,

paper or other combustible material.

1. To reduce the risk of explosion and sudden boiling
   A. Do not place sealed containers in the oven. Baby bottles fitted with a screw cap or teat are considered to be sealed containers.
   B. When boiling liquid in the oven, use the wide-mouthed container and stand about
   20 seconds at the end of cooking to avoid delayed eruptive boiling of liquids.
2. Never operate the oven further if the door is damaged or the oven malfunction or supply cord is damaged. Return the appliance to the nearest authorised service centre for repair and maintenance. Never try to adjust or repair the oven yourself.
3. If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard
4. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.
5. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.
6. To prevent the turntable from breaking

A. Let the turntable cool down before cleaning
B. Do not place hot foods or utensils on the cold turntable.
C. Do not place frozen foods or utensils on the hot turntable.

1. Make sure the utensils do not touch the interior walls during cooking.
2. Do not store food or any other things inside the oven.
3. Do not operate the oven without any liquid or food inside the oven. This would do damage the oven.
4. This appliance is not intended for use by young children or infirm persons without supervision.
5. Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
6. Any accessories not recommended by the manufacturer may cause injuries to persons.
7. Do not use outdoors.
8. Save these instructions.

Household use only

USE OF CONTROL PANEL

1. Timer knob

Maximum time is 30 minutes.

2. Function control knob

Your micro wave oven has 6 different power levels:

1. High: 100% of the power is used, can be used for fast cooking.
2. M. High: 85% of the power is uded
3. Med: 66% of power use, for slow cooking
4. M. low: 40% of te power is used.
5. Defrost: 37% of the power is used, for defrosting food.
6. Low: 17% of the power is used, can be used for keeping warm.

COOKING PROCEDURE

Put the plug in the power socket.

Place the foo food on the glass turntable and close the door.

Choose the desired power level with the function control knob.

Adjust the timer. When you want to use the timer for less than 2 minutes, you fi rs need to turn the timer passed 3 minutes and than turn it back to the desired time.

The oven will turn on. The operation can be stopped at anytime by opening the door.

When closing the door, the oven will start operating again

A bel signal will be heard when the selected time has passed.

Attention : when you remove the food out of the oven before the bel signal, make sure to turn the timer to “0”. This is to prevent the oven to start operating again without food in it.

We recommend to use oven gloves when removing cooked food from the oven

Remarks when defrosting food :

The defrost function is one of the possibilities of your oven. This is safer than defrosting at room temperature, this way you'll prevent the development of harmful bacteria.

1. Turn the function control knob to the "defrost" function
2. Select the time, depending on the frozen food. Defrosting usually takes up more time than normal cooking. Turn over the food at least once during defrosting, to check the doneness. When you can cut the frozen food with a knife, it is usually defrosted enough.

CLEANING AND MAINTENANCE

Below steps are recommended after each use.

Never use any scoring pads, or aggressive cleaners to clean the oven.

Remove the plug from the socket and let the oven cool down completely.

Remove the turning ring and turntable and clean them in warm soapy water. Use a soft moist cloth to clean the door, the inside, the outside and the control panel. When oil or soap has been spilled in the micro wave oven this must be cleaned up, otherwise smoke can occur during the next use.

When the inside of the micro wave oven has a bad small you can put a cup of water in it with a bit of lemon and let this boil inside the micro wave for about 5-7 minutes. This will most likely remove the bad smell.

Dry all parts thoroughly and place them back in the oven.

REPAIR

All repairs can only be done by a qualified person. Don't ever try to repair your micro wave you run the risk of being exposed to micro wave, which can be hazardous for your health.
