USER MANUAL UVKS 16149 AMICA

EN - Table of contents

GUIDELINES CONCERNING THE SAFETY OF USE 12

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE 17

DISPOSAL OF OLD APPLIANCE 20

APPLIANCE CONTROLS 21

ADDITIONAL INFORMATION ON THE TEMPERATURE 22

REPLACE THE LIGHT BULB 22

WASHING THE FRIDGE AND FREEZER CHAMBERS MANUALLY**** 28

INSTALLATION OF THE APPLIANCE 31

DALŠÍ INFORMACE O TEPLOTĚ 68

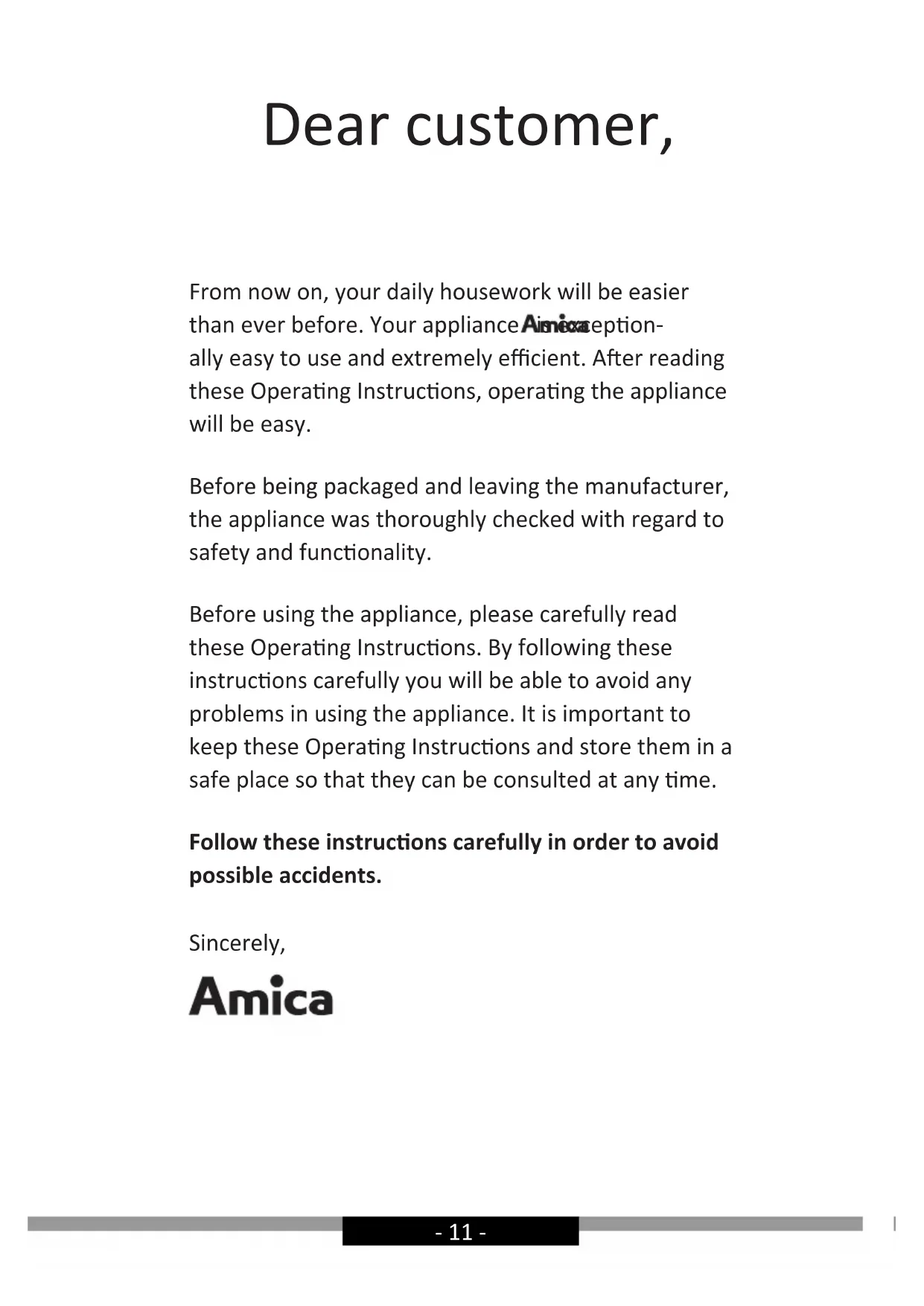

From now on, your daily housework will be easier

than ever before. Your appliance is excepon-

ally easy to use and extremely ecient. Aer reading

these Operang Instrucons, operang the appliance

Before being packaged and leaving the manufacturer,

the appliance was thoroughly checked with regard to

safety and funconality.

Before using the appliance, please carefully read

these Operang Instrucons. By following these

instrucons carefully you will be able to avoid any

problems in using the appliance. It is important to

keep these Operang Instrucons and store them in a

safe place so that they can be consulted at any me.

Follow these instrucons carefully in order to avoid

GUIDELINES CONCERNING THE SAFETY OF USE

• The appliance is intended for household use only.

• The manufacturer reserves the right to introduce

changes which do not aect the operation of the

• Some provisions in this user manual are unied

for refrigerating products of dierent types (for a

refrigerator, refrigerator-freezer or freezer)

• The Manufacturer shall not be held liable for

damage arising from the failure to observe the

instructions contained in this manual.

• Keep this manual for future reference, or to pass

it over to the next user.

• This appliance is not intended for use by persons

(including children) with limited physical or men-

tal capabilities and persons who lack experience

or familiarity with the appliance.

• Do not allow children to use the appliance. Do

not allow them to play with the appliance. They

must not climb inside the drawers and swing on

• The appliance operates properly at the ambient

temperature (see product che). Do not use it in

the cellar, unheated summer cottage during au-

• When placing, moving, lifting the appliance, do

not hold the door handles, do not pull the con-

denser at the rear part of the refrigerator and do

not touch the compressor unit.

• When transporting, moving or positioning the

fridge-freezer do not tilt it by more than 40°

from the vertical position. Should such a situa-

tion occur, the appliance should be switched on

after minimum 2 hours from its replacement in

the right position (g.2).- 13 -

• Pull the plug out from the mains socket before

each maintenance activity. Do not pull on the

cord, but hold the body of the plug instead.

• The “cracking” sound, which the appliance may

emit is caused by the expansion and contraction

of parts as a result of temperature variations.

• For safety reasons do not repair the appliance

yourself. Repairs carried out by persons who do

not have the required qualications may result in

serious danger for the user of the appliance.

• Air the room in which the appliance is placed for

a few minutes (the size of the room for a product

containing isobuthane/R600a must be at least

) to avoid damage to the cooling system.

• Do not refreeze partly thawed products.

• Do not store beverages in bottles and cans, espe-

cially carbonated beverages, in the freezer cham-

ber. The cans and the bottles may explode.

• Do not put frozen products, taken out directly

from the freezer (lollies, ice cubes, etc.) into your

mouth, their low temperature may cause severe

• Make sure you do not damage the cooling sys-

tem, by puncturing the refrigerant pipes in the

evaporator or breaking the pipes. The refrigerant

is ammable. If the refrigerant makes contact

with the eyes, rinse them with clean water and

call for medical assistance immediately.

• If the power wire gets broken, it should be re-

placed with a new one in a specialist repair shop.

• This appliance is intended for food storage, do

not use it for other purposes.

• When performing activities, such as cleaning,

maintenance or moving, the appliance must be

completely disconnected from power supply (by

pulling the plug out from the socket)

• This appliance can be used by children aged 8

years and older or by persons with physical, men-- 14 -

tal or sensory handicaps, or by those who are

inexperienced or unfamiliar with the appliance,

provided they are supervised or have been in-

structed how to safely use the appliance and are

familiar with risks associated with the use of the

appliance. Ensure that children do not play with

the appliance. Cleaning and maintenance of the

appliance should not be performed by children

unless they are 8 years or older and are super-

vised by a competent person.

• In order to obtain more space in the freezer, you

can remove the drawers and place the food di-

rectly on the shelves. This has no eect on the

product mechanical properties and cooling per-

formance. Declared freezer capacity was calcu-

lated with the drawers removed.

WARNING: Risk of re / ammable

• Children aged from 3 to 8 years are allowed to

load and unload refrigerating appliances.

To avoid contamination of food, please respect the

following instructions:

• Opening the door for long periods can cause a

signicant increase of the temperature in the

compartments of the appliance.

• Clean regularly surfaces that can come in contact

with food and accessible drainage systems.

• Store raw meat and sh in suitable containers in

the refrigerator, so that it is not in contact with or

drip onto other food.

• Two-star frozen-food compartments are suitable

for storing pre-frozen food, storing or making ice-

cream and making ice cubes.

• One-, two- and three-star compartments are not

suitable for the freezing of fresh food- 15 -

Eggs, cooked food, packaged food, fruits and

vegetables, dairy products, cakes, drinks and

other foods are not suitable for freezing.

Seafood (sh, shrimp, shellsh), freshwater

aquatic products and meat products

(recommended for 3 months, the longer the

storage time, the worse the taste and nutrition),

suitable for frozen fresh food.

Seafood (sh, shrimp, shellsh), freshwater

aquatic products and meat products

(recommended for 3 months, the longer the

storage time, the worse the taste and nutrition),

are not suitable for frozen fresh food.

Seafood (sh, shrimp, shellsh), freshwater

aquatic products and meat products

(recommended for 2 months, the longer the

storage time, the worse the taste and nutrition),

are not suitable for frozen fresh food

Seafood (sh, shrimp, shellsh), freshwater

aquatic products and meat products

(recommended for 1 months, the longer the

storage time, the worse the taste and nutrition),

are not suitable for frozen fresh food.

Fresh pork, beef, sh, chicken, some packaged

processed foods, etc. (Recommended to eat

within the same day, preferably no more than

3 days). Partially encapsulated processed foods

(non-freezable foods)

Fresh/frozen pork, beef, chicken, freshwater

aquatic products, etc.(7 days below 0

O C is recommended for consumption within that

day, preferably no more than 2 days). Seafood

(less than 0 for 15 days, it is not recommended to

Fresh pork, beef, sh, chicken, cooked food,

etc. (Recommended to eat within the same day,

preferably no more than 3 days)

9 Wine +5≤+20 red wine,white wine,sparkling wine etc.

• Note: please store dierent foods according to

the compartments or target storage temperature

of your purchased products.- 16 -

• If the refrigerating appliance is left empty for long

periods, switch o, defrost, clean, dry, and leave

the door open to prevent mould developing with-

• Water dispenser cleaning (special for water dis-

penser products): Clean water tanks if they have

not been used for 48 h; ush the water system

connected to a water supply if water has not been

• Pursuant to Commission Regulation (EU)

2019/2019, the minimum availability period for

spare parts necessary to repair the appliance is 7

or 10 years depending on the type and purpose

• The list of spare parts and the ordering procedure

are available on the websites of the manufactur-

er, importer or an authorized representative.

• For more information about the product, please

refer to the EU EPREL Product Database at https://

eprel.ec.europa.eu. For more information, please

use your mobile device to scan the QR code on

the energy label or enter the product model listed

on the energy label in the EPREL search engine

https://eprel.ec.europa.eu/- 17 -

INSTALLATION AND OPER-

ATING CONDITIONS OF THE APPLIANCE This refrigeration appliance is intended for use as a built-in appliance.

Installation before using the appliance for the rst time

• Take the product out of the package, remove the scotch tape protect-

ing the door and the equipment. Any remaining adhesive stains may

be removed with a mild washing agent.

• Do not throw away the polystyrene elements of the packaging. If it is

necessary to transport the fridge-freezer, pack it in the polystyrene

elements and lm as well as protect ing it with scotch tape

• Clean the interior surface of the fridge- freezer and the elements of

the equipment with a washing agent dissolved in lukewarm water,

• Place the fridge-freezer on an even, at and stable surface, in dry,

aired and shaded room, far from the heat sources such as: oven,

hob, central heating radiators, central heating pipes, hot water in-

• On the exterior surface of the product may be a protective foil, this

foils should be removed.

• Make sure the appliance is placed in a horizontal position by screwing

in the 2 adjustable front legs (g. 3)

• To ensure that the door opens freely, the distance between the side

of the appliance (on door hinges side) and the wall is shown on gure

• Ensure adequate ventilation of the room and free air circulation from

all sides of the appliance (g. 6).*

Minimum distances from the heat sources

• from the electric gas and other ovens - 30 mm,

• from oil or coal red ovens - 300 mm,

• from built-in ovens - 50 mm

If there is no possibility of ensuring the above- mentioned distances,

provide an appropriate insulation board.

• The rear wall of the refrigerator, in particular, the condenser and oth-

er elements of the cooling system must not contact other elements,

which may damage them, (e.g. central heating pipes and the water

• It is forbidden to readjust or modify any parts of the unit. It is crucial

not to damage the capillary tube visible in the compressor recess.

The tube may not be bent, straightened or wound.

• If the capillary tube is damaged by the user the guarantee will be

• In some models the handle is put into the appliance, You should

screw it with Your own screwdriver,- 18 -

• Prior to connection, it is recommended to set the temperature control

knob to an „OFF” or other position that disconnects the appliance

from the power supply (See page with the control description).

• This appliance should be connected to AC 220-240V 50Hz supply

socket. The socket must be tted properly, and must be supplied with

an earthing conduit and a 10A fuse.

• It is a legal requirement that the appliance is properly earthed. The

manufacturer will not be held liable for any damage or injury which

may result from the failure to full this requirement.

• Do not use adapters, multiple sockets and two-wire extension leads.

If it is necessary to use the extension lead, it must be equipped with

a protection ring and a single socket and must have a VDE/GS safety

• If an extension lead is used (with a protection ring and safety certif-

icate), its socket must be located at a safe distance, away from the

sinks, and must not be in a place where it could be ooded by water

• See the type plate at the lower part of the internal wall of the appli-

ance for detailed specications**.

Disconnecting the mains

Make sure the appliance can be easily disconnected from the mains,

either by pulling the plug out of the mains socket, or by switching the

two-pole switch o (g. 9).

The information about the climate range of the appliance is provided

on the rated plate. It indicates at which ambient temperature (that is,

room temperature, in which the appliance is working) the operation of

the appliance is optimal (proper).

Climate class Allowable ambient temperature

SN Extended Temperate

This refrigeration appliance is intended for use

at an ambient temperature ranging between

10°C and 32°C N Temperate

This refrigeration appliance is intended for use

at an ambient temperature ranging between

16 °C and 32°C ST Subtropical

This refrigeration appliance is intended for use

at an ambient temperature ranging between

16 °C and 38 °C T Tropical

This refrigeration appliance is intended for use

at an ambient temperature ranging between

* Only free-standing appliances

** According to the model- 19 -

UNPACKING During transportation, protective

packaging was used to protect the

appliance against any damage. Af-

ter unpacking, please dispose of all

elements of packaging in a way that

will not cause damage to the environ-

All materials used for packaging the appliance are

environmentally friendly; they are 100% recyclable

and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethyl-

ene, polystyrene, etc.) should be kept away from

children during unpacking.- 20 -

DISPOSAL OF OLD APPLIANCE In accordance with European Directive

2012/19/EU and local legislation re-

garding used electrical and electronic

goods, this appliance is marked with

the symbol of the crossed-out waste

container. This marking indicates that

the appliance must not be disposed

of together with other household waste after it has

The user is obliged to hand it over to waste collec-

tion centre collecting used electrical and electron-

ic goods. The collectors, including local collection

points, shops and local authority departments pro-

vide recycling schemes.

Proper handling of used electrical and electronic

goods helps avoid environmental and health haz-

ards resulting from the presence of dangerous com-

ponents and the inappropriate storage and process-

ing of such goods.- 21 -

CONTROLS Appliance controls

The control panel is shown in gure 10. For reference it is also shown

2 — Temperature control dial

Adjust temperature inside the appliance

Turn the dial to adjust the temperature in the appliance:

OFF/0 position Appliance is o

The highest temperature inside the appliance

Settings 2-5 Medium temperature inside the appliance

The lowest temperature inside the appliance

• The temperature control dial in your appliance can be marked dif-

ferently than in this manual. The general principle of operation is

• If there is no position marked "OFF" or "0” on the dial, turn o your

appliance by unplugging the power cord from the wall outlet. Before

unplugging set the lowest setting on the temperature control dial.- 22 -

Additional information on the temperature

• The temperature inside the appliance is inuenced by many factors.

How you set the temperature control dial depends on the ambient

temperature, sun exposure, how often you open the door and the

amount of food stored. The middle setting of the dial is most optimal

• Do not put food into the fridge freezer before it has reached its oper-

ating temperature, which takes minimum 4 hours.

• Do not change the temperature settings due to the change in the

season of the year. The ambient temperature increase will be detect-

ed by the sensor and the compressor will be switched on automati-

cally for a longer period of time in order to maintain the temperature

set inside the chambers.

• The slight changes in temperature are perfectly normal and may oc-

cur, for instance during the storage of great quantities of fresh prod-

ucts in the fridge, or when the door is open for a longer period of

time. This will not aect the condition of the stored foodstu, and the

temperature will quickly return to its set value.

LIGHTING This section applies to units factory equipped with incandescent lightbulb

and selected appliances equipped with LED lighting with E14 thread.

Replace the light bulb

• Set the knob to "OFF", then unplug the appliance.

• Remove the bulb cover (Fig. 18).

• Replace the bulb with one having identical parameters as the factory

installed bulb (E14 thread, 220-240V, maximum dimensions: 26 mm

diameter, 55 mm length).

• Replace the bulb cover.

• Bulbs of a higher or lower power should not be used, only use bulbs

of the specication given above.

• The light bulb must not be used for room illumination.

• If Figure 18 is not shown in this manual, light source can only be

replaced by a qualied service technician.- 23 -

OPERATION AND FUNCTIONS Storage of food in the fridge-freezer

• The products should be placed on plates, in containers or packed in

food wrap. Distribute them evenly over the shelves.

• If the food contacts the rear wall, it may cause frosting or wetting of

• Do not put dishes with hot food into the fridge

• Products which absorb avours easily such as butter, milk, white

cheese and products with intense avour, such as sh, smoked meat,

hard cheese must be placed on shelves, packed in food wrap or in

tightly sealed containers.

• The storage of vegetables containing signicant quantities of water

will cause the deposition of condensation on the vegetable contain-

ers, it does not impact on the proper functioning of the fridge.

• Before putting the vegetables into the fridge, dry them well.

• Excessive moisture shortens the shelf life of vegetables, especially

the leafed vegetables.

• Do not wash the vegetables before storing in the refrigerator. Wash-

ing removes the natural protection, therefore it is better to wash the

vegetables directly before consumption.

• It is recommended to place the products in freezer drawers 1, 2, 3*

up to natural loading capacity (Fig. 11a / 11b).**

• Stacking of products on the freezer shelves is acceptable.*

• It is acceptable to place products beyond the natural loading capacity

• In order to increase the loading capacity of the freezer chamber and

allow the stacking of products on the freezer evaporator wire shelves

up to maximum height it is possible to remove drawers 1 and 2.*

• Practically all the food products, except for vegetables consumed

raw, such as lettuce can be frozen.

• Only food products of the highest quality, divided into small portions

for single use, should be frozen.

• Products should be packed in materials that are odourless, resistant

to air and moisture penetration, and not susceptible to fat. Plastic

bags, polyethylene and aluminium sheets are the best wrapping ma-

• The packaging should be tight and should stick to the frozen prod-

ucts. Do not use glass containers.

• Keep fresh and warm foodstu at ambient temperature away from

the products, which have already been frozen.

• We advise you not to place more of fresh food at a time to the freezer

per day (see table witch technical specication).- 24 -

• In order to maintain optimum quality of the frozen food, reorganise

the food that is in the middle of the freezer, so that it does not touch

the products that are not yet frozen.

• It is recommended that you move the already frozen products to one

side and place the fresh products that are to be frozen on the oppo-

site side, as close to the rear and side walls as possible.

• To freezing products, use space marked

• Bear in mind that the temperature in the freezer is aected by sev-

eral factors, including the ambient temperature and the quantity of

food products in the chamber, the frequency of opening the door, the

amount of frost in the freezer, and the thermostat setting.

• If you cannot open the freezer door immediately after closing it, al-

low 1-2 minutes for the negative pressure to compensate, and try

again to open the door.

The storage time for frozen products depends on their quality before

freezing when fresh, and on the storage temperature. The following stor-

age periods are recommended when the temperature of -18°C or lower

Do not store frozen food in rapid cooling chamber. Ice cubes can be pre-

pared and stored in this chamber.

Note: If the appliance does not have a freezer compartment (

is not suitable for freezing foodstus.

* Applicable to appliances with a freezer compartment at the bottom of the appliance.

** Applicable to appliances with a freezer compartment

*** Not applicable to appliances with a freezer compartment marked

USING THE REFRIGERATOR EFFICIENTLY Practical everyday tips

• Do not place fridges or freezers next to radiators, heaters, stoves or

• Make sure that air vents are not covered up and clean the dust o

them once or twice a year.

• Select the right temperature: 6 to 8°C in your refrigerator and -18°C

in your freezer is sucient.

• When on holiday, turn up the temperature in your fridge.

• Only open your fridge or freezer when necessary. It helps if you know

what food each contains and where it is located. Return food to the

fridge or freezer as soon as possible after you have used it so that it

does not warm up too much.

• Wipe the inside of your fridge regularly with a cloth soaked in a mild

detergent. Appliances which are not self-defrosting will require regu-

lar defrosting. Do not allow frost layers thicker than 10 mm to form.

• Keep the seal around the door clean, otherwise it will not shut prop-

erly. Always replace broken seals.

Understanding the stars

Temperature is at least -6°C; sucient to store frozen food

for about a week. Drawers or compartments marked with

one star used to be a feature of (mostly) cheaper fridges.

Food can be stored at -12°C or below for 1-2 weeks without

losing its taste. Not suitable for freezing food.

This rating is mainly used to store foods at -18°C or below.

Can also be used to freeze up to 1 kilogram of fresh food.

This appliance is suitable for storing foods at -18°C or be-

low and freezing larger quantities of fresh foods.- 26 -

Due to the natural circulation of the air in the appliance, there are dif-

ferent temperature zones in the refrigerator chamber.

• The coldest area is directly above the vegetables drawers. Use this

area for all delicate and highly perishable food e.g.:

- Fish, meat, poultry

- Sausage products, ready meals

- Dishes or baked goods containing eggs or cream

- Fresh dough, cake mixtures

- Pre-packed vegetable and other fresh food with a label stating it should

be kept at a temperature of approx 4

• The warmest area is in the top section of the door. Use this for storing

Food that should not be stored in a refrigerator

• Not all food is suitable for storing in the refrigerator, particularly:

- Fruit and vegetables which are sensitive to cold, such as bananas,

avocado, papaya, passion fruit, aubergines, peppers, tomatoes and cu-

- Fruit which is not yet ripe

Example of storing the food - see gure 12.

To achieve the most eective food preservation for the longest possible

time and to avoid wasting any food, position the products as shown in

Figure 12. In addition, this gure illustrates the layout of drawers, bas-

kets and shelves, which allows the most ecient use of energy.

Optimal temperature and storage conditions will extend product shelf

life and optimize electricity consumption. Optimal storage temperature

range should be stated on the food product packaging.- 27 -

DEFROSTING, WASHING AND MAINTENANCE Never clean the product’s casing or plastic parts using solvents or strong,

abrasive detergents (e.g. washing powders or creams)! Use mild liquid

detergents and soft cloths only. Do not use sponges.

Defrosting the fridge***

• Frost settles on the rear wall of the fridge chamber. It is removed

automatically. During the defrosting, the condensate, which contains

contaminants may clog the opening in the through. Should it occur,

carefully unclog the opening with the cleaning plug (g. 13).

• The appliance operates in cycles: it refrigerates (then the frost set-

tles on the rear wall), and defrosts (water ows down the rear wall)

• Disconnect the appliance from the mains before cleaning by remov-

ing the plug from the mains socket or switching o the fuse. Prevent

water from penetrating the control panel or the light.

• Do not use defrosting aerosols. They may cause the formation of an

explosive mixture, or contain solvents which may damage the plastic

components of the appliance and even be harmful to health.

• Make sure the water used for cleaning does not ow into the evapo-

ration container through the discharge opening.

• The whole appliance, except for the door gasket must be cleaned

with a mild cleaning detergent. The door gasket should be cleaned

with water and wiped dry.

• Wash all the accessories (vegetable containers, door shelves, glass

Defrosting the freezer**

• It is recommended to combine defrosting the appliance with washing

• Excessive accumulation of ice on the freezing areas impairs the ap-

pliance’s freezing capacity and increases the energy consumption.

• Defrost the appliance at least once or twice a year. In case of a higher

ice build-up, defrosting must be carried out more frequently.

• If there is food in the freezer, set the knob to the max. position about

4 hours before the planned defrosting. This will ensure the possibility

of storing the food at the ambient temperature for a longer time.

• After taking the food out of the freezer, put it in a container, wrap it

with several layers of paper, a blanket and store it at a cool place.

• The defrosting operation should last as short as possible. Long stor-

age of food at the ambient temperature shortens their shelf life.- 28 -

Defrost the freezer chamber following steps:**

• Switch of the appliance using the control panel and pull the plug out

• Open the door and remove the food from the freezer.

• Depending on the model, pull out the drainage tube located in the

bottom of the freezer compartment and place a suitable vessel un-

• Leave the door open, this will speed up the defrost process. Addi-

tionally, a pot with hot water (not boiling) may be placed inside the

freezer compartment.

• Wash the interior of the freezer and wipe it dry.

• Switch on the appliance as per the relevant point in the manual.

Automatic fridge defrosting****

The fridge chamber has been equipped with an automatic defrosting

function. However, frost may settle on the rear wall of the fridge cham-

ber. This happens usually, when large quantities of fresh food products

are stored in the fridge.

Automatic fridge defrosting****

The freezer chamber has been equipped with an automatic defrosting

function (no-frost). The food is frozen in the cooled circulation air, and

the moisture from the freezer chamber is discharged outside. As a result,

no ice and frost is produced in the freezer and the products do not freeze

Washing the fridge and freezer chambers manually****

It is recommended to wash the fridge and freezer chambers at least once

a year. This prevents the formation of bacteria and bad odours. Switch

o the appliance, using button (1), remove the food from the chambers

and wash them using water with a mild detergent. Then, wipe the cham-

bers dry with a cloth.

Taking out and putting in the shelves*****

Slide the shelf out, then slide it in as much as possible so that its clamp

could t the guide groove (g. 15).

Taking out and putting in the door shelf*****

Lift the door shelf, remove it and put it back from the top into its required

WARNING! You must not put an electric heater, a heating fan or a hair

dryer into the freezer by any means.

** Applicable to appliances with a freezer compartment

Not applicable to appliances with a Frost-free System.

*** Applicable to appliances with a refrigerator compartment

Not applicable to appliances with a Frost-free System.

**** Applicable to appliances with a Frost-free System.

***** Does not apply to freezers- 29 -

TROUBLE-SHOOTING Problems Possible causes Remedies

The appliance does not work

The electric circuit is dis-

- check whether the plug is

properly inserted into the

- check whether the power

cable of the appliance is not

- check whether there is

voltage in the socket, by

plugging another appliance,

- check whether the ap-

pliance is switched on by

setting the thermostat to a

The lighting inside the

chamber does not work

The bulb is loose or fused

(only appliances with bulb

- t the bulb correctly or

“Replacing the interior light

The appliance works contin-

Incorrect setting of the

- reset the knob to a lower

See. ”Temperature inside

the appliance is not low

enough for description of

other possible causes

See. ”Temperature inside

the appliance is not low

enough for description of

other possible remedies

Water collects in the lower

part of the appliance

The water discharge open-

ing is clogged (depending

- clean the discharge

opening (see the operating

manual – chapter entitled

”Defrosting the fridge”)

Internal air circulation ob-

- place the food and con-

tainers in such a way as

that they do not touch the

rear wall of the fridge

The appliance generates

Incorrect levelling of the

- level the appliance prop-

The appliance is touch-

ing furniture and/or other

- place the appliance at a

location that ensures proper

clearances around it- 30 -

Problems Possible causes Remedies

Temperature inside the

appliance is not low enough

Incorrect setting of the

- reset the knob to a higher

The ambient temperature is

higher or lower than the cli-

mate range from table with

technical specication

- the appliance is adapted

to operation in the climate

range from table with tech-

The appliance is located in

a sunlit place or near heat

- move the appliance to

another place. Observe the

guidelines contained in the

Too much warm food loaded

- wait 72 hours until the

food becomes cool (freezes)

and the required tempera-

ture is reached inside the

Internal air circulation ob-

- place the food and con-

tainers in such a way that

they do not touch the rear

The air circulation at the

back of the appliance is

- move the appliance min.

30 mm away from the wall

The door of the fridge/freez-

er is opened too often and/

or remains open for too long

- reduce the frequency of

opening the door and/or

shorten the time when door

The door does not close

- place the food and con-

tainers so that they would

not interfere with door

The compressor is switched

- check whether the ambi-

ent temperature is not lower

- press the gasket in

Certain sounds can be heard during normal use of the refrigerator, which

do not aect its correct operation.

Sounds, which can be easily prevented:

• noise caused by the appliance which is not level - adjust the position

with the adjustable turn-in front feet. Alternatively, place pads made

of soft material under the rear rollers, especially when the appliance

• touching the adjacent piece of furniture - move the refrigerator away.

• creaking of the drawers or shelves - take out and put back the drawer

• sounds of clinking bottles - move bottles apart.

Sounds heard during normal use are mainly due to operation of the ther-

mostat, compressor (switching on) and cooling system (thermal expan-

sion and contraction of the radiator caused by ow of the cooling agent).- 31 -

1. Unplug the appliance before reversing the door opening direction.

2. Remove food from the appliance.

3. Remove caps on the front of the refrigerator body (Fig. 1, Fig 2).

4. Remove the two screws, which attach the upper hinge to the ap-

pliance door (Fig. 3). Take special care and hold the appliance door

5. Holding the door, swing the upper door hinge away from the door

using the other hand (Fig. 4).

Be especially careful during this step, as the hinge may close and cause

6. Remove the two screws, which attach the lower hinge to the appli-

ance door (Fig. 5). Take special care and hold the appliance door

with the other hand.

7. Holding the door, swing the lower door hinge away from the door

using the other hand, then detach the door from the appliance body

8. Remove the two screws , which attach the upper hinge to the body

and the two screws holding the lower hinge to the appliance body

9. Screw the upper and lower hinge on the opposite side of the ap-

pliance body using suitable screws (Fig. 8). Upper hinge should be

mounted on the other side of the appliance as the lower hinge. The

lower hinge should be mounted on the other side of the appliance

10. With the hinges open, hold the door parallel to the appliance body

and screw the hinges to the door using suitable screws while taking

11. Make sure that the door is properly aligned with the appliance body

INSTALLATION OF THE APPLIANCE Installation of the appliance should be performed by a qualied install-

er. The appliance should be placed in furniture case (Fig. 10). Once

the appliance is placed correctly, adjust the height of the appliance by

turning the 4 adjustable feet as appropriate. If necessary, adjacent

appliances should be braced with a bracket xed by screws and tted in

furniture (Fig. 11). There is a special strip at the top of the appliance.

Attach it to the underside of the cabinet with appropriate screws sup-

plied with the assembly kit (Fig. 16). Decorative strip must not block

the vents located in the bottom casing unit, the strip must be cut to

size (Fig. 17). The depth of the bottom casing unit can be adjusted by

moving it forwards or backwards. Once properly adjusted, tighten the

mounting screws (located in the openings on both sides of the casing

unit) with a cross-head screwdriver. This will permanently attach the

casing unit (Fig. 18).- 32 -

FITTING FURNITURE BOARD TO APPLIANCE DOOR Place the mounting bracket on furniture board and position it accord-

ingly (Fig. 12). The distance between the furniture board and the un-

derside of the worktop should be 5 mm (Fig. 13). Attach the mounting

bracket using suitable screws supplied in the installation kit. Pull out

the mounting bracket cover and screw in the two special screws (2)

in the appliance doors(Fig. 14). Attach furniture board with the xed

mounting bracket to the appliance door. Secure the furniture board with

suitable nuts (item 3, Figure 14). Make sure the furniture board assem-

bly is positioned correctly relative to the appliance (Fig. 15). Using the

supplied screws, attach the furniture board assembly to the bottom of

the appliance door (Fig. 15). Replace the mounting bracket cover in its

original location.- 33 -

WARRANTY AND AFTER SALES SERVICE Warranty

Warranty service as stated on the warranty card. The manufacturer shall

not be held liable for any damage caused by improper use of the product.

• The manufacturer recommends that all repairs and adjustments be

carried out by the Factory Service Technician or the Manufacturer’s

Authorized Service Point. For safety reasons, repairs should be re-

ferred to professionals.

• Repairs carried out by unqualied persons may seriously endanger

• The minimum warranty period for the appliance oered by the man-

ufacturer, importer or authorized representative is given in the war-

• The warranty shall be void if you make any independent adaptations

or alterations, tamper with seals or other appliance safety devices

or its parts or interfere with the appliance contrary to operating in-

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please

see warranty card for address and contact details of our service centre.

Before contacting us, please have ready the appliance serial number,

which can be found on the identication sticker: For your convenience,

please write it down below:

Manufacturer’s Declaration

The manufacturer hereby declares that this product meets the re-

quirements of the following European directives:

• Low Voltage Directive 2014/35/EC

• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with

a declaration of compliance made available to market regulators.- 34 -

Sehr geehrter Kunde,

WAARSCHUWING: Brandgevaar / brand-

De waterafvoeropening is
