USER MANUAL WNF 6241 WE20 BLOMBERG

1 Important safety instructions This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. General safety

• Thisproductshouldnotbeusedbypersons with physical, sensory or mental disorders or unlearned or inexperienced people (including children)unlesstheyareattendedbyaperson whowillberesponsiblefortheirsafetyorwho will instruct them accordingly for use of the product.

• Haveaqualifiedelectricianconnecta 16-Amperefusetotheinstallationlocationof the product.

• Iftheproducthasafailure,itshouldnotbe operatedunlessitisrepairedbytheAuthorized Service Agent. There is the risk of electric shock!

• Thisproductisdesignedtoresumeoperating in the event of powering on after a power interruption.Ifyouwishtocancelthe programme, see "Cancelling the programme" section.

• Connecttheproducttoagroundedoutlet protectedbyafusecomplyingwiththevalues inthe"Technicalspecifications"table.Donot neglect to have the grounding installation made byaqualifiedelectrician.Ourcompanyshall notbeliableforanydamagesthatwillarise when the product is used without grounding in accordance with the local regulations.

• Thewatersupplyanddraininghosesmustbe securely fastened and remain undamaged. Otherwise,thereistheriskofwaterleakage.

• Neveropentheloadingdoororremovethefilter whilethereisstillwaterinthedrum.Otherwise, risk of flooding and injury from hot water will occur.

• Donotforceopenthelockedloadingdoor.The loadingdoorwillbereadytoopenjustafew minutes after the washing cycle comes to an end.Incaseofforcingtheloadingdoortoopen, the door and the lock mechanism may get damaged.

• Unplugtheproductwhennotinuse.

• Neverwashtheproductbyspreadingor pouring water onto it! There is the risk of electric shock!

• Theproductmustbeunpluggedduring installation, maintenance, cleaning and repairing procedures.

• Alwayshavetheinstallationandrepairing procedurescarriedoutbytheAuthorized ServiceAgent.Manufacturershallnotbe heldliablefordamagesthatmayarisefrom procedurescarriedoutbyunauthorized persons. Intended use

• Thisproducthasbeendesignedfordomestic use.Itisnotsuitableforcommercialuseandit mustnotbeusedoutofitsintendeduse.

• Theproductmustonlybeusedforwashingand rinsing of laundry that are marked accordingly.

• Themanufacturerwaivesanyresponsibility arisen from incorrect usage or transportation. Children's safety

• Electricalproductsaredangerousforthe children. Keep children away from the product whenitisinuse.Donotletthemtotamperwith theproduct.Usechildlocktopreventchildren from intervening with the product.

• Donotforgettoclosetheloadingdoorwhen leaving the room where the product is located.

• Storealldetergentsandadditivesinasafeplace away from the reach of the children. 2 Installation Refer to the nearest Authorised Service Agent for installation of the product. To make the product ready for use, review the information in the user manual and make sure that the electricity, tap water supply andwaterdrainagesystemsareappropriatebefore callingtheAuthorizedServiceAgent.Iftheyarenot, callaqualifiedtechnicianandplumbertohaveany necessary arrangements carried out.

Preparation of the location and electrical, tap water and waste water installations at the place ofinstallationisundercustomer'sresponsibility.

Installationandelectricalconnectionsofthe productmustbecarriedoutbytheAuthorized ServiceAgent.Manufacturershallnotbe heldliablefordamagesthatmayarisefrom procedurescarriedoutbyunauthorized persons.

Prior to installation, visually check if the product hasanydefectsonit.Ifso,donothaveit installed.Damagedproductscauserisksfor your safety.

Make sure that the water inlet and discharge hosesaswellasthepowercablearenot folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures. Appropriate installation location

• Placethemachineonarigidfloor.Donotplace it on a long pile rug or similar surfaces.

• Totalweightofthewashingmachineandthe dryer-withfullload-whentheyareplaced on top of each other reaches to approx. 180 kilograms. Place the product on a solid and flat floor that has sufficient load carrying capacity!3

• Placetheproductatleast1cmawayfromthe edges of other furniture. Removing packaging reinforcement Tiltthemachinebackwardstoremovethepackaging reinforcement. Remove the packaging reinforcement bypullingtheribbon. Removing the transportation locks

Donotremovethetransportationlocksbefore taking out the packaging reinforcement.

Removethetransportationsafetyboltsbefore operating the washing machine, otherwise, the productwillbedamaged.

Keepthetransportationsafetyboltsinasafe place to reuse when the washing machine needstobemovedagaininthefuture.

Never move the product without the transportationsafetyboltsproperlyfixedin place! Connecting water supply

Thewatersupplypressurerequiredtorunthe productisbetween1to10bars(0.1–10MPa). Itisnecessarytohave10–80litersofwater flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if water pressure is higher.

Ifyouaregoingtousethedoublewater-inlet productasasingle(cold)water-inletunit,you must install the supplied stopper to the hot watervalvebeforeoperatingtheproduct. (Appliesfortheproductssuppliedwithablind stopper group.)

Ifyouwanttousebothwaterinletsofthe product, connect the hot water hose after removing the stopper and gasket group from the hot water valve. (Applies for the products suppliedwithablindstoppergroup.)

Modelswithasinglewaterinletshouldnotbe connectedtothehotwatertap.Insuchacase the laundry will get damaged or the product will switch to protection mode and will not operate.

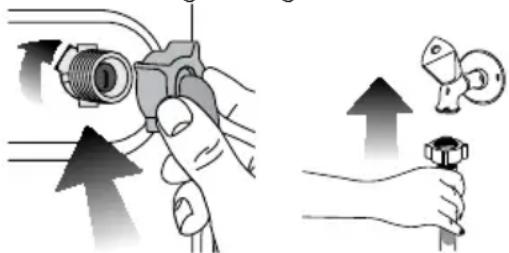

1. Connect the special hoses supplied with the

product to the water inlets on the product. Red hose(left)(max.90ºC)isforhotwaterinlet,blue hose(right)(max.25ºC)isforcoldwaterinlet.

Ensure that the cold and hot water connections are made correctly when installing the product. Otherwise,yourlaundrywillcomeouthotatthe end of the washing process and wear out.

2. Tightenallhosenutsbyhand.Neverusea

wrench when tightening the nuts.

3. Openthetapscompletelyaftermakingthe

hose connection to check for water leaks at theconnectionpoints.Ifanyleaksoccur,turn off the tap and remove the nut. Retighten the nut carefully after checking the seal. To prevent waterleakagesanddamagescausedbythem, keep the taps closed when the machine is not in use. Connecting to the drain

• Theendofthedrainhosemustbedirectly connected to the wastewater drain or to the washbasin.

Yourhousewillbefloodedifthehosecomes out of its housing during water discharge. Moreover, there is risk of scalding due to high washing temperatures! To prevent such situations and to ensure smooth water intake and discharge of the machine, fix the end of the discharge hose tightly so that it cannot come out.

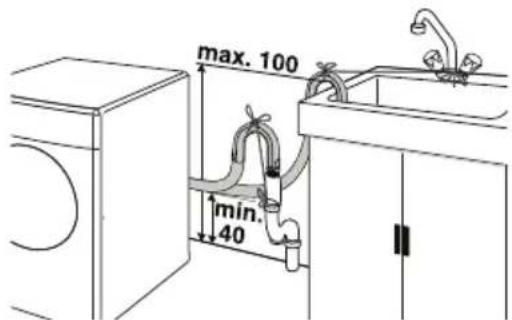

• Thehoseshouldbeattachedtoaheightofat least 40 cm, and 100 cm at most.

• Incasethehoseiselevatedafterlayingiton the floor level or close to the ground (less than 40cmabovetheground),waterdischarge becomesmoredifficultandthelaundrymay come out excessively wet. Therefore, follow the heightsdescribedinthefigure.4

• Theendofthehoseshouldnotbebent,it shouldnotbesteppedonandthehosemust notbepinchedbetweenthedrainandthe machine.

• Ifthelengthofthehoseistooshort,useitby adding an original extension hose. Length of the hosemaynotbelongerthan3.2m.Toavoid waterleakfailures,theconnectionbetween the extension hose and the drain hose of the productmustbefittedwellwithanappropriate clamp as not to come off and leak. Adjusting the feet

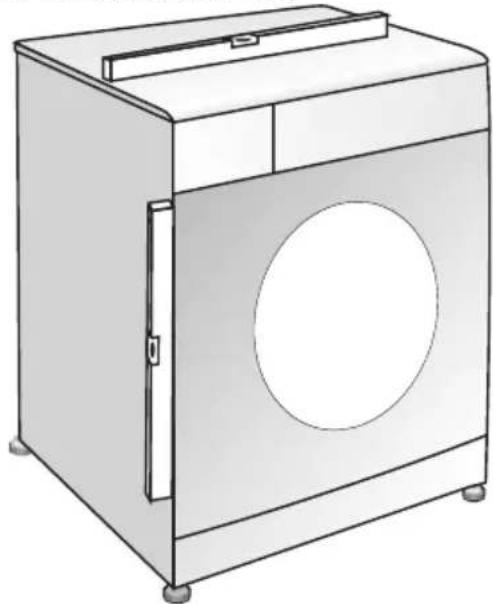

2. Adjust the feet until the product stands level and

3. Tightenalllocknutsagainbyhand.

Donotuseanytoolstoloosenthelocknuts. Otherwise,theywillgetdamaged. Electrical connection Connect the product to a grounded outlet protected byafusecomplyingwiththevaluesinthe"Technical specifications"table.Ourcompanyshallnotbeliable for any damages that will arise when the product is used without grounding in accordance with the local regulations.

• Connectionmustcomplywithnational regulations.

Damagedpowercablesmustbereplacedby the Authorized Service Agents. First use Beforestartingtousetheproduct,makesure that all preparations are made in accordance withtheinstructionsinsections"Importantsafety instructions"and"Installation". To prepare the product for washing laundry, perform firstoperationinDrumCleaningprogramme.If yourmachineisnotfeaturedwithDrumCleaning programme,useCottons-90programmeandselect Additional Water or Extra Rinse auxiliary functions aswell.Beforestartingtheprogramme,putmax. 100gofpowderanti-limescaleintothemainwash detergentcompartment(compartmentnr.II).Ifthe anti-limescaleisintabletform,putonlyonetablet intocompartmentnr.II.Drytheinsideofthebellow with a clean piece of cloth after the programme has come to an end.

Some water might have remained in the productduetothequalitycontrolprocessesin theproduction.Itisnotharmfulfortheproduct.5

Disposing of packaging material Packaging materials are dangerous to children. Keep packaging materials in a safe place away from reach of the children. Packaging materials of the product are manufacturedfromrecyclablematerials.Disposeof them properly and sort in accordance with recycled wasteinstructions.Donotdisposeofthemwith normal domestic waste. Transportation of the product Unplugtheproductbeforetransportingit.Remove waterdrainandwatersupplyconnections.Drain the remaining water in the product completely; see, "Drainingremainingwaterandcleaningthepump filter".Installtransportationsafetyboltsinthereverse order of removal procedure; see, "Removing the transportation locks".

Never move the product without the transportationsafetyboltsproperlyfixedin place! Disposing of the old product Disposeoftheoldproductinanenvironmentally friendly manner. Refer to your local dealer or solid waste collection centre in your area to learn how to dispose of your product. Forchildren'ssafety,cutthepowercableandbreak the locking mechanism of the loading door so that it willbenonfunctionalbeforedisposingoftheproduct. laundrybagorpillowcase.

• Placecurtainsinwithoutcompressingthem. Remove curtain attachment items.

• Fastenzippers,sewloosebuttonsandmend rips and tears.

• Wash“machinewashable”or“handwashable” labeledproductsonlywithanappropriate programme.

• Donotwashcoloursandwhitestogether.New, dark coloured cottons release a lot of dye. Wash them separately.

• KeeplaundryitemsmadeofAngorawoolinthe freezerforafewhoursbeforewashing.Thiswill reduce pilling.

• Laundrythataresubjectedtomaterialssuchas flour, lime dust, milk powder, etc. intensely must beshakenoffbeforeplacingintothemachine. Such dusts and powders on the laundry may buildupontheinnerpartsofthemachinein time and can cause damage. Correct load capacity The maximum load capacity depends on the type of laundry, the degree of soiling and the washing programme desired. The machine automatically adjusts the amount of water according to the weight of the loaded laundry.

Follow the information in the “Programme andconsumptiontable”.Whenoverloaded, machine's washing performance will drop. Moreover,noiseandvibrationproblemsmay occur. Loading the laundry

• Pushtheloadingdoortocloseuntilyouheara locking sound. Ensure that no items are caught in the door.

The loading door is locked while a programme isrunning.Thedoorcanonlybeopenedawhile after the programme comes to an end.

Incaseofmisplacingthelaundry,noiseand vibrationproblemsmayoccurinthemachine. 3 Preparation Things to be done for energy saving Following information will help you use the product in anecologicalandenergy-efficientmanner.

• Usefasterprogrammesforsmallquantitiesof lightly soiled laundry.

• Donotuseprewashandhightemperaturesfor laundry that is not heavily soiled or stained.

• Ifyouplantodryyourlaundryinadryer,select the highest spin speed recommended during washing process.

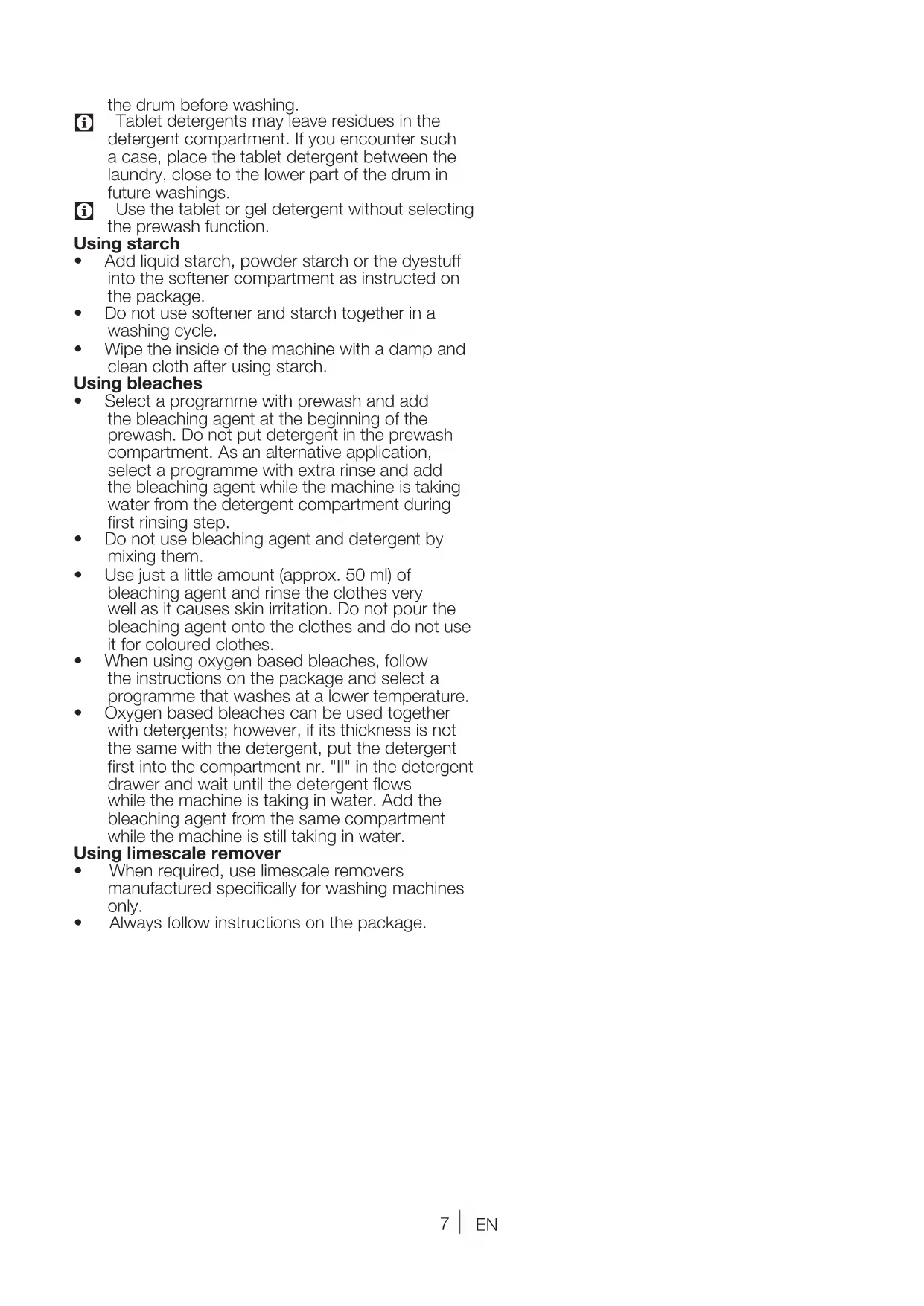

Using detergent and softener Detergent DrawerThe detergent drawer is composed of three compartments:-(I)forprewash-(II)formainwash–(III)forsoftener–(*)inaddition,thereissiphonpieceinthesoftenercompartment.

thedrumbeforewashing.

Tabletdetergentsmayleaveresiduesinthe detergentcompartment.Ifyouencountersuch acase,placethetabletdetergentbetweenthe laundry, close to the lower part of the drum in future washings.

• Addliquidstarch,powderstarchorthedyestuff into the softener compartment as instructed on the package.

• Donotusesoftenerandstarchtogetherina washing cycle.

• Wipetheinsideofthemachinewithadampand clean cloth after using starch. Using bleaches

• Selectaprogrammewithprewashandadd thebleachingagentatthebeginningofthe prewash.Donotputdetergentintheprewash compartment. As an alternative application, select a programme with extra rinse and add thebleachingagentwhilethemachineistaking water from the detergent compartment during first rinsing step.

• Whenusingoxygenbasedbleaches,follow the instructions on the package and select a programme that washes at a lower temperature.

• Oxygenbasedbleachescanbeusedtogether with detergents; however, if its thickness is not the same with the detergent, put the detergent firstintothecompartmentnr."II"inthedetergent drawer and wait until the detergent flows while the machine is taking in water. Add the bleachingagentfromthesamecompartment while the machine is still taking in water. Using limescale remover

• Whenrequired,uselimescaleremovers manufactured specifically for washing machines only.

Tips for efficient washing Clothes Light colours and whites Colors Dark colors Delicates/ Woolens/Silks (Recommended temperature range basedonsoilinglevel: 40-90C) (Recommended temperaturerangebased onsoilinglevel:cold-40C) (Recommended temperature range basedonsoiling level:cold-40C) (Recommended temperature range basedonsoiling level:cold-30C) Soiling Level Heavily Soiled (difficult stains such as grass, coffee, fruits and blood.) Itmaybenecessary topre-treatthe stains of perform prewash. Powder andliquiddetergents recommended forwhitescanbe used at dosages recommended for heavily soiled clothes. Itisrecommendedto use powder detergents to clean clay and soil stains and the stains that are sensitive to bleaches. Powder and liquiddetergents recommended for colourscanbeusedat dosages recommended for heavily soiled clothes. Itisrecommendedtouse powder detergents to clean clay and soil stains and the stains that are sensitivetobleaches. Usedetergentswithout bleach. Liquiddetergents suitablefor colours and dark colourscanbe used at dosages recommended for heavily soiled clothes. Preferliquid detergents produced for delicate clothes. Woollen and silk clothes must bewashedwith special woollen detergents. Normally Soiled (For example, stains caused by body on collars and cuffs) Powder and liquiddetergents recommended for whitescanbeusedat dosages recommended for normally soiled clothes. Powder and liquiddetergents recommended for colourscanbeusedat dosages recommended for normally soiled clothes.Usedetergents withoutbleach. Liquiddetergents suitablefor colours and dark colourscanbe used at dosages recommended for normally soiled clothes. Preferliquid detergents produced for delicate clothes. Woollen and silk clothes must bewashedwith special woollen detergents. Lightly Soiled (No visible stains exist.) Powder and liquiddetergents recommended for whitescanbeusedat dosages recommended for lightly soiled clothes. Powder and liquiddetergents recommended for colourscanbeusedat dosages recommended for lightly soiled clothes. Usedetergentswithout bleach. Liquiddetergents suitablefor colours and dark colourscanbe used at dosages recommended for lightly soiled clothes. Preferliquid detergents produced for delicate clothes. Woollen and silk clothes must bewashedwith special woollen detergents.9

5-AuxiliaryFunctionbuttons6-DelayedStartbutton(insomemodels)7-Start/Pausebutton Preparing the machine Make sure that the hoses are connected tightly. Plug in your machine. Turn the tap on completely. Place the laundry in the machine. Add detergent and fabricsoftener. Programme selection 1. Selecttheprogrammesuitableforthetype,quantityandsoilingdegreeofthelaundryin accordance with the "Programme and consumptiontable"andthetemperaturetablebelow.90˚C Heavilysoiledwhitecottonsandlinens.(coffeetablecovers,tableclothes,towels,bedsheets,etc.)60˚C Normally soiled, coloured, fade proof cottons or synthetic clothes (shirt, nightgown, pajamas, etc.) and lightly soiled white linens (underwear, etc.)40˚C-30˚C-ColdBlendedlaundryincludingdelicate textile (veil curtains, etc.), synthetics and woolens.2. Select the desired programme with the ProgrammeSelectionbutton. Programmes are limited with the highest spin speed appropriate for that particular type of fabric. When selecting a programme, always consider thetypeoffabric,colour,degreeofsoilingandpermissiblewatertemperature. Alwaysselectthelowestrequiredtemperature.Highertemperaturemeanshigherpowerconsumption. For further programme details, see "Programme andconsumptiontable". Main programmes Dependingonthetypeoffabric,usethefollowingmain programmes.• CottonsUsethisprogrammeforyourcottonlaundry(suchasbedsheets,duvetandpillowcasesets,towels,bathrobes,underwear,etc.).Yourlaundrywillbewashed with vigorous washing action for a longer washing cycle.• SyntheticsUsethisprogrammetowashyoursyntheticclothes(shirts,blouses,synthetic/cottonblends,etc.).Itwashes with a gentle action and has a shorter washing cycle compared to the Cottons programme.For curtains and tulle, use the Synthetic 40˚C programmewithprewashandanti-creasingfunctionsselected. As their meshed texture causes excessive foaming,washtheveils/tullebyputtinglittleamountofdetergentintothemainwashcompartment.Donot put detergent in the prewash compartment.• WoollensUsethisprogrammetowashyourwoolenclothes.Select the appropriate temperature complying with thetagsofyourclothes.Useappropriatedetergentsfor woolens.10

Additional programmes For special cases, additional programmes are availableinthemachine.

Additional programmes may differ according to the model of the machine.

• Cotton Economic Youmaywashyournormallysoileddurablecotton and linen laundry in this programme with the highest energy and water saving compared to all other washprogrammessuitableforcottons.Actualwater temperature may differ from the declared cycle temperature. Programme duration may automatically beshortenedduringlaterstagesoftheprogramme if you wash less amount (e.g. ½ capacity or less) of laundry.Inthiscaseenergyandwaterconsumption willbefurtherdecreasedgivingyoutheopportunity foramoreeconomicalwash.Thisfeatureisavailable for certain models having remaining time display.

• Hand wash Usethisprogrammetowashyourwoolen/delicate clothesthatbear“notmachine-washable”tagsand forwhichhandwashisrecommended.Itwashes laundry with a very gentle washing action to not to damage clothes.

• Super short express Usethisprogrammetoquicklywashyourlittle amount of lightly soiled cotton clothes. Your clothes willbewashedat30˚Cinashorttimelike14 minutes.

• Dark wash Usethisprogrammetowashyourdarkcoloured laundry, or the coloured laundry that you do not want them get faded. Washing is performed with less mechanical movements at low temperature. Itisrecommendedtouseliquiddetergentorwool shampoo for dark coloured laundry.

• Spin + Drain Usethisprogrammetoapplyanadditionalspincycle for your laundry or to drain the water in the machine. Beforeselectingthisprogramme,selectthedesired spinspeedandpressStart/Pausebutton.First,the machine will drain the water inside of it. Then, it will spin the laundry with the set spin speed and drain the water coming out of them. Ifyouwishtodrainonlythewaterwithoutspinning your laundry, select the Pump+Spin programme and then select the No Spin function with the help of SpinSpeedAdjustmentbutton.PressStart/Pause button.

Usealowerspinspeedfordelicatelaundries. Temperature selection Whenever a new programme is selected, the recommended temperature for the selected programme appears on the temperature indicator. To decrease the temperature, press the Temperature Adjustmentbutton.Temperaturewilldecrease gradually.

Iftheprogrammehasnotreachedtheheating step, you can change the temperature without switching the machine to Pause mode. Spin speed selection Whenever a new programme is selected, the recommended spin speed of the selected programme is displayed on the spin speed indicator. To decrease the spin speed, press the Spin Speed Adjustmentbutton.Spinspeeddecreasesgradually. Then, depending on the model of the product, "RinseHold"and"NoSpin"optionsappearonthe display. See "Auxiliary function selection" section for explanations of these options.

Iftheprogrammehasnotreachedthespinning step, you can change the speed without switching the machine to Pause mode.11

Programme and consumption table

Auxiliary function selection Usethefollowingauxiliaryfunctionsaccordingtoyour daily needs. Select the desired auxiliary functions beforestartingtheprogramme.Furthermore,you may also select or cancel auxiliary functions that aresuitabletotherunningprogrammewithout pressingtheStart/Pausebuttonwhenthemachine isoperating.Forthis,themachinemustbeinastep beforetheauxiliaryfunctionyouaregoingtoselect or cancel. Iftheauxiliaryfunctioncannotbeselectedor canceled, light of the relevant auxiliary function will blink3timestowarntheuser.

Somefunctionscannotbeselectedtogether. For example, Prewash and Quick Wash.

Ifasecondauxiliaryfunctionconflictingwiththe firstoneisselectedbeforestartingthemachine, thefunctionselectedfirstwillbecanceled and the second auxiliary function selection will remain active. For example, if you want to select Quick Wash after you have selected the Prewash,PrewashwillbecanceledandQuick Wash will remain active.

AuxiliaryFunctionbuttonsmayvaryaccordingto the model of the machine.

• Prewash A Prewash is only worthwhile for heavily soiled laundry. Not using the Prewash will save energy, water, detergent and time.

Prewash without detergent is recommended for tulle and curtains.

When you select this function, load your machine with half of the maximum laundry specifiedintheprogrammetable.

• Rinse Plus Thisfunctionenablesthemachinetomakeanother rinsing in addition to the one already made after the mainwash.Thus,theriskforsensitiveskins(babies, allergicskins,etc.)tobeeffectedbytheminimal detergentremnantsonthelaundrycanbereduced.

• Anti-Creasing This function creases the clothes lesser when they arebeingwashed.Drummovementisreducedand spinningspeedislimitedtopreventcreasing.In addition, washing is done with a higher water level. Usethisfunctionfordelicatelaundrythatcreases easily.

• Rinse Hold Ifyouarenotgoingtounloadyourclothes immediately after the programme completes, you may use rinse hold function to keep your laundry in the final rinsing water in order to prevent them from getting wrinkled when there is no water in themachine.PressStart/Pausebuttonafterthis process if you want to drain the water without spinning your laundry. Programme will resume and complete after draining the water. Ifyouwanttospinthelaundryheldinwater,adjust theSpinSpeedandpressStart/Pausebutton. The programme resumes. Water is drained, laundry is spun and the programme is completed.

• Soaking TheSoakingauxiliaryfunctionensuresbetterremoval ofstainsingrainedintotheclothesbyholding them in the detergent water prior to startup of the programme.

• Pet hair removal This function removes the pet hairs that remain on your clothes more effectively. When this function is selected, Prewash and Extra Rinse steps are added to the normal programme. Thus,pethairsareremovedmoreeffectivelyby performing the washing with more water (30%).

Never wash your pets in your washing machine. Delayed Start(Insomemodelsonly) WiththeDelayedStartfunctionthestartupofthe programmemaybedelayedupto3,6or9hours.

Donotuseliquiddetergentswhenyouset DelayedStart!Thereistheriskofstainingofthe clothes. Opentheloadingdoor,placethelaundryandput detergent, etc. Select the washing programme, temperature,spinspeedand,ifrequired,theauxiliary functions.Setthedesiredtimebypressingthe DelayedStartbutton.Whenthebuttonispressed once, 3 hours delayed start is selected. When the samebuttonispressedagain,6hoursdelayis selected, and when it is pressed for the third time, 9hoursdelayedstartisselected.Ifyoupressthe DelayedStartbuttononceagain,DelayedStart functionwillbecanceled.PressStart/Pausebutton. Previous delayed start time light turns off and next delayed start time light turns on after every 3 hours. At the end of the countdown, all delayed start lights will turn off and the selected programme will start.

Additionallaundrymaybeloadedduringthe delayed start period. Changing the Delayed Start period PressDelayedStartbutton.Everytimethebuttonis pressed,theperiodwillchangein3-hourincrements and the light of the selected delayed start time will turn on. Canceling the Delayed Start function Ifyouwanttocancelthedelayedstartcountdown and start the programme immediately: SettheDelayedStartperiodtozero(alldelayedstart period lights will turn off) or turn the Programme Selectionknobtoanyprogramme.Thus,Delayed Startfunctionwillbecanceled.TheEnd/Cancellight flashes continuously. Then, select the programme youwanttorunagain.PressStart/Pausebuttonto start the programme. Starting the programme PressStart/Pausebuttontostarttheprogramme. Programmefollow-uplightshowingthestartupofthe programme will turn on.

Ifnoprogrammeisstartedornokeyispressed within 1 minute during programme selection13

process, the machine will switch to Pause mode and the illumination level of the temperature, speed and loading door indicator lights will decrease.Otherindicatorlightsandindicators willturnoff.OncetheProgrammeSelection knobisrotatedoranybuttonispressed, indicator lights and indicators will turn on again. Child Lock Usechildlockfunctiontopreventchildrenfrom tampering with the machine. Thus you can avoid any changes in a running programme.

IftheProgrammeSelectionknobisrotated when the child lock is active, the lights on the

auxiliaryfunctionbuttonswillblink 3 times. The child lock does not allow any change in the programmes and the selected temperature, speed and auxiliary functions.

Even if another programme is selected with the ProgrammeSelectionknobwhiletheChildLock is active, previously selected programme will continue running.

When the Child Lock is active and the machine is running, you can switch the machine to Pause modewithoutdeactivatingtheChildLockby turningtheProgrammeSelectionknobtoOn /Offposition.WhenyouturntheProgramme Selectionknobafterwards,theprogrammewill resume. To activate the Child Lock: Press and hold 1

AuxiliaryFunctionbuttons for 3 seconds. The lights on the 1

Auxiliary Functionbuttonswillflashwhileyoukeepthebuttons pressed for 3 seconds. To deactivate the Child Lock: Press and hold 1

auxiliaryfunctionbuttons for 3 seconds while any programme is running. The lights on the 1

AuxiliaryFunctionbuttons willflashwhileyoukeepthebuttonspressedfor3 seconds.

When the power is restored after a power failure or after your machine is unplugged and plugged inagain,theChildLockwillnotbedeactivated when the machine resumes operating. Progress of programme Progressofarunningprogrammecanbefollowed fromtheProgrammeFollow-upindicator.Atthe beginningofeveryprogrammestep,therelevant indicator light will turn on and light of the completed step will turn off. You can change the auxiliary functions, speed and temperature settings without stopping the programme flow while the programme is running. To do this, the change you are going to make must beinastepaftertherunningprogrammestep.Ifthe changeisnotcompatible,relevantlightswillflashfor 3 times.

Ifthemachinedoesnotpasstothespinning step,RinseHoldfunctionmightbeactiveorthe automaticunbalancedloaddetectionsystem mightbeactivatedduetotheunbalanced distributionofthelaundryinthemachine. Loading door lock There is a locking system on the loading door of the machine that prevents opening of the door in cases whenthewaterlevelisunsuitable. Loading door light will start flashing when the machine is switched to Pause mode. Machine checksthelevelofthewaterinside.Ifthelevelis suitable,LoadingDoorlightilluminatessteadilywithin 1-2minutesandtheloadingdoorcanbeopened. Ifthelevelisunsuitable,LoadingDoorlightturnsoff andtheloadingdoorcannotbeopened.Ifyouare obligedtoopentheLoadingDoorwhiletheLoading Doorlightisoff,youhavetocancelthecurrent programme; see "Canceling the programme". Changing the selections after programme has started Switching the machine to pause mode PresstheStart/Pausebuttontoswitchthemachine to pause mode while a programme is running. The light of the step which the machine is in starts flashingintheProgrammeFollow-upindicatorto showthatthemachinehasbeenswitchedtothe pause mode. Also,whentheloadingdoorisreadytobeopened, LoadingDoorlightwillalsoilluminatecontinuouslyin addition to the programme step light. Changing the speed and temperature settings for auxiliary functions Dependingonthesteptheprogrammehasreached, you may cancel or activate the auxiliary functions; see, "Auxiliary function selection". You may also change the speed and temperature settings; see, "Spin speed selection" and "Temperature selection".

Ifnochangeisallowed,therelevantlightwill flash for 3 times. Adding or taking out laundry PresstheStart/Pausebuttontoswitchthemachine topausemode.Theprogrammefollow-uplightof the relevant step during which the machine was switched into the pause mode will flash. WaituntiltheLoadingDoorcanbeopened.Open theLoadingDoorandaddortakeoutthelaundry. ClosetheLoadingDoor.Makechangesinauxiliary functions, temperature and speed settings if necessary.PressStart/Pausebuttontostartthe machine. Canceling the programme To cancel the programme, turn the Programme Selectionknobtoselectanotherprogramme. Previousprogrammewillbecanceled.End/ Cancel light will flash continuously to notify that the programmehasbeencanceled. Your machine will end the programme when you turn theProgrammeSelectionknob;however,itdoesnot drain the water inside. When you select and start a new programme, the newly selected programme will start depending on the step the previous programme was canceled in. For example, it may take in additional water or continue to wash with the water inside.14

Draining remaining water and cleaning the pump filter The filter system in your machine prevents solid itemssuchasbuttons,coinsandfabricfibers clogging the pump impeller during discharge of washingwater.Thus,thewaterwillbedischarged withoutanyproblemandtheservicelifeofthepump will extend. Ifthemachinefailstodrainwater,thepumpfilter isclogged.Filtermustbecleanedwheneverit iscloggedorinevery3months.Watermustbe drained off first to clean the pump filter. Inaddition,priortotransportingthemachine(eg., when moving to another house) and in case of freezingofthewater,watermayhavetobedrained completely.

Temperature of the water inside the machine mayriseupto90ºC.Toavoidburningrisk,filter mustbecleanedafterthewaterinthemachine cools down. Openthefiltercap. Ifthefiltercapiscomposedoftwopieces, pressthetabonthefiltercapdownwardsand pull the piece out towards yourself. Ifthefiltercapisonepiece,pullthecapfromboth sides at the top to open.

Youcanremovethefiltercoverbyslightly pushing downwards with a thin plastic tipped tool,throughthegapabovethefiltercover.Do not use metal tipped tools to remove the cover. Some of our products have emergency draining hose and some does not have. Follow the steps belowtodischargethewater. Dischargingthewaterwhentheproducthasan emergency draining hose: Pull the emergency draining hose out from its seat Placealargecontainerattheendofthehose.Drain thewaterintothecontainerbypullingouttheplugat theendofthehose.Whenthecontainerisfull,block theinletofthehosebyreplacingtheplug.Afterthe containerisemptied,repeattheaboveprocedure to drain the water in the machine completely. When drainingofwaterisfinished,closetheendbythe

Dependingonthestepwheretheprogramme was canceled in, you may have to put detergent and softener again for the programme you have selected anew. 5 Maintenance and cleaning Servicelifeoftheproductextendsandfrequently facedproblemsdecreaseifcleanedatregular intervals. Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5washingcycles)asshownbelowinorderto prevent accumulation of powder detergent in time. Press the dotted point on the siphon in the softener compartment and pull towards you until the compartment is removed from the machine.

Ifmorethannormalamountofwaterand softener mixture starts to gather in the softener compartment,thesiphonmustbecleaned. Wash the detergent drawer and the siphon with plentyoflukewarmwaterinawashbasin.Wear protectiveglovesoruseanappropriatebrushto avoid touching of the residues in the drawer with your skinwhencleaning.Insertthedrawerbackintoits place after cleaning and make sure that it is seated well. Cleaning the water intake filters There is a filter at the end of each water intake valve at the rear of the machine and also at the end of each water intake hose where they are connected to thetap.Thesefilterspreventforeignsubstancesand dirt in the water to enter the washing machine. Filters shouldbecleanedastheydogetdirty. Close the taps. Remove the nuts of the water intake hoses to access the filters on the water intake valves. Cleanthemwithanappropriatebrush.Ifthefiltersare toodirty,takethemoutbymeansofpliersandclean them. Take out the filters on the flat ends of the water intake hoses together with the gaskets and clean thoroughly under running water. Replace the gaskets and filters carefully in their places and tighten the hosenutsbyhand.15

plug again and fix the hose in its place. Turn the pump filter to take it out. Dischargingthewaterwhentheproductdoesnot have an emergency draining hose: Place a large container in front of the filter to catch water from the filter. Loosen pump filter (anticlockwise) until water starts to flow. Fill the flowing water into the container you have placed in front of the filter. Always keep a piece of cloth handy toabsorbanyspilledwater.Whenthewaterinside the machine is finished, take out the filter completely byturningit.Cleananyresiduesinsidethefilteras wellasfibers,ifany,aroundthepumpimpellerregion. Installthefilter.

Ifyourproducthasawaterjetfeature,besure to fit the filter into its housing in the pump. Never force the filter while installing it into its housing. Seat the filter into its place completely. Otherwise,watermayleakfromthefiltercap. Ifthefiltercapiscomposedoftwopieces,closethe filtercapbypressingonthetab.Ifitisonepiece,seat thetabsinthelowerpartintotheirplacesfirst,and then press the upper part to close. Refresh (Freshen Up) On/Off Hand wash Wash End Child Lock Cancel 3” Temparature Time Delay Drain Super Super Eco Rinse Cotton Eco Prewash Main wash Rinse plus Soaking Anti creasing Rinse Hold No Spin Spin Cold Ready Start Pause Coton Synthetics Woollens Delicate Intensive Sport Shirt Duvet Hygiene Eco 20 (Eco Clean) Machine Care (Self Clean) Lingerie Mini (Daily express) Mini (Daily express) Mini 14 (Super short express) Half Load Quick wash Darkwash (Darkcare) Mix Hand wash

6 Technical specifications

Figures in this manual are schematic and may not match the product exactly.

• Washingmachinehasswitchedtoselfprotectionmodeduetoasupplyproblem(linevoltage,water pressure,etc.).>>>Press and hold Start / Pause button for 3 seconds to reset the machine to factory settings. (See "Canceling the programme") Water in the machine.

• Somewatermighthaveremainedintheproductduetothequalitycontrolprocessesinthe production.>>>This is not a failure; water is not harmful to the machine. Machinevibratesormakesnoise.

• Machinemightbestandingunbalanced.>>>Adjust the feet to level the machine.

• Ahardsubstancemighthaveenteredintothepumpfilter.>>>Clean the pump filter.

• Transportationsafetyboltsarenotremoved.>>>Remove the transportation safety bolts.

• Laundryquantityinthemachinemightbetoolittle.>>>Add more laundry to the machine.

• Machinemightbeoverloadedwithlaundry.>>>Take out some of the laundry from the machine or distribute the load by hand to balance it homogenously in the machine.

• Machinemightbeleaningonarigiditem.>>>Make sure that the machine is not leaning on anything. Machine stopped shortly after the programme started.

• Machinemighthavestoppedtemporarilyduetolowvoltage.>>>It will resume running when the voltage restores to the normal level. Programmetimedoesnotcountdown.(Onmodelswithdisplay)

• Timermaystopduringwaterintake.>>>Timer indicator will not countdown until the machine takes in adequate amount of water. The machine will wait until there is sufficient amount of water to avoid poor washing results due to lack of water. Timer indicator will resume countdown after this.

• Timermaystopduringheatingstep.>>>Timer indicator will not countdown until the machine reaches the selected temperature.

• Timermaystopduringspinningstep.>>>Automatic unbalanced load detection system might be activated due to the unbalanced distribution of the laundry in the drum.

• Toomuchdetergentisused.>>>Mix 1 tablespoonful softener and ½ l water and pour into the main wash compartment of the detergent drawer.

Putdetergentintothemachinesuitablefortheprogrammesandmaximumloadsindicatedinthe “Programmeandconsumptiontable”.Whenyouuseadditionalchemicals(stainremovers,bleachs and etc), reduce the amount of detergent. Laundry remains wet at the end of the programme

Ifyoucannoteliminatetheproblemalthoughyoufollowtheinstructionsinthissection,consultyour dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself. 2820522205_EN/061011.184119
