USER MANUAL Cafe Invento HK10M INVENTUM

Exterior view of a Café Inventum milk dispenser with two glasses of coffee and a coffee cup, no visible text or symbols on the main device.

HK IO B/M/W

GEBRUIKSAANWIJZING - GEBRAUCHSANLEITUNG MODE D'EMPLOI - INSTRUCTION MANUAL

NEDERLANDS

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

DESCRIPTION OF THE APPLIANCE PAGE 21

1. SAFETY INSTRUCTIONS PAGE 21
2. BEFORE FIRST USE PAGE 22
3. TO RINSE THE MACHINE PAGE 22
4. TASTE-SELECTOR PAGE 22
5. MAKING COFFEE PAGE 22
6. MAKING TEA PAGE 23
7. CLEANING & MAINTENANCE PAGE 23

REMOVING AND CLEANING THE COMPLETE DRAWER PAGE 23

CLEANING SEPARATE PARTS PAGE 24

DESCALING PAGE 24

1. SOLVING A MALFUNCTION PAGE 24

GARANTIE & SERVICE PAGE 27

NEDERLANDS

1 2-3-4 5 6 7 - 8 9 10 11 12

6.1 2 3 4 6.2 5

Product photo of a VR headset with numbered parts (8, 10, 13, 14), no visible text or symbols beyond part numbers.

3 | MACHINE DOORSPOELEN

Close-up of a laboratory instrument with a labeled part '13' (no visible text or symbols on the device itself)

Close-up of a smartphone keyboard with three circular buttons (no visible text or symbols)

Close-up of a black electronic device with three circular buttons and a dimension label '5' (no readable text or symbols beyond basic design)

5 | KOFFIE ZETTEN

6.1 6.2 5

Black and white photo of a coffee maker pouring liquid into a cup on a steamer (no text or symbols visible)

Modern stainless steel water dispenser with two cups on a counter (no visible text or symbols)

Close-up of a mechanical component with a white arrow pointing to a feature (no visible text or symbols)

houser steunen 9 10

Four types of electronic devices with numbered labels (8, 7, 10, 13, 14) shown in different orientations (no readable text or symbols beyond labels)

Product photo of four electronic devices with numbered labels (8, 10, 13, 14), no visible text or symbols beyond labels.

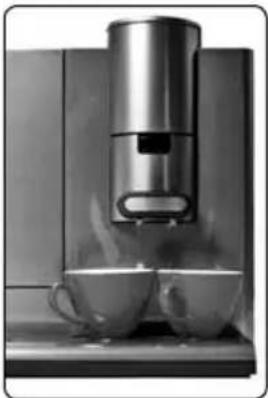

3 | DURCHSPÜLEN DER MASCHINE

Close-up of a mechanical device with a cylindrical component and a labeled part '13' (no readable text or symbols beyond the number)

Close-up of a black electronic device with three control buttons and a 5-inch arrow indicator (no readable text or symbols)

Black and white photo of a coffee machine dispensing liquid into a cup on a rotating stand (no text or symbols visible)

Black and white photo of a stainless steel coffee maker with two cups on a counter (no visible text or symbols)

6.1 6.2 5

10 6.2 13

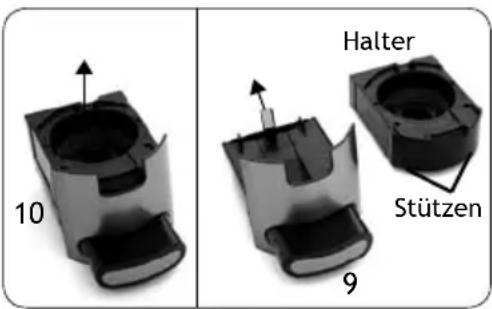

DAS ENTFERNEN UND REINIGEN DER KOMPLETTEN SCHUBLADE

Close-up of a mechanical component with a highlighted section and an arrow pointing to a feature (no visible text or symbols)

Product images of various electronic devices and accessories, including a VR headset, lens, and accessories (no text or symbols visible)

ENTKALKEN

Exploded view of four electronic components with numbered labels (8, 7, 10, 13, 14), no readable text or symbols beyond labels.

3 | PASSER DE L'EAU AVANT DE L'UTILISER

Close-up of a mechanical device with a cylindrical component and a labeled part '13' (no readable text or symbols beyond the number)

Close-up of a device's screen with three circular buttons (no visible text or symbols)

Close-up of a black electronic device with circular buttons and a dimension label '5' (no readable text or symbols beyond basic design)

Close-up of a black electronic device with circular buttons and a dimension label '5' (no readable text or symbols beyond basic design)

5 | FAIRE DU CAFÉ

6.1 6.2 5

10 6.2 13

Black and white photo of a coffee maker pouring liquid into a cup on a steamer (no text or symbols visible)

Black and white photo of a stainless steel water dispenser emitting mist over two cups on a counter (no text or symbols visible)

6.1 6.2 5

13 10 6,2

Close-up of a mechanical component with a white arrow pointing to a feature (no visible text or symbols)

support 1 supports 2 10 9

Black plastic mechanical component images with numbered labels (8, 7, 10, 13, 14), no readable text or symbols beyond labels.

DÉTARTRAGE

8 | SOLUTIONS AUX PERTUBATIONS

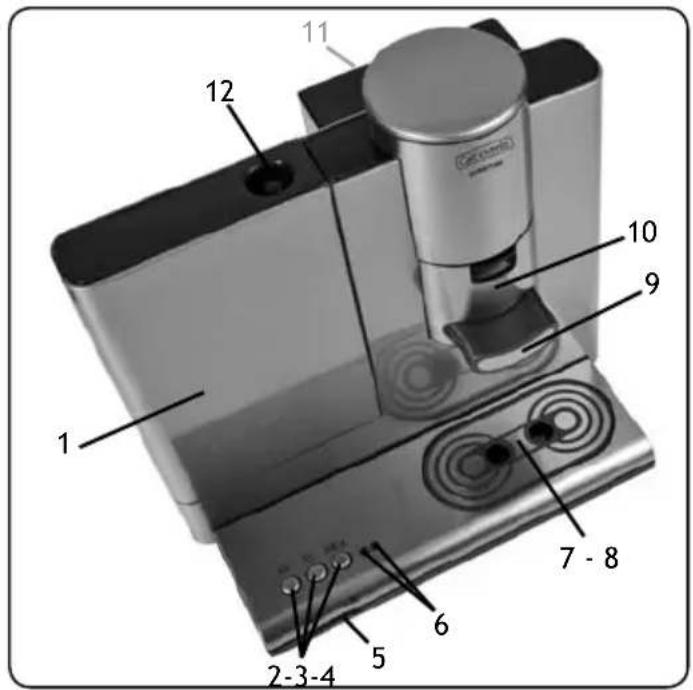

1. Removable waterreservoir

2. Button for 1 cup

3. On/ off button

4. Button for 2 cups

5. Taste-selector

6. Pilot lamps

6.1 red

6.2 green

1. Grid

2. Driptray

3. Coffee-outlet

4. Drawer for multi- padholder

5. Decompression valve

6. Opening/ Lid of the waterreservoir

7. Multi-padholder

8. Cremamaker

9. Teapadholder (enclosed - not shown)

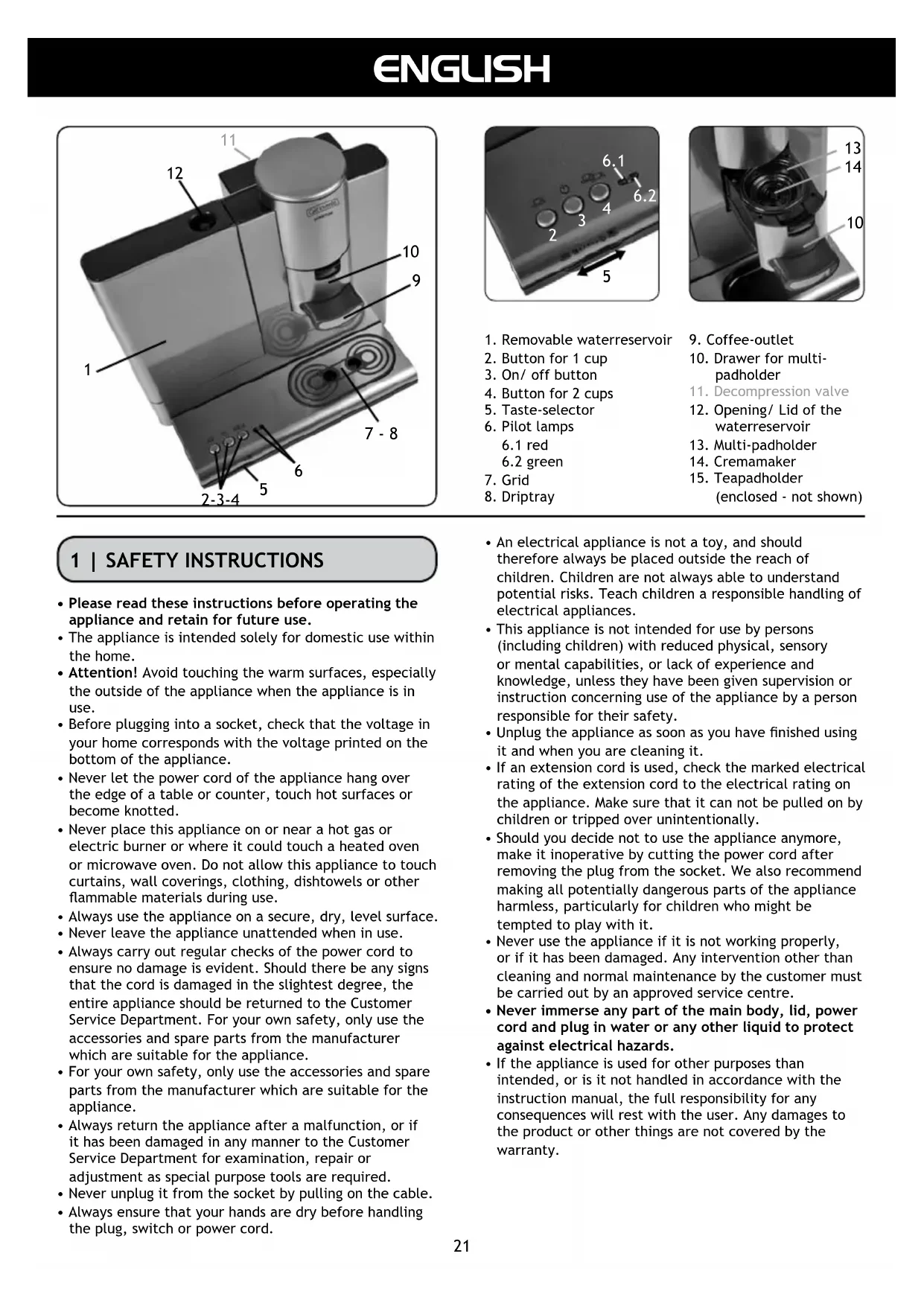

1 | SAFETY INSTRUCTIONS

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
• Attention! Avoid touching the warm surfaces, especially the outside of the appliance when the appliance is in use.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave oven. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
  • Always use the appliance on a secure, dry, level surface.
• Never leave the appliance unattended when in use.
• Always carry out regular checks of the power cord to ensure no damage is evident. Should there be any signs that the cord is damaged in the slightest degree, the entire appliance should be returned to the Customer Service Department. For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
  • Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.
• Never unplug it from the socket by pulling on the cable.

• Always ensure that your hands are dry before handling the plug, switch or power cord.

• An electrical appliance is not a toy, and should therefore always be placed outside the reach of children. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Unplug the appliance as soon as you have finished using it and when you are cleaning it.
• If an extension cord is used, check the marked electrical rating of the extension cord to the electrical rating on the appliance. Make sure that it can not be pulled on by children or tripped over unintentionally.
• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.
• Never use the appliance if it is not working properly, or if it has been damaged. Any intervention other than cleaning and normal maintenance by the customer must be carried out by an approved service centre.
• Never immerse any part of the main body, lid, power cord and plug in water or any other liquid to protect against electrical hazards.
• If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

2 | BEFORE FIRST USE

Before you use the appliance for the first time, please do as follows: Carefully unpack the appliance and remove all the packaging material. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any damage, possible from transportation.

Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance. Place the appliance on a stable and heat resistant surface.

WARNING! Before you make the very first cup of coffee, you must rinse the appliance with water. Follow the next steps carefully to make sure that the boiler is filled with water correctly.

Clean the outside of the appliance with only a damp cloth and dry it with a dry cloth. Clean the parts:

the multi-padholder 13, the cremamaker 14, the drawer 10, the grid 7 and the driptray 8 with warm water and some washing-up liquid or in the dishwasher and make sure that the parts are dry before next use. See chapter: CLEANING & MAINTENANCE. Connect the appliance to an earthed socket. You can adjust the length of the cord by pulling it out from, or pushing it into, the interior of the appliance.

Product photo of four electronic devices with numbered labels (8, 7, 10, 13, 14), no visible text or symbols beyond labels.

3 | TO RINSE THE MACHINE

• Fill the removable waterreservoir 1 with cold water to the maximum level and place it in the coffeepadmachine.
• Open the drawer 10 for the coffeepadholder by gently pulling on the handles of the coffee-outlet 9. The drawer will now slide open.
• Place a coffeepad in the multi-padholder 13 with the round side downwards and press it lightly. Please make sure that the coffee is evenly devided.
• Close the drawer 10 gently inwards until it can't go further.
• Put a large mug or bowl under the coffee-outlet 9 to hold the water.
• Connect the appliance to an earthed socket.
• Switch the coffeepadmachine on with the on/off button ⏻ and press directly the 1-cup 📋

- button and 2-cups button at the same time. To rinse the appliance, don't let it heat up.

• The coffeepadmachine will now fill the boiler and rinse

1 10 9 max.

Close-up of a laboratory microscope with a labeled component '13' (no other text or symbols visible)

Close-up of a surface with three circular indentations (no text or symbols visible)

the appliance.

- The coffeepadmachine will switch off automatically as soon as the rinsing is done.

4 | TASTE-SELECTOR

The taste-selector 5 📄 ⚠⋯⋯ ⬆ provides you with the possibility to select and adjust your individual wateramount/ coffeestrenght. You can slide the taste-selector to the left and the right.

• When you slide the taste-selector to the left, you will get stronger coffee with a smaller amount of water.
• Place the taste-selector in the middle and you will get a standard amount of coffee.
• When you slide the taste-selector completely to the right, the coffee will get thinner because the appliance will use more water. We advise to place a small mug when you use this selection.

5 | MAKING COFFEE

• Fill the removable waterreservoir 1 with cold water to the maximum level and place it in the coffeepadmachine.
• Switch the coffeepadmachine on with the on/off button ⏻ and the appliance will now heat up the water. The red light 6.1 will blink slowly while heating. This will take 2 minutes.
• Open the drawer 10 by gently pulling on the handles of the coffee-outlet 9. The drawer will now slide open.
• Place a coffeepad in the multi-padholder 13 with the round side downwards and press it lightly. Make sure that the coffee is well spread and loose.

Depending on the cups of coffee you want to make, you can place one or two coffeepads in the multi-padholder. This coffeepadmachine can be used with almost all available coffeepads. You can place one or two coffeepads and coffeepads of different sizes in the multi-padholder 13. The coffeepadmachine will automatically adapt to the number of coffeepads you have placed (max. 2 coffeepads).

Warning: do not use the holders for grounded coffee.

• Slide the drawer 10 gently inwards until it can't go further. The green light 6.2 will light up indicating that the drawer 10 is locked correctly. The appliance can not make coffee when the green light is not lit.
• Place one or two cups under the coffee-outlet 9.
• Adjust the taste-selector 📄 ⋆⋯⋯ Ⓤ for the amount of water to your own taste.

If you choose to get more water, your cup will be filled

Close-up of a black electronic device with three circular buttons and a dimension label '5' (no readable text or symbols beyond basic design)

1 10 max. 9

6.1 6.2 5

10 13 6,2

more, but the coffee will get thinner. If you choose less water, your cup will become less full, but the coffee will get stronger.

• Press gently on the button of the number of cups you want to make, 1 or 2, respective button
  • The coffeepadmachine will now make coffee with the amount of water you selected and will pour it in the coffeecup. When you want the appliance to stop making coffee prematurely, press any button.
• If you want to make more cups of coffee, you have to wait until the green pilot lamp 6.2 doesn't blink any longer. You can than open the drawer to place new coffeepads.

Modern coffee maker with steaming cup on a counter (no visible text or symbols)

Black and white photo of a coffee maker pouring liquid into a cup on a steamer (no text or symbols visible)

WARNING! As long as the pilot lamp 6.2 blinks, you should not remove the waterreservoir and you should not open the drawer.

6 | MAKING TEA

To make tea with your coffeepadmachine it is necessary that you replace the coffeepadholder with the enclosed teapadholder. The teapadholder is enclosed in the box. You will recognize the teapadholder from the different color and the teamaker (with a "T") in the middle of the holder.

• Fill the removable waterreservoir 1 with cold water to the maximum level and place it in the coffeepadmachine.
• Switch the coffeepadmachine on with the on/off button ⏻ and the appliance will now heat up the water. The red light 6.1 will blink slowly while heating. This will take 2 minutes.
• Open the drawer 10 by gently pulling on the handles of the coffee-outlet 9. The drawer will now slide open.
• Place a teapad in the teapadholder 15 with the round side downwards and press it lightly. Make sure that the tea is well spread and loose.

Depending on the cups of tea you want to make, you can place one or two teapads in the teapadholder.

- Slide the drawer 10 gently inwards until it can't go further. The green light 6.2 will light up indicating that the drawer 10 is locked correctly. The appliance can not make tea when the green light is not lit.

1 10 max. 9

6.1 6.2 5

- Place one or two cups under the coffee-outlet 9. - Adjust the taste-selector 📋 🐎 🐎 🐎 for the amount of water to your own taste. If you choose to get more water, your cup will be filled more, but the tea will get thinner. If you choose less water, your cup will become less full, but the tea wil

• Press gently on the button of the number of cups you want to make, 1 or 2, respective button 📁 or 🌐
• The coffeepadmachine will now make tea with the amount of water you selected and will pour it in the teacup. When you want the appliance to stop making tea prematurely, press any button.
• If you want to make more cups of tea, you have to wait until the green pilot lamp 6.2 doesn't blink any longer. You can than open the drawer to place new teapads.

WARNING! As long as the pilot lamp 6.2 blinks, you should not remove the waterreservoir and you should not open the drawer.

7 | CLEANING & MAINTENANCE

We advise to clean the coffeepadmachine on a regular bases. Regular cleaning will prolong the life of your appliance and will guarantee optimal brewing results.

Please do as follows:

Check before cleaning if the coffeepadmachine is switched off und unplugged. Clean the outside of the appliance with only a damp cloth and dry it with a dry cloth. Never use any abrasives! Never place the appliance in or under running water.

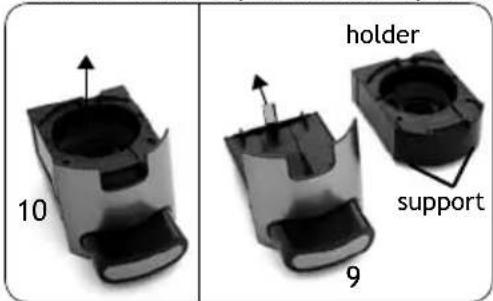

REMOVING AND CLEANING THE COMPLETE DRAWER

• Open the drawer 10 for the coffeepadholder by pulling the handle 9 on the side of the drawer outwards gently. The drawer 10 will now slide open.
• At the lower left side of the drawer you will find a small movable pin. Push the pin to the right and keep it there. You can now remove the complete drawer from the machine.
• To replace the drawer in the machine, you only have to make sure to place it carefully in the guides. You can push back the drawer in the machine. A “click” indicates that the drawer is placed correctly in the guides.

holder support 10 9

Close-up of a mechanical component with a highlighted section and an arrow pointing to it (no visible text or symbols)

• The complete drawer is made out of two parts. The top is the holder for the multi-padholder and the bottom is the coffee-outlet. To clean the two thoroughly, you can take it apart.
• At the backside there is a clamp, holding the holder on the drawer. You can pull the clamp gently backwards until you can pull the holder upwards. Remove the complete holder from the drawer.
• To replace the holder on the drawer, you should place the supports at the front of the holder in the recesses at the top of the drawer. Than you can push back the holder until the clamp snaps in place.

CLEANING SEPARATE PARTS

- Clean the separate parts: the multi-padholder 13, the cremamaker 14, the drawer 10, the grid 7 and the driptray 8 with warm water and some washing-up liquid or in the dishwasher and make sure that the parts are dry before next use.

Exploded view of a VR headset showing front, side, and rear views with numbered labels (no text or symbols beyond numbers)

• Pay attention to clogging the small drains in the middle of the padholder 13 and the outside of the cremamaker 14. Remove the cremamaker 14 by pushing it out, from below, with a blunt object like a pen or the back of a teaspoon. This also concerns the teamaker in the teapadholder 15.
• Check every day if the driptray 8 is empty and there are no used coffeepads in the appliance. If the driptray is full, it will overflow and the liquid will flow under the appliance.

DESCALING

We advise to descale your coffeepadmachine on a regular bases. The period depends on the condition of your water and the frequency of use. We advise to descale the coffeepadmachine approx. every three months. You can use a special descaling product for coffeemachines.

When you use a descalingproduct especially for coffeemachines, you will have to follow the instructions on the package of the descalingproduct accordingly.

• Switch off the coffeepadmachine with the on/off button.
• Fill the reservoir according the instructions on the package of the descalingproduct.
• Place a large mug or bowl under the coffee-outlet to collect the descalingmixture.
• Open the drawer for the coffeepadholder by pulling the handle on the side of the drawer outwards gently. The drawer will now slide open.
• Place a new or used coffeepad in the multi-padholder with the bulging side down and press it lightly. The coffeepadmachine will be better descaled when you do this and it cannot be clogged with descalingbits.
• Slide the drawer gently inwards until it can't go further.
• Switch the coffeepadmachine on with the 📁 button and press directly the 1-cup 📋 button and 2-cups - 📋 button at the same time. Do not let the machine heat up.
  • The coffeepadmachine will now rinse with the

descalingmixture.

- The coffeepadmachine will automatically switch itself off when the rinsing process is ended. Repeat the process until the waterreservoir is empty. After the descaling you will have to rinse the machine upto 3 times with 1 liter of fresh cold water to make sure that there is no descaling product left behind in the coffeepadmachine to avoid a bad taste to the coffee.

Attention! If you haven't used the coffeepadmachine for a while, for instance if you have been away on a holiday, you should remove all the separate parts for cleaning and rinse the coffeepadmachine with fresh water. Place the cleaned parts in the machine. This prevents an additional taste.

8 | SOLVING A MALFUNCTION

When the appliance has a malfunction, one or two pilot lamps will blink fast.

Lamp Color Condition Explanation
6.1/6.2 red/green		constantly Coffeepadmachine is ready for use.
6.1 red blinking		slowly	Appliance is heating up.
6.1 red blinking		fast	Malfunction in the appliance, see the table below.
6.2 green constantly Coffeepaddrawer is locked correctly and the appliance is ready for making coffee.
6.2 green blinking slowly			Don’t open the drawer, it is still locked. Please wait a couple of seconds until the pilot lamp lights constantly.
6.2 off off Coffee paddrawer is not locked, open the drawer and lock it again.

Check the following steps to solve the malfunction yourself.

Cause

Waterreservoir is not placed correctly

Solution

Empty the reservoir, fill it up again to the maximum-level and place it on the coffeepadmachine.

Cause

Waterlevel is under the minimum

Solution

Fill the waterreservoir to the maximumlevel.

Boiler overheated

Solution

Switch the appliance off and rinse it as described in the chapter “To rinse the machine”.

Cause

There comes less or no coffee at all out of the coffee-outlet.

Solution

Remove the cremamaker by pushing it out, from below, with a blunt object like a pen or the back of a teaspoon and rinse it with warm water. One grain of coffee can cause it to be blocked.Check if the coffee-outlet is clogged and if necessary clean it.Check the position of the taste-selector.We advise to loosen the coffee in the coffeepads before you place them in the machine. This will ensure a better transit of the water and will give a finer layer of coffeecrema.

Cause

Coffeepaddrawer won’t open (vacuum).

Solution

You can solve the vacuum yourself by decompressing the appliance using the valve inside the small hole on the back of the appliance.Procedure: Make sure that the waterreservoir is placed on the appliance. On the back of the appliance you will find a small hole in the housing. Put a thin, blunt object inside the hole to activate the valve. Keep pressing it during several seconds until the water stops flowing back into the waterreservoir and both pilot lamps (red and green) light up constantly.Careful: the water that is being pumped back, is hot. You have successfully decompressed the appliance. After you can open the coffeepaddrawer again, you must clean the cremamaker and the multi-padholder. If you do not clean the parts, the cause of the vacuum will not be solved and at re-use the appliance will get locked again.Cleaning the creamamaker: Remove the cremamaker by pushing it out, from below, with a blunt object like a pen or the back of a teaspoon and rinse it with warm water. One grain of coffee can cause it to be blocked.

Cause

The lock does not work - the pilot lamp 6.2 keeps blinking.

Solution

Check if the coffeepad(s) has (have) been placed correctly.Coffeepaddrawer is not locked, open the drawer and lock it again.Check the multi-padholder - at the back there should be a protrusion sticking out, when this has broken off the machine is not able to make coffee. Order a new multi-padholder at your supplier.

GARANTIE & SERVICE

• This product is guaranteed for a period of 2 years from the date of purchase against mechanical and electrical defect.

• Guarantee can only be given if proof of purchase (e.g. till receipt) can be shown. Therefore keep it in a safe place. The guarantee period starts at date of purchase.
  • Guarantee is not valid in case of:

• normal wear;

• damage through misuse use or when the instructions were not followed correctly;
• lack of maintenance;
• not following the operation- and safety instructions;
• incompetent montage or repairs made by yourself or others;
• using accessories and spare parts which are not suitable for the appliance; for assessment by our technical department.

• The guarantee is not valid for:

• normal wear;
• external cables;
• (interchangeable) signal- and controllamps for assessment by our technical department.

Return to your supplier of send the appliance, including a copy proof of purchase and description of the complaint, stamped to:

Inventum Holland BV

new E.T.P. bvba

Generatorstraat 17

Passtraat 121

3903 LH VEENENDAAL

9100 Sint Niklaas

THE NETHERLANDS

BELGIUM

AVC Service GmbH

Höhenstrasse 24

70736 Fellbach

GERMANY

• Pack it carefully (preferably in the original carton). Ensure unit is clean.
• Enclose your name and address and quote model number on all correspondence.

When the guarantee is no longer valid or when the period of guarantee has passed, we will charge any costs that flow out of an assessment and/or repairing.

On request we will supply a statement before repairing. Without requesting a statement, we assume that you, by sending the appliance, automatically order to repair the appliance.

A guarantee period of two months is valid for repairs done by our technical department and the used spare parts, counting from the repairdate. When a malfunction occurs within this period which directly flows out of the repairs and the used spare parts, the consumer has the right of repairs without any costs.

Inventum Holland BV
