Inpput R6 Traveller - Mouse Soyntec - Free user manual and instructions

Product type	Foldable wireless mouse
Brand	Soyntec
Model	Inpput R6 Traveller
Dimensions (open)	108 x 58 x 33.6 mm
Dimensions (folded)	72 x 58 x 28.7 mm
Net weight	65 g
Power supply	2 AAA batteries (included)
Sensor technology	Switchable optical sensor
Resolution	800 / 1200 / 1600 DPI (selectable)
Connectivity	Wireless 2.4 GHz
Receiver	USB nano-receiver (stored in mouse)
Buttons	3 buttons + scroll wheel
Number of channels	32 channels to avoid interference
LED indicator	Battery level and sensitivity
Plug & Play	Yes, no driver needed
Receiver storage	Built-in compartment in the mouse
Energy saving mode	Automatic sleep after inactivity
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive or corrosive products.
Safety	Do not expose to shocks, dust, direct sunlight, humidity or extreme temperatures. Do not disassemble. Avoid looking directly at the sensor light.
Repair and spare parts	Repair by qualified personnel only. 36-month warranty (EU). Contact technical support.
Box contents	R6 Traveller mouse, USB nano-receiver, 2 AAA batteries, user manual

Frequently Asked Questions - Inpput R6 Traveller Soyntec

How to change the mouse sensitivity (DPI)?

Press the DPI button on the mouse. The LED flashes once for 800 DPI, twice for 1200 DPI, and three times for 1600 DPI.

What type of batteries to use and how to install them?

Use two AAA batteries (included). Open the battery compartment under the mouse, insert them following polarity, then close.

How to pair the mouse with my computer?

Insert the USB nano-receiver into a free port on the computer. Automatic installation takes a few seconds. No driver is required (Plug & Play).

What to do if the mouse does not work?

Check that the batteries are correctly installed and not discharged. Make sure the receiver is properly connected. Keep away from metal objects or other wireless devices. If the problem persists, unplug and replug the receiver.

How to know if the battery is low?

The LED flashes to indicate low battery. Replace the batteries as soon as possible.

Can the mouse be used on a glass or glossy surface?

No, it is not recommended to use the mouse on very glossy or transparent surfaces as this may impair the optical sensor's function.

Is the mouse compatible with Mac and Windows?

Yes, the mouse is compatible with all operating systems with a USB port. It works Plug & Play without specific drivers.

How to fold the mouse for transport?

The R6 Traveller mouse has a foldable structure. Close it by folding the side parts. You can store the nano-receiver in the compartment provided for this purpose.

How to clean the mouse?

Use a soft, dry cloth to clean the surface. Do not use abrasive or corrosive cleaners. Avoid moisture.

What is the range of the wireless mouse?

The mouse uses 2.4 GHz technology with 32 channels to avoid interference. Range may vary, but it typically works up to 10 meters under normal conditions.

USER MANUAL Inpput R6 Traveller Soyntec

Enjoy the advanced features of this technological product that we have developed with maximum guarantees for you.

R6 Traveller

Series

Wireless mouse

1. INTRODUCTION

Soyntec™ give you thanks for buying Soytec Mouse R6 Traveller. We wish you enjoy using it.

Wireless and foldable mouse with Nano USB receiver, ideal for talking with you wherever you go. High precision with 1.600 dpi that provide superior smooth movement. Nano USB receiver with minimum size and maximum convenience.

We recommend to read this user manual in order to enjoy the product in a safe way and with the best features.

2. CARE AND MAINTENANCE

Do not expose your R6 Traveller to shakes, dust, direct sun light, moisture or extreme temperatures.
Do not use abrasive or corrosive cleaners.
- Keep the device clean and without dust with a soft and dry cloth.
Do not disassemble the device. Any repair work must be performed by qualified Energy Sistem Soyntec's personnel.
- Keep distance to water or moisture which could be harmful to the device.
- Avoid to look directly to the sensor light in the bottom of the mouse.

3. MAIN FEATURES

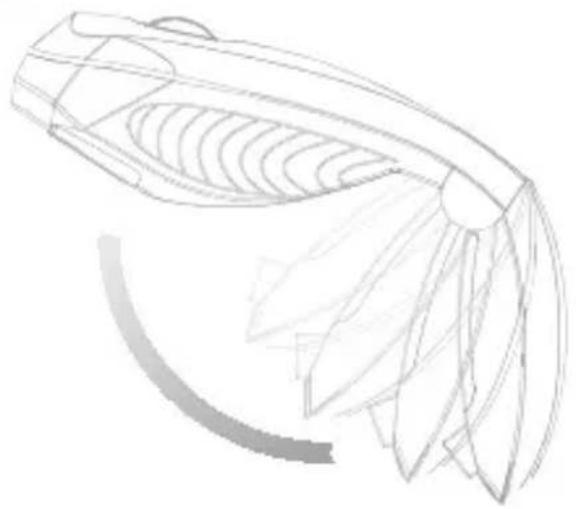

• Foldable structure, ideal for taking with you wherever you go.
  Commutable optical sensor: 800 / 1200 / 1600 dpi.
  2.4 GHz wireless technology.
  Micro sized USB nano receiver.
• Allows to store the nano receiver inside the mouse built-in slot.
  Sleeping mode for energy saving.
  3 functional buttons and scroll wheel.
  32 channels to avoid interferences.

Battery status indicator.
Plug & Play: No need for drivers.
Mouse size: 108 × 58 × 33.6 mm .
- Folded mouse size: 72 × 58 × 28.7 mm .
Nano receiver size: 18 × 14 × 6 mm .
Net weight: 65 grs.

4. PRODUCT CONTENT

R6 Traveller mouse.
USB nano-receiver.

2 AAA batteries.
User manual.

5. INSTALLATION

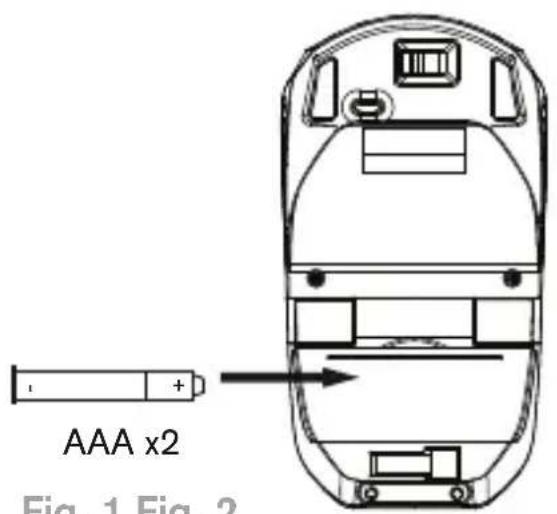

Fig. 1 Fig. 2

1. Insert the battery in the Mouse.

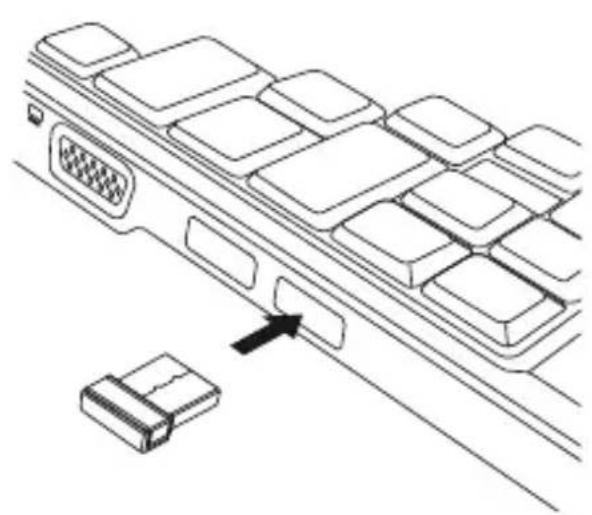

2. Connect the nano-receiver with a free USB hub of your computer.
3. Wait until the automatic installation complete.
4. Click the right or left mouse button in order to activate it.
5. You can start to use it.

6. USE INFORMATION

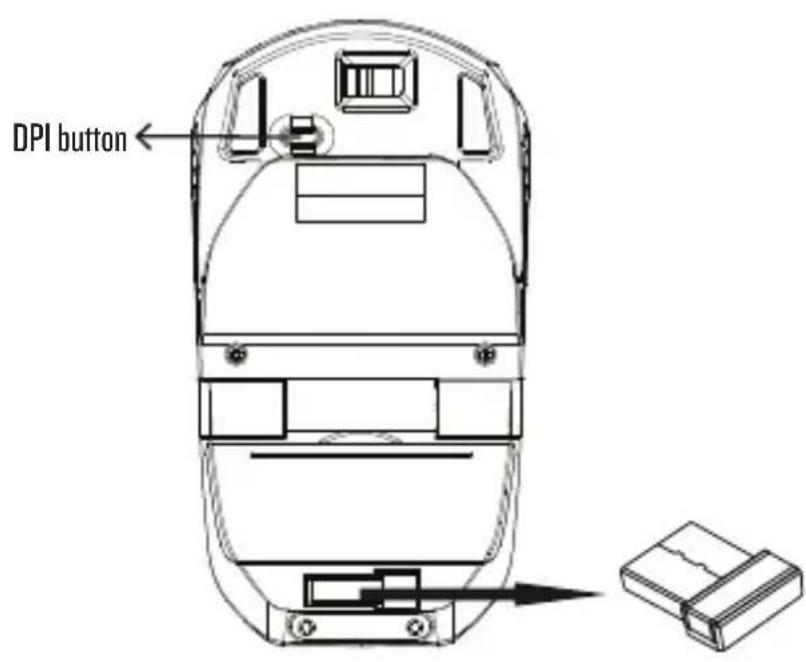

You can store the nano-receiver inside the mouse built-in slot as showed in the Figure 6.

Fig. 6 Fig. 7

• Click the DPI switch to select between 800 DPI and 1600 DPI.
  Energy save function: mouse will be inactive after sometime without use. Click the right or left mouse button to activate it.

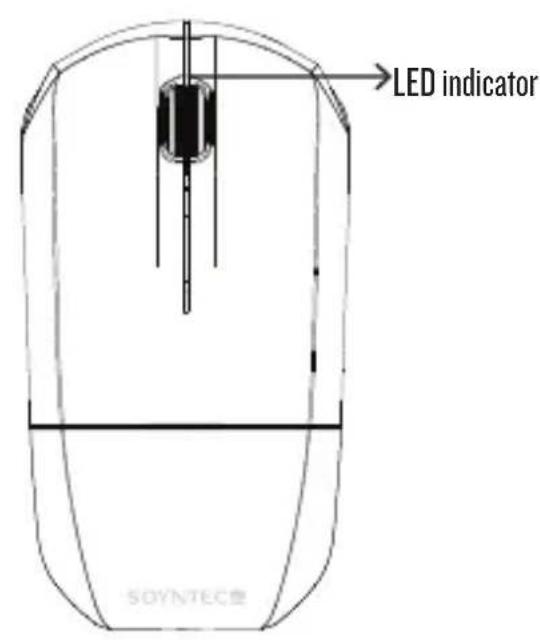

  LED indicator function:

Flash: low battery.
Blink once: 800 DPI.
Blink twice: 1200 DPI.
Blink three times: 1600 DPI.

7. SUGGESTIONS AND ADVERTISING

If there is any metal object close to the nano-receiver, please remove it, as it may obstruct the wireless transmission.
If there are any other wireless device close to the nanoreceiver please remove the receiver and reconnect it to get a different communication ID.
Do not leave nano-receiver next to Bluetooth dongle.
- Do not use mouse on very shiny surface or transparent surface.

8. WARRANTY

Energy Sistem Soyntec SA is liable for any lack of conformity which exists at the time the goods were purchased during a period of 36 months.

This warranty covers any defects in workmanship or materials. This warranty doesn't cover any failure of the product due to accidents, misuse or alteration made by an unauthorized person.

The special 36-months warranty is valid for the European Union. For other countries, please refer to your specific legislation or your local distributor.

9. WARRANTY PROCEDURE

1) Visit the Support section at http://support.soyntec.com and select your product to view the FAQ (Frequently Asked Questions).

The solution to your problem is very likely to have been already published there. You will also be able to download user manuals, user guides, drivers and updates. You can check the availability of the user manual in your language at

http://www.soyntec.com/en-en/support/manuals

2) If you cannot find an appropriate solution in the Support section, you may send us your enquiry or warranty service request by email: [e-mail]
3) Alternatively, you may prefer to contact the distributor from which you purchased the product, presenting the purchase receipt or invoice.

Trademarks. All company, brand and product names are trademarks or registered trademarks of their respective companies.

© 2013 by Energy Sistem Soyntec S.A. All rights reserved.

CE

10. AGREEMENT DECLARATION

26/03/2013

Manufacturer Name: Energy Sistem Soyntec S. A.

Address: Pol. Ind. Finestrat, C/. Calpe, 1 - 03509, Finestrat Alicante (Spain)

Tel: [phone]

Fax: [phone]

NIF: A53107488

We declare under our own exclusive responsibility that the product:

Soyntec™ Wireless Mouse R6 Traveller Series

Manufacturing country: China

Is in compliance with the essential norms and standards of the Directive 2004/108/EC of the European Parliament and of the Council of December 15th 2004.

SOYNTEC
