Product type	Wireless mouse
Brand	Soyntec
Model	R5 Wireless Black Forest
Connection technology	2.4 GHz radio with nano receiver
Wireless range	Up to 10 meters
Sensor	Optical, adjustable resolution (800/1200/1600 DPI)
Buttons	6 buttons (left click, right click, clickable scroll wheel, forward, back, DPI)
Power supply	2 AAA batteries (not included)
Battery life	Approximately 12 months with normal use
Dimensions (L x W x H)	125 x 70 x 40 mm
Weight	95 g (without batteries)
Compatibility	Windows, macOS, Linux, Chrome OS
Usage	Office, light gaming, browsing
Maintenance and cleaning	Clean with a soft slightly damp cloth. Do not use solvents.
Safety	Compliant with CE and RoHS standards. Use only recommended batteries.
Spare parts and repairability	AAA batteries easily replaceable. No other spare parts available.
Warranty	2 years (see manufacturer conditions)
Box contents	Mouse, USB nano receiver, demo battery, quick start guide

Frequently Asked Questions - R5 Wireless Black Forest Soyntec

How to connect the R5 Wireless Black Forest mouse to my computer?

Insert the batteries into the mouse, turn it on using the switch under the mouse. Plug the USB nano receiver into a free port on your computer. The connection establishes automatically. If not, press the pairing button under the mouse for 3 seconds.

What to do if the mouse does not work?

Check that the mouse is turned on (switch in ON position), that the batteries are properly inserted and not discharged. Try plugging the receiver into another USB port. If the problem persists, reset the mouse by removing the batteries and pressing the pairing button for 10 seconds.

How to change the cursor resolution?

Press the DPI button located on top of the mouse to switch between 800, 1200, and 1600 DPI levels. The LED flashes to indicate the change.

What is the battery life?

The mouse operates with 2 AAA batteries. Battery life can reach 12 months depending on usage. A red indicator under the mouse lights up when batteries are low.

Is the mouse compatible with Mac?

Yes, the R5 Wireless Black Forest mouse is compatible with macOS, Windows, Linux, and Chrome OS. Simply plug in the receiver and it works without additional drivers.

How to clean the mouse?

Use a soft slightly damp cloth to wipe the surface. Do not use chemicals or abrasives. Clean the optical sensor regularly with a dry cotton swab.

Can I use the mouse without the receiver?

No, this mouse uses a 2.4 GHz radio connection via the provided nano receiver. It is not Bluetooth compatible. Store the receiver in the compartment under the mouse when not in use.

What to do if the cursor jumps or is imprecise?

Make sure the surface is flat and non-reflective (mouse pad recommended). Clean the optical sensor. Check that the range does not exceed 10 meters and that no metallic obstacle interferes with the signal.

How to replace the batteries?

Turn the mouse over, open the battery compartment cover by sliding the latch. Replace the two AAA batteries respecting the indicated polarity (+/-). Close the cover.

Is there configuration software?

No, the mouse is plug-and-play. The additional buttons (forward, back) are natively recognized by operating systems. No specific driver or software is required.

USER MANUAL R5 Wireless Black Forest Soyntec

ES

Manual de usuario

EN

User manual

FR

Manual de usuario

Fig. 1 Fig. 2

Fig. 6 Fig. 7

Fig. 8

User manual

Enjoy the advanced features of this technological product that we have developed with maximum guarantees for you.

R5 Wireless Series

Wireless mouse

1. INTRODUCTION

Soyntec™ give you thanks for buying Soyntec Mouse R5 Wireless. We wish you enjoy using it.

Wireless long range technology mouse. High precision with 1.600 dpi that provide superior smooth movement. Integrates a small sized nano-receiver which can be either stored in the mouse or integrate inside your laptop.

We recommend to read this user manual in order to enjoy the product in a safe way and with the best features.

2. CARE AND MAINTENANCE

• Do not expose your R5 Wireless to shakes, dust, direct sun light, moisture or extreme temperatures.
• Do not use abrasive or corrosive cleaners.
• Keep the device clean and without dust with a soft and dry cloth.
  Do not disassemble the device. Any repair work must be performed by qualified Energy Sistem Soyntec's personnel.
• Keep distance to water or moisture which could be harmful to the device.
• Avoid to look directly to the sensor light in the bottom of the mouse.

3. MAIN FEATURES

▶ Commutable optical sensor: 800 \~ 1600 dpi.
▶ 2.4 GHz wireless technology.
- Micro sized USB nano-receiver.
▶ You can store the nano-receiver inside the mouse built-in slot.
- 5 functional buttons and scroll wheel.
▶ 32 channels to avoid interferences.
▶ Plug & Play: No need for drivers.
▶ Only needs one AA battery to operate.

▶ Mouse size: 101 x 71 x 37,5 mm.
▶ Nano-receiver size: 18 x 14 x 6 mm.
Net weight: 68 grs.

4. PRODUCT CONTENT

▶ R5 Wireless mouse.
USB nano-receiver.
▶ 1 AA battery.
▶ User manual.

5. INSTALLATION

1. Insert the battery in the Mouse.

2. Connect the nano-receiver with a free USB hub of your computer.

Fig. 1 Fig. 2

1. Wait until the automatic installation complete.

2. Click the right or left mouse button in order to activate it.

3. You can start to use it.

6. USE INFORMATION

▶ You can store the nano-receiver inside the mouse built-in slot as showed in the Figure 6.

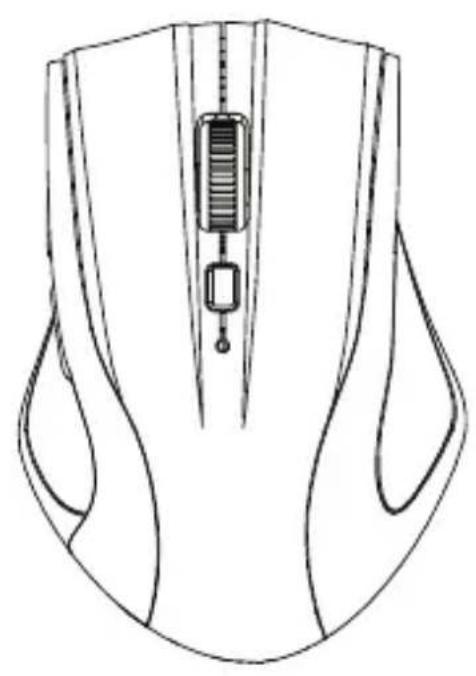

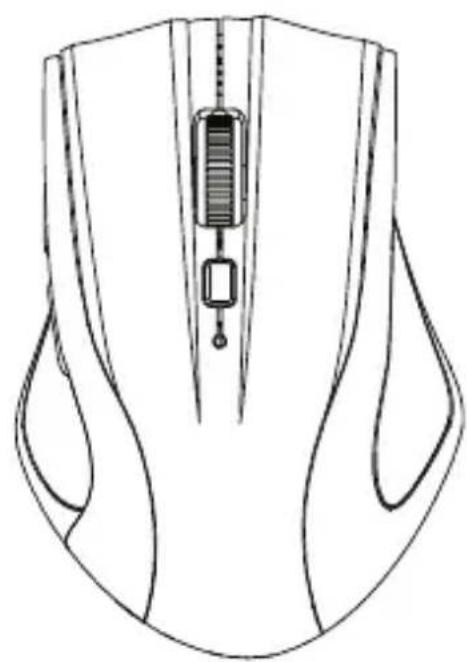

- Click the DPI switch to select between 800 DPI and 1600 DPI.

Fig. 6 Fig. 7

▶ Use the forward and backward lateral buttons for folders or internet navigation. They are very useful for games as well.

Fig. 8

▶ Energy save function: mouse will be inactive after sometime without use. Click the right or left mouse button to activate it.

7. SUGGESTIONS AND ADVERTISING

If there is any metal object close to the nano-receiver, please remove it, as it may obstruct the wireless transmission.
If there are any other wireless device close to the nano-receiver please remove the receiver and reconnect it to get a different communication ID.
- Do not leave nano-receiver next to Bluetooth dongle.
- Do not use mouse on very shiny surface or transparent surface.

8. WARRANTY

Energy Sistem Soyntec SA is liable for any lack of conformity which exists at the time the goods were purchased during a period of 36 months.

This warranty covers any defects in workmanship or materials. This warranty doesn't cover any failure of the product due to accidents, misuse or alteration made by an unauthorized person.

The special 36-months warranty is valid for the European Union. For other countries, please refer to your specific legislation or your local distributor.

9. WARRANTY PROCEDURE

1) Visit the Support section at http://support.soyntec.com and select your product to view the FAQ (Frequently Asked Questions).

The solution to your problem is very likely to have been already published there. You will also be able to download user manuals, user guides, drivers and updates. You can check the availability of the user manual in your language at

http://www.soyntec.com/en-en/support/manuals

2) If you cannot find an appropriate solution in the Support section, you may send us your enquiry or warranty service request by email: [e-mail]

3) Alternatively, you may prefer to contact the distributor from which you purchased the product, presenting the purchase receipt or invoice.

Trademarks. All company, brand and product names are trademarks or registered trademarks of their respective companies.

© 2013 by Energy Sistem Soyntec S.A. All rights reserved.

10.AGREEMENT DECLARATION

26/03/2013

Manufacturer Name: Energy Sistem Soyntec S. A.

Address: Pol. Ind. Finestrat, C/. Calpe, 1 - 03509, Finestrat Alicante (Spain)

Tel: [phone]

Fax: [phone]

NIF: A53107488

We declare under our own exclusive responsibility that the product:

Soyntec™ Wireless Mouse R5 Wireless Series

Manufacturing country: China

Is in compliance with the essential norms and standards of the Directive 2004/108/EC of the European Parliament and of the Council of December 15th 2004.
