USER MANUAL Dynamic Fun NGM-Mobile

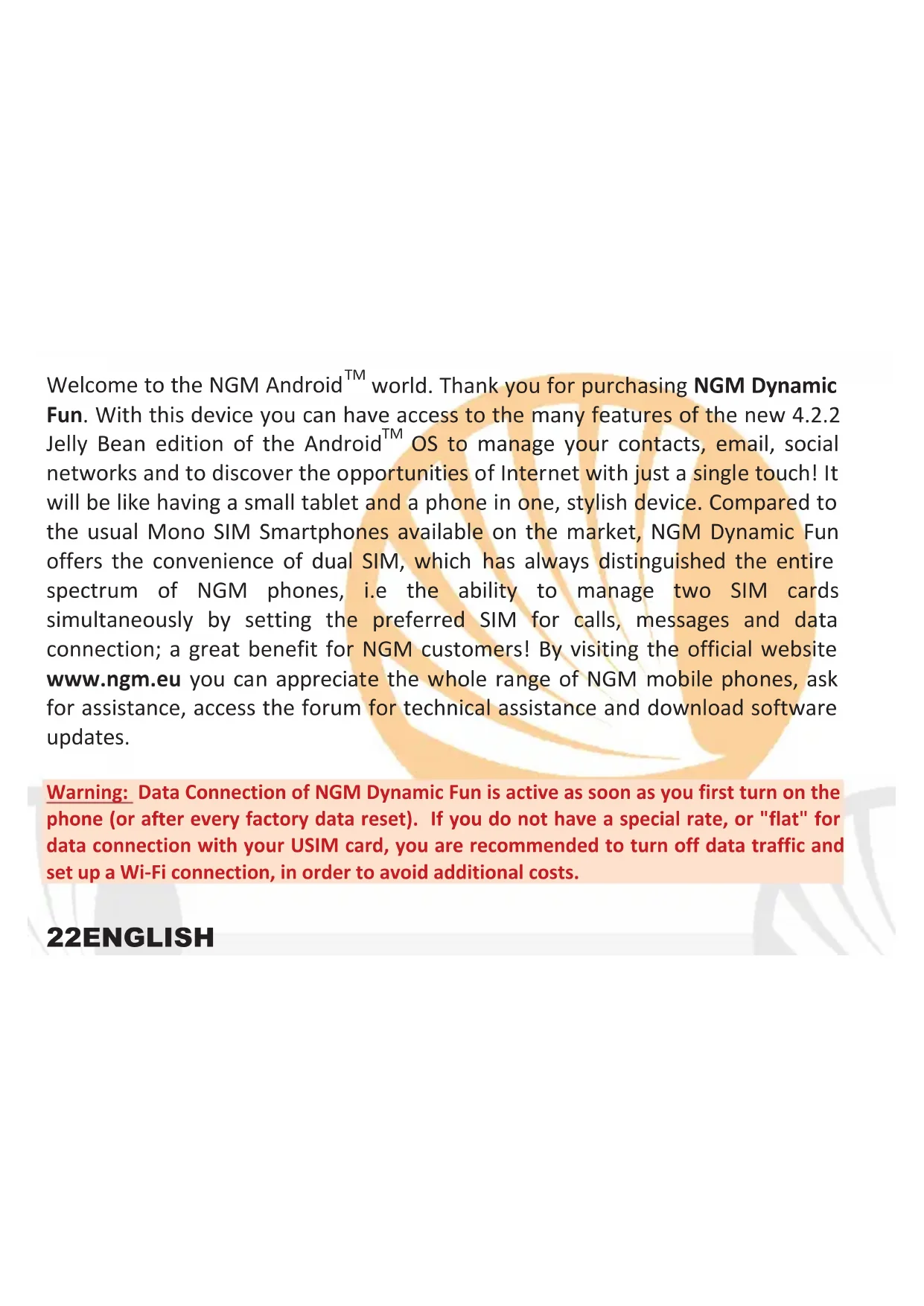

world. Thank you for purchasing NGM Dynamic Fun. With this device you can have access to the many features of the new 4.2.2 Jelly Bean edition of the Android

OS to manage your contacts, email, social networks and to discover the opportunities of Internet with just a single touch! It will be like having a small tablet and a phone in one, stylish device. Compared to the usual Mono SIM Smartphones available on the market, NGM Dynamic Fun offers the convenience of dual SIM, which has always distinguished the entire spectrum of NGM phones, i.e the ability to manage two SIM cards simultaneously by setting the preferred SIM for calls, messages and data connection; a great benefit for NGM customers! By visiting the official website www.ngm.eu you can appreciate the whole range of NGM mobile phones, ask for assistance, access the forum for technical assistance and download software updates.

Warning: Data Connection of NGM Dynamic Fun is active as soon as you first turn on the

phone (or after every factory data reset). If you do not have a special rate, or "flat" for data connection with your USIM card, you are recommended to turn off data traffic and set up a Wi-Fi connection, in order to avoid additional costs.23ENGLISH Set up Insert USIM cards: USIM cards contain your phone number, PIN codes, links to external services, contacts and other important details. To access the compartment containing the USIM slots, turn off the phone and lift up the cover from the bottom of the phone. Remove the battery. Insert the USIM cards into the slots with their gold contacts facing downwards. Insert SD card: To use all the functions of NGM Dynamic Fun, we recommend the use of a micro-SD card: insert it into the back side of the phone after removing the back cover and the battery; its slot is placed in the battery tray. Insert the micro-SD card into the slot, as shown, with the gold contacts facing downwards, after you have unlocked and opened the metal grid by pushing it in the OPEN direction. Lock it with the inserted memory card by pushing it in the LOCK direction.

Warning: insert USIM and SD Card only after removing

the battery, in order to prevent data loss.

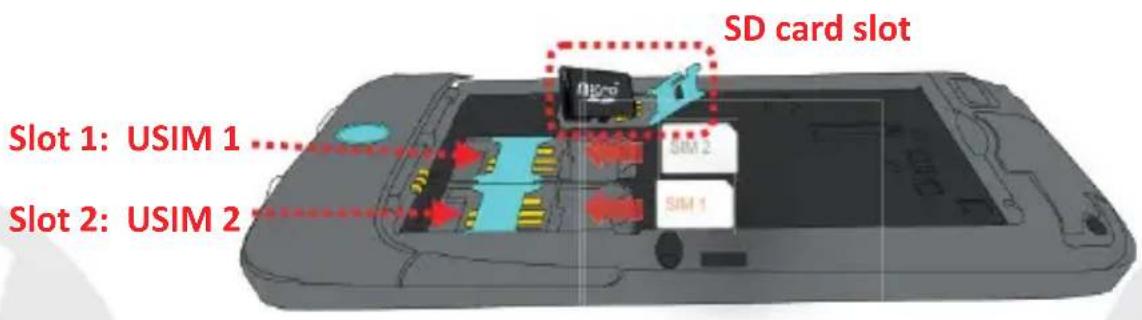

SD card slot SD card slot Slot 1: USIM 1

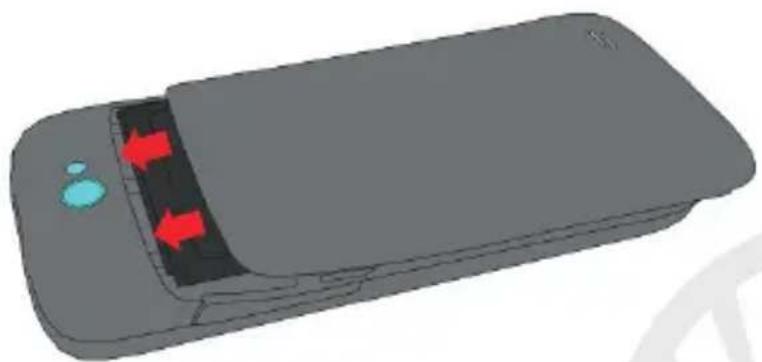

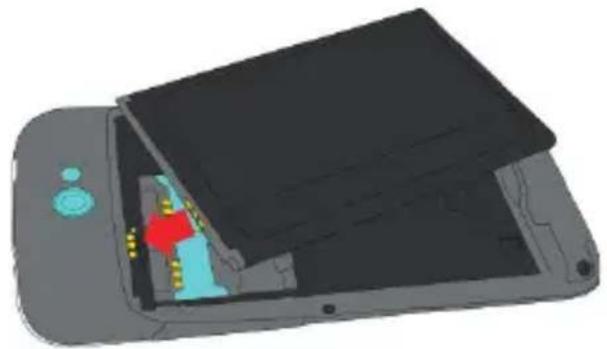

Slot 2: USIM 224 ENGLISH Inserting the Battery: Your device is provided with a lithium-ion battery and is designed to be used exclusively with original NGM batteries and chargers. The battery must be inserted into the backside of the phone. Insert the battery into the battery compartment with the contacts facing up, matching with those of the phone. When done, put the hind cover back into position as shown in the following illustrations.25ENGLISH Charging the battery: Charge the battery before starting to use the device. Use the supplied USB cable and the USB connector on the top side of the phone. Connect the charger to a provided wall socket adaptor, and then the device to the USB cable. You can charge the phone also connecting it with the PC USB port, but in this case it will charge more slowly. When the battery is charging, an animated icon on the screen will show the charging progress if the phone is on. Once the battery icon is filled, it is fully charged and the phone can be disconnected from the grid.

Warning: Do not connect the phone to a booting-up or running down PC to avoid voltage

jumps. To preserve the functionality of the product and the integrity of the guarantee, we recommend the use of NGM original chargers. Please charge the battery indoors, in a dry and favorable environment. It’s normal for the battery to get slightly warm during the charging process. The battery will reach its full capacity when cycled several times. Turn on, turn off and standby To turn on the phone, press and hold the power on/off key To turn off your device, press and hold the same key and confirm by selecting "Shutdown". A quick pressure sets the phone in stand-by mode (screen off) or allows you to go back to the lock screen (see below).26 ENGLISH Main screen: Use the touch screen by tapping, holding or dragging a finger across the screen The main screen is the starting point for using all the applications on your phone. Other main screen pages are available (as indicated by the white bar), just swipe the screen left or right. These pages can be customized with shortcuts of the favorite applications; to place a link on one of the main screens, press and hold the de sired shortcuts from the main menu and drag it up to "Move to Desktop." You can customize also the four widgets next to the central menu icon holding and moving them on the desktop. To delete shortcuts or widgets, tap and hold the icon and drag it up to th e "

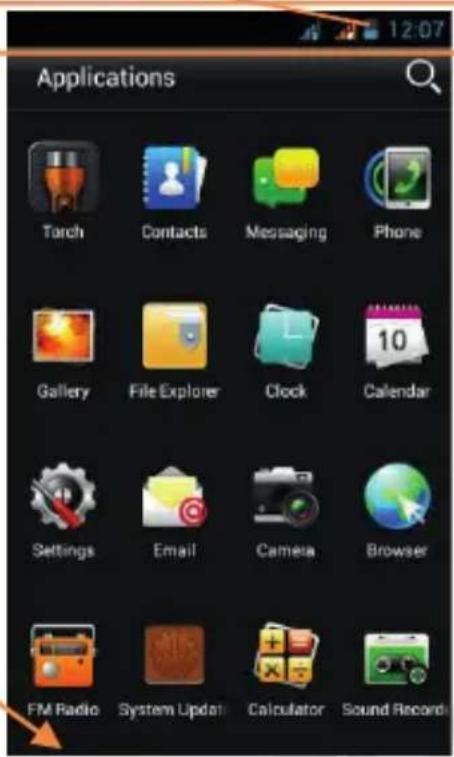

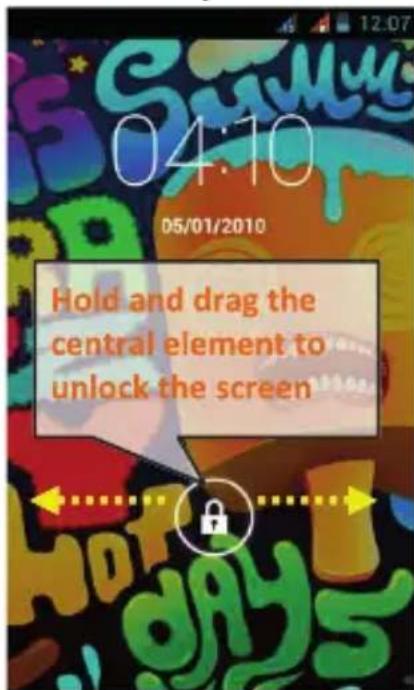

Delete " symbol on the screen. Moving an icon on another you can create folders on the desktop and pressing the contextual menu you can change the wallpaper. The main menu: The main menu: Select an application from the main menu or scroll left/right to view other Select an application from the main menu or scroll left/right to view other applications. Press the back button to return to the previous screen, press the Home key to applications. Press the back button to return to the previous screen, press the Home key to applications. Press the back button to return to the previous screen, press the Home key to return to the main screen, press the contextual menu to create folders and access the return to the main screen, press the contextual menu to create folders and access the return to the main screen, press the contextual menu to create folders and access the phone settings. phone settings. Standby Screen Hold and drag the central element to unlock the screen27ENGLISH

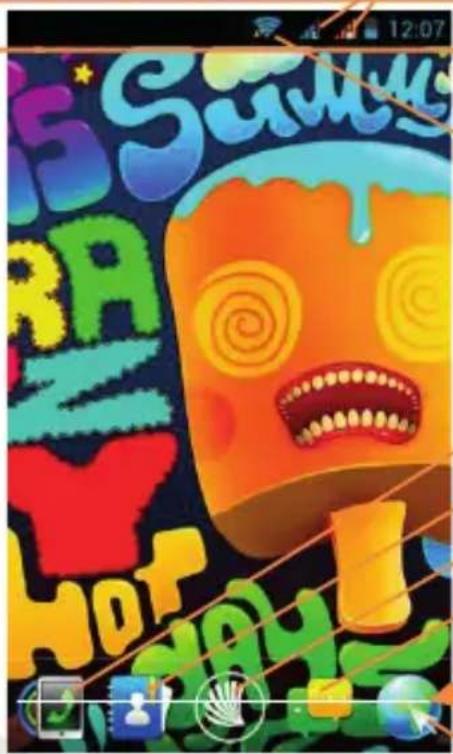

Home Screen Main Menu Notification panel USIM signal intensity and battery level Pages Indicator Bar Phone Phonebook Main Menu Browser Messaging Scroll HOME screens Scroll menu WiFi Signal Intensity28 ENGLISH

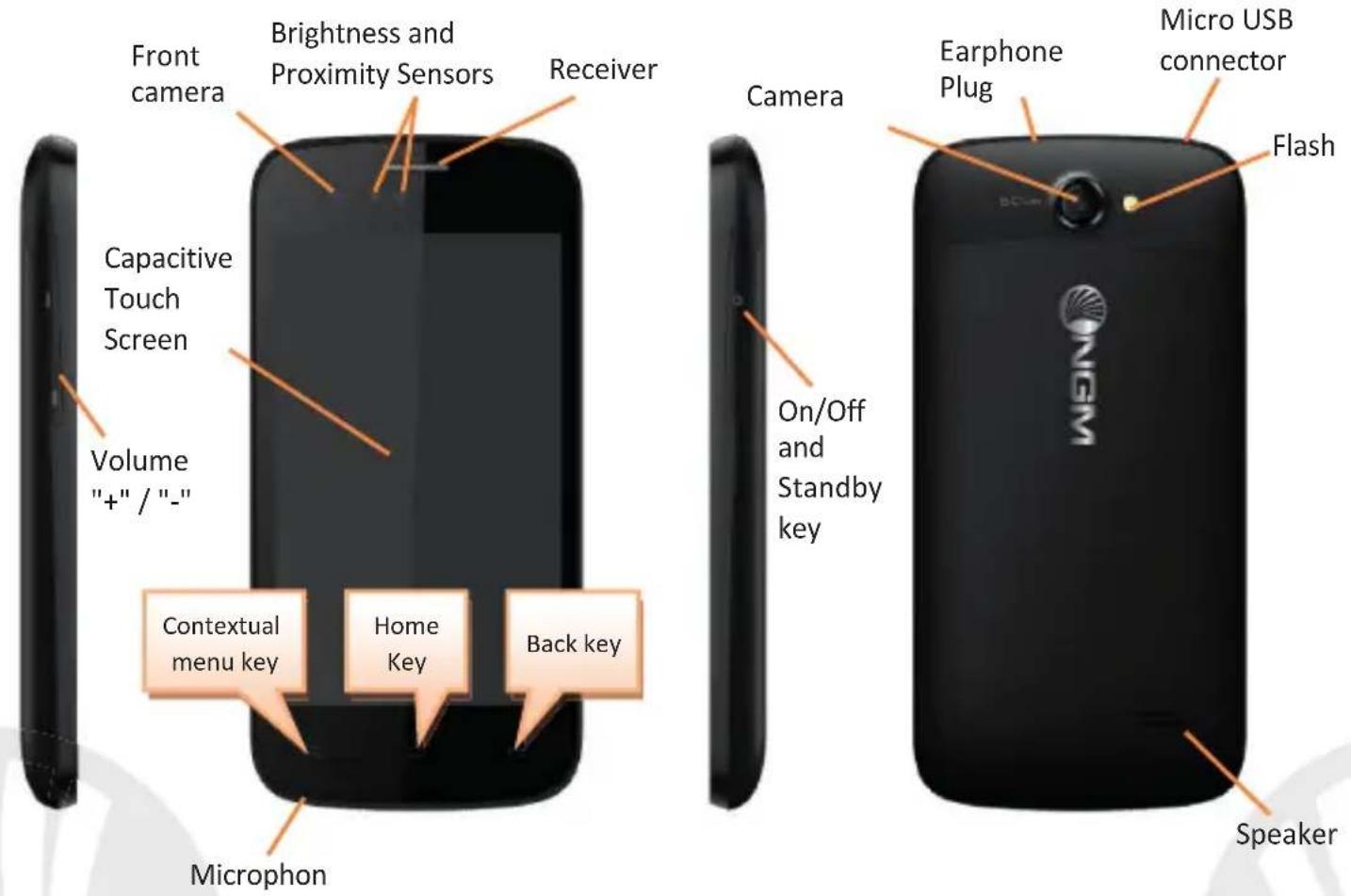

On/Off and Standby key Microphon

Speaker Capacitive Touch Screen Flash Camera Micro USB connector Earphone Plug Front camera Receiver Brightness and Proximity Sensors Contextual menu key Back key Home Key29ENGLISH SHORTCUTS Notification panel: To open the Notification panel, touch the upper area containing the battery and signal-intensity icons and drag it downwards. Tap the icon in the upper right to switch between notifications and Quick Setup buttons or tap the settings icon to open the phone Settings menu. To hide the panel, drag up the bottom of the panel or tap the Back button. Recent applications: When you are inside any application, long press the Home key: a list of the most recent applications you have access recently will be shown and it can be directly selected. Contextual Menu: Some applications provide a Contextual Menu Clicking on that icon, you can display a contextual menu referred to the application itself, with related functions. Lock screen and vibration From the main menu, select Settings > Security > Screen Lock. Select the desired unlocking mode (None, Slide, Face Unlock, Voice Unlock, Pattern, PIN or Password) and confirm. To quickly lock the screen, briefly press the power on/off key. To unlock it, follow the instructions on the screen. Quickly turn on/off vibration mode: To quickly disable ringtone for calls and messages, you can press and hold volume "-". Once you reach the minimum volume, the phone will enter the vibrating mode. Pressing volume "-" again, the phone will enter in silent mode.30 ENGLISH Managing the two USIM cards: from the main menu, select Settings > Dual SIM Settings . Select I/O keys next to the phone operators corresponding to "USIM1" and "USIM2" to selectively activate or deactivate the USIM at any time. From this menu you can also customize the color and name for each USIM icon and decide which USIM to use as default for calls, messages and data connection, choosing "always ask" if you don't want to set a SIM as default. In Settings > Mobile Networks > 3G service > Enable 3G you can select the SIM card on which you wish to activate the 3G service. This is an innovative feature that allows you to shift the 3G connection (that normally is only available on slot1) from one SIM to the other without having to physically exchange SIM cards. MANAGING CALLS: From the main screen touch the Phone icon; use the virtual keypad to digit the desired phone number. Press the dial icon and then the desired SIM if you haven't been set a default SIM for calls, otherwise, the call will start with the default SIM. To end the call press the red end call key. To answer a call, drag the light to the right on the green handset; to reject it, drag it to the left on the red handset, to reject with a message bring the handset up. To silence an incoming call, press Volume "+" or "-" (on the left side of the phone).31ENGLISH Call a number from the call log: From the main menu select the Phone icon. Above the keyboard the call log with missed, received and outgoing calls is displayed. Tap the phone next to the selected number and choose the SIM to place the call. MANAGING CONTACTS Add a new contact: From the main menu select the Contacts icon. Press the icon indicated by "+" symbol on the bottom bar. Select the storage where you want to save the contact (Phone, USIM1 or USIM2). Insert Name, Number and any other contact detail (if the contact is saved on USIM is not guaranteed saving any further details as well as the name and phone number) and confirm with Done. Add a new contact from the call log: From Phone menu, go to Call Log (upward the virtual keyboard). Touch the contact icon with the “?” symbol near the number you want to save into Missed, Received or Outgoing calls. Choose New Contact or add the number to an Existing contact. After you selected the save path and added name and any other information (if saving in Phone), confirm with Done. Note: In the contextual menu of the phonebook you can access to Import/Export functions and several other settings.32 ENGLISH It is possible to associate contacts to one of the SIM cards in order to automatically call those contacts with the associated SIM card; to associate a contact to one of the inserted SIM cards, press the context menu and choose Associate SIM card or from Settings > SIM Manager, choose Contact Association, select the SIM card and choose the contacts you want to associate with the SIM card from the phone book. To activate the associations, select the "Smart Dial" function in Settings > Dual SIM Settings > Contact binding. Set Ringtones From the main menu, select Settings > Ringtones and Vibration > Audio Profiles > General. Select Voice call ringtone, and choose the desired ringtone for both USIM. If you want to set a custom ringtone: in Music select the desired audio track with a long press and choose Ringtone in the contextual menu. So, the audio file will be added to the available ringtones list Send and read SMS and MMS Sending SMS and MMS: from the page or from the main menu, choose Messaging and then the middle icon on the bottom bar . Type the first letters of a name in the recipient field to search for a contact, select it from the pop-up or directly enter the recipient number, otherwise select the icon next to the field and check the recipients. Write the text into the dedicated space with the virtual keypad. Select the clip-icon to insert eventual multimedia files (the message will automatically be converted into MMS). Press either Send key, selecting the SIM you want to use. Note: you can set ringtones in *mid,*wav, *ogg or *mp3 formats.33ENGLISH Read SMS and MMS: when you receive a new SMS or MMS, an icon appears in the notification panel. Clicking on the icon appears, you can go directly to the conversation and read the incoming message. In any case, you can view the incoming messages from the home screen or menu, selecting Messaging. CONNECTIVITY To better use the potentiality provided by the device and its operating system, you need an active data connection; the data Connection of NGM Dynamic Fun is active when you first power ON the phone. If not provided by subscription, data traffic may cause you costs, so it is recommended to configure Internet connection via WiFi To enable data traffic on one of the USIM card, select Settings > SIM Manager > Data connection, or activate it via the shortcut icon in the notifications panel. Connect to the Internet using Wi-Fi®: You can connect to the WLAN using Wi-Fi option. To activate it, from the main menu choose Settings> WiFi I/O. Please follow all warnings and indications concerning the use of wireless devices in areas where the use of such functions is restricted (airplanes, hospitals, etc.). Go offline mode when you have to use only the functions that do not require Network access .34 ENGLISH Connecting to a Bluetooth® device: Turn on the Bluetooth device you want to connect with. Refer to the device documentation. From the main menu, choose Settings > Bluetooth I/O to turn Bluetooth on. In the contextual menu you will find additional functions and settings. Choose Search for devices to automatically find other Bluetooth devices. Among the discovered devices, select the device name to associate with. The phone will attempt to associate with the device, which may be asked for a pairing code. Connect to the Internet: From the main menu, choose Internet. Type the URL in the address bar to start browsing. If you choose to navigate using data connection, be aware of costs or choose a "flat" data contract with your service provider. Alternatively, use WLAN (see "Connectivity") where possible. Account setup: In order to better manage OS Android

functionalities, it is recommended to configure a default account. When you first power on the phone, it will guide you in configuring a default account that allows you to access OS Android

applications like Email sync, for example. E-mail: Configuring a default account you can easily manage e-mail and display it automatically on your phone. If you want to use also a different Email account from the default one, you can configure a new account with another provider within Email app in the Main Menu.35ENGLISH SwiftKey text input: SwiftKey is an advanced system for entering predictive text, is the default input method. When you write SMS, MMS or E-mail, this method predicts the word you are typing, changing it at any key press. During the first use, the program will prompt you with a pop-up the innovations and peculiarities of this writing system. SwiftKey has an "intelligent" dictionary that retrieves words also from other applications in the phone, such as phonebook or social networks etc. For the correct use of this function, the micro-SD contained in the selling package has to be installed. To change the text input parameters, select Settings > Language and input > SwiftKey for NGM. Synchronization: Synchronization is the most efficient approach to manage their useful data because it allows you to make a backup of the data on your device with an internet account. In case of replacement, loss or damage of the phone you will not experience loss of data. The synchronization can be automatic (Settings > More > Data usage > Contextual menu > Auto-sync data) or can be activated manually, individually for each installed application to be synchronized; you can find the list of such applications in Settings > Account [installed app list]. To add a new account, select Add Account. The synchronization uses an active data connection, which could result in data traffic costs. It is advisable to use a WiFi connection when available.36 ENGLISH GPS geolocalization: The Global Positioning System (GPS) is a satellite-based positioning system, with a global and continuous coverage. To access the GPS, select Settings > Location Access > GPS Satellites (I/O). When the GPS function is activated, the phone starts to collect data from satellites and determines the current position. The Fix Times (position detection) are variable and can be affected by several external factors (clouds, high buildings, etc.). Limit the use of battery and memory by switching off this function when you don’t need it. The device is compatible with NGM NAVIGATION SYSTEM

For more details on the system operation visit www.ngm.eu.

Warning: formatting and delivery of this user manual is based on the Android

operating system , NGM Italia will not bear responsibility for any incompliance with the above guidelines or improper use of the mobile phone NGM reserves the right to modify any of the content in this user guide without previous public announcement. The content of this manual may vary from the actual content displayed in the mobile phone. In such case, the latter shall govern.

Copyright © 2013 NGM Italia No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of NGM Italia. Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide. Wi-Fi® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.37DEUTSCH Kurzanleitung - Deutsch fun Dynamic38 DEUTSCH Herzlich willkommen in der Welt von NGM Android
