USER MANUAL KRP500AW PIONEER

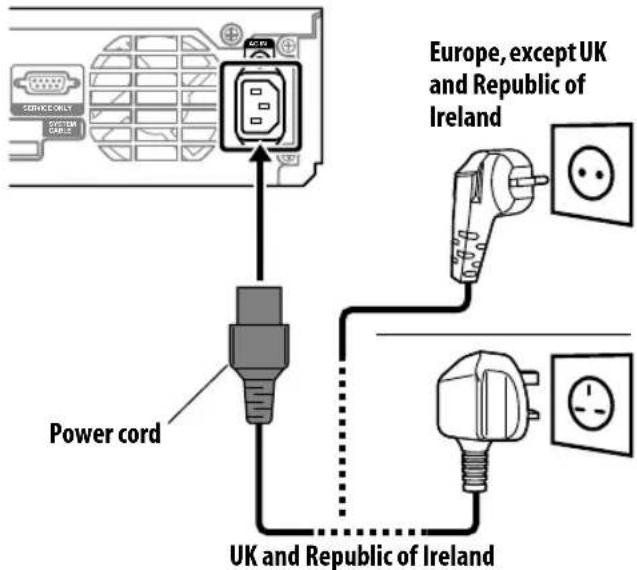

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT: THE MOULDED PLUG

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark

BSI mark

ody of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer.

If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

WARNING: THIS APPARATUS MUST BE EARTHED.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Green & Yellow : Earth Blue : Neutral Brown : Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows;

The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked with the letter E or

by the earth symbol (or coloured GREEN or GREEN-AND-YELLOW).

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

D3-4-2-1-2-1_B_En

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_En-A

CAUTION

The switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation). D3-4-2-2-2a_A_En

Operating Environment

Operating environment temperature and humidity: +0^ to +40^ (+32^ to +104^) less than 85% RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light) D3-4-2-1-7c A En

WARNING

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries. D3-4-2-3-3 En

Information for users on collection and disposal of old equipment and used batteries

(Symbol for equipment)

(Symbol examples) for batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058_B_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_B_En

This product complies with the Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC.

D3-4-2-1-9a_A_En

WARNING

This product equipped with a three-wire grounding (earthed) plug - a plug that has a third (grounding) pin. This plug only fits a grounding-type power outlet. If you are unable to insert the plug into an outlet, contact a licensed electrician to replace the outlet with a properly grounded one. Do not defeat the safety purpose of the grounding plug.

D3-4-2-1-6_A_En

The following symbols are found on labels attached to the product. They alert the operators and service personnel of this equipment to any potentially dangerous conditions.

WARNING

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

CAUTION

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment. D3-4-2-1-7a_A_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation. For the minimum space required, see page 15.

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

Contents

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference. In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However the method of connecting and operating the unit are the same.

Illustrations shown in this manual are for the KRP-500A unless otherwise specified.

Contents

01 Important user information 6

02 Safety precautions 9

Installation precautions. 10

03 Supplied accessories 11

Display 11

Media Receiver. 11

04 Part names 12

Display 12

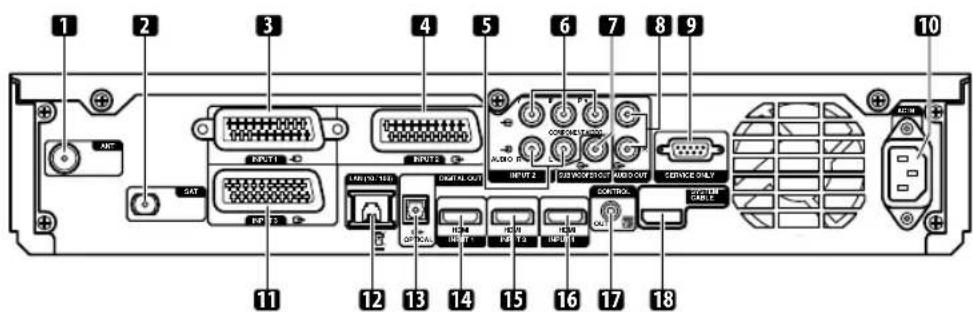

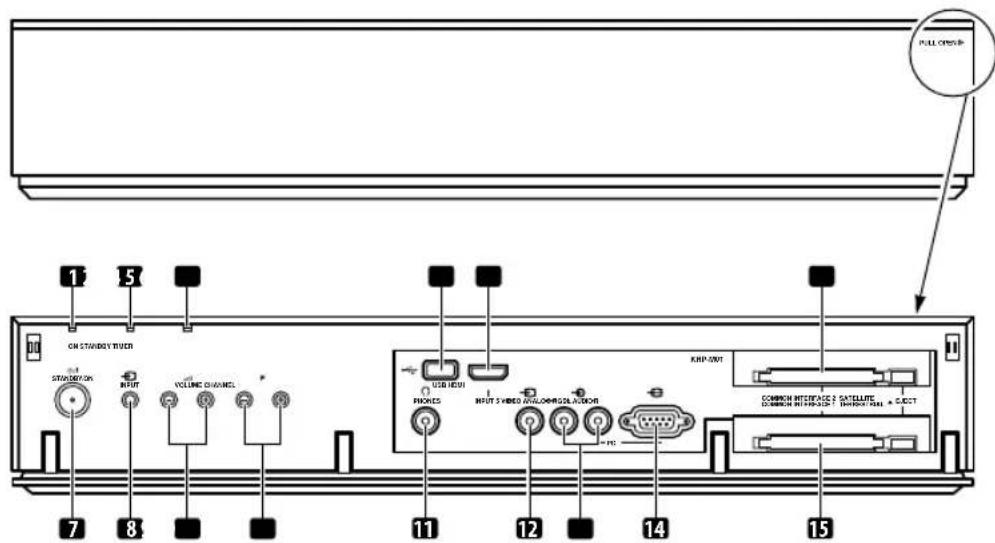

Media Receiver. 13

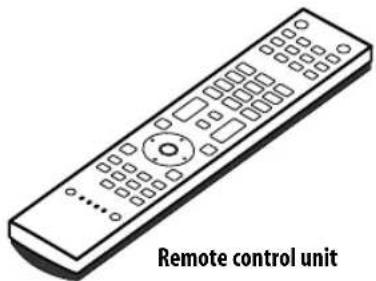

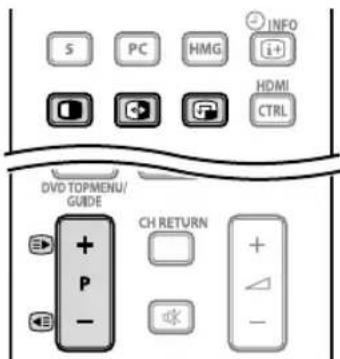

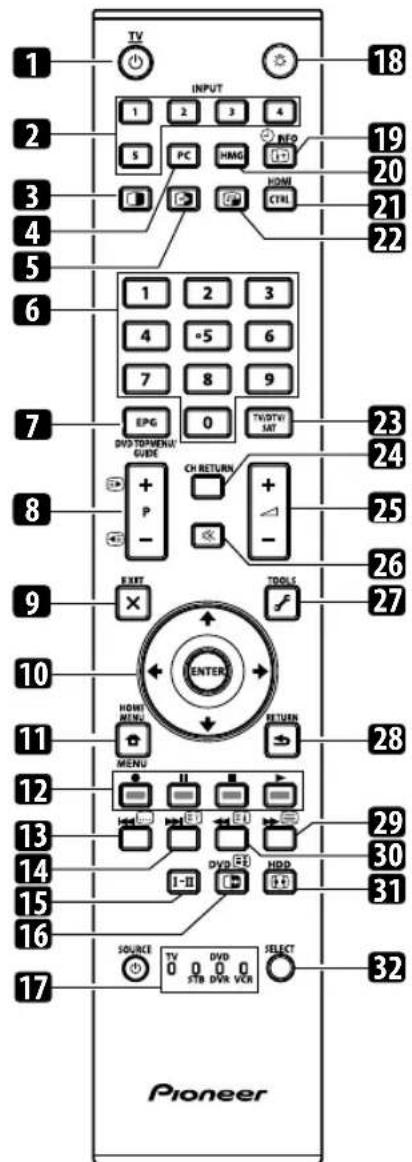

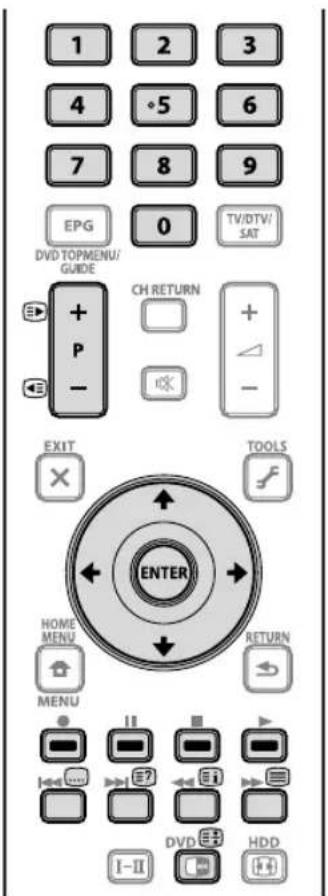

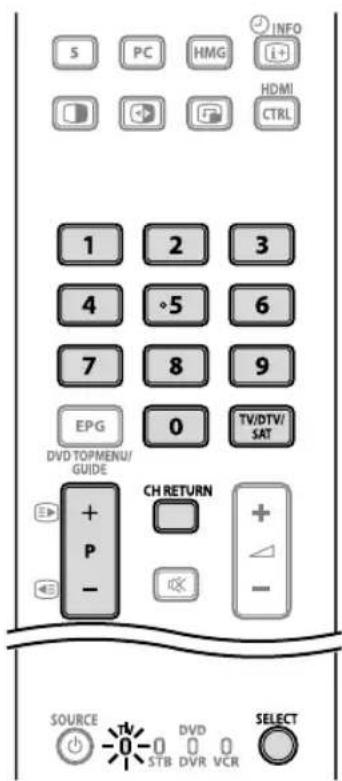

Remote control unit. 14

05 Preparation 15

Installing the display. 15

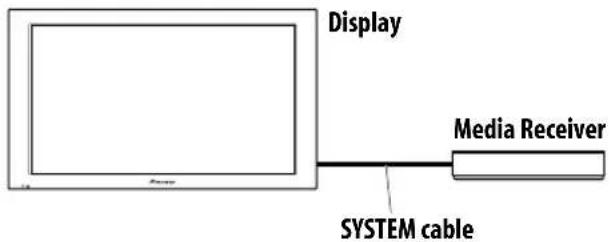

Installing the Media Receiver 15

Moving the display. 16

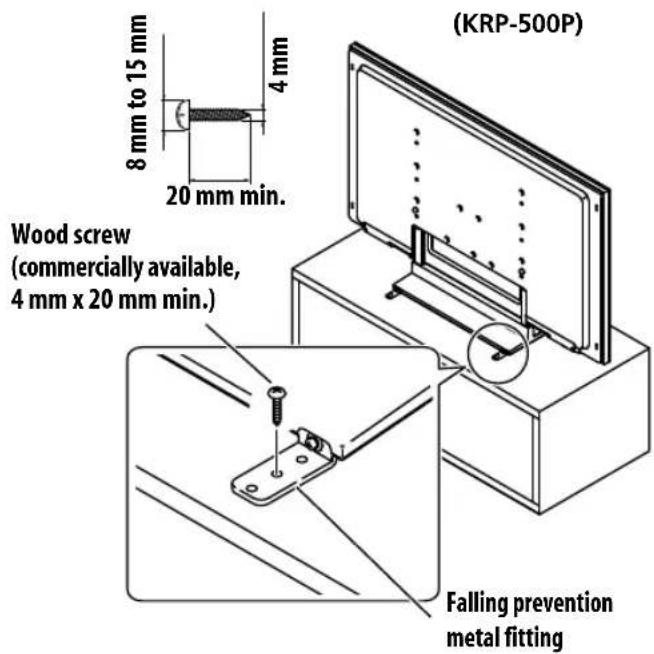

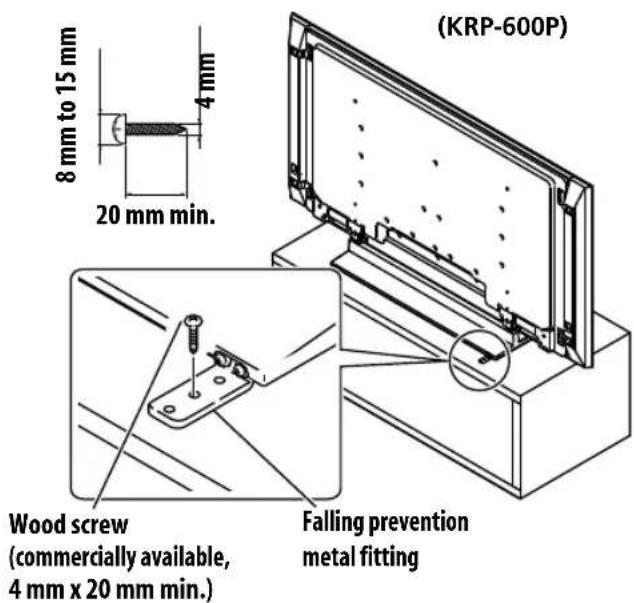

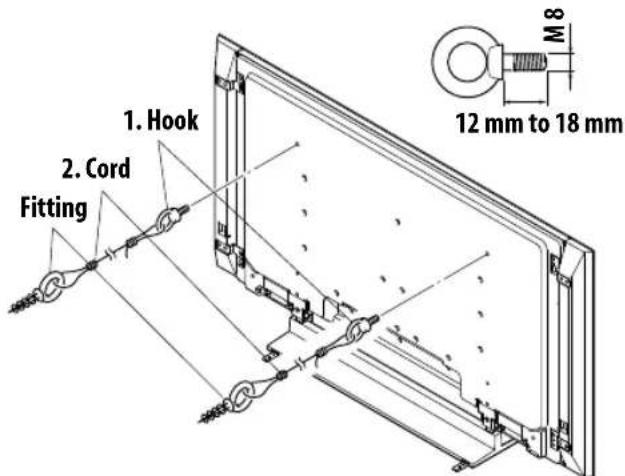

Preventing the display from falling over 16

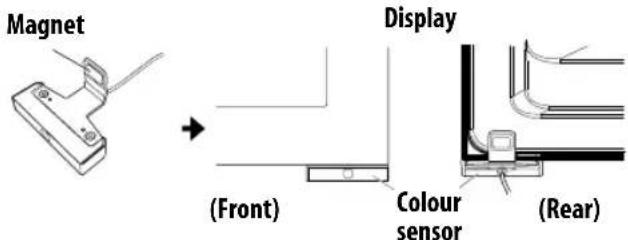

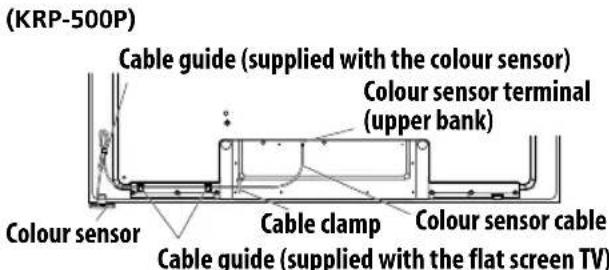

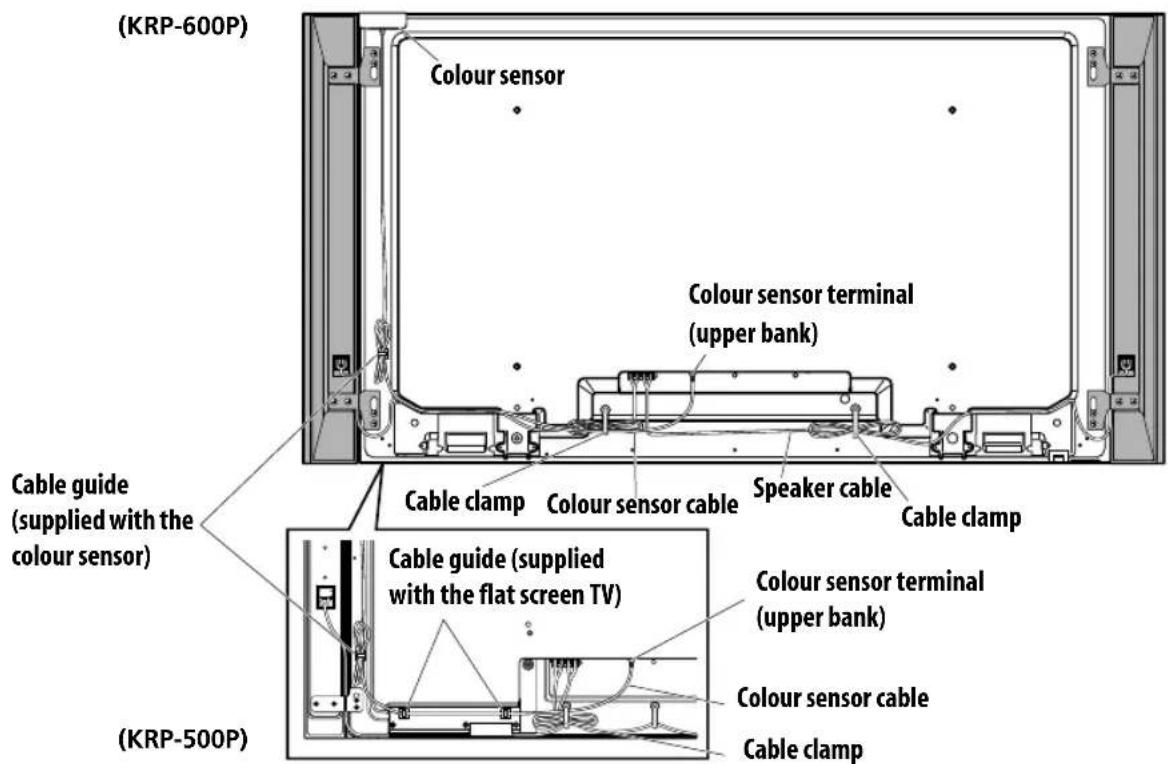

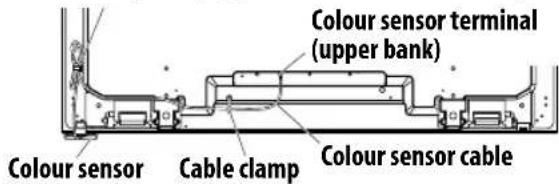

Attach the colour sensor. 17

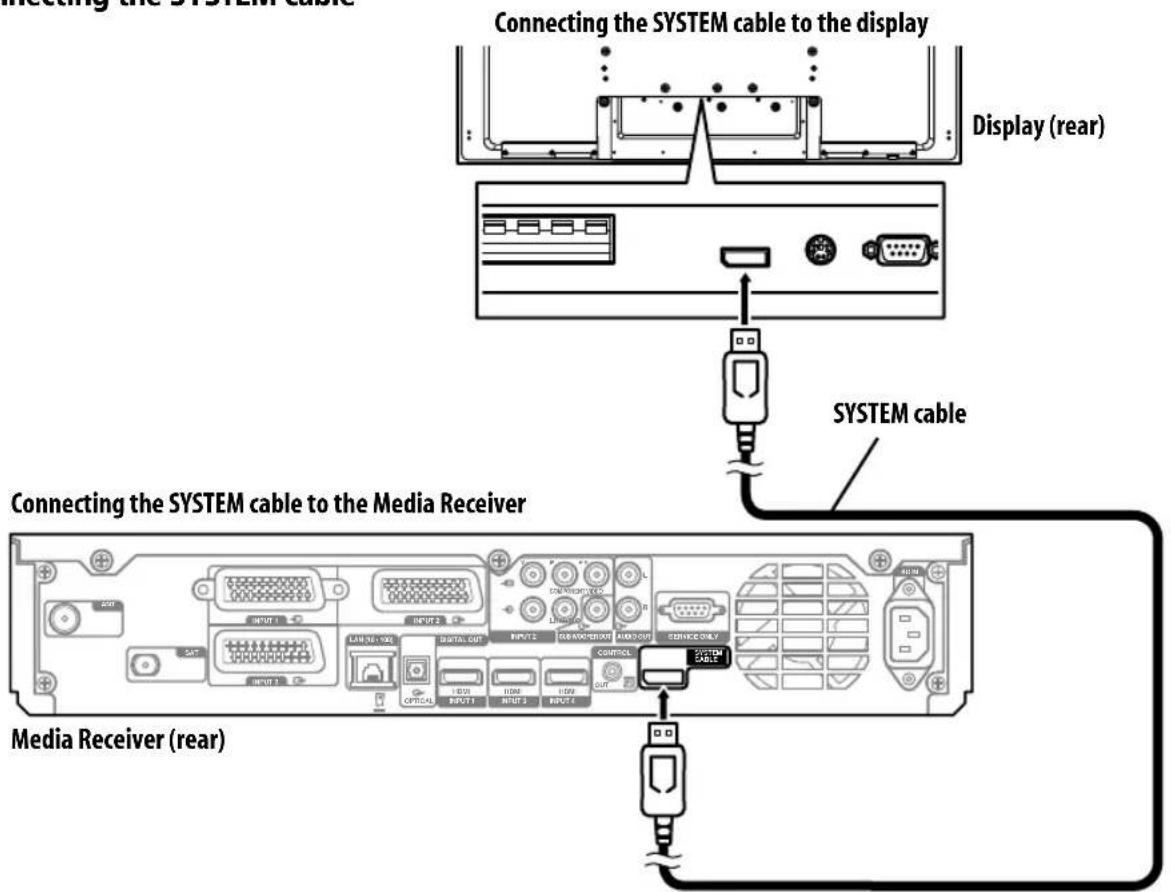

Basic connections 19

Preparing the remote control unit. 22

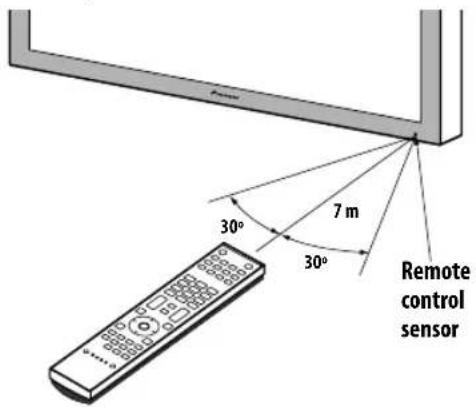

Operating range of the remote control unit 23

06 Watching TV 24

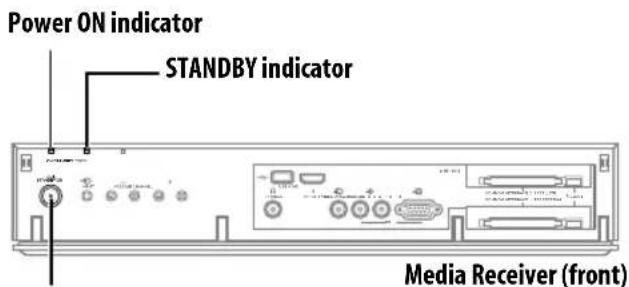

Turning the power on/off. 24

Changing channels 25

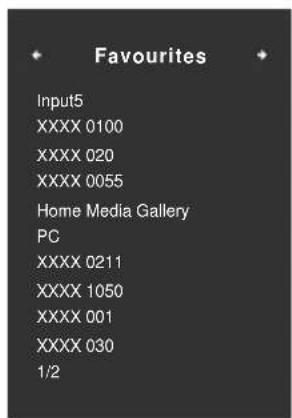

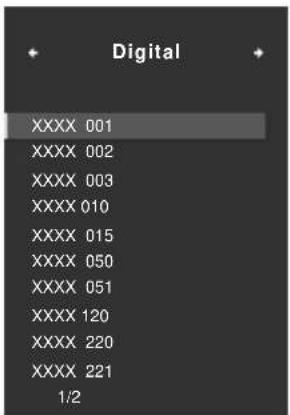

Displaying a channel list. 26

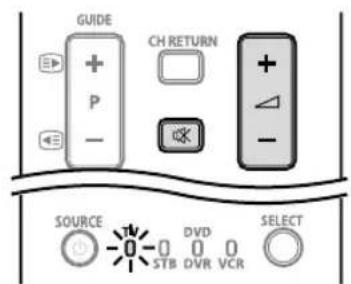

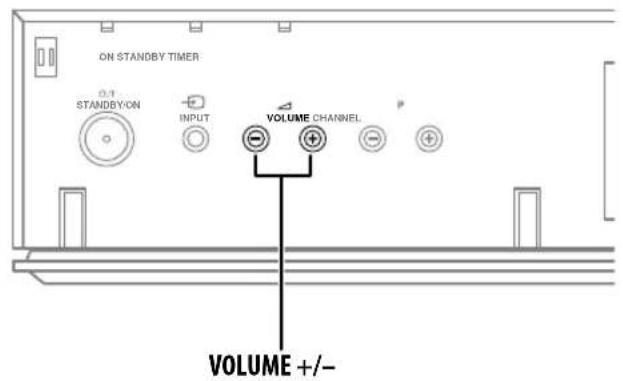

Changing the volume and sound 28

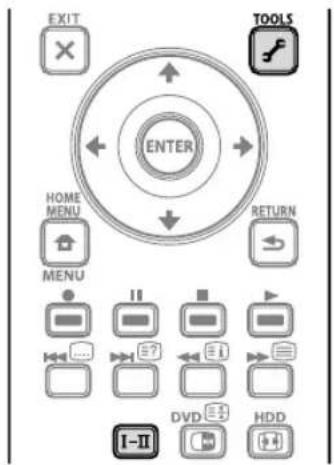

Switching the broadcast audio channel 28

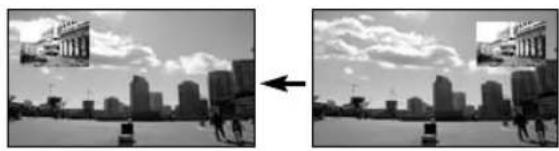

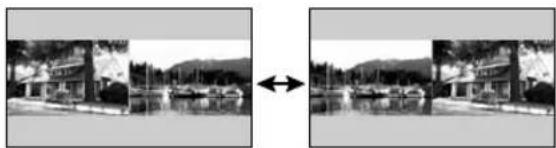

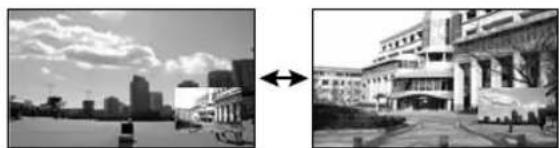

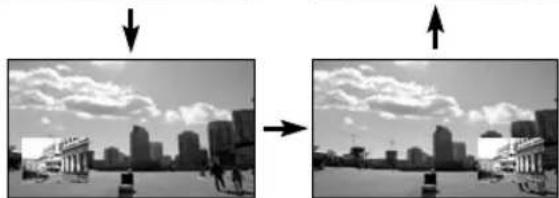

Using the multiscreen functions 29

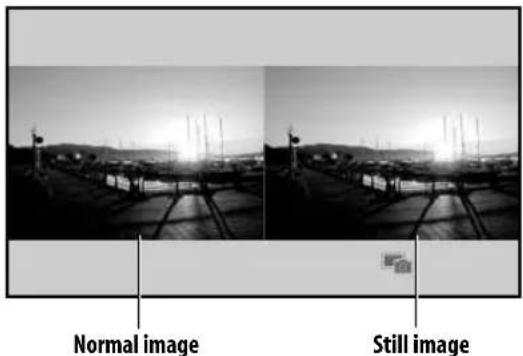

Freezing images. 30

07 The HOME MENU. 31

HOME MENU overview 31

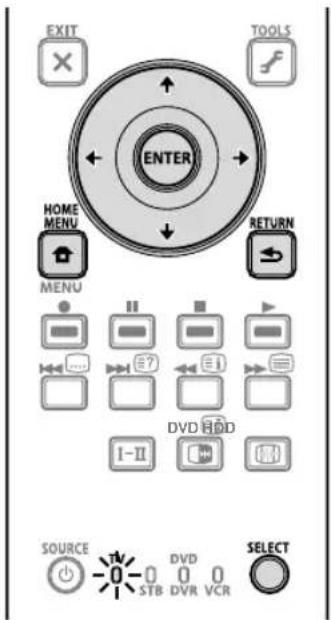

Using the HOME MENU 32

08 Setting up. 33

Setting up TV channels 33

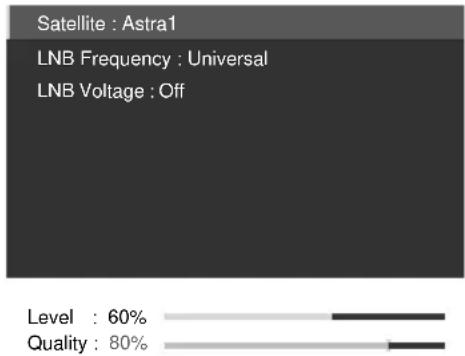

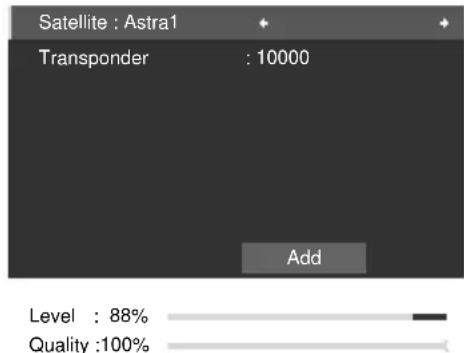

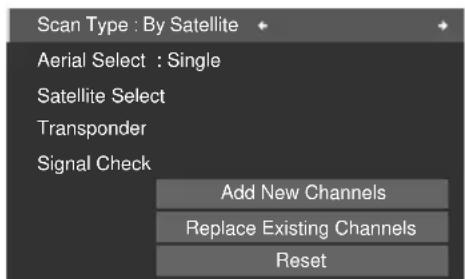

Setting up satellite TV channels manually 33

Setting up analogue TV channels manually .35

Reducing video noise 35

Setting Channel Lock 35

Selecting a decoder input terminal 36

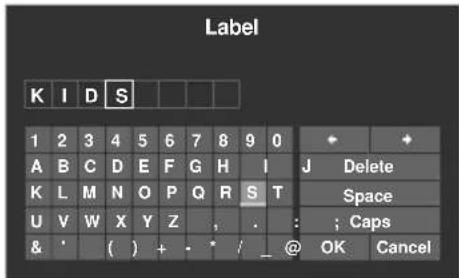

Labeling TV channels 36

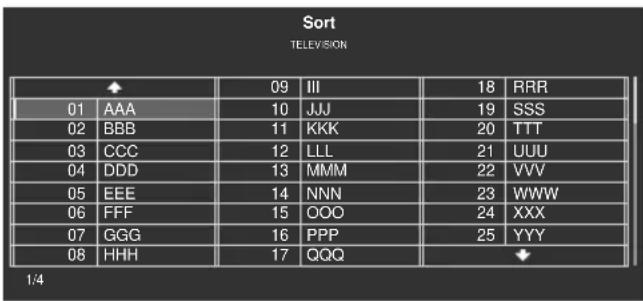

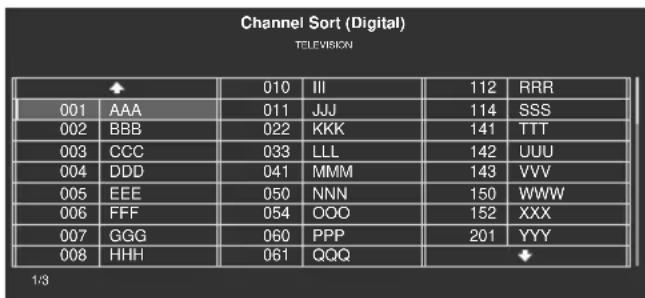

Sorting preset TV channels. 37

Language setting 37

Checking software/hardware version 37

AV Selection 38

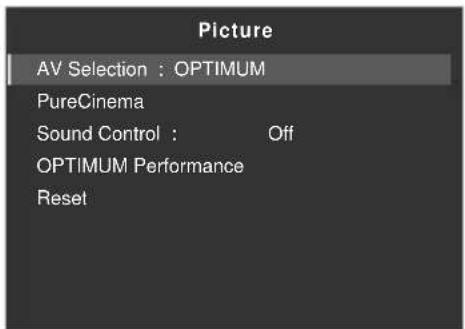

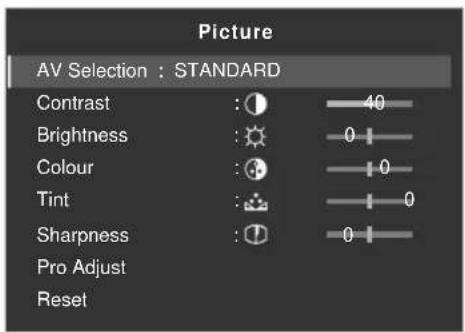

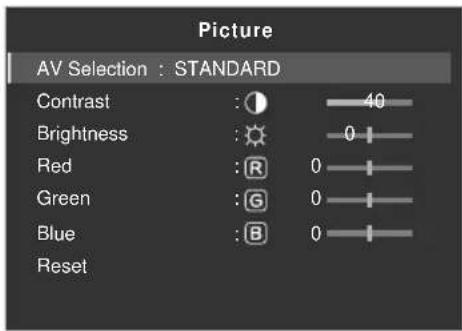

Basic picture adjustments. 39

Advanced picture adjustments 40

Comparing picture adjustments on the screen . . . .43

Sound adjustments. 44

Using AVC (Auto Volume Control) 45

UsingSoundControl. 45

OPTIMUM Performance. 45

Power Control 45

09Enjoying DTV/SAT broadcasts 47

Watching DTV/SAT programmes 47

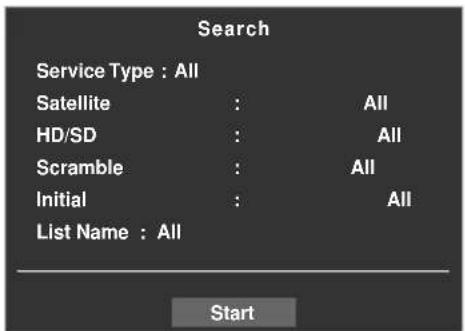

Using the Channel List search 47

Reconfiguring the DTV/SAT channel settings. 48

Customizing channel related settings 49

Selecting languages for audio, subtitles, and teletext. 51

Using Software Update .51

Using Channel List 51

Adjusting the clock. .51

Screen Saver 52

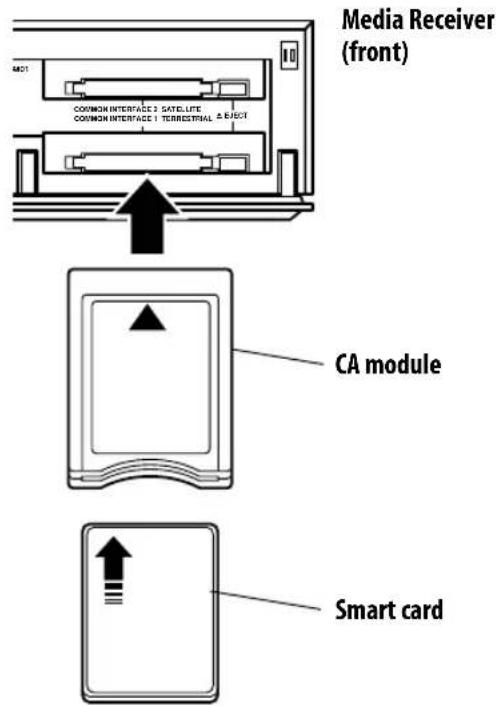

Common Interface. 52

10 Using the Electronic Programme Guide (EPG)(for DTV/SAT only) 53

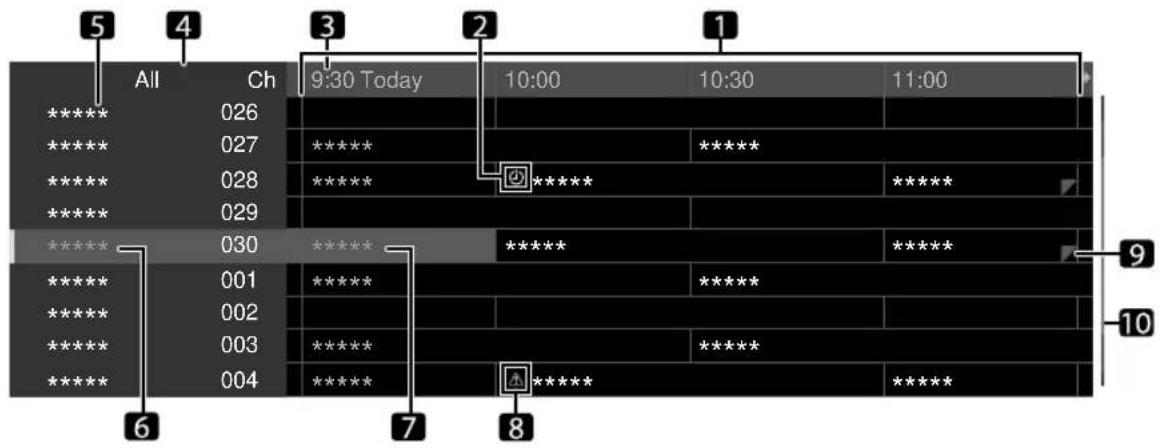

EPG display format. 53

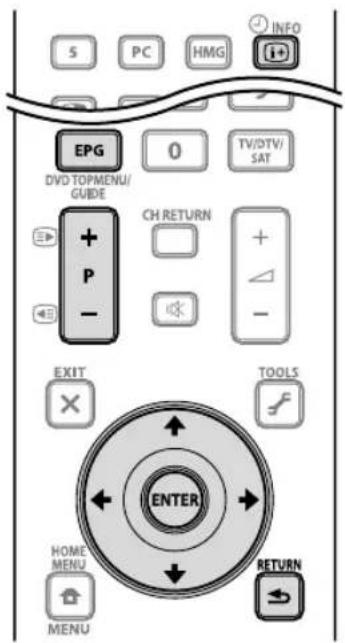

Using the EPG. 54
Presetting TV programmes using the EPG 55

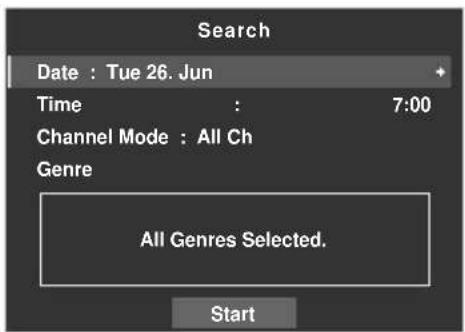

Using other useful EPG functions 57

11 Useful adjustment settings 58

Switching the vertical drive mode (AV source only) 58
Adjusting image positions (AV source only) 58
Adjusting image positions and clock automatically (PC source only) 59
Adjusting image positions and clock manually (PC source only) 59
Selecting an input signal type. 59
Colour system setting 60
Selecting a game mode. 60
Selecting a screen size manually 60
Selecting a screen size automatically 61
Detecting side masks. 61
Changing the brightness at both sides of the screen (Side Mask) 62
Room Light Sensor. 62
Blue LED Dimmer. 62
Orbiter 62
Video Pattern 63
Screen Protection. 63

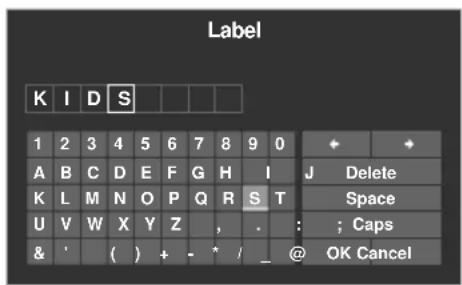

Label Input 63
Sleep Timer 63
Using a password. 64

12 Using with other equipment 65

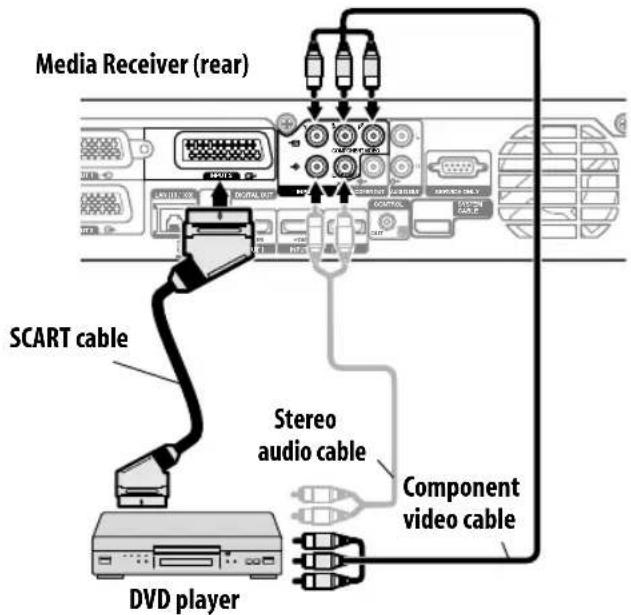

Connecting a DVD player 65

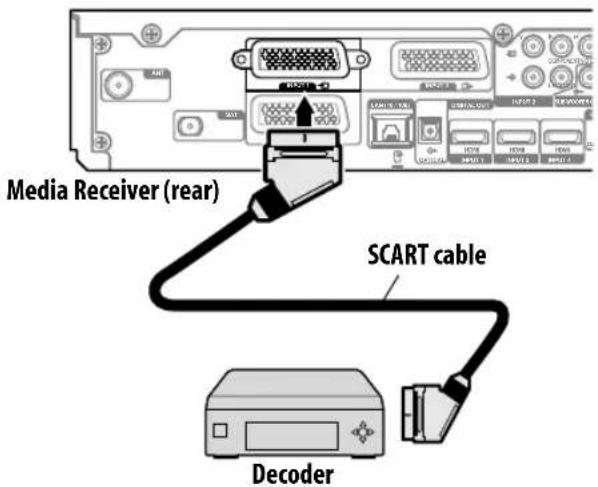

Connecting a decoder 65

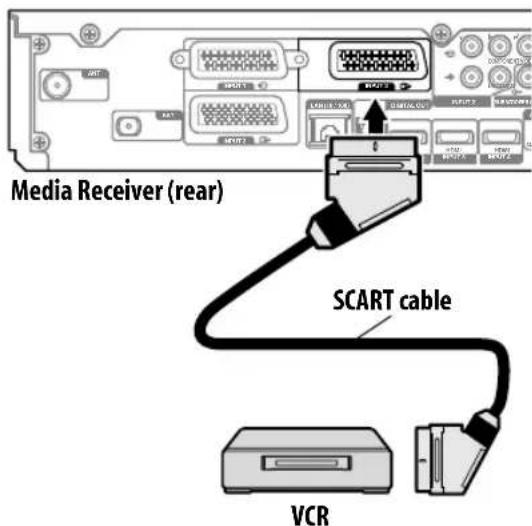

Connecting a VCR 66

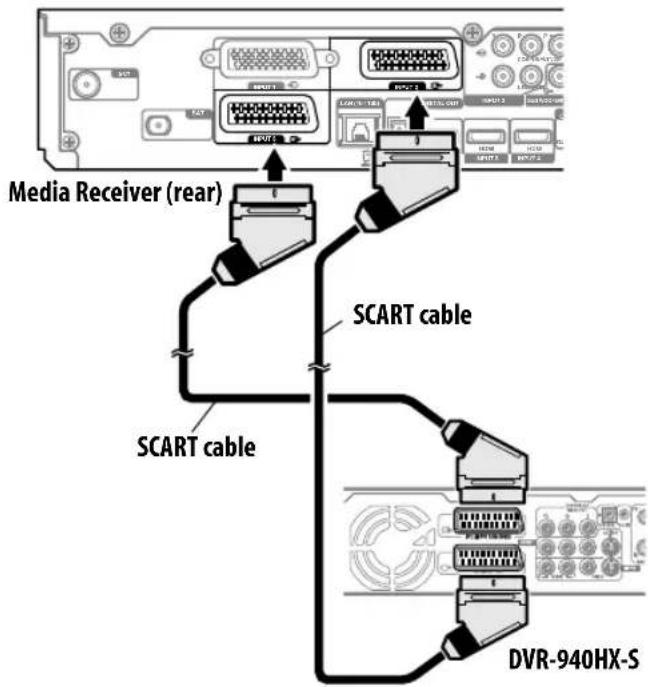

Using the SCART output function 66
Switching the SCART output. 67

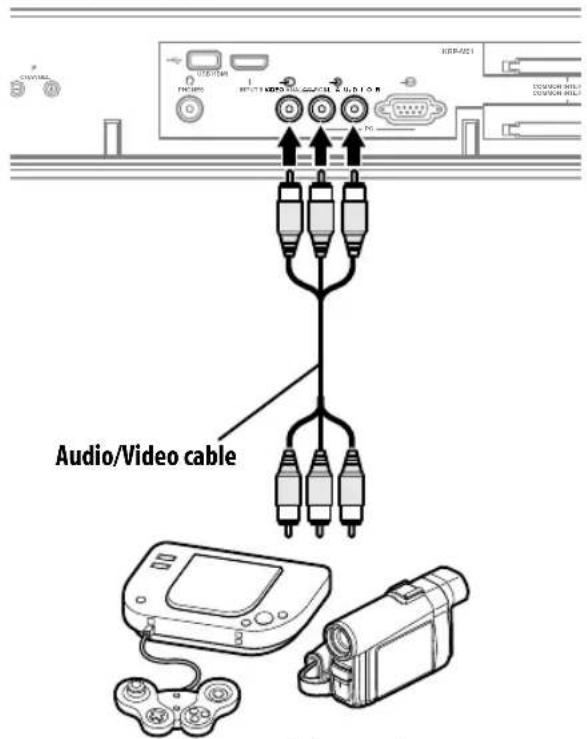

Connecting a game console or camcorder 67

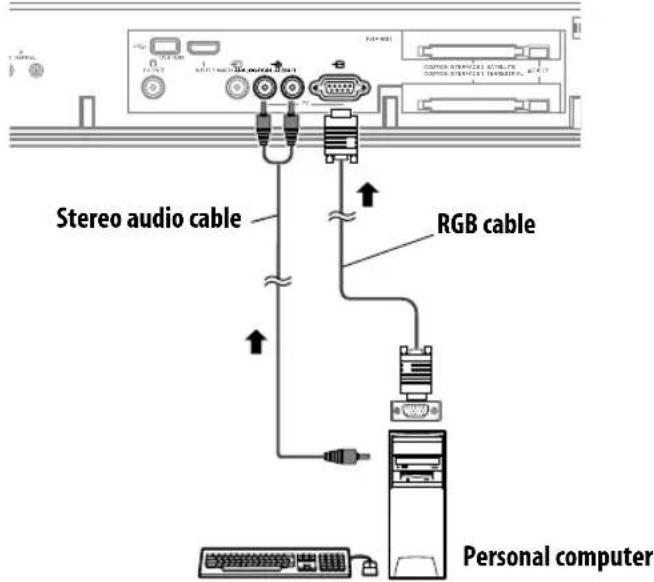

Connecting a personal computer 68

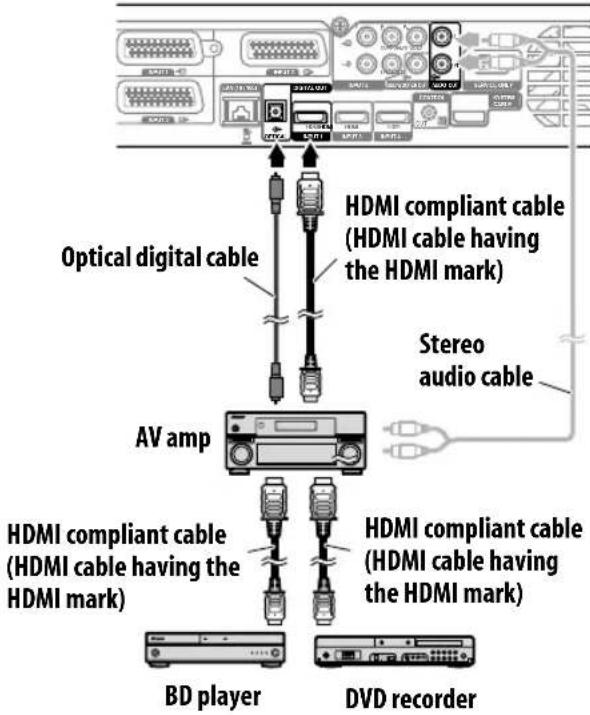

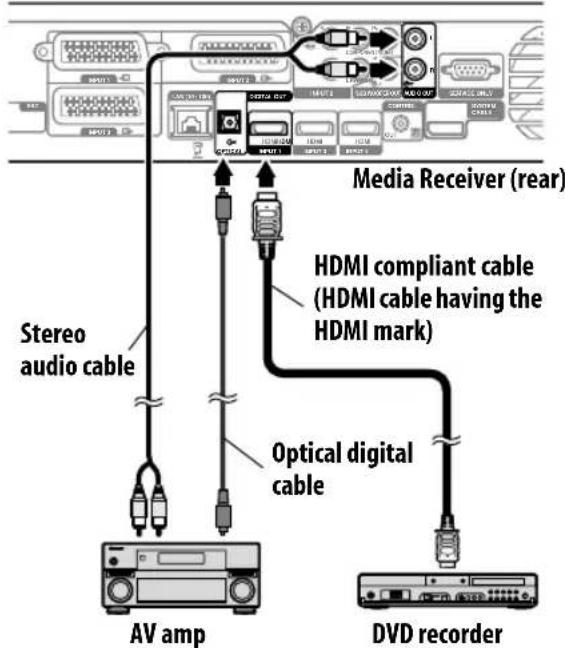

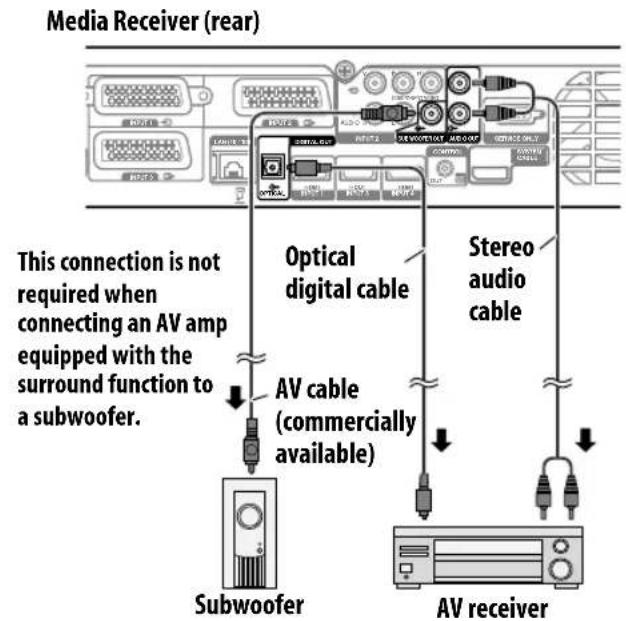

Connecting an amplifier/AV receiver 68

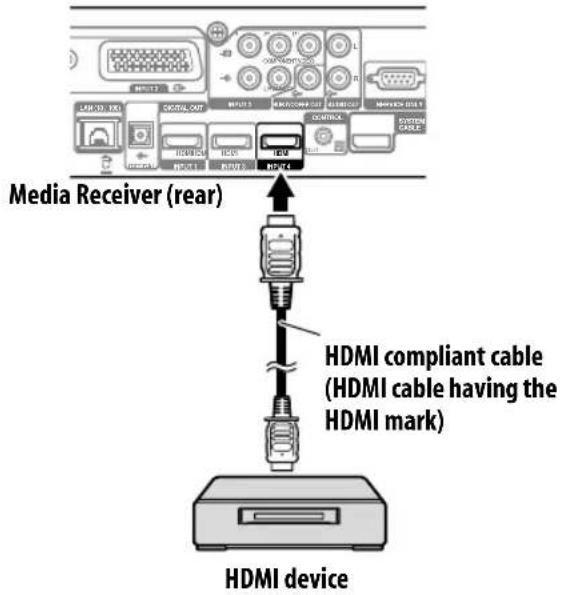

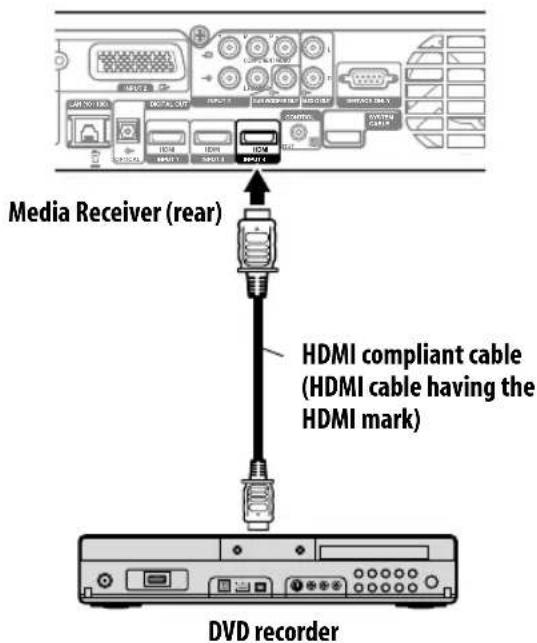

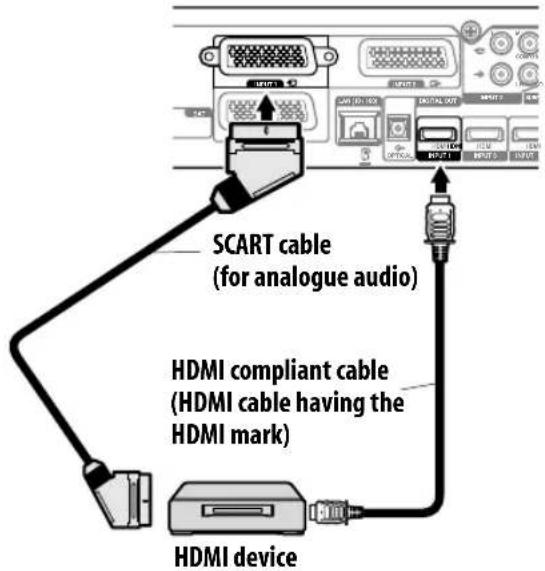

Using the HDMI Input 69

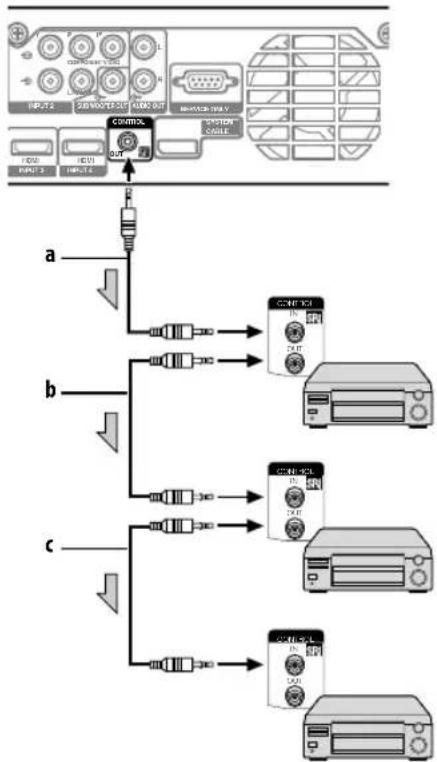

Connecting control cords 71
Using i/o link.A 72

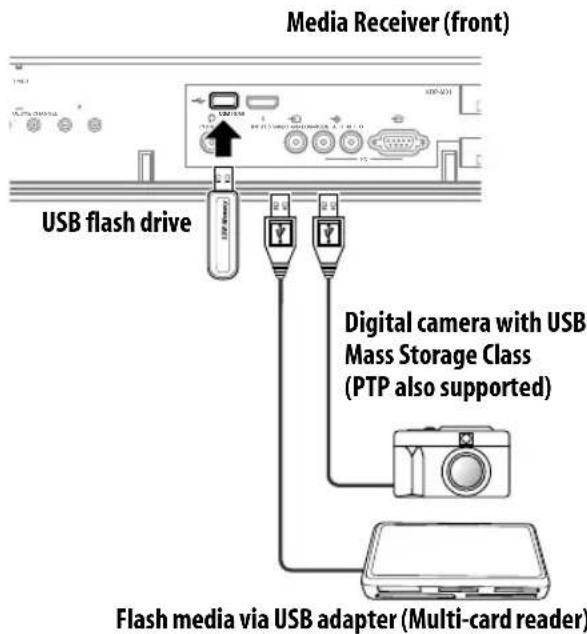

Operate the Home Media Gallery 73

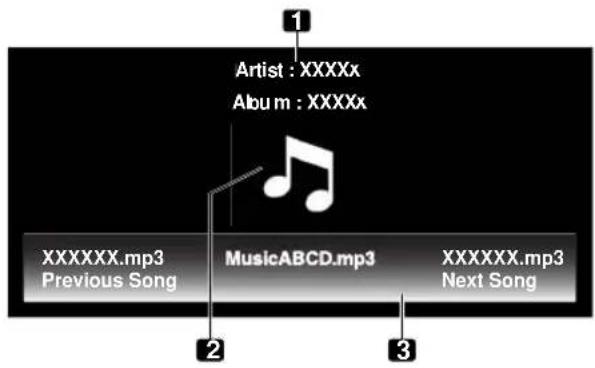

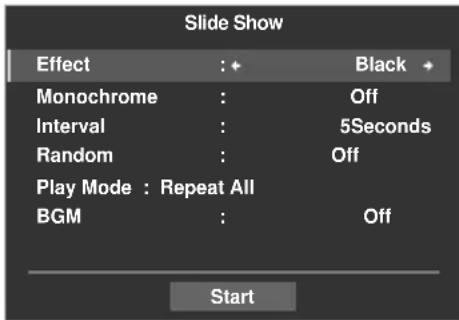

Run the Home Media Gallery 76

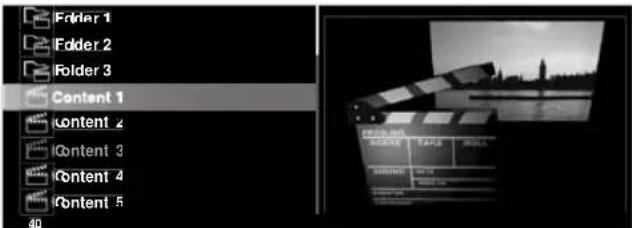

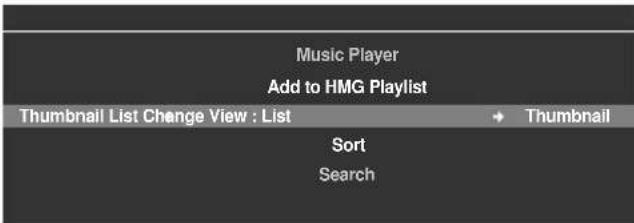

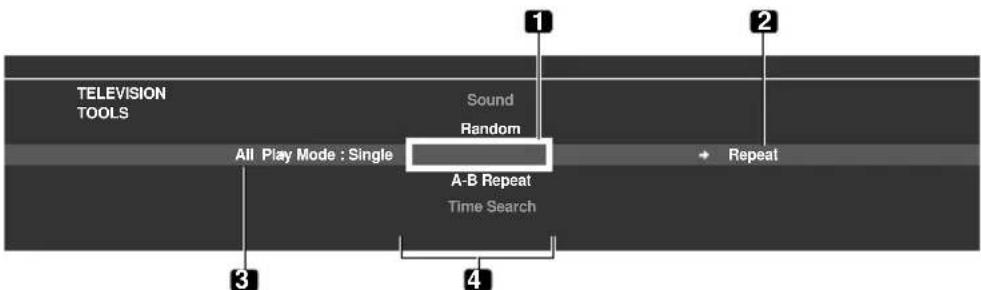

Use the TOOLS Menu. 82
HMG Setup. 87
Other useful functions 88
Glossary. 89

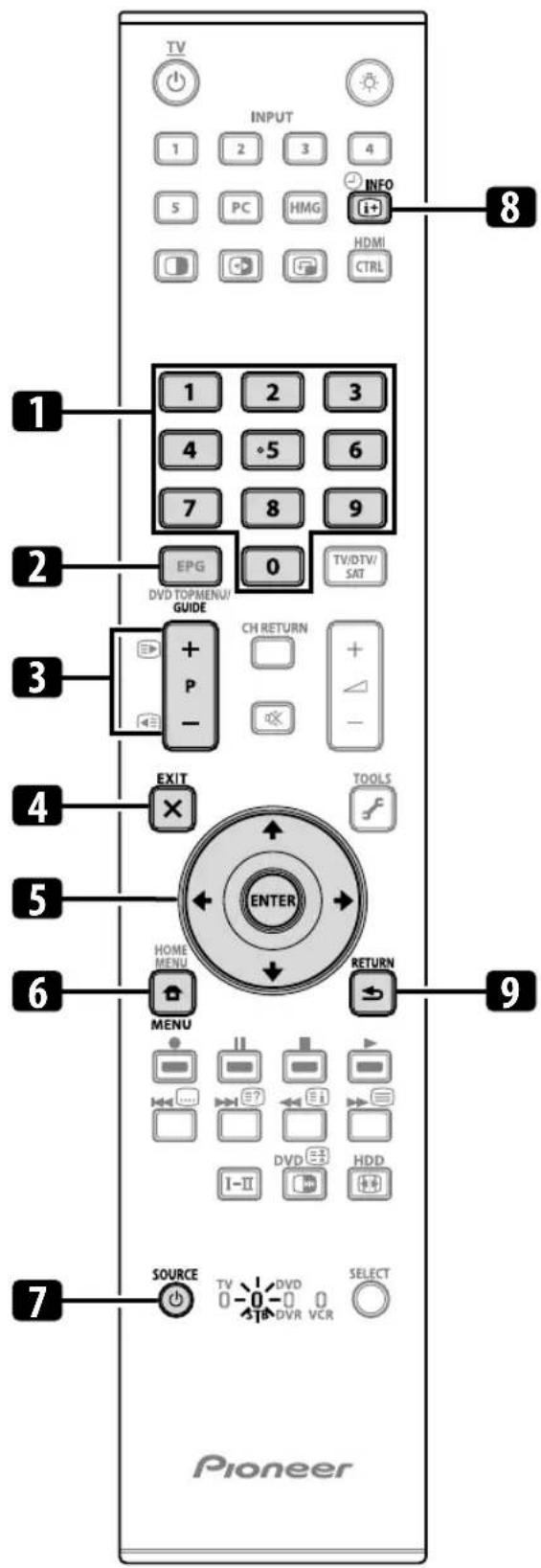

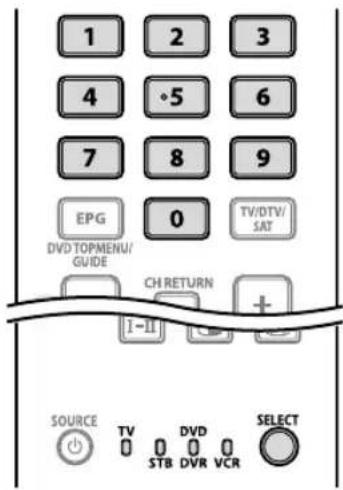

Controlling other equipment using the supplied remote control unit. 90

13 Using the HDMI Control 95

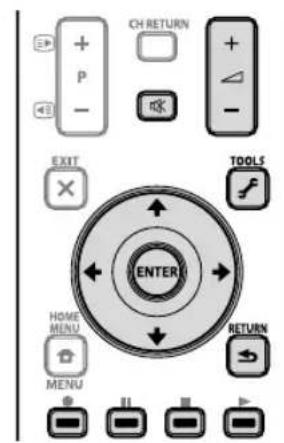

Using the HDMI Control functions 95

Making the HDMI Control connections 96

Setting the HDMI Control 98

Using the HDMI Control menus 99

14 Using Teletext 100

Using the Teletext functions 100

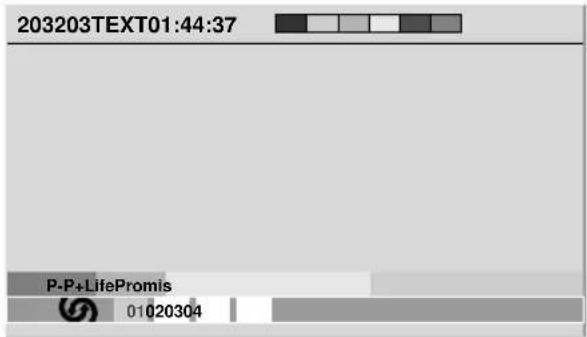

Operating the Teletext basics 100

15 Additional information. 102

Troubleshooting 102

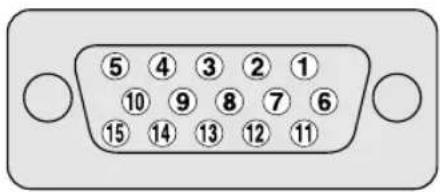

Signal names for 15-pin mini D-sub connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

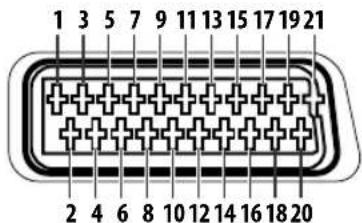

SCART pin assignments 107

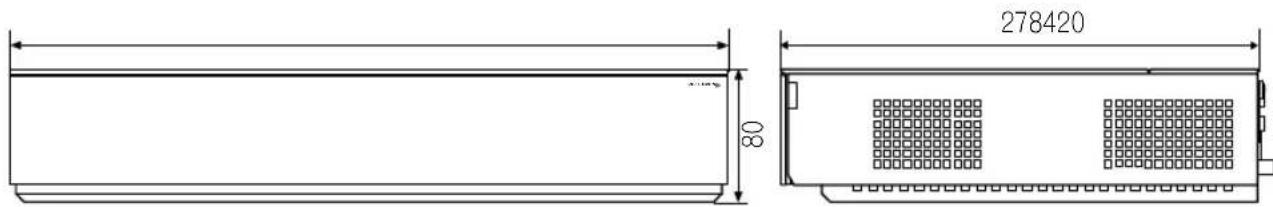

Specifications 108

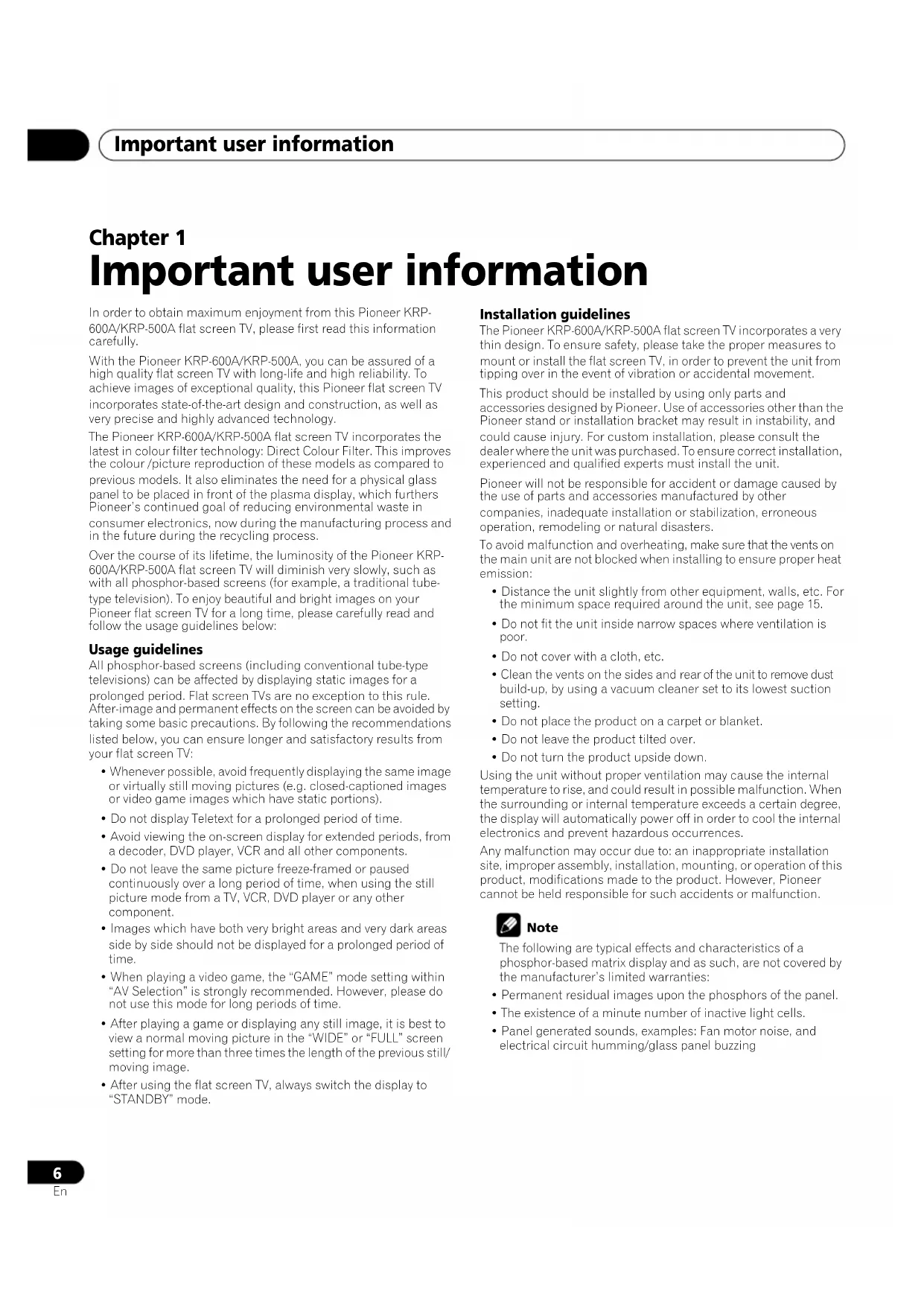

Chapter 1

Important user information

In order to obtain maximum enjoyment from this Pioneer KRP-600A/KRP-500A flat screen TV, please first read this information carefully.

With the Pioneer KRP-600A/KRP-500A, you can be assured of a high quality flat screen TV with long-life and high reliability. To achieve images of exceptional quality, this Pioneer flat screen TV incorporates state-of-the-art design and construction, as well as very precise and highly advanced technology.

The Pioneer KRP-600A/KRP-500A flat screen TV incorporates the latest in colour filter technology: Direct Colour Filter. This improves the colour/picture reproduction of these models as compared to previous models. It also eliminates the need for a physical glass panel to be placed in front of the plasma display, which furthers Pioneer's continued goal of reducing environmental waste in consumer electronics, now during the manufacturing process and in the future during the recycling process.

Over the course of its lifetime, the luminosity of the Pioneer KRP-600A/KRP-500A flat screen TV will diminish very slowly, such as with all phosphor-based screens (for example, a traditional tube-type television). To enjoy beautiful and bright images on your Pioneer flat screen TV for a long time, please carefully read and follow the usage guidelines below:

Usage guidelines

All phosphor-based screens (including conventional tube-type televisions) can be affected by displaying static images for a prolonged period. Flat screen TVs are no exception to this rule. After-image and permanent effects on the screen can be avoided by taking some basic precautions. By following the recommendations listed below, you can ensure longer and satisfactory results from your flat screen TV:

• Whenever possible, avoid frequently displaying the same image or virtually still moving pictures (e.g. closed-captioned images or video game images which have static portions).
• Do not display Teletext for a prolonged period of time.
• Avoid viewing the on-screen display for extended periods, from a decoder, DVD player, VCR and all other components.
• Do not leave the same picture freeze-framed or paused continuously over a long period of time, when using the still picture mode from a TV, VCR, DVD player or any other component.
  Images which have both very bright areas and very dark areas side by side should not be displayed for a prolonged period of time.
• When playing a video game, the "GAME" mode setting within "AV Selection" is strongly recommended. However, please do not use this mode for long periods of time.
  After playing a game or displaying any still image, it is best to view a normal moving picture in the "WIDE" or "FULL" screen setting for more than three times the length of the previous still/ moving image.
  After using the flat screen TV, always switch the display to "STANDBY" mode.

Installation guidelines

The Pioneer KRP-600A/KRP-500A flat screen TV incorporates a very thin design. To ensure safety, please take the proper measures to mount or install the flat screen TV, in order to prevent the unit from tipping over in the event of vibration or accidental movement.

This product should be installed by using only parts and accessories designed by Pioneer. Use of accessories other than the Pioneer stand or installation bracket may result in instability, and could cause injury. For custom installation, please consult the dealer where the unit was purchased. To ensure correct installation, experienced and qualified experts must install the unit.

Pioneer will not be responsible for accident or damage caused by the use of parts and accessories manufactured by other

companies, inadequate installation or stabilization, erroneous operation, remodeling or natural disasters.

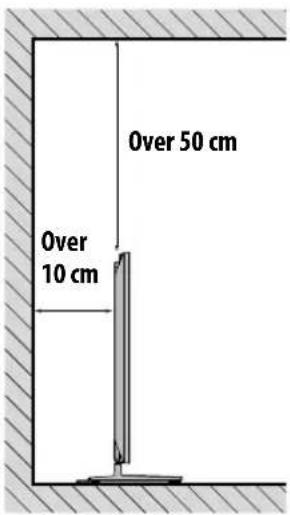

To avoid malfunction and overheating, make sure that the vents on the main unit are not blocked when installing to ensure proper heat emission:

• Distance the unit slightly from other equipment, walls, etc. For the minimum space required around the unit, see page 15.
• Do not fit the unit inside narrow spaces where ventilation is poor.
• Do not cover with a cloth, etc.
• Clean the vents on the sides and rear of the unit to remove dust build-up, by using a vacuum cleaner set to its lowest suction setting.
• Do not place the product on a carpet or blanket.
• Do not leave the product tilted over.
• Do not turn the product upside down.

Using the unit without proper ventilation may cause the internal temperature to rise, and could result in possible malfunction. When the surrounding or internal temperature exceeds a certain degree, the display will automatically power off in order to cool the internal electronics and prevent hazardous occurrences.

Any malfunction may occur due to: an inappropriate installation site, improper assembly, installation, mounting, or operation of this product, modifications made to the product. However, Pioneer cannot be held responsible for such accidents or malfunction.

Note

The following are typical effects and characteristics of a phosphor-based matrix display and as such, are not covered by the manufacturer's limited warranties:

• Permanent residual images upon the phosphors of the panel.
  The existence of a minute number of inactive light cells.
• Panel generated sounds, examples: Fan motor noise, and electrical circuit humming/glass panel buzzing

Important user information

Caution

• Pioneer bears no responsibility for any damage arising from incorrect use of the product by you or other people, malfunctions when in use, other product related problems, and use of the product except in cases where the company must be liable.

Display panel protection function

When still images (such as photos and computer images) stay on the screen for an extended period of time, the screen will be slightly dimmed. This is because the protection function of the display panel automatically adjusts the brightness to protect the screen when detecting still images; so this does not designate malfunction. The screen is dimmed when a still image is detected for about three minutes.

Information of pixel defect

Plasma TVs display information using pixels. Pioneer flat screen TV panels contain a very large number of pixels (over 6.2 million pixels for a 50 inch/60 inch display). All Pioneer display panels are manufactured using a very high level of ultra-precision technology and undergo individual quality control.

In rare cases, some pixels can be permanently switched off, or on, resulting in either a black or coloured pixel permanently fixed on the screen.

This effect is common to all plasma TVs because it is a consequence of the technology.

If the defective pixels are visible at a normal viewing distance of between 2.5 meters and 3.5 meters whilst viewing a normal broadcast (i.e. not a test card, still image or single colour display) please contact the supplying dealer.

If, however, they can only be seen close up or during single colour displays then this is considered normal for this technology.

Infrared rays

The display panel releases infrared rays because of its characteristics. Depending on how the display panel is used, the remote controls of nearby equipment may be adversely affected or wireless headphones using infrared rays are interfered by noise. If this is the case, place that equipment at a location where its remote control sensor is not affected.

Radio interference

While this product meets the required specifications, it emits a small amount of noise. If you place such equipment as an AM radio, personal computer, and VCR close to this product, that equipment may be interfered. If this happens, place that equipment far enough from this product.

Display panel driving sound

The screen of the display panel is composed of extremely fine pixels and these pixels emit light according to received video signals. This principle may make you hear buzz sound or electrical circuit humming from the display panel.

Do not attach such items as labels and tape to the product

This may result in the discolouration or scratch of the cabinet.

When not using the product for a long period of time

If you do not use the product for a long period of time, the functions of the product may be adversely affected. Switch on and run the product occasionally.

Condensation

Condensation may take place on the surface or inside of the product when the product is rapidly moved from a cold place to a warm place or just after a heater is switched on in winter morning, for example. When condensation takes place, do not switch on the product and wait until condensation disappears. Using the product with condensation may result in malfunction.

Cleaning the surface of the screen

When cleaning the screen surface, gently wipe it with the supplied dry cleaning cloth.

Caution

Rubbing hard on the screen can scratch the special film coating the surface. If cleaning gently with the dry cloth is not enough to remove grime, unplug the power cord from the outlet and follow the procedure below.

1. Soak a piece of soft, untreated cloth in distilled water. A "treated" cloth contains polish or other chemicals, such as in a commercially available eyeglass cleaning towelette.
2. Wring out the cloth so that it is slightly damp, not wet. Make sure to wring out the cloth completely. Cleaning the surface with a wet cloth can allow water to seep into the unit, causing damage.
3. Gently wipe the surface of the screen with the damp cloth.
4. Wipe the surface again using the dry cloth included with your panel to remove any remaining dampness and to prevent streaks.

Cleaning the glossy surface of the front cabinet

When cleaning the glossy surface of the front cabinet, gently wipe it with a dry soft cloth; the supplied cleaning cloth or other similar cloths (e.g., cotton and flannel). If you use a dusty or hard cloth or if you rub the cabinet hard, the surface of the product will be scratched.

The cabinet of this product is mostly composed of plastic. Do not use chemicals such as alcohol, benzene, thinner or insecticides to clean the cabinet. Using these chemicals may result in quality deterioration, discolouration or coating removal.

Do not expose the product to volatile gas or fluid such as pesticide. Do not make the product contact with rubber or vinyl products for a long period of time. The effect of plasticizer in the plastic may result in quality deterioration or coating removal.

If you clean the surface of the cabinet with a wet cloth, water droplets on the surface may enter into the product, resulting in malfunction.

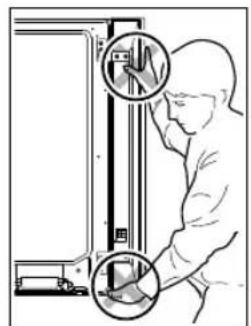

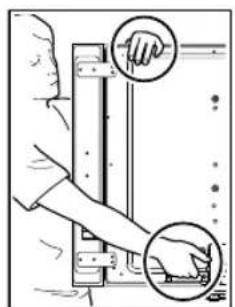

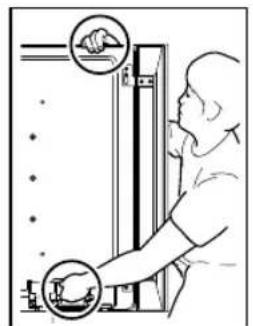

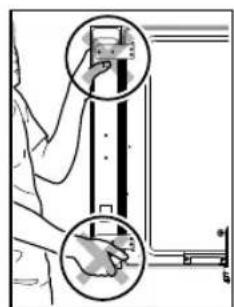

Handles at the rear of the display panel

When moving the display panel, ask another person for help and use the handles attached to the rear of the display panel. Do not move the display panel by holding only a single handle.

Do not use the handles to hang the product when installing or carrying the product, for example. Do not use the handles for the purpose of preventing the product from tilting over.

Fan motor noise

The rotation speed of the cooling fan motor increases when the ambient temperature of the Media Receiver becomes high. You may hear the sound of the fan motor at that time.

To use this product for a long period of time

The Energy Save function can maintain efficiency of the screen for a long period of time. Setting the Energy Save function to "Mode1" is recommended in order to maintain the efficiency of the screen for a long period of time.

Caution

Panel sticking and after-image lag

Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two cases.

After-image lagging due to remaining electrical load

When image patterns with very high peak luminance are displayed for more than one minute, after-image lagging may occur due to the remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the after-images to disappear depends on the luminance of the still images and the time they had been displayed.

After-image (lag image) due to burning

Avoid displaying the same image on the display panel continuously over a long period of time.

If the same image is displayed continuously for a long period, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not disappear completely.

Note

• To prevent damage from screen burning this display panel will automatically - after a display time of 5 to 10 minutes - turn off those still images generated by the system itself: the Home Media Gallery function and Graphical User Interface elements such as HOME MENU and the Electronic Programme Guide.
• To prevent screen burning, the display position is automatically changed imperceptibly when watching images (see Orbiter on page 62).

Preventing damage from screen burning

• We recommend that you enjoy watching images displayed in full screen, except when doing so may result in copyright infringement (see page 60).
• Set the Side Mask detection function to "Mode 1" or "Mode 2", the High Definition 16:9 aspect ratio images containing side masks will be detected and the side masks will be added automatically or the image displayed in full screen, leading to more effective countermeasures taken for the screen burning (see Detecting side masks on page 61).

Chapter 2 Safety precautions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your product, please read the following precautions carefully before using the product.

1. Read instructions - All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place - These safety and operating instructions must be kept in a safe place for future reference.
3. Observe warnings - All warnings on the product and in the instructions must be observed closely.
4. Follow instructions - All operating instructions must be followed.
5. Cleaning - Unplug the power cord from the AC outlet before cleaning the product. To clean the product, use the supplied cleaning cloth or other soft clothes (e.g., cotton, flannel). Do not use liquid cleaners or aerosol cleaners.
6. Attachments - Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.
7. Water and moisture - Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.
8. Stand - Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.
9. When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

1. Ventilation - The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

2. Power source - This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company.

3. Power cord protection - The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.

4. The plasma display panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the plasma panel breaks.
5. Overloading - Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
6. Entering of objects and liquids - Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.
7. Servicing - Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
8. Repair - If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician. e. When the product has been dropped or damaged.

f. When the product displays an abnormal condition, Any noticeable abnormality in the product indicates that the product needs servicing.

1. Replacement parts - In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
2. Safety checks - Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.
3. Wall or ceiling mounting - When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.
4. Heat sources - Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).
5. Unplug the power cord from the AC outlet before installing the speakers.
6. Never expose the screen of the display panel to a strong impact, for example, by hitting it. The screen may be broken, resulting in fire or personal injury.
7. Do not expose the display panel to direct sunlight for a long period of time. The optical characteristics of the front protection panel changes, resulting in discolouration or warp.
8. The display panel weighs about 49.9kg (110 lbs) for the KRP-600P and about 31.4kg (69.2 lbs) for the KRP-500P. Because it has small depth and is unstable, unpack, carry, and install the product with one more person at least and use the handles.

Safety precautions

Installation precautions

Observe the following precautions when installing with any items such as the optional stand.

When using the optional stand, brackets, or equivalent items

• Ask your dealer to perform the installation.
• Be sure to use the supplied bolts.
• For details, see the instruction manual that comes with the optional stand (or equivalent items).

When using other items

• Consult your dealer.

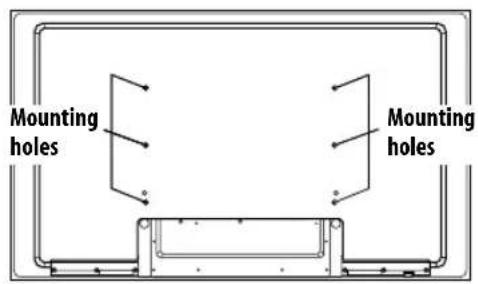

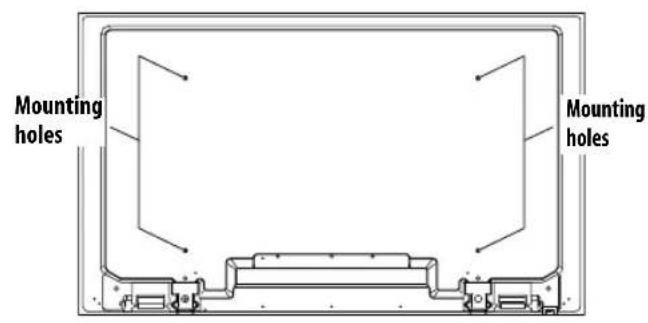

  The following mounting holes can be used for the installation:

Rear view (KRP-600P)

(KRP-500P)

Caution

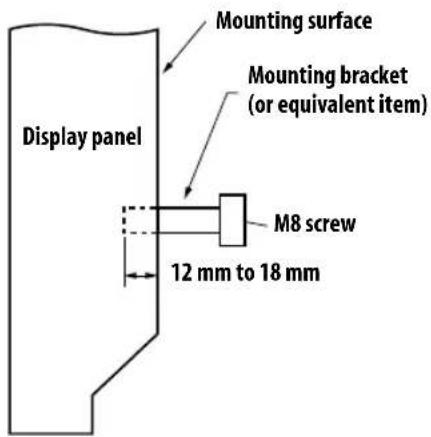

• Use M8 screws, which go 12mm to 18mm in depth from the mounting surface of the display panel. See the side view shown to the right.
• Be careful not to block the ventilation opening at the rear of the display panel.
• Be sure to install the display panel on a flat surface because it contains glass.

• The screw holes other than the illustrations above are to be used only for the specified products. Never use them for mounting non-specified products.

• Do not mount or remove the display panel to or from the stand, with speakers attached.

It is strongly recommended to use the optional Pioneer mounting products.
- Pioneer shall not be liable for any personal injury or product damage that results from the use of mounting items other than the optional Pioneer products.

Side view

Chapter 3

Supplied accessories

Check that all of the following accessories are supplied in the box.

Display

Power cable

Only the power cable appropriate for your country or region is supplied:

For Europe, except UK and Republic of Ireland

For UK and Republic of Ireland

Cleaning cloth

Warranty card

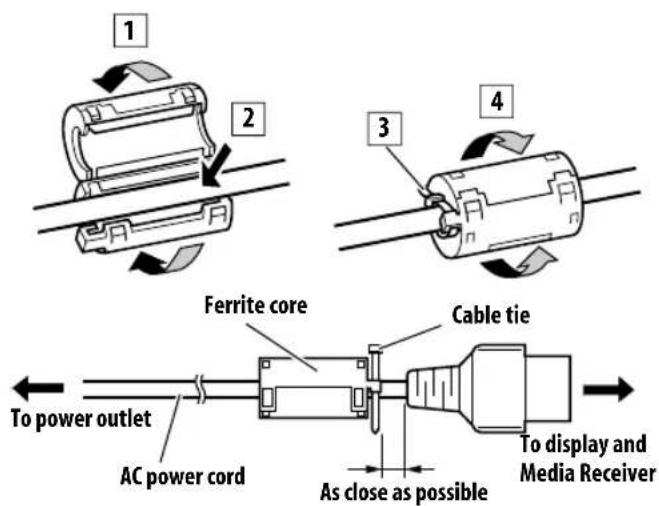

Ferrite core x 2 (Grey x 1, Black x 1)

Cable tie (for ferrite core)

Colour Sensor

(when attached to the top right of the rear panel)

Colour Sensor Bracket

Screw x 2 (M5 x 8 mm)

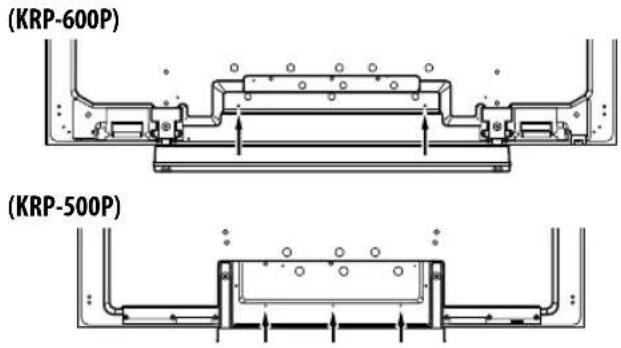

Cable guide

Cable clamp x 4

Cable guide x 2 (KRP-500P only)

Operating instructions x 2

SYSTEM cable

AA size battery x 2 (for remote control unit)

Media Receiver

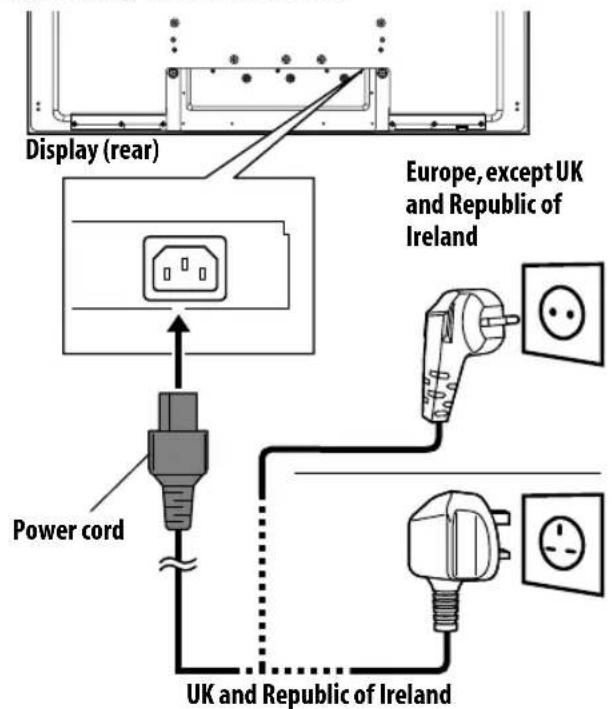

Power cable

Only the power cable appropriate for your country or region is supplied:

For Europe, except UK and Republic of Ireland

For UK and Republic of Ireland

Ferrite core

Cable tie (for ferrite core)

Note

• Always use the power cord supplied with the display and the one supplied with the Media Receiver for each respective unit.

Chapter 4

Part names

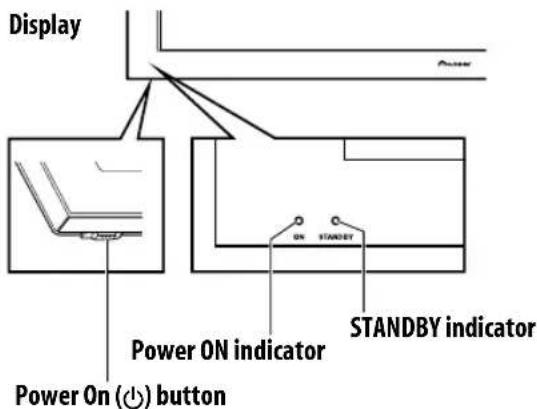

Display

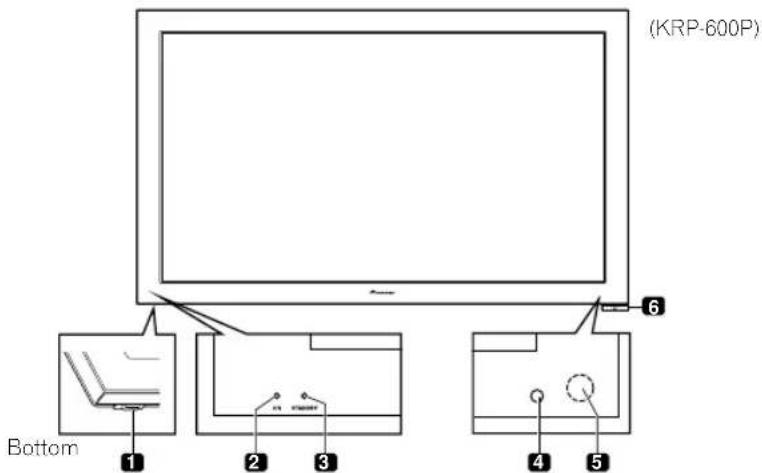

(Front)

1 Power On (D) button
2 Power ON indicator
3 STANDBY indicator

4 Room Light sensor
5 Remote Control sensor
6 Colour sensor

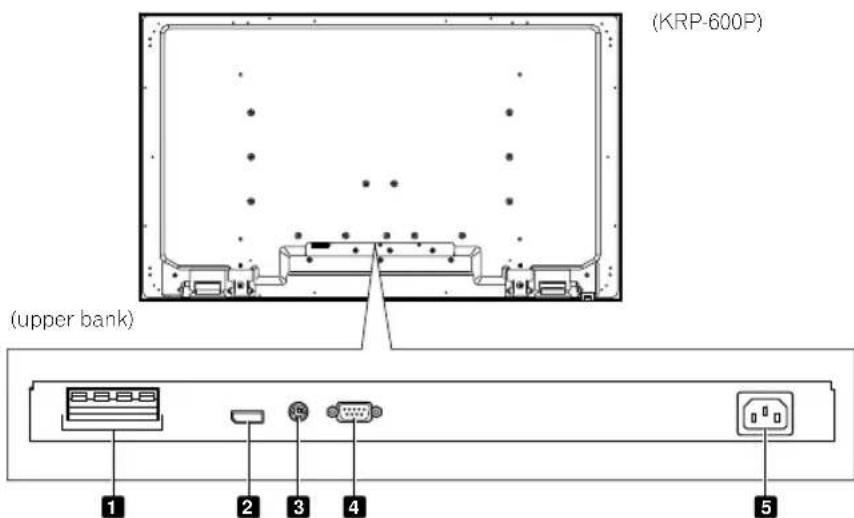

(Rear)

Viewed from the underside of the display

1 SPEAKERS terminals (right/left)

• Do not connect any devices to the speaker terminals other than the speakers specified.
• Do not leave speaker cable wires bare and exposed at the terminals. Exposed wires can result in an electrical short causing malfunction or damage to the system.

2 SYSTEM CABLE terminal
3 Colour sensor terminal
4 RS-232C terminal (SERVICE ONLY) (used for factory setup)
5 AC IN terminal

Media Receiver

(Front)

1 Power ON indicator
2 STANDBY indicator
3 TIMER indicator
4 USB port
5 INPUT 5 terminal (HDMI)
6 COMMON INTERFACE 2 SATELLITE slot
7 STANDBY/ON button
8 INPUT button

9 VOLUME Up/Down buttons
10 CHANNEL Up/Down buttons
11 PHONES output terminal
12 INPUT 5 terminal (Video)
13 INPUT 5/PC INPUT terminals (Audio)
14 PC INPUT terminal (Analogue RGB)
15 COMMON INTERFACE 1 TERRESTRIAL slot

(Rear)

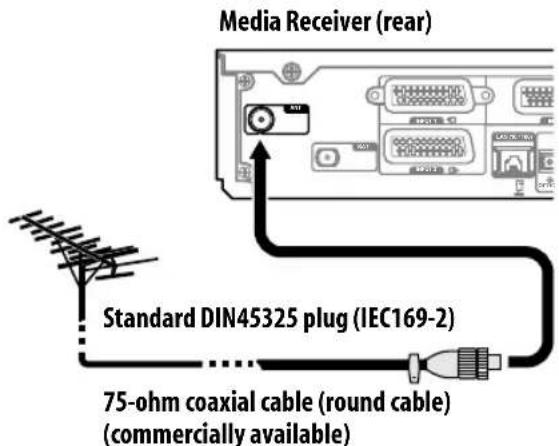

1 ANT (Antenna) input terminal

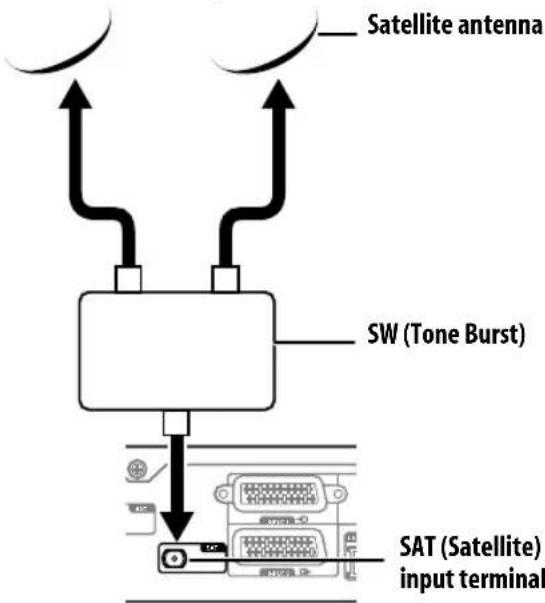

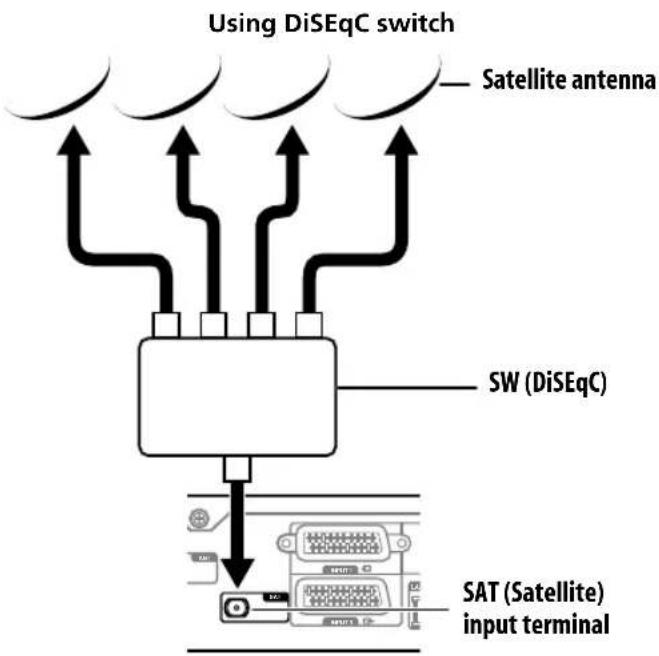

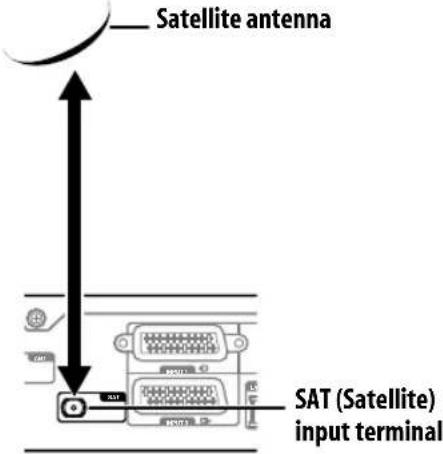

2 SAT (Satellite) input terminal
3 INPUT 1 terminal (SCART)
4 INPUT 2 terminal (SCART)
5 INPUT 2 terminals (Audio)
6 INPUT 2 terminals (COMPONENTVIDEO:Y, P, PR)
7 SUB WOOFER OUT terminal
8 AUDIO OUT terminals
9 RS-232C terminal (SERVICE ONLY)

(used for factory setup)

10 AC IN terminal
11 INPUT 3 terminal (SCART)

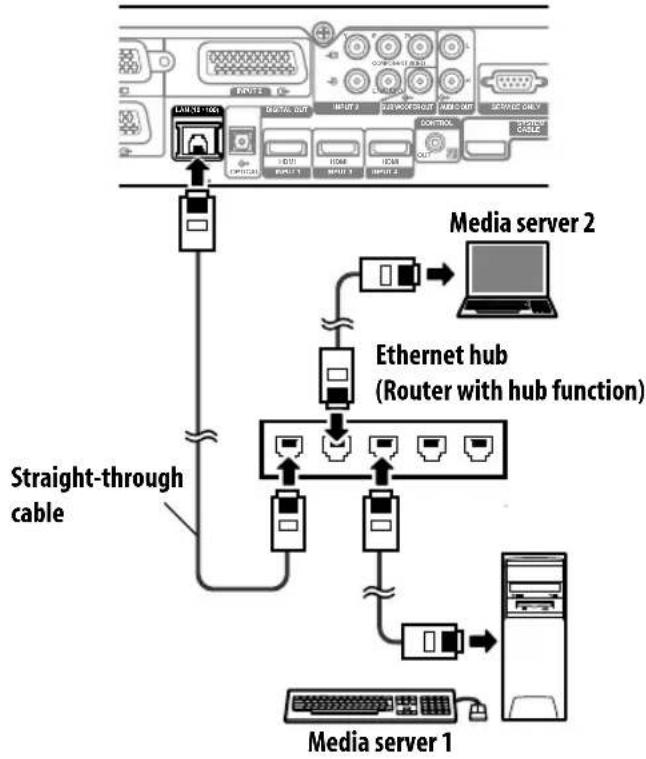

12 LAN (10/100) port
13 DIGITAL OUT terminal (OPTICAL)
14 INPUT 1 terminal (HDMI)
15 INPUT 3 terminal (HDMI)
16 INPUT 4 terminal (HDMI)
17 CONTROL OUT terminal
18 SYSTEM CABLE terminal

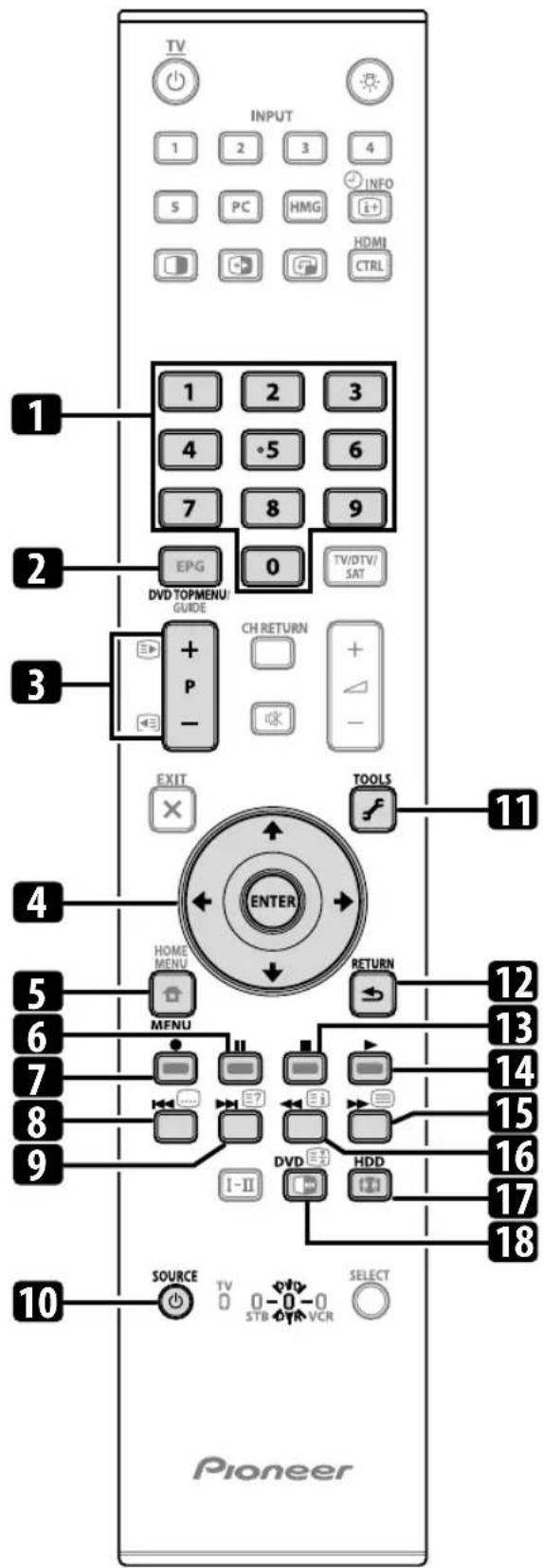

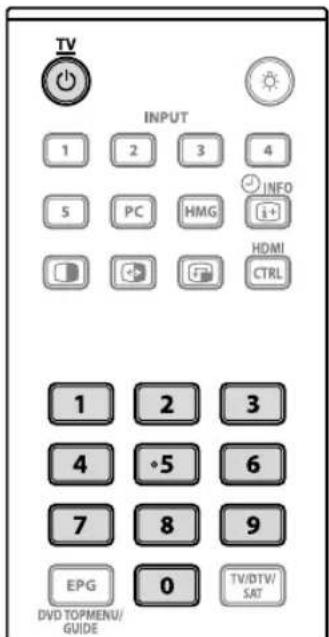

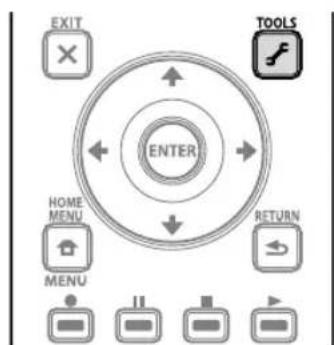

Remote control unit

This section describes the functions of the buttons available when the TV mode has been selected by using the SELECT button. For the buttons controlling other equipment, see Controlling other equipment using the supplied remote control unit starting from page 90.

1 OTV:Turns on the power to the flat screen TV or places it into the standby mode.
2 INPUT: Selects an input source of the flat screen TV. ("INPUT 1", "INPUT 2", "INPUT 3", "INPUT 4", "INPUT 5")
3: Switches the screen mode among 2-screen, picture-in-picture, and single-screen.
4 P C : Selects the PC terminal as an input source.
Switches between the two screens when in the 2-screer or picture-in-picture mode.

6 0 t o 9: TV/External input mode: Selects a channel.
Teletext mode: Selects a page.
Turns the power on when the STANDBY indicator lights red.

7 EPG: Displays the Electronic Programme Guide in DTV/SAT (Satellite) input mode.
8 P + / P - : TV/External input mode: Selects a channel
Teletext mode: Selects a page.
9 X E X I T : Returns to the norm
10 / / / : Selects a desired item on the setting screen.
ENTER: Executes a command.
11 HOME MENU: Displays the HOME MENU screen.
12 Colour (RED/GREEN/YELLOW/BLUE): Controls a BD player for HDMI Control functions only.
13 Jumps to Teletext subtitle page. Turns subtitle on and off in DTV input mode depending on the broadcast.
14 E: Displays hidden characters.
15 I-II: Sets the sound multiplex mode.
16: TV/External input mode: Freezes a frame from a moving image. Press again to cancel the function.

Teletext mode: Stops updating Teletext pages. Press again to release the hold mode.

17 TV, STB, DVD/DVR, VCR: These indicators show the current selection and status when you control other connected equipment, using the supplied remote control unit.
18: Lights up buttons. Lights turn off if no operations are performed within five seconds. This is used for remote control use in dark locations.

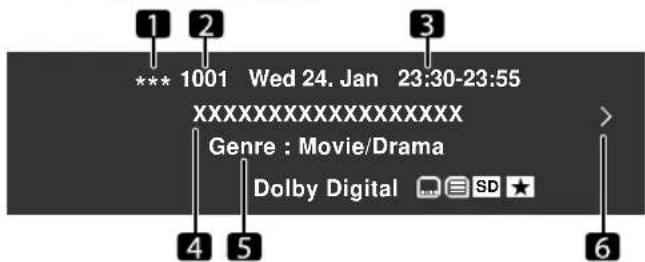

19 i+ INFO: Displays the channel information. Displays the banner information.

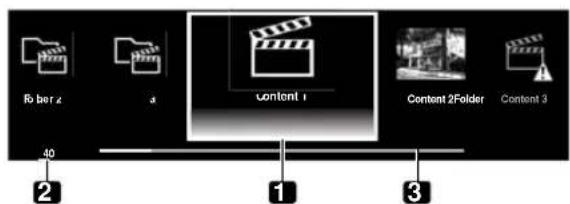

20 HMG (Home Media Gallery): Displays the Home Media Gallery screen.

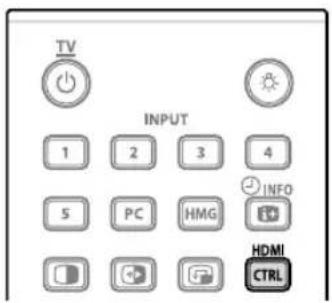

21HDMI CTRL:Displays the HDMI Control menu.
22: 1ives the location of the small screen when in the picture-in-picture mode.
23 TV/DTV/SAT: Switches the mode among TV, DTV and SAT.
24 CH RETURN: Returns to the previous channel.
25 +/4-: Sets the volume.
26 Mutes the sound.
27 TOOLS: Displays the TOOLS Menu.
28 RETURN: Restores the previous menu screen.

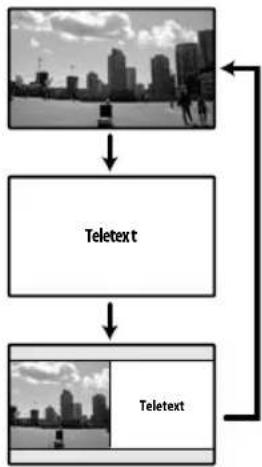

29: Selects the Teletext mode (all TV image, all TEXT image. TV/TEXT image).
30 1: Displays an Index page for the CEEFAX/FLOF format. Displays a TOP Over View page for the TOP format.
31: Selects the screen size.
32 SELECT: Switches the selection among TV, STB, DVD/DVR, and VCR, so that you can control other connected equipment, using the supplied remote control unit.

• When using the remote control unit, point it at the display

Chapter 5 Preparation

Installing the display

Location

• Avoid direct sunlight. Maintain adequate ventilation.
  The length of the SYSTEM cable used to connect the display and the Media Receiver is about 3m

Caution

• If you do not leave sufficient space above the display, it will not receive enough ventilation and will not operate properly.
• Pioneer will not be responsible for accident or damage caused by inadequate installation or stabilization, erroneous operation, remodeling or natural disasters.

Note

• Allow enough space around the upper and back parts when installing to ensure adequate ventilation of the rear of the unit.
• Be sure to install the display and Media Receiver in a flat, stable location.

Using the optional Pioneer stand

For details on installation, refer to the instruction manual supplied with the stand.

Using the optional Pioneer speakers

For details on installation, refer to the instruction manual supplied with the speakers.

Installing the Media Receiver

Caution

• Do not use the SYSTEM cable to connect other equipment to the flat screen TV.
• Do not place a VCR or any other device on the top of the Media Receiver.
• When installing, allow enough space on the sides and above the Media Receiver.
• Do not block the side ventilation openings or the rear exhaust openings of the Media Receiver.

Ventilation opening

Caution

• Placing the Media Receiver alone in the vertical position can result in product damage and malfunction.

Moving the display

When installing on a rack, etc., hold the display as shown below. Because the display is heavy, be sure to have someone help you when moving it.

(KRP-600P)

(KRP-500P)

Note

• Do not use the speaker to support the weight of the display.
• Do not hold the display by the speaker mounting fittings.

Preventing the display from falling over

After installing the stand, be sure to take special care to ensure that the display will not fall over and is stabilized to both the wall and rack.

Stabilizing on a table or rack

Stabilize the display as shown in the diagram using the falling prevention metal fittings and screws supplied with the optional stand.

Note

• Before stabilizing the display on a stand or rack, make sure that the falling prevention metal fittings are attached to the stand.
• To stabilize the display on a table or rack, also use commercially available wood screws that have a nominal diameter of 4mm and that are at least 20mm long.

Drill a hole in the middle at the rear of the tabletop panel before using a wood screw. Perform this work the same way on the left and right sides.

Drill a hole in the middle at the rear of the tabletop panel before using a wood screw. Perform this work the same way on the left and right sides.

Preparation

Using a wall for stabilization

1 Attach falling prevention bolts (hooks) to the display.

2 Use strong cords to stabilize it appropriately and firmly to a wall, pillar, or other sturdy element.

Perform this work in the same way on the left and right sides. Use hooks, cords and fittings that are available on the market. Recommended hook: Nominal diameter 8 mm, length 12 mm to 18 mm

Caution

• A table or rack with adequate strength should always be used to support the display. Failure to do so could result in personal injury and physical damage.
• When installing the display, please take the necessary safety measures to prevent it from falling or overturning in case of emergencies, such as earthquakes, or of accidents.
• If you do not take these precautions, the display could fall down and cause injury.
• The screws, hooks, cords and other fittings that you use to secure the display to prevent it from overturning will vary according to the composition and thickness of the surface to which it will be attached.
• Select the appropriate screws, hooks, cords, and other fittings after first inspecting the surface carefully to determine its thickness and composition and after consulting a professional installer if necessary.
• Do not use bare wires for the cord. If any part of the wire is introduced into the ventilation port on the back of the display panel, fire or electrical shock could result.

Attach the colour sensor

When attached to your panel, the colour sensor analyses the brightness of the environment to automatically optimize the picture quality according to the viewing condition. To activate this function, select OPTIMUM on the AV Selection menu, Mode 1 or Mode 2 on the Room Light Sensor menu (page 62).

We strongly suggest you attach the colour sensor to the bottom right of the front panel. It can be attached to the rear of the panel, but the colour sensor may not operate properly depending on the conditions (refer to the Important bullets on page 19). For the actual procedure, follow the directions below.

Note

• Do not connect any other external device to the colour sensor terminal.
• Do not connect the colour sensor cable to any devices other than specified.
  To clean the sensor window, gently wipe with the cleaning cloth supplied with the panel.
• Do not use extension cables for the colour sensor.
• Do not disassemble or modify the colour sensor.

Attach the colour sensor to the front panel (recommended)

This is a simple and easy-to-attach method using a magnet.

1 Attach the colour sensor at the bottom right of the front panel using a magnet.

2 Attach the colour sensor along the bottom edge of the front panel flush with the right side.

When the colour sensor is properly attached, the front of the colour sensor is set back a small amount from the front of the display.

3 Connect the cable to the colour sensor terminal on the rear upper bank but do NOT plug in to the power outlet.

(KRP-600P) Cable guide (supplied with the colour sensor)

Attach the cable guides here to bundle the colour sensor cable.

Note

• Use the cable clamps as necessary.
• Remove the sheet of the double-sided adhesive tape when attaching the cable guide to the panel.

Preparation

Attach the colour sensor to the rear panel

Methods of attaching the colour sensor to the rear panel differ depending on the panel with or without side-mounted speakers.

(when side-mounted speakers are installed)

1 Remove the screws of the colour sensor then replace the bracket.

Use the removed screws again.

(Bracket)

2 Loosen the upper two (2) speaker bracket screws.
3 Fit the colour sensor bracket's lower grooves into the screws. Adjust the colour sensor/speaker bracket positions so as to stay in place.

4 Fasten the screws.

5 Connect the cable to the colour sensor terminal on the rear upper bank but do NOT plug in to the power outlet.

Note

• Do not loosen the screws at the bottom of the panel. When attached to the rear panel, the sensor window points upward.
• If the colour sensor attached to the rear panel does not operate properly, attach it to the front panel.
• Do not use the supplied screws when attaching the colour sensor using the speaker brackets.
  The colour sensor may become hot due to a heat emitted from the panel. When using it in a high-temperature environment, attach the colour sensor to the bottom of the front panel.

(when side-mounted speakers are not installed)

1 Remove the screws of the colour sensor then replace the bracket.
Use the removed screws again.
2 Finger tighten the supplied colour sensor screws in the speaker screw holes.
3 Fit the colour sensor bracket's lower grooves into the screws. Adjust the bracket position to stay in place.
4 Fasten the screws.

5 Connect the cable to the colour sensor terminal on the rear upper bank but do NOT plug in to the power outlet.

Preparation

Important

The colour sensor may not operate properly:

• if attached by methods other than specified above
• if anything blocks light falling on the sensor window
• if light falls on only part of the sensor window
• if the light falling on the sensor window and the panel screen differs

Note

• If the colour sensor attached to the rear panel does not operate properly, attach it to the front panel.
  The colour sensor may become hot due to a heat emitted from the panel. When using it in a high-temperature environment, attach the colour sensor to the bottom of the front panel.
• Do not use the screws supplied for the speakers.

Basic connections

Connecting the antenna

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable.

Caution

• When the "Aerial Power" setting is on, directly connect the aerial to the ANT input terminal at the rear of the Media Receiver. Connecting any device between the aerial and Media Receiver may cause damage to the device.

• Connect a 75-ohm coaxial cable (commercially available) to the ANT terminal.
  If "Aerial Power" setting is enabled, use an indoor antenna with signal amplifier, 5 V 30 mA.

Antenna cable (commercially available)

If your outdoor antenna uses a 75-ohm coaxial cable with a standard DIN45325 plug (IEC169-2), plug it into the antenna terminal at the rear of the Media Receiver.

Note

If the antenna is not connected correctly, the quality of reception may be impaired. If images are not displaying correctly, check whether the antenna connection is correct or not.

Connecting the satellite antenna

There are three different connection methods available as shown below. Select the appropriate menu according to the switch you use. See Setting up satellite TV channels manually on page 33. If no details on how the antenna is connected (in a building, for example), select "SMATV" from "Scan Type" on the "Satellite Setup" menu.

Direct connection to the Media Receiver

Using Tone Burst

Note

• Do not make the following connections:

using two or more switches
- connecting the Media Receiver and antenna through an STB
using a motorized antenna

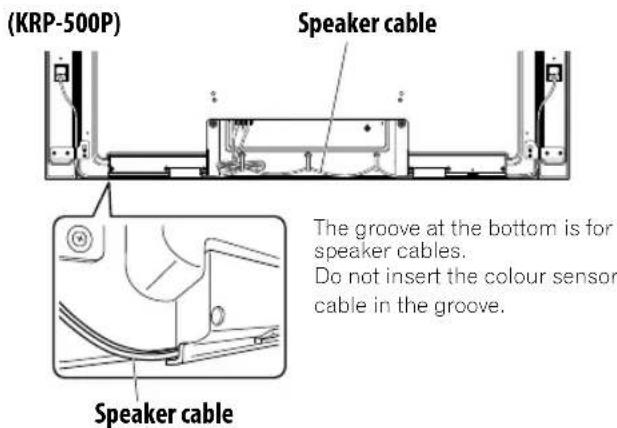

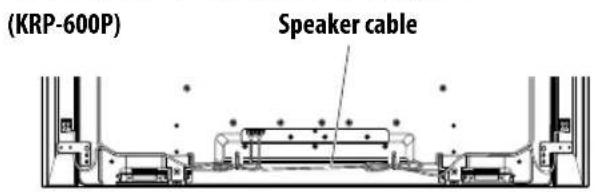

Routing cables

When the speaker is mounted to the display panel:

Note

• Use the supplied cable clamps as necessary.
• When tidying up your speaker cables, make sure to bundle them so that they are not subjected to any pressure.

Attaching cable clamps to the main unit

Use the cable clamps as necessary to route the connecting cables. The diagrams below show the location of the holes on the rear of the display.

Attaching and removing a cable clamp

Thread the clamp band through the holder [1] and bundle the cable(s) in the cable clamp. Push and hold the levers then insert the hook into an appropriate hole [2] on the rear of the display. Pull up the clamp band to lock.

• Confirm that the cable clamp is seated firmly in the panel.

To remove the clamp band, pull and hold the latch to release.

To remove the cable clamp, push and hold the levers then pull it out from the hole.

Preparation

Note

• Avoid pinching or creating pressure points when routing or bundling cables.
  The longer a clamp is in place, the better chance of deterioration. An older clamp is more easily damaged while being removed and may not be reusable.
• Use the cable clamps as necessary.
• Be careful not to subject any connecting cables to strain.

Attaching the ferrite core

Attach the accessory ferrite core to the end of the display and the Media Receiver's power cords as shown in the accompanying illustration. Use the provided cable tie to prevent the ferrite core from slipping on the cable.

If you do not do this, the flat screen TV will not conform to mandatory CE standards.

Connecting the SYSTEM cable

Caution

• Do not use the SYSTEM cable to connect other equipment to the flat screen TV.

Note

• The SYSTEM cable comes with the same terminals on both ends.
• Do not connect an HDMI cable to the SYSTEM CABLE terminal.
• When removing the SYSTEM cable, push and hold the latch on the connector to release.

Connecting the power cord

Media Receiver (rear)

Note

• Disconnect the power cord from the power outlet when the flat screen TV is not going to be used for a long period of time.
• Insert the power plug in the AC outlet, after all other components are connected.

Preparing the remote control unit

Inserting batteries

1 To open push and slide the battery cover in the direction of the arrows.

2 Load the supplied two AA size batteries while inserting their respective negative polarity (-) ends first.

Place batteries with their terminals corresponding to the (+) and (-) indicators in the battery compartment.

3 Close the battery cover.

Caution

Improper use of batteries can result in chemical leakage or an explosion. Be sure to follow the instructions below.

• When you replace the batteries, use manganese or alkaline ones.
• Place the batteries with their terminals corresponding to the (+) and (-) indicators.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.
• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not use the remote control unit for an extended period of time, remove the batteries from it.
• WHEN DISPOSING OF USED BATTERIES, PLEASE COMPLY WITH GOVERNMENTAL REGULATIONS OR ENVIRONMENTAL PUBLIC INSTITUTION'S RULES THAT APPLY IN YOUR COUNTRY/AREA.

Preparation

Operating range of the remote control unit

Operate the remote control unit while pointing it toward the remote control sensor located at the bottom right of the front panel of the display. The distance from the remote control sensor must be within 7 m and the angle relative to the sensor must be within 30 degrees in the right, left, upward, or downward direction.

Note

For remote control sensor locations, see Part names on page 12.

Caution

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.
• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.
• The remote control unit may not work properly if the remote control sensor of the display is under direct sunlight or strong lighting. In such case, change the angle of the lighting or display, or operate the remote control unit closer to the remote control sensor.
• When any obstacle exists between the remote control unit and the remote control sensor, the remote control unit may not function.
• As the batteries become empty, the remote control unit can function within a shorter distance from the remote control sensor. Replace the batteries with new ones early enough.
• The display emits very weak infrared rays from its screen. If you place such equipment operated through infrared remote control as a VCR nearby, that equipment may not receive commands from its remote control unit properly or entirely. If this is the case, place that equipment at a location far enough from the flat screen TV.
• Depending on the installation environment, infrared rays from the display may not allow this system to properly receive commands from the remote control unit or may shorten allowable distances between the remote control unit and the remote control sensor. The strength of infrared rays emitted from the screen differs, depending on images displayed on the screen.

Chapter 6 Watching TV

Important

• Before watching broadcast channels, the built-in TV tuner must be set up. See Setting up TV channels on page 33 for how to do this.

Turning the power on/off

Note

• When the Media Receiver is plugged into a power outlet, it is placed into standby mode; the STANDBY indicator on its front panel should flash red. The Media Receiver stays in standby mode unless it is unplugged from the power outlet.

To turn on the system, press the Power On (O) button on the display.

The Power ON indicators on the display and Media Receiver light up blue.

To turn off the system, press on the remote control unit or STANDBY/ON on the Media Receiver.

The display and Media Receiver are placed into standby mode; their respective STANDBY indicators light up red.
- You can then turn on the system again by pressing or 0 to 9 on the remote control unit or STANDBY/ON on the Media Receiver.
- If you press 0 on the remote control unit, images from "INPUT1" will be displayed.
If you press 1 to 9, TV images will be displayed.

You can also press the Power On (b) button on the display to turn off the system. However, you cannot then turn on the system again by pressing the buttons on the remote control unit and Media Receiver.

STANDBY/ON button

Note

• W h e the Power On (O) button on the display is off, you cannot turn the power on by pressing O or 0 to 9 on the remote control unit or STANDBY/ON on the Media Receiver.
• While the system is placed into standby mode, pressing remote control's causes the flat screen TV to turn on.
• When the system is placed into standby mode, the main power flow is cut and the system is no longer fully operational. A minute flow of power feeds the system to maintain operational readiness.
  If you are not going to use the flat screen TV for a long period of time, be sure to remove the power cord from the power outlet.

Watching TV

• If you unplug the Media Receiver from a power outlet, the clock inside the system will reset with certain functions, such as timer recording, disabled. After plugging in the Media Receiver again, clock information is automatically obtained as you tune in a DTV programme.

If you unplug the Media Receiver from a power outlet when a timer recording programme(s) has been registered, the flat screen TV may automatically tune in to the DTV programme in order to obtain clock information when you turn the power on the next time.

It may take a short while until the clock information is obtained. An alert will appear when you try to tune in an analogue programme before obtaining the clock information.

Flat screen TV status indicators

The table below shows the operational status of the flat screen TV. You can check the current status of the system with the indicators on the display and Media Receiver.

Indicator status System status
Display Media Receiver
Power ON STANDBY Power ON STANDBY
●	●	●	●	The power cord of both the display and Media Receiver have been connected but the Power On (●) button of the display is off.
●	●	●	●	Power to the system is on
●	●	●	●	The system is in standby mode

For other than the above, see Troubleshooting on page 102.

Note

• You can select "Auto", "High", "Mid" or "Low" for the brightness of the Power ON indicator. When "Auto" is selected, the brightness of the indicator changes to "High", "Mid" or "Low" to match the brightness level of the viewing area. For details, see Blue LED Dimmer on page 62.

Changing channels

Use the remote control or the control panel of the Media Receiver to change channels.

• Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See Controlling other equipment using the supplied remote control uniton page 90.

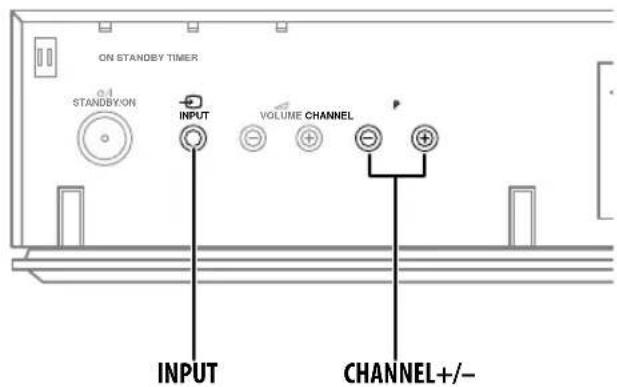

Switching the TV input mode

• Press INPUT on the Media Receiver or TV/DTV/SAT on the remote control unit to select TV, DTV or SAT (satellite) input mode.

Media Receiver(front)

Using + / - on the remote control unit

• Press P+ to increase the channel number.
• Press P- to decrease the channel number.

Note

• Press CH RETURN to switch the current channel to the previously viewed channel. Press CH RETURN again to return to the original channel.
• CHANNEL +/- on the Media Receiver operates the same as P+/P-.
• P + / P- cannot pick up channels that are set to skip. For Channel Skip, see steps 14 and 15 under Setting up analogue TV channels manually on page 35.
• When in DTV or SAT mode, P + P - cannot pick up digital channels that are set to skip while "Off" is selected for "Favourites" or that are not registered in the Favourites List while "On" is selected for "Favourites". See Customizing channel related settings on pages 49 and 50.

Using 0 to 9 on the remote control unit

• Select channels directly by pressing buttons 0 to 9.

For example:

Press 2 to select channel 2 (one-digit channel).

Press 1 then 2 to select channel 12 (two-digit channel).

While in DTV mode, press 1, 2 and 3 to select channel 123 (three-digit channel).

Note

• In standby, when you press 0, the power turns on and images come from the "INPUT 1" source. Or, when you press any button from 1 to 9, TV images display.

Displaying a channel list

Three channel lists are available for quick access to the desired channel: Favourites List, Channel List and Input List. To display each list, follow the procedure below:

FavoursList:PressENTERwhile watchinga programme,select "Favours"on the HOME MENU or use / to select "Favours" on the Channel List or Input List.

Channel List: Select "Channel" on the HOME MENU, use to select "Channel List" on the Favourites List or Input List. See page 47.

Input List: Select "Input" on the HOME MENU or use / to select "Input List" on the Favourites List or Channel List.

List	Max. number of channels	Items displayed
Favourites List	20 analogue channels 20 digital channels 40 satellite channels 1 Home Media Gallery	Analogue/digital/ satellite channels, external inputs and top screen for Home Media Gallery
Input List INPUT 1 through INPUT 5, PC		External inputs
Channel List All analogue, digital and satellite channels		Analogue/digital/ satellite channels

Note

• Pressing ENTER selects the desired channel.
• Pressing EXIT or RETURN causes the list to disappear.
• Pressing TOOLS while displaying a channel list (DTV or SAT) causes a channel list search screen to appear. See page 47.

Watching TV

Setting your favourite channels

Select up to 10 channels for each screen (up to nine screens). You can then quickly jump to your favourite channels.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Favourites Setup" (↑/↓ then ENTER).
4 Select "Channel Mode" (↑/↓).
5 Select "Favourites" (←/→).
Select "All" to set all channels to "Favourites".
6 Press HOME MENU to exit the menu.

Note

If there is another screen that follows, a scroll bar appears.
- Pressing ENTER while watching a TV programme also causes the Favourites List to appear.
If no channels are registered, "No Favourites List," appears.

Sorting favourite channels

You can sort favourite channels. To sort the registered channels, follow the procedure below.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Favoursites Setup" ( ↑/↓ then ENTER).
4 Select "Sort Favourites" ( ↑/↓ then ENTER).
5 Select a channel to be shifted (↑/↓/←/→ then ENTER).
6 Select a new location ( ↑/↓←/→ then ENTER).
Sorting is executed.
To sort another channel(s), repeat steps 5 and 6.
7 Press HOME MENU to exit the menu.

Note

If there is another screen that follows, a scroll bar appears.

Registering favourite channels

Use the TOOLS Menu to register TV channels, external input sources including PC, and Home Media Gallery content (top menu screen). To register, follow the procedure below.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Favours Entry" (↑/↓).

3 Select "On" (←/→).

The channel you are watching is registered in the Favourites List.

To cancel, use / to select "Off".

Note

• Pressing EXIT, RETURN, or TOOLS again causes the TOOLS Menu to disappear.
• If the number of channels registered reaches the limit, a warning screen appears.
  To cancel the above procedure before it finishes, press EXIT or RETURN.

Editing Input List

You can edit the input channel name. For changing the name, follow the procedure below.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Option" (↑/↓ then ENTER).
4 Select "Label Input" (↑/↓ then ENTER).

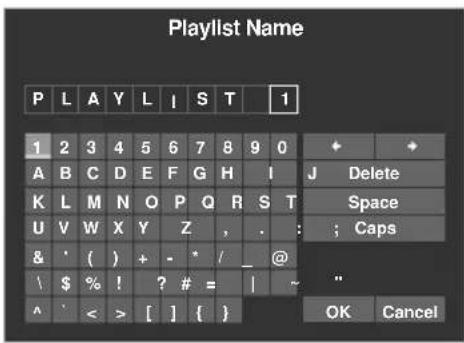

5 Select an input ( ↑/↓ then ENTER). The software keyboard appears.
6 Edit the name.
7 Press HOME MENU to exit the menu.

Changing the volume and sound

Use the remote control or the control panel of the Media Receiver to adjust the volume.

Media Receiver (front)

Using + - on the remote control unit

• Press to increase the volume.
• Press to decrease the volume.

VOLUME + / - on the Media Receiver operates the same as

Using on the remote control unit

1 Press to mute the sound.

appears on the screen. If headphones are used, appears.

2 Press again or + to restore the sound.

Switching the broadcast audio channel

Depending on the broadcast, you can switch the audio channel.

• Press I-II to change the audio channel.

ImodeIImodeMONOmode

Note

• Pressing TOOLS also causes the audio channel mode menu to appear.

The table below shows the available audio channels by broadcast audio type.

Digital Tele		Setting
		I	II	MONO
NICAM Broadcasts	Stereo	A 1AAA NICAM STEREON10:00	A 1AAA NICAM STEREON10:00	A 1AAA MONO10:00
	Bilingual	A 2BBB NICAM I10:00	A 2BBB NICAM II10:00	A 2BBB MONO10:00
	Monaural	A 3CCC NICAM MONON10:00	A 3CCC NICAM MONON10:00	A 3CCC MONO10:00
	Stereo	A 4DDDSTEREO10:00	A 4DDDSTEREO10:00	A 4DDD MONO10:00
	Bilingual	A 5EEE DUAL I10:00	A 5EEE DUAL II10:00	A 5EEE MONO10:00
	Monaural	A 6FFF MONON10:00	A 6FFF MONON10:00	A 6FFF MONO10:00
	DualMono	D 001GGGL10:00	D 001GGGL10:00	D 001GGGL10:00
	Stereo	D 002HHHSTEREO10:00	D 002HHHSTEREO10:00	D 002HHH MONO10:00
	Monaural	D 003III MONON10:00	D 003III MONON10:00	D 003III MONO10:00
Digital Satellite Broadcasts	DualMono	S 0001JJL10:00	S 0001JJJ10:00	S 0001JJJ MONO10:00
	Stereo	S 0002KKKSTEREO10:00	S 0002KKKSTEREO10:00	S 0002KKK MONO10:00
	Monaural	S 0003LLL MONON10:00	S 0003LLL MONON10:00	S 0003LLL MONO10:00

Note

In each of the sound multiplex mode selected using the I-II button, the display changes depending on broadcasting signals being received.
Once the MONO mode is selected, the sound remains mono even if the system receives a stereo broadcast. You must switch the mode back to I or II mode if you want to hear stereo sound again.
- Selecting a sound multiplex mode while the input source is "INPUT 1" to "INPUT 5" does not change the type of sound. In this case, sound is determined by the video source.
- For DTV broadcasts, the language you hear immediately after channel selection depends on the language setting ("Primary Audio" or "Secondary Audio") in Selecting languages for audio, subtitles, and teletext on page 51. In some cases, the selected language may differ from that displayed on screen.

Switching an audio component

The TOOLS Menu also allows selecting from up to 32 audio components.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Audio" (↑/↓).

3 Select the desired audio component ( / ) .

You can switch:

-an audio component between the languages (digital broadcast only)
-an audio component for the Home Media Gallery (page 73)

Using the multiscreen functions

• Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See Controlling other equipment using the supplied remote control unit on page 90.

Splitting the screen

Use the following procedure to select 2-screen or picture-in-picture mode.

Note

• Displaying a split screen for a long period of time, or for shorter periods of time everyday, may result in image retention.

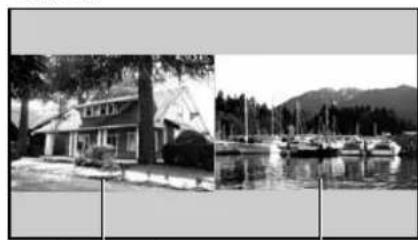

2-screen
Main screen Sub screen

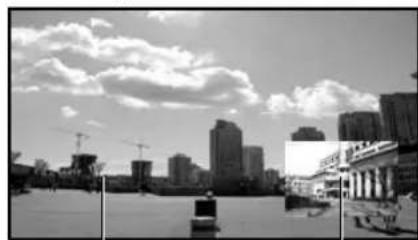

Picture-in-picture
Main screen Sub screen

Watching TV

1 Press to select the display mode.

Each time you press the display mode is switched among 2-screen, picture-in-picture, and single-screen.

In 2-screen or picture-in-picture mode, press switch the position of the two screens shown.

The left screen (in the 2-screen mode) or the larger screen (in the picture-in-picture mode) is the active screen which will be indicated by "▶". The user is allowed to operate picture and sound.

In picture-in-picture mode, press move the position of the small screen anticlockwise.

2 To select the desired input source, press the appropriate input source button.

If watching TV programmes, press P + / P to change the channel.

Using the TOOLS Menu

You can also select the multiscreen mode from the TOOLS Menu.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Split", "Swap" or "Shift" (↑/↓).

3 Select a mode ( / ) .

For "Split" mode, select "Off (Single)", "2-screen" or "P-in-P".

The selected mode appears in the center of the TOOLS Menu.

Note

Refer to the TOOLS Menu on page 77.
- The multiscreen function cannot display images from the same input source at the same time. If you make such an attempt, a warning message appears.
- The multiscreen function cannot display images from combinations of two external input sources ("INPUT 1" to "INPUT 5", "PC"). It can display images from the following combinations of input sources.

• Analogue TV (digital TV or Home Media Gallery) and external source ("INPUT 1" to "INPUT 5", "PC")
• When you press EXIT, the single-screen mode is restored and the corresponding menu is displayed.
• When in the 2-screen mode, images displayed on the right screen may look less fine, depending on the images.
• While in the 2-screen or picture-in-picture mode, the analogue favourite channel list and the digital channel list are unavailable.

Freezing images

Use the following procedure to capture and freeze one frame from a moving image that you are watching.

• Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See Controlling other equipment using the supplied remote control unit on page 90.

Important

• Displaying a static image for a long period of time, or for shorter periods of time everyday, may result in image retention.

1 Press

A still image appears on the right screen while a moving image is shown on the left screen.

2 Press

again to cancel the function.

Note

• You cannot freeze the picture when using the 2-screen or picture-in-picture mode.
• When this function is not available, a warning message appears.

Chapter 7

The HOME MENU

HOME MENU overview

For AV source
HOME MENU	Item Page
Channel - 26
Favourites - 26
Input - 26
EPG - 53
Home Media Gallery	- 73
HDMI Control - 95
Setup Picture AV Selection 38
	Contrast* 39
	Brightness*	39
	Colour*	39
	Tint*	39
	Sharpness*	39
	Pro Adjust*	40
	PureCinema**	40
	Sound Control***	45
	OPTIMUM Performance***	45
	Reset	39
Sound	Treble	44
	Bass	44
	Balance	44
	Sound Effect 44
	Reset	44
	AVC	45
Power Control	Energy Save	45
	No Signal off	46
	No Operation off	46
Sleep Timer	- 63

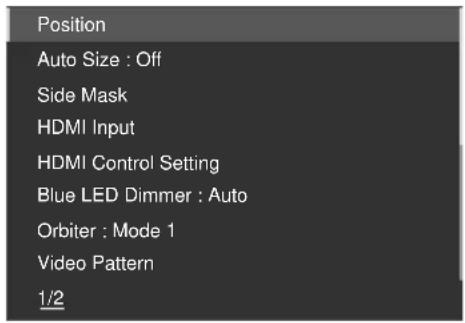

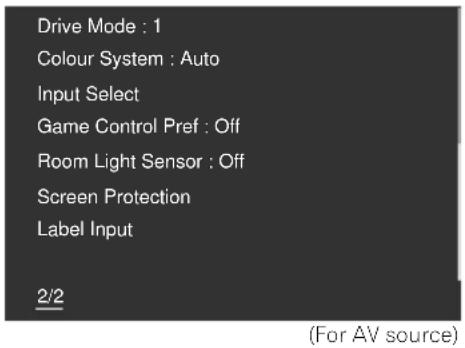

Option	Position	58
	Auto Size	61
	Side Mask	61
	HDMI Input	69
	HDMI Control Setting	98
	Blue LED Dimmer	62
	Orbiter	62
	Video Pattern	63
	Drive Mode	58
	Colour System	60
	Input Select	59
	Game Control Pref	60
	Room Light Sensor	62
	Screen Protection	63
	Label Input	63

System Setup	Auto Installation	33
	Analogue TV Setup	35
	Digital Tuner Setup	48
	Digital Audio Output	68
	SCART Output	66
	I/o link.A	72
	Password 64
	Language	37
	Technical Info.	37
Favourites Setup	Channel Mode	27
	Sort Favourites	27

• Available when any option other than "OPTIMUM" is selected from "AV Selection".
  Access this option through the Pro Adjust menu when any option other than "OPTIMUM" is selected.
  * Available only when "OPTIMUM" is selected from "AV Selection".

For PC source

HOME MENU	Item	Page
Channel - 26
Favourites - 26
Input - 26
EPG - 53
Home Media Gallery	- 73
HDMI Control - 95
Setup Picture AV Selection 38
	Contrast	39
	Brightness	39
	Red	39
	Green	39
	Blue	39
	Reset	39
Sound	Treble	44
	Bass	44
	Balance	44
	Sound Effect 44
	Reset	44
	AVC	45
Power Control	Energy Save	45
	Power Management	46
Sleep Timer	- 63
Option	Auto Setup	59
	Manual Setup	59
	HDMI Input	69
	HDMI Control Setting	98
	Orbiter	62
	Label Input	63
Favourites Setup	Channel Mode	27
	Sort Favourites	27

Using the HOME MENU

The following describes the typical procedure for setting up the menus. For the actual procedures, see the appropriate pages that describe individual functions.

1 Press HOME MENU.
2 P r e s s ↑/↓ to select a menu item, and then press ENTER.
3 Repeat step 2 until you access the desired submenu item.

The number of menu layers differs depending on the menu items.

4 P r e s s / to select an option (or parameter), and then press ENTER.

For some menu items, press / instead of / .

5 Press HOME MENU to exit the menu.

Note

• You can return to the upper menu levels by pressing RETURN.
• Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See Controlling other equipment using the supplied remote control unit on page 90.

Chapter 8 Setting up

Setting up TV channels

This section describes how to automatically search for and set up TV channels.

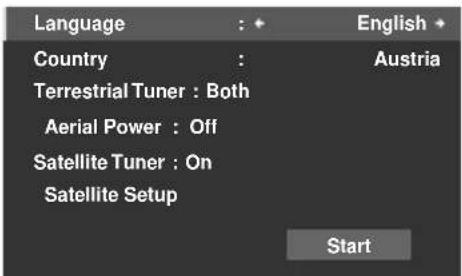

Using Auto Installation

When the flat screen TV is switched on for the first time after purchase, Auto Installation menu appears on screen. For language and channel selections, follow the steps below.

1 Select "Language" (↑/↓).
2 Select a language ( / ) .

You can select from among 18 languages; English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian, Turkish, Norwegian, Danish, Czech, Ukrainian, Hungarian, and Croatian.

3 Select "Country" (↑/↓).

4 Select the country ( / ) .

5 Select "Terrestrial Tuner" (↑/↓).

6 Select a tuning type ( / ) .

Use / to select "Digital", "Analogue", "Both" (default), or "Off".

7 Select "Aerial Power" (↑/↓).

This option is available only when you select "Digital" or "Both" in step 6. Skip steps 7 and 8 when you select other options.

Caution

• When the "Aerial Power" setting is on, directly connect the aerial to the ANT input terminal at the rear of the flat screen TV. Connecting any device between the aerial and flat screen TV may cause damage to the device.

8 Select "On" or "Off" (default) ( / ) .

9 Select "Satellite Tuner" (↑/↓).

Use / to select "On" (default) or "Off".

If you select "On", select "Satellite Setup" then press ENTER to move to the Satellite Setup screen.

If you select "Off", the "Satellite Setup" menu dims.

10 Select "Start" (↑/↓ then ENTER).

Auto Installation automatically starts. To quit Auto Installation before it finishes, press RETURN.

Note

• You can start Auto Installation from the HOME MENU after moving to another country, for example. Follow the steps below before starting Auto Installation:

1 Press HOME MENU (↑/↓ then ENTER).

2 Select "Setup" (↑/↓ then ENTER).

3 Select "System Setup" (↑/↓ then ENTER).

4 Select "Auto Installation" (↑/↓ then ENTER).

The password entry screen appears. Enter your four-digit password using buttons 0 to 9. See Using a password on page 64.

If no channel is found, check the antenna connections, and then retry Auto Installation.

Note

• Channels obtained may vary depending on the installation environment and weather conditions.

Setting up satellite TV channels manually

You can also set up satellite TV channels manually without using Auto Installation. For setup details, follow the steps below.

Note

• The "Digital Tuner Setup" option is only available in the DTV/SAT mode. Press TV/DTV/SAT on the remote control to select the DTV or SAT mode.

1 Press HOME MENU.

2 Select "Setup" (↑/↓ then ENTER).

3 Select "System Setup" (↑/↓ then ENTER).

4 Select "Digital Tuner Setup" (↑/↓ then ENTER).

5 Select "Installation" (↑/↓ then ENTER).

The password entry screen appears. Enter your four-digit password using buttons 0 to 9. For the password, see Using a password on page 64.

6 Select "Satellite Setup" (↑/↓ then ENTER).

7 Select "Scan Type" (↑/↓ then ENTER).

Use / to select "By Satellite", "All Frequencies" or "SMATV".

Note

• Using the "By Satellite" option for channel scanning may fail in some cases. If this is the case, select "All Frequencies" or "SMATV".
• If you access "Satellite Setup" through "Auto Installation", three buttons - "Add New Channels", "Replace Existing Channels" and "Reset" - are unavailable.
• Selecting "SMATV" (Satellite Master Antenna Television system) causes your flat screen TV to make an attempt to obtain all available channels regardless of antenna setting.
• Scanning channels after changing the "Scan Type" option causes the channel information obtained with the previous option to disappear.

8 Select "Aerial Select" (↑/↓).

Use / to select "Single", "DISeqC 1", "DISeqC 2", "DISeqC 3", "DISeqC 4", "Tone Burst 1" or "Tone Burst 2".

9 Select "Satellite Select" (↑/↓ then ENTER).

10 Select "Satellite" (↑/↓ then ENTER).

Information on the selected satellite appears on screen. Select an available satellite from the list.

Units for LNB Frequency is MHz.

This option is available only if you select "By Satellite" in step 7.

Select "New 1" through "New 5" then press and hold ENTER to display the software keyboard.

11 Select "LNB Frequency" (↑/↓).

Use / to select "Universal" (having two LNB frequencies - 9750/10600, default) or use buttons 0 to 9 (then press ENTER) to enter a frequency if you select "...".

This option is available only when you select "All Frequencies" or "By Satellite" in step 7.

12 Select "LNB Voltage" (↑/↓).

Use / to select "On" or "Off" (default).

Select "On" in most cases.

13 Press RETURN then select "Transponder" (/) .

14 Select "Transponder Type" (/) .

Use / to select "All" for all transponders of the selected satellites (default), "One" for only one transponder, or "Manual" for transponders specified.

15 Select "Frequency" (↑/↓).

The option selected in step 14 appears with available transponders for the satellite selected on the satellite list in step 10.

Enter a frequency using buttons 0 to 9 (then press ENTER) if you select "Manual" in step 14.

16 Select "Polarization" (↑/↓).

Use / to select "Horizontal" (default) or "Vertical".

17 Select "Symbol Rate" (↑/↓).

Use / to select "22000" (default), "27500" or use buttons 0 to 9 (then press ENTER) to enter a symbol rate.

Note

• "Polarization" and "Symbol Rate" options are only available if you select "Manual" from "Transponder Type" in step 14.

18 Press RETURN then select "Signal Check" (↑/↓ then ENTER).

Use / to select the desired satellites from the satellite list or transponders for the selected satellites.

Note

• If you access "Signal Check" through "Auto Installation", the button "Add" is unavailable (see page 49).
• Units for Transponder is MHz.

To search and register new channels, select "Add New Channels" (see page 49).

Setting up

To replace registered channels with new channels, select "Replace Existing Channels" (see page 49).

"Reset" restores all satellite settings to factory default values.

19 Press HOME MENU to exit the menu.

Setting up analogue TV channels manually

Use the Manual Adjust function to set up analogue TV channels manually.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "System Setup" (↑/↓ then ENTER).
4 Select "Analogue TV Setup" (↑/↓ then ENTER).

The password entry screen appears. Enter your four-digit password using buttons 0 to 9. For the password, see Using a password on page 64.

5 Select "Manual Adjust" (↑/↓ then ENTER).

6 Select "Programme Entry" (↑/↓).
7 Select a programme number ( / ).
You can select 1 through 99.
8 Select "Search" (↑/↓).
9 Enter a frequency using buttons 0 to 9, then ENTER.
You can also press / to enter a frequency.
10 Select "System" (↑/↓).
11 Select a sound system ( / ) .
You can select from among "B/G", "D/K", "I", "L", and "L".
12 Select "Colour System" (↑/↓).
13 Select a colour system ( / ) .
You can select from among "Auto", "PAL", "SECAM", and "4.43NTSC".
14 Select "Store" (↑/↓).
15 Select "Yes" or "No" (←/→).

Item Description
Yes	You can select the channel using P+/P-
No	You cannot select the channel using P+/P-

16 Press HOME MENU to exit the menu.

Alternatively, to set up for another channel, repeat steps 7 to 15.

Note

• The above procedure transfers and sets the selected channel information to the connected recording equipment such as a VCR or DVD/HDD recorder (DVR).
• Manual Adjust also allows you to make selections for "Tuner NR", "Channel Lock", and "Decoder". See Reducing video noise, Setting Channel Lock, and Selecting a decoder input terminal.

Reducing video noise

For the individual channels, you can specify whether the flat screen TV should reduce video noise depending on the levels of broadcasting signals.

1 Repeat steps 1 to 5 provided for Setting up analogue TV channels manually.
2 Select "Tuner NR" (↑/↓).
3 Select "On" (←/→).
4 Press HOME MENU to exit the menu.

Note

• This function may not achieve a satisfactory result, depending on the conditions of broadcasting signals.
• When using a decoder with a decoder terminal selected, this function may fail to achieve a good result.
  The factory default is "On".

Setting Channel Lock

Channel Lock inhibits selected TV channels from being tuned and watched.

1 Repeat steps 1 to 7 provided for Setting up analogue TV channels manually.
After selecting a channel (using Programme Entry), perform the following steps:
2 Select "Channel Lock" (↑/↓).
3 Select "Block" (←/→).
The selection is switched between "View" (factory default) and "Block".
4 Press HOME MENU to exit the menu.

Setting up

Selecting a decoder input terminal

If you have connected a decoder, select a decoder input terminal (INPUT 1).

1 Press HOME MENU.
2 Select "Setup" ( ↑/↓ then ENTER).
3 Select "System Setup" (↑/↓ then ENTER).
4 Select "Analogue TV Setup" (↑/↓ then ENTER).

The password entry screen appears. Enter your four-digit password using buttons 0 to 9. For the password, see Using a password on page 64.

5 Select "Manual Adjust" (↑/↓ then ENTER).
6 Select "Programme Entry" (↑/↓).
7 Select a programme number ( / ) .

You can select 1 through 99.

After selecting a channel (using Programme Entry), perform the following steps:

8 Select "Decoder" (↑/↓).
9 Select "INPUT 1" (←/→).
10 Press HOME MENU to exit the menu.

Note

• With "Off" (factory default) selected, you cannot watch any images from the decoder.
  While watching DTV, no image is output to the decoder.

Labeling TV channels

You can name TV channels that you have set up, using up to eight characters. This may help you easily identify the channels during selections.

1 Repeat steps 1 to 4 provided for Selecting a decoder input terminal.
2 Select "Label" (↑/↓ then ENTER).
3 Select "Programme Entry" (↑/↓).
4 Select a programme number ( / ) .

You can select 1 through 99.

5 Select "Label" (↑/↓ then ENTER).

The name entry screen appears.

6 Select the first character ( / / then ENTER).

The cursor moves to the second character.

7 Repeat step 6 to enter up to eight characters.

To correct entered characters, select [] or [] on the screen, and then press ENTER. The cursor moves to the preceding or subsequent character.

To delete the current character, select [Delete] on the screen, and then press ENTER.

To put a space for the current character, select [Space] on the screen, and then press ENTER.

To toggle between upper case and lower case, select [Caps] on the screen, and then press ENTER.

8 To complete the name entry, press ↑/↓ or ←/→ to select [OK] on the screen, and then press ENTER.

9 Press HOME MENU to exit the menu.

Note

The above procedure transfers and sets the selected channel information to the connected recording equipment such as a VCR or DVD/HDD recorder (DVR).

Sorting preset TV channels

Use the following procedure to change the sequence of the preset TV programmes.

1 Repeat steps 1 to 4 provided for Selecting a decoder input terminal.
2 Select "Sort" (↑/↓ then ENTER). The sort screen appears.

3 Select a channel to be shifted (↑/↓/←/→ then ENTER).
4 Select a new location ( / / / then ENTER). Sorting is executed.
5 Press HOME MENU to exit the menu.

Note

• To change a page on the Sort screen in step 2, select the arrow icon on the screen with / then press ENTER.
  The above procedure transfers and sets only the shifted channel information to recording equipment such as a VCR or DVD/ HDD recorder (DVR).

Language setting

You can select the language to be used for on-screen display such as menus and instructions, from among 18 languages; English, German, French, Italian, Spanish, Dutch, Swedish, Portuguese, Greek, Finnish, Russian, Turkish, Norwegian, Danish, Czech, Ukrainian, Hungarian, and Croatian.

For the language to be used in the Teletext mode, you can select from among West Europe, East Europe, Greece/Turkey, Cyrillic, and Arabia.

1 Repeat steps 1 to 3 provided for Selecting a decoder input terminal.
2 Select "Language" (↑/↓ then ENTER).
3 Select "Menu" (↑/↓).
4 Select a language ( / ) .

5 Select "Teletext" (↑/↓).
6 Select a language ( / ) .
7 Press HOME MENU to exit the menu.

Checking software/hardware version

To access the version information, follow the procedure below.

1 Repeat steps 1 to 3 provided for Selecting a decoder input terminal.
2 Select "Technical Info." on page 2 of the menu ( ↑/↓ then ENTER).
3 Press HOME MENU to exit the menu.

AV Selection

Select from the seven viewing options, depending on the current environment (e.g., room brightness), the type of the current TV programme, or the type of images input from external equipment. Your flat screen TV has been adjusted to provide optimum sound quality for each AV Selection option. However, you can adjust it to your preference.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Picture" (↑/↓ then ENTER).
4 Select "AV Selection" (↑/↓ then ENTER).
5 Select the desired option ( ↑/↓ then ENTER).

For AV source

For AV source

Item Description
OPTIMUM Automatically adjusts the brightness of the image to the optimum level in accordance with the brightness level of the viewing area. This setting is shared by both the external inputs and TV input sources.
STANDARD	For a highly defined image in a normally bright room. This setting is shared by both the external inputs and TV input sources.
DYNAMIC Sharp imaging with the maximum contrast. Note that this mode does not allow manual image quality adjustment. This setting is shared by both the external inputs and TV input sources.
MOVIE Optimized for movies. This setting is shared by both the external inputs and TV input sources.
PURE	Reflects input signals as faithfully as possible for checking image materials, for example. This setting is shared by both the external inputs and TV input sources.
GAME Lowers image brightness for easier viewing. This setting is shared by both the external inputs and TV input sources.
USER Allows the user to customize settings as desired. You can set the mode for each input source.

For PC source

Item Description
STANDARD	For a highly defined image in a normally bright room
USER Allows the user to customize setting as desired. You can set the mode for each input source.

6 Press HOME MENU to exit the menu.

• As "OPTIMUM" automatically optimizes image quality, the process in which image settings such as brightness and tint gradually change may be seen on the screen. This is not a malfunction.

Setting up

Basic picture adjustments

Adjust the picture to your preference for the chosen AV Selection option (except DYNAMIC).

1 Repeat steps 1 to 3 provided for AV Selection
2 Select an item to be adjusted (↑/↓ then ENTER).

If you select "OPTIMUM" for "AV Selection", the following submenu appears on screen.

For PC source, the following screen appears:

3 Select the desired level for AV Selection options other than "OPTIMUM" ( / ) .

When the bar is in display, you can also change the item to be adjusted, by pressing ↑/↓.

4 Press HOME MENU to exit the menu.

For AV source

Item	← button	→ button
Contrast	For less contrast	For more contrast
Brightness	For less brightness	For more brightness
Colour	For less colour intensity	For more colour intensity
Tint	Skin tones become purplish	Skin tones become greenish
Sharpness	For less sharpness	For more sharpness

For PC source

Item	← button	→ button
Contrast	For less contrast	For more contrast
Brightness	For less brightness	For more brightness
Red	For weaker red	For stronger red
Green	For weaker green	For stronger green
Blue	For weaker blue	For stronger blue

Note

• To perform advanced picture adjustments, select "Pro Adjust" in step 2 and then press ENTER. For the subsequent procedures see Advanced picture adjustments on page 40.
• To restore the factory defaults for all items, press ↑/↓ to select "Reset" in step 2, and then press ENTER. A confirmation screen appears. Press ←/→ to select "Yes", and then press ENTER.
• You may experience a sudden change in the image position and screen brightness when you open the "Picture" menu.
• Pressing TOOLS also causes the "AV Selection" menu to appear.
• If you have selected "DYNAMIC", you cannot select "Contrast", "Brightness", "Colour", "Tint", "Sharpness", "Pro Adjust", and "Reset"; these menu items are dimmed.
• Selecting "OPTIMUM" causes optional menus to appear: "Sound Control" and "OPTIMUM Performance" (page 45).
• When "OPTIMUM" is selected, images are reproduced based on the information collected at the Room Light Sensor, as well as the colour sensor (when in use).

Advanced picture adjustments

The flat screen TV provides various advanced functions for optimizing the picture quality. For details on these functions, see the tables.

Using PureCinema

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Picture" (↑/↓ then ENTER).
4 Select "Pro Adjust" (↑/↓ then ENTER).
5 Select "PureCinema" (↑/↓ then ENTER).
6 Select "Film Mode" or "Text Optimisation" (↑/↓ then ENTER).
7 Select the desired parameter ( ↑/↓ then ENTER).

For the selectable parameters, see the table.

PureCinema

Automatically detects a film-based source (originally encoded at 24 frames/second), analyses it, then recreates each still film frame for high-definition picture quality

Film Mode Off Deactivates the PureCinema

Standard Produces smooth and vivid moving images (film specific) by automatically detecting recorded image information when displaying movie images such as movie programmes on TV (interlaced)

Smooth Makes movie images smoother. This mode for users who prefer smoother images rather than film-like images.

Advance Produces smooth and quality moving images (as shown on theatre screens) by converting to appropriate panel drive frequency when displaying DVD or BD images (e.g., movies)

Text

Off Deactivates Text Optimisation

Optimisation

On Improves subtitle display quality

8 Press HOME MENU to exit the menu.

Note

• This function may not work properly depending on the input signal.
• When you select "On" for "Game Control Pref" on the "Option" menu, the "PureCinema" setting is disabled.

Using Intelligent Mode

1 Repeat steps 1 to 4 provided for Using PureCinema.
2 Select "Intelligent Mode" (↑/↓ then ENTER).
3 Select the desired parameter ( ↑/↓ then ENTER).

Intelligent Mode

Performs such compensation that results in the optimum colour tones and brightness for images

Selections Off Deactivates Intelligent Mode

Mode 1 Compensates for more effective picture adjustment for general viewing

Mode 2 Compensates for appropriate picture adjustment, especially for private content such as home video

4 Press HOME MENU to exit the menu.

Note

• As this function automatically optimizes image quality, the process in which image settings such as brightness and tint gradually change may be seen on the screen. This is not a malfunction.

Using the Picture Detail

1 Repeat steps 1 to 4 provided for Using PureCinema.
2 Select "Picture Detail" (↑/↓ then ENTER).
3 Select an item to be adjusted (↑/↓ then ENTER).
You can select "DRE Picture", "Black Level", "ACL", "Enhancer Mode" or "Gamma".
4 Select the desired parameter (↑/↓ then ENTER).

DRE (Dynamic Range Expander) Picture

Emphasizes the contrast on images so that the difference between brightness and darkness becomes more distinct

Selections Off Deactivates DRE Picture

High Enhanced DRE Picture

Mid Standard DRE Picture

Low Moderate DRE Picture

Black Level

Emphasizes dark portion on images so that the difference between brightness and darkness becomes more distinct

Selections Off Deactivates Black Level

On Activates Black Level

ACL (Automatic Contrast Limiter)

Performs such compensation that results in the optimum contrast characteristics for images

Selections Off Deactivates ACL

On Activates ACL

Enhancer Mode

Selects processing of the image's high frequency (detailed) areas to find the right balance between preserving picture detail and eliminating unwanted noise

Selections 1 Selects Hard (SHARPNESS) image

2 Selects Natural (SHARPNESS) image

3 Selects Soft (SHARPNESS) image

Gamma

Adjusts the gamma characteristics (image gradation characteristics) to find the right balance between contrast and maintaining dark details

Selections 1 Delivers uniformly contrast-rich images

2 Delivers a well balanced image, applying

delicate in-picture contrast enhancement

3 Delivers an overall slightly brighter image.

revealing more gradation details

5 Press HOME MENU to exit the menu.

Using Colour Temp

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Picture" (↑/↓ then ENTER).
4 Select "Pro Adjust" (↑/↓ then ENTER).
5 Select "Colour Detail" (↑/↓ then ENTER).
6 Select "Colour Temp" (↑/↓ then ENTER).
7 Select the desired parameter ( ↑/↓ then ENTER).

Colour Temp

Adjusts the colour temperature, resulting in a better white balance

Selections High Cool white tone

Mid-High Intermediate tone between High and Mid

Mid Natural tone

Mid-Low Intermediate tone between Mid and Low

Low Warm white tone

Manual Colour temperature adjusted to your preference

You may rather want to perform fine adjustment. To do this, select "Manual" first and then press and hold ENTER for more than three seconds. The manual adjustment screen appears. Then go to step 8.

8 Select an item to be adjusted (↑/↓ then ENTER).

9 Select the desired level ( / ) .

Item		← button	→ button
R High	Fine adjustment for bright portions	For weaker red	For stronger red
G High		For weaker green	For stronger green
B High		For weaker blue	For stronger blue
R Low	Fine adjustment for dark portions	For weaker red	For stronger red
G Low		For weaker green	For stronger green
B Low		For weaker blue	For stronger blue

To perform adjustment for another item, press RETURN, and then repeat steps 8 and 9.

You may press / to immediately change an item to be adjusted.

10 Press HOME MENU to exit the menu.

Using CTI and Colour Space

1 Repeat steps 1 to 5 provided for Using Colour Temp.
2 Select "CTI" or "Colour Space" (↑/↓ then ENTER).
3 Select the desired parameter (↑/↓ then ENTER).

CTI

Provides images with clearer colour contours. The CTI stands for Colour Transient Improvement.

Selections	Off	Deactivates CTI
	On	Activates CTI

Colour Space

Changes the colour reproduction space

Selections	1	Optimized for vivid, vibrant colour reproduction
	2	Standard colour reproduction

4 Press HOME MENU to exit the menu.

Using Colour Management

1 Repeat steps 1 to 5 provided for Using Colour Temp.
2 Select "Colour Management" (↑/↓ then ENTER).
3 Select an item to be adjusted (↑/↓ then ENTER).

4 Select the desired level ( / ) .

Item	← button	→ button
R Closer to magenta Closer to yellow
Y Closer to red Closer to green
G Closer to yellow Closer to cyan
C Closer to green Closer to blue
B Closer to cyan Closer to magenta
M Closer to blue Closer to red

To perform adjustment for another item, press RETURN, and then repeat steps 3 and 4.

You may press ↑/↓ to immediately change an item to be adjusted.

5 Press HOME MENU to exit the menu.

Eliminating noise from images

1 Repeat steps 1 to 4 provided for Using Colour Temp.
2 Select "Noise Reduction" (↑/↓ then ENTER).
3 Select an item to be adjusted (↑/↓ then ENTER).
You can select "3DNR", "Field NR", "Block NR" or "Mosquito NR".
4 Select the desired parameter ( ↑/↓ then ENTER).

3DNR

Eliminates video noise for clear, crisp images. 3DNR stands for 3-dimensional Noise Reduction.

Selections	Off	Deactivates 3DNR
	High Enhanced 3DNR
	Mid Standard 3DNR
	Low	Moderate 3DNR

Field NR

Removes glimmer for more natural images
Selections	Off Deactivates Field NR
	High Enhanced Field NR
	Mid Standard Field NR
	Low Moderate Field NR

Block NR

Reduces noise such as blocks appearing in digitally compressed sources on DVD and in digital broadcasting

Selections	Off	Deactivates Block NR
	On	Activates Block NR

Mosquito NR

Reduces noise in contoured portions appearing in digitally compressed sources on DVD and in digital broadcasting

Selections	Off	Deactivates Mosquito NR
	On	Activates Mosquito NR

5 Press HOME MENU to exit the menu.

Setting up

Using the 3DYC and I-P Mode

1 Repeat steps 1 to 4 provided for Using Colour Temp.
2 Select "Others" (↑/↓ then ENTER).
3 Select "3DYC" or "I-P Mode" (↑/↓ then ENTER).
4 Select the desired parameter ( ↑/↓ then ENTER).

3DYC

Optimizes characteristics for separating brightness signals and colour signals. This works for both video and still images.

Selections Off Deactivates 3DYC

High Enhanced 3DYC

Mid Standard 3DYC

Low Moderate 3DYC

Note

For the 3DYC, the individual parameters are selectable only when:
- You have selected "INPUT 1", "INPUT 2" or "INPUT 3" as the input source and "Video" as the input signal type (see Selecting an input signal type on page 59); or
- You have selected "INPUT 5" as the input source or you have selected the analogue tuner.
The 3DYC setting is ineffective when SECAM, PAL60, or 4.43NTSC signals are input.

I-P Mode

Performs optimum conversion from interlace signals to progressive signals. This works for both video and still images.

Selections 1 Primarily for images with fast motion

2 Well balanced setting for both moving and still images
3 Primarily for images with little or no motion

Note

• The I-P Mode setting is disabled if you use an external input source and select "On" for "Game Control Pref" on the "Option" menu.
• For the I-P Mode, the individual parameters are not selectable for the following input signals: 480p, 576p, 720p, 1080p.

5 Press HOME MENU to exit the menu.

Comparing picture adjustments on the screen

During picture adjustments, you can quickly refer to the image previously set in the same parameter, allowing you to easily compare and select the preferred image quality.

1 Repeat steps 1 to 3 provided for Using Colour Temp.
2 Select an item to be adjusted ( / then ENTER).
3 While performing adjustment, press TOOLS on the remote control unit.

"Before" displays and the image adjusted last time appears for comparison.

Before

4 Press the button again to return to the newly adjusted image.

Each press of the button toggles between "Before" and "After".

5 Repeat steps 2 and 4 for other parameters.

6 Press HOME MENU to exit the menu.

Caution

• If you exit the menu by pressing HOME MENU or no operation is performed for 60 seconds, all the parameter settings displayed last are stored in memory.
• If you want to exit the menu without performing the adjustments (or leaving the settings disabled) on the "After" screen, switch to "Before" and then exit.

Note

• You cannot adjust any item while on the "Before" screen. A warning message appears.
• When you switch to another parameter, make sure to change the display from "Before" to "After" first, otherwise you cannot select "Before". A warning message appears if you don't.
• If you exit the selection from the "Before" screen, the previous entry is stored in the memory and the TOOLS button no longer works.
• If you exit the selection from the "After" screen, the new entry is stored in the memory and the button no longer works.
• If you move and change the "AV Selection" parameter, the new entry in the current parameter is stored in the memory and the button continues to work.
• You cannot compare images between different parameters on the "AV Selection" menu ("STANDARD" and "MOVIE", for example).

• When you select this function, "Intelligent Mode" for "Pro Adjust" on the "Picture" menu, and "Room Light Sensor" on the "Option" menu are set to off and image quality returns to default settings.
  This function is not selectable:

• when "OPTIMUM" is selected for "AV Selection".
  when you select "AV Selection",

• when you select "Yes" or "No" on the confirmation screen for "Reset" from the "Picture" menu or
• when you select a menu from the PC source

Sound adjustments

You can adjust the sound quality to your preference with the following settings.

Adjust the sound to your preference for the chosen AV Selection option. See AV Selection on page 38.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Sound" (↑/↓ then ENTER).
4 Select an item to be adjusted (↑/↓).
5 Select the desired level ( / ) .

Item	← button	→ button
Treble For weaker treble For stronger treble
Bass For weaker bass For stronger bass
Balance Shifts the audio balance to the left	Shifts the audio balance to the right

6 Press HOME MENU to exit the menu.

Note

• You can adjust the sound for listening with headphones.
• To restore the factory defaults for the "Treble", "Bass", "Balance" and "Sound Effect" options, press ↑/↓ to select "Reset" in step 4, and then press ENTER. A confirmation screen appears. Press ←/→ to select "Yes", and then press ENTER.
• You cannot restore the factory default for "AVC".
• Pressing TOOLS while using Home Media Gallery functions also causes the "Sound" menu to appear.

Sound Effect

You can select from SRS FOCUS, SRS, SRS TruBass and SRS Definition.

1 Repeat steps 1 to 3 provided for Sound adjustments.
2 Select "Sound Effect" (↑/↓ then ENTER).
3 Select "SRS FOCUS", "SRS", "SRS TruBass" or "SRS Definition" (/) .
4 Select the desired parameter ( / ) .

SRS FOCUS™

Moves sound source direction vertically and makes sound and voice clearly audible

Selections	Off	Deactivates SRS FOCUS
	Low	Moderate SRS FOCUS
	Mid	Standard SRS FOCUS
	High Enhanced SRS FOCUS

SRS

Effortlessly produces a three-dimensional sound field

Selections	Off	Deactivates SRS
	Low	Moderate SRS
	Mid	Standard SRS
	High Enhanced SRS

SRS TruBass

Produces a clear, rich bass tone.

Selections	Off	Deactivates SRS TruBass
	Low	Moderate SRS TruBass
	Mid	Standard SRS TruBass
	High Enhanced SRS TruBass

SRS Definition

Improves midrange quality and clarifies voice and instrument sound

Selections	Off	Deactivates SRS Definition
	Low	Moderate SRS Definition
	Mid	Standard SRS Definition
	High Enhanced SRS Definition

5 Press HOME MENU to exit the menu.

Setting up

Note

TM denotes a status where SRS

FOCUS, SRS, SRS TruBass and SRS Definition are on.

• You can adjust the sound effect for listening with headphones.
  The effect of this function differs depending on signals.

Using AVC (Auto Volume Control)

Reduces sudden volume change and compensates source sound level. To select this option, follow the procedure below.

1 Repeat steps 1 to 3 provided for Sound adjustments.
2 Select "AVC" (↑/↓).
3 Select "On" (←/→).
4 Press HOME MENU to exit the menu.

Note

To cancel this option, select "Off" in step 3.

Using Sound Control

Select this option when "OPTIMUM" is selected in the "AV Selection" menu for optimum audio levels adjusted to the picture.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Picture" (↑/↓ then ENTER).
4 Select "AV Selection" (↑/↓ then ENTER).
5 Select "OPTIMUM" (↑/↓ then ENTER).
6 Press RETURN to return to the immediately previous menu.
7 Select "Sound Control" (↑/↓ then ENTER).
8 Select "On" (↑/↓ then ENTER).
9 Press HOME MENU to exit the menu.

Note

• If "Sound Control" is set to "On" in the "Picture" menu, the "Sound" menu options are unavailable except "AVC".
• This function is unavailable if any option other than "OPTIMUM" is selected.

OPTIMUM Performance

Select this option when "OPTIMUM" is selected in the "AV Selection" menu for optimum picture quality. You can easily recognize the status of adjustments with an on-screen bar graph monitor. For selection, follow the procedure below.

1 Repeat steps 1 to 6 provided for Using Sound Control.

2 Select "OPTIMUM Performance" (↑/↓ then ENTER). The on-screen bar graph monitor appears.

Note

• OPTIMUM Performance compares the picture and sound quality between "Off" (unadjusted) and "On" (adjusted) using the TOOLS button.
• This function is unavailable if any option other than "OPTIMUM" is selected.
• When "OPTIMUM" is selected, press and hold 1 + to display the OPTIMUM Performance. Pressing 1 + while displaying Teletext pages or subtitles does not cause OPTIMUM Performance to appear.
  To cancel the OPTIMUM Performance, press EXIT.
  The OPTIMUM Performance is unavailable for a PC image.

Power Control

Power Control provides convenient functions for power saving.

Energy Save

You may use one of the three Energy Save modes to save power consumption.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Power Control" (↑/↓ then ENTER).
4 Select "Energy Save" (↑/↓ then ENTER).
5 Select "Mode1", "Mode2" or "Off" (↑/↓ then ENTER).

Energy Save

Selections Off Provides normally bright pictures

Mode1 Consumes less power than "Off" mode

Mode2 Consumes less power than "Mode1"

6 Press HOME MENU to exit the menu.

Setting up

Note

• When you change the Energy Save mode, you may notice a change in the panel sound. This is normal.
• The Energy Save function can maintain efficiency of the screen for a long period of time. Setting the Energy Save function to "Mode1" is recommended in order to maintain the efficiency of the screen for a long period of time.

No Signal off (AV source only)

The system will be automatically placed into the standby mode if no signal is received for 15 minutes.

1 Repeat steps 1 to 3 provided for Energy Save.
2 Select "No Signal off" (↑/↓ then ENTER).
3 Select "Enable" (↑/↓ then ENTER).

No Signal off

Selections Disable (default)	Does not place the system into the standby mode
	Enable Places the system into the standby mode if no signal is received for 15 minutes

4 Press HOME MENU to exit the menu.

Note

• Five minutes before the system is placed into the standby mode, a message appears every minute.
• The system may not be placed into the standby mode when noise signals are present at the Media Receiver after a TV programme finishes.

No Operation off (AV source only)

The system will be automatically placed into the standby mode when no operation is performed for three hours.

1 Repeat steps 1 to 3 provided for Energy Save.
2 Select "No Operation off" (↑/↓ then ENTER).
3 Select "Enable" (↑/↓ then ENTER).

No Operation off

Selections Disable (default)	Does not place the system into the standby mode
	Enable Places the system into the standby mode if no operation is performed for three hours

4 Press HOME MENU to exit the menu.

Note

• Five minutes before the system is placed into the standby mode, a message appears every minute.

Power Management (PC source only)

The system will be automatically placed into the standby mode when no signal is received from the personal computer.

1 Repeat steps 1 to 3 provided for Energy Save.
2 Select "Power Management" (↑/↓ then ENTER).
3 Select "Mode1" or "Mode2" (↑/↓ then ENTER).

Item Description

Off (default) No power management

Mode1 - Places the system into the standby mode when no signal is received from the personal computer for eight minutes.

Even when you start using the computer and a signal is received again, the system stays off.
The system is switched on again by pressing STANDBY/ON on the Media Receiver or on the remote control unit.

Mode2 - Places the system into the standby mode when no signal is received from the personal computer for eight seconds.

• When you start using the computer and a signal is input again, the system is switched on.
• The system is switched on again by pressing STANDBY/ON on the Media Receiver or on the remote control unit.

4 Press HOME MENU to exit the menu.

Note

This function is not selectable when the PC is connected to the HDMI terminal.

Picture Off

To save energy and extend the life of your display, have the screen turn Off. To deactivate the screen, follow the steps below.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Picture Off" from the TOOLS Menu.

3 Press ENTER.

The screen display turns Off. To restore the screen display, press any buttons other than +/ and .

Note

The Picture Off setting is not memorized by the system.

Chapter 9

Enjoying DTV/SAT broadcasts

Watching DTV/SAT programmes

Digital Terrestrial/Satellite TV (DTV/SAT) not only replaces the conventional analogue TV channels, but also provides more channels, clearer picture quality, and various types of useful information. It also provides various features, including subtitling and multiple audio tracks.

Caution

The compatibility of this product with digital terrestrial and satellite services has been fixed - details described in the product specifications - at the time of its introduction.

Note

• When executing Auto Installation (page 33), make sure to select "On" for "Satellite Tuner" and "Digital" or "Both" for "Terrestrial Tuner".
• Selecting the DTV or SAT mode when no channels yet searched will only display "Digital Tuner Setup" screen with only the item "Installation" selectable. To watch a digital satellite TV programme, select "On" for "Satellite Tuner" on the Auto Installation menu.
• While in the DTV or SAT mode, press to display the Teletext screen (except in UK).

Changing channels

1 Press HOME MENU.

2 Select "Channel" (↑/↓ then ENTER).

The Digital Channel List appears on screen when viewing a digital terrestrial channel, while the Satellite Channel List appears when viewing a digital satellite channel. Pressing or causes the channel list to cycle through Satellite Channel List, Favourites List, Input List, Analogue TV List and Digital Channel List.

(DTV menu screen)

Using the Channel List search

You can use the Channel List search function while showing the Digital or Satellite TV Channel List. To use this option, follow the procedure below.

1 Press TOOLS.

The search screen appears.

2 Select "Service Type", "HD/SD" or "List Name" for Digital Channel List (/) .

For Satellite Channel List, select "Service Type", "Satellite", "HD/SD", "Scramble", "Initial" or "List Name".

3 Select the desired parameter (↑/↓/←/→).

• "All", "TV", "Radio" or "Data" for "Service Type"
• "All" or satellite names scanned for "Satellite"
• "All", "HD" or "SD" for "HD/SD"
• "All", "Scramble" or "Non Scramble" for "Scramble"
  "All", an initial (A to Z), or "Others" for "Initial" (Initial letter of a channel name)
• "All", a channel name obtained from broadcast, or "Others" for "List Name"

4 Select "Start" (↑/↓ then ENTER).

Searching starts and the search results appear.

"No Channels Found" appears if there are no channels specified in step 3.

(Satellite menu screen)

5 Select a channel ( ↑/↓ then ENTER).

You can also select channels by pressing buttons 0 to 9 or P + / P on the remote control unit.

Note

• While in DTV mode, press 001 to access channel 1 (one-digit channel) quickly. You can, however, select the channel 1 by pressing 01 or 1 but have to wait for two seconds since the last digit input. While in SAT mode, you can enter four-digit channels. The same applies for two- and four-digit channels.
• P + / P - cannot pick up channels that are set to skip or not registered as favourites (for Favourites List, see page 26).
  Once you enter your password, you do not need to enter the password each time the channel is locked. But if you select "France" for "Country", you may be required to enter the correct password each time (see page 64).
  While receiving DTV radio channels, the screen saver automatically starts when no operation is done for three minutes.

Viewing the "InfoBanner"

When tuning in a TV channel or an input signal changes, an information banner ("InfoBanner") automatically appears at the top of the screen. While watching a programme, press 1 + to display the InfoBanner (additional). Press EXIT or 1 + again to hide the banner.

"InfoBanner"

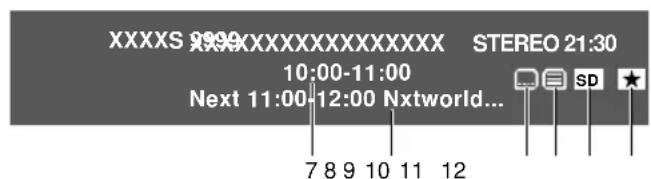

"InfoBanner" (additional)

1 Broadcast signal - S (Satellite)/D (Digital)/A (Analogue)
2 Channel number
3 Station name
4Programme title
5 Sound multiplex information
6 Current time
7 Program time schedule
8 Next programme time schedule/title
9 Subtitle icon
10 Teletext icon
11 Signal information (HD/SD)
12 Favourite icon

A separate banner also appears at the bottom of the screen showing the AV Selection mode (bottom left) and screen size (bottom right).

Note

The "InfoBanner" (additional) appears when:

• pressing + while watching a TV or video programme
• pressing ^+ while the "InfoBanner" is displayed
  The above information is not displayed if it is not included in broadcast signal.
• During multiscreen mode, the banner appears in both main and sub screens.

Viewing subtitles

When in the DTV or SAT mode, press to turn subtilles on and off.

Subtitles On

Note

• When a programme is recorded with this function on, subtitles are also recorded.

You can also use the TOOLS Menu to select subtitles. Follow the procedure below.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Subtitle" (↑/↓).

3 Select the desired subtitle ( / ).

Selecting "Off" causes the subtitle to disappear.

This option toggles between "On" and "Off" for analogue broadcasts.

Reconfiguring the DTV/SAT channel settings

This section describes how to reconfigure the DTV/SAT channel settings after setting up DTV/SAT channels using Auto Installation (page 33). You can select "Digital Tuner Setup" only when watching DTV/SAT channels. To manually set satellite TV channels, see page 33.

Reselecting a country

1 Press HOME MENU.

2 Select "Setup" (↑/↓ then ENTER).
3 Select "System Setup" (↑/↓ then ENTER).
4 Select "Digital Tuner Setup" (↑/↓ then ENTER).
5 Select "Installation" (↑/↓ then ENTER).
The password entry screen appears. Enter your four-digit password using buttons 0 to 9.
6 Select "Digital Setup" (↑/↓ then ENTER).
7 Select "Country" (↑/↓).
8 Select a country ( / ) .

Note

• The password entry screen does not appear if you have disabled the password function. For details, see Using a password on page 64.
• You can select "Digital Tuner Setup" only when watching DTV/ SAT channels.

Enjoying DTV/SAT broadcasts

Replacing the existing channels

The following procedure discards the current DTV/SAT channel setups and searches for receivable channels to redo the channel setups.

1 Repeat steps 1 to 6 provided for Reselecting a country.

For SAT channels, select "Satellite Setup" after repeating steps 1 to 5 for Reselecting a country.

2 Select "Replace Existing Channels" (↑/↓ then ENTER).

The system first erases all channel information and then starts channel search.

To quit a channel search in progress, press RETURN.

Note

To complete "Replace Existing Channels", there must be more than one hour at least left to the next preset recording.
The password entry screen does not appear if you have disabled the password function. For details, see Using a password on page 64.
- You can select "Digital Tuner Setup" only when watching DTV/ SAT channels.
- Select "On" for "LNB Voltage" in most cases.

Adding new channels

Use the following procedure to search and register new channels with the current DTV/SAT channel setups saved.

1 Repeat steps 1 to 6 provided for Reselecting a country.

For SAT channels, select "Satellite Setup" after repeating steps 1 to 5 for Reselecting a country.

2 Select "Add New Channels" (↑/↓ then ENTER).

Channel search automatically starts. If any new channel is found, it is automatically registered on the flat screen TV.

To quit a channel search in progress, press RETURN.

Note

• The password entry screen does not appear if you have disabled the password function. For details, see Using a password on page 64.
• You can select "Digital Tuner Setup" only when watching DTV/ SAT channels.
• Select "On" for "LNB Voltage" in most cases.

Checking signal strength

You can check the signal strength and signal quality of each TV channel.

1 Repeat steps 1 to 6 provided for Reselecting a country.

For SAT channels, select "Satellite Setup" after repeating steps 1 to 5 for Reselecting a country.

2 Select "Signal Check" (↑/↓ then ENTER).

3 Select "RF Channel" (↑/↓ then ENTER).

For SAT channels, select "Satellite" or "Transponder".

4 Select the channel to be checked ( / ) .
(DTV menu screen)

Select "Add" to add channels within the selected RF channel (receiving frequency) or transponder in the selected satellite.

Note

• You can select "Digital Tuner Setup" only when watching DTV/ SAT channels.

Switching on/off the power to the antenna

Use the following procedure to switch on or off the power to the antenna connected with the DTV antenna terminal.

1 Repeat steps 1 to 6 provided for Reselecting a country.

2 Select "Aerial Power" (↑/↓).

3 Select "On" or "Off" (default) ( / ) .

Caution

• When the "Aerial Power" setting is on, directly connect the aerial to the ANT input terminal at the rear of the Media Receiver. Connecting any device between the aerial and Media Receiver may cause damage to the device.

Note

• You can select "Digital Tuner Setup" only when watching DTV/ SAT channels.

Customizing channel related settings

This section describes how to customize various channel related settings. These settings include Channel Skip, Channel Lock and Channel Delete.

Setting Channel Options

Use the following procedure to select individual channels and switch on the Channel Skip, Channel Lock or Channel Delete for the channels.

1 Press HOME MENU.

2 Select "Setup" (↑/↓ then ENTER).

3 Select "System Setup" (↑/↓ then ENTER).

4 Select "Digital Tuner Setup" ( ↑/↓ then ENTER).

5 Select "Channel management" (↑/↓ then ENTER).

The password entry screen appears. Enter your four-digit password using buttons 0 to 9.

6 Select "Channel Options" (↑/↓ then ENTER).

The Channel Options screen with a list of registered channels appears.

7 Select "Digital" or "Satellite" (↑/↓ then ENTER).

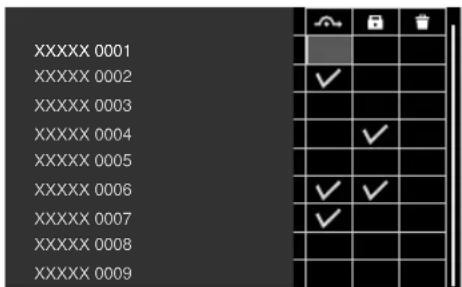

(Satellite menu screen)

8 Select an individual channel ( / / / then ENTER to select on/off).

Select [n]On for (Channel Skip) if you want the channel to be skipped when operating P + / P - on the remote control unit or CHANNEL + / - on the Media Receiver (with "Favourites" set to "Off").

Select "On" for Channel Lock) if you want the channel not to be tuned without password entry.

Select "On" for Channel Delete) if you want the channel to be deleted.

9 After the setting is complete, make sure to complete the following steps.

If you have selected any channel for Channel Lock, see Using a password on page 64 and set an appropriate four-digit password.

Note

• The password entry screen does not appear if you have disabled the password function. For details, see Using a password on page 64.
• You can select "Digital Tuner Setup" only when watching DTV/ SAT channels.
• If a box is selected in "Channel Delete", pressing RETURN displays a confirmation screen. Select "Yes" then press ENTER to complete the "Channel Delete" setting.

Activating the Auto Skip

• This function lets you skip "group" of services, such as radio and text data services.
  1 Repeat steps 1 to 5 provided for Setting Channel Options
  2 Select "Auto Skip 1" or "Auto Skip 2" (↑/↓).
  3 Select a channel to skip ( / ) .
  You can select from "Off", "Radio", "Data" or "Both" for "Auto Skip 1" and "Off", "FTA" or "CAS" for "Auto Skip 2".

Note

• "Auto Skip" function lets you skip "group" of services such as radio and text data. On the other hand, individual channel settings set to skip in "Channel Options" screen will not be affected by this setting.
• You can select "Digital Tuner Setup" only when watching DTV/ SAT channels.

Setting the Child Lock

With this function, parents can prevent their children from watching age-restricted TV programmes. This function becomes effective depending on the country selected for channel setup. You can specify an age limit in the range from 4 and 18, so that the password has to be entered to watch TV programmes that match the specified age limit.

1 Repeat steps 1 to 5 provided for Setting Channel Options.

2 Select "Child Lock" (↑/↓).

3 Select an age limit ( / ) .

You can select 4 to 18, and "Off" (4 to 17 when "France" is selected for "Country").

With "Off" selected, password entry is not required no matter which age-restricted TV programme is selected.

Sorting preset DTV/SAT channels

Use the following procedure to change the sequence of the preset DTV/SAT channels.

1 Repeat steps 1 to 5 provided for Setting Channel Options.
2 Select "Channel Sort" (↑/↓ then ENTER).
3 Select "Digital" or "Satellite" (↑/↓ then ENTER).

The Sort screen appears.

4 Select a channel to be shifted ( / / then ENTER).

(DTV menu screen)

5 Select a new location ( / / / then ENTER).

Sorting is executed.

6 Press HOME MENU to exit the menu.

Note

• To change a page on the Sort screen in step 4, select the arrow icon on the screen with / / / then press ENTER.
• You can select "Digital Tuner Setup" only when watching DTV/ SAT channels.

Enjoying DTV/SAT broadcasts

Selecting languages for audio, subtitles, and teletext

You may manually configure language settings for audio, subtitles, and teletext.

1 Repeat steps 1 to 4 provided for Setting Channel Options
2 Select "User Preferences" (↑/↓ then ENTER).
3 Select "Language Settings" (↑/↓ then ENTER).
4 Select "Primary Audio", "Secondary Audio", "Primary Subtitle", "Secondary Subtitle", "Subtitle Mode" or "Teletext" (↑/↓).
Select "Translation" (default) or "Impaired" for "Subtitle Mode".
5 Select a language ( / ) .

Note

• When the "Country" setting (page 33) changes, the flat screen TV automatically selects the factory default language regardless of the "Primary/Secondary" language setting.
• You can select "Digital Tuner Setup" only when watching DTV/ SAT channels.

Using Software Update

This function is available only when "Norway" is selected for "Country". Turning on the Software Update function causes your flat screen TV to automatically download and update the system's software when available. To make the most of this function, you must leave the Auto Update option "On" from the Software Update menu then turn the panel off using the remote control. To keep your flat screen TV ready for update, follow the steps below.

1 Repeat steps 1 to 4 provided for Setting Channel Options

2 Select "User Preferences" (↑/↓ then ENTER).

3 Select "Software Update" (↑/↓ then ENTER).

4 Select "Auto Update" (↑/↓ then ENTER).

5 Select "On" (default) ( / ) .

To activate the Software Update function, always select "On". If you select "Off", a confirmation screen appears.

6 Select "Update Information" (↑/↓).

The Update Schedule screen appears.

When download information is available for software update, the screen will display:

Available update schedule
- Update operation guidelines
- Last updated time (updated every time a download is complete) When download information is unavailable or after a download is complete, only the last updated time appears with a message "No software update information."

7 When download information is available and you want to load the update later, turn the power off on the remote control.

As soon as you turn the power On the next time, a message pops up on the screen, announcing that new software data has been found for update.

Your flat screen TV automatically begins downloading and updates the system software according to the schedule. If the download is complete, the last updated time is updated.

8 Press HOME MENU again to quit the menu.

Note

• We recommend that you normally select "On" for "Auto Update" in step 5.
• The pop-up screen in step 7 appears for a few seconds for any input sources.
  If the preset recording time and download time overlap, recording has a priority over downloading. In this case, downloading is not executed.

Using Channel List

TV signals sometimes carry channel information available only in your country. The channel information can be obtained and displayed as a channel list only when your flat screen TV is set to receive the channel information.

1 Repeat steps 1 to 5 provided for Setting Channel Options.

2 Select "Channel List" (↑/↓).
3 Select "All" or "My country" ( /

Adjusting the clock

Clock data is obtained from broadcasting signals. This can cause a difference from the actual time depending upon the area, especially when receiving signals from a satellite. To prevent this, follow the procedure below.

1 Repeat steps 1 to 4 provided for Setting Channel Options.
2 Select "Clock" (↑/↓ then ENTER).
3 Select "Manual Offset" or "Offset Value" (↑/↓ then ENTER). Select "On" or "Off" (default) for "Manual Offset".
"Offset Value" is available when selecting "On" for "Manual Offset". Select the value from -12 to +11.

Note

• You can select "Digital Tuner Setup" only when watching DTV/ SAT channels.

Using MHEG application (UK only)

Some stations bring you programmes with the MHEG (Multimedia and Hypermedia Expert Group) application encoded, letting you experience DTV interactively.

When provided, the MHEG application will start when you press

Note

• This function may not work properly when subtitle is activated (see page 48).

Screen Saver

The screen saver automatically starts when no operation is performed for three minutes while receiving DTV radio channels.

Note

While the screen saver is active, you can perform the following operations:
- Press TV/DTV/SAT to switch to analogue TV.
- Press any other button to switch to the normal radio channel screen.
Programme Timer is active while the screen saver is displayed.

Common Interface

To receive scrambled DTV/SAT signals you will need a CA module and a smart card provided by the service provider.

Although CA module types may vary depending on the manufacturer, each one of the CA modules supports a certain kind of encryption system. Your flat screen TV supports CA modules which are made to work with the DVB standard. Contact a service provider for the right type of CA module.

Please note that a smart card may only be valid for a single service provider and due to this, a specific range of channels.

Note

• CA modules and smart cards are neither supplied nor optional accessories from Pioneer.

After inserting a card, leave it in the slot permanently. Do not remove it from the terminal unless asked to do so. For instance, your card has to be in the slot when your service provider wants to download new information to the smart card.

Installing a CA module and smart card

Two Common Interface slots are provided at the front of the Media Receiver. When using a CA module, insert it into the correct COMMON INTERFACE slot.

COMMON INTERFACE 1 TERRESTRIAL: For digital terrestrial broadcasts only

COMMON INTERFACE 2 SATELLITE: For digital satellite broadcasts only

Insert the specified CA module containing a smart card into the Common Interface slot as far as it will go.

Caution

• Turn the flat screen TV off when you insert or remove a CA module. Inserting or removing the CA module when the power is on can cause module or smart card damage.
• Inserting the CA module into the wrong slot will cause a malfunction.

Displaying information about the installed CA module

If you have installed a CA module in either Common Interface slot, you can display information about the CA module.

1 Repeat steps 1 to 4 provided for Setting Channel Options.

2 Select "DVB-Cl Information" (↑/↓ then ENTER).

Select "Common Interface 1" or "Common Interface 2".

(If there is no CA module installed, the "DVB-Cl Information" option is greyed out.)

Chapter 10

Using the Electronic Programme Guide (EPG)(for DTV/SAT only)

EPG display format

The Electronic Programme Guide (EPG) shows the table of scheduled digital terrestrial and satellite TV programmes and detailed information about individual programmes. It also allows you to easily select and tune to a desired programme.

The EPG screen consists of the Programme Information, Channel List, and General Programme List. This section describes information to be displayed on the schedule and information windows.

Note

• For digital TV programmes that do not provide EPG information, you cannot view the corresponding EPG information.

If the current time has not been correctly set, there may be TV programmes whose EPG information is not displayed.

General programme list

You can select "All Ch" or "Favourites" for the Programme List. Press TOOLS on the remote control unit then select "Channel Mode".

All Ch: Lists all channels registered in the Channel List for the broadcast network you are watching

Favours: Lists all channels registered in the Favourites List for the broadcast network you are watching. If not registered in the Favours List, the channel you are watching also appears in the list.

Programme List screen

1 Time schedule
2 Indicates the programme set for recording/watching.
3 Current date and time
4 Channel mode
5 Channel list
Highlights the currently selected channel.
7Programme title
8 Appears when other programmes (often short ones) have been scheduled for the same period.

9 Indicates more programme information is available.
10 Scroll bar: appears when the schedule table can be scrolled forward or backward.

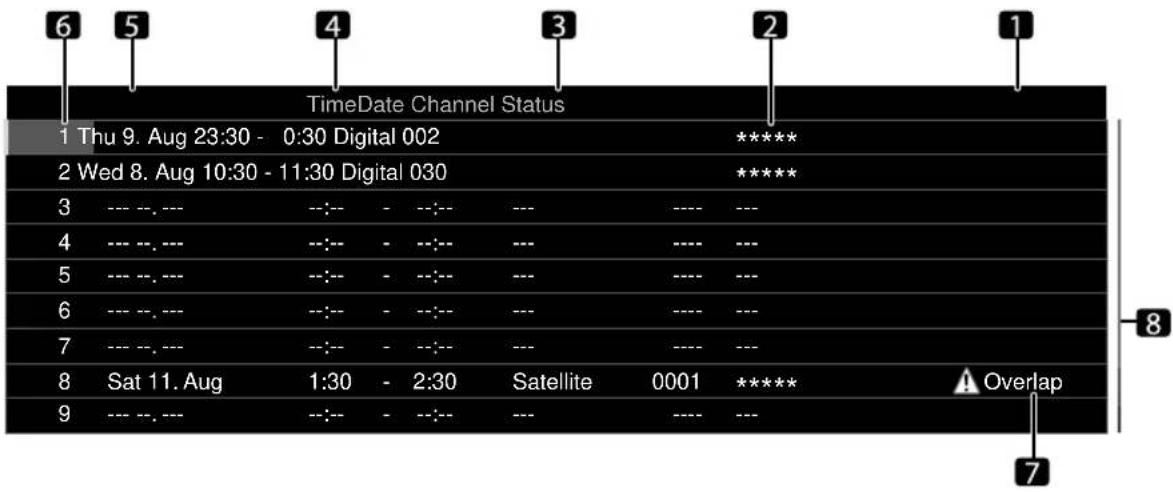

Programme Timer screen

1 Status information
2 Station name
3 Broadcasting network
4Programme schedule

Programme information

While watching programme information on the EPG screen, select the desired programme and press TOOLS to display the Programme Information screen.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Programme Information" (↑/↓ then ENTER).

Note

• Pressing 1 + while a programme currently on-air or programme not yet started is highlighted also causes the Programme Information screen to appear.

1 Station name
2 Channel number
3 Programme schedule
4 Programme title
5 Programme genre
6 Appears when there is another programme information before or after the selected programme.

5 Date
6 Preset programme number
7 Overlapped presetting icon
8 Scroll bar

Using the EPG

Use the following procedure to check the schedule of digital terrestrial or satellite TV programmes, view information about desired programmes, and/or select programmes.

Using the Electronic Programme Guide (EPG)(for DTV/SAT only)

1 Press EPG or select "EPG" from the HOME MENU.

The EPG screen appears.

The EPG screen updates automatically if the EPG data is acquired successfully. If not, "No Channels" appears in the programme information space.

2 Select a desired TV programme (↑/↓, ←/→).

Press P + / P- to skip to the next or previous channel list page.

You can also press and hold ↑/↓ to skip to the next or previous list page.

Information about the selected programme appears in the information window.

To watch a programme currently on air, select the programme (then ENTER).

You can check information about programmes scheduled up to one week ahead, depending on conditions.

Depending on conditions, it may take some time to acquire EPG data.

3 To view more information (not currently displayed) about the selected programme, press i+

Programme Information appears in the schedule window. If the screen contains further information, < or > is displayed. Press the or button to view the entire information.

To quit the display of detailed information, press 1 + again (or RETURN).

4 To quit the Programme Guide, press EPG again.

Note

The general programme list does not show finished programmes.
- Before operating with the remote control unit, make sure to select the TV mode using its SELECT button. See Controlling other equipment using the supplied remote control uniton page 90.

Presetting TV programmes using the EPG

Using the EPG, you can easily preset digital TV programmes for watching (auto channel select) and recording later.

You must also adjust your recording equipment settings to record the programme. Refer to the operation manual provided with your recording equipment.

Using auto channel select and standby recording

With the power to the system left on, this function automatically selects a preset TV programme when its on-air time comes. That way you will not miss the start of an important TV programme because you were enjoying another TV programme.

Even if the system is in the standby mode when the preset TV programme's on-air time comes, the Media Receiver wakes up and outputs AV signals for recording.

1 Press EPG or select "EPG" from the HOME MENU.

The EPG screen appears.

2 Select a programme to be preset ( ↑/↓, ←/→ then ENTER).

Select a programme not yet started.

A setup menu appears.

Select a programme currently on-air (then ENTER): The EPG screen closes and a channel is tuned in.

Note

• If "Enable" is selected on "Password" menu, or "Channel Lock" or "Child Lock" is set to the selected programme, the password entry screen appears. Enter your four-digit password using buttons 0 to 9.
• Select a programme not yet started (then ENTER): The programme can be set for recording/watching.

3 Select "Yes" in a confirmation dialogue box ( then ENTER).

The Programme Timer screen with a list of other preset programmes information appears (see page 54).

You can modify the presettings here ( / , / then ENTER).

You can register the presettings here ( or ENTER).

4 Press RETURN to return to the EPG screen.

The EPG screen updates with the new presettings.

A red clock icon appears for the preset programme.

A yellow triangle icon appears for overlapped presettings.

5 Press EPG to exit the EPG screen.

With the system switched on, a channel switch alarm message appears approximately 60 seconds before execution and the channel is switched a short time before the start of the programme.

Note

• Even in the standby mode, preset programmes can be recorded as only the Media Receiver alone wakes up and outputs AV signals when the preset time comes.
• Finish presetting operations three minutes before the start of the programme.
• For priorities about overlapped presettings, see Priority rules for overlapped presettings on page 56.
  The TIMER indicator on the front of the Media Receiver lights up in orange when a programme is preset for recording/watching.
• Recording may fail because of watching restrictions imposed by the CA module.

Using the Electronic Programme Guide (EPG)(for DTV/SAT only)

Setting the timer manually

Using the menu, you can also preset digital TV programmes by specifying their scheduled date and time.

1 Press HOME MENU.

2 Select "Setup" (↑/↓ then ENTER).

3 Select "System Setup" (↑/↓ then ENTER).

4 Select "Digital Tuner Setup" (↑/↓ then ENTER).

5 Select "Programme Timer" (↑/↓ then ENTER).

The schedule table appears.

You can set the timer to the programme numbers where no preset programmes have been entered (see page 54 for the timer screen).

6 Select a programme number (↑/↓ then →).

You can select any desired programme number.

7 Specify a date ( / or 0 to 9, then ).

8 Specify the start hour/minute and end hour/minute ( / or 0 to 9, then ).

9 Select "Digital" or "Satellite" (↑/↓ then →).

10 Specify a channel number (↑/↓ or 0 to 9, then →).

11 Register the preset settings after all items are set (ENTER).

If a preset time is in the past or the channel is locked, an alert message appears.

A yellow triangle icon indicates that the recording/watching may fail due to overlapped presettings.

If presetting another programme, repeat steps 6 to 11.

You can preset up to 18 programmes.

12 Press HOME MENU to exit the menu.

Note

• You can also display the Programme Timer screen using the TOOLS Menu. Press TOOLS and select "Programme Timer".
• Preset recording/watching begins immediately when presetting operations are performed within three minutes of the start of the programme.
• Presettings made using the EPG are automatically shown in the scheduled table.
• Recording may fail because of watching restrictions imposed by the CA module.

Priority rules for overlapped presettings

When preset TV programmes are overlapped, the following two rules are used to determine higher priority. If more than one of the two rules are met, the rules are applied in the order 1 then 2.

Rule 1: If two presettings are overlapped, the presetting with the earlier start time is given a higher priority. If two presettings are sequential, the last portion of the first programme or the first portion of the second may not be recorded.

Rule 2: If presettings with the same start time are overlapped, the presetting with the bigger list number is given a higher priority.

Deleting TV programme presettings

To delete the programme(s) preset in the Programme Timer, use the TOOLS Menu. For editing, follow the procedure below.

1 Select a specific programme to delete.

2 Press TOOLS.

The TOOLS Menu appears on screen.

3 Select "Delete" (↑/↓ then ENTER).

A confirmation screen appears.

4 Select "OK" ( then ENTER).

5 Press TOOLS again to exit the TOOLS Menu.

Note

• To cancel this option before it finishes, select "Cancel" in step 3.

Moving TV programme presettings

To move the programme(s) preset in the Programme Timer, use the TOOLS Menu. For editing, follow the procedure below.

1 Select a specific programme to move.

2 Press TOOLS.

The TOOLS Menu appears on screen.

3 Select "Move" (↑/↓ then ENTER).

4 Select the position to move the selected programme (↑/↓).

5 Move the programme to the selected position (ENTER).

6 Press TOOLS again to exit the TOOLS Menu.

Using the Electronic Programme Guide (EPG)(for DTV/SAT only)

Using other useful EPG functions

Below are some useful functions that guide you through the EPG screen and save your time.

EPG Jump

1 Press TOOLS when the EPG screen (Programme List, Programme Information and Search Result) is displayed. The TOOLS Menu appears on screen.
2 Select "JUMP(6Hour)","JUMP(2Hour)" or "JUMP(Day)" (↑/↓).
3 Select the desired option ( / ) . If you select "JUMP(6Hour)" or "JUMP(2Hour)", select "+"6Hour" or "-6Hour", or "+"2Hour" or "-2Hour".

Note

• Refer to the TOOLS Menu on page 77.

EPG Search

1 Press TOOLS when the EPG screen (Programme List, Programme Information and Search Result) is displayed. The TOOLS Menu appears on screen.

2 Select "Search" (↑/↓ then ENTER).
3 Select "Date" (↑/↓).

4 Select the day (within one week) to search ( / ) .
5 Select "Time" (↑/↓).
6 Select the time of the day (0:00 to 23:00) to search ( / ) .
7 Select "Channel Mode" (↑/↓).
8 Select whether to search "All Ch" or "Favours" (←/→).
9 Select "Genre" (↑/↓ then ENTER).

10 Select the genre(s) to search ( / , / then ENTER). Pressing ENTER again will delete the selected genre from the search list.

11 Select "OK" (↑/↓, ←/→ then ENTER).

An EPG search with your customized settings starts. Pressing ENTER while "Start" is selected on the Search screen causes the Search Result to appear on screen. "No programme found." appears if no programmes are available.

Chapter 11

Useful adjustment settings

About "Option" menus

The "Option" menu consists of two screens. To select the desired menu, press / repeatedly to switch between Screen 1 and Screen 2. The current screen number appears at the bottom left corner on the screen.

(For PC source)

Switching the vertical drive mode (AV source only)

You can select the desired drive mode according to the programme you watch.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Option" (↑/↓ then ENTER).
4 Select "Drive Mode" (↑/↓ then ENTER).
5 Select the desired parameter ( ↑/↓ then ENTER).

Drive Mode

Controls the driving frequency for output signals

Selections 1	Standard mode as well balanced setting for general sources
2	Suitable setting for pictures with scrolling text
3	Setting for smoother reproduction of movies, etc.

6 Press HOME MENU to exit the menu.

Note

• This setting can be made for each input source separately.
• This setting cannot be made when 480i, 480p, 1080i@60 Hz, 720p@60 Hz, 1080p@24 Hz or 1080p@60 Hz signals are input.
• The Drive Mode does not operate when "On" is selected in "Game Control Pref".

Adjusting image positions (AV source only)

This setting adjusts the horizontal and vertical positions of images on the display.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).
2 Select "Position" (↑/↓ then ENTER).
3 Select "H/V Position Adjust" (↑/↓ then ENTER).
4 Adjust the vertical position (↑/↓) or the horizontal position ( / ) .
5 Press HOME MENU to exit the menu.

Useful adjustment settings

Note

To restore the factory defaults for all items, press ↑/↓ to select "Reset" in step 3, and then press ENTER. A confirmation screen appears. Press ←/→ to select "Yes", and then press ENTER.
- Adjustments are stored separately according to input source.
Depending on the displayed video, the image position may not change even after adjustment.
- When "Dot by Dot" is selected for the screen mode, the "Position" menu is dimmed.

Adjusting image positions and clock automatically (PC source only)

Use Auto Setup to automatically adjust the positions and clock of images coming from a personal computer.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).
2 Select "Auto Setup" (↑/↓ then ENTER). A message screen appears and Auto Setup starts.
3 Press HOME MENU to exit the menu.

Note

• When Auto Setup is finished, "Setup complete." appears.
• Even when "Setup complete," appears, Auto Setup may have failed, depending on conditions.
• Auto Setup may fail with a PC image composed of similar patterns or monochrome. If not successful, change the PC image and try again.
• Be sure to connect the computer to the Media Receiver and switch it on before starting Auto Setup.
  This function is not selectable when the PC is connected to the HDMI terminal.
  Depending on the displayed video, the image position may not change even after adjustment.

Adjusting image positions and clock manually (PC source only)

Usually you can easily adjust the positions and clock of images using Auto Setup. Use Manual Setup to optimize the position and clock of images when necessary.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).
2 Select "Manual Setup" (↑/↓ then ENTER).
3 Select the item to be adjusted (↑/↓ then ENTER).
4 Perform adjustment ( / and / ) .
With "Clock" or "Phase" selected, you can perform adjustment in the parameter using / .
5 Press HOME MENU to exit the menu.

Note

To restore the factory defaults for all items, press ↑/↓ to select "Reset" in step 3, and then press ENTER. A confirmation screen appears. Press ←/→ to select "Yes", and then press ENTER.
This function is not selectable when the PC is connected to the HDMI terminal.
- Depending on the displayed video, the image position may not change even after adjustment.

Selecting an input signal type

After connecting to the INPUT 1, INPUT 2, or INPUT 3 terminal, specify the type of video signals to be received from the connected equipment. For the type of the signals, see the operation manual that came with the connected equipment.

Before starting the menu, press INPUT 1, INPUT 2, or INPUT 3 on the remote control unit or press INPUT on the Media Receiver to select an input source.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).

2 Select "Input Select" (↑/↓ then ENTER).

3 Select "Input" or "Audio Select" (↑/↓ then ENTER).

4 Select a signal type ( / ).

You can select the video input terminal for "Input":

For "INPUT 1", you can select "Video" or "RGB".
- For "INPUT 2", you can select "Video", "S-Video" or "COMPONENT".
For "INPUT 3", you can select "Video", "S-Video" or "RGB".

You can select the audio input terminal for "Audio Select":

• Select "SCART" or "RCA".

5 Press HOME MENU to exit the menu.

Note

• "INPUT 1" or "INPUT 3" is selectable only when "Disable" is selected in the "Setting" for "HDMI Input".
• You can select the signal in each input terminal.
• The "Audio Select" is only available when "COMPONENT" is selected in "Input" for "Input Select".
• If no image appears or images appear in inappropriate colours, specify another video signal type.
• For the signal types to be specified, check the operation manual that came with the connected equipment.

Colour system setting

If an image does not appear clearly, select another colour system (e.g., PAL, NTSC).

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).

2 Select "Colour System" (↑/↓ then ENTER).

3 Select a video signal system ( ↑/↓ then ENTER).

You can select "Auto", "PAL", "SECAM", "NTSC", or "4.43NTSC".

With "Auto" selected, input signals are automatically identified.

4 Press HOME MENU to exit the menu.

Note

The factory default is "Auto".
- You do not need to enter any setting if "HDMI Input" has been selected.
- You need to perform colour system setting for each of "INPUT 1", "INPUT 2", "INPUT 3" and "INPUT 5".
- For the colour system setting, see steps 12 and 13 under Setting up analogue TV channels manually on page 35.

Selecting a game mode

When playing a game, you can use this function to establish a preference for image quality or operability.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).
2 Select "Game Control Pref" (↑/↓ then ENTER).
3 Select "On" or "Off" (↑/↓ then ENTER).

Item Description

On Establishes a preference for operability

Off Establishes a preference for image quality

4 Press HOME MENU to exit the menu.

Note

The "Game Control Pref" is only available when using an external input (except a PC source) and "GAME" is selected in "AV Selection".
The "Game Control Pref" options are not effective when PC signals are received (when a PC source menu is displayed on the screen).
- The "On" setting is not effective when freezing images or in the multiscreen mode.

Selecting a screen size manually

Press to switch among the screen size options selectable for the type of video signals currently received.

Each time you press the selection is switched.

The selectable screen sizes differ depending on the types of input signals.

Important

• If images with black bands on both sides or top and bottom of the screen - when using the "4:3", "FULL 14:9" or "CINEMA 14:9" modes, for example - are displayed continuously for long periods or for shorter periods of time over several days, image retention may result. It is recommended that you enjoy watching images displayed in full screen, except when doing so may result in copyright infringement.

AV source

Item Description

Auto Adds side masks or displays the image in full screen when High Definition pictures containing side masks are detected. See Detecting side masks on page 61.

4:3 For standard 4:3 pictures. A side mask appears on each side.

FULL 14:9 For 14:9 squeeze pictures. A thin side mask appears on each side.

CINEMA 14:9 For 14:9 letterbox pictures. A thin side mask appears on each side, and you may also see bars on the top and bottom on some programmes.

WIDE Pictures progressively stretch toward each side

WIDE 1 Pictures progressively stretch toward each side

WIDE 2 Pictures evenly stretch toward each side

FULL For 16:9 squeeze pictures

Dot by Dot Matches input signal to the same number of screen pixels (selectable for 1080i or 1080p signals only)
ZOOM For 16:9 letterbox pictures. Bars may appear on the top and bottom on some programmes.
CINEMA For 14:9 letterbox pictures. Bars may appear on the top and bottom on some programmes.

PC source

Item Description

4:3 Fills the screen without altering the input signal aspect ratio

FULL Full 16:9 screen display

Useful adjustment settings

Note

• Pres s i TQOLS also causes the "Screen Size" menu to appear.
  While receiving High Definition video signals, pressing switches among "Auto", "FULL", "Dot by Dot", "ZOOM", "4:3", "WIDE 1" and "WIDE 2".
• While receiving Standard Definition video signals, pressing switches among "FULL", "ZOOM", "CINEMA", "4:3", "FULL 14:9", "CINEMA 14:9" and "WIDE".
• Some HD broadcasts may display 4:3 content with side masks, which may cause uneven wear. After viewing it is recommended to view full-screen motion video (see Detecting side masks).

Selecting a screen size automatically

The flat screen TV automatically selects an appropriate screen size when the received video signals contain WSS (wide screen signaling) information or when video signals are received from a connected HDMI equipment (see page 69). To activate this function, use the following procedure.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).
2 Select "Auto Size" (↑/↓ then ENTER).
3 Select "Natural" or "Wide-Zoom" (↑/↓ then ENTER).

Item Description

Off Deactivates the Auto Size function

Natural Naturally adjusts the image to the screen

Wide-Zoom Enlarges and displays only the 4:3 aspect ratio portion in full and wide screen

4 Press HOME MENU to exit the menu.

Note

• Manually select an appropriate screen size if an image does not automatically switch to a correct screen format.
• When the video signal contains no aspect ratio information, the function will not work even with "Natural" or "Wide-Zoom" selected.

Detecting side masks

Some HD broadcasts may display 4:3 content with side masks. The flat screen TV automatically detects these side masks to provide grey side masks when "Natural" has been selected for "Auto Size", or display the image full screen with the side masks removed when "Wide-Zoom" has been selected. This function does not operate when "Off" is selected for "Auto Size".

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).
2 Select "Side Mask" (↑/↓ then ENTER).
3 Select "Detection" (↑/↓).
4 Select "Mode 1" or "Mode 2" ( /

Item Description

Off Deactivates the Side Mask detection

Mode 1 Activates the Side Mask detection to detect only black side masks

Mode 2 Activates the Side Mask detection to detect both black and other illustrated side masks

5 Press HOME MENU to exit the menu.

Important

• The "Mode 1" or "Mode 2" setting prevents uneven wear on 4:3 content and side masks and can reduce the possibility of image retention.

Note

• You cannot set the Side Mask detection to "Mode 1", "Mode 2" or "Off" when "Off" is selected in "Auto Size".
• The Side Mask detection does not operate on 4:3 content displayed in SD signals.
  "Auto" will appear on the InfoBanner when this function is on.
• Set the Side Mask detection function to "Mode 1" or "Mode 2" the High Definition 16:9 aspect ratio images containing side masks will be detected and the side masks will be added automatically or the image displayed in full screen, leading to more effective countermeasures taken for the screen burning.
• Detection errors may occur depending on the HD contents. In case a detection error occurs, manually change the screen size to the desired size.

Selecting a wide mode

The HD Wide Mode adjusts the side masks that appear in a 4:3 image. Select from "Mode 1" or "Mode 2" when "Wide-Zoom" is selected in "Auto Size".

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).
2 Select "Side Mask" (↑/↓ then ENTER).
3 Select "HD Wide Mode" (↑/↓).
4 Select "Mode 1" or "Mode 2" (←/→).
If you select "Mode 1", Side Mask Detection is automatically set to "WIDE 1" when side masks are detected with "Wide-Zoom" for Auto Size setting.

If you select "Mode 2", Side Mask Detection is automatically set to "WIDE 2" when side masks are detected with "Wide-Zoom" for Auto Size setting.

5 Press HOME MENU to exit the menu.

Changing the brightness at both sides of the screen (Side Mask)

With the 4:3, FULL 14:9, or CINEMA 14:9 screen size, you can change the brightness of the grey side masks that appear at both sides of the screen.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).
2 Select "Side Mask" (↑/↓ then ENTER).
3 Select "Brightness Sync." (↑/↓).
4 Select the desired parameter ( / ) .

Item Description

Fixec (defa

Always sets the same brightness for the grey side masks

Auto Adjusts the brightness of the grey side masks according to the brightness of images

Important

• The "Auto" setting adjusts the brightness of the side masks according to the brightness of the screen and can reduce the possibility of image retention.

5 Press HOME MENU to exit the menu.

Room Light Sensor

This function automatically adjusts the brightness of the display panel in accordance with the brightness level of the viewing area. For details, use the following procedure.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).
2 Select "Room Light Sensor" (↑/↓ then ENTER).
3 Select "Mode 1", "Mode 2" or "Off" (↑/↓ then ENTER).

Item Description

Mode 1

Automatically adjusts the picture brightness for the best possible image quality based on the information collected at the Room Light Sensor and Colour Sensor

Mode 2

Automatically adjusts the picture brightness and colouring for best image quality possible for the viewing environment based on the information collected at the Room Light Sensor and Colour Sensor

Off Deactivates the Room Light Sensor function

4 Press HOME MENU to exit the menu.

Note

• As this function automatically optimizes image quality, the process in which image settings such as brightness and tint gradually change may be seen on the screen. This is not a malfunction.
• If the colour sensor is not in use, adjustments are made for "Mode 1" and "Mode 2" based on the information collected at the Room Light Sensor.

Blue LED Dimmer

You can adjust the brightness of the Power ON indicator depending on the brightness level of the viewing area. When "Auto" is selected, the brightness of the indicator changes to "High", "Mid" or "Low" to match the brightness level of the viewing area.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).
2 Select "Blue LED Dimmer" (↑/↓ then ENTER).
3 Select "Auto", "High", "Mid" or "Low" (↑/↓ then ENTER).
4 Press HOME MENU to exit the menu.

Orbiter

This function automatically shifts the image little by little to reduce the occurrence of the burning.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).
2 Select "Orbiriter" (↑/↓ then ENTER).
3 Select "Mode 1" or "Mode 2" (↑/↓ then ENTER).

Useful adjustment settings

(AV source)

Item Description

Off Disables the Orbiter

Mode 1	Enables the display protection function for any screen mode other than “Dot by Dot”
(default)

Mode 2 Enables the display protection function for all available screen modes

(PC source)

Item Description

Off Disables the Orbiter (default)

Mode 1 Enables the Orbiter

Mode 2 Smoothest text/characters display

4 Press HOME MENU to exit the menu. To cancel this function, select "Off" in step 3.

Note

• For the Dot by Dot mode, see Selecting a screen size manually on page 60.

Video Pattern

You can display the Video Pattern screen that also helps eliminate after-image when it occurs.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).
2 Select "Video Pattern" (↑/↓ then ENTER).

A confirmation screen appears.

3 Select "Start" (ENTER).

The Video Pattern screen displays.

Note

The system is automatically placed into standby one hour after the Video Pattern screen has started.
- While the Video Pattern screen is on, no buttons operate except on the remote control unit and STANDBY/ON on the Media Receiver. If any of the above buttons is pressed, a message appears on screen (the Video Pattern function is on).
To cancel the Video Pattern screen, press on the remote control unit, STANDBY/ON on the Media Receiver or Power On (b) on the display.
- The Video Pattern timer has priority over the sleep timer. When the Video Pattern timer is on, the sleep timer becomes ineffective.

Screen Protection

This function establishes multiple settings for a longer display life. To select this option, follow the procedure below.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).

2 Select "Screen Protection" (↑/↓ then ENTER). The following settings are automatically entered:

• Auto Size: Wide-Zoom
• Side Mask - Detection: Mode 1
• Orbiter: Mode 1
• Energy Save: Mode 1
• AV Selection: OPTIMUM (when "DYNAMIC" is selected for "AV Selection")

3 Select "Yes" or "No" ( / then ENTER).

4 Press HOME MENU to exit the menu.

Label Input

You can enter the broadcast name in each channel using the on-screen software keyboard. For entry, follow the procedure below.

1 Repeat steps 1 to 3 provided for Switching the vertical drive mode (AV source only).

2 Select "Label Input" (↑/↓ then ENTER).

3 Select an input (↑/↓ then ENTER).

The software keyboard appears.

For entry, highlight the desired key, then press ENTER. Up to eight characters can be entered for each label.

Refer to step 7 for Labeling TV channels on page 36.

Sleep Timer

When the selected time elapses, the Sleep Timer automatically places the system into the standby mode.

1 Press HOME MENU.

2 Select "Setup" (↑/↓ then ENTER).

3 Select "Sleep Timer" ( ↑/↓ then ENTER).

4 Select the desired time ( ↑/↓ then ENTER).

Select "Off" (cancel), "30 min", "60 min", "90 min" or "120 min".

5 Press HOME MENU to exit the menu.

Note

• Press it!QOLs also causes the "Sleep" menu to appear.
• Five minutes before the selected time elapses, the remaining time appears every minute.
• When the sleep timer has been set, "Remain --min" appears at the top of the menu.

Using a password

The flat screen TV provides the Channel Lock function for preventing children from watching inappropriate programmes. You need to enter a password when watching programmes with "Block" specified. Before the system is shipped, "1234" is preset as the factory-default password. You can however, change the password as you want.

You will need to enter the password before using the "Auto Installation", "Analogue TV Setup", "Installation", "Channel management" or "Password" functions from the HOME MENU.

This is to prevent unauthorized changes to the settings.

Entering a password

You will need to enter the password after selecting a channel blocked with the Channel Lock function, and before you can use some of the menu functions.

• Enter your four-digit password using buttons 0 to 9.

Please Input Your Password.

Note

• If you fail to enter the correct password three times, "Invalid password." appears, and the menu is closed. In order to display the password entry screen again to unlock the password, select the blocked channel or open the menu again.

Changing the password

Use the following procedure to change the password.

1 Press HOME MENU.
2 Select "Setup" ( ↑/↓ then ENTER).
3 Select "System Setup" (↑/↓ then ENTER).
4 Select "Password" (↑/↓ then ENTER).

The password entry screen appears. Enter the current four-digit password using buttons 0 to 9.

5 Select "Change Password" (↑/↓ then ENTER).

6 Enter a four-digit password to be newly set, using buttons 0 to 9.

7 Enter the same password that you have entered in step 6.

If a different password is entered, the operation goes back to step 6 for reentry from the beginning.

You can try up to three times to reconfirm the new password before the Change Password screen is automatically exited.

8 Press HOME MENU to exit the menu.

Note

Take a note of the newly set password and keep it handy.

Disabling the password function

Use the following procedure if you want to deactivate the protection function that prompts password entry. The factory default is "Enable".

1 Repeat steps 1 to 4 provided for Changing the password.

2 Select "Password Setting" (↑/↓ then ENTER).

3 Select "Disable" (↑/↓ then ENTER).

4 Press HOME MENU to exit the menu.

Note

The above procedure will reset the password to the factory default (1 2 3 4).
- After disabling the password function, you cannot change the Channel Lock settings. See Setting Channel Lock on page 35.
After disabling the password function, you cannot change or reset the password.
- When you enable the password function again after disabling it, the factory default password (1 2 3 4) is restored.

We suggest you write down your password so you don't forget it.

KRP-600A/KRP-500A Your password No.:

If you forget the password

When the message "Please Input Your Password," is displayed, press the ENTER button on the remote control unit and hold it down for three seconds or longer.

The password reverts to "1234".

Chapter 12

Using with other equipment

You can connect many types of external equipment to your flat screen TV, like a decoder, VCR, DVD player, game console, personal computer and camcorder.

To view images coming from external equipment, select the input source using INPUT 1 to INPUT 5 or PC on the remote control (page 14) or INPUT on the Media Receiver.

Caution

• To protect all equipment, always unplug the flat screen TV from the power outlet before connecting to a decoder, VCR, DVD player, game console, personal computer, camcorder or other external equipment.

Note

Refer to the relevant operation manual (DVD player, etc.) carefully before making connections.
- Unless stated otherwise, the connecting cables shown in the illustrations are readily available commercially, but are not supplied with this product.

Connecting a DVD player

Use the INPUT 2 terminals when connecting to a DVD player and other audiovisual equipment.

When using a component video cable, select "COMPONENT" in the "Input" menu and "SCART" in the "Audio Select" menu (see Selecting an input signal type on page 59). In this case, the SCART cable will carry the audio signal.

If you want the audio cable to carry the audio signal, connect the audio cable to the INPUT 2 terminals (Audio) and select "RCA" in the "Audio Select" menu.

DVD playback

To watch a DVD, press INPUT 2 on the remote control unit or press INPUT on the Media Receiver to select "INPUT 2".

Note

• If DVD images do not come in clearly, you may need to change the input signal type setting using the menu. See page 59.
  Refer to your DVD player operation manual for the signal type.

Connecting a decoder

Use the INPUT 1 terminal when connecting a decoder and other audiovisual equipment.

Displaying a decoder image

Press buttons 0 to 9 or P + / P- to select a programme specified for decoder setting (page 36).

Press INPUT 1 on the remote control unit or press INPUT on the Media Receiver to select "INPUT 1".

Note

If decoder images do not come in clearly, you may need to change the input signal type setting using the menu. See page 59.
Refer to your decoder operation manual for the signal type.

Using with other equipment

Connecting a VCR

Use the INPUT 2 terminals when connecting a VCR and other audiovisual equipment.

If your VCR supports TV-VCR advanced "AV link" systems, you can connect the VCR to the INPUT 2 or INPUT 3 terminal on the flat screen TV using the fully-wired 21-pin SCART cable.

AV link advanced system

• Download tuning information directly from TV to VCR (Preset download).
• While watching TV, you can record a programme with a one-touch press of the VCR recording button. (WYSIWYR*)
• Refer to your VCR operation manual as some VCRs have an exclusive key for WYSIWYR.
• When you press the play button on the VCR, the system automatically turns on from standby and displays a VCR image.

Note

• TV-VCR advanced "AV link" systems may not be compatible with some external sources.

Caution

• If you connect a device such as a VCR between the aerial and Media Receiver, signal reception quality may deteriorate. In this case, we recommend using a distributor and making sure to switch the "Aerial Power" setting off in order to prevent the device from being damaged.

VCR playback

To watch a VCR image, press INPUT 2 on the remote control unit or press INPUT on the Media Receiver to select "INPUT 2".

Note

If VCR images do not come in clearly, you may need to change the input signal type setting using the menu. See page 59.

• Connect external equipment to only terminals that are to be actually used.
  Refer to your VCR operation manual for the signal type.

Using the SCART output function

This function allows you to record DTV programmes with a connected VCR or other recording equipment while enjoying watching the flat screen TV as usual. With this function, you can also easily enjoy timeshift playback when a DVD/HDD recorder (DVR) is connected.

The following diagram assumes that you connect a Pioneer DVR-940HX-S to the Media Receiver so that you can enjoy timeshift playback with the recorder.

In addition to the above connections, you need to perform the following:

• See Switching the SCART output (page 67) and select "Fixed on DTV/SAT" for "SCART Output" in the Setup menu.
• On the DVD/HDD recorder (DVR), select the video/audio input source matching the external input terminal to which the Media Receiver has been connected. For this method, see the operation manual that came with the recorder.
• Select the input source on the Media Receiver depending on the terminal to which the output of the DVD/HDD recorder (DVR) has been connected; for the above connection example, select "INPUT 2".
• When you complete the connections and setups, you can then enjoy timeshift playback with the DVD/HDD recorder (DVR). You can also select the 2-screen or picture-in-picture mode to watch images coming from the DTV input source and an external input source ("INPUT 2" for the above connection example) to which the output of the recorder has been connected.

Using with other equipment

Note

• Some DVD/HDD recorders (DVRs) may not allow timeshift playback. Check the operation manual that came with your recorder.
• For details about connection and setting procedures, see the operation manual that came with your DVD/HDD recorder (DVR).

Switching the SCART output

Video and audio signals output from INPUT 2 and INPUT 3 sources are the same as those used for the current image display. You can however change the setting so that DTV/satellite TV signals are always output regardless of the current image display.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "System Setup" (↑/↓ then ENTER).
4 Select "SCART Output" (↑/↓ then ENTER).
5 Select a desired parameter ( ↑/↓ then ENTER).

Item Description

Auto (default)	Outputs video and audio signals coming from the selected input source
Fixed on DTV/SAT	Always outputs DTV/satellite TV signals

6 Press HOME MENU to exit the menu.

Note

The following operations are given higher priority over the above setting:

• Presetting a DTV/satellite TV programme for recording

• Execution of WYSIWYR (page 66)

• While in analogue TV mode, no signal is output even if "Fixed on DTV/SAT" is selected for "SCART Output".

• When the Home Media Gallery screen is displayed, no signal is output even if "Fixed on DTV/SAT" is selected for "SCART Output".

Connecting a game console or camcorder

Use the INPUT 5 terminals to connect a game console, camcorder and other audiovisual equipment.

Media Receiver(front)
Game console/camcorder

Displaying an image from the game console or camcorder

To watch an image coming from the game console or camcorder, press INPUT 5 on the remote control unit or press INPUT on the Media Receiver to select "INPUT 5".

Note

• Connect external equipment to only terminals that are to be actually used.

Connecting a personal computer

Use the PC terminals to connect a personal computer.

Note

The PC input terminals are DDC2B-compatible.

Media Receiver(front)

Displaying an image from a personal computer

To watch an image coming from the personal computer, press PC on the remote control unit or press INPUT on the Media Receiver to select "PC".

When connecting to a personal computer, the correct input signal type is automatically detected. If the personal computer image does not come in clearly, you may need to use Auto Setup menu. See page 59.

Note

• The PC terminals cannot be used for audiovisual equipment.

Computer compatibility chart

Resolution Frequency

720 x 400 70 Hz

640 x 480 (VGA) 60 Hz

800 x 600 (SVGA) 60 Hz

1280 x 720 60 Hz

1024 x 768 (XGA) 60 Hz

1360 x 768 (Wide-XGA) 60 Hz

1280 x 1024 (SXGA) 60 Hz

Connecting an amplifier/AV receiver

You can enjoy more powerful sound by connecting such audio equipment as an amplifier/AV receiver or subwoofer to the Media Receiver.

Selecting a digital audio format

Audio signals synchronized with currently displayed images are output to the AUDIO OUT terminals. However, audio accompanying the images are output to the SUB WOOFER OUT terminal.

When using the digital audio output terminal (optical), select settings according to your AV receiver.

1 Press HOME MENU.

2 Select "Setup" (↑/↓ then ENTER).

3 Select "System Setup" (↑/↓ then ENTER).

4 Select "Digital Audio Output" (↑/↓ then ENTER). Select "Dolby Digital" (default) or "PCM".

5 Press HOME MENU to exit the menu.

Note

• For details, refer to the operation manual for the audio equipment to be connected.
• When signals are input from the HDMI terminals, no signals are output if they are copy guarded.
• While in DTV or SAT mode, no signals are output if they are copy guarded.

Using with other equipment

Using the HDMI Input

The INPUT 1, INPUT 3, INPUT 4 and INPUT 5 terminals are HDMI terminals to which digital video and audio signals can be input. To use the HDMI terminal, activate the terminal and specify the types of video and audio signals to be received from the connected equipment. For the types of these signals, see the operation manual that came with the connected equipment.

Before starting the menu, press INPUT 1, INPUT 3, INPUT 4 or INPUT 5 on the remote control unit or press INPUT on the Media Receiver to select "INPUT 1", "INPUT 3", "INPUT 4" or "INPUT 5".

Video signals supported

720 (1440) x 576i@50 Hz

720 x 576p@50 Hz

1280 x 720p@50 Hz

1920 x 1080i@50 Hz

720 (1440) x 480i@59.94 Hz/60 Hz

720 x 480p@59.94 Hz/60 Hz

1280 x 720p@59.94 Hz/60 Hz

1920 x 1080i@59.94 Hz/60 Hz

1920 x 1080p@24 Hz

1920 x 1080p@50 Hz

1920 x 1080p@60 Hz

PC signals supported

640 × 480 (VGA) 60 Hz

800 × 600 (SVGA) 60 Hz

1024 × 768 (XGA) 60 Hz

1360 × 768 (Wide - XGA) 60 Hz

1280 × 1024 (SXGA) 60 Hz

For audio, the system supports the following:

• Linear PCM (STEREO 2ch)
• Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz

HDMI Control supported

The flat screen TV supports the HDMI Control functions. By connecting devices that support the HDMI Control functions to the Media Receiver, you can control the connected device(s) from the Media Receiver or remote control unit of the flat screen TV. See Using the HDMI Control on Chapter 13.

Deep Colour supported

Deep Colour means the colour depth that describes the number of bits used to represent the colour of a single pixel in a bitmapped image. Besides the conventional RGB/YCbCr16 bit/20 bit/24 bit signals, the flat screen TV also supports RGB/YCbCr30 bit/36 bit signals. This enables finer, minute colour reproduction when a device that supports Deep Colour signals is connected to the Media Receiver. When Deep Colour signals are received, the colour depth appears on the InfoBanner (see page 48).

Note

• It may take a short while until the image is displayed, depending on the equipment connected.
  Make sure to use an HDMI compliant cable.
• When inputting 1080p signals, we recommend you use an HDMI cable that supports HDMI Category 2.
• When connecting a PC to the HDMI terminal, use the HDMI compliant PC or video card.
• When connecting a PC to the HDMI terminal using a DVI output terminal, the flat screen TV may not display properly. If that is the case, consult with your PC manufacturer.
• PC picture and/or sound may not be displayed or heard properly depending on the PC used.

Connecting HDMI equipment

When using the INPUT 1 HDMI terminal:

Media Receiver (rear)

Using with other equipment

When using the INPUT 4 HDMI terminal:

Activating the HDMI terminal

When you use the INPUT 1 or INPUT 3 HDMI terminal, select the terminal for the desired input source, then perform the following procedure to activate the terminal.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Option" (↑/↓ then ENTER).
4 Select "HDMI Input" (↑/↓ then ENTER).
5 Select "Setting" (↑/↓ then ENTER).
6 Select "Enable" (↑/↓ then ENTER).

Item Description

Disable (default) Deactivates the HDMI terminal

Enable Activates the HDMI terminal

7 Press HOME MENU to exit the menu.

Specifying the type of input signals

1 Repeat steps 1 to 4 provided for Activating the HDMI terminal.
2 Select "Signal Type" (↑/↓ then ENTER).
3 Select "Video" or "PC" (↑/↓ then ENTER).

Item Description

Video (default) Select this option except when a PC is connected

PC Select this option when a PC is connected to the HDMI input terminal

4 Press HOME MENU to exit the menu.

Caution

• Make sure to select "PC" when a PC is connected to the HDMI input terminal.

Note

• In the "Video" mode, the image is "over-scanned" (enlarged), and the mode is automatically switched to "PC" when PC signals are received.
• In the "PC" mode, the image is displayed in full size for optimum image quality.

Specifying the type of digital video signals

1 Repeat steps 1 to 4 provided for Activating the HDMI terminal.
2 Select "Video" (↑/↓ then ENTER).
3 Select the type of digital video signals (↑/↓ then ENTER). If you select "Auto", an attempt will be made to identify the type of digital video signals when digital video signals are received.

Item Description

Auto (default) Automatically identifies input digital video signals
Colour-1	Digital Component Video signals (4:2:2) locked
Colour-2	Digital Component Video signals (4:4:4) locked
Colour-3	Digital RGB signals (16 to 235) locked
Colour-4	Digital RGB signals (0 to 255) locked

4 Press HOME MENU to exit the menu.

Using with other equipment

Note

• If you select a parameter other than "Auto", make such a setting that results in natural colour.
• If no image appears, specify another digital video signal type.
• For the digital video signal types to be specified, check the operation manual that came with the connected equipment.

Specifying the type of audio signals

When you use the INPUT 1 or INPUT 3 HDMI terminal, select the terminal for the desired input source, then perform the following procedure to specify the type of audio signals.

1 Repeat steps 1 to 4 provided for Activating the HDMI terminal.

2 Select "Audio" (↑/↓ then ENTER).

3 Select the type of audio signals (↑/↓ then ENTER).

If you select "Auto", an attempt will be made to identify the type of audio signals when audio signals are received.

Item Description

Auto (default) Automatically identifies the input signals

Digital Accepts digital audio signals

Analogue Accepts analogue audio signals

4 Press HOME MENU to exit the menu.

Note

• If no sound is output, specify another audio signal type.
• For the audio signal types to be specified, check the operation manual that came with the connected equipment.
• Depending on the equipment to be connected, you also need to connect analogue audio cables.

Connecting control cords

Connect control cords between the Media Receiver and other Pioneer equipment having the logo. You can then operate the connected equipment by sending commands from its remote control unit to the remote control sensor on the display.

After the CONTROL IN terminals have been connected, the remote control sensors on the connected equipment do not accept commands from the remote control units. Face the remote control units to the remote control sensor on the display when operating the connected equipment.

Note

Make sure that the power cord is removed from the power outlet when making connections.
- Complete all component connections before making control cord connections.

About SR+

The CONTROL OUT terminal on the rear of the Media Receiver supports SR+ that allows linked operations with a Pioneer AV receiver. SR+ presents functions such as the input switch linkage operation function and the DSP surround mode display function. For more information, see the instruction manual that came with the Pioneer AV receiver supporting SR+ .

Note

• While in connection through SR+ , the volume on this system is temporarily minimized.
• When making control cord connections, use the SR+ cable.
• When making control cord connections with one or more pieces of Pioneer equipment, directly connect the Media Receiver and the Pioneer amplifier that supports SR+. Do not connect other equipment between them.

Media Receiver (rear)

When SR+ is not used (a, b and c):

The control cables (commercially available) are mono sound cables with mini plugs (no resistance).

When SR+ is used (a):

Use the SR+ cable (available as option).

Using i/o link.A

The flat screen TV incorporates three typical i/o link.A functions for smooth connections between the Media Receiver and other audiovisual equipment.

One Touch Play

While the flat screen TV is in standby mode, it automatically turns on and plays back images from the audiovisual source (e.g. VCR, DVD).

WYSIWYR (What You See Is What You Record)

When the remote control unit of the connected VCR has the WYSIWYR button, you can automatically start recording by pressing the WYSIWYR button.

Preset Download

Automatically transfers channel preset information from the tuner on the flat screen TV to the one on the connected audiovisual equipment (e.g. VCR) via the INPUT 2 or INPUT 3 terminal.

Selecting the SCART terminal for use with

i/o link.A

The INPUT 2 and INPUT 3 terminals on the Media Receiver are available for use with i/o link.A. Select which is to be used.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "System Setup" (↑/↓ then ENTER).
4 Select "i/o link.A" (↑/↓ then ENTER).
5 Select a setting ( ↑/↓ then ENTER).

Item Description

INPUT 2 (default) INPUT 2 is available for i/o link.A

INPUT 3 INPUT 3 is available for i/o link.A

6 Press HOME MENU to exit the menu.

Note

The i/o link.A functions work only when the audiovisual equipment is connected to the INPUT 2 or INPUT 3 terminal on the Media Receiver with i/o link.A via a fully wired 21-pin SCART.
Refer to operation manuals of each external equipment for the details.
- If a SCART cable has been connected to the INPUT 3 terminal with the i/o link.A activated, input signals (other than Component) are automatically identified and displayed. If the i/o link.A has been deactivated, Video is always selected for signals other than RGB because the system cannot identify among RGB, Y/C (S-Video), and CVBS (Video) signals; for example, receiving Y/C (S-Video) signals results in monochrome display.

Using with other equipment

Operate the Home Media Gallery

With Home Media Gallery, you can enjoy digital content such as movies, music, and photo files on your high-end flat screen TV. Play content from files stored on one or more media servers connected by a home or local area network (LAN) or those stored on a USB flash drive. After connecting via a broadband router or an Ethernet hub to a media server with network software, navigate through the digital content visible on the Home Media Gallery. The flat screen TV supports Mass Storage Class and PTP devices through USB interface and DLNA-compatible devices through the network.

DLNA CERTIFIED™ Audio/Video/Image Player

This unit complies with the DLNA Networked Device Interoperability Guidelines - expanded: October 2006 (v1.5).

When a PC running DLNA server software or other DLNA-compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

Supported file formats

The following sections show supported file formats that can be played back or displayed on the flat screen TV. These formats are applicable to network sources. Most are also applicable to USB sources. However, media server content protected by digital rights management such as WMDRM10 (Windows Media Digital Rights Management 10), may not play on the panel.

Supported video formats

• Windows Media Video 9 (WMV9): MP@ML
• Windows Media Video 9 (WMV9) Advanced Profile (VC-1): AP@L1, MP@ML
  MPEG-2 PS: MP@ML
  MPEG-2 TS: MP@ML
  MPEG-1
  MPEG-4 Part2 (SP/ASP): SP@L3, ASP@L5
  MPEG-4 Part10 (H.264/AVC): Main Profile 3.0

Supported audio formats

• Windows Media Audio 9 (WMA9): Sampling rates; 44.1 kHz or 48 kHz
  MPEG-1 Audio Layer 3 (MP3): Sampling rates; 32 kHz, 44.1 kHz or 48 kHz
• Linear PCM (WAV): Sampling rates: 44.1 kHz or 48 kHz
• MPEG-4 AAC: Sampling rates; 16 kHz, 32 kHz, 44.1 kHz or 48 kHz
  HE-AAC: Sampling rates; 16 kHz, 32 kHz, 44.1 kHz or 48 kHz

Supported image formats

• JPEG: Resolution; up to 3680 x 2760 pixels
• PNG: Resolution; up to 3680 x 2760 pixels
  GIF: Resolution; up to 3680 x 2760 pixels
  TIFF: Resolution; up to 1600 x 1200 pixels
  BMP: Resolution; up to 3072 x 2304 pixels

Supported file extensions

This product supports the playback of files with the following extensions.

Video: .wmv, .asf, .mpg, .mpeg, .mpe, .m2p, .m4v, .mp4v, .mp4, .mov
Audio.wma.mp3,wav.m4a,aac
- Image: jpg, jpg, .png, .gif, .bmp, .tif, .tif

Note

• Even the supported format files that are listed above may or may not play properly or completely, depending on the media server, USB device, bit rate stream and other content characteristics, as well as other factors.

Even when files have a supported file extension, some files may not play or display properly, depending on the content or media server type.

Some formats may not be supported nor displayed on the Home Media Gallery as formats that individual media servers support vary. Refer to the media server manufacturer's or other relevant websites for supported formats. Although a particular format is supported, not all content functions may operate properly. If the content fails to appear properly, contact the content producer for assistance. In addition, some supported file formats may fail to play properly when imported from an unknown USB device.

Note

• You cannot use the Home Media Gallery until dimmed elements on the menu screen turn white.
• Some Home Media Gallery functions, such as trick play during Fast Forward and Rewind, Time Search and Search, may not work depending on the media server's capability and functionality.
• Home Media Gallery complies with the DLNA Networked Device Interoperability Guidelines - expanded: October 2006 (v1.5). If your media server supports different DLNA version(s), some Home Media Gallery function(s) and content format(s) may not be supported.
• Pioneer is not responsible for any malfunction of the Home Media Gallery features due to communication error/ malfunctions associated with your network connection and/or your PC, or other connected equipment. Contact your PC manufacturer or Internet service provider.
  Content may not play or display properly, depending on the conditions of use or media server in use.

Using with other equipment

• The Home Media Gallery functions as a WMDRM10-ND (Microsoft Windows Media DRM for networked devices). Content can only be navigated from the media servers that support WMDRM10-ND. Content may not play, depending on the DRM protection level.
  This system may not display content from incompatible memory cards.
• On rare occasions while using Home Media Gallery, a discharge of static electricity may force the menu to close. If the menu closes unexpectedly, turn the display and the Media Receiver off, turn them back on then repeat the steps from the beginning to open the Home Media Gallery menu again.

Network connections

To connect to a network, set up the Home Media Gallery through the Home Media Gallery menu. Press the HMG button on the remote control to cause the menu to appear. To use the Home Media Gallery, connect to a home network (LAN) via an Ethernet hub or cable directly to a media server.

Usable media servers

A media server contains digital content such as movies, music, and photo files. PCs that have pre-installed media server software and recorders with a media server function are considered the media server. There are some media servers that you can choose from; for example, Windows Media Connect, Windows Media Player that has a media sharing function, and DLNA compliant servers.

• Windows Media Connect 2.0

Windows Media Connect runs on a 32-bit PC with Windows XP Service Pack 2 (SP2) installed.
When it is already installed, you can enjoy Home Media Gallery using your PC.
- Windows Media Player 11 for Windows XP

Windows Media Player 11 features Media Sharing that runs on a 32-bit PC with Windows XP Service Pack 2 (SP2) installed. If Windows Media Connect 2.0 is not installed in your PC, you can download Windows Media Player 11 from Microsoft's website.

• Windows Media Player 11 for Windows Vista

Windows Media Player 11 is featured in 32-bit Windows Vista PCs.

When selecting the most suitable media server, please visit Microsoft's website for system requirements, known issues, installation procedures, and other updated information.

DLNACERTI digitalmedia servers

The server is a DLNA-certified digital media server such as PC software. PCs and other devices installed with DLNA-certified software. When a PC running DLNA server software or other DLNA-compatible device is connected to this player, some setting changes of the software or device may be required. Refer to the device(s) operating instructions for more information.

Connect via an Ethernet hub

If already operating one or more media servers on a home or local area network (LAN), connect the Media Receiver to the Ethernet (LAN) hub using a standard ("straight-through") Ethernet (LAN) cable. See the diagram below.

Note

• Although the Home Media Gallery supports 10BASE-T, it is better to use 100BASE-TX for improved display quality and speed.

Media Receiver (rear)

Using with other equipment

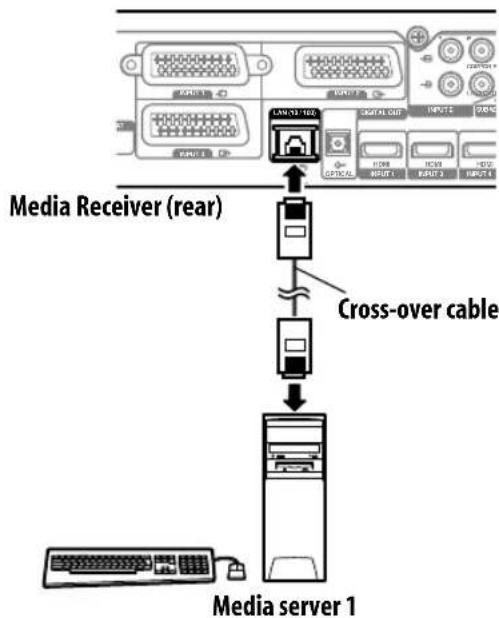

Connect directly to a media server

To run a PC as a media server, connect the Media Receiver directly to the PC using a twisted ("cross-over") Ethernet (LAN) cable. See the diagram below.

Confirm the IP Address

After making the network connection, follow the instructions below to confirm the IP Address before accessing the network. (The setup is effective for Auto only. To perform the procedure, DHCP on your server or router must be valid. See HMG Setup on page 87.)

1 Press HMG on the remote control.

The Home Media Gallery menu appears on screen.

2 Select "HMG Setup".

Use the arrow buttons to highlight an option.

3 Press ENTER.

4 Select "Network Setup".

5 Select "Auto DHCP".

The screen turns from "Select" mode to "Input" mode.

6 Select "Yes".

7 Press RETURN.

The HMG Setup screen returns.

The IP Address is assigned.

The Home Media Gallery supports Auto IP and DHCP (Dynamic Host Configuration Protocol). If the system failed to assign the IP Address or if you want to obtain different addresses, select "No" then enter IP Address and Subnet mask. See Network Setup or HMG Setup to enter an address manually.

For information on DHCP, refer to network device's operating instructions.

You may need to contact your service provider or network administrator when manually entering an IP Address.

Some media servers block or are programmed to block access to client servers. When connecting the Media Receiver, check the media server for client server access rights.

Connect a USB device

You can also enjoy content stored on memory cards by connecting a USB device to the Media Receiver. The root directory or Device List screen appears as soon as a USB flash drive or a multi-card reader is connected to the USB port. Another option is to connect your digital camera directly to the Media Receiver using a commercially available USB connector cable.

If for any reason, the Folder/Content List or Device List fails to appear, follow the steps below.

1 Press HMG.

The Home Media Gallery menu appears on screen.

2 Select "USB".

Use the arrow buttons to highlight an option.

3 Press ENTER to confirm the selection.

4 Select the desired device.

The USB Device screen must be displayed.

5 Press ENTER to navigate to a folder or play a file/content.

To return to the previous screen, press RETURN.

To exit, press EXIT or HMG

Note

• The flat screen TV displays the USB Device screen or root directory immediately after inserting a USB device. In this case, start from step 5.
• When a multi-card reader is inserted, the USB Device screen is displayed. In this case, start from step 4.

Using with other equipment

Note

• Do not use any USB devices other than those specified. Using other devices can cause a malfunction.

Readable data format

This system reads FAT16, FAT32 or NTFS.

Readable data files

Movie, music, and photo files play with the exception of Digital Rights Management (WMDRM10) protected files.

Your flat screen TV supports a single USB device at a time. Also, the TV does not support USB hubs.

This system may not be able to display modified or edited content from a PC or other equipment.

Your flat screen TV supports the USB Mass Storage Class and PTP devices.

Some digital cameras may require a setup procedure for Mass Storage Class data transfer. The setup is done on the camera. See the operating instructions supplied with the digital camera.

Depending on the type of your memory card or camera, some images may fail to display.

Remove a USB device

To remove a USB device, exit the Home Media Gallery first then disconnect the device.

Be sure to exit the Home Media Gallery screen before removing the USB device. If you remove the USB device while the Home Media Gallery screen is displayed, data inside the memory may be damaged.

Do not insert or remove the USB device immediately after the system is switched On or Off. This action may cause data inside the memory to be damaged.

Pioneer is not liable for any loss or damage to the data inside the USB flash drive.

Run the Home Media Gallery

1 Press HMG.

The Home Media Gallery menu appears on screen

2 Select "Media Navigator", "USB", "HMG Playlist" or "HMG Setup".

Use the arrow buttons to highlight an option then press ENTER.

To return to the previous screen, press RETURN.

To exit Home Media Gallery, press EXIT or HMG.

Use the Media Navigator

By selecting Media Navigator, the previously selected server menu automatically appears on the screen. When only one server is found, the system automatically connects the server. You can also use the TOOLS Menu to switch to another server or manually select a server from the Server List. The screen automatically changes to the Server List if there are no previous servers.

1 Press HMG.

The Home Media Gallery menu appears on screen.

2 Select "Media Navigator".

Use the arrow buttons to highlight an option then press ENTER. The Server List screen appears depending on the setting. Select a desired server from the Server List. The file/folder configuration may vary depending on the server selected.

(Sample screen)

3 Select the desired folder to navigate or file/content to play.

4 Press ENTER to display a subsequent screen.

A subsequent screen appears.

To return to the previous screen, press RETURN.

To exit Home Media Gallery, press EXIT or HMG.

Note

• The Media Navigator launch depends on the option selected in "Auto Connection" (page 88). The screen displays after selecting a server from the server list.

Navigate through a USB device's files and folders

Like navigating through media servers, select the specific file from a device on the USB Device screen to start an appropriate player. For details, follow the steps below.

1 Press HMG.

The Home Media Gallery menu appears on screen.

2 Select "USB".

Use the arrow buttons to highlight an option then press ENTER. The USB Device screen appears. Select the device. When using a single directory device (USB flash drive), the USB Device screen does not appear.

(Sample screen)

Using with other equipment

3 Select the desired folder to navigate or file/content to play.

4 Press ENTER to display a subsequent screen.

A subsequent screen appears.

To return to the previous screen, press RETURN. To exit Home Media Gallery, press EXIT or HMG.

Note

• The USB Device screen appears when using a multi-card reader or multiple flash drive devices. In this case, select the device containing the desired content.

Screen components

Screen display options are: List, Thmbnail or Thmbnail List. Press TOOLS then select "Change View" from the TOOLS Menu to choose from the screen display options. The options are available for Movie, Music and Photo menus.

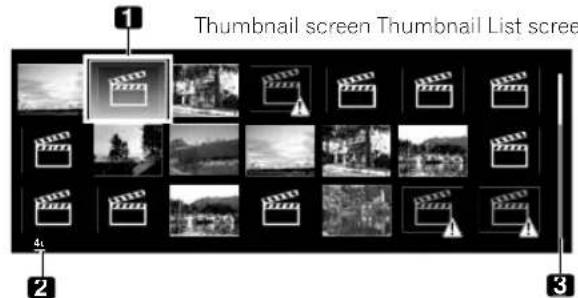

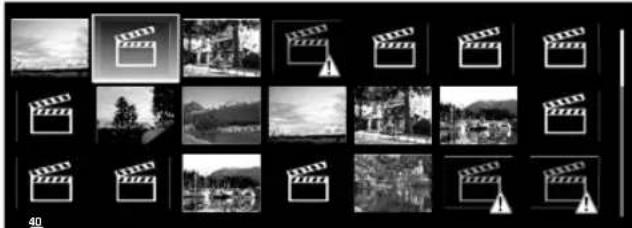

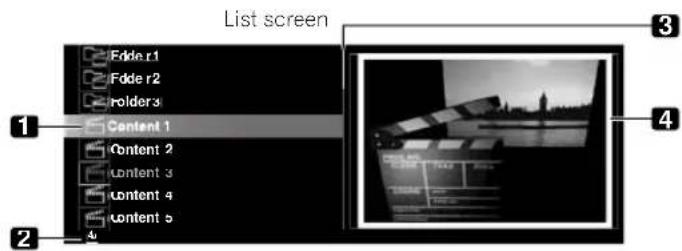

(Sample screens)

1 Item being selected
2 Number of total items
3 Scroll bar (displayed when one or more pages follow)
4 Icon or thumbnail of the selected item (if obtained)

TOOLS Menu

To change the current menu to another option, the on-screen TOOLS Menu provides short-cuts to the available selections even while watching a programme. To display the menu, press TOOLS on the remote control. The menus shown in this section differ, depending upon the menu (see page 82).

1 Selected menus (highlighted in the centre of the menu bar)
3 Submenu (when available)
2 Submenu (when available)
4 Available menus

Using with other equipment

HMG Playlist

Each category (Movie, Music, and Photo) has five different Playlists which can register up to 100 files each. The HMG Playlist can contain sound and image files selected in "Media Navigator". To edit a Playlist, use the TOOLS Menu.

1 Press HMG.

The Home Media Gallery menu appears on screen.

2 Select "HMG Playlist".

Use the arrow buttons to highlight an option then press ENTER.

3 Select a category from "Movie", "Music", or "Photo".

4 Select a desired list from Playlist 1 through Playlist 5.

5 Select the desired content.

This menu can appear as a List, Thumbsail or Thumbnail List screen. Press TOOLS then select Change View from the TOOLS Menu.

6 Press ENTER to play the content.

To return to the previous screen, press RETURN.

To exit Home Media Gallery, press EXIT or HMG.

Show your movie files on the flat screen TV

When you select movie content from the server menu on the Media Navigator screen or from USB device screen, the Movie Player automatically launches. Select a category, folder, or device to access the submenu containing the required file or content.

The Movie Player screen appears when you select a movie file from the HMG Playlist, just like selecting a file in the server.

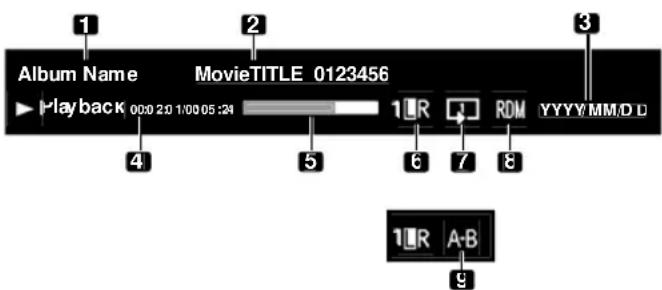

Screen components

The following information automatically appears on screen for a few seconds when Movie Player launches or playback status changes (controlled by the remote, for example). Pressing the + button or selecting Information on the TOOLS Menu also causes the information to appear.

During A-B Repeat mode

Content information)

1 Album name
2 Content title

3 D a t e

(Player status)

4 Playback status (status icon, status information, current time/ total time)

5 Progress bar
6 Sound mode
7 Play mode
8 Random mode
9 A-B Repeat mode

Using with other equipment

Movie Player key guide

Mode Key(s) used Function
Playback ENTER Plays back the content
Stop RETURN Stops the Movie Player		and returns to the previous screen (List/Thumbnail/Thumbnail List)
PAUSE ENTER Pauses the playback
Fast Forward ➔ Fast forward while		playback. Each press changes the Fast Forward speed. To discontinue Fast Forward, press ENTER. Normal playback mode returns.
Fast Reverse ← Fast reverse while		playback. Each press changes the Fast Reverse speed. To discontinue Fast Reverse, press ENTER. Normal playback mode returns.
Slow Forward ENTER + ➔ (while playback)		Slow forward when in PAUSE. Each press changes the slow speed. To discontinue Slow Forward, press ENTER. Normal playback mode returns. Note: This function may not be supported, depending on the content.
Forward (15 sec.)	↑	Skipping 15 seconds forward and plays back or pauses while in PAUSE
Reverse (15 sec.)	↓	Skipping 15 seconds backward and plays back or pauses while in PAUSE
Time Search	TOOLS	See Use the TOOLS Menu on page 82
Add to HMG Playlist	TOOLS	See Use the TOOLS Menu on page 82
A-B Repeat Mode	TOOLS	See Use the TOOLS Menu on page 82
Random	TOOLS	See Use the TOOLS Menu on page 82

Mode Key(s) used Function
Play Mode	TOOLS	See Use the TOOLS Menu on page 82
Audio	TOOLS	See Use the TOOLS Menu on page 82
Picture	TOOLS	See Use the TOOLS Menu on page 82
Sound	TOOLS	See Use the TOOLS Menu on page 82
Information	TOOLS	See Use the TOOLS Menu on page 82

Note

• Some functions may not be supported depending on the server type or version used.
• During playback, an error may arise in time-related information, depending on the content or server software.
  Some functions may not be supported, depending on the content.

Through the USB interface, you can play the content obtained by a digital video camera that supports H.264/AVC format. Follow the steps below.

1 Insert the USB flash drive containing the content in a card reader to connect to the Media Receiver.

The USB device's Folder/Contents List appears on screen.

Refer to the operation manual that came with the individual device for connections and setting.

2 Select a Folder/Contents List.

Use the arrow buttons to highlight an option then press ENTER.

3 Select the desired content.

Note

• Some content may not be played back or you may experience a delay between audio and video, depending on the file.
• Not all files (including edited files) may be supported with the Movie Player.
• Stored content may not appear in the "Shortcut" folder depending on the saved position in the memory device.
• Also, content may not play properly, depending on the USB card reader used.

Using with other equipment

Play your music files on the flat screen TV

When selecting music content from the server menu (on the Media Navigator screen or from the USB Device screen), the Music Player automatically launches. Select a category, folder, or device to access the submenu containing the required file or content. The Music Player screen appears when you select a music file from HMG Playlist, just like selecting a file in the server.

After playing music content once, the Music Player continues to play the content as BGM unless you stop the playback, exit the Home Media Gallery or start playing content other than photo content.

Screen components

1 Artist/album information
2 Music Player thumbnail icon/jacket image

3 Player list

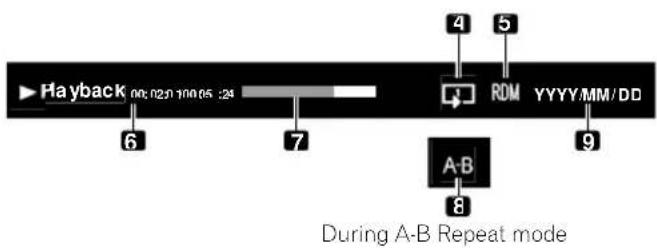

The following information and playback status appear on the Music Player screen.

4 P l a y m o d e

5 Random mode
6 Playback status (status icon, status information, current time/total time)
7 Progress bar
8 A-B Repeat mode
9 D a t e

Music Player key guide

Mode Key(s) used Function

Playback ENTER Plays back the selected content
Stop ↓ Stops the playback
PAUSE ENTER Pauses the playback
Fast Forward →		Press and hold → to start Fast Forward. When in Fast Forward, press → to change the playback speed. To discontinue Fast Forward, press ENTER. Normal playback mode returns.
Fast Reverse ←		Press and hold ← to start Fast Reverse. When in Fast Reverse, press ← to change the playback speed. To discontinue Fast Reverse, press ENTER. Normal playback mode returns.
Next →		Selects the next content
Previous ←		Selects the previous content
Time Search	TOOLS	See Use the TOOLS Menu on page 82
Add to HMG Playlist	TOOLS	See Use the TOOLS Menu on page 82
Random	TOOLS	See Use the TOOLS Menu on page 82
A-B Repeat	TOOLS	See Use the TOOLS Menu on page 82
Play Mode	TOOLS	See Use the TOOLS Menu on page 82
Sound	TOOLS	See Use the TOOLS Menu on page 82

Note

• Files may not play back properly, depending on the content.
• Some functions may not be supported, depending on the server type or version used.
• Playback continues even pressing RETURN to move from the Player screen to the previously selected screen.

Using with other equipment

Show your photo file on the flat screen TV

When you select photo content from the server menu on the Media Navigator screen or from the USB device screen, the Photo Player automatically launches. The selected content is displayed in full screen by pressing ENTER. Select a category, folder or device to access the submenu containing the required file or content.

Selecting a photo file from the HMG Playlist causes the Photo Player screen to appear, just like selecting a file in the server.

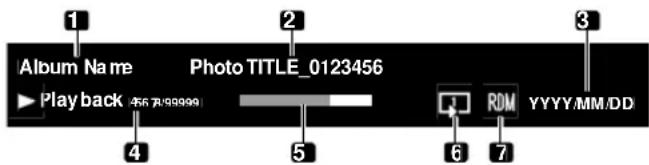

Screen components

The following information automatically appears on screen for a few seconds when Photo Player launches or playback status changes (controlled by the remote, for example). Pressing the 1 + button or selecting Information on the TOOLS Menu also causes the information to appear.

Content information)

1 Album name
2 Content title
3 Date

(Player status)

4.4 Playback status (status icon, status information, current number/total number)
5 Progress bar
6 Play mode
7 Random mode

Photo Player key guide

Mode Key(s) used Function

Playback ENTER Starts displaying a photo or playing a slideshow
Stop RETURN Stops the Player and returns to the previous screen (List/Thumbnail/ Thumbnail List)
PAUSE ENTER Pauses the slideshow
Move File Forward	Displays the next image content
Move File Backward	Displays the previous image content

Mode Key(s) used Function

Rotate (clockwise)	TOOLS	Rotates the image 90° clockwise. Each press toggles the rotation angle by 90° between 90°, 180°, 270° and 0°. (See Use the TOOLS Menu on page 82)
Change BGM	↑, ↓	Switches BGM content while playing BGM
Zoom	TOOLS	See Use the TOOLS Menu on page 82
Add to HMG Playlist	TOOLS	See Use the TOOLS Menu on page 82
Random	TOOLS	See Use the TOOLS Menu on page 82
Play Mode	TOOLS	See Use the TOOLS Menu on page 82
Slide Show	TOOLS	See Use the TOOLS Menu on page 82
Music Player	TOOLS	See Use the TOOLS Menu on page 82
Picture	TOOLS	See Use the TOOLS Menu on page 82
Sound	TOOLS	See Use the TOOLS Menu on page 82
Information	TOOLS	See Use the TOOLS Menu on page 82

Note

• Some functions may not be supported, depending on the server type or version used.
• Even with the supported format, files may not be played properly depending on the content.

Using with other equipment

Use the TOOLS Menu

Pressing TOOLS on the remote control causes the TOOLS Menu to appear. Select various play and display modes from the menu. The selectable menu items differ, depending on the currently selected menu.

For details on TOOLS Menu screen components, refer to "TOOLS Menu" on page 77.

Update Server List

Use this function to update the currently selected Server List on screen. This option is available on the Server List screen (connected/not connected).

1 Press TOOLS while showing the Server List.

The TOOLS Menu appears on screen.

2 Select "Update Server List" from the TOOLS Menu.

Use the arrow buttons to highlight an option then press ENTER.

Information on the connected server is updated.

To exit the menu, press RETURN.

Delete Server

You can delete the server(s) that are unavailable to select on the Server List screen from the list. This option is available on the Server List screen (server not connected).

1 Press TOOLS while the cursor is on the unconnected server on the Server List screen.

The TOOLS Menu appears on screen.

2 Select "Delete Server" from the TOOLS Menu.

A "Delete Server" screen appears.

3 Select "Yes" then press ENTER.

Deleting the server completes.

To cancel before it finishes, select "No."

USB Device

Follow the directions below to open the USB Device screen. This option is available on the Folder/Contents List (USB) screen.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "USB Device" from the TOOLS Menu.

The "USB Device" screen appears, showing currently connected USB devices.

Favourites Entry

Registering the Home Media Gallery in Favourites on the TOOLS Menu causes the Home Media Gallery top screen to be quickly accessed while watching TV or other programmes. This option is available on Home Media Gallery screen.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Favourites Entry" and "On", then press ENTER.

Registration completes.

To remove the "Home Media Gallery" from Favourites, select "Off".

Detailed Display

Select this option to display the detailed information on the currently selected content. This option is available on the Media Navigator, Playlist List (Movie/Music/Photo), Folder/Contents List screens.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Detailed Display" from the TOOLS Menu.

Detailed information appears.

Pressing RETURN causes the information to disappear. The previous screen returns.

Sort

You can sort the items contained in the Folder/Contents List. This option is available on the Media Navigator and Folder/Contents List screens. This function is unavailable for folders or content on a USB device.

1 Press HMG.

The Home Media Gallery menu appears on screen.

2 Select the desired folder and/or content in the Media

Navigator.

Use the arrow buttons to highlight an option then press ENTER.

3 Press TOOLS then select "Sort" from the TOOLS Menu.

A "Sort" dialogue screen appears.

4 Select "Title", "Track Number", "Genre", "Artist" or "Date" for "Condition".

5 Select "Bottom-Up" or "Top-Down" for "Order".

6 Select "Start" on the "Sort" dialogue screen.

The sorting starts based on your selection and sort results are displayed.

While sorting continues, you can select content to play. To return to the sort screen, press RETURN during playback.

To cancel the sort mode, press RETURN.

Note

• The "Select a sorting order." screen can be displayed while navigating through the music categories.
• Sort may not be available, depending on the server used.
• Available submenus for Condition vary, depending on the server used.

Using with other equipment

Search

The flat screen TV's built-in Search function provides a convenient way to find items held in a Folder/Contents List on a media server. This function is unavailable for folders or content on a USB device. Simply enter a word to search for and the results appear on screen. To begin a Search, follow the directions below. This option is available on the Media Navigator and Folder/Contents List screens.

1 Press HMG.

The Home Media Gallery menu appears on screen.

2 Select the desired folder and/or content in the Media Navigator.

Use the arrow buttons to highlight an option then press ENTER.

3 Press TOOLS.

The TOOLS Menu appears on screen.

4 Select "Search" from the TOOLS Menu.

A "Search" dialogue screen appears.

5 Select "Title", "Genre" or "Artist" for "Condition", or enter a "Keyword".

Pressing ENTER on the Keyword menu causes the software keyboard to appear on the screen.

6 Enter the word on the software keyboard.

Refer to Labeling TV channels on page 36 for details on operation.

7 Select "OK" on the software keyboard to bring up the Search dialogue screen and hide the keyboard.

To cancel the key word entry, select "Cancel".

8 Select "Start" on the "Search" dialogue screen.

The searching starts based on the word entered with results appearing on screen.

While searching continues, you can select content to play. To return to the search screen, press RETURN during playback.

To cancel the search mode, press RETURN.

Note

• Search may not be available, depending on the server used.
  Available submenus for Condition vary, depending on the server used.

Slide Show

Select the desired photo file to display a still picture then press ENTER to start a slideshow. After a slideshow launches, pressing ENTER toggles between PLAY and PAUSE. This option is available on the Media Navigator, Folder/Contents List, and Photo Player. You can set the Photo Player to play a slideshow with BGM and various visual effects. To begin a slideshow, follow the directions below.

1 Press HMG.

The Home Media Gallery menu appears on screen.

2 Select "Media Navigator" or "USB" from the menu. Use the arrow buttons to highlight an option then press ENTER
3 Select a folder containing photo content. Use the arrow buttons to highlight a folder then press ENTER. The Thumbnail screen appears (Thumbnail List or List screen appears, depending on the setting).
4 Select the desired photo file. The selected photo content appears in full screen.
5 Press TOOLS. The TOOLS Menu appears on screen.
6 Select a slideshow option. A "Slide Show" dialogue screen appears.
7 Select "Off", "Random", "Black Out", "Cross Sweep", "Horizontal Blinds", "Boxed In/Out", "Panoramic" or "Scenic" for "Effect".
8 Select "Off" or "On" for "Monochrome".
9 Select "3Seconds", "5Seconds", "10Seconds", "15Seconds", "30Seconds" or "60Seconds" for "Interval".

10 Select "Off" or "On" for "Random".

For details, refer to "Random" on page 86.

11 Select the desired option for "Play Mode".

Select "Single", "Repeat", "Repeat All" or "All". For details, refer to "Play Mode" on page 84.

12 Select "BGM".

Select music content from Playlist 1 through 5 or the USB device.

13 Select "Start".

The slideshow starts and photo images in the folder automatically appear one by one.

To display the next image content manually, press

To display the previous image content manually, press

14 Press ENTER to stop the slideshow.

The Photo Player goes into PAUSE.

15 Press ENTER again to resume the slideshow.

To cancel the slideshow and stop the Photo Player, press RETURN during playback. The previous screen returns.

Note

• After setting the Interval time, it may take longer than the preset time as the Interval time means the time up until the Home Media Gallery starts obtaining the next image. Key operations may not work while obtaining the next image.

Using with other equipment

Add to HMG Playlist

The Home Media Gallery function provides "HMG Playlist" - a self-contained play list that allows you to bookmark favourite movie, music, and photo files from the network. You can register, edit, and sort up to 100 files in each Playlist List. This option is available on the Media Navigator, Folder/Contents List, Movie Player, Music Player and Photo Player screens.

1 While navigating or playing, select the file to be added to HMG Playlist.

2 Press TOOLS.

The TOOLS Menu appears on screen.

3 Select "Add to HMG Playlist" from the TOOLS Menu.

An "Add to HMG Playlist" dialogue screen appears.

4 Select a Playlist.

Press / to select from Playlist 1 to Playlist 5.

5 Select "OK".

To select other Playlist(s), repeat steps 2 to 5.

The file is added to the selected Playlist. The number in Total changes as you add a content file to the playlist.

To cancel the operation, press RETURN.

Select Server

When one or more servers are connected within the network, you can switch between servers. This option is available on the Media Navigator and Folder/Contents List screens.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Select Server".

The Server List is displayed.

(Sample screen)

3 Select the desired server.

The screen changes to Media Navigator on the selected server.

Note

• The Home Media Gallery can memorize previously connected servers. When the Media Navigator is launched, available servers are automatically located and connected.

• If a previously connected server cannot be found or if the server is in sleep mode, the server name is dimmed.

• In some cases, you may be able to start a media server if it supports "Wake On LAN". Select the server and press ENTER to transmit a "Wake On LAN" command to the selected server.
• When having "Wake On LAN" turns the server's power on, the server must be ready with the necessary settings already completed.

Play Mode

This option is available on the Movie Player, Music Player and Photo Player screens. Choose a playback mode (Repeat, Single, etc.) when playing multiple content files.

1 While playing content, press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Play Mode" from the TOOLS Menu.

Select "Single", "Repeat", "Repeat All" or "All".

"Single": Plays the selected content only once

"Repeat": Repeatedly plays the selected content

"Repeat All": Repeatedly plays all selected folder content in order (when playing back the last content ends, it returns to the first content to play again)

"All": Plays all selected folder content in order only once

Change Name

You can change the name of Playlist 1 through Playlist 5 in HMG Playlist. To edit, follow the directions below. This option is available on the Playlist List (Movie/Music/Photo) screen.

1 Press TOOLS while five Playlists in the HMG Playlist are on screen.

The TOOLS Menu appears on screen.

2 Select "Change Name" from the TOOLS Menu.

The software keyboard appears.

3 Enter the new name.

Refer to Labeling TV channels on page 36 for details on operation.

4 Select "OK" after the new name is entered on the software keyboard.

The software keyboard disappears and newly named Playlist displays.

Selecting Cancel causes the entry to stop and cancels the entered name.

Using with other equipment

Change View

Select this option to switch the list screen between List, Thumbsail and Thumbsail List. This option is available on the Playlist List (Movie/Music/Photo) and Folder/Contents List screens.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Change View" from the TOOLS Menu.

Select the screen option from List, Thumbnail or Thumbnail List.

TOOLS Menu

List screen

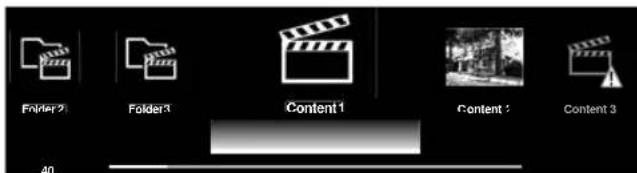

Thumbnail screen

Thumbnail List screen

(Sample screens)

Time Search

The Time Search function allows the content to start playing at the preset time. This option is available on the Movie Player and Music Player screens.

1 While playing content, press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Time Search" from the TOOLS Menu.

A "Time Search" dialogue screen appears.

3 Enter the time (Hour, Minute and/or Second) to jump.

Enter Hour and Minute for movie content or Minute and Second for music content.

Use / or buttons 0 to 9 (if a numeric key icon appears).

Press to select Hour and Minute (movie content) or Minute and Second (music content).

4 Select "Start" then press ENTER.

The movie (music) begins playing from the time you set. To cancel the Time Search, press RETURN.

Note

This function may not be supported, depending on the content or server software.
An error may arise in time-related information, depending on the content or server software.


Select this option to adjust picture quality. This option is available on the Movie Player and Photo Player screens.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Picture" from the TOOLS Menu.

A picture adjustment screen appears. For adjustment items, see Basic picture adjustments on page 39.

3 Press RETURN to close the adjustment screen.

Normal playback screen returns.

Sound

Select this option to adjust sound quality. This option is available on the Movie Player, Music Player and Photo Player screens.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Sound" from the TOOLS Menu.

A sound adjustment screen appears. For adjustment items, see Sound adjustments on page 44.

3 Press RETURN to close the adjustment screen.

Normal playback screen returns.

Using with other equipment

Information

Select this option to display the status information on the content currently played. This option is available on the Movie Player and Photo Player screens.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Information" from the TOOLS Menu.

An information (such as playback status) screen appears. Pressing also causes the information screen to appear.

The screen will automatically disappear after a certain amount of time.

Audio

Use this option to switch an audio source if the currently played content has multiple audio sources (multi-language content, for example). This option is available on the Movie Player screen.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Audio" from the TOOLS Menu.

Pressing causes L, R or L+R to be selected. If the content has multiple audio sources, you can select L, R or L+R for each source. After entering the setting, press RETURN.

Music Player

If you want to change BGM on any screen other than the music content playback screen, use this option to jump to the music content playback screen. This option is only available when music is played on any screen other than Movie Player and Music Player. This option is available on the Media Navigator, Folder/Contents List, USB, HMG Playlist, Playlist List, and Photo Player screens.

1 Press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Music Player" from the TOOLS Menu.

The Music Player screen appears.

After entering the setting, press RETURN. The previous screen returns.

Move

You can change the listing order in the HMG Playlist. This option is available on the Contents List ( Playlist) screen.

1 Move the cursor to the content to be moved in the HMG Playlist.

2 Press TOOLS.

The TOOLS Menu appears on screen.

3 Select "Move" from the TOOLS Menu.

4 Press ↑/↓ to move the content up or down then ENTER.

Editing completes and "Move" finishes.

Delete from HMG Playlist

You can delete content from the HMG Playlist. This option is available on the Contents List ( Playlist) screen.

1 Move the cursor to the content to be deleted from the HMG Playlist.

2 Press TOOLS.

The TOOLS Menu appears on screen.

3 Select "Delete from HMG Playlist" on the TOOLS Menu.

A "Delete from HMG Playlist" dialogue screen appears.

4 Select "Yes" to remove the content item.

The dialogue screen disappears and the selected content is deleted from the HMG Playlist.

To cancel, select "No".

A-B Repeat Mode

The A-B Repeat function is available only during normal playback on the Movie Player or Music Player. To set Repeat, follow the instructions below.

1 While playing content, press TOOLS.

The TOOLS Menu appears on screen.

2 Select "A-B Repeat" from the TOOLS Menu.

3 Press ENTER where you want Repeat to start.

4 Press ENTER again where you want Repeat to end.

The Player status appears on the screen and the A-B Repeat mode icon changes.

The selected part of the content is repeatedly played back.

To return to normal mode, press TOOLS and select "Off" while in the A-B Repeat mode.

Note

• If the screen display doesn't match the player status, a malfunction may have occurred. Stop playback, then try the operation again.

Random

Use this option to switch the order in the content list and play the content at random. This option is available on the Movie Player, Music Player and Photo Player screens.

1 While playing content, press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Random" from the TOOLS Menu.

3 Select "On".

Random Repeat playback starts.

To cancel the random mode, press TOOLS and select "Off".

Note

• Random Repeat is only available for content in Repeat Mode (except when "Single" is selected).

Using with other equipment

Rotate

Use this option to rotate an image by 90^ . This option is available on the Photo Player screen.

1 While photo content appears, press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Rotate" from the TOOLS Menu.

Each press of the ENTER button causes the displayed image to rotate by one quarter clockwise. It toggles between 90^ , 180^ , 270^ and 0^ .

Note

• The selected rotation angle is only effective for the image being displayed.
• The default setting (0^) returns when you move and display content on a different screen.

Zoom

Use this option to enlarge the photo content displayed. This option is available on the Photo Player screen.

1 While photo content appears, press TOOLS.

The TOOLS Menu appears on screen.

2 Select "Zoom" from the TOOLS Menu.

3 Press / to select "On" or "Off" then ENTER.

Selecting "On" causes the enlarged photo content to always appear.

Displayed image differs depending on the content: If the content's aspect ratio is longer than 16:9, it appears fully stretched horizontally to both sides with images cropped at the top and bottom. If the content's aspect ratio is wider than 16:9, it appears fully stretched vertically to top and bottom with images cropped on the right and left sides.

A "zoom" icon appears on screen.

4 While in Zoom mode, use the arrow buttons to scroll the content.

Press or if the content's aspect ratio is longer than 16:9, or if the content's aspect ratio is wider than 16:9.

Pressing RETURN or ENTER causes the Zoom mode to cancel and return to the normal screen.

Note

The Zoom function is disabled when the content is a 16:9 picture.

HMG Setup

Use the HMG Setup option for Network Setup, Auto Connection Setup and Default Settings.

1 Press HMG.

The Home Media Gallery menu appears on screen.

2 Select "HMG Setup" from the menu.

Use the arrow buttons to highlight an option then press ENTER.

3 Select "Network Setup", "Auto Connection", and "Default Settings".

Network Setup

Select whether to acquire the IP Address automatically or manually or, when acquiring manually, set the IP Address and Subnet mask.

Automatic:

To perform the procedure, DHCP on your server or router must be valid.

1 Select "Auto DHCP".

2 Select "Yes".

To exit Home Media Gallery, press EXIT or HMG.

Manual:

Before setting up, check your media server for IP Address and Subnet mask information.

1 Select "Auto DHCP".

2 Select "No".

3 Select the setup item's box.

Use or to highlight an entry item (IP Address or Subnet mask) then press ENTER.

No need to enter "Default Gateway" and "DNS Server".

4 Enter the figures using buttons 0 to 9.

Subnet mask (such as 255.255.255.0): Enter the same figures as you checked.

IP Address (such as 192.168.201.): Enter the same figures as used in the media server (PC, etc.) you use. For *, enter three-digit figures (0 - 254) that have not been used for network connections yet.

Use or to highlight other entry area.

5 Press ENTER on the setup item's box after the entry is complete.

Repeat steps 3 to 4 to complete the necessary setup.

To exit Home Media Gallery, press EXIT or HMG.

Using with other equipment

Auto Connection

Set Auto Connection to "ON" or "OFF" whether to automatically connect to the last accessed server. For selection, follow the steps below.

1 Select "Auto Connection".

Use or to change the setting.
Selecting "ON" causes the display to access the last server. If the server is in Standby, WOL ("Wake On LAN") is activated to turn the last accessed server "On".
Selecting "OFF" causes a server list to appear on screen.
"Wake on LAN (WOL)" functions to turn the last accessed server's power on if the server is WOL-compliant and is in Standby or sleep mode, then display the Media Navigator screen. During the WOL is activated, a dialogue screen appears. If the server is not WOLcompliant or the WOL function fails, a dialogue appears on the Server List screen.
To exit Home Media Gallery, press EXIT or HMG.

Reset to default

To reset options entered within the Home Media Gallery function to default, follow the steps below.

1 Press HMG.

The Home Media Gallery menu appears on screen.

2 Select "HMG Setup".

Use the arrow buttons to highlight an option then press ENTER.

3 Select "Default Settings".

4 Select "Yes".

The setup finishes and the Home Media Gallery screen returns. To exit Home Media Gallery, press EXIT or HMG.

Other useful functions

Screen saver

During navigation, the screen saver launches automatically if no activity is sensed within five minutes. However, when a movie or slideshow is playing, the panel stops the screen saver from appearing.

Pressing any button cancels the screen saver.

Dismissing the screen saver does not interfere when connecting a USB device.

Note

• Pressing 1 + to display the Player status or key guide before screen saver is activated may cause image retention.

Important

• Do not display the Player status and key guide for an extended period of time while playing a movie or slideshow to avoid possible image retention.

Dialogue screen message

No.	Message Problem
001	Content cannot be played. (001)	No details are available for the error
100	A communication error occurred. (100)	No further details are available for the error
101	No response from server. (101)	Timeout period reaches due to delayed server response
102	Disconnected from the network. (102)	Cables are disconnected
103	Response from server indicating that it is impossible to reply. (103)	Invalid response from the server
300	Content cannot be played. (300) A file that is not supported is selected
301	This format is not supported. (301)	A file that is not supported is selected
500	Failed to authenticate. (500) Failed to obtain DRM authorization
501	Failed to authenticate. (501) Failed to obtain DRM authorization
502	Failed to authenticate. Check for failure of router, hub, other network devices. (502)	Failed to obtain DRM authorization
503	Failed to authenticate content. The copyright notice of this file might be invalid. (503)	Failed to obtain DRM authorization
504	Failed to authenticate. (504) Failed to obtain WMDRM authorization
505	Failed to authenticate. Check for failure of router, hub, other network devices. (505)	Failed to obtain WMDRM authorization
506	Failed to authenticate. The max count of access devices depends on server. (506)	Failed to obtain WMDRM authorization
507	Failed to authenticate. The licence of this file might be invalid. Receive the licence from a server. (507)	Failed to obtain WMDRM authorization
508	Failed to authenticate. (508) Authorization error other than above

Important

• Displaying pictures in the Home Media Gallery for an extended period may cause an after-image.

Using with other equipment

Glossary

Default Gateway

Default gateway is a node on a computer network that serves as an access point to another network. A default gateway (such as a computer and router) is used to forward all traffic that is not addressed to a station within the local subnet.

DHCP (Dynamic Host Configuration Protocol) Server

Provides a mechanism to allocate IP addresses to client hosts. In most cases, a broadband router serves as a DHCP server in a home network.

DLNA (Digital Living Network Alliance)

The DLNA authorized logo makes it easy for consumers to recognize products that meet the new standard for home network PCs and other digital devices, as set down in the DLNA Guidelines for interoperability. This allows music, video, etc. to be enjoyed from various devices over a home network. This unit is compatible with music, photo and video content, and is based on the DLNA Home Networked Device Interoperability Guidelines - expanded: October 2006 (v1.5). This unit can be used to playback music, photos and video stored on a DLNA-compatible server connected through a LAN cable.

Digital Living Network Alliance (DLNA) is dedicated to the simplified sharing of digital content, such as digital music, photos and video among networked consumer electronics (CE) and PCs. By establishing a platform of interoperability based on open industry standards, DLNA delivers technical design guidelines that companies can use to develop digital home products that share content through wired or wireless networks in the home.

DNS (Domain Name Service) Server

DNS Server is a server that determines the name of networkcomputer within the Internet. The server functions to exchange IPaddress to the hostname, hostname to the IP address.

Ethernet

A frame-based computer networking technology for local area networks (LANs). The flat screen TV supports 100BASE-TX.

IP (Internet Protocol) Address

A unique number that devices use in order to identify and communicate with each other on a network utilizing the Internet Protocol standard, such as "192.168.1.xxx". No duplicate numbers are allowed within the network.

LAN Cable

A cable that has an eight-pin modular plug on each end and is different from a telephone plug which has four pins. A straight cable is used when connecting the flat screen TV to a home network via a hub. A cross-over cable is used when connecting directly to a PC. Use category 5 (CAT-5) LAN cables.

MAC (Media Access Control) Address

An address attached to the port of any network device with an IP address. The MAC address is expressed as "00:e0:36:01:23:xx" and cannot be changed.

Mass Storage Class devices

The standard provides an interface to a variety of storage devices, such as USB flash drive and digital cameras.

PTP (Picture Transfer Protocol)

A protocol that allows the transfer of images and manipulation of digital cameras through USB connection. Most recent digital cameras and other devices support PTP allowing the transfer of images through direct connections.

Subnet mask

Used to determine the network when IP addresses are broken into several parts. It is expressed as "255.255.255.0". In most cases, the Subnet mask is automatically assigned by the DHCP server.

UPnP (Universal Plug and Play)

Architecture for pervasive peer-to-peer network connectivity of devices of all form factors. It is designed to bring easy-to-use, flexible, standardsbased connectivity to ad-hoc or unmanaged networks whether in the home, in a small business, public spaces, or attached to the Internet.

USB (Universal Serial Bus)

USB provides a serial bus standard for connecting devices, usually to computers such as PCs. The flat screen TV supports the Mass Storage Class and PTP (Picture Transfer Protocol) devices.

Windows Media Connect

Microsoft Windows Media Connect is a new technology to distribute music, photos and video stored on a PC with Windows XP installed to a stereo system of TV. Using this technology you can playback files stored on the PC from various devices wherever you like in your home.

Windows Media DRM

Windows Media DRM is copyright protection technology developed by Microsoft Corporation. It enables content providers to distribute over the Internet music, video and other digital media content in a protected, encrypted file format.

Windows Media Player

A free digital media player application provided by Microsoft that is used for playing audio, video and images on PCs.

Windows Media Player 11

The functionality of Windows Media Connect has been integrated into this version of Windows Media Player. After installing Windows Media Player 11 Windows Media Connect will not function. See Microsoft's website for details.

Controlling other equipment using the supplied remote control unit

Using the supplied remote control unit, you can control other equipment in connection: a set-top box (STB), DVD player, DVD/ HDD recorder (DVR), BD player or VCR.

Before using this function, you need to preset the supplied remote control unit with the manufacture code of the equipment to be controlled. When you then want to control the equipment, press SELECT on the remote control unit to select an appropriate mode depending on the equipment; the selection is switched among TV, STB, DVD/DVR, and VCR. The corresponding mode indicators on the remote control unit show the currently selected mode.

• When you control a BD player, select the DVD/DVR mode.

Presetting manufacture codes

1 Press SELECT on the remote control unit to select the STB, DVD/DVR, or VCR mode depending on the equipment.
2 After confirming that the indicator of the previously selected mode goes off, press and hold SELECT, and then press 1 on the remote control unit.

The corresponding mode indicator flashes.

3 Press 0 to 9 to enter a three-digit manufacture code.

See the manufacture code list to identify an appropriate code.

The mode indicator lights up for approximately one second and then goes off; presetting the manufacture code is completed.

Note

• If you perform no operation for approximately one minute while a mode indicator is flashing, the code presetting procedure is quitted.
• If you enter a code not listed in the table, a mode indicator flashes quickly for approximately one second and then flashes as before.
• To quit the code presetting procedure halfway while a mode indicator is flashing, you may press SELECT on the remote control unit.
  The factory default manufacture codes for the STB, DVD/DVR, and VCR modes are "000", "100", and "500" respectively.

Manufacture codes

• You may not be able to control some equipment in the tables partially or entirely with the supplied remote control unit.

STB

000 PIONEER 1 (factory default)

001 PIONEER 2

002 CANAL SATELLITE

003 HUMAX

004PACE1

005PACE2

006 QUALI-TV

007 SKY DIGITAL

DVD

100 PIONEER 1 (factory default)

101 PIONEER 2

102AKAI

103 DENON

104 HITACHI

105 JVC

106 KENWOOD 1

107 KENWOOD 2

108 PANASONIC 1

109 PANASONIC 2

110 PHILIPS 1

111 PHILIPS 2

112 SAMSUNG

113 SHARP

114 SONY 1

Using with other equipment

DVD

115 SONY 2
116 SONY 3
117 THOMSON
118 TOSHIBA
119YAMAHA

DVR

200 PIONEER 1
201 PIONEER 2
202 PIONEER 3
203 PANASONIC
204PHILIPS1
205PHILIPS2
206 SHARP
207 SONY
208 TOSHIBA

BD

300 PIONEER
301LG
302 PANASONIC
303 SAMSUNG
304 SONY
305 TOSHIBA

VCR

500 PIONEER 1 (factory default)
501 PIONEER 2
502 AIWA 1
503 AIWA2
504AKAI1
505AKAI2
506AKAI3
507 DAEWOO
508 GRUNDIG 1
509 GRUNDIG 2
510 GRUNDIG 3

VCR

511 GRUNDIG 4
512 HITACHI 1
513 HITACHI 2
514 HITACHI 3
515 JVC 1
516 JVC 2
517 JVC 3
518JVC4
519 JVC 5
520LOWE1
521LOEWE2
522 MATSUJ
523 ORION
524 PANASONIC 1
525 PANASONIC 2
526PHILIPS1
527PHILIPS2
528PHILIPS3
529 SANYO
530 SAMSUNG 1
531 SAMSUNG 2
532 SAMSUNG 3
533 SAMSUNG 4
534 SHARP
535SONY1
536 SONY 2
537 SONY 3
538 SONY 4
539 SONY 5
540 SONY 6
541 SONY 7
542 THOMSON
543 TOSHIBA

Using with other equipment

STB (set - top box) control buttons

When in the STB mode, the buttons on the remote control unit function as below.

10 to 9 Function as the numeric buttons.
2 GUIDE Press to display the broadcasting guide screen.
3 P + / P- Press to tune in a higher or lower channel.
4 EXIT Press to exit the broadcasting menu screen or the broadcasting guide screen.
5 ENTER Press to activate the selected function.

1/4/1 Press to select items on the broadcasting menu screen or the broadcasting guide screen.

6 MENU Press to display the broadcasting menu screen.
7 SOURCE Tums the set-top box on and off.
8 INFO Press to display information on the current broadcasting.
9 RETURN When the broadcasting menu screen is in display, press to restore the immediately previous screen.

DVD/DVR control buttons

When in the DVD/DVR mode, the buttons on the remote control unit function as below.

10to9

Function as the numeric buttons.

2 DVD TOP MENU

When this button is pressed, the DVD top menu will appear.

3 P + / P - (DVD/HDD recorder (DVR) only)

Press to change the channel of the tuner built in the DVD/ HDD recorder (DVR).

4 ENTER

Press to activate the selected function.

Press to select items on the DVD MENU screen.

5 MENU

Press to display the DVD menu.

6 III (PAUSE/StILL)

Sets pauses and still pictures.

7 (REC) (DVD/HDD recorder (DVR) only)

Starts recording.

8 CHAPTER SEARCH

Each time you press, you move back to the start of the

previous chapter.

9 CHAPTER SEARCH

Each time you press, you move ahead to the start of the next

chapter.

10 SOURCE

Turns on and off the power of the DVD player or DVD/HDD

recorder (DVR).

11 TOOLS (Pioneer BD player only)

Press to display the TOOLS Menu.

12 RETURN

When the DVD menu is in display, press to restore the

immediately previous screen.

13 (STOP)

Press to stop playback or recording. With some DVD players

or DVD/HDD recorders (DVRs), pressing the button twice may

open the disc tray.

14 (PLAY)

Starts playback.

15 (SCAN)

Press for fast forward.

16 (SCAN)

Press to go backward.

17 HDD (DVD/HDD recorder (DVR) only)

Press to select the hard disk (HDD) for playback or recording.

18 DVD (DVD/HDD recorder (DVR) only)

Press to select the DVD for playback or recording.

7, 13 REC STOP (DVD/HDD recorder (DVR) only)

Press and at the same time to stop recording. This

operation is available for only Pioneer and Sony DVD/HDD

recorders (DVRs)

Note

• You can control a BD player in the DVD/DVR mode.
  The DVD player, DVD/HDD recorder (DVR) or BD player cannot

be selected at the same time.

Using with other equipment

VCR control buttons

When in the VCR mode, the buttons on the remote control unit function as below.

10 to 9 Function as the numeric buttons.
2 P+/P- Press to select channels of the TV tuner on the VCR.
31 (PAUSE/STILL) Sets pauses and still pictures.
4 (REC) Starts recording.
5 SOURCE Tums the power of the VCR on and off.
6 (STOP) Stops playback.
7▶(PLAY)
Starts playback.
8 (FF) Fast-forward the tape and allows picture search.
9 (REW) Rewinds the tape and allows picture search.

Chapter 13

Using the HDMI Control

Using the HDMI Control functions

You can operate such Pioneer devices as a recorder, player or AV system that support the HDMI Control functions using the remote control of the flat screen TV.

The HDMI Control functions include playback of content using on-screen control panel on the display, recording of a TV programme while watching, timer recording using a programme list on the connected recorder, and confirmation of timer recording registered in the recorder. For details, see the table below.

Note

• The KURO LINK function name used on the web and in catalogues is referred to as HDMI Control in the operating instructions and on the product.
  Maximum number of devices that can be connected and controlled using the remote control unit of the flat screen TV is as follows: recorder x 2, player x 2 or AV system x 1.
• Not all device operations may be available for HDMI Control functions.

HDMI Control functions

Function Description		Usable devices
Playback of content	The proper input source is automatically selected and the content is played back on the display as you press PLAY on the connected device	Recorder/ player
On-screen control	Recorder/player operation can be controlled on-screen or with the remote control unit of the flat screen TV (play, stop, fast forward/reverse, etc.)	Recorder/ player
Recording of TV programme	The programme now watching can be recorded using the remote control unit of the flat screen TV	Recorder
Timer recording	Timer recording using a programme list on the recorder connected	Recorder
Confirmation of recording schedule	Recording schedule registered in the recorder can be displayed and confirmed on the screen using the remote control unit of the flat screen TV	Recorder

Function Description		Usable devices
Display Language Setup	Information on the display menu language is transferred to the recorder or player connected to the Media Receiver. For details, see the operation manual that came with the recorder or player.	Recorder/ player
AV system control	Receiver/amplifier operation can also be controlled with the remote control unit of the flat screen TV (volume, surround mode and input selection of the HDMI terminal)	AV system
Power On	The connected recorder can be turned On when the flat screen TV is turned On. The flat screen TV can be turned On when the connected recorder(s) or player(s) is turned On and images are input to the flat screen TV.	Recorder Recorder/ player
Power Off The connected device(s) can be turned Off when the flat screen TV is turned Off		Recorder/ player/AV system

Press +/or to adjust volume for the AV system.
- Press ↑, ↓, ←, →, ENTER, RETURN ( ) colour (RED, GREEN, YELLOW, BLUE) or TOOLS buttons to use such functions as the disc navigator and electronic programme guide (EPG) on the connected recorder or player.

• When using the HDMI Control functions, operate the remote control unit while pointing it toward the remote control sensor (S) located at the bottom right of the front panel of the display.
• You cannot use two or more HDMI terminals on the Media Receiver at the same time except "Power Off" and "Display Language Setup" functions.

On-screen control panel

For an AV system

Switches the surround mode in order
Switches the input source in reverse order
Switches the surround mode in reverse order
Closes the control panel to return to the HDMI Control menu
8 Displays the model number of the connected device
Switches the input source in order
7 Void

Press or on the remote control unit of the flat screen TV to switch the surround mode in order or in reverse order, or to switch the input source in order or in reverse order. Pressing HDMI CONTROL closes the control panel to return to the HDMI Control menu.

Note

• You cannot operate the recorder/player when you press or to switch the input source during operation. To resume the operation, return to the HDMI Control menu and select the desired function again.

For a recorder

1 Skips commercials
Fast reverse
8 Stops playback
Closes the control panel to return to the HDMI Control menu
1 Displays the model number of the connected device
6 Fast forward
7 Starts playback

Press or on the remote control unit of the flat screen TV to select fast reverse or fast forward mode, to skip commercials or to stop playback. Pressing ENTER starts playback and HDMI CONTROL closes the control panel to return to the HDMI Control menu.

For a player

1 Displays the DVD disc menu or Blu-ray disc's pop-up menu on the player
Fast reverse
Stops playback
Closes the control panel to return to the HDMI Control menu
1 Displays the model number of the connected device
6 Fast forward
7 Starts playback

Press or on the remote control unit of the flat screen TV to select fast reverse or fast forward mode, to display the DVD disc menu or Blu-ray disc's pop-up menu on the player or to stop playback. Pressing ENTER starts playback and HDMI CONTROL closes the control panel to return to the HDMI Control menu.

Making the HDMI Control connections

When you make changes in connections between the Media Receiver and the device(s) that supports the HDMI Control functions or settings for the "HDMI Control Setting", perform the following procedure:

1 Turn on the Media Receiver and all the connected devices.
2 Confirm that the setting in "Input Setting" for "HDMI Control Setting" is properly entered according to the connected devices. Also confirm the HDMI Control related settings in the connected devices.
3 Switch to the HDMI input terminals to which the devices are connected to check if audio and video images are properly output and displayed.
4 Try turning off the Media Receiver, then turn the power back on to the Media Receiver.

Connecting an AV amp/DVD recorder/BD player

Media Receiver (rear)

Connecting a DVD recorder

Note

Maximum number of devices that can be connected and controlled using the remote control unit of the flat screen TV is as follows: recorder x 2, player x 2 or AV system x 1.
- When connecting an AV system, be sure to place and connect it between the Media Receiver and recorder or player.
- Do not connect an AV system that does not support the HDMI Control functions between the Media Receiver and a recorder/ player, otherwise the HDMI Control functions may not operate properly.
- When connecting an AV system that does not support the HDMI Control functions and a player/ recorder that supports the HDMI Control functions to the Media Receiver, connect the AV system to the DIGITAL OUT terminal and the AUDIO OUT terminal on the Media Receiver using an optical digital cable and a stereo audio cable, and the recorder/player to the HDMI terminal using an HDMI compliant cable (see the illustration to the right). Please note that signals input from the HDMI terminals will not be output from the DIGITAL OUT terminal.
- The HDMI Control functions may not operate properly if you do not use an HDMI cable that supports the HDMI Specification.

• After making connections, enter the setting in "Input Setting" for "HDMI Control Setting". Be sure that the setting is entered in each HDMI input terminal to which the device is connected.
• Settings in the connected device(s) are also required to use the HDMI Control functions. For details, see the operation manual that came with the connected device(s).
• When a recorder is connected, its power is automatically switched on as the Media Receiver is turned On to help make the recording smoother.
• When the image from a BD/DVD player or DVD recorder connected through an HDMI Control supported AV system is switched to display on sub screen in the 2-screen or picture-in-picture mode, the sub screen turns black without displaying any image.
• For more information on the devices that support the HDMI Control functions, check the Pioneer Web site (see back cover).

Setting the HDMI Control

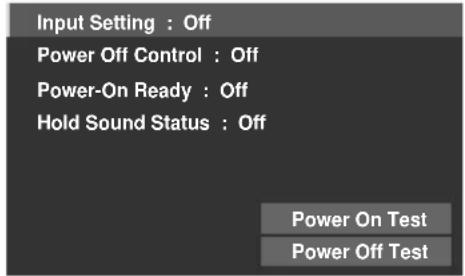

Selecting the input terminal

Select the HDMI terminal to which the external device is connected in order to use the HDMI Control functions.

1 Press HOME MENU.
2 Select "Setup" (↑/↓ then ENTER).
3 Select "Option" (↑/↓ then ENTER).
4 Select "HDMI Control Setting" (↑/↓ then ENTER).

5 Select "Input Setting" (↑/↓ then ENTER).

6 Select "INPUT 1", "INPUT 3", "INPUT 4" or "INPUT 5" (↑/↓ then ENTER).

Only the device that supports the HDMI Control and is connected through the selected INPUT terminal is available for the HDMI Control functions.

7 Press HOME MENU to exit the menu.

Note

• "INPUT 1" or "INPUT 3" can only be selected when "Enable" has been selected for the "HDMI Input" menu (see Activating the HDMI terminal on page 70).
• If you have selected "Off" in step 6, a message "Operations cannot be carried out. Confirm the HDMI control settings." appears when HDMI CONTROL is pressed on the remote control unit.
• If you operate an HDMI supported device(s) using an HDMI terminal other than the terminal selected in "Input Setting", a malfunction may occur. When connecting to any HDMI terminals other than the terminal selected in "Input Setting", make sure to enter the settings of the external device(s) so that the HDMI Control function does not operate.

Selecting the Power Off Control

You can select whether or not the connected device is turned Off when the Media Receiver is turned Off. (factory default is "On")

1 Repeat steps 1 to 4 in Selecting the input terminal.
2 Select "Power Off Control" (↑/↓ then ENTER).
3 Select "On" (↑/↓ then ENTER).
4 Press HOME MENU to exit the menu.

Note

The "Power Off Control" function is valid for the devices connected to any of HDMI terminals on the Media Receiver.

Selecting the Power-On Ready

You can select whether or not the Media Receiver is turned On when the connected Pioneer recorder or player is turned On and images are input to the flat screen TV. (factory default is "On")

1 Repeat steps 1 to 4 in Selecting the input terminal.
2 Select "Power-On Ready" (↑/↓ then ENTER).
3 Select "On" (↑/↓ then ENTER).
4 Press HOME MENU to exit the menu.

Selecting the Hold Sound Status

You can select whether or not the sound continues from the connected Pioneer AV system when the Media Receiver turns On. (factory default is "Off")

1 Repeat steps 1 to 4 in Selecting the input terminal.
2 Select "Hold Sound Status" (↑/↓ then ENTER).
3 Select "On" (↑/↓ then ENTER).
4 Press HOME MENU to exit the menu.

Note

• To have the sound continue when the Media Receiver turns On, confirm that the Switch to TV Sound option appears on the HDMI Control menu before turning the Media Receiver Off (see page 99).

Power On/Off Test

You can confirm if the Power On/Off control function is effective between the Media Receiver and the connected device.

1 Repeat steps 1 to 4 in Selecting the input terminal.
2 Select "Power On Test" or "Power Off Test" (↑/↓ then ENTER).
A list containing devices appears when multiple HDMI devices are connected to the HDMI terminals.
3 Select the desired device (↑/↓ then ENTER).
4 Press HOME MENU to exit the menu.

Note

Devices that can be checked for Power On/Off Test are those connected to HDMI terminals as set in "Input Setting".
- If the Power On/Off Test fails, check for the connection and setting.

Using the HDMI Control

Using the HDMI Control menus

You can enjoy various functions with the connected Pioneer recorder, player or AV system that supports the HDMI Control functions by selecting and using the corresponding HDMI Control menus.

1 Press HOME MENU.

2 Select "HDMI Control" (↑/↓ then ENTER).

The HDMI Control menu is displayed.

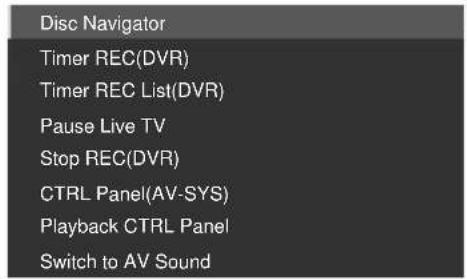

HDMI Control menu

Item Description
Disc Navigator Displays a title list of the connected recorder or player
Timer REC (DVR) Displays an electronic programme guide (EPG) of the connected recorder
Timer REC List (DVR) Displays a timer recording list of the connected recorder
Pause Live TV Starts recording of the current TV channel when a recorder is connected, but with playback paused, effectively pausing the broadcast
Stop REC (DVR) Stops recording for the connected recorder
CTRL Panel (AV-SYS)	Displays the control panel for the connected AV system on the flat screen TV
Playback CTRL Panel	Displays the control panel for the connected recorder or player on the flat screen TV
Switch to AV Sound (Switch to TV Sound)	Switches between the flat screen TV and the connected AV system to which sound is output

Note

• To use the HDMI Control functions, a Pioneer recorder, player or AV system that supports the HDMI Control functions is required.
• Not all operations may be controlled for the connected devices.
• The HDMI Control menu is not selectable when "Off" is selected in "Input Setting" for the "HDMI Control Setting" menu.
• Even when the programme being recorded is over, recording is not automatically stopped on the Pause Live TV menu.
  The CTRL Panel (AV-SYS) menu is only available when the sound is output from the AV system.
• The Playback CTRL Panel menu is selectable when the connected recorder or player is ready to operate.
• You can also display the HDMI Control menu by pressing HDMI CTRL on the remote control unit of the flat screen TV.

Chapter 14

Using Teletext

Using the Teletext functions

What is Teletext?

Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your flat screen TV receives Teletext signals broadcast by TV networks, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among many services available.

Important

• Displaying Teletext pages for a long period of time, or for shorter periods of time everyday, may result in image retention.

Operating the Teletext basics

Turning on and off Teletext

1 Select a TV channel or external input source providing a Teletext programme.

2 Press to display the Teletext (full screen).

3 Press again to display the Teletext on the right screen and normal image on the left screen.

Each time you press, the screen mode switches as shown in the above diagram.

If you select a programme with no Teletext signal, "Cannot display Teletext." appears.

Selecting and operating Teletext pages

Use the following remote control buttons to select and operate Teletext pages.

Colour (RED/GREEN/YELLOW/BLUE):

You can select a group or block of pages displayed in the coloured brackets at the bottom of the screen by pressing the corresponding colour (RED/GREEN/YELLOW/BLUE) on the remote control unit.

0 to 9:

Directly select any page from 100 to 899 by using 0 to 9.

Press to increase the page number.

Press to decrease the page number.

Using Teletext

E?

To display hidden information such as an answer to a quiz, press 7.

Press again to hide the information.

图：

To stop updating Teletext pages, press

Press to release the hold mode.

i:

Displays an Index page for the CEEFAX/FLOF format. Displays a TOP Over View page for the TOP format.

Note

• Before displaying the Teletext, return the screen to the single-screen mode.

Displaying subpages

You can display several subpages as they are transmitted.

1 Press to display Teletext.

If you open a page containing subpages, the subpages are automatically displayed in sequence.

2 To quit automatic subpage change, press /

You can then manually change subpages by pressing /

Note

• Pressing / causes the page to be changed and the subpage screen to disappear.
• Pressing stops automatic subpage change and performs its respective button function.

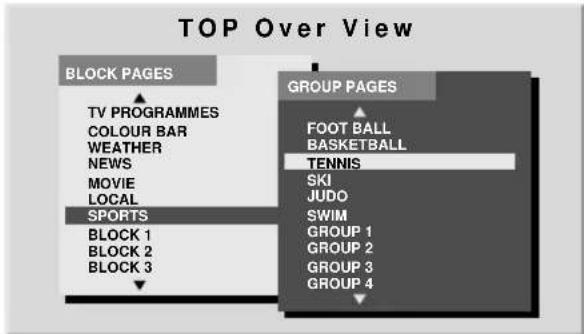

Displaying TOP Over View

When receiving TOP Teletext, you can read a TOP text overview.

1 Press to display Teletext.

2 While receiving TOP Teletext, press to display TOP Over View.

3 Press / and / to select the desired block or group pages, and then press ENTER.

Displaying subtitle pages

You can display several subtitles as they are transmitted.

1 Press to display the subtitle.

Subtitle is updated by the information sent by the broadcasting station.

2 Press again to access next available subtitle screen.

Chapter 15

Additional information

Troubleshooting

Problem Possible solution

GENERAL

• No power.
• The system cannot be switched on.

Is the power cord disconnected? (See page 22.)
- Has Power On (b) on the display been turned on? (See page 24.)
- Check if you pressed buttons 0 to 9 or on the remote control unit. (See page 24.)
- If the indicator on the system lights up red, press 0 to 9 or on the remote control unit or STANDBY/ON on the Media Receiver.

• Blue and red rectangles appear on the screen alternately.

• Power ON and STANDBY indicators blink alternately on the display.

• Is the Media Receiver's power cord disconnected from an outlet?
  Is the SYSTEM cable disconnected?

• Power is suddenly turned off.

• The system's internal temperature has increased. Remove any objects blocking vent or clean. (See page 15.)

• Check the power control setting. (See page 45.)

• Check the sleep timer setting. (See page 63.)

• System cannot be operated.

• External influences such as voltage malfunction, static electricity, etc., may cause improper operation. In this case, operate the system after unplugging the power cord and re-plugging it in after one to two minutes.

• Remote control unit does not operate.

• Is the TV indicator on the remote control unit lighted? Press SELECT on the remote control unit to select the TV mode.

• Operate the remote control unit while pointing it toward the remote control sensor on the display. (See page 23.)
• Are the batteries inserted with polarity (+, -) aligned? (See page 22.)
• Are the batteries worn out? Replace with new batteries. (See page 22.)
• Are you using it under strong or fluorescent lighting?
  Is a fluorescent light illuminated to remote control sensor?

• Check if any obstacles exist between the remote control unit and the remote control sensor.

• Panel sounds/noises.

• Panel generated sounds—for example, fan motor noise, electrical circuit humming, glass panel buzzing—are normal operation of a phosphor-based matrix display.

• When you change the Energy Save mode, you may notice a change in the panel sound. This is normal.

PICTURE/SOUND

• Screen appears dark.

• Check if any obstacles exist in front of the Room Light Sensor. (See pages 12 and 62.)

• No image and audio is presented.

• Check if the input source for video or PC has been unintentionally selected although you want to watch a TV channel. (See page 25.)

• Check if you have selected a channel blocked with Channel Lock. (See page 35.)
• Enter a password to temporarily cancel Channel Lock. (See page 64.)
• Check the cable connection with the antenna. (See page 19.)

• Check the cable connection with the other equipment. (See pages 65 to 72.)

• No picture. - Is connection to other components correct? (See pages 65 to 72.)

Is the Input Select setting correct? (See page 59.)
- Is a non-compatible PC signal being input? (See page 68.)

Sound is reversed between the right and left.

• Check if the speaker cable connections have been reversed between the right and left or if the speaker cable from either speaker has been disconnected. (See page 12.)

Sound is output from only a single speaker.

• Has the balance been correctly adjusted? (See page 44.)

Additional information

Problem Possible solution
• Audio is output but no image is presented.	• Check if you have selected "Picture Off". With this option selected, the screen is deactivated: only sound is output. To restore the screen display, press any button other than +/−- or感叹. (See page 46.)
• Images are presented but no audio is output.	• Check if you have selected the minimum volume. (See page 28.)• Check that no headphones are connected.• Check that the sound is not muted. (See page 28.)• When using "INPUT 5" as the input source, check that the audio terminal is also properly connected. (See page 67.)• When using PC as the input source, check that the audio terminal is also properly connected. (See page 68.)• When using "COMPONENT" for "INPUT 2", check to see if the settings are properly entered. (See pages 59 and 65.)
• Picture is cut off.	• Is the image position correct? (See pages 58 and 59.)• Has the correct screen size been selected? (See page 60.)
• Strange colour, light colour, dark or colour misalignment.	• Adjust the picture tone. (See pages 39 to 43.)• Is the room too bright? The picture may look dark in a room that is too bright.• Check the colour system setting. (See page 60.)
• After-image lag.	• After displaying a still image or a very bright image for a certain period of time, if the screen is then switched to a darker scene, the previous image may appear as an after-image.• This can be rectified by playing a rather bright moving image for several minutes. However, displaying a still image for excessively long periods of time may cause permanent display deterioration.• You can display the "Video Pattern" screen that helps eliminate after-image when it occurs. (See page 63.)• It is also recommended to select "Screen Protection". (See page 63.)
• Brightness and colour tone on both sides differ from those in the centre in 4:3 mode.	• If images in 4:3 mode or letterbox images are displayed for long periods or for shorter periods over several days, an after-image may remain due to burning. This is a characteristic of plasma displays.• We recommend that you enjoy watching images in a full screen mode as much as possible. (See page 60.)• We recommend you select "Auto" for "Brightness Sync." in the Side Mask setting. This adjusts the brightness of the grey side masks according to the brightness of the main image. (See page 62.)• It is also recommended to select "Screen Protection". (See page 63.)
HDMI Control
• HDMI Control functions do not operate.	• Check if the connections are properly made between the Media Receiver and the device that supports the HDMI Control functions. (See page 96.)• The HDMI Control functions may not operate properly if you do not use an HDMI cable that supports the HDMI Specification.• Check if you have entered the settings properly for "HDMI Control Setting". (See page 98.)• Check if the settings for the HDMI Control functions are effective on the connected device(s). For details, refer to the operation manual that came with the device.
• No image and audio is presented.	• Check if the connections are properly made between the Media Receiver and the device that supports the HDMI Control functions. (See page 96.)• Check if you have entered the settings properly for "HDMI Control Setting". (See page 98.)
• No picture.	• Check if the connections are properly made between the Media Receiver and the device that supports the HDMI Control functions. (See page 96.)• Check if you have entered the settings properly for "HDMI Control Setting". (See page 98.)• When the image from a BD/DVD player or DVD recorder connected through an HDMI Control supported AV system is switched to display on sub screen in the 2-screen or picture-in-picture mode, the sub screen turns black without displaying any image.
• No sound.	• Check if the connections are properly made between the Media Receiver and the device that supports the HDMI Control functions. (See page 96.)• Check if you have entered the settings properly for "HDMI Control Setting". (See page 98.)
HDMI Control
·An error message "The device cannot be operated. Please check the connection." appears.	·Check if the connections are properly made between the Media Receiver and the device that supports the HDMI Control functions. (See page 96.)·Check if you have entered the settings properly for "HDMI Control Setting". (See page 98.)
Home Media Gallery/NETWORK
·No servers are found.·No previously connected server(s) found (items in Select Servers are dimmed).·"Failed to acquire a list." appears on the Server List screen.	·Confirm that the PC is On and not in Standby or Sleep (nothing is chosen in "Select Servers"). When the PC has started with the "Wake On LAN" (WOL), check if the PC complies with WOL or if the WOL setup has been properly done on the device manager for BIOS or Windows.·Check the physical connections (hub, router, and cable quality). It is strongly recommended to use 100BASE-TX for playback quality and display speed.·Check the logical connections (IP Address setup, DHCP, etc.). Confirm the IP Address is correct if acquired by Auto IP and Firewall setup. Also check if the IP Address is properly acquired with DHCP on the Network Setup screen that follows the HMG Setup menu.·Using two or more application servers on a single PC may cause unstable operation. For proper operation, it is strongly recommended that one application server is used on a single PC.·Check the PC if its media server is running. Restart if necessary. Check if one or more servers are On (this may cause malfunction).·Check if the PC is operating properly. Reboot the PC after confirming its specifications and setup.·Check the media server setup. If a client is registered manually the setup procedure may have to be run again. An option "Not Allowed" may have been selected for connections.·Check if UPnP (Universal Plug and Play) is enabled on your router. If it is not, enable it. Refer to your router's instruction manual for procedures.·Wait for a short period then select "Update Server List" from the TOOLS Menu.·Check for radio interference when connected using a wireless LAN. Radio interference may cause the connection to fail.·If the above does not solve the problem, try turning TV off on the remote control unit then turn on the display and Media Receiver.
·An available server is selected but cannot be navigated.	·Check if the server is correctly set up for file sharing, if the target folder has been deleted, or if one or more folders have been corrupted on the server.·Check if there are too many files in each folder.
·A server is arbitrarily selected.	·This arbitrary selection happens when the server you used before had been set to display the Media Navigator menu screen (if you reset it, other servers connected are also reset).·When "ON" is selected for "Auto Connection" on the HMG Setup menu, the server is automatically accessed if only one server is connected. Use the TOOLS Menu to select the proper server.
·File/folder configuration differs from one server to another (strange configuration).	·The Media Navigator displays the server contents as classified by the server.·If no information (such as ID3 tag) is contained in the file, files cannot be classified on the server.
·A communication error message appears.	·Refer to the possible solutions provided for "No servers are found".·If the above does not solve the problem, try turning TV off on the remote control unit then turn on the display and Media Receiver.
Home Media Gallery/PLAYBACK
·Image or sound is interrupted or distorted (Block noise appears).	·Check the physical connections (hub, router, cable quality). It is strongly recommended to use 100BASE-TX for playback quality and display speed.·Check if the PC is operating properly. Reboot the PC after confirming its specifications and setup.·Check if the file complies to the supported format, bit rate or profile. Also check if the file is damaged.·When connected by a wireless LAN, check if the bit rate is sufficient.·Some files that comply with the supported format may not be played back or displayed.·Check if the DRM content was purchased for use with another PC. With the flat screen TV you cannot play DRM content if it has been transferred from the PC on which it was purchased to another PC. You can only play DRM content purchased for the PC in use at the time of purchase. It is recommended to obtain a new licence or use the PC for which the content was purchased.·Check if content on the same server is played with multiple client devices (players).
Home Media Gallery/PLAYBACK
•Cannot play or display.	•Check the physical connections (hub, router and cable quality). It is strongly recommended to use 100BASE-TX for playback quality and display speed. •Check if the PC is operating properly. Reboot the PC after confirming its specifications and setup. •Check if the file complies to the supported format, bit rate or profile. Also check if the file is damaged. •Check if the leasing contract for the server has expired. •When connected by a wireless LAN, check if the bit rate is sufficient. •Some files that comply with the supported format may not be played back or displayed. •It takes time to capture and display a large-sized image. If this is the case, no operation may be performed. •Check if the DRM content was purchased for use with another PC. With the flat screen TV you cannot play DRM content if it has been transferred from the PC on which it was purchased to another PC. You can only play DRM content purchased for the PC in use at the time of purchase. It is recommended to obtain a new licence or use the PC for which the content was purchased. •Check if content on the same server is played with multiple client devices (players).
Home Media Gallery/USB
•USB devices are not properly recognized.	•Check if the device is Mass Storage Class compliant, if it is connected properly, nothing is damaged (power unit, mode such as Mass Storage mode and media format, etc.), if it contains the supported files, and if the speed of the device is sufficient (poor device speed may result in interrupted or delayed display of images due to a bit-rate problem). When using a digital camera that is not Mass Storage Class compliant, insert the Flash Memory card into the multi-card reader. •Confirm that the device is correctly inserted or removed. •No USB hub is supported. When you connect a home network, connect directly to the device's USB port.
•Image or sound is interrupted or distorted (Block noise appears).	•Verify that the file complies with the supported format, bit rate or profile. Also check the file for damage. •Some files that comply with the supported format may not play back or display properly. •Check if the device is Mass Storage Class compliant, if it is connected properly, nothing is damaged (power unit, mode such as Mass Storage mode and media format, etc.), if it contains the supported files, and if the speed of the device is sufficient (poor device speed may result in interrupted or delayed display of images due to a bit-rate problem). When using a digital camera that is not Mass Storage Class compliant, insert the Flash Memory card into the multi-card reader.
•An external device connected to the USB port does not operate.	•Check if the device is connectable to the Media Receiver. •Re-insert the USB cable. •For connection, use a USB cable shorter than 5 m. •Check if the USB cable is properly connected. •First turn off Power On (拨) on the display and then turn it on again to check if the external device works correctly. •Check if the external device works correctly after the USB device was restarted. •Check if the digital still camera is in the viewing mode. •Refer to the instruction manual for the digital still camera.
•Photo data stored in a digital still camera cannot be read through USB interface.	•Check if the device is connectable to the Media Receiver. •Check if the digital still camera is turned on. •Check if the digital still camera is in the viewing mode.
Home Media Gallery/Slide Show
•Slideshow (photo content) doesn't start.	•Check if the player is placed into the pause, rotation or zoom mode. If that is the case, press ENTER to start the slideshow.
•Next picture does not appear in the slideshow.	•The time needed to display a picture may be longer than the time set to display in Slide Show settings. Reduce the picture size using a PC and try again. •Slide Show only displays the supported files. If there is only one supported file, that file will remain on the display and not display any other files.

Additional information

Problem Possible solution

OTHER

Power ON indicator or STANDBY indicator is quickly flashing.

• Internal protective circuits may have been activated. For the display, first turn Power On (D) off, wait one minute or more, then switch the power on again by turning Power On (D) on. If the indicator is still flashing, unplug the display's power cord from the power outlet. Wait one to two minutes then plug in the display again. For the Media Receiver, unplug the Media Receiver's power cord from the power outlet. Wait one to two minutes then plug in the Media Receiver again. If this does not solve the problem, contact a Pioneer Service Center. These are listed on your warranty card for each country. Alternatively, check the Pioneer Web site (see back cover) for contact details.

If the following error codes appear on the screen, check the corresponding items in the table.

Code Message Check
SD04 and SD11	Powering off. Internal temperature is too high. Check temperature around the display.	Check if the ambient temperature of the display is high.
SD05 Internal protection circuits turning power OFF. Possible short in the speaker cable.		Check the speaker cable connections between the display and the speakers.
SD11 Powering off. Internal temperature is too high. Check temperature around media receiver.		Check if the ambient temperature of the Media Receiver is high.

Signal names for 15-pin mini D-sub connector

Pin No.	Signal name			Pin No.	Signal name
1	R	9	+	5	V
2	G	1	0	G	N	D	(
3 B 11	Not connected
4	N	o	t	c	o	n	n
5	N	o	t	c	o	n	n
6	G	N	D	(	g	r	o
7	G	N	D	(	g	r	o
8	G	N	D	(	g	r	o

SCART pin assignments

Various audio and video devices may be connected via the SCART terminals.

SCART (INPUT 1)
1	Audio right output	2	Audio right input	3 Audio left output
4	Common earth for audio	5	Earth for Blue	6 Audio left input
7	Blue input	8	Audio-video control	9 Earth for Green
10	Not used	11	Green input	12 Not used
13	Earth for Red	14	Earth for Red/Green/Blue control	15 Red input
16	Red/Green/Blue control	17	Earth for Video output	18 Earth for Video input
19	Video output	20	Video input	21 Plug shield

SCART (INPUT 2)
1	Audio right output	2	Audio right input	3 Audio left output
4	Common earth for audio	5	Earth	6 Audio left input
7	Not used	8	Audio-video control	9 Earth
10	AV link control	11	Not used	12 Not used
13	Earth	14	Earth	15 Chroma S-Video input
16	Not used	17	Earth for Video output	18 Earth for Video input/S-Video input
19	Video output	20	Video input/S-Video input	21 Plug shield

SCART (INPUT 3)
1	Audio right output	2	Audio right input	3 Audio left output
4	Common earth for audio	5	Earth for Blue	6 Audio left input
7	Blue input	8	Audio-video control	9 Earth for Green
10	AV link control	11	Green input	12 Not used
13	Earth for Red	14	Earth for Red/Green/Blue control	15 Chroma S-Video input
16	Red/Green/Blue control	17	Earth for Video output	18 Earth for Video input/S-Video input
19	Video output	20	Video input/S-Video input	21 Plug shield

Specifications

Item			60" display, model: KRP-600P 50" display, model: KRP-500P
Number of pixels 1920 x 1080 pixels
Audio amplifier			18 W + 18 W (1 kHz, 10 %, 6 Ω)	18 W + 18 W (1 kHz, 10 %, 6 Ω)
Sound Effect SRS FOCUS/SRS/SRS TruBass/SRS Definition
Power Requirements 220 V to 240 V AC, 50 Hz/60 Hz/70 Hz, 478 W (0.4 W Standby)			220 V to 240 V AC, 50 Hz/60 Hz, 388 W (0.3 W Standby)
Weight Main unit: 49.9 kg (110 lbs)			Main unit: 31.4 kg (69.2 lbs) Colour Sensor: 0.1 kg (0.2 lbs)
Terminals Rear	SPEAKERS		6 Ω to 16 Ω
	SYSTEM CABLE 1
	Colour Sensor 1
Item			Media Receiver, model: KRP-M01
Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV Function (Analogue)	Receiving System B/G, D/K, I, L, L'
	Tuner	VHF/UHF	E2-E69 ch, F1-F6 ch, I21-I69 ch, IR A-IR J ch
		CATV	Hyper-band, S1-S41 ch
	Auto Channel Preset		99 ch, Auto Preset, Auto Label, Auto Sort
	STEREO		NICAM/A2
TV Function (Digital)	Receiving System DVB-T(2K/8K CC)		FDM)
	Tuner	VHF/UHF	VHF Band III (170 MHz to 230 MHz) and UHF Band IV, V (470 MHz to 862 MHz)
	Auto Channel Preset		999 ch, Auto Preset, Auto Label, Auto Sort
	STEREO		MPEG layer I/II, Dolby Digital, Dolby Digital Plus, HE-AAC v1
TV Function (Satellite)	Receiving System DVB-S, DVB-S2
	IF Tuner		950 MHz to 2150 MHz
	Auto Channel Preset		5000 ch, Auto Preset, Auto Label, Auto Sort
	STEREO		MPEG layer I/II, Dolby Digital, Dolby Digital Plus, HE-AAC v1
Terminals Rear	INPUT 1		SCART (AV in, RGB in, TV out), HDMI in *1
	INPUT 2		SCART (AV in/out, S-Video in, AV link *2), Component Video in, AUDIO in
	INPUT 3		SCART (AV in/out, S-Video in, RGB in, AV link *2), HDMI in *1
	INPUT 4		HDMI in*1
	CONTROL OUT		1
	SYSTEM CABLE 1
	Antenna		75 Ω Din Type for VHF/UHF in/SAT (Satellite) in
	AUDIO OUT		AUDIO out (Fixed)
	SUB WOOFER OUT		Variable
	DIGITAL OUT		Digital audio output (Optical)
	LAN (10/100)		1
	Front	INPUT 5	Video in, HDMI in*1
		PC INPUT	Analogue RGB
		INPUT 5/PC INPUT	Audio in
		USB USB in	*3
		PHONES	16 Ω to 32 Ω recommended
		COMMON INTERFACE	2, CA Module
		Power Requirements	220 V to 240 V AC, 50 Hz/60 Hz, 52 W (0.4 W Standby)
		Weight 4.5 kg (9.9 lbs)

Additional information

^1 This conforms to HDMI 1.3 (Deep Colour) and HDCP1.1. HDMI (High-Definition Multimedia Interface) is a digital interface that handles both video and audio using a single cable. HDCP (High-bandwidth Digital Content Protection) is a technology used to protect copyrighted digital contents that use the Digital Visual Interface (DVI).
2 Switchable from menu.
*3 This conforms to USB 1.1 and 2.0 specifications.

Design and specifications are subject to change without notice.

Dimensions(Display)

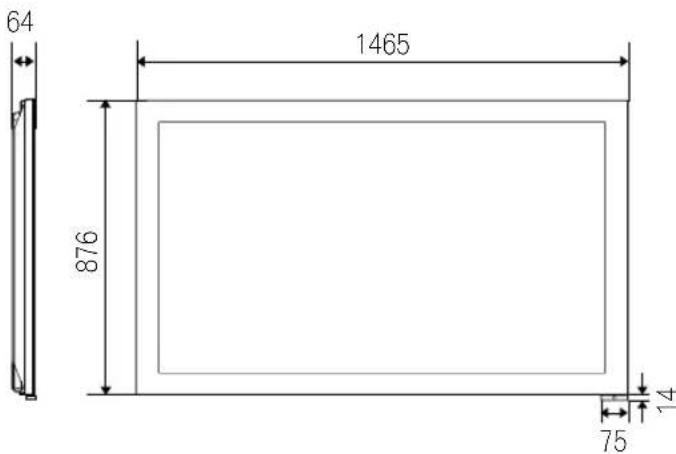

KRP-600P
Unit: mm

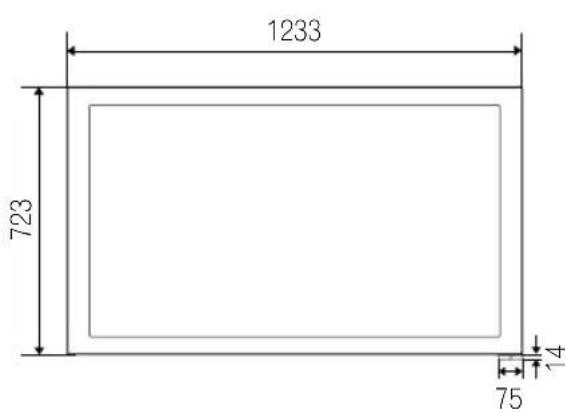

KRP-500P Unit: mm
Colour sensor attached to the bottom right of the front panel as recommended)

Dimensions (Media Receiver)
KRP-M01
Unit: mm

Trademarks

SRS (O) is a 100% block of SRS Labs, Inc.

• WOW HD technology is incorporated under license from SRS Labs, Inc.
• This product includes FontAvenue® fonts licensed by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.
• DDC is a registered trademark of Video Electronics Standards Association.
  HDMl, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
  Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
  The names of companies or institutions are trademarks or registered trademarks of the respective companies or institutions.
  This software is based in part on the work of the independent JPEG Group.
  Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
  DLNA and DLNA CERTIFIED are trademarks and/or service marks of Digital Living Network Alliance.

License

Content owners use Windows Media digital rights management technology (WMDRM) to protect their intellectual property, including copyrights. This device uses WMDRM software to access WMDRM-protected content. If the WMDRM software fails to protect the content, content owners may ask Microsoft to revoke the software's ability to use WMDRM to play or copy protected content. Revocation does not affect unprotected content. When you download licenses for protected content, you agree that Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade WMDRM to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

The DLNA logo is permitted to the product that has obtained a DLNA (Digital Living Network Alliance) certificate.

DISCLAIMER Notice

Pioneer provides information to help in setting up a network and connecting the flat screen TV to the network, but you are solely responsible for proper network setup and the connection. Pioneer bears no responsibility whatsoever for any damage arising from the network setup and the connection you made.

When downloading software updates from the Pioneer website and performing updating procedures, make sure that your connections from the network to your USB flash drive, and from your USB flash drive to the flat screen TV, are uninterrupted.

Pioneer bears no responsibility for any failures or damage resulting from connection problems.

Content may not work properly depending on the USB device used. Pioneer assumes no responsibility whatsoever for any failures or damage resulting from the USB device used by the user.

Additional information

License

[MPEG4IP]

This software is based in part on Mozilla Public License 1.1 see http://www.mozilla.org/MPL/ for information.

[OpenSSL]

OpenSSL License

Copyright © 1998-2007 The OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgment: "This product includes software developed by the OpenssL Project for use in the OpenssL Toolkit. (http://www.openss1.org/)."
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact [e-mail].
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssll.org/)."

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT "AS IS" AND ANY EXPRESSED OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young ([e-mail]). This product includes software written by Tim Hudson ([e-mail]).

Original SSLeay License

Copyright © 1995-1998 Eric Young ([e-mail])

All rights reserved.

This package is an SSL implementation written by Eric Young ([e-mail]). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found

in this distribution, be it the RC4, RSA, Ihash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson ([e-mail]).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young ([e-mail])" The word 'cryptographic' can be left out if the routines from the library being used are not cryptographic related:).
4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tim Hudson ([e-mail])"

Additional information

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR COLNTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

[iff]

Copyright © 1988-1997 Sam Leffler

Copyright © 1991-1997 Silicon Graphics, Inc.

THE SOFTWARE IS PROVIDED "AS-IS" AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ASING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

[Howl]

Copyright © 2003, 2004 Porchodog Software All rights reserved.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLNTRutors "AS IS" AND ANY EXPRESS OR IMplied WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE Copyright OWNER OR COLNTRUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODSOR SERVICES;LOSS OF USE,DATA,OR PROFITS;OR BUSINESS INTERRUPTION)HOWEVERCAUSEDAND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This software is based in part on Apple Public Source License or the recent's rights thereunder see http://developer.apple.com/ for information.

[libupnp]

Copyright © 2000-2003 Intel Corporation

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
  * Neither name of Intel Corporation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLNTRutors "AS IS" AND ANY EXPRESS OR IMplied WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL INTEL OR COLNTRUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCEDURE OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

[JPEG image compression]

If only executable code is distributed, then the accompanying documentation must state that "this software is based in part on the work of the Independent JPEG Group".

Additional information

[libpng]

COPYRIGHT NOTICE, DISCLAIMER, and LICENSE:

If you modify libpng you may insert additional notices immediately following this sentence. libpng versions 1.2.6, August 15, 2004, through 1.2.25, February 18, 2008, are Copyright © 2004, 2006-2008 Glenn Randers-Pehrson, and are distributed according to the same disclaimer and license as libpng-1.2.5 with the following individual added to the list of Contributing Authors

Cosmin Truta

ibpng 1.0.7 July 1, 2000 through 1.2.5 - October 3, 2002 are Copyright © 2000-2002 Glenn Randers-Pehrson, and are distributed according to the same disclaimer and license as libpng-1.0.6 with the following individuals added to the list of Contributing Authors

Simon-Pierre Cadieux

Eric S. Raymond

Gilles Vollant

and with the following additions to the disclaimer:

There is no warranty against interference with your enjoyment of the library or against infringement. There is no warranty that our efforts or the library will fulfill any of your particular purposes or needs. This library is provided with all faults, and the entire risk of satisfactory quality, performance, accuracy, and effort is with the user.

ibpng 097, January 1998, through 1.0.6, March 20, 2000, are Copyright © 1998, 1999 Glenn Randers-Pehrson, and are distributed according to the same disclaimer and license as ibpng-0.96, with the following individuals added to the list of Contributing Authors:

Tom Lane

Glenn Randers-Pehrson

Willem van Schaik

libpng versions 0.89, June 1996, through 0.96, May 1997, are Copyright © 1996, 1997 Andreas Dilger Distributed according to the same disclaimer and license as libpng-0.88, with the following individuals added to the list of Contributing Authors:

John Bowler

Kevin Bracey

Sam Bushell

Magnus Holmgren

Greg Roelofs

Tom Tanner

libpng versions 0.5, May 1995, through 0.88, January 1996, are Copyright © 1995, 1996 Guy Eric Schalnat, Group 42, Inc.

For the purposes of this copyright and license, "Contributing Authors" is defined as the following set of individuals:

Andreas Dilger

Dave Martindale

Guy Eric Schalnat

Paul Schmidt

Tim Wegner

The PNG Reference Library is supplied "AS IS". The Contributing Authors and Group 42, Inc. disclaim all warranties, expressed or implied, including, without limitation, the warranties of merchantability and of fitness for any purpose. The Contributing Authors and Group 42, Inc. assume no liability for direct, indirect, incidental, special, exemplary, or consequential damages, which may result from the use of the PNG Reference Library, even if advised of the possibility of such damage.

Permission is hereby granted to use, copy, modify, and distribute this source code, or portions thereof, for any purpose, without fee, subject to the following restrictions:

1. The origin of this source code must not be misrepresented.

2. Altered versions must be plainly marked as such and must not be misrepresented as being the original source.

3. This Copyright notice may not be removed or altered from any source or altered source distribution

The Contributing Authors and Group 42, Inc. specifically permit, without fee, and encourage the use of this source code as a component to supporting the PNG file format in commercial products. If you use this source code in a product, acknowledgment is not required but would be appreciated.

A "png_get_copyright" function is available, for convenient use in "about" boxes and the like: printf("%s",png_get_copyright(NULL); Also, the PNG logo (in PNG format, of course) is supplied in the files "pngbar.png" and "pngbar.jpg" (88x31) and "pngnow.png" (98x31).

Libpng is OSI Certified Open Source Software. OSI Certified Open Source is a certification mark of the Open Source Initiative.

Glenn Randers-Pehrson

glennrp at users.sourceforge.net

February 18, 2008

Additional information

[ zlib]

This software is based in part on zlib see http://www.zlib.net for information.

[FreeType]

The FreeType Project is Copyright © 1996-2000 by David Turner, Robert Wilhelm, and Werner Lemberg. All rights reserved except as specified below. THE FREETYPE PROJECT IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL ANY OF THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY DAMAGES CAUSED BY THE USE OR THE INABILITY TO USE, OF THE FREETYPE PROJECT.

[GIFLIB]

The GIFLIB distribution is Copyright © 1997 Eric S. Raymond

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

[TinyLogin]

This software is Copyright 1988 - 1994, Julianne Frances Haugh. All rights reserved.

[portmap]

Copyright © Sun Microsystems, Inc.

Sun RPC is a product of Sun Microsystems, Inc. and is provided for unrestricted use provided that this legend is included on all tape media and as a part of the software program in whole or part. Users may copy or modify Sun RPC without charge, but are not authorized to license or distribute it to anyone else except as part of a product or program developed by the user or with the express written consent of Sun Microsystems, Inc.

SUN RPC IS PROVIDED AS IS WITH NO WARRANTYES OF ANY KIND INCLUDING THE WARRANTYES OF DESIGN, MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE, OR ARISING FROM A COURSE OF DEALING, USAGE OR TRADE PRACTICE.

Sun RPC is provided with no support and without any obligation on the part of Sun Microsystems, Inc. to assist in its use, correction, modification or enhancement.

SUN MICROSYSTEMS, INC. SHALL HAVE NO LIABILITY WITH RESPECT TO THE INFRINGEMENT OF COPYRIGHTS, TRADE SECRETS OR ANY PATENTS BY SUN RPC OR ANY PART THEREOF.

In no event will Sun Microsystems, Inc. be liable for any lost revenue or profits or other special, indirect and consequential damages, even if Sun has been advised of the possibility of such damages.

Sun Microsystems, Inc.

2550 Garcia Avenue

Mountain View, California 94043

[libpcap]

Copyright © 2000 Torsten Landschoff [e-mail]

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. The names of the authors may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED "AS IS" AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Additional information

[libmpeg1]

Copyright © 1992 The Regents of the University of California

Copyright © 1994-1999 Gregory P. Ward [e-mail]

All rights reserved.

This software is supplied without even the faintest shred of assurance that it works in its entirety.

Permission to use, copy, modify, and distribute this software and its documentation for any purpose, without fee, and without written agreement is hereby granted, provided that the above copyright notice and the following two paragraphs appear in all copies of this software. IN NO EVENT SHALL THE AUTHOR BE LIABLE TO ANY PARTY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTTAL, OR CONSEQUENTIAL DAMAGES ASING OUT OF THE USE OF THIS SOFTWARE AND ITS DOCUMENTATION, EVEN IF THE UNIVERSITY OF CALIFORNIA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

THE AUTHOR SPECIFICALLY DISCLAIMS ANY WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF ERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE SOFTWARE PROVIDED HEREUNDER IS ON AN "AS IS" BASIS, AND THE AUTHOR HAS NO BLIGATION TO PROVIDE MAINTENANCE, SUPPORT, UPDATES, ENHANCEMENTS, OR MODIFICATIONS.

[GNU GENERAL PUBLIC LICENSE]

Version 2, June 1991

Copyright © 1989, 1991 Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software - to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

GNU GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modification".) Each licensee is addressed as "you". Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.
2. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.
3. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program. In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or, it linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable. If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

1. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

Additional information

1. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein.
   You are not responsible for enforcing compliance by third parties to this License.
2. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.
   It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
3. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
4. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
   Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.
5. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

1. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW, EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED IN ACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms.

To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright ©

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

Additional information

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA.

Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright © year name of author

Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type 'show w'. This is free software, and you are welcome to redistribute it under certain conditions; type 'show c' for details.

The hypothetical commands 'show w' and 'show c' should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than 'show w' and 'show c'; they could even be mouse-clicks or menu items - whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program 'Gnomovision' (which makes passes at compilers) written by James Hacker.

, 1 April 1989

Ty Coon, President of Vice

This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.

[GNU LESSER GENERAL PUBLIC LICENSE]

Version 2.1, February 1999

Copyright © 1991. 1999 Free Software Foundation, Inc.

51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share and change free software - to make sure the software is free for all its users. This license, the Lesser General Public License, applies to some specially designated software packages - typically libraries - of the Free Software

Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You must make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights. We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author's reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively restrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library. We call this license the "Lesser" General Public License because it does Less to protect the user's freedom than the ordinary General Public License. It also provides other free software developers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU operating system, as well as its variant, the GNU Linux operating system.

Although the Lesser General Public License is Less protective of the users' freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a "work based on the library" and a "work that uses the library". The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

GNU LESSER GENERAL PUBLIC LICENSE

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

1. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License"). Each licensee is addressed as "you".

A "library" means a collection of software functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The "Library", below, refers to any such software library or work which has been distributed under these terms. A "work based on the Library" means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term "modification".)

"Source code" for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library's complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

1. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful. (For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to

Additional information

exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

1. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy. This option is useful when you wish to copy part of the code of the Library into a program that is not a library.

1. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

1. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a "work that uses the Library" with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a "work that uses the library". The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a "work that uses the Library" uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section 6.)

Otherwis, if the work is a derivative of the Library you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

1. As an exception to the Sections above, you may also combine or link a "work that uses the Library" with the Library to produce a work containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer's own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:

a) Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work

(which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine-readable "work that uses the Library", as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.)

b) Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user's computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with.

c) Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.

d) If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.

e) Verify that the user has already received a copy of these materials or that you have already sent this user a copy. For an executable, the required form of the "work that uses the Library" must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

It may happen that this requirement contradicts the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

1. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

a) Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.
b) Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

1. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.
2. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.
3. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original licensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.
4. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty-free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library. If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

1. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.
2. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software Foundation.
3. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

Additional information

NO WARRANTY

1. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
2. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. END OF TERMS AND CONDITIONS

How to Apply These Terms to Your New Libraries

If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).

To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the "copyright" line and a pointer to where the full notice is found.

Copyright ©

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Also add information on how to contact you by electronic and paper mail.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a "copyright disclaimer" for the library, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the library 'Frob' (a library for tweaking knobs) written by James Random Hacker.

, 1 April 1990

Ty Coon, President of Vice

That's all there is to it!

[Linux Source Notice]

The software programs used on this product include the Linux operating system. The Linux contains software licensed for use based on the terms of a GNU General Public License. The machine readable copy of the corresponding source code is available for the cost of distribution. For more information or to obtain a copy, contact your local Pioneer Customer Service center.

Details of the GNU General Public License can be found at the GNU website (http://www.gnu.org).

(UK only)

Keep this important information about how to re-tune your TV during the digital TV switchover

Keep this section and your instruction manual safe -you'll need them

get set for digital

Television in the UK is going digital, bringing us all more choice and new services. Starting in late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

Please see page 125 to find out when your area switches to digital.

Digital UK is the independent, non-profit organisation leading the process of digital TV switchover in the UK. Digital UK provides impartial information on what people need to do to prepare for the move to digital, and when they need to do it.

How the switchover affects your TV equipment:

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply plugging it into your aerial socket (check if you can get digital TV through your aerial now, or whether you'll have to wait until switchover, at www.digitaluk.co.uk).

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune your TV in order to continue receiving your existing TV channels, and also to pick up new ones. Digital UK, the body leading the digital TV switchover, will advise you when you need to re-tune during the switchover.

If you choose to connect your TV to satellite or cable with a digital box then it will not be affected by switchover, and you won't need to re-tune.

How to re-tune:

To find out how to re-tune your TV, see "Reconfiguring the DTV/SAT channel settings" in the "Enjoying DTV/SAT broadcasts" (page 48).

If you are missing any channels, it may be that they are not available in your area, or that your aerial needs upgrading.

If you have any questions, please contact your equipment supplier or call Digital UK on 0845 6 50 50 50 or visit www.digitaluk.co.uk.

When does switchover happen?

Visit us at digitaluk.co.uk call us on 0845 6 50 50 50†

†Calls charged at BT rate of 3p per minute daytime and 1p per minute evenings and weekends.

Rates may vary for calls from non-BT lines.

Published by Pioneer Corporation.

Copyright © 2008 Pioneer Corporation.

All rights reserved.

IMPORTANT

Mode film Arret Désactive PureCinema

Appareils Mass Storage Class

PTP (Picture Transfer Protocol)

UPnP (Universal Plug and Play)

Home Media Gallery/RéSEAU

Home Media Gallery /LECTURE

Lecture ou affichage impossible.

Home Media Gallery/USB

Home Media Gallery/Diaporama

Ferritkern x 2 (Grau x 1, Schwarz
