Inpput R5 - Mouse Soyntec - Free user manual and instructions

Product type	Wireless mouse
Brand	Soyntec
Model	Inpput R5
Wireless technology	2.4 GHz
Optical resolution	800 / 1600 DPI (switchable)
Receiver	Nano USB receiver (18 × 14 × 6 mm)
Mouse dimensions	101 × 71 × 3.55 mm
Net weight	68 g
Power supply	1 AA battery (included)
Number of buttons	5 buttons + scroll wheel
Range	Long range (not specified)
Channels	32 channels to avoid interference
Installation	Plug & Play, driverless
Energy saving function	Automatic sleep after inactivity
Recommended use	Matte, non-transparent surfaces
Care and cleaning	Soft dry cloth; avoid abrasive products
Safety	Do not expose to moisture, shocks, or extreme temperatures; do not disassemble
Warranty	36 months (European Union)

Frequently Asked Questions - Inpput R5 Soyntec

How to connect the Soyntec R5 mouse to my computer?

Insert the AA battery into the mouse, plug the nano USB receiver into a free port on the computer. Automatic installation takes a few seconds. Press a button on the mouse to activate it.

How to change the sensitivity (DPI) of the mouse?

Press the DPI button located under the mouse to switch between 800 and 1600 DPI. The indicator may show the setting.

What to do if the mouse does not work?

Check that the battery is correctly inserted and not depleted. Make sure the receiver is properly plugged in and away from metal objects or other wireless devices. If necessary, unplug and replug the receiver.

How to clean the Inpput R5 mouse?

Use a soft dry cloth to wipe the surface. Do not use abrasive or corrosive cleaners. Avoid moisture.

Does the mouse use a specific driver?

No, the mouse is Plug & Play. No driver is needed. Plug in the receiver and it works immediately.

Can I use the mouse on a glass surface?

It is not recommended to use the mouse on very shiny or transparent surfaces, as this may affect optical tracking.

How to store the nano receiver?

The receiver can be stored in a compartment under the mouse for easy transport.

Does the mouse go into sleep mode automatically?

Yes, after a period of inactivity, the mouse enters sleep mode to save battery. To reactivate it, press a button.

What to do in case of interference with other devices?

Move the receiver away from metal objects and other wireless devices. Unplug and replug the receiver to restore a stable connection.

What is the warranty period and how to activate it?

The warranty is 36 months in the European Union. Visit support.soyntec.com or contact your retailer with the purchase receipt.

USER MANUAL Inpput R5 Soyntec

Enjoy the advanced features of this technological product that we have developed with maximum guarantees for you.

R5 Wireless

Series

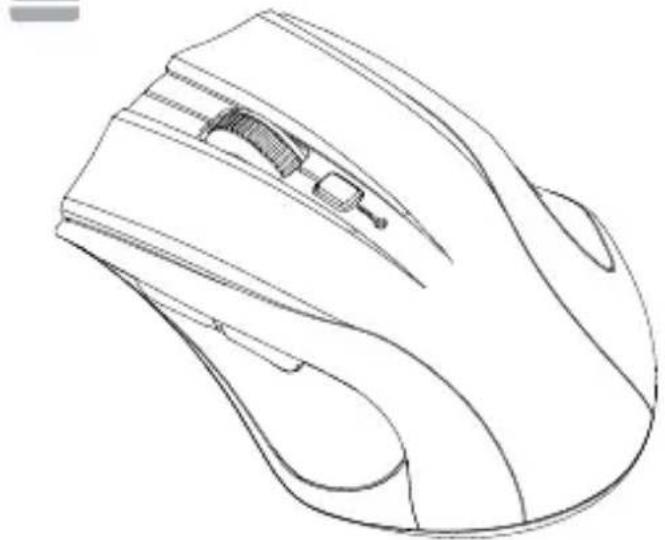

Wireless mouse

1. INTRODUCTION

Soyntec™ give you thanks for buying Soytec Mouse R5 Wireless. We wish you enjoy using it.

Wireless long range technology mouse. High precision with 1.600 dpi that provide superior smooth movement. Integrates a small sized nano-receiver which can be either stored in the mouse or integrate inside your laptop.

We recommend to read this user manual in order to enjoy the product in a safe way and with the best features.

2. CARE AND MAINTENANCE

• Do not expose your R5 Wireless to shakes, dust, direct sun light, moisture or extreme temperatures.
  Do not use abrasive or corrosive cleaners.
• Keep the device clean and without dust with a soft and dry cloth.
  Do not disassemble the device. Any repair work must be performed by qualified Energy Sistem Soyntec's personnel.
• Keep distance to water or moisture which could be harmful to the device.
• Avoid to look directly to the sensor light in the bottom of the mouse.

3. MAIN FEATURES

• Commutable optical sensor: 800 1600 dpi.
  2.4 GHz wireless technology.
  Micro sized USB nano-receiver.
• You can store the nano-receiver inside the mouse built-in slot.
  5 functional buttons and scroll wheel.
  32 channels to avoid interferences.
  Plug & Play: No need for drivers.
• Only needs one AA battery to operate.

Mouse size: 101 × 71 × 37,5 ~mm .
Nano-receiver size: 18 × 14 × 6 ~mm .
Net weight: 68 grs.

4. PRODUCT CONTENT

R5 Wireless mouse.
USB nano-receiver.
1 AA battery.
User manual.

5. INSTALLATION

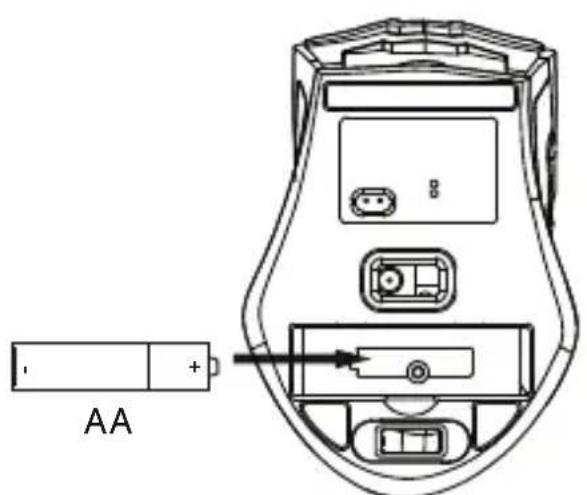

1. Insert the battery in the Mouse.

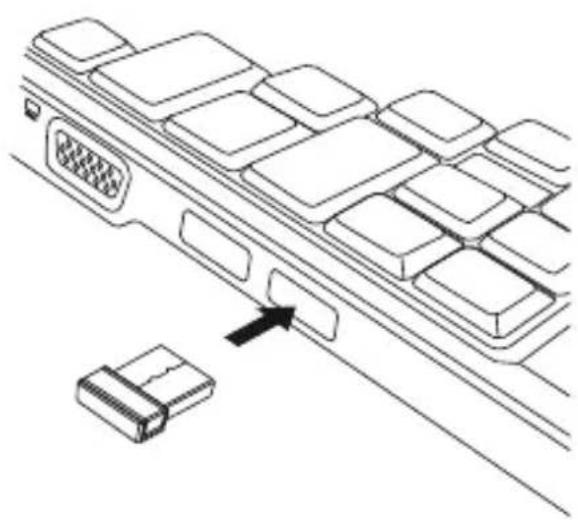

2. Connect the nano-receiver with a free USB hub of your computer.

Fig. 1 Fig. 2

1. Wait until the automatic installation complete.
2. Click the right or left mouse button in order to activate it.
3. You can start to use it.

6. USE INFORMATION

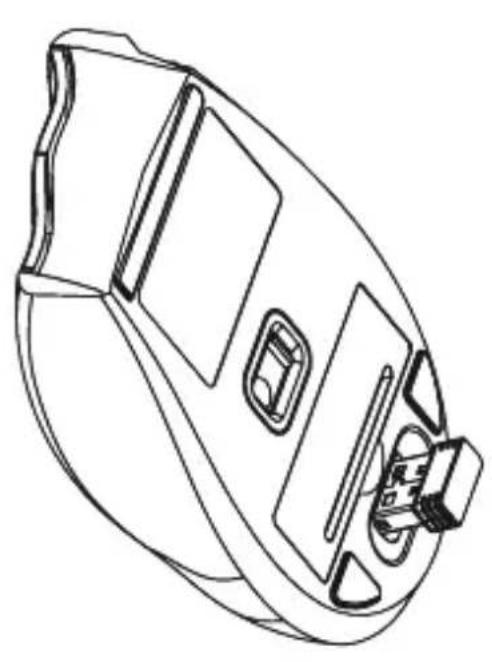

You can store the nano-receiver inside the mouse built-in slot as showed in the Figure 6.

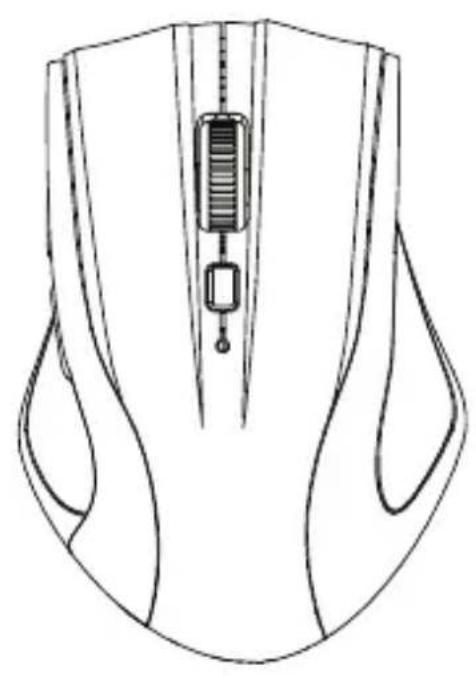

- Click the DPI switch to select between 800 DPI and 1600 DPI.

Fig. 6 Fig. 7

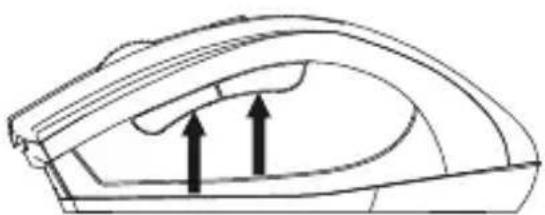

• Use the forward and backward lateral buttons for folders or internet navigation. They are very useful for games as well.

Fig. 8

Energy save function: mouse will be inactive after sometime without use. Click the right or left mouse button to activate it.

7. SUGGESTIONS AND ADVERTISING

If there is any metal object close to the nano-receiver, please remove it, as it may obstruct the wireless transmission.
If there are any other wireless device close to the nanoreceiver please remove the receiver and reconnect it to get a different communication ID.
Do not leave nano-receiver next to Bluetooth dongle.
- Do not use mouse on very shiny surface or transparent surface.

8. WARRANTY

Energy Sistem Soyntec SA is liable for any lack of conformity which exists at the time the goods were purchased during a period of 36 months.

This warranty covers any defects in workmanship or materials. This warranty doesn't cover any failure of the product due to accidents, misuse or alteration made by an unauthorized person.

The special 36-months warranty is valid for the European Union. For other countries, please refer to your specific legislation or your local distributor.

9. WARRANTY PROCEDURE

1) Visit the Support section at http://support.soyntec.com and select your product to view the FAQ (Frequently Asked Questions).

The solution to your problem is very likely to have been already published there. You will also be able to download user manuals, user guides, drivers and updates. You can check the availability of the user manual in your language at

http://www.soyntec.com/en-en/support/manuals

2) If you cannot find an appropriate solution in the Support section, you may send us your enquiry or warranty service request by email: [e-mail]
3) Alternatively, you may prefer to contact the distributor from which you purchased the product, presenting the purchase receipt or invoice.

Trademarks. All company, brand and product names are trademarks or registered trademarks of their respective companies.

© 2013 by Energy Sistem Soyntec S.A. All rights reserved.

CE

10.AGREEMENT DECLARATION

26/03/2013

Manufacturer Name: Energy Sistem Soyntec S. A.

Address: Pol. Ind. Finestrat, C/. Calpe, 1 - 03509, Finestrat Alicante (Spain)

Tel: [phone]

Fax: [phone]

NIF: A53107488

We declare under our own exclusive responsibility that the product:

Soyntec™ Wireless Mouse R5 Wireless Series

Manufacturing country: China

Is in compliance with the essential norms and standards of the Directive 2004/108/EC of the European Parliament and of the Council of December 15th 2004.
