USER MANUAL Sologic T101 TOPCOM

Black TOPCOM telephone with keypad and cord, no visible text or symbols on device body

USER GUIDE / HANDLEIDING / MANUEL D'UTILISATEUR GEBRAUCHSANWEISUNG / MANUAL DE USUARIO / BRUKSANVISNING BRUGERVEJLEDNING / ANVÄNDARHANDBOK / KÄYTTÖOHJE MANUALE D'USO / MANUAL DO UTILIZADOR UŽIVATELSKÁ PŘÍRUČKA / Ođηγιεσ Χρησησ / INSTRUKCJA OBSŁUGI / UŽÍVATEL'SKÝ MANUÁL

UK The features described in this manual are published with reservation to modifications.
NL De in deze handleiding beschreven mogelijkheden worden gepubliceerd onder voorbehoud van wijzigingen.
F Les possibilités décrites dans ce manuel sont publiées sous réserve de modifications.
D Die in dieser Bedienungsanleitung umschriebenen Möglichkeiten, werden vorbehaltlich Änderungen publiziert.
ES Las características descritas en este manual pueden ser objeto de futuras modificaciones.
S Funktionerna i denna bruksanvisning publiceras med reservation för ändringar.
DK Vi forbeholder os retten til ændringer af de specifikationer, der er beskrevet i denne brugsanvisning.
N Funksjoner beskrevet i denne manualen kan endres uten nærmere informasjon.
SF Tässä ohjekirjassa julkaissut tiedot voivat muuttua ilman ennakkoilmoitusta.
IT Le caratteristiche descritte nel presente manuale vengono pubblicate con riserva di modifica.
PT As características descritas neste manual são publicadas sob reserva de modificação.
CZ Možnost úpravy funkcí popsaných v této příručce vyhrazena.
GR Οι λειτουργίες που περιγράφονται στο παρόν εγχειρίδιο, δημοσιεύονται με επιφύλαξη τυχόν τροποποιήσεων.
PL Właściwości opisane w niniejszej instrukcji obsługi są publikowane z zatrze"eniem prawa wprowadzenia zmian.
SK Vlastnosti popísané v tejto príručke sú publikované s vyhradeným právom na zmenu.

1 Before Initial use

Thank you for purchasing this new desktop telephone.

1.1 Intended Purpose

This product is intend to be connected indoor to an analogue PSTN telephone line.

1.2 Connection

This device has been designed and manufactured to comply with the 98/482/EC rule, referent to the Pan European connection of a terminal to the Public Switching Telephone Network (PSTN) and following the established guidelines by the 1999/5/EC Directive about radio electric equipments and the reciprocal acknowledge of their conformity. However, due to the fact that there are some differences in the PSTNs from one country to another, the verifying measurements by themselves do not set up an unconditional guarantee for an optimal working in every connection point to the PSTN of any country. If any problem comes up, get in touch firstly with the distributor.

In any case, use conditions for which the product has been created should be respected as well as avoid its use in public or private networks with technical requirements clearly different to those established in the EU.

2 Cleaning

Clean the telephone with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents.

3 Disposal of the device (environment)

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments. The symbol on the product, user guide and/or box indicate this.

Some of the product materials can be re-used if you bring them to a recycling point. By re-using some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.

4 Safety advice

The following safety advice must always be followed before using this equipment.

Please read carefully through the following information concerning safety and proper use. Make yourself familiar with all the functions of the equipment. Be careful to keep these advice notes and if necessary pass them on to a third party.

• Do not operate the equipment if the telephone cable or the equipment itself is damaged.
• If the equipment is dropped, it must be checked by a professional before further use.
• Dangerous voltages are present inside the equipment. Never open the housing or insert objects through the ventilation holes.
• Do not allow liquids to get into the equipment. In case of emergency, pull out the plug from the socket.
• Similarly, if a fault develops during use or before you start to clean the equipment, pull the plug out of the socket.
• Do not touch plug contacts with sharp or metal objects.
• Do not carry out any modifications or repairs to the equipment yourself. Have repairs done to the equipment or the mains cable only by a specialist service centre. Unsatisfactory repairs can lead to considerable danger for the user.
• Children frequently underestimate the dangers associated with electrical equipment. Therefore you must never leave children unsupervised in the vicinity of electrical equipment.
• The equipment is not to be used in a damp room (e.g. bathrooms) or rooms where there is a lot of dust.
• Equipment connected to the telephone line during a thunderstorm can be damaged by lightning. Therefore you should pull the plug out of the main socket during a storm.

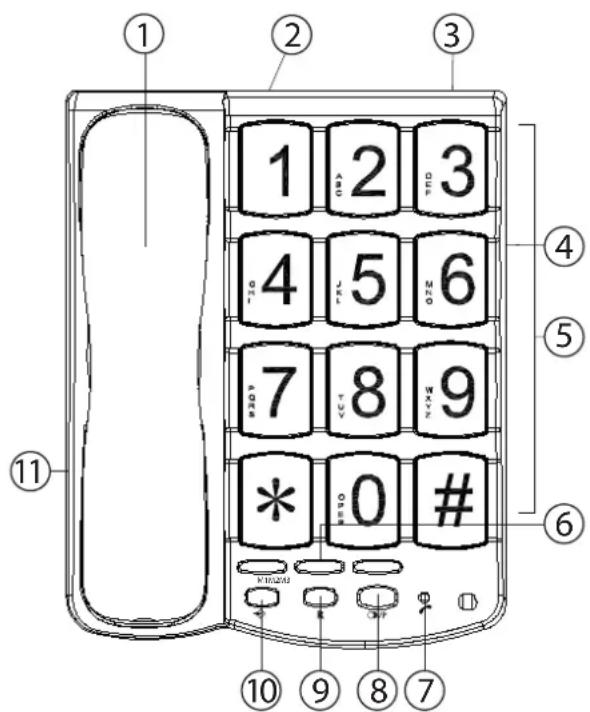

5 Buttons/LED

1. Handset
2. Line cord connector
3. Ringer switch (on/off)
4. Handset volume switch
5. Keypad
6. Memory button M1-M2-M3
7. In use LED
8. Redial/Pause button
9. Flash button R
10. Program button
11. Handset curl cord connector

6 Installing the line cord

For installation, do the following:

- Put the telephone on a flat surface.

- Plug one end of the line cord into the telephone wall outlet and the other end into the Line connector on the backside of the telephone (2).

1 2 3 4 5 6 7 8 9 * 0 # ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

7 Getting started

7.1 Making a phone call

To make a phone call, pick up the receiver. Enter the telephone number.

7.2 Handset volume

The handset volume can be adjusted (Low, Medium, High) by the handset volume switch (4) on the right side of the telephone.

7.3 Last number redial

The last dialled telephone numbers are saved in the redial memory.

1. Pick up the handset.
2. Press, the number will be dialled automatically.

Note: The Redial button can also be used as a Pause button while entering a telephone number!

7.4 Ringer volume

When you receive a phone call, the unit will ring. The ring volume can be switched off with the Ringer switch (3)

7.5 Flash Key

Press the Flash button (R) to use certain services as 'Call Waiting' (if this service is provided by your telephone company); or to transfer phone calls when you are using a telephone exchange (PABX).

8 Memory numbers

You can program 3 memory numbers in the phone's memory.

8.1 Programming a memory number

• Pick up the handset.
• Press the program button (10).
• Enter the telephone number.
• Press the desired memory button M1-M2-M3.
• Put the handset back on the phone.

8.2 Calling a memory number

• Pick up the handset and press the Memory button M1-M2-M3.
• The programmed number will be dialled automatically.

9 Technical Data

Dialing mode: Tone (DTMF)

Flash: 100 ms

Ambient temperature: +5 °C to +45 °C

Permitted relative air humidity: 25 to 85 %

10 Topcom warranty

10.1 Warranty period

The Topcom units have a 24-month warranty period. The warranty period starts on the day the new unit is purchased. Consumables or defects causing a negligible effect on operation or value of the equipment are not covered.

The warranty has to be proven by presentation of the original purchase receipt, on which the date of purchase and the unit-model are indicated.

10.2 Warranty handling

A faulty unit needs to be returned to a Topcom service centre including a valid purchase note.

If the unit develops a fault during the warranty period, Topcom or its officially appointed service centre will repair any defects caused by material or manufacturing faults free of charge.

Topcom will at its discretion fulfil its warranty obligations by either repairing or exchanging the faulty units or parts of the faulty units. In case of replacement, colour and model can be different from the original purchased unit.

The initial purchase date shall determine the start of the warranty period. The warranty period is not extended if the unit is exchanged or repaired by Topcom or its appointed service centres.

10.3 Warranty exclusions

Damage or defects caused by incorrect treatment or operation and damage resulting from use of non-original parts or accessories not recommended by Topcom are not covered by the warranty. The warranty does not cover damage caused by outside factors, such as lightning, water and fire, nor any damage caused during transportation. No warranty can be claimed if the serial number on the units has been changed, removed or rendered illegible.

DECLARATION OF CONFORMITY

We manufacturer, Topcom Europe Nv, Grauwmeer 17, 3001 Heverlee, Belgium, declare that our product :

Type: Corded Telephone Device

Model: Topcom Sologic T101

is in compliance with the essential requirements and other relevant provisions of the 1999/5/EC directive and carries the CE mark accordingly.

Supplementary information:

The product complies with the requirements of:

• EN 55022: 2006
• EN 55024: 1998 + A1: 2001 + A2: 2003
• EN 60950:2001+A11:2004

Date: 23/06/2010

Place: Heverlee, Belgium

Name: Verheyden Geert

Function: Technical Director

Signature

nature! gt gt

European contact: Topcom Europe Nv, R&D department, Research Park, Grauwmeer 17, 3001 Heverlee, Belgium.
