1 / NOTICES TO THE USER SAFETY RECOMMENDATIONS

— This oven was designed for use by private

persons in their homes.

— This appliance is not designed to be used by

people (including children) with reduced phys-

ical, sensorial or mental capacity or people

lacking in experience or knowledge, except if

they have the benefit, through the intermedi-

ary of a person responsible for their safety, of

preliminary supervision or instruction con-

cerning the use of the appliance. It is advis-

able to supervise children to make sure that

they do not treat the appliance as a toy.

— When you receive the appliance, unpack or

have it unpacked immediately. Give it an over-

all general inspection. Make note of any con-

cerns or reservations on the delivery slip and

make sure to keep a copy of this form.

— Your appliance is intended for standard

household use. Do not use it for commercial

or industrial purposes or for any other pur-

pose than that for which it was designed.

— Do not modify or attempt to modify any of

the characteristics of this appliance. This

would be dangerous to your safety.

— Repairs must only be carried out by an

approved specialist.

— Always unplug the hood before cleaning it

or performing other maintenance acts.

— Provide adequate ventilation for the room in

the case of simultaneous use of the hood and

other appliances powered by an energy

source other than electricity. This will prevent

the hood from aspirating the combustion gas-

— You should never "flambé" dishes under the

hood or operate gas rings under the hood

without placing cookware on them (the flames

sucked up into the hood can damage the

— When frying food under the appliance, you

must carefully monitor the preparation at all

times. Oils and grease brought to very high

temperatures can catch fire.

— Respect the recommended frequency of

cleaning and filter replacements. The accumu-

lation of grease deposits may cause a fire.

— The hood should never be used over a com-

bustible fuel burning stove (wood, coal, etc.).

— Never use steam or high-pressure devices

to clean your appliance (requirement imposed

by electrical safety).

— With a view to constantly improving our

products, we reserve the right to modify their

technical, functional or aesthetic characteris-

tics, making any changes to their features

considered necessary or desirable in view of

— In order to easily locate the reference infor-

mation for your appliance, we recommend

that you note these data on the "After-Sales

Service Department and Customer Relation

Keep this user guide with your appli-

ance. If the appliance is ever sold or trans-

ferred to another person, ensure that the

new owner receives the user guide. Please

become familiar with these recommenda-

tions before installing and using your appli-

ance. They were written for your safety and

the safety of others.

In the case of a kitchen heated by a

device connected to a chimney (a stove, for

example) the "recycling" version of the

hood should be installed. Do not use the

hood without metal filters.

Suitable ventilation should be provided in

the room when the hood is used at the

same time as appliances operated by gas

or another combustible fuel.

Installation should only be performed by installers and qualified technicians.

Remove the protective film from the filter cartridge before use.

ENVIRONMENTAL PROTECTION

— This appliance's packaging material is recyclable. Help recycle it and protect the environment

by dropping it off in the municipal receptacles provided for this purpose.

— Your appliance also contains a great amount of recyclable material. It is marked with this label

to indicate the used appliances that should not be mixed with other waste. This way, the appli-

ance recycling organised by your manufacturer will be done under the best possible

conditions, in compliance with European Directive 2002/96/EC on Waste Electrical

and Electronic Equipment. Contact your town hall or your retailer for the used appli-

ance collection points closest to your home.

— We thank you doing your part to protect the environment.

1 / NOTICES TO THE USER EN42

2 / INSTALLING YOUR APPLIANCE USING THE EVACUATION MODE If you possess an outlet to the exterior

Your hood can be connected to this outlet

using a flue (minimum diameter 125 mm that is

enamelled, in aluminium, flexible or made of

inflammable material). If your flue is less than

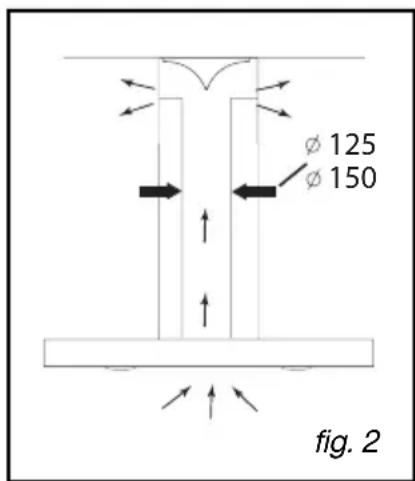

All of our appliances can be used in recycling

In this case, you should add an active carbon

filter which will keep in odours.

(See Chapter 4: Changing the carbon filter.)

- 2 people are required to correctly install this appliance (approx. 30 kg).

- During installation of the hood, place the product packaging on the cooking surface to protect

it in the event of the hood falling down.

- The appliance must be unplugged during installation or when any repair or maintenance work

- Ensure that the network voltage corresponds to the voltage noted on the identification plate

located inside the hood.

- If the electrical installation at your residence requires any changes in order to hook up your

Appliance, call upon a professional electrician.

- If the hood is being used in evacuation mode, do not connect the appliance to a combustion

gas exhaust duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system.

- Under no circumstances should the exhaust duct empty into the attic.

- Install the hood at a safe distance of at least 70 cm from an electric, gas or combined cooking

The hood must be installed in compliance with all applicable regulations concerning the

ventilation of premises. In France these regulations are described in DTU 61.1 from the CSTB.

In particular, the evacuated air should never be conveyed to a duct used to evacuate smoke

from appliances that use gas or other combustible fuels. Unused ducts may only be used after

approval from a competent specialist.

This appliance is delivered with a H 05

VVF power cord. It must be connected to the

main power supply (which should be a 220-

240 V single phase current) via a CEI 60083

standardised socket that should remain

accessible after installation, in keeping with

installation guidelines.

We cannot be held responsible for any acci-

dent resulting from an inexistent, defective

or incorrect ground lead. The fuse for your

installation must be 10 or 16A. If the power

cable is damaged, call the after-sales serv-

ice department in order to avoid danger.

If the electrical installation at your resi-

dence requires any changes in order to hook

up your appliance, call upon a professional

unplug the appliance or remove the fuse cor-

responding to the electrical socket where

your appliance is plugged in.

ELECTRICAL CONNECTIONS During installation and maintenance opera-

tions, the appliance must be unplugged from

the electrical grid; fuses must be cut off or re-

The electrical connection must be made

before completely fixing the ventilation shaft

- the electrical installation has sufficient volt-

- the electrical wires are in good condition,

- the diameter of the wires complies with the

installation requirements.

2 / INSTALLING YOUR APPLIANCE EN Important

The accessible parts of this appliance may become hot if it is used with a cooking

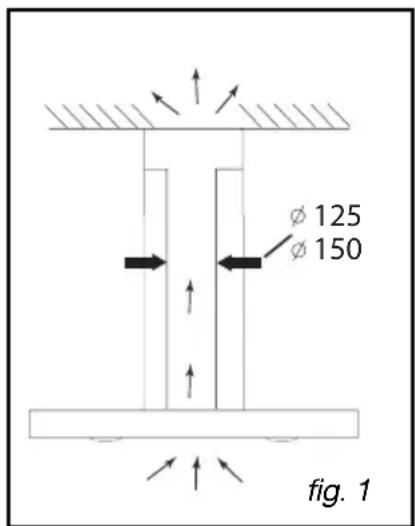

For optimal use of your appliance, we recommend you connect the hood to a 150 mm-

diameter flue (not delivered with the appliance). Minimise the number of angles and bends

and the length of the flue. If the hood is to be used for outdoor evacuation, you should

ensure a sufficient inflow of fresh air to avoid a pressure deficiency in the room.

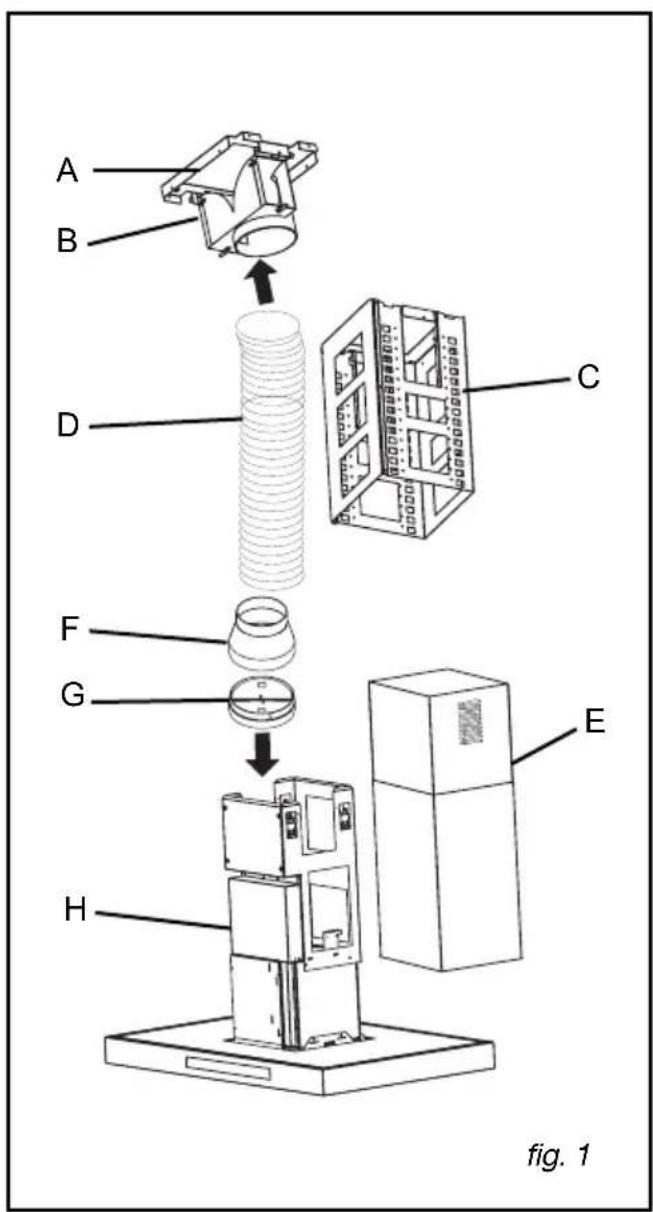

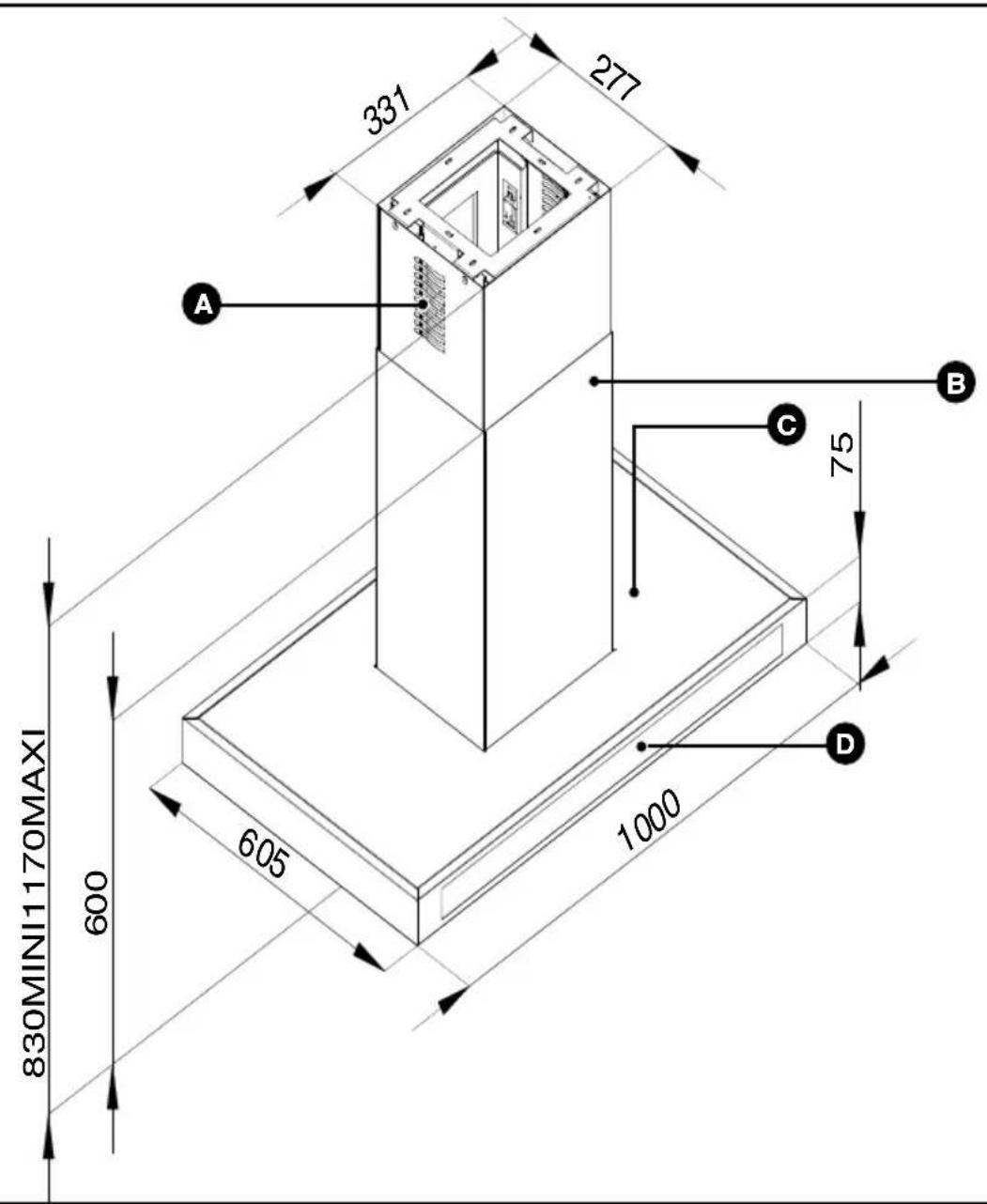

CC :: VVeennttiillaattiioonn sshhaafftt bbrraacckkeett

(not delivered with the appliance)

FF :: AAddaapptteerr

(to be used depending on

the size of the flue)

GG :: BBaacckk--ffllooww vvaallvvee

(for outdoor evacua-

(recycling mode only)

AA :: CCeeiilliinngg bbrraacckkeett46

2 / INSTALLING YOUR APPLIANCE EN

- Connect the flue to the deflector (recycling

mode), or to another flue leading away from

the ceiling (evacuation mode).

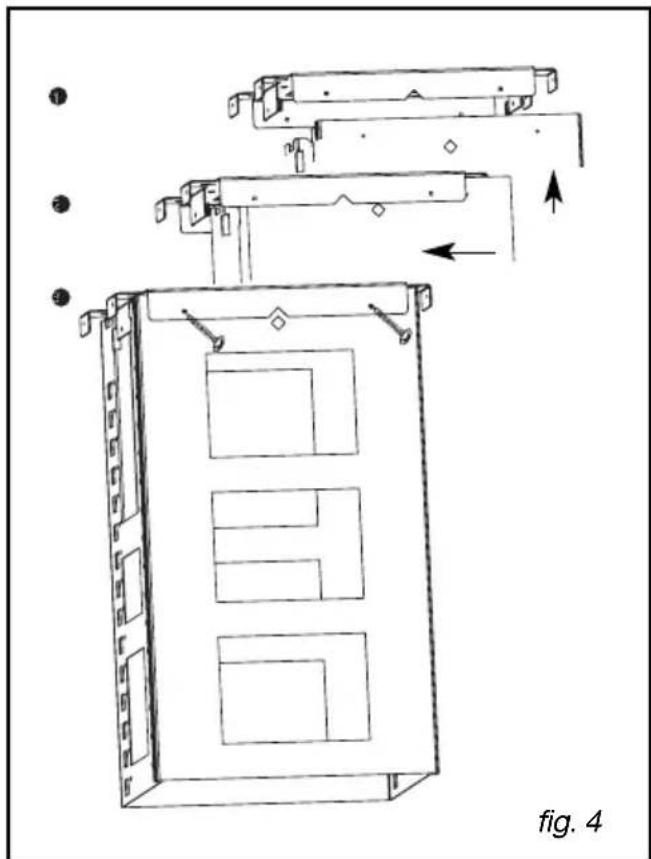

- When the ventilation shaft bracket has been

correctly fitted, screw in the 4 screws to hold

the hood bracket in place (fig.4).

The minimum distance between the cooking

surface and the lowest part of the hood must

be 70 cm. If the instructions for the hob

installed under the hood specify a distance of

more than 70 cm, this requirement must be

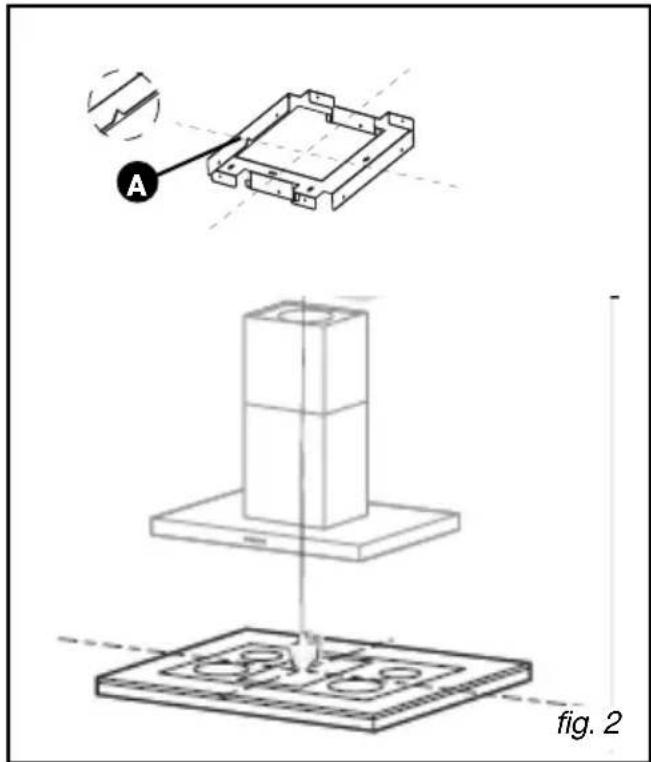

— With the aid of a lead wire, align the centre

of the cooking surface with the ceiling brack-

— Notch A in the ceiling bracket must be fac-

ing the appliance (Fig.2).

- Fix the ceiling bracket in place using the 6

screws and wall plugs supplied.

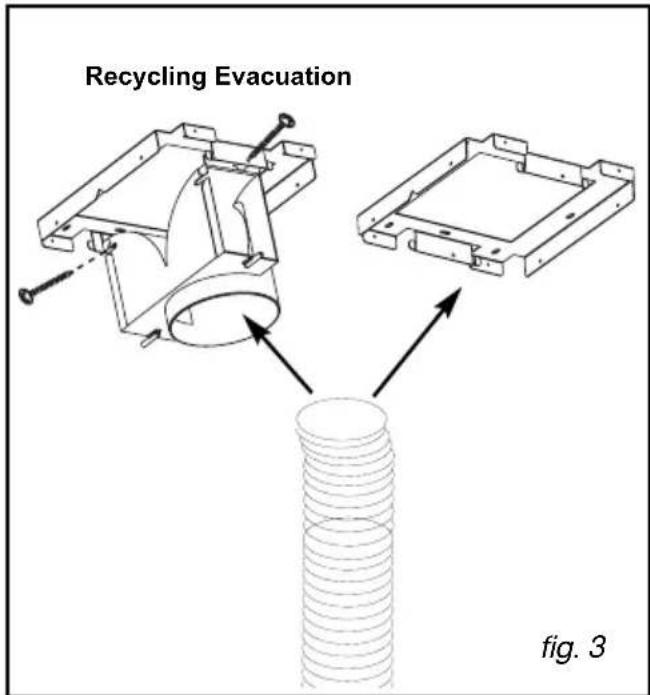

- If your hood is in recycling mode, fix the

deflector to the ceiling bracket using the 2

screws supplied (fig 3 recycling).

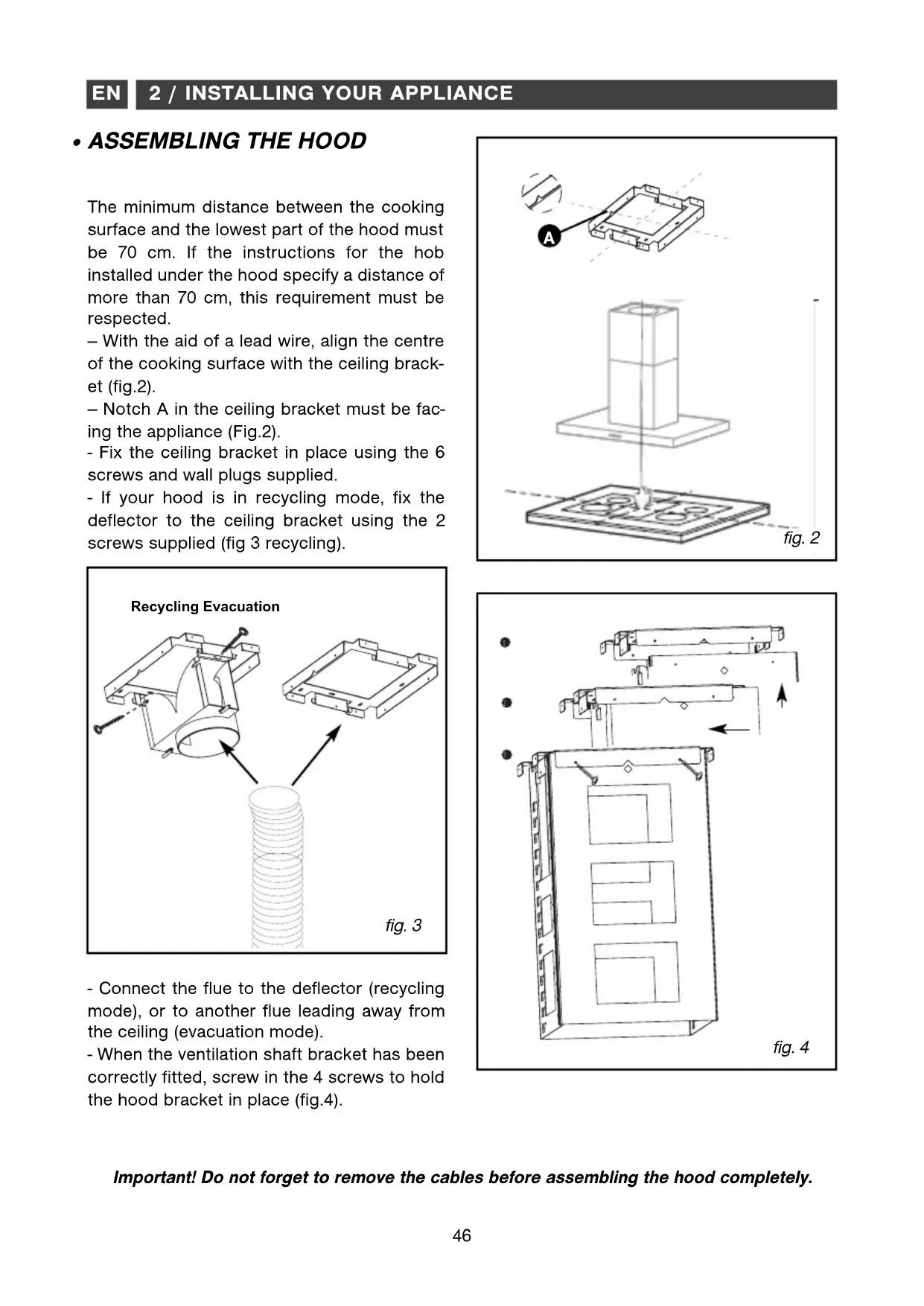

ASSEMBLING THE HOOD Important! Do not forget to remove the cables before assembling the hood completely.

Recycling Evacuation47

2 / INSTALLING YOUR APPLIANCE EN

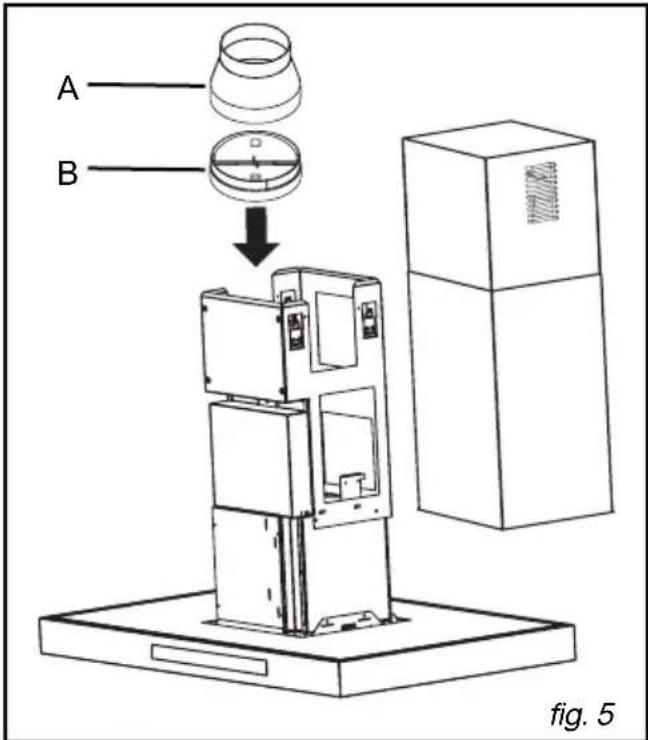

— In outdoor evacuation mode, fit the back-

flow valve to the motor outlet (fig. 5-B). This

back-flow valve allows obstruction of air

entering from outside.

— If you are using a 125 mm diameter flue, use

the adapter supplied (fig. 5-A).

If your outdoor flue has a diameter of less

than 125 mm, you must connect your hood in

— Fit the end of the flue to the motor outlet (for

recycling mode) or to the back-flow valve (for

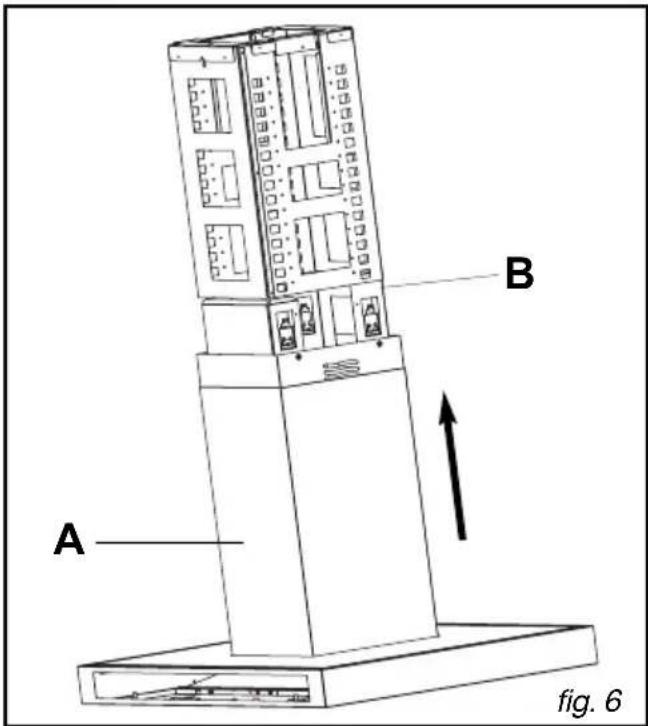

— Fit the ventilation shafts (fig.6-A), taking

care to position them as follows if the hood is

in recycling mode, the vents must be facing

upwards so that they are visible.

— Press on the top part (B) to insert the hood

in the ventilation shaft bracket.

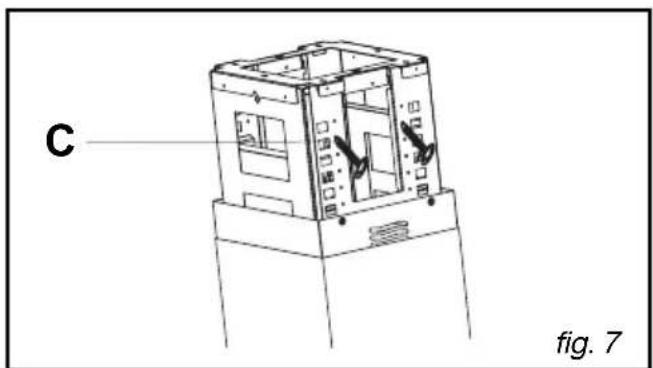

— The hood is supported from the first notch

— You may then adjust the height of the appli-

ance, pushing it up towards the ceiling (at

least 70 cm above your cooking hob).

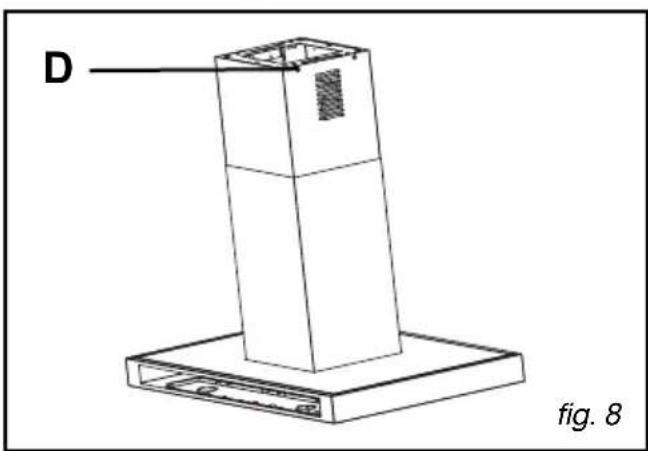

— When the appliance is at the required

— Then fit the interior ventilation shaft in place

again and screw in the 4 screws (fig.8-D).

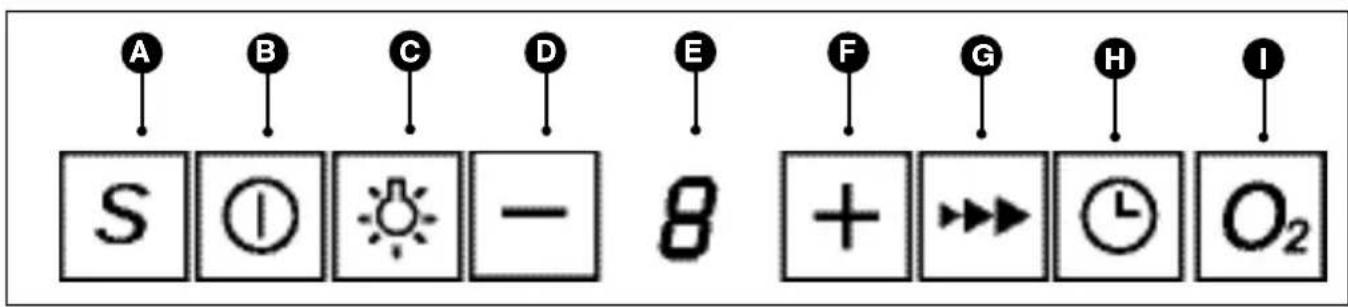

A B C Timer / Delayed shutdown (10 min)IndicatorSpeed reduction

F G F G Speed increaseBoost

H I H I Oxygen *Automatic mode * Tip

This guide to Installation and Use is valid for several models. Minor differences in

details and fittings may emerge between your appliance and the descriptions provided.

AUTOMATIC MODE (depending on model)

•• These hoods are designed with the capacity to adapt. Fitted with sensing devices, they activateautomatically when they detect any emission of steam or heat, spontaneously adapt suctionspeed and stop operating when the last of the smoke has been evacuated.49

3 / USING YOUR APPLIANCE EN Selecting the type of hob in automatic mode *

To select your hob type, your hood should be switched off.

Press for >2s simultaneously on and to enter configuration mode. Press to select

the hob type: the indicator displays I for an induction hob, U for a ceramic hob and G for a gas

hob. Pressing once and simultaneously on and will validate your configuration.

Automatic mode setting

You have the possibility of refining the reaction time of your hood in automatic mode.

To adjust its sensitivity, press the button for more than 2s.

: minimum sensitivity

: average sensitivity

: maximum sensitivity

Press to increase sensitivity and to reduce it.

Press once to cancel your settings

Your settings are automatically validated after 10s.

Press . The indicator will flash and tell you that the hood is in automatic mode.

Changing to automatic mode

Shutting down the hood in automatic mode

You are in automatic mode and want to shut down your hood. Press .

Timed shutdown is automatic in these hoods.

Through this system, the hood continues to operate for five, ten or fifteen minutes, depending

on the power used for cooking, in order to process and remove all smoke.50

3 / USING YOUR APPLIANCEEN SWITCHING ON THE HOOD IN MANUAL MODE

Pressing the button starts up the hood at speed 1 (the indicator displays 1).

SWITCHING OFF THE HOOD

Press the button to switch the hood off.

After starting up the hood, you can change the suction speed by pressing or .

The function allows your hood to remain for 10 min at maximum speed 4 and then change

At the end of cooking, you can select the button to shut down your hood. This function

maintains suction for 10 minutes at the selected speed.

To cancel delayed shutdown, press the same button to stop the delayed function.

3 / USING YOUR APPLIANCE EN LIGHTING

Press the button once to switch the halogen lighting of your hood on or off.

Your hood (depending on the model) gives you the possibility of changing the intensity of the

light as you wish to make it more or less bright. Pressing and holding the button can vary

the intensity of the lighting.

OXYGEN FUNCTION (DEPENDING ON MODEL)

Press the button once to switch on the hood at reduced speed and in silent mode for 1

hour. The indicator is displayed.

To shut down this function press again.

PPrrooggrraammmmiinngg tthhee OOxxyyggeenn ffuunnccttiioonn

Press and hold the button to activate the programming.

and will flash alternately, indicating the start of programming.

Every time the button is pressed once, this will increase the period of operation of the

Oxygen function (from 2h to 9h maximum). The hood will operate at reduced speed and in silent

mode during the selected period. The figure representing the time in hours (1, 2, 3, 4, 5, 6, 7, 8

or 9) and will flash alternately throughout the Oxygen program.

Every time the button is pressed once the time will be reduced (from 8h to 1h).

The program is validated automatically after 10 min.

Programming can be cancelled before automatic validation by pressing the button .

To shut down this function press52

If you forget to switch off your hood, it will shut down after 9 hours’ operation.

If you forget to switch off the lighting on your hood, it will shut down after 9 hours’ operation.

FILTER CARTRIDGE SATURATION

FF iinnddiiccaattoorr iiss ffllaasshhiinngg

, this indicates that the filter cartridges should be cleaned (see

section on “Cleaning the filter cartridge”).

Press and hold the button to release the “saturation” function.

FF iinnddiiccaattoorr iiss nnoott ffllaasshhiinngg

, it indicates that the carbon filters should be changed (see

section on “Changing the carbon filter”).

Press and hold the button to release the “saturation” function.

Only in recycling mode.

RECYCLING / EVACUATION MODE

Press and hold the and buttons to select Evacuation or

Recycling mode. The or indicator is displayed. You can now enter your settings.

Press or once to select recycling mode ( ) or evacuation mode ( ).

Press and once to validate the settings.

Press once to cancel the settings.53

CHANGING THE LIGHT BULB

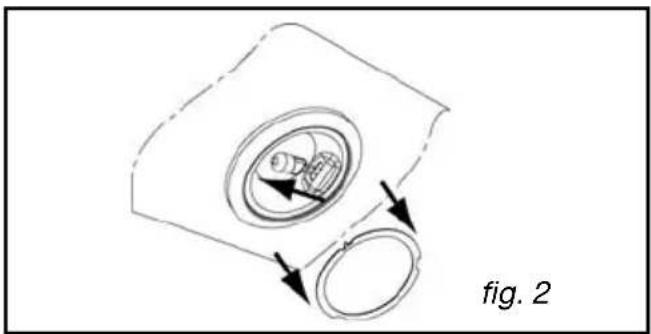

— Replace the bulb by repeating these steps

CLEANING THE OUTER SURFACES To clean the outside of your hood, use soapy water, but do not use abrasive creams or scrubbing

4 / CARING FOR AND CLEANING YOUR APPLIANCE Warning

Always unplug the hood before cleaning it or performing other maintenance acts.

Regular maintenance of your appliance is a guarantee of proper functioning, good perform-

ance and durability.

Failure to respect the guidelines for cleaning the appliance and filters may cause fires.

Please carefully adhere to the maintenance recommendations.

CLEANING THE FILTER CAR-

TRIDGES They must be cleaned after approximately 30

hours of use or at least once a month. These fil-

ters can be cleaned in a vertical position in your

dishwasher. Use a brush, hot water and mild de-

Rinse and dry them thoroughly before returning

•Dismantling the filter cartridge

— Replace it after approximately 120 hours of

— Remove the filter cartridge by unclipping it (fig.

The carbon filter should be replaced after

approximately 120 hours of use.

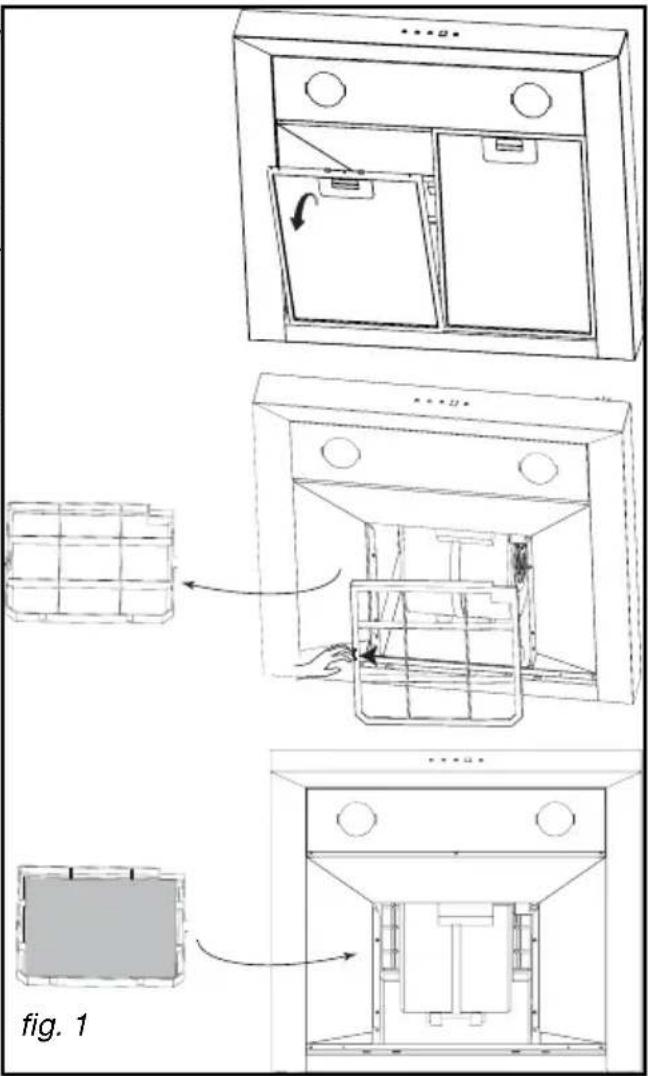

— Unclip the filter cartridge to remove it (A.fig.

— Remove the carbon filter or the plastic protec-

tion grille (B.fig.1)

— Inset the new carbon filter.

If you do not intend to use a carbon filter, leave

the plastic protection grille in place.

4 / CARING FOR AND CLEANING YOUR APPLIANCE MAINTAINING YOUR APPLIANCE

Before carrying out any work, the power supply to the hood must be turned off, either

by unplugging it or by using the circuit breaker switch.

This filter traps fatty vapours and

dust. This component plays an

important role in ensuring the

effectiveness of your hood.

In the event of tough stains, use

a non-abrasive cream, then rinse

Top surface and acces-

ssttiiffff bbrruusshheess..

Activated carbon filter

(Depending on model or

To clean the body and the lighting

port, you should use only com-

mercial household cleaning prod-

ucts diluted in water and then

rinse using clean water, drying

This filter traps odours and must

be changed at least once a year

depending on your level of use.

You should order these filters

from your dealer and note the

date the filter was changed.

Use a commercial household

cleaning product then rinse abun-

dantly and dry. These filters can

be cleaned in a vertical position in

((DDoo nnoott aallllooww tthheemm ttoo ttoouucchh ddiirrttyy

ddiisshheess oorr ssiillvveerrwwaarree))..

To preserve your appliance, we recommend that you use Clearit cleaning products.

Clearit offers you professional products and solutions designed for the daily care of your house-

hold appliances and kitchens.

They are on sale at your regular retailer, along with a complete line of accessories and consum-

Professional expertise serving individuals

PPRROODDUUCCTTSS//AACCCCEESSSSOORRIIEESS MMAAIINNTTEENNAANNCCEE TTOO UUSSEE WWHHAATT TTOO DDOO EN55

5 / TROUBLESHOOTING The hood is not operating

• The selected motor speed is sufficient for the

quantity of smoke and vapours to be cleared.

• The kitchen is sufficiently ventilated to allow

for fresh air intake.

• The carbon filter is not worn (hood operating

The hood is not working...

• The power is not cut off.

• A speed has been selected.

The hood stopped work-

• The power is not cut off.

• The single-pole cut-off device was not activat-

SSOOLLUUTTIIOONNSSSSYYMMPPTTOOMMSS EN Any maintenance on your equipment should be undertaken by a qualified mechanic who is an au-

thorised agent for the brand appliances. When making an appointment, state the full reference of

your equipment (model, type and serial number). This information appears on the manufacturer's

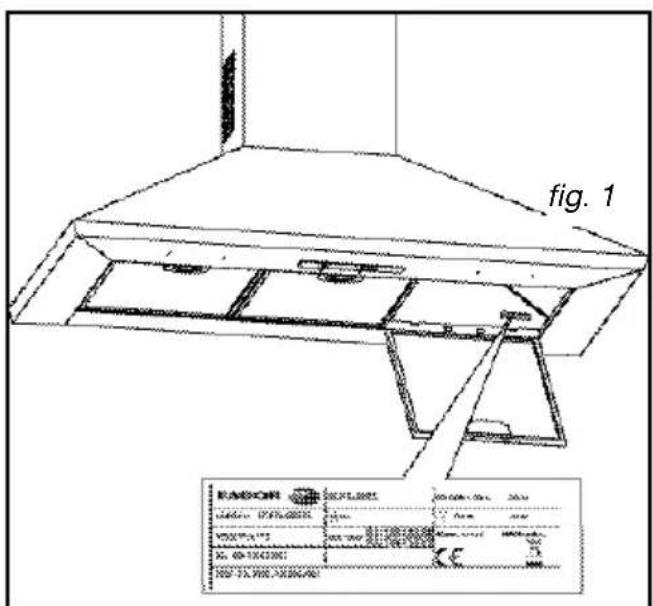

nameplate attached to your equipment (Fig. 1).

6 / AFTER-SALES SERVICE

DD :: AAbbzzuuggssrroohhrr
