USER MANUAL RVI 740 IN ROSIERES

FR NOTICE D'EMPLOI ET D'INSTALLATION TABLE À INDUCTION INSTRUCTIONS FOR USE AND INSTALLATION INDUCTION HOBS GB1 GB READ THE INSTRUCTIONS BOOKLET CAREFULLY TO MAKE THE MOST OF YOUR HOB.

We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number

below in case you need to get help from the after sales service.

We are constantly striving to improve product quality and as such may modify appliances to incorporate the latest technical improvements.

Induction hobs conform to directives 73/23/CEE and 89/336/CEE.

Identification plate

(located under the hob's bottom casing)

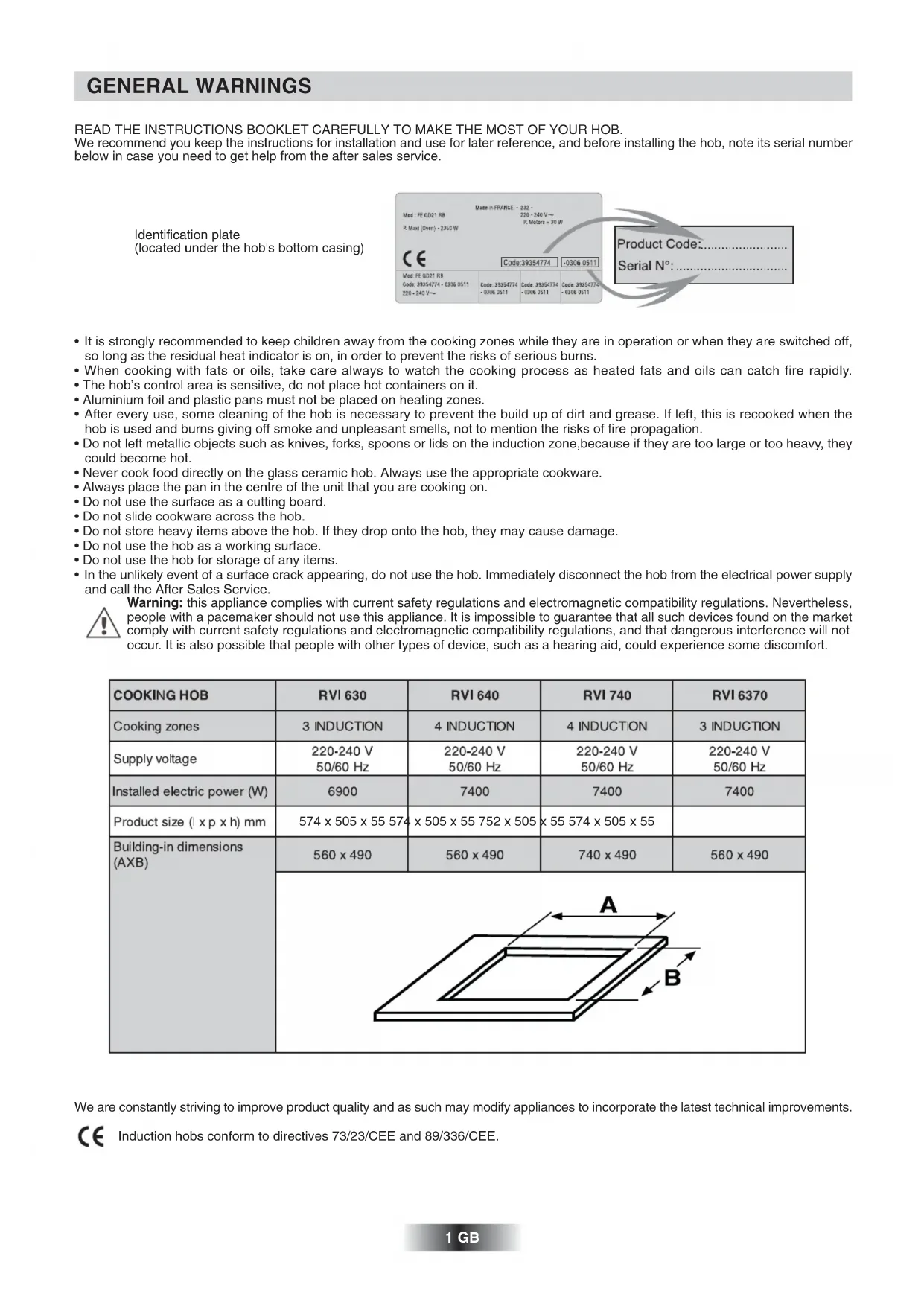

• It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off,

so long as the residual heat indicator is on, in order to prevent the risks of serious burns.

• When cooking with fats or oils, take care always to watch the cooking process as heated fats and oils can catch fire rapidly.

• The hob’s control area is sensitive, do not place hot containers on it.

• Aluminium foil and plastic pans must not be placed on heating zones.

• After every use, some cleaning of the hob is necessary to prevent the build up of dirt and grease. If left, this is recooked when the

hob is used and burns giving off smoke and unpleasant smells, not to mention the risks of fire propagation.

• Do not left metallic objects such as knives, forks, spoons or lids on the induction zone,because if they are too large or too heavy, they

• Never cook food directly on the glass ceramic hob. Always use the appropriate cookware.

• Always place the pan in the centre of the unit that you are cooking on.

• Do not use the surface as a cutting board.

• Do not slide cookware across the hob.

• Do not store heavy items above the hob. If they drop onto the hob, they may cause damage.

• Do not use the hob as a working surface.

• Do not use the hob for storage of any items.

• In the unlikely event of a surface crack appearing, do not use the hob. Immediately disconnect the hob from the electrical power supply

and call the After Sales Service.

Warning: this appliance complies with current safety regulations and electromagnetic compatibility regulations. Nevertheless,

people with a pacemaker should not use this appliance. It is impossible to guarantee that all such devices found on the market

comply with current safety regulations and electromagnetic compatibility regulations, and that dangerous interference will not

occur. It is also possible that people with other types of device, such as a hearing aid, could experience some discomfort.

574 x 505 x 55 574 x 505 x 55 752 x 505 x 55 574 x 505 x 55Installing a domestic appliance can be a complicated operation which if not carried out correctly, can seriously affect consumer

safety. It is for this reason that the task should be undertaken by a professionally qualified person who will carry it out in

accordance with the technical regulations in force. In the event that this advice is ignored and the installation is carried out

by an unqualified person, the manufacturer declines all responsibility for any technical failure of the product whether or not

it results in damage to goods or injury to individuals.

2 GB BUILT-IN The furniture in which your hob will be installed and all adjacent

furniture, should be made from materials that can withstand high

temperatures. In addition, all decorative laminates should be fixed

with heat-resistant glue.

• A watertight seal is supplied with the hob.

- turn the hob upside down, with the glass surface facing downwards.

Make sure the glass is protected.

- fit the seal round the hob.

- make sure that it is correctly fitted to avoid any leakage into the

• It it important to fit the hob on a level supporting surface.

• Deformations caused by incorrect fitting can alter the specifications

of the worktop and the performance of the hob.

• Leave a gap of at least 5 cm between the appliance and any

neighbouring vertical surfaces.

• It is absolutely essential that the recess conforms with the

dimensions indicated.

• The height of the flush-mounted part of the hob is 5,5 cm.

• If there is an intermediate division :

- the clearance between the bottom of the casing and an

intermediate floor or part of a furniture unit must greater than

2,5 cm so as to allow air circulate.

The minimum distance should be 8 cm.

- furthermore, you should ensure that there is at the rear a

ventilation (8 cm) on all the width.

• You can not build the hob in above an oven with no fan, a

dishwasher, fridge, freezer or washing machine.

• The body of the hob is fitted which 4 location holes to take the

fixing clamps intended to fix the hob in the unit. Place the 4 fixing

clamps, before building-in the hob, in such a way that the hob

is placed perfectly in the support unit.

• The yellow/green wire of the power supply cable must be

connected to the earth of both power supply and appliance

• The manufacturer cannot be held responsible for any accidents

resulting from the use of an appliance which is not connected

to earth, or with a faulty earth connection continuity.

• Any queries regarding the power supply cord should be referred

to After Sales Service or a qualified technician.

The hob is fitted with a power supply cord which allows it to

be connected only to a power supply of 220-240 V between

phases or between phase and neutral.

• Connect to a socket, to choose the correct fuse, you must refer

It is however possible to connect the hob to :

Two phases 220-240V2~, Threephases 220-240V3~

or Three phases 380-415V3N~.

To proceed to the new connection, you must adhere the following

• Before making the connection make sure that the installation is

protected by a suitable fuse, see table, and that it is fitted with

wires of a large enough section to supply the appliance normally.

1- Operations to be carried out on the existing connection :

- turn over the hob, glass side against the work top, taking care

to protect the glass.

- pull out the supply cord :

. remove the screws retaining the shunt bars and the conductors

. unscrew he cable clamp to release the power supplying cord,

. pull out the supply cord.

2- Operations to be carried out to make a new connection :

- choose the power supply cord in accordance with the

recommendations in the table.

- pass the power supply cable into the clamp.

- strip the end of each conductor of the supply cord on a 10 mm

length, by taking in account the requested length of the cord for

the connection to the terminal block.

- according to the installation and with the help of shunt bars which

you should have recovered in the first operation, fix the conductor

as shown on the chart.

- screw the cable clamp and fix the cover.

Hob 25 mm mini 50 mmOpening500 X 50Opening500 X 10 CONNECTION TO THE TERMINALS ON THE TERMINAL BLOCK: "The installation must conform to the standard directives."

The manufacturer declines all responsibility for any damage that

may be caused by unsuitable or unreasonable use.

• Always check before any electrical operation, the supply tension

shown on the electricity meter, the adjustment of the circuit-

breaker, the continuity of the connection to earth to the installation

and that the fuse is suitable.

• The electrical connection to the installation should be made via

a socket with a plug with earth, or via an omnipole cut-out switch

with an opening gap of at least 3 mm.

If the appliance has a socket outlet, it must be installed so that

the socket outlet is accessible.

ELECTRICAL CONNECTION3 GB HOB COOKWARE ADVICE

• Always use good quality cookware with perfectly flat and

thick bases : using this type of cookware will prevent hot spots

that cause food to stick. Thick metal pots and pans will provide

an even distribution of heat.

• Ensure that the base of the pot or pan is dry : when filling

pans with liquid or using one that has been stored in the

refrigerator, ensure that the base of the pan is completely dry

before placing it on the hob. This will help to avoid staining the hob.

• Use pans whose diameter is wide enough to completely

cover the surface unit : the size of the pan should be no smaller

than the heating area. If it is slightly wider the energy will be

used at its maximum efficiency.

Using good quality cookware is critical for setting the best

performance from your hob.

INDUCTION USE PROCEDURE An electronic generator powers a coil located inside the appliance.

This coil creates a magnetic field, so that when the pan is placed

on the hob, it is permeated by the induction currents.

These currents make the pan into a real heat transmitter,

while the glass ceramic hob remains cold.

This system is designed for use with magnetic-bottomed

Put simply, induction technology has two main advantages :

- as heat is emitted only by the pan, heat is maintained at its

maximum level and cooking takes place without any heat loss.

- There is no thermal inertia, as cooking automatically starts when

the pan is placed on the hob and stops when it is removed.

A HIGH SAFETY APPLIANCE ....

If your hob is correctly installed and used, the safety devices will

• Ventilation fan : to protect and cool the supply and control

components. It has two speeds, operating automatically. The

fan works even if the plates are off and this till the

electronic system has enough cooled down.

• Safety "Transistor" : a probe checks permanently the

temperature of the electronic components. If the heat is increasing

excessively, it automatically decreases the power of the

plates then cuts them down (the display for power level is flashing)

as far as the temperature of the components meets with the

standard again, the hob starts working.

• Safety "Empty pan" : a probe is placed under each heating

area. It will immediately detect a wrong temperature for the

empty pan, or the glass ceramic.

• Safety "Detection" : the presence detector allows the working

and so the heating. A small object (eg a spoon, knife or ring)

placed on the heating area will not be considered as a pan and

therefore the hob will not come on.

• Safety "Boiling over and splashing" : if any boiling over and

splashing occur, the hob will stop. If a big spill or object covers

at least two buttons, for at least 10 seconds, clean up the spill

or remove the object, the hob is not operating.

HOW TO OPERATE THE HOB

1 - HOB ON / OFF BUTTON

3 - DISPLAY: heat level, residual heat indicator, booster operation..

displayed, it shows that the timer controls the cooking zone

. on: the cooking zone or timer is active, modification is possible

. off: the cooking zone or timer is set to the last recorded data

11 - Booster selection button

The following information will help you select the pans best adapted

to obtain good results.The following examples are for information only. Personal

experience should then let you adapt these settings to your taste

5 : Thawing, stewing, full cooking, low temperature

6 : Cooking without lid

7 : Frying, meat browning and roasting

8 : High temperature cooking and roasting, seizing

Booster : Boiling large quantities of liquids...

• RESIDUAL HEAT INDICATOR The control panel tells the user when the surface temperature

of the cooking zones exceeds about 60°C, by the following

displaying: “H” . When the temperature goes back below 60°C,

the “H” display goes off.

For ending the cooking, we advise switching off the cooking zone

and using the residual heat of the zone to finish cooking gently.

N.B. After a cut in the current, the residual heat indicator disappears

completely, even if the surface temperature exceeds 60°C.

• STOPPING A COOKING ZONE

- Press the selection button of the required cooking zone.

- Press the button to display heat level . Now the zone goes

off, the indicator goes off after 10 seconds.

- To stop rapidly, press the and buttons at the same time.

The heat level automatically goes down to .

The cooking zone goes off.

The induction hob works with a generator wich supplies

simultaneously 2 zones per area, according to model :

Each area take in charge a maximum power of 3700 W.

Consequently, in the same area, when the Booster function is on

and the second plate has reached a power level of 9 or 8 the

latest is automatically decreased to the level 7 and this decrease

is shown by a flashing display for information.

the Booster works during 10 minutes, after this time,

it stops and the plate starts heating again at the setting 9, the

power of the generator being decreased, the power level of the

second plate comes back to its previous setting.

The different positions correspond to the following power ratings :

THE DIFFERENT POSITION For increased safety, the cooking zones cut off automatically if

they are left on too long.

The cut off depends on the heat level used.

• STARTING A COOKING ZONE

- Press the selection button of

the required cooking zone. In

the display zone, the control

LED is on steady. It shows that

- Press the or button to select a heat level between 1 and

9. Hold down the or button and the heat level increases

or decreases gradually.

When the hob is operating, the pan detector provides the advantage

of automatically stopping or starting the heat of the cooking zone

in contact with or on removal of the pan.

If therefore offers energy savings.

If the cooking zone is used with a suitable pan* :

shows the heat level or when the booster is operating.

* The induction needs pans compatibles so fitted with magnetic-

bottomed, see table page 3 and pans big enough to fully cover

If the cooking zone is used without a pan or with an unsuitable

the display shows . The zone does not start. If no pan

is detected after 10 minutes, the starting operation is cancelled.

To stop the cooking zone, you must stop the hob normally,

you cannot just remove the pan. The pan detector does not

work as the hob on/off button.

• PAN DETECTOR THE USE

• After powering up the hob, wait 8 seconds to activate the

electronic controls.

- Press the button , for 3 seconds.

Electronic control of the hob is activated. In each display zone

the heat level is displayed and the control LED blinks.

- After a few seconds whithout use, the electronic control goes off

and the starting operation has to be repeated.

• GENERAL STOP The cooking zones and the timer can be

stopped at any moment by pressing for

3 seconds on the On-Off button.• PROGRAMMING A COOKING ZONE Every cooking zone can be programmed for a maximum time of

99 minutes. Only one zone, at a time, can be programmed.

- Start the required zone by following the previous instructions.

The control LED near the heat level must be displayed, it shows

that the zone is live.

- Press the Timer button .

The zone mark around the timer display shows the controlled

- Press the button to select the time in minutes.

This is saved automatically after three seconds.

The programmed time can be modified at any moment by pressing

the timer selection button, the timer control LED must be on.

When the time has run, the cooking zone goes off automatically

and an audible beep sounds for 1 minute. Press the timer

5 GB The programmed time can be reset to using the button

or pressing the and buttons at the same time, the cooking

zone is then no longer linked to the timer but stays operational.

So you will have to stop the zone independently.

The timer can be used alone as a reminder, it will ring at the end

of the programmed time.

The locking function holds the current settings, or prevents anyone

from starting the hob. It is also used for cleaning the control strip

as the controls can be locked without the hob being on.

- Press the on/off button .

- Start the required cooking zones.

- Select a heat level for each of them;

- Press the button to set the data ; in this way no other button

works, except the on/off button.

The locking indicator lamp comes on.

To release the locking function just press the button ; the

indicator lamp goes off, all the controls work again.

If when the controls are locked, the timer is on, the time will be

counted automatically and the zone switched off at the end of the

If the locking control is on when the hob is finally shut down,

the locking control stays operational and prevents any action

when the hob is restarted, press the button to release the

• LOCKING BUTTON OPERATION

• FAST HEATER OPERATION The booster function allows to get by a simple pressure the

cooking zone working with a high power according to the zone,

for 10 minutes period.

Ideal to bring to the boil large quantities of liquids ...

• ACTIVATION OF THE BOOSTER FUNCTION Activation of the BOOSTER function :

- Press the setting key of the cooking zone fitted

with the booster function.

The control led is displayed.

- Press the key to start the Booster.

The Booster is active for 10 minutes.

The P mark (power) appears.

When the time is over, the power level decreases to 9.

A pressure on the key "-" cancels the booster function, and the

power level decreases to 9.

All zones are fitted with a "Fast heater" which allows to get a faster

temperature increase of the heating areas. Ideal to seal meat or

to bring quickly to the boil large quantitites of liquids.

Starting the fast heater

. Press the on/off button .

. Start the required zone, press the + button to obtain position “9”,

release the button briefly and press it again; the display alternates

showing “A” (fast heater) and “9” (heat level).

. If necessary choose the required heat position.

Cooking Power released Time of fast

E.g. 1800 W zone at position 6 = 32% of 1800 W power

released = 576W When the “Fast heater” is on, the zone supplies 1800 W

power for 2.5 minutes, and adjusts to 576 W after this time.

. When the "Fast heater" is done, the display of the power level

remains steady.PROBLEM SOLVING The induction hob gives shorings out.

• Normal. The cooking fan of the electronic components is on.

The induction hob gives a light whistling out.

• Normal. According to the working frequency of the inductors, a

light whistling can occur when using several cooking zones on

Cooking zones that do not maintain a rolling boil or a fast

• You must use pans which are absolutely flat.

• Pan bottoms should closely match the diameter of the heat zone

This appliance is marked according to the

European directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly,

you will help prevent potential negative

consequences for the environment and human

health, which could otherwise be caused by

inappropriate waste handling of this product.

The symbol on the product indicates that this

product may not be treated as household waste.

Instead it shall be handed over to the applicable collection point

for the recycling of electrical and electronic equipment

Disposal must be carried out in accordance with local

environmental regulations for waste disposal.

For more detailed information about treatment, recovery and

recycling of this product, please contact your local city office,

your household waste disposal service or the shop where you

purchased the product.

6 GB AFTERCARE Before calling out a Service Engineer please check the

— that the plug is correctly inserted and fused;

If the fault cannot be identified:

switch off the appliance — do not tamper with it — call the Aftercare

Service Centre. The appliance is supplied with a guarantee

certificate that ensures that it will be repaired free of charge at the

If there are still some stubborn stains:

- Place a few more drops of specialised cleaning fluid on the

- Scrape with a scraper, holding it at an angle of 30° to the hob,

until the stains disappear.

- Wipe with a soft cloth or dry kitchen paper until the surface is

- Repeat the operation if necessary.

Frequent cleaning leaves a protective layer which is essential to

prevent scratches and wear. Make sure that the surface is clean

before using the hob again. To remove marks left by water, use

a few drops of white vinegar or lemon juice. Then wipe with

absorbent paper and a few drops of specialised cleaning fluid.

The glass ceramic surface will withstand scraping from flat-

bottomed cooking vessels, however, it is always better to lift them

when moving them from one zone to another.

Do not use a sponge which is too wet.

Never use a knife or a screwdriver.

A scraper with a razor blade will not damage the surface, as

long as it is kept at an angle of 30°.

Never leave a scraper with a razor blade within the reach of

Never use abrasive products or scouring powders.

• Before carrying out any maintenance work on the hob, allow it

• Only products, (creams and scrapers) specifically designed for

glass ceramic surfaces should be used. They are obtainable

from hardware stores.

• Avoid spillages, as anything which falls on to the hob surface

will quickly burn and will make cleaning more difficult.

• It is advisable to keep away from the hob all substances which

are liable to melt, such as plastic items, sugar, or sugar-based

- Place a few drops of the specialised cleaning product on the

- Rub any stubborn stains with a soft cloth or with slightly damp

- Wipe with a soft cloth or dry kitchen paper until the surface is

CLEANING AND MAINTENANCE Foods cook slowly.

• Improper cookware being used. Pan bases should be flat, fairly

heavy-weight and the same diameter as the heat zone selected.

Tiny scratches (may appear as cracks or abrasions) on the

glass surface of the hob.

• Incorrect cleaning methods, cookware with rough bases, or

coarse particles (salt or sand) trapped between the cookware

and the surface of the hob.

Use recommended cleaning procedures, be sure cookware

bases are clean before use and use cookware with smooth

Metal markings (may appear as scratches).

• Do not slide aluminium cookware across the surface.

Use recommended cleaning procedure to remove marks.

• Incorrect cleaning materials have been used, spillage or grease

stains remain on the surface, use a razor scraper and

recommended cleaning product.

Dark streaks or specks.

• Use a razor scraper and recommended cleaning product.

Areas of discoloration on cooktop.

• Marks from aluminium and copper pans as well as mineral

deposits from water or food can be removed with the cleaning

Hot sugar mixtures / plastic melted to the surface.

• See the Glass Hob Cleaning section.

The hob is out of order, or some heat zones do not work.

• The shunt bars are not properly fitted on the terminal block.

Check the connection is made in conformity with the instructions

The hob does not operate.

• A big spill or object covers at least two buttons, for at least 10

seconds. Clean up the spill or remove the object.

• The control panel is locked. Press the “Locking” button to release.

The hob does not cut off

• The control panel is locked. Press the “Locking” button to release.

Refer to the section, page 4.

The hob stops automatically

• A spill covers at least two buttons for more than 10 seconds; the

hob switches to safety, and an audible beep sounds so long as

the buttons are covered. Clean up the spill or remove the object.

• The cooking zones stop automatically if they are left on for too

long. Refer to the section, page 4.

Frequency of on/off operations for cooking zones

• The on-off cycles vary according to the required heat level:

- low level: short operating time,

- high level: long operating time.

“H” display, residual heat indicator, blinking

• The electronic temperature is too high. A technician should verify

the fitting in compliance with the recommendations, page 2.

The hob does not operate or certain zones don’t work.

• The shunts are not positionned correctly on the terminal board.

Have a check made that the connection is done in compliance

with the recommendations page 2.7 FR LIRE ATTENTIVEMENT LA NOTICE POUR VOUS PERMETTRE DE TIRER LE MEILLEUR PARTI DE VOTRE APPAREIL.

acheté ce produit.02-2007 • Cod. 41023259

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out

modifications to products as required, including the interests of consumption, without prejudice to the characteristics relating to safety or function.

GB Le constructeur décline toute responsabilité concernant d’éventuelles inexacitudes imputables à des erreurs d’impression ou de transcription contenue dans cette
