USER MANUAL HK312000H AEG

7. PROBLEEMOPLOSSING 8

7. PROBLEEMOPLOSSING WAARSCHUWING!

PROD.NO.SER.NO.03 ITMADE IN ITALY TYPE IP20

8. MONTAGE WAARSCHUWING!

6. CARE AND CLEANING 18

10. ENERGY EFFICIENCY 21

FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you

impeccable performance for many years, with innovative technologies that help

make life simpler features you might not find on ordinary appliances. Please

spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

Register your product for better service:

Buy Accessories, Consumables and Original spare parts for your appliance:

CUSTOMER CARE AND SERVICE Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

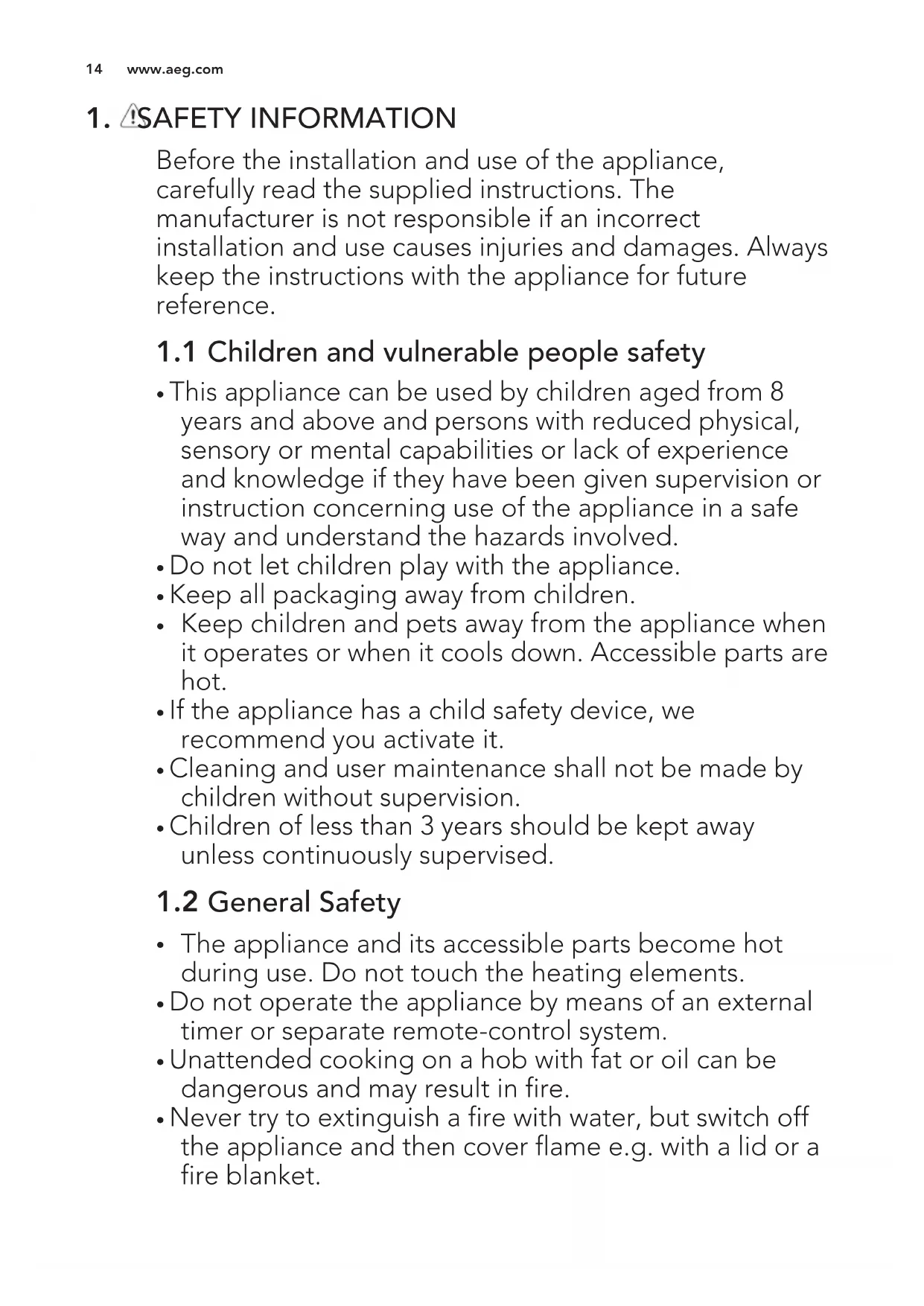

131. SAFETY INFORMATION Before the installation and use of the appliance,

carefully read the supplied instructions. The

manufacturer is not responsible if an incorrect

installation and use causes injuries and damages. Always

keep the instructions with the appliance for future

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

• Do not let children play with the appliance.

• Keep all packaging away from children.

Keep children and pets away from the appliance when

it operates or when it cools down. Accessible parts are

• If the appliance has a child safety device, we

recommend you activate it.

• Cleaning and user maintenance shall not be made by

children without supervision.

• Children of less than 3 years should be kept away

unless continuously supervised.

The appliance and its accessible parts become hot

during use. Do not touch the heating elements.

• Do not operate the appliance by means of an external

timer or separate remote-control system.

• Unattended cooking on a hob with fat or oil can be

dangerous and may result in fire.

• Never try to extinguish a fire with water, but switch off

the appliance and then cover flame e.g. with a lid or a

14• Do not store items on the cooking surfaces.

• Metallic objects such as knives, forks, spoons and lids

should not be placed on the hob surface since they

• Do not use a steam cleaner to clean the appliance.

• If the supply cord is damaged, it must be replaced by

the manufacturer, an authorized Service or similarly

qualified persons in order to avoid a hazard.

2. SAFETY INSTRUCTIONS

Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

• Obey the installation instruction

supplied with the appliance.

• Keep the minimum distance from the

other appliances and units.

• Always be careful when you move the

appliance because it is heavy. Always

• Seal the cut surfaces with a sealant to

prevent moisture to cause swelling.

• Protect the bottom of the appliance

from steam and moisture.

• Do not install the appliance adjacent

to a door or under a window. This

prevents hot cookware to fall from the

appliance when the door or the

• If the appliance is installed above

drawers make sure that the space,

between the bottom of the appliance

and the upper drawer, is sufficient for

• The bottom of the appliance can get

hot. Make sure to install a non-

combustile separation panel under

the appliance to prevent access to the

2.2 Electrical Connection

Risk of fire and electrical

• All electrical connections should be

made by a qualified electrician.

• The appliance must be earthed.

• Before carrying out any operation

make sure that the appliance is

disconnected from the power supply.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not, contact

• Make sure the appliance is installed

correctly. Loose and incorrect

electricity mains cable or plug (if

applicable) can make the terminal

• Make sure that a shock protection is

applicable) does not touch the hot

appliance or hot cookware, when you

connect the appliance to the near

• Do not use multi-plug adapters and

• Make sure not to cause damage to

the mains plug (if applicable) or to the

mains cable. Contact an Authorised

Service Centre or an electrician to

change a damaged mains cable.

15• The shock protection of live and

insulated parts must be fastened in

such a way that it cannot be removed

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

disconnect the appliance. Always pull

• Use only correct isolation devices: line

protecting cut-outs, fuses (screw type

fuses removed from the holder), earth

leakage trips and contactors.

• The electrical installation must have

an isolation device which lets you

disconnect the appliance from the

mains at all poles. The isolation

device must have a contact opening

width of minimum 3 mm.

Risk of injury, burns and

• Remove all the packaging, labelling

and protective film (if applicable)

• Use this appliance in a household

• Do not change the specification of

• Make sure that the ventilation

openings are not blocked.

• Do not let the appliance stay

unattended during operation.

• Set the cooking zone to “off” after

• Do not put cutlery or saucepan lids on

the cooking zones. They can become

• Do not operate the appliance with

wet hands or when it has contact with

• Do not use the appliance as a work

surface or as a storage surface.

• When you place food into hot oil, it

Risk of fire and explosion

• Fats and oil when heated can release

flammable vapours. Keep flames or

heated objects away from fats and oils

when you cook with them.

• The vapours that very hot oil releases

can cause spontaneous combustion.

• Used oil, that can contain food

remnants, can cause fire at a lower

temperature than oil used for the first

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

Risk of damage to the

• Do not keep hot cookware on the

• Do not let cookware to boil dry.

• Be careful not to let objects or

cookware fall on the appliance. The

surface can be damaged.

• Do not activate the cooking zones

with empty cookware or without

• Do not put aluminium foil on the

• This appliance is for cooking

purposes only. It must not be used for

other purposes, for example room

• Do not let acid liquids, for example

vinegar, lemon juice or limescale

remover, touch the hob. This can

2.4 Care and cleaning

• Clean regularly the appliance to

prevent the deterioration of the

• Deactivate the appliance and let it

cool down before you clean it.

• Disconnect the appliance from the

electrical supply before maintenance.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use abrasive products, abrasive

cleaning pads, solvents or metal

Risk of injury or suffocation.

• Contact your municipal authority for

information on how to discard the

appliance correctly.

• Disconnect the appliance from the

• Cut off the mains cable and discard it.

There is a risk of burns from

4. DAILY USE WARNING!

Refer to Safety chapters.

4.1 Before first use

Put cookware containing water on each

cooking zone, set the maximum position

and operate the hob for 10 min. This is to

burn off the residue in the appliance.

After that, operate the hob at minimum

position for 20 min. During this period,

an odour and smoke can occur. This is

normal. Make sure that the airflow is

4.2 Using the rapid hot plate

A red dot in the middle of the plate

shows a rapid hot plate. A rapid hot

plate heats up faster than usual plates.

The red dots are painted on the plates.

They can deteriorate during use and

even disappear completely after a period

of time. It does not have an effect on the

performance of the hob.

4.3 The heat setting

To set or change the heat setting turn

the knob to the correct heat setting. To

deactivate turn the knob to off position.

Power indicator activates when one or

more cooking zones are activated. When

you deactivate the cooking zones the

indicator deactivates. ENGLISH 174.4 Timer

You can use this function to set how long

First set the heat setting.

To activate the function: turn the knob

for the timer as far as possible. Then turn

it to the correct time period value.

When the time comes to an

end, the sound operates and

the hob deactivates.

You can use the timer as a Minute

First set the heat setting to off

To activate the function: turn the knob

for the timer as far as possible. Then turn

it to the correct time period value.

To operate the hob manually

turn the knob for the timer

5. HINTS AND TIPS WARNING!

Refer to Safety chapters.

The bottom of the cookware

must be as thick and flat as

Do not use cast iron pans,

potstones, earthenware, grill

or toaster plates. The

stainless steel can become

tarnished if it is too much

5.2 Examples of cooking

Bringing to the boil

3 Bringing to the boil / quick fry-

6. CARE AND CLEANING WARNING!

Refer to Safety chapters.

6.1 General information

• Clean the hob after each use.

• Always use cookware with clean

• Scratches or dark stains on the surface

have no effect on how the hob

• For stainless steel edges of the hob

use a special cleaner applicable for

the stainless steel.

www.aeg.com18• The stainless steel edge of the plate

can change the colour as a result of

• Wash stainless steel parts with water,

and then dry them with a soft cloth.

6.2 Cleaning the electric

1. Use the cleaning powder or the

2. Clean the hob with a moist cloth and

3. Heat the hotplate to a low

temperature and let it dry.

4. To keep the hotplates in good

shape, rub in a sewing machine oil

regularly. Polish off the oil with

7. TROUBLESHOOTING WARNING!

Refer to Safety chapters.

7.1 What to do if...

Problem Possible cause Remedy

You cannot activate or oper-

The hob is not connected to

an electrical supply or it is

connected incorrectly.

Check if the hob is correctly

connected to the electrical

supply. Refer to the connec-

The fuse is released. Make sure that the fuse is

the cause of the malfunction.

If the fuse releases again

and again, contact a quali-

7.2 If you cannot find a

If you cannot find a solution to the

problem yourself, contact your dealer or

an Authorised Service Centre. Give the

data from the rating plate. Make sure,

you operated the hob correctly. If not the

servicing by a service technician or

dealer will not be free of charge, also

during the warranty period. The

instructions about the Service Centre and

conditions of guarantee are in the

ENGLISH 197.3 Labels supplied with the

Stick the adhesive labels as indicated

PROD.NO.SER.NO DATA MOD.

PROD.NO.SER.NO DATA MOD.

PROD.NO.SER.NO.03 ITMADE IN ITALY TYPE IP20

A B C A) Stick it on Guarantee Card and send

this part (if applicable).

B) Stick it on Guarantee Card and keep

this part (if applicable).

C) Stick it on instruction booklet.

8. INSTALLATION WARNING!

Refer to Safety chapters.

8.1 Before the installation

Before you install the hob, write down

the information bellow from the rating

plate. The rating plate is on the bottom

Only use the built-in hobs after you

assemble the hob into correct built-in

units and work surfaces that align to the

8.3 Connection cable

• The hob is supplied with a connection

• To replace the damaged mains cable

use the following (or higher) mains

cable type: H05V2V2-F T min 90°C.

Speak to your local Service Centre.

Install the appliance only on

a worktop with flat surface.

8.5 Possibilities for insertion

The panel installed below the hob must

be easy to remove and let an easy access

in case a technical assistance

intervention is necessary.

Kitchen unit with door

min 20 mm(max 150 mm)30 mm60 mm

B A A) Removable panel

B) Space for connections

Kitchen unit with oven

The electrical connection of the hob and

the oven must be installed separately for

safety reasons and to let easy remove

9. TECHNICAL INFORMATION

9.1 Cooking zones specification Cooking zoneNominal Power (Max heat set-ting) [W]Cooking zone diameter [mm]Middle front 1500 145Middle rear 2000 180 For optimal cooking results use

cookware not larger than the diameter of

10. ENERGY EFFICIENCY

10.1 Product information according to EU 66/2014 Model identification HK312000HType of hob Built-In HobNumber of cooking zones 2Heating technology Solid Hot PlateENGLISH 21Diameter of circular cooking zones (Ø) Middle front

Energy consumption per cooking zone (ECelec-

Energy consumption of the hob (ECelectric hob) 210.0 Wh / kg

EN 60350-2 - Household electric cooking

appliances - Part 2: Hobs - Methods for

measuring performance

You can save energy during everyday

cooking if you follow bellow hints.

• Put the cookware on the cooking

zone before you activate it.

• The bottom of the cookware and the

cooking zones should have the same

• Put smaller cookware on smaller

• Put the cookware directly in the

centre of the cooking zone.

• When you heat up water use only the

• If it is possible, put the lids on the

• Use the residual heat to keep the

food warm or to melt it.

11. ENVIRONMENT CONCERNS Recycle the materials with the symbol .

Put the packaging in applicable

containers to recycle it. Help protect the

environment and human health and to

recycle waste of electrical and electronic

appliances. Do not dispose appliances

marked with the symbol with the

household waste. Return the product to

your local recycling facility or contact

your municipal office.

www.aeg.com22TABLE DES MATIÈRES

PROD.NO.SER.NO.03 ITMADE IN ITALY TYPE IP20

PROD.NO.SER.NO DATA MOD.

PROD.NO.SER.NO DATA MOD.

PROD.NO.SER.NO.03 ITMADE IN ITALY TYPE IP20
