USER MANUAL BR 7926 SEVERIN

Instructions for use

unter der Swirl® Art.-Nr. Y98® zu erhalten.

3Swirl® and Y98® are registered trademarks of a

company of the Melitta Group.

Ersatzteile und Zubehör

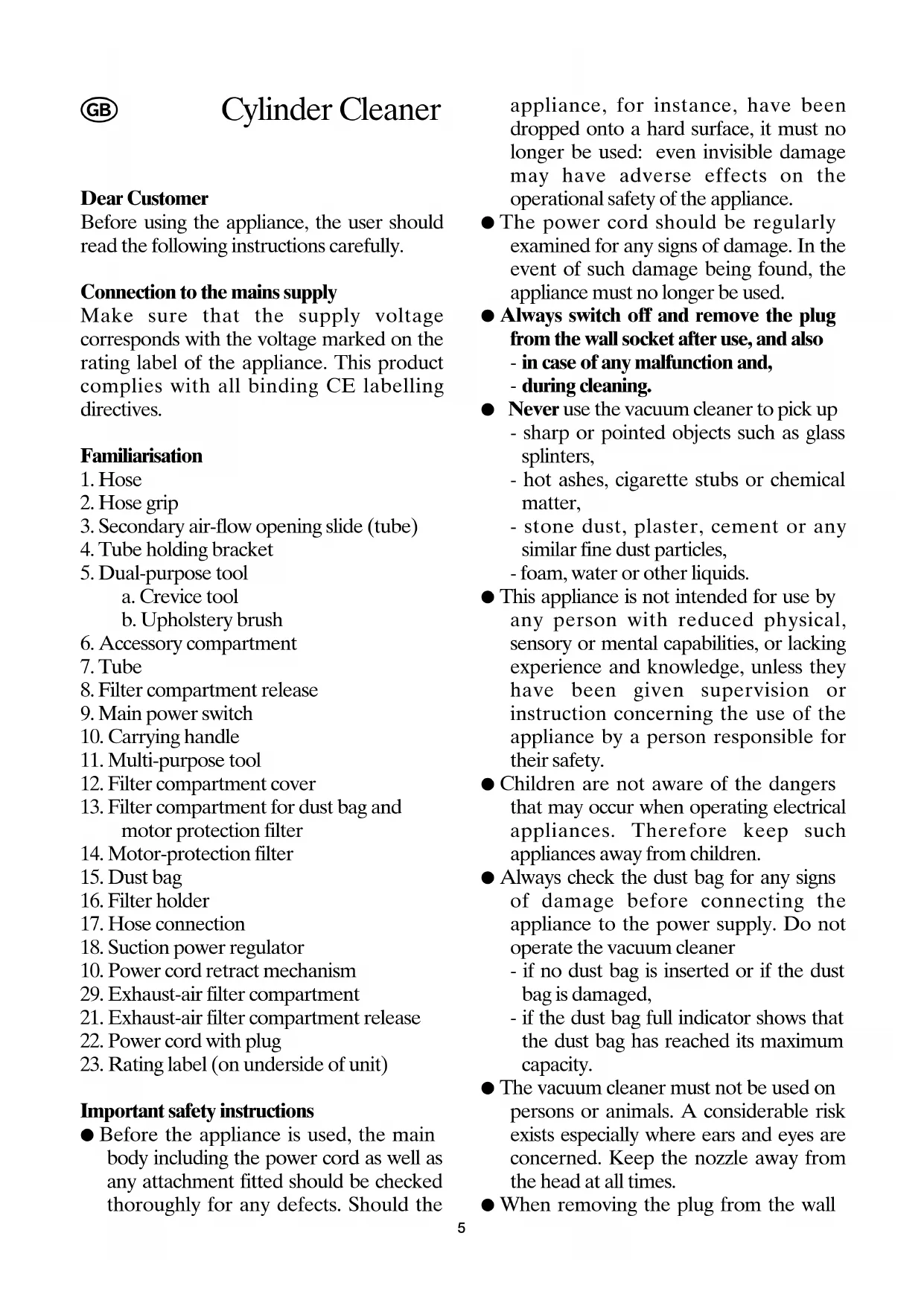

Before using the appliance, the user should

read the following instructions carefully.

Connection to the mains supply

Make sure that the supply voltage

corresponds with the voltage marked on the

rating label of the appliance. This product

complies with all binding CE labelling

5. Dual-purpose tool

6. Accessory compartment

8. Filter compartment release

9. Main power switch

11. Multi-purpose tool

12. Filter compartment cover

13. Filter compartment for dust bag and

motor protection filter

18. Suction power regulator

10. Power cord retract mechanism

29. Exhaust-air filter compartment

21. Exhaust-air filter compartment release

22. Power cord with plug

23. Rating label (on underside of unit)

Important safety instructions

● Before the appliance is used, the main

body including the power cord as well as

any attachment fitted should be checked

thoroughly for any defects. Should the

appliance, for instance, have been

dropped onto a hard surface, it must no

longer be used: even invisible damage

may have adverse effects on the

operational safety of the appliance.

● The power cord should be regularly

examined for any signs of damage. In the

event of such damage being found, the

appliance must no longer be used.

● Always switch off and remove the plug

from the wall socket after use, and also

- in case of any malfunction and,

● Never use the vacuum cleaner to pick up

- sharp or pointed objects such as glass

- hot ashes, cigarette stubs or chemical

- stone dust, plaster, cement or any

similar fine dust particles,

- foam, water or other liquids.

● This appliance is not intended for use by

any person with reduced physical,

sensory or mental capabilities, or lacking

experience and knowledge, unless they

have been given supervision or

instruction concerning the use of the

appliance by a person responsible for

● Children are not aware of the dangers

that may occur when operating electrical

appliances. Therefore keep such

appliances away from children.

● Always check the dust bag for any signs

of damage before connecting the

appliance to the power supply. Do not

operate the vacuum cleaner

- if no dust bag is inserted or if the dust

- if the dust bag full indicator shows that

the dust bag has reached its maximum

● The vacuum cleaner must not be used on

persons or animals. A considerable risk

exists especially where ears and eyes are

concerned. Keep the nozzle away from

the head at all times.

● When removing the plug from the wall

socket, never pull on the power cord;

always grip the plug itself.

● No responsibility will be accepted if

damage results from improper use, or if

these instructions are not complied with.

● This appliance is intended for domestic

use only and is not designed for medical

or commercial applications.

● In order to comply with safety

regulations and to avoid hazards, repairs

of electrical appliances must be carried

out by qualified personnel, including the

replacement of the power cord. If repairs

are needed, please send the appliance to

one of our customer service departments.

The addresses can be found in the

appendix to this manual.

Before using for the first time

Remove the appliance from its

Remove any exterior and interior

packaging materials and make sure that

the dust bag, the motor-protection and

exhaust air filters are correctly inserted.

Thermal safety cut-out

This vacuum cleaner is equipped with an

integral thermal safety cut-out, which

automatically switches the appliance off in

case of overheating (e.g. due to blockage in

the tube or filter). Should this occur, remove

the plug from the wall socket and let the

appliance cool down for a minimum of one

hour. The vacuum cleaner may then be used

again after the blockage has been removed.

Put the vacuum cleaner in its horizontal

Insert the hose into the hose connection.

Connect the tube to the hose grip.

Attach any of the nozzles provided to the

end of the tube. If the full tube length is

not required (e.g. when using the

upholstery tool), the nozzle may be

attached directly to the hose grip.

Pull out the power cord from its storage

to the necessary length (but not beyond

the red mark) and insert the plug into a

suitable wall socket.

In addition, the suction power can be

decreased further by opening the

secondary air-flow opening slide in the

Always start with a low setting when

cleaning soft objects such as curtains.

● Always ensure that the power cord is not

routed around or runs over corners or

edges, and that it cannot be jammed in a

During operation, the hose may be used

to pull the unit along behind you.

However, when carrying the unit, always

use the carrying handle.

● To prevent the power cord from being

pulled with excessive force, always

change to the next suitable wall socket

when cleaning larger areas.

Switch off the appliance after use and

remove the plug from the wall socket.

To retract the power cord automatically

into its storage, press the foot switch of

the retract mechanism.

The dual-purpose tool is located in the

accessories compartment.

The multi-purpose tool is especially suitable

for cleaning large areas.

Fold out the brush element of the dual-

purpose tool in the direction indicated by the

arrow until it locks into place.

This brush tool is suitable for cleaning

uneven areas such as upholstered surfaces,

picture frames, rows of books etc.

The crevice tool is designed to clean difficult-

to-reach areas such as grooves, niches,

corners and crevices.

6Changing dust bag or filters

● Before any filter is changed, always

switch the appliance off and remove the

plug from the wall socket.

The vacuum cleaner uses replaceable filters.

When replacing the motor or exhaust-air

filter, it may be necessary to cut the filters to

size with a pair of scissors.

The indicator shows when the dust bag

needs changing: as soon as it is permanently

illuminated, the dust bag has reached its

capacity. The appliance must be switched off

before the bag is replaced.

A noticeable decrease in vacuuming power

also indicates that the dust bag has reached

Changing the dust bag

Remove the hose from the unit by

pressing the two buttons at the end of the

Press the filter compartment release and

open the compartment.

Remove the filter holder with the dust

bag attached by lifting it out.

Pull the full dust bag from the filter

Fit the cardboard frame of the new dust

bag into the filter holder.

Insert the filter holder with the new bag

into the filter compartment.

Close the cover of the filter compartment

by pressing down lightly until it is heard

Changing the motor-protection filter

The motor-protection filter is located at the

rear of the filter compartment. Should the

filter be visibly dirty, replacement is

recommended at the same time as the dust

Remove the old motor-protection filter

from its holding bracket.

Insert a new motor-protection filter into

Changing the exhaust-air filter

The exhaust-air filter is located in the

exhaust-air filter compartment. Should the

filter be visibly dirty, replacement is

Press the release button to open the

exhaust-air filter compartment.

Remove the cover and lift out the

exhaust-air filter holder.

Change the exhaust-air filter.

Replace the filter holder into the filter

compartment with its grid facing

Close the cover of the filter compartment

by pressing down lightly until it is heard

● Before cleaning the appliance, ensure it is

switched off and disconnected from the

● To avoid the risk of electric shock, do not

clean the appliance with water and do

not immerse it in water.

The housing of the unit and the

accessories may be cleaned with a dry or

slightly damp lint-free cloth.

Do not use abrasives or harsh cleaning

Replacement filter sets may be obtained

through the SEVERIN Service, quoting

article no. SB 9099.

Suitable replacement filters type Swirl®

Y98® are also available at most dealers.

Swirl® and Y98® are registered trademarks of a

company of the Melitta Group.

Do not dispose of old or defective

appliances in domestic garbage;

this should only be done through

public collection points.

This product is guaranteed against defects in

materials and workmanship for a period of

two years from the date of purchase. Under

this guarantee the manufacturer undertakes

7to repair or replace any parts found to be

defective, providing the product is returned

to one of our authorised service centres. This

guarantee is only valid if the appliance has

been used in accordance with the

instructions, and provided that it has not

been modified, repaired or interfered with

by any unauthorised person, or damaged

This guarantee naturally does not cover

wear and tear, nor breakables such as glass

and ceramic items, bulbs etc. If the product

fails to operate and needs to be returned,

pack it carefully, enclosing your name and

address and the reason for return. If within

the guarantee period, please also provide the

guarantee card and proof of purchase.
