USER MANUAL UE46C9005 SAMSUNG

© 2010 Samsung Electronics Co., Ltd. All rights reserved.BN68-02820J-00 LED TV user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and specifications may be changed without notice.

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are

broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local

dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast

transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so

on, are not included in this specification. So, they cannot be workable at this moment.

3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and

DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may

be required to agree to terms and conditions of their business.

5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV

performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or

Avoid displaying still images (like jpeg picture files) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at

screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of

this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try do display any image on full screen, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.

• Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

Installation with a stand. Installation with a wall-mount.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger,

headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible

harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste

and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the

retailer where they purchased this product, or their local government office, for details of where and how they can take these items

for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase

contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other

household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery

contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of,

these substances can cause harm to human health or the environment. To protect natural resources and to promote material

reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

[UC9000]BN68-02820J-ZG.indb 2 2010-05-24 오후 8:08:563

ENGLISH English Contents

5 Viewing the Control Panel

6 Mini Remote Control

7 Viewing the Touch Control

10 Connecting to an Antenna

11 Plug & Play (Initial Setup)

12 Connecting to an AV Device

14 Connecting to an Audio Device

15 Changing the Input Source

15 How to Navigate Menus

16 Using the INFO button (Now & Next guide)

16 Planning Your Viewing

31 Connecting to a PC

57 Securing the TV to the wall

61 Enclosed Wireless LAN Adapter

t This function can be used by pressing the TOOLS button on the remote control.Note One-Touch ButtonTOOLS [UC9000]BN68-02820J-ZG.indb 3 2010-05-24 오후 8:08:574 English Getting Started

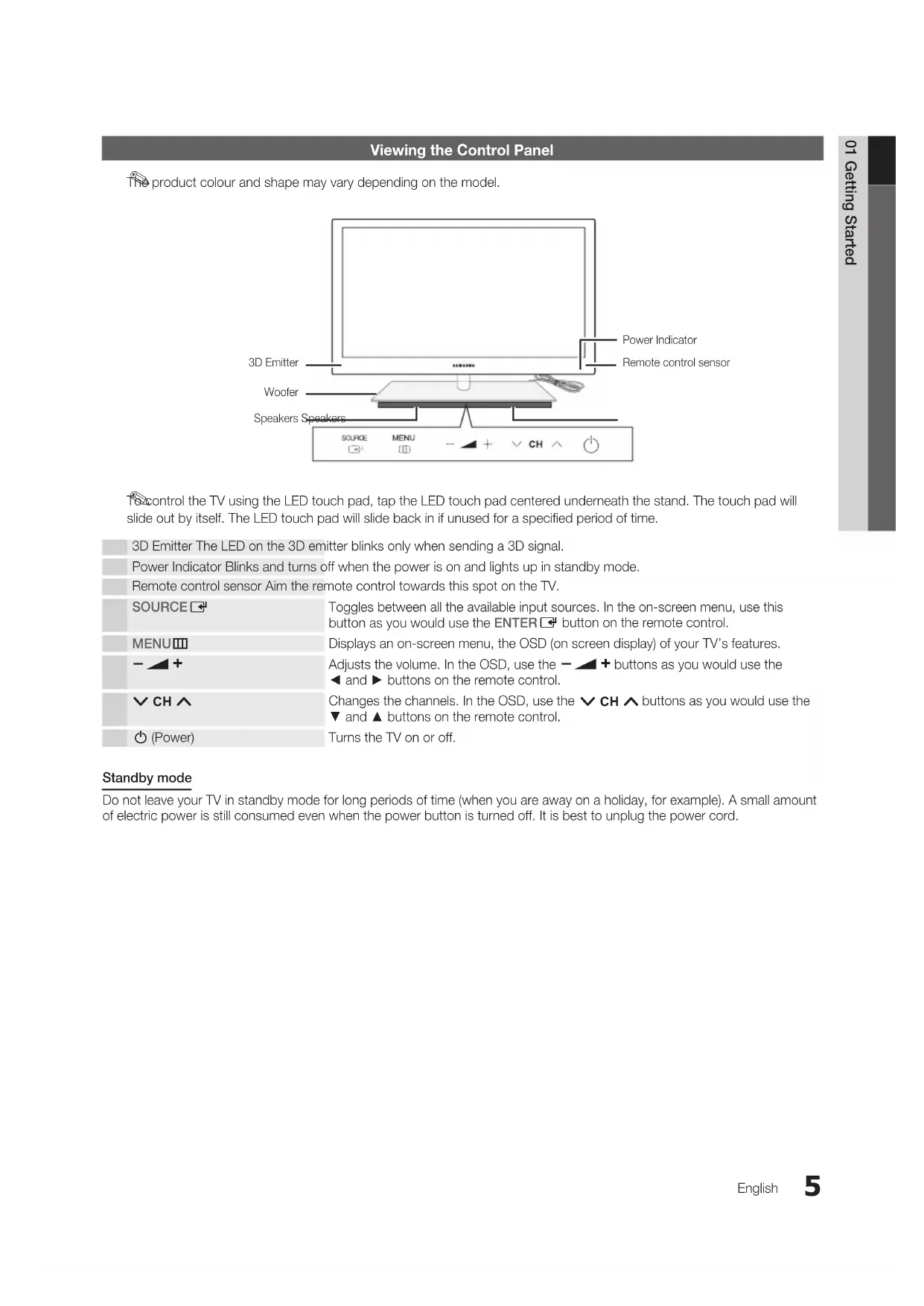

Viewing the Control Panel

The product colour and shape may vary depending on the model.

To control the TV using the LED touch pad, tap the LED touch pad centered underneath the stand. The touch pad will

slide out by itself. The LED touch pad will slide back in if unused for a specified period of time.

3D Emitter The LED on the 3D emitter blinks only when sending a 3D signal.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCE E Toggles between all the available input sources. In the on-screen menu, use this

button as you would use the ENTER E

button on the remote control.

Displays an on-screen menu, the OSD (on screen display) of your TV’s features.

Y Adjusts the volume. In the OSD, use the

buttons as you would use the

◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the

buttons as you would use the

▼ and ▲ buttons on the remote control.

Turns the TV on or off.

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount

of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

Remote control sensor

[UC9000]BN68-02820J-ZG.indb 5 2010-05-24 오후 8:09:026

Getting Started EnglishMini Remote ControlThe Mini Remote Control is a simplified remote control that consists of the power, channel and volume buttons only. ¦ Description

✎ This is a special remote control for the visually impaired and has Braille points on the Channel and Volume buttons. ¦ Inserting the battery 1. Turn the battery cover counterclockwise to unlock it and then separate the battery cover.2. Insert a 3V Lithium battery with the + side facing down into the battery cover.3. Place the battery cover into the remote control aligning it with the grooves and then turn the battery cover clockwise to lock the cover. ✎ If the remote control doesn’t work, check the following: x Is the TV power on? x Are the plus and minus ends of the batteries reversed? x Are the batteries drained? x Is there a power outage or is the power cord unplugged? x Is there a special fluorescent light or neon sign nearby?Previous channelNext channelVolume decreaseVolume increasePower On/Off buttonIrDA transmitter ✎ Point the IrDA transmitter at the TV to use the mini remote.

Power Turn the TV on and off.

MUTE Mute or unmute the sound.

SOURCE Display the source list (TV, PC, etc.) on the screen.

Volume Press to control the volume.

Channel Press to change channels.

¦ Inserting the battery

1. Slide and open the battery cover

in the direction of the arrow.

2. Insert the battery with the

Samsung logo facing up.

3. Slide and close the battery

cover in the direction of the

P MUTE SOURCE P MUTE SOURCE Battery cover

Front View Rear View

Drag to the Left direction

INTERNET@TV: Link to various internet

MEDIA.P: Displays Media Play (p. 39).

3D: Sets the 3D mode. (p. 22).

AD: Turns the audio description on and off (p.

26). This is not available in some locations.

CHLIST: Displays channel lists on the screen

SRS: Selects SRS TruSurround HD mode

P.SIZE: Selects the picture size (p. 21).

SUBT.: Displays digital subtitles (p. 28).

I-II DUAL: Sound effect selection (p. 27).

Alternately select Teletext ON, Double, Mix or OFF.

Returns to the previous channel.

Press to directly access channels.

CONTENT: Displays the Content View, which includes Guide, Internet@TV, Media Play, AllShare

: Quickly select frequently used functions.

Use these buttons in Media Play and Anynet+ modes (p. 39, 48).

(�: Controls recording for Samsung recorders that have the Anynet+ feature)

Selects the on-screen menu

items and changes the values

¦ Setting Up Your Remote

You can set up your 3” LCD Touch Control to control your TV in three ways:

As a standard, IR (Infra Red) remote

As an IR remote, your LCD Touch Control works the same way as a standard push button remote, except you touch icons and

symbols on the LCD screen to control your TV instead of pushing buttons. Using your Touch Control as an IR remote requires

no more set up than a standard remote and gives you access to most of the remote’s functions and features.

As an extended distance, Wi-Fi remote

As an extended distance, Wi-Fi remote, your Touch Control offers all the functions and features of the IR mode and, because

it uses Wi-Fi radio waves instead of infra red waves to control your TV, it lets you control your TV from a much greater distance

and even from around corners. It also gives you access to the Twin Display function which lets you watch the Programme

or content that is on your TV screen on the LCD screen of the Touch Control. The long distance, Wi-Fi mode requires a few

additional setup steps; possibly including re-initialization. It also requires you to attach Samsung’s Wireless LAN Adapter

(WIS09ABGN, WIS09ABGN2, or WIS10ABGN) to one of your TV’s USB ports.

As a networked, Wi-Fi remote

As a networked, Wi-Fi remote, your Touch Control gives you all the functions and features of the IR and the extended distance

modes and also gives you access to the Multimedia function which lets you listen to or view music, movie, and picture files

from your PC on your TV screen. You can also download upgrades to your Touch Control’s software directly from the Internet.

The networked, Wi-Fi mode requires the largest number of setup steps. In addition, to use the networked, Wi-Fi mode,

you need a working local area network and a wireless router. You also need to attach Samsung’s Wireless LAN Adapter

(WIS09ABGN, WIS09ABGN2, or WIS10ABGN) to one of your TV’s USB ports. To use the Multimedia function, you need to

install Samsung’s PC Share Manager on your PC. You can download PC Share Manager from http://www.samsung.com.

¦ Setting up the Network

You can set up a wireless network for the 3-inch remote control.

How to connect using PBC (WPS)

If your router has a PBC (WPS) button, follow these steps:

1. Connect your TV to your LAN.

2. On the Services screen, touch Settings → Remote Settings.

4. Touch the PBC(WPS).

5. If the Press PBC button on the access point within 120 seconds. message appears,

press the PBC button on the device to connect.

For more information, refer to the wireless network setup manual of the device to be connected.

6. If the device is connected properly to the TV after starting count on message box then message box will be disappeared

If the connection fails, please retry after 2 minutes.

Connecting to network

To setup the wireless connection automatically, follow these steps:

1. Follow Steps 1 through 3 in the “How to connect using PBC (WPS)” procedure.

If the intended network cannot be found in the list, select to open the list of

2. Select a network and connect to the network using the encryption method (PIN, security

key, ad-hoc, etc.) set for the network.

3. When the network connection is complete, select Test to perform a network test.

For the automatic IP, the AP will automatically define the IP Address, Subnet Mask,

Gateway and DNS server.

For the manual IP, you can select Edit and directly enter the IP Address, Subnet

Mask, Gateway and DNS server.

For Full Touch Control instructions, please read the Touch Control's user manual. Press the PBC button on the access point within 120 seconds.Remaining Time : 112 Stop NetworkAuto CongurationPBC(WPS)Select a network.UnsecuredUnsecuredSecuredSecured [UC9000]BN68-02820J-ZG.indb 9 2010-05-24 오후 8:09:0510

Getting Started EnglishANT OUTVHF/UHF AntennaCable or

¦ Operating specification for dual view Main TVDTV ATV Scart AV Comp. PC HDMITouch Control DTV ◎ ● O O O O OATV X △ X X O O OSCART X X △ X X X X AV X X X △ X X X Comp. X X X X △

X X PC X X X X X X XHDMI X X X X X X △

: <Preview> and <Twin Display> are enabled. Note that only Free channels are available for <Preview>.

: <Preview> enabled. Only Free channels are available.

: <Preview> enabled. Free / Scrambled channels are available. : <Twin Display> enabled.: Disabled. ✎

Scart output: disabled when a Touch Control signal is outputted.

The Touch Control screen will freeze a few seconds while the input source of the TV switches.

A message appears saying “Not Supported Mode” if the network condition is poor. Check the network connection and try again. ✎

<Twin Display> or <Preview> may be restricted on the touch control if one of the following functions or modes is

– PVR, Media Play, Internet@TV, AllShare, or PC mode.

Connecting to an Antenna When the TV is initially powered on, basic settings proceed automatically. ✎

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the

button. Plug & Play is available only when the Input source is set to TV.

y Turn on the Touch Control and then tap OK on your

It may take about one minute to establish a wireless

connection between the TV and Touch Control

using the Samsung Wireless LAN Adapter.

y Connect the Samsung Wireless LAN Adapter to the TV. You can connect the Samsung

Wireless LAN Adapter using one of the methods shown on page 35.

y If the connection fails, reconnect the Samsung Wireless LAN Adapter and then try again.

Select the desired OSD (On Screen Display) language.

y Select the Home Use mode. Store Demo mode is for retail environments.

y To return the unit’s settings from Store Demo to Home Use (standard): Press the volume

button on the TV. When the OSD volume is displayed, press and hold MENU for 5 sec.

Select the appropriate country.

After selecting the country in the Country menu, some models may proceed with an

additional option to setup the pin number.

Select the channel source to memorise. When setting the antenna source to Cable, a step

appears allowing you to assign numerical values (channel frequencies) to the channels. For

more information, refer to Channel → Auto Store (p. 18).

button at any time to interrupt the memorisation process.

(depending on the country)

Viewing the HD Connection Guide.

The connection method for the best HD screen quality is displayed.

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to

change the PIN number, use the Change PIN function.

[UC9000]BN68-02820J-ZG.indb 11 2010-05-24 오후 8:09:0812 English Connections

Connecting to an AV Device Using an HDMI or HDMI/DVI cable (up to 1080p) Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, STB satellite receiver

✎ HDMI IN 1(DVI), 2(ARC), 3, 4, PC/DVI AUDIO IN x For better picture and audio quality, connect to a digital device using an HDMI cable. x An HDMI cable supports digital video and audio signals, and does not require an audio cable. – To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables. x The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade. x Be sure to use an HDMI cable with a thickness of 14 mm or less. x Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur. x A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the ethernet function via HDMI. x This product supports the 3D and ARC (Audio Return Channel) functions via an HDMI cable. Note that the ARC function is supported by the HDMI IN 2(ARC) port only. – If 3D Auto View is set to On, some functions such as Internet@TV may be disabled. In this case, set

3D Auto View or 3D Mode to Off.

The ARC function allows digital audio to output via the HDMI IN 2(ARC) port. It can be enabled only when the TV is connected with an audio receiver that supports the ARC function.WhiteRed WR DVI OUT R-AUDIO-L AUDIO OUTHDMI OUTDVD / Blu-ray player DVD / Blu-ray player [UC9000]BN68-02820J-ZG.indb 12 2010-05-24 오후 8:09:1013

Using a Component (up to 1080p) or Audio/Video (480i only) and Scart Cable

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

[UC9000]BN68-02820J-ZG.indb 13 2010-05-24 오후 8:09:1114 English Connections

Connecting to an Audio Device Using an Optical (Digital) Cable ConnectionAvailable devices: digital audio system, amplifier, DVD home theatre ✎ DIGITAL AUDIO OUT (OPTICAL) x

When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system. x 5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH. x When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.OPTICALdigital audio systemCONNECTIONS COMMON INTERFACE SlotTo watch paid channels, the “CI or CI+ CARD” must be inserted. y If you don’t insert the “CI or CI+ CARD,” some channels will display the message “Scrambled Signal”. y The pairing information containing a telephone number, the “CI or CI+ CARD” ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider. y When the configuration of channel information has finished, the message “Updating Completed” is displayed, indicating the channel list is updated. ✎

x You must obtain a “CI or CI+ CARD” from a local cable service provider. x When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may cause damage to it. x Insert the “CI or CI+ CARD” in the direction marked on the card. x The location of the COMMON INTERFACE slot may be different depending on the model. x “CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer. x If you have any problems, please contact a service provider. x Insert the “CI or CI+ CARD” that supports the current antenna settings. The screen will be distorted or will not be seen. [UC9000]BN68-02820J-ZG.indb 14 2010-05-24 오후 8:09:1315 English 02 Connections

Changing the Input Source

Source List Use to select TV or other external input sources such as DVD / Blu-ray players / cable box / STB satellite receiver connected to the TV. ■ TV / Ext. / PC / AV / Component / HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 / USB ✎ In the Source List, connected inputs will be highlighted. ✎ Ext. and PC always stay activated. Edit Name ■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection easier. ✎ When a PC with a resolution of 1920 x 1080 @ 60Hz is connected to the HDMI IN 1(DVI) port, you should set to DVI PC mode under Edit Name. ✎ When connecting an HDMI/DVI cable to the HDMI IN 1(DVI) port, you should set to DVI PC or DVI Devices mode under Edit Name. ✎ If an HDMI cable is connected to the HDMI IN 1(DVI) port, the audio may not work. In this case, connect to the PC/DVI AUDIO IN port. How to Navigate Menus Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.KeyboardNavigationTV Control ServicesCONTENT MENU GUIDEKeyboardTV Control Services 1

Using the INFO button (Now & Next guide)

The display identifies the current channel and

the status of certain audio-video settings.

The Now & Next guide shows daily TV

programme information for each channel

according to the broadcasting time.

y Scroll ◄, ► to view information for a

desired programme while watching the

y Scroll ▲, ▼ to view information for other channels. If you

want to move to the currently selected channel, press

E Planning Your Viewing

The EPG (Electronic Programme Guide)

information is provided by broadcasters.

Using programme schedules provided

by broadcasters, you can specify

programmes you want to watch in

advance so that the channel automatically

changes to the selected programme

channel at the specified time. Programme

entries may appear blank or out of date depending on a

Using Scheduled View

Red (View Mode): View the list of programmes that

are playing now or coming up.

Yellow (+24 Hours): Viewing the list of programmes to

be broadcasted after 24 hours.

Blue (Ch. Mode): Select the type of channels you

want to display on the Channel View window. (All, TV,

Radio, Data/Other, My Channel 1~4)

4 Information: Displays details of the selected

(Page): Move to next or previous page.

– When selecting the current programme, you can

watch the selected programme.

– When selecting the future programme, you can

reserve to watch the selected programme. To cancel

the schedule, press the ENTER E

Delete or set favourites channels and use the programme

guide for digital broadcasts. Select a channel in the

Channels, My Channels or Scheduled screen.

Channels: Shows the channel list according to

Dani is devastated when scott makes clear his views on marriage...

QVC R4DTT American Chopper

Programmes resume at 06:00

Tanya confesses all to a stunned Babs. Conrad is anxious to hear...

[UC9000]BN68-02820J-ZG.indb 16 2010-05-24 오후 8:09:1717 English 03 Basic Features ■ *

My Channels: Shows the group of the channel. ■Scheduled: Shows all the currently reserved programmes. ✎ Using the colour buttons with the Channel Manager x

Red (Antenna): Toggle among Air or Cable. x

B Green (Zoom): Enlarges or shrinks a channel number. x

Yellow (Select): Select desired channels and press the Yellow button to set all the selected channels at the same time. The c mark appears to the left of the selected channels. x

Blue (Sort): Change the list ordered by channel name or channel number. x

k (Page): Move to next or previous page. x

(Tools): Displays the Channel Manager option menu. (The options menus may differ depending on the situation.)Channel Status Display IconsIcons Operations A An analogue channel. c A channel selected. * A channel set as a Favourite. ( A programme currently being broadcast. \ A locked channel. ) A reserved programme. Guide Type (Samsung / Guide Plus+) (depending on the country)You can select a different type of Guide. ■ Samsung: Uses the guide programme by provided samsung. ■ Guide Plus+: Uses the guide programme provided by Rovi International Solutions. For more information, refer to “www.europe.guideplus.com.” ¦ Using Favourite Channels

My Channels (in Channel Manager)Shows all favourite channels. ■ Edit My Channels t : You can set the selected channels to desired my channels group. ✎ The “ * ” symbol will be displayed and the channel will be set as a my channel. 1. Select a channel and press the TOOLS button. 2. Add or delete a channel in the my channel groups you want among 1, 2, 3 and 4. x One or more groups can be selected.3. After you have changed the settings, the channel list for each group can be viewed in my channels. Channel List You can see all the channels searched.CHLISTc 1 1futech 2 * 24ore.tv 15 abc1 3 BBC World 23 bid-up.tv 33 Boonerang 32 Cartoon Nwk 5 Class News 4 \ Coming Soon 27 DiscoveryrAir Antenna

TV RadioData/OtherAnalogue [UC9000]BN68-02820J-ZG.indb 17 2010-05-24 오후 8:09:1918 English Basic Features Channel Menu ¦ Retuning Channels

Antenna (Air / Cable) Before your television can begin memorising the available channels, you must specify the type of signal source that is connected to the TV (i.e. an Air or a Cable system). Country The PIN input screen appears. Enter your 4 digit PIN number. ■ Digital Channel: Change the country for digital channels. ■ Analogue Channel: Change the country for analogue channels. Auto Store Scans for a channel automatically and stores in the TV. ✎ Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Child Lock function, the PIN input window appears. ■ Antenna Source (Air / Cable) t : Select the antenna source to memorise. ■ Channel Source (Digital & Analogue / Digital / Analogue): Select the channel source to memorise. When selecting Cable → Digital & Analogue or Digital: Provide a value to scan for cable channels.Search Mode (Full / Network / Quick): Scans for all channels with active broadcast stations and stores them in the TV. ✎ If you select Quick, you can set up the Network, Network ID, Frequency, Modulation and Symbol Rate manually by pressing the button on the remote control.Network (Auto / Manual): Selects the Network ID setting mode among Auto or Manual. Network ID: When Network is Manual, you can set up Network ID using the numeric buttons.Frequency: Displays the frequency for the channel. (differs in each country)Modulation: Displays available modulation values.Symbol Rate: Displays available symbol rates. Manual Store Scans for a channel manually and stores in the TV. ✎ If a channel is locked using the Child Lock function, the PIN input window appears. ■ Digital Channel: When scanning has finished, channels are updated in the channel list. ✎

When selecting Antenna → Air: Channel, Frequency, Bandwidth ✎

When selecting Antenna → Cable: Frequency, Modulation, Symbol Rate ■ Analogue Channel (Programme, Colour System, Sound System, Channel, Search): If there is abnormal sound or no sound, reselect the sound standard required. ✎ Channel mode x P (programme mode): When tuning is complete, the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode. x C (aerial channel mode) / S (cable channel mode): These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel. ¦ Editing Channels Channel Manager Option Menu (in Channel Manager) 1. Select a channel and press the TOOLS button. 2. Edit the channel name or number using the Edit Channel Name or Edit Channel Number menu. ■ Edit Channel Name (analogue channels only): Assign your own channel name. ■ Edit Channel Number (digital channels only): Edit the number by pressing the number buttons desired. ¦ Other Features

Cable Search Option (depending on the country) Sets additional search options such as the frequency and symbol rate for a cable network search. ■ Freq.Start / Freq.Stop: Set the start or stop frequency (differs in each country). ■ Symbol Rate: Displays available symbol rates.

■ Modulation: Displays available modulation values.

[UC9000]BN68-02820J-ZG.indb 18 2010-05-24 오후 8:09:1919 English 03 Basic Features

Channel Manager Channel Manager Option Menu Set each channel using the Channel Manager menu options (Lock / Unlock, Timer Viewing, Timer Recording, Sort, Delete, Select All / Deselect All). Option menu items may differ depending on the channel status. 1. Select a channel and press the TOOLS button. 2. Select a function and change its settings. ■ Lock / Unlock: Lock a channel so that the channel cannot be selected and viewed. ✎

x This function is available only when the Child Lock is set to On. x The PIN input screen appears. Enter your 4-digit PIN, the default of which is “0-0-0-0”. Change the PIN using the Change PIN option. ■ Timer Viewing: You can set a desired channel to be displayed automatically at the reserved time. Set the current time first to use this function. ✎ When a digital channel is selected, press the ► button to view the digital Programme. ■ Timer Recording (digital channels only): Allows you to record a programme currently being broadcasted or make a reservation to record a programme scheduled for broadcast. ✎ A USB device with 4GB of memory or greater must be connected to the TV. ✎ A USB storage device cannot record until it completes the Device Performance Test. ✎ In case of USB-HDD, over 5400rpm ✎ In case of USB Stick, USB 2.0 and SLC Type. (Minimum size of USB Stick is 2GB.) ✎ To record, press the � (REC) button on the remote. Press � (REC) twice to set the recording duration. ■ Sort (analogue channels only): This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store. ■ Delete: You can delete a channel to display the channels you want. ■ Select All / Deselect All: Select all the channels or deselect all the selected channels in the channel manager. Channel List Transfer The PIN input screen appears. Enter your 4 digit PIN number. Imports or exports the channel map. You should connect a USB storage to use this function. ■ Import from USB: Import channel list from USB.

■ Export to USB: Export channel list to USB. this function is available when USB is connected. Scheduled (in Channel Manager)You can view, modify or delete a show you have reserved to watch. ■ Change Info: Change a show you have reserved to watch. ■ Cancel Schedules: Cancel a show you have reserved to watch. ■ Information: Display a show you have reserved to watch. (You can also change the reservation information.) ■ Select All / Deselect All: Select or deselect all reserved programmes. Fine Tune (analogue channels only) If the signal is weak or distorted, fine tune the channel manually. ✎ Fine tuned channels are marked with an asterisk “*”. ✎ To reset the fine-tuning, select Reset. Picture Menu

¦ Changing the Preset Picture Mode

t Select your preferred picture type. ■ Dynamic: Suitable for a bright room. ■ Standard: Suitable for a normal environment. ■ Natural: Suitable for reducing eye strain. ✎ Natural is not available in PC mode. ■ Movie: Suitable for watching movies in a dark room.

[UC9000]BN68-02820J-ZG.indb 19 2010-05-24 오후 8:09:2020 English Basic Features

¦ Adjusting Picture Settings

Backlight / Contrast / Brightness /

Sharpness / Colour / Tint (G/R) Your television has several setting options for picture quality control. ✎

x In analogue TV, Ext., AV modes of the PAL system, the Tint (G/R) function is not available. x In PC mode, you can only make changes to Backlight, Contrast and Brightness. x Settings can be adjusted and stored for each external device connected to the TV. ¦ Economical Solutions

Eco Solution ■ Energy Saving (Off / Low / Medium / High / Picture Off / Auto) t : This adjusts the brightness of the TV in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on. Press any button except volume button to turn on the screen. ■ Eco Sensor (Off / On): To enhance your power savings; the picture settings will automatically adapt to the light in the room. ✎ If you adjust the Backlight, the Eco Sensor will be set to Off. Min Backlight: When Eco sensor is On, the minimum screen brightness can be adjusted manually. ✎ If Eco Sensor is On, the display brightness may change (become slightly darker or brighter) depending on the surrounding light intensity. ■ No-Signal Power Off (Off / 15 min / 30 min / 60 min): To avoid unnecessary energy consumption, set how long you want the TV to remain on if it’s not receiving a signal. ✎ Disabled when the PC is in power saving mode. ¦ Changing the Picture Options

Advanced Settings (available in Standard / Movie mode) You can adjust the detailed setting for the screen including colour and contrast. ✎ In PC mode, you can only make changes to Dynamic Contrast, Gamma, White Balance and LED Motion Plus. ■ Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the screen depth. ■ Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast. ■ Shadow Detail (-2~+2): Increase the brightness of dark images. ■ Gamma: Adjust the primary colour intensity.

■ Expert Pattern (Off / Pattern1 / Pattern2): By running the Expert Pattern function, the picture can be calibrated without a generator or filter. If the OSD menu disappears or a menu other than the Picture menu is opened, the calibration is saved and the Expert Pattern window disappears. ✎ While the Expert Pattern is running, sound is not outputted. ✎ Only enabled on DTV, Component / HDMI modes. ■ RGB Only Mode (Off / Red / Green / Blue): You can

adjust Colour or Tint (G/R) of Red, Green or Blue for the picture from an external device (DVD player, home theatre, etc.). ■ Colour Space (Auto / Native / Custom): Adjust the range of colours available to create the image. To adjust Colour, Red, Green, Blue and Reset, set Colour Space to Custom.Advanced SettingsBlack Tone : Off ►Dynamic Contrast : MediumShadow Detail : -2Gamma : 0Expert Pattern : OffRGB Only Mode : OffColour Space : Native ▼

■ White Balance: Adjust the colour temperature for a

more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each colour’s

(red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each colour’s (red,

green, blue) brightness.

Reset: Resets the White Balance to it’s default settings.

■ 10p White Balance (Off / On): Controls the white

balance in 10 point interval by adjusting the red, green,

and blue brightness.

Available when the picture mode is set to Movie

and when the external input is set to all input.

Some external devices may not support this

Interval: Select interval to adjust.

Red: Adjust the red level.

Green: Adjust the green level.

Blue: Adjust the blue level.

Reset: Resets the 10p White Balance to its default

■ xvYCC (Off / On): Setting the xvYCC mode on

increases detail and colour space when watching movies

from an external device (e.g. DVD player) connected to

the HDMI or Component IN jacks.

Available when the picture mode is set to Movie

and when the external input is set to HDMI or

Some external devices may not support this

■ LED Motion Plus (Off / On): Removes drag from fast

scenes with a lot of movement to provide a clear picture.

In PC mode, you can only make changes to the

Colour Tone, Size and Auto Protection Time.

■ Colour Tone (Cool / Normal / Warm1 / Warm2)

Warm1 or Warm2 will be deactivated when the

picture mode is Dynamic.

Settings can be adjusted and stored for each

external device connected to an input on the TV.

■ Size: Your cable box/satellite receiver

may have its own set of screen sizes as

well. However, we highly recommend you

use 16:9 mode most of the time.

Auto Wide: Automatically adjusts the

picture size to the 16:9 aspect ratio.

16:9: Adjusts the picture size to 16:9 for

DVDs or wide broadcasting.

Wide Zoom: Magnifies the picture size

Adjusts the Position by using ▲, ▼ buttons.

Zoom: Magnifies the 16:9 wide pictures vertically to fit

Adjusts the Position or Size by using ▲, ▼

Do not watch in 4:3 format for a long time. Traces

of borders displayed on the left, right and centre

of the screen may cause image retention(screen

burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off

when HDMI (720p / 1080i / 1080p) or Component

(1080i / 1080p) signals are inputted.

The available items may differ depending on the

In PC mode, only 16:9 and 4:3 modes can be

Settings can be adjusted and stored for each

external device connected to an input on the TV.

After selecting Screen Fit in HDMI (1080i / 1080p)

or Component (1080i / 1080p) mode: Adjusts the

Position or Size by using ▲, ▼, ◄, ► button.

If you use the Screen Fit function with HDMI 720p

input, 1 line will be cut at the top, bottom, left and

right as in the overscan function.

■ Screen Mode (16:9 / Wide Zoom / Zoom / 4:3):

Available only when picture size is set to Auto Wide. You

can determine the desired picture size at the 4:3 WSS

(Wide Screen Service) size or the original size. Each

European country requires different picture size.

Not available in PC, Component or HDMI mode.

U Move E Enter R Return [UC9000]BN68-02820J-ZG.indb 21 2010-05-24 오후 8:09:2222 English Basic Features ■ Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualisation): When the broadcast signal is weak, some static and ghosting may appear. Select one of the options until the best picture is displayed.Auto Visualisation: When changing analogue channels, displays the intensity of the current signal and defines the screen noise filter. ✎ Only available for analogue channels. ■ MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide improved picture quality. ■ HDMI Black Level (Normal / Low): Selects the black level on the screen to adjust the screen depth. ✎ Available only in HDMI mode (RGB signals). ■ Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and process film signals from all sources and adjust the picture for optimum quality. ✎ Available in AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i). ■ Motion Plus (Off / Clear / Standard / Smooth / Custom / Demo): Removes drag from fast scenes with a lot of movement to provide a clearer picture. ✎ If noise occurs on the screen, please set up the Motion Plus to Off. If Motion Plus is Custom, you can set up the Blur Reduction, Judder Reduction or Reset manually. ✎ If Motion Plus is Demo, you can compare the difference of on and off modes. Blur Reduction: Adjusts the blur reduction level from video sources.Judder Reduction: Adjusts the judder reduction level from video sources when playing films.Reset: Reset the custom settings. ■ Auto Protection Time (2 hours / 4 hours / 8 hours / 10 hours / Off): If the screen remains idle with a still image for a certain period of time defined by the user, the screen saver is activated to prevent the formation of ghost images on the screen ¦ Viewing TV using the 3D function IMPORTANT HEALTH AND SAFETY INFORMATION FOR 3D PICTURES.Read and understand the following safety information before using the TV’s 3D function. [ WARNING x Some viewers may experience discomfort while viewing 3D TV such as dizziness, nausea and headaches. If you experience any such symptom, stop viewing 3D TV, remove 3D Active Glasses and rest. x Watching 3D images for an extended period of time may cause eye strain. If you feel eye strain, stop viewing 3D TV, remove your 3D Active Glasses and rest. x A responsible adult should frequently check on children who are using the 3D function. If there are any reports of tired eyes, headaches, dizziness, or nausea, have the child stop viewing 3D TV and rest. x Do not use the 3D Active Glasses for other purposes (such as general eyeglasses, sunglasses, protective goggles, etc.) x Do not use the 3D function or 3D Active Glasses while walking or moving around. Using the 3D function or 3D Active Glasses while moving around may result in injuries due to running into objects, tripping, and/or falling. 3D This exciting new feature enables you to view 3D content. In order to fully enjoy this feature, you must purchase a pair of Samsung 3D Active Glasses (SSG-2100AB, SSG-2200AR, SSG- 2200KR) to view 3D video.Samsung 3D Active Glasses are sold separately. For more detailed purchasing information, contact the retailer where you purchased this TV.3D emitter ✎ If there is any obstacle between the emitter and 3D Active Glasses, the proper 3D effect may not be obtained. 3D

If you want to feel the 3D effect fully, please wear

the 3D Active Glasses first, and then select

3D Mode from the list as below.

When watching 3D images, turn on 3D Active

Off Turns the 3D function off.

2D → 3D Changes a 2D image to 3D.

Displays two images next to

Displays one image above

and right eye alternately in rows.

Displays the images for the

left and right eye alternately in

Displays the images for the

left and right eye alternately in

Displays the images for the

left and right eye alternately in

“Side by Side” and “Top & Bottom” are available

when the resolution is 720p, 1080i and 1080p

in DTV, HDMI and USB mode or set to PC

connecting through HDMI/DVI cable.

“Vertical Strip”, “Line by Line” and “Checker

Board” are available when the source is set to PC

connecting through HDMI/DVI cable.

“Frequency” displays the frequency (60Hz only)

when the source is set to PC.

■ 3D → 2D (Off / On): Displays the image for the left eye only.

This function is deactivated when 3D Mode set to

■ 3D View Point: The overall adjustment of 3D

This function is deactivated when 3D Mode set to

■ Depth: Adjusts focus / depth in “2D → 3D” mode.

This function is only activated when the 3D Mode

■ Picture Correction: Adjusts the images for the left and

■ 3D Auto View (Off / On): If 3D Auto View is set to On,

a “Side by Side” format HDMI signal with one of the

resolutions below is automatically switched to 3D. Here,

correct 3D information must be sent from the Standard

set 3D Auto View to Off and manually select a

Support resolution (16:9 only)

Resolution Frequency (Hz)

1280 x 720p 50 / 60 Hz

1920 x 1080i 50 / 60 Hz

1920 x 1080p 24 / 30 / 50 / 60 Hz

■ 3D Optimisation: The overall adjustment of 3D effect.

Resolution supported for HDMI PC mode

The resolution for HDMI PC mode is optimized to

An input resolution other than 1920 x 1080 may not be

displayed properly in 3D display or full screen mode.

How to watch the 3D image

3D OK To watch in 3D, wear 3D glasses and

press the power button on the glasses.

3D3D Using the LEFT / RIGHT keys on the remote control,

select the icon suitable for the picture on screen.

Using the LEFT / RIGHT keys on the remote control,

select the icon suitable for the picture on screen.

1. Press the CONTENT button, then the Content View menu will appear. 2. Press the ◄ or ► button, then select 3D. To watch in 3D, wear 3D Active Glasses and press the power button on the glasses.3. Select OK, then press the ENTER E button. 4. Using the ◄ or ► buttons on your remote control, selects the 3D Mode of the image you want to view. ✎ Some 3D modes may not be available depending on the format of the image source.Supported formats and operating specifications for Standard HDMI 3D ✎ The 3D formats indicated below are recommended by the HDMI association and must be supported.Source signal format Standard HDMI 1.4 3D1920x1080p@24Hz x 2 1920x2205p@24Hz1280x720p@60Hz x 2 1280x1470p@60Hz1280x720p@50Hz x 2 1280x1470p@50HzThe mode is automatically switched to 3D mode for the 3D video input in one of the formats above.For the Standard HDMI 3D format with 24Hz, the TV is optimized as follows: – Resolution First Display Mode: If Motion Plus is set to Off, Clear or Standard, you can watch the video at a high resolution optimized to the resolution of the source video. – Judder Reduction Display Mode: When Motion Plus is set to Smooth or Custom, you can watch a smooth picture without judder.Before using 3D function... ✎

x You may notice a small amount of screen flickering when watching 3D images in poor light conditions (from a strobe light, etc.), or under a fluorescent lamp (50Hz ~ 60Hz) or 3 wavelength lamp. If so, dim the light or turn the lamp off. x 3D mode is automatically disabled in following cases: when changing a channel or the input source, or accessing Media Play or Internet@TV. x Some Picture functions are disabled in 3D mode. x The Touch Control does not support 3D pictures. x Data broadcasts (MHEG / MHP) are not supported in 3D mode. x 3D Active Glasses from other manufacturers may not be supported. x When the TV is initially powered on, may take some time until the 3D display is optimized. x The 3D Active Glasses may not work properly if there is any other 3D product or electronic devices turned on near the glasses or TV. If there is a problem, keep other electronic devices as far away as possible from the 3D Active Glasses. x When watching pictures from a 50Hz 3D source with its Game mode On, visually-sensitive viewers may see some flicker on bright images. x Photos of Media Play are shown in “2D → 3D” mode only. x If you lie on your side while watching TV with 3D active glasses, the picture may look dark or may not be visible. x Be sure to stay within the viewing angle and optimum TV viewing distance when watching 3D pictures. – Otherwise, you may not be able to enjoy proper 3D effects. x The ideal viewing distance should be three times or more the height of the screen. We recommend sitting with viewer’s eyes on a level with the screen. Picture Reset (OK / Cancel) Resets your current picture mode to its default settings. ¦ Setting up the TV with Your PC Set the input source to PC. Auto Adjustment

t Adjust frequency values/positions and fine tune the settings automatically. ✎ Not available when connecting with an HDMI/DVI cable [UC9000]BN68-02820J-ZG.indb 24 2010-05-24 오후 8:09:2525 English 03 Basic Features

■ Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Fine-tune again. After the noise has been reduced, readjust the picture so that it is aligned to the centre of screen. ■ Position: Adjust the PC screen position with direction

button (▲ / ▼ / ◄ / ►).

■ Image Reset: Resets the image to default settings. Using Your TV as a Computer (PC) DisplaySetting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card, the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied. (If not, contact your computer manufacturer or Samsung Dealer.)1. Click on “Control Panel” on the Windows start menu.2. Click on “Appearance and Themes” in the “Control Panel” window and a display dialog-box will appear.3. Click on “Display” and a display dialog box will appear.4. Navigate to the “Settings” tab on the display dialog-box. y The correct size setting (resolution) [Optimum: 1920 X 1080 pixels] y If a vertical-frequency option exists on your display settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box. Sound Menu

■ Standard: Selects the normal sound mode. ■ Music: Emphasizes music over voices. ■ Movie: Provides the best sound for movies. ■ Clear Voice: Emphasizes voices over other sounds.

■ Amplify: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired. ¦ Adjusting Sound Settings

Equalizer Adjusts the sound mode (standard sound mode only). ■ Balance L/R: Adjusts the balance between the right and left speaker. ■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of specific bandwidth frequencies. ■ Reset: Resets the equalizer to its default settings.

¦ Sound Systems, Etc.

SRS TruSurround HD (Off / On)

t (standard sound mode only) This function provides a virtual 5.1 channel surround sound experience through a pair of speakers using HRTF (Head Related Transfer Function) technology. SRS TruDialog (Off / On) (standard sound mode only) This function allows you to increase the intensity of a voice over background music or sound effects so that dialog can be heard more clearly. SRS

[UC9000]BN68-02820J-ZG.indb 25 2010-05-24 오후 8:09:2626 English Basic Features

Audio Language (digital channels only) Change the default value for audio languages. ✎ The available language may differ depending on the broadcast. Audio Format (digital channels only) When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function. ✎ Audio Format option may differ depending on the broadcast. 5.1ch Dolby digital sound is only available when connecting an external speaker through an optical cable. Audio Description (not available in all locations) (digital channels only) This function handles the Audio Stream for the AD (Audio Description) which is sent along with the Main audio from the broadcaster. ■ Audio Description (Off / On): Turn the audio description function on or off. ■ Volume: Adjust the audio description volume. Auto Volume (Off / Normal / Night) To equalize the volume level on each channel, set to Normal. ■ Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night. Speaker Select (External Speaker /

TV Speaker) A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker. ✎

When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited. ✎

When Speaker Select is set to External Speaker.

x TV Speaker: Off, External Speaker: On ✎ When Speaker Select is set to TV Speaker. x TV Speaker: On, External Speaker: On ✎ If there is no video signal, both speakers will be mute. Additional Setting (digital channels only) ■ DTV Audio Level (MPEG / HE-AAC): This function allows you to reduce the disparity of a voice signal (which is one of the signals received during a digital TV broadcast) to a desired level. ✎ According to the type of broadcast signal, MPEG / HE-AAC can be adjusted between -10dB and 0dB. ✎ To increase or decrease the volume, adjust between the range 0 and -10 respectively. ■ SPDIF Output: SPDIF (Sony Philips Digital InterFace) is used to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player.Audio Format: During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital.Audio Delay: Correct audio-video sync problems, when watching TV or video, and when listening to digital audio output using an external device such as an AV receiver (0ms ~ 250ms). ■ Dolby Digital Comp (Line / RF): This function minimizes signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound). ✎ Select Line to obtain dynamic sound, and RF to reduce the difference between loud and soft sounds at night time.Line: Set the output level for signals greater or less than -31dB (reference) to either -20dB or -31dB.RF: Set the output level for signals greater or less than -20dB (reference) to either -10dB or -20dB. Sound Reset (OK / Cancel) Reset all sound settings to the factory defaults. AD

[UC9000]BN68-02820J-ZG.indb 26 2010-05-24 오후 8:09:2727 English 03 Basic Features

¦ Selecting the Sound Mode

g Dual, the current sound mode is displayed on the screen.Audio Type Dual 1/2 Default A2 StereoMono MonoAutomatic changeStereoStereo ↔ Mono Dual Dual f ↔ Dual g Dual f NICAMStereoMono MonoAutomatic changeStereoMono ↔ Stereo Dual Mono ↔ Dual f  Dual g Dual f

✎ If the stereo signal is weak and an automatic switching, occurs, then switch to the mono. ✎ Only activated in stereo sound signal. ✎

Only available when the Input source is set to TV.

■ Clock: Setting the clock is for using various timer features of the TV. O The current time will appear every time you press the INFO button. ✎ If you disconnect the power cord, you have to set the clock again.Clock Mode (Auto / Manual) ✎ Depending on the broadcast station and signal, the auto time set up may not be correct. In this case, set the time manually. ✎ The antenna must be connected in order to set the time automatically. Clock Set: Set the Day, Month, Year, Hour and Minute manually. ✎ Available only when Clock Mode is set to Manual.Time Zone (depending on the country): Select your time zone. ✎ When Country is set to Others, you can use this function. ✎ This function is only available when the Clock Mode is set to Auto. ¦ Using the Sleep Timer ■ Sleep Timer t : Automatically shuts off the TV after a preset period of time. (30, 60, 90, 120, 150 and 180 minutes). ✎ To cancel Sleep Timer, select Off. ¦ Setting the On / Off Timer

■ Timer 1 / Timer 2 / Timer 3: Three different on / off timer settings can be made. You must set the clock first.On Time / Off Time: Set the hour, minute, and activate / inactivate. (To activate timer with the setting you’ve chosen, set to Activate.)Volume: Set the desired volume level. Source: Select TV or USB content to be played when the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV) Antenna (when the Source is set to TV): Select ATV or DTV. Channel (when the Source is set to TV): Select the desired channel. Contents (when the Source is set to USB): Select a folder in the USB device containing music or photo files to be played when the TV is turned on automatically. ✎

x If there is no music file on the USB device or the folder containing a music file is not selected, the Timer function does not operate correctly. x When there is only one photo file in the USB device, the Slide Show will not play. x If a folder name is too long, the folder cannot be selected. x Each USB you use is assigned its own folder. When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.I-II DUAL10 TV ATV 100 00 ▲

▼ 00 00 Timer 1 On TimeOff TimeVolumeInactivateInactivate Sun Mon Tue Wed Thu Fri Sat

Once Source Antenna ChannelRepeat L Move U Adjust E Enter R Return 1_BN68-02820J-Eng.indd 27 2010-05-25 오후 7:39:2528 English Basic Features Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you select Manual, you can set up the day you want to activate the timer. ✎

c mark indicates the day is selected. ✎ Auto Power Off (available only when the TV is turned on by Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating. ¦ Locking Programme

✎ The PIN input screen appears before the setup screen. ✎ Enter your 4-digit PIN, the default of which is “0-0-0-0”. Change the PIN using the Change PIN option. ■ Child Lock (Off / On): Lock channels in Channel Manager, to prevent unauthorized users, such as children, from watching unsuitable programme. ✎

Available only when the Input source is set to TV.

■ Parental Lock (depending on the country): Prevent unauthorized users, such as children, from watching unsuitable programme with a user-defined 4-digit PIN code. If the selected channel is locked, the “ \ ” symbol will be displayed.Allow All: Unlock all TV ratings. ■ Change PIN: Change your personal ID number required to set up the TV. ✎ If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to “0-0-0-0”: POWER (off) → MUTE → 8 → 2 → 4 → POWER (on).

Language ■ Menu Language: Set the menu language. ■ Teletext Language: Set a desired language for teletext.

✎ English is the default in cases where the selected language is unavailable in the broadcast. ■ Preference (Primary Audio Language / Secondary Audio Language / Primary Subtitle Language / Secondary Subtitle Language / Primary Teletext Language / Secondary Teletext Language): Select a language, which will be the default language when a channel is selected. Subtitle Use this menu to set the Subtitle mode. ■ Subtitle (Off / On): Switches subtitles on or off. ■ Mode (Normal / Hearing Impaired): Sets the subtitle mode. ■ Subtitle Language: Sets the subtitle language. ✎ If the programme you are watching does not support the Hearing Impaired function, Normal automatically activates even if the Hearing Impaired mode is selected. ✎ English is the default in cases where the selected language is unavailable in the broadcast. Digital Text (Disable / Enable) (UK only)If the programme broadcasts with digital text, this feature is enabled. Network (Network Type / Network Setup

/ Network Test / SWL(Samsung Wireless

Link) / SWL connect) For details on setting up options, refer to the “Network Connection” instructions (p. 32).SUBT. [UC9000]BN68-02820J-ZG.indb 28 2010-05-24 오후 8:09:2929

■ Game Mode (Off / On): When connecting to a game

console such as PlayStation™ or Xbox™, you can enjoy

a more realistic gaming experience by selecting game

Precautions and limitations for game mode

– To disconnect the game console and connect

another external device, set Game Mode to Off in

– If you display the TV menu in Game Mode, the

screen shakes slightly.

Game Mode is not available when the input source

After connecting the game console, set Game Mode

to On. Unfortunately, you may notice reduced picture

– Picture mode is set to Standard and Sound mode

– Equalizer is not available.

■ BD Wise (Off / On): Provides the optimal picture quality

for Samsung DVD, Blu-ray and Home Theatre products

which support BD Wise. When BD Wise is turned On,

the picture mode is automatically changed to the optimal

Available when connecting Samsung products

that support BD Wise through a HDMI cable.

■ Menu Transparency (Bright / Dark): Set the

Transparency of the menu.

■ Slide Key (Off / On ): You can choose to use the LED

touch pad, which is centered underneath the stand, or not.

■ Melody (Off / Low / Medium / High): Set so that a

melody plays when the TV is turned on or off.

Melody is disabled when FastStart is On.

■ FastStart (Off / On): When the TV is powered on, the

screen will come on quickly with this feature.

■ CI Menu: This enables the user to select from the CAM-

provided menu. Select the CI Menu based on the menu

■ Application Info: View information on the CAM inserted

into the CI slot and on the “CI or CI+ CARD” which is

inserted into the CAM. You can install the CAM anytime

whether the TV is on or off.

1. Purchase a CI CAM module at your nearest dealer or by

2. Firmly insert the “CI or CI+ CARD” into the CAM in the

direction of the arrow.

3. Insert the CAM with the “CI or CI+ CARD” into the

common interface slot, in the direction of the arrow so

that it aligns parallel with the slot.

4. Check if you can see a picture on a scrambled signal

Wireless Remote Control

Turn wireless remote controls on or off or give permission to

wireless remote controls.

Self Diagnostic might take few seconds, this is part of

the normal operation of the TV.

■ Picture Test (Yes / No): Use to check for picture

■ Sound Test (Yes / No): Use the built-in melody sound to

check for sound problems.

If you hear no sound from the TV’s speakers,

before performing the sound test, make sure

Speaker Select is set to TV Speaker in the

The melody will be heard during the test even if

Speaker Select is set to External Speaker or the

sound is muted by pressing the MUTE button.

■ Signal Information: (digital channels only) HDTV

channel’s reception quality is either perfect or the

channels are unavailable. Adjust your antenna to

increase signal strength.

■ Troubleshooting: If the TV seems to have a problem,

refer to this description.

[UC9000]BN68-02820J-ZG.indb 29 2010-05-24 오후 8:09:3030 English Basic Features

Software Upgrade Software Upgrade can be performed via a broadcasting signal or by network connection or downloading the latest firmware from “www.samsung.com,” to a USB memory device.Current Version the software already installed in the TV. ✎ Software is represented as “Year/Month/Day_Version”.Installing the Latest Version ■ By USB : Insert a USB drive containing the firmware upgrade file, downloaded from “www.samsung.com,” into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the firmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to to write down your settings so that you can easily reset them after the upgrade. ■ By Online: Upgrade the software using the Internet.

✎ First, configure your network. For detailed procedures on using the Network Setup, refer to the “Network Connection” instructions. ✎ If the internet connection doesn’t operate properly, the connection may be broken. Please retry downloading. If the problem persists, download by USB and upgrade. ■ By Channel: Upgrade the software using the broadcasting signal. ✎ If the function is selected during the software transmission period, software will be automatically searched and downloaded. ✎ The time required to download the software is determined by the signal status. ■ Standby Mode Upgrade: A manual upgrade will be automatically performed at selected time. Since the power of the unit is turned on internally, the screen may be turned on slightly for the LED product. This phenomenon may continue for more than 1 hour until the software upgrade is complete. ■ Alternative Software (backup): Displays the software version downloaded through By Online. During the software upgrading, When the Upgrade will discontinue from last step, this function be activated. HD Connection Guide Refer to this information when connecting external devices to the TV. Contact Samsung View this information when your TV does not work properly or when you want to upgrade the software. You can find information regarding our call centres, and how to download products and software.USB DriveStand Side Panel or

Software Upgrade By USB ►By OnlineBy ChannelStandby Mode Upgrade : OffAlternative Software 2010/01/15_00000 U Move E Enter R ReturnCurrent Version 2010/01/18_000001 [UC9000]BN68-02820J-ZG.indb 30 2010-05-24 오후 8:09:3031 English 04 Advanced Features

x For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. x The interlace mode is not supported. x The set might operate abnormally if a non-standard video format is selected. x Separate and Composite modes are supported. SOG(Sync On Green) is not supported. AUDIO OUTPC OUTAUDIO OUTDVI OUT [UC9000]BN68-02820J-ZG.indb 31 2010-05-24 오후 8:09:3432 English Advanced Features

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection. ¦ Connecting to a Wired Network You can attach your TV to your LAN using cable in three ways: y You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat 5 cable. See the diagram below. y You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected to an external modem. Use Cat 5 cable for the connection. See the diagram below. y Depending on how your network is configured, you may be able to attach your TV to your LAN by connecting the LAN

port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you don’t have to enter them manually. Most home networks are Dynamic Networks.Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your TV’s Network Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP). If you have a Windows computer, you can also get these values through your computer. ✎ You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that support DHCP also let you use Static IP addresses.The Modem Port on the WallStand Rear Panel LAN Cable LAN AdapterModem CableExternal Modem (ADSL / VDSL / Cable TV)The Modem Port on the Wall Stand Rear PanelLAN CableLAN CableModem CableExternal Modem (ADSL / VDSL / Cable TV)IP Sharer(having DHCP server)LAN AdapterThe LAN Port on the WallStand Rear PanelLAN Cable LAN Adapter [UC9000]BN68-02820J-ZG.indb 32 2010-05-24 오후 8:09:3633

04 Advanced Features

Network Setup (Auto)

Use the Automatic Network Setup when connecting your

TV to a network that supports DHCP. To set up your TV’s

cable network connection automatically, follow these steps:

How to set up automatically

1. Connect your TV to your LAN as described in the

2. Turn on your TV, press the MENU button on your

remote, use the ▲ or ▼ button to select Setup, and

then press the ENTER E

Network screen appears.

4. On the Network screen, select Network Type.

5. Set Network Type to Wired.

6. Select Network Setup. The Network Setup screen

7. Set Internet Protocol Setup to Auto.

8. Auto acquires and enters the needed Internet values

9. When done, press the RETURN button on your remote.

10. If the Network Function has not acquired the network

connection values, go to the directions for Manual.

Network Setup (Manual)

Use the Manual Network Setup when connecting your TV to

a network that requires a Static IP address.

Getting the Network Connection Values

To get the Network connection values on most Windows

computers, follow these steps:

1. Right click the Network icon on the bottom right of the

2. In the pop-up menu that appears, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The

Network connection values are displayed.

How to set up manually

To set up your TV’s cable network connection manually,

1. Follow Steps 1 through 6 in the “How to set up

automatically” procedure.

2. Set Internet Protocol Setup to Manual.

3. Press the ▼ button on your remote to go to the first

4. Enter the IP Address, Subnet Mask, Gateway, and

DNS Server values. Use the number buttons on your

remote to enter numbers and the arrow buttons to move

from one entry field to another.

5. When done, press the RETURN button on your remote.

6. Select Network Test to check the Internet connectivity.

¦ Connecting to a Wireless Network To connect your TV to your network wirelessly, you need a wireless router or modem and a Samsung Wireless LAN Adapter (WIS09ABGN2), which you connect to your TV’s back or side panel USB jack. See the illustration below.Samsung’s Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung recommends using IEEE 802.11N. When you play the video over a IEEE 802.11B/G connection, the video may not play smoothly. ✎

x You must use the “Samsung Wireless LAN Adapter” (WIS09ABGN2) to use a wireless network. x To use a wireless network, your TV must be connected to a wireless IP sharer. If the wireless IP sharer supports DHCP, your TV can use a DHCP or static IP address to connect to the wireless network. x

Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer is currently being used by another device nearby, this will result in interference and communication failure. x If you apply a security system other than the systems listed below, it will not work with the TV. x If Pure High-throughput (Greenfield) 802.11N mode is selected and the Encryption type is set to WEP, TKIP or TKIP-AES (WPS2Mixed) for your AP, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications. x If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode. x If your router, modem, or device isn’t certified, it may not connect to the TV via the “Samsung Wireless LAN Adapter.” x Connection Methods: You can setup the wireless network connection six ways. – Samsung Auto Configuration – PBC (WPS) – Auto Setup (Using the Auto Network Search function) – Manual Setup – SWL(Samsung Wireless Link) – Ad-Hoc x The Samsung Wireless LAN Adapter may not be recognized or work properly when connecting via a USB hub or via a USB extension cable other than the one available from Samsung.Stand Side PanelThe LAN Port on the WallLAN CableWireless IP sharer(AP having DHCP server)Samsung WirelessLAN Adapter or

✎ When the USB 2 port is connected to a Samsung Wireless LAN Adapter, you may not be able to use the USB 1 port. We recommend connecting a Samsung Wireless LAN Adapter to the USB 1 port. [UC9000]BN68-02820J-ZG.indb 34 2010-05-24 오후 8:09:3935

04 Advanced Features

The picture may appear corrupted or have static for some

channels when the TV is connected to the Samsung Wireless

LAN Adapter. In such a case, connect the Samsung Wireless

LAN Adapter using a USB cable in a place that is not

affected by radio interference.

The Samsung Wireless LAN Adapter should be

installed in an interference-free area in order to avoid

interference between the adapter and tuner.

(Samsung Auto Configuration)

This function is available in APs (Access Points) that support

Samsung Auto Configuration. If your AP does not, you can

connect through PBC (WPS), auto, or manually.

This function is available when SWL(Samsung

Wireless Link) is set to Off.

You can check for equipment that supports Samsung

Auto Configuration on www.samsung.com.

How to set up using Samsung Auto Configuration

1. Place the AP and TV next to each other and turn them

Because the booting times of applications differ,

you may have to wait for approximately 2 minutes.

If the LAN cable connected the WAN port of AP

during Samsung Auto Configuration, you are able

to complete until internet connection test. If you

do not connect, Samsung Auto Configuration will

check only device connecting of AP (Not check

2. After 2 minutes, connect the Samsung Wireless LAN Adapter to the TV. When the Samsung Wireless LAN Adapter is established, the pop-up window appears.

3. As soon as a connection is established, place the AP in

parallel with the Samsung Wireless LAN Adapter giving a

gap no larger than 25cm.

4. Wait until the connection is automatically established.

If Samsung Auto Configuration does not connect

your TV to your AP, a pop-up window appears

on the screen notifying you of the failure. Reset

the AP, and then try again. If the connection fails

again, choose one of the other connection setup

methods, PBC (WPS), auto, or manual.

5. After the connection is established, locate the sharer at

the desired location.

If the AP settings have been changed or it is the

first time you use the new AP after purchase, you

need to set up again beginning from Step 1.

[UC9000]BN68-02820J-ZG.indb 35 2010-05-24 오후 8:09:4036 English Advanced Features

Network Setup (PBC (WPS)) How to set up using PBC (WPS)If your router has a PBC (WPS) button, follow these steps:1. Connect your TV to Samsung Wireless LAN Adapter as described in the previous section.2. Turn on your TV, press the MENU button on your remote, use the ▲ or ▼ button to select Setup, and then press the ENTER E button. 3. Use the ▲ or ▼ button to select Network in the Setup menu, and then press the ENTER E button. 4. On the Network screen, select Network Type. 5. Set Network Type to Wireless. 6. Select Network Setup. The Network Setup screen appears.7. Press the Red button on your remote.8. Press the PBC (WPS) button on your router within 2 minutes. Your TV player automatically acquires all the network setting values it needs and connects to your network.9. After the network connection is set up, press the RETURN button to exit the Network Setup screen. Network Setup (Auto) Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a specified length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process.How to set up automaticallyTo set up the wireless connection automatically, follow these steps:1. Follow Steps 1 through 6 in the “How to set up using PBC (WPS)” procedure. 2. Press the ▼ button to select Internet Protocol Setup, and then press the ENTER E button. Press the ▲ or

▼ button to select Auto, and then press the ENTER E

button. 3. Press the ▲ button to go to Select a Network, and then press the ENTER E button. The Network function searches for available wireless networks. When done, it displays a list of the available networks. 4. In the list of networks, press the ▲ or ▼ button to select a network, and then press the ENTER E button. ✎ If the AP is set to Hidden (Invisible), you have to select Add Network and enter the correct Network Name (SSID) and Security Key to establish the connection.5. If the Security/PIN pop-up appears, go to Step 6. If the Network Connecting Screen appears, go to Step 10. 6. Press the ▲ or ▼ button to select Security or PIN. For most home networks, you would select Security (for Security Key). The Security Screen appears.A B C D E F GH I J K L M NO P Q R S T UV W X Y Z 0~9

7. On the Security screen, enter your network’s Pass

You should be able to find the Pass Phrase on

one of the set up screens you used to set up your

8. To enter the Pass Phrase, follow these general

– Press the number buttons on your remote to enter

– Use the direction buttons on your remote to move

from button to button on the Security Key screen.

– Press the Red button to change case or display

– To delete the last letter or number you entered, press

the Green button on your remote.

– To input a blank space, press the Yellow button on

9. When done, press the Blue button on your remote. The

Network Connecting screen appears.

10. Wait until the connection confirmation message is

displayed, and then press the ENTER E

Network Setup screen re-appears.

Network Setup (Ad-Hoc)

You can connect to a mobile device without an access point

through the “Samsung Wireless LAN Adapter” by using a

peer to peer network.

This function is available when SWL(Samsung

Wireless Link) is set to Off.

How to connect to new Ad-hoc device

1. Follow Steps 1 through 6 in the “How to set up using

2. Choose Select a Network. A list of devices/networks

3. While in the device list, press the Blue button on the

The message Ad-hoc is a direct Wi-Fi

connection with cell phone or PC. The existing

network system may have limited functionality.

Do you want to change the network

connection? is displayed.

4. Input the generated Network Name (SSID) and

Security Key into the device you want to connect.

How to connect an existing Ad-hoc device

1. Follow Steps 1 through 6 in the “How to set up using

2. Choose Select a Network. The Device/Network list

3. Select the device you want in the Device list.

4. If security key is required, input the security key.

If network doesn’t operate normally, check

the Network Name (SSID) and Security Key

again. An incorrect Security Key may cause a

Network Setup (Manual)

If the other methods do not work, you need to enter the

Getting the Network Connection Values

computers, follow these steps:

3. On the dialog that appears, click the Support tab.

4. On the Support tab, click the Details button. The

Network settings are displayed.

How to set up manually

To enter the Network connection values manually, follow

1. Follow Steps 1 through 6 in the “How to set up using

3. Press the ▼ button to go to the first entry field (IP Address).

4. Use the number buttons to enter numbers.

5. When done with each field, use the ► button to move

successively to the next field. You can also use the other

arrow buttons to move up, down, and back.

6. Enter the IP Address, Subnet Mask, and Gateway

7. Press the ▲ or ▼ button to go to DNS.

8. Press the ▼ button to go to the first DNS entry field.

Enter the numbers as above.

9. When done, press the ▲ button to go to Select a

Network. Select your network, and then press the

10. Go to Step 4 in the “How to set up automatically” (p.

36), and follow the directions from that point on.

SWL(Samsung Wireless Link)

This function lets you connect a Samsung device that

supports the PBC (WPS) to your TV. You can connect

devices to the TV even if a sharer is not connected to the TV.

To use the Internet@TV, the AP (access point) must be

connected to the wireless network.

Only sharers using the 2.4 Ghz band are supported.

Sharers using the 5 Ghz band are not supported.

You can directly connect a device that supports the PBC

This function is available when SWL(Samsung

Wireless Link) is set to On.

How to connect Samsung Wireless Link

For the procedures to establish a connection, refer to the

1. Follow Steps 1 through 5 in the “How to set up using

2. Select SWL(Samsung Wireless Link) by using the ▼

button and press the ENTER E

button to turn it On.

3. Select SWL connect by using the ▼ button and press

supported device to connect within 120 seconds.”

For more information, refer to the wireless network

setup manual of the device to be connected.

5. If the device is connected properly to the TV after

starting count on message box then message box will

be disappeared automatically.

If the connection fails, please retry after 2 minutes.

If Your TV Fails to Connect to the Internet

Your TV may not be able to connect to the Internet

because your ISP has permanently registered the

MAC address (a unique identifying number) of your

PC or modem, which it then authenticates each time

you connect to the Internet as a way of preventing

unauthorized access. As your TV has a different MAC

address, your ISP can not authenticate its MAC address,

and your TV can not connect.

To resolve this problem, ask your ISP about the

procedures required to connect devices other than a PC

(such as your TV) to the Internet.

If your Internet service provider requires an ID or password

to connect to the Internet, your TV may not be able to

connect to the Internet. If this is the case, you must enter

your ID or password when connecting to the Internet.

The internet connection may fail because of a firewall problem.

If this is the case, contact your Internet service provider.

If you cannot connect to the Internet even after you have

followed the procedures of your Internet service provider,

please contact Samsung Electronics at 1-800-SAMSUNG.

[UC9000]BN68-02820J-ZG.indb 38 2010-05-24 오후 8:09:4239

¦ Connecting a USB Device

2. Connect a USB device containing recorded tv, photo, music and/or movie fi les to

the USB 1 or USB 2 port on the back or side panel of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select

¦ Connecting to the PC through network

You can play pictures, music and videos saved on your PC through a network connection in the Media Play mode.

If you use Media Play through saved file on your PC, you should download “PC Share Manager” and users manual from

1. For more information on how to confi gure your network, refer to “Network Connection” (p. 32).

– You are recommended to locate both TV and PC in same subnet. The fi rst 3 parts of the subnet address of the TV and

the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g. IP Address:

2. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager

programme will be installed.

– You can connect the TV to the PC directly without connecting it through a Sharer (Router).

Enjoy recorded tv, photos, music and/or movie fi les

saved on a USB Mass Storage Class (MSC) device

and/or your PC. LAN Cable PC External Modem(ADSL/VDSL/Cable TV) LAN Samsung WirelessLAN AdapterWireless IP sharerStand Side Panel or LAN CableModem CableLAN Cable LAN Cable LAN adapter MEDIA.P USB DriveStand Side Panel or

No supported functions when connecting to the PC through network:

The Background Music and Background Music Setting functions.

Sorting files by preference in the Photos, Music, and Videos folders.

(FF) button while a movie is playing.

The Divx DRM, Multi-audio, embedded caption does not supported.

Samsung PC Share manager should be permitted by the firewall programme on your PC.

When you use Media Play mode through a network connection, According to functions of the provided server:

The sorting method may vary.

The scene search function may not be supported.

The Play Continuously function, which resumes playing of a video, may not be supported.

– The Play Continuously function does not support multiple users. (It will have only memorised the point where the

most recent user stopped playing.)

The ◄ or ► button may not work depending on the content information.

You may experience file stuttering while playing a video in Media Play through a network connection.

It might not work properly with unlicenced multimedia files.

Need-to-Know List before using Media Play

MTP (Media Transfer Protocol) is not supported.

The file system supports FAT16, FAT32 and NTFS.

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only

Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not

supported). Devices should be connected directly to the TV’s USB port.

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.

SAMSUNG is not responsible for any data file damage or data loss.

Do not disconnect the USB device while it is loading.

The higher the resolution of the image, the longer it takes to display on the screen.

The maximum supported JPEG resolution is 15360X8640 pixels.

For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management

(DRM) is a technology that supports the creation of content, the distribution and management of the content in an

integrated and comprehensive way, including the protection of the rights and interests of the content providers, the

prevention of the illegal copying of contents, as well as managing billings and settlements.

If more than 2 PTP devices are connected, you can only use one at a time.

If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high

power (more than 500mA or 5V) may not be supported.

If an over-power warning message is displayed while you are connecting or using a USB device, the device may not

be recognized or may malfunction.

If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.

The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.

If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is

not played, connect the USB device to the PC, format the device and check the connection.

If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC

to permanently delete the file.

[UC9000]BN68-02820J-ZG.indb 40 2010-05-24 오후 8:09:4541 English 04 Advanced Features

 Screen Display Move to the file you desired using the up/down/right/left buttons and then press the ENTER 

 (Play) button. The file is played. ✎

Supports the View Devices and Home in Media Play homepage.

Recorded TV To use the recording or Timeshift Mode function, the connected USB device must be available for recording. Device format is recommended to use USB HDD. ✎

During the Device formatting, do not disconnect the device while formatting is in progress. If you format the device, all files will be deleted. ✎ Before formatting your device to the tv, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss.Playing Recorded TV Programme 1. Press the ◄ or ► button to select Recorded TV, then press the ENTER  button in the Media Play menu. 2. Press the ◄/►/▲/▼ button to select the desired file in the file list.3. Press the ENTER  button or  (Play) button. – The selected file is displayed on the top with its playing time. – During playing the recorded TV programme, you can search using the ◄ and ► button.Operation Buttons

B Green (Section Repeat): You can set up the function to repeat some section. You can also watch some section you want to. Movie 01.avi00:04:03 / 00:07:38 1/1

SUM B Section Repeat Play continuously

Resumes playing from the last viewed

Tools Information:You can ascertain the selected file name and the number of files and page.Sort List Section:Displays sorting standard. ✎ Sorting standard is different depending on the contents.Operation Buttons Red (Change Device): Selects a connected device.

B Green (Preference): Sets the file preference. (not supported in Basic view)

Yellow (Select): Selects multiple files from file list. Selected files are marked with a symbol. Blue (Sorting): Selects the sort list.  Tools: Displays the option menu. ✎ Using the  (REW) or  (FF) button, file list can move to next or previous page.File List Section:You can confirm the files and groups that is sorted by each category.Videos Page

[UC9000]BN68-02820J-ZG.indb 41 2010-05-24 오후 8:09:4742 English Advanced Features Using the Timeshift Mode function 

If you missed a live broadcast, you can see from the recorded broadcast using this feature. When the Timeshift Mode is set to Auto, the TV stores the channel you watch currently to record automatically. When the Timeshift Mode is set to Manual, if you press the  (Play) button, the TV stores the channel from the point of view you want to record.  Recorded videos are DRM (digital rights management) protected and cannot be played on a PC or other TVs. Note that files saved on the TV cannot be used after the main board is changed. ✎

x Data broadcasts cannot be recorded. x

The availability of both recording and the Timeshift Mode function may differ depending on picture quality and the free space on the hard disk drive. x

If you press the ▲ or ▼ button, you can see the current channel being on air, or can see the start point the recorded broadcast. x The Timeshift Mode operates for a maximum of 90 minutes. x

After the Timeshift Mode function has run for the maximum time, the time information will be fixed to “00:00:00.” Note that if you have paused the recording the TV will automatically resume playback. x If the 5% free memory space limit of the USB storage device is reached, the current recording process will be closed. x When recording is performed by both the PVR (Personal Video Recorder) function and a device that supports the HDMI-CEC feature, recording by the PVR function takes precedence. x

During a playback or the Timeshift Mode, the picture will be displayed according to the display settings of the TV.

x If you change the input source during recording, the screen will go blank until the change is completed. x

An application which supports neither the recording nor the Timeshift Mode function will close automatically if you try to use it during either function. x

A message may appear in front of the application window indicating that the recording or the Timeshift Mode function is closed. x Timeshift Mode function is not supported for analogue channels. x

The recording and the Timeshift Mode functions are disabled for channels locked with Child Lock.

If the USB device has failed the Device Performance Test, the USB device must go through the Device Format and

Device Performance Test again before you record with the Guide or Channel Manager.

The recording and Timeshift Mode functions can only be used with a USB storage device that completed the Device Performance Test. x

If you attempt the recording or Timeshift Mode function with a device that did not have the Device Performance Test, the function will not start. x

If you press  (REC) on the remote control while the Channel Manager screen is being displayed or record with

Timer Recording, the TV may start or stop recording 1 or 2 seconds later than you intended due to the time needed to process the command. x

If a USB device dedicated to recording is connected, existing Timeshift Mode or recording files that were saved abnormally will automatically be deleted. x

If you switch to external input mode during recording, the recording will continue but the  (REC) button will be disabled. x

If any function that turns off the TV (Sleep Timer, Off timer, etc.) is set for a time that conflicts with recording, the TV will be turned off once the recording is complete. [UC9000]BN68-02820J-ZG.indb 42 2010-05-24 오후 8:09:4843

2. Press the ◄/►/▲/▼ button to select the desired file in the file list.

– The selected file is displayed on the top with its playing time.

– If video time information is unknown, play time and progress bar are not displayed.

– During playing the video, you can search using the ◄ and ► button.

In this mode, you can enjoy movie clips contained on a Game,

but you cannot play the Game itself.

y Supported Subtitle Formats Name File extension FormatMPEG-4 time-based text .ttxt XMLSAMI .smi HTMLSubRip .srt string-basedSubViewer .sub string-basedMicro DVD .sub or .txt string-based y Supported Video Formats

If there are problems with the contents of a codec, the codec will not be supported.

If the information for a Container is incorrect and the file is in error, the Container will not be able to play

Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec

listed in the table above.

If the Index Table is in error, the Seek (Jump) function is not supported. Video Decoder Audio Decoder• Supports up to H.264, Level 4.1• H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported.• XVID, MPEG4 SP, ASP: – Below 1280 x 720: 60 frame max – Above 1280 x 720: 30 frame max• GMC 2 over is not supported.• H.263 is not supported.• Only Samsung Techwin MJPEG is supported. • Supports up to WMA 7, 8, 9, STD• WMA 9 PRO does not support 2 channel excess multi channel or lossless audio.• WMA sampling rate 22050Hz mono is not supported. Playing recorded TV or movie file continuously (Resume Play)

If you exit the playing Recorded TV or Videos function, it can be played later from the point where it was stopped.

If you press the ENTER E

button (Chaptering) during playing the file, you can explore scene divided into 5 chapters

If the index information is damaged or unsupported, you will not be able to use the Chaptering function.

1. Select the movie file you want to play continuously by pressing

the ◄ or ► button to select it from the file list section.

3. Select Play Continuously (Resume Play) by pressing the Blue

button. The Movie will begin to play from where it was stopped.

The Blue button is available when resuming play.

If the Cont. movie play help function is set to On in the

Settings menu, a pop-up message will appear when you

resume play a movie file.

Movie 01.avi00:04:03 / 00:07:38 1/1

SUM Play continuously E Chaptering L Jump T Tools R ReturnResumes playing from the last viewed scene. Play continuously [UC9000]BN68-02820J-ZG.indb 44 2010-05-24 오후 8:09:5145

2. Press the ◄/►/▲/▼ button to select the desired file in the file

– During playing the music, you can search using the ◄ and ►

(FF) buttons do not function during play.

Only displays the files with MP3 and PCM file extension. Other

file extensions are not displayed, even if they are saved on the

If the sound is strange when playing MP3 files, adjust the Equalizer in the Sound menu. (An over-modulated MP3 file

may cause a sound problem.)

You can create My Playlist selecting the desired music in the file, and can play My Playlist.

Viewing a Photo (or Slide Show)

2. Press the ◄/►/▲/▼ button to select the desired file in the file

– While a photo list is displayed, press the

button on the remote control to start slide show.

– All files in the file list section will be displayed in the slide show.

– During the slide show, files are displayed in order from

currently being shown.

Music files can be automatically played during the Slide Show if

the Background Music is set to On.

The BGM Mode cannot be changed until the BGM has finished

¦ Playing the Multiple Files Playing the selected recorded TV/video/music/photo files1. Press the Yellow button in the file list to select the desired file.2. Repeat the above operation to select multiple files. ✎

c mark appears to the left of the selected files. x To cancel a selection, press the Yellow button again. x To deselect all selected files, press the TOOLS button and select Deselect All. 3. Press the TOOLS button and select Play Selected Contents. Playing the recorded TV/video/music/photo file group1. While a file list is displayed, move to the any file in desired group. 2. Press the TOOLS button and select Play Current Group.

¦ Media Play Additional Function Sorting the file listPress the Blue button in the file list to sort the files.Category Operations Recorded TV Videos Music Photos Basic ViewIt shows whole folder. You can view the file list by selecting the folder.> > > TitleIt sorts and displays the file title in Symbol/Number/Alphabet/Special order.> > > > PreferenceIt sorts and displays the file by preference. You can change the file preference in the file list section using the Green button.> > > > Latest DateIt sorts and shows files by latest date.> > > Earliest DateIt sorts and shows files by earliest date.> > > ArtistIt sorts the music file by artist in alphabetical. > AlbumIt sorts the music file by album in alphabetical order. > GenreIt sorts music files by the genre. > MoodIt sorts music files by the mood. You can change the music mood information. > MonthlyIt sorts and shows photo files by month. It sorts only by month (from January to December) regardless of year.> > ChannelIt sorts the recorded files by channel name. >

1/1 /Movie 01.avi SUM Movie 01.aviJan.10.2010Jan.10.2010Jan.10.2010Jan.10.2010Jan.10.2010Jan.10.2010Jan.10.2010Jan.10.2010Jan.10.2010Jan.10.2010Movie 03.aviMovie 05.aviMovie 07.aviMovie 09.aviMovie 02.aviMovie 04.aviMovie 06.aviMovie 08.aviMovie 10.avi Change Device Select Sorting

Recorded TV/Videos/Music/Photos Play Option menu

During playing a file, press the TOOLS button. Category Operations Recorded TV Videos Music PhotosTitle You can move the other file directly.> >Repeat Mode You can play recorded tv, movie and music files repeatedly.> > >Picture Size You can adjust the picture size for preference. >

> Picture Setting You can adjust the picture setting. (p. 19~25)> > >Sound Setting You can adjust the sound setting. (p. 25, 26, 27)> > > > Subtitle Setting You can play the video file with Subtitle. This function only works if the subtitles are the same file name as the video file.> > Audio You can enjoy video in one of supported languages as required. The function is only enabled when stream-type files which support multiple audio formats are played.> >Audio Description You can adjust the audio description (p. 26). > Stop Slide Show / Start Slide ShowYou can start or stop a slide show. >

Slide Show Speed You can select the slide show speed during the slide show.

> Slide Show Effect You can set variously the slide show effect. >

Background Music You can set and select background music when watching a slide show.

> Zoom You can zoom into images in full screen mode. > Rotate You can rotate images in full screen mode. >

Home Background You can move the file to the Media Play desktop.

> Information You can see detailed information about the played file.> > > > Settings

Using the Setup Menu

■ Background Setting: Select to display the background you want.

■ Cont. movie play help (Resume Play) (On / Off): Select to display the help pop-up message for continuous movie

■ Get the DivX® VOD registration code: Shows the registration code authorized for the TV. If you connect to the DivX web

site and register the registration code with a personal account, you can download VOD registration file. If you play the VOD

registration using Media Play, the registration is completed.

For more information on DivX® VOD, visit “www.DivX.com.”

■ Get the DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is

displayed. If you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated.

■ Information: Select to view information about the connected device.

[UC9000]BN68-02820J-ZG.indb 47 2010-05-24 오후 8:09:5448 English Advanced Features Anynet+What is Anynet+? t Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.To connect to a Samsung Home Theatre 1. Connect the HDMI IN (1(DVI), 2(ARC), 3 or 4) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable. 2. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable. ✎ NOTE x

Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input on the Home Theatre. x

The ARC function enables digital output of sound using the HDMI IN 2(ARC) port and can only be operated when the TV is connected to an audio receiver that supports the ARC function. x When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home Theatre’s Front, Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / Satellite Box (i.e. Anynet Device 1 or 2) directly to the Amplifier or Home Theatre, not the TV. x You can connect only one Home Theatre. x You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions. x Anynet+ works when the AV device supporting Anynet+ is in the standby or on status. x Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.Home TheatreAnynet+ Device 1Anynet+ Device 2, 3, 4Stand Rear PanelOptical Cable HDMI Cable HDMI Cable HDMI CableOptical Adapter [UC9000]BN68-02820J-ZG.indb 48 2010-05-24 오후 8:09:5549 English 04 Advanced Features Anynet+ MenuThe Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.Anynet+ Menu DescriptionView TV Changes Anynet+ mode to TV broadcast mode.Device List Shows the Anynet+ device list. (device_name) MENU Shows the connected device menus. E.g. If a DVD recorder is connected, the disc menu of the DVD recorder will appear. (device_name) INFO Shows the play menu of the connected device. E.g. If a DVD recorder is connected, the play menu of the DVD recorder will appear. Recording: (*recorder) Starts recording immediately using the recorder. (This is only available for devices that support the recording function.)Stop Recording: (*recorder) Stops recording.Receiver Sound is played through the receiver.If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is connected, it will be represented as (*device_name). ¦ Setting Up Anynet+ ■ Setup Anynet+ (HDMI-CEC) (Off / On): To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On.

When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated.

Auto Turn Off (No / Yes): Setting an Anynet+ Device to turn off automatically when the TV is turned off.

If Auto Turn Off is set to Yes, running external devices will turn off at the same time as the TV powers off.

However, a device may not turn off if recording is in progress.

May not be enabled depending on the device.

¦ Switching between Anynet+ Devices 1. Anynet+ devices connected to the TV are listed. ✎

If you cannot find a device you want, press the Red button to refresh the list. 2. Select a device and press the ENTER E button. You can switch to the selected device. ✎

Only when you set Anynet+ (HDMI-CEC) to On in the Application menu, the Device List menu appears.

Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching operation. x

If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function.

Make sure to switch to an Anynet+ device by using the Device List.

[UC9000]BN68-02820J-ZG.indb 49 2010-05-24 오후 8:09:5550 English Advanced Features

¦ Recording You can make a recording of a TV Programme using a Samsung recorder.1. Select Recording. ✎ When there are more than two recording devices x When multiple recording devices are connected, the recording devices are listed. Select one recording device in the Device List. ✎

When the recording device is not displayed, select Device List and press the Red button to search devices. 2. Press the EXIT button to exit. ✎ You can record the source streams by selecting Recording: (device_name). ✎ Pressing the � (REC) button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded. ✎ Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device’s users manual. ¦ Listening through a Receiver You can listen to sound through a receiver (i.e Home Theatre) instead of the TV Speaker.1. Select Receiver and set to On.2. Press the EXIT button to exit. ✎ If your receiver supports audio only, it may not appear in the device list. ✎

The receiver will work when you have properly connected the optical in jack of the receiver to the DIGITAL AUDIO OUT (OPTICAL) jack of the TV. ✎ When the receiver (i.e Home Theatre) is set to On, you can hear sound output from the TV’s Optical jack. When the TV is displaying a DTV (aerial) signal, the TV will send out 5.1 channel sound to the receiver. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the receiver. ✎

x You can only control Anynet+ devices using the TV remote control, not the buttons on the TV. x The TV remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device. x The Anynet+ functions do not operate with other manufacturers’ products.Using the ARC functionYou can listen to sound through a receiver connected HDMI cable without the need for a separate optical cable.1. Select Receiver and set to On.2. Press the EXIT button to exit. ✎

To use the ARC function, a receiver which supports the HDMI-CEC and ARC features must be connected to the HDMI IN 2 (ARC) port. ✎

To disable the ARC function, set the Receiver to Off. Even if the TV transmits the ARC signal continuously, the receiver will be blocked from receiving the signal. [UC9000]BN68-02820J-ZG.indb 50 2010-05-24 오후 8:09:5551

Problem Possible Solution

Anynet+ does not work. • Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.

• Only one receiver (home theatre) can be connected.

• Check if the Anynet+ device power cord is properly connected.

• Check the Anynet+ device’s Video/Audio/HDMI cable connections.

• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

• Check whether the TV remote control is in TV mode.

• Check whether the remote control is Anynet+ compatible.

• Anynet+ doesn’t work in certain situations. (Searching channels, operating Media Play or Plug & Play (initial

• When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off

• Check if the Anynet+ Function of Anynet+ device is set on.

I want to start Anynet+. • Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to

On in the Anynet+ Setup menu.

• Press the TOOLS button to display the Anynet+ menu and select a menu you want.

• Press the SOURCE button on the TV remote control and select a non- Anynet+ device.

, and PRE-CH to change the TV mode. (Note that the channel button operates only when a

tuner-embedded Anynet+ device is not connected.)

The message “Connecting to

Anynet+ device...” appears on the

• You cannot use the remote control when you are configuring Anynet+ or switching to a view mode.

• Use the remote control when the Anynet+ setting or switching to view mode is complete.

The Anynet+ device does not play. • You cannot use the play function when Plug & Play (initial setup) is in progress.

The connected device is not

• Check whether or not the device supports Anynet+ functions.

• Check whether or not the HDMI cable is properly connected.

• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

• Search Anynet+ devices again.

• You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+

• If connection is terminated because there has been a power interruption or the HDMI cable has been

disconnected, please repeat the device scan.

The TV Programme cannot be

• Check whether the antenna jack on the recording device is properly connected.

The TV sound is not output

through the receiver.

• Connect the optical cable between TV and the receiver.

• The ARC function enables digital output of sound using the HDMI IN 2(ARC) port and can only be operated

when the TV is connected to an audio receiver that supports the ARC function.

Configure the network settings before using Internet@TV. For more information, refer to “Network Connection” (p. 32).

x Unsupported fonts within the provider’s content will not display normally. x Slow responses and/or interruptions may occur, depending on your network conditions. x English may be only supported in application service depending on region. x This feature is not available in some locations. x If you experience a problem using a application, please contact the content provider. x According to circumstances of the contents provider, an application’s updates or the application itself may be discontinued. x Depending on your country’s regulations, some applications may have limited service or not be supported.Screen DisplayInternet@TV brings useful and entertaining contents and services directly from the web to your TV.RecommendedSamsung AppsSettingsMy Applications Login

B Mark as Favourite Sort by R Returnby Date 1/1

Sort by R Return My Applications

Recommended by Date 1/1SettingsSamsung Apps Recommended Applications:

Displays the recommended service by

Samsung. You are not able to add or

delete a service in this list.

Downloaded Applications:

Displays the downloaded applications

through the Samsung Apps.

Displays the current channel.

Displays notices, new

advertisements brought to

you by Samsung product

Application service:

various service by provided

Internet@TV Settings:

Edit and confi gure applications

and Internet@TV settings.

• Red (Login): To log in to Internet@TV.

B Green (Mark as favourite): To mark the applications as a favourite.

• Blue (Sort by): To sort the applications.

R Return: To return to the previous menu.

The colour buttons may work differently depending on the application.

[UC9000]BN68-02820J-ZG.indb 52 2010-05-24 오후 8:09:5753 English 04 Advanced Features Account LoginFor a application with multiple account, use ◄ and ► to access the different account. ✎ For a more enjoyable application experience, register and log in to your account. ✎ For instructions on creating an account, refer to Settings → Internet@TV ID → Create. 1. Press the Red button in Internet@TV home page.

2. Select desired User account, then press the ENTER E

button. ✎ If you want create account, press Red button; then create account OSD window appear.3. Enter the Password. ✎ When login succeeds, User account will be displayed on the screen.

¦ Setting up Internet@TV Settings Create IDs and configure Internet@TV settings from this screen. Highlight Settings using ▲ and ▼ buttons and press the ENTER E button. ■ System SetupTicker Autorun (Off / On): Enable/disable ticker autorun upon powering on the TV. ✎ The Ticker application provides useful News, Weather, and Stock Market information. The Ticker application on Internet@TV must be downloaded to use this feature. ✎ Depending on your country, Ticker application may have different service or not be supported.Channel Bound Service (Off / On): Some channels support applications as an Internet data service, allowing you to access the Internet service while watching TV. ✎ Only available if supported by the broadcaster.Change the Service Lock password ✎ The default password set is “0-0-0-0.” ✎ If you forget the password, press the following sequence of remote control buttons to reset the password to “0-0-0-0”: POWER (off) → MUTE →

8 → 2 → 4 → POWER (on). Reset: Resets Internet@TV settings to factory default settings. ■ Internet@TV IDYou can use this menu when creating, deleting the account. You can control your account including contents site’s account information. ✎ Account is only for internet@TV.Create: Create an account and link it with desired service applications. ✎

x Account will be made less than 10. x Maximum number of characters is 8.Manager – Service Site: Register login information for service sites. – Change Password: Change account password. – Delete: Delete the account. ■ Service Manager: Delete and lock applications installed to Internet@TV.Lock: Lock the application. ✎ Accessing a locked application requires the password.Delete: Delete the application. ■ Properties: Display information about Internet@TV. Use the Check the speed of your internet connection option to test your network connection.

Login User account:Password: Create [0~9] Enter PIN R Cancel R Return Settings ▪ System setup▪ Internet@TV ID▪ Service Manager▪ Properties▪ Ticker Autorun : Off▪ Channel Bound Service : Off▪ Change the Service Lock password▪ Reset [UC9000]BN68-02820J-ZG.indb 53 2010-05-24 오후 8:09:5854 English Advanced Features

¦ Using the Internet@TV service

Samsung Apps Samsung Apps is a store for downloading applications to be used on Samsung TV/AV equipment.Users can enjoy a variety of contents like videos, music, photos, games, useful information etc. using the downloaded applications.Additional applications will be available hereafter. ✎ Using the colour buttons with the Samsung Apps. x Red (Login): To log in to the internet service. x

B Green (Thumbnail View): To change the view mode. x Blue (Sort by): To sort the applications by Featured, Most downloaded, Most recent or Name. x

R Return: Moves to previous menu.Using the Samsung Apps by categoryThe following categories are available: y What’s New?: Displays newly registered applications.

y Video: Displays various video media such as movies, TV shows and short length videos. y Sports: Displays various sports media such as match information, images and short length video. y Game: Displays various games such as sudoku and chess. y Lifestyle: Includes various lifestyle media services such as music, personal photo management tools and social networking such as Facebook and Twitter. y Information: Includes various information services such as news, stocks and weather. y Other: Includes other miscellaneous services.

y My Page: My Page offers information about already installed applications on the TV like detailed information, download contents etc.. It can allows delete or lock the applications. y Help: If you have questions about Internet@TV, check this section first. You Tube Login

Sort by R ReturnSamsung AppsWhat’s New?VideoSports Game LifestyleInformationOtherMy Page Help

Featured Most downloaded Most recent Name YouTubeTV store Test User002 Free [Legal Statement] Due to the various capabilities of products featuring the Samsung Internet@TV - Content Service, as well as limitations in

the available content, certain features, applications, and services may not be available on all devices or in all territories.

Some features on Internet@TV may also require additional peripheral devices or membership fees that are sold separately. Please visit http://www.samsung.com for more information on specific device information and content availability. The services and availability of content through Internet@TV are subject to change from time to time without prior notice. [UC9000]BN68-02820J-ZG.indb 54 2010-05-24 오후 8:09:5955 English 04 Advanced Features

¦ About AllShare AllShare connects your TV, mobile phones and other devices which are compatible through a network. On your TV, you can view call arrivals, SMS messages and schedules set on your mobile phones. In addition, you can play media contents including videos, photos and music saved on your mobile phones or the other devices (such as your PC) by controlling them on the TV via the network. Additionally, you can use your TV as a monitor for your mobile when browsing a web page. ✎ For more information, visit “www.samsung.com” or contact the Samsung call centre. Mobile devices may need additional software installation. For details, refer to each device’s user’s guide. ¦ Setting Up AllShare

■ Message (On / Off): Enables or disables the message function (for call arrivals, SMS messages and schedules set on your mobile phones). ■ Media (On / Off): Enables or disables the media function. When the media function is on, it plays videos, photos and music from a mobile phone or other device that supports AllShare. ■ ScreenShare (On / Off): Enables or disables the ScreenShare function for using mobile phone as a remote control. ■ TV name: Sets the TV name so you can find it easily on a mobile device. ✎ If you select User Input, you can type on the TV using the OSK (On Screen Keyboard). Message / Media / ScreenShare Shows a list of mobile phones or connected devices which have been set up with this TV for using the Message, Media, or ScreenShare function. ✎ The Media function is available in all mobile devices which support AllShare. ■ Allowed / Denied: Allows/Blocks the mobile phone.

■ Delete: Deletes the mobile phone from the list.

✎ This function only deletes the name of the mobile from the list. If the deleted mobile device is turned on or trys to connect to the TV, it may appear on the list again.Using the Message FunctionUsing this function, you view call arrivals, SMS messages and schedules set on the mobile phone through the alarm window while watching TV. ✎

x To disable the alarm window, set Message to Off in Setup of AllShare. x If OK is selected, or if OK is not selected after the message has appeared three times, the message will be deleted. The message is not deleted from the mobile phone. x The alarm window can be displayed while using some applications such as Media Play etc. To view the contents of a message, switch to TV viewing mode. x When a message from an unknown mobile phone is displayed, select the mobile phone on the message menu in AllShare and select Denied to block the phone.Message ViewIf a new SMS message arrives while you are watching TV, the alarm window appears. If you click the OK button, the contents of the message are displayed. ✎ You can configure the viewing settings for SMS messages on your mobile phones. For the procedures, refer to the mobile phone manual. ✎ Some types of characters may be displayed as blank or broken characters. AllShare™ 3/7

Exit Setup R ReturnSetupMessageMediaScreenShareMessage : OnMedia : OnScreenShare : OnTV name : Home TV [UC9000]BN68-02820J-ZG.indb 55 2010-05-24 오후 8:10:0056 English Advanced Features Call Arrival AlarmIf a call arrives while you are watching TV, the alarm window appears.Schedule AlarmWhile you are watching TV, the alarm window appears to display the registered event. ✎ You can configure viewing settings for schedule contents on your mobile phones. For the procedures, refer to the mobile phone manual. ✎ Some special characters may be displayed as blank or broken characters.Using the Media Function An alarm window appears informing the user that the media contents (videos, photos, music) sent from a mobile phone will be displayed on your TV. The contents are played automatically 3 seconds after the alarm window appears. If you press the RETURN or EXIT button when the alarm window appears, the media contents are not played. ✎

x If the media function executes for the first time, the warning popup window appears. Press the ENTER E button to select Allow, then you can use Media function on that device. x To turn off the media contents transmission from the mobile phone, set Media to Off in the AllShare setup. x Contents may not be played on your TV depending on their resolution and format. x The ENTER E and ◄ / ► buttons may not work depending on the type of media content. x Using the mobile device, you can control the media playing. For details, refer to each mobile’s user’s guide. x When you want to play media contents from your PC, select the PC icon on the main display of AllShare. Then the TV’s Media Play menu automatically changes. For more detail information, refer to “Media Play” (p. 39).Using ScreenShare FunctionScreenshare displays the same web page as provide in mobile. Using ScreenShare, you can open the various contents saved in a mobile phone. For example, the image below displays an access page for contents from a mobile. You can read the mobile’s various files and view the phone book and calendar on the TV. Also, in phone book, you can make a call to other person, or can send to SMS. ✎

x In Samsung mobile, ScreenShare must be installed and the supporting application must be executed; then you can use the ScreenShare function. x Available buttons on your remote control may vary for each page. x Doc Viewer can read files in doc format, but cannot modify them. x The screen display may differ depending on the connected device.Using your Samsung phone to control your TV SimplyBefore you can use this feature, you must connect to a Samsung mobile phone that supports ScreenShare functions. When operating the TV with your mobile phone, only the POWER, Y , P <

> and MUTE buttons are supported. ✎ Even if you keep pressing down on a control button (channel or volume) on the mobile phone, the value will only go up or down by one unit.DenyAllow“Unknown Device 0” is requesting that the media le be allowed to play. If you wish to allow the media le to be played at your device, please press “Allow”, otherwise press “Deny”.You can also change the setting (or resetting) of this feature at “AllShare Setup”.Warning: Please note that if your device is connected to unsecured or unfamiliar network, unwanted or inappropriate contents might be played.If you are not sure about the network's identity or content’s appropriateness, we strongly recommend that you do not “Allow” the request to play. E Select Return My Mobile Contacts Calendar Doc Viewer [UC9000]BN68-02820J-ZG.indb 56 2010-05-24 오후 8:10:0057 English05 Other Information Other Information Assembling the CablesWall-Mount Type (UE46C9000ZW, UE55C9000ZW, UE46C9080ZW, UE55C9080ZW) ✎ Do not pull the cables too hard when arranging them. This may cause damage to the product’s connection terminals.Securing the TV to the wall Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided in the included Safety Flyer. For added stability and safety, install the anti-fall device as follows. ¦ To Avoid the TV from Falling (UE46C9000ZW, UE55C9000ZW, UE46C9080ZW, UE55C9080ZW)1. Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall. ✎ You may need additional material such as an anchor depending on the type of wall. ✎ Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.2. Remove the screws from the back centre of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.3. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong cable and then tie the string tightly. ✎

x Install the TV near to the wall so that it does not fall backwards. x It is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV. x Untie the string before moving the TV.4. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer. Wall

If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit “www.

samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

Picture Quality First of all, please perform the Picture Test and confirm that your TV is properly displaying test image.

(go to MENU - Support - Self Diagnosis - Picture Test) (p. 29) If the test image is properly displayed, the poor picture may caused by the source or signal.The TV image does not look as good as it did in the store.• If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high definition) picture quality.• Cable/Satellite subscribers: Try HD stations from the channel line up.• Antenna connection: Try HD stations after performing Auto programme. ✎ Many HD channels are up scaled from SD(Standard Definition) contents.• Adjust the Cable/Set top box video output resolution to 1080i or 720p.• Make sure you are watching the TV at the minimum recommended distance based on the size and definition of the signal.The picture is distorted: macro block error, small block, dots, pixelization• Compression of video contents may cause picture distortion especially in fast moving pictures such as sports and action movies.• Low signal level or bad quality can cause picture distortion. This is not a TV issue.• Mobile phones used close to the TV (cca up to 1m) may cause noise in picture on Analogue and digital TV. Colour is wrong or missing. • If you’re using a component connection, make sure the component cables are connected to the correct jacks. Incorrect or loose connections may cause colour problems or a blank screen. There is poor colour or brightness. • Adjust the Picture options in the TV menu. (go to Picture mode / Colour / Brightness / Sharpness) (p. 20) • Adjust Energy Saving option in the TV menu. (go to MENU - Picture - Eco Solution - Energy Saving) (p. 20) • Try resetting the picture to view the default picture settings. (go to MENU - Picture - Picture Reset) (p. 24).There is a dotted line on the edge of the screen. • If the picture size is set to Screen Fit, change it to 16:9 (p. 21). • Change cable/set top box resolution. The picture is black and white. • If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the TV.When changing channels, the picture freezes or is distorted or delayed.• If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes.• Set the output resolution of the cable box to 1080i or 720p. Sound Quality First of all, please perform the Sound Test to confirm that your TV audio is properly operating.

(go to MENU - Support - Self Diagnosis - Sound Test) (p. 29) If the audio is OK, the sound problem may caused by the source or signal. There is no sound or the sound is too low at maximum volume.• Please check the volume the of external device connected to your TV. The picture is good but there is no sound. • Set the Speaker Select option to TV Speaker in the sound menu (p. 26). • If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV.• If you are using an external device, check the device’s audio output option (ex. you may need to change your cable box’s audio option to HDMI when you have a HDMI connected to your TV).• If you are using a DVI to HDMI cable, a separate audio cable is required.• If your TV has a headphone jack, make sure there is nothing plugged into it.The speakers are making an inappropriate noise.• Check the cable connections. Make sure a video cable is not connected to an audio input.• For antenna or cable connections, check the signal strength. Low signal level may cause sound distortion.No Picture, No VideoThe TV won’t turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV.• Make sure the wall outlet is working. • Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “The remote control does not work” below. The TV turns off automatically. • Ensure the Sleep Timer is set to Off in the Setup menu (p. 27). • If your PC is connected to the TV, check your PC power settings.• Make sure the AC power cord is plugged in securely to the wall outlet and the TV.• When watching TV from an antenna or cable connection, the TV will turn off after 10 ~ 15 minutes if there is no signal. [UC9000]BN68-02820J-ZG.indb 58 2010-05-24 오후 8:10:0259

05 Other Information

Issues Solutions and Explanations

There is no picture/Video. • Check cable connections (remove and reconnect all cables connected to the TV and external

• Set your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the

connections to the TV input. For example, if an external device’s output is HDMI, it should be connect

to an HDMI input on the TV.

• Make sure your connected devices are powered on.

• Be sure to select the TV’s correct source by pressing the SOURCE button on the TV remote.

RF(Cable/Antenna) Connection

The TV is not receiving all channels. • Make sure the Antenna cable is connected securely.

• Please try Plug & Play (Initial setup) to add available channels to the channel list. Go to MENU -

Setup - Plug & Play (Initial setup) and wait for all available channels to be stored (p. 11).

• Verify the Antenna is positioned correctly.

The picture is distorted: macro block error

small block, dots, pixelization

• Compression of video contents may cause picture distortion, especially with fast moving pictures

such as sports and action movies.

• A low signal can cause picture distortion. This is not a TV issue.

A “Mode Not Supported” message

• Set your PC’s output resolution and frequency so they match the resolutions supported by the TV (p. 31).

“PC” is always shown on the source list,

even if a PC is not connected.

• This is normal; “PC” is always shown on the source list, regardless of whether a PC is connected.

The video is OK but there is no audio. • If you are using a HDMI connection, check the audio output setting on your PC.

Network Connection (Depending on Models)

Wireless network connection failed. • Samsung Wireless USB dongle is required to use a wireless network.

• Make sure the Network Connection is set to Wireless (p. 34).

• Make sure the TV is be connected to a wireless IP sharer (router).

Recording / Timeshift

The USB device is not recognized or a

Device Format, Checking Device or

Device Performance Test fails.

• See the manual for the USB device to check that the USB device supports recording.

• If the USB device has a lock, ensure it is off.

• Check that the USB device can be formatted when connected to the PC. Connect the USB to the TV

and format it. (Formatting may fail intermittently.)

• If a Device Performance Test or formatting failed, it means that there is a problem with the USB

hardware or the performance of the USB hardware is too low.

A message prompts me to format a USB

device that has been working well.

• If the USB device has a lock, ensure it is off.

• Recover the USB device using the recovery function in Checking Device.

The recording function does not work. • Check that a USB device is connected.

• Check that the channel is a recordable digital channel.

• If the signal is weak or does not exist, the recording function will automatically be closed.

• The TV will not record if the USB device has no free memory space. Check that this is not the case.

Timeshift Mode does not work. • Check that a USB device is connected.

• Radio channels and analogue broadcasts are not supported.

• Data broadcast channels are not supported.

• If the signal is weak or does not exist, the Timeshift Mode function will automatically be closed.

• Timeshift Mode cannot be performed if the USB device has no free memory space. Check that this

A message indicates a performance test

failure, and the recording and

Timeshift Mode functions do not work.

• These problems may occur if you use a low-capacity USB device that does not support recording.

We recommend using the USB HDD.

[UC9000]BN68-02820J-ZG.indb 59 2010-05-24 오후 8:10:0260

Issues Solutions and Explanations

A scheduled recording has failed. • A scheduled recording is disabled for certain operations (formatting, performance test, error checking,

deleting) that access the file system of a USB device.

• If there is no USB device connected, the TV will not record even if the scheduled time is reached.

• The TV will not record if the USB device has no free memory space. Check that this is not the case.

• If you record a channel locked with Parental lock, the PIN input window will appear when you try to

play back the recording.

Several recording devices are connected

but the TV stopped recording.

• If multiple recording devices are connected and the device set as Default Recording Device has no

free memory space, the recording function will be closed. Attempt recording again. The device with

the most free memory space will automatically be set as Default Recording Device and the TV will

The picture won’t display in full screen. • HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3)

• Black bars on the top and bottom will appear during movies that have aspect ratios different from

• Adjust the picture size options on your external device or TV to full screen.

The remote control does not work. • Replace the remote control batteries with the poles (+/–) in the right direction.

• Clean the sensor’s transmission window on the remote.

• Try pointing the remote directly at the TV from 5~6 feet away.

The cable/set top box remote control

doesn’t turn the TV on or off, or adjust the

• Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set user

A “Mode Not Supported” message

• Check the supported resolution of the TV, and adjust the external device’s output resolution

accordingly. Refer to the resolution settings on page 31 of this manual.

There is a plastic smell from the TV. • This smell is normal and will dissipate over time.

The TV Signal Information is unavailable

in the Self Diagnostic Test menu.

• This function is only available with digital channels from an Antenna / RF/Coax connection (p. 29).

The TV is tilted to the side. • Remove the base stand from the TV and reassemble it.

The channel menu is greyed out.

• The Channel menu is only available when the TV source is selected.

Your settings are lost after 30 minutes or

every time the TV is turned off.

• If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change

the settings from Store Demo mode to Home Use mode in the Plug & Play (Initial setup) procedure.

Press the SOURCE button to select TV mode, and go to MENU → Setup → Plug & Play (Initial

You have intermittent loss of audio or

• Check the cable connections and reconnect them.

• Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are

flexible enough for long term use. If mounting the TV to the wall, we recommend using cables with 90

You see small particles when you look

closely at the edge of the frame of the TV.

• This is part of the product’s design and is not a defect.

The message “Scramble signal” or “Weak

Signal/No Signal” appears.

• If you are using a CAM CARD (CI/CI+), check that it is installed into the common interface slot.

• If there is still a problem, pull the CAM CARD out of the TV and insert it into the slot again.

You turned the TV off 45 minutes ago, and

• It is normal. The TV operates the OTA (Over The Aerial) function itself to upgrade firmware

downloaded whilst your watching TV.

There are recurrent picture/sound issues. • Check and change the signal/source.

A reaction may occur between the rubber

cushion pads on the base stand and the

top finish of some furniture.

• To prevent this, use felt pads on any surface of the TV that comes in direct contact with furniture.

This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However,

there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the

Enclosed Wireless LAN Adapter

• Compatible with IEEE 802.11a/b/g and 802.11n draft 2.0

• Compact and Lightweight Pocket-Sized Design

• Supported Model: The Enclosed wireless LAN Adapter will only be work with the TV is was shipped with.

• Do not let children swallow the product or play with the plastic bag. Keep the product and the plastic bag out of the reach of children.

• Do not let water or other liquids come into contact with the product, as it may result in damage.

• Keep the product away from direct sunlight, fire or a heat source such as a heater. This may reduce the product lifetime or result in fire.

• If the product is not working properly due to a performance defect that appears under normal circumstances within the warranty period, please visit

the retailer where you purchased it.

Data Rate 802.11a/g: 54,48,36,24,18,12,9 and 6Mbps

802.11b: 11,5.5,2 and 1Mbps

802.11n: up to 300Mbps (40MHz / spatial streams: 2)

Sensitivity 802.11a: –68dBm at 54Mbps

802.11b: –84dBm at 11Mbps

802.11g: –68dBm at 54Mbps

802.11n: –68dBm (20MHz) / –65dBm (40MHz)

Power consumption TX: 500mA at continuous transmit mode (2 Tx chains on )

RX: 300mA at continuous receive mode (2 Rx chains on )

Dimensions (L X W X D) 84 X 26.6 X 16 mm

Ideal For 802.11n (5GHz) 802.11n (2.4GHz) 802.11 a/b/g

not recommended not recommended

recommended recommended

• Network conditions and environmental factors (including but not limited) volume of network traffic, building materials and construction, may lower

actual data throughput rate.

• Environmental conditions will affect wireless signal coverage.

• Video clips with lower than 20Mbps bit-rates are recommended for the wireless video streaming.

[UC9000]BN68-02820J-ZG.indb 61 2010-05-24 오후 8:10:0362

TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc.

TheaterSound technology is incorporated under licence from SRS Labs, Inc.

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are

trademarks of Dolby Laboratories.

Manufactured under licence under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;

6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are

registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc.

Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that

plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-

Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go

to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

Pat. 7,295,673; 7,460,688; 7,519,274

GUIDE Plus+ Trademark / Licence / Patent Notice

GUIDE Plus+ is (1) a registered trademark or trademark of, (2) manufactured under license from

and (3) subject of various international patents and patent applications owned by, or licensed to,

Gemstar-TV Guide International, Inc. and/or its related affiliates.

GUIDE Plus+ Legal Notice:

GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND/OR ITS RELATED AFFILIATES ARE NOT IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+ SYSTEM. IN NO EVENT SHALL GEMSTAR-TV GUIDE INTERNATIONAL, INC. AND /OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS, OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE PROVISION OR USE OF ANY INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE GUIDE PLUS+ SYSTEM.

Open Source Licence Notice

In the case of using open source software, Open Source Licences are available on the product menu.

Open Source Licence Notice is written only English.

[UC9000]BN68-02820J-ZG.indb 62 2010-05-24 오후 8:10:0463

Panel native 1920 x 1080

Operating Temperature

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F)

5% to 95%, non-condensing

TV System Analogue: B/G, D/K, L, I (Depending on your country selection)

Digital: DVB-T/DVB-C Colour/Video System Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60

PC input (HDMI IN1 only)

(Left / Right) -20˚ ~ 20˚

Model Name UE46C9000ZW UE46C9080ZW UE46C9000SW UE46C9080SW UE55C9000ZW UE55C9080ZW UE55C9000SW UE55C9080SW Screen Size

(Diagonal) 46 inches 55 inches

Design and specifications are subject to change without prior notice.

For information about power supply, and more about power consumption, refer to the label attached to the product.

Connecting to a PC 31

Connecting to an Audio Device 14

D DIGITAL AUDIO OUT 14, 48

I Installation Space 2

O Optimal resolution 31

Using Channel View 16

Using Scheduled View 16

Using Favourite Channels 17

X X PC X X X X X X XHDMI X X X X X X △

PR PB Y COMPONENT OUT AUDIO OUT R-AUDIO-L W R R G B AUDIO OUT R-AUDIO-L VIDEO OUT R R B G WR R G B W WR W Y Y R EXT Y W R VCR VCR DVD / Blu-ray

18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage...

18:00 - 18:30 Drama Tanya confesses all to a stunned Babs. Conrad is anxious to hear...

-/+ VESA GTF1280 x 720 1280 x 102452,500 74,620 70,00070,00089,040128,943 -/+

00:04:03 / 00:07:38 1/1

TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc.

TheaterSound technology is incorporated under licence from SRS Labs, Inc.

Hergestellt unter Lizenz der Dolby Laboratories: Dolby sowie das Doppel-D-Symbol sind

Warenzeichen der Dolby Laboratories.

Manufactured under licence under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;

6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are

registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc.

Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays

DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand

To generate the registration code, locate the DivX VOD section in the device setup menu.

Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673;

X X PC X X X X X X XHDMI X X X X X X △

PR PB Y COMPONENT OUT AUDIO OUT R-AUDIO-L W R R G B AUDIO OUT R-AUDIO-L VIDEO OUT R R B G WR R G B W WR W Y Y R EXT Y W R Videoregistratore

18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage...

18:00 - 18:30 Drama Tanya confesses all to a stunned Babs. Conrad is anxious to hear...

HDMI (720p/1080i/1080p) o Comp. (1080i/1080p).

-/+ VESA GTF1280 x 720 1280 x 102452,500 74,620 70,00070,00089,040128,943 -/+

00:04:03 / 00:07:38 1/1

Interfaccia host USB 2,0

TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc.

TheaterSound technology is incorporated under licence fromSRS Labs, Inc.

Fabricado bajo licencia de Dolby Laboratories. Dolby y el símbolo de la doble D son marcas

comerciales de Dolby Laboratories.

Manufactured under licence under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;

6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are

registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc.

Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays

DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand

To generate the registration code, locate the DivX VOD section in the device setup menu.

Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673;

Analogico: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60

[UC9000]BN68-02820J-ZG.indb 64 2010-05-24 오후 8:12:00This page is intentionally

services Internet (p. 52).

X X PC X X X X X X XHDMI X X X X X X △

18:00 - 18:30 Drama Dani is devastated when scott makes clear his views on marriage...

18:00 - 18:30 Drama Tanya confesses all to a stunned Babs. Conrad is anxious to hear...

Un enregistrement programmé a échoué.

• A scheduled recording is disabled for certain operations (formatting, performance test, error checking, deleting)

that access the file system of a USB device.

• Si aucun périphérique USB n’est connecté, le téléviseur n’enregistre pas à l’heure de début programmée.

TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc.

TheaterSound technology is incorporated under licence from SRS Labs, Inc.

Fabriqué sous licence de Dolby Laboratories. Dolby et le symbole du double D sont des marques déposées de

Manufactured under licence under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535

& other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS

2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All

DivX Certified to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an official DivX Certified device that plays DivX

video. Visit www.divx.com for more information and software tools to convert your files into DivX video.ABOUT DIVX VIDEO-ON-

DEMAND: This DivX Certified® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate

the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the

registration process and learn more about DivX VOD.

Pat. 7,295,673; 7,460,688; 7,519,274
