Product Type	Smartphone
Brand	Motorola
Model	Moto Q8
Operating System	Windows Mobile 6 Standard
Display	2.4 inches, TFT 320 x 240 pixels
Processor	Intel XScale PXA270 at 312 MHz
RAM Memory	64 MB
Internal Storage	128 MB
External Storage	microSD up to 2 GB
Camera	1.3 megapixels with LED flash
Connectivity	Bluetooth 2.0, mini-USB, 2.5 mm headphone jack
Battery	Removable Lithium-ion 1130 mAh
Talk time	Up to 4 hours
Standby time	Up to 10 days
Dimensions	117 x 65 x 13 mm
Weight	120 g
Main Features	Messaging, Internet, Camera, Media player, GPS (optional)
Care and cleaning	Clean with a soft, dry cloth. Avoid any liquids.
Security	PIN code lock, data backup via ActiveSync
Spare parts and repairability	Removable battery, charger, USB cable, earphones. Repair by authorized center.
General Information	QWERTY smartphone with sliding keyboard, compatible with GSM/GPRS/EDGE networks.

Frequently Asked Questions - Moto Q8 MOTOROLA

How to insert the SIM card and battery?

Turn off the phone, remove the back cover, insert the SIM card into its slot, then insert the battery and replace the cover.

How to perform a hard reset?

Press and hold the Call and End call keys while pressing the Power button until the reset menu appears. Confirm to erase all data.

How to transfer files between the Moto Q8 and a computer?

Connect the phone via mini-USB cable, then use ActiveSync (Windows) or Removable Disk mode to copy files.

How to configure Bluetooth to send files?

Enable Bluetooth in settings, set the phone to Visible mode, then pair with another device. Use the file manager to send files via Bluetooth.

What to do if the screen becomes unresponsive?

Try removing the battery for a few seconds, then reinsert it and turn on the phone. If the problem persists, perform a hard reset.

How to save battery?

Reduce screen brightness, disable Bluetooth and Wi-Fi when not in use, and close background applications via the task manager.

How to use the camera?

Open the Camera app from the Start menu. Frame your subject, then press the center button to take a photo. Use the volume keys for digital zoom.

How to install additional applications?

Download applications in .cab format to the phone or sync via ActiveSync. Open the file from the file explorer to start installation.

How to back up my contacts?

Use ActiveSync to sync with Outlook on your computer. You can also export contacts to the SIM card via the Contacts app.

How to update the operating system?

Updates are available via Windows Update on the phone (Internet connection required) or by downloading the official ROM from the Motorola website.

USER MANUAL Moto Q8 MOTOROLA

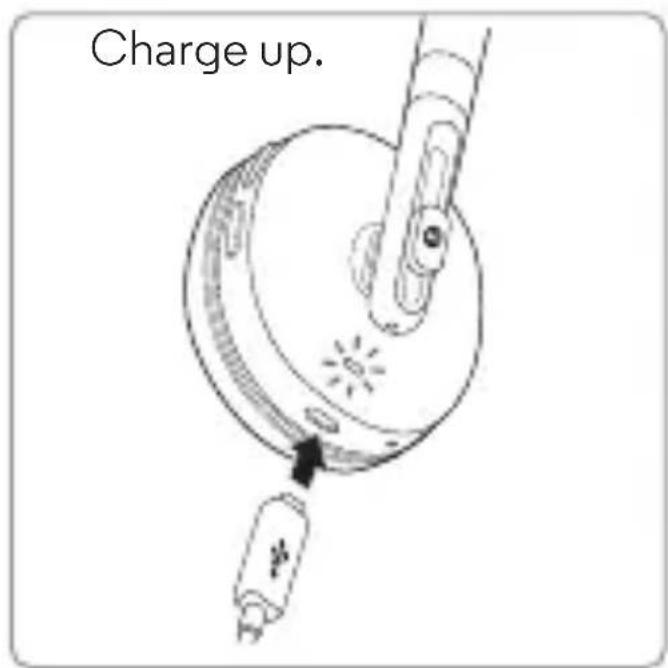

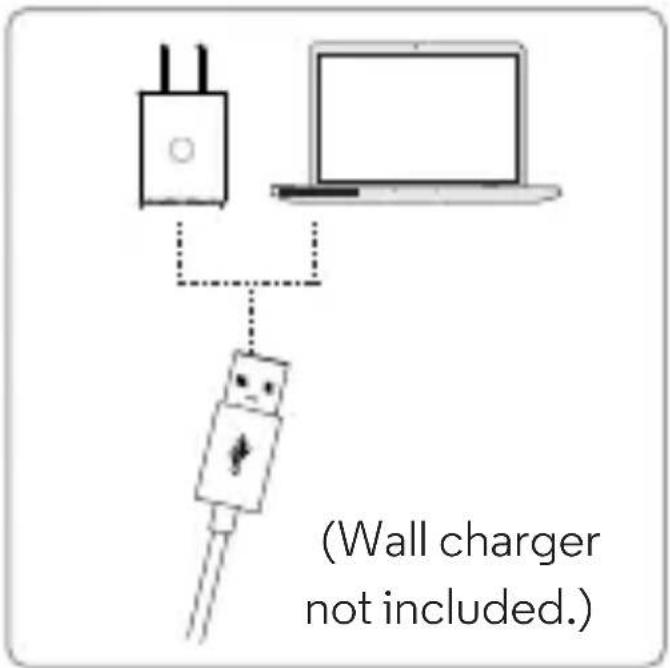

Step 1: Charge up & power on

Note: Before use, charge until the light turns green.

Power

2 Step 1: Charge up & power on en

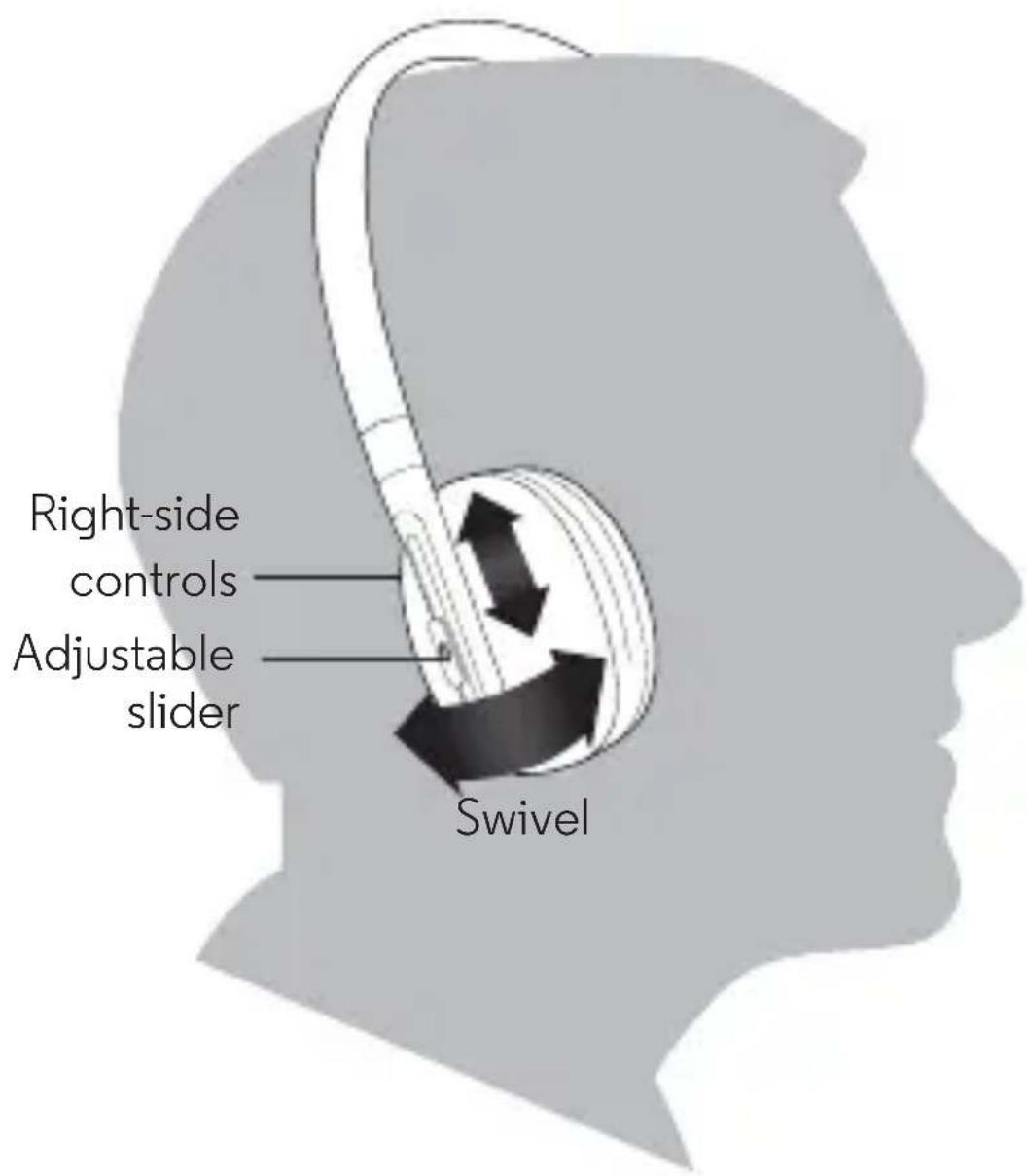

Step 2: Get the right fit

en Step 2: Get the right fit 3

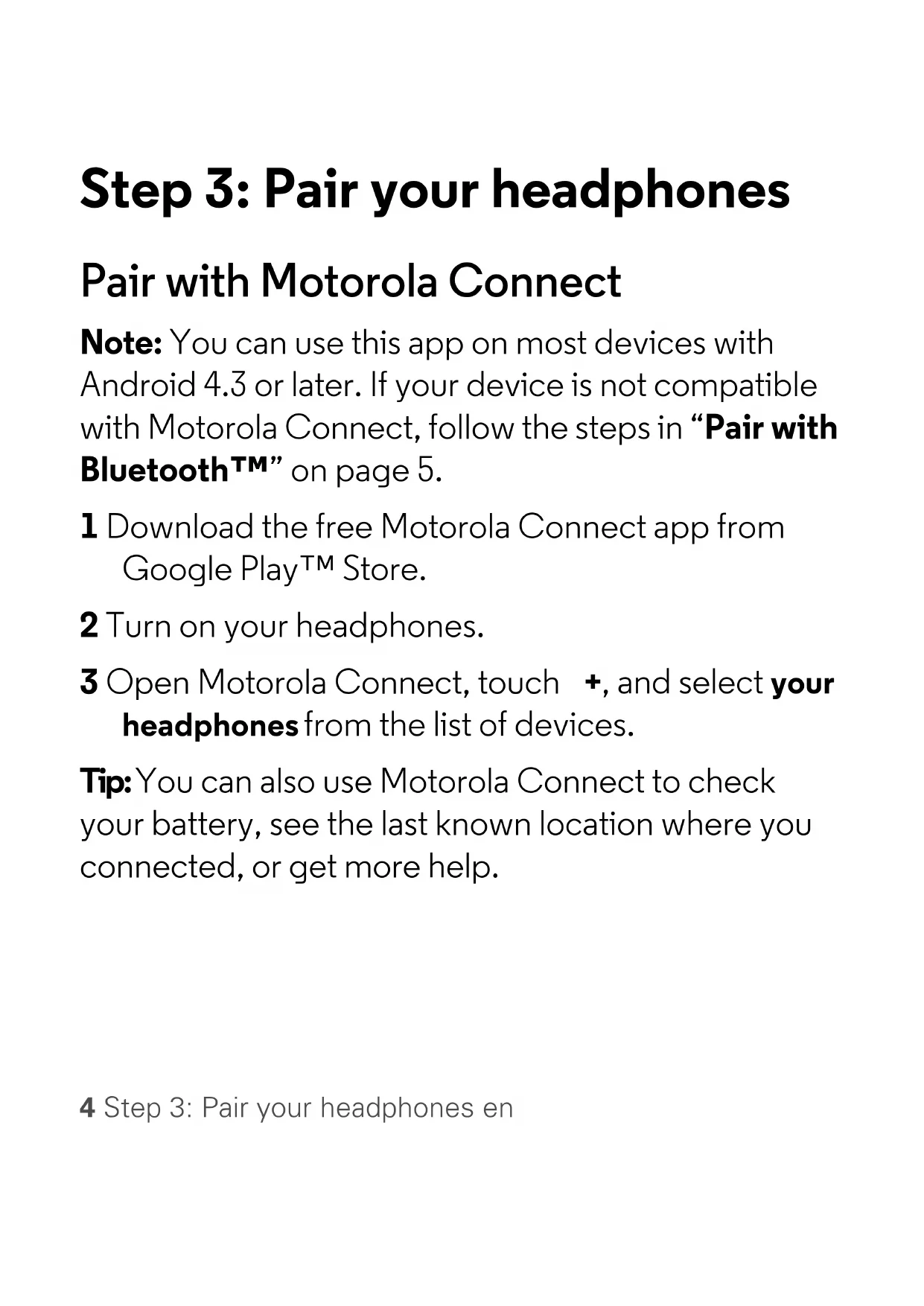

Step 3: Pair your headphones

Pair with Motorola Connect

Note: You can use this app on most devices with Android 4.3 or later. If your device is not compatible with Motorola Connect, follow the steps in “Pair with BluetoothTM” on page 5.

1 Download the free Motorola Connect app from Google Play™ Store.
2 Turn on your headphones.
3 Open Motorola Connect, touch +, and select your headphones from the list of devices.

Tip: You can also use Motorola Connect to check your battery, see the last known location where you connected, or get more help.

Pair with Bluetooth™

Pair without the Motorola Connect app.

1

Turn on Bluetooth on your device.

2

Turn on your headphones.

Headphones light blinks blue.

3

On your device, go to the Bluetooth menu to pair & connect. Enter 0000 if prompted.

4

When the device and headphones connect, you'll hear a tone.

Headphones light is solid blue.

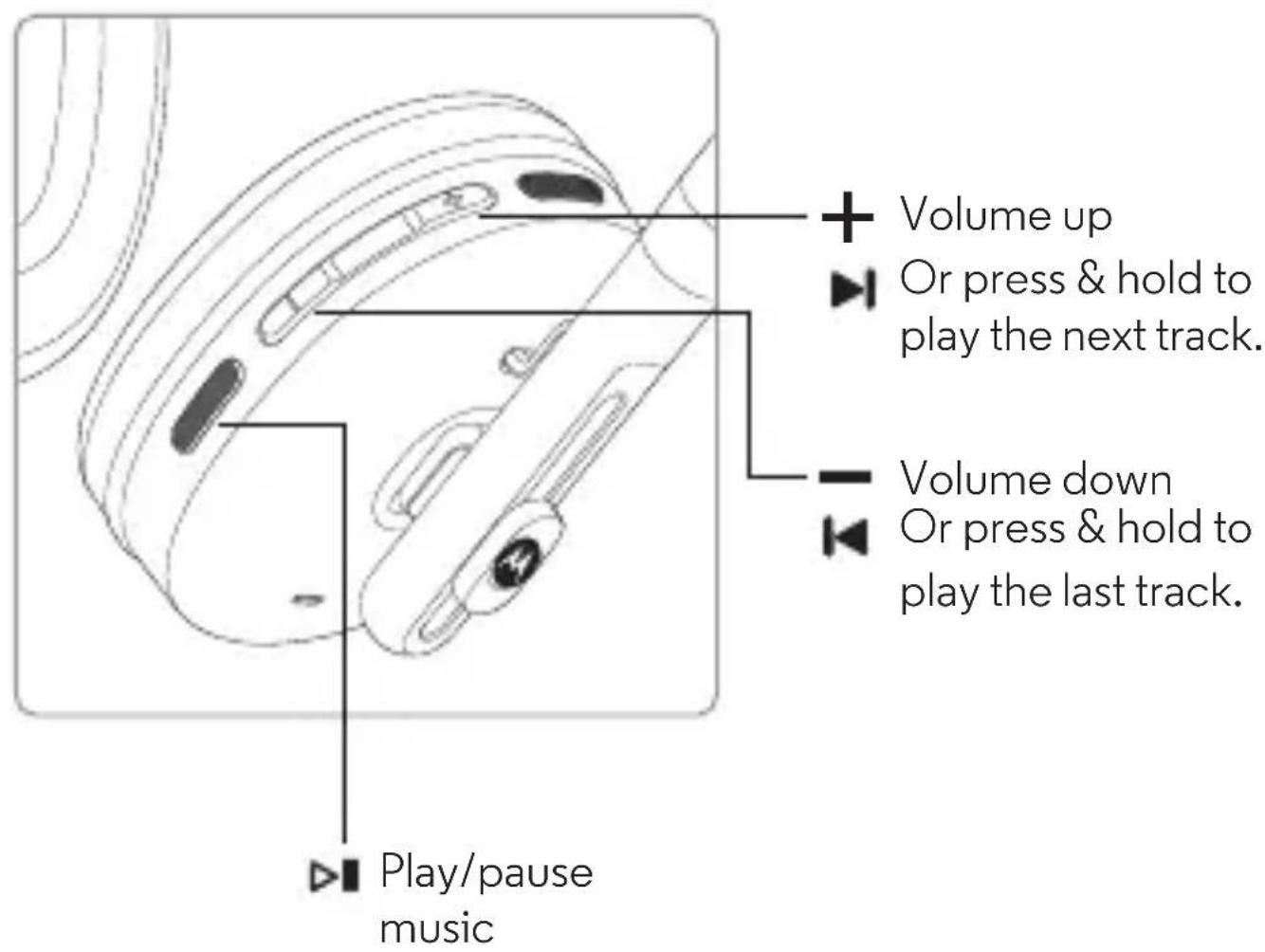

Music

Note: Playing the next or previous track depends on your phone's music controls.

6 Music en

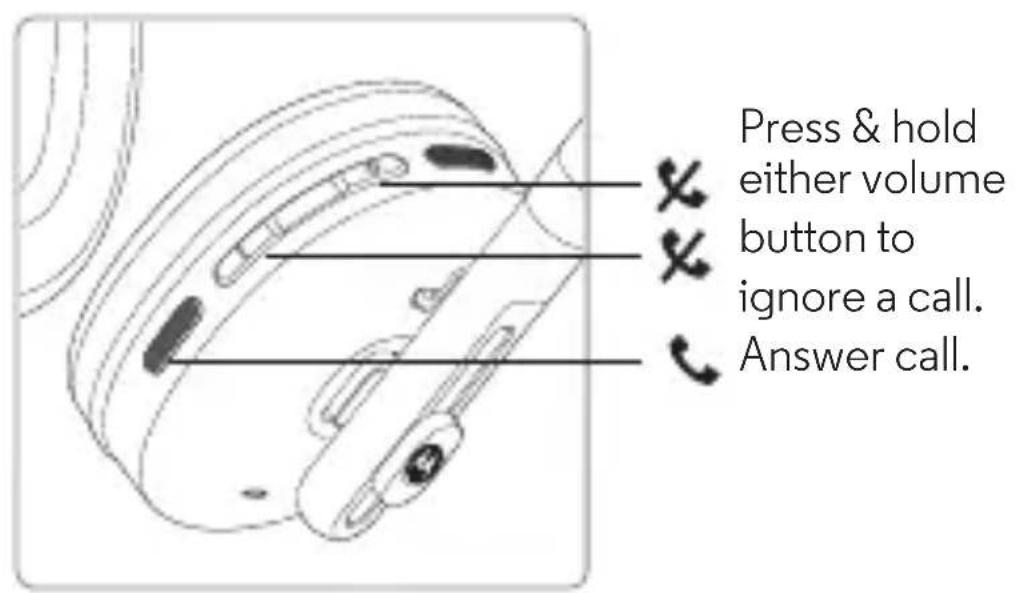

Calls

Incoming call:

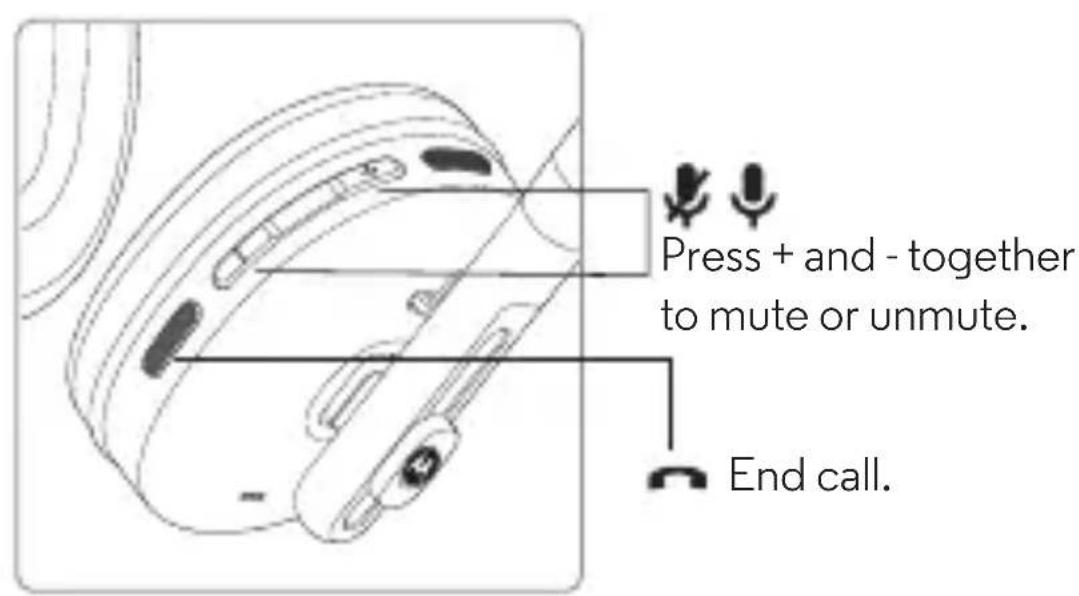

In a call:

en Calls 7

Voice Control

This feature uses your phone’s voice control app.

Note: voice control may not work on some devices or in all languages

Press & hold to start voice control.

Note: Using a mobile device or accessory while driving may cause distraction and may be illegal. Always obey the laws and drive safely.

Advanced

Status Lights

On/Off fading blue

Pairing mode blinking blue

Connected solid blue

Low battery blinking red

Full charge solid green

Charging solid red

Press + and - together to check the charge level (while not in a call).

Charge level:

• Red: Low, 0-19%

• Yellow: Medium, 20-70%

• Green: High, 71-100%

Note: Your battery is designed to last the life of the product. It should only be removed by a recycling facility. Any attempt to remove or replace your battery may damage the product and void your warranty.

10 Advanced en

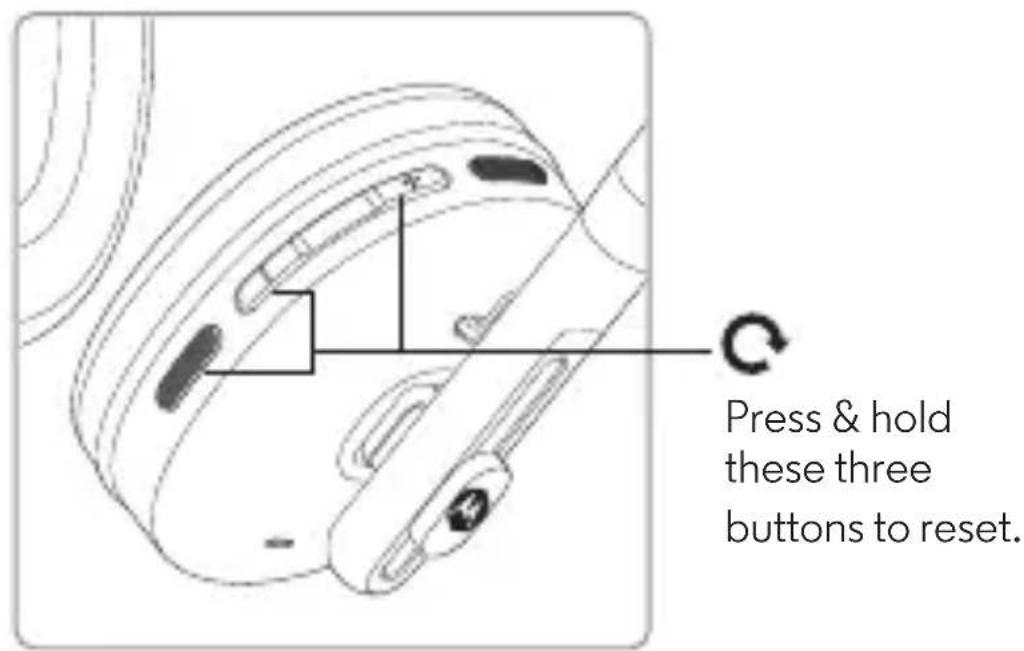

Reset

Turn off Bluetooth for all connected devices. Turn on the headphones, then press and hold all three buttons until the status light shows alternating red and blue. You'll hear a tone.

Second device

Do you use a phone and a tablet? Connect with both of them at the same time.

1 Pair to your first device using the steps in “Pair with BluetoothTM” on page 5.
2 Turn off Bluetooth on your first device (your phone, tablet, or computer).
3 Turn off the headphones. Then turn them back on.
4 Pair to your second device using the steps in “Pair with BluetoothTM” on page 5.
5 On your first device, turn Bluetooth back on to connect to it simultaneously. You'll hear a tone when the first device connects.

Tip: To switch and play audio from the second connected device, pause the current music device and then press play on the second device.

Help

• Get help: Visit www.motorola.com/support.
• Find regulatory markings: carefully remove the right earphone cover to expose the FCC and other regulatory markings for your device.

MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. All other product or service names are the property of their respective owners.

© 2015 Motorola Mobility LLC. All rights reserved.

Caution: Motorola does not take responsibility for changes/modification to the transceiver.

Bluetooth ID: D025976

Product ID: Model S505

Manual Number: 68017952002-A

lisez-moi d'abord

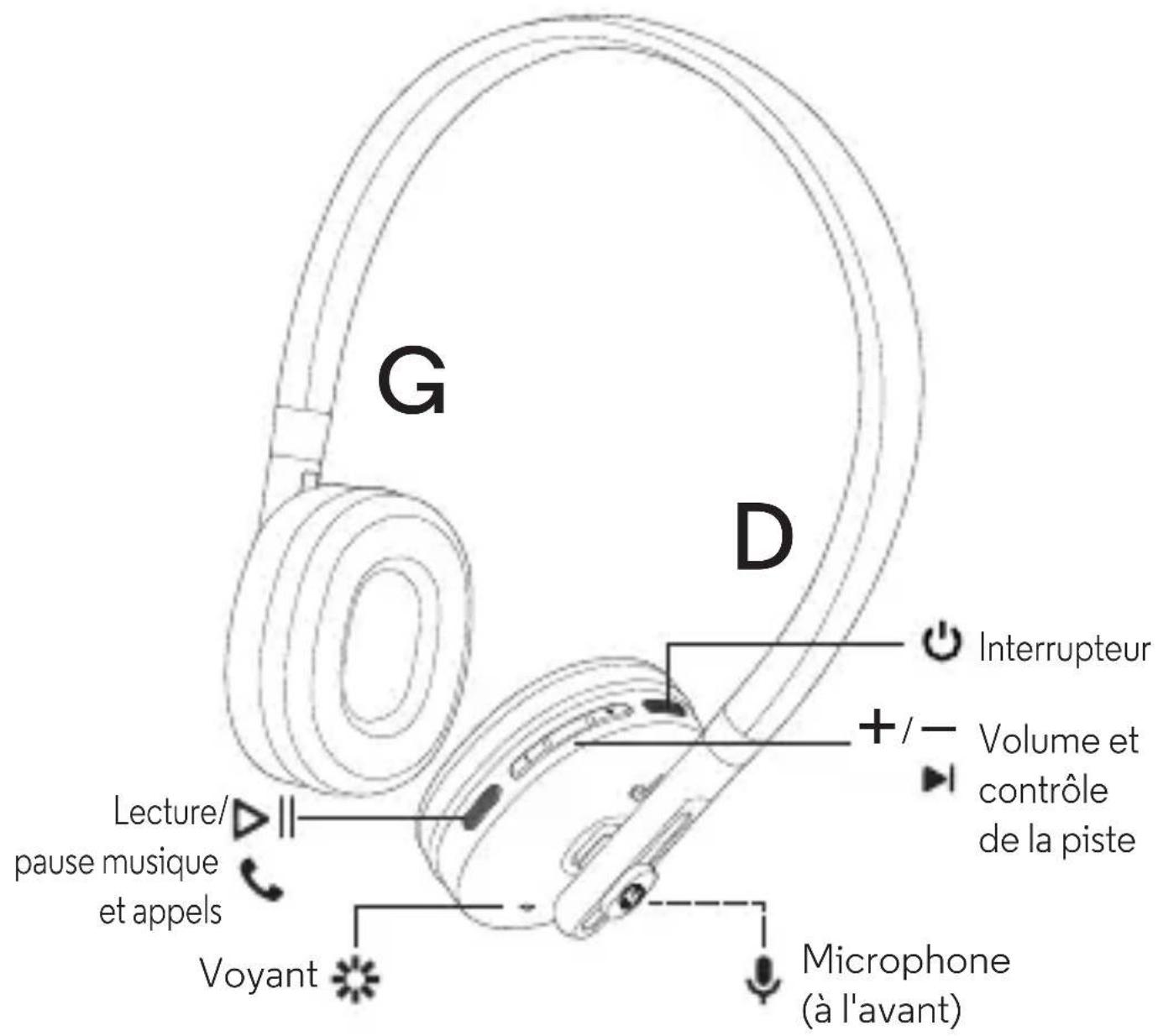

Vos écouteurs

8 Commande vocale fr-CA

Avancé

Voyant d'etat

• Obtenir de l'aide : Visitez le www.motorola.com/support.
• Find regulatory markings: carefully remove the right earphone cover to expose the FCC and other regulatory markings for your device.
