USER MANUAL TCL32X1 PANASONIC

Las imágenes mostradas en este manual tienen solamente fines ilustrativos.

Please read these instructions before operating your set and retain them for future reference.

The images shown in this manual are for illustrative purposes only.2

HDMI, the HDMI logo and High-

Definition Multimedia Interface are

trademarks or registered trademarks of

VIERA Link™ is a trademark of

Panasonic Corporation.

SDHC Logo is a trademark.

HDAVI Control™ is a trademark of

Panasonic Corporation.

Manufactured under license from Dolby

DOLBY and the double-D symbol are

trademarks of Dolby Laboratories.

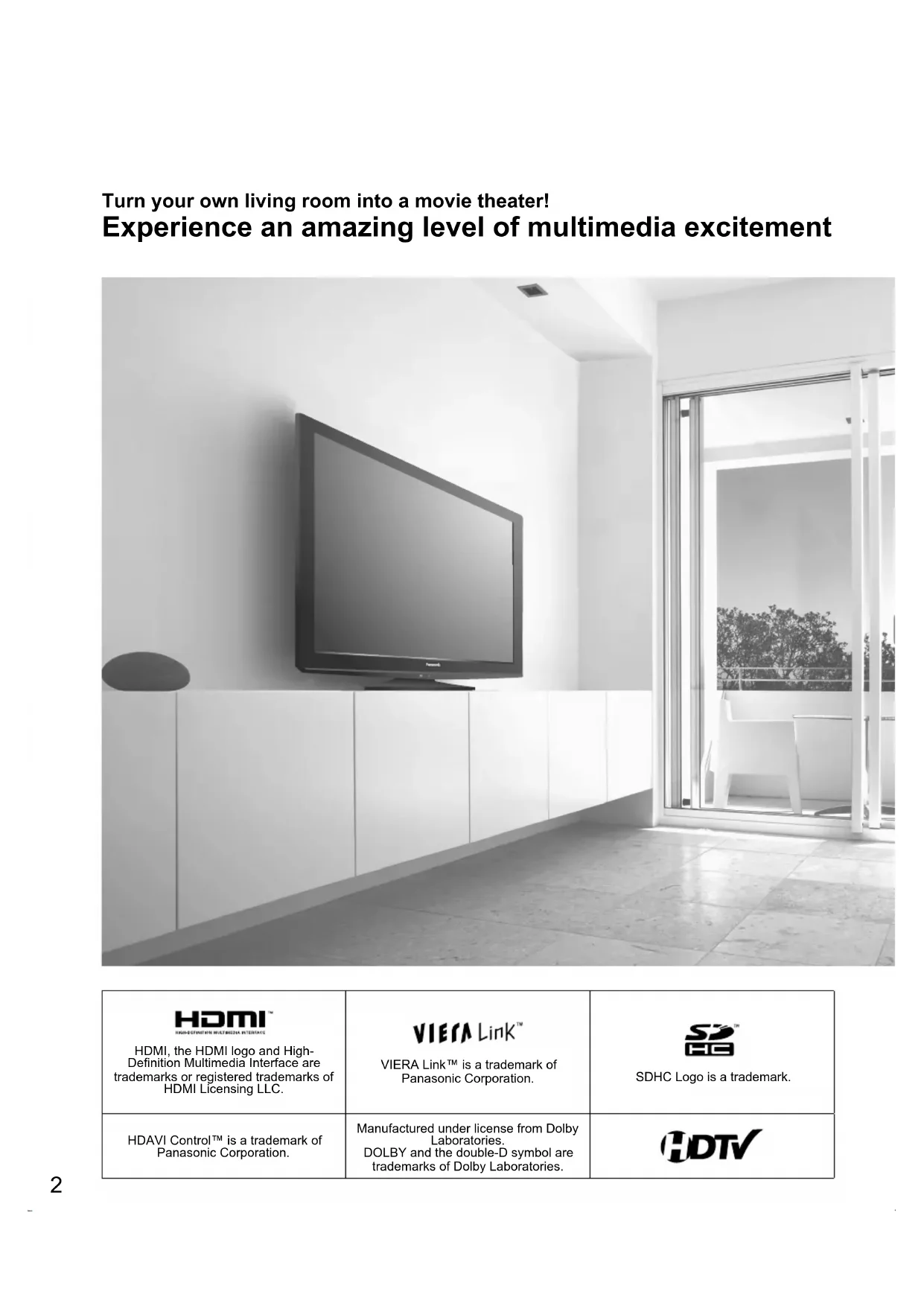

Turn your own living room into a movie theater!

Experience an amazing level of multimedia excitement3

Viewing Advanced FAQs, etc.

Guide This product qualifies for ENERGY STAR in the “Home” setting and this is the setting in which energy savings will be achieved. Any modifications to the “Home” setting or other factory default settings could result in greater energy consumption beyond levels that meet ENERGY STAR qualifications.iPod is a trademark of Apple Inc., registered in the U.S. and other countries. Watching TV ··············································· 17 Using VIERA TOOLS ································· 19 Viewing from SD Card ·······························20 Watching Videos and DVDs ······················· 22 Displaying PC Screen on TV ····················· 24 Playing an iPod on TV ······························· 25 How to Use Menu Functions (picture, sound quality, etc.) ······················· 28 VIERA Link TM “HDAVI Control TM ” ················ 32 Lock ··························································· 38 Editing and Setting Channels····················· 40 Closed Caption ·········································· 42 Input Labels ··············································· 43 Using Timer ················································ 44 Recommended AV Connections ················ 45 Ratings List for Lock ··································46 Technical Information ································· 47 Care and Cleaning ····································· 51 FAQ ···························································· 52 Specifications ············································· 54 Limited Warranty (for U.S.A. and Puerto Rico only)··············· 55

Customer Services Directory (for U. S. A. and Puerto Rico) ······················ 56 Limited Warranty (for Canada) ··················· 57 Enjoy your TV!

FAQs, etc. Safety Precautions ······································· 4 Please read before using the unit

Accessories/Optional Accessory ····· 8

Basic Connection ··························· 10

Identifying Controls ························ 14

First Time Setup····························· 15

Note to CATV System Installer

This reminder is provided to direct the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for

proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. Secure Ventilation

Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to ensure reliable operation of the LCD TV and to protect it from overheating. These openings must not be blocked or covered. There should be at least 10 cm of space

from these openings. The openings should never be blocked by placing the LCD TV on a bed, sofa, rug or other similar surface. This LCD TV should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided. Important Safety Instructions 1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with dry cloth.7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than

the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11) Only use attachments / accessories specified by the manufacturer.12) Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15) Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home consult your television dealer or local power company.16) Follow all warnings and instructions marked on the LCD TV.17) Never push objects of any kind into this LCD TV through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the LCD TV.18) If an outside antenna is connected to the tele vi sion equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charg es. In the U.S. Section 810-21 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and re quire ments for the grounding electrode.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: To reduce the risk of electric shock, do not remove cover or back.No user-serviceable parts inside. Refer servicing to qualified service personnel.The lightning flash with arrowhead within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons.The exclamation point within a triangle is intended to tell the user that important operating and servicing instructions are in the papers with the appliance.5

19) An outside antenna system should not be lo cat ed in the vicinity of overhead power lines, other electric light, power circuits, or

where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to

keep from touching such power lines or circuits as contact with them might be fatal.

20) Unplug this LCD TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power cord or plug is damaged or frayed.

b. If liquid has been spilled into the LCD TV.

c. If the LCD TV has been exposed to rain or water.

d. If the LCD TV does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as improper adjustment of other

controls may result in damage and will often require extensive work by a qualified technician to restore the LCD TV to normal operation.

e. If the LCD TV has been dropped or the cabinet has been damaged.

f. When the LCD TV exhibits a distinct change in performance - this indicates a need for service.

When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer that

have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

22) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN,

MOISTURE, DRIPPING OR SPLASHING.

DO NOT PLACE LIQUID CONTAINERS (FLOWER VASES, CUPS, COSMETICS, ETC.) ABOVE THE SET

(INCLUDING ON SHELVES ABOVE, ETC.).

26) CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

27) CAUTION: This LCD TV is for use only with the following optional accessory. Use with any other type of optional

accessories may cause instability which could result in the possibility of injury.

(All of the following accessories are manufactured by Panasonic Corporation)

• Wall-hanging bracket: TY-WK3L2RW Always be sure to ask a qualified technician to carry out set-up.

NOTE: This equipment is designed to operate in North America and other countries where the broadcasting system and AC

house current are exactly the same as in North America.6

CEA CHILD SAFETY NOTICES: Flat panel displays are not always supported on the proper stands or

installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately

situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and may cause

personal injury or even death.

The consumer electronics industry (of which Panasonic is a member) is committed to making home

entertainment enjoyable and safe. To prevent personal injury or death, be sure to follow the following safety

• One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use

of your flat panel display.

• Carefully read and understand all enclosed instructions for proper use of this product.

• Don’t allow children to climb on or play with furniture and television sets.

• Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers.

• Remember that children can become excited while watching a program, especially on “larger than life”

flat panel displays. Care should be taken to install the display where it cannot be pushed, pulled over,

• Care should be taken to route all cords and cables connected to the flat panel display so that they

cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display manufacturer and/or listed by an independent

laboratory (such as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall mount manufacturers.

• If you have any doubts about your ability to safely install your flat panel display, contact your retailer

about professional installation.

• Make sure the wall where you are mounting the display is appropriate. Some wall mounts are not

designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure,

contact a professional installer.

• A minimum of two people are required for installation. Flat panel displays can be heavy.

Safety Precautions (Continued)7

FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

To assure continued compliance, follow the attached installation instructions and use only shielded interface cables

when connecting to computer or peripheral devices. Any changes or modifications not expressly approved by Panasonic

Corp. of North America could void the user’s authority to operate this device.

FCC Declaration of Conformity

Model No. TC-L26X1, TC-L32X1, TC-L37X1

Responsible Party: Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

Contact Source: Panasonic Consumer Electronics Company

1-877-95-VIERA (958-4372)

email: consumerproducts@panasonic.com8

Accessories/Optional Accessory

Check you have all the items shown.

Optional Accessory Wall-hanging bracket TY-WK3L2RWPlease contact your nearest Panasonic dealer to purchase the recommended wall-hanging bracket. For additional details, please refer to the wall-hanging bracket installation manual. Accessories

Accessories Remote ControlTransmitter N2QAYB000321Batteries for theRemote ControlTransmitter (2) AA BatteryOperating InstructionsQuick Setup GuideProduct Registration Card (U.S.A)Customer Care Plan Card (U.S.A)Cleaning cloth Pedestal TBL2AX00261 (TC-L26X1, TC-L32X1) TBL2AX00271 (TC-L37X1) Installing the remote’s batteries

Hook Note the correct polarity(+ or -).CloseCaution Incorrect installation may cause battery leakage and corrosion, resulting in damage to the remote control. • Do not mix old and new batteries. • Do not mix different battery types (such as alkaline and manganese batteries). • Do not use rechargeable (Ni-Cd) batteries. Do not burn or break batteries.AccessoriesAssembly screws (4) M4 × 10Ferrite coreUniversal Dock for iPod (p. 25) TNM2AX0011* Adapters sold separately.9

Accessories/Optional Accessory

A A Attaching the pedestal to TV Fix securely with assembly screws A . (Total 4 screws)

Tighten screws firmly.WARNING Always be sure to ask a qualified technician to carry out set-up. Incorrect fitting may cause equipment to fall, resulting in injury and product damage.Do not disassemble or modify the pedestal. Otherwise the TV may fall over and become damaged, and personal injury may result.CautionDo not use any other TV and displays. Otherwise the TV may fall over and become damaged, and personal injury may result.Do not use the pedestal if it becomes warped or physically damaged. If you use the pedestal when it is physically damaged, personal injury may result. Contact your nearest Panasonic Dealer immediately.During set-up, make sure that all screws are securely tightened. If sufficient care is not taken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to support the TV, and it might fall over and become damaged, and personal injury may result. Antenna terminal Pin terminals HDMI terminal greenblueredgreen Firmly tighten by hand. Match colors of plugs and terminals. Insert firmly. Insert firmly. Reference of connection Foam mat or thick soft cloth10

To connect the antenna terminal and Cable Box

ANT OUTANT IN ANTENNACable InDIOHDMI 1 HDMI 2

Not all cables and external equipment shown in this book are supplied with the TV.

For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.

For additional assistance, visit us at: www.panasonic.com

Connecting Antenna (To watch TV) Cable TVVHF/UHF Antenna

NTSC (National Television System Committee):

Conventional broadcasting

ATSC (Advanced Television Systems Committee):

Digital TV Standards include digital high-definition television

(HDTV), standard-definition television (SDTV), data broadcasting,

multi-channel surround-sound audio and interactive television.

You need to subscribe to a cable TV service to enjoy viewing their

If using a Cable Box, set the TV channel to CH3 or CH4 for regular cable.

You can enjoy high-definition programming by subscribing to a high-

definition cable service.

The connection for high-definition can be done with the use of HDMI or

Component Video cable. (p. 13)

To view high-definition programming select the correct video input. (p. 22)

(Connect after all the

Basic Connection (TV + DVD Recorder or VCR)

To connect the antenna terminal and DVD recorder or VCR ANT OUTANT IN ANTENNA Cable In

Y P R PB R L AUDIO R L AUDIOVIDEOHDMI 1 HDMI 2COMPONENT INVIDEO IN 1AUDIO INPCDIGITALAUDIO OUTDock for iPod(DC 5V 500mA MAX)

AUDIO IN PC DIGITAL AUDIO OUT Dock for iPod

Connecting DVD recorder (VCR) (To record/playback)

If the source has a higher resolution signal

(480p/720p/1080i), connection can be made with

the use of a Component Video or HDMI cable.

VCR Connection can be made with the use of an RF

Back of the TV Power Cord

Connecting TV and AV equipment

To connect the antenna terminal and Satellite Receiver and DVD recorder or VCR ANT IN ANT OUTANT IN ANTENNA Cable In

Y P R PB R L AUDIO R L AUDIOVIDEOHDMI 1 HDMI 2COMPONENT INVIDEO IN 1AUDIO INPCDIGITALAUDIO OUTDock for iPod(DC 5V 500mA MAX)

AUDIO IN PC DIGITAL AUDIO OUT Dock for iPod

A B C Basic Connection (Continued)

Connecting DVD recorder (VCR) and satellite receiver

You can enjoy high-definition

programming by subscribing to

high-definition satellite service.

Connection can be done with the

use of HDMI or Component Video

For details of external equipment connections, please refer to the operating manuals for the equipment.

Satellite Receiver DVD Recorder or VCR

Connecting TV and AV equipment

Basic Connection (AV cable connections)

(TV + DVD Recorder or VCR + Satellite Receiver)

Some programs contain a copyright protection signal to prevent recording.

When the copyright protection program is displayed, do not connect the other TV monitor through a VCR. Video signals fed

through VCRs may be affected by copyright protection systems and the picture will be distorted on the other TV monitor.

For more details on the external equipment’s connections, please refer to the operating manuals of this equipment.

A To use HDMI terminals

Connecting to the HDMI terminals will enable you to enjoy high-definition digital images and high-quality sound.

connections”, please refer to p. 33.

red e.g. Blu-ray Disc playerAV Equipment Recorders may also be connected to COMPOSITE or S VIDEO terminals. (see below)

C To use COMPOSITE terminals

R L AUDIOVIDEO VIDEO IN 1

OUT UT L R COMPOSITE OUT yellowwhite red yellowwhite red yellowwhite red

or e.g. DVD RecorderAV Equipmente.g. VCR AV cable connections14

Identifying Controls

Remote control sensor

Within about 23 feet (7 meters) in front of the TV set.

The TV consumes a limited amount of power as long as the power cord is inserted into the wall outlet.

Do not place any objects between the TV remote control sensor and remote control.

TV controls/indicators

Changes the input mode

Chooses menu and submenu entries.

Selects channels in sequence

Front of the TV POWER button

(used for various functions)

(for example, p. 16, 20, 36)

Changes aspect ratio (p. 18)

Switches to previously viewed channel

External equipment operations

Closed Caption On/Off (p. 17)

Selects Audio Mode for TV viewing (p. 17)

Exits from menu screen

Displays Main Menu (p. 28)

Displays VIERA TOOLS (p. 19)

Viewing from SD Card (p. 20-21)

Returns to previous menu

Displays or removes the channel

Operates the Favorite channel list

Numeric keypad to select any channel

(p. 17) or press to enter alphanumeric input

in menus. (p. 16, 22, 36, 38, 40, 43, 44)

Use for digital channels. (p. 17)15

Guide First Time Setup Identifying Controls First Time Setup “First time setup” is displayed only when the TV is turned on for the first time after the power cord is inserted into a wall outlet and when “Auto power on” (p. 30-31) is set to “No”. or

■ Press to exit from a menu screen

■ Press to return to the previous screen Turn the TV On with the POWER button

or (Remote)(TV) * This setting will be skipped next time if you select “Home”. Select your languageLanguageEnglish FrançaisEspañol select ok Be sure to select “Home”Please select your viewing environmentHome Store select ok Please confirm your selection (Home) before pressing OK button. ■ If you select “Store” by mistake in , confirmation screen will be displayed.You are selecting the mode for store demonstrationYes No select ok Select “No” and return to previous screen . If you select “Yes”, Screen enters store demonstration mode. To display the “Please select your viewing environment” screen again as shown above and select “Home”, do one of the following:• Press and hold down the side POWER button.• Unplug the TV and plug it again. Adjust the clock

Minute: Adjust the minute16

First Time Setup (Continued)

■ Press to exit from a menu screen Note To change setting (Language/Clock/ANT/Cable setup/Input labels) later, go to Menu screen (p. 30) About broadcasting systems Analog (NTSC): Conventional broadcasting Digital (ATSC): New programming that allows you to view more channels featuring high-quality video and sound Auto channel setup Select “ANT/Cable setup”First time setupLanguageClockANT/Cable setupInput labels next select Select “ANT in”CableANT/Cable setupANT inAuto program set select

Cable: Cable TVAntenna: AntennaNot used: Skip TV tuning go to Select "Not used" when no wire is connected to the "Antenna/Cable" terminal. Typical when Cable/Satellite box is connected to a TV input. Prevents accidental tuning to an unavailable signal. Select “Auto program”CableANT/Cable setupANT inAuto program next select Select scanning mode (ALL channels/Analog only/Digital only)Auto programAll channelsAnalog onlyDigital only ok select Auto program

Number of analog channels

Number of digital channels

Press RETURN to quit

RETURN Start scanning the channels

Available channels (analog/digital) are automatically set. All channels: Scans digital and analog channels Analog only: Scans Analog channels only Digital only: Scans Digital channels only Confirm registered channels program

select “Apply” ok If OK is not pressed after selecting “Apply”, the channels will not be saved. The channel will be saved when no operation is performed for 60 seconds and the “Manual program” menu will also exit automatically. If you perform scanning more than twice, previously saved channels are erased. Set the Input labels First time setupLanguageClockANT/Cable setupInput labels next select Label: [BLANK] SKIP/VCR/DVD/CABLE/SATELLITE/DVR/GAME/AUX/RECEIVER/COMPUTER/Blu-ray/CAMERA/DVD REC/HOME THTR/MONITOR/MEDIA CTR/MEDIA EXT/OTHER GAME Input labelsComponentHDMI 1HDMI 2HDMI 3Video 1Video 2 PC (example: TC-L37X1) select set

OK RETURN DeleteABC → abc

Viewing Watching TV First Time Setup Watching TV Connect the TV to a cable box/cable, set-top-box, satellite box or antenna cable (p. 10-13)To watch TV and other functions Turn power on

Note If the mode is not TV, press and select TV. (p. 22) Select a channel number

Note Reselect “Cable” or “Antenna” in “ANT in” of “ANT/Cable setup” to switch the signal reception between cable TV and antenna. (p. 16, 41) The channel number and volume level remain the same even after the TV is turned off. Listenwith SAP(Secondary Audio Program) ■ Select Audio Mode for watching TV Digital mode Press SAP to select the next audio track (if available) when receiving a digital channel.

Analog mode Press SAP to select the desired audio mode.• Each press of SAP will change the audio mode. (Stereo/SAP/Mono)Closed caption ■ Switches Closed caption mode On or Off

Closed caption On Closed caption Off

Display the SUB MENU ■ Press SUB MENU to show sub menu screen. (p. 30) This menu consists of shortcuts to convenient functions.

Watching TV (Continued)

■ Other Useful Functions (Operate after )

■ Press FORMAT to cycle through the aspect modes. (p. 47)• 480i, 480p: FULL/JUST/4:3/ZOOM• 1080i, 720p: FULL/H-FILL/JUST/4:3/ZOOM Call up

■ FAVORITE Channel numbers registered in Favorite are displayed on the favorite tune screen. Select the desired broadcast station with the cursor or use number buttons. (see below)

select the list number save the displayed channelselect the list number(to save the channel without pressing OK) or Delete a favorite channel

select delete (while holding down) Favorite Feature

■ Use Favorite Feature 1 Display “Favorite channels” 2 Select the channel

■ To change the pagePress repeatedly to change between pages(1/3, 2/3, 3/3 or exit)Changes the page forward/backward19

Viewing Using VIERA TOOLS Watching TV Using VIERA TOOLS VIERA TOOLS are the easy way to access high use menu items. They are displayed as shortcut icons on the TV screen.Unlike a conventional menu, you can enjoy using, playing or setting a function quickly. ■ Press to exit from a menu screen

■ Press to return to the previous screen

Display VIERA TOOLS Select the item

Game Standard Displayed “ECO/energy saving” (p. 30)20

Viewing from an SD Card You can view photos taken with a digital camera or digital video camera and saved on an SD card.(Media other than SD Cards may not be reproduced properly.) Photo viewer

■ Press to exit from a menu screen ■ Press to return to the previous screen Insert the SD card * This setting will be skipped next time unless you select “Set later”. Set “SD card setting” and select “Play SD card now” “SD card setting” will be displayed automatically each time an SD card is inserted for the first time.Set laterSD card settingPlay SD card automaticallyPlay SD card now select change set Slideshow: A Slideshow will start automatically next time.Thumbnail: The Photo viewer menu will be displayed automatically next time.Set later: “SD card setting” menu will be displayed repeatedly.Off: The data can be played manually. ■ Manual operation (“Play SD card automatically” is “Off”)

Display “Photo viewer” Start Slideshow

select next Slideshow

Select the data to be viewed

RETURN Play Displays one at a time To display/hide Navigation area

Return to Thumbnail view Accessing

Viewing from SD Card

SD Card Insert the card Remove the card Compliant card type (maximum capacity): SDHC Card (16 GB), SD Card (2 GB), miniSD Card (1 GB) (requiring miniSD Card adapter) For cautions and details on SD Cards (p. 48)Label surfacePush until a click is heardPress in lightly on SD Card, then release. Sort

To sort by Folder, month or date

Slideshow Folders R Y Sort by month G Sort by date

Folders (ascending order of numeric/alphabet) Sort by month (descending order of the month) Sort by date (descending order of the date ) Select the directory.

select viewReturn to previous screen Photo

change Select the Background music from 3 types.Each Background music plays for 90 seconds. (Off/Music 1/Music 2/Music 3) ■

Select Adjust Note To stop in mid-cycle Press SpeedYou can set how many seconds each image is displayed in Slideshow mode. (Very fast/Fast/Medium/Slow/Very slow)RepeatTurn the slideshow Repeat function on or off (On/Off).Transition Select transition effect (Off/Wipe ↓/Wipe ↑/Wipe →/Wipe ←/Comb ↑↓/ Comb →←/Dissolve/Checker wipe/Random)EffectSelect conversion effect (Off/Sepia/Gray scale)

VIERA IMAGE VIEWER The VIERA Image Viewer is a function that lets you easily view still and motion images on a VIERA television by simply inserting an SD card into the VIERA SD card slot.22

Watching Videos and DVDs If you have applicable equipment connected to the TV, you can watch videos and DVDs on the TV’s screen. Input Select You can select the external equipment to access. ■

To return to TV With the connected equipment turned On Display the Input select menu

Select the input mode Input select TV

AUX GAME GAME GAME (example: TC-L37X1) or select enter Press corresponding NUMBER

button on the remote control to

select the input of your choice.

Select the input of your choice,

During the selection, if no action

is taken for several seconds, the

“Input select” menu disappears. HDMI 1 GAME Terminal(example)Label The terminal and label of the

connected equipment are

To label each of the inputs,

please refer to p. 43.

The input label will be displayed on “Input select” screen if Input label is set on p. 43.

For side input terminals (HDMI 3*/Video 2), “GAME” input label is set as default.

(Picture mode is set to “Game”, refer to p. 49.)

For more details for picture mode setting, refer to p. 49. For Input label, refer to p. 43.

* HDMI 3 (TC-L37X1, TC-L32X1 only)

Operate the connected equipment using the remote

control supplied with the equipment

For details, see the manual of the connected equipment.23

Watching Videos and DVDs

If you connect equipment that has the “HDAVI Control” function to a TV using an HDMI cable, you will find it easier to use. Please refer to p. 32-37. Before using these functions, you need to set “VIERA Link” setting to “On” as shown below. ■ Press to exit from a menu screen ■ Press to return to the previous screen Display menu

(default is On) change Now you can set each “VIERA Link” functions according to your

preference (p. 35-37).

If no HDMI equipment is connected or standard HDMI equipment (non- “VIERA Link”) is used, set it to “Off”.

For more details on the external equipment’s connections, please refer to the

operating manuals for the equipment.24

Displaying PC Screen on TV The screen of the PC connected to the unit can be displayed on the TV.You can also listen to PC sound with the audio cable connected. To connect PC (p. 45) ■ PC menu setting (change as desired) Making settings “How to Use Menu Functions” to (p. 28) Menu Item Adjustments/Configurations (options) Picture

PC adjustmentsReset to defaultsResets PC adjust Sync

H & V: The H and V sync signals are input from the HD/VD connector. (p. 50) On green: Uses a synchronized signal on the Video G signal, which is input from the G connector. (p. 50)Dot clock Alleviates the problem if a picture appears to be vertically-striped, flickers partially or is blurred.H-positionAdjusts the horizontal position.

V-positionAdjusts the vertical position.

Clock phaseAlleviates the problem if the whole picture appears to flicker or is blurred.First adjust the Dot Clock to get the best possible picture, then adjust theClock Phase so that a clear picture appears. Note It may not be possible to display a clear picture due to poor input signals.InputresolutionSwitches to wide display. Input signal switched from 640×480 to 800×480 Input signal switched from 1024×768 to 1280×768 or 1366×768H-frequencyV-frequencyDisplays the H (Horizontal)/V (Vertical) frequencies. Display rangeHorizontal: 15 - 110 kHzVertical: 48 - 120 Hz Audio menu (p. 28) Display the Input select menu Input select TV

Playing an iPod on TV Displaying PC Screen on TV Playing an iPod on TV You can enjoy iPod music/videos/photos on your TV, and you can also charge the battery by connecting the Universal Dock for iPod to your TV.Set up Universal Dock for iPod ■ Controls and basic functionsDock cableConnects the universal dock to this TV. Plug Connect to the back panel of this TV.IndicatorThis indicator lights up when the iPod is connected.iPod connector terminalConnects your iPod. ■ Connecting the Universal Dock for iPodEnsure that the power of this TV is switched off before you connected the Universal Dock.Connect the plug of the Universal Dock to the Dock for iPod terminal of this TV. DADock for iPod(DC 5V 500mA MAX)

D A Back of the TVInstalling the ferrite corePull back the tabs (in two places) Open Press the cablethrough and close Note Do not connect any other optional dock. (Available included Universal Dock for iPod only) ■ Connecting your iPodInsert your iPod into the connector’s terminal of the Universal Dock.iPod (not included)The indicator lights up when the iPod is inserted, and charging begins. Note Panasonic has no warranty for iPod data management. Do not twist your iPod when inserting it or taking it off from the universal dock, and be careful not to knock over this universal dock when your iPod is inserted. Do not take off your iPod from the universal dock while you play your iPod with the TV. It is recommended that you update your iPod software before using it with the universal dock. The updater for the iPod software is available on the Apple website. Attach the dock adapter (which should be supplied with your iPod) to the dock for the stable use of the iPod. If you need an adapter, consult your iPod dealer. ■ Disconnecting the Universal Dock for iPodSwitch off the power of the TV.1. Switch off the iPod.2. Pull out the plug of the Universal Dock from the Dock for iPod terminal of the TV26

Playing an iPod on TV Playing an iPod on this TV Preparations Set up iPod Universal Dock for iPod (P. 25). Before connecting/disconnecting the iPod, turn the TV off or reduce the volume of the TV to its minimum Use the menu on your iPod to select the appropriate video/photo output settings for your TV. (Refer to the operating instructions of your iPod.) ■ Press to exit from a menu screen ■ Press to return to the previous screen

Display main window Connect your iPod (not included) firmly Select iPod icon in VIERA TOOLS (p. 19) or

iPod iPod will start recharging regardless of whether this unit is on or off. Select the category in Selector tab R YG BMusicPlaylistsArtistsAlbumsSongsAudiobooks01:02 / 05:23SelectRETURN OK MusicVideosPodcastsRemoteSettings Selector tab List window Playback window select

next/set Selector tabs: Switches between these categories. (Music/Videos/Podcasts/Remote/Settings).List window:Displays list of selected categories.Playback window: Displays track information of playing data. Select track in List window and play

Prev. page Next page R YG BArtists - AXX01:02 / 05:23Albums - CorrectionSelectRETURN OK PeopleGood morning Stand upSing a songMonday Star Thank you4 of 7Sing a song AXX CorrectionMusicVideosPodcastsSettingsRemote select

Go back to previous page

Proceed to next page For more information, refer to the operating instructions for iPod. ■ Compatible iPod models. Model Memory size Model Memory size

iPod touch 2nd generation

iPod nano 4th generation

iPod nano 2nd generation

iPod touch 1st generation

iPod 5th generation (video) 30 GB

iPod nano 3rd generation

4 GB, 8 GB iPod nano 1st generation

4 GB Compatibility depends on the software version of your iPod. For the iPod Touch only music/video/photo services can be enjoyed on this TV.27

Playing an iPod on TV

■ Available TV remote control buttonsMove the cursor/Select Reverse/ForwardPlay Skip Reverse/ForwardStop Pause Using TV

In Select “Remote” ■ Available TV remote control buttons Play

Stop Reverse/ForwardSkip Reverse/ForwardPauseMove the cursor/SelectSet/AccessReturn to previous menu Exit

Screen will be switched when “Remote”

is selected. OperateYou can operate an iPod with iPod display using the TV remote control.* For iPod touch user, please proceed with operations through display of iPod. iPod

options Select “settings”

Select and adjust the items (p. 28)

Select and adjust the items (p. 28)

Set automatic startup (On/Off)

(Off/One/All) Select the item and adjust

Picture Reset to defaultsPicture modeBack lightContrast, Brightness,Color, Tint, SharpnessColor temp.Color mgmt.A.I. pictureVideo NRZoom adjustmentsPC adjustmentsAdvanced pictureColor matrixMPEG NRBlack levelH size Audio Reset to defaults Bass TrebleBalanceAdvanced audioA.I. soundSurroundVolume levelerTV speakersHDMI 1 inHDMI 2 inHDMI 3 in* Timer Sleep, Timer 1-5 Lock

VIERA Link Record nowStop recordingVIERA Link control Speaker output SD card SD card Closed

caption Closed caption How to Use Menu Functions

■ Menu listVarious menus allow you to make settings for the picture, sound, and other functions so that you can enjoy watching TV best suited for you. ■ Press to exit from a menu screen ■ Press to return to the previous screen

Display menu Displays the functions that can be set (varies depending on the input signal) Select the menu

Menu VIERA LinkPictureAudioTimer Lock SD cardClosed captionSetup select next Select the item

How to Use Menu Functions

(picture, sound quality, etc.) In AV mode, the Audio menu and Setup menu give fewer options.Adjustments/Configurations (alternatives)Resets all picture adjustments to factory default settings except for “Advanced picture”.Reset to defaultsBasic picture mode (Vivid/Standard/Cinema/Game/Custom) (p. 49)Picture modeVividAdjusts luminance of the back light.Back light +20 Adjusts color, brightness, etc. for each picture mode to suit your taste • Display range Contrast/Brightness/Color/Sharpness: 0 - 100 Tint: -50 - +50Contrast +20 Brightness 0 Color 0

0 Sharpness 0 Selects a choice of Cool(blue), Normal, or Warm(red) color. (Cool/Normal/Warm)Color temp. Cool On: Enhances green and blue color reproduction, especially outdoor scenes. (On/Off) Color mgmt. On

Controls dark areas without affecting the black level or brightness in the overall picture (On/Off) A.I. picture On Reduces noise, commonly called snow. Leave it off when receiving a strong signal. (Off/On)Video NR Off Adjusts vertical alignment and size when aspect setting is “ZOOM” (p. 47)Zoom adjustmentsSets PC display (p. 24)PC adjustmentsSelects image resolution of component-connected devices (HD/SD) • SD: Standard Definition HD: High Definition • Only 480p signal accepted; regular TV (NTSC) is not available.Color matrix SD Reduces noise of specific digital signals of DVD, STB, etc. (On/Off)MPEG NR Off Selects Dark or Light. Valid only for external input signals. (Dark/Light)Black levelLightAdjust horizontal display range to reduce noise of both side edges of an image. (Size 1/Size 2)Size 2: Adjust image size according to aspect mode for reducing noise. (p. 50)H sizeSize 1Resets Bass, Treble and Balance adjustments to factory default settings.Reset to defaultsIncreases or decreases the bass response. Bass

0 Increases or decreases the treble response.Treble 0 Emphasizes the left / right speaker volume.Balance 0 Equalizes overall volume levels across all channels and external inputs. (On/Off)A.I. sound On Enhances audio response when listening to stereo. (On/Off)Surround Off Minimizes volume disparity after switching to external inputs.Volume leveler 0 Switch to “Off” when using external speakers (On/Off) • “A.I. sound”, “Surround” and “Volume leveler” do not work if “Off” is selected.TV speakers On The default setting is “Digital” for HDMI connection. (Digital input signal) Select audio input terminal when DVI cable is connected. (Analog audio input signal)(Digital/Component/Video 1/Video 2)* HDMI 3 in (TC-L37X1, TC-L32X1 only)HDMI1 inDigitalHDMI2 inDigitalHDMI3 inDigitalThe TV can automatically turn On/Off at the designated date and time (p. 44)Locks the channels and programs (p. 38)[Record now/Stop recording]Records programs on the recorder immediately with the TV’s remote control (p. 36-37).[VIERA Link control] Selects equipment to access and operate. (Recorder/Home theater/Player/Camcorder/LUMIX) (p. 36-37) [Speaker output]Selects an audio output. (Home theater/TV) (p. 36-37) • VIERA Link menu is accessible directly by pressing the VIERA Link button on the remote control. (p. 36)Displays SD card data (p. 20-21)SD cardDisplays subtitles (Closed caption) (p. 42)Closed caption30 Menu Item Setup

SUB MENU Channel surf modeSet favoriteEdit CH captionSignal meter Menu

Setup Channel surf modeLanguageClockANT/Cable setupInput labelsVIERA Link settingsVIERA LinkPower on linkPower off linkStand-by power save Auto power stand-byDefault speakersECO/energy savingPower saveNo signal for 10 minutesNo activity for 3 hoursAdvanced setupAuto power onPlay SD card automaticallyAboutReset to defaults How to Use Menu Functions

■ Menu list ■ Sub menu listVarious menus allow you to make settings for the picture, sound, and other functions so that you can enjoy watching TV best suited for you. ■ Press to exit from a menu screen ■ Press to return to the previous screen

Display menu Displays the functions that can be set (varies depending on the input signal) Select “Setup”

Menu PictureAudioTimer Lock VIERA LinkSD cardClosed captionSetup next select Select the item

How to Use Menu Functions

(picture, sound quality, etc.) Adjustments/Configurations (alternatives) Sets the mode to select the channel with Channel up/down button (All/Favorite/Digital only/Analog only) Sets favorite channels. (p. 18)Changes the station identifier. (p. 41)Checks the signal strength if interference or freezing occurs on a digital image. (p. 41)Adjustments/Configurations (alternatives)Sets the mode to select the channel with Channel up/down button(All/Favorite/Digital only/Analog only) • Favorite: Only channels registered as FAVORITE (p. 18)Channel surf mode All Selects the screen menu language (p. 15)LanguageAdjusts the clock (p. 15)ClockSets channels (p. 41)ANT/Cable setupSelects the terminal and label of the external equipment (p. 43)Input labelsControls equipment connected to HDMI terminals (p. 34) (On/Off) • “Power off link”, “Power on link”, “Stand-by power save”, “Auto power stand-by” and “Default speakers” cannot be selected if “Off” is set.VIERA Link On Sets “Power on link” of HDMI connection equipment (p. 34) (Yes/No)Power on link Yes Sets “Power off link” of HDMI connection equipment (p. 34) (Yes/No)Power off link Yes Set “Stand-by power save” of HDMI connection equipment. (p. 34) (No/Yes)Stand-by power save No Set “Auto power stand-by” of HDMI connection equipment. (p. 34) (No/Yes (with reminder)/Yes (no reminder)Auto power stand-by No Selects the default speakers (p. 34) (TV/Theater)Default speakers TV Reduces screen brightness to lower power consumption. Eye-friendly for viewing in a dark room.(Standard/Saving)Power saveStandardTo conserve energy, the TV automatically turns off when NO SIGNAL and NO OPERATION is performed for more than 10 minutes. (Enable/Disable) Note

• Not in use when setting “Auto power on”, “On/Off Timer”, “Lock”, “SD mode” or Digital channel. • “No signal for 10 minutes was activated” will be displayed for about 10 seconds when the TV is turned on for the first time after turning the power off by “No signal for 10 minutes”. • The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.No signal for 10 minutesEnableTo conserve energy, the TV automatically turns off when no operation of remote or side panel key continues for more than 3 hours. (Enable/Disable) Note

• Not in use when setting “Auto power on”, “On/Off Timer or PC input display. • “No activity for 3 hours was activated” will be displayed for about 10 seconds when the TV is turned on for the first time after turning the power off by “No activity for 3 hours”. • The on-screen display will flash 3, 2 and 1 to indicate the last three (3) remaining minutes prior to the shut-off.No activity for 3 hoursDisableTurns TV On automatically when the cable box or a connected device is turned On. (No/Yes)TV power cord must be plugged into this device. TV comes on every time the power is restored. • The “Sleep” timer, “On / Off timer”, and “First time setup” will not function if “Auto power on” is set. (p. 44)Auto power on No

Set “Thumbnail” or “Slideshow” to play back SD cards automatically. (Slideshow/Thumbnail/Set later/Off) Play SD card automaticallySet laterDisplays TV version and software license.AboutPerforming Reset will clear all items set with Setup, such as channel settings. (p. 40)Reset to defaults (Continued)32

” Simultaneously control all Panasonic “HDAVI Control” equipped components using one button on the TV remote.Enjoy additional HDMI Inter-Operability with Panasonic products which have the “HDAVI Control” function.This TV supports “HDAVI Control 4” function.Connections to the equipment (DVD recorder DIGA, HD Camcorder, Player theatre, RAM theater, Amplifier, etc.) with HDMI cables allow you to interface with them automatically.Equipment with the “HDAVI Control” function enables the following operations: ■ For the first time/When adding new equipment, reconnecting equipment or changing the setup after the connection, turn the equipment on and then switch the TV on. Set the input mode to HDMI1, HDMI2 or HDMI3* (p. 22), and make sure that the image is displayed correctly.* HDMI 3 (TC-L37X1, TC-L32X1 only)VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.Please refer to the individual manuals for other manufacturers’ equipment supporting the VIERA Link function.Version OperationsHDAVI Control or later • Automatic Input Switching (p. 35) • Power on link (p. 35) • Power off link (p. 35) • Default speakers (p. 35) • One-touch theater playback (p. 35) • Speaker control (p. 37)HDAVI Control 2 or later • VIERA Link control only with the TV’s remote control(P. 37) • Auto power stand-by (for available equipment only) (p. 35) • Direct TV recording (p. 37)HDAVI Control 3 or later • Providing the setting information (p. 35) • Automatic lip-sync function (p. 35)HDAVI Control 4 • Stand-by power save (with quick start mode) (p. 35) ■ HDMI cableThis function needs an HDMI compliant (fully wired) cable. Non-HDMI-compliant cables cannot be utilized.It is recommended that you use Panasonic’s HDMI cable. Recommended part number:RP-CDHF15 (4.9 ft/1.5 m), RP-CDHG15 (4.9 ft/1.5 m), RP-CDHF30 (9.8 ft/3.0 m),RP-CDHG30 (9.8 ft/3.0 m), RP-CDHG50 (16.4 ft/5.0 m) * For more details on the external equipment’s connections, please refer to the operating manuals for the equipment.33

Follow the connection diagrams below for HDAVI control

of a single piece of AV equipment such as a DVD recorder

(DIGA), RAM theater, or Player theater system.

Refer to page 34-37 for Setup Menu settings and additional

control information.

Optional HDMI and/or optical cables are not included.

If connection (or setting) of equipment compatible with

HDAVI control is changed, switch the power of this unit Off

and On again while the power of all equipment is On (so that

the unit can correctly recognize the connected equipment)

and check that the DVD recorder (DIGA), RAM theater, and

Player theater playback operate.

HDMI 1 is recommended.

When connecting to HDMI 2/HDMI 3*, set the input mode to HDMI 2/HDMI 3 (p. 22) initially before connecting to

HDMI 2/HDMI 3. After connection, confirm the HDMI control functions (p. 34-37).

* HDMI 3 (TC-L37X1, TC-L32X1 only)

Connecting this unit to the DVD recorder (DIGA), RAM

theater, or Player theater

For DVD recorder (DIGA): Connect with HDMI cable

For RAM theater and Player theater:

Connect with the HDMI and audio cables.

If audio cable is not connected, you cannot listen to the TV program

through the theater system.

Connecting this unit to a DVD

recorder (DIGA) and AV amp

When using a “VIERA Link” audio-

video amplifier and a compatible DVD

recorder (DIGA) use a daisy chain

connection as shown below.

One AV amp and one DVD recorder (DIGA) can be operated with this unit.

Be sure to connect the AV amp between this unit and the DVD recorder (DIGA).

Setting of this unit after connection

After making connections as shown above, set “VIERA Link” (under “VIERA Link settings”) to “On” using the Setup

menu. (p. 23, 34-37).

Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their

respective operating instruction manuals.

When audio from other equipment connected to this unit via HDMI is output using “DIGITAL AUDIO OUT” of this

unit, the system switches to 2CH audio.

(When connecting to an AV amp via HDMI, you can enjoy higher sound quality.)

For details about HDMI cable for connecting Panasonic HD camcorder, read the manual for the equipment.

■ Press to exit from a menu screen ■ Press to return to the previous screen Display menu

Select “VIERA Link settings”

Select “On” (default is On) change

At the start of the DIGA, Player theater, or RAM theater playback, the TV’s input automatically switches to the input

based on the playback equipment.

For the RAM theater, the speakers automatically switch to the theater system.

If using the DIGA operation, the TV’s input automatically switches to the DIGA and DIGA menu is displayed.

When “Yes” is selected (p. 31), TV is turned on automatically and switches to the appropriate HDMI input whenever

VIERA Link compatible equipment is initially turned on and Play mode is selected.

When “Yes” is selected (p. 31) and the TV is turned off, all connected VIERA Link compatible equipment is also

automatically turned off.

DIGA (Panasonic DVD Recorder) will not turn off if it is still in rec mode.

Caution: The TV remains on even if the VIERA Link compatible equipment is turned off.

Power off link: Yes, Stand-by power save: Yes

The equipment has “HDAVI Control 4 (with quick start mode)” connected with HDMI cable.

When TV is turned off, all connected VIERA Link compatible equipment is moved to ECO standby mode*

automatically under above conditions.

* Minimum power consumption of standby condition for the equipment.

Auto power stand-by: Yes,

The equipment has “HDAVI Control 2 or later” (for available equipment only) connected with HDMI cable.

[ Examples of timing for operation ]

• When the input is switched from HDMI.

• When the “Speaker output” is changed from “Home theater” to “TV”.

The connected VIERA Link compatible equipment will be turned off automatically when not in use.

“TV” is the default setting. To set the Home Theater system as default speakers, change the default speakers

setting from “TV” to “Theater”. Sound will be output from the Home Theater whenever the TV is powered on.

If the “ONE TOUCH PLAY” key is pressed on the remote control for Panasonic Home Theater system, the following

sequence of operations is performed automatically.

Home Theater power switches On, and playback begins.

TV power switches On, and the playback screen is displayed.

Audio is muted on the TV and switches to the theater system.

The following information about the TV settings can be transmitted to each piece of equipment (Recorder/Home

theater/Player) that has “HDAVI Control 3 or later” function connected to a TV with HDMI cable.

Recorder Home theater Player

Closed caption information

(Mode/CC type/Digital setting)

○ --- --- Channel information

(Input signal/Channel list/Caption information)

There is a possibility that all the GUI language information might be set from equipment that has HDMI CEC

function connected to TV with HDMI cable. Depending on operating conditions or the specification for each piece

of equipment the setting may or may not be applied.

For more details on the external equipment’s operation, please refer to the operating manuals for the equipment.

You cannot operate other functions while transmitting TV’s information above except Power On/Off key operation.

When you turn off this unit, the transmission will be interrupted (only when you are transmitting Channel information).

Minimizes lip-sync delays between the picture and audio when you connect to a Panasonic theater system or

” You can enjoy more convenient operation with the “HDAVI Control” function in the “VIERA Link” menu.For more details on the “HDAVI Control” function, refer to p. 32 or

■ Press to exit from a menu screen ■ Press to return to the previous screen Display VIERA Link menu select nextVIERA Link or

Select the item Recorder TV VIERA Link controlSpeaker outputRecord nowStop recording select set or next Select Home theater TV VIERA Link controlSpeaker outputRecord nowStop recordingchange Set

control (for “HDAVI Control 2 or later”) Direct TV

recording (for “HDAVI Control 3 or later”)37

You can select Home theater or TV speakers for audio output.Control theater speakers with the TV’s remote control.This function is available only when Panasonic Amplifier or Player theater is connected. ■ Home theater: Adjustment for equipment Volume up / down Mute The sound of the TV is muted. When the equipment is turned off, the TV speakers take over. Selecting “Home theater” turns the equipment on automatically if it is in standby mode. ■ TV: The TV speakers are on. Select “Speaker output” Select “Home theater” or “TV”

Recorder TV Record nowStop recordingVIERA Link controlSpeaker output

select changeIn the VIERA Link menu, you can select HDMI connected equipment and access it quickly. Continue using your TV’s remote control to operate the equipment, pointing it at the TV. Select “VIERA Link control” Select the equipment you want to access.(Recorder/Home theater/Player/Camcorder/LUMIX) If there is more than one equipment item, a number after the name indicates the number of items. (e.g. Recorder 1/Recorder 2/Recorder 3) The number of equipment items that can be connected is three for recorders, and a total of three for Home theater/Player/Camcorder/LUMIX. Note There is a limit to the number of HDMI connectors.

Recorder TV VIERA Link controlSpeaker outputRecord nowStop recording

select changeYou can select available items only. Operate the equipment with the TV’s remote control, pointing it at the TV. To operate the equipment, read the manual of the equipment. ■ Available TV’s remote control buttons Whether an operation is available differs depending on the connected equipment. Move the cursor/Select PlaySet/Access StopReturn to previous menu Reverse/Forward

SUB MENU Display the functions menu on the equipmentSkip Reverse/ForwardAvailable when the purpose of the keys is displayed on screenPauseExit Closed captionChannel Up/Down SAP (Select Audio Mode)

0-9 Select digital subchannelRecords the current program on the recorder immediately. Select “Record now”

Select “Stop recording”, when you want to stop recording

Recorder TV VIERA Link controlSpeaker outputRecord nowStop recording

For optimal recording, the settings of the recorder might be required. For details, read the manual of the recorder. Recording will not stop automatically when the program is finished.38

You can lock specified channels or shows to prevent children from watching objectionable content.

Caution Make a note of your password in case you forget it. (If you have forgotten your password, consult your local dealer.) Note When you select a locked channel,a message will be displayed that allows you to view the channel if you input your password. Display menu

Menu VIERA LinkPictureAudioTimer Lock SD cardClosed captionSetup next selectYou will be asked to enter your password each time you display the Lock menu. Input your 4-digit password A 4-digit code must be entered to view a blocked program or change rating settings.RETURNPasswordEnter password.- - - - If it is your first time entering the password, enter the password twice in order to register it. Select the Lock mode

Mode Channel Game Change passwordProgram set selectOff: Unlocks all the lock settings of “Channel”, “Game” and “Program”.All: Locks all the inputs regardless of the lock settings of “Channel”, “Game” and “Program”.Custom: Locks specified inputs of “Channel”, ”Game” and “Program”. Select the item Custom Off

Mode Channel Game Change passwordProgramselect “Channel”, ”Game” and “Program” are not accessible unless “Custom” is selected in “Mode”. Set

To select the channel or the rating of the program to be locked

lock Select up to 7 (1-7) channels to be blocked. These channels will be blocked regardless of the program rating. Select “Mode” and set to “Custom”

Select channel to lock.

- Channel lock Mode Channel 1Channel 2Channel 3Channel 4Channel 5

select set To lock/unlock all channels: Select “Mode” and set to “All” or “Off”. All: Locks all channels Off: Unlocks all channels Game lock Locks Channel 3, Channel 4 and external inputs. Select “Game” in

and set to “On”. select set On: LocksOff: Unlocks Program

To set a rating level “V-chip” technology enables restricted shows to be locked according to TV ratings. Select “Mode” and set to “On”.

Off Program lock Mode

MPAA U.S.TVC.E.L.R.C.F.L.R.

set select Select the rating category you wish

Off Program lock Mode

MPAA U.S.TVC.E.L.R.C.F.L.R.

next selectMPAA: U.S movie ratingsU.S.TV: U.S TV program ratingsC.E.L.R.:Canadian English ratingsC.F.L.R.: Canadian French ratings

Select the rating to be locked selectExample of “MPAA” (U.S movie ratings) Change

To change the password In , select “Change password” and press OK Input the new 4-digit password twice

RETURN Change passwordEnter new password.- - - -

Note This television is designed to support the “Downloadable U.S. Region Rating System” when available. (Available only in U.S.A.) The Off rating is independent of other ratings. When placing a lock on a specific-age-based-rating level, the Off rating and any other more restrictive ratings will also be blocked.NR No ratingG General Audience: All ages admittedPG Parental Guidance Suggested PG-

13 Parents Strongly Cautioned: Inappropriate for children under 13 R Restricted: Under 17 requires accompanying parent or adult guardian NC-

17 No one 17 and under admittedX Adults only To get more information (p. 46)40

Editing and Setting Channels

■ To reset the settings of setup menu

Select “Reset to defaults” in Setup menu ( ) and press OK Input your 4-digit password with number buttons

Select “YES” on the confirmation screen and press OKThe current channel settings can be changed according to your needs and reception conditions. ■ Press to exit from a menu screen Display menu

Editing and Setting Channels If “Lock” (p. 38) is activated and “ANT/Cable setup” is selected, “Enter password.” will be displayed. Automatically searches and adds available channels to the memory. Select “ANT in” Select Cable or Antenna Or select “Not used”. (p. 16) Select “Auto program”

CableANT/Cable setupANT inAuto programManual programSignal meter

next select Select a scanning mode (p. 16)

Auto programAll channelsAnalog onlyDigital only

ok selectSettings are made automatically After the scanning is completed, select “Apply”.(see below ). All previously saved channels are erased.Use this procedure when changing the channel setup or changing the channel display.Also, use this to add or skip channels from the channel list manually. You can select a channel tuning mode (Digital only/Analog only) in “Channel surf mode”(p. 30) Edit Caption

OK RETURN DeleteABC → abc

Set favorite 1/3 26-1

Select the number AddPress OK to select “Yes (add)” or “No (skip)” Move cursor to channel number

select Press OK to tune to the channel. Select “Apply”

select next Select the item to be edited

CaptionFavorite Add Proceed to next pageGo back to previous page select the item to edit (Caption/Favorite/Add) next • Caption: Changes the station identifier • Favorite: Registers channel to Favorite List

Changes will be lost. Continue?Yes No

ok (returns to “ANT/Cable setup”) select “Yes”Check the signal strength if an interference is found or freezing occurs on a digital image.

1-1 Signal meterChannelTune manuallySignal strengthCurrent 30%Peak level 45%

Signal intensity change channel ok

or If the signal is weak, check the antenna.If no problem is found, consult your local dealer. Note Not available if “Cable” is selected in “ANT in” (see above). Available only for digital antenna channels.42

caption The television includes a built-in decoder that is capable of providing a text display of the audio. The program being viewed must be transmitting Closed caption (CC) information. (p. 47) ■ Select the item and set

On Closed captionDigital Mode AnalogDigital settingReset to defaults

Mode Select “On” (when not using, select “Off”).Analog(Choose the Closed caption service of Analog broadcasting.)CC1-4: Information related to pictures (Appears at bottom of screen)T1-4: Textual information(Appears over entire screen)Digital(The Digital Closed caption menu lets you configure the way you choose to view the digital captioning.)Select the setting. “Primary”, “Second.”, “Service 3”, “Service 4”, “Service 5”, “Service 6” The settings in “Analog” or “Digital”depend on the broadcaster. ■ To make more in-depth display settings in digital programs

Select “Digital setting” and press OK Select the item and set

AutomaticAutomaticAutomaticAutomaticAutomaticAutomaticAutomaticAutomaticDigital setting Size Foreground Font StyleFore. opacityBackgroundBack. opacityOutline

select set Size: Text size Font: Text font Style: Text style (Raised, Depressed, etc.) Foreground: Color of text Fore. opacity: Opacity of text Background: Color of text box Back. opacity: Opacity of text box Outline: Outline color of text (Identify the setting options on the screen.) ■ To reset the settings Select “Reset to defaults” and press OK

■ Press to exit from a menu screen Display menu

Select “Closed caption”

Input labelsDisplaylabels ofConnected devicesDevices connected to external input terminals can be labeled for easier identification during input selection. (In selecting input mode from p. 22 ) ■ Select the terminal and label of the external equipment

OK RETURN DeleteABC → abc

Switches Input mode from alphabetical to numeric

■ Press to exit from a menu screen Display menu

Select “Input labels”

Using Timer The TV can automatically turn On/Off at the designated date and time. The Clock must be set before On time/Off time settings. (p. 15) The “Sleep” timer and “On / Off timer” will not work if the “Auto power on” (p. 30) is set. ■ Press to exit from a menu screen ■ Press to return to the previous screen Note The TV automatically turns Off after 90 minutes when turned On by the Timer. This operation will be cancelled if the Off time is selected or if a key is pressed. Display menu

Menu VIERA LinkPictureAudioTimer Lock SD cardClosed caption next select Select the timer to set TimerSleepTimer 1Timer 2Timer 3Timer 4Timer 5 select nextTurns Off automaticallySleepTurns On/Off automatically(5 timers can be set.)Timer 1Timer 5 ~

■ To set “Sleep” (Off Timer) Set to shut the unit off after a pre-selected amount of time.

set 0/30/60/90 (minutes) ■ To set “Timer 1-5” (On/Off Timer) Select the item and set

Recommended AV Connections

Recommended AV Connections

These diagrams show our recommendations on how to connect the TV unit to your various equipment.

For other connections, consult the instructions for each piece of equipment and its specifications.

For additional assistance, please visit our website at: www.panasonic.com

Please see p. 28-29 for setup when using an external analog audio cable with an HDMI to DVI cable.

(Connect after all the

other connections are

Back of the TV Cable Box

2 connection on this

Ratings List for Lock

“V-chip” technology enables you to lock channels or shows according to standard ratings set by the

entertainment industry. (p. 39)

U.S. MOVIE RATINGS (MPAA)

NR NO RATING (NOT RATED) AND NA (NOT APPLICABLE) PROGRAMS. Movie which has not been rated or where rating does not apply.G GENERAL AUDIENCES. All ages admitted.PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.PG-13 PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13.R RESTRICTED. Under 17 requires accompanying parent or adult guardian.NC-17 NO ONE 17 AND UNDER ADMITTED.X ADULTS ONLY. ■

U.S. TV PROGRAMS RATINGS (U. S. TV) Age-basedGroupAge-basedRatingsPossible ContentSelectionsDescription NR (Not Rated)TV-NR • Viewable • BlockedNot Rated.Youth TV-Y

• Viewable • BlockedAll children. The themes and elements in this program are specificallydesigned for a very young audience, including children from ages 2-6.TV-Y7 • FV Blocked • Viewable • BlockedDirected to older children. Themes and elements in this program mayinclude mild physical or comedic violence, or may frighten children under the age of 7.Guidance TV-G

• Viewable • BlockedGeneral audience. It contains little or no violence, no strong language,and little or no sexual dialogue or situations.TV-PG • D,L,S,V (all selected) • Any combination of D, L, S, VParental guidance suggested. The program may contain infrequentcoarse language, limited violence, some suggestive sexual dialogue and situations.TV-14 • D,L,S,V (all selected) • Any combination of D, L, S, VParents strongly cautioned. This program may contain sophisticatedthemes, sexual content, strong language and more intense violence.TV-MA • L,S,V (all selected) • Any combination of L, S, VMature audiences only. This program may contain mature themes,profane language, graphic violence, and explicit sexual content.FV: Fantasy/Cartoon Violence. V: Violence S: Sex L: Offensive Language D: Dialogue with sexual content. ■

CANADIAN ENGLISH RATINGS (C. E. L. R.)

E Exempt - Exempt programming includes: news, sports, documentaries and other information programming,talk shows, music videos, and variety programming.C Programming intended for children under age 8. No offensive language, nudity or sexual content. C8+ Programming generally considered acceptable for children 8 years and over. No profanity, nudity or sexual content.G General programming, suitable for all audiences.PG Parental Guidance suggested. Some material may not be suitable for children. 14+ Programming contains themes or content which may not be suitable for viewers under the age of 14. Parents are strongly cautioned to exercise discretion in permitting viewing by pre-teens and early teens.18+ 18+ years old. Programming restricted to adults. Contains constant violence or scenes of extreme violence. ■

CANADIAN FRENCH RATINGS (C. F. L. R.) E Exempt - Exempt programming. G General - Programming intended for audience of all ages. Contains no violence, or the violence content is minimal or is depicted appropriately.8 ans+8+ General - Not recommended for young children. Programming intended for a broad audience but contains light or occasional violence. Adult supervision recommended.13 ans+Programming may not be suitable for children under the age of 13 - Contains either a few violent scenes or one or more sufficiently violent scenes to affect them. Adult supervision strongly suggested.16 ans+Programming may not be suitable for children under the age of 16 - Contains frequent scenes of violence or intense violence.18 ans+ Programming restricted to adults. Contains constant violence or scenes of extreme violence.Caution The V-Chip system that is used in this set is capable of blocking “NR” programs (non rated, not applicable and none) as per FCC Rules Section15.120(e)(2). If the option of blocking “NR” programs is chosen “unexpected and possibly confusing results may occur, and you may not receive emergency bulletins or any of the following types of programming:” • Emergency Bulletins (Such as EAS messages, weather warnings and others) • Locally originated programming • News • Political • Public Service Announcements • Religious • Sports • Weather47

Technical Information

Ratings List for Lock

Technical Information

Closed caption (CC) For viewing the CC of digital broadcasting, set the aspect to FULL (If viewing with H-FILL, JUST, ZOOM or 4:3; characters might be cut off). The CC can be displayed on the TV if the receiver (such as a set-top box or satellite receiver) has the CC set On using the Component or HDMI connection to the TV. If the CC is set to On on both the receiver and TV when the signal is 480i (except for the HDMI connection), the CC may overlap on the TV. If a digital program is being output in analog format, the CC data will also be output in analog format. If the recorder or output monitor is connected to the TV, the CC needs to be set up on the recorder or output monitor. Aspect Ratio (FORMAT)

Press the FORMAT button to cycle through the aspect modes. This lets you choose the aspect depending on the format of the received signal and your preference. (p. 18) (e.g.: in case of 4:3 image) FULL JUSTFULL JUST Enlarges the 4:3 image horizontally to the screen’s side edges.(Recommended for anamorphic picture)Stretches to justify the 4:3 image to the four corners of the screen. (Recommended for normal TV broadcast) H-FILL 4:3H-FILL Side barEnlarges the 4:3 image horizontally to the screen’s side edges. The side edges of the image are cut off.Standard(Note that “Image retention” of the side bar may occur fromdisplaying it for a long time.) ZOOM ZOOM Note 480i (4:3), 480i (16:9), 480p (4:3), 480p (16:9): FULL, JUST, 4:3 or ZOOM 1080i / 720p: FULL, H-FILL, JUST, 4:3 or ZOOMEnlarges the 4:3 image to the entire screen. (Recommended for Letter Box) Zoom adjustments Vertical image position and size can be adjusted in “ZOOM”. Select “Zoom adjustments” on the “Picture” menu. (p. 28-29)

V-position: Vertical position adjustment V-size: Vertical size adjustment To reset the aspect ratio (OK)48

Technical Information (Continued)

Message Meaning SD card slot is empty. The card is not inserted.No photos The card has no data or this type of data is not supported.Cannot read file The file is broken or unreadable. The TV does not support the format. Data format for SD Card browsing Photo: Still images recorded with digital still cameras compatible with JPEG files of DCF* and EXIF** standardsData format: Baseline JPEG (Sub-sampling: 4:4:4, 4:2:2 or 4:2:0)Max. number of files: 9,999Image resolution: 160 x 120 to 10,000,000 * DCF (Design rule for camera file system): A Japan Electronics and Information Technology Industries Association’s standard ** EXIF (Exchangeable Image File Format) Caution A JPEG image modified with a PC may not be displayed. Partly degraded files might be displayed at a reduced resolution. Note

Folder structure viewed in PC DCIM P1000001.JPGP1000002.JPGP1000003.JPGP1000004.JPG100_P ANA Created automatically3-digit folder number + 5-digit arbitrary characters4-digit arbitrary characters + 4-digit file number Usable characters: 1-byte “a to z”, “A to Z”, “0 to 9,” and “_” The folder and file names may be different depending on the digital camera used. For the suitable SD Memory Cards, please confirm the latest information on the following website. http://panasonic.jp/support/global/cs (This site is in English only) SD Card warning messages Do not remove the card while the unit is accessing data (this can damage card or unit). Do not touch the terminals on the back of the card. Do not subject the card to high pressure or impact. Insert the card in the correct direction (otherwise, card may be damaged). Electrical interference, static electricity or erroneous operation may damage the data or card. Back up the recorded data at regular intervals in case of deteriorated or damaged data or erratic operation of the unit. (Panasonic is not liable for any deterioration or damage of recorded data.) Cautions in handling SD Card:49

” HDMI connections to some Panasonic equipment allow you to interface automatically. (p. 32) This function may not work normally depending on the equipment condition. The equipment can be operated by other remote controls with this function on even if TV is in Standby mode. Image or sound may not be available for the first few seconds when the playback starts. Image or sound may not be available for the first few seconds when Input mode is switched. Volume function will be displayed when adjusting the volume of the equipment.

If you connect the same kind of equipment at once (for example: one DIGA to HDMI 1 / another DIGA to HDMI 2), VIERA Link TM

is available for the terminal with the smaller number. If you connect equipment that has “HDAVI Control 2 or later” function to the TV with HDMI cable, the sound from DIGITAL AUDIO OUT terminal can be output as multi channel surround. “HDAVI Control 4” is the newest standard (current as of December, 2008) for the HDAVI Control compatible equipment. This standard is compatible with the conventional HDAVI equipment. HDMI connection

HDMI (high-definition multimedia interface) allows you to enjoy high-definition digital images and high-quality sound by connecting the TV unit and the devices. HDMI-compatible equipment (*1) with an HDMI or DVI output terminal, such as a set-top box or a DVD player, can be connected to the HDMI connector using an HDMI compliant (fully wired) cable. HDMI is the world’s first complete digital consumer AV interface complying with a non-compression standard. If the external equipment has only a DVI output, connect to the HDMI terminal via a DVI to HDMI adapter cable (*2). When the DVI to HDMI adapter cable is used, connect the audio cable to the audio input terminal. Audio settings can be made on the “HDMI 1 in”, “HDMI 2 in” or “HDMI 3 in”* menu screen. (p. 28)* HDMI 3 in (TC-L37X1, TC-L32X1 only)Applicable audio signal sampling frequencies (L.PCM): 48 kHz, 44.1 kHz, 32 kHz (*1): The HDMI logo is displayed on an HDMI-compliant device. (*2): Enquire at your local digital equipment retailer shop. Caution Use with a PC is not assumed. All signals are reformatted before being displayed on the screen. If the connected device has an aspect adjustment function, set the aspect ratio to “16:9”. These HDMI connectors are “type A”. These HDMI connectors are compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection. A device having no digital output terminal may be connected to the input terminal of either “COMPONENT”, “S VIDEO”, or “VIDEO” to receive analog signals. The HDMI input terminal can be used with only the following image signals: 480i, 480p, 720p, 1080i.Match the output setting of the digital device. For details of the applicable HDMI signals, see p. 50. DIGITAL AUDIO OUT terminals

You can enjoy your home theater by connecting a Dolby Digital (5.1 channel at ATSC only) decoder and “Multi Channel (ATSC only)” amplifier to the DIGITAL AUDIO OUT terminals. Caution

Depending on your DVD player and DVD-Audio software the copyright protection function may operate and disable optical output. When an ATSC channel is selected, the output from the DIGITAL AUDIO OUT jack will be Dolby Digital. When an NTSC channel is selected, the output will be PCM. Picture mode

Vivid: Provides enhanced picture contrast and sharpness for viewing in a well-lit room. Standard: Recommended for normal viewing conditions with subdued room lighting. Cinema: For watching movies in a darkened room. It provides a soft, film-like picture. Game: For playing video game. This mode will be set automatically if “GAME” is selected from Input label setting (p. 43) Custom (Photo): Customizes each item according to your taste.Photo is displayed in JPEG menu. Note Picture mode will be automatically set to “Standard” if you change the Input label from “GAME” to other labels. Picture mode will be automatically set to “Game” if you change from an Input label other than “GAME” to “GAME” label.50

Technical Information (Continued)

Input signal that can be displayed

* Mark: Applicable input signal for Component (Y, PB, PR), HDMI and PC horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI PC525 (480) / 60i 15.73 59.94 ** 525 (480) /60p 31.47 59.94 ** 750 (720) /60p 45.00 59.94 ** 1,125 (1,080) /60i 33.75 59.94 ** 640 × 400 @70 31.47 70.08 * 640 × 480 @60 31.47 59.94 * Macintosh13” (640 × 480) 35.00 66.67 * 640 × 480 @75 37.50 75.00 * 852 × 480 @60 31.47 59.94 * 800 × 600 @60 37.88 60.32 * 800 × 600 @75 46.88 75.00 * 800 × 600 @85 53.67 85.08 * Macintosh16” (832 × 624) 49.73 74.55 * 1,024 × 768 @60 48.36 60.00 * 1,024 × 768 @70 56.48 70.07 * 1,024 × 768 @75 60.02 75.03 * 1,024 × 768 @85 68.68 85.00 * Macintosh 21” (1,152 × 870) 68.68 75.06 * 1,280 × 768 @60 47.70 60.00 * 1,280 × 1,024 @60 63.98 60.02 * 1,366 × 768 @60 48.36 60.00 *

Note Signals other than above may not be displayed properly. The above signals are reformatted for optimal viewing on your display. PC Input Terminals Connection

Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.) Some PC models cannot be connected to the set. There is no need to use an adapter for computers with IBM PC/AT compatible D-sub 15P terminal. The maximum resolution: 1,280 × 1,024 If the display resolution exceeds these maximums, it may not be possible to show fine detail with sufficient clarity. Signal Names for D-sub 15P ConnectorPin No.Signal NamePin No.Signal NamePin No.Signal NameR GND (Ground) NC (not connected)G GND (Ground) NCB GND (Ground) HD/SYNCNC (not connected) NC (not connected) VDGND (Ground) GND (Ground) NCPin Layout for PC Input Terminal H size

Aspect Ratio: 4:3 Size 1 Size 2 The width will be decreased on both sides to reduce noise. Aspect Ratio: FULL/JUST(H-FILL/ZOOM) Size 1 Size 2 The width will be increased on both sides to reduce noise.See pages 28-29 for more information51

Technical Information

Care and Cleaning First, unplug the Power cord plug from the wall outlet. Display panel

The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning cloth or a soft, lint- free cloth. If the surface is particularly dirty, soak a soft, lint-free cloth in diluted mild liquid dish soap (1 part mild liquid dish soap diluted

by 100 times the amount of water) and then wring the cloth to remove excess liquid. Use this cloth to wipe the surface of the display panel, then wipe it evenly with a dry cloth of the same type until the surface is dry. Do not scratch or hit the surface of the panel with fingernails or other hard objects. Furthermore, avoid contact with volatile

substances such as insect sprays, solvents, and thinner; otherwise, the quality of the surface may be adversely affected.

Cabinet If the cabinet becomes dirty, wipe it with a soft, dry cloth. If the cabinet is particularly dirty, soak the cloth in a weak mild liquid dish soap and then wring the cloth dry. Use this cloth to wipe the cabinet and then wipe it dry with a dry cloth. Do not allow any mild liquid dish soap to come into direct contact with the surface of the LCD TV. If water droplets get inside the unit, operating problems may result. Avoid contact with volatile substances such as insect sprays, solvents, and thinner; otherwise, the quality of the cabinet surface

may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods in contact with articles made from rubber or PVC. Pedestal Cleaning Wipe the surfaces with a soft, dry cloth. If the unit is particularly dirty, clean it using a cloth soaked with water to which a small amount of mild liquid dish soap has been added and then wipe with a dry cloth. Do not use products such as solvents, thinner, or household wax for cleaning, as they can damage the surface coating. (If using a chemically-treated cloth, follow the instructions supplied with the cloth.) Do not attach sticky tape or labels, as they can make the surface of the pedestal dirty. Do not allow long-term contact with rubber, vinyl products, or the like. (Doing so will cause deterioration.) Power cord plug Wipe the plug with a dry cloth at regular intervals. (Moisture and dust can lead to fire or electrical shock.)52

FAQ Before requesting service or assistance, please follow these simple guides to resolve the problem.

If the problem still persists, please contact your local Panasonic dealer or Panasonic Service Center for assistance.

For details (p. 56, 57)

For additional assistance, please contact us via the website at:

www.panasonic.com/contactinfo

(noise) Check the position, direction, and connection of the antenna.

(intermittent sound)

Change the direction of antenna

for digital channels.

Check “Signal meter” (p. 41).

If the signal is weak, check the

antenna and consult your local

pushed with a fi nger.

This is not a malfunction.

There is some looseness around

the panel to prevent the damage to

The remote control does

not work Are the batteries installed correctly? (p. 8) Are the batteries new? Pictures from external

equipment are distorted when

the unit is connected via HDMI Is the HDMI cable connected properly? (p. 33, 45) Turn Off the TV unit and equipment, then turn them On again. Check an input signal from the equipment. (p. 50) Use equipment compliant with EIA/CEA-861/861B.

When the channel is changed on

an STB that is connected with

HDMI, “HDMI” may be displayed

on the top left of the screen This is not a malfunction. Recording does not

start immediately Check the settings of the recorder. For details, read the manual of the recorder.53

Frequently Asked Questions

Screen Sound Other If there is a problem with your TV, please refer to the table below to determine the symptoms, then carry out the suggested check. If this does not solve the problem, please contact your local Panasonic dealer, quoting the model number and serial number (both found on the rear of the TV). Some spots remain

bright or dark The LCD panel is made up of a few million pixels and is produced with advanced technology through an intricate process. Sometimes a few pixels may be bright or dark. These pixels do not indicate a defective panel and will have no impact on the performance of the TV. Chaotic image, noisy

Check nearby electrical products(car or motorcycle ignition systems, fluorescent lamp, etc.) No image can be

displayed Check Picture menu (p. 28) Check the cable connections. Check that the correct input has been selected. Only spots are displayed

instead of images Check the channel settings. (p. 40) Check the antenna cables. Neither image nor

sound is produced Is the power cord plugged into the outlet? Is the TV unit turned On? Check Picture menu (p. 28) and volume. Check the AV cable connections. (p. 10-13) Check that the correct input has been selected. (p. 22) Black Box appears Change settings of Closed caption (CC). (p. 42) No sound is produced Are the speakers’ cables connected correctly? (p. 45) Is “Sound Mute” active? (p. 14) Is the volume set to the minimum? Is “TV speakers” set to “Off”? (p. 28) Change “SAP” settings. (p. 17) Check “HDMI 1 in”, “HDMI 2 in” or “HDMI 3 in”* settings. * HDMI 3 in (TC-L37X1, TC-L32X1 only) (p. 28) Sound is unusual Set “SAP” setting to “Stereo” or “Mono”. Check the HDMI device connected to the unit. Set the audio setting of the HDMI device to“Linear PCM”. If digital sound connection has a problem,select analog sound connection. Unknown sound heard

1- Changes in the temperature and humidity of the room may cause the TV’s cabinet to expand or contract and produce metallic sounds. This is not a sign of faulty operation or a malfunction.2- When the TV is powered on, an electrical component in the TV activates producing a tick/click sound. This is not a sign of faulty operation or a malfunction.3- Electrical circuits are active while the TV set is on. This is not a sign of faulty operation or a malfunction. The main unit is hot.

The main unit radiates heat and some of the parts may become hot. This is not a problem for performance or quality. Set up in a location with good ventilation. Do not cover the ventilation holes of the TV with a tablecloth, etc., and do not place on top of other equipment.54

Specifications 36.1 ” (915 mm)3.7 ” (93 mm)3.3 ” (83 mm)11.3 ” (287 mm)3.9 ” (97 mm)3.5 ” (87 mm)15.8 ”(399 mm)22.8 ” (577 mm)24.5 ” (620 mm)31.5 ” (798 mm)8.6 ” (217 mm)20.2 ” (511 mm)21.7 ” (551 mm)14.2 ”(359 mm)4.7 ” (118 mm)4.3 ” (108 mm)26.2 ” (664 mm)8.6 ” (217 mm)17.1 ” (434 mm)18.7 ” (474 mm)14.2 ”(359 mm) Note

Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.

measured diagonally)

32” class (31.5 inches

measured diagonally)

37” class (37.0 inches

measured diagonally)

1,049,088 (1,366 (W) × 768 (H))

Speaker 1-way 2 speakers slim under SP System

VGA, SVGA, XGA, WXGA, SXGA Horizontal scanning frequency 31 - 69 kHz

Vertical scanning frequency 59 - 86 Hz

ATSC/NTSC (Digital/Analog)

Operating Conditions

Temperature: 32 °F – 95 °F (0 °C – 35°C)

Humidity: 20 % – 80 % RH (non-condensing)

Connection Terminals

COMPONENT IN Y: 1.0 V [p-p] (including synchronization)

P B, PR: ±0.35 V [p-p] AUDIO L-R: RCA PIN Type × 2

This TV supports “HDAVI Control 4” function.

* HDMI 3 (TC-L37X1, TC-L32X1 only)

PC D-SUB 15PIN: R,G,B / 0.7 V [p-p] (75 Ω)

HD, VD / 1.0 - 5.0 V [p-p] (high impedance)

Card slot SD CARD slot × 1

DIGITAL AUDIO OUT PCM / Dolby Digital, Fiber Optic

FEATURES CLOSED CAPTION, V-Chip

[TC-L26X1] [TC-L32X1] [TC-L37X1]55

Limited Warranty (for U.S.A. and Puerto Rico only)

Specifications Limited Warranty CoverageIf your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there willbe no charge for parts. You must carry-in your product or arrange for on-site service during the Limited warranty period. If non-rechargeable batteries are included, they are not warranted. This warranty only applies to products purchased and serviced in theUnited States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which wasnot sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.On-Site or Carry-in ServiceFor On-Site or Carry-In Service in the United States and Puerto Rico call 1-877-95-VIERA (1-877-958-4372)On-site service where applicable requires clear, complete and easy access to the product by the authorized servicer and does not include removal or re-installation of an installed product. It is possible that certain on-site repairs will not

be completed on-site, but will require that the product or parts of the product, at the servicer’s discretion be removed for shop diagnosis and/or repair and then returned.Limited Warranty Limits And ExclusionsThis warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normalwear and tear or cosmetic damage, nor does it cover markings or retained images on the LCD panel resultingfrom viewing fixed images (including, among other things, non-expanded standard 4:3 pictures on wide screen TV’s, or onscreen data in a stationary and fixed location). The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, bug infestation, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”.THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROMTHE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, or travel to

and from the servicer. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THELIMITED WARRANTY.Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on howlong an implied warranty lasts, so the exclusions may not apply to you.This warranty gives you specific legal rights and you may also have others rights which vary from state to state.If a problem with this product develops during or after the warranty period, you may contact your dealer orService Center. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer AffairsDepartment at the addresses listed for the warrantor.PARTS AND SERVICE (INCLUDING COST OF AN ON-SITE SERVICE CALL, WHERE APPLICABLE) WHICHARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY. Limited Warranty (for U.S.A. and Puerto Rico only)

Panasonic LCD Televisions

Limited Warranty LCD TV CATEGORIES PARTS LABOR SERVICEUp to 37’ (diagonal)1 (ONE) YEAR 1 (ONE) YEARCarry-In42” (diagonal) and larger On-SitePANASONIC CONSUMER ELECTRONICS COMPANY,DIVISION OF:PANASONIC CORPORATION OF NORTH AMERICAOne Panasonic WaySecaucus, New Jersey 0709456

Customer Services Directory (for U.S.A. and Puerto Rico) Customer Services Directory (United States and Puerto Rico)Obtain Product Information and Operating Assistance; locate your nearest Dealer or Service Center; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at: http://www.panasonic.com/help or, contact us via the web at: http://www.panasonic.com/contactinfo You may also contact us directly at:1-877-95-VIERA (958-4372)Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST. ■ For hearing or speech impaired TTY users, TTY: 1-877-833-8855Accessory Purchases (United States and Puerto Rico)Purchase Parts, Accessories and Instruction Books on line for all Panasonic Products by visiting our Web Site at: http://www.pstc.panasonic.com or, send your request by E-mail to: npcparts@us.panasonic.com You may also contact us directly at: 1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 9 pm, EST.)Panasonic Service and Technology Company20421 84th Avenue South,Kent, WA 98032(We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks) ■ For hearing or speech impaired TTY users, TTY: 1-866-605-127757

Limited Warranty (for Canada)

Customer Services Directory (for U.S.A. and Puerto Rico)

Limited Warranty (for Canada) Panasonic Canada Inc.PANASONIC PRODUCT - LIMITED WARRANTYPanasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.In-home Service will be carried out only to locations accessible by roads and within 50 km of an authorized Panasonic service facility.LIMITATIONS AND EXCLUSIONSThis warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty. This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed.THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.In-home service requires clear, complete and easy access to the product by the Authorized Servicentre and does not include removal or re-installation of an installed product. If removal is required to service the product, it will be at the discretion of the Servicentre and in no event will Panasonic Canada Inc. or the Servicentre be liable for any special, indirect or consequential damages.WARRANTY SERVICEFor product operation and information assistance, please contact: Our Customer Care Centre: 1-800 #: 1-866-330-0014 Email link: www.vieraconcierge.caFOR PRODUCT REPAIRS, please contact Viera Customer Care Agent using the above contact info.IF YOU SHIP THE PRODUCT TO A SERVICENTRECarefully pack and send prepaid, adequately insured and preferably in the original carton.Include details of the defect claimed, and proof of date of original purchase.Plasma TV / Monitor In-home service One (1) year, parts (including Plasma Panel) and labour.LCD TV (42 in & over) In-home service One (1) year, parts (including LCD Panel) and labour.Customer’s Record

The model number and serial number of this product can be found on its back cover. You should note this serial number in

the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid

in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Division of Panasonic Corporation of North America

2009 Panasonic Corporation of North America. All Rights Reserved.

This product has a fluorescent lamp that contains mercury.

Disposal may be regulated in your community due to environmental

considerations. For disposal or recycling information, please contact your

local authorities, or the Electronic Industries Alliance:

http://www.eiae.org.

0806_1_span_front_cover.fm Page 1 Wednesday, February 4, 2009 9:54 AM2

NTSC (National Television System Committee):

Emisión convencional

ATSC (Advanced Television Systems Committee):

AUDIO IN PC DIGITAL AUDIO OUT Dock for iPod

AUDIO IN PC DIGITAL AUDIO OUT Dock for iPod

MPAA U.S.TVC.E.L.R.C.F.L.R.

MPAA U.S.TVC.E.L.R.C.F.L.R.

HD, VD / 1,0 - 5,0 V [p-p] (alta impedancia)

[TC-L26X1] [TC-L32X1] [TC-L37X1]55

Visionnement de bandes vidéo et de DVD ·· 22 Affichage PC à l’écran du téléviseur ·········· 24 Lecture d’un iPod sur le téléviseur ············· 25 Utilisation des fonctions des menus(image, son, etc.) ·······································28 VIERA Link TM “HDAVI Control TM ” ················ 32 Blocage ······················································ 38 Programmation et édition des canaux ······· 40 Sous-titres ·················································· 42 Ident. prises ···············································43 Minuterie ···················································· 44 Connexions AV recommandées ·················45 Liste des classifications aux fins de blocage ······················································ 46 Informations techniques ····························· 47 Entretien et nettoyage ································ 51 Foire aux questions···································· 52 Spécifications ············································· 54

Connexion de base ························ 10

Emplacement des commandes ····· 14

Réglage initial ································ 15

Contact: Panasonic Consumer Electronics Company

ATSC (Advanced Television Systems Committee):

AUDIO IN PC DIGITAL AUDIO OUT Dock for iPod

AUDIO IN PC DIGITAL AUDIO OUT Dock for iPod

menus (p. 16, 22, 36, 38, 40, 43, 44)

○ --- --- Informations canal

MPAA U.S.TVC.E.L.R.C.F.L.R.

MPAA U.S.TVC.E.L.R.C.F.L.R.

Informations techniques (Suite)

Division of Panasonic Corporation of North America
