Product type	Compact hairdryer
Brand	Philips
Model	SalonDry Compact HP4960
Rated power	1600 W (estimated)
Power supply	220-240 V ~ 50-60 Hz
Dimensions (L x W x H)	Approximately 22 x 8 x 12 cm (estimated)
Weight	Approximately 0.4 kg (estimated)
Cord length	1.8 m (estimated)
Number of speeds	2 (strong and gentle airflow)
Number of temperature settings	2 (hot and cold via button on some models)
Cold air function	Not available on this model
Included accessories	Concentrator nozzle
Volume diffuser included	No
Air inlet grille type	Removable for cleaning
Overheating protection	Yes, automatic shut-off
Use in bathroom	Not recommended, unplug after use
Maintenance	Clean with a dry cloth; accessories washable with water
Warranty	International Philips warranty (see leaflet)
Country of manufacture	Not specified

Frequently Asked Questions - SalonDry Compact HP4960 PHILIPS

How to turn on the Philips SalonDry Compact HP4960 hairdryer?

Plug in the device, then use the rocker switch (D) to select position II (strong airflow) or I (gentle airflow). Position O turns off the device.

What accessories are included with the HP4960 model?

The HP4960 model comes with a concentrator nozzle (A). The volume diffuser is only included on the HP4963 model.

How to clean the hairdryer?

Always unplug the device. Clean the body with a dry cloth. Accessories can be washed with water using a damp cloth; make sure they are dry before reuse.

What to do if the hairdryer stops suddenly?

This is likely due to overheating. Unplug the device and let it cool down for a few minutes. Before restarting, check that the grilles are not obstructed by hair or dust.

Can I use the hairdryer in the bathroom?

Yes, but with caution. Never use it near a bathtub or basin containing water. Unplug it after each use, even when off, as water presents a risk.

How to attach the concentrator nozzle?

Simply snap the concentrator nozzle onto the air outlet grille (B) until it clicks. To remove, gently pull it off.

Does the HP4960 model have a cold air button?

No, the cold air flow function is only available on the HP4962 model. On the HP4960, you can use the low temperature setting for gentler drying.

What to do if the power cord is damaged?

Do not use the device. Have the cord replaced by Philips, an Authorized Service Center, or a qualified technician to avoid any accident.

How to store the hairdryer after use?

Turn off and unplug the device. Let it cool down, then store it in a safe place. Do not wrap the cord around the device.

What is the required power voltage?

Check the voltage indicated on the device (usually 220-240 V). Make sure it matches your local mains before plugging in.

USER MANUAL SalonDry Compact HP4960 PHILIPS

Register your product and get support at www.philips.com/welcome

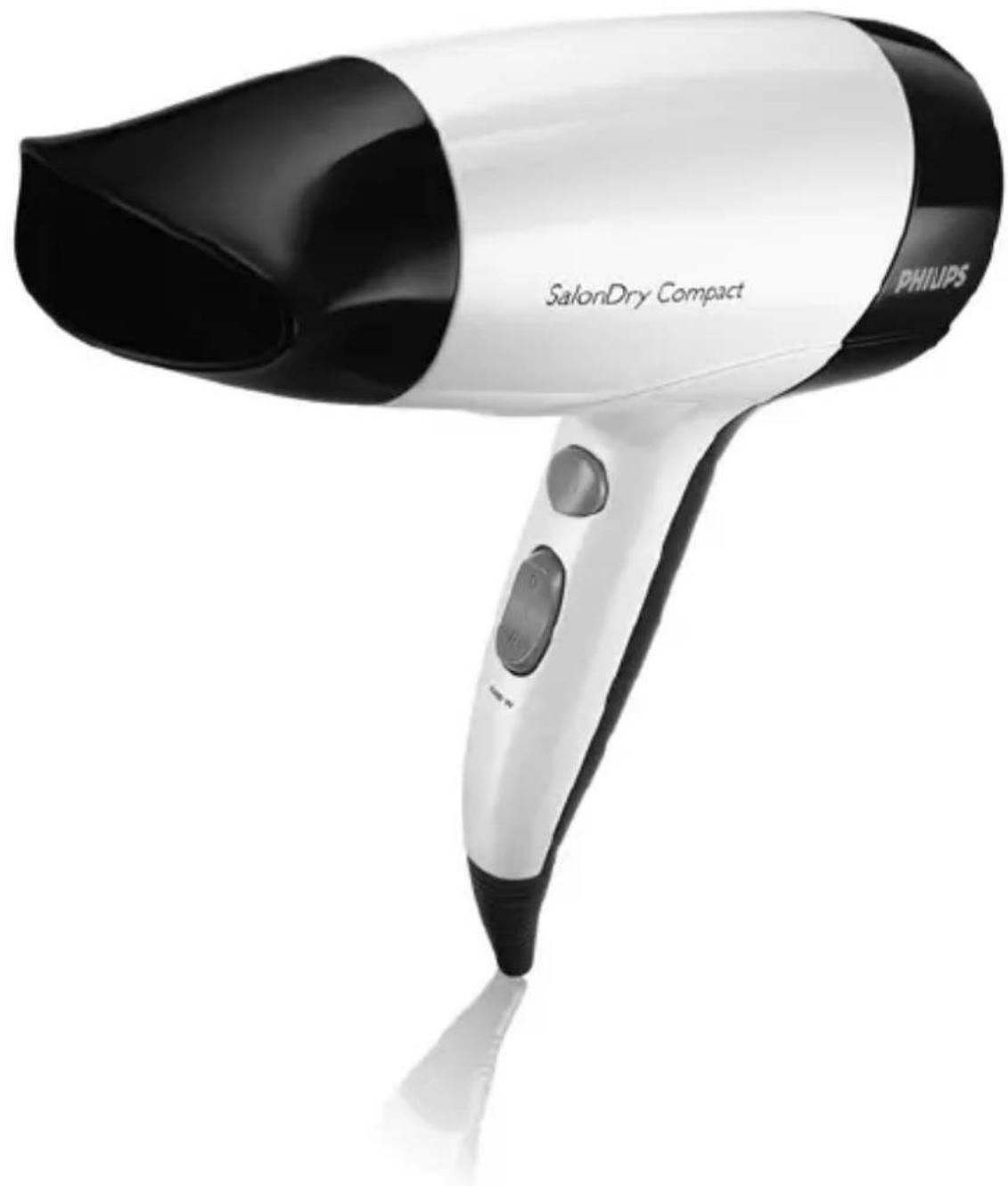

HP4963, HP4962, HP4961, HP4960

Black and white HPV HPV compact hair dryer with no visible text or symbols on the device body

PHILIPS

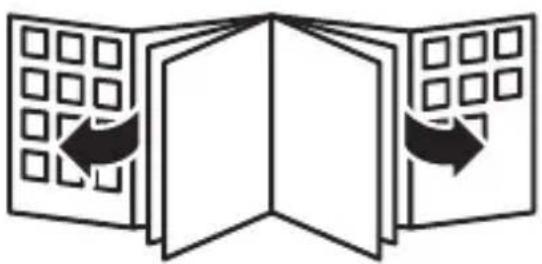

Diagram of a folded panel with grid patterns and directional arrows indicating movement (no text or symbols)

B A C E D F 2

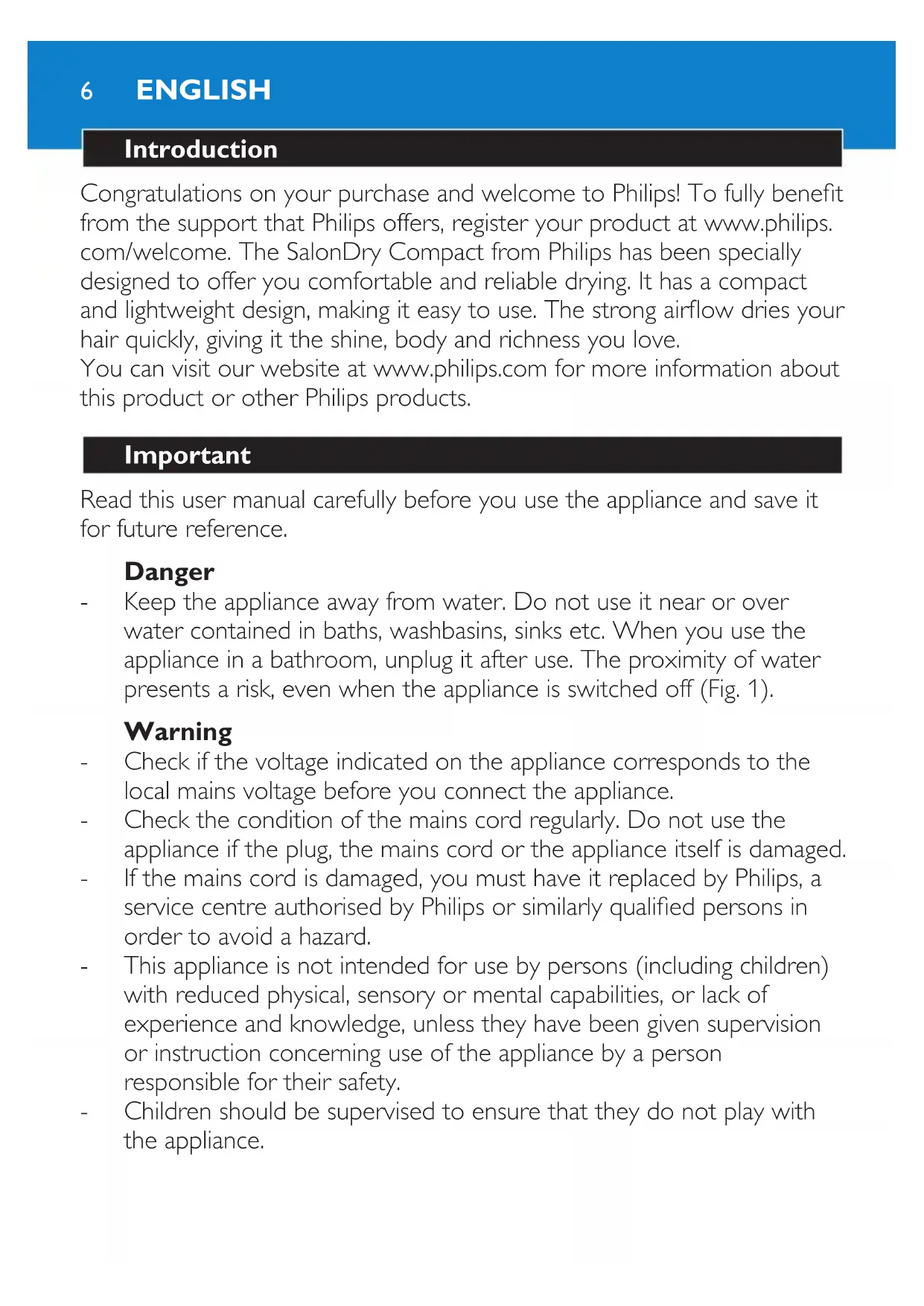

ENGLISH 6

FRANÇAIS 11

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. The SalonDry Compact from Philips has been specially designed to offer you comfortable and reliable drying. It has a compact and lightweight design, making it easy to use. The strong airflow dries your hair quickly, giving it the shine, body and richness you love.

You can visit our website at www.philips.com for more information about this product or other Philips products.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Keep the appliance away from water. Do not use it near or over water contained in baths, washbasins, sinks etc. When you use the appliance in a bathroom, unplug it after use. The proximity of water presents a risk, even when the appliance is switched off (Fig. 1).

Warning

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Check the condition of the mains cord regularly. Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Caution

• For additional protection, we advise you to install a residual current device (RCD) in the electrical circuit that supplies the bathroom. This RCD must have a rated residual operating current not higher than 30mA. Ask your installer for advice.
• Never block the air grilles.
• This appliance is equipped with an overheat protection device. If the appliance overheats, it switches off automatically. Unplug the appliance and let it cool down for a few minutes. Before you switch on the appliance again, check the grilles to make sure they are not blocked by fluff, hair, etc.
• Always switch off the appliance before you put it down, even if it is only for a moment.
• Always unplug the appliance after use.
• Do not wind the mains cord round the appliance.
• Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.
• Do not insert metal objects into the air grilles to avoid electric shock.
• Keep the hairdryer clean and free of dust, dirt and styling products such as mousse, spray and gel.
• Do not use the appliance on artificial hair.
• Do not use the appliance for any other purpose than described in this manual.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

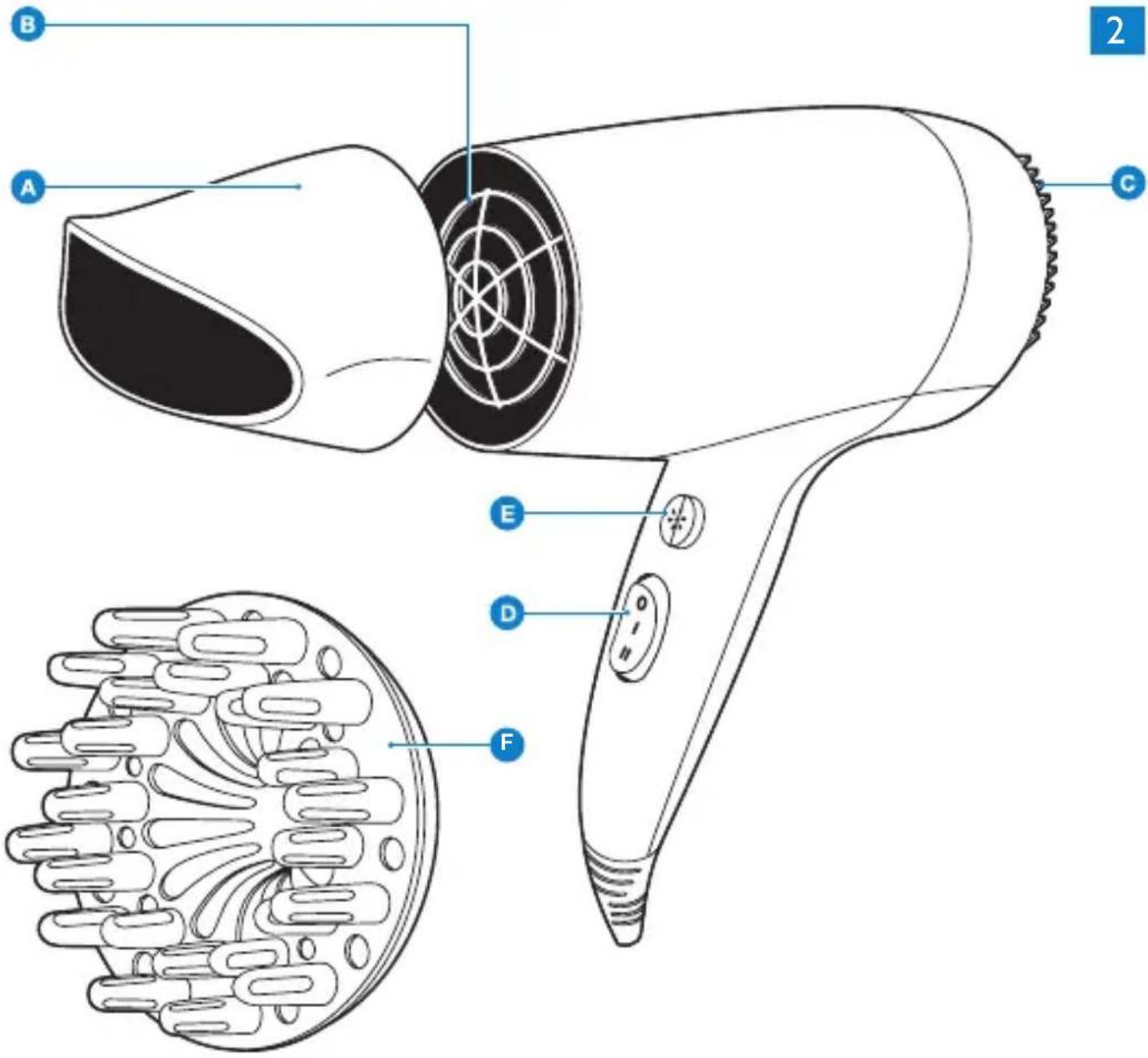

General description (Fig. 2)

Concentrator

Air outlet grille

Air inlet grille

Rocker switch with 2 heat/speed settings and off position

ENGLISH8

E Cool shot button (HP4962 only)
F Volume diffuser (HP4963 only)

Using the appliance

Drying

1 Put the plug in the wall socket.
2 Select the desired setting to switch on the appliance (Fig. 3).

- II: Strong airflow for fast drying

- I: Gentle airflow especially intended for styling

- O: Off

3 To dry your hair, make brushing movements with the hairdryer at a small distance from the hair (Fig. 4).
4 HP4962 only: When you have finished drying, press the cool shot button for a cool airflow. This closes the cuticles and adds shine to the hair (Fig. 5).

Concentrator

The concentrator enables you to direct the airflow straight at the brush or comb with which you are styling your hair.

1 Snap the concentrator onto the appliance (Fig. 6).

- To disconnect the concentrator, pull it off the appliance.

Volume diffuser (HP4963 only)

The volume diffuser has been specially developed to gently dry both straight and curly or wavy hair.

1 To connect the volume diffuser, snap it onto the appliance. (Fig. 7) To disconnect the volume diffuser, pull it off the appliance.
2 To add volume at the roots, insert the pins into your hair in such a way that they touch your scalp (Fig. 8).
3 Make rotating movements with the appliance to distribute the warm air evenly through your hair (Fig. 9).

Cleaning

Always unplug the appliance before you clean it.

Do not immerse the appliance in water nor rinse it under the tap.

1 Make sure the appliance is switched off and unplugged.
2 Remove the attachment from the appliance before you clean it.
3 Clean the appliance with a dry cloth.
4 Clean the attachment with a moist cloth or rinse it under the tap.

Note: Make sure the attachment is dry before you use or store it.

Storage

Never wind the mains cord round the appliance.

1 Make sure the appliance is switched off and unplugged.
2 Put the appliance in a safe place and let it cool down before you store it.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 10).

Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Troubleshooting

If problems arise with your hairdryer and you cannot solve them with the information below, please contact the nearest Philips service centre or the Philips Consumer Care Centre in your country.

Problem Solution

The appliance does not work at all.	Perhaps the socket to which the appliance has been connected is not live. Make sure the socket is live.
	The appliance may have overheated and switched itself off. Unplug the appliance and let it cool down for a few minutes. Before you switch on the appliance again, check the grilles to make sure they are not blocked by fluff, hair, etc.
	The appliance may not be suitable for the voltage to which it has been connected. Make sure that the voltage indicated on the type plate of the appliance corresponds to the local mains voltage.
	The mains cord may be damaged. If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
