USER MANUAL AZAHP 7671 WHIRLPOOL

Line drawing of a washing machine with upward arrows indicating airflow or ventilation (no text or symbols)

Line drawing of a washing machine with upward arrows indicating airflow or ventilation (no text or symbols)

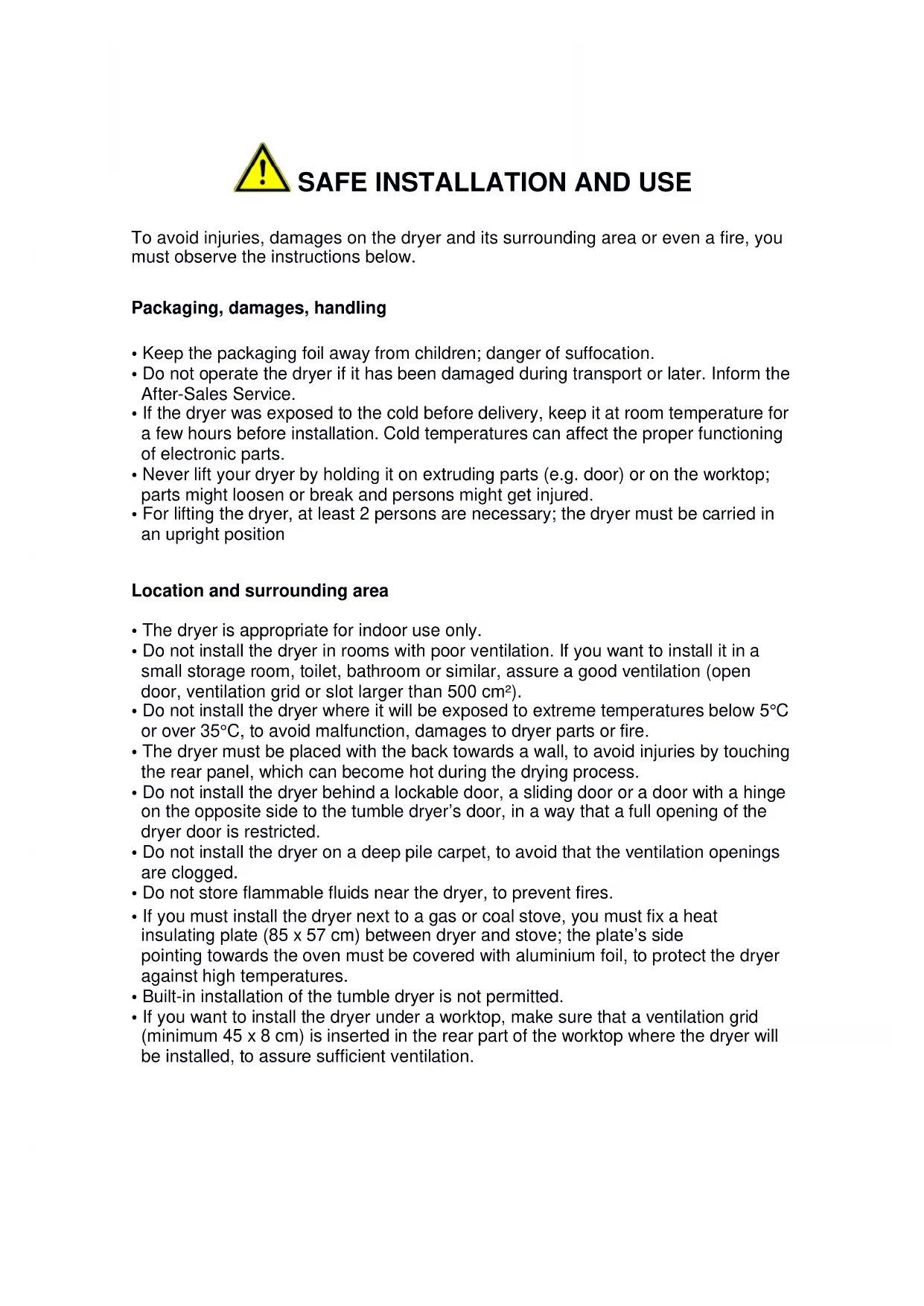

SAFE INSTALLATION AND USE

To avoid injuries, damages on the dryer and its surrounding area or even a fire, you must observe the instructions below.

Packaging, damages, handling

• Keep the packaging foil away from children; danger of suffocation.
• Do not operate the dryer if it has been damaged during transport or later. Inform the After-Sales Service.
• If the dryer was exposed to the cold before delivery, keep it at room temperature for a few hours before installation. Cold temperatures can affect the proper functioning of electronic parts.
• Never lift your dryer by holding it on extruding parts (e.g. door) or on the worktop; parts might loosen or break and persons might get injured.
• For lifting the dryer, at least 2 persons are necessary; the dryer must be carried in an upright position

Location and surrounding area

• The dryer is appropriate for indoor use only.
• Do not install the dryer in rooms with poor ventilation. If you want to install it in a small storage room, toilet, bathroom or similar, assure a good ventilation (open door, ventilation grid or slot larger than 500~cm^2 ).
• Do not install the dryer where it will be exposed to extreme temperatures below 5°C or over 35°C, to avoid malfunction, damages to dryer parts or fire.
• The dryer must be placed with the back towards a wall, to avoid injuries by touching the rear panel, which can become hot during the drying process.
• Do not install the dryer behind a lockable door, a sliding door or a door with a hinge on the opposite side to the tumble dryer's door, in a way that a full opening of the dryer door is restricted.
• Do not install the dryer on a deep pile carpet, to avoid that the ventilation openings are clogged.
• Do not store flammable fluids near the dryer, to prevent fires.
• If you must install the dryer next to a gas or coal stove, you must fix a heat insulating plate (85 x 57 cm) between dryer and stove; the plate's side pointing towards the oven must be covered with aluminium foil, to protect the dryer against high temperatures.
  • Built-in installation of the tumble dryer is not permitted.
• If you want to install the dryer under a worktop, make sure that a ventilation grid (minimum 45 x 8 cm) is inserted in the rear part of the worktop where the dryer will be installed, to assure sufficient ventilation.

Line drawing of a washing machine with upward arrows indicating airflow or movement (no text or symbols)

Stacking on a washing machine

- If you want to place the dryer on top of your washing machine, first contact our After-Sales Service or your specialist dealer to verify if this is possible. Stacking of a dryer is only admitted if the dryer and your washing machine are compatible, and if an appropriate stacking kit is available through our After-Sales Service or your specialist dealer by which the dryer can be safely fixed on the washing machine.

Electrical connection

- The dryer must only be connected to an earthed socket which is in compliance with the current safety regulations and which is appropriate for the values regarding voltage, power consumption and protection requirements as they are indicated on the rating plate on the rear of the dryer.

- Do not use extension leads, extension leads with multiple sockets, or adapters; they might cause a fire by overheating. If you need a longer mains cable, contact our After-Sales Service.

• After installation, access to the mains plug or to disconnection from mains supply by a double-pole switch must be ensured at all times, to make sure the dryer can be separated immediately from the mains supply.

- For unplugging the dryer, do not pull the mains cable, to avoid damaging it. Never touch the mains plug with wet hands, to avoid an electrical shock.

- Do not trap the mains cable between the dryer and the wall, to prevent damages on the cable.

• Do not operate the driver if the mains cable or plug shows damages.

- Before doing any maintenance on the dryer, disconnect it from the mains supply, to avoid dangers.

- If necessary, the mains cable can be replaced; the replacement must only be done by our After-Sales Service or by a qualified technician, to avoid dangers.

- When using a residual current circuit breaker (RCCB), only use a model marked with

Children and handicapped people

• Children must not play with the dryer.
- Children younger than 3 years should be kept away from the dryer, unless they are continuously supervised.
- The dryer can be operated by children from the age of 8 years up, as well as by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised or instructed regarding the safe use of the dryer and they understand the dangers resulting from the use.
- Care and maintenance works on the dryer must not be done by children without being supervised.
- Ensure that children and small animals cannot get into the drum.

Safe operation / minimizing the risk of a fire

• Do not tumble dry laundry containing oil, to prevent a fire. Oil-bearing items can ignite spontaneously, especially when they are exposed to heat sources as in a tumble dryer. The items would become warm, causing an oxidation reaction in the oil. Oxidation creates heat; if the heat cannot escape, the item can become hot enough to catch fire.
• Do not tumble dry unwashed laundry in the tumble dryer.
• Laundry items that have been soiled with substances such as cooking oil, acetone, alcohol, benzene, petroleum, kerosene, stain removers, turpentine, wax or wax removers must be washed in hot water, with an extra amount of detergent, before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads must not be dried in the tumble dryer.
• Remove all objects from pockets such as lighters and matches.
• Do not use flammable cleaning agents.
• Do not use the tumble dryer if chemicals have been used for cleaning.
• Fabric softeners or similar products must be used as specified by the fabric softener instructions.
• Never stop the tumble dryer before the end of the drying cycle, unless all items are quickly removed and spread out so that the heat is dissipated. The final phase of a drying cycle always occurs without heat (cool down phase), to ensure that the laundry items are left at a temperature which does not cause damage to the laundry.
• Clean the door filter after each drying cycle (see paragraph CLEANING THE DOOR FILTER).
• Keep the surrounding area of the dryer free from lint.
• Always set the programme knob to the Off-positon "O" after programme end, to reduce the risk that the dryer might be started accidentally.
• Drying clothes with buckles or using dryer balls may impact the surface of the drum.

Maintenance

• Before doing any maintenance, switch off the dryer and disconnect it from the mains supply.
• Never use flammable fluids for cleaning the dryer.
• Do not use detergents containing solvents, scouring powder, glass or general purpose cleaners. They might harm the surfaces.

Repairs and spare parts

• Repairs must only be done by our After-Sales service. Improper repairing can lead to unpredictable dangers for the user and to damages on the dryer and will moreover cause the loss of the guarantee.
• For repairs, only original spare parts are admitted, to assure proper functioning of the dryer.
• For dryer models with drum light: Replacing the light bulb must only be carried out by our After-Sales Service.

INTENDED USE

This appliance is destined to dry laundry which is marked to be appropriate for being treated in a dryer, in quantities which are usual for private households.

• Observe the instructions given in these Instructions for Use and in the Quick Reference Guide when using the dryer.
• Keep these Instructions for Use and the Quick Reference Guide; if you pass on the dryer to another person, also give him/her Instructions for Use and Quick Reference Guide.

Heat Pump Technology

This dryer with modern heat pump technology provides the same results, but only consumes a fraction of the energy used by traditional condenser and air-vented dryers. In order to treat your laundry as gentle as possible and to reach a low energy consumption, the laundry is dried with low temperature; therefore it may feel cooler than expected during and after the drying process. For heat pump dryers, the initial heating phase is longer than it is for traditional dryers. For that reason, no or only little heat can be perceived inside the dryer during the first 10 to 20 minutes. If possible, do not open the dryer door during the drying process to check dryness of your laundry. Otherwise heat will escape from the drum, and the programme time will be prolonged unnecessarily.

Line drawing of a washing machine with airflow indicators (no text or symbols)

Diagram of a washing machine with airflow arrows indicating airflow direction (no text or symbols)
