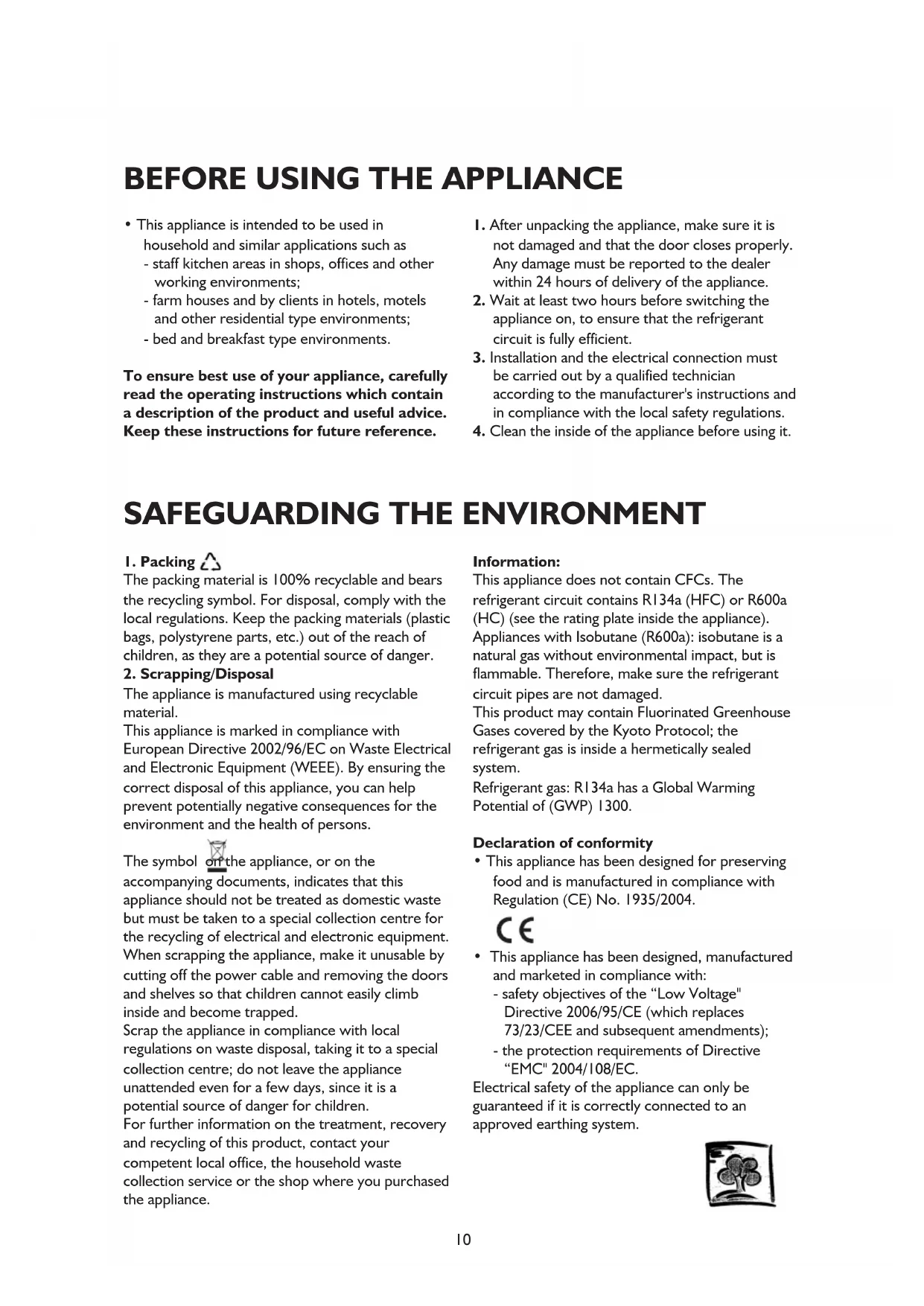

• This appliance is intended to be used in

household and similar applications such as

- staff kitchen areas in shops, offices and other

working environments;

- farm houses and by clients in hotels, motels

and other residential type environments;

- bed and breakfast type environments.

To ensure best use of your appliance, carefully

read the operating instructions which contain

a description of the product and useful advice.

Keep these instructions for future reference.

1. After unpacking the appliance, make sure it is

not damaged and that the door closes properly.

Any damage must be reported to the dealer

within 24 hours of delivery of the appliance.

2. Wait at least two hours before switching the

appliance on, to ensure that the refrigerant

circuit is fully efficient.

3. Installation and the electrical connection must

be carried out by a qualified technician

according to the manufacturer's instructions and

in compliance with the local safety regulations.

4. Clean the inside of the appliance before using it.

BEFORE USING THE APPLIANCE

The packing material is 100% recyclable and bears

the recycling symbol. For disposal, comply with the

local regulations. Keep the packing materials (plastic

bags, polystyrene parts, etc.) out of the reach of

children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable

This appliance is marked in compliance with

European Directive 2002/96/EC on Waste Electrical

and Electronic Equipment (WEEE). By ensuring the

correct disposal of this appliance, you can help

prevent potentially negative consequences for the

environment and the health of persons.

The symbol on the appliance, or on the

accompanying documents, indicates that this

appliance should not be treated as domestic waste

but must be taken to a special collection centre for

the recycling of electrical and electronic equipment.

When scrapping the appliance, make it unusable by

cutting off the power cable and removing the doors

and shelves so that children cannot easily climb

inside and become trapped.

Scrap the appliance in compliance with local

regulations on waste disposal, taking it to a special

collection centre; do not leave the appliance

unattended even for a few days, since it is a

potential source of danger for children.

For further information on the treatment, recovery

and recycling of this product, contact your

competent local office, the household waste

collection service or the shop where you purchased

This appliance does not contain CFCs. The

refrigerant circuit contains R134a (HFC) or R600a

(HC) (see the rating plate inside the appliance).

Appliances with Isobutane (R600a): isobutane is a

natural gas without environmental impact, but is

flammable. Therefore, make sure the refrigerant

circuit pipes are not damaged.

This product may contain Fluorinated Greenhouse

Gases covered by the Kyoto Protocol; the

refrigerant gas is inside a hermetically sealed

Refrigerant gas: R134a has a Global Warming

Potential of (GWP) 1300.

Declaration of conformity

• This appliance has been designed for preserving

food and is manufactured in compliance with

Regulation (CE) No. 1935/2004.

• This appliance has been designed, manufactured

and marketed in compliance with:

- safety objectives of the “Low Voltage"

Directive 2006/95/CE (which replaces

73/23/CEE and subsequent amendments);

- the protection requirements of Directive

Electrical safety of the appliance can only be

guaranteed if it is correctly connected to an

approved earthing system.

SAFEGUARDING THE ENVIRONMENT11

Failure to follow the instructions regarding

sanitizing can compromise the hygienic safety

of the water dispensed.

• When using the appliance for the first time and

every time the filter is changed, discard the first

9-14 litres of water, equivalent to 6-7 minutes of

dispensing (not necessarily consecutive, but

before initial consumption) and discard the ice

produced in the first 24 hours.

• If the water dispenser has not been used for

more than 4/5 days, it is advisable to clean the

circuit and run off the first litre of water.

• Reposition the removable water dispenser (if

present), ensuring your hands are hygienically

• Clean the ice bucket or drawer regularly but

using only drinking water.

• The filter must be changed when indicated on

the control panel or when the ice/water

dispenser has not been used for more than 30

• With each filter replacement, sanitise the ice

and/or water distribution system using a food

grade disinfectant (with sodium hypochlorite),

which does not alter the characteristics of the

materials, or use the "Sanitising Kit" available

from the After-Sales Service. Rinse with at least

2 litres of water before use.

• Only original spare parts supplied by the

manufacturer should be used when replacing

components in the ice and water dispenser.

• Any work on the appliance must be carried out

by a qualified technician or the After-sales

• The appliance must be

handled and installed by

two or more persons.

damage the floors (e.g. parquet) when moving

• During installation, make sure the appliance

does not damage the power cable.

• Make sure the appliance is not near a heat

• To guarantee adequate ventilation, leave a space

on both sides and above the appliance and

follow the installation instructions.

• Keep the appliance ventilation openings free.

• Do not damage the appliance refrigerant circuit

• Install and level the appliance on a floor strong

enough to take its weight and in a place suitable

for its size and use.

• Install the appliance in a dry and well-ventilated

place. The appliance is arranged for operation in

places where the temperature comes within the

following ranges, according to the climatic class

given on the rating plate. The appliance may not

work properly if it is left for a long time at a

temperature outside the specified range.

• Make sure the voltage specified on the rating

plate corresponds to that of your home.

• Do not use single/multi adapters or extension

• For the water connection, use the pipe supplied

with the new appliance; do not reuse that of the

• Power cable modification or replacement must

only be carried out by qualified personnel or by

After-sales Service.

• It must be possible to disconnect the appliance

from the power supply by unplugging it or by

means of a mains two-pole switch installed

upstream of the socket.

• Do not store explosive substances such as

aerosol cans with a flammable propellant in this

• Do not store or use petrol, flammable liquids or

gas in the vicinity of this or other electrical

PRECAUTIONS AND GENERAL RECOMMENDATIONS Climatic Class Amb. T. (°C) Amb. T. (°F)

SN From 10 to 32 From 50 to 90

N From 16 to 32 From 61 to 90

ST From 16 to 38 From 61 to 100

T From 16 to 43 From 61 to 11012

appliances. The fumes can cause fires or

• Do not use mechanical, electric or chemical

means other than those recommended by the

Manufacturer to speed up the defrost process.

• Do not use or place electrical devices inside the

appliance compartments if they are not of the

type expressly authorised by the Manufacturer.

• This appliance is not intended for use by persons

(including children) with reduced physical,

sensory or mental capabilities, or lack of

experience and knowledge, unless they have

been given supervision or instruction concerning

use of the appliance by a person responsible for

• To avoid the risk of children becoming trapped

and suffocating, do not allow them to play or

hide inside the appliance.

• Do not swallow the contents (non-toxic) of the

ice packs (in some models).

• Do not eat ice cubes or ice lollies immediately

after taking them out of the freezer since they

may cause cold burns.

• Before carrying out any maintenance or cleaning

operation, unplug the appliance or disconnect it

from the power supply.

• All appliances equipped with an automatic ice-

maker and water dispenser must be connected

to a water supply that only delivers drinking

water (with mains water pressure of between

0.17 and 0.81 Mpa (1.7 and 8.1 bar)). Automatic

ice-makers and/or water dispensers not directly

connected to the water supply must be filled

with drinking water only.

• Use the refrigerator compartment only for

storing fresh food and the freezer compartment

only for storing frozen food, freezing fresh food

and making ice cubes.

• Do not store glass containers with liquids in the

freezer compartment since they may break.

• Avoid storing unwrapped food in direct contact

with internal surfaces of the refrigerator or

freezer compartments.

The Manufacturer declines any liability if the

above advice and precautions are not

There is no need to disconnect the appliance from

the power supply if you will be away for less than

three weeks. Use up perishable food, freeze other

If your appliance has an automatic ice maker:

2. Shut off the water supply to the automatic ice

3. Empty the ice bucket.

Remove all the food if you are going away for three

weeks or more. If your appliance has an automatic

2. Shut off the water supply to the automatic

icemaker at least a day before.

3. Empty the ice bucket.

Fix some wooden or plastic wedges to the upper

part of both doors with adhesive tape and leave the

doors open enough for air to circulate inside both

compartments. This will prevent odour and mould

1. Take out all internal parts.

2. Wrap them well, and fix them together with

adhesive tape so that they do not bang together

3. Screw the adjustable feet so that they do not

touch the support surface.

4. Close and fix both doors with adhesive tape and,

again using adhesive tape, fix the power cable to

In the event of a power failure, call the local office

of your electricity supply company and ask how

long it is going to last. Note: Bear in mind that a full

appliance will stay cold longer than a partially filled

If ice crystals are still visible on the food, it may be

frozen again, although flavour and aroma may be

If food is found to be in a poor condition, it is best

For power failures lasting up to 24 hours.

RECOMANDATION IN CASE OF NO USE OF THE APPLIANCE13

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the

electrical power supply.

Periodically clean the appliance with a cloth and a solution of lukewarm water and neutral detergent

specifically for refrigerator interiors.

Never use detergents or abrasives. Never clean refrigerator parts with flammable fluids. The fumes can

create a fire hazard or explosion.

Clean the outside of the appliance and the door seal with a damp cloth and dry with a soft cloth.

Do not use steam cleaners.

Clean the condenser using a vacuum cleaner, proceeding as follows: remove the front plinth (see

installation manual) and proceed to clean the condenser.

- The buttons and control panel display must not be cleaned with alcohol or alcohol-derived substances,

but with a dry cloth.

- The refrigeration system pipes are located near the defrost pan and can become hot. Periodically clean

them with a vacuum cleaner.

MAINTENANCE AND CLEANING Always disconnect the appliance from the power supply before replacing any light bulbs.

How to replace the refrigerator compartment bulb.

1. In some models a special bulb is used

2. The bulb should not exceed 15W

3. Bulb change instruction is put in the chart (PRODUCT SHEET)

REPLACING THE BULB Before contacting After-sales Service…

Performance problems often result from little

things you can find and fix yourself without tools of

Noises coming from your appliances are

normal since it has a number of fans and

engines to regulate performances that switch

on and off automatically.

Some of the functional noises can be reduced

- Levelling the appliance and installing it on an

- Separating and avoiding contact between the

appliance and furniture.

- Checking if the internal components are

- Checking if bottles and containers are not in

contact with each other.

Some of the functional noises you might hear:

A hissing sound when switching on the

appliance for the first time or after a long

A gurgling sound when refrigerant fluid enters

TROUBLESHOOTING GUIDE

1. Keep both doors of the appliance closed. This

will allow the stored food to stay cold as long as

For power failures lasting more than 24 hours.

1. Empty the freezer compartment and arrange

the food in a portable freezer. If this type of

freezer is not available and, likewise, no artificial

ice packs are available, try to use up the food,

which is more easily perishable.

2. Empty the ice bucket.14

Buzzing sound when water valve or fan start

A cracking sound when compressor starts or

when ready ice drops into ice box Abrupt

clicks when compressor switches on and off.

Automatic Ice maker noises (on some

- Since your appliance has an automatic ice maker,

you may hear buzzing (from the water valve),

trickling water and the clatter of the ice falling

The appliance is not working:

• Is the power cable plugged into a live socket

with the proper voltage?

• Have you checked the protection devices and

fuses of the electrical system in your home?

If your automatic ice maker does not work (on

• Has the freezer had enough time to become

cold? With a new appliance this may take

• Is the automatic ice maker ON/OFF button set

• Make sure the lever of the automatic ice maker,

inside the freezer compartment, is not turned to

OFF, i.e. in the horizontal position (on some

• Is the water turned on? Is water getting to the

automatic ice maker?

• Is there a water filter installed on the appliance

(on some models)? This filter may be clogged or

installed incorrectly. First, check the filter

installation instructions to ensure that the filter

was installed correctly and is not clogged. If

installation or clogging is not a problem, call a

qualified person or a technician.

If there is water in the defrost pan:

• This is normal in hot, damp weather. The pan

can even be half full. Make sure the appliance is

level so that the water does not overflow.

If the edges of the appliance cabinet, which

come in contact with the door seal, are warm

• This is normal in hot weather and when the

compressor is running.

If the light does not work:

• Have you checked the protection devices and

fuses of the electrical system in your home?

• Is the power cable plugged into a live socket

with the proper voltage?

• Has the light bulb burnt out?

In the case of burnt-out bulbs:

1. Always unplug the appliance from the mains.

2. See chapter "Maintenance and Cleaning".

If the motor seems to run too much:

• Is the condenser free of dust and fluff?

• Are the doors properly closed?

• Are the door seals properly fitted?

• On hot days or if the room is warm, the motor

naturally runs longer.

• If the appliance door has been left open for a

while or if large amounts of food have been

stored, the motor will run longer in order to

cool down the interior of the appliance.

• Motor running time depends on different things:

number of door openings, amount of food

stored, temperature of the room, setting of the

temperature controls.

If the appliance temperature is too high:

• Are the appliance controls correctly set?

• Has a large amount of food been added to the

• Check that the doors are not opened too often.

• Check that the doors close properly.

• Make sure that air flow vents inside the

compartment are not blocked, as this prevents

the circulation of cold air.

If there is moisture build-up:

• Make sure that air flow vents inside the

compartment are not blocked, as this prevents

the circulation of air.

• Make sure that the food is properly packaged.

Dry any dampness on food containers before

placing them in the appliance.

• Check that the doors are not opened too often.

When the door is opened, humidity from the

room air enters the appliance. The more often

the door is opened, the faster humidity builds

up, especially when the room itself is very

• If the room is very humid, it is normal for

moisture to build up inside the refrigerator.

If the doors do not open and close properly:

• Check that food packages are not blocking the

• Check that the internal parts or automatic ice

maker are not out of position.

• Check that the door seals are not dirty or sticky.

• Ensure the appliance is level.15

Before contacting After-Sales Service:

Switch the appliance on again to see if the problem

has been solved. If it has not, disconnect the

appliance from the power supply and wait for about

an hour before switching on again.

If, after performing the checks described in the

Troubleshooting Guide and switching the appliance

on again, your appliance still does not work

properly, contact the After-sales Service, explain

• the model and appliance serial number (stated

on the rating plate),

• the nature of the problem,

• the Service number (the number after the word

SERVICE on the data plate on the inside of the

• your full address,

• your telephone number and area code.

The direction of door opening can be changed. If

this operation is performed by After-sales Service it

is not covered by the warranty.

AFTER-SALES SERVICE Warning - this appliance must be earthed

If the mains lead of this appliance is fitted with a BS 1363A

13amp fused plug, to change a fuse in this type of plug use an

A.S.T.A. approved fuse to BS 1362 type and proceed as

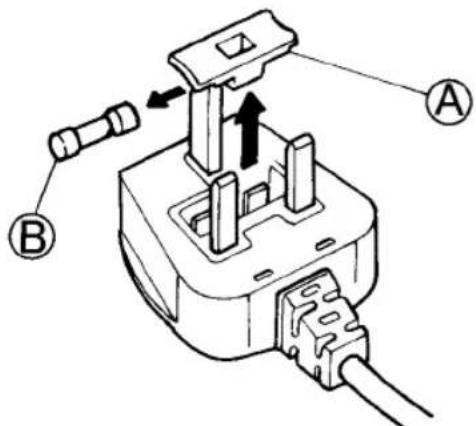

1. Remove the fuse cover (A) and fuse (B).

2. Fit replacement 13A fuse into fuse cover.

3. Refit both into plug.

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used

until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of

Replacement fuse covers are available from your local electrical store.

For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is

also used, the 2-pin, side earth type.

Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact After-sales Service for further

instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a

qualified technician in compliance with the manufactures instructions and current standard safety

Directive "EMC" 2004/108/CE.

- in hotels, motels, residences, bed & breakfast

compressor in werking is.

- in hotels, motels, residences, bed & breakfast ad

GUIDA RICERCA DEI GUASTI

Visse former for støj under driften kan

Registered trademark/TM Trademark of Whirlpool group of companies - © Copyright Whirlpool Europe s.r.l. 2011. All rights reserved - http://www.whirlpool.eu
