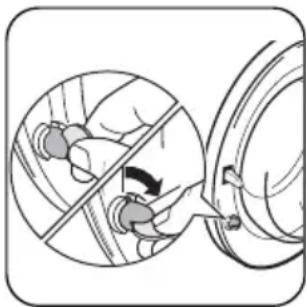

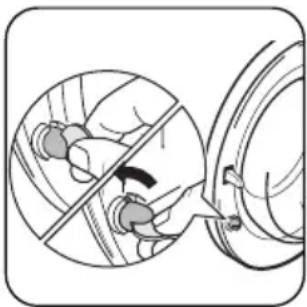

User Manual Notice d’utilisation Washing Machine Lave-linge ZWH 6145 192997920_GB.qxd 14/12/2007 17.09 Pagina 12 Content Safety information - - - - - - - - - - - - - - - - - - -3 Description of the appliance - - - - - - - - - - - -5 Detergent dispenser drawer - - - - - - - - - - - -5 Control panel and functions - - - - - - - - - - - -6 Programme table - - - - - - - - - - - - - - - - - - -9 Programme information - - - - - - - - - - - - - -11 Washing Hints - - - - - - - - - - - - - - - - - - - - -12 Before the first use - - - - - - - - - - - - - - - - -14 Operating Sequence - - - - - - - - - - - - - - - -15 Care and cleaning - - - - - - - - - - - - - - - - - -18 What to do if... - - - - - - - - - - - - - - - - - - - - 20 Technical data- - - - - - - - - - - - - - - - - - - - - 23 Consumption values - - - - - - - - - - - - - - - - 24 Installation instruction - - - - - - - - - - - - - - - 25 Environmental concerns - - - - - - - - - - - - - 28 Thank you for selecting our appliance We wish you lots of enjoyment with your new appliance and we hope that you will consider our brand again when purchasing household appliances. Please read this user manual carefully and keep it throughout the product life cycle as a reference document. The user manual should be passed on to any future owner of the appliance. The following symbols are used in this manual: Important information concerning your personal safety and information on how to avoid damaging the appliance. General information and tips Environmental information 192997920_GB.qxd 14/12/2007 17.09 Pagina 23 Safety information In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. General safety ● It is dangerous to alter the specifications or attempt to modify this product in any way. ● During high temperature wash programmes the door glass may get hot. Do not touch it! ● Make sure that small pets do not climb into the drum. To avoid this, please check into the drum before using. ● Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine. ● Only use the advised quantities of fabric softener and detergent. Damage to the fabric can ensue if you over-fill. Refer to the manufacturer’s recommendations of quantities. ● Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum. ● Do not use your washing machine to wash articles with whalebones, material without hems or torn material. ● Always unplug the appliance and turn off the water supply after use, clean and maintenance. ● Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Centre. Always insist on genuine spare parts. Installation ● This appliance is heavy. Care should be taken when moving it. ● When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service Centre. ● All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in the user manual. ● After having installed the appliance, check that it is not standing on the inlet and drain hose and the worktop is not pressing the electrical supply cable. ● If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely ● Always be sure, that there is no water leakage from hoses and their connections after the installation. ● If the appliance is installed in a location subject to frost, please read the «dangers of freezing» chapter. ● Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person. ● Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. 192997920_GB.qxd 14/12/2007 17.09 Pagina 34 Use ● This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed. ● Only wash fabrics which are designed to be machine washed. Follow the instructions on each garment label. ● Do not overload the appliance. See the relevant section in the user manual. ● Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing frayed or torn articles and treat stains such as paint, ink, rust, and grass before washing. Underwired bras must NOT be machine washed. ● Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine. ● Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself. ● Never use the washing machine if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the washing machine is accessible. Child safety ● This washing machine is not intended for use by young children or infirm persons without supervision. ● Young children should be supervised to ensure that they do not play with the appliance. ● The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach ● Keep all detergents in a safe place out of children’s reach. ● Make sure that children or pets do not climb into the drum. To avoid this the machine incorporates special feature. To disable this device and restore the possibility of closing the door, rotate the button anti- clockwise until the groove is vertical. To activate this device, rotate the button (without pressing it) inside the door clockwise until the groove is horizontal. If necessary use a coin. 192997920_GB.qxd 14/12/2007 17.09 Pagina 45 Description of the appliance Detergent dispenser drawer Control panel Door opening handle Drain pump Adjustable feet

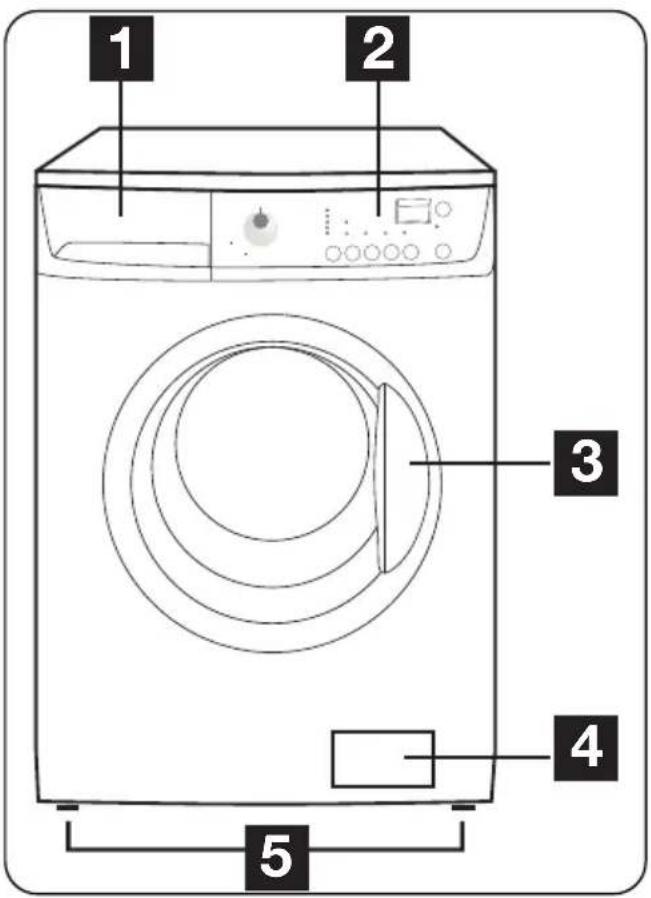

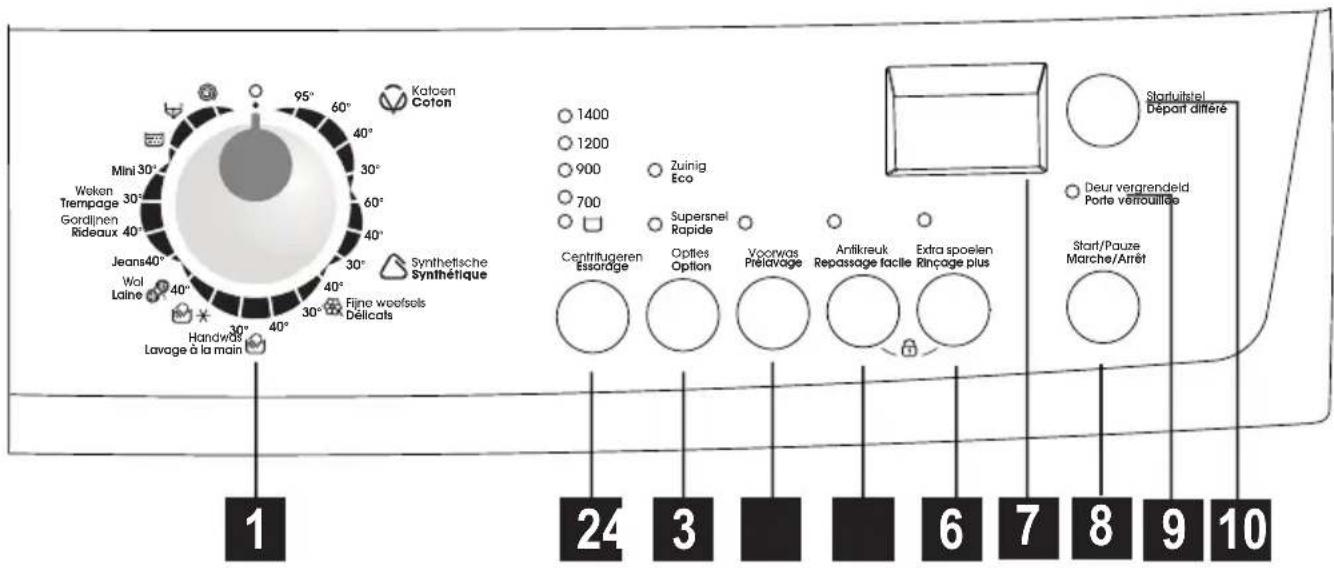

Infos Henceforth, the programme selector dial, the different buttons and the programme progress display will be indicated in all the book with the relevant numbers given in this table. 192997920_GB.qxd 14/12/2007 17.09 Pagina 67 Prewash button ● By means of this button, the machine performs a prewash phase. Start/Pause button ● This button allows to start the selected programme; the corresponding green pilot light stops flashing. ● This button interrupts also a programme which is running, the corresponding green pilot light starts to flash. Light Door ● This light illuminates when the appliance is working (after having pressed button

8) and indicates that the door is

locked. Display ● The display shows the following information: duration of the selected programme, delayed start, incorrect option selection, alarm codes and end of programme.

Easy Iron button ● Selecting this option the laundry is gently washed and spun to avoid any creasing. In this way ironing is easier. Furthermore the machine will perform additional rinses.

Delay Start buttons ● By means of this buttons, the wash programme can be delayed from 30 min - 60 min - 90 min, 2 hours and then by 1 hour up to a maximum of 20 hours .

Extra Rinse button ● By means of this button, the machine performs some additional rinses.

192997920_GB.qxd 14/12/2007 17.09 Pagina 78 Rinse hold By selecting this option the water of the last rinse is not emptied out to prevent the fabrics from creasing. When the programme has finished, the door is blocked to indicate that the water must be emptied out. To empty out the water, please read the chapter «At the end of the programme». Economy (Zuinig) Only for cottons and synthetics items lightly or normally soiled at a temperature of 40°C or higher. The washing time will be prolonged and the washing temperature will be reduced. Quick (Supersnel) Short cycle for lightly soiled items or for laundry which needs only freshening up. We recommend you to reduce the fabrics loading. Prewash (Voorwas) Select this option if you wish your laundry to be prewashed at 30°C before the main wash. The prewash ends with a short spin in programmes for Cotton and Synthetic fabrics, whereas in the programmes for Delicate fabrics the water is only drained. Easy Iron (Antikreuk) Selecting this option the laundry is gently washed and spun to avoid any creasing. In this way ironing is easier. Furthermore the machine will perform some additional rinses depending on the fabrics. Extra Rinse (Extra spoelen) The machine performs some additional rinses during the washing cycle. This option is recommended for people who are allergic to detergents, and in areas where the water is very soft. Door pilot light After having pressed the button 8, this light illuminates and stays on. The light DOOR indicates when the door can be opened: ● light on: the door is locked and cannot be opened. The appliance is working. ● light off: the door can be opened. The washing programme has finished. Deur vergrendeldPorte verrouillée Functions 192997920_GB.qxd 14/12/2007 17.09 Pagina 89 HANDWASH (HANDWAS)

• This option is not active at a temperature lower than 40°C. 192997920_GB.qxd 14/12/2007 17.09 Pagina 910 Programme table - Special programmes Programme/ Temperature Type of laundry Options Description of programme SOAK (WEKEN) 30° Heavy soiled laundry (not for wool and handwash) Prewash/Soak for about 20 minutes Stop with water in the tub MINI30 30° Quick wash for cotton and synthetics lightly soiled items or worn once Main wash Rinses Short spin RINSES Separate rinses cycle with softener, if needed, for hand washed cotton items Spin Red., Rinse Hold, Easy Iron, Extra Rinse Rinses Long spin at the max speed DRAIN For emptying out the water in programmes which stop with water in the tub Draining of water SPIN Long spin at max speed for handwashed cotton items or for emptying out the water in the tub Drain and long spin

• Cancelling / Switching off of the machine To interrupt a running programme, to cancel an incorrect option selection or to switch the machine off MAX LOADS: Max load for Cottons p. 7
• kg Max load for Synthetics p. 3
• ,5 kg Max load for Delicates p. 3
• ,5 kg Max load for Handwash and Wool p. 2
• kg Max load for Jeans p. 3
• ,5 Kg Max load for Curtains p. 2
• kg Max load for Soak p. 7
• Kg Max load for Mini 30 p. 3
• Kg Max load for Cottons + Quick p. 3
• ,5 kg Max load for Synthetics + Quick kg Spin Red. 192997920_GB.qxd 17/12/2007 11.05 Pagina 1011 Programme information For emptying out the water of the last rinse in cotton programmes with the «Night Cycle», «Rinse hold» option and at the end of SOAK programme. Turn first the programme selector dial to «O», then select programme DRAIN and depress the button 8. SPIN Separate spin for cotton items washed by hand or at the end of a programme which stops with water left in the tub («Night Cycle», «Rinse hold» option and at the end of SOAK programme). According to the type of fabric, it is possible to choose a different speed by means of the relevant button from one proposed by the machine. JEANS With this programme it is possible to wash free time items as pants, shirts or jackets in Jeans and also jersey made of hi-tech materials. Some extra rinses will be carried out by the machine. DRAIN Special washing cycle for curtains which add automatically a prewash phase in order to eliminate the dust from the curtains. Important: We recommend you NOT to put the detergent into the compartment of the detergent drawer to rinse curtains before the main wash with only water. CURTAINS SOAK Special programme for heavily soiled laundry. The machine performs a soak at 30°C. At the end of this time the machine will stop automatically with water left in the tub. Before starting a new washing phase, it is necessary to empty out the water by: ● Draining only: turn the programme selector dial to Drain programme. (Depress the button 8). ● Draining and spin: turn the programme selector dial to programme Spin, reduce the spin speed by means of button 2 , and then depress button 8. Important! This programme cannot be used for very delicate fabrics as silk or wool. Pour the detergent for the soak programme into the compartment marked . At the end of the soak (after having emptied out the water) you can select the washing programme. (First turn the programme selector dial to «O», then to the programme and depress the button 8.) RINSES With this separate programme it is possible to rinse and spin cotton garments which have been washed by hand. The machine performs 3 rinses, followed by a final spin at maximum speed. The spin speed can be reduced by depressing button 2. MINI30 This is a complete programme for cotton, synthetics and delicate items that can be combined with the «Delay start» option.To be used for laundry which is lightly soiled or which needs freshening up. 192997920_GB.qxd 14/12/2007 17.09 Pagina 1112 Washing hints Sorting the laundry Follow the wash code symbols on each garment label and the manufacturer’s washing instructions. Sort the laundry as follows: whites, coloureds, synthetics, delicates, woollens. Temperatures Before loading the laundry Never wash whites and coloureds together. Whites may lose their «whiteness» in the wash. New coloured items may run in the first wash; they should therefore be washed separately the first time. Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins). Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes. Remove persistent stains before washing. Rub particularly soiled areas with a special detergent or detergent paste. Treat curtains with special care. Remove hooks or tie them up in a bag or net. Maximum loads Recommended loads are indicated in the programme charts. General rules: Cotton, linen: drum full but not too tightly packed; Synthetics: drum no more than half full; Delicate fabrics and woollens: drum no more than one third full. Washing a maximum load makes the most efficient use of water and energy. For heavily soiled laundry, reduce the load size. Laundry weights The following weights are indicative: Removing stains Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing. Blood: treat fresh stains with cold water. For dried stains, soak overnight in water with a special detergent then rub in the soap and water. 90° or 95° for normally soiled white cottons and linen (e.g. tea cloths, towels, tablecloths, sheets ) 50°/60° for normally soiled, colour fast garments (e.g. shirts, night dresses, pyjamas ) in linen, cotton or synthetic fibres and for lightly soiled white cotton (e.g. underwear). 30°-40° for delicate items (e.g. net curtains), mixed laundry including synthetic fibres and woollens bearing the label «pure new wool, machine washable, non-shrink». 1200 gbathrobe 100 gnapkin 700 gquilt cover 500 gsheet 200 gpillow case 250 gtablecloth 200 gtowelling towel 100 gtea cloth 200 gnight dress 100 gladies’ briefs 600 gman’s work shirt 200 gman’s shirt 500 gman’s pyjamas 100 gblouse 100 gmen’s underpants 192997920_GB.qxd 14/12/2007 17.09 Pagina 1213 Oil based paint: moisten with benzine stain remover, lay the garment on a soft cloth and dab the stain; treat several times. Dried grease stains: moisten with turpentine, lay the garment on a soft surface and dab the stain with the fingertips and a cotton cloth. Rust: oxalic acid dissolved in hot water or a rust removing product used cold. Be careful with rust stains which are not recent since the cellulose structure will already have been damaged and the fabric tends to hole. Mould stains: treat with bleach, rinse well (whites and fast coloureds only). Grass: soap lightly and treat with bleach (whites and fast coloureds only). Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain. Lipstick: moisten with acetone as above, then treat stains with methylated spirits. Remove any residual marks from white fabrics with bleach. Red wine: soak in water and detergent, rinse and treat with acetic or citric acid, then rinse. Treat any residual marks with bleach. Ink: depending on the type of ink, moisten the fabric first with acetone (*), then with acetic acid; treat any residual marks on white fabrics with bleach and then rinse thoroughly. Tar stains: first treat with stain remover, methylated spirits or benzine, then rub with detergent paste. (*) do not use acetone on artificial silk. Detergents and additives Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and protect the environment. Although biodegradable, detergents contain substances which, in large quantities, can upset the delicate balance of nature. The choice of detergent will depend on the type of fabric (delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling. All commonly available washing machine detergents may be used in this appliance: ● powder detergents for all types of fabric, ● powder detergents for delicate fabrics (60°C max) and woollens, ● liquid detergents, preferably for low temperature wash programmes (60°C max) for all types of fabric, or special for woollens only. The detergent and any additives must be placed in the appropriate compartments of the dispenser drawer before starting the wash programme. If using concentrated powder or liquid detergents, a programme without prewash must be selected. The washing machine incorporates a recirculation system which allows an optimal use of the concentrated detergent. Pour liquid detergent into the dispenser drawer compartment marked just before starting the programme. Any fabric softener or starching additives must be poured into the compartment marked before starting the wash programme. Follow the product manufacturer’s recommendations on quantities to use and do not exceed the «MAX» mark in the detergent dispenser drawer. Quantity of detergent to be used The type and quantity of detergent will depend on the type of fabric, load size, degree of soiling and hardness of the water used. Water hardness is classified in so-called «degrees» of hardness. Information on hardness of the water in your area can be obtained from the relevant water supply company, or from your local authority. Follow the product manufacturers’ instructions on quantities to use. 192997920_GB.qxd 14/12/2007 17.09 Pagina 1314 Degrees of water hardness Follow the product manufacturers’ instructions on quantities to use. Use less detergent if: ● you are washing a small load,● the laundry is lightly soiled,● large amounts of foam form during washing. Level Degrees German °dH French °T.H. Characteristic 1 0-7 0-15soft 2 8-14 16-25medium 3 15-21 26-37hard 4 > 21 > 37very hard Before the first use WARNING! Ensure that the electrical and water connections comply with the installation instructions. IMPORTANT! Remove the polystyrene block and any material from the drum. IMPORTANT! We recommend you to pour 2 litres of water into the main wash compartment of the detergent drawer in order to activate the ECO valve. Than run a cotton cycle at 95°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the machine. Acoustic signals The machine is provided of an acoustic device, which sounds in the following cases: ● at the end of the cycle● in the event of operating problems By pressing the buttons 3 and 4 simultaneously for about 6 seconds, the acoustic signal is deactivated (except for the events of operating problems). By pressing these 2 buttons again, the the acoustic signal is reactivated. Child safety lock This device permits you to leave the appliance unattended during its functionning, so avoiding that children might accidentally start the machine or modify a running programme. This function remains able also when the washing machine is not working. To enable (disable) this option press simoultaneously for about 6 seconds buttons p. 2

and 6 buttons until the icon appears (disappears) on (from) the display. There are two different ways to set this option: ● before pressing the button 8: it will be impossible to start the machine. ● after pressing the button 8: it will be impossible to change any other programme or option. 192997920_GB.qxd 14/12/2007 17.09 Pagina 1415 Operating sequence

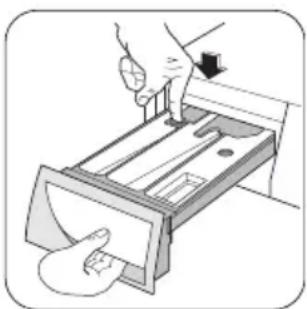

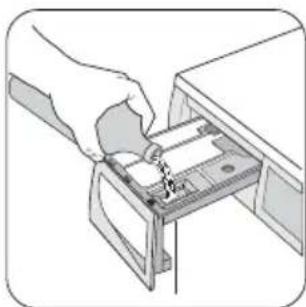

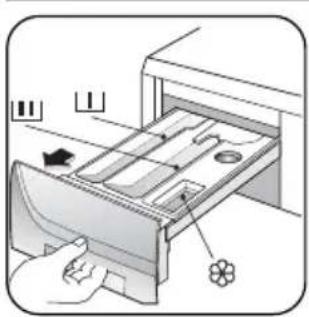

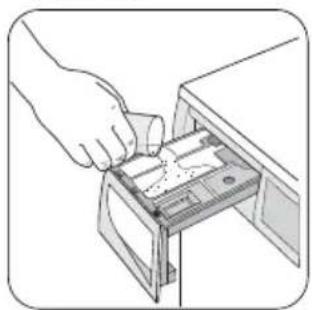

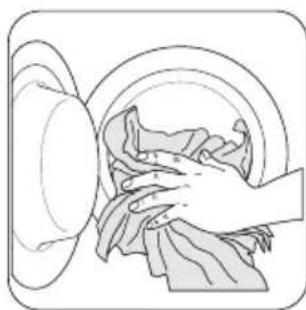

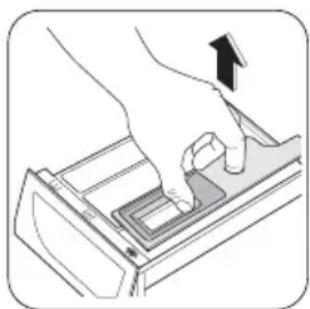

Open the door by carefully pulling the door handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. Close the door. 2.Measure out the detergent and the fabric softener Pull out the dispenser drawer until it stops. Measure out the amount of detergent required, pour it into the main wash compartment and, if you wish to carry out a programme with the prewash phase or the soak programme, pour it into the compartment marked . If required, pour fabric softener into the compartment marked (the amount used must not exceed the «MAX» mark in the drawer). Close the drawer gently. Select the required programme by means of the programme selector dial (1) Turn the programme selector dial to the required programme. The green light of button 8 starts to flash. It can be turned either clockwise or anticlockwise. On position «O» the programme is reset and the machine is switched OFF. At the end of the programme the selector dial must be turned to position «O», to switch the machine off. ATTENTION! If you turn the programme selector dial to ano- ther programme when the machine is working, tthe red pilot light of button 8 will flash 3 times and the message Err is displayed on the dis- play to indicate a wrong selection. The machi- ne will not perform the new selected program- me. Select the spin speed, the Rinse Hold option by pressing button

When selecting a programme, the light corresponding to the maximum speed allowed for that programme will illuminate. The relevant light will light up. Select the desired option by means of buttons

4, 5 and 6 Depending on the programme, different functions can be combined. These must be selected after choosing the desired programme and before depressing the button 8. For the compatibility of the options with the washing programmes, refer to the section «Programmes table». Start the programme by pressing button

To start the selected programme, press this button; the corresponding green pilot light stops flashing. On programme progress display the pilot light DOOR illuminates to indicate that the appliance starts operating and the door is locked. IMPORTANT! If an option which is not compatible with the set wash programme is selected, the message Err is displayed for few seconds and the red light of this button flashes for 3 times. 192997920_GB.qxd 14/12/2007 17.09 Pagina 1516 Select the delayed start by pressing thebutton 10Depress button this button to select therequired delay.The selected delay time value will appear onthe display for few seconds, then the durationof the programme will appear again.You must select this option after you have setthe programme and before you press thebutton You can cancel the delay time at any moment,before you press button

8. If you have already

pressed it, and you wish to cancel the delaytime, proceed as follows:• set the washing machine to PAUSE bypressing button

• press the button 10 once. On the display will appear the symbol «0’».• press button 8 again to start the programme. IMPORTANT!• The selected delay can be modified only afteryou have turned the programme selector dialto the « o» position and after you have selected the programme again.• The door will be locked throughout the delaytime. If you need to open the door, you mustfirst set the washing machine to PAUSE bypressing button 8 and wait few minutes before opening the door. After you haveclosed the door, press the same again.Note! The Delay Start cannot be selected with«Drain» programme.Display The display shows the following information:After selecting a programme the duration ofthe selected programme appears on the dis-play.During the program-me, the time remai-ning is updated everyminute.The Delayed start appears on the display forabout 3 seconds, then the duration of thepreviously selected programme is displayed.The delay time valuedecreases by one unitevery hour and then,when 1 hour remain,every minute. The incorrect option selection is indicated by the message Err displayed for few secondsand by flashing of the light button In the event of operating problems, somealarm codes can be displayed, (see paragraph“Something not working”).The End of programme is indicated by aflashing zero « 0».

192997920_GB.qxd 14/12/2007 17.09 Pagina 1617 Altering an option or a running programme It is possible to change any option before the programme carries it out. Before you make any change, you must pause the washing machine by pressing button

Changing a running programme is possible only by resetting it. Turn the programme selector dial to «O» and then to the new programme position. Start the new programme by depressing button 8 again. The washing water in the tub will not empty out. Interrupting a programme Depress tbutton 8 to interrupt a programme which is running, the corresponding light starts to flash. Depress the button again to restart the programme. Cancelling a programme Turn the selector dial to «O» to cancel a programme which is running. Now you can select a new programme. Opening the door after the programme has started First set the machine to pause by pressing the button

If the light DOOR goes off, after some minutes, the door can be opened. If it does not switch off, this means that the machine is already heating, that the water level is above the bottom edge of the door. In this cases the door cannot be opened. If you cannot open the door but you need to open it you have to switch the machine off by turning the selector dial to «O». After few minutes the door can be opened (Pay attention to the water level and temperature!). After this procedure, it will be necessary to set the programme and the options again and then to depress button 8. At the end of the programme The machine stops automatically. Some acustic signals sound and on the display will appear a flashing « 0 ». The button 8 light and the light DOOR go off. The door can be opened. If at the end of a programme there is water in the tub, to empty out the water follow the following instructions: 1.turn the programme selector dial to «O» 2.select the DRAIN or SPIN programme 3.reduce the spin speed, if needed, by means of the button

4.depress button 8 5.at the end of programme, the display shows a flashing zero «0», the light DOOR goes off and it will be possible to open the door. At the end of the cycle, turn the programme selector dial to «O» to switch the machine off. Remove the laundry from the drum and carefully check that the drum is empty. If you do not intend to carry out another wash, close the water tap. Leave the door open to prevent the formation of mildew and unpleasant smells. 192997920_GB.qxd 14/12/2007 17.09 Pagina 1718 IMPORTANT! You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. Do this separately from any laundry washing, and according to the softening powder manufacturer's instructions. This will help to prevent the formation of lime deposits. Maintenance Wash With the use of low temperature washes it is possible to get a build up of residues inside the drum. We recommend that a maintenance wash be performed on a regular basis. To run a maintenance wash: ● The drum should be empty of laundry. ● Select the hottest cotton wash programme. ● Use a normal measure of detergent, must be a powder with biological properties. External cleaning Clean the exterior cabinet of the appliance with soap and water only, and then dry thoroughly. Cleaning the dispenser drawer The washing powder and additive dispenser drawer should be cleaned regularly. To aid cleaning, the top part of the additive compartment should be removed. Remove the drawer by pressing the catch downwards and by pulling it out. Flush it out under a tap, to remove any traces of accumulated powder. Cleaning the drawer recess Having removed the drawer, use a small brush to clean the recess, ensuring that all washing powder residue is removed from the upper and lower part of the recess. Replace the drawer and run the rinse programme without any clothes in the drum. Cleaning the pump The pump should be inspected if ● the machine does not empty and/or spin ● the machine makes an unusual noise during draining due to objects such as safety pins, coins etc. blocking the pump. Proceed as follows: ● Disconnect the appliance. ● If necessary wait until the water has cooled down. ● Open the pump door. ● Place a container close to the pump to collect any spillage. ● Pull out the emergency emptying hose, place it in the container and remove its cap. ● When no more water comes out, unscrew the pump cover and remove it. Always keep a rag nearby to dry up spillage of water when removing the cover. Care and cleaning 192997920_GB.qxd 14/12/2007 17.09 Pagina 1819 ● Remove any objects from the pump impeller by rotating it. ● Put the cap back on the emergency emptying hose and place the latter back in its seat. ● Screw the pump cover fully in. ● Close the pump door. IMPORTANT! When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely retightened so as to stop leaks and young children being able to remove it. Cleaning the water inlet filter If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged. It is therefore a good idea to clean it from time to time. Turn off the water tap. Unscrew the water inlet hose. Clean the filter using a hard bristle brush. Tighten up the inlet hose. The dangers of freezing If the machine is exposed to temperatures below 0°C, certain precautions should be taken. ● Turn off the water tap. ● Unscrew the inlet hose. ● Place the end of the emergency emptying hose and that of the inlet hose in a bowl placed on the floor and let water drain out. ● Screw the water inlet hose back on and reposition the emergency emptying hose after having put the cap on again. ● When you intend to start the machine up again, make sure that the room temperature is above 0°C. IMPORTANT! Every time you drain the water through the emergency emptying hose you must pour 2 litres of water into the main wash compartment of the detergent drawer and then run the drain programme. This will activate the ECO VALVE device avoiding that part of the detergent remains unused at next washing. Emergency emptying out If the water is not discharged, proceed as follows to empty out the machine: ● pull out the plug from the power socket; ● close the water tap; ● if necessary, wait until the water has cooled down; ● open the pump door; ● place a bowl on the floor and place the end of the emergency emptying hose into the bowl. Remove its cap. The water should drain by gravity into the bowl. When the bowl is full, put the cap back on the hose. Empty the bowl. Repeat the procedure until water stops flowing out; ● clean the pump if necessary as previously described; ● replace the emergency emptying hose in its seat after having plugged it; ● screw the pump cover again and close the door. 192997920_GB.qxd 14/12/2007 17.09 Pagina 1920 Malfunction Possible Cause / Solution The washing machine does not start: The door has not been closed. E40

• Close firmly the door. The plug is not properly inserted in the power socket.

• Insert the plug into the power socket. There is no power at the socket.

• Please check your domestic electrical installation. The main fuse has blown.

• Replace the fuse. The selector dial is not correctly positioned and the button 8 has not been depressed.

• Please turn the selector dial and press the button 8 again. The button 10 has been selected.

• If the laundry are to be washed immediately, cancel the delay start The machine does not fill: The water tap is closed. E10

• Open the water tap. The inlet hose is squashed or kinked. E10

• Check the inlet hose connection. The filter in the inlet hose is blocked. E10

• Clean the water inlet hose filter. The door is not properly closed. E40

• Close firmly the door. What to do if... IMPORTANT! Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below. During machine operation it is possible that the red pilot light of button 8 flashes, few acoustic signals sound and one of the following alarm codes appears on the display to indicate that the machine is not working: ● E10: problem with the water supply ● E20: problem with water draining ● E40: door open. Once the problem has been eliminated, press the button 8 to restart the programme. If after all checks, the problem persists, contact your local Service Centre. 192997920_GB.qxd 14/12/2007 17.09 Pagina 2021 Malfunction Possible Cause / Solution The machine fills then empties immediately: The end of the drain hose is too low.

• Refer to relevant paragraph in «water drainage» section. The machine does not empty and/or does not spin: The drain hose is squashed or kinked. E20)

• Check the drain hose connection. The drain pump is clogged. E20

• Clean the drain pump. The option Rinse hold or Soak programme has been selected.

• Select the Drain or Spin programmes The laundry is not evenly distributed in the drum.

• Redistribute the laundry. There is water on the floor: Too much detergent or unsuitable detergent (creates too much foam) has been used.

• Reduce the detergent quantity or use another one. Check whether there are any leaks from one of the inlet hose fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.

• Check the water inlet hose connection. The inlet hose is damaged.

• Change it with a new one. The cap on the emergency emptying hose has not been replaced after cleaning the pump.

• Put the cap back on the emergency emptying and place the latter back in its seat. Unsatisfactory washing results: Too little detergent or unsuitable detergent has been used.

• Increase the detergent quantity or use another one. Stubborn stains have not been treated prior to washing.

• Use commercial products to treat the stubborn stains. The correct temperature was not selected.

• Check if you have selected the correct temperature. Excessive laundry load.

• Introduce into the drum less laundry. 192997920_GB.qxd 14/12/2007 17.09 Pagina 2122 The machine vibrates or is noisy: The transit bolts and packing have not been removed.

• Check the correct installation of the appliance. The support feet have not been adjusted.

• Check the correct levelling of the appliance. The laundry is not evenly distributed in the drum.

• Redistribute the laundry. Maybe there is very little laundry in the drum.

• Load more laundry. Malfunction Possible Cause / Solution The door will not open: The programme is still running.

• Wait the end of washing cycle. The door lock has not been released.

• Wait until the pilot light 9 has gone out. There is water in the drum.

• Select drain or spin programme to empty out the water. Spinning starts late or the machine does not spin: The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and select the spin programme. ● Redistribute the laundry. The machine makes an unusual noise The machine is fitted with a type of motor which makes an unusual noise compared with other traditional motors. This new motor ensures a softer start and more even distribution of the laundry in the drum when spinning, as well as increased stability of the machine. No water is visible in the drum Machines based on modern technology operate very economically using very little water without affecting performance. 192997920_GB.qxd 14/12/2007 17.09 Pagina 2223 If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information. Mod. ... ... ... Prod. No. ... ... ... Ser. No. ... ... ...

Technical data Dimensions Width 60 cm 85 cm 63 cm Height Depth (inclunding the porthole) Water supply pressure Minimum 0,05 MPa 0,8 MPa Maximum Cotton Maximum Load 7 kg Maximum Spin Speed 0 1400 rpm Electrical connection Voltage - Overall power - Fuse Information on the electrical connection is given on the rating plate on the inner edge of the appliance door 192997920_GB.qxd 14/12/2007 17.09 Pagina 2324 Infos The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the quantity and type of laundry, on the inlet water temperature and on the ambient temperature. It refers to the highest temperature for each wash programme. (*) The «Cotton» 60° + the option Economy selected with a load of 7 kg is the reference programme for the data entered in the energy label, in compliance with EEC 92/75 standards. Consumption values Energy consumption (in kWh) Programme Programme duration Water consumption (in litres) Cotton 95°C

For the duration of the programmes, please refer to the display on the control panel Soak 30° Mini30 30° 192997920_GB.qxd 14/12/2007 17.09 Pagina 2425 Installation instruction Unpacking All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again.

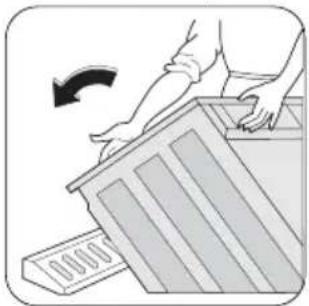

1. After removing all the packaging, carefully

lay machine on it’s back to remove the polystyrene base from the bottom.

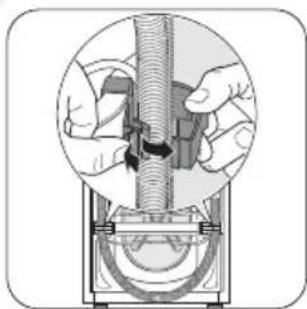

2. Remove the power supply cable and the

draining hose from the hose holders on the rear of the appliance.

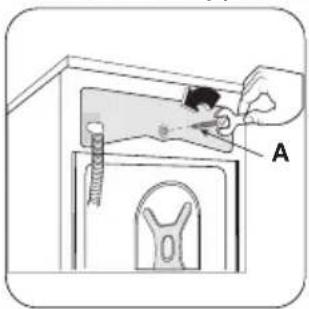

3. With a suitable spanner unscrew and

remove the central rear bolt A.

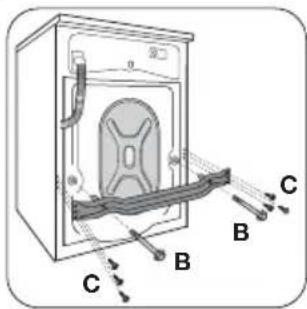

4. Unscrew and remove the two large rear

bolts B and the six smaller bolts C.

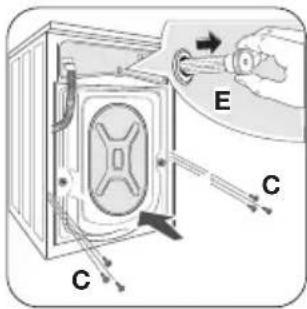

5. Remove the bracket D, refit the six smaller

bolts C and slide out the relevant plastic spacer E.

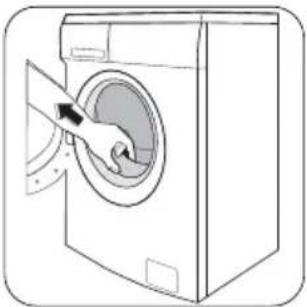

6. Open the porthole, take out the inlet hose

from the drum and remove the polystyrene block fitted with the adhesive tape on the door seal.Open the porthole, take out the inlet hose from the drum and remove the polystyrene block fitted with the adhesive tape on the door seal.

7. Fill the smaller upper hole and the two large

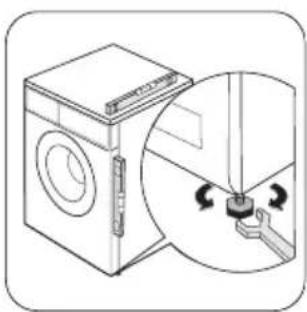

ones with the corresponding plastic plug caps supplied in the bag containing the instruction booklet. Positioning Install the machine on a flat hard floor. Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units. Level the washing machine by raising or lowering the feet. The feet may be tight to adjust as they incorporate a self locking nut, but the machine MUST be level and stable. Any necessary adjustment can be made with a spanner. Accurate levelling prevents vibration, noise and displacement of the machine during operation.Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor. 192997920_GB.qxd 14/12/2007 17.09 Pagina 2526 If necessary, check the setting with a spirit level. Water inlet An inlet hose is supplied and can been found inside the machine drum. Do not use the hose from your previous machine to connect to the water supply.

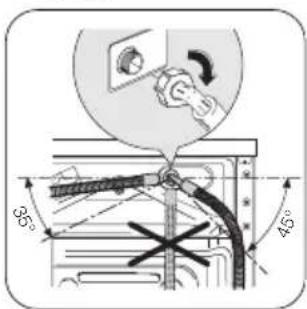

1. Open the porthole and extract the inlet

hose. 2.Connect the hose with the angled connection to the machine. Attenzione! Do not place the inlet hose downwards. Angle the hose to the left or right depending on the position of your water tap.

3. Set the hose correctly by loosening the ring

nut. After positioning the inlet hose, be sure to tighten the ring nut again to prevent leaks.

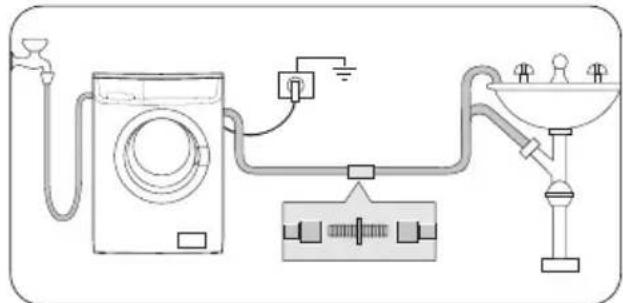

4. Connect the hose to
