KWR910BT - Car stereo JVC - Free user manual and instructions

Product type	Car stereo
Brand	JVC
Model	KWR910BT
Dimensions (W × H × D)	182 mm × 112 mm × 159 mm
Weight	1.6 kg
Power supply	14.4 V DC (10.5 V – 16 V allowable), negative ground
Maximum current consumption	10 A
Maximum output power	50 W × 4
FM tuner	87.5 MHz – 108 MHz (50 kHz steps)
AM tuner	MW 531 kHz – 1,611 kHz (9 kHz steps) / LW 153 kHz – 279 kHz (9 kHz steps)
CD player	Yes (CD-R/RW, MP3/WMA/WAV)
Playable audio formats	MP3, WMA, WAV
USB port	USB 1.1/2.0 (5 V, 1 A max), compatible with iPod/iPhone
Bluetooth	Version 2.1+EDR, profiles HFP, A2DP, AVRCP, OPP, PBAP, SPP
Auxiliary input	3.5 mm stereo mini jack
Preamp outputs	Front (front) and rear/subwoofer (switchable)
Remote control	Optional (RM-RK52)
Audio settings	12 preset equalizer modes, customizable EQ, bass/treble settings, Loudness
Display and lighting	Customizable (29 colors, patterns), day/night brightness adjustment
Care and cleaning	Wipe with a dry silicone cloth or soft cloth
Safety	Use 12 V DC negative ground, do not expose to heat, use fuses of the same rating

Frequently Asked Questions - KWR910BT JVC

How to reset the JVC KWR910BT car stereo?

To reset the device, press and hold the MENU button for several seconds or use the reset button on the front panel. This clears preset settings and Bluetooth connections.

How to pair a Bluetooth phone?

Enable Bluetooth on your phone, search for devices and select 'JVC UNIT'. A PIN code '0000' may be requested. Confirm pairing on the car stereo by pressing the volume button.

What to do if the radio does not pick up any station?

Check the antenna connection. Make sure the band mode (FM/AM) is correct. If the problem persists, perform a manual or automatic station search.

How to set the clock?

Press and hold MENU, turn the volume knob to select [CLOCK], then [CLOCK SET]. Set the day, hour and minute, then choose 12h or 24h format.

The iPod/iPhone does not connect properly. What to do?

Use a suitable USB cable (iPod/iPhone accessory). Make sure the control mode is set to [HEAD MODE] to use the car stereo controls. If the problem persists, reset the iPod/iPhone.

Can I play MP3 files from a USB flash drive?

Yes, connect a USB flash drive (FAT12/16/32 format) to the USB port. The car stereo automatically plays MP3, WMA and WAV files. Folder hierarchy is limited to 8 levels.

How to use the AUX input?

Connect your portable audio player to the front AUX jack (3.5 mm mini jack). Enable the AUX source by setting [SRC SELECT] to [ON] for [AUX]. Press ⏻/SOURCE to select AUX.

The sound quality is poor over Bluetooth. How to improve?

Reduce the distance between the car stereo and your phone. Avoid obstacles. You can also adjust the audio settings (equalizer, Loudness) to improve quality.

How to change the lighting color?

Go to the COLOR menu via display settings. You can choose from 29 preset colors (COLOR 01 to 29) or create your own colors with [DAY COLOR] and [NIGHT COLOR].

What to do if the screen displays 'MISWIRING'?

This message indicates a wiring problem. Check that the speaker wires are properly insulated and connected. Disconnect the battery, check connections, then reset the device.

USER MANUAL KWR910BT JVC

MANUEL D'INSTRUCTIONS

JVCKENWOOD Corporation

Please read all instructions carefully before operation to obtain the best possible performance from the unit.

Information on Disposal of Old Electrical and Electronic Equipment and Batteries (applicable for EU countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as household waste.

Old electrical and electronic equipment and batteries should be recycled at a facility capable of handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

Notice: The sign "Pb" below the symbol for batteries indicates that this battery contains lead.

The marking of products using lasers

The label is attached to the chassis/case and says that the component uses laser beams that have been classified as Class 1. It means that the unit is utilizing laser beams that are of a weaker class. There is no danger of hazardous radiation outside the unit.

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC Declaration of Conformity with regard to the EMC Directive 2004/108/EC Declaration of Conformity with regard to the RoHS Directive 2011/65/EU Manufacturer:

JVC KENWOOD Corporation

3-12, Moriya-cho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan

EU Representative:

JVC Technical Services Europe GmbH

Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

Hereby, JVC KENWOOD declares that this unit KW-R910BT is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Français

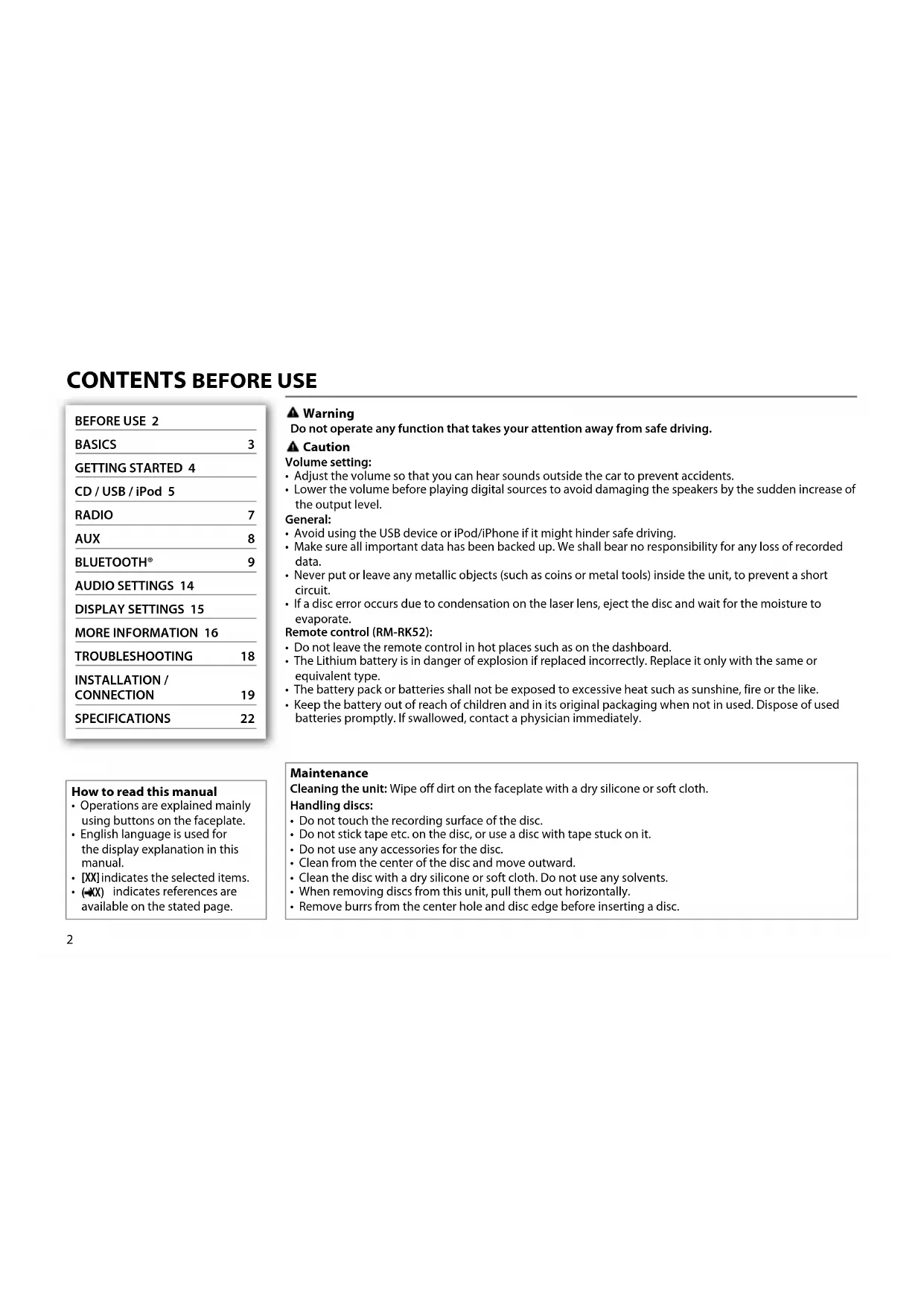

Do not operate any function that takes your attention away from safe driving.

Caution

Volume setting:

- Adjust the volume so that you can hear sounds outside the car to prevent accidents.

- Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

General:

• Avoid using the USB device or iPod/iPhone if it might hinder safe driving.
• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.
• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.
• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate.

Remote control (RM-RK52):

• Do not leave the remote control in hot places such as on the dashboard.
• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or equivalent type.
• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used batteries promptly. If swallowed, contact a physician immediately.

How to read this manual

• Operations are explained mainly using buttons on the faceplate.
• English language is used for the display explanation in this manual.
  • [XX] indicates the selected items.
• (XX) indicates references are available on the stated page.

Maintenance

Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth.

Handling discs:

• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.
• When removing discs from this unit, pull them out horizontally.
• Remove burrs from the center hole and disc edge before inserting a disc.

BASICS

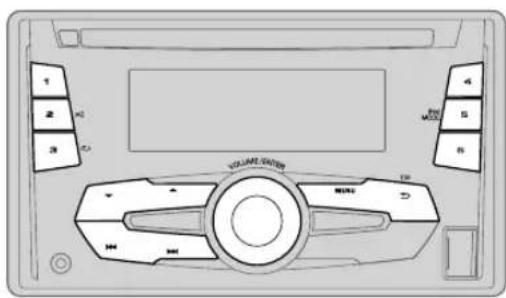

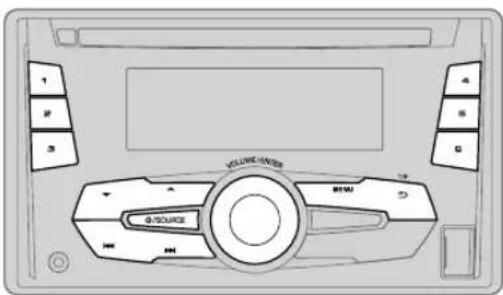

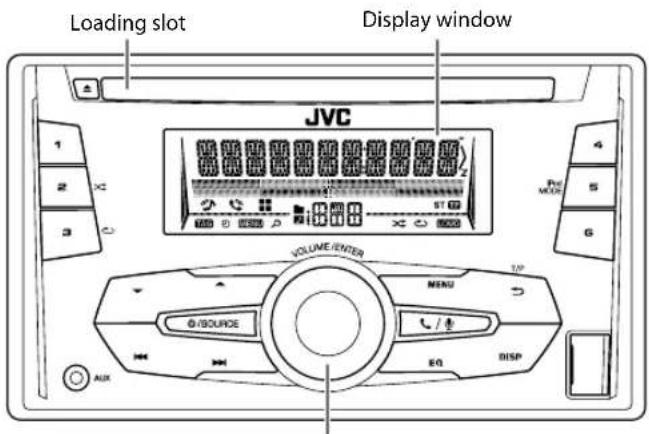

Faceplate

Volume knob (turn/press)

How to reset

Your preset adjustments will also be erased.

Remote control (RM-RK52) (not supplied) This unit can be remotely controlled with an optionally purchased remote control.

Remote sensor

(Do not expose to bright sunlight.)

Pull out the insulation sheet when using for the first time.

How to replace the battery

To Do this (on the faceplate) Do this (on the remote control)

Turn on the power	Press ⏻/SOURCE.• Press and hold to turn off the power.	(not available)
Adjust the volume	Turn the volume knob.	Press VOL + or VOL -.
	Press the volume knob to mute the sound or pause playback.• Press again to cancel.	Press ✗ to mute the sound or pause playback.• Press again to cancel.
Select a source	• Press ⏻/SOURCE repeatedly.• Press ⏻/SOURCE, then turn the volume knob within 2 seconds.	Press SOURCE repeatedly.
Change the display information	Press DISP repeatedly. (17)• Press and hold to scroll the current display information.	(not available)

GETTING STARTED

Top-down technical diagram of a car dashboard showing steering wheel, air vent, and control panel (no text or symbols)

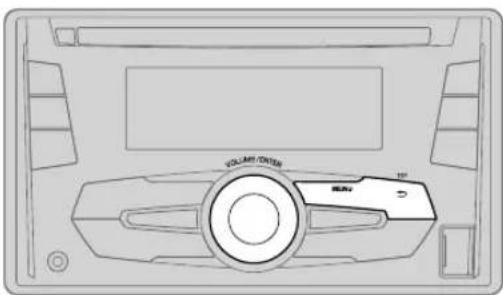

1 Cancel the demonstration

1 Press and hold MENU.
2 Turn the volume knob to select [DEMO], then press the knob.
3 Turn the volume knob to select [DEMO OFF], then press the knob.
4 Press MENU to exit.

2 Set the clock

1 Press and hold MENU.
2 Turn the volume knob to select [CLOCK], then press the knob.
3 Turn the volume knob to select [CLOCK SET], then press the knob.
4 Turn the volume knob to make the settings, then press the knob. Day → Hour → Minute
5 Turn the volume knob to select [24H/12H], then press the knob.
6 Turn the volume knob to select [12 HOUR] or [24 HOUR], then press the knob.
7 Press MENU to exit.

3 Set the basic settings

1 Press and hold MENU.
2 Turn the volume knob to make a selection (see the following table), then press the knob.
3 Press MENU to exit.

To return to the previous setting item or hierarchy, press T/P.

Default: XX

CLOCK
CLOCK ADJ	AUTO: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal. ; OFF: Cancels.
CLOCK DISP ON	: The clock time is shown on the display even when the unit is turned off. ;OFF: Cancels.
SETTINGS
BEEP	ON: Activates the keypress tone. ; OFF: Deactivates.
SRC SELECT
AM*	ON: Enables AM in source selection. ; OFF: Disables.
AUX*	ON: Enables AUX in source selection. ; OFF: Disables.
LANGUAGE	Selects the display language for menu and Tag information (folder name, file name, song title, artist name, album name) if applicable.ENGLISH: Display language is English.PYССКИЙ: Display language is Russian.
F/W UPDATE
SYSTEM / BLUETOOTH
F/W xxxx	YES: Starts upgrading the firmware. ;NO: Cancels (upgrading is not activated).For details on how to update the firmware, see:.

* Not displayed when the corresponding source is selected.

CD / USB / iPod

Start playback

The source changes automatically and playback starts.

CD

USB

iPod/iPhone

Press 5 iPod MODE repeatedly to select the control mode ([HEAD MODE] / [IPHONE MODE]).

HEAD MODE: From the unit.

IPHONE MODE: From the iPod/iPhone. *2

To Do this

Select a track/file	Press | | / (or press / on RM-RK52).
Select a folder *3	Press / (or press / on RM-RK52).
Reverse/ Fast-forward	Press and hold | | / (or press and hold / on RM-RK52).
Repeat play *4	Press 3 repeatedly to make a selection. Audio CD or JVC Playlist Creator (JPC) / JVC Music Control (JMC) file (47): TRACK RPT, RPT OFF MP3/WMA/WAV file: TRACK RPT, FOLDER RPT, RPT OFF iPod: ONE RPT, ALL RPT, RPT OFF
Random play *4	Press 2 repeatedly to make a selection. Audio CD: ALL RND, RND OFF MP3/WMA/WAV file or JPC / JMC file: FOLDER RND, ALL RND, RND OFF iPod: SONG RND, ALL RND, RND OFF

*1 Do not leave the cable inside the car when not using.

*2 You can still play/pause, file skip, fast-forward or reverse files from the unit.

*3 Only for MP3/WMA/WAV files. This does not work for iPod.

*4 For iPod: Applicable under [HEAD MODE] only.

Select a track/file from a list

For iPod: Applicable only when [HEAD MODE] is selected. (→)

1 Press MENU

2 Turn the volume knob to make a selection, then press the knob.

- MP3/WMA/WAV file: Select the desired folder, then a file.

- iPod or JPC / JMC file: Select the desired file from the list (PLAYLISTS, ARTISTS, ALBUMS, SONGS, PODCASTS*, GENRES, COMPOSERS*, AUDIOBOOKS*).

* Only for iPod.

If you have many files....

You can search through them quickly (on step 2 above) by turning the volume knob quickly.

• Not applicable for iPod.

Select a song by name

While listening to the iPod and [HEAD MODE] is selected (→) .... If you have many folders or tracks/files, you can search through them quickly according to the first character (A to Z, 0 to 9 and OTHERS).

- "OTHERS" appear if the first character is other than A to Z, 0 to 9.

1 Press MENU.
2 Turn the volume knob to select the desired list, then press the knob.
3 Press ▲/▼ or turn the volume knob quickly to select the desired character.
4 Turn the volume knob to select the desired folder or track/file, then press the knob.

Change the USB drive

When a smartphone (Mass Storage Class) is connected to the USB input terminal, you can select its internal memory or external memory (such as an SD card) to playback the stored songs.

You can also select the desired drive to playback when a multiple drives device is connected.

Press number button 5 iPod MODE repeatedly to select the desired drive.

(or)

1 Press and hold MENU.
2 Turn the volume knob to select [USB/IPOD], then press the knob.
3 Turn the volume knob to select [USB], then press the knob.
4 Press the volume knob to select [DRIVECHANGE].

The next drive is selected automatically.

Repeat steps 1 to 4 to select the following drives.

Selectable items: [DRIVE 1] to [DRIVE 5]

Change the playback speed of the Audiobook

While listening to the iPod and [HEAD MODE] is selected (5) ....

1 Press and hold MENU.
2 Turn the volume knob to select [USB/IPOD], then press the knob.
3 Turn the volume knob to select [IPOD], then press the knob.
4 Turn the volume knob to make a selection, then press the knob. BOOK NORMAL / BOOK FASTER / BOOK SLOWER: Select the desired playback speed of the Audiobooks sound file in your iPod/iPhone.

(Default: Depends on your iPod/iPhone setting.)

• To return to the previous setting item or hierarchy, press T/P.
• To cancel, press MENU.

RADIO

"ST" lights up when receiving an FM stereo broadcast with sufficient signal strength.

Search for a station

1 Press ⏻/SOURCE to select FM or AM.
2 Press ◀◀◀/▶▶▶ (or press ◀◀/▶ on RM-RK52) to search for a station automatically.
(or) Press and hold ◀◀/▶▶ (or press and hold ◀/▶ on RM-RK52) until "M" flashes, then press repeatedly to search for a station manually.

Store a station

You can store up to 18 stations for FM and 6 stations for AM.

While listening to a station....

Press and hold one of the number buttons (1 to 6) to store. (or)

1 Press and hold the volume knob until "PRESET MODE" flashes.
2 Turn the volume knob to select a preset number, then press the knob.

The preset number flashes and "MEMORY" appears.

• To select a stored station: Press ▲/▼ or one of the number buttons (1 to 6).
  (or)
  Press MENU, then turn the volume knob to select a preset number and press the knob to confirm.

Search for your favorite program (PTY Search)

Available only for FM source.

1 Press and hold T/P.
2 Turn the volume knob to select a PTY code, then press the knob to start searching.
If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in.

PTY code: NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT

Activate TA Standby Reception

Available only for FM source.

Press T/P.

The unit will temporarily switch to Traffic Announcement (TA) (if available) from any source other than AM.

• To deactivate, press ↩ T/P again.

Other settings

1 Press and hold MENU.
2 Turn the volume knob to select [TUNER], then press the knob.
3 Turn the volume knob to make a selection (-θ), then press the knob.
4 Press MENU to exit.

To return to the previous setting item or hierarchy, press T/P.

RADIO

Default: XX

RADIO TIMER	Turns on the radio at a specific time regardless of the current source.1 ONCE/DAILY/ WEEKLY/OFF: Select how often the timer will be turned on.2 FM/AM: Select the FM or AM band.3 01 to 18 (for FM)/ 01 to06 (for AM): Select the preset station.4 Set the activation day *1 and time.“∅” lights up when complete.*1 Selectable only when [ONCE] or[WEEKLY] is selected in step 1.Radio Timer will not activate for the following cases.The unit is turned off.[OFF] is selected for [AM] in[SRC SELECT] after Radio Timer for AM is selected. (→)
SSM	SSM 01 – 06 /SSM 07 – 12 / SSM 13 – 18:Automatically presets up to 18 stations for FM. “SSM” stops flashing when the first 6 stations are stored. Select SSM 07 – 12 / SSM 13 – 18to store the following 12 stations.
IF BAND*2	AUTO: Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.) ;WIDE: Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain.
MONO*2	ON: Improves the FM reception, but the stereo effect will be lost.;OFF: Cancels.
NEWS-STBY*2	ON: The unit will temporarily switch to News Programme if available.;OFF: Cancels.
REGIONAL*2	ON: Switches to another station only in the specific region using the “AF” control.;OFF: Cancels.
AF SET*2	ON: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor.;OFF: Cancels.

*2 Only for FM source.

AUX

Use a portable audio player

1 Connect a portable audio player (commercially available).

3.5 mm stereo mini plug with "L" shaped

connector (commercially available)

Portable audio player

2 Select [ON] for [AUX] in [SRC SELECT]. (→4)
3 Press ⏻/SOURCE to select AUX.
4 Turn on the portable audio player and start playback.

Use a 3-core plug head stereo mini plug for optimum audio output.

BLUETOOTH®

You can operate Bluetooth devices using this unit.

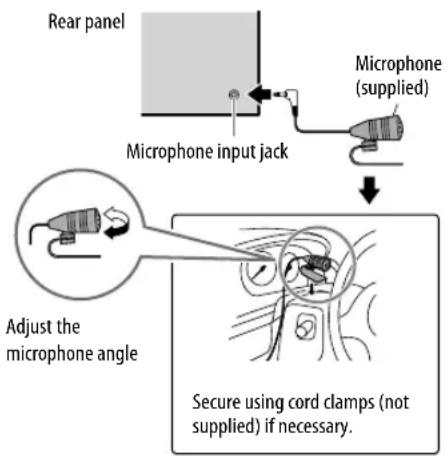

Connect the microphone

If you turn off the unit during a phone call conversation, the Bluetooth connection is disconnected. Continue the conversation using your mobile phone.

Supported Bluetooth profiles

• Hands-Free Profile (HFP1.5)
  – Advanced Audio Distribution Profile (A2DP)
  – Audio/Video Remote Control Profile (AVRCP1.3)
• Object Push Profile (OPP)
  – Phonebook Access Profile (PBAP)
• Serial Port Profile (SPP)

Pair a Bluetooth device

When connecting a Bluetooth device to the unit for the first time, perform pairing between the unit and the device. Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit.

• Up to five devices can be registered (paired) in total.
• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time.
  • This unit supports Secure Simple Pairing (SSP).
• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually. Refer to the instruction manual of the Bluetooth device for more information.

1 Press ⏻/SOURCE to turn on the unit.
2 Search and select "JVC UNIT" on the Bluetooth device.

"BT PAIRING" flashes on the display.

- For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching.

3 Perform (A) or (B) depending on what scrolls on the display.
- For some Bluetooth devices, pairing sequence may vary from the steps described below.

(A) "[Device Name]"→"XXXXXX" "VOL-YES" "BACK-NO"

- "XXXXXX" is a 6-digit passkey randomly generated during each pairing. Ensure that the passkey which appears on the unit and Bluetooth device is the same. Press the volume knob to confirm the passkey. Operate the Bluetooth device to confirm the passkey.

(B) "[Device Name]"→"VOL - YES" "BACK - NO"

Press the volume knob to start pairing.

2 • If "PAIRING" → "PIN 0000" scrolls on the display, enter the PIN code "0000" into the Bluetooth device. You can change to a desired PIN code before pairing. (→13)

- If only "PAIRING" appears, operate the Bluetooth device to confirm pairing.

"PAIRING COMPLETED" appears when pairing is completed.
• "will light up when a Bluetooth mobile phone is connected.
- "♪" will light up when a Bluetooth audio player is connected.

BLUETOOTH®

Bluetooth compatibility check mode

You can check the connectivity of the supported profile between the Bluetooth device and the unit.

- Make sure there is no Bluetooth device connected.

1 Press and hold . /

"BLUETOOTH" ↔ "CHECK MODE" appears. "SEARCH NOW USING PHONE" → "PIN IS 0000" scrolls on the display.

2 Search and select "JVC UNIT" on the Bluetooth device within 3 minutes.

3 Perform (A), (B) or (C) depending on what appears on the display.

(A) "PAIRING" "XXXXXX" (6-digit passkey): Ensure that the same passkey appears on the unit and Bluetooth device, then operate the Bluetooth device to confirm the passkey.
(B) "PAIRING" → "PIN IS 0000": Enter "0000" on the Bluetooth device.
(C) "PAIRING": Operate the Bluetooth device to confirm pairing.

After pairing is successful, "PAIRING OK" "[Device Name]" appears and Bluetooth compatibility check starts.

If "CONNECT NOW USING PHONE" appears, operate the Bluetooth device to allow phonebook access to continue.

The connectivity result flashes on the display.

"PAIRING OK" and/or "H.FREE OK"*1 and/or "A.STREAM OK"*2 and/or "PBAP OK"*3: Compatible

*1 Compatible with Hands-Free Profile (HFP)
*2 Compatible with Advanced Audio Distribution Profile (A2DP)
*3 Compatible with Phonebook Access Profile (PBAP)

After 30 seconds, "PAIRING DELETED" appears to indicate that pairing has been deleted, and the unit exits check mode.

- To cancel, press and hold ⏻/SOURCE to turn off the power, then turn on the power again.

Bluetooth mobile phone

To Do this
Receive a call	Press for the volume knob.On RM-RK52: Press ▲/▼/◄/►.When[AUTO ANSWER] is set to the selected time, the unit answers incoming call automatically. (-1)
Reject an incoming call	Press and hold for the volume knob.On RM-RK52: Press and hold ▲/▼/◄/►.
End a call	Press and hold for the volume knob.On RM-RK52: Press and hold ▲/▼/◄/►.
Activate or deactivate hands-free mode	Press the volume knob during a call.Operations may vary according to the connected Bluetooth mobile phone.
Adjust the phone volume	Turn the volume knob during a call.Phone volume [00] to [50] (Default: [15])This adjustment will not affect the volume of the other sources.
Switch between two connected phones	Press repeatedly.Not applicable during a call.

Improve the sound quality during a call

While talking on the phone....

1 Press and hold MENU.

2 Turn the volume knob to make a selection (see the following table), then press the knob.

3 Press MENU to exit.

To return to the previous setting item or hierarchy, press T/P.

Default: XX

MIC LEVEL -20 — +08 (0): The sensitivity of the microphone increases as the number increased.

NOISE RDCT -05 — -20 (-10): Adjust the noise reduction level until the least noise is being heard during a phone conversation.

ECHO CANCEL 1 — 10 (4): Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation.

Bluetooth mode operations

1 Press to enter Bluetooth mode.

2 Turn the volume knob to make a selection (see the following table), then press the knob.

3 Press MENU to exit.

To return to the previous setting item or hierarchy, press T/P.

RECENT CALL 1 Press the volume knob to select a name or a phone number.

- “>” indicates call received, “<” indicates call made, “M” indicates call missed.

- "NO HISTORY" appears if there is no recorded call history or call number.

2 Press the volume knob to call.

PHONEBOOK 1 Turn the volume knob to select a name, then press the knob. 2 Turn the volume knob to select a phone number, then press the knob to call. • If the phone supports PBAP, the phonebook of the connected phone is automatically transferred to the unit when pairing. If the phone does not support PBAP, "SEND P.BOOK MANUALLY" appears. Transfer the phonebook manually. (→ 13, P.BOOK WAIT) • This unit can display only non-accent letters. (Accent letters such as "Ú" is shown as "U".) • If the phonebook contains many contacts, (→ 12, Select a contact by name).

DIAL NUMBER 1 Turn the volume knob to select a number (0 to 9) or character (#, +).

2 Press |◀◀/▶▶| to move the entry position. Repeat steps and 2 until you finish entering the phone number.

3 Press the volume knob to call.

VOICE Speak the name of the contact you want to call or the voice command to control the phone functions. (42, Use Voice Recognition)

SETTINGS Default: XX AUTO 01 SEC —30 SEC: The unit answer incoming call automatically in the selected time ANSWER (seconds).;OFF: Cancels.

RING TONE IN UNIT: The unit rings to notify you when a call/text message comes in. (Default ring tone is different according to the paired device.)

- CALL: Selects your preferred ring tone (TONE 1 — 5) for incoming calls.

- MESSAGE: Selects your preferred ring tone (TONE 1 — 5) for incoming text messages.

IN PHONE: The unit uses the connected phones' ring tone to notify you when a call/text message comes in. (The connected phone will ring if it does not support this feature.)

RING COLOR COLOR 01—COLOR 29 (COLOR 06): Display zone will change to the selected color during a call or when a text message comes in. ; OFF : Cancels.

MSG NOTICE* ON: The unit rings and "RCV MESSAGE" appears to notify you of an incoming text message.; OFF: Cancels.

* Functionality depends on the type of the phone used.

BLUETOOTH®

Text message notification

When the phone receives a text message, the unit rings and "RCV MESSAGE" appears.

• You cannot read, edit, or send a message through the unit.
• To clear the message, press any button.

Use Voice Recognition

1 Press and hold 📞 / 🏠

The connected phone (which has been paired the earliest) is activated. However, if priority device is connected, pressing and holding ⏻ / ⏻ activate the priority device. (13, PRIORITY)

2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.
• This unit also supports the intelligent personal assistant function of iPhone.

Select a contact by name

• You can search through the contacts quickly according to the first letter (A to Z, 0 to 9, and OTHERS).
• "OTHERS" appears if the first character is other than A to Z, 0 to 9.

1 Press to enter Bluetooth mode.

2 Turn the volume knob to select [PHONEBOOK], then press the knob.
3 Press ▲/▼ to select the desired letter.
4 Turn the volume knob to select a name, then press the knob.
5 Turn the volume knob to select a phone number, then press the knob to call.

To return to the previous setting item or hierarchy, press T/P.

Store a contact in memory

You can store up to 6 contacts.

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [RECENT CALL], [PHONEBOOK], or [DIAL NUMBER], then press the knob.
3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number.
4 Press and hold one of the number buttons (1 to 6).

"MEMORY P(selected preset number)" appears when the contact is stored.

To erase a contact from the preset memory, select [DIAL NUMBER] in step 2 and store a blank number.

Make a call from memory

1 Press to enter Bluetooth mode.
2 Press one of the number buttons (1 to 6).
3 Press the volume knob to call.

"NO PRESET" appears if there is no contacts stored.

Delete a contact

Not applicable for mobile phone that supports PBAP.

1 Press to enter Bluetooth mode.
2 Turn the volume knob to select [RECENT CALL] or [PHONEBOOK], then press the knob.
3 Turn the volume knob to select a contact or a phone number.
4 Press and hold T/P.
5 Turn the volume knob to select [DELETE] or [DELETE ALL], then press the knob.

DELETE: Selected name or phone number in step 3 is deleted.

DELETE ALL: All names or phone numbers from the selected menu in step 2 is deleted.

6 Turn the volume knob to select [YES] or [NO], then press the knob.

Bluetooth mode settings

1 Press and hold MENU.
2 Turn the volume knob to select [BLUETOOTH], then press the knob.
3 Turn the volume knob to make a selection (see the following table), then press the knob.
4 Press MENU to exit.

To return to the previous setting item or hierarchy, press T/P.

Default: XX

PHONE	Selects the phone or audio device to connect or disconnect. “#appears in front of the device name.
AUDIO
APPLICATION	Shows the connected phone name using the JVC Smart Music Control*1 app. “#appears in front of the device name.
DELETE PAIR	1 Turn the volume knob to select a device to delete, then press the knob.2 Turn the volume knob to select [YES] or [NO], then press the knob.
PRIORITY	Selects a device to be connected as priority device. “#appears in front of the device name set as priority.• “NO PAIR” appears if there is no registered device found.
P.BOOK WAIT*2	Copies up to 400 numbers from the phonebook memory of a connected phone.
SET PINCODE(0000)	Changes the PIN code (up to 6 digits).1 Turn the volume knob to select a number.2 Press |◀◀ / ▶▶1 to move the entry position.Repeat stepand 2 until you finish entering the PIN code.3 Press the volume knob to confirm.
AUTO CNNCT ON	_: The unit automatically reconnect when the Bluetooth device is within range.; OFF: Cancels.
INITIALIZE YES	: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; NO: Cancels.
INFORMATION	MY BT NAME: Displays the unit name (JVC UNIT).; MY ADDRESS: Shows address of this unit.

*1 JVC Smart Music Control is designed to view JVC car receiver status and perform simple control operations on Android smart phones. For JVC Smart Music Control operations, visit JVC website: http://www.jvc.net/cs/car/.

*2 Selectable only when the connected phone supports OPP.

Bluetooth audio player

Operations and display indications may differ according to their availability on the connected device.

To Do this
Playback	1 Press ⏻/SOURCE to select BT AUDIO.2 Operate the Bluetooth audio player to start playback.
Pause or resume playback	Press MENU (or press on RM-RK52).
Select group or folder	Press ▲/▼ (or press ▲/▼ on RM-RK52).
Reverse/forward skip	Press ◀◀/▶▶| (or press ◀/▶ on RM-RK52).
Reverse/ fast-forward	Press and hold ◀◀/▶▶|(or press and hold ◀/▶ on RM-RK52).
Repeat play	Press 3 ↔ repeatedly to make a selection.TRACK RPT, ALL RPT, RPT OFF
Random play	Press 2 ↔ repeatedly to make a selection.GROUP RND, ALL RND, RND OFF

AUDIO SETTINGS

To Do this

Select a preset equalizer	Press EQ repeatedly.(or)Press EQ, then turn the volume knob within 2 seconds.FLAT (default), HARD ROCK, JAZZ, POP, R&B, TALK, USER1, USER2, VOCAL BOOST, BASS BOOST, CLASSICAL, DANCE
Store your own sound settingsDefault: 00	1 Press and hold EQ.2 Turn the volume knob to select [EASY EQ], then press the knob.3 Turn the volume knob to select [USER1] or [USER2], then press the knob.4 Turn the volume knob to make a selection, then press the knob.SUB.W*: -08 to +08BASS LVL: -06 to +06MID LVL: -06 to +06TRE LVL: -06 to +06To return to the previous setting item, press → T/P.To exit, press EQ.

* Displayed only when [L/O MODE] is set to [SUB.W] (45) and [SUB.W] is set to [ON].

Other settings

1 Press and hold MENU.
2 Turn the volume knob to make a selection (see the following table), then press the knob.
Repeat step 2 until the desired item is selected.
3 Press MENU to exit.

To return to the previous setting item or hierarchy, press T/P.

Default: XX

EQ SETTING
EQ PRESET	FLAT / HARD ROCK / JAZZ / POP / R&B / TALK / USER1 / USER2 / VOCAL BOOST /BASS BOOST / CLASSICAL / DANCE: Selects a preset equalizer.
EASY EQDefault:00	1 USER1/ USER2: Select a preset name.2 Adjust your own sound settings.SUB.W*1: -08 to +08/ BASSLVL: -06to +06/MID LVL: -06to +06/TRE LVL: -06to +06
PRO EQ	1 USER1/ USER2: Select a preset name.2 BASS/ MIDDLE /TREBLE: Select a sound tone.3 Adjust the sound elements of the selected sound tone.BASS Frequency: 60/80/ 100/200 Hz Default: (80 Hz)Level: -06to +06 Q0)Q: Q1.0/Q1.25/Q1.5/Q2.0MIDDLE Frequency: 0.5/ 1.0/ 1.5/2.5 kHz Default: 1.0 kHz)Level: -06to +06 Q0)Q: Q0.75/Q1.0/Q1.25TREBLE Frequency: 10.0/ 12.5/ 15.0/ 17.5 kHz Default: 10.0 kHz)Level: -06to +06 Q0)Q: Q FIX(Q FIX)

AUDIO

BASS BOOST	+01 / +02: Selects your preferred bass boost level. ;OFF: Cancels.
LOUD 01	_/ 02: Boosts low or high frequencies to produce a well-balanced sound at low volume. ;OFF: Cancels.
SUB.W LEVEL*1	-08 — +08(0): Adjusts the subwoofer output level.
SUB.W*2	ON/OFF: Turns on or off the subwoofer output.
SUB.W LPF*1	THROUGH: All signals are sent to the subwoofer. ; LOW 55Hz/ MID85Hz / HIGH 120Hz: Audio signals with frequencies lower than 55 Hz/ 85 Hz/ 120 Hz are sent to the subwoofer.

*1 Displayed only when [L/O MODE] is set to [SUB.W] and [SUB.W] is set to [ON].
*2 Displayed only when [L/O MODE] is set to [SUB.W]

AUDIO SETTINGS

FADER*3*4	R06 — F06 (00): Adjusts the front and rear speaker output balance.
BALANCE*3	L06 — R06 (00): Adjusts the left and right speaker output balance.
VOL ADJUST -05	— +05 (00): Presets the volume adjustment level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust. ("VOL ADJ FIX" appears if FM is selected.)
AMP GAIN LOW	POWER: Limits the maximum volume level to 30. (Select if the maximum power of each speaker is less than 50 W to prevent damaging the speakers.) ;HIGH POWER: The maximum volume level is 50.
D.T.EXP(Digital Track Expander)	ON: Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression. ;OFF: Cancels.
L/O MODE SUB.W	/ REAR Selects whether rear speakers or a subwoofer are connected to the REAR/SW line out terminals on the rear panel (through an external amplifier).

*3 This adjustment will not affect the subwoofer output.
*4 If you are using a two-speaker system, set the fader level to [00].

DISPLAY SETTINGS

1 Press and hold MENU.
2 Turn the volume knob to make a selection (see the following table), then press the knob.

Repeat step2 until the desired item is selected.

3 Press MENU to exit.

To return to the previous setting item or hierarchy, press T/P.

Default: XX

DISPLAY
DIMMER	Selects the display and button illumination adjusted in the [BRIGHTNESS] setting.AUTO: Changes between the day and night adjustments when you turn off or on the car headlights. *1 ;ON: Selects the night adjustments. ; OFF: Selects the day adjustments.
BRIGHTNESS	Sets the button, display and USB input terminal brightness for day and night separately.1 DAY / NIGHT: Select day or night.2 Select a zone for setting. (Illustration above)3 Set the brightness level ( 00 to 31).(Default: DAY: 31 ; NIGHT: 11)
SCROLL^*2	ONCE: Scrolls the display information once. ; AUTO: Repeats scrolling at 5-second intervals. ;OFF: Cancels.

*1 The illumination control wire connection is required. (-21)
*2 Some characters or symbols will not be shown correctly (or will be blanked).

DISPLAY SETTINGS

Default: XX

COLOR

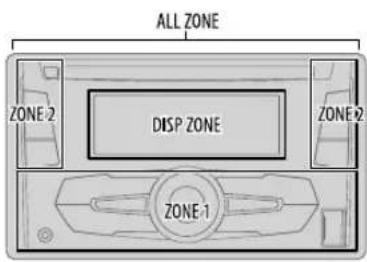

PRESET	You can select a color for [ALL ZONE], [ZONE 1], [DISP ZONE], or [ZONE 2] separately. For [ALL ZONE], you can also select a color pattern.Default color:ALL ZONE: [COLOR 06], ZONE 1: [COLOR 06], DISP ZONE: [COLOR 01], ZONE 2: [COLOR 27]1 Select a zone for setting. (→5)2 Select a color for the selected zone.COLOR 01 to COLOR 29USER: The color you have created for [DAY COLOR] or [NIGHT COLOR] is shown.COLOR FLOW 01 to COLOR FLOW 03: Color changes at different speeds.SPECTRUM/ GROOVE/ TECHNO/ EMOTION/ RELAX/ NIGHT SWEEP:The selected color pattern is shown.* (Selectable only when [ALL ZONE] is selected in step 1.)* If one of these color pattern is selected, the [ZONE 1], [DISP ZONE],[ZONE 2] illumination color will change to the default color.
DAY COLOR	Store your own day and night colors for different zone.1 Select a zone for setting. (→5)2 RED / GREEN / BLUE: Select a primary color.3 00 to 31: Select the level.
NIGHT COLOR	Repeat steps 2and 3 for all the primary colors.Your setting is stored to [USER] in [PRESET].If [00] is selected for all primary colors for[DISP ZONE], nothing appears on the display.
COLOR GUIDE	ON: Changes the button, display and USB input terminal illumination when settings are performed on menu and list search. Display zone will automatically change depending on volume level.;OFF: Cancels.

[NIGHT COLOR] or [DAY COLOR] is changed by turning on or off your car's headlight.

MORE INFORMATION

About discs and audio files

• This unit can only play the following CDs:

- This unit can play back multi-session discs; however, unclosed sessions will be skipped during playback.

- Unplayable discs:

- Discs that are not round.

- Discs with coloring on the recording surface or discs that are dirty.

- Recordable/ReWritable discs that have not been finalized.

- 8 cm CD. Attempting to insert using an adapter may cause malfunction.

- DualDisc playback: The Non-DVD side of a "DualDisc" does not comply with the "Compact Disc Digital Audio" standard. Therefore, the use of Non-DVD side of a DualDisc on this product cannot be recommended.

- Playable files:

- File extensions: MP3 (.mp3), WMA (.wma)

- Bit rate: MP3: 8 kbps — 320 kbps

WMA: 32 kbps — 192 kbps

- Sampling frequency: MP3: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz, 16 kHz, 12 kHz, 11.025 kHz, 8 kHz WMA: 8 kHz — 48 kHz

- Variable bit rate (VBR) files.

• Maximum number of characters for file/folder name:

It depends on the disc format used (includes 4 extension characters—<.mp3> or <.wma>).

- ISO 9660 Level 1 and 2: 32 characters

- Romeo: 32 characters

- Joliet: 32 characters

- Windows long file name: 32 characters

About USB devices

- This unit can play MP3/WMA/WAV files stored on a USB mass storage class device.

- You cannot connect a USB device via a USB hub.

- Connecting a cable whose total length is longer than 5 m may result in abnormal playback.

• The maximum number of characters for:
- Folder names: 64 characters
- File names: 64 characters
- MP3 Taq: 64 characters
- WMA Tag: 64 characters
- WAV Tag: 64 characters
- This unit can recognize a total of 20 480 files, 999 folders (999 files per folder including folder without unsupported files), and of 8 hierarchies.
- This unit cannot recognize a USB device whose rating is other than 5 V and exceeds 1 A.

About iPod/iPhone

• Made for
• iPod touch (1st, 2nd, 3rd, 4th, and 5th generation)
• iPod classic
• iPod nano (3rd, 4th, 5th, 6th and 7th generation)
• iPhone, iPhone 3G, 3GS, 4, 4S, 5
• It is not possible to browse video files on the "Videos" menu in [HEAD MODE].
• The song order displayed on the selection menu of this unit may differ from that of the iPod/iPhone.
• If some operations are not performed correctly or as intended, visit: http://www.jvc.net/cs/car/.

About Bluetooth

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.
• This unit may not work with some Bluetooth devices.
  Signal conditions vary, depending on the surroundings.
• For more information about Bluetooth, visit the following JVC website: http://www.jvc.net/cs/car/.

About JVC Playlist Creator and JVC Music Control

• This unit supports the PC application JVC Playlist Creator and Android™ application JVC Music Control.
• When you play audio file with song data added using the JVC Playlist Creator or JVC Music Control, you can search for audio file by Genres, Artists, Albums, Playlists, and Songs.
• JVC Playlist Creator and JVC Music Control are available from the following web site: http://www.jvc.net/cs/car/.

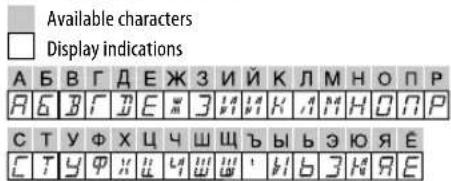

Available Cyrillic letters

Change the display information

Press DISP repeatedly.

FM or AM	Station name (PS)*1 → frequency Program type (PTY)* 1×2 → Day/Clock → (back to the beginning)*1 For FM Radio Data System stations only.*2 If unavailable, “NO PTY” / “NO TEXT” appears.
CD or USB	Playing time → Day/Clock Disc name* 3 → Album title/Artist*4 → Track title*5 → folder/file name* 6 → back to the beginning)*3 Only for CD-DA: If not recorded, “NO NAME” appears.*4 Only for MP3/WMA/WAV files: If not recorded, “NO NAME” appears.*5 If not recorded, “NO NAME” appears.*6 Only for MP3/WMA/WAV files.
USB-IPOD	Playing time → Day/Clock Album title/Artist* 7 → Track title* 7 → back to the beginning)*7 If not recorded, “NO NAME” appears.
AUX	AUX → Day/Clock
BT AUDIO	Playing time → Day/Clock Album title/Artist* 8 → Track title* 8 → back to the beginning)*8 If not recorded, “NO NAME” appears.

TROUBLESHOOTING

Symptom Remedy
Sound cannot be heard. • Adjust the volume to the optimum level.• Check the cords and connections.
"MISWIRING CHK WIRING THEN RESET UNIT" / "WARNING CHK WIRING THEN RESET UNIT" appears and no operations can be done.	Check to be sure the terminals of the speaker wires are insulated properly, then reset the unit. If this does not solve the problem, consult your nearest service center.
Source cannot be selected. Check the [SRC SELECT] setting. (→)
Radio reception is poor. / Static noise while listening to the radio.	• Connect the antenna firmly.• Pull the antenna out all the way.
Correct characters are not displayed.	This unit can only display uppercase letters, numbers, and a limited number of symbols. The unit can also display uppercase Cyrillic letters. (→7)
“PLEASE” and “EJECT” appear alternately.	Press ▲, then insert the disc correctly.
“IN DISC” appears. Make sure nothing is blocking the loading slot when you eject the disc.
Disc cannot be ejected.	Press and hold ▲ to forcibly eject the disc. Be careful not to drop the disc when it is ejected.
Playback order is not as intended.	The playback order is determined by the file name (USB) or the order in which files were recorded (disc).
Elapsed playing time is not correct.	This depends on the recording process earlier.
“NOT SUPPORT” appears and track skips.	Check whether the track is a playable format. (→6)

Symptom Remedy
“CANNOT PLAY” flashes and/or connected device cannot be detected.	· Check whether the connected device is compatible with this unit and ensure the files are in supported formats. (-16) · Reattach the device.
“READING” keeps flashing. · Do not use too many hierarchical levels and folders. · Reload the disc or reattach the USB device.
The iPod/iPhone does not turn on or does not work.	· Check the connection between this unit and iPod/ iPhone. · Detach and reset the iPod/iPhone using hard reset.
Bluetooth ^e	No Bluetooth device is detected. · Search from the Bluetooth device again. · Reset the unit. (-3)
	Pairing cannot be made. · Make sure you have entered the same PIN code to both the unit and Bluetooth device. · Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. (-9)
	“PAIRING FULL” appears. The number of registered devices has reached its limit. Retry after deleting an unnecessary device. (-43, DELETE PAIR)
	“PLEASE WAIT” appears. The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again.
	“BT DEVICE NOT FOUND” appears. The unit failed to search for the registered Bluetooth devices during [AUTO CNNCT]. Turn on Bluetooth from your device and connect manually. (→13)
	Echo or noise occurs. · Adjust the microphone unit’s position. ( → 9) · Check the[ECHO CANCEL] setting. (→11)
	Phone sound quality is poor. · Reduce the distance between the unit and the Bluetooth device. · Move the car to a place where you can get a better signal reception.

TROUBLESHOOTING

INSTALLATION / CONNECTION

Symptom Remedy
Bluetooth^e	“NOT SUPPORT” appears. The connected phone does not support Voice Recognition feature.
	“ERROR” appears. Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried.
	The unit does not respond when you try to copy the phonebook to the unit. You may have tried to copy the same entries (as stored) to the unit. Press DISP or T/P to exit.
	Sound is being interrupted or skipped during playback of a Bluetooth audio player. Reduce the distance between the unit and the Bluetooth audio player. Turn off, then turn on the unit and try to connect again. Other Bluetooth devices might be trying to connect to the unit.
	The connected Bluetooth audio player cannot be controlled. Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.) Disconnect and connect the Bluetooth player again.
	“H/W ERROR” appears. Reset the unit and try the operation again. If “H/W ERROR” appears again, consult your nearest service center.
	“BT ERROR PLS UPDATE” appears. Update the Bluetooth firmware. (→4)

If you still have troubles, reset the unit. (→3)

Warning

• The unit can only be used with a 12 V DC power supply, negative ground.
• Disconnect the battery's negative terminal before wiring and mounting.
• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.
  • Insulate unconnected wires with vinyl tape to prevent a short circuit.
• Be sure to ground this unit to the car's chassis again after installation.

Caution

• For safety's sake, leave wiring and mounting to professionals. Consult the car audio dealer.
• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.
• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.
• Connect speakers with a maximum power of more than 50 W. If the maximum power of the speakers is lower than 50 W, change the [AMP GAIN] setting to avoid damaging the speakers. (→ 15)
• Mount the unit at an angle of less than 30^ .
• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle's fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.
  • After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• If the fuse blows, first make sure the wires are not touching car's chassis, then replace the old fuse with one that has the same rating.

Basic procedure

1 Remove the key from the ignition switch, then disconnect the terminal of the car battery.

2 Connect the wires properly.

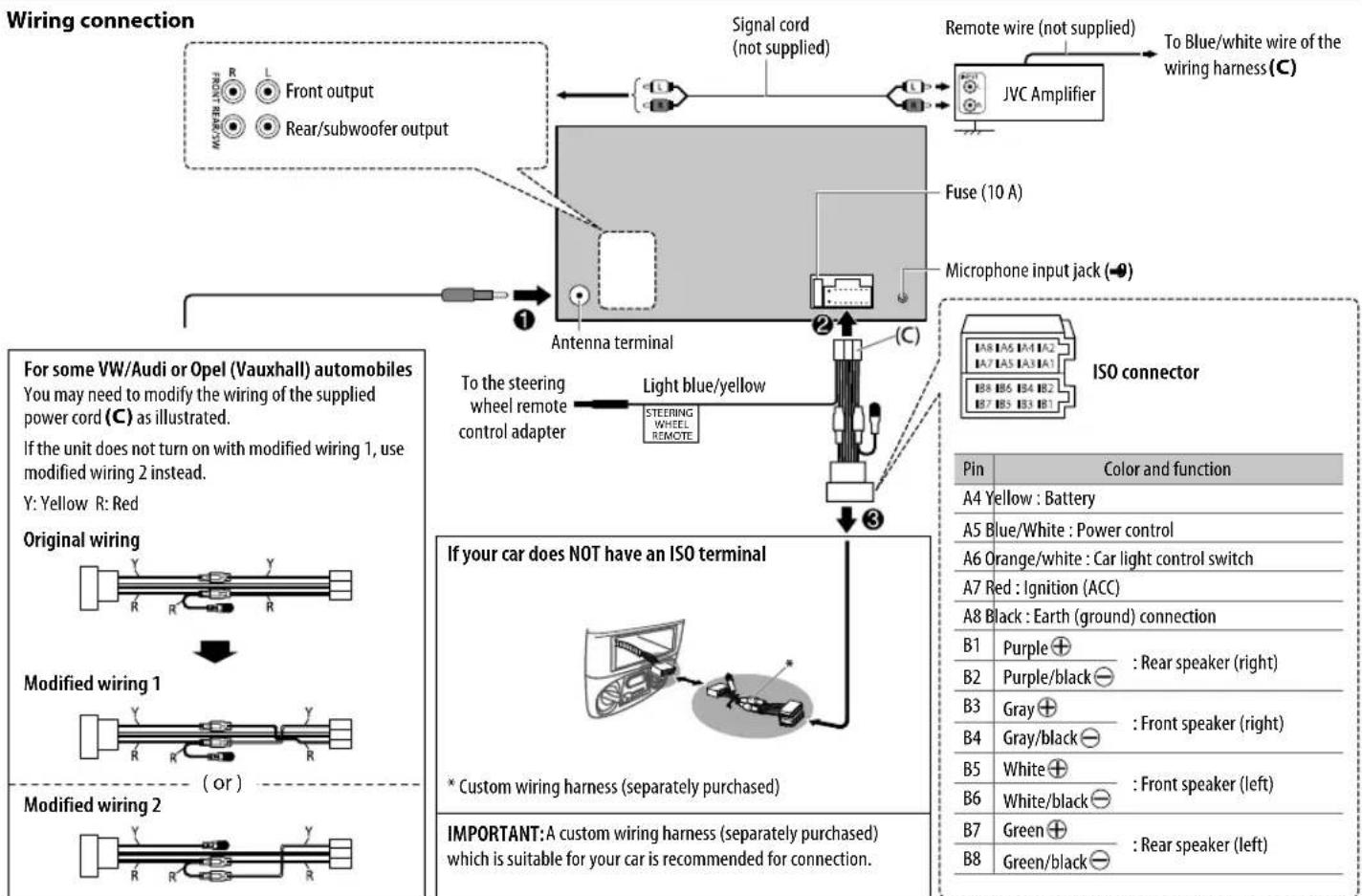

See Wiring connection(21)

3 Install the unit to your car.

See Installing the unit (in-dash mounting).

4 Connect the ⊖ terminal of the car battery.

5 Reset the unit. (→3)

INSTALLATION / CONNECTION

Part list for installation

(A) Trim plate

(×1)

(B) Mounting sleeve

(×1)

(C) Wiring harness

(×1)

(D) Extraction key

(×2)

(E) Flat head screw (M5 × 8 mm)

(×8)

(F) Round head screw (M5 × 8 mm)

(×8)

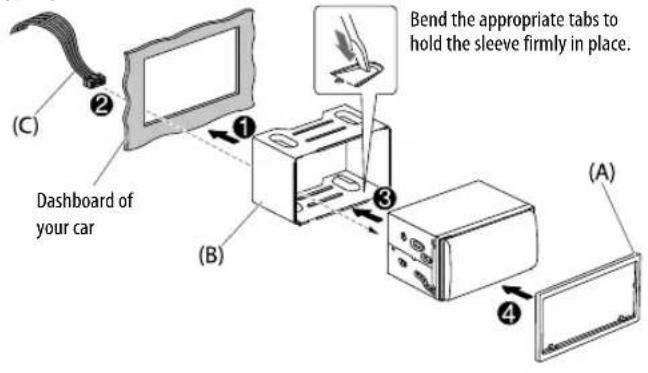

Installing the unit (in-dash mounting)

Do the required wiring.
(→21)

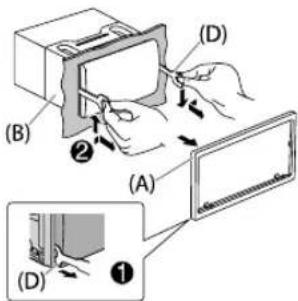

How to remove the unit

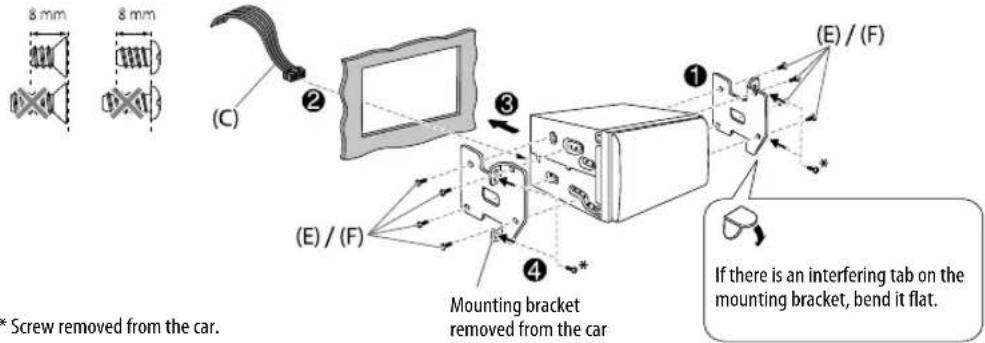

When installing without the mounting sleeve

Use only the specified screws. Using wrong screws might damage the unit.

INSTALLATION / CONNECTION

SPECIFICATIONS

Tuner	FM Frequency Range 87.5 MHz to 108.0 MHz (50 kHz step)
	Usable Sensitivity (S/N = 26 dB) 0.71 μV/75 Ω
	Quieting Sensitivity (DIN S/N = 46 dB)	2.0 μV/75 Ω
	Frequency Response (±3 dB) 30 Hz to 15 kHz
	Signal-to-Noise Ratio (MONO) 64 dB
	Stereo Separation (1 kHz) 40 dB
	AM Frequency Range MW 531 kHz to 1 611 kHz (9 kHz step)LW 153 kHz to 279 kHz (9 kHz step)
	Usable Sensitivity (S/N = 20 dB) MW 28.2 μVLW 50 μV
CD player	Laser Diode GaAlAs
	Digital Filter 8 times over sampling
	Spindle Speed 500 rpm — 200 rpm (CLV)
	Wow & Flutter Below measurable limit
	Frequency Response (±1 dB) 20 Hz — 20 kHz
	Total Harmonic Distortion (1 kHz) 0.01 %
	Signal-to-Noise Ratio (1 kHz) 105 dB
	Dynamic Range	90 dB
	Channel Separation	85 dB
	MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio

USB	USB Standard	USB 1.1, USB 2.0 (Full speed)
	Compatible Devices Mass storage class
	File System	FAT12/ 16/ 32
	Maximum Supply Current	DC 5 V--- 1 A
	MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode	Compliant with Windows Media Audio
	WAV Decode	Linear-PCM
Auxiliary	Frequency Response ( ± 3 dB)	20 Hz — 20 kHz
	Input Maximum Voltage	1 200 mV
	Input Impedance	30 kΩ
Bluetooth	Version	Bluetooth Ver.2.1+EDR
	Frequency Range	2.402 GHz — 2.480 GHz
	Output Power	+4 dBm (MAX), 0 dBm (AVE) Power Class 2
	Maximum Communication Range	Line of sight approx. 10 m
	Profile	HFP1.5 (Hands-Free Profile)A2DP (Advanced Audio Distribution Profile)AVRCP1.3 (Audio/Video Remote Control Profile)OPP (Object Push Profile)PBAP (Phonebook Access Profile)SPP (Serial Port Profile)

SPECIFICATIONS

Audio	Maximum Output Power 50 W × 4
	Output Power (DIN 45324, +B = 14.4 V)	30 W × 4
	Speaker Impedance 4 Ω — 8 Ω
	Preout Level/Load (CD) 2 500 mV/10 kΩ load (full scale)
	Preout Impedance ≤ 600 Ω
General	Operating Voltage 14.4 V (10.5 V — 16 V allowable)
	Maximum Current Consumption 10 A
	Operating Temperature Range 0°C to +40°C
	Installation Size (W × H × D) 182 mm × 112 mm × 159 mm
	Weight	1.6 kg

Subject to change without notice.

TABLE DES MATIERES

AVANT L'UTILISATION

Top-down technical diagram of a car dashboard showing steering wheel, speedometer, and control panel (no text labels)

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
• "Made for iPod," and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
  • Lightning is a trademark of Apple Inc.
  • Android is trademark of Google Inc.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
