MO AM CD FM TP/PTY Cover_001A_KD-S743R[E_EX]f.p65 11/19/02, 6:45 PM32

ENGLISH Note: For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted onthe unit’s chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen. Position And Reproduction Of Labels

IMPORTANT FOR LASER PRODUCTS Precautions: 1.CLASS 1 LASER PRODUCT2.CAUTION: Invisible laser radiation when open andinterlock failed or defeated. Avoid direct exposure tobeam.3.CAUTION: Do not open the top cover. There are nouser-serviceable parts inside. Leave all servicing toqualified service personnel.4.CAUTION: This CD player uses invisible laser radiationand is equipped with safety switches to preventradiation emission when unloading CDs. It isdangerous to defeat the safety switches.5.CAUTION: Use of controls, adjustments orperformance of procedures other than those specifiedherein may result in hazardous radiation exposure.Name/Rating plateBottom panel of the main unit How to reset your unit While holding SEL (select), press (standby/on/attenuator) for more than 2 seconds.This will reset the built-in microcomputer. Notes: • Your preset adjustments—such as preset channels or sound adjustments—will also be erased.• If a CD is in the unit, it will eject when you reset the unit. Be careful not to drop the CD. (standby/on/attenuator)SEL (select)

DISP SSM SCMMODE7 9 10 12 RND

EN02-04_KD-S743R[E_EX]f.p65 11/18/02, 6:40 PM23

ENGLISH CONTENTS Thank you for purchasing a JVC product. Please read all instructions carefully before operation,

to ensure your complete understanding and to obtain the best possible performance from the unit.

• Do not raise the volume level too much, as this will

block outside sounds, making driving dangerous.

• Stop the car before performing any complicated

Temperature inside the car....

If you have parked the car for a long time in hot or

cold weather, wait until the temperature in the car

becomes normal before operating the unit.

How to reset your unit 2

How to use the MODE button 3

LOCATION OF THE BUTTONS 4

Turning on the power 5

Setting the clock 6

Listening to the radio 7

Storing stations in memory 8

Tuning in to a preset station 9

What you can do with RDS 10

Other convenient RDS functions and

How to use the MODE button

If you press MODE, the unit goes into functions mode and the number buttons work as different

To use these buttons as number buttons again after pressing MODE, wait for 5 seconds

without pressing any number button until the functions mode is cleared.

• Pressing MODE again also clears the functions mode.

Time countdown indicator

Locating a track or a particular portion

Selecting CD playback modes 18

Prohibiting CD ejection 19

SOUND ADJUSTMENTS 20

Adjusting the sound 20

Selecting preset sound modes 20

Storing your own sound adjustments 21

OTHER MAIN FUNCTIONS 22

Selecting the level display 22

Selecting the telephone muting 22

Detaching the control panel 24

MO MO MO (monaural) indicator lights up.

MO AM CD FM TP/PTY SEL

2 TP/PTY (traffic program/program type) button

• Also functions as SSM buttons when pressed

i SCM (sound control memory) button

o (control panel release) button

; SCM (sound control memory) indicator

a CD source indicator

s FM band indicators (FM1, FM2, FM3)

h RPT (repeat) indicator

k LOUD (loudness) indicator

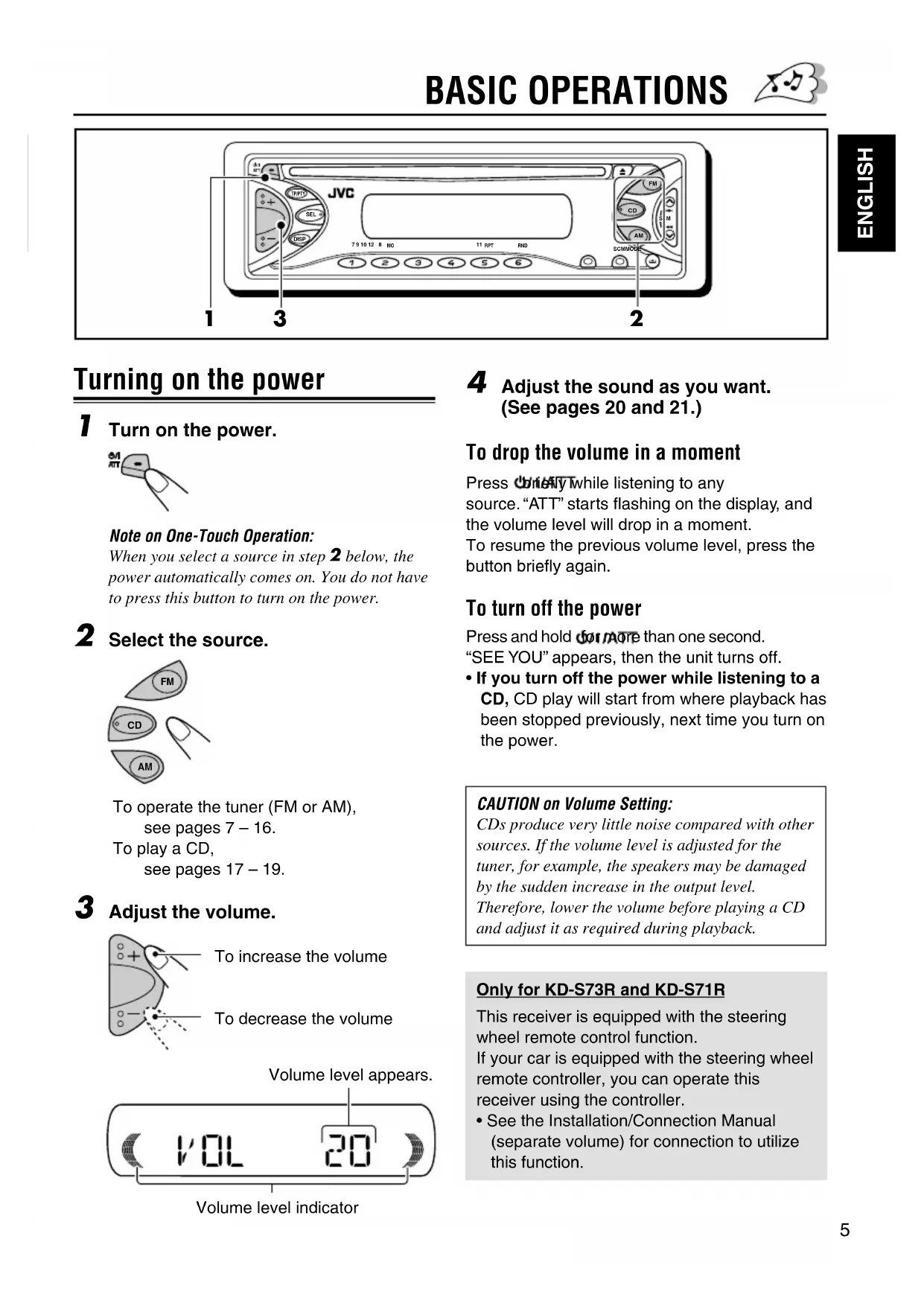

Turn on the power. Note on One-Touch Operation:When you select a source in step 2 below, thepower automatically comes on. You do not haveto press this button to turn on the power. 2

Select the source. To operate the tuner (FM or AM),see pages 7 – 16.To play a CD,see pages 17 – 19. 3

Adjust the sound as you want.

(See pages 20 and 21.)

To drop the volume in a moment Press briefly while listening to any source. “AT T” starts flashing on the display, and the volume level will drop in a moment.To resume the previous volume level, press thebutton briefly again. To turn off the power Press and hold for more than one second. “SEE YOU” appears, then the unit turns off. • If you turn off the power while listening to aCD, CD play will start from where playback hasbeen stopped previously, next time you turn onthe power.CAUTION on Volume Setting:CDs produce very little noise compared with othersources. If the volume level is adjusted for thetuner, for example, the speakers may be damagedby the sudden increase in the output level.Therefore, lower the volume before playing a CDand adjust it as required during playback.Only for KD-S73R and KD-S71RThis receiver is equipped with the steeringwheel remote control function.If your car is equipped with the steering wheelremote controller, you can operate thisreceiver using the controller.• See the Installation/Connection Manual(separate volume) for connection to utilizethis function.Volume level indicatorVolume level appears.To increase the volumeTo decrease the volume DISP SSMSCMMODE7 9 10 12 RND

MO TP/PTY SEL AM CD FM

FM CD AM EN05-06_KD-S743R[E_EX]f.p65 11/18/02, 6:41 PM56

ENGLISH Setting the clock You can also set the clock system to either 24hours or 12 hours. 1

Press and hold SEL (select) for more

than 2 seconds so that one of the

PSM items appears on the display.

1 Select “CLOCK M” (minute). 2 Adjust the minute. 4

Set the clock system. 1 Select “24H/12H.” 2 Select “24H” or “12H.”

Finish the setting. To check the current clock time or change thedisplay modePress DISP (display) repeatedly.Each time you press thebutton, the display modechanges as follows:• During tuner operation:Note:For the indication change during RDS operation,see page 15.• During CD operation:• During power off:The power turns on and the clock time isshown for 5 seconds, then the power turns off.

ClockElapsed playing time

ENGLISH RADIO OPERATIONS Listening to the radio You can use either automatic searching or manualsearching to tune in to a particular station. Searching a station automatically:

1 Select the band (FM1 – 3, AM).Note:This receiver has three FM bands (FM1, FM2,FM3). You can use any one of them to listen toan FM broadcast. 2 Start searching a station.When a station is received, searching stops.To stop searching before a station isreceived, press the same button you havepressed for searching. Searching a station manually:

1 Select the band (FM1 – 3, AM).Note:This receiver has three FM bands (FM1, FM2,FM3). You can use any one of them to listen toan FM broadcast. 2

Press and hold ¢ or 4 until “M” (manual) starts flashing onthe display.To search stations of higherfrequenciesTo search stations of lowerfrequenciesSelected band appears.Lights up when receiving an FM stereobroadcast with sufficient signal strength.FM1 FM2 FM3

AM FM AM FM1 FM2 FM3

AM FM AM CONTINUED ON THE NEXT PAGE SSM SCMMODE

MO CD SEL DISP AM FM TP/PTY ST EN07-09_KD-S743R[E_EX]f.p65 11/18/02, 6:41 PM78

ENGLISH Storing stations in memory You can use one of the following two methods tostore broadcasting stations in memory.• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)• Manual preset of both FM and AM stations FM station automatic preset: SSM You can preset 6 local FM stations in each FMband (FM1, FM2, and FM3). 1

Select the FM band (FM1 – 3) you

want to store FM stations into.

Press and hold both buttons for

more than 2 seconds. Local FM stations with the strongest signals aresearched and stored automatically in the bandnumber you have selected (FM1, FM2, or FM3).These stations are preset in the numberbuttons—No.1 (lowest frequency) to No.6(highest frequency).When automatic preset is over, the station storedin number button 1 will be automatically tuned in.“- -SSM- -” appears, then disappearswhen automatic preset is over. SSM

Tune in to a station you want while

“M” (manual) is flashing. • If you release your finger from the button,the manual mode will automatically turnsoff after 5 seconds.• If you hold down the button, the frequencykeeps changing (in 50 kHz intervals for FMand 9 kHz intervals for AM—MW/LW) untilyou release the button. When an FM stereo broadcast is hard to

1 Press MODE to enter the functions mode while listeningto an FM stereo broadcast. 2 Press MO (monaural), while still in the functions mode, sothat the MO indicator lights upon the display.Each time you press thebutton, the MO indicator lightsup and goes off alternately.When the MO indicator is lit on the display, thesound you hear becomes monaural but thereception will be improved.To tune in to stations of lowerfrequenciesTo tune in to stations of higherfrequencies

MO MO MO (monaural) indicator EN07-09_KD-S743R[E_EX]f.p65 11/18/02, 6:41 PM89

ENGLISH Manual preset You can preset up to 6 stations in each band(FM1, FM2, FM3, and AM) manually.Ex.: Storing FM station of 88.3 MHz into thepreset number 1 of the FM1 band. 1 Select the band (FM1 – 3, AM) youwant to store stations into (in thisexample, FM1). 2 Tune in to a station (in this example,of 88.3 MHz). 3 Press and hold the number button(in this example, 1) for more than 2seconds.To tune in to stations of lowerfrequenciesTo tune in to stations of higherfrequencies FM1 FM2 FM3

AM FM AM “P1” flashes for a few seconds. 7

4 Repeat the above procedure to storeother stations into other presetnumbers.Notes:• A previously preset station is erased when a newstation is stored in the same preset number.• Preset stations are erased when the power supply tothe memory circuit is interrupted (for example,during battery replacement). If this occurs, presetthe stations again. Tuning in to a preset station You can easily tune in to a preset station.Remember that you must store stations first. Ifyou have not stored them yet, see “Storingstations in memory” on pages 8 and 9. 1 Select the band (FM1 – 3, AM). 2 Select the number (1 – 6) for thepreset station you want. FM1 FM2 FM3

ENGLISH RDS OPERATIONS What you can do with RDS RDS (Radio Data System) allows FM stations tosend an additional signal along with their regularprogramme signals. For example, the stationssend their station names, as well as informationabout what type of programme they broadcast,such as sports or music, etc.Another advantage of RDS function is called“Enhanced Other Networks.” By using theEnhanced Other Networks data sent from astation, you can tune in to a different station of adifferent network broadcasting your favoriteprogramme or traffic announcement whilelistening to another programme or to anothersource such as CD.By receiving the RDS data, this unit can do thefollowing:• Tracing the same programme automatically(Network-Tracking Reception)• Standby Reception of TA (TrafficAnnouncement) or your favorite programme• PTY (Programme Type) search• Programme search• And some other functions Tracing the same programme

automatically (Network-Tracking

Reception) When driving in an area where FM reception isnot good, the tuner built in this unit automaticallytunes in to another RDS station, broadcastingthe same programme with stronger signals. So,you can continue to listen to the sameprogramme in its finest reception, no matterwhere you drive. (See the illustration on page 16.) Two types of the RDS data are used to makeNetwork-Tracking Reception work correctly—PI(Programme Identification) and AF (AlternativeFrequency).Without receiving these data correctly from theRDS station you are listening to, Network-Tracking Reception will not operate. To use Network-Tracking Reception You can select the different modes of network-tracking reception to continue listening to thesame programme in its finest reception.When shipped from the factory, “AF” is selected.• AF: Network-Tracking Reception isactivated with Regionalization set to“off.”With this setting, the unit switches toanother station within the samenetwork when the receiving signalsfrom the current station becomeweak. (In this mode, the programmemay differ from the one currentlyreceived.)The AF indicator lights up but theREG indicator does not.• AF REG: Network-Tracking Reception isactivated with Regionalization set to“on.”With this setting, the unit switches toanother station, within the samenetwork, broadcasting the sameprogramme when the receivingsignals from the current stationbecome weak.Both the AF indicator and the REGindicators light up.• OFF: Network-Tracking Reception isdeactivated.Neither the AF indicator nor the REGindicator lights up. REG indicator AF indicatorREGAF EN10-16_KD-S743R[E_EX]f.p65 11/18/02, 6:40 PM1011

Press and hold SEL (select) for more

than 2 seconds so that one of the

PSM items appears on the display.

Select “AF-REG” (alternative

frequency/regionalization reception)

if not shown on the display.

Select the desired mode—“AF,”

TA Standby Reception allows the unit to switch

temporarily to Traffic Announcement (TA) from

the current source (another FM station or CD).

• TA Standby Reception will not work if you are

listening to an AM station.

Press TP/PTY to activate TA Standby Reception.

7 When the current source is FM, the TP

indicator either lights up or flashes.

• If the TP indicator lights up, TA Standby

Reception is activated.

If a station starts broadcasting a traffic

announcement, “TRAFFIC” appears on the

display, and this unit automatically tunes in to

the station. The volume changes to the

preset TA volume level (see page 15) and the

traffic announcement can be heard.

• If the TP indicator flashes, TA Standby

Reception is not yet activated since the

station being received does not provide the

signals used for TA Standby Reception.

To activate TA Standby Reception, you need

to tune in to another station providing these

Press ¢ or 4 to search for such

When a station providing these signals is

tuned in, the TP indicator stops flashing and

remains lit. Now TA Standby Reception is

7 When the current source is other than FM,

the TP indicator lights up.

If a station starts broadcasting a traffic

announcement, “TRAFFIC” appears on the

display, and this unit automatically changes the

source and tunes in to the station.

TP/PTY SEL SEL EN10-16_KD-S743R[E_EX]f.p65 11/18/02, 6:40 PM1112

ENGLISH Using PTY Standby Reception PTY Standby Reception allows the unit to switchtemporarily to your favorite programme (PTY:Programme Type) from the current source(another FM station or CD).• PTY Standby Reception will not work if you arelistening to an AM station.You can select your favorite programme type forPTY Standby Reception.When shipped from the factory, PTY StandbyReception is turned off. (“OFF” is selected forPTY Standby Reception.) 1

Press and hold SEL (select) for more

than 2 seconds so that one of the

PSM items appears on the display.

Select one of the twenty-nine PTY

codes. (See page 16.) Selected code name appearson the display and is storedinto memory. 4

Finish the setting. 7 When the current source is FM, the PTYindicator either lights up or flashes.• If the PTY indicator lights up, PTY StandbyReception is activated.If a station starts broadcasting the selectedPTY programme, this unit automaticallytunes in to the station.• If the PTY indicator flashes, PTY StandbyReception is not yet activated since thestation being received does not provide thesignals used for PTY Standby Reception.To activate PTY Standby Reception, youneed to tune in to another station providingthese signals. Press ¢ or 4 to search for such a station.When a station providing these signals istuned in, the PTY indicator stops flashingand remains lit. Now PTY Standby Receptionis activated.7 When the current source is other than FM,the PTY indicator lights up.If a station starts broadcasting the selectedPTY programme, this unit automaticallychanges the source and tunes in to the station.To deactivate the PTY Standby Reception,select “OFF” in step 3 on the left column. ThePTY indicator disappears.

SEL SEL EN10-16_KD-S743R[E_EX]f.p65 11/18/02, 6:40 PM1213

ENGLISH Searching your favorite programme

You can search any one of the PTY codes.

In addition, you can store your 6 favorite

programme types in the number buttons.

When shipped from the factory, the following 6

programme types have been stored in the

number buttons (1 to 6).

To store your favorite programme types, see

To search your favorite programme type, see

To store your favorite programme types

Press and hold TP/PTY for more than

2 seconds while listening to an FM

Select one of the twenty-nine PTY

codes. (See page 16.)

Selected code name appears

Press and hold the number button

for more than 2 seconds to store the

PTY code selected into the preset

“MEMORY” and the selected code name

alternate on the display.

Press and hold TP/PTY for more than

2 seconds to exit from this mode. TP/PTY The last selected PTY code appears. POP M 1

MO PTY TP/PTY EN10-16_KD-S743R[E_EX]f.p65 11/19/02, 12:50 PM1314

ENGLISH • If there is a station broadcasting a programmeof the same PTY code as you selected, thatstation is tuned in.• If there is no station broadcasting a programmeof the same PTY code as you selected, thestation will not change.Note:In some areas, the PTY search will not work correctly. Other convenient RDS

functions and adjustments

Automatic selection of the station

when using the number buttons Usually when you press the number button, thepreset station is tuned in.However, when the preset station is an RDSstation, something different will happen. If thesignals from that preset station are not sufficientfor good reception, this unit, using the AF data,tunes in to another frequency broadcasting thesame programme as the original preset station isbroadcasting. (Programme search)• The unit takes some time to tune in to anotherstation using Programme search.To activate Programme search, follow theprocedure below. 1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM itemsappears on the display. (See page 23.) 2 Press ¢ or 4 to select “P(Programme)-SEARCH.” 3 Press + to select “ON.” Now Programme search is activated. 4 Press SEL (select) to finish the setting. To cancel Programme search, repeat the sameprocedure and select “OFF” in step 3 bypressing –. To search your favorite programme type

Press and hold TP/PTY for more than

2 seconds while listening to an FM

To select one of your favorite

To select any one of the twenty-nine

Press ¢ or 4 to start PTY

search for your favorite programme. The last selected PTY code appears.Ex.: When “ROCK M” is selected910 127 RND

ENGLISH Changing the display mode while

listening to an FM station You can change the initial indication on thedisplay to station name (PS NAME), stationfrequency (FREQ), or clock time (CLOCK) whilelistening to an FM RDS station. 1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM itemsappears on the display. (See page 23.) 2 Press ¢ or 4 to select “DISPMODE” (display mode). 3 Press + or – to set to the desired indication

(“PS NAME,” “FREQ,” or “CLOCK”).

4 Press SEL (select) to finish the setting.

Note: By pressing DISP (display), you can change thedisplay while listening to an FM RDS station.Each time you press the button, the followinginformation appears on the display:• Then, the display goes back to the originalindication in several seconds. Setting the TA volume level You can preset the volume level for TA StandbyReception. When a traffic programme is received,the volume level automatically changes to thepreset level. 1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM itemsappears on the display. (See page 23.) 2 Press ¢ or 4 to select “TA VOL” (volume). 3 Press + or – to set to the desired volume.

You can set it from “VOL 00” to “VOL 50.”

4 Press SEL (select) to finish the setting.

Automatic clock adjustment When shipped from the factory, the clock built inthis unit is set to be readjusted automatically usingthe CT (Clock Time) data in the RDS signal.If you do not want to use automatic clockadjustment, follow the procedure below. 1 Press and hold SEL (select) for more than 2 seconds so that one of the PSM itemsappears on the display. (See page 23.) 2 Press ¢ or 4 to select “AUTO ADJ” (adjustment). 3 Press – to select “OFF.” Now automatic clock adjustment is canceled. 4 Press SEL (select) to finish the setting. To reactivate clock adjustment, repeat the same procedure and select “ON” in step 3 by pressing +.

Note: You must stay tuned to the same station for more than2 minutes after setting “AUTO ADJ” to “ON.”Otherwise, the clock time will not be adjusted. (This isbecause the unit takes up to 2 minutes to capture theCT data in the RDS signal.) Station name

AFFAIRS: Topical programmes expanding

on current news or affairs

INFO: Programmes which impart

advice on a wide variety of

EDUCATE: Educational programmes

SCIENCE: Programmes on natural

science and technology

VARIED: Other programmes like

comedies or ceremonies

LIGHT M: Light music

CLASSICS: Classical music

OTHER M: Other music

WEATHER: Weather information

FINANCE: Reports on commerce, trading,

the Stock Market, etc.

CHILDREN: Entertainment programmes for

SOCIAL: Programmes on social activities

RELIGION: Programmes dealing with any

aspect of belief or faith, or the

nature of existence or ethics

PHONE IN: Programmes where people can

express their views either by

phone or in a public forum

TRAVEL: Programmes about travel

destinations, package tours, and

travel ideas and opportunities

LEISURE: Programmes concerned with

recreational activities such as

gardening, cooking, fishing, etc.

COUNTRY: Country music

NATION M: Current popular music from

another nation or region, in that

OLDIES: Classic pop music

DOCUMENT: Programmes dealing with factual

matters, presented in an

The same programme can be received on different frequencies.

frequency C Programme 1

frequency D Programme 1

frequency B Programme 1

frequency E Programme 1

frequency A EN10-16_KD-S743R[E_EX]f.p65 11/18/02, 6:40 PM1617

ENGLISH Playing a CD Insert a CD into the loading slot. The unit turns on,draws the CD andstarts playbackautomatically. Note on One-Touch Operation: When a CD is already in the loading slot, pressingCD turns on the unit and starts playbackautomatically. CD OPERATIONS All tracks will be played repeatedly until you stopplayback. Note: When a CD is inserted upside down, “EJECT” appearson the display and the CD automatically ejects. To stop play and eject the CD Press 0.CD play stops and the CD automatically ejectsfrom the loading slot. The source changes to thetuner (you will hear the last received station).• If you change the source, CD play also stops(without ejecting the CD).Next time you select “CD” as the source, CDplay starts from where playback has beenstopped previously. Notes: • If the ejected CD is not removed for about 15seconds, the CD is automatically inserted againinto the loading slot to protect it from dust.(CD play will not start this time.)• You can eject the CD even when the unit is turned off.

About mistracking: Mistracking may result from driving on extremelyrough roads. This does not damage the unit andthe CD, but will be annoying.We recommend that you stop CD play whiledriving on such rough roads.The CD–in indicator lights up.Elapsed playing time Current trackTotal track numberof the inserted discTotal playing timeof the inserted disc SSM SCMMODE7 9 10 12 RND

MO AM FM TP/PTY SEL DISP CD The CD–in indicator flashes. EN17-19_KD-S743R[E_EX]f.p65 11/18/02, 6:40 PM1718

ENGLISH Locating a track or a

particular portion on a CD To fast-forward or reverse the track

To go to the next or previous tracks

To go to a particular track directly

Press the number button corresponding to the

track number to start its playback.

• To select a track number from 1 – 6:

Press 1 (7) – 6 (12) briefly.

• To select a track number from 7 – 12:

Press and hold 1 (7) – 6 (12) for more than one

playing a CD, to fast-forward the

Selecting CD playback modes

To play back tracks at random

You can play back all tracks on the CD at random.

1 Press MODE to enter the

functions mode while playing a

2 Press RND (random), while

still in the functions mode, so

that the RND indicator lights

Each time you press the

button, CD random play mode

turns on and off alternately.

When random play is turned on, the RND

indicator lights up on the display. A track

randomly selected starts playing.

playing a CD, to reverse the track.

Press ¢ briefly, while playing

a CD, to go ahead to the beginning

Each time you press the button

consecutively, the beginning of the

next tracks is located and played

Press 4 briefly, while playing

a CD, to go back to the beginning

of the current track.

Each time you press the button

consecutively, the beginning of the

previous tracks is located and

ENGLISH To play back tracks repeatedly

You can play back the current track repeatedly.

1 Press MODE to enter the

functions mode while playing a

2 Press RPT (repeat), while still

in the functions mode, so that

the RPT indicator lights up on

Each time you press the

button, CD repeat play mode

turns on and off alternately.

When repeat play is turned on, the RPT indicator

lights up on the display. The current track starts

Prohibiting CD ejection

You can prohibit CD ejection and can lock a CD

in the loading slot.

While pressing CD, press and hold 0 for

more than 2 seconds.

“EJECT” flashes on the display for about 5

seconds, and the CD is locked and cannot be

To cancel the prohibition and unlock the CD,

press 0 again for more than 2 seconds, while

“EJECT” appears on the display, and the CD

ejects from the loading slot.

currently playing track

SCM BEAT SOFT POPSCM OFF SCM SOUND ADJUSTMENTS Adjusting the sound You can adjust the sound characteristics to yourpreference. 1 Select the item you want to adjust.Each time you press thebutton, the adjustable itemschange as follows:Indication To do: RangeBAS Adjust the bass. –06 (min.) | +06 (max.)TRE Adjust the treble. –06 (min.) | +06 (max.)FAD* Adjust the front R06 (Rear only)and rear speaker |balance. F06 (Front only)BAL Adjust the left L06 (Left only)and right speaker |balance. R06 (Right only)LOUD Boost low andhigh frequencies LOUD ONto produce a well- |balanced sound LOUD OFFat low volumelevel.VOL Adjust the volume. 00 (min.) | 50 (max.)* If you are using a two-speaker system, set the faderlevel to “00.” 2 Adjust the setting. Note: Normally, the + and – buttons work as the volumecontrol buttons. So you do not have to select “VOL”to adjust the volume level. Selecting preset sound modes You can select a preset sound adjustmentsuitable to the music genre.Select the sound mode you want.Each time you press thebutton, the sound modechanges as follows:To decrease the level or turnoff the loudnessTo increase the level or turnon the loudness VOL

(loudness) Ex.: When you adjust “TRE” (treble)

SEL SCM EN20-21_KD-S743R[E_EX]f.p65 11/18/02, 6:37 PM2021

ENGLISH Indication For: Preset valuesBAS TRE LOUDSCM OFF (Flat sound) 00 00 OFFBEAT Rock or +02 00 ONdisco musicSOFT Quiet +01 –03 OFFbackgroundmusicPOP Light music +04 +01 OFFNotes:• You can adjust each sound mode to your preference,and store it in memory.If you want to adjust and store your original soundmode, see “Storing your own sound adjustments”below.• To adjust the bass and treble reinforcement levelsor to turn on/off the loudness function, see page 20. Storing your own sound

adjustments You can adjust the sound modes (BEAT, SOFT,POP) to your preference and store your ownadjustments in memory.• There is a time limit in doing the followingprocedure. If the setting is canceled before youfinish, start from step 1 again. 1

Call up the sound mode you want to

adjust. • See page 20 for details. 2

Select “BAS” (bass), “TRE” (treble),

or “LOUD” (loudness).

Adjust the bass or treble, or turn the

Press and hold SCM until the sound

mode you have selected in step

flashes on the display. Your adjustment made for theselected sound mode is storedin memory. 6

Repeat the same procedure to store

other sound modes. To reset each sound mode to the factorysettings, repeat the same procedure andreassign the preset values listed in the table onthe left column.

SCM SCM SEL EN20-21_KD-S743R[E_EX]f.p65 11/18/02, 6:37 PM2122

ENGLISH OTHER MAIN FUNCTIONS Selecting the level display You can select the level display according to yourpreference.When shipped from the factory, “VOL 2” is selected. 1

Press and hold SEL (select) for more

than 2 seconds so that one of the

PSM items appears on the display.

Select the desired mode—“VOL 1,”

“VOL 2,” or “OFF.” • VOL 1: Shows the volume level indicator.• VOL 2: Alternates “VOL 1” setting andillumination display.• OFF: Erases the volume levelindicator. 4

Selecting the telephone muting This mode is used when a cellular phone systemis connected. Depending on the phone systemused, select either “MUTING 1” or “MUTING 2,”whichever mutes the sounds from this unit.When shipped from the factory, this mode isdeactivated. 1

Press and hold SEL (select) for more

than 2 seconds so that one of the

PSM items appears on the display.

Select the desired mode—“MUTING

1,” “MUTING 2,” or “OFF.” • MUTING 1: Select this if this setting canmute the sounds.• MUTING 2: Select this if this setting canmute the sounds.• OFF: Cancels the telephonemuting. 4

ON CLOCK H Hour adjustment

CLOCK M Minute adjustment

24H/12H 24/12-hour time

TA VOL Traffic announcement

PS NAME ON OFF VOL 00 – VOL 50

• Press SEL (select) to finish the setting.

OFF EN22-24_KD-S743R[E_EX]f.p65 11/25/02, 2:08 PM2324

ENGLISH Detaching the control panel You can detach the control panel when leavingthe car.When detaching or attaching the control panel,be careful not to damage the connectors on theback of the control panel and on the panelholder. Detaching the control panel Before detaching the control panel, be sure toturn off the power. 1

Unlock the control panel.

Lift and pull the control panel out of

Put the detached control panel into

Attaching the control panel

Insert the left side of the control

panel into the groove on the panel

Press the right side of the control

panel to fix it to the panel holder. Note on cleaning the connectors:If you frequently detach the control panel, theconnectors will deteriorate.To minimize this possibility, periodically wipe theconnectors with a cotton swab or cloth moistenedwith alcohol, being careful not to damage theconnectors.Connectors EN22-24_KD-S743R[E_EX]f.p65 11/18/02, 6:36 PM2425

ENGLISH TROUBLESHOOTING What appears to be trouble is not always serious. Check the following points before calling a service

Adjust it to the optimum level.

While holding SEL (select),

press for more than 2

seconds to reset the unit. (The

clock setting and preset stations

stored in memory are erased.)

Store stations manually.

Connect the antenna firmly.

Insert the CD correctly.

• Insert a finalized CD-R/CD-RW.

• Finalize the CD-R/CD-RW

with the component which

you used for recording.

Unlock the CD. (See page 19.)

While holding , press

0 for more than 2 seconds. Be

careful not to drop the CD when

Stop playback while driving on

Insert a CD into the loading slot.

Insert the CD correctly.

The volume level is set to the

Connections are incorrect.

The built-in microcomputer

incorrectly due to noise, etc.

Signals are too weak.

The antenna is not connected

CD is inserted upside down.

CD-R/CD-RW is not finalized.

The CD player may function

You are driving on rough

Connections are incorrect.

No CD in the loading slot.

CD is inserted incorrectly.

• Sound cannot be heard

• This unit does not work at

• SSM (Strong-station

automatic preset does not

• Static noise while listening

• CD can be neither played

• CD sound is sometimes

•“NO DISC” appears on the

ENGLISH MAINTENANCE Handling discs This unit has been designed to reproduce CDs,CD-Rs (Recordable), and CD-RWs (Rewritable).• This unit is not compatible with MP3 discs. How to handle CDs When removing a CD from itscase, press down the centerholder of the case and lift the CDout, holding it bythe edges.• Always hold the CD by the edges. Do not touchits recording surface.When storing a CD into its case, gently insertthe CD around the center holder (with the printedsurface facing up).• Make sure to store CDs into the cases after use. To keep CDs clean A dirty CD may not play correctly. Ifa CD does become dirty, wipe itwith a soft cloth in a straight linefrom center to edge. To play new CDs New CDs may have some roughspots around the inner and outeredges. If such a CD is used, thisunit may reject the CD.To remove these rough spots, rubthe edges with a pencil or ball-point pen, etc. Moisture condensation Moisture may condense on the lens inside theCD player in the following cases:• After starting the heater in the car.• If it becomes very humid inside the car.Should this occur, the CD player maymalfunction. In this case, eject the CD and leavethe unit turned on for a few hours until themoisture evaporates. When playing a CD-R or CD-RW Before playing back CD-Rs or CD-RWs, readtheir instructions or cautions carefully. • Use only “finalized” CD-Rs or CD-RWs. • Some CD-Rs or CD-RWs may not play back onthis unit because of their disc characteristics,and for the following reasons:– Discs are dirty or scratched.– Moisture condensation on the lens inside theunit.– The pickup lens inside the unit is dirty.• CD-RWs may require a longer readout timesince the reflectance of CD-RWs is lower thanthat of regular CDs.• CD-Rs or CD-RWs are susceptible to hightemperatures or high humidity, so do not leavethem inside your car.• Do not use following CD-Rs or CD-RWs:– Discs with stickers, labels, or protective sealstuck to the surface.– Discs on which labels can be directly printedby an ink jet printer.Using these discs under high temperatures orhigh humidity may cause malfunctions ordamage to discs. For example,– Stickers or labels may shrink and warp a disc.– Stickers or labels may peel off so discscannot be ejected.– Print on discs may get sticky.Read instructions or cautions about labels andprintable discs carefully. CAUTIONS: • Do not insert 8 cm CDs (single CDs) into theloading slot. (Such CDs cannot be ejected.)• Do not insert any CD of unusual shape—like aheart or flower; otherwise, it will cause amalfunction.• Do not expose CDs to direct sunlight or anyheat source or place them in a place subject tohigh temperature and humidity. Do not leavethem in a car.• Do not use any solvent (for example,conventional record cleaner, spray, thinner,benzine, etc.) to clean CDs.Center holderWarped disc StickerStickerresidue Disc Stick-onlabel EN25-27_KD-S743R[E_EX]f.p65 11/18/02, 6:40 PM2627

ENGLISH AUDIO AMPLIFIER SECTION Maximum Power Output:

Front: 45 W per channel

Rear: 45 W per channel

Continuous Power Output (RMS):

Front: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion.

Rear: 17 W per channel into 4 Ω, 40 Hz

to 20 000 Hz at no more than

0.8% total harmonic distortion.

Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)

Bass: ±10 dB at 100 Hz

Treble: ±10 dB at 10 kHz

Frequency Response: 40 Hz to 20 000 Hz

TUNER SECTION Frequency Range:

FM: 87.5 MHz to 108.0 MHz

AM: (MW) 522 kHz to 1 620 kHz

(LW) 144 kHz to 279 kHz

50 dB Quieting Sensitivity:

16.3 dBf (1.8 µV/75 Ω)

Alternate Channel Selectivity (400 kHz):

Stereo Separation: 30 dB Capture Ratio: 1.5 dB

Sensitivity: 20 µV Selectivity: 35 dB

Sensitivity: 50 µV CD PLAYER SECTION Type: Compact disc player

Signal Detection System: Non-contact optical

pickup (semiconductor laser)

Number of channels: 2 channels (stereo)

Frequency Response: 5 Hz to 20 000 Hz

Dynamic Range: 96 dB Signal-to-Noise Ratio: 98 dB Wow and Flutter: Less than measurable limit

GENERAL Power Requirement:

DC 14.4 V (11 V to 16 V allowance)

Grounding System: Negative ground

Allowable Operating Temperature: 0°C to +40°C Dimensions (W × H × D):

Installation Size (approx.):

182 mm × 52 mm × 150 mm

Panel Size (approx.):

188 mm × 58 mm × 11 mm

1.3 kg (excluding accessories)

Design and specifications are subject to change

MO AM CD FM TP/PTY SEL

MO TP/PTY SEL AM CD FM

AM FM AM FM1 FM2 FM3

PS NAME ON OFF VOL 00 – VOL 50 15VOL 20

performances possibles.

MO AM CD FM TP/PTY SEL

MO TP/PTY SEL AM CD FM

AM FM AM FM1 FM2 FM3

PS NAME ON OFF VOL 00 – VOL 50 15VOL 20

station Sequential Memory)

MO AM CD FM TP/PTY SEL

; De indicator SCM (sound control memory)

j De indicators RDS AF, REG, TP, PTY

MO TP/PTY SEL AM CD FM

AM FM AM FM1 FM2 FM3

SSM (Strong-station Sequential Memory)

“AF”, “AF REG” of “OFF”.

kiezen (“PS NAME”, “FREQ” of “CLOCK”).

of “LOUD” (loudness).

Selecteer de “LEVEL”.

PS NAME ON OFF VOL 00 – VOL 50 15VOL 20

• Automatisch instellen van

zenders—SSM (Strong-

station Sequential Memory)

NL25-27_KD-S743R[E_EX]f.p65 11/21/02, 1:14 PM27EN, GE, FR, NL1202KKSMDTJEIN Having TROUBLE with operation?

Please reset your unit

Refer to page of How to reset your unit

Haben Sie PROBLEME mit dem Betrieb?
