CD RECEIVER INSTRUCTION MANUAL RÉCEPTEUR CD MANUEL D’INSTRUCTIONS Please read all instructions carefully before

operation to obtain the best possible performance

Book Size: B6L (182 mm x 128 mm)

Information on Disposal of Old Electrical and Electronic Equipment and Batteries

(applicable for EU countries that have adopted separate waste collection systems)

Products and batteries with the symbol (crossed-out wheeled bin) cannot be disposed as

Old electrical and electronic equipment and batteries should be recycled at a facility capable of

handling these items and their waste byproducts.

Contact your local authority for details in locating a recycle facility nearest to you. Proper

recycling and waste disposal will help conserve resources whilst preventing detrimental effects

on our health and the environment.

Notice: The sign “Pb” below the symbol for batteries indicates that this battery contains lead.

Information sur l’élimination des anciens équipements électriques et électroniques

Declaration of Conformity with regard to the EMC Directive 2004/108/EC Declaration of Conformity with regard to the RoHS Directive 2011/65/EU Manufacturer:

JVC Technical Services Europe GmbH Konrad-Adenauer-Allee 1-11, D-61118 Bad Vilbel, Germany

The marking of products using lasers

The label is attached to the chassis/case and says that the component uses laser beams that

have been classified as Class 1. It means that the unit is utilizing laser beams that are of a

weaker class. There is no danger of hazardous radiation outside the unit.

Marquage des produits utilisant un laser

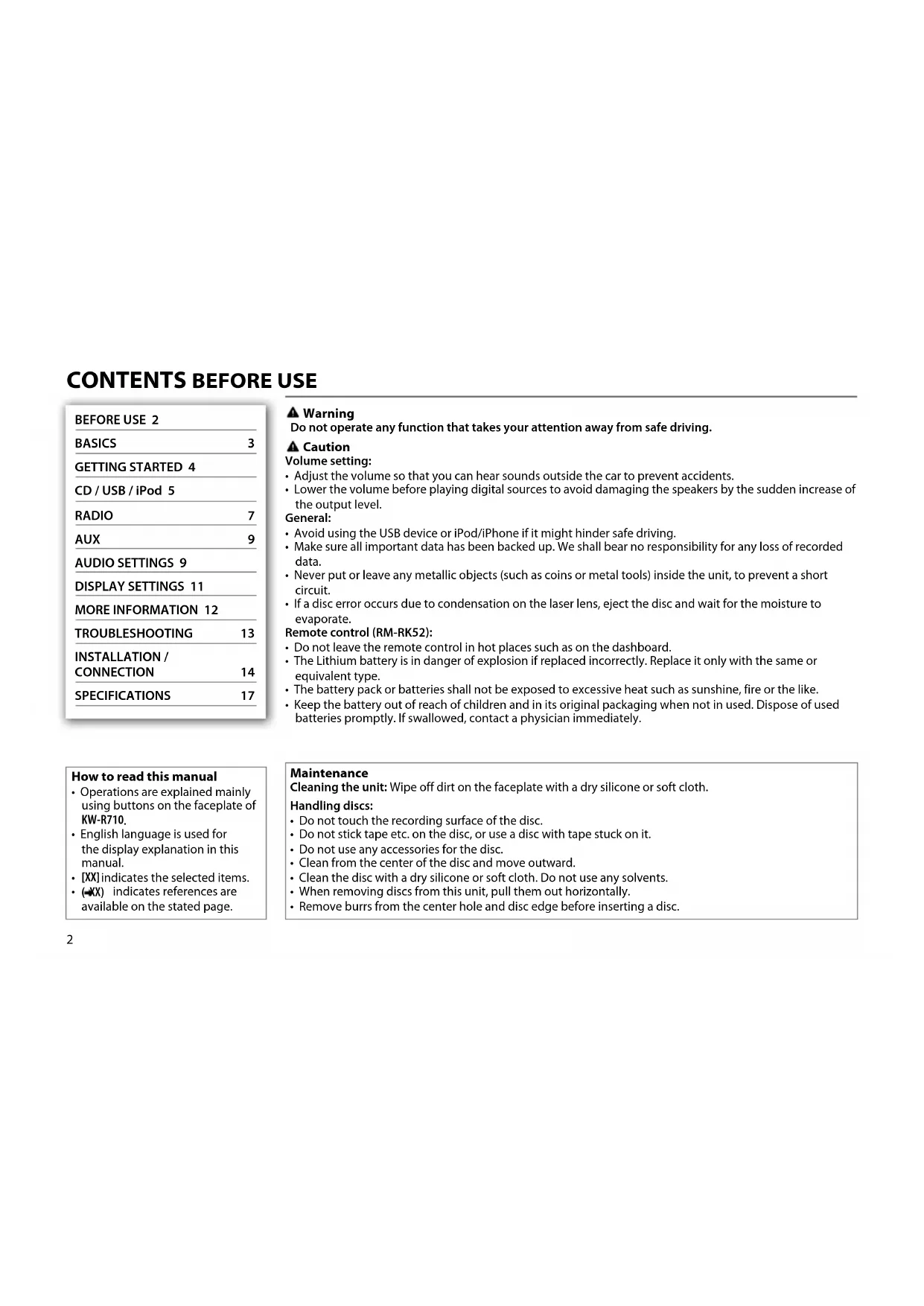

Do not operate any function that takes your attention away from safe driving.

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of

• Avoid using the USB device or iPod/iPhone if it might hinder safe driving.

• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded

• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short

• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to

Remote control (RM-RK52):

• Do not leave the remote control in hot places such as on the dashboard.

• The Lithium battery is in danger of explosion if replaced incorrectly. Replace it only with the same or

• The battery pack or batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

• Keep the battery out of reach of children and in its original packaging when not in used. Dispose of used

batteries promptly. If swallowed, contact a physician immediately.

How to read this manual

• Operations are explained mainly

using buttons on the faceplate of

• English language is used for

the display explanation in this

indicates the selected items.

indicates references are

available on the stated page.

Cleaning the unit: Wipe off dirt on the faceplate with a dry silicone or soft cloth.

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use any accessories for the disc.

• Clean from the center of the disc and move outward.

• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.

• When removing discs from this unit, pull them out horizontally.

• Remove burrs from the center hole and disc edge before inserting a disc.

Remote control (RM-RK52) (not supplied)

can be remotely controlled with an

optionally purchased remote control.

To Do this (on the faceplate) Do this (on the remote control)

• Press and hold to turn off the power.

Adjust the volume Turn the volume knob. Press VOL + or VOL –.

Press the volume knob to mute the sound or pause playback.

• Press again to cancel.

to mute the sound or pause playback.

• Press again to cancel.

• Press B /SOURCE repeatedly.

• Press B /SOURCE, then turn the volume knob within 2 seconds.

Press SOURCE repeatedly.

Press DISP repeatedly.

• Press and hold to scroll the current display information.

Your preset adjustments

will also be erased.

Pull out the insulation sheet

when using for the first time.

How to replace the battery

(Do not expose to bright sunlight.)

4 Press MENU to exit.

7 Press MENU to exit.

Set the basic settings

Press and hold MENU.

2 Turn the volume knob to make a selection (see the following table),

then press the knob.

3 Press MENU to exit.

:The clock time is automatically set using the Clock Time (CT) data in

:The clock time is shown on the display even when the unit is turned

:Enables AM in source selection.;

:Enables AUX in source selection.;

when the KS-BTA100 Bluetooth adapter is connected to the auxiliary input

. The source name will change to BTAUDIO.

LANGUAGE Selects the display language for menu and Tag information (folder name, file

name, song title, artist name, album name) if applicable.

:Display language is English.

:Display language is Russian.

F/W UPDATE SYSTEM F/W xxxx

:Starts upgrading the firmware.;

:Cancels (upgrading is not

For details on how to update the firmware, see:

<http://www.jvc.net/cs/car/>.

* Not displayed when the corresponding source is selected.

Press 3 B repeatedly to make a selection.

Press 2 A repeatedly to make a selection.

Do not leave the cable inside the car when not using.

You can still play/pause, file skip, fast-forward or reverse files from the unit.

Only for MP3/WMA/WAV files. This does not work for iPod.

• You can also change the source from the

other source to iPod by pressing iPod.

Press 5 iPod MODE repeatedly to select the

: From the iPod/iPhone.

Eject disc Label side

(Accessory of the iPod/iPhone)

(commercially available)

Data Size: B6L (182 mm x 128 mm)

Select a track/file from a list

2 Turn the volume knob to make a selection, then press the knob.

• MP3/WMA/WAV file: Select the desired folder, then a file.

• iPod or JPC / JMC file: Select the desired file from the list (PLAYLISTS,

ARTISTS, ALBUMS, SONGS, PODCASTS

If you have many files....

You can search through them quickly (on step

2 above) by turning the

volume knob quickly.

• Not applicable for iPod.

Select a song by name

While listening to the iPod and

If you have many folders or tracks/files, you can search through them

quickly according to the first character (A to Z, 0 to 9 and OTHERS).

• “OTHERS” appear if the first character is other than Ato Z, 0 to 9.

2 Turn the volume knob to select the desired list, then press the

3 Press J / K or turn the volume knob quickly to select the desired

4 Turn the volume knob to select the desired folder or track/file, then

Change the USB drive

When a smartphone (Mass Storage Class) is connected to the USB input

terminal, you can select its internal memory or external memory (such as an

SD card) to playback the stored songs.

You can also select the desired drive to playback when a multiple drives

device is connected.

Press number button 5 repeatedly to select the desired drive.

The next drive is selected automatically.

Repeat steps 1 to 4 to select the following drives.

Change the playback speed of the Audiobook

While listening to the iPod and

: Select the desired playback

speed of the Audiobooks sound file in your iPod/iPhone.

(Default: Depends on your iPod/iPhone setting.)

• To return to the previous setting item or hierarchy, press GT/P.

“ST” lights up when receiving an FM stereo broadcast with sufficient

Search for a station

Press B /SOURCE to select FM or AM.

2 Press S/ T (or press H / I on RM-RK52) to search for a station

Press and hold S/ T (or press and hold H / I on RM-RK52) until

“M” flashes, then press repeatedly to search for a station manually.

You can store up to 18 stations for FM and 6 stations for AM.

While listening to a station....

Press and hold one of the number buttons (1 to 6) to store.

The preset number flashes and “MEMORY” appears.

• To select a stored station: Press J / K or one of the number buttons

press the knob to confirm.

Search for your favorite program (PTY Search)

Available only for FM source.

1 Press and hold GT/P.

2 Turn the volume knob to select a PTY code, then press the knob to

If there is a station broadcasting a program of the same PTY code as

you have selected, that station is tuned in.

Available only for FM source.

The unit will temporarily switch to Traffic Announcement (TA) (if

available) from any source other than AM.

• To deactivate, press GT/P again.

JS_JVC_KW-R710_E_01_EN.indd 7JS_JVC_KW-R710_E_01_EN.indd 7 11/13/2013 10:24:09 AM11/13/2013 10:24:09 AM8

3 Turn the volume knob to make a selection (see the following table),

then press the knob.

4 Press MENU to exit.

To return to the previous setting item or hierarchy, press GT/P.

XX RADIO TIMER Turns on the radio at a specific time regardless of the current source.

:Select how often the timer will be turned

:Select the FM or AM band.

(for AM):Select the preset station.

Radio Timer will not activate for the following cases.

• The unit is turned off.

after Radio Timer for AM is

Automatically presets up to 18 stations for FM. “SSM” stops flashing when

the first 6 stations are stored. Select

the following 12 stations.

:Increases the tuner selectivity to reduce interference noises from

adjacent FM stations. (Stereo effect may be lost.);

interference noises from adjacent FM stations, but sound quality will not be

degraded and the stereo effect will remain.

:Improves the FM reception, but the stereo effect will be lost.;

: Switches to another station only in the specific region using the “AF”

: Automatically searches for another station broadcasting the same

program in the same Radio Data System network with better reception

when the current reception is poor.;

Use a portable audio player

Connect a portable audio player (commercially available).

3 Press B /SOURCE to select AUX.

4 Turn on the portable audio player and start playback.

Use a 3-core plug head stereo mini plug for optimum audio

Connect the Bluetooth adapter, KS-BTA100 (separately purchased).

2 Register (pair) the Bluetooth device with KS-BTA100.

4 Press B /SOURCE to select BT AUDIO.

5 Start using the Bluetooth device.

For details, refer to the instruction manual of KS-BTA100.

Wiring harness of the unit

3.5mm stereo mini plug with “L” shaped connector

(commercially available)

Portable audio player

Auxiliary input jack

Press EQ repeatedly.

Press EQ, then turn the volume knob within

1 Press and hold EQ.

4 Turn the volume knob to make a selection, then

BASSLVL: –06 to +06

* Displayed only when

2 Turn the volume knob to make a selection

Repeat step 2 until the desired item is selected.

3 Press MENU to exit.

To return to the previous setting item or hierarchy, press GT/P.

:Select a preset name.

Adjust your own sound settings.

:Select a preset name.

:Select a sound tone.

Adjust the sound elements of the selected sound tone.

: Selects your preferred bass boost level.;

:Boosts low or high frequencies to produce a well-balanced sound

:All signals are sent to the subwoofer. ;

:Audio signals with frequencies lower than

55Hz/ 85Hz/ 120Hz are sent to the subwoofer.

):Adjusts the front and rear speaker output balance.

):Adjusts the left and right speaker output balance.

):Presets the volume adjustment level of each source

(compared to the FM volume level). Before adjustment, select the source

you want to adjust. (“VOLADJFIX” appears if FM is selected.)

maximum power of each speaker is less than 50W to prevent damaging

:The maximum volume level is 50.

:Creates realistic sound by compensating the high-frequency

components and restoring the rise-time of the waveform that are lost in

audio data compression.;

:Mutes the sounds while using the cellular phone (not connected

through KS-BTA100).;

:Selects whether rear speakers or a subwoofer are

connected to the REAR/SW line out terminals on the rear panel (through an

external amplifier).

This adjustment will not affect the subwoofer output.

If you are using a two-speaker system, set the fader level to

2 Turn the volume knob to make a selection (see the following

table), then press the knob.

2 until the desired item is selected.

3 Press MENU to exit.

To return to the previous setting item or hierarchy, press GT/P.

XX DISPLAY DIMMER Selects the display and button illumination adjusted in the

:Changes between the day and night adjustments when you turn

off or on the car headlights. *

:Selects the night adjustments.;

:Selects the day adjustments.

:Select day or night.

Select a zone for setting.

( Illustration above)

Set the brightness level (

:Repeats scrolling at

The illumination control wire connection is required.

PRESET You can select a color for [

], you can also select a color pattern.

Select a zone for setting.

( Illustration on left column)

Select a color for the selected zone.

: The color you have created for [

: Color changes at different speeds.

selected color pattern is shown.* (Selectable only when [

* If one of these color pattern is selected, the [

DAY COLOR Store your own day and night colors for different zone.

Select a zone for setting.

:Select a primary color.

for all the primary colors.

• Your setting is stored to

is selected for all primary colors for

, nothing appears on

NIGHT COLOR COLOR GUIDE ON

settings are performed on menu and list search. Display zone will automatically

is changed by turning on or off your car’s

DISPLAY SETTINGS MORE INFORMATION About discs and audio files

• This unit can only play the following CDs:

• This unit can play back multi-session discs; however,

unclosed sessions will be skipped during playback.

- Discs that are not round.

- Discs with coloring on the recording surface or discs that

- Recordable/ReWritable discs that have not been

- 8 cm CD. Attempting to insert using an adapter may

The Non-DVD side of a “DualDisc”

does not comply with the “Compact Disc Digital Audio”

standard. Therefore, the use of Non-DVD side of a DualDisc

on this product cannot be recommended.

WMA: 32kbps — 192kbps

- Sampling frequency:

MP3: 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz,

16kHz, 12kHz, 11.025kHz, 8kHz

Maximum number of characters for file/folder name:

It depends on the disc format used (includes 4 extension

characters—<.mp3> or <.wma>).

- ISO 9660 Level 1 and 2: 32 characters

- Romeo: 32 characters

- Joliet: 32 characters

- Windows long file name: 32 characters

• This unit can play MP3/WMA/WAV files stored on a USB

mass storage class device.

• You cannot connect a USB device via a USB hub.

• Connecting a cable whose total length is longer than 5m

may result in abnormal playback.

• The maximum number of characters for:

- Folder names: 64 characters

- File names: 64 characters

- WAV Tag: 64 characters

• This unit can recognize a total of 20 480 files, 999 folders

(999 files per folder including folder without unsupported

files), and of 8 hierarchies.

• This unit cannot recognize a USB device whose rating is

other than 5V and exceeds 1A.

- iPod touch (1st, 2nd, 3rd, 4th, and 5th generation)

- iPod nano (3rd, 4th, 5th, 6th and 7th generation)

- iPhone, iPhone 3G, 3GS, 4, 4S, 5

• It is not possible to browse video files on the “Videos”

• The song order displayed on the selection menu of this unit

may differ from that of the iPod/iPhone.

• If some operations are not performed correctly or as

intended, visit: <http://www.jvc.net/cs/car/>.

PRESET Select a color for [

: The color you have created for

Color changes at different speeds.

DAY COLOR Store your own day and night colors.

• Your setting is stored to

NIGHT COLOR MENU COLOR ON

:Changes the button illumination to

white color when settings are performed on

menu and list search.;

Adjust the brightness (for

1 Press I to enter brightness adjustment.

4 Press MENU to exit.

Book Size: B6L (182 mm x 128 mm)

About JVC Playlist Creator and JVC Music Control

• This unit supports the PC application JVC Playlist Creator and Android

application JVC Music Control.

• When you play audio file with song data added using the JVC Playlist Creator or JVC Music Control, you

can search for audio file by Genres, Artists, Albums, Playlists, and Songs.

• JVC Playlist Creator and JVC Music Control are available from the following web site:

<http://www.jvc.net/cs/car/>.

Available Cyrillic letters

Press DISP repeatedly.

AM Station name (PS)*

Frequency Program type (PTY)*

(back to the beginning)

For FM Radio Data System stations only.

USB Playing time Day/Clock Disc name*

(back to the beginning)

Only for CD-DA: If not recorded, “NO NAME” appears.

Only for MP3/WMA files: If not recorded, “NO NAME” appears.

If not recorded, “NO NAME” appears.

(back to the beginning)

If not recorded, “NO NAME” appears.

BT AUDIO BT AUDIO Day/Clock

MORE INFORMATION TROUBLESHOOTING Symptom Remedy

Sound cannot be heard. • Adjust the volume to the optimum level.

• Check the cords and connections.

“MISWIRING CHK WIRING THEN RESET UNIT” /

“WARNING CHK WIRING THEN RESET UNIT” appears and no

operations can be done.

Check to be sure the terminals of the speaker

wires are insulated properly, then reset the

unit. If this does not solve the problem, consult

your nearest service center.

Source cannot be selected. Check the

Radio reception is poor. /

Static noise while listening to

• Connect the antenna firmly.

• Pull the antenna out all the way.

Correct characters are not

This unit can only display uppercase letters,

numbers, and a limited number of symbols. The

unit can also display uppercase Cyrillic letters.

“PLEASE” and “EJECT” appear

“IN DISC” appears. Make sure nothing is blocking the loading slot

when you eject the disc.

Disc cannot be ejected.

to forcibly eject the disc. Be

careful not to drop the disc when it is ejected.

Playback order is not as

The playback order is determined by the file

name (USB) or the order in which files were

Elapsed playing time is not

This depends on the recording process earlier.

“NOT SUPPORT” appears and

Check whether the track is a playable format.

Available characters

“CANNOT PLAY” flashes

and/or connected device

• Check whether the connected device is compatible with this

unit and ensure the files are in supported formats.

• Reattach the device.

“READING” keeps flashing. • Do not use too many hierarchical levels and folders.

• Reload the disc or reattach the USB device.

The iPod/iPhone does not

turn on or does not work.

• Check the connection between this unit and iPod/iPhone.

• Detach and reset the iPod/iPhone using hard reset.

If you still have troubles, reset the unit. ( 3)

• The unit can only be used with a 12V DC power supply, negative ground.

• Disconnect the battery’s negative terminal before wiring and mounting.

• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire

(black) to prevent a short circuit.

• Insulate unconnected wires with vinyl tape to prevent a short circuit.

• Be sure to ground this unit to the car’s chassis again after installation.

• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during

and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

• Do not connect the

wires of speakers to the car chassis or Ground wire (black), or connect

• Connect speakers with a maximum power of more than 50W. If the maximum power of

the speakers is lower than 50W, change the

setting to avoid damaging the

• Mount the unit at an angle of less than 30º.

• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red)

to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned

on and off by the ignition key.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are

• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old

fuse with one that has the same rating.

Remove the key from the ignition switch, then disconnect the

terminal of the car battery.

2 Connect the wires properly.

See Wiring connection.

3 Install the unit to your car.

See Installing the unit (in-dash mounting).

4 Connect the terminal of the car battery.

Book Size: B6L (182 mm x 128 mm)

Installing the unit (in-dash mounting)

How to remove the unit

INSTALLATION / CONNECTION Part list for installation

Do the required wiring.

Bend the appropriate tabs to

hold the sleeve firmly in place.

When installing without the mounting sleeve

Use only the specified screws. Using wrong screws might damage the unit.

removed from the car

If there is an interfering tab on the

mounting bracket, bend it flat.

* Screw removed from the

Remote wire (not supplied)

To Blue/white wire of the

A custom wiring harness (separately purchased)

which is suitable for your car is recommended for connection.

If your car does NOT have an ISO terminal

* Custom wiring harness (separately purchased)

For some VW/Audi or Opel (Vauxhall) automobiles

You may need to modify the wiring of the supplied

If the unit does not turn on with modified wiring 1, use

A8 Black : Earth (ground) connection

: Rear speaker (right)

: Front speaker (right)

: Front speaker (left)

: Rear speaker (left)

Maximum Supply Current DC5V

1A MP3 Decode Compliant with MPEG-1/2 Audio Layer-3

WMA Decode Compliant with Windows Media Audio

WAV Decode Linear-PCM Auxiliary

(DIN 45324, +B = 14.4 V)

Subject to change without notice.

TUNER FM Frequency Range 87.5MHz to 108.0MHz (50kHz step)

Usable Sensitivity (S/N=26dB) 0.71μV/75Ω

Quieting Sensitivity

Frequency Response (±3dB) 30Hz to 15kHz

Signal-to-Noise Ratio (MONO) 64dB Stereo Separation (1kHz) 40dB AM Frequency Range MW 531kHz to 1611kHz (9kHz step)

LW 153kHz to 279kHz (9kHz step)

Usable Sensitivity (S/N=20dB) MW 28.2μV LW 50μV CD player

Digital Filter 8 times over sampling

Wow & Flutter Below measurable limit

Frequency Response (±1dB) 20 Hz — 20 kHz

Total Harmonic Distortion (1 kHz) 0.01 %

Signal-to-Noise Ratio (1 kHz) 105 dB Dynamic Range 90 dB Channel Separation 85 dB MP3 Decode Compliant with MPEG-1/2 Audio Layer-3

WMA Decode Compliant with Windows Media Audio

JS_JVC_KW-R710_E_01_EN.indd 17JS_JVC_KW-R710_E_01_EN.indd 17 11/13/2013 10:24:15 AM11/13/2013 10:24:15 AM2 Data Size: B6L (182 mm x 128 mm)Book Size: B6L (182 mm x 128 mm)

MP3: 48kHz, 44,1kHz, 32kHz, 24kHz, 22,05kHz, 16kHz, 12kHz,

- iPod touch (1st, 2nd, 3rd, 4th et 5th generation)

- iPod nano (3rd, 4th, 5th, 6th et 7th generation)

© 2013 JVC KENWOOD Corporation

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been

designed to connect specifically to iPod, or iPhone, respectively, and has been certified

by the developer to meet Apple performance standards. Apple is not responsible for the

operation of this device or its compliance with safety and regulatory standards. Please

note that the use of this accessory with iPod or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc.,

registered in the U.S. and other countries.

• Lightning is a trademark of Apple Inc.

• Android is trademark of Google Inc.

JS_JVC_KW-R710_E_C001A.indd 2JS_JVC_KW-R710_E_C001A.indd 2 12/4/2013 10:11:06 AM12/4/2013 10:11:06 AM
