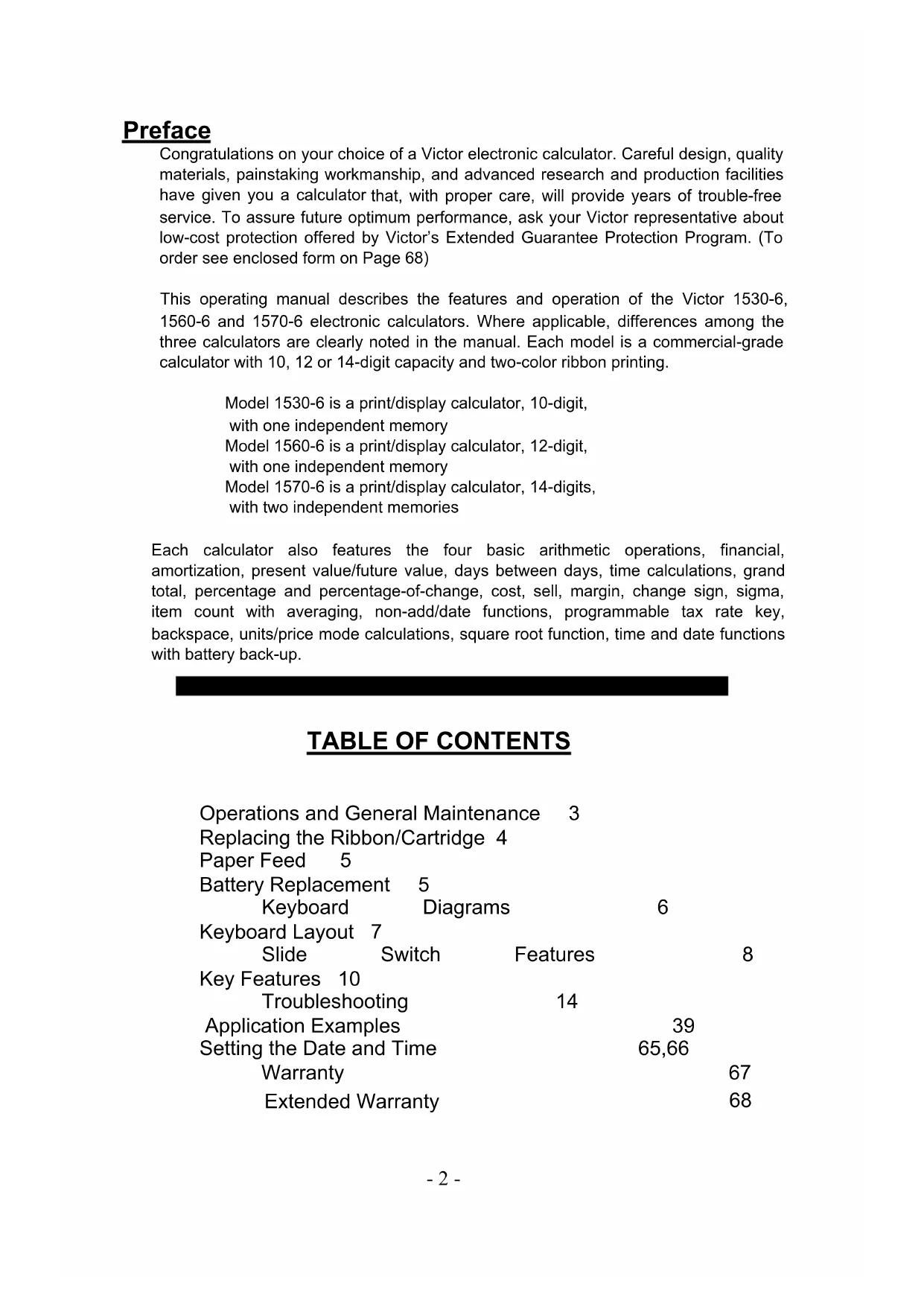

- 1 -Preface Congratulations on your choice of a Victor electronic calculator. Careful design, quality materials, painstaking workmanship, and advanced research and production facilities have given you a calculator that, with proper care, will provide years of trouble-free service. To assure future optimum performance, ask your Victor representative about low-cost protection offered by Victor’s Extended Guarantee Protection Program. (To order see enclosed form on Page 68) This operating manual describes the features and operation of the Victor 1530-6, 1560-6 and 1570-6 electronic calculators. Where applicable, differences among the three calculators are clearly noted in the manual. Each model is a commercial-grade calculator with 10, 12 or 14-digit capacity and two-color ribbon printing. Model 1530-6 is a print/display calculator, 10-digit, with one independent memory Model 1560-6 is a print/display calculator, 12-digit, with one independent memory Model 1570-6 is a print/display calculator, 14-digits, with two independent memories Each calculator also features the four basic arithmetic operations, financial, amortization, present value/future value, days between days, time calculations, grand total, percentage and percentage-of-change, cost, sell, margin, change sign, sigma, item count with averaging, non-add/date functions, programmable tax rate key, backspace, units/price mode calculations, square root function, time and date functions with battery back-up.

Operations and General Maintenance 3 Replacing the Ribbon/Cartridge 4 Paper Feed 5 Battery Replacement 5 Keyboard Diagrams 6 Keyboard Layout 7 Slide Switch Features 8 Key Features 10 Troubleshooting 14 Application Examples 39 Setting the Date and Time 65,66 Warranty 67 Extended Warranty

- Please remove the shipping-cushion placed on the ribbon and check the rating label on the bottom to see if the rated voltage corresponds to the local voltage before plugging in the AC cord. Note: Ribbon cushion is located under printer cover.

Before start using the calculator, please remove the insulation paper below the backup battery.

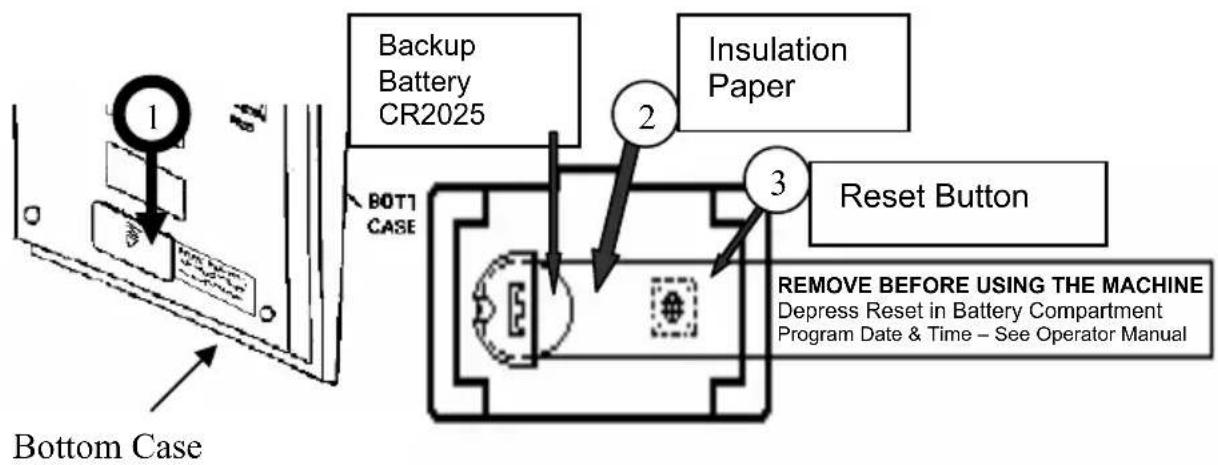

1. Turn the AC power switch OFF and remove the battery compartment cover

located on the bottom case.

2. Remove the insulation paper located below the backup battery.

3. PRESS THE RESET SWITCH.

4. Replace the battery compartment cover.

5. Turn ON the AC power switch.

6. Program the date and time according to the instruction manual.

1. Do not place the machine in hot, dusty or damp locations.

2. To clean the housing use a silicon-treated cloth. Do not use water or detergents.

3. Do not place anything on the housing, particularly on the head of the printer

4. Turn off the power switch before removing the plug from AC wall outlet.

5. Turn the power switch off while not in use.

Your calculator is shipped with a 2-color ribbon already in place. You do not need to install or change it before you begin using the calculator. When you have been using your calculator for some time, however, the print will gradually become faint, indicating that you should change the ribbon. To change the ribbon, follow these steps.

1. Remove paper roll, tearing paper at rear of calculator. Use the Paper Advance

key to feed the remaining paper tape through the printer. Then remove the printer cover.

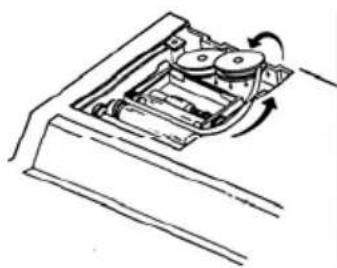

2. Remove the old ribbon by pulling upward.

3. Install the ribbon spool with the black edge up. Roll from the outside of the full spool

and place the first spool on the spindle not engaged by the lever. Thread the new ribbon along the outside of the guides and in front of the print wheels. Switch the lever to the other side and replace the second spool.

4. Rotate the spools to take up any slack. Replace the printer cover and the paper tape.

(Replace with Victor Ribbon #7010)

REPLACING WITH CARTRIDGE

RIBBON You have the option to use a cartridge ribbon in this model.

1. Remove paper roll, tearing paper at rear of calculator. Use the Paper Advance (↑)

key to feed the remaining paper tape through the printer. Then remove the printer cover.

2. Remove the old ribbon/cartridge by pulling upward

3. Install the new cartridge by pressing it down with the VICTOR logo facing up, as

4. Replace the printer cover and the paper tape. (Replace with VICTOR cartridge

1. Put the new paper roll on the paper arm.

2. Insert the paper into the slot as indicated.

3. Depress the paper feed key.

2. Remove - the battery

compartment cover located on the calculator bottom case.

3. Remove the old battery and

6. Replace the battery compartment

7. Reprogram the date and time.

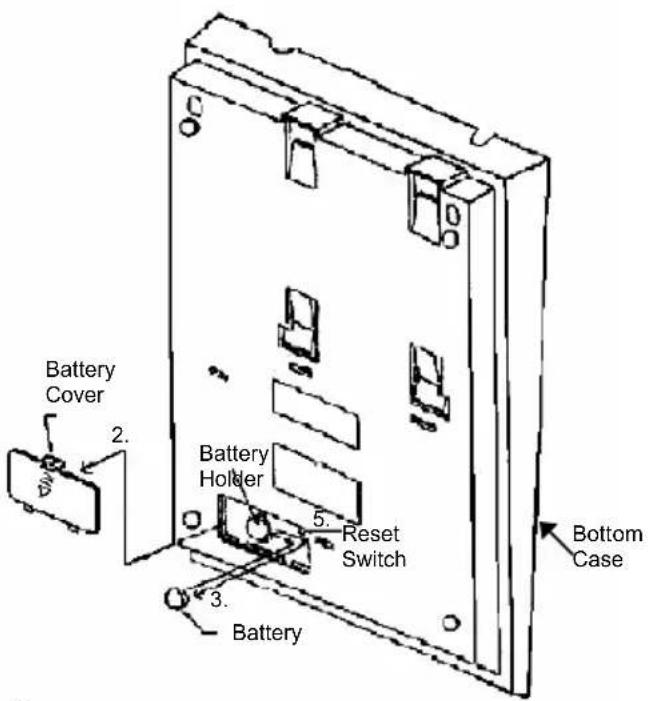

Battery Cover Battery Reset Switch Bott Case

CAUTION Danger of explosion if battery is incorrectly replaced. Only replace with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturers’ instructions.Model 1570-6 Keyboard Layout

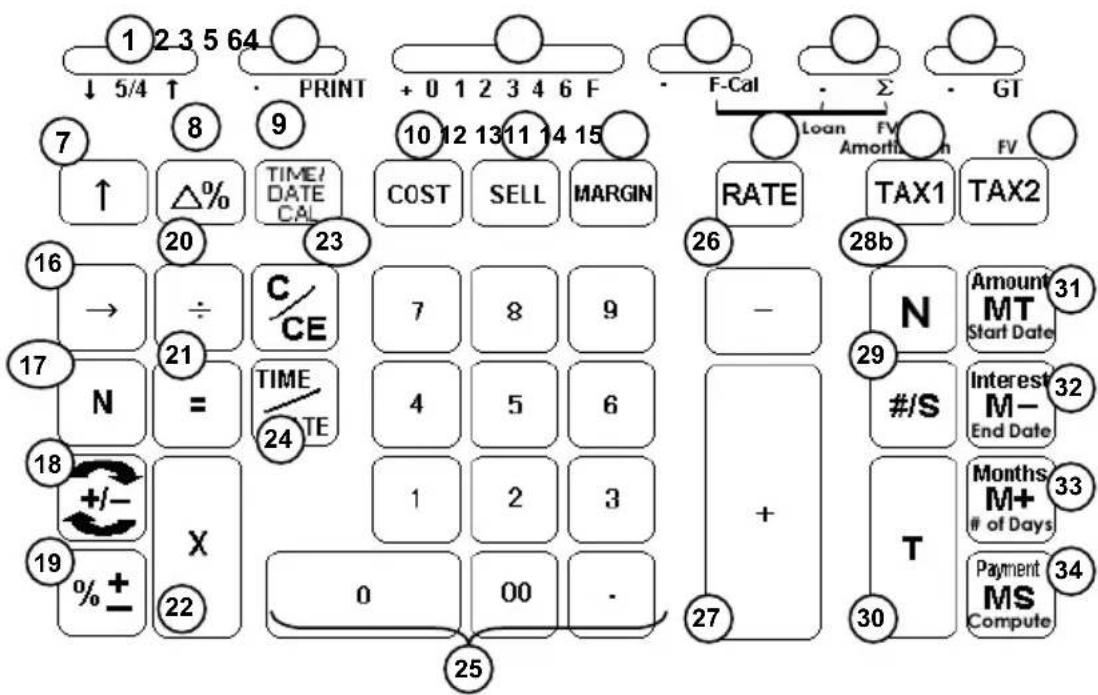

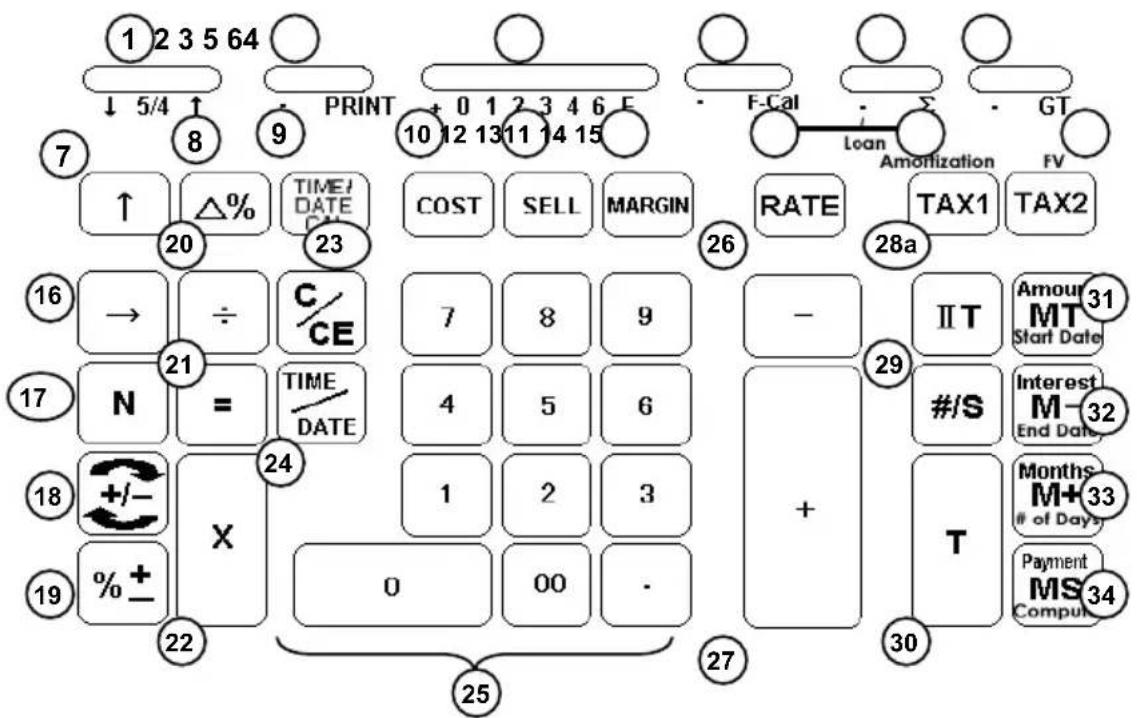

Model 1560-6 and 1530-6 Keyboard Layout

34KEYBOARD LAYOUT This section describes the mode switches, data entry keys, and operating keys provided on your calculator. The following terms are used in discussing your calculator’s operation:

5. Sigma/Loan and FV Switch 23a. Clear / Clear Entry

11. Sell 28b. Item Count

of Days 17a. Item Count 34. Memory Subtotal / Payment/Compute

• The accumulator is the area of the calculator’s logic that stores a running total of the results of addition and subtraction operations. It is the “adding machine” portion of the calculator.

• The calculating register is the area of the calculator’s logic where the intermediate and final results of multiplication, division and percentage calculations are stored. The contents of the calculating register do not affect the accumulator.

• The keyboard register is the area of the calculators logic that stores the value that will immediately be used in the next calculation.

• The item count register is the area of the calculator’s logic that counts your entries into the accumulator. Each positive entry is counted as one item. Each Negative entry is subtracted resulting in a net item count. It is also net or gross programmable.

• The memory register is the area of the calculator’s logic that accumulates amounts you add to or subtract from the memory. Because the memory register is - 7 -- 8 - independent of the accumulator and the calculating register, it retains its value until you clear it with the Memory Total (MT) key.

SLIDE SWITCH FEATURES

This section illustrates and describes the mode switches you can use to control your calculator’s operation.

Decimal Rounding Selector

This causes automatic round down (truncation). 5/4 This setting causes automatic round off. If the last digit of the result that will be printed or printed/displayed upon rounding is followed by a value of 0 to 4, the digit is unchanged. If the last digit of the result that will be printed or printed/displayed upon rounding is followed by a value of 5 to 9, the digit is rounded up. ↑ This setting causes automatic round up

2. • PRINT Printer Select Switch

(Non-print) Printer is activated only when feed key or non-add/date key is pressed. PRINT Printer is activated as long as calculator is turned on.

Monetary Add Mode: At this setting, amounts entered are assumed to be monetary. The calculator automatically supplies a decimal point to the left of the last two digits entered. Use this setting to add, subtract, multiply and divide decimals. Units/price mode operation: Multiplication: The first factor will be entered as a whole number and the second factor will have a decimal point supplied to the left of the last two digits. Division: The first factor will have a decimal point supplied to the left of the last two digits and the second factor will be entered as a whole number. 0,1,2,3,4,6 Fixed decimal point mode; these settings specify the number of digits to the right of the decimal point that are shown in the result. F Floating decimal point mode; this setting specifies that all digits of the result are shown, up to a maximum of 10 on model 1530-6, and 12 on model 1560-6 and 14 on model 1570-6. If the result exceeds these capacities, excess digits to the right of the decimal point are dropped. No rounding takes place.

F-Cal Tax 1 key change to Amortization keyTax 2 Key change to FV key Memory Total key change to Amount key Memory Minus key change to Interest key Memory Plus key change to Months key Memory Subtotal key change to Payment key Note: Cost-Sell-Margin is disabled when in this mode.

5. • ∑/Loan FV Sigma/Loan and Futre Value Switch

F-Cal=Off • work as Sigma off ∑ work as Sigma on

F-Cal = ON • work as Loan ∑ work as FV

When the Sigma switch is in the “∑” position, the results of multiplication or division calculations completed by the = or % key are automatically added to the accumulator.

• When the Sigma switch is in this position, the results of these calculations are not added to the accumulator. The sum of these accumulations is displayed by depressing the Subtotal key and are displayed and cleared by depressing the Total key. (Sigma On) ma Off) (Sig Loan Basic Financial Calculation FV Calculation for Future Value

6. • GT Grand Total Switch

• Calculation without Grand Total GT 1570-6: Any total taken with T key is automatically accumulated to Grand Total memory. The accumulated grand total can be recalled by pressing the IIT key then the T key. 1560-6 & 1530-6: Any total taken with T key is automatically accumulated to memory. The accumulated grand total can be recalled by pressing the MT key. NOTE: For model 1560-6 and 1530-6, when F-Cal switch is ON, Grand Total is inaccessible because MT is Amount Key.

Paper Feed Key Advance the paper roll.

8. [∆%] Delta Percentage

Automatically compares any two amounts and then calculates and prints the difference and percent of change.

9. [TIME/DATE CAL] Time/DATE Calculation Key

Pressing this key once will set the calculator to Time Mode. +, -, S and T will be calculated and displayed in Time Mode (hours, minutes). A second depression will set the calculator and display to Date Mode - 9 -- 10 - (MM-DD-YYYY). In Date mode, MT key changes to Start Date key, M- key changes to End Date key, M+ key changes to Number of Days key and MS key changes to Compute key.

Used to enter the Cost factor in a Gross Profit Margin calculation.

Used to enter the Selling price in a Gross Profit Margin calculation.

12. [MARGIN] Margin Key

Used to enter the desired Margin in a Gross Profit Margin calculation.

13. [RATE] TAX Rate Preset Key

Used to enter TAX rate.

14. [TAX 1/Amortication] Tax 1/Amoritization Key (dual operation)

Tax 1: Calculate an amount of tax with tax rate preset by RATE key. Use + key for calculating an amount including VAT, and – key for calculating an amount excluding VAT. Amortization: Prints the amortization schedule for a period, selected range of periods or the complete term of the loan.

15. [TAX 2/FV] Tax 2/Future Value Key (dual operation)

Tax 2: Calculate an amount of tax with tax rate preset by RATE key. Use + key for calculating an amount including VAT, and – key for calculating an amount excluding VAT. FV: If this key is pressed after 10-key input, it means enter the value as FV. If Amount, Interest, Months and Payment are entered in prior, or modification is done on any of the three as above in prior, user can calculate/recalculate the FV by pressing this key.

16. [→] Right Shift Key

Deletes right most character of a live entry. 17a. [N] Item Count Key Model 1570-6 Calculations with item count and/or averaging. Also used to set the N count to Gross or Net.

18. [+/-] Sign Change Key

Reverse the sign on the display.

19. [%+] Percent Key

Completes percent calculation when Multiple or Division key is used.

20. [÷] Division Key

The Division key performs division, automatic constant division and intermediate sequential operations. It establishes the next amount as a constant divisor. The ÷ key also causes the calculator to divide when- 11 - you depress the =, %, M+, M-, X or ÷ key. Each divisor entry is retained as a constant (except M+ and M- entries) until you depress the X, ÷ or Clear.

To get the result in multiplication or division.

22. [X] Multiplication Key

The multiplication key performs multiplication, automatic constant multiplication and intermediate sequential operations. It establishes the amount entered or the prervious printed or printed/displayed amount as a constant multiplicand. The X key also causes the calculator to multiply when you depress the =, %, M+, M-, X or ÷ key. Each multiplicand entry is retained as a constant (except M+ and M- entries) until you depress the X, ÷, or Clear. 23a. [C/CE] Clear / Clear Entry Key Model 1570-6 Clears a live entry by pressing this key once. Press twice to clear the accumulator or pending calculation. Does not clear the Memory or Grand total. 23b. [CE] Clear Entry Model 1560-6 & 1530-6 Clears a live entry.

24. [TIME/DATE] Time and Date Display Key

Used to display or program the date and time. Depressing this key once will cause the date to display, a second depression will display the time. Holding the key down for three seconds will cause the date or time to flash, this is the program mode.

25. [0]-[9], [00] & [•] Numeric Keys

The calculator uses the conventional 10-key indexing keyboard, and includes the double zero key and decimal point key. Whole numbers are entered exactly as they are written.

Subtracts an amount from the accumulator. To subtract the same amount more than one time (repeat subtraction), enter that amount once and depress the Minus key as many times as necessary. If this key is depressed immediately after [%] key, it works as percent minus key.

Adds an amount to the accumulator. To add the same amount more than one time (repeat addition), enter that amount once and depress the Plus key as many times as necessary. If this key is depressed immediately after [%] key, it works as percent plus key. 28a. [IIT] Memory II Selector Key Model 1570-6- 12 - Calculation on memory II by press Memory II key follow by plus, minus, subtotal or total key. 28b. [N] Item Count Key Model 1560-6 & 1530-6 Calculations with item count and/or averaging. Also used to set the N count to Gross or Net.

It will print live entry as an identifier as an invoice number with “#” mark. S : It prints but does not clear the accumulator.

Prints and clears the accumulator. When this key is pressed with the “GT” switch is on, the result is accumulated automatically in the memory register.

31. [MT / Amount/Start Date] Memory Total Key / Amount Start Date (Dual

Operation) MT: Prints and clears the memory. Amount: When you are in Financial Mode and this key is used to enter the principal amount of the loan. However, if Interest, Month, and Payment have previously been entered this key will produce the principal amount. Start Date: Used to enter start date. Entry must follow format (MM-DD-YYY)

32. [M- / Interest/End Date] Memory Minus Key / Interest /End Date (Dual

Operation) M-: Subtracts an amount from memory. If there is a live calculation pending, the Memory Minus key will complete the calculation and subtract the amount from Memory. Interest: This key will enter the 10-key input value as Loan Interest. Loan Interest must be entered in order to do any financial calculation. Therefore, this key will only be able to use for recall Loan Interest, or enter the 10-key value. End Date: Used to enter end date. Entry must follow (MM-DD-YYYY)

33. [M+ / Months/ # of Days] Memory Plus Key / Months/# of days (Dual

Operation) M+: Adds an amount to memory. If there is a live calculation pending, the Memory plus key will complete the calculation and accumulate the result to Memory.- 13 - Months: If this key is pressed after 10-key input, it is means enter the value as Number of Months to settle the Loan. If Amount, Interest, and Payment are entered in prior, or modification is done on any of the three as above in prior, user can calculate / recalculate the Number of Months # of Days: Used to calculate two different dates. If days is not change sign that is calculate future date. If days is change sign that is calculate past date.

34. [MS / Payment/Compute] Memory Subtotal Key / Payment/Compute

(Dual Operation) MS: Prints but do not clear the memory. Payment: If this key is pressed after 10-key input, it is means enter the value as Payment. If Amount, Interest, and Months are entered in prior, or modification is done on any of the three as above in prior, user can calculate / recalculate the Payment by press this key. Compute: Calculate days between dates, future date and past date

35. [÷], [=] R Square Root

By depressing the ÷ and then the = key the square root result will be achieved.- 14 - Troubleshooting

Many problems such as no power, no key response tec. Can be resolved using the RESET button. Please follow these instructions:

1. Machine must be plugged in and ON, and in the PRINT mode.

2. Turn machine over so you can see the battery compartment.

3. Open the battery compartment and locate the RESET button located next to the

4. Depress the RESET button; you will hear the machine cycle. If you do not hear

5. Replaced the battery compartment cover and turn the machine right side up.

6. Test the machine.

If this procedure has not successfully resolved your problem please call 800-628-2420 for further assistance.

English – Spanish – French

1. Backspace – Retroceso – Rappel Arriére

Rounding Print Decimal F-Cal

2. Rounding for Addition/Subtraction – Redondeo para

Rounding Print Decimal F-Cal

Rounding Print Decimal F-Cal

Soustraction Rounding Print Decimal F-Cal

Rounding Print Decimal F-Cal

Gross Item Count [+]

6. (B) Addition/Subtraction with Item Count in Net Setting

0. C6. (C) Item Count with Averaging

Rounding Print Decimal F-Cal

A. Model 1570-6 Rounding Print Decimal F-Cal

8. Repetitive Calculation with Reference to Date

Rounding Print Decimal F-Cal

Rounding Print Decimal F-Cal

10. Sequential (Chain) Multiplication

Rounding Print Decimal F-Cal

Rounding Print Decimal F-Cal

12. Constant Multiplication with Accumulation

Rounding Print Decimal F-Cal

$1.79 x 167 = $298.93 1.79 1.79

Rounding Print Decimal F-Cal

constante Rounding Print Decimal F-Cal

Rounding Print Decimal F-Cal

Rounding Print Decimal F-Cal

Rounding Print Decimal F-Cal

Preset TAX 2 = 18.6%

Price without TAX 1 =261.56 [C/CE] or [C]

Prix sans taxe Price with TAX 2 = ? [+]

Prix sans taxe VAT including TAX 1 and TAX 2 200 [TAX 1]

Price Excluding TAX 1 and TAX 2 [TAX 1]

Rounding Print Decimal F-Cal

Rounding Print Decimal F-Cal

$23.15 less 15/10/5% = $16.82 Net

Total Amount of Discount $6.33 [M+]

$23.15 menos 15/10/5% = $16.82 neto

$23.15 moins 15/10/5% = $16.82 net [X]

Percent of Change 116.67% [=] or

Rounding Print Decimal F-Cal

210,000.00 = 85,000.00 ∆∗

Last Year’s Expense $125,000 125000 125,000. This Year’s Expense $175,000 [∆%] 125,000.00 Next Year’s Expense $210,000 175000 175,000. Percent of Change

Amount of Difference

Rounding Print Decimal F-Cal

[MARGIN] 100. Vente =125, Marge=20%, Cout =?

25. Square Root – You can use the ÷ and = keys to calculate square

Rounding Print Decimal F-Cal

Item Cost $ 100.00 100.00 [COST] 100.00 Markdown (Percent) 6.5 % (Based on to be determined selling price)

Rounding Print Decimal F-Cal

Rounding Print Decimal F-Cal

Rounding Print Decimal F-Cal

Rounding Print Decimal F-Cal

- 65 -32. Date Calculation – The TIME/DATE CAL key is used to enter and exit the time and date calculation mode. Rounding Print Decimal F-Cal

5/4 P 2 . . . To activate date function depress the [TIME/DATE CAL] key twice. In date mode: [MT] key changed to [Start Date] key [M-] key changed to [End Date] key [M+] key changed to [# of Days] key [MS] key changed to [Compute] key Example: Compute the number of days between 25-May-2005 and 30-May-2005 Problem Enter Display Paper Problema Apriete Desplegado Papel Problème Appuyer Sur Afficher Bande [TIME/DATE CAL] [TIME/DATE CAL] 00-00-0000

00 00 C 00 00 0000 C

Rounding Print Decimal F-Cal Loan/FV GT 5/4 P 2 F-Cal Loan • .

Payment changed to 600 months ? 600 [Payment]

(continue print until 180 months) (months) (Payment Amount) (Principle Applied) (Interest Paid) (Accumulated Interest Paid) (New Balance) 100,000.00∆

(Print schedule for months 12 through and including 24)

FV Changed to $100000.00 100000 [FV] 100,000.00 Payment ? [Payment] 1,720.37 10,000.00 ∆

1. Depress the C or C/CE key.Your display with show 0. and the tape will read 0.C.

2. Depress the TIME/DATE key and hold until the display is flashing.

6. Tap the TIME/DATE key to set the DATE. Your display will now show 09-14-2005.

7. To PRINT the DATE, depress the (#/S) key, your tape will show # 9.14.2005.

NOTE: The only key to enter the Date/Time display mode is the TIME/DATE key. The only key to exit the Time/Date display mode is the C or CE key and the C/CE key on the Model 1570-6.

3. Tap TIME/DATE key to switch to Time Mode Flashing Numbers in This Format – HH-MM-SS

1. Depress the C or C/CE key. Your display with show 0. and the tape will read 0.C.

2. Depress the TIME/DATE key and hold until the display is flashing.

3. Tap the TIME/DATE key to go to Time Mode. 4. Enter the hour, in our example 16 in military time. Your display will show 16. 5. Enter the minutes, in our example 37. Your display will show 1637.

6. Tap the TIME/DATE key to set the TIME. Your display will now show P 04-37-00 and the

seconds will begin counting.

7. To PRINT the TIME, depress the (#/S) key, your tape will show #

ONLY $25.00 Act now and extend your VICTOR warranty for another full year! Covers all parts and labor. Name: ________________________________ Date: __________________ Address: ______________________________________________________ City: ___________________________ State: _______ Zip: _____________ To receive repair coverage on your VICTOR calculator for one full year from expiration of VICTOR’S 3 year warranty, enclose this form and proof of purchase (invoice) showing your name, complete address, model and serial number along with your check or money order for $25.00 payable to: Victor Technology, Attn: Extended Warranty Dept., 780 West Belden, Addison, IL 60101. VICTOR will acknowledge receipt, send you an authorized coverage agreement, and provide the address of the authorized VICTOR Regional Service Center nearest you. Repair necessitated by accident or abuse is excluded. If repairs are needed during the coverage period, ship your VICTOR calculator to the nearest authorized VICTOR Regional Service Center, freight PREPAID. It will be promptly repaired and returned to you freight prepaid. Retain packing box and materials. Offer void 30 days after Purchase.

Dimensions: 31.75cm L x 21.59cm l x 6.35 cm H

Weight: 4.1 lbs, 1.86kg Peso: 1.86kg Poids: 1.86kg This information is furnished to comply with FCC requirements This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in accordance with the manufacturer’s instructions, may cause interference to radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specifications in Subpart j of Part 15 of FCC Rules, which are disigned to provide reasonable protection against such interference in a residential installation. However, there is not guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient the receiving antenna.

• Relocate the computing device with respect to the receiver.

• Move the computing device away from the receiver.

• Plug the computing device into a different outlet so that the computing device and receiver are on different branch circuits.

If necessary, the user should consult the dealer or experienced radio/television technician for additional suggestions. The user may find the folwing booklet prepared by the Federal Communications Commission helpful: How to Identify and Resolve Radio-TV Interference Problems This booklet is available from the U.S. Government Printing office, Washington, DC 20402, Stock No. 004-000-00345-4. To assure future optimum performance use genuine VICTOR replacement ribbons. Contact you local VICTOR dealer or call our Customer Service Department at 800-628-2420 to place an order.Corporate Office And National Service Office VICTOR TECHNOLOGY 780 W. Belden Avenue Addison, IL 60101 Phone: [phone] Fax: [phone] www.victortech.com
