USER MANUAL HappyLight 6000 Verilux

Energy Lamp. You have received an innovative and quality manufactured product, backed by a one-year limited warranty. This product brings Natural Spectrum

• Daylight into your home or office. Many other healthy lighting products are available through our catalog and online. Visit us on the web at www.verilux.com to request a free catalog and learn more about all our quality Verilux products, or call our toll-free number 1-800-454-4408. As a Verilux customer, your satisfaction means everything to us. We look forward to serving you now and in the future. Have a Bright Day! Nicholas Harmon President, Verilux, Inc.3 Important Safeguards p. 4
• Features p. 5
• Device Pretest p. 5
• Operation p. 6
• Selecting a Location p. 6
• Instructions for Use p. 6
• Recommended Usage p. 7
• Bulb Removal and Replacement p. 8
• Re-installing Bulb and Plastic Diffuser p. 9
• Troubleshooting p. 10
• Care and Cleaning p. 10
• Technical Specifications p. 11
• Warranty Contents4 p. 12

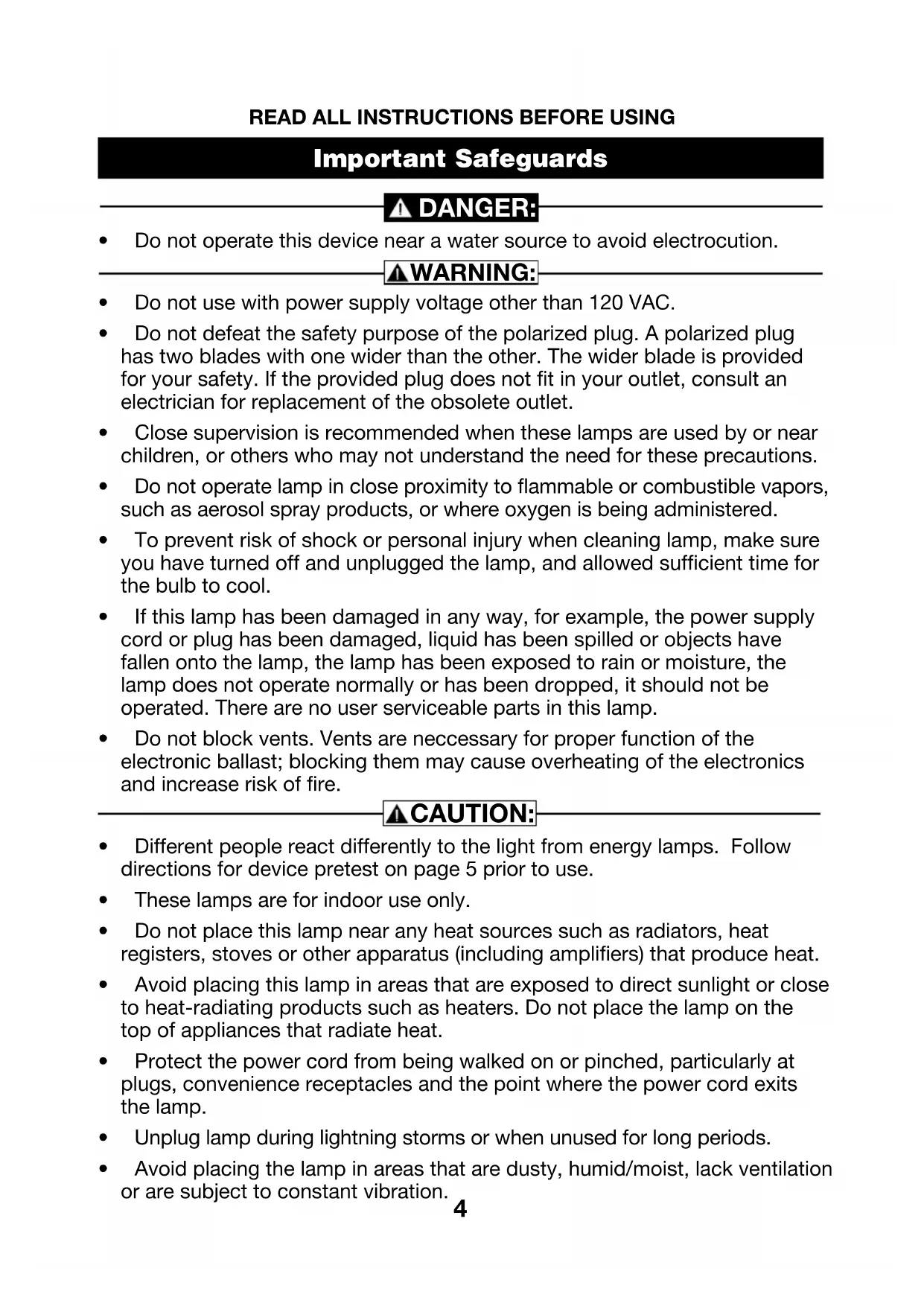

• Donotdefeatthesafetypurposeofthepolarizedplug.Apolarizedplug has two blades with one wider than the other. The wider blade is provided for your safety. If the provided plug does not fit in your outlet, consult an electrician for replacement of the obsolete outlet.

• Closesupervisionisrecommendedwhentheselampsareusedbyornear children, or others who may not understand the need for these precautions.

• Donotoperatelampincloseproximitytoflammableorcombustiblevapors, such as aerosol spray products, or where oxygen is being administered.

• Topreventriskofshockorpersonalinjurywhencleaninglamp,makesure you have turned off and unplugged the lamp, and allowed sufficient time for the bulb to cool.

• Ifthislamphasbeendamagedinanyway,forexample,thepowersupply cordorplughasbeendamaged,liquidhasbeenspilledorobjectshave fallen onto the lamp, the lamp has been exposed to rain or moisture, the lamp does not operate normally or has been dropped, it should not be operated. There are no user serviceable parts in this lamp.

• Donotblockvents.Ventsareneccessaryforproperfunctionofthe electronic ballast; blocking them may cause overheating of the electronics and increase risk of fire.

• Differentpeoplereactdifferentlytothelightfromenergylamps.Follow directions for device pretest on page 5 prior to use.

• Theselampsareforindooruseonly.

• Donotplacethislampnearanyheatsourcessuchasradiators,heat registers, stoves or other apparatus (including amplifiers) that produce heat.

• Avoidplacingthislampinareasthatareexposedtodirectsunlightorclose to heat-radiating products such as heaters. Do not place the lamp on the top of appliances that radiate heat.

• Protectthepowercordfrombeingwalkedonorpinched,particularlyat plugs, convenience receptacles and the point where the power cord exits the lamp.

• Unpluglampduringlightningstormsorwhenunusedforlongperiods.

Energy Lamp is a remarkable product with many features and benefits:

Daylight to your home, office, dorm room or apartment with no dangerous ultraviolet (UV) wavelengths.

• Includesbest-in-classpowersystemwithelectronicballastandpatented Flicker Elimination Technology

to assure no-buzz operation and instant-on, flicker-freeillumination. To help determine if user has sensitivity to light treatment it is recommended that the user perform this pretest upon first use of this device: Step 1 - Place the lamp about 18 inches from your face and turn it on (do not look directly into the lamp). Step 2 - Operate lamp for approximately 10 minutes and turn it off. If any discomfort is felt, discontinue use of the lamp and consult a doctor. If no discomfort is felt, for subsequent use, the user may want to gradually decrease the distance from the face and increase time used which results in increased lamp intensity for maximum effect. The user should determine if any discomfort is felt after each use and make only incremental changes to the time used and location with each session. Features Device Pretest — continued CAUTION:

Operation Instructions for Use Use consists of sitting close to the HappyLight Energy Lamp with your eyes open. While staying oriented toward the light, feel free to engage in other activities such as reading, writing, hobbies and crafts, sewing, needlepoint, applying make-up, painting or working at your computer or desk.

1. Turn on the lamp and allow a few

minutes for the bulb to achieve full brightness.

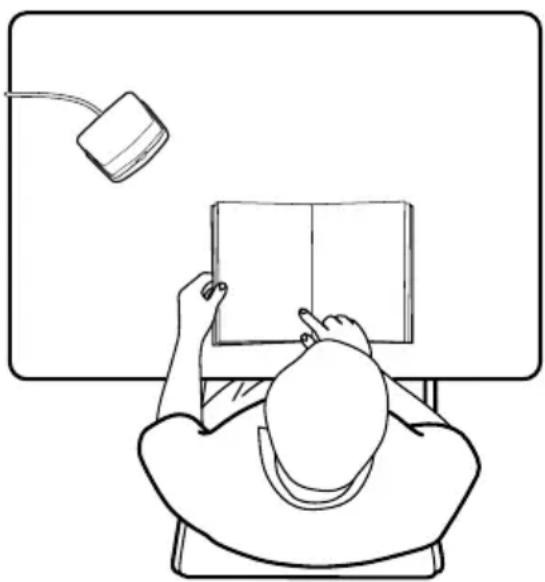

2. The HappyLight Energy Lamp should

be positioned as close as 6 inches, but within 24 inches from your face, and should be slightly offset from center (see diagram). Note: Do not look directly into the lamp.

3. Recommend switching on high setting

for morning and low setting in the afternoon. The light from the HappyLight Energy Lamp must be directed at your eyes; therefore, your eyes must be open to achieve the full benefit. Note: Tinted glasses reduce the amount of light reaching your eyes. When you are feeling sluggish and lethargic, spend more time with the light, sit closer to the light or add more lighting devices to increase the intensity. If you experience edginess, or are over stimulated, move the light further away or reduce usage time. Selecting a Location

• Forbestperformance,placetheHappyLightascloseas6inches,butwithin 24 inches from your face. CAUTION : Avoid placing this lamp in areas that are exposed to direct sunlight or close to heat-radiating products such as heaters. Do not place the lamp on the top of appliances that radiate heat.

Vents are necessary for proper function of the electronic ballast; blocking them may cause overheating of the electronics and increase risk of fire.

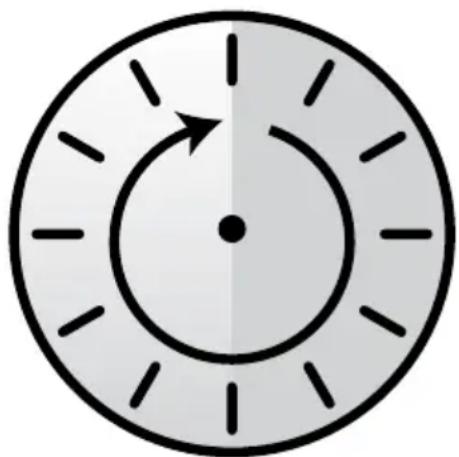

Operation — continuedResearchers at the National Institute of Health demonstrated that white light, inarangeof2,500to10,000LUX(ameasurementoflightintensity),helpedtoreverse the symptoms of “Winter Blues”.Different exposure strategies work for different people. We all have different reactions to our environment. It is important to establish a distance and schedule that is comfortable for you. We recommend you use the light regularly and at about the same time each day. It is not necessary to sit in front of the lamp continuously. You can divide the time into several mini sessions. Continue to use the HappyLight daily to feel an improvement in your mood and activity level.When you are feeling sluggish and lethargic, spend more time with the light, sit closer to the light or add more lighting devices to increase the intensity. If you feel a sort of edginess, as though you have drank too much coffee, then it may be time to turn the unit off.* Recommended exposure time is a function of output and distance. Individual results may vary. Minimum Recommended Usage

uses a bulb manufactured only by Verilux

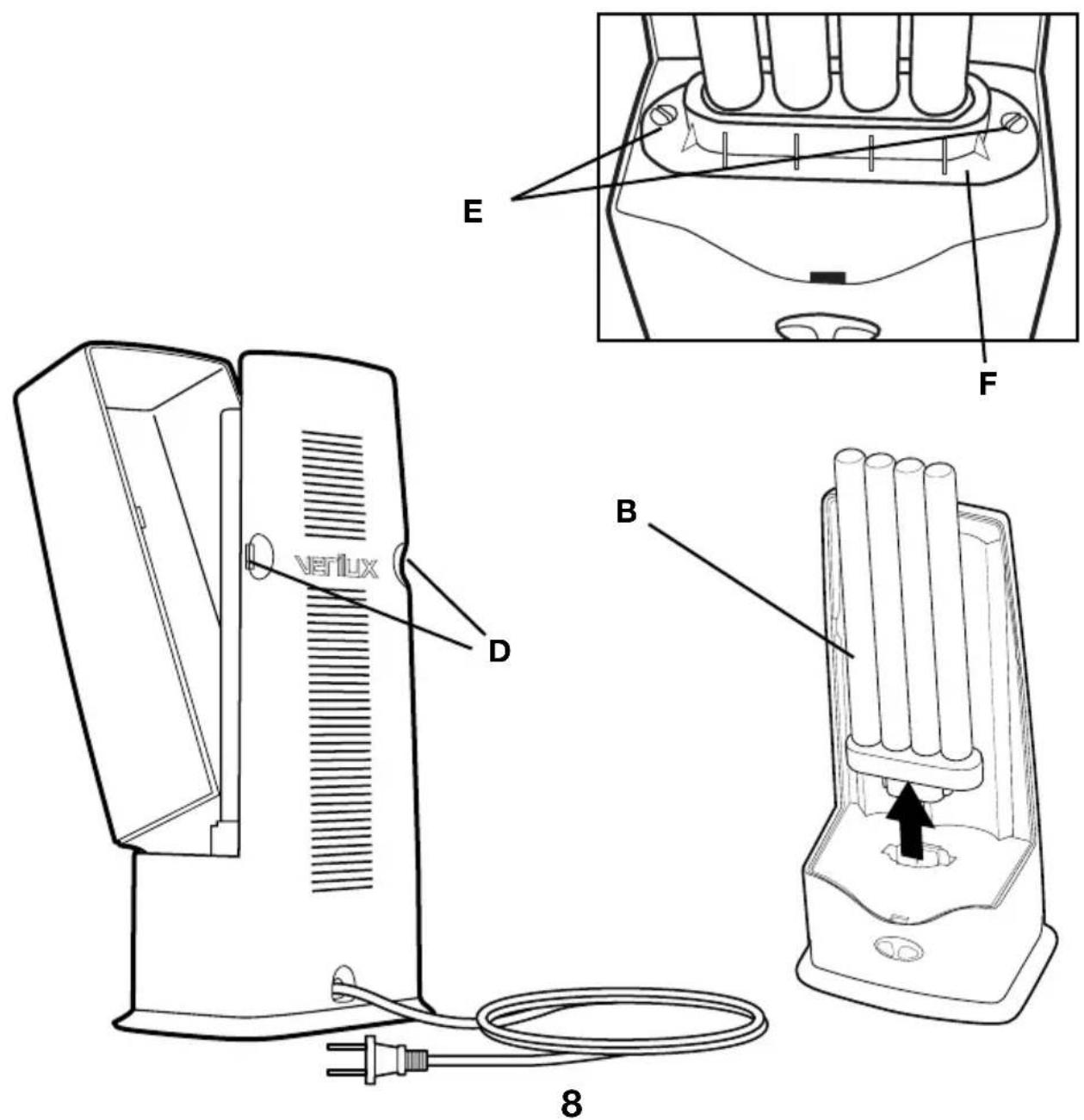

1. Unplug the lamp from power outlet.

2. To access the bulb, remove the plastic diffuser by pressing the tabs (D) and

lifting out the diffuser.

3. Using a standard screwdriver, remove the two screws (E) which secure the

bracket. Remove the bracket (F).

4. Remove the bulb (B) by holding the base and pulling straight up.

Bulb Removal and Replacement

Bulb Removal and Replacement — continued Re-installing Bulb and Plastic Diffuser

1. Insert bulb into lamp by firmly holding bulb base and pushing down until

you hear a “snap” to seat properly.

2. Re-install the bracket using the screws (E) you previously removed.

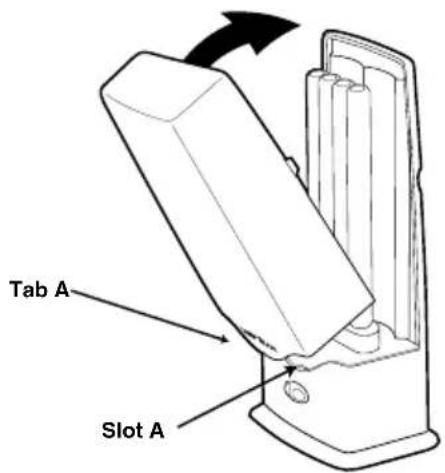

3. To attach the plastic diffuser to the lamp body,

loosely insert Tab A into Slot A.

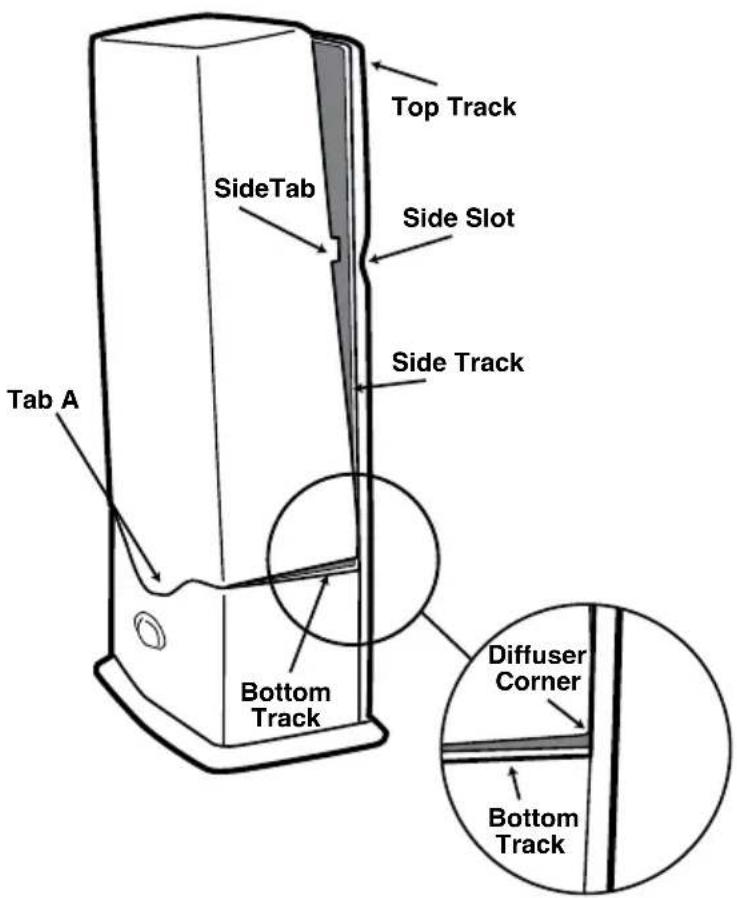

4. Insert one diffuser corner at a time.

5. Work one diffuser corner into the side track and

slide gently down into place into bottom track.

6. Snap side tab into place (side slot). Entire side of

lens should be seated into the track.

7. Repeat for other side of diffuser. Note alignment

of diffuser corner into side track.

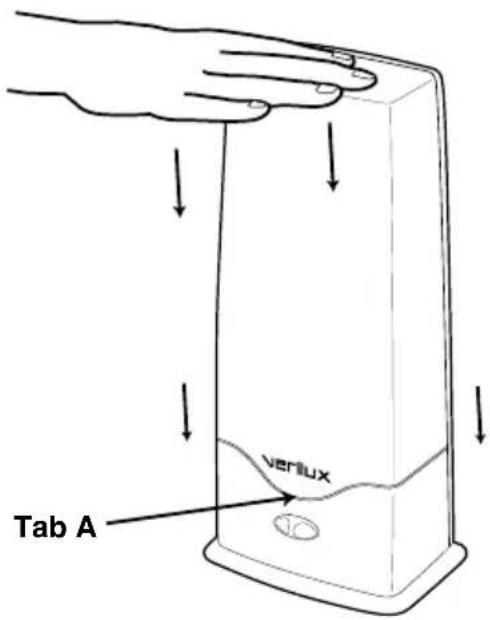

8. Firmly push diffuser down until Tab A snaps into place.

Align top of diffuser in top track as necessary. Slot A Tab A Side Slot SideTab Top Track Side Track Bottom Track Tab A Diffuser Corner Bottom Track Tab A10 Your Verilux lamp is made from high quality materials that will last for many years with a minimum of care. Clean only with a soft dry cloth – DO NOT USE SOLVENTS OR CLEANERS CONTAINING ABRASIVES OR AMMONIA. Care and Cleaning Before requesting service on your Verilux

lamp, please read the following:

PROBLEM CHECK SOLUTION

Light Won’t Come On Blackening/Darkening at Ends of Bulb Light Flickers Has the plug come loose? Is the bulb old? Is the bulb connected securely into socket? Is the bulb new? Is the bulb old? Has the plug come loose? Is the bulb connected securely to the socket? Is the lamp connected to a dimmer switch? Insert plug securely into wall outlet. Check bulb for blackening/darkening at bottom of spiral where it joins the base (an indicator of bulb life) and replace bulb. Be sure the bulb is securely seated into socket, repeat the bulb installation process. Sometimes when a new bulb is turned on for the first time the tube will darken, but this will fade after a few minutes. With older bulbs, darkening of the tube indicates end of bulb life (this doesn’t affect operation except to reduce the amount of light available since the phosphor in that area has become inactive). Bulb replacement is recommended. Insert plug securely into wall outlet. Connect lamp plug only to wall outlet without dimmer switch. Be sure the bulb is securely seated into the socket, repeat the bulb installation process. DISCONNECT LAMP FROM OUTLET PRIOR TO REPEATING THE BULB INSTALLATION PROCESS. CAUTION: Topreventriskofshockorpersonalinjurywhen cleaning lamp, make sure you have turned off and unplugged the lamp, and allow sufficient time for the bulb to cool.

Energy Lamp Environment Operating Temperature: 15°C to 35°C; 56°F to 95°F Storage Temperature: 0°C to 40°C; 32°F to 104°F Relative Humidity: 5% to 95% non-condensing Bulb Replacement bulb: 36 Watt 10,000 hour bulb (replace with Verilux brand only, ModelnumberCFML36VLX) Power Input Power: AC 120V~60Hz UL Listed in Canada and the USA12 VT05F-MAN-Rev12 Printed in China for: Verilux, Inc. © Copyright 2011 Verilux, Inc. All rights reserved. One Year Limited Warranty ATTENTION! ONCE OPENED, PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE WHERE IT WAS PURCHASED FOR REPAIR OR REPLACEMENT! Many questions may be answered by visiting www.verilux.com, or you may call our Customer Service Department at 800-786-6850 during normal business hours. This limited warranty is provided by: Verilux, Inc., 340 Mad River Park, Waitsfield, VT 05673 Verilux warrants this product to be free from defects in material and workmanship for a period of one year from the date of the original retail purchase from Verilux or an authorized Verilux distributor. Proof of purchase is required for all warranty claims. During the limited warranty period, Verilux, Inc. will, at its option, repair or replace defective parts of thisproduct,atnochargetothecustomer,subjecttothefollowinglimitations:Thislimited warranty does not include any postage, freight, handling, insurance or delivery fees. This warranty does not cover damage, defect or failure caused by or resulting from accident, external destruction, alteration, modification, abuse, misuse or misapplication of this product. This warranty does not cover damage to the product resulting from return shipping or handling. The use of shipping insurance is recommended to help protect your product. Return Authorization is required for all returns. To obtain a Return Authorization, please contact the Verilux Customer Service Department at 800-786-6850. If, during the first year of ownership, this product fails to operate properly, it should be returned as specified at www.verilux.com/warrantyreplacement or as instructed by a Verilux customer service representative at 800-786-6850. Note: Verilux recommends using a quality surge suppressor on all electronics equipment. Voltage variations and spikes can damage electronic components in any system. A quality suppressor can eliminate the vast majority of failures attributed to surges and may be purchased at electronics stores. Due to ongoing improvements, actual product may have slight variations from the product described in this manual. Please visit our website at www.verilux.com or call our Customer Service Department at 1-800-786-6850 Representatives are available Monday — Friday, 9am — 5pm EST 340 Mad River Park, Waitsfield, VT 05673Model: VT052 Chère cliente et cher client, Merci d’avoir acheté la lampe d’énergie HappyLight
